CAPA313 3.5” Board
Introduction 1
Chapter 1
Introduction
The CAPA313, a 3.5” board, supports Intel® Pentium® N4200 and Celeron® N3350. It delivers
outstanding system performance through high-bandwidth interfaces, multiple I/O functions for
interactive applications and various embedded computing solutions.
The CAPA313 has one 204-pin unbuffered SO-DIMM socket for single channel DDR3L
1867MHz memory with maximum memory capacity up to 8GB. There are two Gigabit/Fast
Ethernet ports, one SATA port with transfer rate up to 6Gb/s, four USB 3.0 ports, two USB 2.0
ports and built-in HD audio codec that can achieve the best stability and reliability for industrial
applications. Additionally, it provides you with unique embedded features, such as two serial
ports (one RS-232/422/485 and one RS-232) and 3.5” form factor that applies an extensive
array of PC peripherals.
CAPA313 3.5” Board
2 Introduction
1.1 Features
Intel
®
Pentium® quad core N4200 (1.1GHz) and Celeron® dual core N3350 (1.1GHz)
1 DDR3L SO-DIMM supports up to 8GB memory capacity
4 USB 3.0 ports and 2 USB 2.0 ports
PCI-Express Mini Cards
+10V~+24V DC-in supported
1.2 Specifications
CPU
Intel
®
Pentium® quad core N4200 1.1GHz up to 2.5GHz.
Intel
®
Celeron® dual core N3350 1.1GHz up to 2.4GHz.
Thermal Solution
Passive.
Operating Temperature
-20°C~+70°C.
BIOS
American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.
64Mbit SPI Flash, DMI, Plug and Play.
PXE Ethernet Boot ROM.
System Memory
One 204-pin unbuffered DDR3L SO-DIMM socket.
Maximum up to 8GB DDR3L 1867MHz memory capacity.
Onboard Multi I/O
Serial Ports: One RS-232/422/485 and one RS-232.
Serial ATA
One SATA-600 connector.
mSATA supported.
USB Interface
Four USB 3.0 ports on the rear I/O.
Two USB 2.0 ports in 2x5-pin internal wafer connector.
Display
One 2x20-pin connector for 18/24-bit single/dual channel LVDS and one 8-pin
inverter connector. LVDS resolution is up to 1920x1200 in 24-bit dual channels.
One HDMI supports HDMI1.4b. The resolution is up to 3840x2160.
One 15-pin D-Sub as VGA connector. The resolution is up to 1920x1200 (Optional).
Trusted Platform Module (TPM)
Controller: ST ST33HTPH2E32AHA6 via SPI bus interface.
Complies with TPM2.0 main and PC client specification.
CAPA313 3.5” Board
Introduction 3
Watchdog Timer
Timeout value range is 1~65535 seconds.
Ethernet
Two RJ-45 LAN ports: Intel
®
i211AT supports 1000/100/10Mbps Gigabit/Fast
Ethernet with Wake-on-LAN and PXE Boot ROM.
Audio
HD audio compliant with Realtek ALC662.
Line-out and line-in/MIC-in via internal box header.
Expansion Interface
One full-size PCI-Express Mini Card socket complies with PCI-Express Mini Card
Spec. V1.2.
One full-size PCI-Express Mini Card socket with only support USB 2.0.
ZIO Connector
60-pin high speed connector; containing one PCI Express x1, one USB2.0, one LPC
and one SMBus.
Power Input
One 2x2-pin connector.
+12V~+24V DC-in.
Auto power on function supported.
Power Management
ACPI (Advanced Configuration and Power Interface).
Form Factor
3.5” form factor.
Note
All specifications and images are subject to change without notice.
1.3 Utilities Supported
Chipset and graphics driver
Ethernet driver
Audio driver
Trusted Execution Engine
CAPA313 3.5” Board
4 Introduction
This page is intentionally left blank.
CAPA313 3.5” Board
Board and Pin Assignments 5
Chapter 2
Board and Pin Assignments
2.1 Board Dimensions and Fixing Holes
Top View
CAPA313 3.5” Board
6 Board and Pin Assignments
Bottom View
Side View
CAPA313 3.5” Board
Board and Pin Assignments 7
2.2 Board Layout
Top View
Side View
CAPA313 3.5” Board
8 Board and Pin Assignments
Bottom View
CAPA313 3.5” Board
Board and Pin Assignments 9
2.3 Jumper and Switch Settings
Jumper is a small component consisting of jumper clip and jumper pins. Install jumper clip on 2
jumper pins to close. And remove jumper clip from 2 jumper pins to open. Below illustration
shows how to set up jumper.
Properly configure jumper and switch settings on the CAPA313 to meet your application
purpose. Below you can find a summary table of jumpers, switch and onboard default settings.
Note
Once the default jumper or switch setting needs to be changed, please do it under
power-off condition.
Jumper and Switch
Description
Setting
JP1
LVDS +3.3V/+5V/+12V Voltage Selection
Default: +3.3V Level
2-4 Close
Restore BIOS Optimal Defaults
Default: Normal Operation
3-5 Close
SSW1
Auto Power On
Default: Disable
1-2 Close
CAPA313 3.5” Board
10 Board and Pin Assignments
2.3.1 LVDS +3.3V/+5V/+12V Voltage Selection (JP1)
This is a 2x4-pin (pitch=2.0mm) jumper. The board supports voltage selection for flat
panel displays. Use JP1 to set CN13 pin 1~6 to +3.3V, +5V or +12V. To prevent
hardware damage, before connecting please make sure that the input voltage of flat
panel is correct.
2.3.2 Restore BIOS Optimal Defaults (JP1)
Put jumper clip to pin 1-3 for a few seconds then move it back to pin 3-5. Doing this
procedure can restore BIOS optimal defaults.
2.3.3 Auto Power On (SSW1)
If SSW1 is enabled for power input, the system will be automatically power on without
pressing soft power button. If SSW1 is disabled for power input, it is necessary to
manually press soft power button to power on the system.
Function
Setting
+3.3V level (Default)
2-4 close
+5V level
4-6 close
+12V level
7-8 close
Function
Setting
Normal (Default)
3-5 close
Restore BIOS optimal defaults
1-3 close
Function
Setting
Disable auto power on (Default)
1-2 close
Enable auto power on
2-3 close
CAPA313 3.5” Board
Board and Pin Assignments 11
2.4 Connectors
Signals go to other parts of the system through connectors. Loose or improper connection
might cause problems, please make sure all connectors are properly and firmly connected.
Here is a summary table of connectors on the hardware.
Connector
Description
CN1
SMBus Connector
CN2
Audio Connector
CN4
Digital I/O Connector
CN5
I2C Connector
CN6
COM2 Wafer Connector
CN7 (Optional)
COM1 Wafer Connector
CN8
Fan Connector
CN9
SATA Power Connector
CN10
USB 2.0 Wafer Port 5 and 6
CN11
SATA Connector
CN12
Front Panel Connector
CN13
LVDS Connector
CN14
Inverter Connector
CN16
Ethernet Port 1 and 2
CN17~CN18
USB 3.0 Port 0~3
CN20
COM1 D-Sub Connector
CN21
HDMI Connector
CN22 (Optional)
VGA Connector
ATX1
ATX Power Connector
SCN1, SCN3
Full-size PCI-Express Mini Card Connectors
SCN2
ZIO Expansion Connector
SDIMM1
DDR3L SO-DIMM Connector
CAPA313 3.5” Board
12 Board and Pin Assignments
2.4.1 SMBus Connector (CN1)
This is a 3-pin (pitch=2.0mm) wafer connector which is compliant with JST
B4B-PH-SM3-TB. The SMBus (System Management Bus) is a simple bus for the
purpose of lightweight communication.
2.4.2 Audio Connector (CN2)
This is a 10-pin (pitch=1.25mm) wafer connector, which is compliant with Molex
53047-1010, for audio interface.
2.4.3 Digital I/O Connector (CN4)
This is a 2x5-pin (pitch=2.0mm) connector. The board is equipped with an 8-bit (4 inputs
and 4 outputs) digital I/O that meets requirements for a system customary automation
control. The digital I/O can be configured to control cash drawers and sense warning
signals from an Uninterrupted Power System (UPS), or perform store security control.
You may use software programming to control these digital signals, please refer to
Appendix B.
2.4.4 I2C Connector (CN5)
This is a 3-pin (pitch=1.25mm) connector, which is compliant with Molex 530470310, for
I2C interface.
1
Pin
Signal
1
SMBus clock
2
SMBus data
3
GND
Pin
Signal
Pin
Signal
1
MIC_IN
2
GND
3
LINE_IN_L
4
GND
5
LINE_IN_R
6
GND
7
AUDIO_OUT_L
8
GND
9
AUDIO_OUT_R
10
GND
Pin
Signal
Pin
Signal
1
Digital Input 1
2
Digital Output 8
3
Digital Input 2
4
Digital Output 7
5
Digital Input 3
6
Digital Output 6
7
Digital Input 4
8
Digital Output 5
9
+5V
10
GND
Pin
Signal
1
I2C_CLK_SBY
2
I2C_DAT_SBY
3
GND
1
CAPA313 3.5” Board
Board and Pin Assignments 13
2.4.5 COM Wafer Connectors (CN6 and CN7)
The CN6 and CN7 (optional) are 9-pin (pitch=1.25mm) connectors for COM2 and COM1
interface, respectively. Both connectors are compliant with Molex 53047-0910. If you
need COM1 to support RS-422 or RS-485 communication mode, please refer to BIOS
setting in section 4.4.
COM1 (optional):
CN7
COM2:
CN6
2.4.6 Fan Connector (CN8)
A fan interface is available through this connector. You can find fan speed within BIOS
Setup Utility if fan is installed. For further information, see BIOS Setup Utility:
Advanced\Hardware Monitor\PC Health Status (see section 4.4).
Pin
RS-232
RS-422
RS-485
1
DCD
TX-
Data-
2
DSR
No use
No use
3
RXD
TX+
Data+
4
RTS
No use
No use
5
TXD
RX+
No use
6
CTS
No use
No use
7
DTR
RX-
No use
8
RI
No use
No use
9
GND
No use
No use
Pin
RS-232
1
DCD
2
DSR
3
RXD
4
RTS 5 TXD 6 CTS 7 DTR 8 RI 9 GND
Pin
Signal
1
GND
2
+12V level
3
Fan speed feedback
1
1
CAPA313 3.5” Board
14 Board and Pin Assignments
2.4.7 SATA Power Connector (CN9)
This is a 4-pin (pitch=2mm) wafer connector, which is compliant with JST B4B-PH-K-S,
for SATA power interface.
2.4.8 USB 2.0 Wafer Connector (CN10)
This is a 2x5-pin (pitch=2mm) wafer connector, which is compliant with Hirose
DF11-xdp-2dsa, for installing versatile USB 2.0 compliant interface peripherals.
9 1
2.4.9 SATA Connector (CN11)
The CN11 is a high-speed Serial Advanced Technology Attachment (Serial ATA or SATA)
interface for connecting to devices such as hard disk drive.
Pin
Signal
1
+12V
2
GND
3
GND
4
+5V
Pin
Signal
Pin
Signal
1
USB VCC
(+5V_SBY)
2
USB VCC
(+5V_SBY)
3
USB #5_D-
4
USB #6_D-
5
USB #5_D+
6
USB #6_D+
7
GND
8
GND
9
GND
10
GND
Pin
Signal
1
GND
2
SATA_TXP0
3
SATA_TXN0
4
GND
5
SATA_RXN0
6
SATA_RXP0
7
GND
7
1
CAPA313 3.5” Board
Board and Pin Assignments 15
2.4.10 Front Panel Connector (CN12)
This is a 2x5-pin header (pitch=2.54mm) for front panel interface.
Power Status
Pin 1 and pin 2 are for power status button; letting user know the power status of this
board.
Power LED
Pin 4 connects anode (+) of LED and pin 3 connects cathode(-) of LED. The power LED
lights up when the system is powered on.
Power On/Off Button
Pin 5 and 6 connect the power button on front panel to CPU board, which allows users to
turn on or off power supply.
System Reset Switch
Pin 7 and 8 connect the case-mounted reset switch that reboots your computer without
turning off the power switch. It is a better way to reboot your system for a longer life of
system power supply.
HDD Activity LED
This connection is linked to hard drive activity LED on the control panel. LED flashes
when HDD is being accessed. Pin 9 and 10 connect the hard disk drive to the front panel
HDD LED, pin 9 is assigned as cathode(-) and pin 10 is assigned as anode(+).
Pin
Signal
Pin
Signal
1
PWR-
2
PWR+
3
PWRLED-
4
PWRLED+
5
PWRSW-
6
PWRSW+
7
HW RST-
8
HW RST+
9
HDDLED-
10
HDDLED+
CAPA313 3.5” Board
16 Board and Pin Assignments
2.4.11 LVDS Connector (CN13)
This board has one 2x20-pin (pitch=1mm) connector for LVDS LCD interface. It is
strongly recommended to use the matching JST SHDR-40VS-B connector for LVDS
interface. Pin 1~6 VCCM can be set to +3.3V, +5V or +12V by setting JP1 (see section
2.3.1).
18-bit single channel
Pin
Signal
Pin
Signal
1
VCCM
2
VCCM
3
VCCM
4
VCCM
5
VCCM
6
VCCM
7
N.C 8 N.C 9 GND
10
GND
11
N.C
12
N.C
13
N.C
14
N.C
15
GND
16
GND
17
N.C
18
N.C
19
N.C
20
N.C
21
GND
22
GND
23
Channel A D0-
24
N.C
25
Channel A D0+
26
N.C
27
GND
28
GND
29
Channel A D1-
30
N.C
31
Channel A D1+
32
N.C
33
GND
34
GND
35
Channel A D2-
36
Channel A CLK-
37
Channel A D2+
38
Channel A CLK+
39
GND
40
GND
CAPA313 3.5” Board
Board and Pin Assignments 17
24-bit single channel 18-bit dual channel
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
VCCM
2
VCCM
1 VCCM
2
VCCM
3
VCCM
4
VCCM
3 VCCM
4
VCCM
5
VCCM
6
VCCM
5 VCCM
6
VCCM
7
N.C 8 N.C
7
N.C 8 N.C
9
GND
10
GND 9
GND
10
GND
11
N.C
12
N.C 11
N.C
12
Channel B D0-
13
N.C
14
N.C 13
N.C
14
Channel B D0+
15
GND
16
GND 15
GND
16
GND
17
N.C
18
N.C 17
Channel B CLK-
18
Channel B D1-
19
N.C
20
N.C 19
Channel B CLK+
20
Channel B D1+
21
GND
22
GND 21
GND
22
GND
23
Channel A D0-
24
N.C 23
Channel A D0-
24
Channel B D2-
25
Channel A D0+
26
N.C 25
Channel A D0+
26
Channel B D2+
27
GND
28
GND 27
GND
28
GND
29
Channel A D1-
30
Channel A D3-
29
Channel A D1-
30
N.C
31
Channel A D1+
32
Channel A D3+
31
Channel A D1+
32
N.C
33
GND
34
GND 33
GND
34
GND
35
Channel A D2-
36
Channel A CLK-
35
Channel A D2-
36
Channel A CLK-
37
Channel A D2+
38
Channel A CLK+
37
Channel A D2+
38
Channel A CLK+
39
GND
40
GND 39
GND
40
GND
24-bit dual channel
Pin
Signal
Pin
Signal
1
VCCM
2
VCCM
3
VCCM
4
VCCM
5
VCCM
6
VCCM
7
N.C
8
N.C
9
GND
10
GND
11
Channel B D3-
12
Channel B D0-
13
Channel B D3+
14
Channel B D0+
15
GND
16
GND
17
Channel B CLK-
18
Channel B D1-
19
Channel B CLK+
20
Channel B D1+
21
GND
22
GND
23
Channel A D0-
24
Channel B D2-
25
Channel A D0+
26
Channel B D2+
27
GND
28
GND
29
Channel A D1-
30
Channel A D3-
31
Channel A D1+
32
Channel A D3+
33
GND
34
GND
35
Channel A D2-
36
Channel A CLK-
37
Channel A D2+
38
Channel A CLK+
39
GND
40
GND
CAPA313 3.5” Board
18 Board and Pin Assignments
2.4.12 Inverter Connector (CN14)
This is an 8-pin (pitch=1.25mm) connector which is compliant with Hirose
DF13-8P-1.25V for inverter. We strongly recommend you to use the matching connector,
DF13-8S-1.25C, to avoid malfunction.
2.4.13 Ethernet Port (CN16)
The board has dual RJ-45 Ethernet connector. Connection can be established by
plugging one end of the Ethernet cable into this RJ-45 connector and the other end
(phone jack) to a 1000/100/10-Base-T hub.
LAN2 LAN1
Pin
Signal
1
VBL1 (+12V level)
2
VBL1 (+12V level)
3
VBL2 (+5V level)
4
VBL_ENABLE
5
GND
6
GND
7
GND
8
VBL Brightness Control
Pin
1000
Base-T
100/10
Base-T
Description
L1
BI_DA+
TX+
Bidirectional or Transmit Data+
L2
BI_DA-
TX-
Bidirectional or Transmit Data-
L3
BI_DB+
RX+
Bidirectional or Receive Data+
L4
BI_DC+
N.C.
Bidirectional or Not Connected
L5
BI_DC-
N.C.
Bidirectional or Not Connected
L6
BI_DB-
RX-
Bidirectional or Receive Data-
L7
BI_DD+
N.C.
Bidirectional or Not Connected
L8
BI_DD-
N.C.
Bidirectional or Not Connected
A
Speed LED
1000: Orange
100/10: Green/OFF
B
Active Link LED (Yellow)
Off: No link
Blinking: Data activity detected
CAPA313 3.5” Board
Board and Pin Assignments 19
2.4.14 USB 3.0 Ports (CN17 and CN18)
The Universal Serial Bus (compliant with USB 3.0 (5Gb/s)) connector on the rear I/O is
for installing USB peripherals such as keyboard, mouse, scanner, etc.
2.4.15 COM1 D-Sub Connector (CN20)
This is a standard 9-pin D-Sub connector for COM1 interface. The pin assignments of
RS-232/422/485 are listed in table below. If you need COM1 to support RS-422 or
RS-485 communication mode, please refer to BIOS setting in section 4.4.
Pin
Signal
Pin
Signal
1
USB_VCC (+5V )
10
USB_VCC (+5V )
2
USB #0_D-
11
USB #1_D-
3
USB #0_D+
12
USB #1_D+
4
GND
13
GND
5
SSRX0-
14
SSRX1-
6
SSRX0+
15
SSRX1+
7
GND
16
GND
8
SSTX0-
17
SSTX1-
9
SSTX0+
18
SSTX1+
Pin
RS-232
RS-422
RS-485
1
DCD
TX-
Data-
2
RXD
TX+
Data+
3
TXD
RX+
No use
4
DTR
RX-
No use
5
GND
No use
No use
6
DSR
No use
No use
7
RTS
No use
No use
8
CTS
No use
No use
9
RI
No use
No use
CAPA313 3.5” Board
20 Board and Pin Assignments
2.4.16 HDMI Connector (CN21)
The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is
capable of transmitting high-definition video and high-resolution audio over a single
cable. Its interface is available through connector CN21.
2.4.17 VGA Connector (CN22) (Optional)
This is a standard 15-pin D-Sub connector. It is commonly used for VGA display. This
VGA interface configuration can be configured via software utility. It is co-layout with
COM1 D-sub Connector (CN20).
2.4.18 ATX Power Connector (ATX1)
Steady and sufficient power can be supplied to all components on the board by
connecting the power connector. Please make sure all components and devices are
properly installed before connecting the power connector.
The ATX1 is a 4-pin power supply interface. External power supply plug fits into ATX1 in
only one orientation. Properly press down power supply plug until it completely and
firmly fits into this connector. Loose connection may cause system instability.
Pin
Signal
Pin
Signal
1
HDMI OUT_DATA2+
2
GND
3
HDMI OUT_DATA2-
4
HDMI OUT_DATA1+
5
GND
6
HDMI OUT_DATA1-
7
HDMI OUT_DATA0+
8
GND
9
HDMI OUT_DATA0-
10
HDMI OUT_Clock+
11
GND
12
HDMI OUT_Clock-
13
N.C.
14
N.C.
15
HDMI OUT_SCL
16
HDMI OUT_SDA
17
GND
18
+5V
19
HDMI_HTPLG
Pin
Signal
Pin
Signal
1
RED
2
GREEN
3
BLUE
4
N.C 5 GND
6
GND
7
GND
8
GND
9
CRT_VCC
10
GND
11
N.C
12
DDC_DATA
13
Hsync
14
Vsync
15
DDC_CLK
Pin
Signal
1
GND
2
GND
3
+12V~+24V
4
+12V~+24V
CAPA313 3.5” Board
Board and Pin Assignments 21

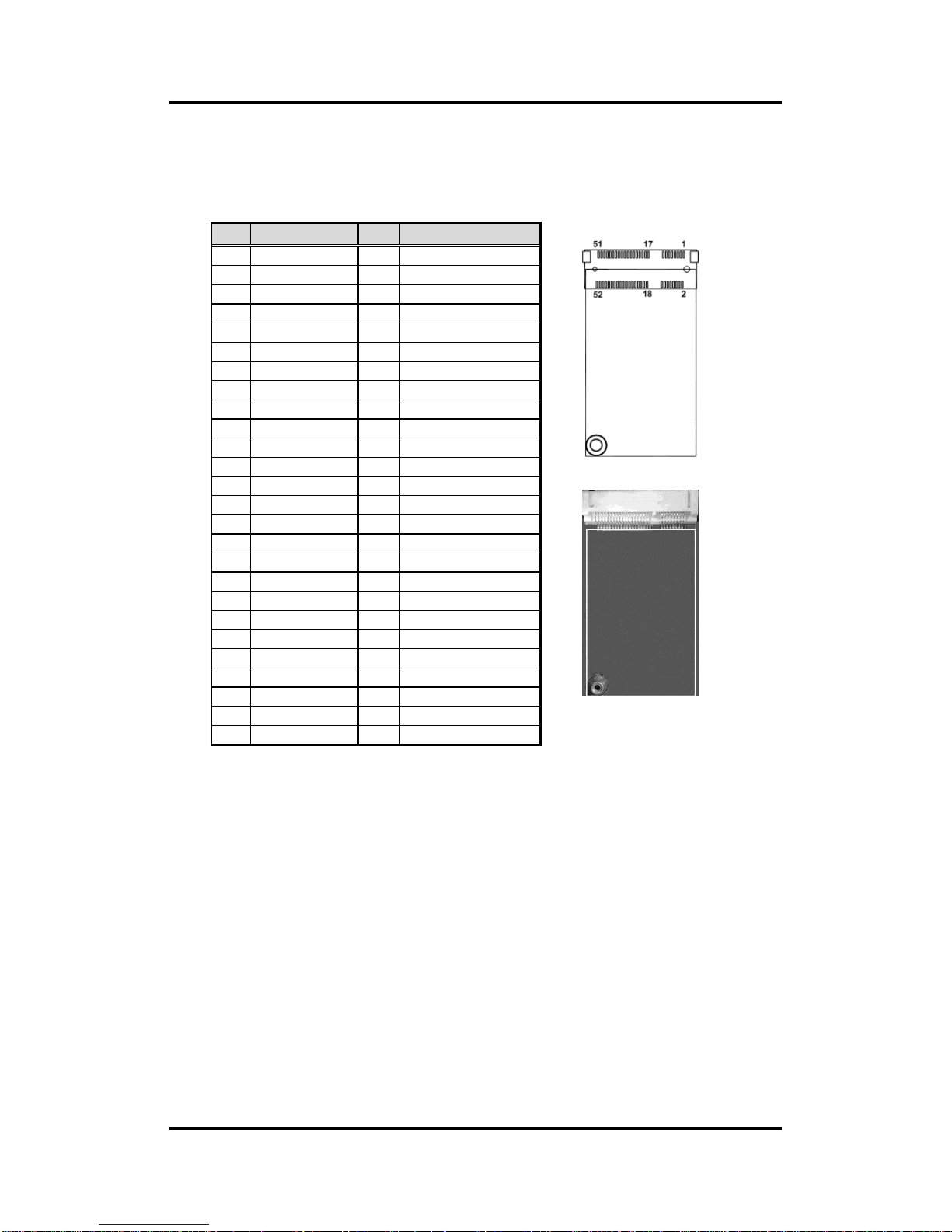

2.4.19 Full-size PCI-Express Mini Card Connector (SCN1 and
SCN3)
These are two full-size PCI-Express Mini Card connectors on the bottom side.
SCN1 (support mSATA only):
Pin
Signal
Pin
Signal
1
N.C 2 +3.3V_SBY
3
N.C 4 GND
5
N.C 6 +1.5V
7
N.C 8 N.C 9 GND
10
N.C
11
N.C
12
N.C
13
N.C
14
N.C
15
GND
16
N.C
17
N.C
18
GND
19
N.C
20
N.C
21
GND
22
PERST#
23
SATA_RXP1
24
+3.3V_SBY
25
SATA_RXN1
26
GND
27
GND
28
+1.5V
29
GND
30
SMB_PCIE_CLK
31
SATA_TXN1
32
SMB_PCIE_DATA
33
SATA_TXP1
34
GND
35
GND
36
N.C
37
GND
38
N.C
39
+3.3V_SBY
40
GND
41
+3.3V_SBY
42
N.C
43
GND
44
N.C
45
N.C
46
N.C
47
N.C
48
+1.5V
49
N.C
50
GND
51
N.C
52
+3.3V_SBY
CAPA313 3.5” Board
22 Board and Pin Assignments
SCN3 (support PCI-Express and USB 2.0):
Pin
Signal
Pin
Signal
1
WAKE#
2
+3.3V_SBY
3
N.C 4 GND
5
N.C 6 +1.5V
7
CLKREQ#
8
N.C 9 GND
10
N.C
11
REFCLK-
12
N.C
13
REFCLK+
14
N.C
15
GND
16
N.C
17
N.C
18
GND
19
N.C
20
W_DISABLE#
21
GND
22
PERST#
23
PE_RXN2
24
+3.3V_SBY
25
PE_RXP2
26
GND
27
GND
28
+1.5V
29
GND
30
SMB_CLK
31
PE_TXN2
32
SMB_DATA
33
PE_TXP2
34
GND
35
GND
36
USB_D0-
37
GND
38
USB_D0+
39
+3.3V_SBY
40
GND
41
+3.3V_SBY
42
N.C
43
GND
44
N.C
45
N.C
46
N.C
47
N.C
48
+1.5V
49
N.C
50
GND
51
N.C
52
+3.3V_SBY
CAPA313 3.5” Board
Board and Pin Assignments 23
2.4.20 ZIO Expansion Connector (SCN2)
The board is equipped with SCN2 on the bottom side for connecting CPU board to a ZIO
module.
Pin
Signal
Pin
Signal
A1
+12V
B1
GND
A2
+5VSB
B2
GND
A3
+5VSB
B3
GND
A4
+3.3VSB
B4
GND
A5
+3.3VSB
B5
RSVD
A6
RSVD
B6
RSVD
A7
PWROK
B7
RSVD
A8
SMB_CLK
B8
RSVD
A9
SMB_DATA
B9
GND
A10
GND
B10
PE_TXP3
A11
PE_RXP3
B11
PE_TXN3
A12
PE_RXN3
B12
WAKE_N
A13
USBOC_N
B13
PCI-E CLKP
A14
USB #7_D+
B14
PCI-E CLKN
A15
USB #7_D-
B15
GND
A16
No Use
B16
CLK_25M
A17
No Use
B17
SERIRQ
A18
GND
B18
LAD0
A19
No Use
B19
LAD1
A20
No Use
B20
LAD2
A21
PLTRST_N
B21
LAD3
A22
No Use
B22
L_FRAME
A23
No Use
B23
GND
A24
GND
B24
No Use
A25
No Use
B25
No Use
A26
No Use
B26
No Use
A27
No Use
B27
No Use
A28
No Use
B28
GND
A29
GND
B29
No Use
A30
No Use
B30
No Use
CAPA313 3.5” Board
24 Board and Pin Assignments
This page is intentionally left blank.
CAPA313 3.5” Board
Hardware Description 25
Chapter 3
Hardware Description
3.1 Microprocessors
The CAPA313 supports Intel® Pentium® N4200 and Celeron® N3350 processors which enable
your system to operate under Windows® 10 environments. The system performance depends
on the microprocessor. Make sure all correct settings are arranged for the installed
microprocessor to prevent the CPU from damages.
3.2 BIOS
The CAPA313 uses AMI Plug and Play BIOS with a single 64Mbit SPI Flash.
3.3 System Memory
The CAPA313 supports one 204-pin DDR3L SO-DIMM socket for maximum memory capacity
up to 8GB DDR3L SDRAMs. The memory module comes in sizes of 2GB, 4GB and 8GB.
CAPA313 3.5” Board
26 Hardware Description

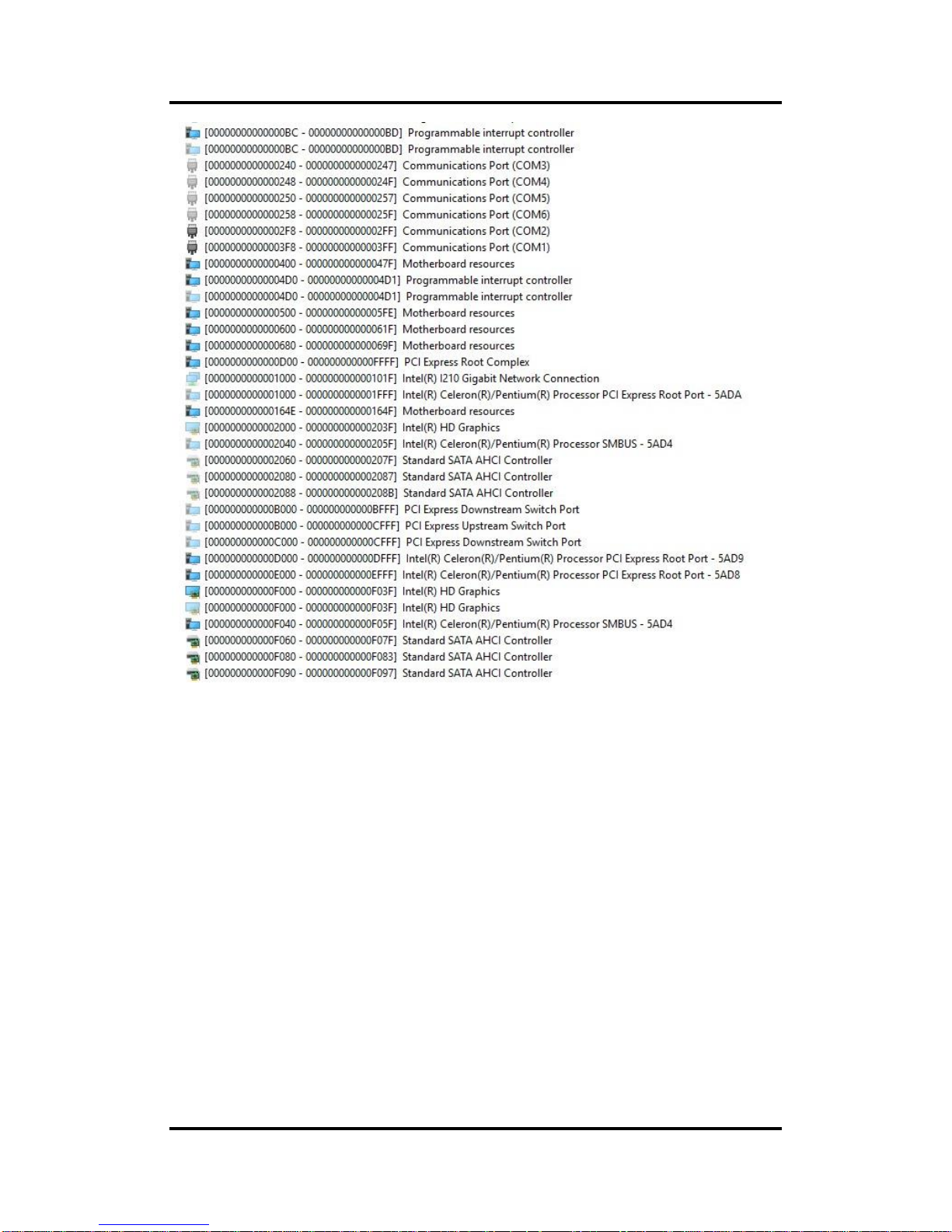

3.4 I/O Port Address Map
CAPA313 3.5” Board
Hardware Description 27
CAPA313 3.5” Board
28 Hardware Description
3.5 Interrupt Controller (IRQ) Map
The interrupt controller (IRQ) mapping list is shown as follows:
CAPA313 3.5” Board
Hardware Description 29
CAPA313 3.5” Board
30 Hardware Description
CAPA313 3.5” Board
Hardware Description 31
CAPA313 3.5” Board
32 Hardware Description
CAPA313 3.5” Board
Hardware Description 33
CAPA313 3.5” Board
34 Hardware Description

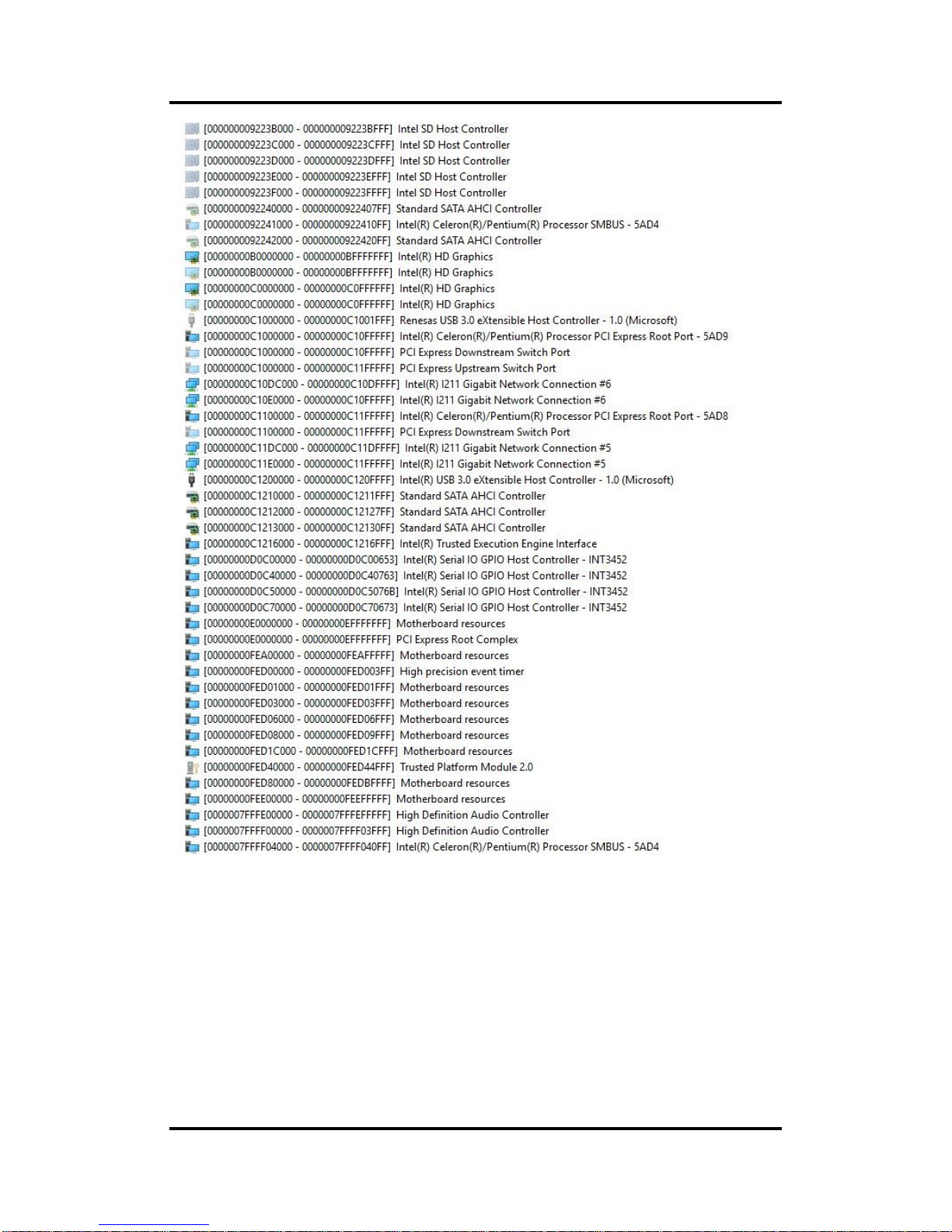

3.6 Memory Map
The memory mapping list is shown as follows:
CAPA313 3.5” Board
Hardware Description 35
CAPA313 3.5” Board
36 Hardware Description
This page is intentionally left blank.
CAPA313 3.5” Board
AMI BIOS Setup Utility 37
Chapter 4
AMI BIOS Setup Utility
The AMI UEFI BIOS provides users with a built-in setup program to modify basic system
configuration. All configured parameters are stored in a flash chip to save the setup information
whenever the power is turned off. This chapter provides users with detailed description about
how to set up basic system configuration through the AMI BIOS setup utility.
4.1 Starting
To enter the setup screens, follow the steps below:
1. Turn on the computer and press the <Del> key immediately.
2. After you press the <Del> key, the main BIOS setup menu displays. You can access the
other setup screens from the main BIOS setup menu, such as the Advanced and Chipset
menus.
Note
If your computer cannot boot after making and saving system changes with BIOS
setup, you can restore BIOS optimal defaults by setting JP1 (see section 2.3.2).
It is strongly recommended that you should avoid changing the chipset’s defaults. Both AMI
and your system manufacturer have carefully set up these defaults that provide the best
performance and reliability.
4.2 Navigation Keys
The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS
setup utility hot keys can be used at any time during the setup navigation process. These keys
include <F1>, <F2>, <Enter>, <ESC>, <Arrow> keys, and so on.
Note
Some of the navigation keys differ from one screen to another.
CAPA313 3.5” Board
38 AMI BIOS Setup Utility
Hot Keys
Description
Left/Right
The Left and Right <Arrow> keys allow you to select a setup screen.
Up/Down
The Up and Down <Arrow> keys allow you to select a setup screen or
sub-screen.
+ Plus/Minus
The Plus and Minus <Arrow> keys allow you to change the field value of a
particular setup item.
Tab
The <Tab> key allows you to select setup fields.
F1
The <F1> key allows you to display the General Help screen.
F2
The <F2> key allows you to Load Previous Values.
F3
The <F3> key allows you to Load Optimized Defaults.
F4
The <F4> key allows you to save any changes you have made and exit
Setup. Press the <F4> key to save your changes.
Esc
The <Esc> key allows you to discard any changes you have made and exit
the Setup. Press the <Esc> key to exit the setup without saving your
changes.
Enter
The <Enter> key allows you to display or change the setup option listed for a
particular setup item. The <Enter> key can also allow you to display the
setup sub- screens.
CAPA313 3.5” Board
AMI BIOS Setup Utility 39
4.3 Main Menu
When you first enter the setup utility, you will enter the Main setup screen. You can always
return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as
described below. The Main BIOS setup screen is shown below.
BIOS and EC Information
Display BIOS and EC firmware information.
System Date/Time
Use this option to change the system time and date. Highlight System Time or System
Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab>
key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY
format. The time is entered in HH:MM:SS format.
Access Level
Display the access level of current user.
CAPA313 3.5” Board
40 AMI BIOS Setup Utility
4.4 Advanced Menu
The Advanced menu also allows users to set configuration of the CPU and other system
devices. You can select any of the items in the left frame of the screen to go to the sub menus:
► Serial Port Configuration
► Hardware Monitor

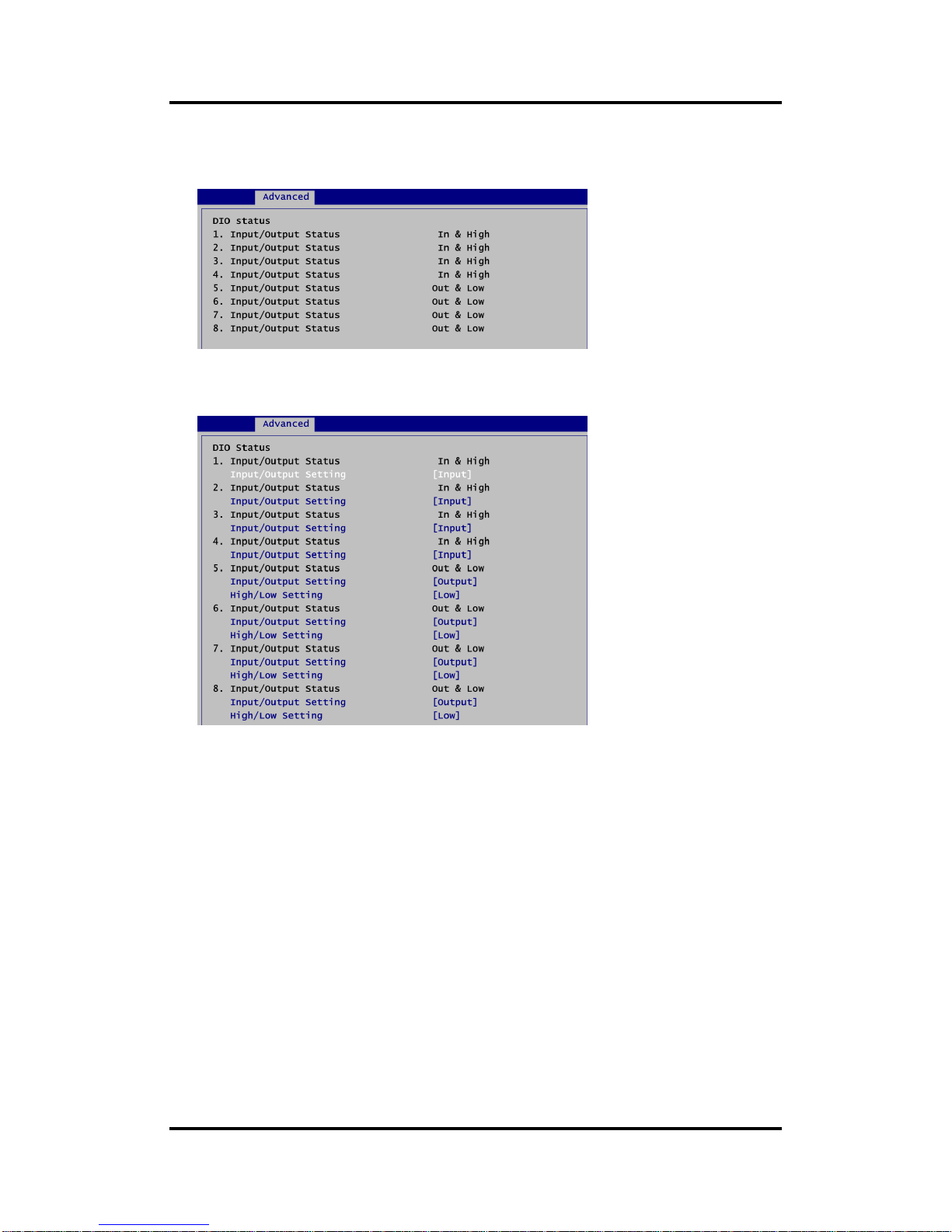

► EC DIO Configuration
► ACPI Settings
► Trusted Computing (Optional)
► CPU Configuration
► SATA Configuration
► USB Configuration
► Utility Configuration
For items marked with “”, please press <Enter> for more options.
CAPA313 3.5” Board
AMI BIOS Setup Utility 41
Serial Port Configuration
You can use this screen to select options for Serial Port Configuration, and change the
value of the selected option. A description of the selected item appears on the right side of
the screen. For items marked with “”, please press <Enter> for more options.
Serial Port 1~2 Configuration
Use these items to set parameters related to serial port 1~2.
CAPA313 3.5” Board
42 AMI BIOS Setup Utility
Serial Port 1 Configuration
Serial Port
Enable or disable serial port 1. The optimal setting for base I/O address is 3F8h and for
interrupt request address is IRQ4.
COM Port Type
Use this item to set RS-232/422/485 communication mode.
CAPA313 3.5” Board
AMI BIOS Setup Utility 43
Terminal Mode
Enable terminal mode to enable the RS-422/485 termination resistor to enhance the
signal.
Serial Port 2 Configuration
Serial Port
Enable or disable serial port 2. The optimal setting for base I/O address is 2F8h and for
interrupt request address is IRQ3.
CAPA313 3.5” Board
44 AMI BIOS Setup Utility
Hardware Monitor
This screen monitors hardware health status.
This screen displays the temperature of system and CPU, fan speed in RPM and system
voltages (VBAT, +3.3V, +3.3VSB and +5VSB).
Ec DIO Configuration
You can use this screen to select options for the 8-bit Digital I/O Configuration. A
description of the selected item appears on the right side of the screen. For items marked
with “”, please press <Enter> for more options.
CAPA313 3.5” Board
AMI BIOS Setup Utility 45
DIO Modification
Enable or disable digital I/O modification. If modification is disabled, the DIO status sub
screen is as follows:
Once it is enabled, you can load manufacture default and access to the DIO status sub
screen to set output or input, see image below.
CAPA313 3.5” Board
46 AMI BIOS Setup Utility
ACPI Settings
ACPI Sleep State
Select the ACPI (Advanced Configuration and Power Interface) sleep state. Configuration
options are Suspend Disabled and S3 (Suspend to RAM). The S3 (Suspend to RAM)
option selects ACPI sleep state the system will enter when suspend button is pressed.
CAPA313 3.5” Board
AMI BIOS Setup Utility 47
Trusted Computing (Optional)
This screen provides function for specifying the TPM settings.
Security Device Support
Enable or disable BIOS support for security device.
CAPA313 3.5” Board
48 AMI BIOS Setup Utility
CPU Configuration
This screen shows the CPU Configuration.
Intel Virtualization Technology
Enable or disable Intel Virtualization Technology. When enabled, a VMM (Virtual Machine
Mode) can utilize the additional hardware capabilities. It allows a platform to run multiple
operating systems and applications independently, hence enabling a computer system to
work as several virtual systems.
Turbo Mode
Enable or disable turbo mode.
CAPA313 3.5” Board
AMI BIOS Setup Utility 49

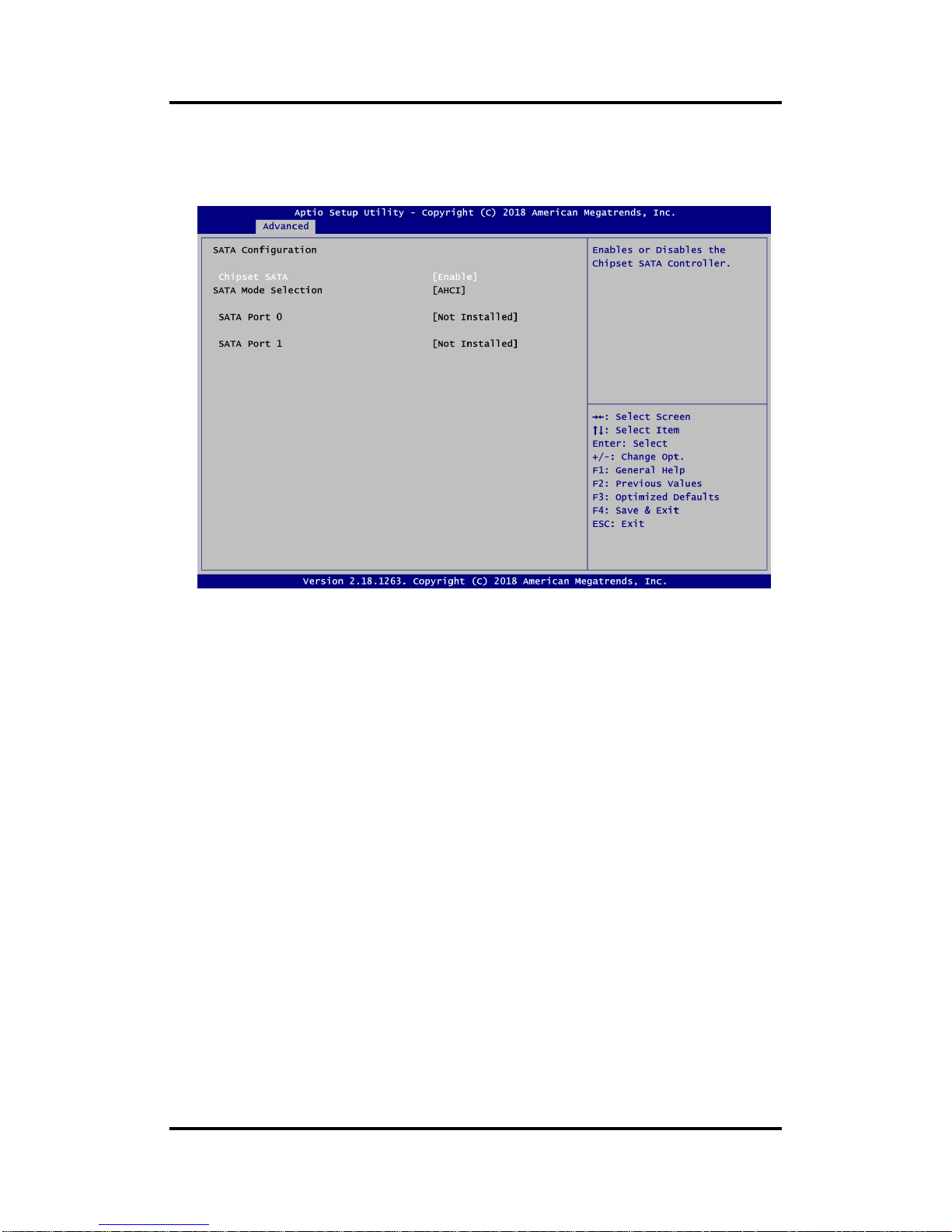

SATA Configuration
In the SATA Configuration menu, you can see the currently installed hardware in the SATA
ports. During system boot up, the BIOS automatically detects the presence of SATA
devices.
Chipset SATA
Enable or disable Chipset SATA Controller. The default is Enable.
CAPA313 3.5” Board
50 AMI BIOS Setup Utility
USB Configuration
USB Devices
Display all detected USB devices.
CAPA313 3.5” Board
AMI BIOS Setup Utility 51
Utility Configuration
BIOS Flash Utility
BIOS flash utility configuration. For more detailed information, please refer to Appendix C.
CAPA313 3.5” Board
52 AMI BIOS Setup Utility
4.5 Chipset Menu
The Chipset menu allows users to change the advanced chipset settings. You can select any
of the items in the left frame of the screen to go to the sub menus:
► North Bridge
► South Bridge
For items marked with “”, please press <Enter> for more options.
CAPA313 3.5” Board
AMI BIOS Setup Utility 53
North Bridge
This screen allows users to configure parameters of North Bridge chipset.
LCD Control
This item allows you to select LCD panel control options. Please press <Enter> to go to
the sub menus.
Memory Information
Display system memory information.
CAPA313 3.5” Board
54 AMI BIOS Setup Utility
LVDS Panel Device
Enable or disable LVDS panel device support.
LVDS Panel Type
Select the appropriate LVDS panel resolution.
CAPA313 3.5” Board
AMI BIOS Setup Utility 55
South Bridge
This screen shows the information of South Bridge chipset.
Wake On Lan
Enable or disable integrated LAN to wake the system.
CAPA313 3.5” Board
56 AMI BIOS Setup Utility
4.6 Security Menu
The Security menu allows users to change the security settings for the system.
Setup Administrator Password.
Set setup administrator password.
User Password
Set user password.
CAPA313 3.5” Board
AMI BIOS Setup Utility 57
4.7 Boot Menu
The Boot menu allows users to change boot options of the system.
Setup Prompt Timeout
Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite
waiting.
Bootup NumLock State
Use this item to select the power-on state for the keyboard NumLock.
Quiet Boot
Select to display either POST output messages or a splash screen during boot-up.
Launch UEFI PXE OpROM policy
Control the execution of UEFI PXE OpROM.
Boot Option Priorities
These are settings for boot priority. Specify the boot device priority sequence from the
available devices.
CAPA313 3.5” Board
58 AMI BIOS Setup Utility

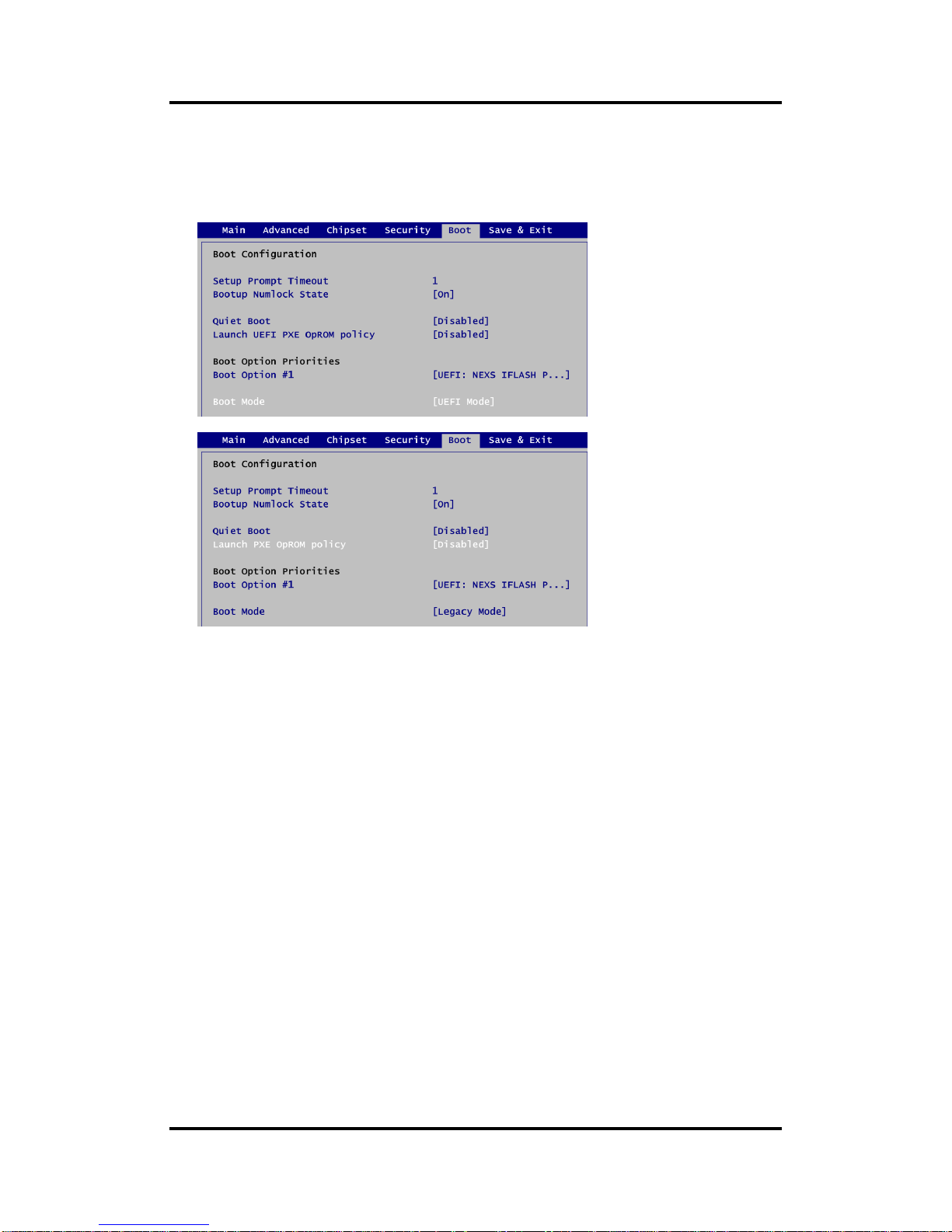

Boot Mode
Use this option for boot mode settings.
- UEFI Boot: Select support to boot any UEFI-capable OS.
- Legacy Boot: Select support to boot non UEFI-capable OS that expects a legacy BIOS
interface.
CAPA313 3.5” Board
AMI BIOS Setup Utility 59
Note that the Primary IGFX Boot Display option appears only if Legacy Mode is selected,
see images below.
Primary IGFX Boot Display
Select the video device which will be activated during POST (Power-On Self Test).
LVDS Panel Device
Enable or disable LVDS panel device support.
LVDS Panel Type
Select the appropriate LVDS panel resolution.
Backlight Control
Use this item for backlight control setting.
CAPA313 3.5” Board
60 AMI BIOS Setup Utility

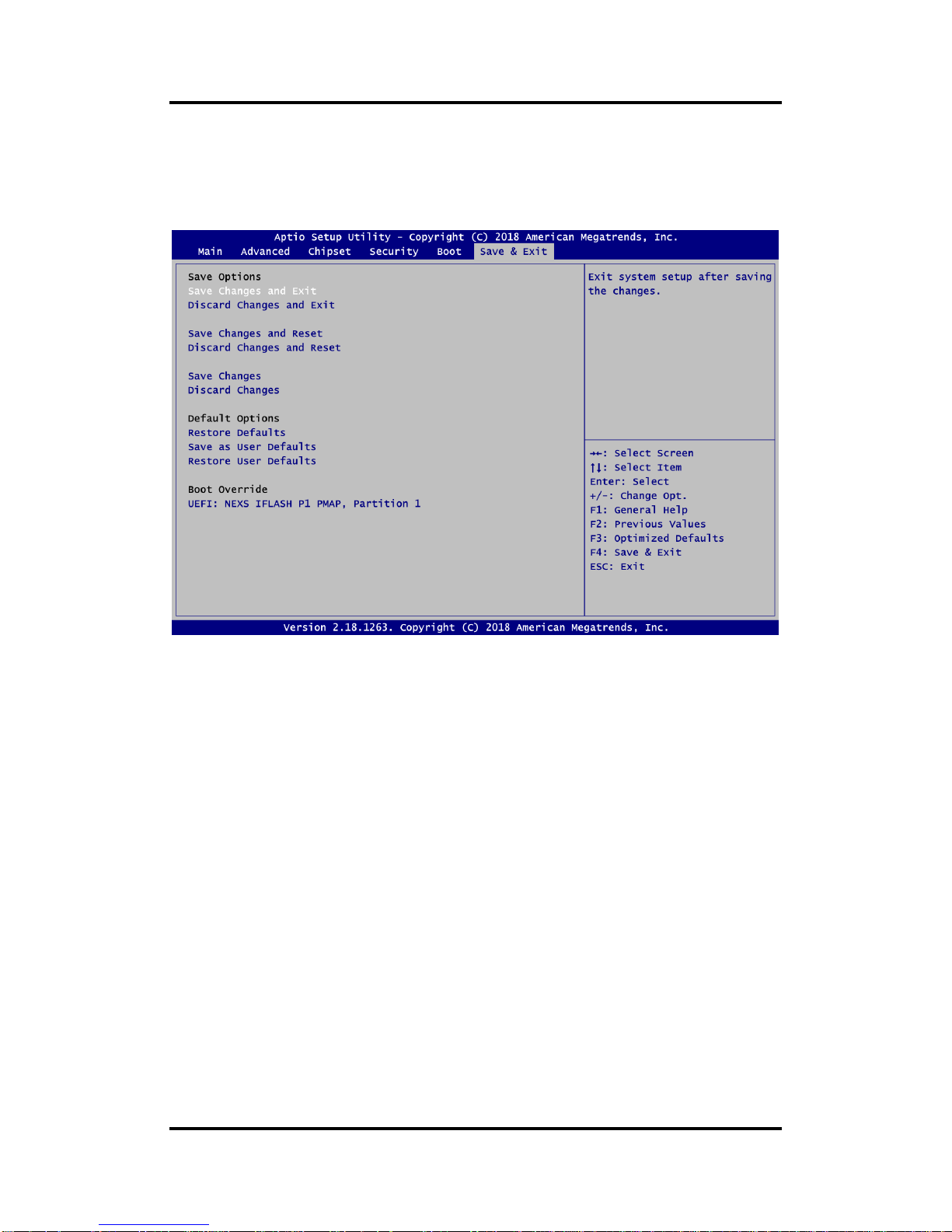

4.8 Save & Exit Menu
The Save & Exit menu allows users to load your system configuration with optimal or fail-safe
default values.
Save Changes and Exit
When you have completed the system configuration changes, select this option to leave
Setup and return to Main Menu. Select Save Changes and Exit from the Save & Exit menu
and press <Enter>. Select Yes to save changes and exit.
Discard Changes and Exit
Select this option to quit Setup without making any permanent changes to the system
configuration and return to Main Menu. Select Discard Changes and Exit from the Save &
Exit menu and press <Enter>. Select Yes to discard changes and exit.
Save Changes and Reset
When you have completed the system configuration changes, select this option to leave
Setup and reboot the computer so the new system configuration parameters can take
effect. Select Save Changes and Reset from the Save & Exit menu and press <Enter>.
Select Yes to save changes and reset.
Discard Changes and Reset
Select this option to quit Setup without making any permanent changes to the system
configuration and reboot the computer. Select Discard Changes and Reset from the Save
& Exit menu and press <Enter>. Select Yes to discard changes and reset.
Save Changes
When you have completed the system configuration changes, select this option to save
changes. Select Save Changes from the Save & Exit menu and press <Enter>. Select Yes
to save changes.
CAPA313 3.5” Board
AMI BIOS Setup Utility 61
Discard Changes
Select this option to quit Setup without making any permanent changes to the system
configuration. Select Discard Changes from the Save & Exit menu and press <Enter>.
Select Yes to discard changes.
Restore Defaults
It automatically sets all Setup options to a complete set of default settings when you select
this option. Select Restore Defaults from the Save & Exit menu and press <Enter>.
Save as User Defaults
Select this option to save system configuration changes done so far as User Defaults.
Select Save as User Defaults from the Save & Exit menu and press <Enter>.
Restore User Defaults
It automatically sets all Setup options to a complete set of User Defaults when you select
this option. Select Restore User Defaults from the Save & Exit menu and press <Enter>.
Boot Override
Select a drive to immediately boot that device regardless of the current boot order.
CAPA313 3.5” Board
62 AMI BIOS Setup Utility
This page is intentionally left blank.
CAPA313 3.5” Board
Watchdog Timer 63
Appendix A
Watchdog Timer
A.1 About Watchdog Timer
After the system stops working for a while, it can be auto-reset by the watchdog timer. The
integrated watchdog timer can be set up in the system reset mode by program.
A.2 How to Use Watchdog Timer
Assembly sample code :
mov dx,fa10 ; 5 seconds (Maximum is 65535 seconds; fill in
; 0xFA10 and 0xFA11 register, ex: 0xFA11=0x01,
; 0xFA10=0x68 means 360 seconds)
mov al,05
out dx,al
mov dx,fa12 ; Enable WDT
mov al,01
out dx,al
CAPA313 3.5” Board
64 Watchdog Timer
This page is intentionally left blank.
CAPA313 3.5” Board
Digital I/O 65
Appendix B
Digital I/O
B.1 About Digital I/O
The onboard GPIO or digital I/O has 8 bits (DIO1~8). Each bit can be set to function as input or
output by software programming. In default, all pins are pulled high with +5V level (according
to main power). The BIOS default settings are 4 inputs and 4 outputs.
CN4
B.2 Digital I/O Programming
Assembly sample code :
mov dx,fa31 ; Set DIO 0-7 to Output
mov al,00
out dx,al
mov dx,fa32 ; Set DIO 4-7 to High
mov al,f0
out dx,al
mov dx,fa31 ; Set DIO 0-7 to Input
mov al,ff
out dx,al
mov dx,fa32 ; Get DIO 0-7 status
in al,dx
mov dx,fa31 ; Set DIO 0-4 to Input, 5-7 to Output
mov al,1f ; al = 1F => 00011111
out dx,al
mov dx,fa32 ; Set DIO 6 to High
mov al,40 ; al = 40 => 01000000
out dx,al
in al,dx ; Get DIO 0-7 status
Pin
Signal
Pin
Signal
1
DI1 2 DO8
3
DI2 4 DO7
5
DI3 6 DO6 7 DI4 8 DO5 9 +5V
10
GND
CAPA313 3.5” Board
66 Digital I/O
This page is intentionally left blank.
CAPA313 3.5” Board
BIOS Flash Utility 67
Appendix C
BIOS Flash Utility
The BIOS Flash utility is a new helpful function in BIOS setup program. With this function you
can easily update system BIOS without having to enter operating system. In this appendix you
may learn how to do it in just a few steps. Please read and follow the instructions below
carefully.
1. In your USB flash drive, create a new folder and name it “Axiomtek”, see figure below.
2. Copy BIOS ROM file (e.g. CAPA313.005) to “Axiomtek” folder.
3. Insert the USB flash drive to your system.
4. Enter BIOS setup menu and go to Advanced\Utility Configuration. Select BIOS Flash
Utility and press <Enter>.
CAPA313.005
CAPA313 3.5” Board
68 BIOS Flash Utility
5. BIOS automatically detect all USB drive(s) attached to the system. In this example only
one USB drive is attached to the system. That’s why, you can see only one device is
displayed in figure below.
6. Select the USB drive containing BIOS ROM file you want to update using the <> or
<> key. Then press <Enter> to get into “Axiomtek” folder.
7. Now you can see the BIOS ROM file on the screen, press <Enter> to select.
8. Select Start to flash system BIOS option to begin updating procedure.
CAPA313.005
CAPA313 3.5” Board
BIOS Flash Utility 69
9. Please wait while BIOS completes the entire flash update process: erase data, write new
data and verify data.
10. When you see the following figure, press <Enter> to finish the update process. After that
the system will shut down and restart immediately.
Loading...
