AX93501 User’s Manual
CHAPTER 1
INTRODUCTION
The IEEE-1394b interface is a serial standard bus for high-speed
communication and isochronous real-time data transfer. The IEEE1394b transfer rate is up to 800Mbps and device distances can now
be up to 100 meters.
The AX93501 supports two channel IEEE-1394b ports on a PCI
express x1 card. The AX93501 provides IEEE 1394b bilingual
connectors with locking screw for reliable connection between the
AX93501 and devices, such as camera, hard drive, RAID, and
complaint IEEE 1394a device. It also supports plug and play
connectivity for IEEE 1394.b devices and peripherals.
Introduction
1
AX93501 User’s Manual
1.1 Features
z 2-channel IEEE-1394b Fire Wire 800
z PCI Express x1 compliant
z High-speed transfer rates up to 800Mbps
z Locking screw connector
z Supports Plug and Play
1.2 Specifications
z Bus
PCI-Express X 1 lanes
z Connector
Two 9 pin IEEE 1394b connectors with locking screw
z Operation Temperature
0°C ~ 60°C
z Humidity
0% ~ 90%
z Certification
CE
z Support O.S.
Microsoft Window
z Dimensions (W x H)
93.98mm x 64.4mm
®
XP, Window® Vista
NOTE All specifications and images are subject to change
without notice.
2
Introduction
HARDWARE REFERENCE
2.1 Adapter Appearance

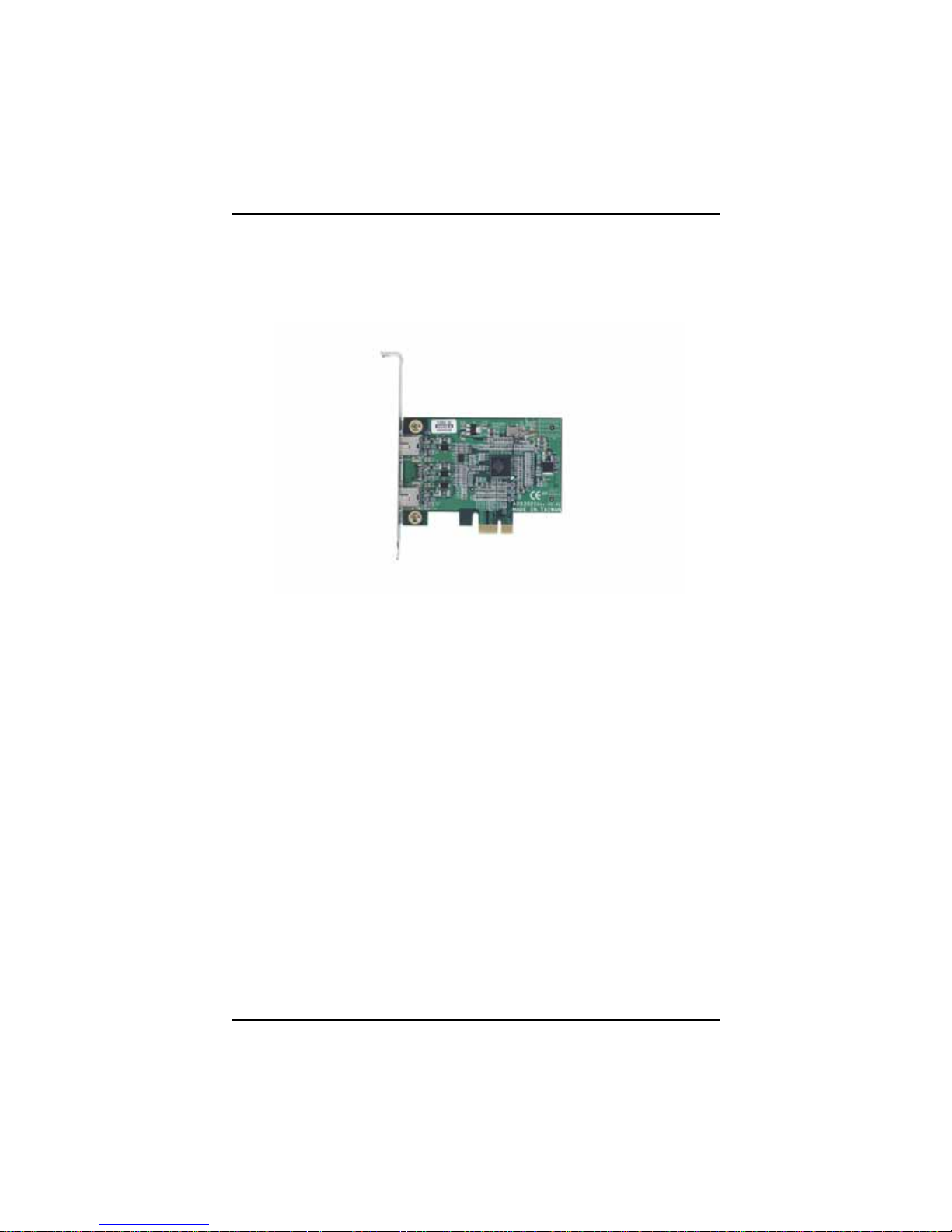

1394b
Port 1
AX93501 User’s Manual
CHAPTER 2
1394b
Port 2
Hardware Reference
PCI Express x 1
interface
3
AX93501 User’s Manual
2.2 Adapter Dimensions
4
Hardware Reference
AX93501 User’s Manual
2.3 Hardware Installation
Please follow these steps to install the AX93501 card on the PCI
express bus:
1. Remove the computer cover using the instructions from the
computer manual.
2. Check that there is an empty PCI express slot. If there is not
an empty slot, remove a PCI express board from the
computer to make room for the AX93501 card and take note
of the chosen slot number.
3. Remove the blank metal plate located at the back of the
selected slot (if any). Keep the removed screw to fasten the
AX93501 card after installation.
4. Carefully position the AX93501 card in the selected PCI
express slot as illustrated below. If using a tower computer,
align the board with the board slots.
5. Press the board firmly, but carefully into the connector.
6. Anchor the board by replacing the screw.
7. Connect device via 1394b connector.
8. Turn on the computer.
NOTE The AX93501 can be installed in a PCI express x1, x4, x8,
and x16 slot.
Hardware Reference
5
AX93501 User’s Manual
MEMO
6
Hardware Reference
AX93501 User’s Manual
CHAPTER 3
INSTALLATION OF DRIVERS
Installing Chipset Driver
1. Please visit http://www.unibrain.com/download/download.asp
download ubCore version x.xx for Windows driver. (Notice:
don’t get ubCorePro verion driver)
2. Run the ubCore.EXE program.
Installation of Drivers
7
AX93501 User’s Manual
3. Click “Next” to next step.
®
4. An Unibrain
License Agreement appears to show you the
important information. Click “Yes” to next step.
8
Installation of Drivers
AX93501 User’s Manual
5. Please enter your information below:
6. Select destination folder, click “Next” to next step.
Installation of Drivers
9
AX93501 User’s Manual
7. Select setup type:
9. Click “Finish” to complete the setup process. And restart your
computer.
10
Installation of Drivers
