Removing the Body
1.
Put the battery in the car.
3.
Turn on the transmitter.
Install the battery
2.
Put back the Body.
Turn on the electronic speed controller.
4.
4
Top View Parts
Battery Straps
Steering Rack
Steering Knuckle
Tactic TSX45 Servo
C-Hub
Battery Tray
Front Body Mount
AE-5 Electronic
Speed Control(ESC)
Motor 27T
Spur/Pinion/Slipper
(Under Cover)
Receiver Box
Transmission
Rock Rail
ESC Plug
Lower 4-link Bar
Rear Body Mount
Shock Absorber
5
Getting-Started Checklist
The following checklist is a guide for getting you vehicle running for the first time.
Read ‘Cautions’ in Manual. (Page 2)
Charge battery pack. (Page 4)
Familiarize yourself with vehicle and
its components.
Install 4X AA batteries into Transmitter.
(Page 7)
Even though the vehicle is new check
driveshaft setscrews and other screws to
make sure they are tight from the factory.
Install battery pack in vehicle. (Page 4)
Turn on transmitter FIRST then ESC.
(Page 4)
Drive vehicle, challenge yourself and
have fun!
Check to make sure steering and throttle
operation work correctly. (Page 7)
Maintain vehicle. (Next Page)
6
Range check radio system. (Next Page)
Range-Checking Your Radio System
The radio system should be checked before operating the vehicle to ensure it’s operating properly and has adequate range.
1. Turn on the transmitter first and then the vehicle.
2. Have a friend hold the vehicle while keeping hands and loose clothing away from moving parts.
3. Walk away until you are at the farthest distance you plan to operate the vehicle.
4. Steer the vehicle back and forth and throttle both forward and reverse making sure there is no erratic behavior.
5. If any erratic behavior is exhibited do not operate the vehicle, call customer service for further assistance.
RANGE-CHECKING FOR DISTANCE
Maintaining Your Vehicle
Just like a full size car or truck your RC vehicle must undergo periodic maintenance in order to ensure peak running performance. Preventative
maintenance will also help avoid needless breakages which could result in costly repairs. Below are some suggestions to properly maintain
your vehicle.
REPLACE ANY NOTICEABLE
BENT OR BROKEN PARTS
CHECK FOR WEAR ON
THE BALL JOINTS IN THE
STEERING AND SUSPENSION
(REPLACE IF NECESSARY)
LINKS
CHECK DRIVESHAFT SET
SCREWS AND RE-THREAD
LOCK IF NECESSARY
INSPECT SHOCK
ABSORBERS FOR SMOOTH
DAMPENED OPERATION
CHECK FOR ANY LOOSE
CONNECTIONS OR FRAYED
WIRING
CHECK WHEEL NUTS MAKING
SURE THEY’RE SNUG
CHECK SLIPPER CLUTCH IF
APPLICABLE, FOR PROPER
OPERATION
(SEE PAGE 25 STEP
23 FOR SETUP INSTRUCTIONS)
CHECK TIRES MAKING SURE
THE BEADS ARE STILL FIRMLY
BONDED TO THE ENTIRE
CIRCUMFERENCE OF THE RIM
CHECK RECEIVER ANTENNA
TO CONFIRM IT’S NOT
DAMAGED
KEEP CHASSIS FREE OF DIRT
OR DEBRIS
CHECK STEERING
OPERATION FOR ANY BINDS
7
6
CHECK FOR LOOSE SCREWS
ON CHASSIS ESPECIALLY
THE KNUCKLE, C-HUB AND
AXLE LOCKOUT SCREWS
INSPECT THE SPUR AND
PINION GEARS FOR DAMAGE
CHECK DRIVELINE FOR
SMOOTH BIND-FREE
OPERATION
REPLACE TRANSMITTER
AA’S IF THE GREEN LIGHT IS
BLINKING
AE-5 Forward/Reverse ESC w/ Drag Brake
NOTES
8
BIND
ST-TRIM TH-TRIM ST-D/R
9
Final Drive Gear Ratio = (Spur/Pinion) X 7.2
Gesamtübersetzung = (Spur/Pinion) X 7.2
53.16:1
22.02:1
*NOTE: NOT ALL GEAR FITMENT OPTIONS ARE AVAILABLE
32 Pitch 38/13T (Stock Gearing AX30392 or AX30395)
Spur Gear
Pinion 56 60 64 68
11 38.69 41.45 44.22 46.98
12 35.47 38.00 40.53 43.07
13 32.74 35.08 37.42 39.75
14 30.40 32.57 34.74 36.91
15 28.37 30.40 32.43 34.45
16 26.60 28.50 30.40 32.30
17 25.04 26.82 28.61 30.40
32 Pitch 36/14T (Overdrive Gearing AX30401)
Spur Gear
Pinion 56 60 64 68
11 34.04 36.47 38.90 41.33
12 31.20 33.43 35.66 37.89
13 28.80 30.86 32.91 34.97
14 26.74 28.65 30.56 32.47
15 24.96 26.74 28.53 30.31
16 23.40 25.07 26.74 28.41
17 22.02 23.60 25.17 26.74
32 Pitch 43/13T (Underdrive Gearing AX30402)
Spur Gear
Pinion 56 60 64 68
11 43.78 46.91 50.04 53.16
12 40.13 43.00 45.87 48.73
13 37.05 39.69 42.34 44.98
14 34.40 36.86 39.31 41.77
15 32.11 34.40 36.69 38.99
16 30.10 32.25 34.40 36.55
17 28.33 30.35 32.38 34.40
Warranty Info
AXIAL LIMITED WARRANTY
Your Axial product is warranted to be free of defects in materials and workmanship when new in the factory sealed box. This warranty does not cover damages
due to normal wear and tear, users' failure to perform routine maintenance, error of assembly or installation, modications or addition of aftermarket parts or
option parts. This warranty lasts as long as the original purchaser owns the product and is not transferable (verified by dated itemized sales receipt
accompanied with product). In the event of a defect under this warranty, Axial will, at our discretion, repair or replace the product, provided our inspection
indicates that an original defect exists. Axial provides a 10-day warranty from the date of purchase on electronics (i.e. servo, esc, radio). Axial reserves the
right to replace any product which is no longer available with a product of comparable value and function. If Axial determines the repair is not covered under
warranty guidelines, there could be a charge applied for the repair and return shipping charges. Note: Purchasing products from unauthorized distributors may
void warranty and prevent support and service.
INTERNATIONAL CUSTOMER WARRANTY
Please return product to the dealer where the purchase was made. If your Axial product purchase was made through an on-line retailer, any warranty issues
must be taken care of by that retailer. Axial assumes no responsibility for Axial products sold internationally by on-line retailers.
REPAIR
For warranty repair, please contact Axial Customer Service at (877) 64-AXIAL (877-642-9425).
HOURS AVAILABLE:
8:00 am - 5:00 pm Monday through Friday, Central Time.
10
11
AX80003
AX80012
2 1
AX80003
Solid Axle Set
AX80004
1 1
AX80004
Hub Set
AX80012
C Hub Carrier
2 3
x1
1 2 3 4
5 6 7 8
AX80006
x2
AX80020
1
AX80006
Servo Set
AX80020
Straight Axle Adapter Parts Tree
AX80018
11
11
2
22
33
x1
AX80018
Hardware Parts Tree
x2
x1
AX80009
Transmission Set
x1
7
1
AX80009
6
x1
1
23
45
AX80017
1 1
2 3 2
AX80017
Steering Linkage Parts Tree
x1
AX80025
AX80025
SCX10 Shock Hoops Parts Tree
1 1
AX80041
2
AX80041
1/10th Scale Rock Rails Set
x2
AX80078
33
12
Transmission Gear Cover
x1
x1
AX80002
Diff Case
x2
12
6
13
5
2
5
4
2
4
1
3
1
3
1
6
2
5
3
AX80043
Links Parts Tree
x2
1
AX80054
SCX10 RTR Links Parts Tree (130mm)
AX31114
WB8-HD Driveshaft
X
1
X
2
AX08138
1.9 Walker Evans Wheels - Black
x4
AX31027
56T 32P Spur gear
AX31027
4x11mm bushing
AX80010
Gear Set
14
x1
x1
x1
AX30146
Shock Shaft 3x50mm
x4
AX30435
Outdrive Shaft
x1
AX30435
Outdrive Shaft
x1
AX30162
Pin 1.5x8mm
AX30163
Pin 2x10mm
AX31028
Pin 2x11mm
x1
x6
x4
AX31148
Joint 10X15MM
AX31145
Spring 12.5x60mm X.X lbs/in
x4
AX31148
Universal joint Axle Pin holder
x4
AX31148
Joint Male Universal
x4
AX30408
Input Shaft 5x29mm
x4
x2
AX31149
Drive gear Shaft 5x54.5mm
x1
AX31068
Slipper Pad
x2
AX31026
Slipper Plate
x2
AX30393
13T Bevel Gear
AX30385
Diff Gasket 16x25x0.5mm
AX30491
AX10 Scorpion Motor Plate
x2
x2
x1
AX30413
Spring 8.5x12
x1
AX30392
38T Bevel Gear
AX30427
12mm Aluminum Hub
AX30420
Solid Axle Dogbone 6x74mm
AX30421
Solid Axle Dogbone 6x104.5mm
x2
AX31180
Aluminum Spur Gear Spacer
5x9x17mm - Grey
x4
x2
AX30450
Flange Pipe 3x4.5x5.5
x2
x4
x1
x2
15
AX30724
Pinion Gear
32P 13T - Steel
x1
AX30502
SCX10 Chassis Rail
x2
AXA015
M2x10mm
AXA083
M3x6mm
AXA086
M3x12mm
AXA087
M3x16mm
AXA088
M3x20mm
AXA089
M3x25mm
AXA1045
M4 Nylon Lock Nut
x8
x2
x4
x8
x1
x7
x5
AXA1392
E2 e-clip
AXA1393
E2.5 e-clip
AXA1230
Bearing 10x15x4mm
AXA0109
M3x10mm
AX31073
M3x4x15mm Step Screw
AXA1358
Shock Damper 3x7x8
AXA1416
Shock Damper 4x6
x6
x4
x2
x4
x1
x8
x2
AXA144
M3x8mm Hex Socket Flat Head
AXA433
M3x6mm Hex Socket Tapping Button Head
AXA434
M3x8mm Hex Socket Tapping Button Head
AXA435
M3x10mm Hex Socket Tapping Button Head
AXA436
M3x12mm Hex Socket Tapping Button Head
x4
x8
x8
x4
x1
AXA1053
M3 Nylon Locking Hex Nut
AX31147
M2 Nylon Locking Hex Nut (Silver)
AXA1059
6mm Body Clip
AXA1070
Washer 3x6x0.5mm
AXA1179
O-Ring 2.5x1.5mm
AXA1163
O-Ring 7x1mm
AXA1218
Bearing 5x10x4mm
x19
x8
x8
x3
x8
x4
x4
AXA176
M3x2.5x13mm Screw Shaft
AXA286
M4x12mm Screw Shaft
AXA180
M3x3mm Set Screw
AXA291
M4x4mm Set Screw
AX31146
M2x4mm Hex Socket Button Head
AXA0113
M3x6mm Hex Socket Button Head
AXA117
M3x15mm Hex Socket Button Head
x4
x4
x4
x1
x8
x9
x1
AXA438
M3x18mm Hex Socket Tapping Button Head
AXA440
M3x25mm Hex Socket Tapping Button Head
AXA414
M2.6x10mm Hex Socket Tapping Flat Head
AXA463
M3x6mm Hex Socket Tapping Flat Head
AXA464
M3x8mm Hex Socket Tapping Flat Head
AXA465
M3x10mm Hex Socket Tapping Flat Head
x4
x1
x3
x1
x14
x3
AXA1221
Bearing 5x11x4mm
AXA1225
Bearing 8x16x5mm
x10
x2
AXA119
M3x20mm Hex Socket Button Head
AXA121
M3x30mm Hex Socket Button Head
16
x4
x1
AXA466
M3x12mm Hex Socket Tapping Flat Head
AXA471
M3x30mm Hex Socket Tapping Flat Head
x4
x3

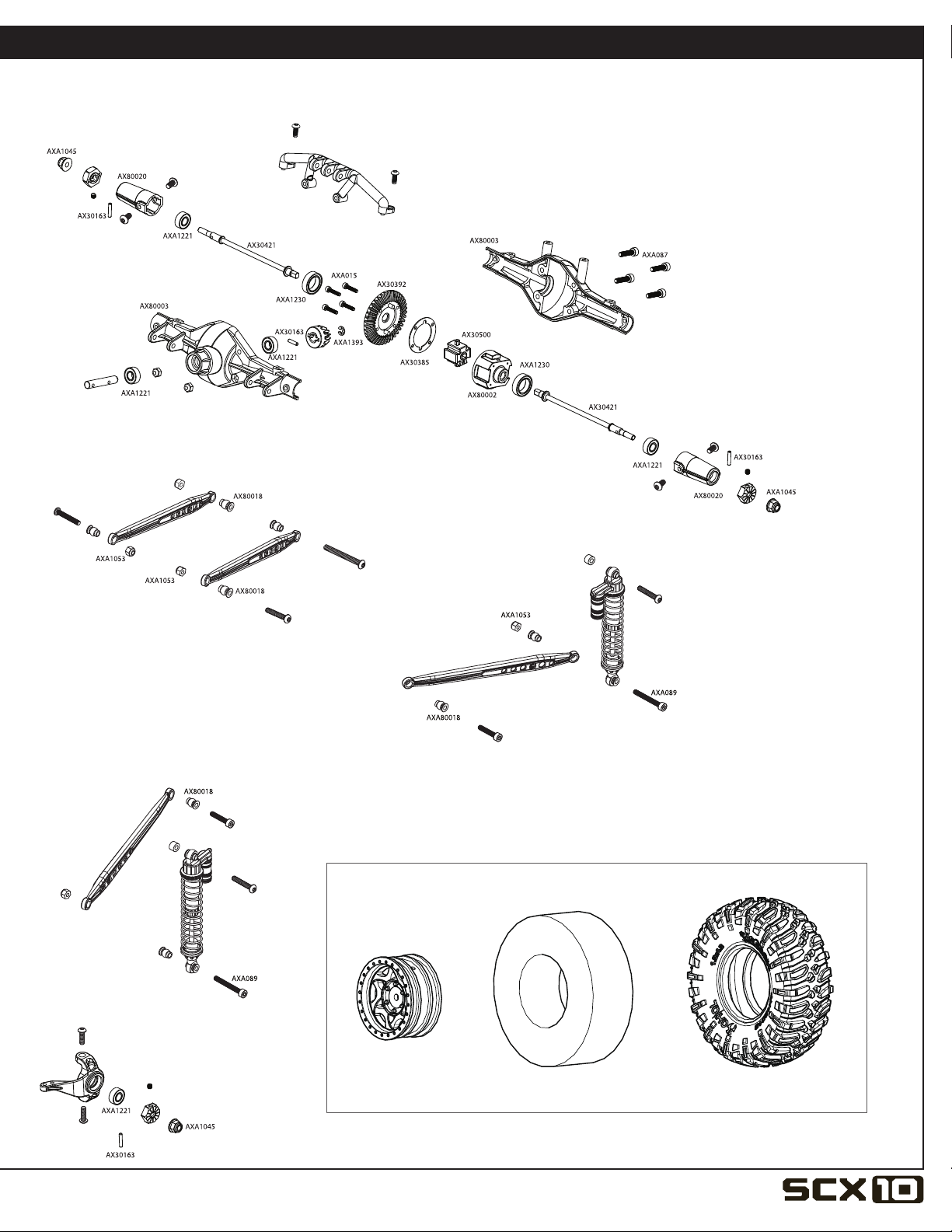

Body Assembly
