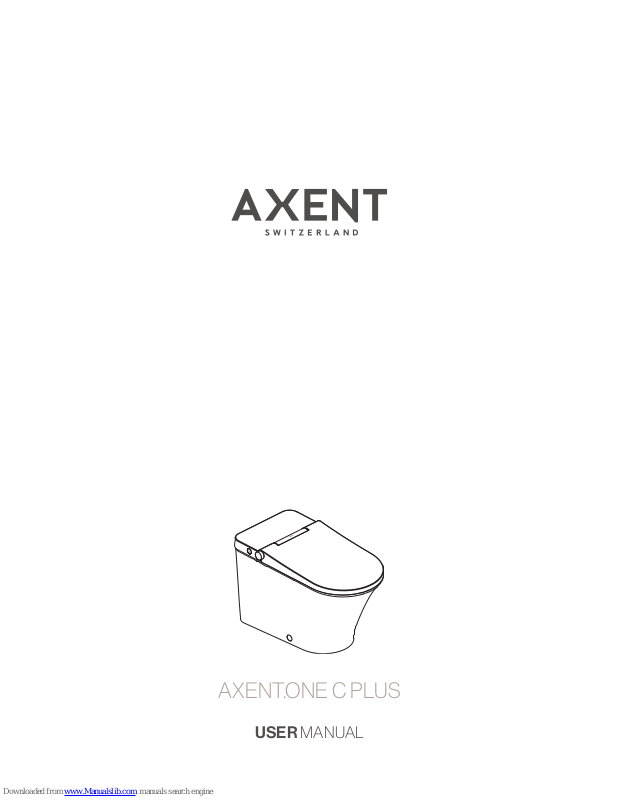

USER MANUAL
AXENT.ONE C PLUS
1
THANK YOU FOR CHOOSING
Thank you for selecting an AXENT Switzerland product. To ensure proper installation, please review these instruction carefully before use. Carefully unpack and examine the intelligent toilet before installation. For any questions, we may be contacted at 800-769-4857. Thank you again for
choosing AXENT
BEFORE YOU BEGIN
CAUTION!
Risk of personal injury or product damage
Handle with care. Vitreous china can break or chip if handled carelessly.
ALL INSTALLATION PROCEDURES SHOULD COMPLY WITH
APPLICABLE LOCAL PLUMBING AND BUILDING CODES.
INSTALLATION BY A PROFESSIONAL LICENSED PLUMBER OR
CONTRACTOR IS HIGHLY RECOMMENDED.
EN
USER MANUAL
Smartphone App 3
Safety 4
Introduction 7
Multi-function Dial 9
Remote Control 18
Maintenance 28
Troubleshooting 31
Technical Data 35
Guarantee 36
AXENT.ONE C PLUS
3
SMARTPHONE APP
CONNECT YOUR AXENT INTELLIGENT TOILET WITH OUR APP
Rear wash Lady wash Stop
Night light ECO Drainage
System purge Standby Setting
100%9:41 AM
The Axent Remote App can be used as an individualized remote control with the Axent
One C Plus.
www.axentbath.us » Downloads
4
SAFETY
SAFETY SYMBOLS
The following symbols in the manual will highlight hazardous situations and their severities.
DANGER!
High Risk, Lethal Hazards, Severe Injuries
WARNING!
Medium Risk, Severe Injuries
CAUTION!
Low Risk, Minor Injuries
NOTE!
Damage to Property
NORMAL USAGE
The intelligent toilet’s spray arm attachment should only be used for
the rear wash and front wash cleaning functions. The product may
also be used as a normal toilet seat. This product is meant for indoors
usage only.
Any other usage will not be deemed as normal usage. AXENT undertakes no liability for abnormal usage.
AXENT is not liable or responsible for damage to other electronics
connected to the same power line while the intelligent toilet is in use.
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USING
SAVE THESE INSTRUCTIONS
When using electrical products, especially when children are present, basic safety precautions should always be taken, including the following:
DANGER!
To reduce the risk of electrocution
Do not reach for any electrical components of the intelligent
seat that have fallen into water. Unplug toilet immediately.
Unplug product if not in use for extended periods of time.
Do not use while wet after bathing.
Do not place or store product where it can fall or be pulled into a tub or sink.
Do not place or submerge the intelligent toilet or it’s components into
water or other liquids.
WARNING!
To reduce the risk of burns, electrocution, fire, or injury to
persons
Children or disabled persons may require supervision during use.
Use this product only for its intended use as described in this manual.
Do not use attachments not authorized by the manufacturer.
Never operate this product if it has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or dropped into
water. Return the product to a service center for examination and repair.
5
SAFETY
Keep the cord away from heated surfaces.
Do not block the air vents on this product. Do not place the toilet on or by
objects such as long window curtains that could potentially obstruct the air
vents during normal usage. Keep air vents free of lint, hair, and other debris.
Never use while sleepy or drowsy.
Never drop or insert any object into any openings or hoses.
Do not use outdoors or operate where aerosol (spray) products are
being used or where oxygen is being administered.
Connect this product to a properly grounded outlet only. See Section
« GROUNDING INSTRUCTIONS » on page 6.
Unplug this product before filling water. Fill (reservoir) with water only
unless otherwise specified by manufacturer. Do not overfill.
SAFETY INSTRUCTIONS
Carefully read and observe the following safety instructions!
Information for the user
Children or persons with limited physical/mental capabilities may require supervision or proper instructions/guidance prior to or during use.
Ensure that children cannot play with intelligent toilet.
Avoid malfunctions and damage to the product as a result of
improper use
If intelligent toilet is moved from a cold location to a warm location,
condensation may form. Leave the unit switched o for a few hours.
Do not install the intelligent toilet in rooms where the temperature will
be less than 4 °C ( 39 °F ).
Do not place open flames, candles, cigarettes, or similar objects on or
by the toilet.
Do not reuse old hoses or water lines. Please use new water lines
when installing.
Do not install the intelligent toilet next to items that would potentially
expose the toilet to a large amount of water.
Do not climb on or stand on the product.
Do not place any heavy objects on the lid.
Do not open or close the lid or seat with force.
Do not deliberately soil, spray or block the spray arm.
Repairs must only be carried out by a person with the necessary expertise
Do not carry out modifications, tamper with, install additional equipment, or attempt to repair the intelligent toilet.
Improperly performed repairs can lead to accidents, injuries, or damage to the product.
Only use the device when it is fully functional
Make sure the power cable is not damaged before use. Do not allow
the power cable to be severely pinched, bent, or kinked.
Keep the power cable away from hot surfaces and sharp edges.
Do not handle the power cord or plug with wet hands.
Do not use the product if it is not working properly. In case of malfunc-
tion, disconnect the power immediately. Close the water cut-o valve
to interrupt the water supply. Contact your installer.
Information on the use of batteries
Keep batteries out of the reach of small children. Batteries can be
life-threatening if swallowed. If a battery has been swallowed, seek
medical assistance immediately.
Do not attempt to recharge non-chargeable batteries for use with unit.
Always remove empty batteries from the remote control immediately.
They may leak and cause damage.
Do not insert new and old batteries together in the remote control.
Clean the battery and contacts before inserting the battery. Make sure
the batteries are oriented properly.
Remove the batteries if the remote control will not be used for an ex-
tended period of time.
Do not expose the batteries to hot surfaces or direct sunlight to reduce
the risk of battery leakage.
If battery acid has leaked, avoid contact with skin, eyes and mucous
membranes. In case of contact with the acid, flush the aected areas
with large amounts of clean water and seek medical assistance immediately.
6
SAFETY
GROUNDING INSTRUCTIONS
This product must be grounded when plugged in. The power cord on
this product has a grounding plug and must be plugged into an outlet
with a properly grounded grounding plug.
DANGER!
Improper use of grounding plug can result in a risk of electric
shock
For safety, the intelligent toilet should be plugged into a standard 3
prong GFCI outlet.
Grounding pin
Grounded outlet
Grounded outlet box
Wiring Diagram (NOT FOR INSPECTOR’S USE)
If repair or replacement of the power cord or plug is necessary, do not
connect the grounding wire to either flat blade terminal.
This product is not to be used with extension cords.
This product is factory equipped with a specific electric cord and plug
to permit proper connection. No adapters should be used with this
product. Do not modify the power cord on the toilet. If the power cord
will not fit the outlet, have the proper outlet installed by a qualified electrician. If the product must be reconnected for use on a dierent type of
electric circuit, the reconnection should be made by qualified service
personnel.
Please unplug unit immediate and contact for service if cord becomes
damaged. Do not use a bidet seat with a damaged cord.
NOTE!
Actual installation may dier slightly from the diagram.
FCC INSTRUCTIONS
Please note that changes or modifications not expressly approved by
the party responsible for compliance could void the user’s authority to
operate the equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
7
INTRODUCTION
OVERVIEW
E322-02
REMOTE CONTROL
Activate the remote control by inserting the batteries.
For safety purposes, the bidet function of the intelligent toilet is only functional when the user is seated on the toilet seat.
Lid Seat Close Flush User
Rear Wash
Massage Water Flow
Position
Front Wash Dry Stop
System Purge
Descale
Setting
Light
Mute
Eco
8
INTRODUCTION
MAIN
The intelligent toilet can be easily operated by the multi-functional dial and flush button.
Manual Flush Button
Multi-functional Dial
MANUAL FLUSH
Press the Manual Flush Button located behind the multifunction knob to flush the toilet.
9
MULTIFUNCTION DIAL
QUICK START
AXENT.ONE C PLUS oers a Quick Start function. Sit down on the toilet seat and push the dial.
Rear Wash starts and will stop after another push on the button.
The spray arm is automatically cleaned with water before and after each washing procedure.
Rear Wash
Stop
10
MULTIFUNCTION DIAL
REGULAR USE
Rear Wash Front Wash
Adjusting water volume Adjusting water temperature Adjusting nozzle position
Stop
11
MULTIFUNCTION DIAL
ADDITIONAL FEATURES
Additional settings and service functions may also be accessed with the multifunction dial. Access is done at two levels.
LEVEL
- Mute ON / OFF
- Seat heating ON / OFF
- Self-cleaning function ON / OFF
- System purge
LEVEL
- Night light ON / AUTO / OFF
- Deodorizer ON / OFF
- Auto dry
- Spray arm cleaning
- System reset
ACTIVATING LEVEL
To activate LEVEL 1, press and hold the multifunction dial until the ambient light flashes slowly.
The mode level 1 is activated when the ambient light continues to flash slowly.
DEACTIVING LEVEL
When the multifunction dial is already at LEVEL 1, push the dial.
The ambient light will stop flashing and you will hear one single «beep».
The mode level 1 is deactivated.
If no functions are used within 3 minutes, LEVEL 1 will automatically deactivate.
