Page 1
WOLF 1MS
WOLF 2MS
User Manual
FM monitoring system
and streaming device
(Rev 1.3)
Page 2
ENG
| INTRODUCTION
2
CONTENT
1 INTRODUCTION ......................................................................................................................................................... 5
1.1 AVAILABLE MODEL ........................................................................................................................................... 5
1.2 USE OF THIS MANUAL ....................................................................................................................................... 5
1.3 REVISION HYSTORY AND NOTES .................................................................................................................... 5
2 GENERAL DESCRIPTION ......................................................................................................................................... 6
3 SAFETY WARNINGS / ISTRUZIONI PER LA SICUREZZA .................................................................................... 21
3.1 FOREWORD ..................................................................................................................................................... 21
4 SAFETY WARNINGS ............................................................................................................................................... 22
5 CONSIGNES DE SÉCURITÉ IMPORTANTES ......................................................................................................... 23
6 ISTRUZIONI IMPORTANTI PER LA SICUREZZA ................................................................................................... 24
7 WICHTIGE SICHERHEITSHINWEISE ...................................................................................................................... 25
8 INSTRUCCIONES IMPORTANTES DE SEGURIDAD ............................................................................................. 27
9 UNPACKING AND INSPECTION ............................................................................................................................. 29
10 FIRST INSTALLATION RECOMMENDATIONS .................................................................................................. 30
10.1 POWER SUPPLY CABLE ................................................................................................................................. 30
10.1 PROTECTION AGAINST LIGHTNING - NUMERAZIONE ................................................................................. 30
10.2 VENTILATION ................................................................................................................................................... 30
11 WOLF 2MS INSTALLATION NOTE AND FIRST STEP ....................................................................................... 31
11.1 IMPORTANT NOTE ON USER NAME AND PASSWORD ................................................................................................... 32
11.2 HOW TO SHUT DOWN WOLF 2MS ............................................................................................................................. 33
12 WOLF 2MS GENERAL DESCRIPTION ............................................................................................................... 34

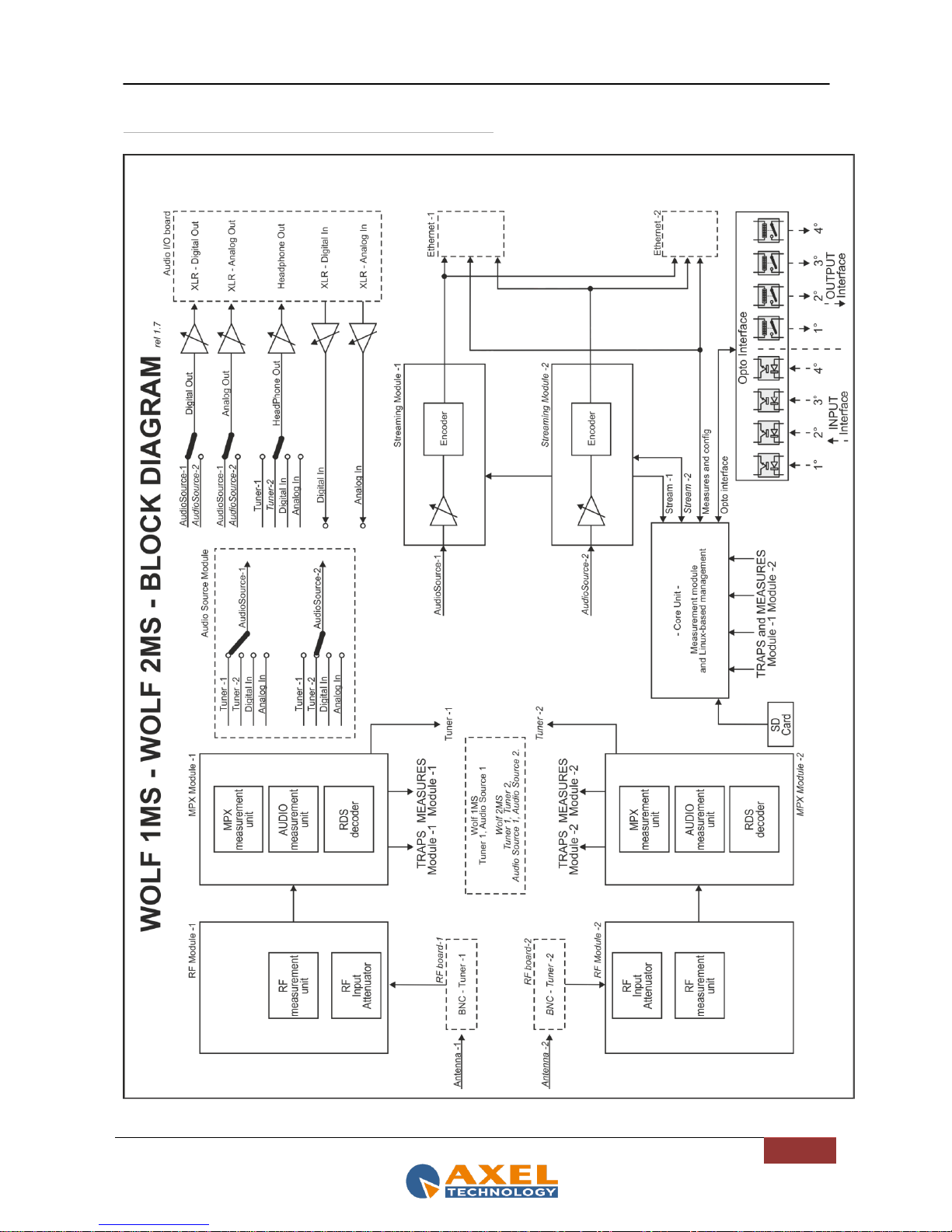

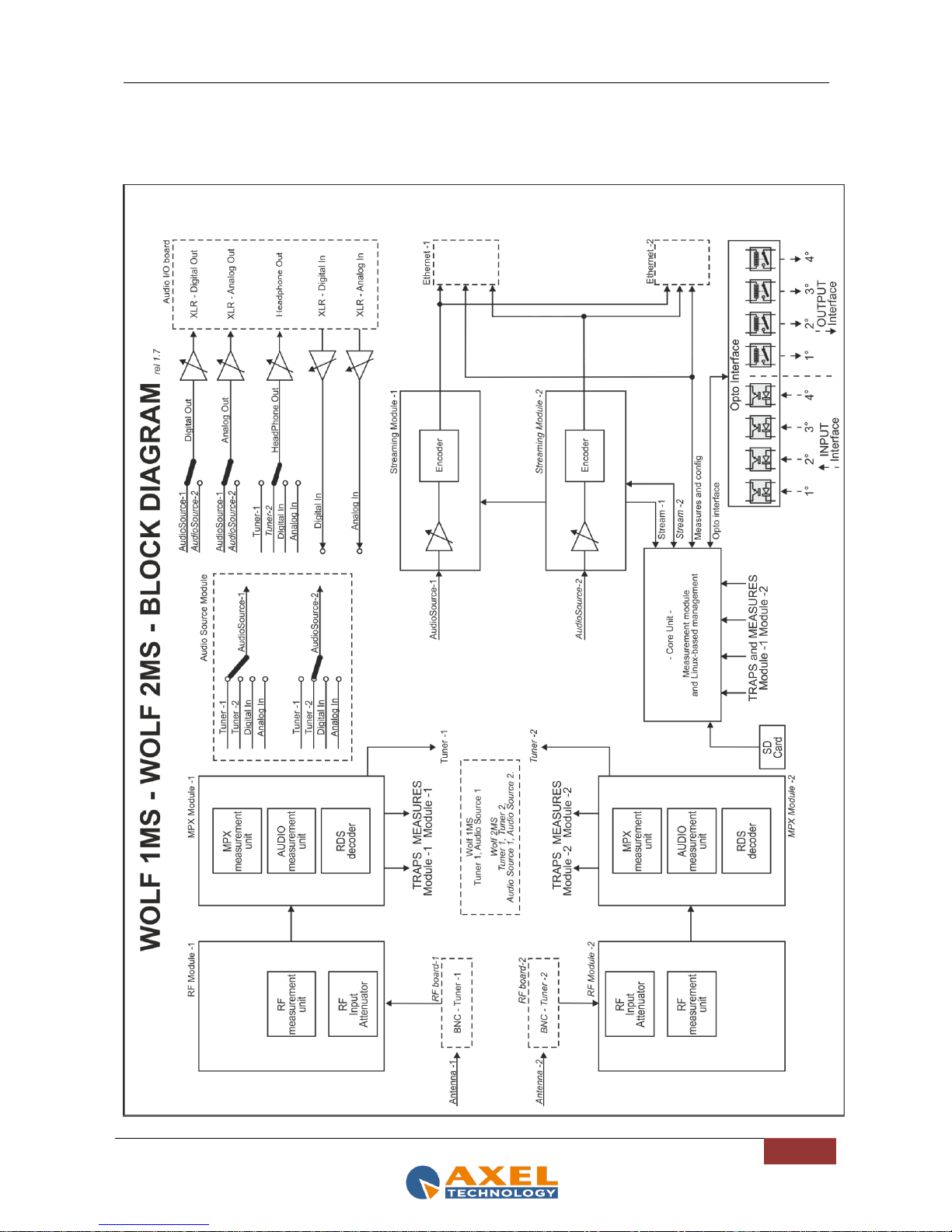

12.1 WOLF 2MS BLOCK DIAGRAM ................................................................................................................................... 34

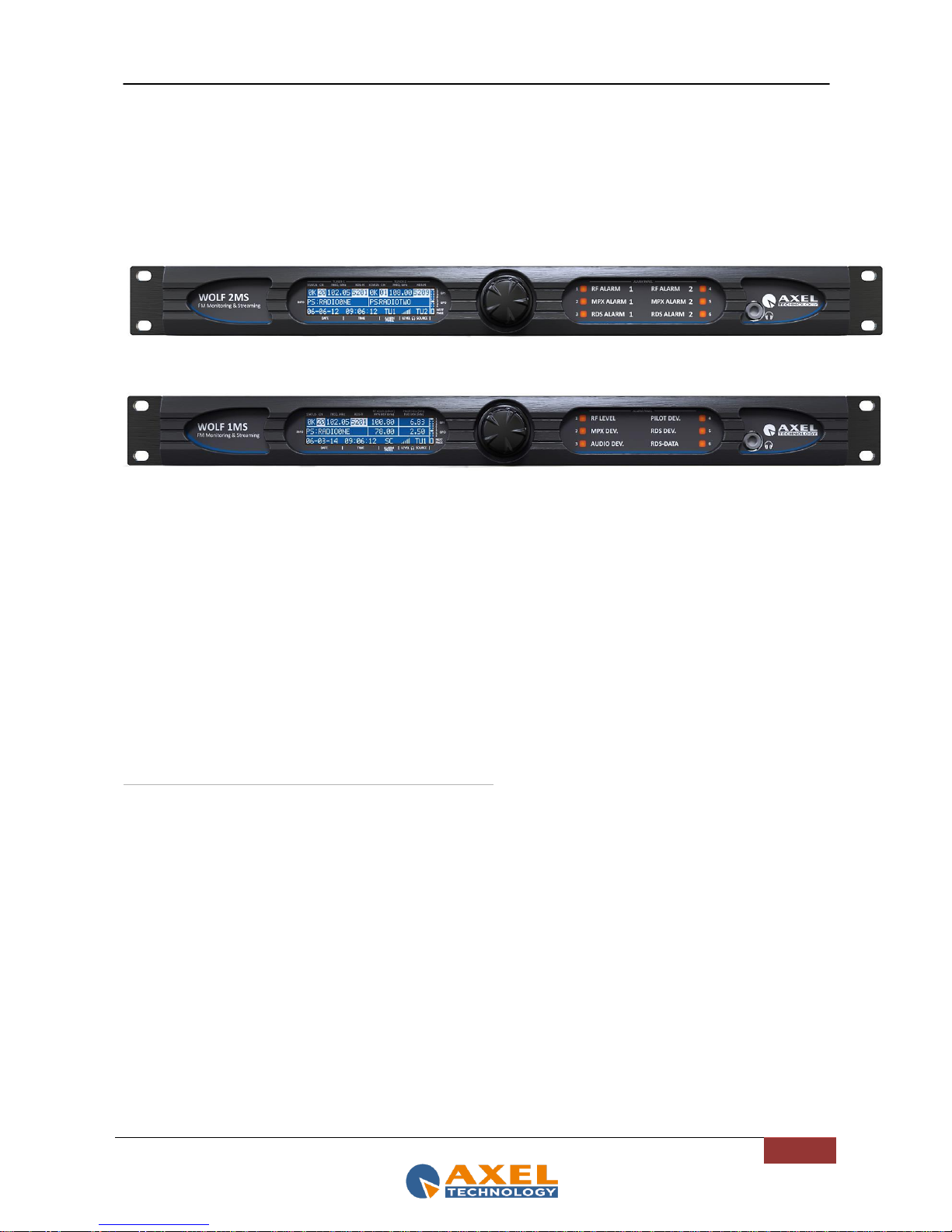

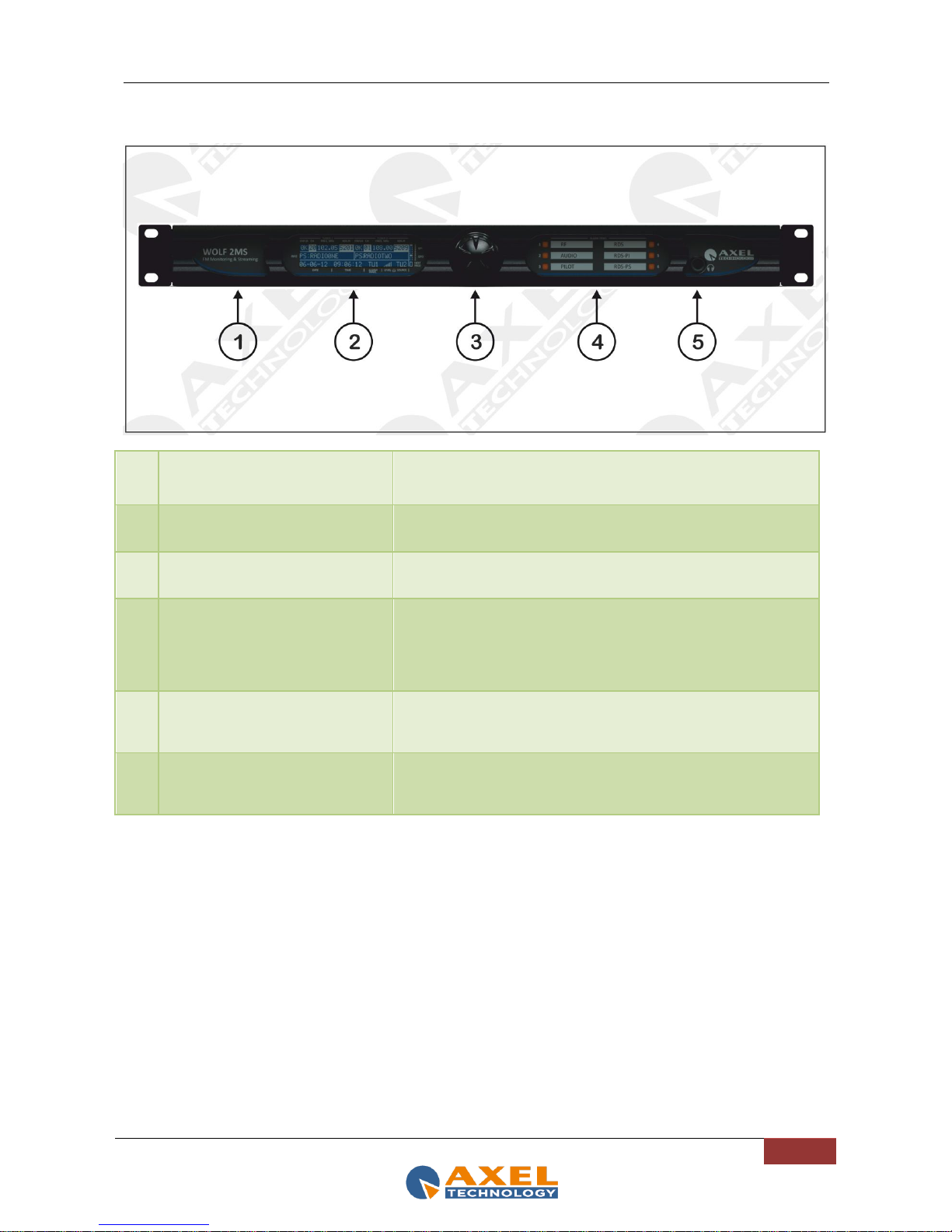

12.2 WOLF 2MS FRONT PANEL ....................................................................................................................................... 35

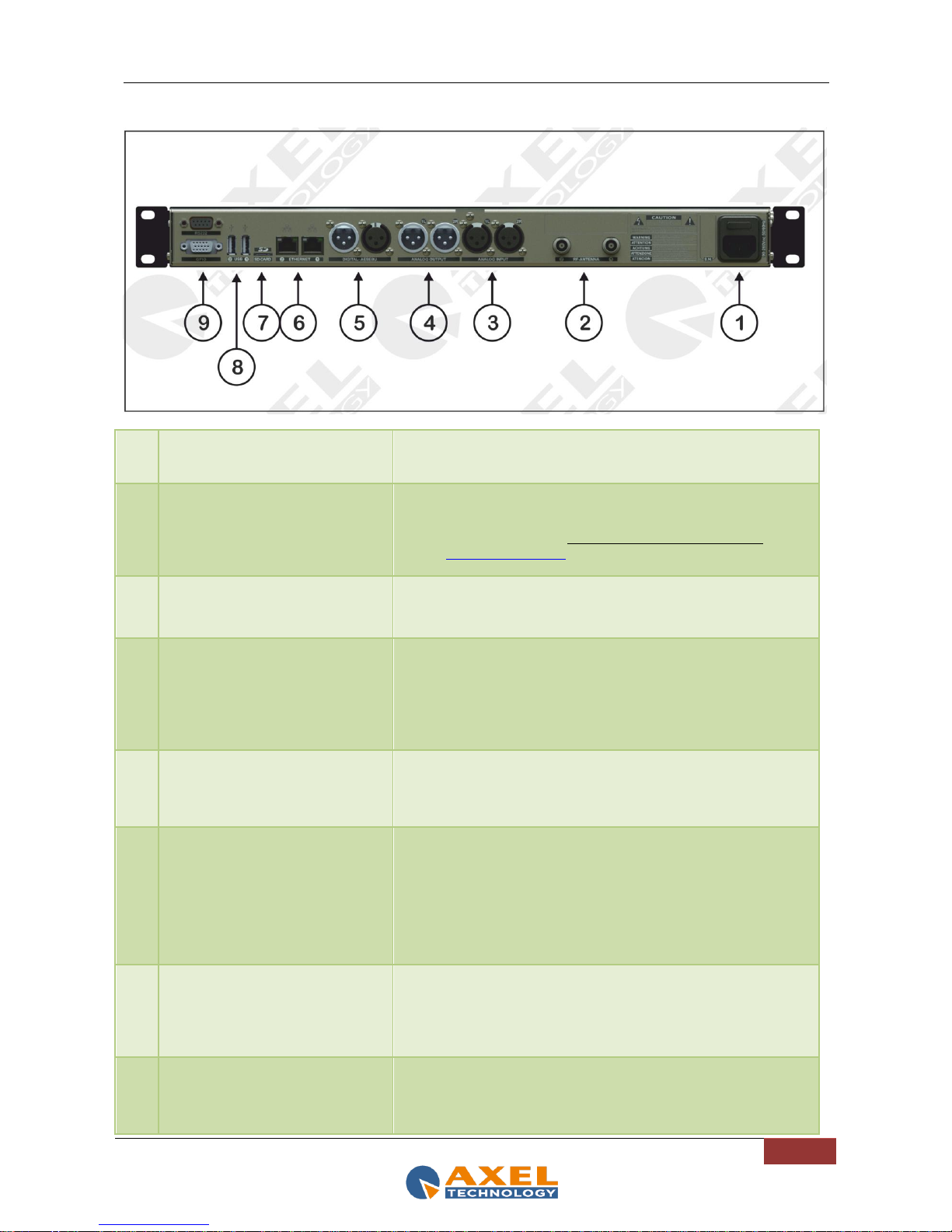

12.3 WOLF 2MS REAR PANEL ......................................................................................................................................... 36

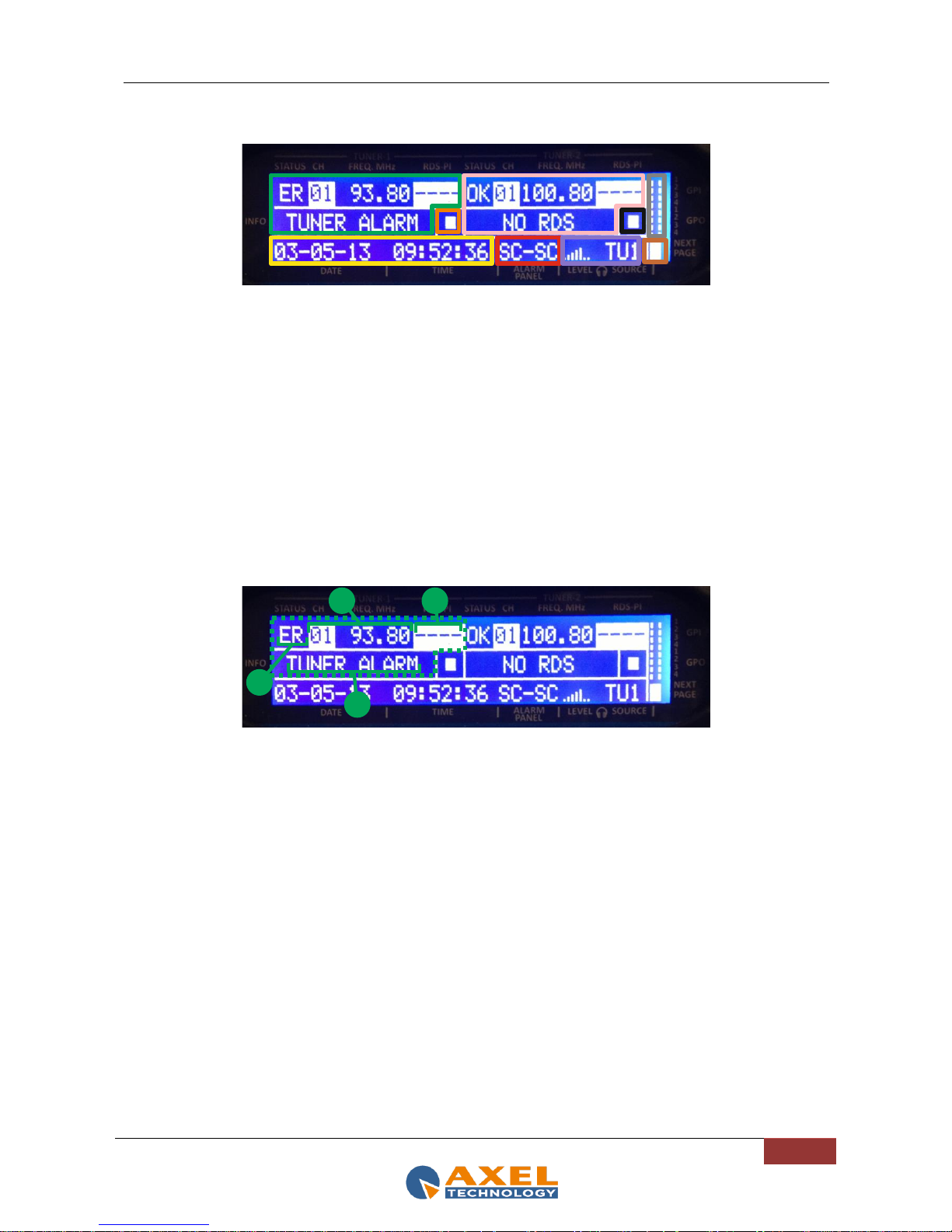

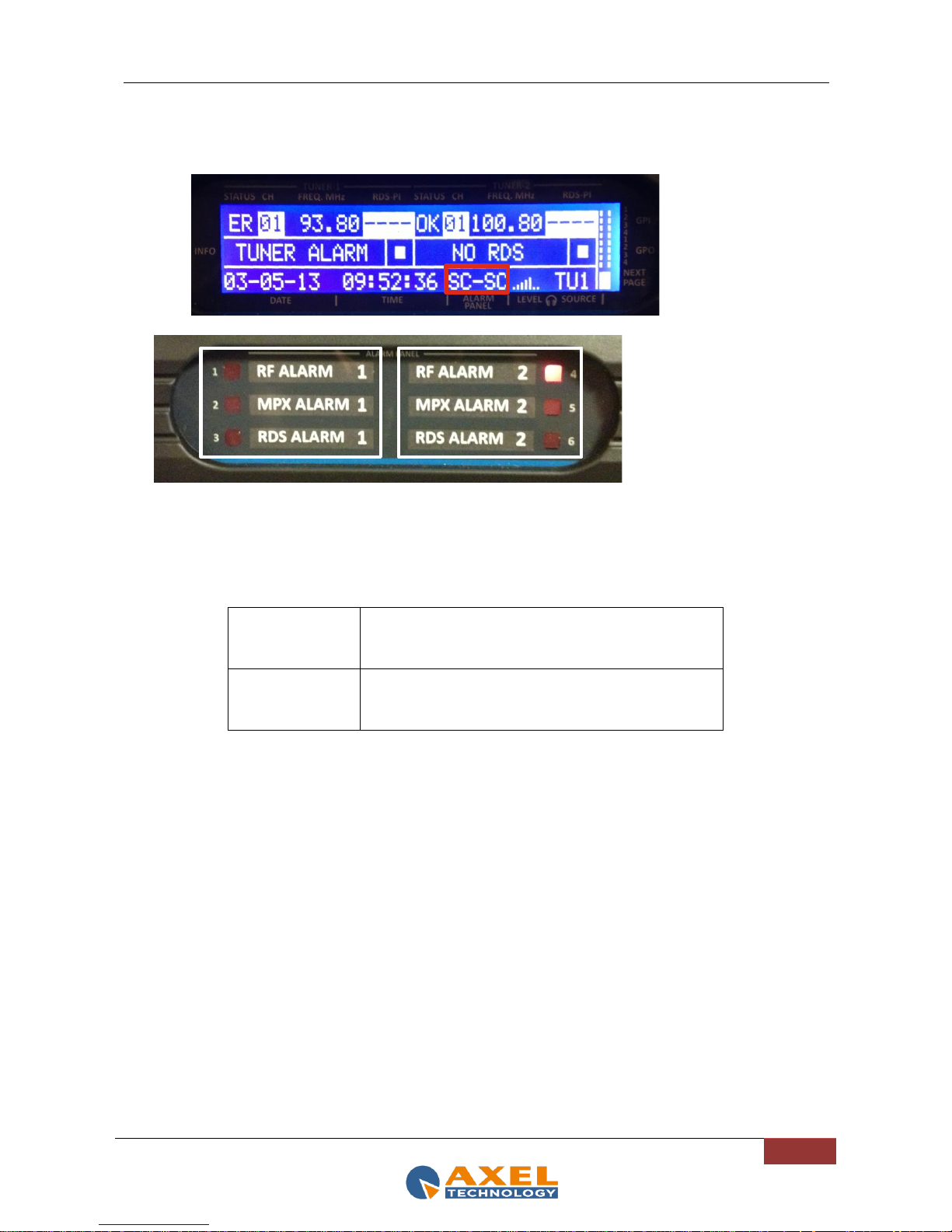

12.4 WOLF 2MS DISPLAY AND LED PANEL ........................................................................................................................ 38
12.4.1 Tuner Module-1 Zone Functionality ........................................................................................................................... 38
12.4.2 Audio Streaming Module-1 Zone Functionality .......................................................................................................... 39
12.4.4 Tuner Module-2 Zone Functionality ........................................................................................................................... 40
12.4.5 GPIO Zone Functionality ............................................................................................................................................ 41
12.4.6 Time and Date Zone Functionality .............................................................................................................................. 41
12.4.7 Alarms Panel Zone Functionality ................................................................................................................................ 42
12.4.8 Headphone Panel Zone Functionality ......................................................................................................................... 43

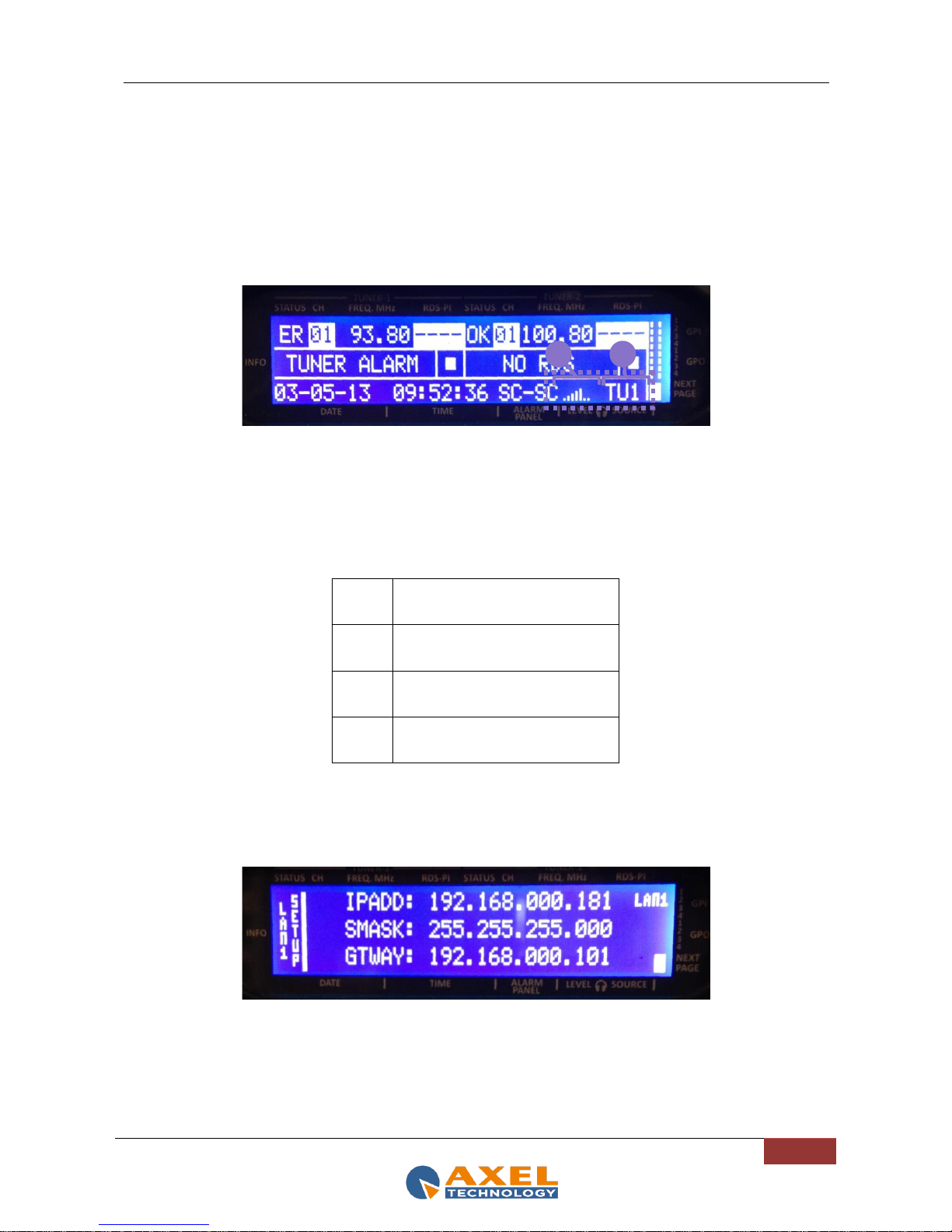

12.4.9 LAN-1 Page Functionality (How to set the TCP/IP ETH-1) ....................................................................................... 43

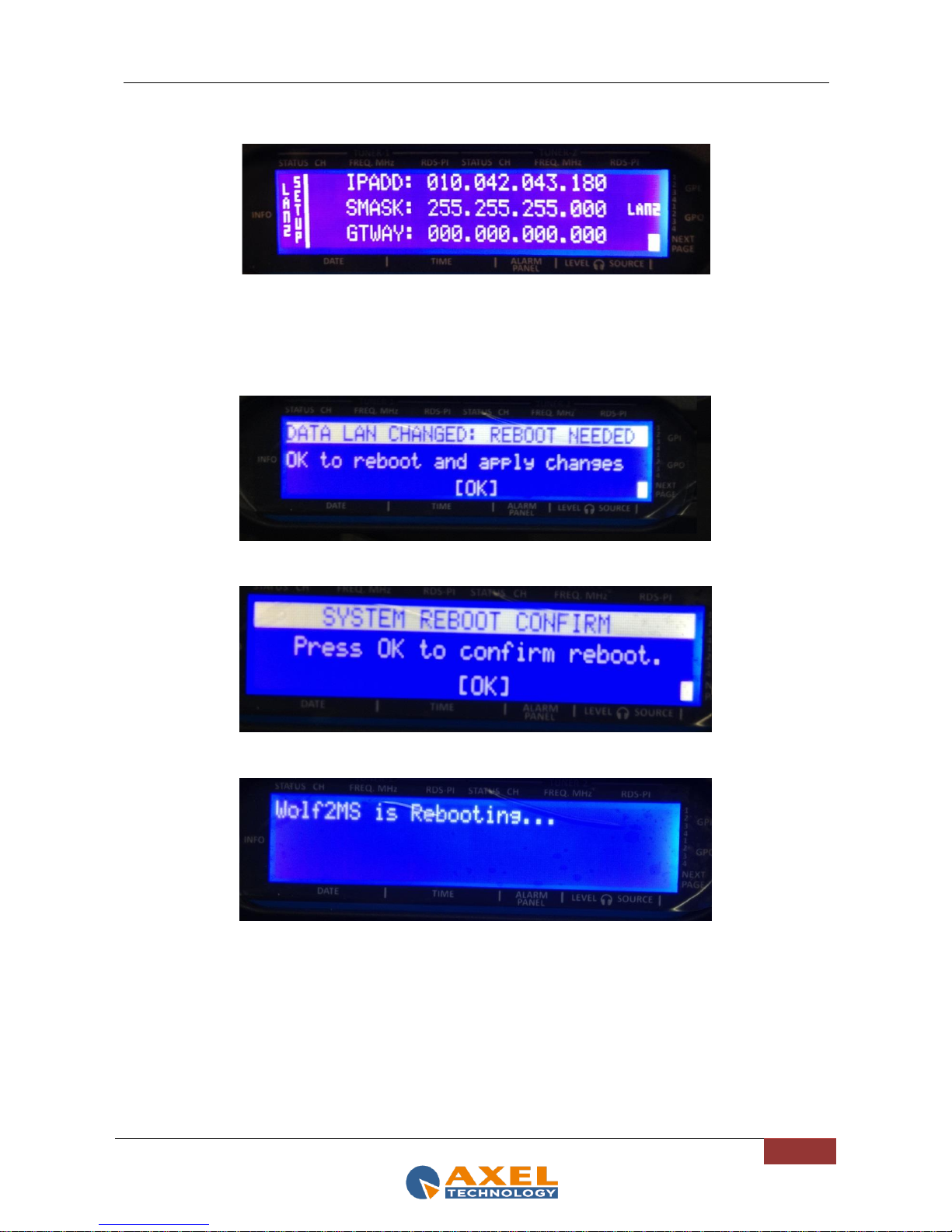

12.4.10 LAN-2 Page Functionality (How to set the TCP/IP ETH-2) ....................................................................................... 44
12.4.11 IMPORTANT NOTE .................................................................................................................................................... 44
13 WOLF 2MS WEB PAGE ....................................................................................................................................... 45

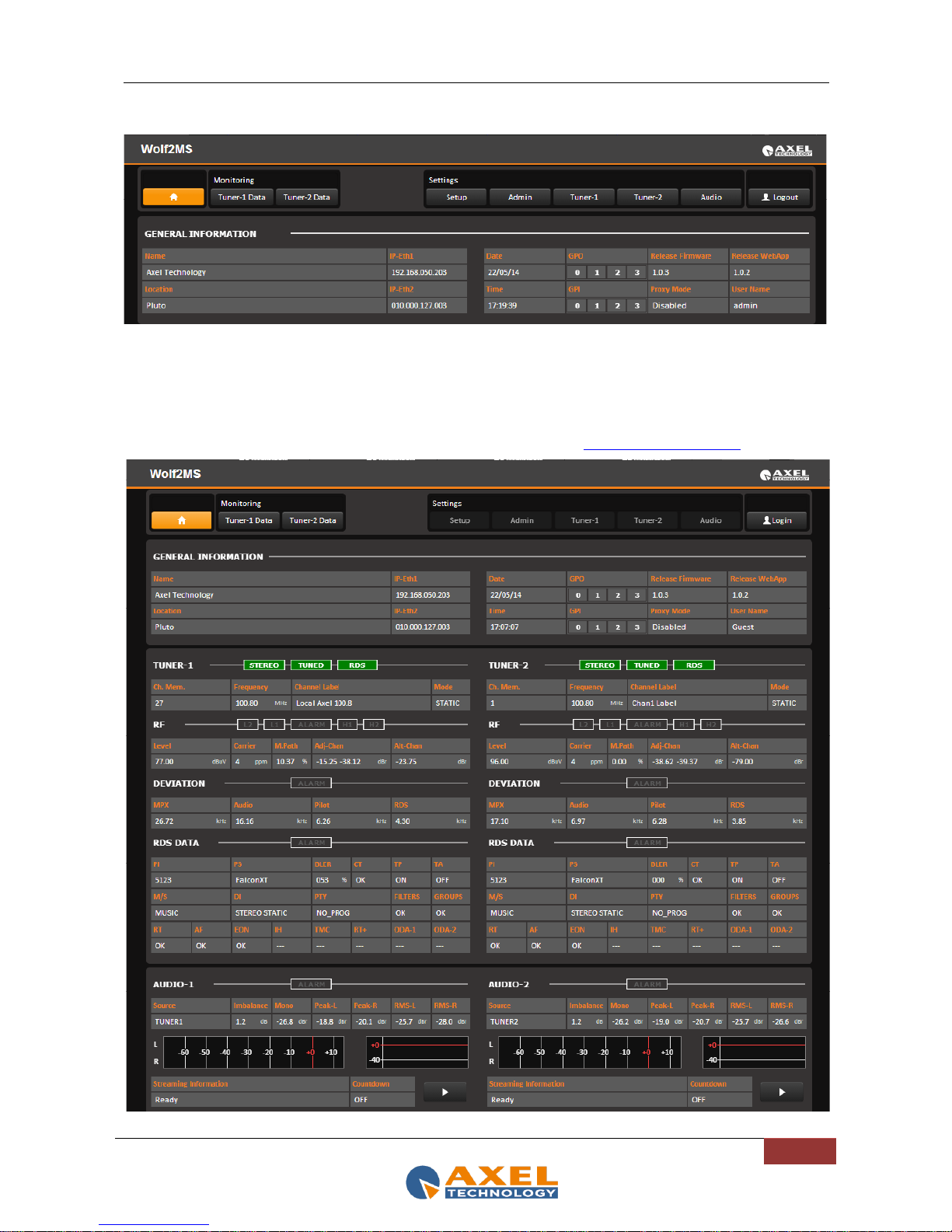

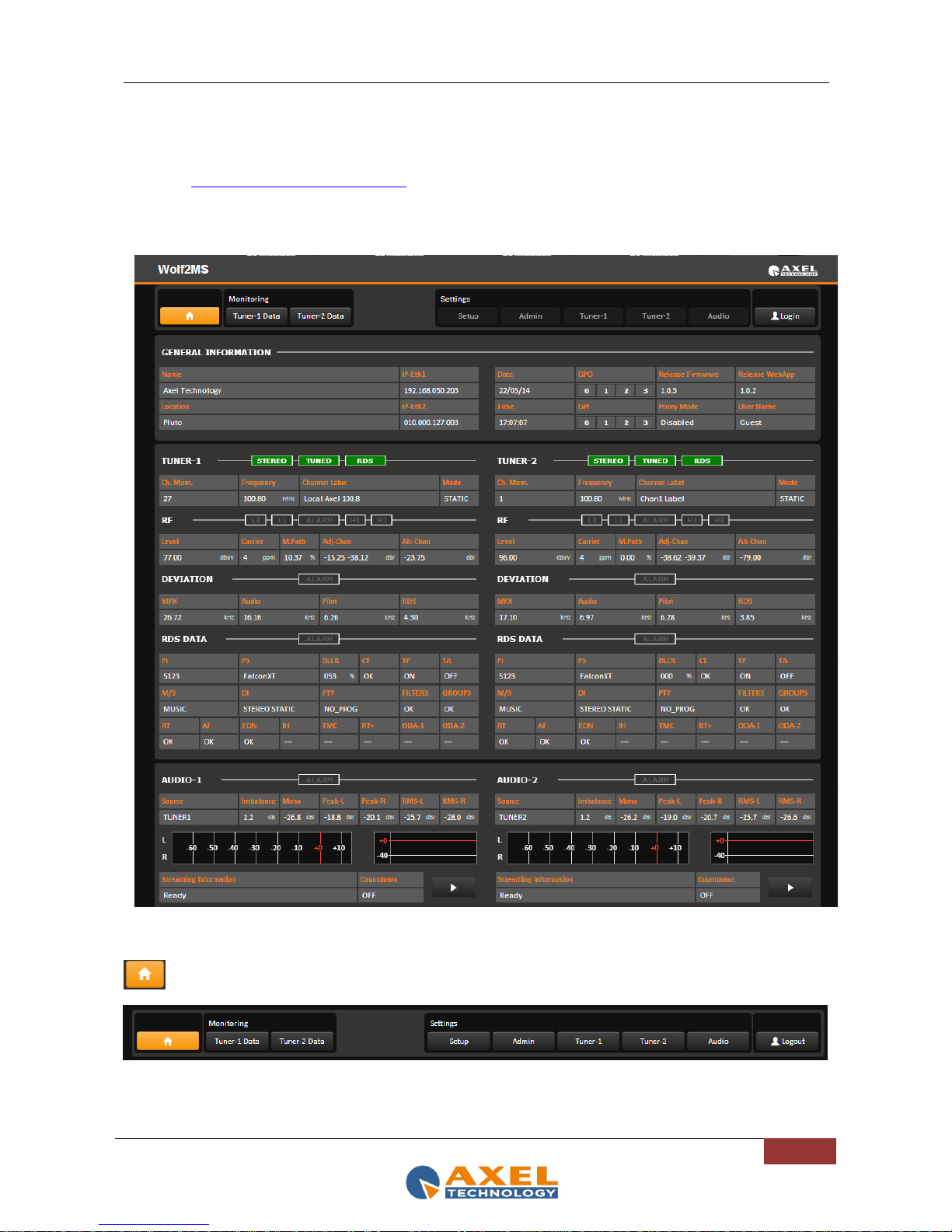

13.1.1 The Home web page .................................................................................................................................................... 45
13.1.2 NTP Time and Date Synch in Wolf 2MS...................................................................................................................... 46
13.1.3 LOGIN into WOLF2MS .............................................................................................................................................. 48

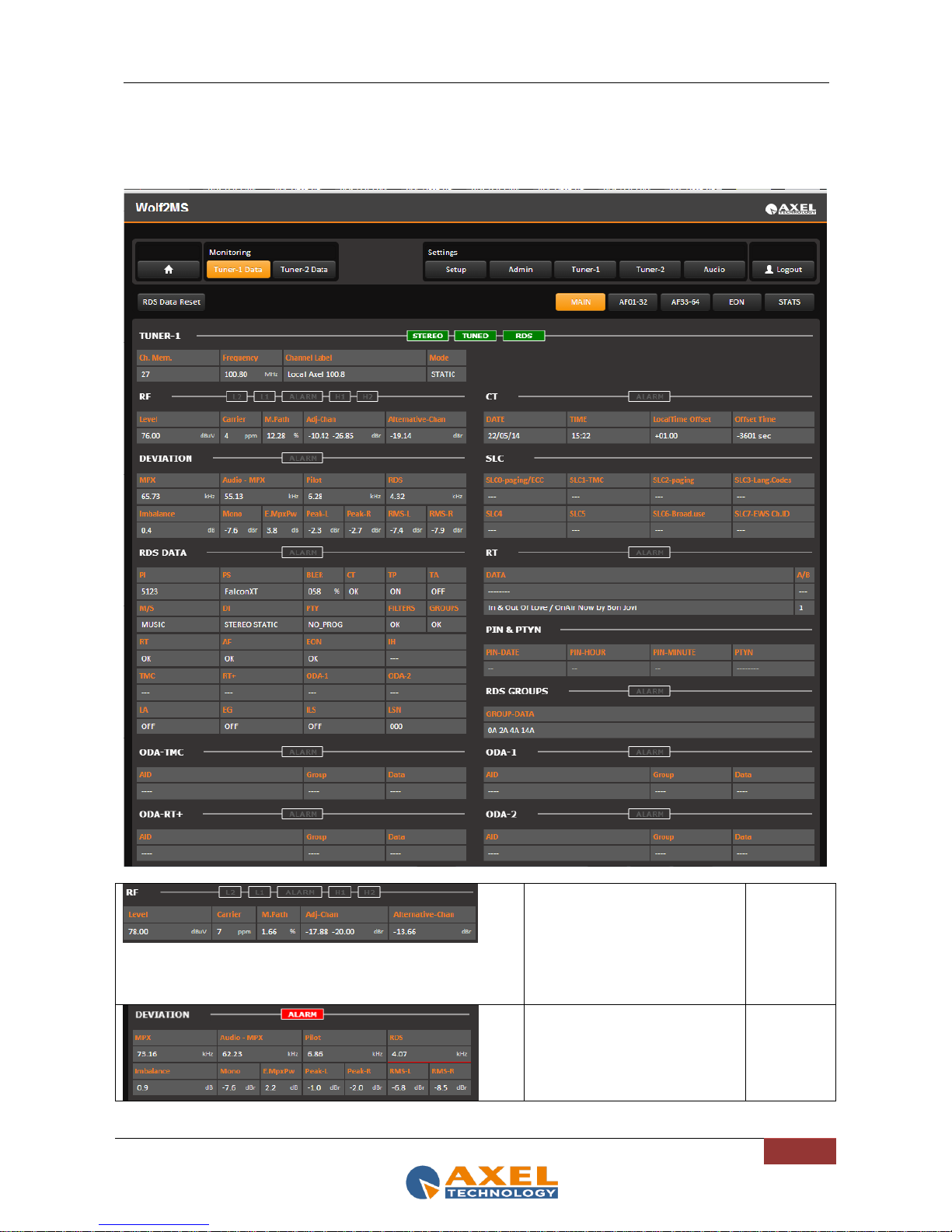

13.1.4 Tuner-1 Data – Main Webpage ................................................................................................................................... 49
13.1.5 Deviation, Imbalancement and MPX Power ............................................................................................................... 51
13.1.6 RDS Group Transmission Alarm ................................................................................................................................. 51

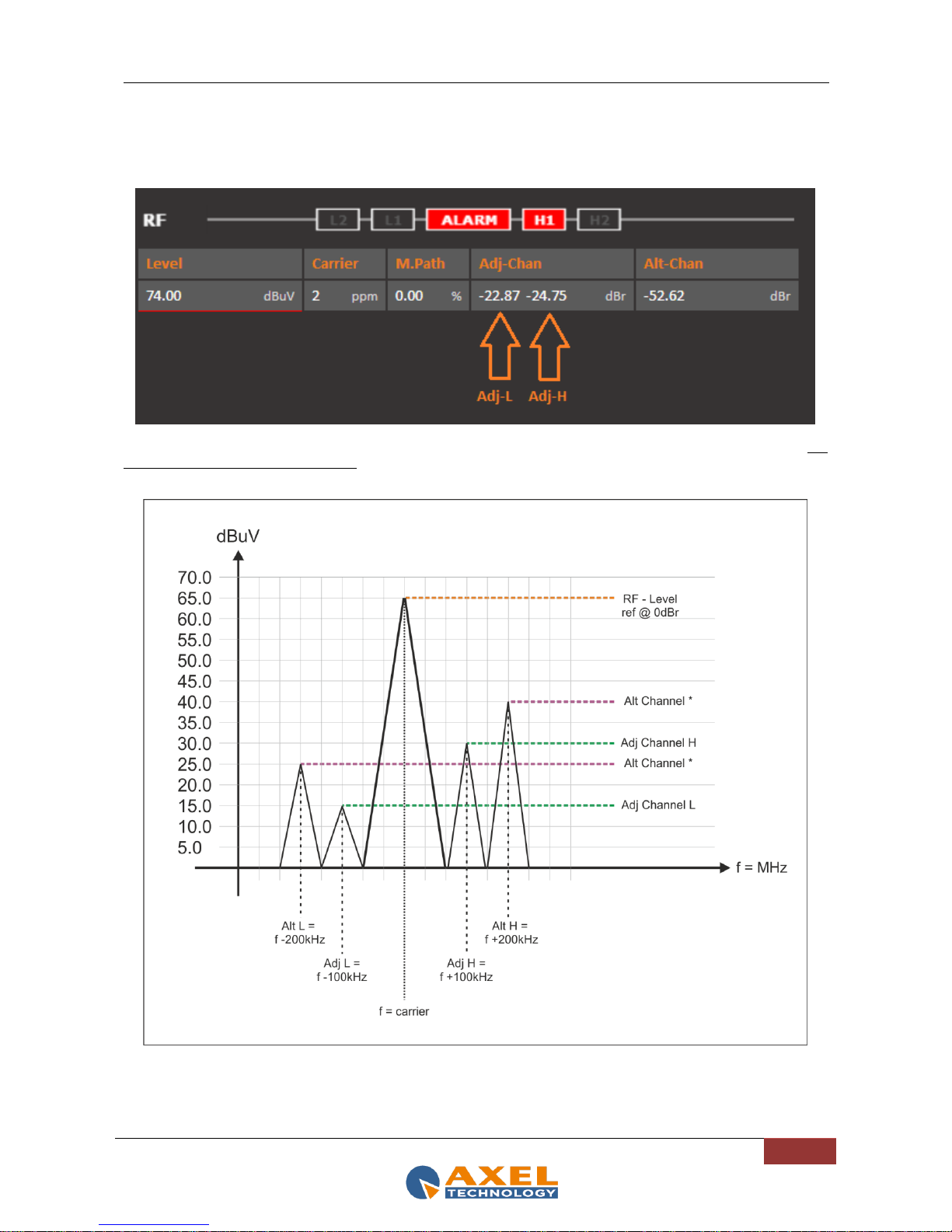

13.1.7 The Alternative Channel and the Adjacent Channel ................................................................................................... 53
13.1.8 Tuner-1 Data – AF01-32 AF33-64 .............................................................................................................................. 54

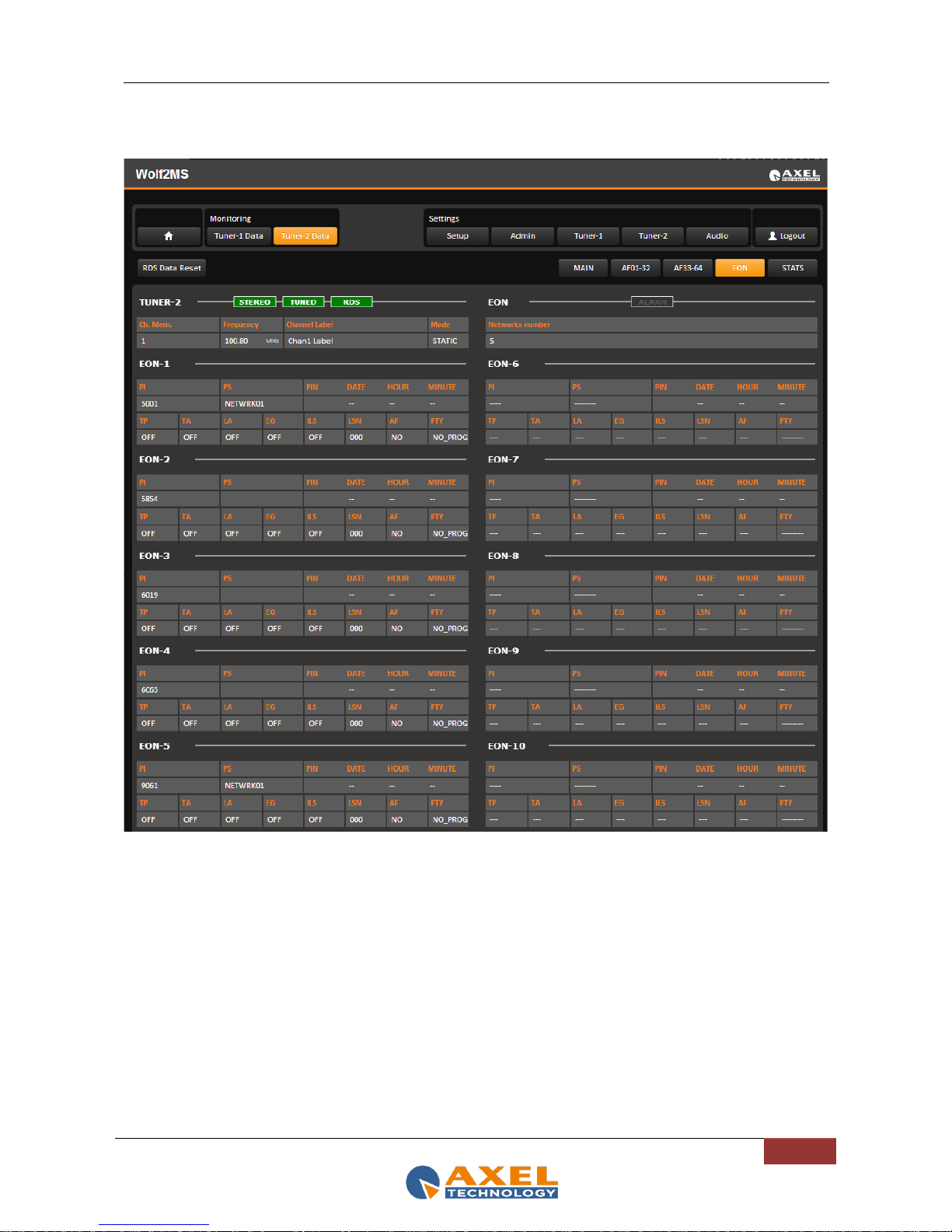

13.1.9 Tuner-1 Data – The EON page ................................................................................................................................... 56
13.1.10 The STATS page .......................................................................................................................................................... 57
13.2 SETUP .............................................................................................................................................................. 59
13.2.1 MAIN -1 Page ............................................................................................................................................................. 59

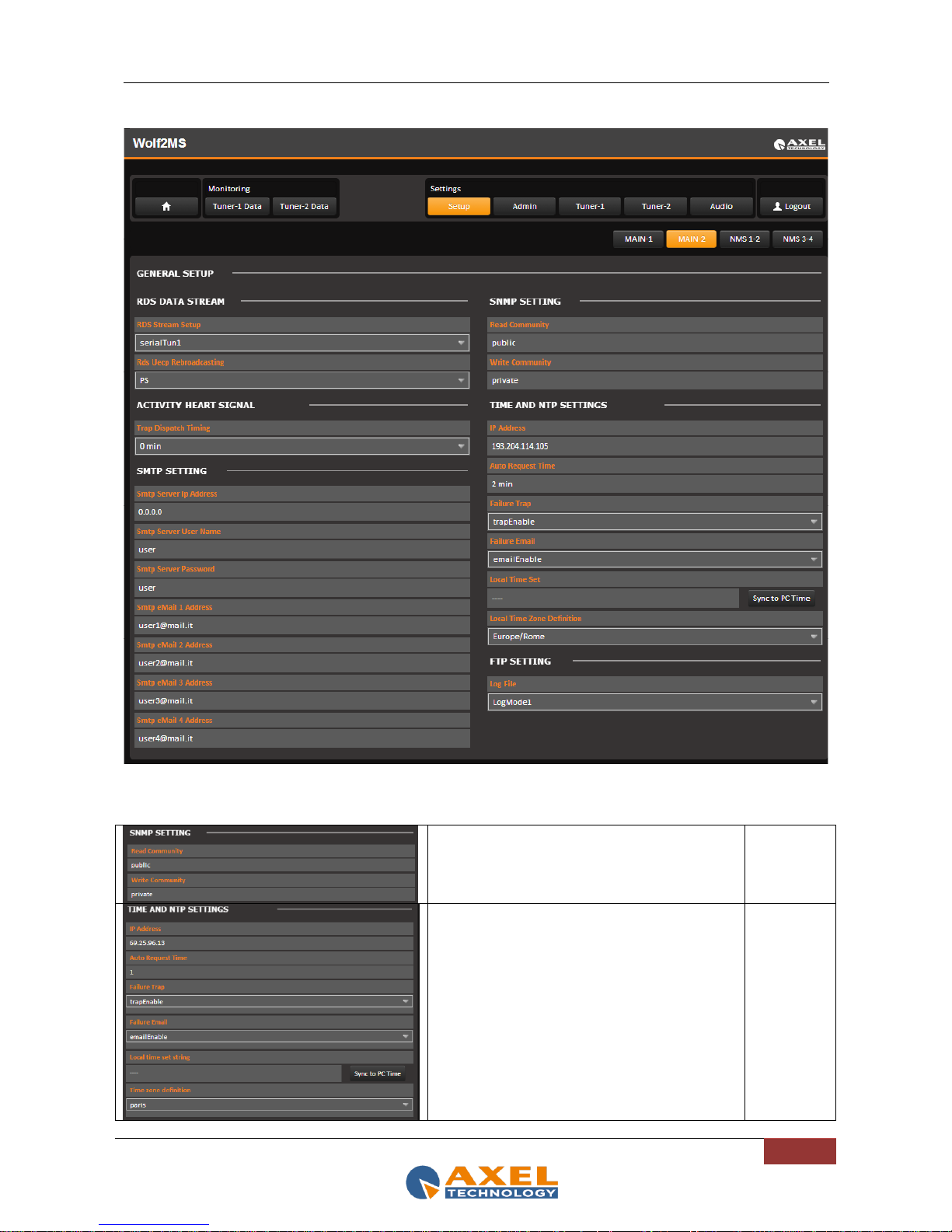

13.2.2 MAIN -2 Page ............................................................................................................................................................. 61
13.2.3 Note about NTP Settings and behavior ....................................................................................................................... 63
13.2.4 Note about Activity Heart Signal ................................................................................................................................. 64

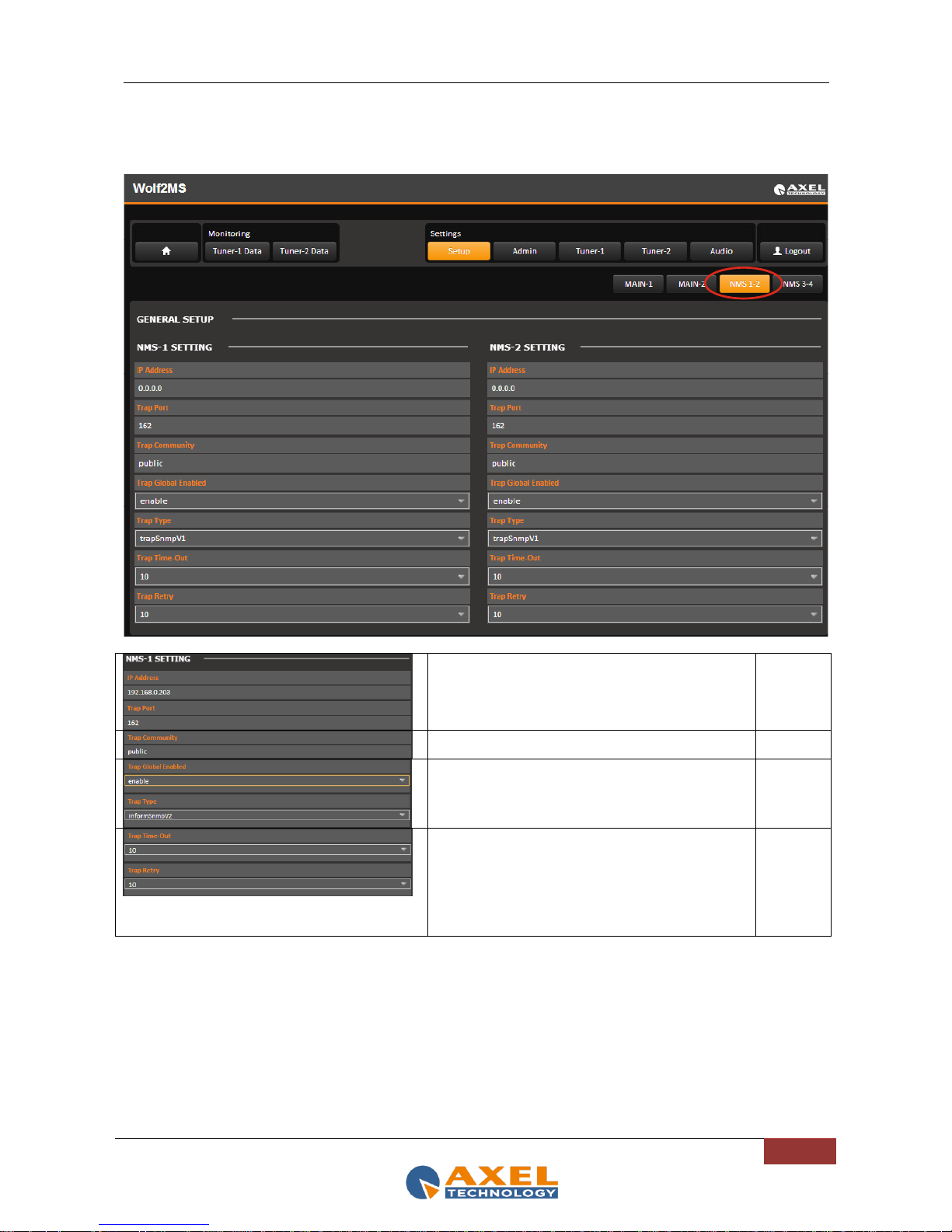

13.2.5 NMS 1-2 Page ............................................................................................................................................................. 65

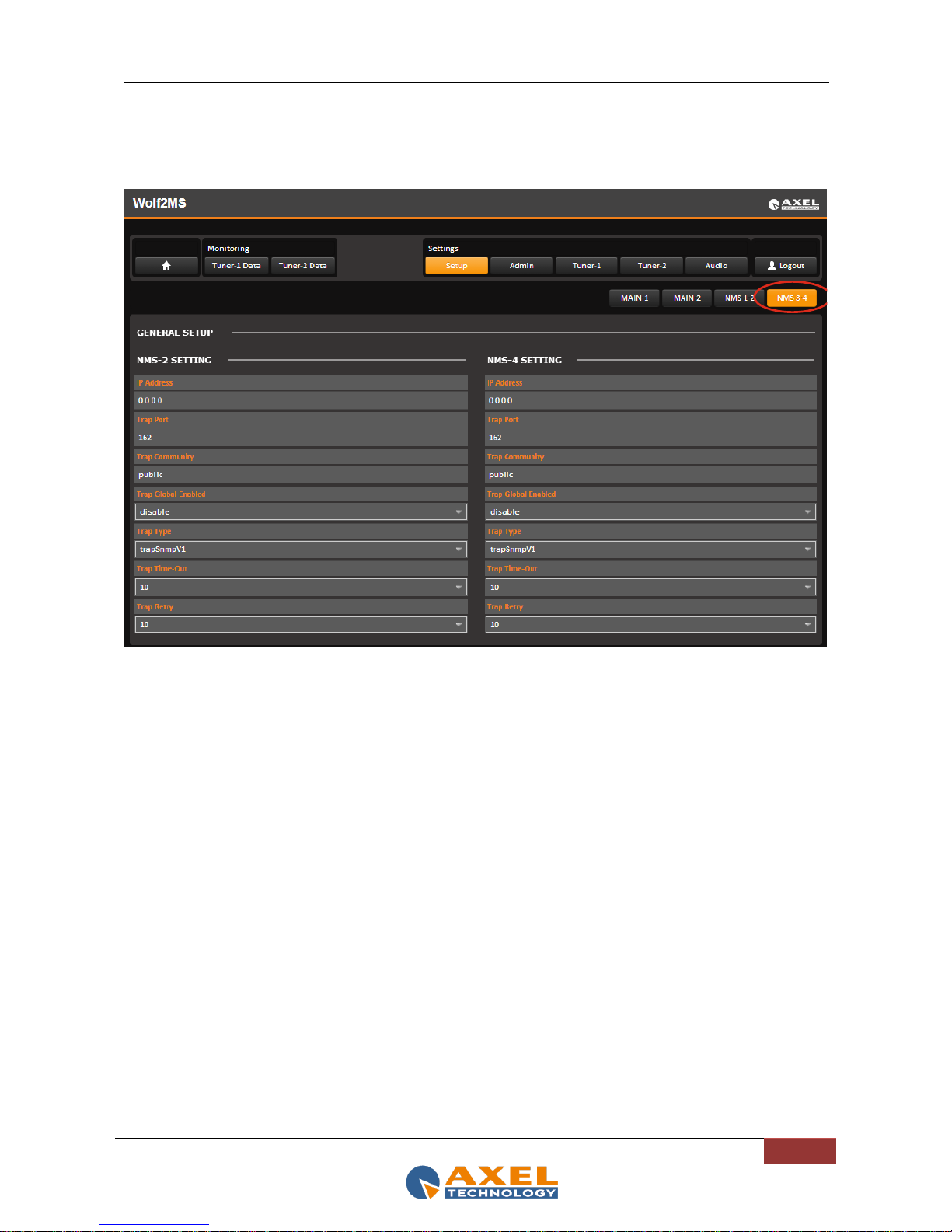

13.2.6 NMS 3-4 Page ............................................................................................................................................................. 66
14 THE ADMIN PAGE ............................................................................................................................................... 67

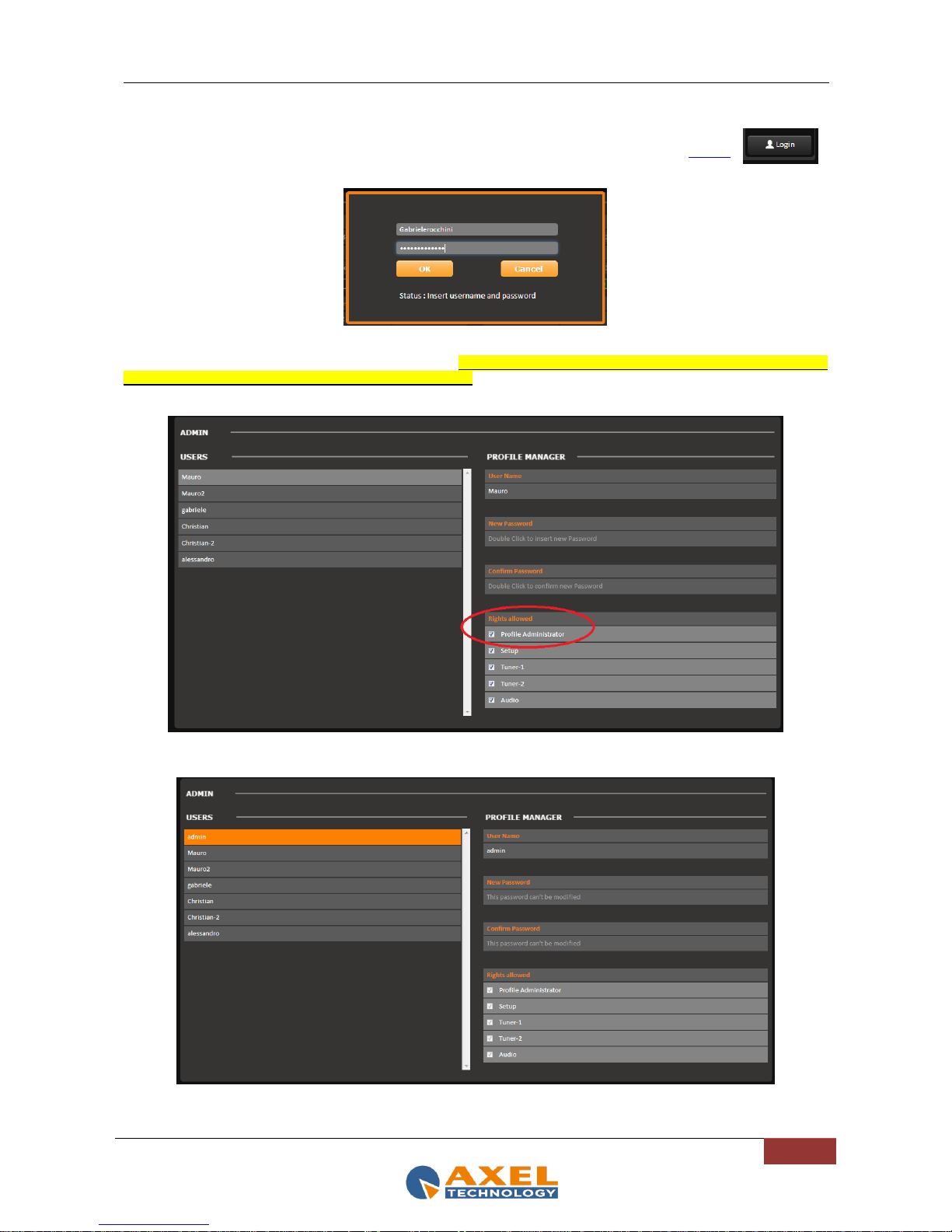

14.1 HOW TO LOGIN IN WOLF 2MS .................................................................................................................................. 67

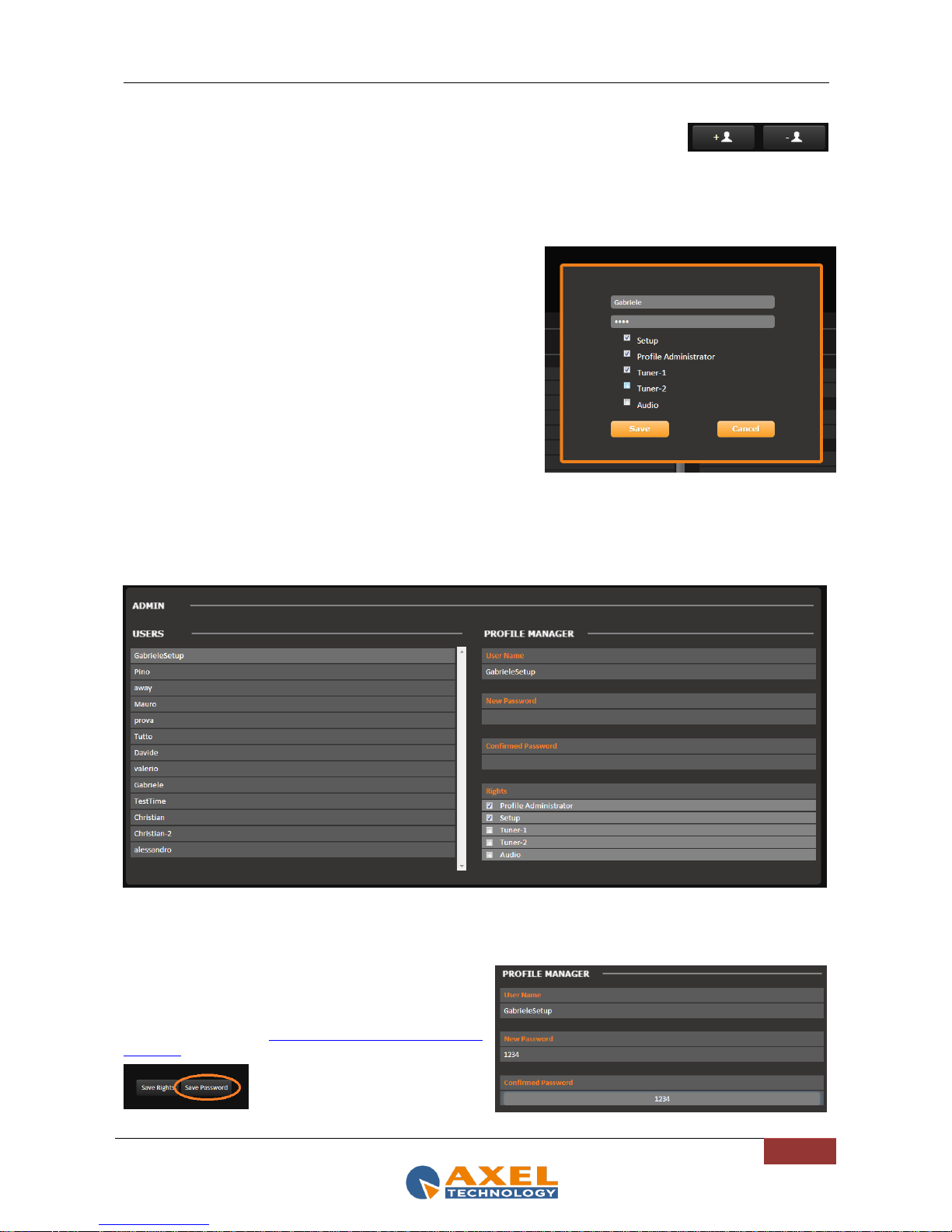

14.2 HOW TO ADD A NEW USER ...................................................................................................................................... 68
14.2.1 Consideration on Username and Password ................................................................................................................ 68
14.3 THE ADMINISTRATION TOOLS .................................................................................................................................. 68
14.3.1 The User Right Management – How to change a Password ....................................................................................... 68
14.3.2 The User Right Management – How to enable/disable features ................................................................................. 69
14.3.3 How to logout a user from Wolf 2MS .......................................................................................................................... 69
14.4 GENERAL CONSIDERATION ABOUT USER LOGGED IN AND NON LOGGED ........................................................................ 70

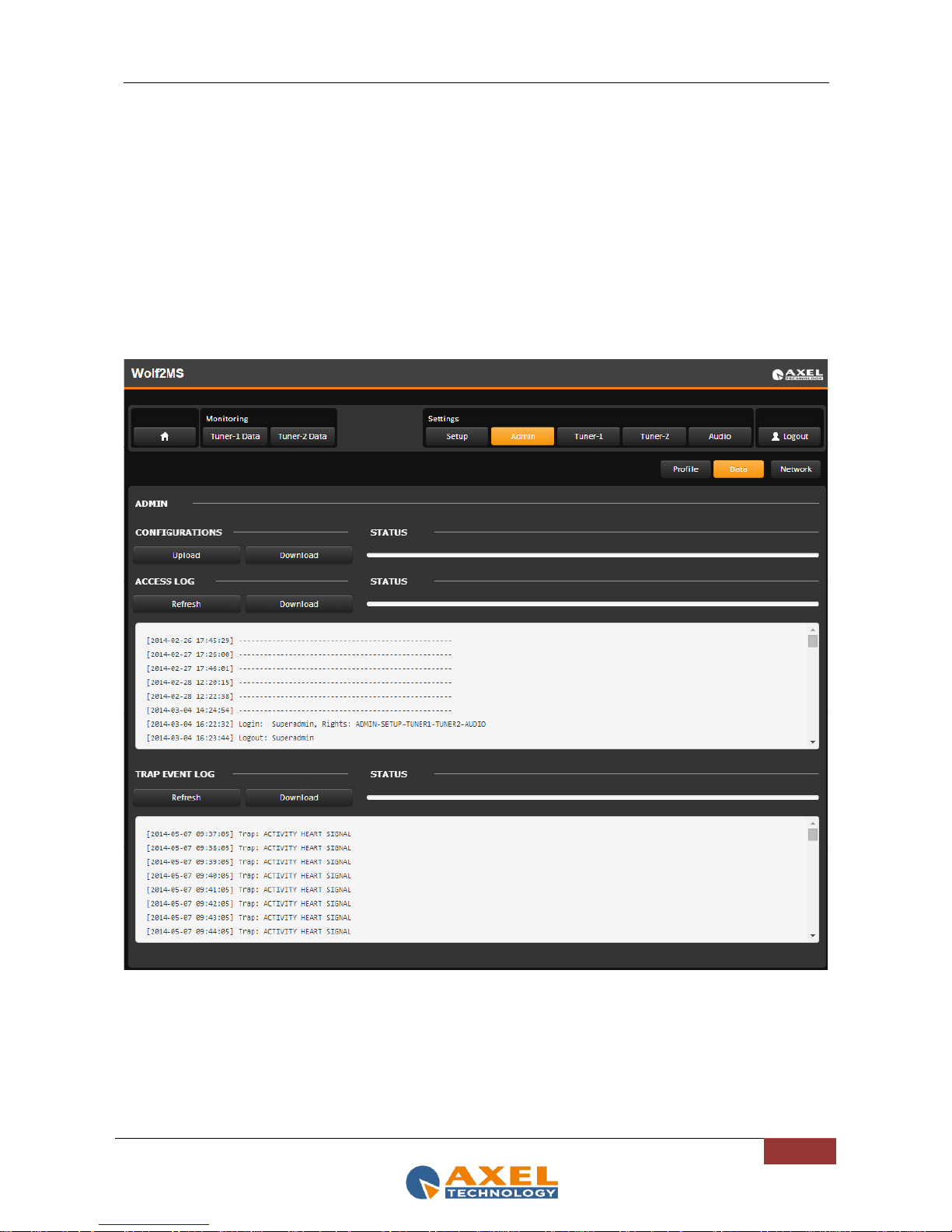

14.5 DATA EXPORT AND IMPORT .................................................................................................................................... 71
14.5.1 On SD Card ................................................................................................................................................................. 71
14.5.2 Using web browser ...................................................................................................................................................... 71
Page 3
ENG
| INTRODUCTION
3

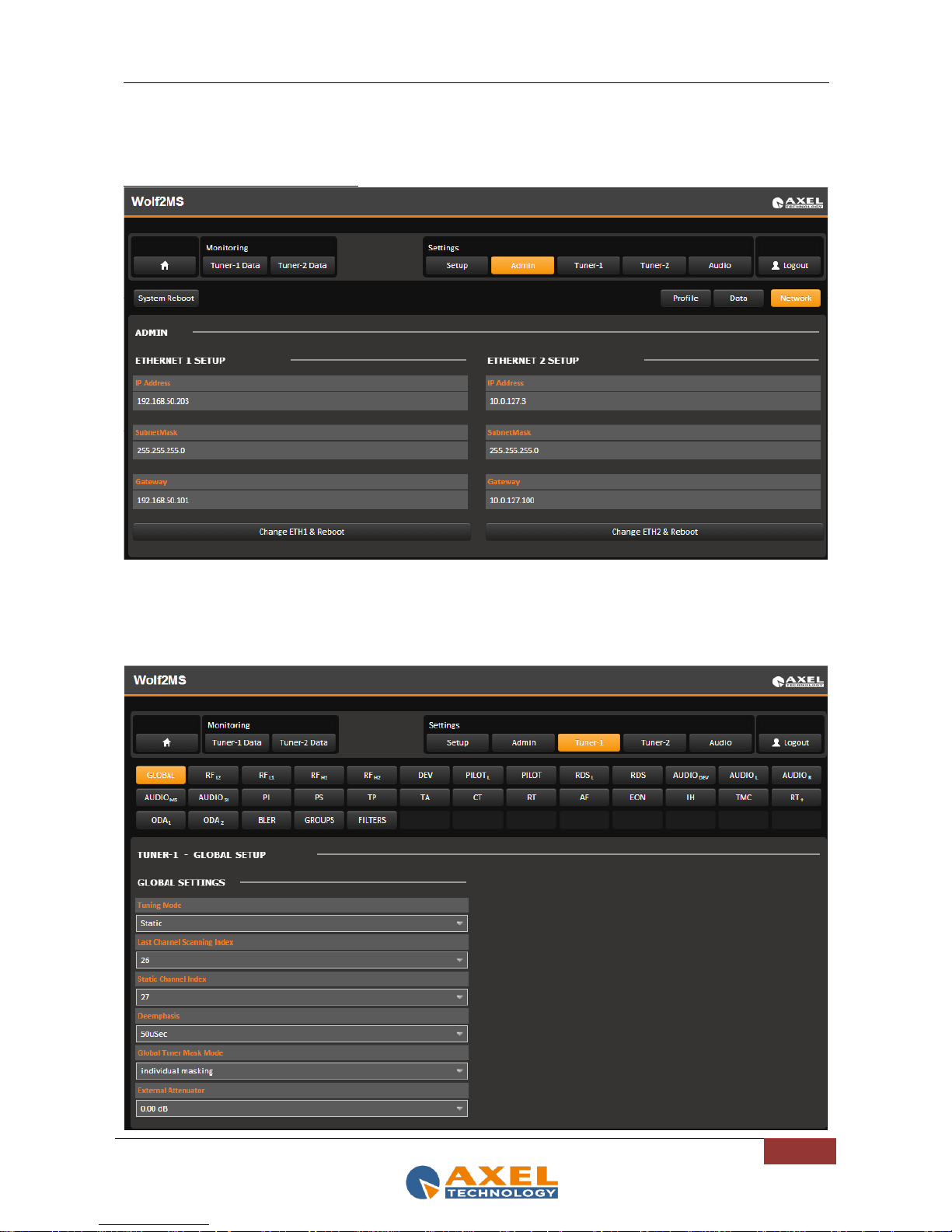

14.5.3 Network section ........................................................................................................................................................... 72

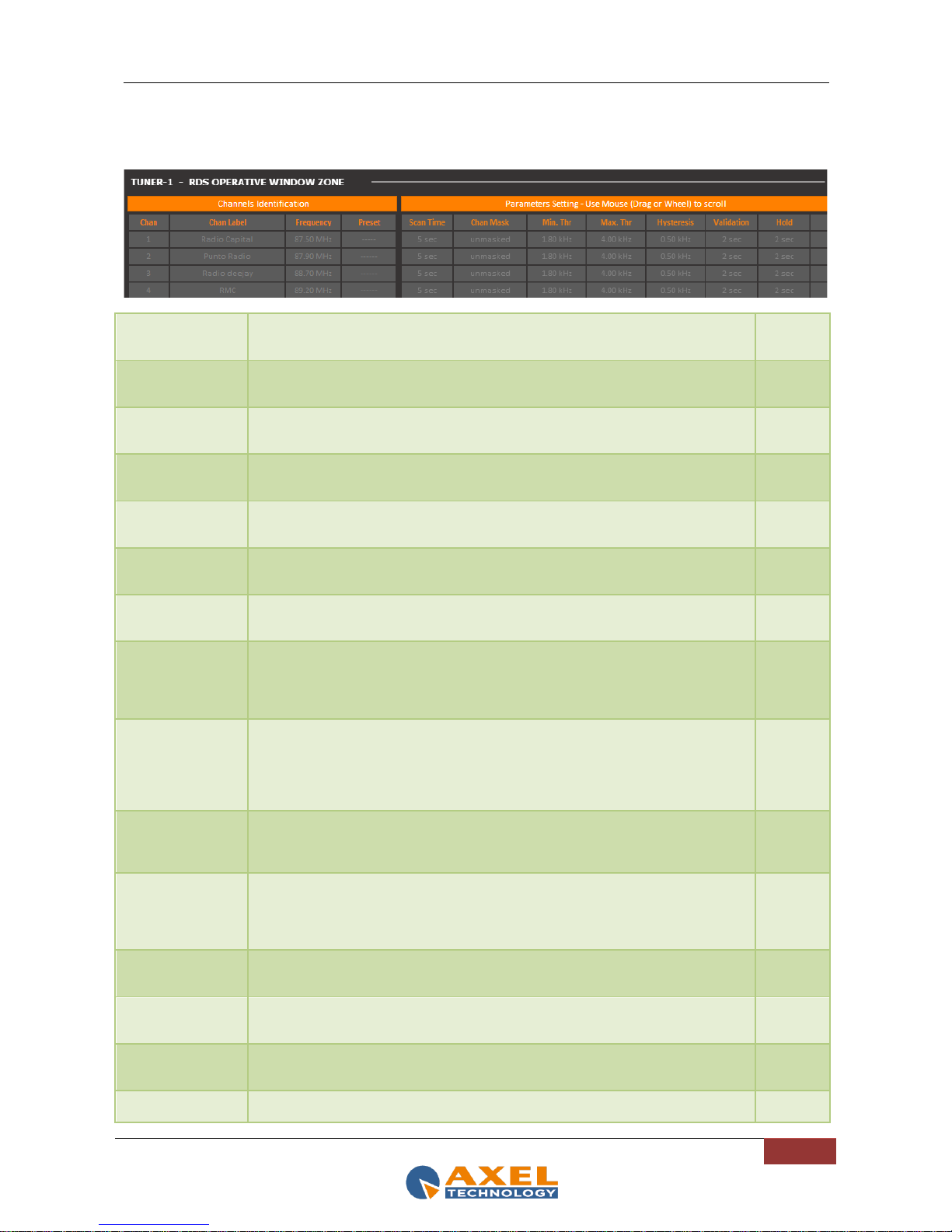

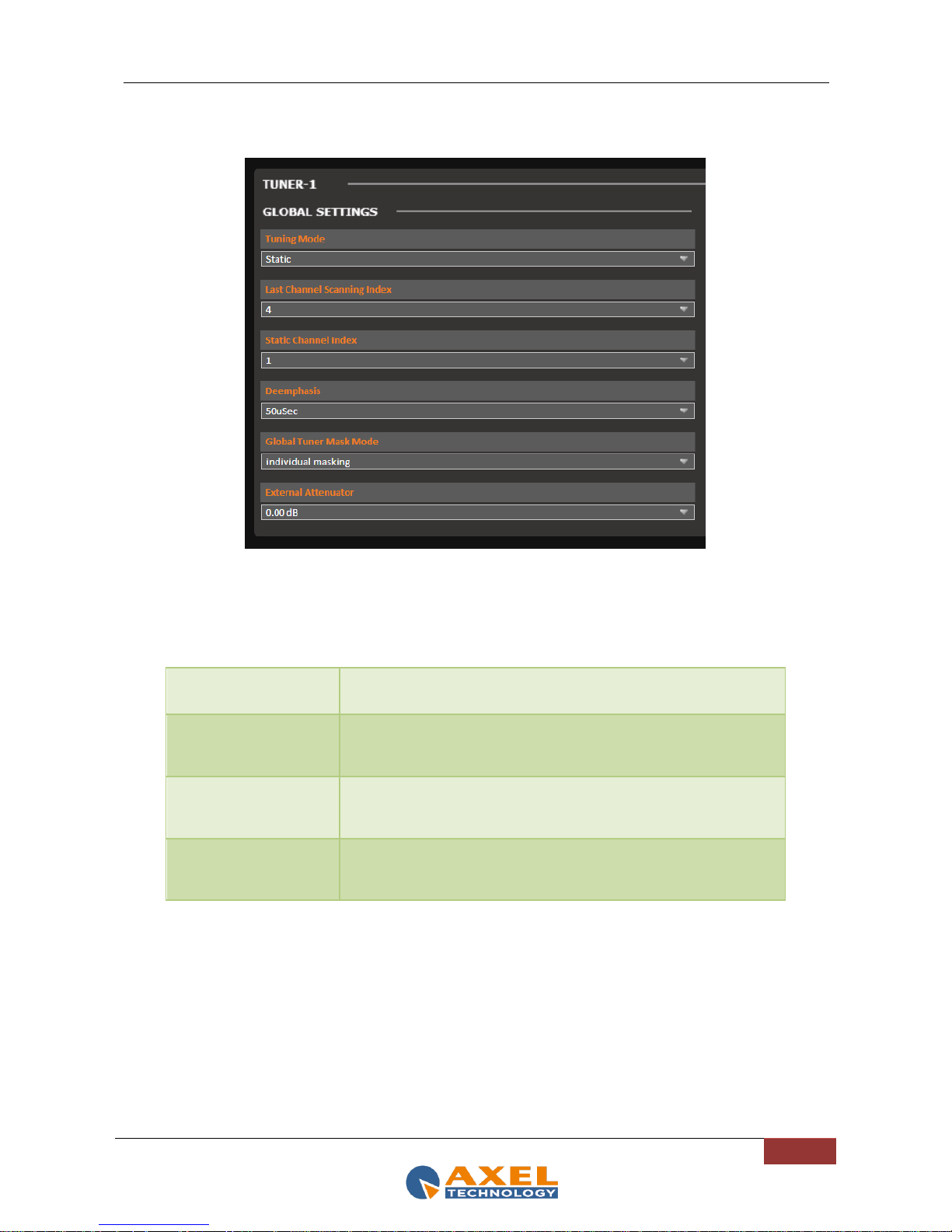

14.6 SETTINGS – TUNER 1 ............................................................................................................................................ 72
14.6.1 Tuner-1 – Main ........................................................................................................................................................... 73
14.6.2 Tuning Mode ............................................................................................................................................................... 73
14.6.3 Smart Scan .................................................................................................................................................................. 73
14.6.4 Deemphasys ................................................................................................................................................................ 74
14.6.5 External Attenuator ..................................................................................................................................................... 74
14.6.6 Global Tuner Mask Mode ........................................................................................................................................... 74

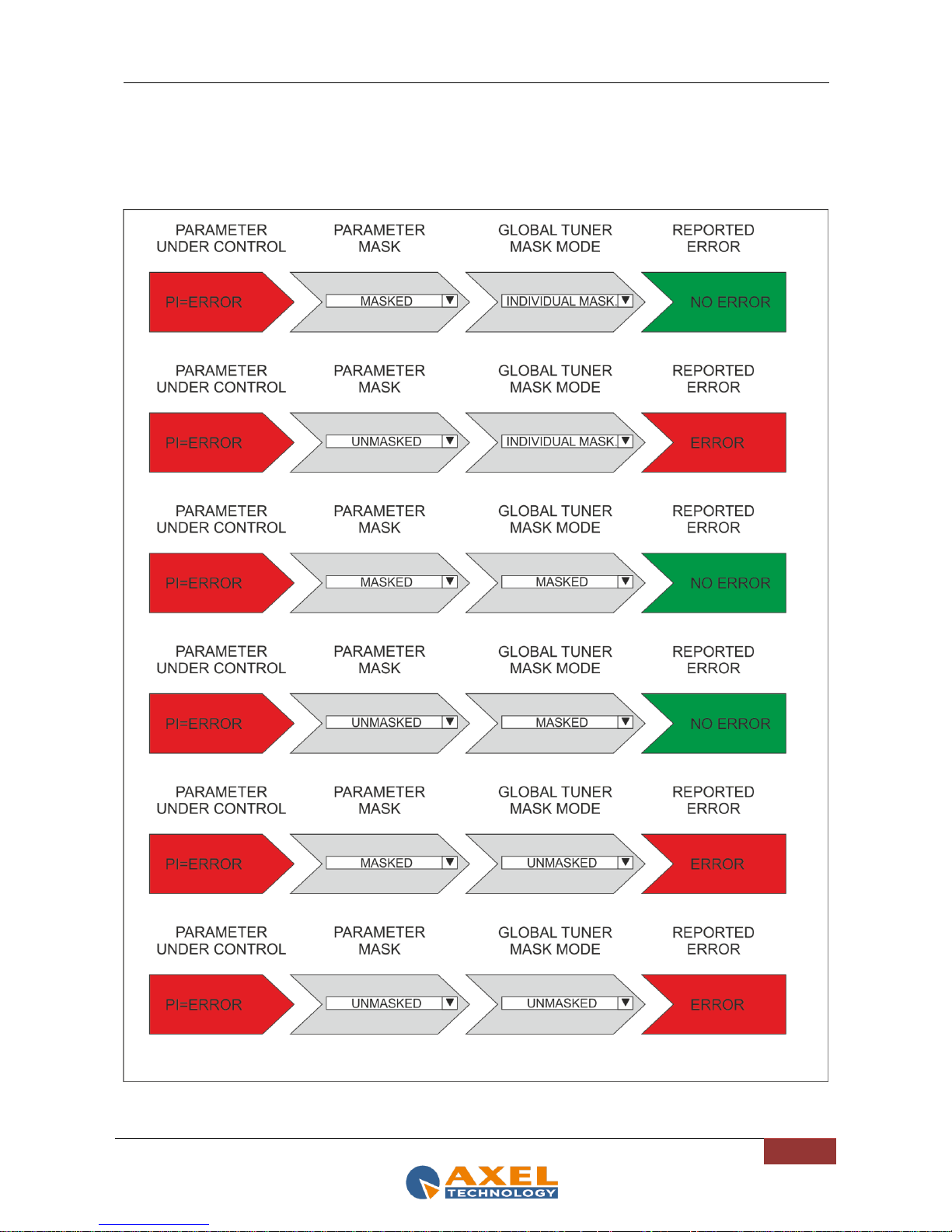

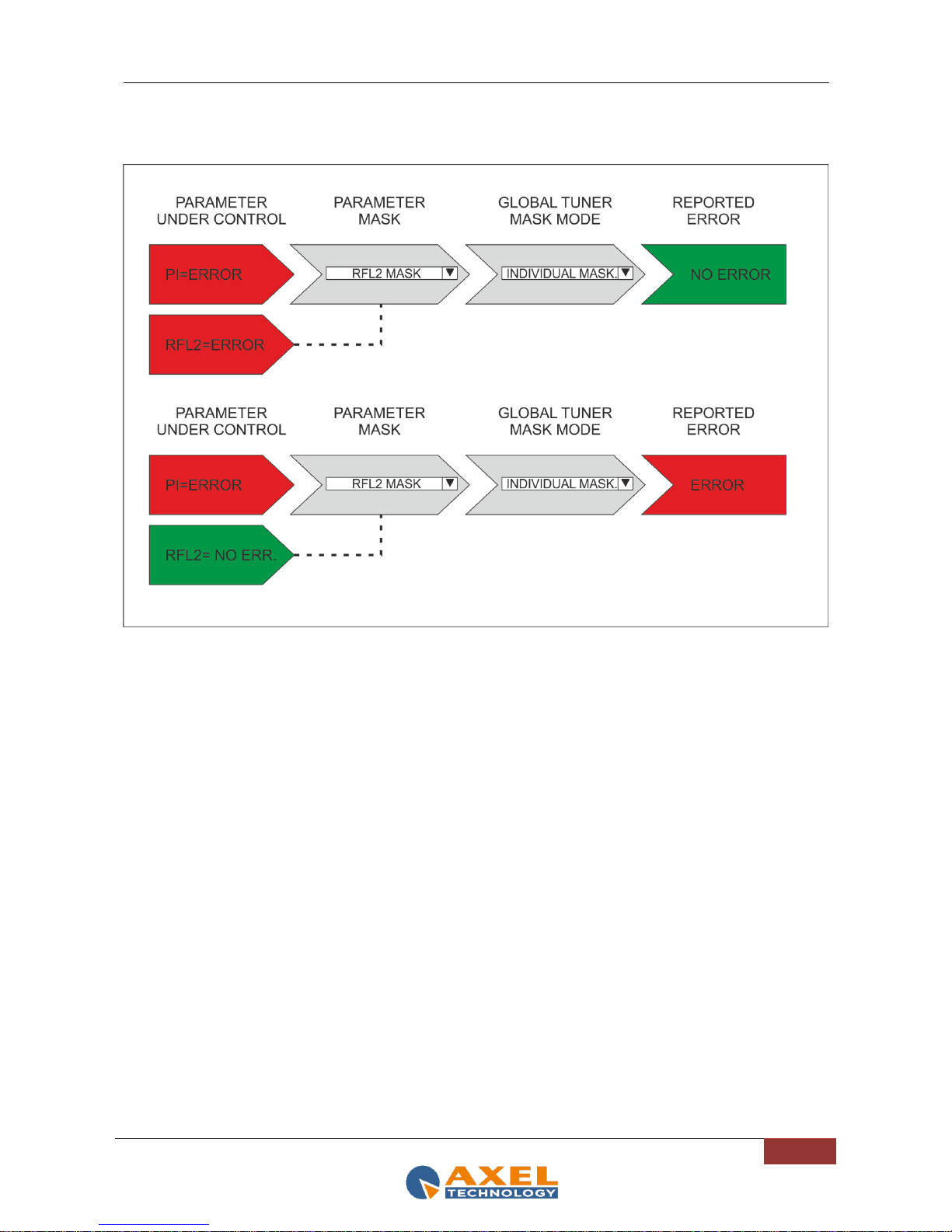

14.6.7 The meaning of “Mask” on each single parameter under control .............................................................................. 75

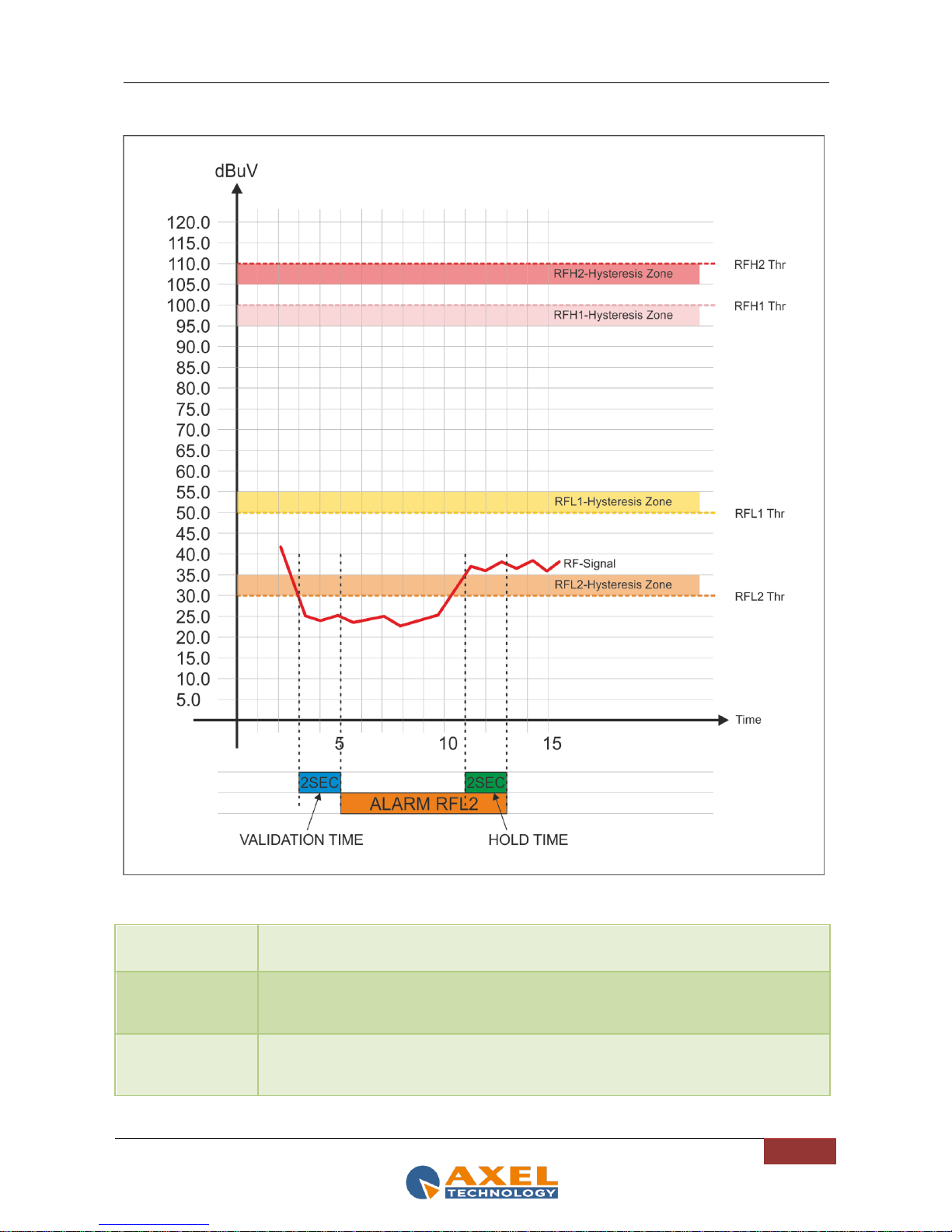

14.6.8 RFL2 ........................................................................................................................................................................... 79
14.6.9 RFL1 ........................................................................................................................................................................... 81
14.6.10 RFH1 ................................................................................................ ................................................................ ........... 83

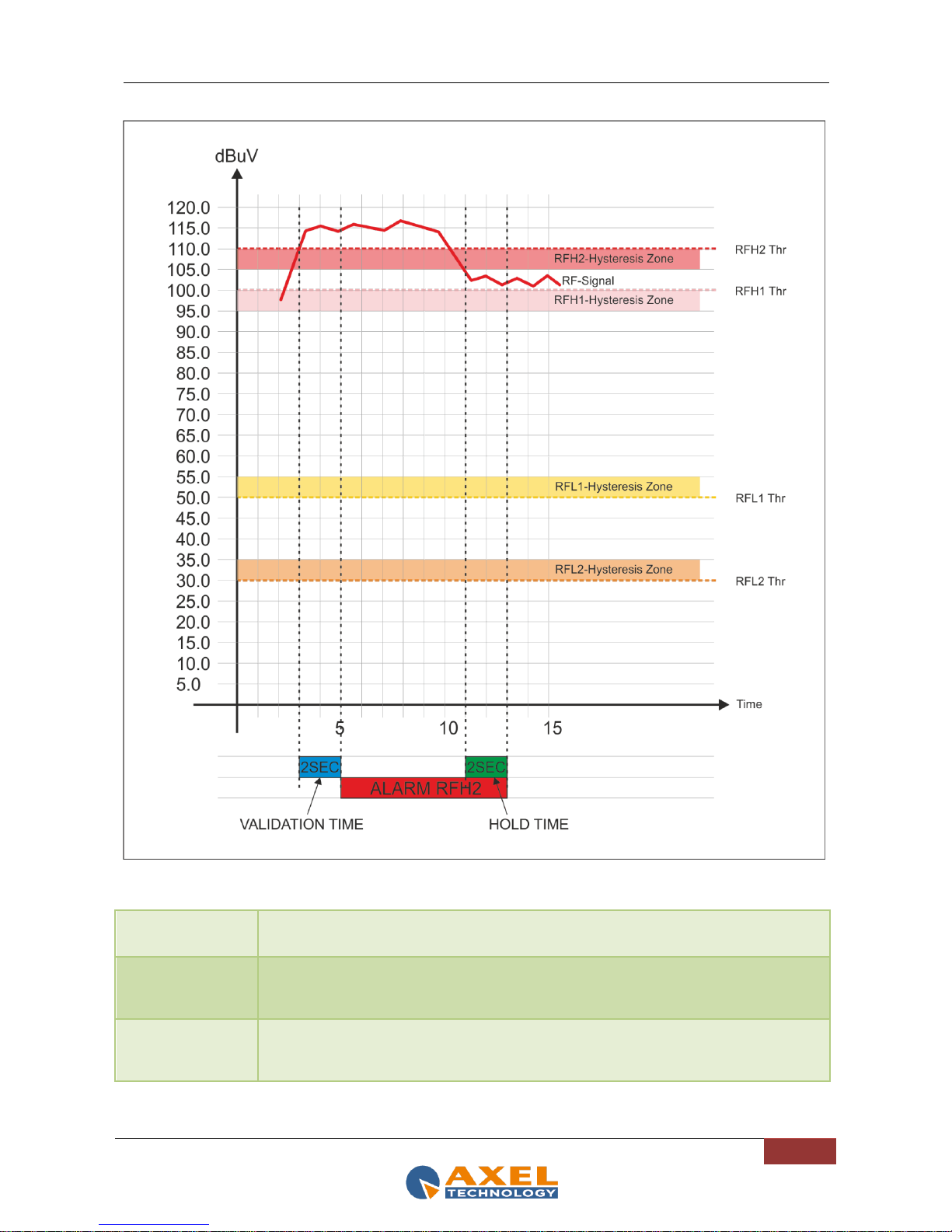

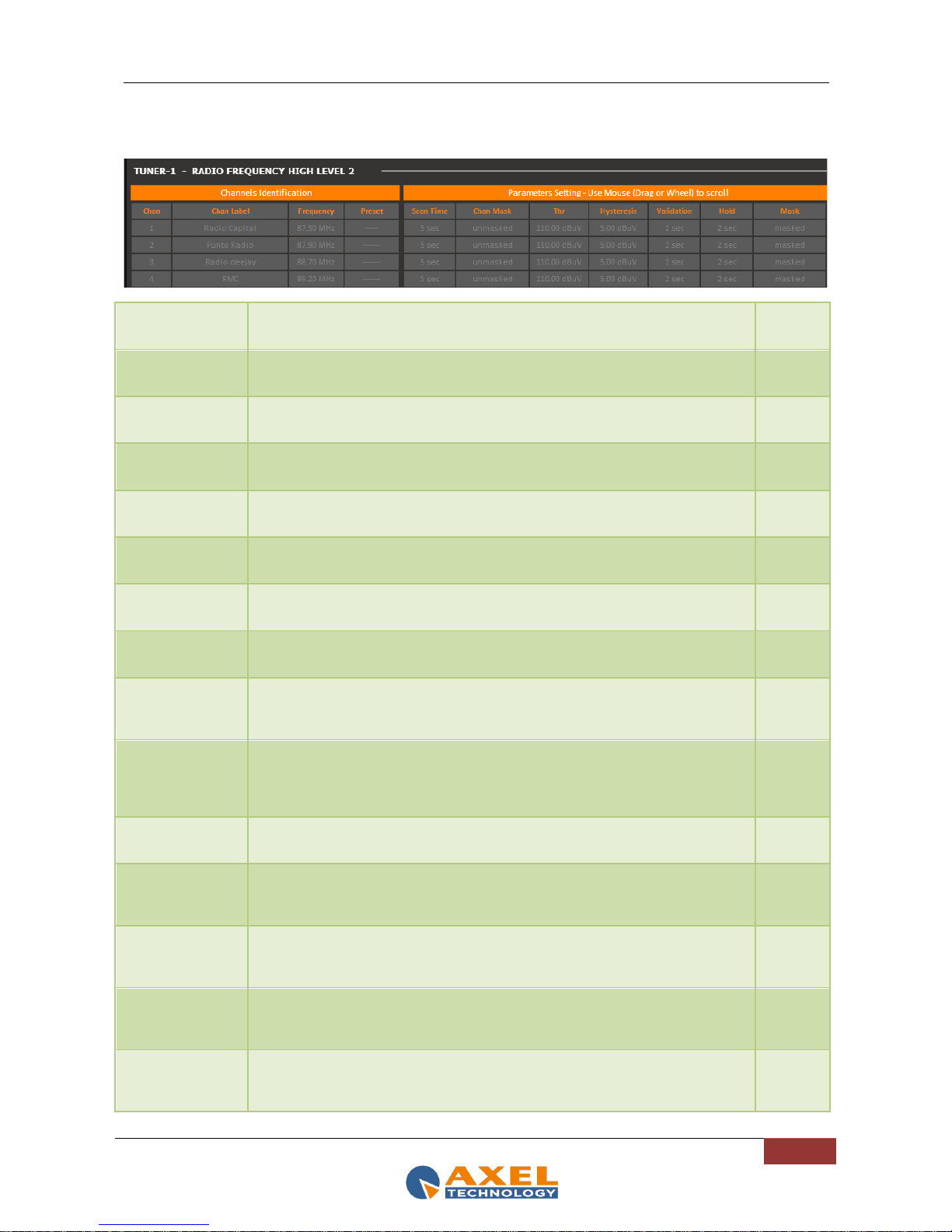

14.6.11 RFH2 ................................................................................................ ................................................................ ........... 85

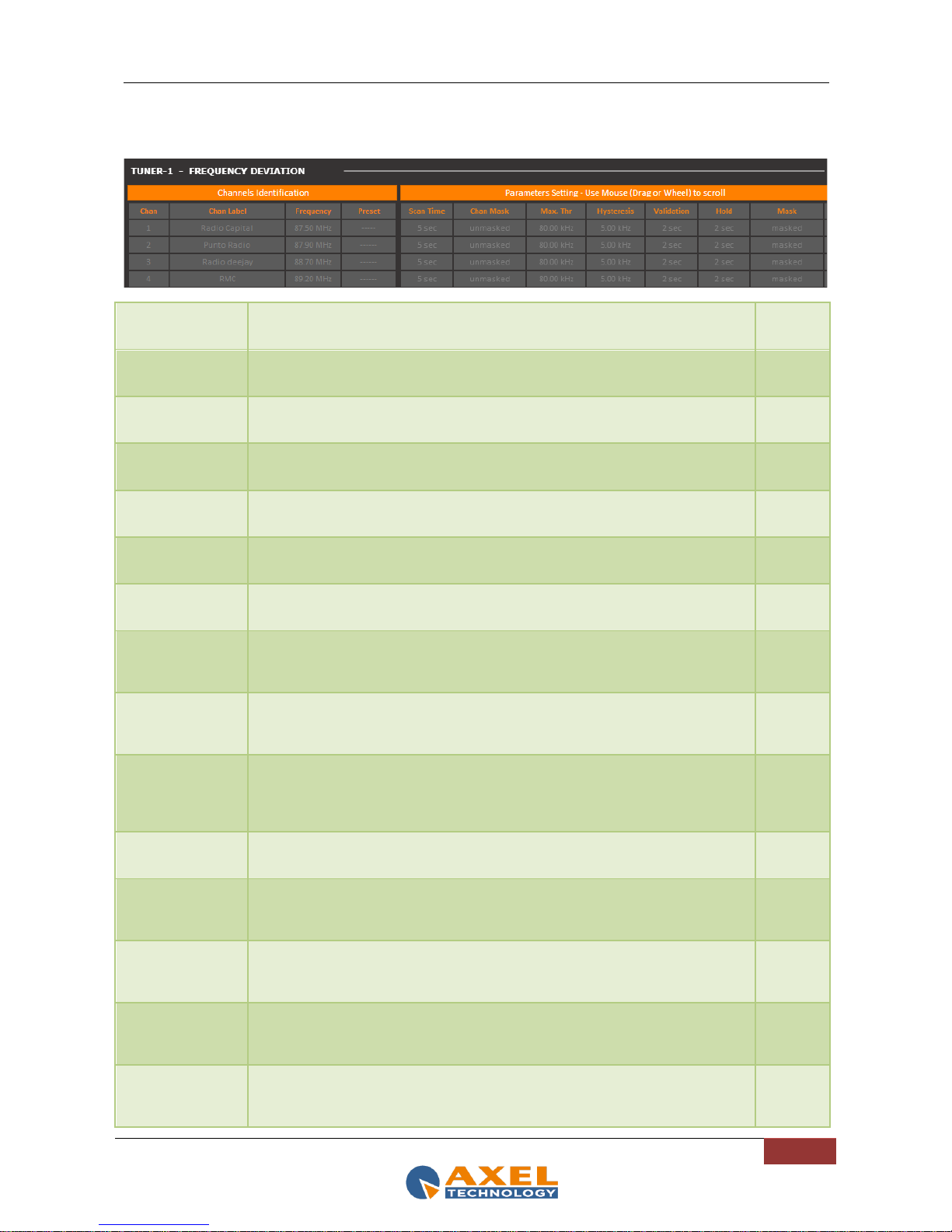

14.6.12 DEV (Maximum Deviation allowed) ........................................................................................................................... 87

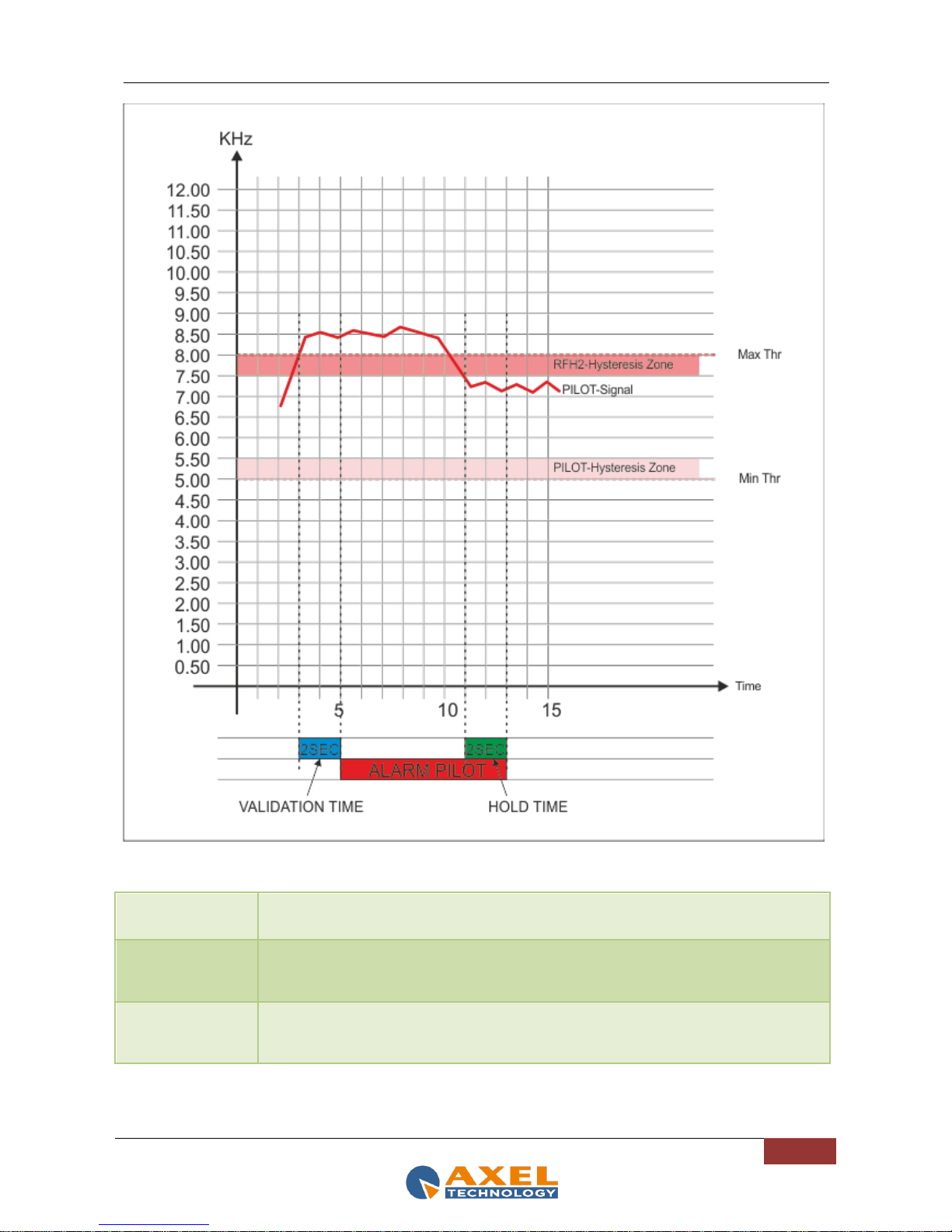

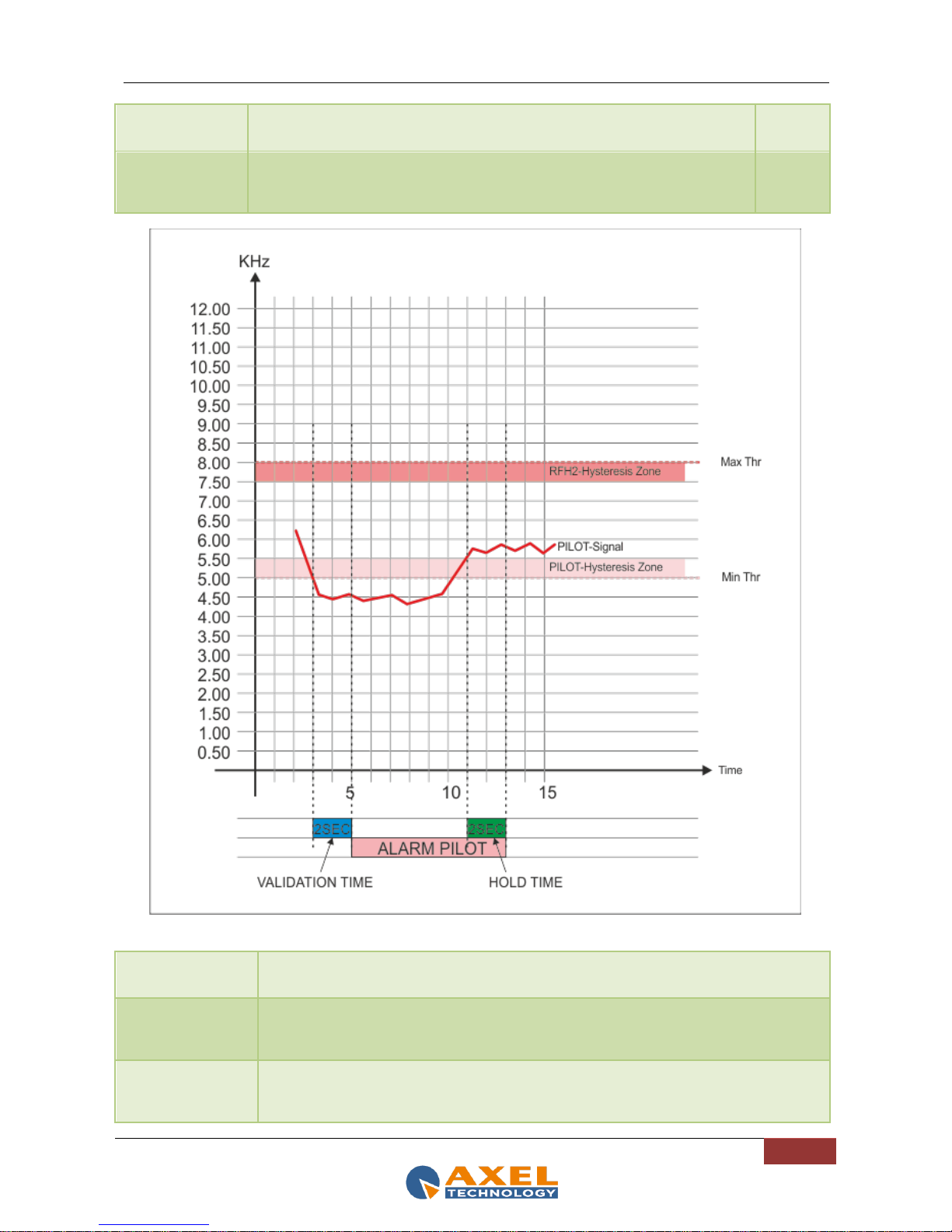

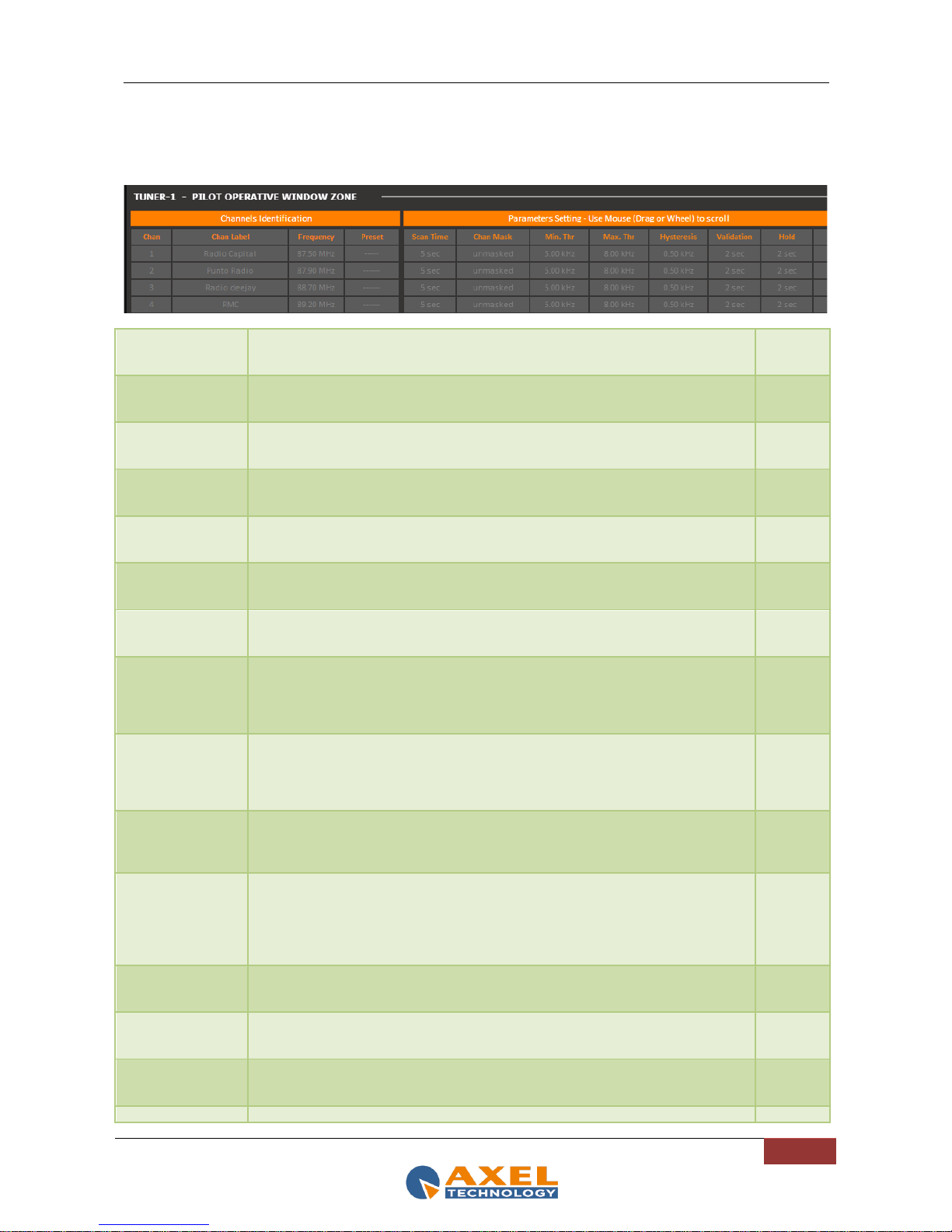

14.6.13 PILOT LOW (19kHz Pilot Stereo level) ...................................................................................................................... 89
14.6.14 PILOT (19kHz Pilot Stereo level)................................................................................................................................ 90

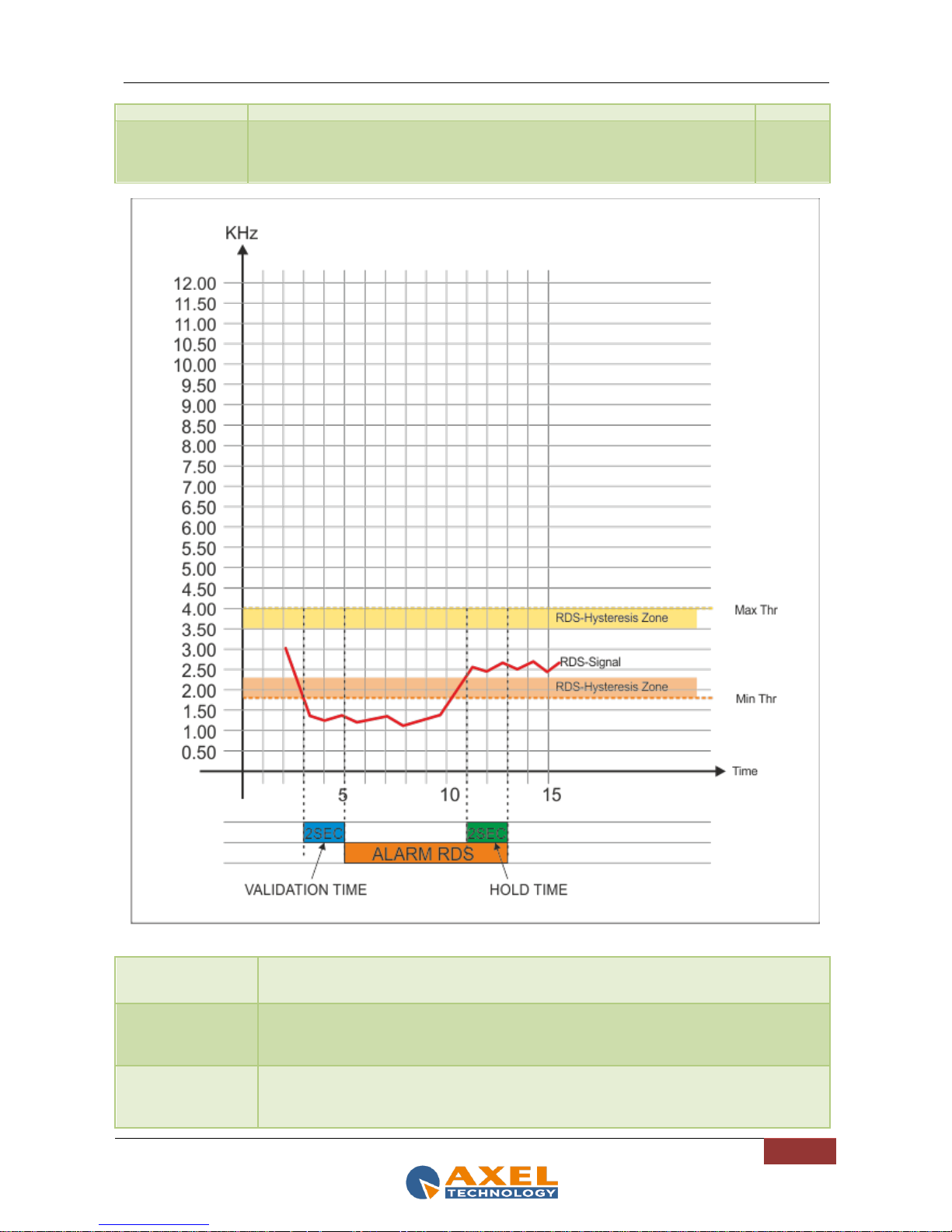

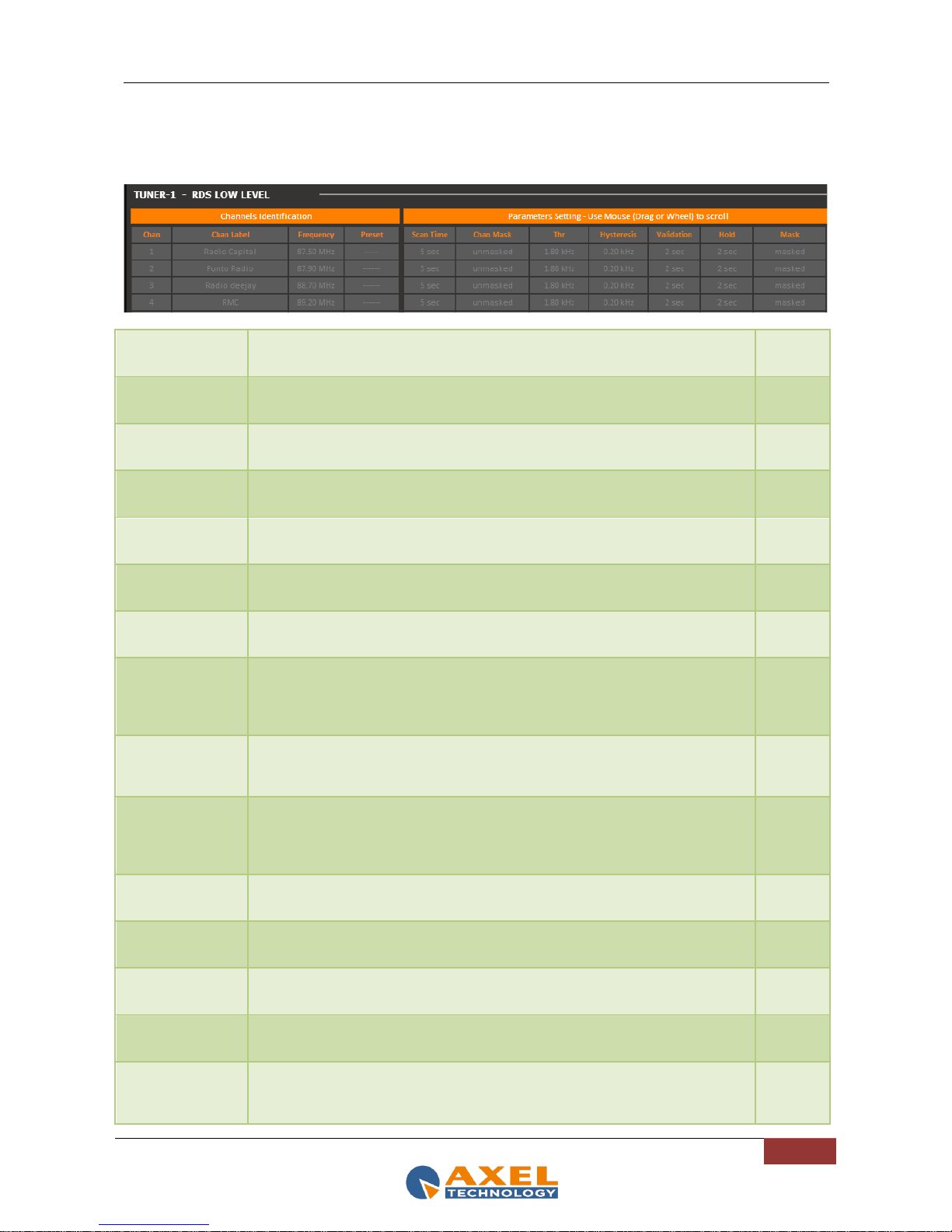

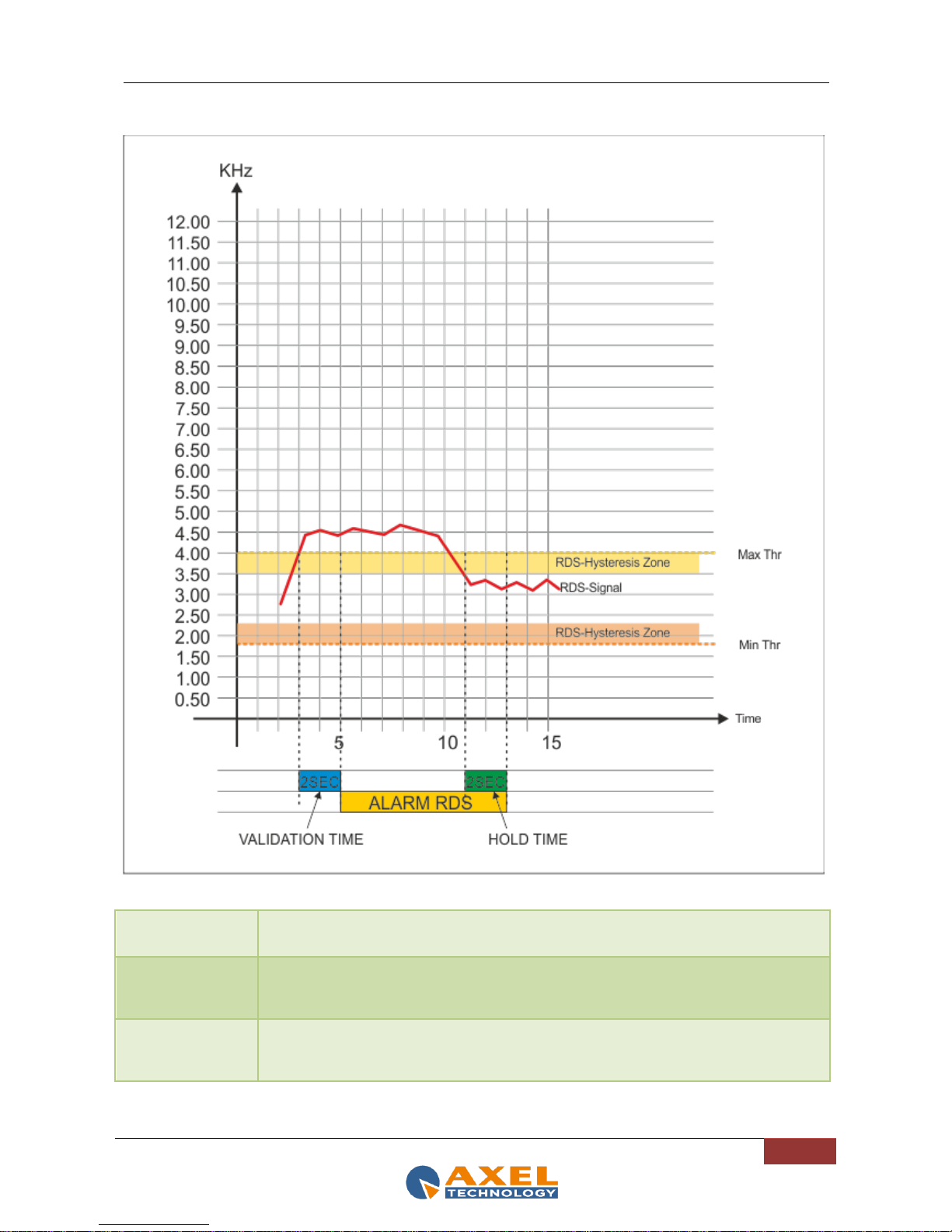

14.6.15 RDS Low (57kHz RDS Data Level) ............................................................................................................................. 93
14.6.16 RDS (57kHz RDS Data Level) ..................................................................................................................................... 94

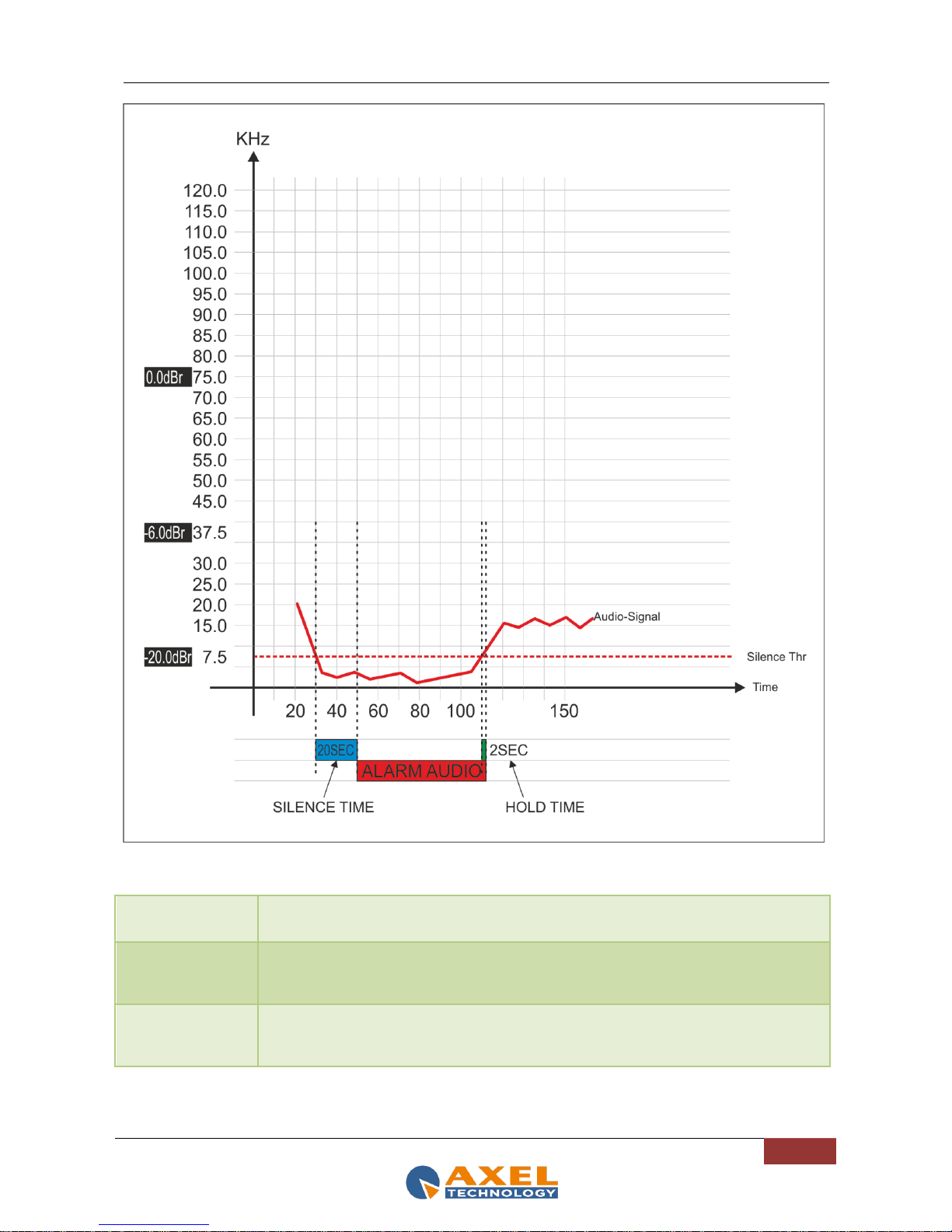

14.6.17 Audio DEV (Silence detector) ..................................................................................................................................... 97

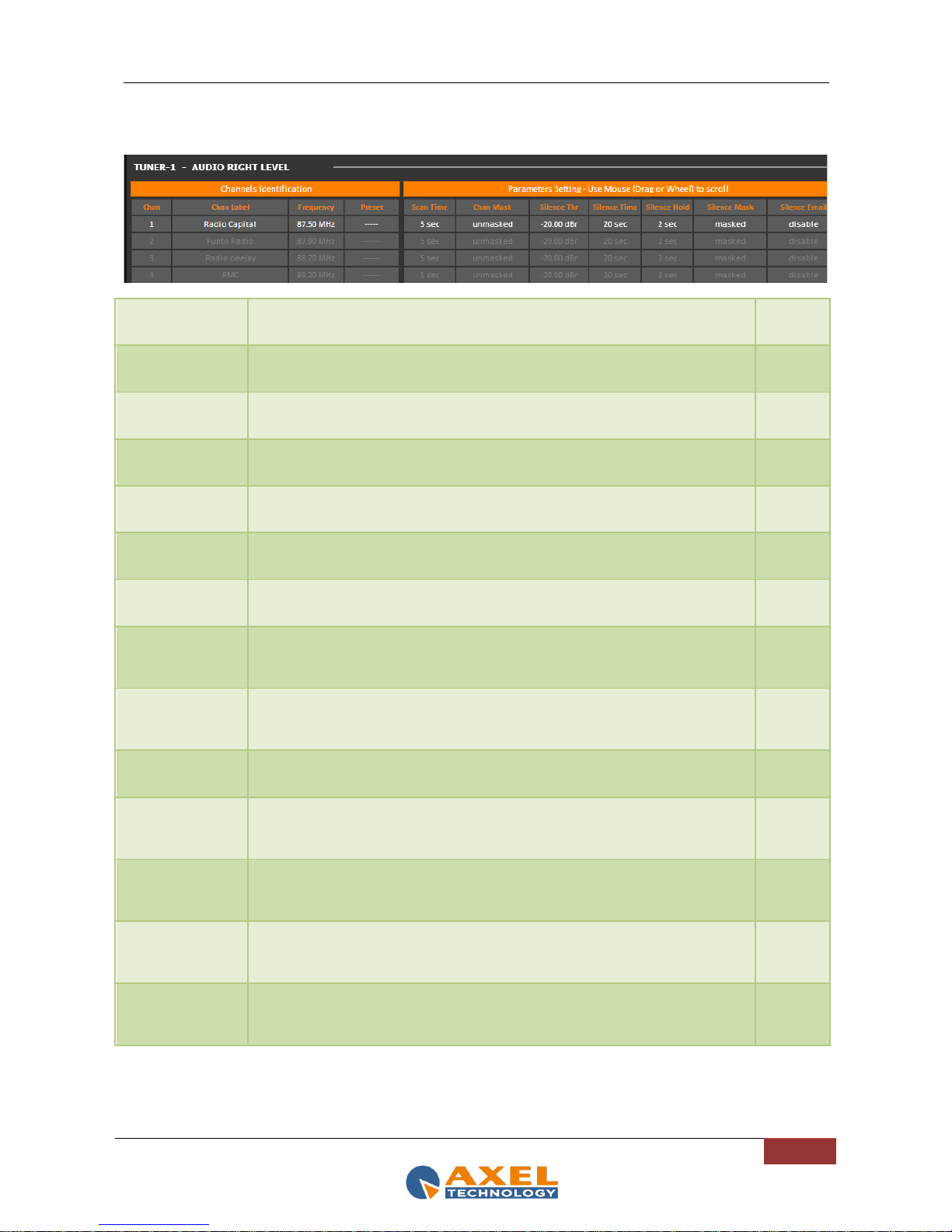

14.6.18 Audio Left (Silence detector) ....................................................................................................................................... 99
14.6.19 Audio Right (Silence detector) .................................................................................................................................. 100
14.6.20 Audio MS (Mono Silence) ......................................................................................................................................... 101
14.6.21 Audio SI (Stereo Imbalance) ..................................................................................................................................... 102
14.6.22 RDS PI (Program Identifier) ..................................................................................................................................... 103
14.6.23 RDS PS (Program Service) ....................................................................................................................................... 105
14.6.24 Note 1: Particular case for PS check ........................................................................................................................ 106
14.6.25 Note 2: PS Settings ................................................................................................................................................... 107
14.6.26 RDS TP (Traffic Program) ........................................................................................................................................ 108
14.6.27 RDS TA (Traffic Announcement) ................................................................ ............................................................... 109
14.6.28 RDS CT (Real Time Clock) ....................................................................................................................................... 110
14.6.29 Particular case for RDS CT - Real Time Clock ......................................................................................................... 111
14.6.30 RDS RT (RadioText) .................................................................................................................................................. 112
14.6.31 RDS AF (Alternative Frequency) .............................................................................................................................. 113
14.6.32 RDS EON (Enhance Other Network) ........................................................................................................................ 114
14.6.33 RDS IH (In-House) .................................................................................................................................................... 115
14.6.34 RDS TMC (Traffic Message Channel) ...................................................................................................................... 116
14.6.35 RDS RT+ (Radio Text Plus Service) ......................................................................................................................... 117
14.6.36 RDS ODA1 and ODA2 .............................................................................................................................................. 118
14.6.37 RDS BLER (Block Error Ratio) ................................................................................................................................. 119
14.6.38 RDS Group Transmission Alarm ................................................................ ............................................................... 120
14.6.39 RDS FILTERS ........................................................................................................................................................... 122
14.6.40 Example 1 - PI with regional variations ................................................................................................................... 124
14.6.41 Example 2 - Control TA / TP ..................................................................................................................................... 126
14.6.42 Example 3 - Control EON AF presence of specific IP............................................................................................... 127
14.6.43 Example 4 - Control of the toggle A / B flag ............................................................................................................. 128
14.6.44 Example 5 - Transparent Data Channel.................................................................................................................... 129
14.6.45 Example 6 - Recording TMC ..................................................................................................................................... 130
14.6.46 Example 7 - Alert C on TMC ..................................................................................................................................... 131
14.1 AUDIO 1 - SETUP ................................................................................................................................................. 132
14.2 AUDIO 2 - SETUP ................................................................................................................................................. 133
14.3 ANALOG AUDIO INPUT SETUP ................................................................................................................................ 134
14.4 DIGITAL AUDIO INPUT SETUP ................................................................................................................................. 135
15 WOLF 2MS SCAN AND SMART SCAN MODE ................................................................................................. 136
16 TECHNICAL APPENDIX .................................................................................................................................... 137
16.1 APPENDIX A - BALANCED AUDIO AND PINOUT CONNECTION ....................................................................................... 137
16.2 APPENDIX B - USB A/B CONNECTION ...................................................................................................................... 137
16.3 APPENDIX C – ETHERNET / LAN CONNECTION ......................................................................................................... 138
16.4 APPENDIX D – SERIAL CONNECTION....................................................................................................................... 138
16.5 APPENDIX E - GPIO PORT ..................................................................................................................................... 139
16.6 APPENDIX F – WOLF 2MS UPGRADE PROCEDURE .................................................................................................... 140
16.6.1 Note about upgrading from rel 0.4.1 – 0.4.7 ............................................................................................................. 141
16.7 APPENDIX G – WOLF 2MS CONSIDERATION ON FW REL 1.2.1 .................................................................................... 143
16.8 APPENDIX H – WOLF 2MS TEST PROCEDURE AND CONSIDERATION ........................................................................... 144
16.9 SYNCH TO PC TIME .............................................................................................................................................. 145
16.10 NTP ................................................................................................................................................................... 146
16.11 NORMAL ACTIVITY TRAP ....................................................................................................................................... 147
16.11.1 RF-L2 Monitor test (Tuner-1 Tuner-2) ...................................................................................................................... 148
Page 4
ENG
| INTRODUCTION
4
16.11.2 RF-L1 Monitor test (Tuner-1 Tuner-2) ...................................................................................................................... 151
16.11.3 RF-H1 Monitor test (Tuner-1 Tuner-2) ..................................................................................................................... 153
16.11.4 RF-H2 Monitor test (Tuner-1 Tuner-2) ..................................................................................................................... 155
16.11.5 Frequency Deviation Test (Tuner-1 Tuner-2) ........................................................................................................... 157
16.11.6 Pilot Level – Low and Windows combined Test (Tuner-1 Tuner-2) .......................................................................... 161
16.11.7 RDS Level – Low and Windows combined Test (Tuner-1 Tuner-2)........................................................................... 165
16.11.8 MPX Audio Deviation Test (Tuner-1 Tuner-2) .......................................................................................................... 169
16.11.9 Audio Left/Right level Test (Tuner-1 Tuner-2) .......................................................................................................... 172
16.11.10 Smart Scan General Description .......................................................................................................................... 175
16.11.11 RDS PI Data test (Tuner-1 Tuner-2) ..................................................................................................................... 177
16.11.12 RDS PS Data test (Tuner-1 Tuner-2) .................................................................................................................... 179
16.11.13 RDS TP Data test (Tuner-1 Tuner-2) .................................................................................................................... 183
16.11.14 RDS TA Data test (Tuner-1 Tuner-2) .................................................................................................................... 185
16.11.15 RDS CT Data test (Tuner-1 Tuner-2) .................................................................................................................... 188
16.11.16 RDS RT Data test (Tuner-1 Tuner-2) .................................................................................................................... 192
16.11.17 RDS EON Data test (Tuner-1 Tuner-2) ................................................................................................................ 197
16.11.18 RDS BLER Data test (Tuner-1 Tuner-2) ................................................................................................ ............... 199
16.11.19 Audio Streaming ................................................................................................................................................... 201
16.11.20 Note about event failure sampling ........................................................................................................................ 203
16.11.21 RDS InHouse (Tuner-1 Tuner-2) .......................................................................................................................... 204
16.11.22 RDS TMC (Tuner-1 Tuner-2) ................................................................................................................................ 207
16.11.23 RDS RT+ (Tuner-1 Tuner-2) ................................................................................................................................ 210
16.11.24 RDS ODA-1 ODA-2 (Tuner-1 Tuner-2) ................................................................................................................ 213
16.11.25 SMTP .................................................................................................................................................................... 217

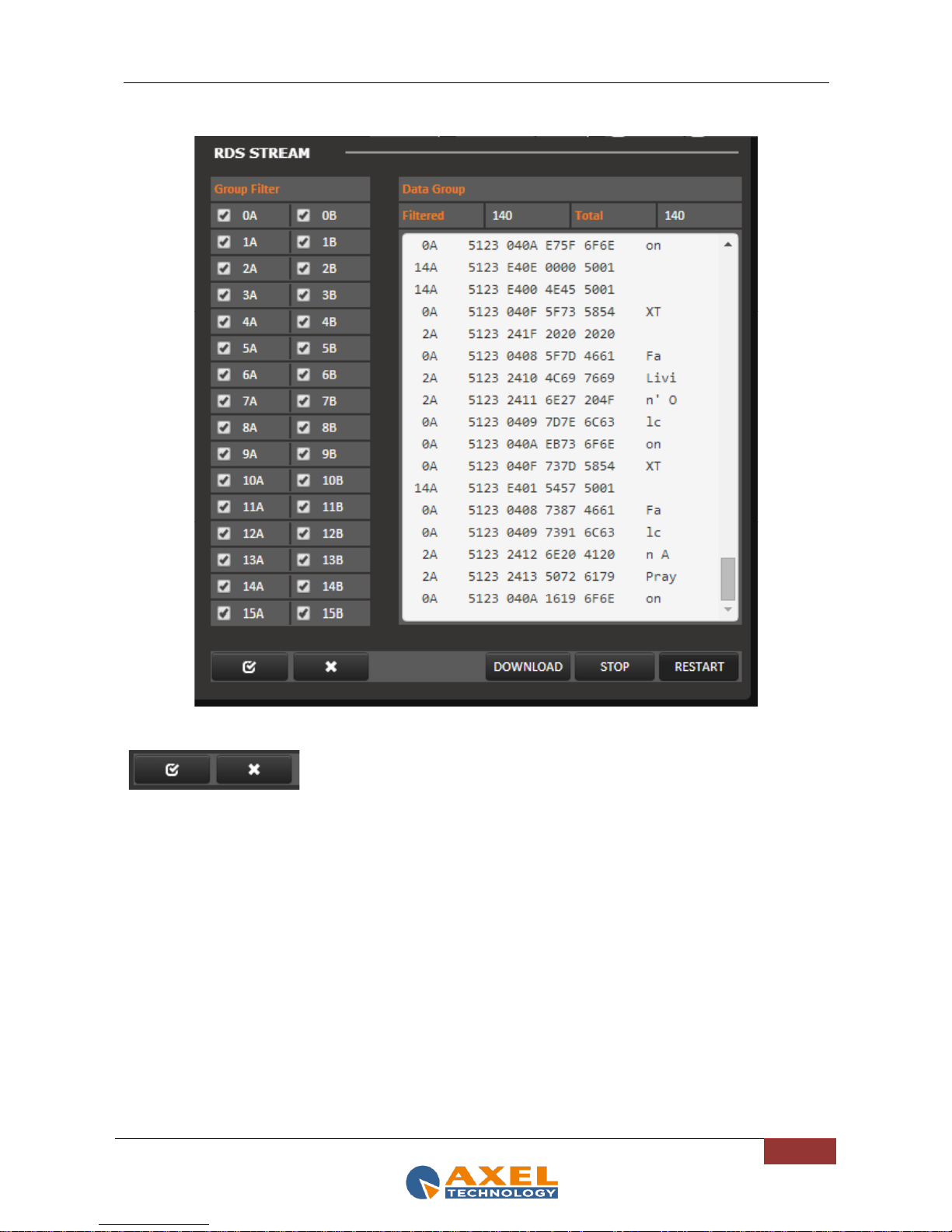

16.11.26 RDS Streaming...................................................................................................................................................... 219
16.11.27 Traps and email notification with analogical or digital inputs ............................................................................. 220
16.11.28 Format and Import/Export configuration ............................................................................................................. 222
17 TECHNICAL SPECIFICATION WOLF 2MS ....................................................................................................... 224
18 WEEE Directive – Informativa RAEE ............................................................................................................... 227
19 WARRANTY ....................................................................................................................................................... 228
20 DECLARATION OF ROHS CONFORMITY ........................................................................................................ 228
21 CE CONFORMANCE .......................................................................................................................................... 228
22 FINAL CONSIDERATION AND AXEL TECHNOLOGY CONTACT ................................................................... 229
Page 5
ENG
| INTRODUCTION
5
1 INTRODUCTION
1.1 AVAILABLE MODEL
CODE#
MODEL
COMMERCIAL DESCRIPTION
A110160001
WOLF 2MS
Dual FM monitoring system for FM networks. Double internal tuner with
configurable band scan. Real time measures on RF, MPX, Audio and RDS
with decoder with group sequence. HTTP, SNMP, FTP and XML protocol.
Web server, double audio streaming for monitor. 2x LAN, USB and GPIO.
Headphone output.
A110160020
WOLF 1MS
Monitoring system for FM networks. Internal FM tuner with configurable
band scan. Real time measures on RF, MPX, Audio and RDS decoder with
group sequence. HTTP, SNMP, FTP and XML protocol. Web server and
audio streaming for monitor. 2xLAN/USB and GPIO. Headphone output
and universal power supply.
1.2 USE OF THIS MANUAL
This manual can be used with the Wolf 1MS and Wolf 2MS products. Some features may be changed without notice.
1.3 REVISION HYSTORY AND NOTES
Rev.
Note Date Sign
Change / Descritpion
1.0.3
23 May 2014
Gabriele Rocchini
User Manual updating from 0.8.5 to 1.0.3
Page 6
ENG
| GENERAL DESCRIPTION
6
2 GENERAL DESCRIPTION
WOLF 1MS & 2MS
FM OFF AIR MONITOR SYSTEM Rev 4.8
HIGHLIGHTS
- Real Time measurement for FM networks
- Single/double high quality FM Tuner
- Signal analysis modules: RF, MPX, AUDIO and RDS
- High invulnerability to strong RF fields
- Configurable single/bandscan for each FM tuner
- Embedded web server for worldwide consultation
- Single/double AoIP streaming for monitoring with IceCast2 Server
- Single/double RDS decoder with group sequence decoding
- SNMP, HTTP web interface, FTP, NTP and email supported
- Double Ethernet/USB ports, LCD display and headphone out
Page 7
ENG
| GENERAL DESCRIPTION
7
PRODUCT OVERVIEW
Wolf 2MS is a state-of-the-art monitoring system, designed to supervise FM air signals. The accuracy of the onboard
twin tuners allows a very rigorous frequencies scan, high performances in FM reception, MPX audio encoding and RDS
data streaming. This cutting-edge equipment features three main operating modes: continuously reception, bandscan
and smart bandscan.
The FM static modality allows to focus on a single channel, selected and monitored exclusively. Scan mode implies
that up to 32 channels for each tuner can be scanned and supervised in a single analysis. Receiving up to 64 memories
in total, Wolf 2MS allows a complete and accurate scrutiny of RF, MPX, RDS, Audio and RDS data dynamic services. In
smart mode the channel scan time is adjusted automatically according to instantaneous measurements requirements.
Outstanding quality of Wolf 2MS is the integration into a Network Management System. Supporting SNMP protocol,
all data and information captured during FM monitoring are graphically displayed on any kind of web interface. For
simplest configurations not requiring NMS software, Wolf 2MS can send via email a daily report of the 24 hours
events. Wolf 2MS provides a database sheet to manage this information.
Two built-in audio streamers are an essential feature of Wolf 2MS; audio channels can be streamed to a remote
logging system that records both audio and data coming from the transmitter site. The audio stream can also be sent
to a remote player for audio-on-demand purposes. From any site users can listen to each single FM tuner and
streamed audio, using any Internet browser.
Two onboard network interfaces provide maximum flexibility in streaming and connectivity processes. From PCs,
tablets and smartphones broadcasters can control completely Wolf 2MS and access all data and alarms. When an
alarm rises, it is the NMS system that sends notifications via SMS or email or takes an action to fix any possible issue.
External input sources are available: analog Left+Right and digital AES/EBU inputs. Users can connect audio to the
external input sources that should be under control. These audio inputs are constantly monitored: silence detection,
and audio presence. Thorough tests, performed also by end users, showed that Wolf 2MS circuits are extremely sa fe
and completely unaffected by any kind of radiofrequency interferences
TECHNICAL DESCRIPTION
Wolf 1MS and Wolf 2MS are FM monitoring systems designed for FM Off Air signal monitoring purpose. Wolf 1MS is
provided with one high quality FM tuner, while Wolf 2MS allows the broadcaster to receive up to two frequencies
thanks to internal double tuner. Tuners are each other independents and they can operate in three ways: Continuous
reception, bandscan and SmartScan.
Internal tuner assures strong performances in FM reception, RF and MPX audio analysis and RDS data stream output.
The monitoring made on FM channels can be a basic RF analysis or an advanced RF, MPX and AUDIO measurement.
- Continuous reception: a single carrier is selected and under monitoring.
- Bandscan mode: a total of 32 FM Channels can be scanned and monitored in Wolf 1MS and 64 FM Channels
for Wolf 2MS. The bandscan time is also user definable, in a range from 1 second up to 10 seconds for each
channel.
- SmartScan mode allows an intelligent and variable scan time that is adjusted automatically to fit the
instantaneous measurement requirements. This is to avoid false-positive rising errors.
During continuous reception mode, each single tuner checks and completely decodes the multiplexed signal:
Mono level, Pilot level, Audio and RDS levels are measured and kept always under control. All captured datas during
FM Channel monitoring can be sent to a Network Management System (such as Axel Technology’s Ranger) or showed
in a common password protected web page. Communication between Wolf 2MS and Ranger NMS is SNMP v2C
protocol. For all single parameter under monitoring, a threshold can be set. If one or more values go out of range,
alarms are delivered.
Page 8
ENG
| GENERAL DESCRIPTION
8
Tuners modules are with extended RF input range from 11dBuV to over 120dBuV through an internal programmable
attenuator. FM monitor will be able to work nominally at its best with strong RF levels from 80dbuV to over 120dBuV
coming from an RF combiner. RF sensitivity of 20-30dBuV will be still available for the use as audio and RDS-UECP rebroadcaster.
Once the RF signal is received, audio should be streamed from the transmitter site back to a remote logging system.
The streamer input allows an internal selection between all inputs available: Tuners, External Analog In, External
AES/EBU In.
Wolf 1MS and Wolf 2MS are completed with “External Input” source: analog Left+Right input and Digital Left+Right in
AES/EBU format. This audio input is continuously monitored: silence detection (Threshold/time and level), left and
right presence, peak left, peak right. Rear-panel audio output always presents the audio decoded from Tuner-1 or
Tuner-2 and this setting is user definable while audio is available on Analog or AES/EBU format.
Wolf 1MS and Wolf 2MS provide a large variety of connection: double Ethernet port, USB and front panel headphone
output, 4x GPIn opto coupled and 4x GPOut over relays. Rs232 serial port for RDS-UECP bridging and rebroadcasting
purposes, and rear panel placed SD card to store or recall the complete equipment configuration.
RF antenna inputs are over BNC connectors, a XLR balanced stereo analog input and output, AES/EBU input and
output. OS and datas are loaded and stored over solid state memory as SD and flash RAM. Universal switching power
supply to operate worldwide, 1 rack unit space in fan-less configuration.
Page 9
ENG
| GENERAL DESCRIPTION
9
MEASURES AND COMPARISON TABLE
General features
Wolf 1MS
Wolf 2MS
Number of FM tuners on board
1
2
FM channels under monitor
32 Channels
64 FM Channels
(32 FM/Tuner)
Scanning mode
Single, Bandscan and SmartScan
Streaming available
1
2
Field
Type of measure
Measures made by Wolf 1MS –Wolf 2MS
U.M
RF
4x RF Level Lower threshold
Measure, alarm via email/trap SNMP
dBµV
2x Adjacent Channel L1 threshold
Alternative Channel - Worse
Measure
dBr
Carrier precision
Measure
ppm
Multi Path
Measure
%
MPX
Deviation Max
Measure, alarm via email/trap SNMP
kHz/dBr
2x Pilot Lower level - 2 threshold level
MPX Power – ITU-R BS.412
RDS Level
RDS Level Lower threshold
RDS Level Higher threshold
AUDIO
Peak Left - Peak Right threshold
Measure, alarm via email/trap SNMP
dBr
RMS Left - RMS Right threshold
Audio Imbalance – L/R delta threshold
Mono silence – L+R threshold
Audio MPX deviation threshold
Measure, alarm via email/trap SNMP
kHz
Audio MPX Silence detection threshold
Measure, alarm via email/trap SNMP
s
Audio Left –Right Silence det. threshold
RDS Data
AF-Complete Decoding + Visualization
PS – 4 PS matching reference
PI – 3 PI Code matching reference
CT – Time offset
DI – Decoder Information
PTY – Program Type
TP/TA – timeout TA
M/S – Music Speech
BLER – Block Error Rate
TMC – AID – Group – Data
EON Enhance Other Channel
RT – RT+ data decoding
LA – EG – ILS – LSN-PIN
ODA TMC
ODA RT+
ODA-1 ODA-2
SLC0 – SLC1 - SLC2 - SLC3 - SLC4 - SLC5 SLC6 - SLC7
RDS Data decoding group, visualization
and storage. Alarm generation in case
of error, can be showed in a common
web page or delivered via email.
Interfacing with up to 4 NMS allows
equipment to deliver traps using
SNMP protocol.
Page 10
ENG
| GENERAL DESCRIPTION

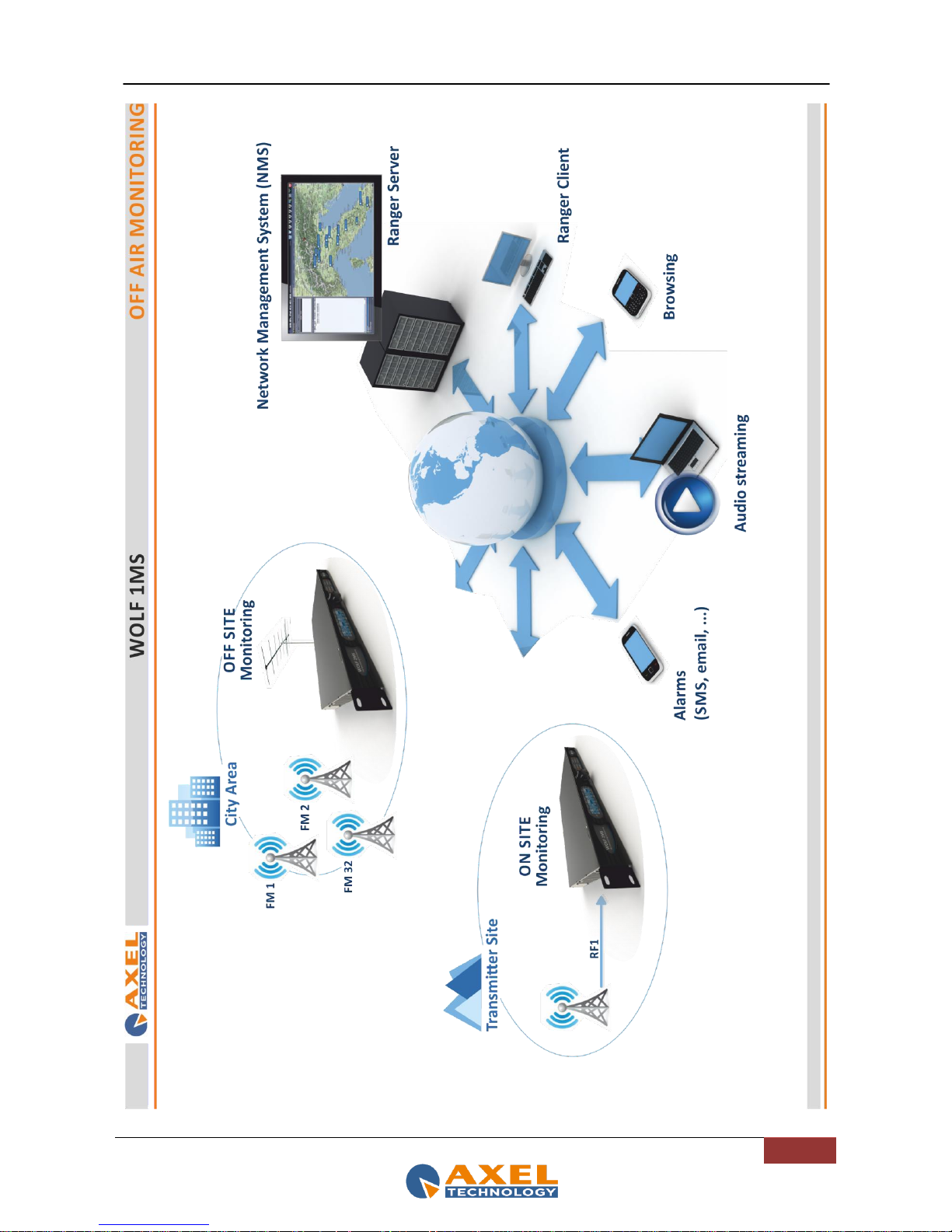

10
Page 11
ENG
| GENERAL DESCRIPTION
11
Page 12
ENG
| GENERAL DESCRIPTION
12
Page 13
ENG
| GENERAL DESCRIPTION
13
FRONT- REAR PANEL DETAIL
In the left side display the first row is divided for TUNER-1 and TUNER-2 frequency and RDS-PI code. The STATUS field indicates the
condition (status) of the frequency under control. The scan value indicates the scanned frequency and all the related value,
frequency in MHz and PI code, this scan value (01-02-.. up to 32) rotate around each 5 seconds. Same behavior for the Tuner-2.
Wolf 2MS – Front
Panel
INFO row shows some information about Wolf 2MS shown such as PS for Tuner-1 and PS for Tuner-2 about the frequency under
control, or the set of bandscan frequency. Last row shows date & time and ALARM PANEL.
If TU1 is set in the ALARM PANEL field, the right side 6 leds panel shows if lighted on the alarms related to Tuner -1. Same for Tuner
-2.
Wolf 2MS – Rear Panel
Wolf 1MS shows some differences between Wolf 2MS in particular about right 6 leds panel side. Accordingly to one RF tuner is it
possible for Wolf 1MS to report about more alarms related to a single frequency under control. PS, PI Code and frequency are
showed into 3 rows LCD display, moreover each single RF and MPX component such as deviation, RF level, Stereo Pilot and RDS
deviation are clearly reported.
Wolf 1MS – Front
Panel
Back side Wolf 1MS and Wolf 2MS allows a large variety of connection, AES/EBU and analog balanced input/output connections are
provided over standard XLR connectors. Double Ethernet and USB –A type port make Wolf 1MS and Wolf 2MS equipment perfectly
matching the most demanding broadcast market application. Furthermore GPIO opto coupler Input and relay output provides a
seamless integration with 3rd party equipment. RDS decoded data in UECP format can be gived back over SubD 9p female
connector, for rebroadcasting purposes.
Wolf 1MS – Rear Panel
Page 14
ENG
| GENERAL DESCRIPTION
14
WOLF 1MS – WEB PAGE
Page 15
ENG
| GENERAL DESCRIPTION
15

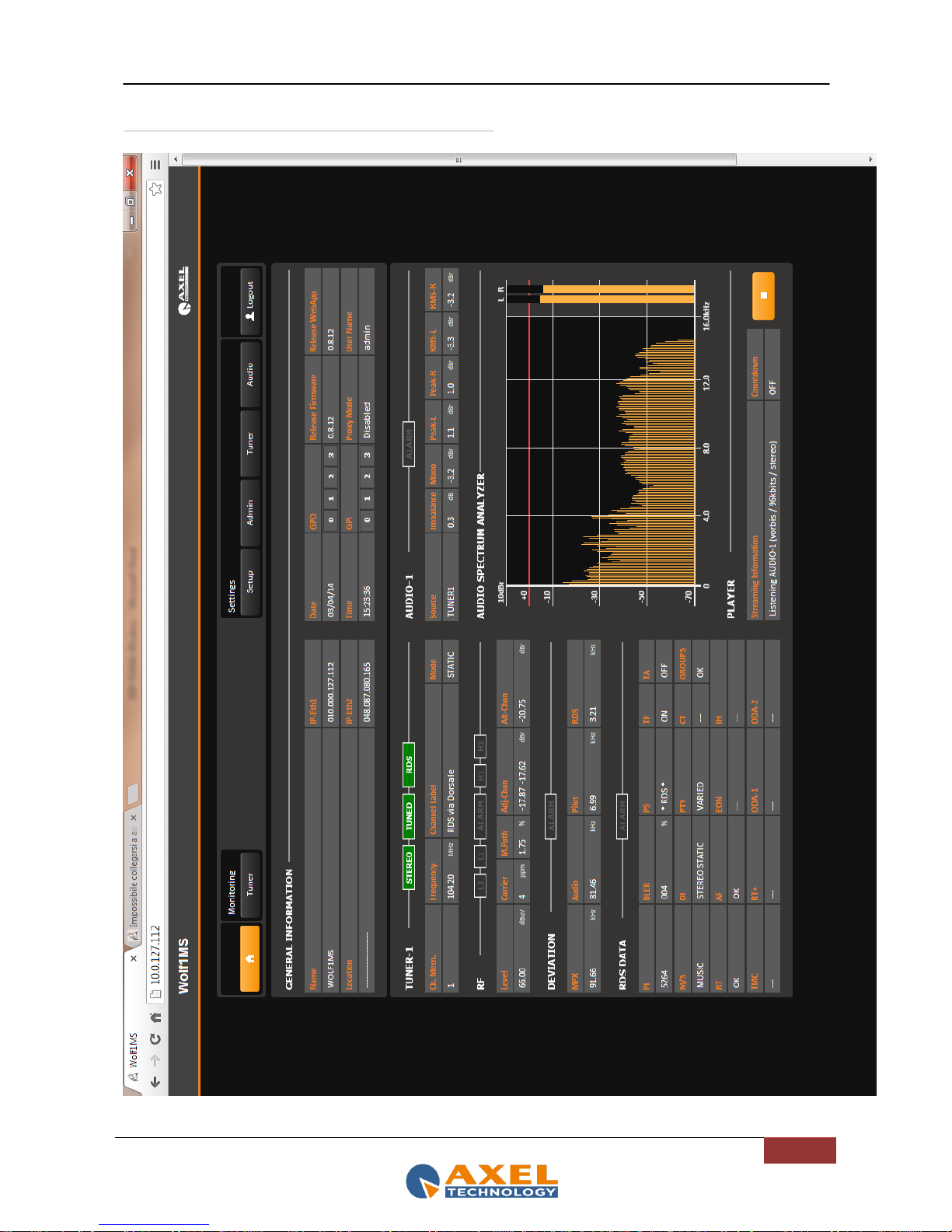

WOLF 2MS – WEB PAGE
Page 16
ENG
| GENERAL DESCRIPTION
16
WOLF 1MS – WOLF 2MS BLOCK DIAGRAM
Page 17
ENG
| GENERAL DESCRIPTION
17
TECHNICAL SPECS
PARAMETER
DESCRIPTION
Main Power
100 Vac – 240 Vac 50/60 Hz internal, universal power supply
Power consumption
25 W
Power connector
IEC plug filter with internal fuse 2.0 AT
Headphone
Stereo Jack 6.3 mm
Safety and EMC
Compliant to CE laws
Working temperature
0° to 50° C (storage -5 to + 50 °C)
Housing Dimensions
19 inch x 1u x 240 mm (depth)
Weight
3.5 kg
RF TUNERS
Tuner frequency
87.5 MHz ‐ 108.0 MHz
Tuner step
10 kHz
RF tuning stability
+/- 500 Hz
RF input sensitivity
20 to 120 dBµV
RF input nominal level
80 to 100 dBµV
RF inputs main
2x BNC, with 50 Ohm unbalanced
Max frequency deviation
125 kHz
IF Filter bandwidth
34 kHz to 138 kHz – Manual or Automatic
Input RF level
30 dBµV – 120 dBµV with Internal attenuator
Bandscan carrier number
32 Channels
Bandscan time
Static Mode, Scan 2s to 20s and Smart Mode*
Selectivity at ± 120 kHz
> -3 dB
Selectivity at ± 200 kHz
> -40 dB
Selectivity at ± 300 kHz
>- 50 dB
Selectivity at ± 400 kHz
>-65 dB
Image Rejection @ 22.5 kHz
70 dB
Adjacent channel rejection
63 - 65 dB
Alternate channel rejection
65 - 72 dB
THD @ dev=75 kHz
0.05 – 0.1 %
Mono (S+N)/N
75 dB typ – 68 dB min (No A-Weighting 30 Hz – 15 kHz)
STEREO DECODERS
Stereo (S+N)/N
61 dB Stereo/61 dB Mono @ 40 dBµV
65 dB Stereo @ 50 dBµV
80 dB Stereo @ 70 dBµV
Pilot 19kHz suppression
55 dB (Stereo modulation L = 1, R = 0,Deviation=67.5 kHz, pilot deviation=6.75
kHz)
Stereo THD+N
Measures @ 70 dBuV with 75 kHz deviation
100 Hz - 0.055 %
1 kHz - 0.061 %
5 kHz - 0.19 %
10 kHz - 0.46 %
Stereo separation
45 dB (Stereo modulation L = 1, R = 0,Deviation=67.5 kHz, pilot deviation=6.75
kHz)
Page 18
ENG
| GENERAL DESCRIPTION
18
48 dB @ 400 Hz
48 dB @ 1 kHz
48 dB @ 5 kHz
38 dB @ 10 kHz
38 dB @ 14.7 kHz
RDS DECODER
RDS Sensitivity
20 dBµV (dev f = 2 kHz, RDS BLER < 5%)
RDS Synchronization time
80 ms (dev f = 2 kHz RF input = 60 dBµV)
RDS PI Lock time
100 ms (dev f = 2 kHz RF input = 60 dBµV)
RDS data decoding and Streaming
RDS Level indication and deviation (voltage, kHz and dBr)
RDS Data decoding services
PS, PI, M/S, DI, TP, TA, AF, AF List Presence A/B Method, Scrolling PS, AF EON,
Radio Text, Radio Text Plus, CT, PTY, PIN, IH, TMC, EWS, TDC . ODA generic
services. RDS error detection with three shold adjustable
RF MEASUREMENT MODULE
Ranges – Resolution - Precision
RF Level
0 – 80 dBµV (Resolution 1 dBµV, precision 2 dBµV)
82 – 120 dBµV (Resolution 2 dBµV, precision 5 dBµV)
Deviation
0-125 kHz (Resolution 1 kHz, precision 2 kHz)
Tuned Carrier Frequency Offset
0-250 ppm (Resolution 2 ppm, precision 5 ppm)
Multipath
0-100 %
Adjacent Channel RF Level
0 – 80 dBµV (Resolution 1 dBµV, precision 2 dBµV) (+-200kHz)
MPX MEASUREMENT MODULE
Ranges – Resolution - Precision
Pilot Level
0-20 kHz (Resolution 0.1 kHz, precision 0.2 kHz)
Rds Level
0-20 kHz (Resolution 0.1 kHz, precision 0.2 kHz)
Mpx Power ITU-R-BS412 (Estimated)
-20 dBr to + 12dBr (Resolution 0.1 dBr, precision 0.5 dBr)
Stereo
Valid Stereo signal detector
AUDIO MEASUREMENT MODULE
Ranges – Resolution – Precision
Left Quasi Peak
Programmable Attack Time from 0 mS to 2mS (Resolution 0.1 dB)
Right Quasi Peak
Programmable Attack Time from 0 mS to 2mS (Resolution 0.1 dB)
Audio Silence
Threshold -80 dB to 0 dB, Time: 1-120 Sec
Unbalanced Stereo Signal
Threshold -80 dB to 0 dB, Time: 1-120 Sec
AUDIO OUTPUT
Available output on XLR
Tuner-1 or Tuner-2, definable via web page. Same audio on Analog and
AES/EBU
Audio frequency response
30 Hz—15 kHz, ± 0,3 dB
Phones (Front Panel)
Stereo jack 6.3 mm, 150 Ohm, 0.8 W
ANALOG OUTPUT MODULE
D/A Conversion
24bit Sigma-Delta Conversion – 32 kHz Sample rate
Connectors
2x XLR, male - Electronically balanced
Output Level
-12.0 dBu to +14.0 dBu (0.1 dBu Step) – Max (+20 dBu)
Impedance Source
47 Ω
Load Impendance
600 Ω or greater
Distorsion
Less than 0.02% TDH+Noise (0.0dBu @ 1Khz)
Dynamic range
108 dB (110 dB A-weighted, 20Hz – 15kHz)
Sources
Streamer1_Source , Streamer2_Source
DIGITAL OUTPUT MODULE
Connectors:
XLR, Male – Electronically balanced
Format
AES3/EBU
Sample rates
32 kHz
Page 19
ENG
| GENERAL DESCRIPTION
19
Resolution
24 bits
Operative Nominal level:
From 0.0 dBFs to -24dBFs (0.1 dBu step)
Dynamic Range:
125 dB (Typ), 122 dB (Min)
Distortion
less than 0.01% TDH+NOISE (-20dBFs @ 1Khz)
Freq response
20Hz-15kHz
Dynamic range
108 dB
Sources
Streamer1_Source , Streamer2_Source
AUDIO INPUT
Encoder Streaming Input source
User selectable between Tuner-1, Tuner-2, External Input Analog, External Input
AES/EBU
DIGITAL INPUT MODULE
Connectors:
XLR, female – Electronically balanced
Format
AES3/EBU
Sample rates
32 kHz / 44.1 kHz / 48 kHz / 96 kHz with src and jitter correction
Operative Nominal level:
From 0.0 dBFs to -24dBFs (0.1 dBu step)
Dynamic Range:
125 dB (Typ)
Distortion
less than 0.01% TDH+Noise (-20dBFs@ 1Khz)
Input Modes:
Stereo, Mono (Left), Mono (Right), Mono (Left+Right)
ANALOG INPUT MODULE
A/D Conversion
24bit Sigma-Delta Conversion – 32kHz sample rate
Connectors:
XLR, female - Electronically balanced
AD Clipping Point
+20.0dBu
Operative Nominal Level:
From –12.0dBu to +12.0dBu (0.1dBu Step)
Line Impedance
10 kΩ (Electronically balanced selectable) EMI–suppressed
Distortion:
less than 0.02% TDH+NOISE (0.0dBu @ 1Khz)
AD Dynamic Range:
108 dB RMS (110 dB A-weighted, 20Hz - 15kHz)
Input Modes:
Stereo, Mono (Left), Mono (Right), Mono (Left+Right)
AUDIO & RDS STREAMING MODULES
Protocols
UDP/RTP, TCP/IP, IceCast2
Encoders
OGG-VORBIS
Interface
Ethernet Port 10/100 Mb/s
Bitrate
User select 24 kbps to 192 kbps
Sample Rates
32Ksamples/sec
RDS Streaming
Proprietary redundant protocol over UDP or RAW-TCP/IP
Administration
User right management
ORDERING INFORMATION
CODE# MODEL
COMMERCIAL DESCRIPTION
A110160020
WOLF 1MS
Monitoring system for FM networks. Internal FM tuner with configurable band scan. Real
time measures on RF, MPX, Audio and RDS decoder with group sequence. HTTP, SNMP,
FTP and XML protocol. Web server and audio streaming for monitor. 2x LAN/USB and
GPIO. Headphone output and universal power supply.
A110160001
WOLF 2MS
Dual FM monitoring system for FM networks. Double internal tuner with configurable
band scan. Real time measures on RF, MPX, Audio and RDS decoder with group sequence.
HTTP, SNMP, FTP and XML protocol. Web server,double audio streaming for monitor.
2xLAN/USB and GPIO. Headphone output. Universal PSU
Page 20
ENG
| GENERAL DESCRIPTION
20
A110160020
WOLF 1MS
Système de surveillance pour les réseaux FM. Tuner interne pour band-scan configurable.
Mesure en temps réel de RF, MPX, audio et RDS (séquence de décodage). HTTP, SNMP,
FTP et XML. Serveur Web, double moniteur streaming audio. 2xLAN, USB et GPIO.Prise
casque enface. Alimentation universelle
A110160001
WOLF 2MS
Double système de surveillance pour les réseaux FM. Double tuner interne pour bandscan configurable. Mesure en temps réel de RF,MPX, Audio et RDS (séquence de
décodage). HTTP,SNMP,FTP-XML. Serveur Web, double moniteur streaming
audio.2xLAN,USB et GPIO. Prise casque enface. Alimentation universelle
Page 21
ENG
| SAFETY WARNINGS / ISTRUZIONI PER LA SICUREZZA
21
3 SAFETY WARNINGS / ISTRUZIONI PER LA SICUREZZA
SAFETY WARNINGS
CONSIGNES DE SÉCURITÉ IMPORTANTES
ISTRUZIONI IMPORTANTI PER LA SICUREZZA
WICHTIGE SICHERHEITSHINWEISE
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
(Rel. 1.6)
3.1 FOREWORD
For your own safety and to avoid invalidation of the warranty all text marked with these Warning Symbols
should be read carefully.
Information in this manual is subject to change without notice and does not represent a commitment on the part of the
vendor.
The manufacturer shall not be liable for any loss or damage whatsoever arising from the use of information or any error
contained in this manual, or through any mis-operation or fault in hardware contained in the product.
It is recommended that all maintenance and service on the product should be carried out by the manufacturer or its
authorised agents. The manufacturer cannot accept any liability whatsoever for any loss or damage caused by service,
maintenance or repair by unauthorised personnel.
Page 22
ENG
| SAFETY WARNINGS
22
4 SAFETY WARNINGS
The installation and servicing instructions in this manual are for use by qualified personnel only.
-
Read All Instructions. All safety and operating instructions must be read before operating the product. They also
must be retained for future reference, as it contains a number of useful hints for determining the best combination of
equipment settings for Yr particular application.
-
Heed All Warnings. All warnings on the product and those listed in the operating instructions must be adhered to.
-
Heat. This product must be situated away from any heat sources such as radiators or other products (including
power amplifiers or transmitters) that produce heat.
-
Power Sources. This product must be operated from the type of power source indicated on the marking label and in
the installation instructions. If you are not sure of the type of power supplied to your facility, consult your local power
company. Make sure the AC main voltage corresponds to that indicated in the technical specifications. If a different
voltage (ex. 110/115 VAC) is available, open the equipment closure and set the voltage switch on the main supply
circuit, located behind the AC socket
-
Power Cord Protection. Power supply cords must be routed so that they are not likely to be walked on nor pinched
by items placed upon or against them. Pay particular attention to the cords at AC wall plugs and convenience
receptacles, and at the point where the cord plugs into the product
-
Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When
a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
-
Lightning. For added protection for this product during a lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the AC wall outlet and the audio connections. This will prevent damage to the
product due to lightning and power line surges
-
Installation. Configuration and installation should only be carried out by a competent installation engineer
-
Cabling. Using high quality wires, well protected. Make sure the cable integrity.
This symbol alerts you to the presence of dangerous voltage inside the closure – voltage which
may be sufficient to constitute a risk of shock. Do not perform any servicing other than that
contained in the operating instructions. Refer all servicing to qualified personnel
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
Do not change the voltage setting or replace the mains fuse without first turning the unit off
and unplugging the mains cord
Make sure the AC main voltage corresponds to that indicated in the technical specifications.
THIS APPARATUS MUST BE EARTHED !
To avoid risk of fire use the correct value fuse, as indicated on the label stuck on the right
side of the unit.
This apparatus uses a single pole mains switch and does therefore not separate the unit
completely from the mains power. To completely separate from mains power (f.i. in the event
of danger) unplug mains power cord. As the MAINS plug is the disconnect device, the
disconnect device shall remain readily operable.
Page 23
ENG
| CONSIGNES DE SÉCURITÉ IMPORTANTES
23
5 CONSIGNES DE SÉCURITÉ IMPORTANTES
-
Lire ces consignes
-
Conserver ces consignes
-
Observer tous les avertissements
-
Suivre toutes les consignes
-
Ne pas utiliser cet appareil à proximité de l’eau
-
Ne pas obstruer les ouvertures de ventilation. Installer en respectant les consignes du fabricant
-
Ne pas installer à proximité d'une source de chaleur telle qu'un radiateur, une bouche de chaleur, un poêle ou
d'autres appareils (dont les amplificateurs) produisant de la chaleur.
-
Ne pas annuler la sécurité de la fiche de terre, la troisième branche est destinée à la sécurité. Si la fiche fournie
ne s'adapte pas à la prise électrique, demander à un électricien de remplacer la prise hors normes.
-
Protéger le cordon d'alimentation afin que personne ne marche dessus et que rien ne le pince, en particulier aux
fiches, aux prises de courant et au point de sortie de l’appareil
-
Utiliser uniquement les accessoires spécifiés par le fabricant
-
Utiliser uniquement avec un chariot, un support ou une table spécifié par le fabricant ou vendu avec l’appareil. Si
un chariot est utilisé, déplacer l’ensemble chariot–appareil avec précaution afin de ne pas le renverser, ce qui
pourrait entraîner des blessures
-
Débrancher l’appareil pendant les orages ou quand il ne sera pas utilisé pendant longtemps.
-
Confier toute réparation à du personnel qualifié. Des réparations sont nécessaires si l’appareil est endommagé
d’une façon quelconque, par exemple: cordon ou prise d’alimentation endommagé, liquide renversé ou objet tombé à
l’intérieur de l’appareil, exposition de l’appareil à la pluie ou à l’humidité, appareil qui ne marche pas normalement ou
que l’on a fait tomber.
-
NE PAS exposer cet appareil aux égouttures et aux éclaboussements. Ne pas poser des objets contenant de
l'eau, comme des vases, sur l'appareil
Ce symbole indique la présence d'une tension dangereuse dans l'appareil constituant un risque de
choc électrique.
Ce symbole indique que la documentation fournie avec l'appareil contient des instructions
d'utilisation et d'entretien importantes.
Avant de modifier le commutateur de changement de tension ou replacer le fusible il faut
débrancher l’appareil de la prise électrique. Pendant son usage, l’appareil doit etre branchee à la
prise de terre
Utiliser le fusible principal AC avec le valeur qui est indiquée sur l'étiquette collée sur le coffret.
Assurez-vous que la tension principale AC correspond à celle indiquée dans les spécifications
techniques.
L’interrupteur d’alimentation interrompt un pôle du réseau d’alimentation excepté le conducteur
de terre de protection. En cas de danger, debrancher le cordon d'alimentation. Parce que la prise
du réseau de alimentation est utilisée comme dispositif de déconnexion, ce dispositif doit
demeuré aisément accessible
Page 24
ENG
| ISTRUZIONI IMPORTANTI PER LA SICUREZZA
24
6 ISTRUZIONI IMPORTANTI PER LA SICUREZZA
-
Leggere le presenti istruzioni
-
Conservare queste istruzioni
-
Osservare tutte le avvertenze
-
Seguire scrupolosamente tutte le istruzioni
-
Non usare questo apparecchio in prossimità di acqua
-
Non ostruire alcuna apertura per il raffreddamento. Installare l’apparecchio seguendo le istruzioni
-
Non installare l'apparecchio accanto a fonti di calore quali radiatori, aperture per l'afflusso di aria calda, forni o
altri apparecchi (amplificatori inclusi) che generino calore
-
Non rimuovere il terminale di connessione a terra sul cordone di alimentazione: esso ha lo scopo di tutelare
l’incolumità dell’utilizzatore. Se la spina in dotazione non si adatta alla presa di corrente, rivolgersi ad un elettricista
per far eseguire le modifiche necessarie.
-
Evitare di calpestare il cavo di alimentazione o di comprimerlo, specialmente in corrispondenza della spina e del
punto di inserzione sull’apparato.
-
Utilizzare solo dispositivi di collegamento e gli accessori specificati dal produttore.
-
Utilizzare l’apparecchio solo con un carrello, un sostegno, una staffa o un tavolo di tipo specificato dal produttore o
venduto insieme all’apparecchio. Se si utilizza un carrello, fare attenzione negli spostamenti per evitare infortuni
causati da ribaltamenti del carrello stesso.
-
Scollegare l’apparecchio dalla presa di corrente durante i temporali o quando inutilizzato a lungo
-
Per qualsiasi intervento, rivolgersi a personale di assistenza qualificato. È’ necessario intervenire sull’apparecchio
ogniqualvolta si verificano danneggiamenti di qualsiasi natura. Ad esempio, la spina o il cavo di alimentazione sono
danneggiati, è entrato liquido nell’apparecchio o sono caduti oggetti su di esso, l’apparecchio è stato esposto alla
pioggia o all’umidità, non funziona normalmente o è caduto.
-
Non esporre a sgocciolamenti o spruzzi. Non appoggiare sull'apparecchio oggetti pieni di liquidi, ad esempio vasi
da fiori.
Questo simbolo indica la presenza di alta tensione all'interno dell'apparecchio, che comporta rischi di
scossa elettrica.
Questo simbolo indica la presenza di istruzioni importanti per l'uso e la manutenzione nella
documentazione in dotazione all'apparecchio.
Non sostituire il fusibile o cambiare la tensione di alimentazione senza aver prima scollegato il
cordone di alimentazione. L’APPARATO DEVE ESSERE CONNESSO A TERRA.

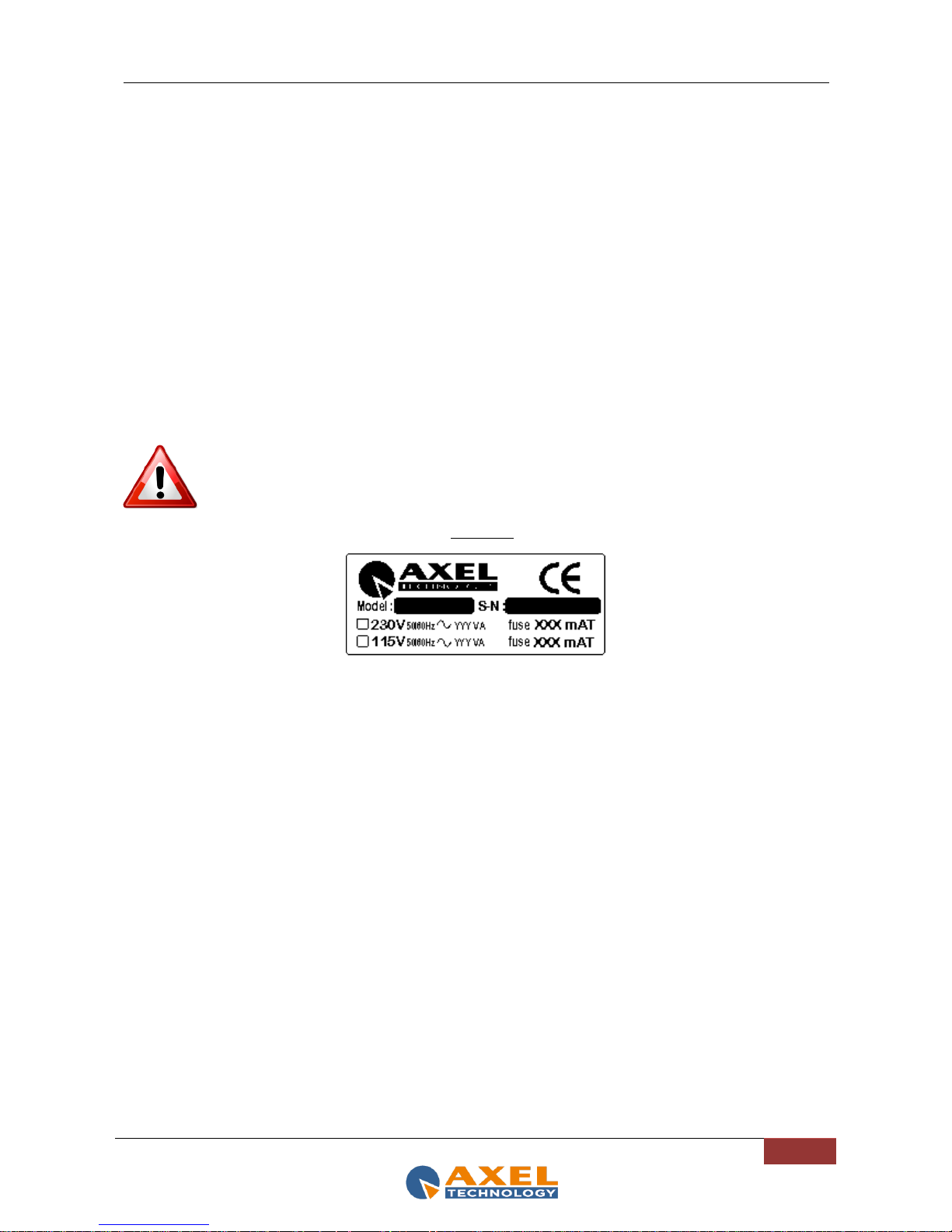

Sostituire il fusibile generale con uno di identico valore, come indicato sulla etichetta applicata
sul mobile dell’apparato
Assicurarsi che la tensione di rete corrisponda a quella per la quale è configurato
l’apparecchio
Questo apparato utilizza un interruttore di alimentazione di tipo unipolare e l’isolamento dalla
rete elettrica non è pertanto completo. Per ottenere un isolamento totale (ad esempio in caso di
pericolo), scollegare il cordone di alimentazione. Inoltre, poichè la spina di alimentazione è
utilizzata come dispositivo di sezionamento, essa deve restare facilmente raggiungibile
Page 25
ENG
| WICHTIGE SICHERHEITSHINWEISE
25
7 WICHTIGE SICHERHEITSHINWEISE
-
Diese Hinweise LESEN
-
Diese Hinweise AUFHEBEN
-
Alle Warnhinweise BEACHTEN
-
Alle Anweisungen BEFOLGEN
-
Dieses Gerät NICHT in der Nähe von Wasser verwenden
-
KEINE Lüftungsöffnungen verdecken. Gemäß den Anweisungen des Herstellers einbauen
-
Nicht in der Nähe von Wärmequellen, wie Heizkörpern, Raumheizungen, Herden oder anderen Geräten
(einschließlich Verstärkern) installieren, die Wärme erzeugen
-
Die Schutzfunktion des Schukosteckers NICHT umgehen. Bei Steckern für die USA gibt es polarisierte Stecker,
bei denen ein Leiter breiter als der andere ist; US-Stecker mit Erdung verfügen über einen dritten Schutzleiter. Bei
diesen Steckerausführungen dient der breitere Leiter bzw. der Schutzleiter Ihrer Sicherheit. Wenn der mitgelieferte
Stecker nicht in die Steckdose passt, einen Elektriker mit dem Austauschen der veralteten Steckdose beauftragen
-
VERHINDERN, dass das Netzkabel gequetscht oder darauf getreten wird, insbesondere im Bereich der Stecker,
Netzsteckdosen und an der Austrittsstelle vom Gerät
-
NUR das vom Hersteller angegebene Zubehör und entsprechende Zusatzgeräte verwenden.
-
NUR in Verbindung mit einem vom Hersteller angegebenen oder mit dem Gerät verkauften Transportwagen, Stand,
Stativ, Träger oder Tisch verwenden. Wenn ein Transportwagen verwendet wird, beim Verschieben der
Transportwagen-Geräte- Einheit vorsichtig vorgehen, um Verletzungen durch Umkippen
-
Das Netzkabel dieses Geräts während Gewittern oder bei längeren Stillstandszeiten aus der Steckdose
ABZIEHEN.
-
Alle Reparatur- und Wartungsarbeiten von qualifiziertem Kundendienstpersonal DURCHFÜHREN LASSEN.
Kundendienst ist erforderlich, wenn das Gerät auf irgendwelche Weise beschädigt wurde, z.B. wenn das Netzkabel
oder der Netzstecker beschädigt wurden, wenn Flüssigkeiten in das Gerät verschüttet wurden oder Fremdkörper
hineinfielen, wenn das Gerät Regen oder Feuchtigkeit ausgesetzt war, nicht normal funktioniert oder fallen gelassen
wurde.
-
Dieses Gerät vor Tropf- und Spritzwasser SCHÜTZEN. KEINE mit Wasser gefüllten Gegenstände wie zum
Beispiel Vasen auf das Gerät STELLEN.
Dieses Symbol zeigt an, dass gefährliche Spannungswerte, die ein Stromschlagrisiko darstellen,
innerhalb dieses Geräts auftreten.
Dieses Symbol zeigt an, dass das diesem Gerät beiliegende Handbuch wichtige Betriebs- und
Wartungsanweisungen enthält.
Vor Änderung der Netzspannung oder Sicherungswechsel Netzkabel trennen.
Das Gerät muss für den Betrieb geerdet werden.
Hauptsicherung nur mit einer gleichwertigen austauschen
(s. entsprechende Etikette).
Vor Einschalten Netzspannungseinstellung am Gerät überprüfen bzw. anpassen.
Page 26
ENG
| WICHTIGE SICHERHEITSHINWEISE
26
Inpoliger Netzschalter. In Notfälle oder für Wartungsarbeiten Netzkabel trennen. Der Netzstecker
fungiert auch als Trennelement muss deshalb zugänglich bleiben
Page 27
ENG
| INSTRUCCIONES IMPORTANTES DE SEGURIDAD
27
8 INSTRUCCIONES IMPORTANTES DE SEGURIDAD
-
LEA estas instrucciones
-
CONSERVE estas instrucciones
-
PRESTE ATENCION a todas las advertencias.
-
SIGA todas las instrucciones
-
NO utilice este aparato cerca del agua
-
NO obstruya ninguna de las aberturas de ventilación. Instálese según lo indicado en las instrucciones del
fabricante
-
No instale el aparato cerca de fuentes de calor tales como radiadores, registros de calefacción, estufas u otros
aparatos (incluyendo amplificadores) que produzcan calor
-
NO anule la función de seguridad del enchufe polarizado o con clavija de puesta a tierra. Un enchufe polarizado
tiene dos patas, una más ancha que la otra. Un enchufe con puesta a tierra tiene dos patas y una tercera clavija con
puesta a tierra. La pata más ancha o la tercera clavija se proporciona para su seguridad. Si el toma corriente no es
del tipo apropiado para el enchufe, consulte a un electricista para que sustituya el toma corriente de estilo anticuado
-
PROTEJA el cable eléctrico para evitar que personas lo pisen o estrujen, particularmente en sus enchufes, en los
toma corrientes y en el punto en el cual sale del aparato
-
UTILICE únicamente los accesorios especificados por el fabricante
-
UTILICESE únicamente con un carro, pedestal, escuadra o mesa del tipo especificado por el fabricante o vendido
con el aparato. Si se usa un carro, el mismo debe moverse con sumo cuidado para evitar que se vuelque con el
aparato
-
DESENCHUFE el aparato durante las tormentas eléctricas, o si no va a ser utilizado por un lapso prolongado.
-
TODA reparación debe ser llevada a cabo por técnicos calificados. El aparato requiere reparación si ha sufrido
cualquier tipo de daño, incluyendo los daños al cordón o enchufe eléctrico, si se derrama líquido sobre el aparato o
si caen objetos en su interior, si ha sido expuesto a la lluvia o la humedad, si no funciona de modo normal, o si se ha
caído.
-
NO exponga este aparato a chorros o salpicaduras de líquidos. NO coloque objetos llenos con líquido, tales como
floreros, sobre el aparato .
Este símbolo indica que la unidad contiene niveles de voltaje peligrosos que representan un riesgo
de choques eléctricos.
Este símbolo indica que la literatura que acompaña a esta unidad contiene instrucciones
importantes de funcionamiento y mantenimiento.
Antes de cambiar la alimentacion de voltaje o de cambiar el fusible, desconecte el cable de
alimentacion. Para reducir el riesgo de descargas electricas, esta unidad debe ser conectada a
tierra.
Remplaze el fusible con lo mismo, que corresponde a lo indicado en el panel del equipo.
Antes de encender, controlar que la linea de alimentacion de voltaje corresponda a la indicada
Page 28
ENG
| INSTRUCCIONES IMPORTANTES DE SEGURIDAD
28
El interruptor de alimentación es unipolar. En el caso de peligro, desconecte el cable de
alimentación. Porque la clavija de conexion a red sirve por la desconection de la unidad, la
clavija debe ser ubicada en proximidad de la unidad
Page 29
UNPACKING AND INSPECTION
| UNPACKING AND INSPECTION
29
9 UNPACKING AND INSPECTION
Your equipment was packed carefully at the factory in a container designed to protect the unit during shipment.
Nevertheless, we recommend making a careful inspection of the shipping carton and the contents for any signs of
physical damage.
Damage & Claims
If damage is evident, do not discard the container or packing material. Contact your carrier immediately to file a claim for
damages. Customarily, the carrier requires you, the consignee, to make all damage claims. It will be helpful to retain the
shipping documents and the waybill number.
Save all packing materials! If You should ever have to ship the unti (e.g. for servicing), it is best to ship it in the
original carton with its packing materials because both the carton and packing material have been carefully
designed to protect the unit.
Under normal conditions no user maintenance or calibration are required. Internal links and preset controls may be set to
configure the unit during installation. Any service work required should be carried out by qualified service
personnel only.
We are able to offer further product support through our worldwide network of approved dealers and service agents.
To help us provide the most efficient service please would you keep a record of the unit serial
number, and date and place of purchase to be quoted in any communication regarding this
product.
The actual equipment Serial Number is indicated on the silver label stuck on the rear panel of the equipment closure.
Tools And Equipment Needed
Only standard technician’s tools are required to install this equipment.
Page 30
FIRST INSTALLATION RECOMMENDATIONS
| FIRST INSTALLATION RECOMMENDATIONS
30
10 FIRST INSTALLATION RECOMMENDATIONS
10.1 POWER SUPPLY CABLE
A power supply cable of approx. 2 mt length is supplied with the device, which has a moulded IEC plug attached – this is
a legal requirement.
The type of plug for the power supply depends on the country in which it is delivered.
If for any reason, you need to use this appliance with a different plug, you should use the following wiring guidelines in
replacing the exsisting plug with the new one:
Earth
Green, or green and yellow
Neutral (N)
Blue
Live (L)
Brown
Supply cables should be laid in such a manner that one does not step or walk on them. They should not be squashed by
any objects.
THIS EQUIPMENT MUST BE EARTHED.
The chassis is always connected to mains earth to ensure your safety: check your mains wiring and earthing before
switching on.
10.1 PROTECTION AGAINST LIGHTNING - NUMERAZIONE
Should the device be put out of action due to being struck by lightning or excess voltage, disconnect it
from the power supply without delay. Do not reconnect until the device has been checked. If in doubt
contact the technical support service.
Make sure there is suitable lightning protection to protect the device.
Alternatively you should disconnect all connectors from the device during a storm or when the device
is going to be unsupervised or not used for a longer period of time.
These measures will protect against damage by lightning or excess voltage.
10.2 VENTILATION
The equipment will operate as a free-standing unit without requiring any special cooling arrangement.
However, slots and openings in the product are provided for ventilation. They ensure reliable operation of the product,
keeping it from overheating. These openings must not be blocked nor covered during operation.
YOU MUST LEAVE AT A MINIMUM ONE RACK UNIT OF EMPTY SPACE ABOVE THE EQUIPMENT TO ENHANCE
VENTILATION AND TO GET A LONGER EQUIPMENT LIFE.
Page 31
WOLF 2MS INSTALLATION NOTE AND FIRST STEP
| WOLF 2MS INSTALLATION NOTE AND FIRST STEP
31
11 WOLF 2MS INSTALLATION NOTE AND FIRST STEP
Best setup location
The Wolf 2MS should be installed in a 19” rack. Avoid direct sunlight, close proximity to radiators and air conditioning,
dust, water, and chemicals. Choose a rack location that permits a clear view to the indicators on the device and ensure a
sufficient heat dissipation of the device.
Power supply
The device is designed for operation with 100 to 240 V AC, 50 Hz to 60 Hz. Check the corresponding device labelling for
compatibility to the domestic line voltage and frequency before connecting the IEC power connector to the mains supply!
WARNING
Disconnect mains power plug before you
open the housing. Repair of the equipment
must only be carried out by authorized and
qualified personnel.
1
Power Supply
Please make sure that the device and the contained fuse(s) (please see
p. 20) are compatible to the domestic line voltage and frequency. If the
device is compatible, connect the power supply cord fully to the IEC
power connector at the rear side of the device and a mains power
outlet. The “LCD Screed” will then turn on.
2
Network configuration
For delivery, the device is configured with default settings for the first
connection via the IP interface.
Wolf 2MS have a display, so you can configure the IP settings right
now:
See step “LAN-1 Page Functionality (How to set the TCP/IP ETH-1)”
3
Connect to network
Connect a network patch cable to the “10/100-Base-T” connector on the
rear side of the device and your existing IP network.
4
Web interface
The device can be fully operated with an internet browser via the
integrated web interface. Use a computer that is connected to the same
IP network that the Wolf 2MS device is connected to. Start an internet
browser, Firefox/Mozilla >V2.0 Google Chrome both with Java Script
activated and enter the configured IP address in the address bar of the
browser. If the IP address has not been changed in step 2, please enter
the default address in the address bar of the browser:
192.168.XXX.XXX.
5
Connect FM antenna
cable to each Tuner-1
and Tuner-2
Now connect the antenna cable to Wolf 2MS. There are two separate
BNC inputs, please provide a correct level of RF signal to the
equipment. See in the technical specs the RF level range.
6
Ready!
These first steps are only intended for a quick first start and do not
cover all device functions. Pease read carefully the entire manual to be
able to use all functions of the device.
7
Important note on the
Username and password
The equipment comes out from Axel Technology with a standard
username: admin and password: admin
Each time a NEW user, with administration rights is created, the user
admin disappear and it is replaced by the new one just created. If all
users are deleted, the standard admin – admin comes out again
Page 32
WOLF 2MS INSTALLATION NOTE AND FIRST STEP
| WOLF 2MS INSTALLATION NOTE AND FIRST STEP
32

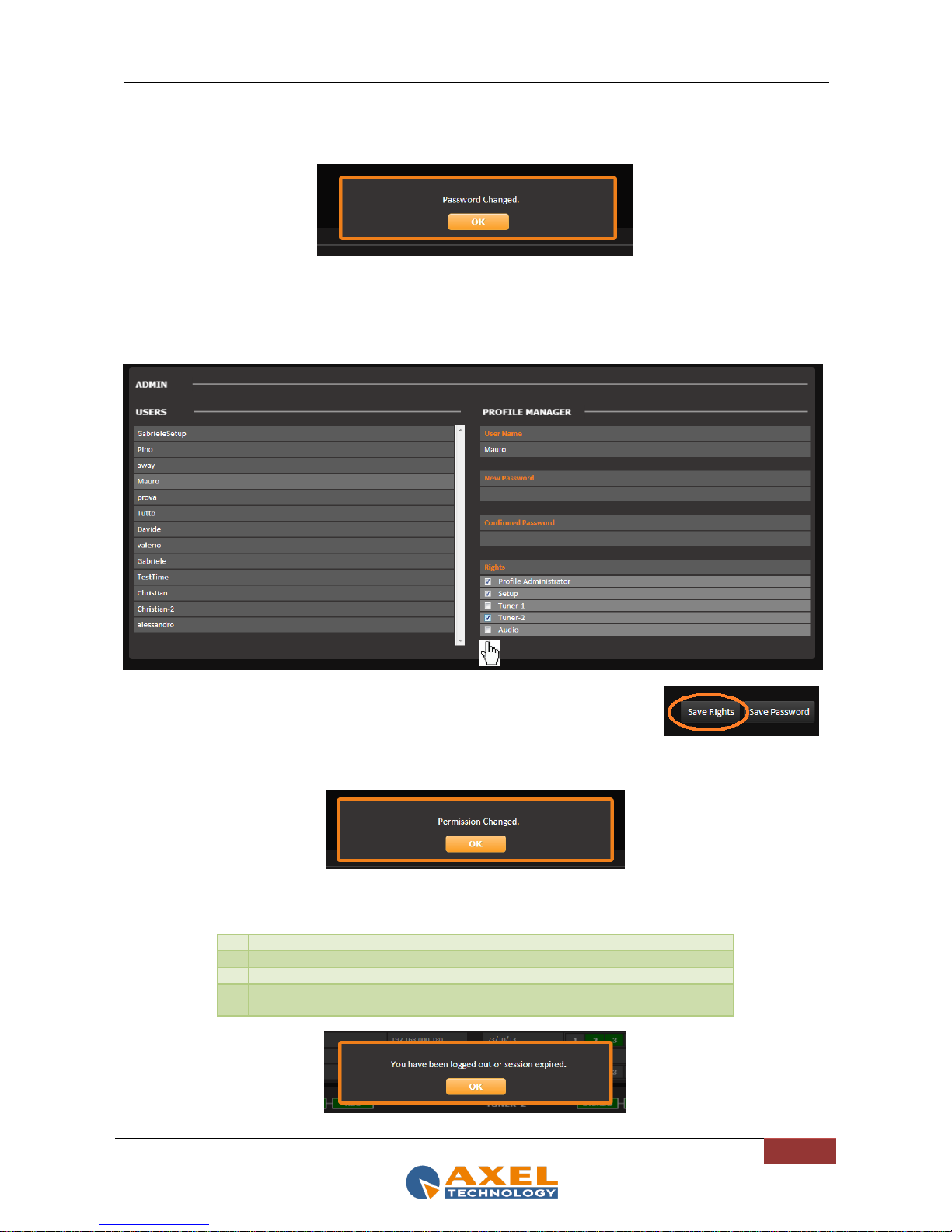

11.1 IMPORTANT NOTE ON USER NAME AND PASSWORD
The equipment comes out from Axel Technology with a standard username:
Username: admin
password: admin
(case sensitive)
Each time a NEW user, with administration rights is created, the user admin disappear and it is replaced by the new one
just created. If all users are deleted, the standard admin – admin comes out again, in order to create and enter the Wolf
2MS
Page 33
WOLF 2MS INSTALLATION NOTE AND FIRST STEP
| WOLF 2MS INSTALLATION NOTE AND FIRST STEP
33
11.2 HOW TO SHUT DOWN WOLF 2MS
Wolf 2MS is an Operative System-based equipment (as a PC) so a particular procedure to shut Wolf 2MS down is:
1.Holding for 3 seconds the encoder button. Press OK
2.Will be displayed a window to confirm the system shut down procedure.
3.After this procedure a blank screen will be displayed. Now it is possible to shut down the device
Page 34
WOLF 2MS GENERAL DESCRIPTION
| WOLF 2MS GENERAL DESCRIPTION
34
12 WOLF 2MS GENERAL DESCRIPTION
12.1 WOLF 2MS BLOCK DIAGRAM
Page 35
WOLF 2MS GENERAL DESCRIPTION
| WOLF 2MS GENERAL DESCRIPTION
35
12.2 WOLF 2MS FRONT PANEL
N°
CONTROL NAME
FUNCTION
1
EQUIPMENT NAME
Label designed for model name and optional features.
2
LCD DISPLAY
LCD display on two lines showing the status and operation of Wolf
2MS. All the technical parameters for each menu are displayed.
3
JOG-SHUTTLE
Jog Shuttle in order to be able to access the various navigation menus
and to make changes. Pressing the Jog Shuttle will confirm the
selection. Acessing the Menu, it is possible to fully configure the
machine for the operation mode.
4
LED ALARM PANEL
This six-led panel shows some alarms during band scanning or
frequency check.
5
HEADPHONE OUT
On this connector it’s available the decoded audio out from Tuner -1
or from Tuner -2. Volume control selectable via front panel.
Page 36
WOLF 2MS GENERAL DESCRIPTION
| WOLF 2MS GENERAL DESCRIPTION
36
12.3 WOLF 2MS REAR PANEL
N°
CONTROL NAME
FUNCTION
1
POWER SUPPLY UNIT
Power inlet with integrated switch on/off. The switch-power socket unit
is protected via fuse placed directly over the switching power supply.
The fuse is a retarded type 2000 mA for 230V mains voltage. Please
refer to “Fuse Replacement” in order to replace the fuse.
2
RF ANTENNA IN 1 - 2
RF antenna input -1 for Tuner -1 and RF antenna input -2 for Tuner -2.
The connection provided is over BNC unbalanced 50Ω
3
ANALOG INPUT
External Input source in analog Left + Right. The user can connect to
this input, an audio source to be monitored and under control. This
audio input is continuously monitored: silence detection
(Threshold/time and level), left and right presence, peak left, peak
right.
4
ANALOG OUTPUT
Wolf 2MS analog audio output, electronically balanced, on XLR
balanced stereo connector. This audio output presents the capability
to listen the Tuner -1 or the Tuner -2 output software selectable.
5
DIGITAL AES/EBU
External Input source in/out digital in AES/EBU format. The user can
connect to this input, an audio source. This audio input is continuously
monitored: silence detection (Threshold/time and level), left and right
presence, peak left, peak right. The digital output presents the
capability to listen the Tuner -1 or the Tuner -2 output software
selectable. The audio output is over XLR electronically balanced
connection.
6 ETHERNET
Double Ethernet port over Rj45 connectors. The port n°1 is used to
connect the device to a LAN network and upload or download
configurations and settings. The port n°2 is used an audio streaming
port.
Page 37
WOLF 2MS GENERAL DESCRIPTION
| WOLF 2MS GENERAL DESCRIPTION
37
7
SD CARD HOST
Rear panel SD Card host
8 USB 1 – USB 2
Wolf 2MS is also featured with a double USB port type A. The USB
port is generally used to connect other devices.
9
GPIO INTERFACE and SERIAL
INTERFACE
Wolf 2MS provide a GPIO interface composed by 4x photo coupler as
GPIn, and 4x relays dry contact output. The connector is a 15 pole HD
female on SubD connector.
Wolf 2MS provides 1 serial port for RDS-UECP bridging and re
broadcasting data. Wolf 2MS use a SubD 9p male connector with
serial Rs232 protocol.
For information on the pinout of the GPIO Interface port refer to the
Appendix at the end of this manual. See the specific section for the
operation of each GPI and GPO in the next few pages of this manual.
Page 38
WOLF 2MS GENERAL DESCRIPTION
| WOLF 2MS GENERAL DESCRIPTION
38
12.4 WOLF 2MS DISPLAY AND LED PANEL
This section explain the front panel main display features. Divided by color are reported below:
- GREEN Zone : The display shows the Tuner 1’s Status.
- ORANGE Zone : The display shows the Audio Streaming Module-1’s Status.
- PINK Zone : The display shows the Tuner 2’s Status.
- BLACK Zone : The display shows the Audio Streaming Module-2’s Status.
- GREY Zone : The display shows the GPIO’s Status.
- YELLOW Zone : The display shows the internal DATE and TIME.
- RED Zone : The display shows the Alarm Panel Settings (LED’s Panel).
- VIOLET Zone : The display shows the headphone level and source.
- BROWN Zone : Next page button
12.4.1 Tuner Module-1 Zone Functionality
In order analyze each single frequency an antenna or a Transmitter RF test must be connected to the Tuner-1 BNC input
connector. The single frequency or the multiple band scan frequencies must be set via web page.
B
D
A C
A) Shows the number of the memory and the frequency connected
- In STATIC mode the memory and his frequency are fixed.
- In SCAN mode the memory does a loop, between all the frequencies stored via web page.
Then the frequency set (in MHz) appear for the scanning time set.
B) This label shows the status of the memory:
- OK: there are no errors (RF, DEVIATION, RDS)
- ER: there are one more errors
How to check this functionality in case of ER:
By using the web page move the threshold of RF-H1 under the measured value.
- Verify that the status of B zone change from OK to ER.
C) This zone shows the INFO and change the functionality :
1) In case that no alarms are present:
- The D zone shows the PS-RDS
2) In case that alarms are present:
- The D zone shows the list of alarms
a. Test n°1
- Using an external RDS Encoder change the PI or using an antenna tune some radio station.
- Verify that the PS change and correspond to the PS set.
- In case that there isn’t RDS signal the PS show NO RDS as the photo.
Page 39
WOLF 2MS GENERAL DESCRIPTION
| WOLF 2MS GENERAL DESCRIPTION
39
b. Test n°2
- Using web page move the RF-H1 threshold under the measured value.
- Verify that the status of D zone shows TUNER ERROR as the photo.
- Using the Jog Shuttle move the cursor on the display under the memory number
- Push the Jog Shuttle (To select the function)
- Now the display (Tuner-1 zone) show the memory and the frequency selected but in the background the
scanning still working.
- Select the right memory moving the jog shuttle
The D zone shows the list of the all alarms that are present.
- After 30 seconds the display start again to shows the loop of all memories that are scanned.
D) This zone shows the PS-RDS if PS is present and valid, or NO RDS if it is not valid.
- Tuner in Static Mode: turning the encoder positioning the index of the channel and pressing it to select the channel, the
list of possible errors is printed in zone D) as a carousel.
- Tuner Scanning Mode: After selecting the channel as above, turning the encoder you can 'browse through all channels,
checking the status (which is printed in zone D). If there are errors, are printed in the same area of the display as a
carousel.
3) In case that no alarms are present:
- The D zone shows the PS-RDS
4) In case that alarms are present:
- The D zone shows the list of alarms
c. Test n°1
- Using an external RDS Encoder change the PI or using an antenna tune some radio station.
- Verify that the PS change and correspond to the PS set.
- In case that there isn’t RDS signal the PS show NO RDS as the photo.
12.4.2 Audio Streaming Module-1 Zone Functionality
E
D) This label show the status of Audio Streaming Module-1:
- T1, T2, AN, DG: Audio source in streaming
Page 40
WOLF 2MS GENERAL DESCRIPTION
| WOLF 2MS GENERAL DESCRIPTION
40
12.4.4 Tuner Module-2 Zone Functionality
Repeats all tests using the Tuner-2 instead of Tuner-1 from the point A to D expressed below
B
D
A C
Page 41
WOLF 2MS GENERAL DESCRIPTION
| WOLF 2MS GENERAL DESCRIPTION
41
12.4.5 GPIO Zone Functionality
F
G
A) Shows the status of the 4 GP-Inputs
- No Polarization: the small box in the right side of the display is empty
- With Polarization: the small box in the right side of the display is full
Verify that functionality using the GPIO port and an external source to polarized the opto-couplers, check the electric
diagram.
B) Shows the status of the 4 GP-Outputs (Relay Contacts)
- Opened contact: the small box in the right side of the display is empty
- Closed contact: the small box in the right side of the display is full
Verify that functionality using the GPIO port and an external devices to enable using the 4 relay contacts, check the
electric diagram.
12.4.6 Time and Date Zone Functionality
Shows the status internal clock. It is not possible to modify these parameters through the display interface.
Page 42
WOLF 2MS GENERAL DESCRIPTION
| WOLF 2MS GENERAL DESCRIPTION
42
12.4.7 Alarms Panel Zone Functionality
This Label shows the status of the Alarms panel
This Label shows the status of the Alarms panel
Right LCD Panel
Left LED Panel (Alarm Panel)
The Alarms Panel (Left LED Panel) shows:
- on the left side the alarms of Tuner module-1
- on the right side the alarms of Tuner module-2
In the Right LCD Panel it is possible to find the Alarm Panel label (red square in the picture above) The status of this
label should be:
AC
All Channels - Mode
In AC Mode the LEDs indicate the OR (sum) of the all
same alarm type when the LEDs are on theirs status is
blinking.
SC
Single Channel - Mode
In SC Mode the LEDs indicate only the alarm of the
memory and frequency selected, when the LEDs are on
theirs status is fixed.
This label shows the status of the two areas of alarms panel :
- Label AC-AC (Tuner-1 and Tuner 2 are in All Channels - Mode)
- Label SC-SC (Tuner-1 and Tuner 2 are in Single Channel - Mode)
- Label AC-SC (Tuner-1 is in All Channels - Mode and Tuner 2 is in Single Channel - Mode)
- Label SC-AC (Tuner-1 is in Single Channel - Mode and Tuner 2 is in All Channels - Mode)
Check the display functionality and RF ALARM Status:
- Using web page set SCAN mode for the 1st and 2nd tuner.
- Verify the display status : AC-AC
- Using web server move the RF-H1 threshold of the first memory under the measured value for each tuner.
- Verify that the display shows TUNER ERROR, in memory 01 for each tuner.
- The first led RF ALARM is blinking for each tuner.
- Using the the Jog Shuttle move the cursor on the display under the tuner-1 memory number.
- Push the Jog Shuttle (To select the function)
- Rotate the Jog Shuttle till to set Memory 01
- Verify the display status : SC-AC
- The first led RF ALARM of Tuner-1 is fixed
- The first led RF ALARM of Tuner-2 is blinking
- Using the the Jog Shuttle move the cursor on the display under the tuner-2 memory number.
- Push the Jog Shuttle (To select the function)
- Rotate the Jog Shuttle till to set Memory 01
- Verify the display status : SC-SC
- The first led RF ALARM of Tuner-1 is fixed
- The first led RF ALARM of Tuner-2 is fixed
Page 43
WOLF 2MS GENERAL DESCRIPTION
| WOLF 2MS GENERAL DESCRIPTION
43
Check the functionality of MPX ALARM Status:
- Using web server adjust the RF-H1 threshold for each tuner.
- Move the threshold of deviation at 50kHz
- Check the alarm panel
Check the functionality of RDS ALARM Status:
- At the moment this functionality it is not available.
12.4.8 Headphone Panel Zone Functionality
H I
A) Shows the status of the headphones level
- Using the Jog Shuttle move the cursor on the display under the headphones level.
- Push the Jog Shuttle (To select the function)
- Rotate the Jog Shuttle till to find the right volume.
- Push the Jog Shuttle (To unselect the function)
B) Shows the headphones source and the sources selectable are:
TU1
Audio coming from Tuner-1
TU2
Audio coming from Tuner-2
ANL
Audio coming from Analog input
DGT
Audio coming from Digital input
- Push the Jog Shuttle (To select the function)
- Rotate the Jog Shuttle till to find the right source.
- Push the Jog Shuttle (To unselect the function)
12.4.9 LAN-1 Page Functionality (How to set the TCP/IP ETH-1)
Shows the status of the LAN-1 Setup
- Using the Jog Shuttle move the cursor on the display under the number that is necessary to change.
- Push the Jog Shuttle (To edit the number)
- Rotate the Jog Shuttle till to find the right number.
- Push the Jog Shuttle (To confirm the new number)
- Next page to confirm data changes
To access LAN-1 and access LAN-2: by pressing NEXT PAGE it is possible to change the page/settings.
Page 44
WOLF 2MS GENERAL DESCRIPTION
| WOLF 2MS GENERAL DESCRIPTION
44
12.4.10 LAN-2 Page Functionality (How to set the TCP/IP ETH-2)
Shows the status of the LAN-2 Setup
- Using the Jog Shuttle move the cursor on the display under the number that is necessary to change.
- Push the Jog Shuttle (To edit the number)
- Rotate the Jog Shuttle till to find the right number.
- Push the Jog Shuttle (To confirm the new number)
- After pressing the Jog Shuttle a reboot is required.
- Press OK to reboot the WOLF 2MS.
- During reboot the screen appears this way
12.4.11 IMPORTANT NOTE
Wolf 2MS is an Operative System-based equipment (as a PC) so, in order to change correctly the IP is necessary to wait
some minutes, the screen will come back to the main page and then shut down and restart Wolf 2MS.
Remember that before each shut down, it is necessary to wait some minutes before to store correctly all the information
on Wolf 2MS.
Page 45
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
45
13 WOLF 2MS WEB PAGE
The Wolf 2MS can be managed via remote by using a simple web browser, ie Internet Explorer, Chrome, Mozilla etc etc.
To reach a Wolf 2MS equipment, insert in the web browser navigation bar the Wolf 2MS IP. To get this information
please see LAN-1 and LAN-2 Page Functionality. By inserting the Wolf 2MS IP in the navigation bar, this is the Wolf 2MS
home page:
13.1.1 The Home web page
The HOME page is mainly divided in two: in the Left side all the information retrieved from Tuner-1 and in the
Right side all the information retrieved from Tuner-2.
Page 46
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
46

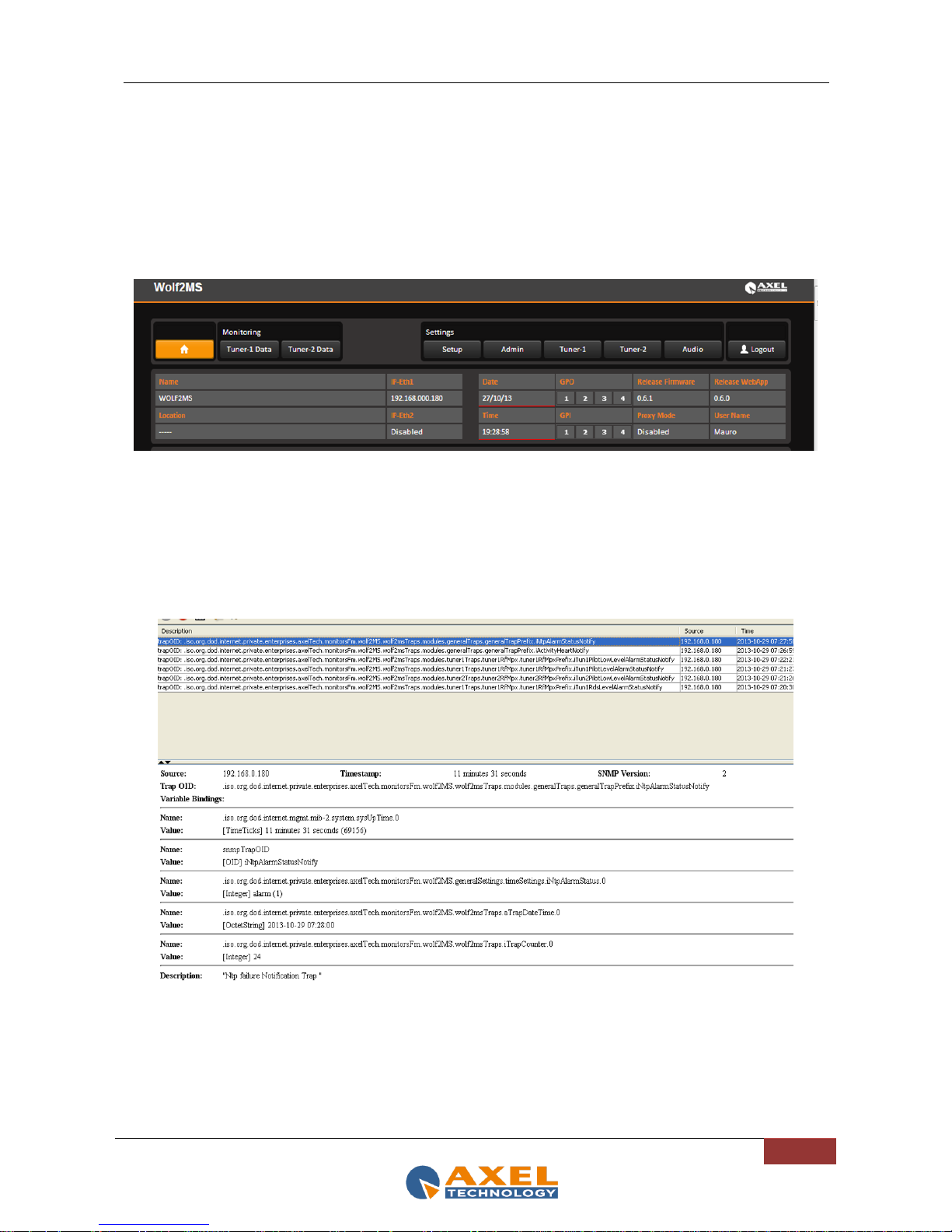

The central front bar allows to browse inside the Wolf 2MS. This bar is mainly divided in two sections, the Monitoring
and the Settings. Some Setup and Admin pages are under password protection.
In the lower side some general information are reported, as Wolf 2MS name, the Location where it is installed, the IP
Ethernet Address 1 and IP Ethernet Address 2. The internal clock time and date information are reported together with
GPIn and GPOut, and the Release Firmware and web page.
13.1.2 NTP Time and Date Synch in Wolf 2MS
If the Date and Time are with a red label below the box, this means that Wolf 2MS has not been able to synchronize via
NTP the time and the clock. To set the NTP server in Wolf 2MS please refer to Settings 2 – MAIN PAGE 2.
Page 47
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
47
All the information proposed in this page are only to be visualized.
The lower parts is related to Audio-1 and Audio-2 Stream, and the button Countdown allows the user
to stop the stream after a kick out time, to reduce the stream data flow. The audio delivered to the
audio streaming module can be selected by different sources, that should be Tuner-1 or Tuner-2 or
Analog Input or Digital Input. Please refer to “Audio-1 Setup” and “Audio-2 Setup” to configure the
input source for the audio streaming encoder.
Page 48
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
48
13.1.3 LOGIN into WOLF2MS
Is it possible to LogIn into Wolf2MS and, as per right management, execute some changes. By pressing
the Login button is it possible to set each own user name and password. Please refer to the ADMIN
page in order to create or login with the standard credential
Starting from release 0.6.4 release a new function has been improved about users and login. Wolf 2MS comes out with a
standard user called “admin” (and password “admin”). Once a new user is created with Profile Administrator rights
allowed, the “admin” user disappear from the list of users. In the picture below it is possible to see that Mauro is the
Profile Administrator.
But, once from Mauro’s user the Profile Administrator is removed, Wolf 2MS creates automatically one more time the
“admin” user with all rights allowed. This admin user is highlighted in yellow, as per picture below:
NOTE: It is not possible to change the password for admin user
Page 49
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
49
13.1.4 Tuner-1 Data – Main Webpage
This page presents all the information coming from the Tuner-1. Assuming that the Tuner-1 has been placed in "Static"
page displays information related to the frequency set in the Setup approximately decoded by Tuner-1.
The display of this page depends on the setup of the machine available in Settings -> Tuner-1 -> Main.
Level: the level of available RF Tuner
Carrier: this value is a Carrier Offset.
It‘s the difference between the Internal
tuner and the Frequency that is under
measure.
M.Path: Value of Multi Path
Adj-Chan: see explanation below
Alternative-Chan: see explanation
below
It is possible
to set the
level of the
alarms in
Settings->
Tuner-1 -> RF
MPX: level of the signal Multiplex
Audio-MPX: Audio signal level inside
the product Multiplex
Pilot: Pilot Level stereo
RDS: RDS data carrier level
Peak Left-Right: Audio Peak Level
RMS Left-Right: Audio RMS Level
It is possible
to set the
level of the
alarms in
Settings->
Tuner-1 -> RF
DEV / PILOT
Page 50
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
50

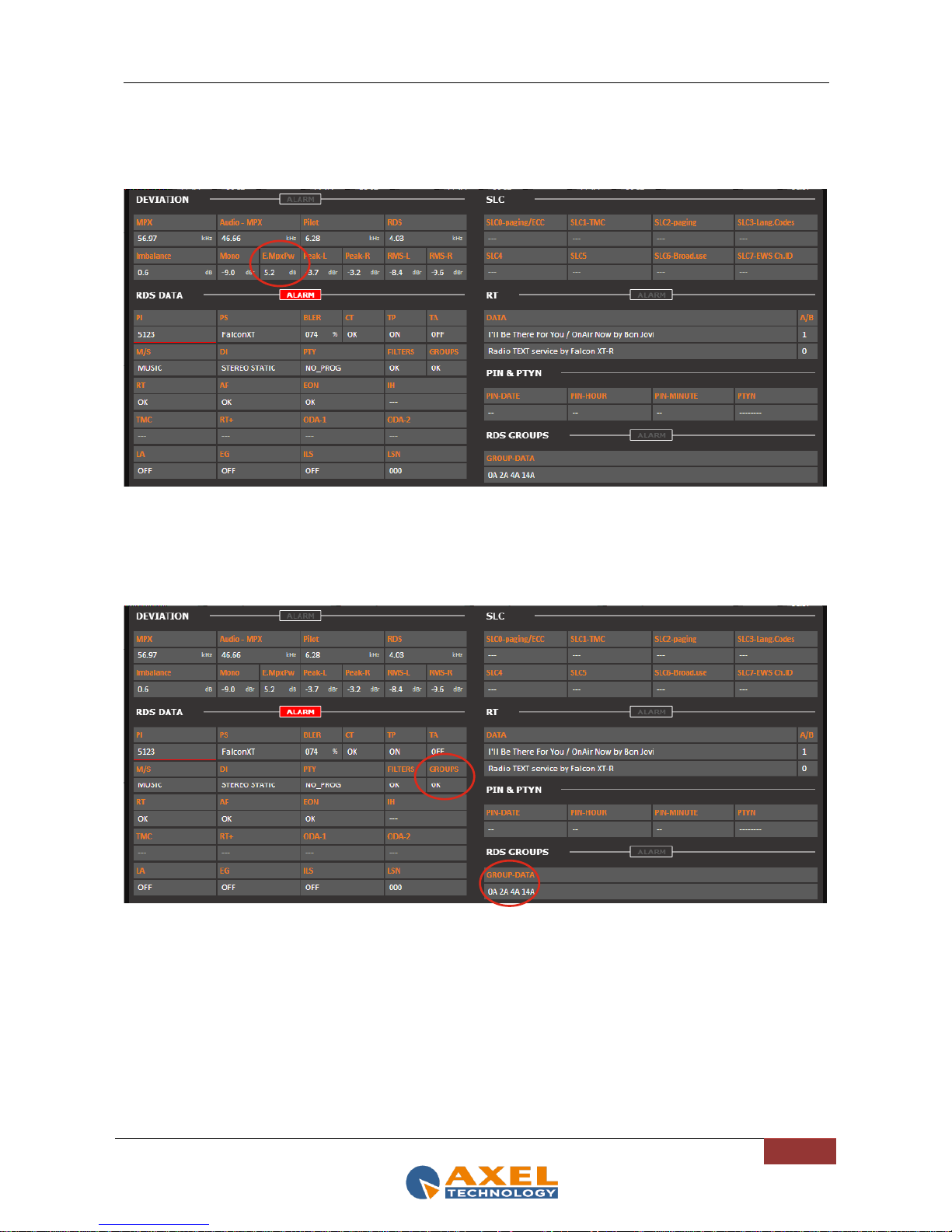

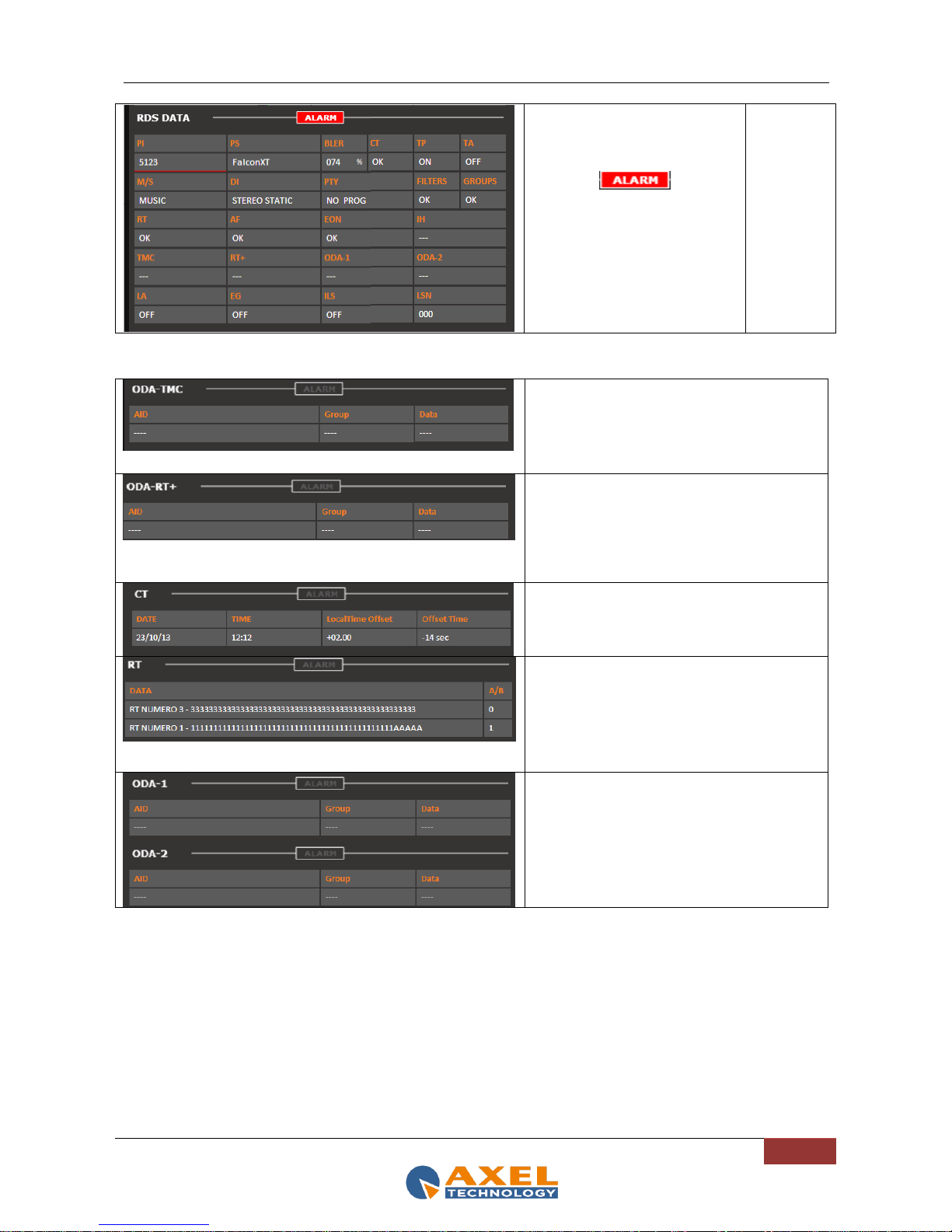

This box displays all the information
regarding the decoding of the data
carrier RDS. If a parameter set in the
section came into error occurs, the
ALARM box will become red.
It is possible
to set the
level of the
alarms in
Settings->
Tuner-1 ->
RDS
ODA TMC: If the service is indexed with the AID of the
settings specified on this form is transmitted press OK.
Otherwise, if there is no (or a bit lower timeout)
recording on the 3A writes REG NO. If the data do not
change (not arrive) set out in writing NO DATA. If the
service is completely lacking writes NO SERV. This
applies to TMC, ODA + RT 1 and 2.
ODA RT+: Check the presence or absence of the
service. If the service is indexed with the AID of the
settings specified on this form is transmitted press OK.
Otherwise, if there is no (or a bit lower timeout)
recording on the 3A writes REG NO. If the data do not
change (not arrive) set out in writing NO DATA. If the
service is completely lacking writes NO SERV. This
applies to TMC, ODA + RT 1 and 2.
CT: Check the presence or absence of the service
inside the group 4A. if the parameter match with one
inserted in the check page no alarm will be generated,
if not an alarm will be reported.
Wolf 2MS displays the double buffer. Displays the
buffer is that of the flag A flag B. The bottom line shows
the RT that you are receiving. With each change of flag
A/B copied this comes in the line above and below that
will shape the new RT arrives. In the case of single RT
(or if there is no 'change of flag a / b) after 10 min.
above the line is cleaned.
ODA and ODA-1-2: reports have been inserted equal
to the TMC and RT + on the presence or absence of
the service. If the service is indexed with the AID of the
settings specified on this form is transmitted press OK.
Otherwise, if there is no (or a bit lower timeout)
recording on the 3A writes REG NO. If the data do not
change (not arrive) set out in writing NO DATA. If the
service is completely lacking writes NO SERV. This
applies to TMC, ODA + RT 1 and 2.
Each single web page shows the status or the data coming from the Wolf 2MS for Tuner-1 and Tuner-2. In the main
page it is possible to see the value, but it is not possible to operate because the information can only be viewed. The
single page can shows MAIN - AF01-32 - AF33-64 – EON.
Page 51
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
51
13.1.5 Deviation, Imbalancement and MPX Power
The MPX power is estimated using the available separate components infos present in the MPX signal. The Pilot power,
Rds power and Audio power is integrated inside a 1 minute window and referenced to a 19 kHz single tone power. This
measurement estimates with a good precision the MPX Power only under typical nominal operative conditions.
13.1.6 RDS Group Transmission Alarm
An alarm is now included to monitor the transmitted Rds groups. A mask allows to define all groups present in the
transmission and an alarm is raised if after the timeout one or more groups hasn't been received. The Group Mask is an
32bits integer in HEX. Every bit in this mask is referred to a Rds group. The Group Mask bit0 is the 0A group, the bit1 is
the 0B group, the bit2 is the 1A and so on … . Example: 11 (0A and 2A)
Available the status variable and the trap as well as all parameters to control the state (Timeout, Validation, Hold and
Mask)
Page 52
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
52
1°HEX1°HEX5°HEX 3°HEX7°HEX 2°HEX6°HEX 4°HEX8°HEX
HEX=1 HEX=0 HEX=0 HEX=0 HEX=0 HEX=1 HEX=1 HEX=1
1°bit 1°bit 1°bit 1°bit 1°bit 1°bit 1°bit 1°bit2°bit 2°bit 2°bit 2°bit 2°bit 2°bit 2°bit 2°bit3°bit 3°bit 3°bit 3°bit 3°bit 3°bit 3°bit 3°bit4°bit 4°bit 4°bit 4°bit 4°bit 4°bit 4°bit 4°bit
0 0
0 0 0 0 0 0
0 0
0 0 0 0 0 0
0 0
0 0 0 0 0 0
1 0
0 0 0 1 1 1
15B 13B 11B 9B 7B 5B 3B 1B14B 12B 10B 8B 6B 4B 2B 0B15A 13A 11A 9A 7A 5A 3A 1A14A 12A 10A 8A 6A 4A 2A 0A
Example:
Check 11A,7A,5A,1B,1A,0A =0040440D
Check 15A,14A,4A,0A=50000101
1°HEX1°HEX5°HEX 3°HEX7°HEX 2°HEX6°HEX 4°HEX8°HEX
HEX=5 HEX=0 HEX=0 HEX=0 HEX=0 HEX=1 HEX=1 HEX=1
1°bit 1°bit
1°bit 1°bit 1°bit 1°bit 1°bit 1°bit
2°bit 2°bit
2°bit 2°bit 2°bit 2°bit 2°bit 2°bit
3°bit 3°bit 3°bit 3°bit 3°bit 3°bit 3°bit 3°bit4°bit 4°bit
4°bit 4°bit 4°bit 4°bit 4°bit 4°bit
0 0 0 0 0 0 0 01 0 0 0 0 0 0 00 0 0 0 0 0 0 01 0 0 0 0 1 1 1
15B 13B 11B 9B 7B 5B 3B 1B14B 12B 10B 8B 6B 4B 2B 0B15A 13A 11A 9A 7A 5A 3A 1A14A 12A 10A 8A 6A 4A 2A 0A
Page 53
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
53
13.1.7 The Alternative Channel and the Adjacent Channel
The Adjacent Channel is the measure of the level closer to -100kHz and +100 kHz respect the fundamental carrier
frequency measured. This measure could indicate that at +100 kHz or -100kHz there is a carrier (or another kind of
disturb) which could affect the measurement of the fundamental frequency.
The Alternative Channel instead is exactly the same extent as set out above, but measured and +200 kHz-200 kHz. It is
shown, however, only the worst value, that is the most high and thus may cause more noise than our fundamental
frequency.
Page 54
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
54
13.1.8 Tuner-1 Data – AF01-32 AF33-64
Before any explanation about how does Wolf 1MS/2MS decode and show AF frequency, some information on how does
AF Lists are encoded by RDS Encoders.
---------------------------------------------------------------------------------------------------------------------------------------------------------There are two ways to transmit lists of alternative frequencies: Method A and Method B.
In both cases the lists should include only those frequencies for the nearest transmitters and repeaters (with overlapping
coverage areas). Generally speaking, Method A is used when the list contains no more than 25 frequencies, and
Method B when the list is longer (for a maximum of 24 lists). Method B is recommended when splitting areas or when
different programs are broadcast.
NOTE: use of encoding method A or B is not explicitly assigned by a dedicated signal to the receiver, as the latter is
capable of identifying which method is used by analyzing the transmitted data structure (whether or not they are
organized in pairs).
METHOD A
Compile the AF1 list assigning the tuning frequency (i.e. the frequency carrying the list of alternative frequencies) in the
first position, and then continue in strictly increasing order with the alternative frequencies transmitting exactly the same
program.
We recommend recording the alternative frequencies (those of adjacent transmitters and repeaters with overlapping
coverage areas) on each transmitter, being careful that the first position indicates the frequency carrying the list of
alternative frequencies.
METHOD B
As mentioned earlier, Method B is used with high numbers of alternative frequencies and/or when the transmitter also
has frequencies that broadcast different radio program at various times of day (splitting, local programming, etc.).
In the latter instance, the mobile receiver should check whether the AF is broadcasting the same content before selecting
another frequency.
Each list begins with the tuning frequency (for which the list is valid) and then contains up to 12 pairs of frequencies in
sequence, each containing the tuning frequency and an alternate. If there are more than 12 possible alternative
frequencies, the list continues in other lists in the same manner.
The order of the frequencies in each pair follow the rules below:
- If the order is increasing, the alternative frequency broadcasts the same programming as the tuning frequency.
- If the order is decreasing, the two frequencies have different programming
----------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 55
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
55

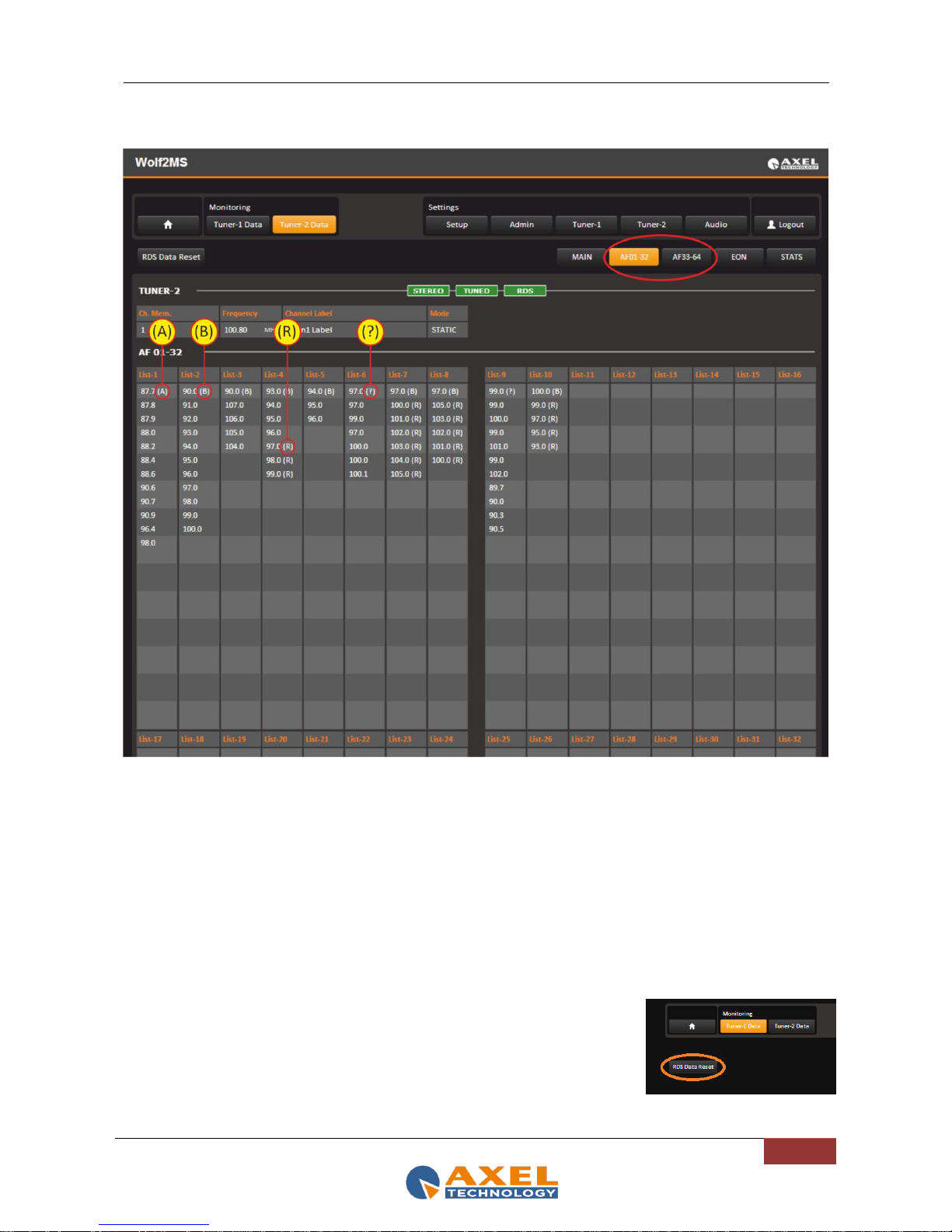

By pressing AF01-32 it is possible to see all the decoded value by the RDS data Stream from Wolf 2MS. The maximum
number of AF are up to 64 with EON service (reported next chapter).
The AF lists can be ordered and see nearby each single AF some letters as reported in the picture. The letters between
brackets represents different insertion method.
(A) The AF list has been inserted as Method A. Respect the main AF frequency the AF are in increasing order with
alternative frequency transmitting exactly the same program.
(B) The AF list has been inserted as Method B. In particular List 2 has been inserted in Method B with increasing order,
that means that the AF is broadcasting the same program.
(R) This indication means that the order of the AF is not increasing but decreasing. In this case it means that the AF is
broadcasting for a part of the day a different program, and sometimes should have different program. The example is in
List-4
(?) This question mark means that the AF list has been inserted in a wrong way. It is not Method A increasing mode, it is
not Method B increasing/decreasing mode. So it means that the AF list has been
inserted in a wrong mode.
NOTE: The refresh of lists AF can be done manually by pressing the "Reset AF List" or
whenever a change is detected by PI Code lists are placed in AF mode growing.
Page 56
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
56
13.1.9 Tuner-1 Data – The EON page
The EON are sorted by PI increasing. Also in this case the sorting and refreshing takes place dynamically.
Page 57
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
57
13.1.10 The STATS page
The Stats page shows the statistic of the RDS groups received and the total number of the RDS groups. Using Stats
page it is also possible to records the groups and using the filtering function with stop, clear and download of all the Rds
datas recorded.
This part of Stats page shows the number of packet that have
passed into Rds stream, the number and the percentage. This
part of Stats page is viewing only.
Page 58
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
58
RDS STREAM
The Group Filter section allows the user by checkbox to select wich group should be filtered.
This two buttons permit to flag all the groups or unflag all groups at a glance
DATA GROUP:
In Data Group Section it’s possible to see the Rds decoded stream filtered with each single packet and group, PI Code
and HEX datas. By using Restart and Stop it’s possible to stop and reload datas decoding. By pressing Download it is
possible to save a TXT file with Data downloaded.
Page 59
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
59
13.2 SETUP
In this page it’s possible to set some working parameters about Wolf 2MS. This section is divided in four different subsections: MAIN -1, MAIN -2, NMS 1-2, NMS 3-4
13.2.1 MAIN -1 Page
In the NAME box and Target Name Reference and Target Location reference are written all the information about the
Wolf 2MS, where it is installed and some other extra information.
Analogic Output Mode: Disable – Audio1Source
– Audio2Source
Analogic Output Gain: between -20.0dB up to
20.0dB in 0.1step/dB
Analogic Input Ref: This reference will be used
to convert from external analogic level in dBu to
the internal dBr reference.
Digital Output Mode: Disable – Audio1Source –
Audio2Source
Digital Input Reference: This reference will be
used to convert from external digital level in dBFs
to the internal dBr reference.
Digital Input Gain: between -20.0dB up to
20.0dB in 0.1step/dB
Page 60
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
60
Front Panel: should enable or not the front palenl
operation.
HTTP Streamer auto kick out: timeout in
minutes about the audio streaming from Wolf
2MS to the webpage.
kHz to dBr Conversion: converts the tuner
audio level from the audio deviation in kHz to the
internal reference dBr.
Digital Output Gain: between -20.0dB up to
20.0dB in 0.1step/dB
Front Panel: This control allows the user to
manage Wolf 1MS/2MS to be managed by front
panel. If it is set on disable front panel encoder is
unable to set functions
HTTP Band Mode: Settings for the network band
audio available. Available set: Low/Normal/High
band or GPRS Band
HTTP Streamer Player: Enables or Disable the
streaming function for each player.
Language: language selection for Wolf 1MS/2MS
Page 61
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
61
13.2.2 MAIN -2 Page
In the Tab MAIN-2 it is possible to set other parameter about Wolf 2MS. Some of these parameters are under
development.
In this box it is possible to set the password for the
SNMP protocol in read and write.
IP Address: is the IP of the NTP server.
Auto Request Time: minutes between each single
Time Synch.
0 = time synch disable
1440 = max day-time synch
Failure Trap: If Wolf 2MS is not able to set the time
a trap is sent to NSM.
Failure Email: If Wolf 2MS is not able to set the
time an email is sent to the Email recipient
Local time Set String: it’s possible to send a time synch
command via PC
Time Zone definition: it’s possible to set the GMT Time
zone from this control
Page 62
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
62

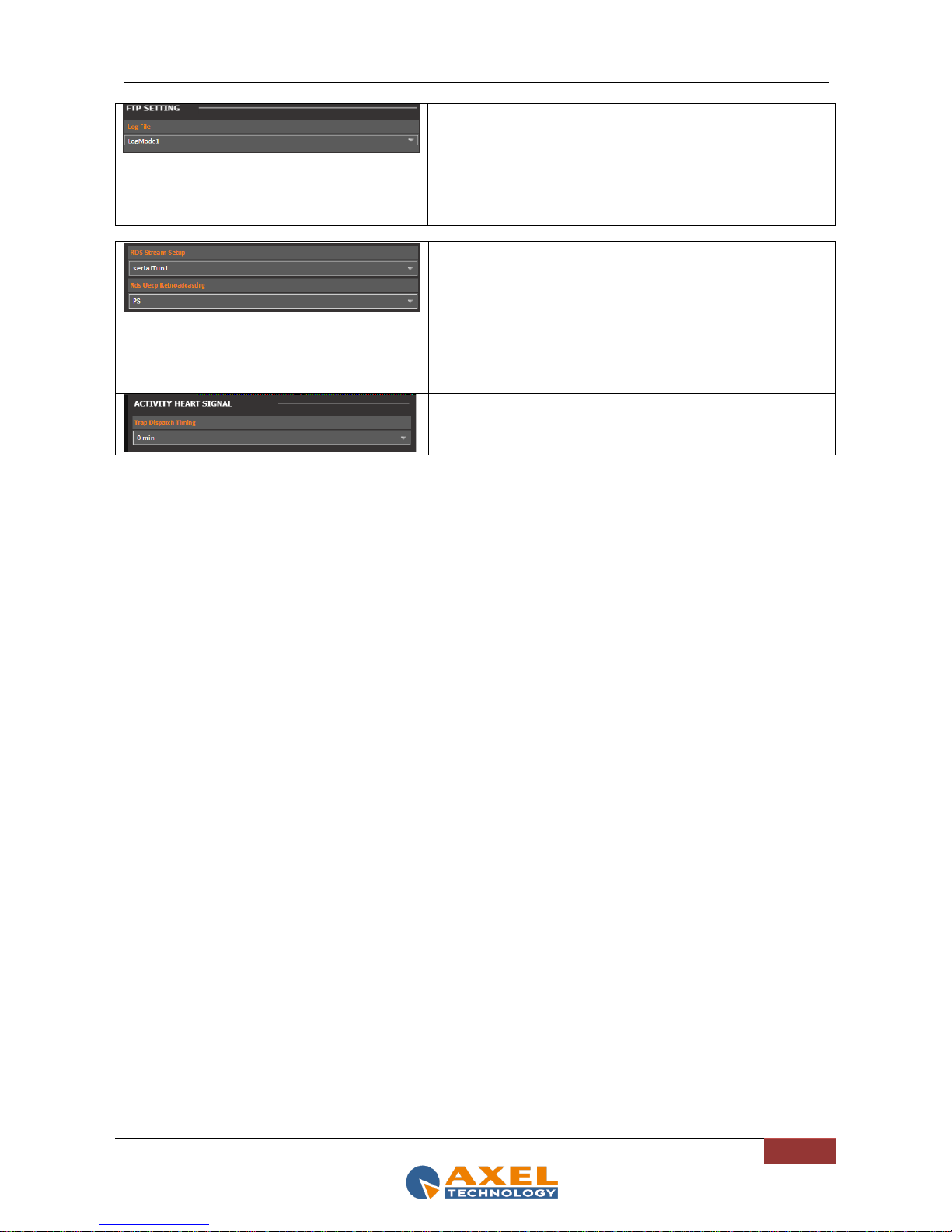

This version of log file will catch all alarms,
regardless all trap's enable status.
status.log will be download in ftp mode:
id: user, pwd: user
To reset status.log file is necessary to disable and
re-enable in LogMode1.
The log file
is enabled
under
MAIN2 →
FTP
Settings →
Log File
→LogMode1

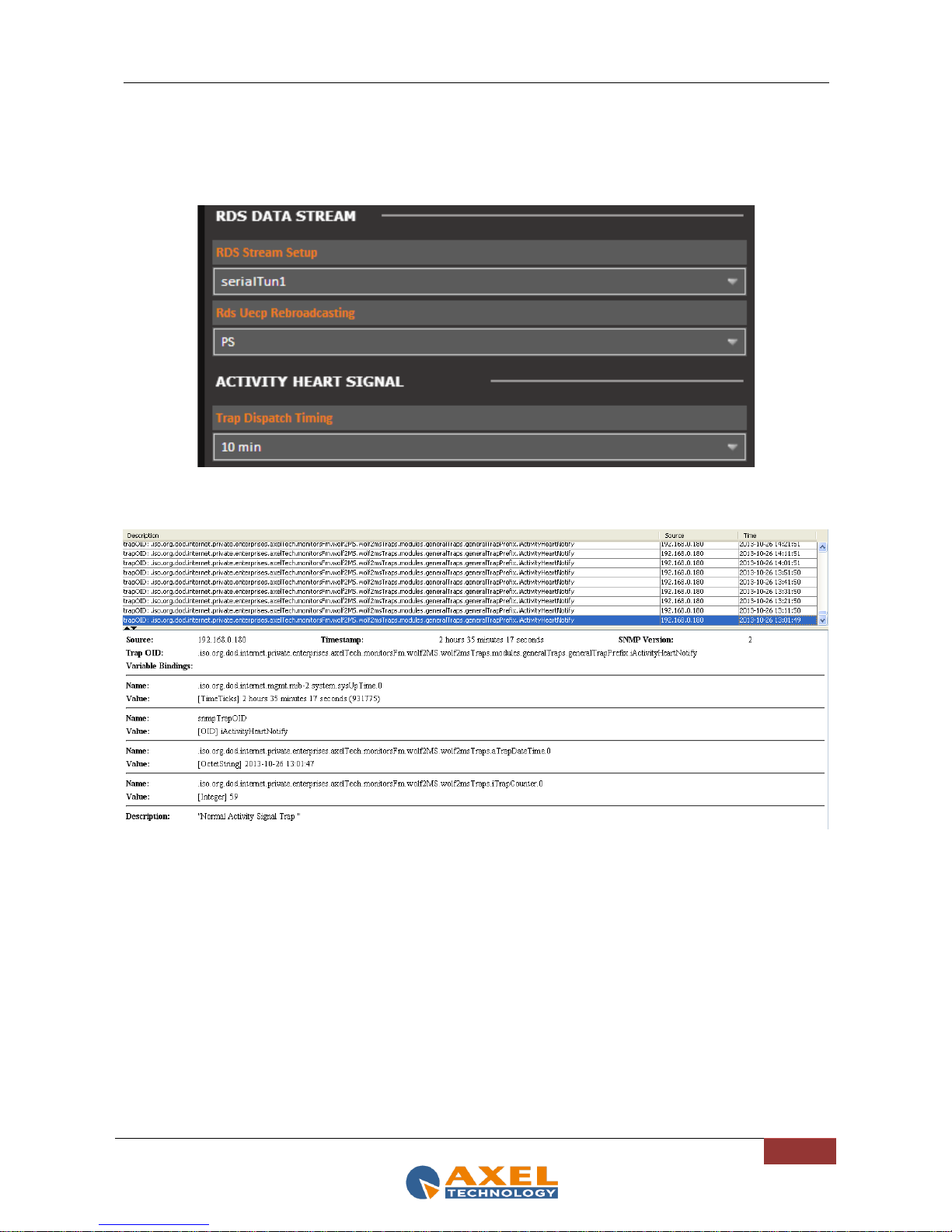

RDS Stream Setup: it is possible to decode the
RDS Data Stream and deliver it to the Serial Port in
UECP format. It is possible to select of the Tuner to
decode
RDS Uecp ReBroadcasting:
It is possible to filter what service can be delivered
to the serial output. In ie only the PS. But other
options are available
Activity Heart Signal: each “n” minutes as express
in the box, the Wolf 2MS send a trap to the NMS
System in order to understand that the Wolf 2MS is
”alive” and working correctly
Page 63
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
63
13.2.3 Note about NTP Settings and behavior
To activate the NTP auto synchronization set a not zero value in AutoRequest Time. After a modification of this
parameter or a modification of the NTP IP address, the Wolf2MS will try to synchronize the system clock. After the first
synchronization, the server will be contacted automatically with the selected period in minutes.
After a system reboot or restart, if AutoRequestTime is activated, in the first operative minute the NTP-V3 server will be
contacted, as well as after the selected period.
The NtpSynch status starts as OK (synchronized) at the system startup, but after the first synchronization attempt it will
show the real status. Every NtpSync status variation is signaled (if enabled) with the NtpFailureNotificationTrap.
An NTP synchronization failure will be indicated with a red alarm line under the Date/Time field. Moreover, Date and time
will blink in the display panel in case of synchronization failure.
Starting from Fw release 1.0.4 the NTP behavior has been modified. Wolf 2MS tries for 3 minutes a replies from the NTP
server before reporting an error. In previous release Wolf 2MS replies immediately about the NTP loss. In case of alarm,
Wolf 2MS tries each single minute until Wolf 2MS gets a reply from NTP server.
With this new feature, random errors caused by NTP loss are no longer reported. No more parameters have been added
to mask this kind of alarm.
Page 64
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
64
13.2.4 Note about Activity Heart Signal
This trap will be sent periodically to indicate that the system is OK and the Wolf2MS host process is able to communicate
with all its interfaces without apparent problems. One trap will be sent at every change of the time parameter or at the
system start-up (few seconds after the cold start SNMP trap), as well as according to the period selected. This Trap will
not be replayed.
The value “0” means function disabled. A different value indicates the period in minutes of the signal trap.
In the example tested the period is 10 minutes.
Page 65
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
65
13.2.5 NMS 1-2 Page
In this setup it is possible to set some parameter about the communication between the Wolf 2MS and the Network
Management System. SNMP is the protocol to communicate between remote equipment and NMS.
In this box it is possible to set the IP Address and the
Port to communicate with the Network Management
System.
This is the Trap Community string
Trap Global Enable: Enable or Disable the trap notification
to the NMS
Trap Type: configuration the Trap SNMP version
Trap Time-Out: if the Trap Type is InformSnmpV2, this
value set the time between each single retry, expressed in
Seconds
Trap Retry: if the Trap Type is InformSnmpV2, this value
set the maximum number of retry
Page 66
WOLF 2MS WEB PAGE
| WOLF 2MS WEB PAGE
66
13.2.6 NMS 3-4 Page
In this setup it is possible to set some parameter about the communication between the Wolf 2MS and the Network
Management System. SNMP is the protocol to communicate between remote equipment and NMS. The same
configuration can be found in the NMS 1-2 Page.
Page 67
THE ADMIN PAGE
| THE ADMIN PAGE
67
14 THE ADMIN PAGE
It is possible to manage Users, Profile and right for each single user by using the Admin page.
14.1 HOW TO LOGIN IN WOLF 2MS
From the Home Wolf 2MS screen it is possible to Login in the system using the initial standard credential.
The standard login credential are
Username: admin
Password: admin
Page 68
THE ADMIN PAGE
| THE ADMIN PAGE
68
14.2 HOW TO ADD A NEW USER
Once the Administrator is logged in, it is possible to add or remove an User by using the button
+ and – as reported in the picture.
After pressing + a new page appear, asking the insertion of Username and Password, but the user must take in
consideration the below condition.
14.2.1 Consideration on Username and Password
1. Be aware that the user and Admin are case sensitive
2. For the password field there are no minimal limitation
3. No complexion requirement must be reached
4. At least one character must be filled
5. No Empty password allowed
6. The total length is 50 characters
7. Backspace is a character, and considered as character
After pressing the + button this screen appear. Set the username and
password and check the single function that the Administrator wants
to make available for each single user. By using the already existing
functionalities it is possible to flag and allow the user in order to use
completely the function flagged. Ie: SETUP – Profile Administrator –
Tuner-1 – Tuner-2 – AUDIO.
After pressing SAVE the user is created.
14.3 THE ADMINISTRATION TOOLS
The Admin screen is divided in two parts: the Users and the Profile Manager. By using this control it is possible to
manage all the rights for each single user.
14.3.1 The User Right Management – How to change a Password
In the left side it is possible to see the complete list of user allowed on the Wolf 2MS taken in consideration. By pressing
only one click on the User in the left, the profile manager on the right side shows all the allowed functionalities.
Once a user is selected it is possible to change the
password, by inserting a new password in the field “NEW
PASSWORD” and repeating “CONFIRM PASSWORD”. To
change the field a double click is required. In order to insert a
correct password, the Consideration on User name and
Password must be respected.
Page 69
THE ADMIN PAGE
| THE ADMIN PAGE
69
The password appears clearly in the fields, as in the picture. Once the password has been modified, the user must save
all the changes by pressing the button “Save Password”. When the password has been correctly changed a message
appears on the screen, Password Changed. By pressing OK it is possible to go on in other setup.
14.3.2 The User Right Management – How to enable/disable features
In the left side it is possible to see the complete list of user allowed on the Wolf 2MS taken in consideration. By pressing
only one click on the User in the left, the profile manager on the right side shows all the allowed functionalities. In order to
change to a single user a Rights, by simple flag (or unflag) the function on the corresponding box.
In the example above, the user Mauro is allowed to enter and manage the Profile
Administrator, the Setup and the Tuner-2. The user Mauro is not allows to CHANGE or
MODIFY Tuner-1 and Audio. To enable the single user also to CHANGE and MODIFY
Tuner-1 and Audio, by simply flag the function and press Save Rights.
The webpage will shows a message Permission Changed as reported below to confirm that the Rights has been
modified.
14.3.3 How to logout a user from Wolf 2MS
Logout can be happen for 3 different reason, that are also reported in the table below.
N°
Condition
1
User manually press Logout
2
The user take no action for at least 60 minutes
3
Two user with same username are logged in, from 2 different position, and one
of this press logout
Page 70
|
70
14.4 GENERAL CONSIDERATION ABOUT USER LOGGED IN AND NON LOGGED
Once a Wolf 2MS is connected in a network, by using a simple web browser it is possible to “surf” in the Wolf 2MS and
explore all the function. This general consideration must be taken in mind when a Wolf 2MS is used.
N°
No User logged in Wolf 2MS
Note
1
It is possible to see and browse all the Home, Tuner-1 and Tuner-2 data
information.
No timing limitation
2
In the Home web page it is possible to start playing the streaming for Audio-1
and Audio-2. If a countdown is allowed, after pressing PLAY, the countdown will
start to count down and at the end the streaming will be set to OFF. If no
countdown is set, the streaming will be never stop.
3
In the Tuner-1 Data a non-logged user can enter, and browse inside the
submenu MAIN – AF01-32 – AF33-64 – EON.
The button STATS is not available. The non-logged user can see and browse
but in read-only mode. There is no way to make changes to the measures or
wolf 2MS behaviour.
4
In the Tuner-2 Data a non-logged user can enter, and browse inside the
submenu MAIN – AF01-32 – AF33-64 – EON.
The button STATS is not available. The non-logged user can see and browse
but in read-only mode. There is no way to make changes to the measures or
wolf 2MS behaviour.
Once no user is logged in, the Wolf 2MS shows
N°
User logged in Wolf 2MS
Note
1
It is possible to see and browse all the Home, Tuner-1 and Tuner-2 data
information.
Timing limitation to
60 minutes. After
this time, the user
automatically
logged out
2
In the Home web page it is possible to start playing the streaming for Audio-1
and Audio-2. If a countdown is allowed, after pressing PLAY, the countdown will
start to count down and at the end the streaming will be set to OFF. If no
countdown is set, the streaming will be never stop.
3
In the Tuner-1 Data a logged user can enter, and browse inside the submenu
MAIN – AF01-32 – AF33-64 – EON. A RDS Data Reset button appears, and
allows the user to reset all the RDS information and restart the RDS data
collection.
4
In the Tuner-2 Data a logged user can enter, and browse inside the submenu
MAIN – AF01-32 – AF33-64 – EON. A RDS Data Reset button appears, and
allows the user to reset all the RDS information and restart the RDS data
collection.
5
The user can enter in the Settings as per the Rights allowed by the
Administrator.
Timing limitation to
60 minutes. After
this time, the user
automatically
logged out.
6
Two or more SAME Username can be logged in and works together, in different
place and using different web browser
If one of the two (or
more) user press
Logout, ALL the
other “same-user”
connected are
logged out.
It is possible to see what user is actually logged in
Page 71
|
71
14.5 DATA EXPORT AND IMPORT
A new feature still under development, is related to data import and export on Wolf 2MS‘s SD Card and PC.
14.5.1 On SD Card
The Export allows the user to save the complete Wolf 2MS configuration in a SD Card. Moreover, also MAC Address is
exported and saved, so this function allows the user to create a complete “clone” of the Wolf 2MS. This can be useful,
once a Wolf 2MS is completely configured to store data on the SD Card, so in case of fault the SD Card can be removed
and inserted in a new Wolf 2MS equipment and using the Import function all data can be retrieved and get a complete
clone of the faulty equipment. To achieve this function the user must access via front panel, “SECURE DIGITAL CARD
MANAGER” and select IMPORT – EXPORT – FORMAT
14.5.2 Using web browser
Via Web browser it is possible to download or upload a configuration, save and store in a PC as a common Json file .
Same for Access Log in TXT and same for Trap Event Log as TXT log
Page 72
|
72
14.5.3 Network section
By pressing this button it is possible to access and modify the value for Ethernet -1 and Ethernet -2. Can be set IP
Address, Subnet mark, and Gateway for each network card. Once the modifying has been done, press “Change ETH1 &
Reboot” or “Change ETH2 and Reboot”. The equipment will be rebooted and after restart modifying will be applied.
System Reboot button restart the device
14.6 SETTINGS – TUNER 1
This page allows the user to manage all the parameters and alarms managed by Wolf 2MS. The MAIN page shows and
give the users the capability to set the general parameters as GLOBAL SETTINGS and RECEIVER DEMODULATION
SETTINGS of the Wolf 2MS.
Page 73
|
73
14.6.1 Tuner-1 – Main
In this page it is possible to set the behavior of the Tuner-1 and each single parameter it is reported below:
14.6.2 Tuning Mode
By using this parameter it is possible to change the tuning mode that should be OFF – Static – Scan – Smart Scan.
OFF
In OFF the tuner is unavailable
STATIC
in Static the tuner remain fixed on a single frequency that is depending by
the parameter Static Channel Index
SCAN
In Scan mode the tuner starts to scan the FM band, from channel 1 up to
the <Last Channel Scanning Index>
SMART SCAN
In smart mode the channel scan time is adjusted automatically according
to instantaneous measurements requirements.
14.6.3 Smart Scan
The smart scan is an scan evolution method and “smart” mode to check each single parameter of the checked
frequency: if during a scan, a single parameter of the scanned frequency is out-of-range the Wolf 2MS should decide to
remain more time (in seconds) on the checked frequency, in order to get the correct value, or exclude a false-positive
alarm.
Practical example: a typical case should be the decoding of the ODA service in RDS, or a PI Code, or any value
checked. If the decoding gives an “error” the Wolf 2MS can stay more seconds on this frequency, and wait in order to get
the correct value, and don’t generate an error (via snmp trap) that can overload the NMS system. In the real fact the
checked valued is correct, but sometimes due to a lot of unpredictable situation, this value should be considered as an
error.
Page 74
|
74
14.6.4 Deemphasys
The internal tuner-1 Deemphasis value can be set between 50uS or 75uS accordingly to the country/region where the
Wolf 2MS has been installed.
14.6.5 External Attenuator
In order to provide to Wolf 2MS a correct RF input level, in case an external RF attenuator is required, it is necessary to
insert here the same attenuation level introduced by the external RF attenuator.
14.6.6 Global Tuner Mask Mode
By using this settings it is possible to set the behavior of the errors, if these should be masked or not.
Masked
Mask all alarms with priority over any individual configuration. Mask an alarm means
“NO errors are reported and NO errors are visible on the webpage”
Unmasked
Unmasks all alarms with priority over any individual configuration. Unmask an alarm
means that “the alarms are reported and visible on the webpage”
Severity-1
Mask all alarms with severity equal to 1
(The others errors are not masked)
Severity-2
Mask all alarms with severity less than or equal to 2
(The others errors are not masked)
Severity-3
Mask all alarms with severity less than or equal to 3.
Individual
Masking
This parameter allows the user to set for each single parameter under control if the
parameter must be masked or not.
Page 75
|
75
It is possible to set for each single parameter under control the Masked or unmasked and the Severity Level on these
value:
RFL2 – RFL1 / RFH1 – RFH2 – DEV – PILOT Low – PILOT – RDS Low – RDS – AUDIO Dev - AUDIO Left – AUDIO
Right –AUDIO Ms - AUDIO Si - PI – PS – TP - TA – CT – RT – AF – EON – IH - TMC – RT+ - ODA1 – ODA2 – BLER
in the column MASK.
14.6.7 The meaning of “Mask” on each single parameter under control
On each single parameter under control it is also possible to set the if the single parameter can be Masked, unmasked,
Severity1 – Severity2 – Severity3 or RFL2. In this case each single parameter follow an Individual Masking.
The severity level is generally assigned in order to have a relation between the parameter under control and the priority.
All the parameters involved in Severity1 – Severity2 – Severity3 can be masked or not.
Masked
Alarm IS masked (if Global Tuner Mask Mode is set in individual masking)
Unmasked
Alarm IS NOT masked (if Global Tuner Mask Mode is set in individual masking)
Severity-1
The Alarm is masked only if Global Tuner Mask Mode is set on a Severity < or equal
to 1 (it means always not masked)
Severity-2
The Alarm is masked only if Global Tuner Mask Mode is set on a Severity < or equal
to 2
Severity-3
The Alarm is masked only if Global Tuner Mask Mode is set on a Severity < or equal
to 3 (it means always masked)
RFL2 Mask
Masked if the Alarm RFL2 Mask is active. (see Note2 below)
Note1: it is not possible to mix the (Severity1-Severity2-Severity3) with Individual Masking
Note2: in order to work properly the RFL2 Mask requires that validation is less of RFL2 and Hold time is greater than the
individual alarms that use this type of mask.
Page 76
|
76
Example 1: Masked, Unmasked and Individual Masking.
This schemes shows from left to right the flow of each single Alarm.
In the first row the example is the PI Code. Once it is reported an error (PI) if the Parameter Mask in the single
Parameter under control is MASKED but the Global Tuner Mask Mode is INDIVIDUAL MASKING = NO error report
Page 77
|
77
Example 2: Severity-1, Severity-2, Severity3.
This schemes shows from left to right the flow of each single Alarm.
Page 78
|
78
Example 3: RFL2 MASK
This schemes shows from left to right the flow of each single Alarm.
Page 79
|
79

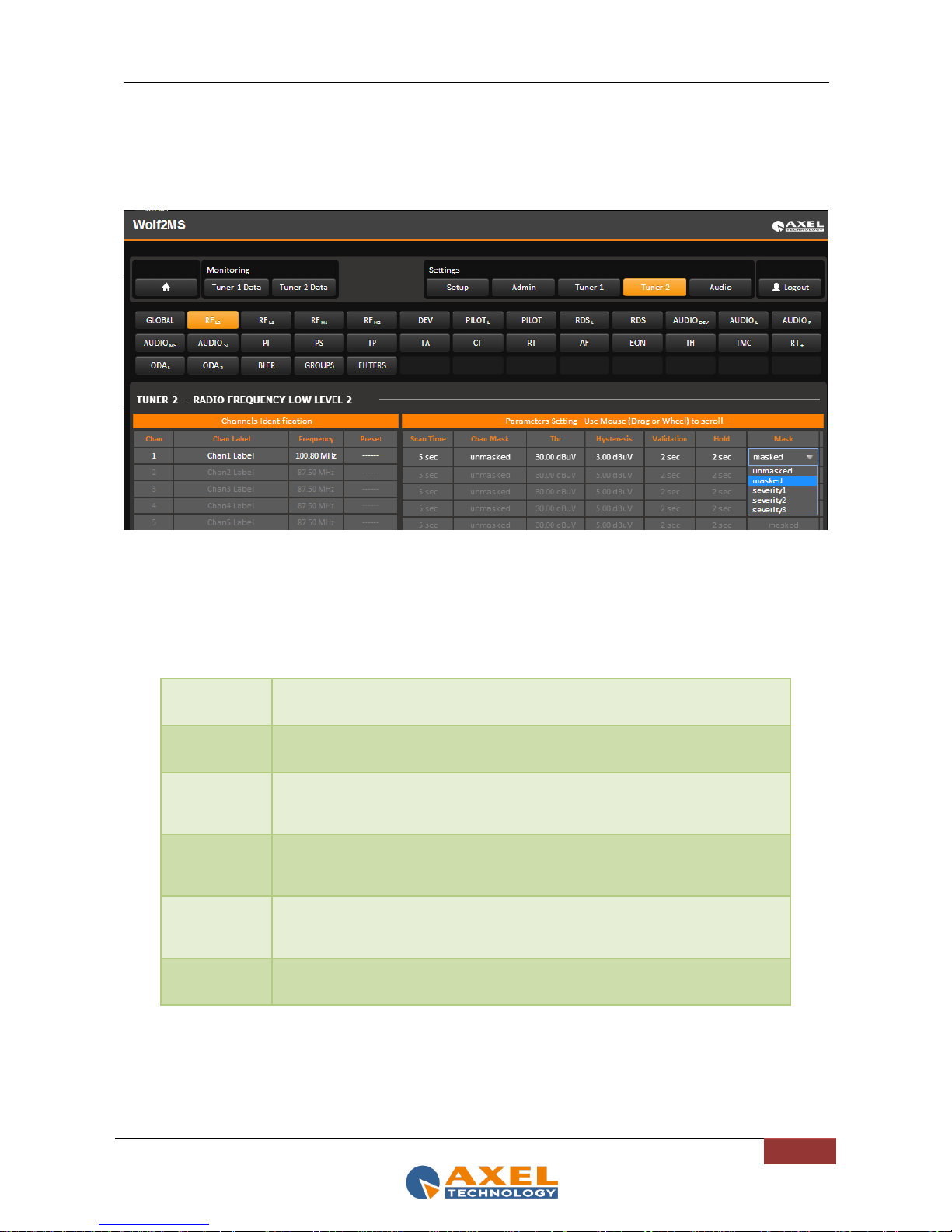

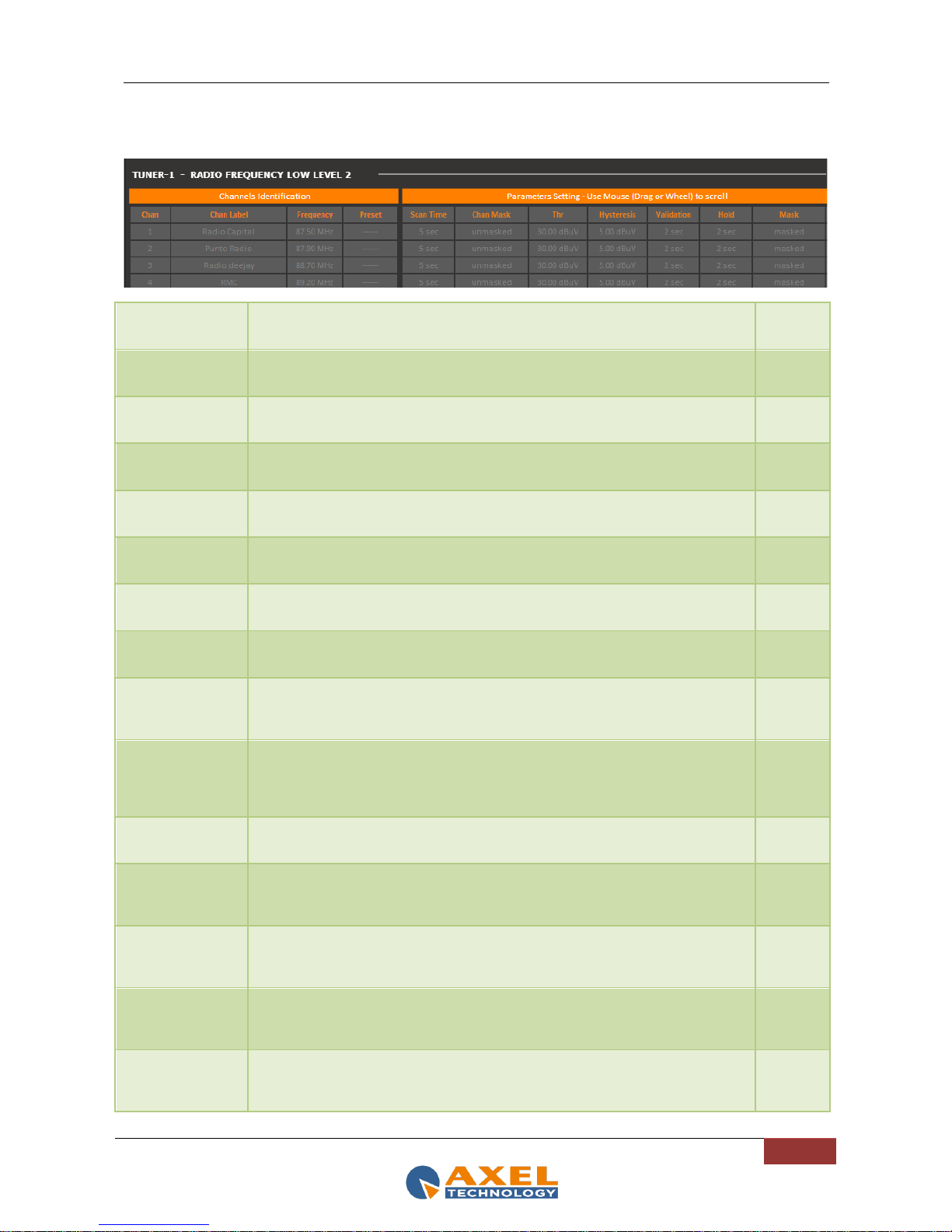

14.6.8 RFL2
This section is about the Radio Frequency LOWER LEVEL 2.
NAME
DESCRIPTION
NOTE
Chan (*)
Channel Number
Chan Label
Mnemonic name that can be applied to the Channel / Frequency
Frequency
Frequency corresponding to the Channel, expressed in MHz
Preset
String used and managed by the Configuration Manager
Scan Time
This value represents the time in seconds that the tuner remain on this frequency.
Chan Mask
This control allow (or not) the channel to be under control.
If it is masked,
the channel is
NOT under
control
Thr or Threshold
Threshold level. Below this threshold level an alarm is generated.
See Note1
reported
below

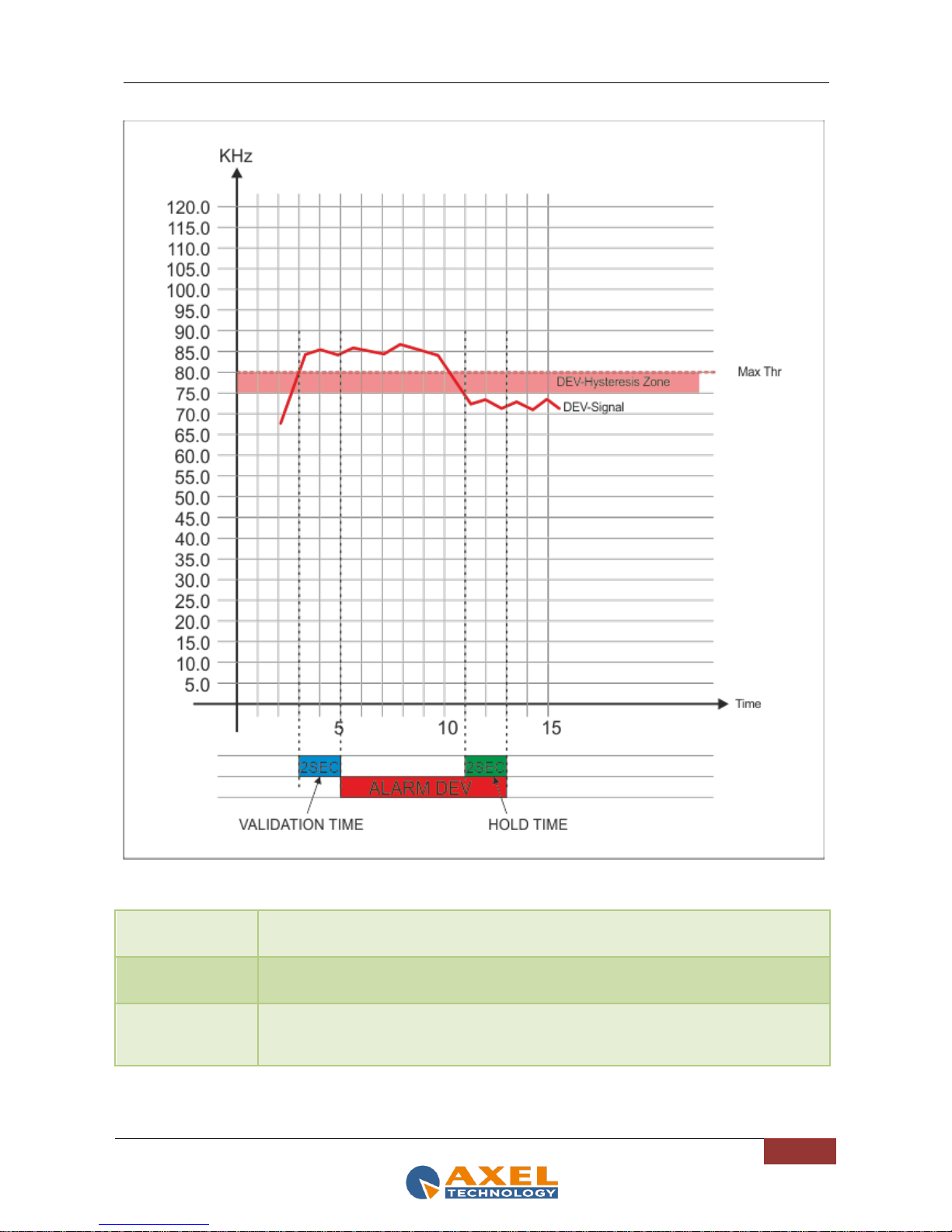

Hysteresis level
This value can be set as range of Hysteresis for the measurement. Hysteresis is the
dependence of a system not only on its current environment but also on its past
environment.
Validation
This field contains the time of persistence necessary to the alarm to be considered
“validated”. For example, if the system launches an alarm, this alarm must remain
“up” or “Active” for all the time of "Validation" to be considered a true alarm to avoid
the detection of spikes.
Hold
is the time between the cessation of the alarm condition and alarm signaling finished
Mask
It is possible to set, for each single parameter: unmasked, masked, severity-1,
severity-2, severity-3, RFL2 mask.
Email
In case the alarm/error raise up, the Wolf 2MS sends an email if <enable>.
If is <disable> no action are taken.
Scroll
Mouse
Trap
In case the alarm/error raise up, the Wolf 2MS sends a trap if <enable>.
If is <disable> no action are taken.
Scroll
Mouse
Label
This is the label/content that the user can choose to shows via email or in the trap in
case of error.
Scroll
Mouse
Page 80
|
80
Alarm generation RFL2:
Note1:
Condition
Description
Error Generation
If the RF Signal under control is < (RFL2 Thr) for a duration > Validation = the error is
generated.
Error Come out
If the RF Signal under control > (RFL2 Thr + Hysteresis) for a duration > Hold = the error
come out.
Page 81
|
81
14.6.9 RFL1
This section is about the Radio Frequency LOWER LEVEL 1.
NAME
DESCRIPTION
NOTE
Chan (*)
Channel Number
Chan Label
Mnemonic name that can be applied to the Channel / Frequency
Frequency
Frequency corresponding to the Channel, expressed in MHz
Preset
String used and managed by the Configuration Manager
Scan Time
This value represents the time in seconds that the tuner remain on this frequency.
Chan Mask
This control allow (or not) the channel to be under control.
If it is masked,
the channel is
NOT under
control
Thr or Threshold
Threshold level. Below this threshold level an alarm is generated.
See Note1
reported
below
Hysteresis level
This value can be set as range of Hysteresis for the measurement. Hysteresis is the
dependence of a system not only on its current environment but also on its past
environment.
Validation
This field contains the time of persistence necessary to the alarm to be considered
“validated”. For example, if the system launches an alarm, this alarm must remain
“up” or “Active” for all the time of "Validation" to be considered a true alarm to avoid
the detection of spikes.
Hold
is the time between the cessation of the alarm condition and alarm signaling finished
Mask
It is possible to set, for each single parameter: unmasked, masked, severity-1,
severity-2, severity-3, RFL2 mask.
Email
In case the alarm/error raise up, the Wolf 2MS sends an email if <enable>.
If is <disable> no action are taken.
Scroll
Mouse
Trap
In case the alarm/error raise up, the Wolf 2MS sends a trap if <enable>.
If is <disable> no action are taken.
Scroll
Mouse
Label
This is the label/content that the user can choose to shows via email or in the trap in
case of error.
Scroll
Mouse
Page 82
|
82
Alarm generation RFL1:
Note1
Condition
Description
Error Generation
If the RF Signal level under control < (RFL1) for a duration > Validation = the error
is generated
Error Come out
If the RF Signal level under control > (RFL1 Thr + Hysteresis) for a duration > Hold = the error
come out
Page 83
|
83
14.6.10 RFH1
This section is about the Radio Frequency HIGHER LEVEL 1.
NAME
DESCRIPTION
NOTE
Chan (*)
Channel Number
Chan Label
Mnemonic name that can be applied to the Channel / Frequency
Frequency
Frequency corresponding to the Channel, expressed in MHz
Preset
String used and managed by the Configuration Manager
Scan Time
This value represents the time in seconds that the tuner remain on this frequency.
Chan Mask
This control allow (or not) the channel to be under control.
If it is masked,
the channel is
NOT under
control
Thr or Threshold
Threshold level. Beyond this threshold level an alarm is generated.
See Note1
reported
below
Hysteresis level
This value can be set as range of Hysteresis for the measurement. Hysteresis is the
dependence of a system not only on its current environment but also on its past
environment.
Validation
This field contains the time of persistence necessary to the alarm to be considered
“validated”. For example, if the system launches an alarm, this alarm must remain
“up” or “Active” for all the time of "Validation" to be considered a true alarm to avoid
the detection of spikes.
Hold
is the time between the cessation of the alarm condition and alarm signaling finished
Mask
It is possible to set, for each single parameter: unmasked, masked, severity-1,
severity-2, severity-3, RFL2 mask.
Email
In case the alarm/error raise up, the Wolf 2MS sends an email if <enable>.
If is <disable> no action are taken.
Trap
In case the alarm/error raise up, the Wolf 2MS sends a trap if <enable>.
If is <disable> no action are taken.
Label
This is the label/content that the user can choose to shows via email or in the trap in
case of error.
Page 84
|
84
Alarm generation RFH1:
Note1
Condition
Description
Error Generation
If the RF Signal level under control > (RFH1 + Hysteresis) for a duration > Validation = the error
is generated
Error Come out
If the RF Signal level under control < (RFH1 - Hysteresis) for a duration > Hold = the error
come out
Page 85
|
85
14.6.11 RFH2
This section is about the Radio Frequency HIGHER LEVEL 2.
NAME
DESCRIPTION
NOTE
Chan (*)
Channel Number
Chan Label
Mnemonic name that can be applied to the Channel / Frequency
Frequency
Frequency corresponding to the Channel, expressed in MHz
Preset
String used and managed by the Configuration Manager
Scan Time
This value represents the time in seconds that the tuner remain on this frequency.
Chan Mask
This control allow (or not) the channel to be under control.
If it is masked,
the channel is
NOT under
control
Thr or Threshold
Threshold level. Beyond this threshold level an alarm is generated.
See Note1
reported
below
Hysteresis level
This value can be set as range of Hysteresis for the measurement. Hysteresis is the
dependence of a system not only on its current environment but also on its past
environment.
Validation
This field contains the time of persistence necessary to the alarm to be considered
“validated”. For example, if the system launches an alarm, this alarm must remain
“up” or “Active” for all the time of "Validation" to be considered a true alarm to avoid
the detection of spikes.
Hold
is the time between the cessation of the alarm condition and alarm signaling finishe
Mask
It is possible to set, for each single parameter: unmasked, masked, severity-1,
severity-2, severity-3, RFL2 mask.
Email
In case the alarm/error raise up, the Wolf 2MS sends an email if <enable>.
If is <disable> no action are taken.
Trap
In case the alarm/error raise up, the Wolf 2MS sends a trap if <enable>.
If is <disable> no action are taken.
Label
This is the label/content that the user can choose to shows via email or in the trap in
case of error.
Page 86
|
86
Alarm generation RFH2
Note1
Condition
Description
Error Generation
If the RF Signal level under control > (RFH2 + Hysteresis) for a duration > Validation = the
error is generated
Error Come out
If the RF Signal level under control < (RFH2 Thr – Hysteresis) for a duration > Hold = the error
come out
Page 87
|
87
14.6.12 DEV (Maximum Deviation allowed)
This page allows the user to set mainly the maximum threshold level for the Deviation, for each single Channel /
Frequency.
NAME
DESCRIPTION
NOTE
Chan
Channel Number
Chan Label
Mnemonic name that can be applied to the Channel / Frequency
Frequency
Frequency corresponding to the Channel, expressed in MHz
Preset
String used by the configurator
Scan Time
this value represents the time in s that the tuner remain on this frequency.
Chan Mask
This control allow (or not) the channel to be under control.
If it is masked,
the channel is
NOT under
control
Max Thr
Maximum Threshold level. The value set here is the maximum deviation that the RF
carrier can reach. By default the level il 80kHz. With a double click on the box can
be changed by inserting the desired value.
See Note1
reported
below
Hysteresis
This value can be set as range of Hysteresis for the measurement. Hysteresis is the
dependence of a system not only on its current environment but also on its past
environment.
Validation
This field contains the time of persistence necessary to the alarm to be considered
“validated”. For example, if the system launches an alarm, this alarm must remain
“up” or “Active” for all the time of "Validation" to be considered a true alarm to avoid
the detection of spikes.
HOLD
is the time between the cessation of the alarm condition and alarm signaling finished
Mask
It is possible to set, for each single parameter: unmasked, masked, severity-1,
severity-2, severity-3, RFL2 mask.
Email
In case the alarm/error raise up, the Wolf 2MS sends an email if <enable>.
If is <disable> no action are taken.
Trap
In case the alarm/error raise up, the Wolf 2MS sends a trap if <enable>.
If is <disable> no action are taken.
Label
This is the label/content that the user can choose to shows via email or in the trap in
case of error.
Page 88
|
88
Alarm generation DEV – Deviation
Note1
Condition
Description
Error Generation
If the RF Signal level under control > (DEV) for a duration > Validation = the error is generated
Error Come out
If the RF Signal level under control < (DEV – Hysteresis) for a duration > Hold = the error come
out
Page 89
|
89
14.6.13 PILOT LOW (19kHz Pilot Stereo level)
This page allows the user to set ONLY the minimum threshold level for the Stereo Pilot, for each single Channel /
Frequency. This status variable allows to monitor if the pilot level goes down a given threshold level.
NAME
DESCRIPTION
NOTE
Chan
Channel Number
Chan Label
Mnemonic name that can be applied to the Channel / Frequency
Frequency
Frequency corresponding to the Channel, expressed in MHz
Preset
String used by the configurator
Scan Time
This value represents the time in s that the tuner remain on this frequency.
Chan Mask
This control allow (or not) the channel to be under control.
If it is masked,
the channel is
NOT under
control
Thr
Minimum Threshold level for the Pilot Stereo 19kHz. The value set here is the
minimum deviation level that the Pilot Stereo 19kHz carrier can reach. By default the
level is 5kHz. With a double click on the box can be changed by inserting the
desired value.
Hysteresis level
this value can be set as range of Hysteresis for the measurement. Hysteresis is the
dependence of a system not only on its current environment but also on its past
environment.
Validation
This field contains the time of persistence necessary to the alarm to be considered
“validated”. For example, if the system launches an alarm, this alarm must remain
“up” or “Active” for all the time of "Validation" to be considered a true alarm to avoid
the detection of spikes.
Hold
It is the time between the cessation of the alarm condition and alarm signaling
finished
Mask
It is possible to set, for each single parameter: unmasked, masked, severity-1,
severity-2, severity-3, RFL2 mask.
Email
In case the alarm/error raise up, the Wolf 2MS sends an email if <enable>.
If is <disable> no action are taken.
Trap
In case the alarm/error raise up, the Wolf 2MS sends a trap if <enable>.
If is <disable> no action are taken.
Label
This is the label/content that the user can choose to shows via email or in the trap in
case of error.
Page 90
|
90
14.6.14 PILOT (19kHz Pilot Stereo level)
This page allows the user to set mainly the minimum and the maximum threshold level for the Stereo Pilot, for each
single Channel / Frequency. With this alarm status variable (using a window zone) it is possible to monitor the pilot level
inside a nominal window zone and if it falls under a minimum level or monitor two low levels zones like RF levels.
NAME
DESCRIPTION
NOTE
Chan
Channel Number
Chan Label
Mnemonic name that can be applied to the Channel / Frequency
Frequency
Frequency corresponding to the Channel, expressed in MHz
Preset
String used by the configurator
Scan Time
This value represents the time in s that the tuner remain on this frequency.
Chan Mask
This control allow (or not) the channel to be under control.
If it is masked,
the channel is
NOT under
control
Min. Thr
Minimum Threshold level for the Pilot Stereo 19kHz. The value set here is the
minimum deviation level that the Pilot Stereo 19kHz carrier can reach. By default the
level is 5kHz. With a double click on the box can be changed by inserting the
desired value.
See Note1
reported
below
Max. Thr
Maximum Threshold level for the Pilot Stereo 19kHz. The value set here is the
maximum deviation level that the Pilot Stereo 19kHz carrier can reach. By default
the level is 8kHz. With a double click on the box can be changed by inserting the
desired value.
See Note2
reported
below
Hysteresis level
this value can be set as range of Hysteresis for the measurement. Hysteresis is the
dependence of a system not only on its current environment but also on its past
environment.
Validation
This field contains the time of persistence necessary to the alarm to be considered
“validated”. For example, if the system launches an alarm, this alarm must remain
“up” or “Active” for all the time of "Validation" to be considered a true alarm to avoid
the detection of spikes.
Hold
It is the time between the cessation of the alarm condition and alarm signaling
finished
Mask
It is possible to set, for each single parameter: unmasked, masked, severity-1,
severity-2, severity-3, RFL2 mask.
Email
In case the alarm/error raise up, the Wolf 2MS sends an email if <enable>.
If is <disable> no action are taken.
Page 91
|
91
Trap
In case the alarm/error raise up, the Wolf 2MS sends a trap if <enable>.
If is <disable> no action are taken.
Label
This is the label/content that the user can choose to shows via email or in the trap in
case of error.
Note1
Condition
Description
Error Generation
Min. Threshold
If the RF Signal level under control < (Min. Thr) for a duration > Validation = the error is
generated
Error Come out
Min. Threshold
If the RF Signal level under control > (Min. Thr + Hysteresis) for a duration > Hold = the error
come out
Page 92
|
92
Note2
Condition
Description
Error Generation
Max. Threshold
If the RF Signal level under control > (Max. Thr) for a duration > Validation = the error is
generated
Error Come out
Max. Threshold
If the RF Signal level under control > (Max. Thr - Hysteresis) for a duration > Hold = the error
come out
Page 93
|
93
14.6.15 RDS Low (57kHz RDS Data Level)
This page allows the user to set ONLY the minimum threshold level for the RDS Data Level, for each single Channel /
Frequency. This settings mainly means that below this level an error is generated and some receivers may not correctly
decode the RDS data stream
NAME
DESCRIPTION
NOTE
Chan
Channel Number
Chan Label
Mnemonic name that can be applied to the Channel / Frequency
Frequency
Frequency corresponding to the Channel, expressed in MHz
Preset
String used by the configurator
Scan Time
This value represents the time in s that the tuner remain on this frequency.
Chan Mask
This control allow (or not) the channel to be under control.
If it is masked,
the channel is
NOT under
control
Thr
Minimum Threshold level for the RDS Data 57kHz. The value set here is the
minimum deviation level that the RDS Data 57kHz carrier can reach. By default the
level is 1.80kHz. With a double click on the box can be changed by inserting the
desired value.
Hysteresis level
This value can be set as range of Hysteresis for the measurement. Hysteresis is the
dependence of a system not only on its current environment but also on its past
environment.
Validation
This field contains the time of persistence necessary to the alarm to be considered
“validated”. For example, if the system launches an alarm, this alarm must remain
“up” or “Active” for all the time of "Validation" to be considered a true alarm to avoid
the detection of spikes.
Hold
is the time between the cessation of the alarm condition and alarm signaling finished
Mask
It is possible to set, for each single parameter: unmasked, masked, severity-1,
severity-2, severity-3, RFL2 mask.
Email
In case the alarm/error raise up, the Wolf 2MS sends an email if <enable>.
If is <disable> no action are taken.
Trap
In case the alarm/error raise up, the Wolf 2MS sends a trap if <enable>.
If is <disable> no action are taken.
Label
This is the label/content that the user can choose to shows via email or in the trap in
case of error.
Page 94
|
94
14.6.16 RDS (57kHz RDS Data Level)
This page allows the user to set mainly the minimum and the maximum threshold level for the RDS Data Level, for each
single Channel / Frequency. In this settings it is possible to set normal window working level for the RDS data.
NAME
DESCRIPTION
NOTE
Chan
Channel Number
Chan Label
Mnemonic name Mnemonicthat can be applied to the Channel / Frequency
Frequency
Frequency corresponding to the Channel, expressed in MHz
Preset
String used by the configurator
Scan Time
This value represents the time in s that the tuner remain on this frequency.
Chan Mask
This control allow (or not) the channel to be under control.
If it is masked,
the channel is
NOT under
control
Min. Thr
Minimum Threshold level for the RDS Data 57kHz. The value set here is the
minimum deviation level that the RDS Data 57kHz carrier can reach. By default the
level is 1.80kHz. With a double click on the box can be changed by inserting the
desired value.
See Note1
reported
below
Max. Thr
Maximum Threshold level for the RDS Data 57kHz. The value set here is the
maximum deviation level that the RDS Data 57kHz carrier can reach. By default the
level is 4.0kHz. With a double click on the box can be changed by inserting the
desired value.
See Note2
reported
below
Hysteresis level
This value can be set as range of Hysteresis for the measurement. Hysteresis is the
dependence of a system not only on its current environment but also on its past
environment.
Validation
This field contains the time of persistence necessary to the alarm to be considered
“validated”. For example, if the system launches an alarm, this alarm must remain
“up” or “Active” for all the time of "Validation" to be considered a true alarm to avoid
the detection of spikes.
Hold
is the time between the cessation of the alarm condition and alarm signaling finished
Mask
It is possible to set, for each single parameter: unmasked, masked, severity-1,
severity-2, severity-3, RFL2 mask.
Email
In case the alarm/error raise up, the Wolf 2MS sends an email if <enable>.
If is <disable> no action are taken.
Trap
In case the alarm/error raise up, the Wolf 2MS sends a trap if <enable>.
Page 95
|
95
If is <disable> no action are taken.
Label
This is the label/content that the user can choose to shows via email or in the trap in
case of error.
Note1
Condition
Description
Error Generation
Min. Threshold
If the RF Signal level under control < (Min. Thr) for a duration > Validation = the error is
generated
Error Come out
Min. Threshold
If the RF Signal level under control > (Min. Thr + Hysteresis) for a duration > Hold = the error
come out
Page 96
|
96
Note2
Condition
Description
Error Generation
Max. Threshold
If the RF Signal level under control > (Max. Thr) for a duration > Validation = the error is
generated
Error Come out
Max. Threshold
If the RF Signal level under control > (Max. Thr - Hysteresis) for a duration > Hold = the error
come out
Page 97
|
97
14.6.17 Audio DEV (Silence detector)
This page allows the user to set mainly the silence threshold and timing, for each single Channel / Frequency.
NAME
DESCRIPTION
NOTE
Chan
Channel Number
Chan Label
Mnemonic name that can be applied to the Channel / Frequency
Frequency
Frequency corresponding to the Channel, expressed in MHz
Preset
String used by the configurator
Scan Time
This value represents the time in s that the tuner remain on this frequency.
Chan Mask
This control allow (or not) the channel to be under control.
If it is masked,
the channel is
NOT under
control
Silence Thr
This is the minimum level to be considered audio. Under this threshold the audio is
considered “silence”.
See Note1
reported
below
Silence Time
This parameter is related to Silence Thr, after this <Silence Time> the incoming
audio is considered “Silence”
Silence Hold
is the time between the cessation of the alarm condition and alarm signaling finished
Silence Mask
It is possible to set, for each single parameter: unmasked, masked, severity-1,
severity-2, severity-3, RFL2 mask.
Silence Email
In case the alarm/error raise up, the Wolf 2MS sends an email if <enable>.
If is <disable> no action are taken.
Silence Trap
In case the alarm/error raise up, the Wolf 2MS sends a trap if <enable>.
If is <disable> no action are taken.
Silence Label
This is the label/content that the user can choose to shows via email or in the trap in
case of error.
Page 98
|
98
Note1
Condition
Description
Error Generation
Silence
If the RF Signal level under control < (Silence Thr) for a duration > Silence Time = the error is
generated
Error Come out
Silence
If the RF Signal level under control > (Silence Thr) for a duration > Silence Hold = the error
come out
Page 99
|
99
14.6.18 Audio Left (Silence detector)
This page allows the user to set mainly the silence threshold and timing, for the single Left Channel
NAME
DESCRIPTION
NOTE
Chan
Channel Number
Chan Label
Mnemonic name that can be applied to the Channel / Frequency
Frequency
Frequency corresponding to the Channel, expressed in MHz
Preset
String used by the configurator
Scan Time
This value represents the time in s that the tuner remain on this frequency.
Chan Mask
This control allow (or not) the channel to be under control.
If it is masked,
the channel is
NOT under
control
Silence Thr
This is the minimum level on the LEFT CHANNEL to be considered audio. Under
this threshold the audio is considered “silence”.
Silence Time
This parameter is related to Silence Thr, after this <Silence Time> the incoming
audio is considered “Silence”
Silence Hold
is the time between the cessation of the alarm condition and alarm signaling finished
Silence Mask
It is possible to set, for each single parameter: unmasked, masked, severity-1,
severity-2, severity-3, RFL2 mask.
Silence Email
In case the alarm/error raise up, the Wolf 2MS sends an email if <enable>.
If is <disable> no action are taken.
Silence Trap
In case the alarm/error raise up, the Wolf 2MS sends a trap if <enable>.
If is <disable> no action are taken.
Silence Label
This is the label/content that the user can choose to shows via email or in the trap in
case of error.
Page 100
|
100
14.6.19 Audio Right (Silence detector)
This page allows the user to set mainly the silence threshold and timing, for the single Right Channel
NAME
DESCRIPTION
NOTE
Chan
Channel Number
Chan Label
Mnemonic name that can be applied to the Channel / Frequency
Frequency
Frequency corresponding to the Channel, expressed in MHz
Preset
String used by the configurator
Scan Time
This value represents the time in s that the tuner remain on this frequency.
Chan Mask
This control allow (or not) the channel to be under control.
If it is masked,
the channel is
NOT under
control
Silence Thr
This is the minimum level on the RIGHT CHANNEL to be considered audio. Under
this threshold the audio is considered “silence”.
Silence Time
This parameter is related to Silence Thr, after this <Silence Time> the incoming
audio is considered “Silence”
Silence Hold
is the time between the cessation of the alarm condition and alarm signaling finished
Silence Mask
It is possible to set, for each single parameter: unmasked, masked, severity-1,
severity-2, severity-3, RFL2 mask.
Silence Email
In case the alarm/error raise up, the Wolf 2MS sends an email if <enable>.
If is <disable> no action are taken.
Silence Trap
In case the alarm/error raise up, the Wolf 2MS sends a trap if <enable>.
If is <disable> no action are taken.
Silence Label
This is the label/content that the user can choose to shows via email or in the trap in
case of error.
