Axel Streamer RX, Streamer RTX User Manual

Download

Headquarter BOLOGNA: Via Caduti Di Sabbiuno 6/F

40011 Anzola Emilia - Bologna - Italy

Tel. +39 051 736555 - Fax. +39 051 736170

Regional BERGAMO: Via Italia 1

24030 Medolago (Bg) – Italy

Tel. +39 051 736555 - Fax. +39 051 736170

e-mail:

info@axeltechnology.com - web site: www.axeltechnology.com

User Guide

Rel 1.5 English (international)

Streamer RX,

Streamer RTX

Audio networking system

This manual is for use with the following product :

Streamer RX and Streamer RTX

Axel Technology SRL

Via Caduti Di Sabbiuno 6/F - 40011 Anzola Emilia - Bologna - Italy Tel. +39 051 736555 – + 39 051 736154 Fax. +39 051 736170 e-mail: info@axeltechnology.com - web site: www.axeltechnology.com

Information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. This manual images could differ a bit from the equipment actual design. Axel Technology SRL shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, information storage and retrieval systems, for any purpose other than the purchaser’s personal use, without the express written permission of Axel Technology SRL.

TABLE OF CONTENTS

1 Streamer Control Software installation ................................................... 5

2 Installation of STREAMER RX .................................................................. 8

2 How To Decode Audio Streaming With “Streamer RX” ....................... 14

3 How To Encode Audio Streaming With “Streamer RTX” .................... 17

ENG

1 Streamer Control Software installation

Inside the official Axel Technology Box is available the CD with lot of information, DOC and firmware upgrade or reinstallaer. The software that must be installed to control the Streamer is “Streamer Control”

1- Select Streamer Control.exe and press Return 2- Select the language and press NEXT

3- This is the Welcome screen (press NEXT)

ENG

4- Select the destination folder

5- Select the Programm destination folder

ENG

6- The software will install all the driver, dll and all the things necessary for the installation. A

reboot is necessary after the installation (and suggested)

ENG

Warning! The installation procedure must be done with only ONE “Streamer” at the time

2 Installation of STREAMER RX

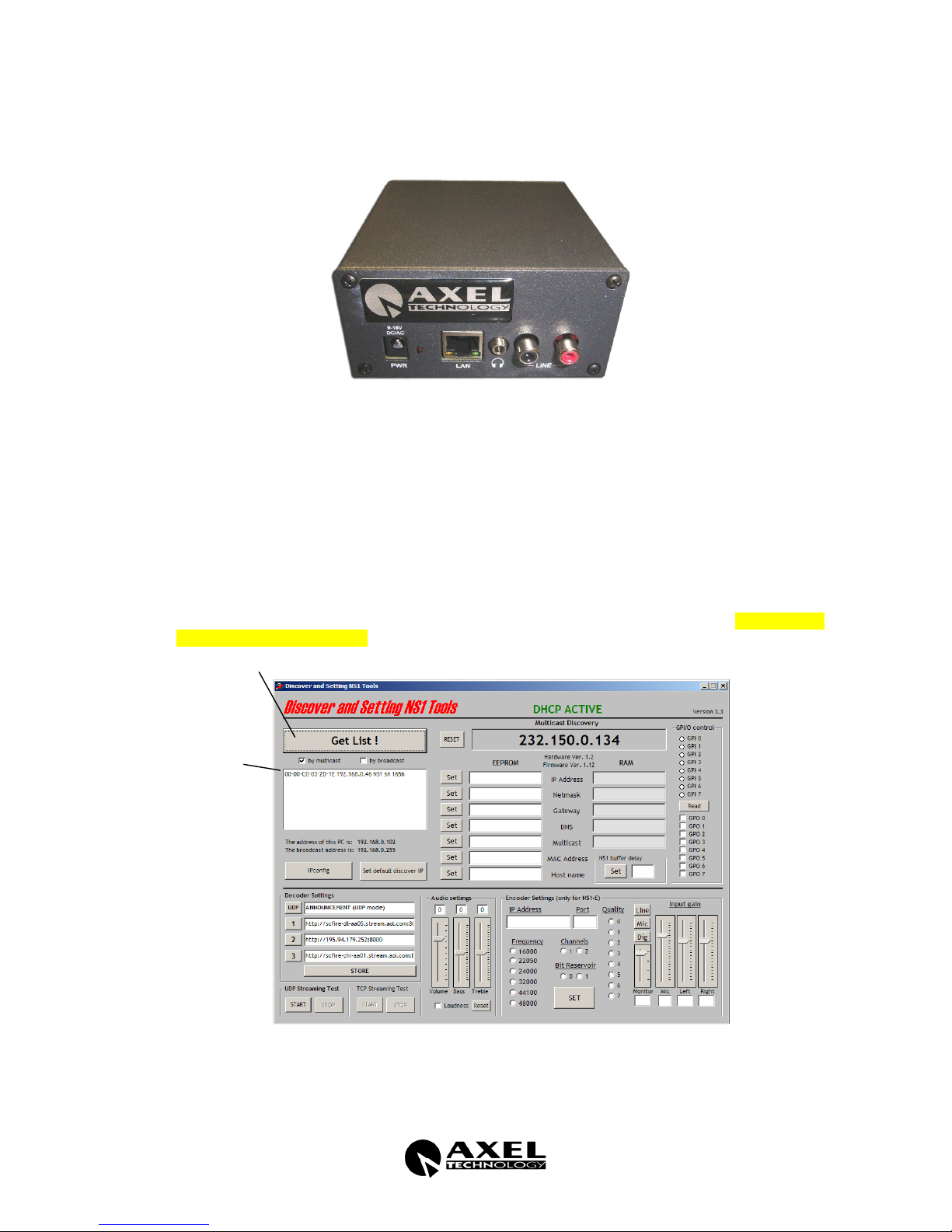

Plug the network cable into the network port of the “Streamer RX” device and the other end into your hub or switch.

Plug the jack of your earphone into the headphone output.

Plug the power supply into the power jack of the device and the other end into the power outlet of the wall.

After few seconds, will play a typical sound if a network is founded.

To verify the IP address assignement and manage the other parameters of “Streamer” you can use Streamer Control software. Install and running Streamer Control. Verify that no firewall is active into your PC.

“Streamer RTX” device

“Streamer RX” device

Model : S-N : MAC :

Streamer STR- XXxxXX

00-C0-E0-00-A0-00

TX/RX

STR- XXxxXX

00-C0-E0-00-A0-00

Model : S-N :

MAC :

Streamer

TX/RX

ENG

Pushing

Get List !

button, you will see as follows:

To configure the “Streamer” you have to pay attention to

DHCP server status detector

. If

DHCP

ACTIVE is displayed you can procede from step 7. If the DHCP server status detector shows DHCP

NOT PRESENT procede from step 9.

By clicking on device inside the list box you will have all the parameters of the item selected.

Parameters assigned to “Streamer” by DHCP server

Default parameters sto

red

in “Streamer” memory

“Streamer” device

selected

“Streamer” device

DHCP server status detector

Decoding test utility

Audio decoding settings

Decoder settings

Encoder settings

GPIO settings

ENG

The active parameters of the “Streamer” that you selected, will be showed into EEPROM and RAM column. Now you can test the decoder audio function using UDP Streaming Test utility. By clicking on the START button of UDP Streaming Test there will be the streaming of an audio MP3 file to the IP address of “Streamer” select

ed. The suond will be played through the headphone and the RCA

pin (“Streamer” only, not “In-Streamer”). The audio parameters, like volume, bass, treble and loudness can be changed via the Audio setting. The streaming will stop at the end automatically but yuo can stop it in any moment by pressing the STOP button.

END OF INSTALLATION OF

“STREAMER

RX”

ENG

DHCP NOT FOUND

message will appear on the top of

NS1 Tools

form this means that any DHCP

server is present in your network and that any IP address has been assigned to “Streamer”. Therefore, IP values of “Streamer” have to be assigned manually. We suggest to chose carefully

your IP address or to contact you network administrator to avoid any conflict with other network

devices.

10.

To set manually the parameters of “Streamer” you have to select the device in the list box. After the Warning messages you will be ready to assign the network values to “Streamer”.

“Streamer” device

ENG

11.

Set the network parameters starting from IP address to DNS a

ddress

into the

EEPROM

column

Click each Set button to store the relative value.

Default Parameters stored to Streamer memory

Parameters assigned manually in

“Streamer”

memory

ENG

12.

Press

Get List !

button to refresh the display of “Streamer” selection.

13.

Selecting the “Streamer” device will show you the new network parameters. As you will see the

EEPROM parameters will be transferred to RAM column. This means that your “Streamer” can be

reached on the network through the new IP value stored.

14.

Now you can test the decoder audio function using

UDP Streaming Test

utili

ty. By clicking on the

START button of UDP Streaming Test there will be the streaming of an audio MP3 file to the IP

address of “Streamer” selected. The suond will be played through the headphone and the RCA pin

(Streamer only, not In-Streamer). The audio

parameters, like volume, bass, treble and loudness can

be changed via the Audio setting

. The streaming will stop at the end automatically but yuo can stop

it in any moment by pressing the STOP button.

END OF INSTALLATION OF “STREAMER”

ENG

2 How To Decode Audio Streaming With “Streamer RX”

For installation and configuration refer to Chapter 1

To manage the decoding parameters of “Streamer” you can use

Streamer Control

Verify that no

firewall is active into your PC.

Pushing

Get List !

button,

you will see as follows

“Streamer” device

ENG

By clicking on device inside the list box all the parameters of the item selected will appear. Now you can set the decoding parameters.

Streamer RX can decode only UDP streamings. To decode an UDP audio streaming you have to press the UDP button into “Streamer RX” decoding setting section. Then “ANNOUNCEMENT (UDP mode)” message will be displayed in the right window. If a streaming is addressed to the multicast or unicast IP address of “Streamer RX” this will decode it immediately. Depending on the network traffic, it could be necessary to set the “Streamer RX” buffer delay (values admitted from 0 to 500 ms). If you want to decode a TCP streaming you have to mount the memory option on the “Streamer RX” board by upgrading it into Streamer RX version.

You can check the “Streamer

RX” proper decoding by the

UDP Streaming Test.

By pressing the

START button a short mp3 file will be sent to the “Streamer RX” selected. You can also check the right audio decoding of all the “Streamer RX” devices on the network simply by pressing Get List ! followed by START button: the same short mp3 file will be sent to the default “Streamer” IP multicast address.

During playback you can set volume, bass and treble level and choose either to activate or not the loudness of the “Streamer RX selected”. All the values will be stored in the “Streamer RX” EEPROM. You can also reset to default values the audio parameters by pressing Reset button.

“Streamer RX”

decoding settings

“Streamer RX” decoding audio

“Streamer

RX” buffer

Test tool

ENG

3 How To Encode Audio Streaming With “Streamer RTX”

For installation and configuration refer to Chapter 1

To manage the encoding parameters of “Streamer” you can use

NS1 Tools

software.

Verify that no

firewall is active into your PC.

Pushing

Get List !

button

, you will see as follows

“Streamer XX” device

ENG

By clicking on device inside the list box you will have all the parameters of the item selected. Now you can set the encoding parameters.

The parameters neededs to start to encoding are:

IP Address

unicast or multicast IP address of “Streamer” player/s targets

Port:

destination port of “Streamer” player/s targets. All the “Streamer” models are ready to receive the streaming throught 6244 port.

Frequency:

audio sampling frequency.

Channels:

mono or stereo mode. If you choose to use the microphone input remember to use the 1 channel option.

Bit Reservoir:

to improve the streaming audio quality it have to set on 0

Quality:

The encoder uses Variable Bitrate Encoding (VBR) to realize optimal compression of the audio data. The setting of a fixed bitrate is replaced with setting a quality level that preserves audio quality in critical sections and enhances compression otherwise. The minimum bitrate (in case of digital zero samples) is 32 kbit/s for MPEG 1 and 8 kbit/s for MPEG 2. The maximum bitrate is 192 kbit/s for MPEG 1 and 160 kbit/s for MPEG 2. The following table gives an overview on the average encoding bitrate that can be expected for common audio signals at different quality settings and sample rates.

“Streamer” enco

ding

ENG

Quality

settings

Average bitrate in kbit/s for fs/kHz

44.1

stereo

22.05

stereo

44.1

mono

22.05 mono

0 75 39 65 35

1 80 41 68 38

2 90 45 63 40

3 100 50 80 45

4 120 60 90 50

5 140 80 105 60

6 160 110 125 75

7 170 130 140 90

Line:

Line input selector. The line input signal can be connected to the PIN jacks (unbalanced)

Mic:

Microphone input selector.

Dig:

Digital SPDIF audio input. The digital input and output are available only for the “Streamer” equipedd with the optional service board

Monitor:

Monitor level of the audio input after the compression process. The monitor out is available from the 3,5 mm jack.

Mic input gain:

Microphone level input gain.

Left & Right

input gain:

Line level input gain.

SET:

This button sets the encoding parameters into the “Streamer” and start automatically the encoding session.

ENG

«OBB - IBB» Option for Streamer RX and

Streamer RTX

«GP» Option for Streamer RX and Streamer RTX

Streamer RTX

Streamer RX

GPI 7

GPO 7

GPI 6

GPO 6

Streamer RX

LEFT Ch

RIGHT Ch

Audio Balanced INPUT

GP INPUT

GP OUTPUT

Audio Balanced OUTPUT

COLD

GND

NC NC

GNDGND

NO NO

GNDIN

C C

COLD

HOT +

GND

. .. .. .. .. .. .

ENG

DETAILS for «IBB - OBB» Option for Streamer RX and

Streamer RTX

LEFT Ch

RIGHT Ch

Audio Balanced INPUT

Audio Balanced OUTPUT

COLD

HOT +

GND

. .. .. .. .. .. .

RED

BLACK

BLAC K

SH IELD SHIELD

ENG

Balanced Connection (IBB-OBB option)

Streamer and InStreamer mount onboard (optional by request) an electronically balanced input and output connector board (IOB Option)

The standard configuration allows three connectors as standard EIA RS-297-A recommendations.

Pin Function

1 Chassis ground (cable shield)

2 positive polarity terminal ("hot")

3 return terminal

[2]

("cold")

The maximum input signal is 0.775 Vpp (0 dBu) The maximum output signal is 3.781 Vpp (6 dBu)

ENG

General Purpose Input Output (GP Option)

The Streamer and InStreamer equipment allows 2 General Purpose (GP) Input and Output. The GP name are GPI6 and GPI7 for the inputs and GPO6 and GPO7 for the output

GPInput

In order to activate GP6 and GP7 inside Streamer, place directly on ground the “In” signal ( IN to GND) as shown in picture.

It is already possible employs both connectrs GND. Please remember that IN and GND are directly connected to µProcessor (µP) equipment. Pay attention to don’t connect external voltage to this connectors. These connectors can be directly applied to Axel Technology equipments as BOBCAT and BoxRelè, already made in order to manage all kind of signals coming from CD player, MD Player, tape recorder, ISDN tunneling or Automation System.

GPOut

Inside InStreamer are presents two BiStable Relay, iIn order to employ the GPOut. These Relays allows TWO condition: NC and NO.

NC = Normally Close NO = Normally Open C = Common Contact

Details: When there are no activation in GPI the Relay contact stay on NC. When GPI become activated, the output relay change the contact closure versus NO, as showed in picture. In the example figure, a cc generator is connected in the common contact and the same point directly to LAMP1 and LAMP2. In GPI non-activation position, LAMP1 is ON, and LAMP2 is OFF In GPI Activation position, LAMP1 is OFF, and LAMP2 is ON Working votage = 5 Vcc Maximum Voltage (breakdown) = 100 Vcc

ENG

DETAILS for «GP» Option for Streamer and InStreamer

Streamer

To Activate GPI 6 and GPI 7 close IN

versus GND as showed below

When GPO 6 and/or GPI 7 are Activated

Relay6 and Relay7 change from NC to NO

Nominal Value:

Vn= 12V

In= 500mA

Maximum Value

(breakdown)

Vm= 100V

Im= 1A

InStreamer

GPI 7

GPO 7

GPI 6

GPO 6

GP INPUT

GP OUTPUT

EXAMPLE

GND

NC NC

GNDGND

NO NO

GNDIN

LAMP1 LAMP2

. .

. ..

.. .. .. .. .. .

. .. .. .. .. .. .

ENG

6 Warranty

The manufacturer offers a 1-year ex works warranty.

Do not open the equipment. The warranty shall be voided if any of the warranty seals are broken.

The manufacturer shall not be liable for damage of any kind deriving from or in relation to incorrect use of the product.
