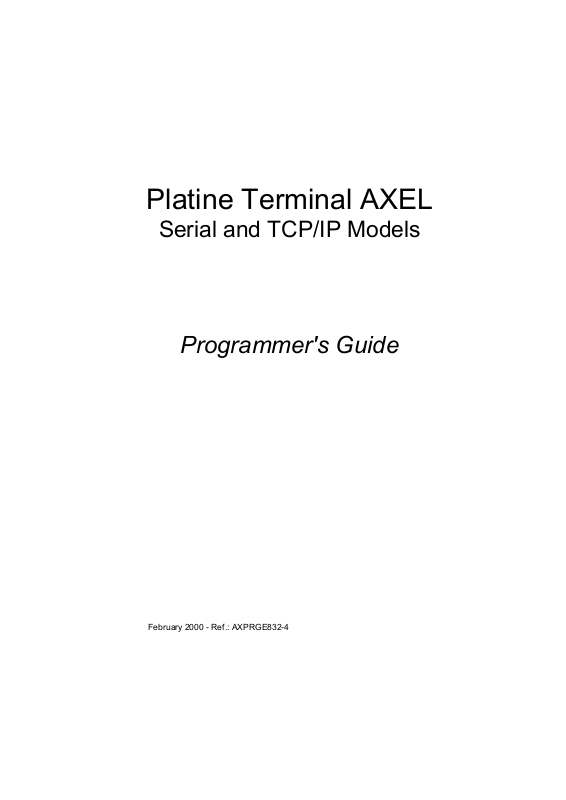

Axel Platine AX3000 Programmer's Manual

Platine Terminal AXEL

Serial and TCP/IP Models

Programmer's Guide

February 2000 - Ref.: AXPRGE832-4

The reproduction of this material, in part or whole, is strictly prohibited. For additional information, please contact:

16 Avenue du Québec

Bât. M1 EVOLIC - BP 728

91962 Courtabœuf cedex - FRANCE

Tel.: +33 1.69.28.27.27 Fax: +33 1.69.28.82.04

Email: info@axel.fr

The information in this document is subject to change without notice. AXEL assumes no responsibility for any errors that may appear in this document.

All trademarks and registered trademarks are the property of their respective holders.

1 - ABOUT THIS MANUAL ............................................................................... 1

1.1 - ORGANISATION.................................................................................... 2

1.2 - AVAILABLE EMULATIONS ACCORDING TO THE MODEL................2

1.3 - FIRMWARE REVISION .........................................................................4

1.3.1 - Hardware Information...................................................................... 4

1.3.2 - Firmware Information ...................................................................... 4

2 - TERMINAL COMMANDS ............................................................................ 7

2.1 - ANSI FAMILY......................................................................................... 8

2.2 - VT FAMILY........................................................................................... 16

2.3 - WYSE 60 EMULATION ....................................................................... 24

2.4 - PCTERM FAMILY................................................................................ 31

2.5 - SM94XX FAMILY................................................................................. 35

2.6 - PROLOGUE FAMILY........................................................................... 35

2.7 - QVT119+ EMULATION........................................................................ 36

2.8 - TVI EMULATION.................................................................................. 40

2.9 - 3151 EMULATION ............................................................................... 43

3 - CHARACTER SETS................................................................................... 47

3.1 - ANSI, PCTERM, SM94

XX, PROLOGUE, QVT, TVI, 3151 .................. 48

3.2 - VT FAMILY........................................................................................... 61

3.3 - WYSE FAMILY..................................................................................... 65

4 - KEYBOARDS............................................................................................. 70

4.1 - NATIONAL KEYBOARDS.................................................................... 71

4.2 - PROGRAMMING KEYS ...................................................................... 83

4.2.1 - ANSI Family................................................................................... 85

4.2.2 - VT Family ...................................................................................... 93

4.2.3 - WYSE Emulation......................................................................... 100

4.2.4 - PCTERM Family.......................................................................... 101

4.2.5 - SM94xx Family............................................................................ 102

4.2.6 - PROLOGUE Family .................................................................... 105

4.2.7 - QVT119+ Emulation.................................................................... 106

4.2.8 - TVI Emulation.............................................................................. 107

4.2.9 - 3151 Emulation............................................................................ 108

4.3 - COMPOSITE CHARACTERS............................................................ 109

4.3.1 - Standard Processing................................................................... 110

4.3.2 - Local Processing ......................................................................... 110

4.3.3 - Remote Processing ..................................................................... 111

About this Manual

- 1 -

ABOUT THIS MANUAL

AX3000 - Programmer's Guide 1

About this Manual

Organisation of the manual and available emulations.

1.1 - ORGANISATION

This manual provides detailed information on AX3000 terminal and its features. This manual has three chapters:

- terminal commands: an exhaustive list of escapes sequences supported by the AX3000 emulations,

- character sets: description of character sets,

- keyboards: description of available national keyboards, list of the default values for programming keys corresponding to the selected emulation and information about dead keys.

1.2 - AVAILABLE EMULATIONS ACCORDING TO THE MODEL

Several emulations are provided by the AX3000. The available emulations depend on the AX3000 model (serial or Ethernet TCP/IP).

Further more, emulations are grouped by family. These emulation families are used in the following chapters.

2 AX3000 - Programmer's Guide

About this Manual

The following table lists the available emulations (sorted by family) according to the AX3000 models:

Emulation AX3000 Models

Families Emulations Serial TCP/IP

ANSI ANSI

XENIX SCO UNIX SCO 3.2.2 UNIX SCO 3.2.4 SCO OPENSERVER ANSI DOS UNIX SVR4 ANSI INTERACTIVE ANSI RS6000 ANSI MOS ANSI DATA GENERAL ANSI SLNET UNIXWARE 7 LINUX

yes yes yes yes yes yes yes yes yes yes

---

yes yes yes yes yes yes yes yes yes yes yes yes * yes

yes VT VT220 yes yes HFT yes yes VT AS400 --- yes WYSE WYSE 60 yes * yes * PCTERM PCTERM

PCTERM THEOS OS2 POLYMOD2

yes yes yes

yes *

yes * SM94xx SM9400 et SM9412 yes * yes * TVI TVI --- yes * QVT QVT119+ --- yes * 3151 3151 --- yes * Prologue PROLOGUE 2/3, PROLOGUE 4/5 yes -- TWIN SERVER yes yes *

(*) optional

AX3000 - Programmer's Guide 3

About this Manual

1.3 - FIRMWARE REVISION

The AX3000 firmware revision is composed by:

- an hardware information

- a firmware information

1.3.1 - Hardware Information

The AX3000 hardware information is:

FKx-BVyyy

- FKx is the electronic board code

- BVyyy is the boot code version (the boot code is the non-erasable part of the flash memory)

Examples:

FK3-BV11f FK5-BV12a

1.3.2 - Firmware Information

a) General Information

The beginning of the firmware version is:

FCT.NA.aassi

- FCT is the AX3000 operating mode:

- TCP stands for both TCP/IP and serial modes,

- SER stands for serial mode.

- NA is the firmware nationality (code is ISO compliant). The main nationalities are:

- FR: France - XX: International

- GR: Greece - TR: Turkey

- FI: Finland - PT: Portugal

- aassi is the year and the week number of the firmware creation following by an alphabetical index (for instance: 9832f).

4 AX3000 - Programmer's Guide

About this Manual

Note: Three parameters depend on the firmware nationality:

- the set-up message nationality (FR: French messages, other: English messages),

- the possible presence of a national keyboard and associated character set. For instance, the Turkish environment (keyboards and character set) is only available with the 'TR' firmware.

- the default keyboard nationality (FR: France, XX: North American, TR: Turkey, etc).

b) Possible Firmware Options

If no option are included, the general firmware information is followed by ':STD'. Else, options, encoded by 3 characters, follow the general firmware information. A '&' is used as a separator.

The main firmware options are:

WYS : Wyse 60/120 emulation ATO : ATO300 emulation SM9 : SM9400/SM9412 emulation THE : Theos emulation QVT : QVT 119+ emulation TVI : TVI 910 emulation SLN : SLNET emulation I51 : 3151 emulation ALG : alpha-graphics mode EUR : Euro currency symbol F24 : 24-fctn-keys keyboard (AS/400) MSE : mouse support

Note: some options are incompatible (ex.: WYS and I51).

Examples:

FK3-BV11f/TCP.FR.9832f:STD FK5-BV12a/TCP.XX.9832f:WYS&EUR

AX3000 - Programmer's Guide 5

Terminal Commands

- 2 -

TERMINAL COMMANDS

AX3000 - Programmer's Guide 7

Terminal Commands

This chapter describes supported terminal commands for each emulation.

A terminal command is a character string. Terminal commands perform special actions (moving the cursor, setting reverse mode, etc). Generally such a sequence contains only 1 unprintable ASCII character (smaller than 20h). All other characters are printable (greater than 20h).

Conventions:

- xxh: xx is the hexadecimal ASCII character (ex: 1Bh is 27 decimal),

- Esc is 1Bh,

- CSI is the both ASCII characters 'Esc [' (1Bh and 5Bh).

2.1 - ANSI FAMILY

Note: for the 4 SCO emulations and the LINUX emulation, CSI can also be

obtained by the 9Bh ASCII character (instead of the Esc [ ASCII characters).

Controlling the Cursor

Cursor right Pn columns CSI Pn C (or CSI Pn a) Cursor left 08h Cursor left Pn columns CSI Pn D Cursor up Esc M Cursor up Pn lines CSI Pn A Cursor up Pn lines and to column 1 CSI Pn F Cursor down Esc D (or 0Ah) Cursor down Pn lines CSI Pn B (or CSI Pn e) Cursor down Pn lines and to column 1 CSI Pn E Cursor to column Pn CSI Pn G (or CSI Pn `) Cursor to line Pn CSI Pn d

8 AX3000 - Programmer's Guide

Terminal Commands

Cursor to line Pn1 (1..25) column Pn2 (1..132) CSI Pn1;Pn2 H (or CSI Pn1;Pn2 f) Cursor to start of line (or to start of next line) 0Dh Save cursor position CSI s (or Esc 7) Restore cursor to saved position CSI u (or Esc 8) Disable cursor CSI < 0 @ Enable cursor CSI < 1 @

Controlling the Terminal

Sound bell 07h Set scrolling region (beginning line number, ending line number) CSI Pn1;Pn2 r Terminal mode on CSI Ps;...Ps h Ps = 2: lock keyboard Ps = 4: insert character mode Ps = 20: new line (LF=CR+LF) Ps = 32: lock keyboard and send ACK (06h) Ps = 33: autoscrolling mode on Ps = ?3: set 132-column display Ps = ?6: origin is scrolling region Ps = ?7: autowrap mode on Terminal mode off CSI Ps;...Ps l* Ps = 2: unlock keyboard Ps = 4: replace character mode Ps = 20: line feed Ps = 33: autoscrolling mode off Ps = ?3: set 80-column display Ps = ?6: origin is screen Ps = ?7: autowrap mode off PC-scancode mode CSI < 0 A ASCII mode CSI < 1 A Display 24 data lines + 1 message line CSI < 0 I** Display 25 data lines CSI < 1 I Enable main screen (24 lines) CSI < 0 E Enable message line (25 Disable colouring feature CSI < 0 G Enable colouring feature CSI < 1 G

Th.

line) CSI < 1 E

*

The last character in this sequence is a lowercase L

**

The last character in this sequence and in the next sequence is an uppercase i

AX3000 - Programmer's Guide 9

Terminal Commands

Set colours and enable colouring mode (4 pairs) CSI < 2;Cn1;...;Cn8 G Set a VGA palette colour CSI < 3;Cn;Pn G Enable private enhanced AXEL ANSI sequence mode CSI < 0 B Disable private enhanced AXEL ANSI sequence mode CSI < 1 B Save current setting and set UNIX SCO 3.2.2 personality CSI < 0 H Restore saved setting CSI < 1 H Active la vue Pn CSI Pn z Enable monitor mode Esc U Disable monitor mode Esc X Miscallenous actions CSI = Pn L Pn=0: a cleared area (CSI Pn J, CSI Pn K or scroll) is filled with the current video attribute Pn=1: a cleared area (CSI Pn J, CSI Pn K or scroll) is filled with the normal video attribute Pn=2: the CSI Pn g sequence is equal to CSI = Pn g (see Editing section) Pn=3: the CSI Pn g sequence is behavior is defined in the Editing section Change page (only if '4 views, 2 pages' is selected through the set-up) CSI < Ps1;Ps2 L Ps1 = 0: regular page changing Ps2 = 0: enable next page Ps1 = 1: copy current page to wanted page before swap Ps2 = 1: enable page number 1 Ps1 = 2: clear wanted page before swap Ps2 = 2: enable page number 2 Turn keyboard LEDs on or off CSI < Pn1;Pn2;Pn3 O Pn1 is the state of NUM LED, Pn2 is the state of CAPS LED and Pn3 is the state of SCROLL LED. The Pn parameter values should be: Pn = 0: the state of the LED (on or off) is not modified Pn = 1: turn the LED on Pn = 2: turn the LED off Mouse feature (if set through the set-up) CSI < Pn M* Pn = 0: disable mouse Pn = 1: local mode Pn = 2: raw mode Axel bitmap graphics functions CSI < Ps;...Ps K** Font downloading (if set through the set-up) CSI < Ps;...Ps N <font> Double-size characters (if set through the set-up) CSI < Pn Q term mess term Pn = 1: double height Pn = 2: double width Pn = 3: double height / double width term: message terminator message: character string displayed in double size

*

For more information, refer the concerned literature

**

For more information, refer the concerned literature

10 AX3000 - Programmer's Guide

Terminal Commands

Controlling Character Attributes

Definition CSI Ps;...Ps m Ps = 0: all attributes off Ps = 1: bold Ps = 4: underline (only monochrome VGA monitor) Ps = 5: blinking Ps = 7: reverse video Ps = 8: blank Ps = 10: selects the primary font Ps = 11: selects the first alternate font; lets ASCII characters less than 32 be displayed as ROM characters Ps = 12: selects a second alternate font; toggles high bit of extended ASCII code before displaying as ROM characters Ps = 22: bold off Ps = 24: blinking off Ps = 25: underline off Ps = 27: reverse video off Ps = 3x: set foreground colour to colour x (x from 0 to 7) 0: black 1: red 2: green 3: brown* 4: blue 5: magenta 6: cyan 7: white Ps = 38: enable underline option Ps = 39: disable underline option Ps = 4x: set background colour to colour x (x from 0 to 7) 0: black 1: red 2: green 3: brown 4: blue 5: magenta 6: cyan 7: white

Editing

Set tab stop at cursor position Esc H Move cursor to next tab stop 09h Move cursor backward Pn tab stops CSI Pn Z Clear tab stop at cursor position CSI 0g Clear all tab stops CSI 3g Display ASCII character Pn CSI =Pn g Insert Pn null characters beginning at cursor position CSI Pn @ Insert Pn lines of null characters beginning at cursor line CSI Pn L Display Pn times, the last displayed character CSI Pn b

*

Yellow for ANSI RS6000 emulation

AX3000 - Programmer's Guide 11

Terminal Commands

Erase display: from cursor to end of screen CSI 0 J from beginning of screen to cursor CSI 1 J entire screen CSI 2 J Erase line: from cursor to end of line CSI 0 K from start of line to cursor CSI 1 K entire line CSI 2 K Delete Pn characters beginning at cursor position CSI Pn P Delete Pn lines beginning at cursor line CSI Pn M Erase Pn character beginning at cursor column CSI Pn X

Printing Control Sequences

Select the default printer port: CSI < Po F TCP/IP models: Po = 1: AUX1 Po = 2: AUX2 Po = 3: parallel Serial models: Po = 1: AUX1 Po = 2: parallel Using default port (serial or parallel): CSI Pn i Pn = 0: Print screen Pn = 5: Enable local printing mode Pn = 4: Disable local printing mode Enable Po auxiliary port for sending only (disable: CSI 4i) CSI < 5; Po C Enable receive mode of Po auxiliary port (AUX1 or AUX2) CSI < 5; Po D Disable receive mode of Po auxiliary port (AUX1 or AUX2) CSI < 4; Po D TCP/IP models: Po = 0: default port Po = 1: AUX1 Po = 2: AUX2 Po = 3: parallel Serial models: Po = 0: default port Po = 1: AUX1 Po = 2: parallel

Programming Function Keys

ANSI mode

Example: ESC Q 0 amenu^-a, <F1> sends menu <RC> AXEL mode

Example: CSI < 1 P amenu^-a, <F1> sends menu <RC>

: Esc Q Code Terminator Message Terminator

- Code: function key (<F1> = 0 (30h) ... <F61> = l (6Ch))

- Terminator: one character (>20h)

- Message: key definition (any character except Terminator). Character '^' (5Eh) indicates 20h must be subtracted from the next character.

: CSI < Code P Terminator Message Terminator

- Code: function key (refer to appendix A.3 or see the AX3000 set-up)

- Terminator: one character (>20h)

- Message: key definition (any character except Terminator). Character '^' (5Eh) indicates 20h must be subtracted from the next character.

12 AX3000 - Programmer's Guide

Terminal Commands

Additional Screen Attributes Sequences (except ANSI DOS)

Set overscan colour to colour Cn (64 colours are available) CSI = Cn A VGA mode 'blink' (8 background colours) CSI = D VGA mode 'bold' (16 background colours) CSI = E Set normal foreground colour to Cn CSI = Cn F* Set normal background colour to Cn CSI = Cn G Set normal foreground colour to Cn1 and background colour to Cn2 CSI 2;Cn1;Cn2 m Set reverse foreground colour to Cn CSI = Cn H Set reverse background colour to Cn CSI = Cn I Set reverse foreground colour to Cn1 and background colour to Cn2 CSI 7;Cn1;Cn2 m Set graphic foreground colour to Cn CSI = Cn J Set graphic background colour to Cn CSI = Cn K For XENIX personality only: VGA mode 'bold' (16 background colours) CSI 3;0 m For XENIX personality only: VGA mode 'blink' (8 background colours) CSI 3;1 m Set cursor size (P1 upper microline, P2 lower microline) CSI = P1;P2 C Save current colour setting CSI = Y Restore saved colour setting CSI = Z

Reports

AX3000 IP address CSI < a (or CSI < 0 a) Response: IP address <CR> Firmware revision CSI < 1 a Response: version <CR> Answerback message (set through the AX3000 Set-Up) CSI < 4 a Response: message Current session number CSI < 5 a Response: number <CR> Printer Status CSI < 6 a Response: OK <CR> or ERR <CR>

TCP/IP Status Line (set the associated label)

Syntax is: CSI < c Terminator Message Terminator

- Terminator: one character (>20h)

- Message: session label.

Example: CSI <czview 1z

*

In this sequence and in the next 7 sequences, Cn value is in range 0 to 15

AX3000 - Programmer's Guide 13

Terminal Commands

Private Enhanced AXEL ANSI Sequence Mode

The following sequences, derived from native personalities, may be used to speed up the display on a Platine terminal. These sequences are shorter than their equivalent ANSI sequences.

Description Sequence Equivalent ANSI Seq. Cursor up 05h CSI B Cursor right 06h CSI C Cursor left 08h CSI D Cursor down 0Bh CSI A Clear screen 0Eh CSI H CSI 2J Cursor to line 1 column 1 1Eh CSI H Insert a null character Esc @ CSI @ Erase display from cursor to end of screen Esc J CSI J Erase line from cursor to end of line Esc K CSI K Insert a line of null characters Esc L CSI L Delete current line Esc M CSI M Delete 1 character Esc P CSI P Start local printing mode Esc ' CSI 5i Stop local printing mode Esc ²² CSI 4i All attributes off Esc a CSI 0m Reverse video Esc b CSI 7m Blinking Esc c CSI 5m Underline Esc d CSI 4m Cursor to line L and column C Esc f L C CSI L+33;C+33 H Bold Esc h CSI 1m Default attribute Esc p CSI 7m Enable cursor Esc v CSI <1@ Disable cursor Esc w CSI <0@ Black foreground Esc r 0 CSI 22;30m Red foreground Esc r 1 CSI 22;31m Green foreground Esc r 2 CSI 22;32m Brown foreground Esc r 3 CSI 22;33m Blue foreground Esc r 4 CSI 22;34m Magenta foreground Esc r 5 CSI 22;35m Cyan foreground Esc r 6 CSI 22;36m White foreground Esc r 7 CSI 22;37m Grey foreground Esc r 8 CSI 1;30m Light red foreground Esc r 9 CSI 1;31m

14 AX3000 - Programmer's Guide

Terminal Commands

Description Sequence Equivalent ANSI Seq. Light green foreground Esc r A CSI 1;32m Yellow foreground Esc r B CSI 1;33m Light blue foreground Esc r C CSI 1;34m Light magenta foreground Esc r D CSI 1;35m Light cyan foreground Esc r E CSI 1;36m Bright white foreground Esc r F CSI 1;37m Black background Esc s 0 CSI 40m Red background Esc s 1 CSI 41m Green background Esc s 2 CSI 42m Brown background Esc s 3 CSI 43m Blue background Esc s 4 CSI 44m Magenta background Esc s 5 CSI 45m Cyan background Esc s 6 CSI 46m White background Esc s 7 CSI 47m Cursor to line L and column C Esc ü L C CSI L+33;C+33 Reverse video Esc é CSI 7m Reverse video off Esc â CSI 27m Blinking Esc ä CSI 5m Bold off Esc à CSI 22m Blinking off Esc å CSI 25m Bold Esc ç CSI 1m Set foreground colour to x and background colour to y Esc ê x y CSI 3x;4ym x and y available values: 0: black 1: red 2: green 3: brown 4: blue 5: magenta 6: cyan 7: white Delete current line Esc ë CSI M Insert a line of null characters Esc è CSI L Enable message line (25 Enable main screen (24 lines) Esc î CSI <0E Delete a character Esc ì CSI P Insert a null character Esc Ä CSI @ Erase line from cursor to end of line Esc Å CSI K Erase display from cursor to end of screen Esc É CSI J

Th.

line) Esc ï CSI <1E

AX3000 - Programmer's Guide 15

Terminal Commands

2.2 - VT FAMILY

Note: this family is composed by the VT220, HFT and VT AS400 emulations.

Controlling the Cursor

Cursor right Pn columns CSI Pn C Cursor left 08h Cursor left Pn columns CSI Pn D Cursor up Esc M Cursor up Pn lines CSI Pn A Cursor down Esc D (or 0Ah) Cursor down Pn lines CSI Pn B Cursor down Pn lines and to column 1 Esc E Carriage return (and line feed according to the AX3000 set-up) 0Dh Cursor to line Pn1 (1..25) column Pn2 (1..132) CSI Pn1;Pn2 H (or CSI Pn1;Pn2 f)

Editing

Set tab stop at cursor position Esc H Move cursor to next tab stop 09h Clear tab stop at cursor position CSI 0g Clear all tab stops CSI 3g Insert Pn null characters beginning at cursor position CSI Pn @ Insert Pn lines of null characters beginning at cursor line CSI Pn L Delete Pn characters beginning at cursor position CSI Pn P Delete Pn lines beginning at cursor line CSI Pn M Erase display: from cursor to end of screen CSI 0 J from beginning of screen to cursor CSI 1 J entire screen CSI 2 J Erase line: from cursor to end of line CSI 0 K from start of line to cursor CSI 1 K entire line CSI 2 K Erase Pn characters beginning at cursor column CSI Pn X

16 AX3000 - Programmer's Guide

Terminal Commands

Character Sets

Assign Ps character set as G0 Esc ( Ps Assign Ps character set as G1 Esc ) Ps Assign Ps character set as G2 Esc ∗ Ps Assign Ps character set as G3 Esc + Ps Ps = B (ASCII) Ps = R (French) Ps = < (DEC multinational) Ps = K (German) Ps = Y (Italian) Ps = 0 (DEC special graphics) Ps = Z (Spanish) Ps = = (Swiss) Ps = %6 (Portuguese) Map G0 to GL 0Fh Map G1 to GL 0Eh Map G2 to GL Esc n Map G3 to GL Esc o Map G1 to GR Esc ~ Map G2 to GR Esc } Map G3 to GR Esc | Temporarily map the G2 character set to GL, for the next character Esc N Temporarily map the G3 character set to GL, for the next character Esc O

Controlling Character Attributes

Definition CSI Ps;...Ps m Ps = 0: normal Ps = 1: dim Ps = 4: underline (only monochrome VGA monitors) Ps = 5: blinking Ps = 7: reverse video Ps = 8: blank Ps = 22: normal Ps = 24: blinking off Ps = 25: underline off Ps = 27: reverse video off Ps = 3x: set foreground colour to colour x (x from 0 to 7) 0: black 1: red 2: green 3: brown 4: blue 5: magenta 6: cyan 7: white Ps = 4x: set background colour to colour x (x from 0 to 7) 0: black 1: red 2: green 3: brown 4: blue 5: magenta 6: cyan 7: white

AX3000 - Programmer's Guide 17

Terminal Commands

Controlling the Terminal

Sound bell 07h Terminal mode on CSI Ps;...Ps h Ps = 2: lock keyboard Ps = 4: insert character mode Ps = 20: new line mode (LF=CR+LF) Ps = 54: ASCII mode Ps = ?1: cursor keys mode: application Ps = ?3: set 132-column display Ps = ?4: smooth scroll Ps = ?5: Light background (paper white) Ps = ?6: origin is scrolling region Ps = ?7: autowrap mode on Ps = ?8: autorepeat mode on Ps = ?12: turn the CAPS LED on Ps = ?18: print Form Feed (0Ch) mode on Ps = ?19: printer extent mode: screen Ps = ?25: enable cursor Ps = ?42: national mode Terminal mode off CSI Ps;...Ps l* Ps = 2: unlock keyboard Ps = 4: replace character mode Ps = 20: line feed mode Ps = 54: PC-scancode mode Ps = ?1: cursor keys mode: cursor Ps = ?2: entering VT52 Mode Ps = ?3: set 80-columns display Ps = ?4: jump scroll Ps = ?5: normal background Ps = ?6: origin is screen Ps = ?7: autowrap mode off Ps = ?8: autorepeat mode off Ps = ?12: turn the CAPS LED off Ps = ?18: print Form Feed (0Ch) mode off Ps = ?19: printer extent mode: region Ps = ?25: disable cursor Ps = ?42: multinational mode

*

The last character in this sequence is a lowercase L

18 AX3000 - Programmer's Guide

Terminal Commands

Define scrolling region (beginning line number, ending line number) CSI Pn1;Pn2 r Display 24 data lines + 1 message line CSI < 0 I* Display 25 data lines CSI < 1 I Enable main screen (24 lines) CSI < 0 E Enable message line (25 Keypad application mode Esc = Keypad numeric mode Esc > Double-width, double-height line (top half) Esc # 3 Double-width, double-height line (bottom half) Esc # 4 Single-width, single-height line Esc # 5 Double-width, single-height line Esc # 6 Enable view number Pn CSI Pn z Enable view number 1 CSI U Enable view number 2 CSI V Save current cursor position Esc 7 Restore cursor to saved position Esc 8 PC-scancode mode CSI < 0 A ASCII mode CSI < 1 A Disable colouring feature CSI < 0 G Enable colouring feature CSI < 1 G Set colours and enable colouring mode (4 pairs) CSI < 2;Cn1;...;Cn8 G Set a VGA palette colour CSI < 3;Cn;Pn G Change page (only if '4 views, 2 pages' is selected through the set-up) CSI < Ps1;Ps2 L Ps1 = 0: regular page changing Ps2 = 0: enable next page Ps1 = 1: copy current page to wanted page before swap Ps2 = 1: enable page number 1 Ps1 = 2: clear wanted page before swap Ps2 = 2: enable page number 2 Turn keyboard LEDs on or off CSI < Pn1;Pn2;Pn3 O Pn1 is the state of NUM LED, Pn2 is the state of CAPS LED and Pn3 is the state of SCROLL LED. The Pn parameter values should be: Pn = 0: the state of the LED is not modified Pn = 1: turn the LED on Pn = 1: turn the LED on Mouse feature (if set through the set-up) CSI < Pn M** Pn = 0: disable mouse Pn = 1: local mode Pn = 2: raw mode Axel bitmap graphics functions CSI < Ps;...Ps K

Th.

line) CSI < 1 E

***

*

The last character in this sequence and in the next sequence is an uppercase i

**

For more information, refer the concerned literature

***

For more information, refer the concerned literature

AX3000 - Programmer's Guide 19

Terminal Commands

20 AX3000 - Programmer's Guide

Terminal Commands

Printing Control Sequences

Select the default printer port: CSI < Po F TCP/IP models: Po = 1: AUX1 Po = 2: AUX2 Po = 3: parallel Serial models: Po = 1: AUX1 Po = 2: parallel Using default port (serial or parallel): CSI Pn i Pn = 0: print screen Pn = 5: Enable local printing mode Pn = 4: Disable local printing mode Enable Po auxiliary port for sending only (disable: CSI 4i) CSI < 5; Po C Enable receive mode of Po auxiliary port (only AUX1) CSI < 5; Po D Disable receive mode of Po auxiliary port (only AUX1) CSI < 4; Po D TCP/IP models: Po = 0: default port Po = 1: AUX1 Po = 2: AUX2 Po = 3: parallel Serial models: Po = 0: default port Po = 1: AUX1 Po = 2: parallel Print cursor line when 0Ah is received CSI ? 1 i Auto print mode on CSI ? 5 i Auto print mode off CSI ? 4 i

Protected Characters

Next written characters are protected CSI 1 " q Next written characters are unprotected CSI 2 " q (or CSI 0 " q) Erase only unprotected characters in display: from cursor to end of screen CSI ? 0 J from beginning of screen to cursor CSI ? 1 J entire screen CSI ? 2 J Erase only unprotected characters in line: from cursor to end of line CSI ? 0 K from start of line to cursor CSI ? 1 K entire line CSI ? 2 K

AX3000 - Programmer's Guide 21

Terminal Commands

Programming Function Keys

VT220 mode

Example: LOG <RC> is coded by 4C4F470D AXEL mode

- Code: function key (refer to appendix A.3 or see the AX3000 set-up)

- Terminator: one character (>20h)

- Message: key definition (any character except Terminator). Character '^' (5Eh) indicates 20h

Example: CSI < 1 P amenu^-a, <F1> sends menu <RC>

Resetting the Terminal

Hard terminal reset Esc c Soft terminal reset CSI 0 ! p Select an operating level CSI Ps1;Ps2 " p Ps1 = 61: level 1 (VT100) Ps2 = 0: 8-bit controls (level 2 only) Ps1 = 62: level 2 (VT220) Ps2 = 1: 7-bit controls Ps2 = 2: 8-bit controls (level 2 only)

: Esc P Ps1 ; Ps2 | Keyn / Stn { ; Keyn / Stn } Esc \ Ps1=0: clear all keys before loading new values (default value) Ps1=1: clear one key at a time, before loading a new value Ps2=0: lock the keys (default value) Ps2=1: do not lock the keys Keyn: the key selector number indicates which key you are defining

17: <Shift><F6> 23: <Shift><F11> 29: <Alt><Shift><F8> 18: <Shift><F7> 24: <Shift><F12> 31: <Alt><Shift><F9> 19: <Shift><F8> 25: <Alt><Shift><F5> 32: <Alt><Shift><F10> 20: <Shift><F9> 26: <Alt><Shift><F6> 33: <Alt><Shift><F11> 21: <Shift><F10> 28: <Alt><Shift><F7> 34: <Alt><Shift><F12>

Stn: the string parameter is the key definition, encoded as pairs of hexadecimal codes.

: CSI < Code P Terminator Message Terminator

must be subtracted from the next character.

22 AX3000 - Programmer's Guide

Terminal Commands

Reports

AX3000 IP address CSI < a (or CSI < 0 a) Response: IP address <CR> Firmware revision CSI < 1 a Response: version <CR> Answerback message (set through the AX3000 Set-Up) CSI < 4 a Response: message Current session number CSI < 5 a Response: number <CR> Printer Status CSI < 6 a Response: OK <CR> or ERR <CR> Primary Device Attributes request CSI c (or Esc Z) Response: CSI ? 62 ; 1 ; 2 ; 6 ; 7 ; 8 ; 9 c Secondary Device Attributes request CSI > c Response: CSI > 1 ; 10 ; 0 c AX3000 operating status CSI 5 n Response: CSI 0 n (ready) Cursor position report CSI 6 n Response: CSI Pn1; Pn2 R (Pn1 = line number, Pn2 = column number) Printer status CSI ? 15 n Response: CSI ? 10 n (printer ready) CSI ? 11 n (printer not ready) UDK (Programming function keys) report CSI ? 25 n Response: CSI ? 20 n (UDKs unlocked) CSI ? 21 n (UDKs locked) Keyboard language CSI ? 26 n Response: CSI ? 27;Ps n Ps values: 1: North American 7: German 9: Italian 10: Swiss 14: French 15: Spanish 16: Portuguese

TCP/IP Status Line (set the associated label)

Syntax is: CSI < c Terminator Message Terminator

- Terminator: one character (>20h)

- Message: session label.

Example: CSI <czview 1z

AX3000 - Programmer's Guide 23

Terminal Commands

2.3 - WYSE 60 EMULATION

Cursor Commands

Cursor left 08h Cursor right 0Ch Cursor up; no scroll 0Bh Cursor up; scroll Esc j Cursor down; scroll 0Ah Cursor to start of next line 1Fh cursor to start of line 0Dh Home cursor Esc { or 1Eh Address cursor in current 80-column page Esc = line col Address cursor in current 80/132-column page Esc a lll R ccc C Address cursor in a specific 80-column page Esc w @ page line col Address cursor in a specific 80-column page or window Esc - page line col

Editing

Set tab stop Esc 1 Clear tab stop Esc 2 Clear all tab stops Esc 0 or Esc 3 Tabulate cursor Esc i or 09h Backtab Esc I* Insert space character Esc Q Insert line of spaces Esc E Insert column of nulls Esc c M Delete cursor character Esc W Delete cursor line Esc R Delete cursor column Esc c J Clear page to nulls Esc * Clear page to spaces Esc +

Character sets

Load set in bank Esc c @ bank set bank is a buffer (0 to 3) Values of set: '@': native mode 'A': PC multinational 'B': standard ASCII 'C': graphics 1 'D': PC standard 'E': graphics 2 'F': graphics 3

*

The last character in this sequence is an uppercase i

24 AX3000 - Programmer's Guide

Terminal Commands

Define primary character set (code is a bank or a set) Esc c B code Define secondary character set (code is a bank or a set) Esc c C code Select primary character set Esc c D Select secondary character set Esc c E

Video Attributes

Assign character display attribute Esc G attr attr values:

0 : normal p : dim 1 : invisible q : invisible + dim 2 : blink r : blink + dim 3 : invisible + blink s : invisible + dim 4 : reverse t : reverse + dim 5 : reverse + invisible u : invisible + reverse + dim 6 : reverse + blink v : reverse + blink + dim 7 : reverse + blink + invisible w : reverse + blink + invisible + dim 8 : underscore x : underscore + dim 9 : underscore + invisible y : underscore + invisible + dim : : underscore + blink z : underscore + blink + dim ; : underscore + blink + invisible { : underscore + blink + invisible + dim < : underscore + reverse | : underscore + reverse + dim = : underscore + reverse + invisible } :underscore + reverse + invisible + dim > : underscore + reverse + blink ~ : underscore + reverse + blink + dim ? : underscore + reverse + invis. + blink 7Fh : underscore + reverse + invisible +

blink + dim Character attribute mode off Esc e 0 Character attribute mode on Esc e 1 Page attribute mode on Esc e 2 Line attribute mode on Esc e 3 Assign display attribute to message field Esc A 1 attr Assign display attribute to screen Esc A 0 attr single-high, single-wide characters Esc G @ single-high, double-wide characters Esc G A Top half of double-high, single-wide characters Esc G B Bottom half of double-high, single-wide characters Esc G C Top half of double-high, double-wide characters Esc G D Bottom half of double-high, double-wide characters Esc G E

AX3000 - Programmer's Guide 25

Terminal Commands

Controlling the terminal

Sound bell 07h Lock keyboard 0Fh or Esc # Unlock keyboard 0Eh or Esc " Monitor mode on Esc U Monitor mode off Esc u or Esc X ACK mode on Esc e 7 ACK mode off Esc e 6 Set MAIN port operating parameters (serial model only) Esc c 0 bds stp parity word  after this command, an ACK is sent by the terminal (06h) if ACK mode is on

bds values: 0=38400, 1=19200, 2=9600, 3=4800, 4=2400, 7=1200 and 9=300 stp values: 0=1 bit parity values: 0=none, 1=odd and 3=even word values: 0=7 bits and 1= 8 bits

Set AUX1 port operating parameters (serial model only) Esc c 1 bds stp parity word  after this command, an ACK is sent by the terminal (06h) if ACK mode is on

bds values: 0=19200, 1=9600, 3=4800, 5=2400, 8=1200 and :=300 stp values: 0=1 bit parity values: 0=none, 1=odd and 3=even word values: 0=7 bits and 1= 8 bits

Set MAIN port handshaking (serial model only) Esc c 2 hdsk  after this command, an ACK is sent by the terminal (06h) if ACK mode is on

hdsk values: 0=none, 1= xon/xoff and 2=DTR

Set AUX1 port handshaking (serial model only) Esc c 5 hdsk  after this command, an ACK is sent by the terminal (06h) if ACK mode is on

hdsk values: 0=none, 1= xon/xoff and 2=DTR

Local edit mode on (duplex off) Esc k Duplex edit mode on (local off) Esc l* Key repeat off Esc e, Key repeat on Esc eautoscrolling mode off Esc N autoscrolling mode on Esc O End-of-line wrap mode off Esc d. End-of-line wrap mode on Esc d/ Receive CR mode off Esc e 4 Receive CR mode on Esc e 5 Insert mode on (replace mode off) Esc q

*

The last character in this sequence is a lowercase L

26 AX3000 - Programmer's Guide

Terminal Commands

Replace mode on (insert mode off) Esc r Page edit mode off Esc e " Page edit mode on Esc e # CAPS LOCK on Esc e & CAPS LOCK off Esc e ' ASCII mode Esc e H PC-scancode mode Esc e I* Turn screen display off Esc ` 8 Turn screen display on Esc ` 9 Screen saver on Esc e Q Screen saver off Esc e P Set scrolling type Esc ` scroll scroll = '@': jump scroll scroll = '<', '=', '>' or '?': smooth scroll Cursor off Esc ` 0 Cursor on Esc ` 1 Set cursor type Esc ` curs curs = '2' or '5': blinking block curs = '3' or '4': blinking line Line lock mode on Esc ` H Line lock mode off Esc ` I** Select 80-column display Esc ` : Select 132-column display Esc ` ; Display 24 data lines Esc e ( Display 25 data lines Esc e ) Display previous page Esc w B Display next page Esc w C Display specific page (num=0 or num=1) Esc w num Display specific session (num 0 to 8). Serial model only Esc [ num z Graphics mode on Esc H 02h Graphics mode off Esc H 03h Display graphics character char Esc H char Box rectangle in 80-column page Esc c G line col Clear entire rectangle in 80-column page Esc c H line col char

*

The last character in this sequence is an uppercase i

**

The last character in this sequence is an uppercase i

AX3000 - Programmer's Guide 27

Terminal Commands

Message Line

Program and display unshifted label line Esc z ( txt 0Dh Program shifted label line Esc z ) txt 0Dh Shifted label line off Esc z 7Fh Clear unshifted label line message Esc z ( 0Dh Clear shifted label line message Esc z ) 0Dh Clear function key label Esc z field 0Dh Program and display function key label Esc z field label 0Dh

field values: <F1> to <F12>: 30h to 3Bh <Shift><F1> to <Shift><F12>: 50h to 5Bh

Protected Data

Protect mode on Esc & Protect mode off Esc ' Write-protect mode off Esc ( Write-protect mode on Esc ) Clear page to write-protected spaces Esc , Clear cursor column from cursor Esc V Clear unprotected ...: page to spaces Esc ; or 1Ah page to nulls Esc : page to specific character Esc . char line to spaces from cursor Esc T line to nulls from cursor Esc t page to spaces from cursor Esc Y page to nulls from cursor Esc y to end of line with nulls Esc c L column to specific character Esc c I char* Clear unprotected rectangle in 80-column page Esc c F high length char

*

The character after 'c' in this sequence is an uppercase i

28 AX3000 - Programmer's Guide

Terminal Commands

Sending Data

Print formatted page Esc P  after this command, an ACK is sent by the terminal (06h) if ACK mode is on Print formatted unprotected page Esc @  after this command, an ACK is sent by the terminal (06h) if ACK mode is on Print unformatted page Esc p or Esc L  after this command, an ACK is sent by the terminal (06h) if ACK mode is on Transparent print mode on Esc d # or 18h Auxiliary print mode on 12h Turn print modes off (transparent mode and auxiliary print mode) 14h Secondary receive mode off Esc d 20h Secondary receive mode on Esc d ! Bidirectional mode off Esc d $ Bidirectional mode on Esc d %

Programmable keys

WYSE Mode:

Key: key number Function keys: <F1> to <F12>: 40h to 4Bh <Shift><F1> to <Shift><F12>: 60h to 6Bh Arrows keypad: up: 2Bh down: 2Ch left: 2Dh right: 2Eh Editing keypad: Insert: 70h Home: 2Ah PageUp: 77h Delete: 23h End: 5Ch PageDn: 72h Other keys: Esc: 20h Backspace: 22h Sequence: up to 32 bytes to be loaded in the key.

dir: <0> = normal <1> = remote <2> = local key et sequence: see above

Program:

1) Syntax: Esc z key sequence 7Fh

2) Syntax: Esc Z dir key sequence 7Fh

Clear: Esc z key 7Fh or Esc Z dir key 7Fh

AX3000 - Programmer's Guide 29

Terminal Commands

AXEL Mode:

Syntax is: CSI < Code P Terminator Message Terminator

- Code: function key (refer to appendix A.3 or see the AX3000 set-up)

- Terminator: one character (>20h)

- Message: key definition (any character except Terminator). Character '^' (5Eh) indicates 20h must be subtracted from the next character.

Example: CSI < 1 P amenu^-a, <F1> sends menu <RC>

Terminal Report

AX3000 IP address CSI < a (or CSI < 0 a) Response: IP address <CR> Firmware revision CSI < 1 a Response: version <CR> Answerback message (set through the AX3000 Set-Up) CSI < 4 a Response: message Current session number CSI < 5 a Response: number <CR> Printer Status CSI < 6 a Response: OK <CR> or ERR <CR> Terminal identification Esc 20h Terminal returns: 6 0 <RC> Read Programmable key value Esc Z ~ key Terminal returns: dir key sequence 7Fh Read cursor address in current 80-column page Esc ? Terminal returns: line col <RC> Read 80-column page number and cursor address Esc w ` Terminal returns: num line col <RC> Read 80-column page (or window) number and cursor address Esc / Terminal returns: num line col <RC> Read cursor address in current 80/132-column page Esc b Terminal returns: line R col C Send ACK 05h Terminal returns (if ACK mode is on): 06h

30 AX3000 - Programmer's Guide

Terminal Commands

2.4 - PCTERM FAMILY

This family is composed by the PCTERM, PCTERM THEOS and OS2 POLYMOD2 emulation.

Note: in following terminal commands, italic and underscored parameter values are from 00h to FFh. Other parameter values are greater than 20h.

Controlling Cursor

Cursor left 08h Cursor right 0Ch Cursor up (no scroll) 0Bh Cursor up ; scroll Esc j Cursor down (no scroll) 16h Cursor down ; scroll 0Ah Cursor to line 1 and column 1 1Eh Cursor to start of line 0Dh Cursor to start of next line 1Fh Cursor to line Pn1 (0..24) and column Pn2 (0..79) Esc = Pn1

Editing

Move cursor to next tab stop 09h Move cursor to previous tab stop Esc I* Set tab stop at cursor position Esc 1 Clear tab stop at cursor position Esc 2 Clear all tab stops Esc 3 Insert a space character at cursor position Esc Q Insert a line of space characters at cursor line Esc E Delete cursor character Esc W Delete cursor line Esc R Clear screen to nulls Esc * Clear screen to spaces Esc + Clear screen to write-protected spaces Esc , Clear screen to character car

Esc F car

+20h Pn2+20h

*

The last character in this sequence is an uppercase i

AX3000 - Programmer's Guide 31

Terminal Commands

Controlling the Terminal

Sound a bell 07h Lock keyboard Esc # Unlock keyboard Esc " Set cursor style Esc . Pn1 Pn1 = 0 (invisible) Pn1 = 1 (visible) Pn1= 2 (block) Pn1 = 3 (underline) Pn1 = 4 (underline) Pn1= 5 (block) Autowrap mode on Esc ~ Autowrap mode off Esc 0 Insert mode on (replace mode off) Esc Z Replace mode on (insert mode off) Esc r Monitor mode on Esc U Monitor mode off Esc u (or Esc X) Restore normal screen Esc d Reverse screen Esc b Turn screen display off Esc O (or Esc 20h 8) Turn screen display on Esc N (or Esc 20h 9) ASCII mode Esc c (or Esc 20h q or Esc 20h r) PC-Scancode mode Esc H (or Esc 20h p) Set hardware handshake (DTR) 0Eh Set software handshake (XON/XOFF or XPC) 0Fh Set 80-column display Esc m Set 132-column display Esc n Display 25 data lines (clear screen) Esc ^ Display 25 data lines (no clear screen) Esc e (or Esc h) Display 24 data lines + 1 status line (no clear screen) Esc g Display computer message in status line Esc f str 0Dh 'new line' mode on (CR=CR+LF) Esc 8 'new line' mode off Esc 9 Full duplex mode on Esc } Autoscrolling mode on Esc 20h v (or Esc 20h @) Autoscrolling mode off Esc w Set-up MAIN port (serial model only) Esc 20h t p1 p2 p3 p1 = 0 (8-bit control) p2 = 0 (no parity) p3 = 0 (1 stop bit) p1 = 1 (7-bit control) p2 = 1 (even parity) p3 = 1 (2 stop bit) p2 = 2 (odd parity) NUM LED on Esc 20h J NUM LED off Esc 20h K

32 AX3000 - Programmer's Guide

Terminal Commands

MAJ LED on Esc 20h L MAJ LED off Esc 20h M DEFIL LED on Esc 20h N DEFIL LED off Esc 20h O

Printing Control Sequences

Print screen Esc P Transparent print mode on Esc ` Transparent print mode off Esc a Non-transparent print mode on Esc @ (12h) Non-transparent print mode off Esc A (14h) Print next character 10h

Controlling Character Attributes (except OS/2 POLYMOD2)

Definition Esc G attr attr values 0 : Normal p or @ : Normal + Dim 1 : Invisible q or A : Invisible + Dim 2 : Blink r or B : Blink + Dim 3 : Invisible s or C : Invisible + Dim 4 : Reverse t or D : Reverse + Dim 5 : Invisible + Reverse u or E : Invisible + Reverse + Dim 6 : Reverse + Blink v or F : Reverse + Blink + Dim 7 : Invisible + Reverse w or G : Invisible + Reverse + Dim 8 : Underline x or H : Underline + Dim 9 : Invisible y or I : Invisible + Dim : : Underline + Blink z or J : Underline + Blink + Dim ; : Invisible { or K : Invisible + Dim < : Underline | or L : Underline + Dim = : Invisible + Reverse } or M : Invisible + Reverse + Dim > : Underline + Blink ~ or N : Underline + Blink + Dim ? : Invisible + Reverse 7Fh or o : Invisible + Reverse + Dim

Colour Character Attributes (only for THEOS)

Definition Esc / c1 c2 c3 c4 c1: foreground normal colour c3: foreground reverse colour c2: background normal colour c4: background reverse colour c1, c2, c3 et c4 values: 0: black 1: blue 2: green 3: cyan 4: red 5: magenta 6: yellow 7: white

AX3000 - Programmer's Guide 33

Terminal Commands

Character Attributes (only for OS/2 POLYMOD2)

Definition Esc G attr The format of attr

Write-Protected Characters (only THEOS)

A write-protected character is written with the dim attribute (cf. character attributes) Protect mode on Esc & Protect mode off Esc ' Characters are written only in the protected regions Esc ( Characters are written everywhere Esc ) Clear unprotected: screen to spaces Esc ; or 1Ah screen to nulls Esc : line to spaces from cursor Esc T line to nulls from cursor Esc t screen to spaces from cursor Esc Y screen to nulls from cursor Esc y

Programming Function Keys

Syntax is: Esc z Keyn message Keyn : key selector @ : <F1> ` : <Shift><F1> A : <F2> a : <Shift><F2>

... ... ... ...

K : <F12> k : <Shift><F12> message

is the format of the standard VGA character attribute

7Fh

: definition string (length max. 32, any character except 7Fh).

34 AX3000 - Programmer's Guide

Terminal Commands

2.5 - SM94XX FAMILY

This family is composed by the SM9400 and SM9412 emulations.

These emulations are dedicated to a legacy operating system especially used in France. So, the description of terminal commands are only given in the French manual.

2.6 - PROLOGUE FAMILY

This family is composed by the PROLOGUE 2/3, PROLOGUE 4/5 and TWIN SERVER emulations.

These emulations are dedicated to a legacy operating system especially used in France. So, the description of terminal commands are only given in the French manual.

AX3000 - Programmer's Guide 35

Terminal Commands

2.7 - QVT119+ EMULATION

Cursor Commands

Cursor left 08h Cursor right 0Ch Cursor up; no scroll 0Bh Cursor up; scroll Esc J Cursor down; scroll 0Ah Cursor to start of next line 1Fh cursor to start of line 0Dh Home cursor 1Eh Address cursor in current 80-column page Esc = line col Address cursor in current 80-column or 132-column page Esc = line n col Address cursor in a specific 80-column page Esc - page line col Address cursor line (current line not modified) Esc : line or Esc [ line Address cursor column (current column not modified) Esc ] line Address cursor in current 80/132-column page Esc ^ lll R ccc C

Editing

Set tab stop Esc 1 Clear tab stop Esc 2 Clear all tab stops Esc 3 Tabulate cursor 09h Backtab Esc I* Insert space character Esc Q Insert line of spaces Esc E Delete cursor character Esc W Delete cursor line Esc R Clear page to nulls Esc *0 Clear page to spaces Esc *1 or Esc + Clear screen 1Ah

*

The last character in this sequence is an uppercase i

36 AX3000 - Programmer's Guide

Terminal Commands

Video Attributes

Assign character display attribute Esc G attr attr values for full-intensity:

0 : normal 8 : underscore

1 : invisible 9 : underscore + invisible

2 : blink : : underscore + blink

3 : invisible + blink ; : underscore + blink + invisible

4 : reverse < : underscore + reverse

5 : reverse + invisible = : underscore + reverse + invisible

6 : reverse + blink > : underscore + reverse + blink

7 : reverse + blink + invisible ? : underscore + reverse + invisible + blink attr values for half-intensity:

20h : normal ( : underscore

! : invisible ) : underscore + invisible

" : blink * : underscore + blink

# : invisible + blink + : underscore + blink + invisible

$ : reverse , : underscore + reverse

% : reverse + invisible - : underscore + reverse + invisible

& : reverse + blink . : underscore + reverse + blink

' : reverse + blink + invisible / : underscore + reverse + invisible + blink

Message Line

Program and display label line Esc f txt 0Dh Display label line Esc g Clear label line Esc h Set message line video attribute (attr: se above) Esc a 1 attr

Protected Data

Protect mode on Esc & Protect mode off Esc ' Write-protect mode off Esc ( Write-protect mode on Esc ) Clear unprotected ...: line to spaces from cursor Esc T line to nulls from cursor Esc t page to spaces from cursor Esc Y page to nulls from cursor Esc y page to spaces Esc *3 page to nulls Esc *2

AX3000 - Programmer's Guide 37

Terminal Commands

Controlling the terminal

Sound bell 07h Lock keyboard Esc # Unlock keyboard Esc " Monitor mode on Esc U Monitor mode off Esc u or Esc X Graphics mode on Esc $ Graphics mode off Esc % Insert mode on (replace mode off) Esc q Replace mode on (insert mode off) Esc r Cursor on/off Esc . 0 Set cursor type Esc ` curs curs = '1' or '2': blinking block curs = '3' or '4': blinking line Normal screen on Esc n 0 or Esc a 0 0 Reverse screen on Esc n 1 or Esc a 0 4 Turn screen display off Esc n 2 Turn screen display on Esc n 3 Select 80-column display Esc n 4 Select 132-column display Esc n 5 End-of-line wrap mode on Esc n A End-of-line wrap mode off Esc n @ Set 'jump scrolling' mode Esc n 8 or Esc j Set 'smooth scrolling' mode Esc n x (x is 9 : ; < = > ?) or Esc s autoscrolling mode on/off Esc H Display next page Esc w + Display previous page Esc w Display specific page Esc w num P

Sending Data

Transparent print mode on 12h or Esc ` Transparent print mode off 14h COPY mode on Esc @ COPY mode off Esc A Print page Esc P Print page to cursor Esc N

38 AX3000 - Programmer's Guide

Terminal Commands

Programmable keys

Program: Esc z route key del sequence del

route: non-significant

Key: key number

Function keys:

<F1> to <F12>: 40h to 4Bh

<Shift><F1> to <Shift><F12>: 60h to 6Bh

Arrows keypad:

up: 20h down: 21h left: 22h right: 23h

del: one character (>20h)

Sequence: key definition (any character except Del) Set default value for a key : Esc K route key del del route, key and del: see above Set default value for all keys: Esc K Z

Terminal Report

Answerback message (set through the AX3000 Set-Up) 05h Response: message ACK (if answerback message is not defined) 05h Response: 06h Read cursor address in current 80-column page Esc ? Terminal returns: line col <RC> Read 80-column page number and cursor address Esc / or Esc ~ Terminal returns: num line col <RC>

AX3000 - Programmer's Guide 39

Terminal Commands

2.8 - TVI EMULATION

Cursor Commands

Cursor left 08h Cursor right 0Ch Cursor up; no scroll 0Bh Cursor up; scroll Esc j Cursor down; scroll 0Ah Cursor down; no scroll 16h Cursor to start of next line 1Fh cursor to start of line 0Dh Home cursor 1Eh Address cursor in current 80-column page Esc = line col Address cursor in a specific 80-column page or window Esc - page line col

Editing

Set tab stop Esc 1 Clear tab stop Esc 2 Clear all tab stops Esc 3 Tabulate cursor Esc i or 09h Backtab Esc I* Insert line of spaces Esc E Delete cursor line Esc R Clear page to nulls Esc * Clear page to spaces Esc +

Controlling the terminal

Sound bell 07h Lock keyboard Esc # Unlock keyboard Esc " Monitor mode on Esc U Monitor mode off Esc u or Esc X Graphics mode on Esc $ Graphics mode off Esc % Character mode on (block mode off) Esc C Full-duplex mode on Esc DF Half-duplex mode on Esc DH

*

The last character in this sequence is an uppercase i

40 AX3000 - Programmer's Guide

Terminal Commands

Display previous page Esc K Display next page Esc J Turn normal screen on Esc d Turn reverse screen on Esc b Insert mode on (replace mode off) Esc q Replace mode on (insert mode off) Esc r Local edit mode on (duplex off) Esc k Duplex edit mode on (local off) Esc l* Turn screen display off Esc o Turn screen display on Esc n Set scrolling type Esc ` scroll Cursor off Esc . 0 Set cursor type Esc . curs curs = '1' or '2': blinking block curs = '3' or '4': blinking line Key repeat off Esc eKey repeat on Esc e, Receive CR mode off Esc e 4 Receive CR mode on Esc e 5

Video Attributes

Assign character display attribute Esc G attr attr values for full-intensity:

0 : normal 8 : underscore

1 : invisible 9 : underscore + invisible

2 : blink : : underscore + blink

3 : invisible + blink ; : underscore + blink + invisible

4 : reverse < : underscore + reverse

5 : reverse + invisible = : underscore + reverse + invisible

6 : reverse + blink > : underscore + reverse + blink

7 : reverse + blink + invisible ? : underscore + reverse + invisible + blink

Note: the video attribute is encoded by a character on the screen

Message Line

Program label line Esc f txt 0Dh Display label line Esc g Clear label line Esc h

*

The last character in this sequence is a lowercase L

AX3000 - Programmer's Guide 41

Terminal Commands

Protected Data

Protect mode on Esc & Protect mode off Esc ' Write-protect mode off Esc ( Write-protect mode on Esc ) Clear cursor column from cursor Esc V Clear unprotected ...: page to spaces Esc ; or 1Ah or Esc , page to nulls Esc : line to spaces from cursor Esc T line to nulls from cursor Esc t page to spaces from cursor Esc Y page to nulls from cursor Esc y

Sending Data

Print formatted page Esc P Print unformatted page L Transparent print mode on Esc ' Transparent print mode off Esc a Secondary receive mode off 12h Secondary receive mode on 14h COPY mode on Esc @ COPY mode off Esc A

Programmable keys

Program (from WYSE emulation) Esc z key sequence 7Fh

Terminal Report

Answerback message (set through the AX3000 Set-Up) Esc M Response: message (or 60 <CR> if message is null) Read cursor address in current 80-column page Esc ? Terminal returns: line col <RC> Read 80-column page (or window) number and cursor address Esc / Terminal returns: num line col <RC> Send ACK 05h Terminal returns: 06h

42 AX3000 - Programmer's Guide

Terminal Commands

2.9 - 3151 EMULATION

Cursor Commands

Cursor right Esc C Cursor left Esc D Cursor up (no scroll) Esc A Cursor up (scroll) Esc ! M Cursor down (no scroll) Esc B Cursor down (scroll) Esc 20 M Cursor to start of next line Esc M Cursor to next line (same column) 0Ah Cursor to start of line 0Dh Home cursor Esc H Set cursor address: line Pn1 (20h…38h), column Pn2 (20h…6Fh) Esc Y Pn1 Pn2 Set cursor address: line Pn1 (1..25), column Pn2 (1..80) Esc [ Pn1 ; Pn2 H Set buffer address line Pn1 (20h...38h), column Pn2 (20h..6Fh) Esc X Pn1 Pn2 Reset buffer address mode Esc 20h Z Insert cursor Esc Z

Editing

Set tab stop Esc 0 Tabulate cursor 09h Backtab Esc 2 Clear tab stop Esc 1 Clear all tab stops Esc 20h 1 Clear screen and home cursor Esc L or Esc K or Esc ! L Clear screen from cursor Esc J Clear line from cursor Esc I Insert a line Esc N Delete cursor line Esc O Insert character Pn Esc P Pn Delete cursor character Esc Q

AX3000 - Programmer's Guide 43

Terminal Commands

Reset to initial state Esc 20h S Sound bell 07h Lock keyboard Esc : Unlock keyboard Esc ; Assign Pn character set as G0 Esc < Pn Assign Pn character set as G1 Esc > Pn Set a 24x80 screen Esc 20h r!! 20h 8"P Set a 25x80 screen Esc 20h r!! 20h 9"P Set a 24x132 screen Esc 20h r!! 20h 8$D Set a 25x132 screen Esc 20h r!! 20h 9$D Enable 'Impr' key (hardcopy sequence is sent when the key is pressed) Esc ) : Disable 'Impr' key (the hardcopy is locally performed) Esc ) ;

Programmable Keys

Set all default programmable keys Esc 20h t

Printing Control Sequences

Enable local printing mode 10h 14h Disable local printing mode 10h 12h Print the screen (hardcopy) Esc W or Esc 20h W Select the default printer port: CSI < Po F TCP/IP models: Po = 1: AUX1 Po = 2: AUX2 Po = 3: parallel Serial models: Po = 1: AUX1 Po = 2: parallel

Video Attributes

Assign character display attribute (additive sequence) Esc 4 attr a attr values:

( : bold ! : reverse ) : bold + reverse " : underscore * : bold + underscore # : underscore + reverse + : bold + underscore + reverse $ : blink , : bold + blink % : reverse + blink - : bold + reverse + blink & : underscore + blink . : bold + underscore + blink ' : reverse + underscore + blink / : bold + reverse + underscore + blink 0 : invisible

Assign character display attribute (non-additive sequence) Esc 4 attr attr values:

44 AX3000 - Programmer's Guide

Terminal Commands

@ : normal (no attribute) H : bold

A : reverse I : bold + reverse

B : underscore J : bold + underscore

C : underscore + reverse K : bold + underscore + reverse

D : blink L : bold + blink

E : reverse + blink M : bold + reverse + blink

F : underscore + blink N : bold + underscore + blink

G : reverse + underscore + blink O : bold + reverse + underscore + blink

P : invisible Reset character display attribute Esc 4 attr b attr values:

0 : bold + reverse + underscore + blink 8 : reverse + underscore + blink

1 : bold + underscore + blink 9 : underscore + blink

2 : bold + reverse + blink : : reverse + blink

3 : bold + blink ; : blink

4 : bold + underscore + reverse < : underscore + reverse

5 : bold + underscore = : underscore

6 : bold + reverse > : reverse

7 : bold 20h : invisible

AX3000 - Programmer's Guide 45

Terminal Commands

Terminal Report (Axel)

AX3000 IP address CSI < a (or CSI < 0 a) Response: IP address <CR> Firmware revision CSI < 1 a Response: version <CR> Answerback message (set through the AX3000 Set-Up) CSI < 4 a Response: message Current session number CSI < 5 a Response: number <CR> Printer Status CSI < 6 a Response: OK <CR> or ERR <CR>

Terminal Report

Cursor position report Esc 5 Response: Esc Y line col <CR> Terminal status Esc 6 Response: Esc 6 20h D <CR> Hardware configuration Esc 20h 6 Response: Esc 20h 6 T <CR> Hardware configuration (enhanced) Esc " 6 Response: Esc " 6 ) ( ! & D <CR> Answerback message (set through the AX3000 Set-Up) Esc ! 6 Response: Esc ! 6 message Esc 6 <CR>

46 AX3000 - Programmer's Guide

Character Sets

- 3 -

CHARACTER SETS

AX3000 - Programmer's Guide 47

Character Sets

This chapter deals with available AX3000 character sets.

The Platine terminal supports many character sets. These character sets are sorted by families:

- ANSI, PCTERM, SM94xx, PROLOGUE, QVT, TVI and 3151 families

- VT family

- WYSE family

Convention: in following character sets, for each character, the decimal, hexadecimal and octal values are given:

character

A

41 65

101

hexadecimal value decimal value octal value

3.1 - ANSI, PCTERM, SM94XX, PROLOGUE, QVT, TVI, 3151

The following table specifies available character sets for each family:

PC 437 PC 850 PC 858 PC 860 ISO 8859-1 ISO 8859-SG ISO 8859-15 ISO 7-bit SM9400 Special graphics

(*) only available with EURO option

(*)

48 AX3000 - Programmer's Guide

ANSI PCTERM SM94xx PROLOGUE QVT TVI 3151

         

(*)



      

     



Character Sets

PC-437 :

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0 1 2 3 4 5 6 7 8 9 A B C D E F

☺

♥ ♦ ♣ ♠

;

0

16

32

48

64

0

0 1

1 1

2 2 2

3 3 3

4 4 4

5 5 5

6 6 6

7 7



7 8

8

10

9



9

11

A 10 12

B 11 13

C 12 14

D 13 15

E 14 16

F 15 17

   

¥

V

W

SP

20

40

11

21

17

33

!

21

41

12

22

18

34

"

¦

22

42

13

23

19

!! ¶

§

▄

35

#

23

43

14

24

20

36

$

24

44

15

25

21

37

%

25

45

16

26

22

38

&

26

46

17

27

23

39

'

27

47

18

28

24

40

(

30

50

19

29

25

41

)

31

51

1A

2A

26

42

∗

32

52

1B

2B

27

43

+

33

53

1C

2C

28

44

,

34

54

1D

2D

29

45

-

35

55

1E

2E

30

46

.

36

56

1F

2F

31

47

/

37

57

@

60

100

31 49

1

A

61

101

32 50

2

B

62

102

33 51

3

C

63

103

34 52

4

D

64

104

35 53

5

E

65

105

36 54

6

F

66

106

37 55

7

G

67

107

38 56

8

H

70

110

39 57

9

I

71

111

3A 58

:

J

72

112

3B 59

;

K

73

113

3C 60

<

L

74

114

3D 61

=

M

75

115

3E 62

>

N

76

116

3F 63

?

O

77

117

80

P

`

120

41 65

Q

42 66

R

43 67

S

44 68

T

45 69

U

46 70

V

47 71

W

48 72

X

49 73

Y

4A 74

Z

4B 75

[

4C 76

\

4D 77

]

4E 78

^

4F 79

_

140

51 81

a

121

141

52 82

b

122

142

53 83

c

123

143

54 84

100

d

124

144

55 85

101

e

125

145

56 86

102

f

126

146

57 87

103

g

127

147

58 88

104

h

130

150

59 89

105

i

131

151

5A 90

106

j

132

152

5B 91

107

k

133

153

5C

92

108

l

134

154

5D

93

109

m

135

155

5E 94

110

n

136

156

5F 95

111

o

137

157

70

96

112

p

160

61

71

97

113

q

161

62

72

98

114

r

162

63

73

99

115

s

163

64

74

116

t

164

65

75

117

u

165

66

76

118

v

166

67

77

119

w

167

68

78

120

x

170

69

79

121

y

171

6A

7A

122

z

172

6B

7B

123

{

173

6C

7C

124

¦

174

6D

7D

125

}

175

6E

7E

126

~

176

6F

7F

127 177

8 9 A B C D E F

80

90

A0

B0

C0

D0

E0

0 1 2 3 4 5 6 7 8 9 A B C D E F

128

144

160

176

192

208

É

Ç

200

81

129

ü

201

82

130

é

202

83

131

â

203

84

132

ä

204

85

133

à

205

86

134

å

206

87

135

ç

207

88

136

ê

210

89

137

ë

211

8A

138

è

212

8B

139

ï

213

8C

140

î

214

8D

141

ì

215

8E

142

Ä

216

8F

143

Å

217

á

220

240

91

145

æ

221

146

Æ

222

147

ô

223

148

ö

224

149

ò

225

150

û

226

151

ù

227

152

ÿ

230

153

Ö

231

154

Ü

232

155

¢

233

156

£

234

157

¥

235

158

Pt

236

159

ƒ

237

A1

161

í

241

92

A2

162

ó

242

93

A3

163

ú

243

94

A4

164

ñ

244

95

A5

165

Ñ

245

96

A6 166 246

97

A7 167 2A7

98

A8 168

¿

250

99

A9 169

⌐

251

9A

AA

170

¬

252

9B

AB

171

½

253

9C

AC

172

¼

254

9D

AD

173

¡

255

9E

AE

174

«

256

9F

2F 175

»

257

└

260

B1 177 261

B2 178 262

B3 179

│

263

B4 180

┤

264

B5 181

╡

265

B6 182

╢

266

B7 183

╖

267

B8 184

╕

270

B9 185

╣

271

BA

186

║

272

BB

187

╗

273

BC

188

╝

274

BD

189

╜

275

BE

190

╛

276

BF

191

┐

277

╨

300

C1

193

┴

╤

301

C2

194

┬

╥

302

C3

195

├

╙

303

C4

196

─

╘

304

C5

197

┼

╒

305

C6

198

╞

╓

306

C7

199

╟

╫

307

C8

200

╚

╪

310

C9

201

╔

┘

311

CA

202

╩

┌

312

CB

203

╦

█

313

CC

204

╠

▄

314

CD

205

═

▌

315

CE

206

╬

▐

316

CF

207

╧

▀

317

224

α

320

340

D1

209

225

ß

321

341

D2

210

226

Γ

322

342

D3

211

227

π

323

343

D4

212

228

Σ

324

344

D5

213

229

σ

325

345

D6

214

230

µ

326

346

D7

215

231

τ

327

347

D8

216

232

Φ

330

350

D9

217

233

Θ

331

351

DA

218

234

Ω

332

352

DB

219

235

δ

333

353

DC

220

236

∞

334

354

DD

221

237

φ

335

355

DE

222

238

ε

336

356

DF

223

239

∩

337

357

F0

240

≡

360

E1

F1

241

±

361

E2

F2

242

≥

362

E3

F3

243

≤

363

E4

E5

E6

E7

E8

E9

EA

EB

EC

ED

EE

EF

F4

244

⌠

364

F5

245

⌡

365

F6

246

÷

366

F7

247

≈

367

F8

248

°

370

F9

249

·

371

FA

250

·

372

FB

251

√

373

FC

252

ⁿ

374

FD

253

²

375

FE

254

■

376

FF

255 377

AX3000 - Programmer's Guide 49

Character Sets

PC-850 :

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0 1 2 3 4 5 6 7 8 9 A

B C D

E

F

☺

♥ ♦ ♣ ♠





;

0

16

32

48

64

0

0 1

1 1

2 2 2

3 3 3

4 4 4

5 5 5

6 6 6

7 7 7

8 8

10

9 9

11

A 10 12

B 11 13

C 12 14

D 13 15

E 14 16

F 15 17

   

¥

!! ¶

§

▄

V

W

SP

20

40

11

21

17

33

!

21

41

12

22

18

34

"

¦

22

42

13

23

19

35

#

23

43

14

24

20

36

$

24

44

15

25

21

37

%

25

45

16

26

22

38

&

26

46

17

27

23

39

'

27

47

18

28

24

40

(

30

50

19

29

25

41

)

31

51

1A

2A

26

42

∗

32

52

1B

2B

27

43

+

33

53

1C

2C

28

44

,

34

54

1D

2D

29

45

-

35

55

1E

2E

30

46

.

36

56

1F

2F

31

47

/

37

57

@

60

100

31 49

1

A

61

101

32 50

2

B

62

102

33 51

3

C

63

103

34 52

4

D

64

104

35 53

5

E

65

105

36 54

6

F

66

106

37 55

7

G

67

107

38 56

8

H

70

110

39 57

9

I

71

111

3A 58

:

J

72

112

3B 59

;

K

73

113

3C

60

<

L

74

114

3D

61

=

M

75

115

3E 62

>

N

76

116

3F 63

?

O

77

117

80

P

`

120

41 65

Q

42 66

R

43 67

S

44 68

T

45 69

U

46 70

V

47 71

W

48 72

X

49 73

Y

4A 74

Z

4B 75

[

4C

76

\

4D

77

]

4E 78

^

4F 79

_

140

51 81

a

121

141

52 82

b

122

142

53 83

c

123

143

54 84

100

d

124

144

55 85

101

e

125

145

56 86

102

f

126

146

57 87

103

g

127

147

58 88

104

h

130

150

59 89

105

i

131

151

5A 90

106

j

132

152

5B 91

107

k

133

153

5C

92

108

l

134

154

5D

93

109

m

135

155

5E 94

110

n

136

156

5F 95

111

o

137

157

70

96

112

p

160

61

71

97

113

q

161

62

72

98

114

r

162

63

73

99

115

s

163

64

74

116

t

164

65

75

117

u

165

66

76

118

v

166

67

77

119

w

167

68

78

120

x

170

69

79

121

y

171

6A

7A

122

z

172

6B

7B

123

{

173

6C

7C

124

¦

174

6D

7D

125

}

175

6E

7E

126

~

176

6F

7F

127 177

8 9 A B C D E F

80

90

A0

B0

C0

D0

E0

0 1 2 3 4 5 6 7 8 9 A

B C D

E

F

Ç ü é â ä à å ç ê ë è ï î ì Ä Å

128

144

160

176

192

208

É

200

81 129 201

82 130 202

83 131 203

84 132 204

85 133 205

86 134 206

87 135 207

88 136 210

89 137 211

8A 138 212

8B 139 213

8C 140 214

8D 141 215

8E 142 216

8F 143 217

á

220

240

91

145

æ

221

146

Æ

222

147

ô

223

148

ö

224

149

ò

225

150

û

226

151

ù

227

152

ÿ

230

153

Ö

231

154

Ü

232

155

ø

233

156

£

234

157

Ø

235

158

x

236

159

ƒ

237

A1

161

í

241

92

A2

162

ó

242

93

A3

163

ú

243

94

A4

164

ñ

244

95

A5

165

Ñ

245

96

A6 166 246

97

A7 167 2A7

98

A8 168

¿

250

99

A9 169

®

251

9A

AA

170

¬

252

9B

AB

171

½

253

9C

AC

172

¼

254

9D

AD

173

¡

255

9E

AE

174

«

256

9F

AF

175

»

257

└ ┴ ┬ ├ ─ ┼

Ã

╚ ╔ ╩ ╦ ╠ ═ ╬

¤

ð

300

C1

193

Ð

301

C2

194

Ê

302

C3

195

Ë

303

C4

196

È

304

C5 197 305

C6 198

ã

Í

306

C7 199

Î

307

C8 200

Ï

310

C9 201

┘

311

CA 202

┌

312

CB 203

█

313

CC 204

▄

314

CD 205

¦

315

CE 206

Ì

316

CF 207

▀

317

260

B1 177 261

B2 178 262

B3 179

│

263

B4 180

┤

264

B5 181

Á

265

B6 182

Â

266

B7 183

À

267

B8 184

©

270

B9 185

╣

271

BA

186

║

272

BB

187

╗

273

BC

188

╝

274

BD

189

¢

275

BE

190

¥

276

BF

191

┐

277

224

Ó

320

340

D1

209

225

ß

321

341

D2

210

226

Ô

322

342

D3

211

227

Ò

323

343

D4

212

228

õ

324

344

D5

213

229

Õ

325

345

D6

214

230

µ

326

346

D7

215

231

þ

327

347

D8

216

232

Þ

330

350

D9

217

233

Ú

331

351

DA

218

234

Û

332

352

DB

219

235

Ù

333

353

DC

220

236

ý

334

354

DD

221

237

Ý

335

355

DE

222

238

¯

336

356

DF

223

239

´

337

357

F0

240

–

360

E1

F1

241

±

361

E2

F2

242

=

362

E3

F3

243

¾

363

E4

E5

E6

E7

E8

E9

EA

EB

EC

ED

EE

EF

F4

244

¶

364

F5

245

§

365

F6

246

÷

366

F7

247

¸

367

F8

248

°

370

F9

249

¨

371

FA

250

·

372

FB

251

¹

373

FC

252

²

374

FD

253

³

375

FE

254

■

376

FF

255 377

50 AX3000 - Programmer's Guide

Character Sets

PC-858 :

(Available only with Euro option)

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0 1 2 3 4 5 6 7 8 9 A B C D E F

☺

♥ ♦ ♣ ♠

;

0

16

32

48

64

0

0 1

1 1

2 2 2

3 3 3

4 4 4

5 5 5

6 6 6

7 7



7 8

8

10

9



9

11

A 10 12

B 11 13

C 12 14

D 13 15

E 14 16

F 15 17

!! ¶

§

▄

   

¥

V

W

SP

20

40

11

21

17

33

!

21

41

12

22

18

34

"

¦

22

42

13

23

19

35

#

23

43

14

24

20

36

$

24

44

15

25

21

37

%

25

45

16

26

22

38

&

26

46

17

27

23

39

'

27

47

18

28

24

40

(

30

50

19

29

25

41

)

31

51

1A

2A

26

42

∗

32

52

1B

2B

27

43

+

33

53

1C

2C

28

44

,

34

54

1D

2D

29

45

-

35

55

1E

2E

30

46

.

36

56

1F

2F

31

47

/

37

57

@

60

100

31 49

1

A

61

101

32 50

2

B

62

102

33 51

3

C

63

103

34 52

4

D

64

104

35 53

5

E

65

105

36 54

6

F

66

106

37 55

7

G

67

107

38 56

8

H

70

110

39 57

9

I

71

111

3A

58

:

J

72

112

3B

59

;

K

73

113

3C

60

<

L

74

114

3D

61

=

M

75

115

3E

62

>

N

76

116

3F 63

?

O

77

117

80

P

41 65

Q

42 66

R

43 67

S

44 68

45 69

U

46 70

V

47 71

W

48 72

X

49 73

Y

4A

74

4B

75

4C

76

4D

77

4E

78

4F 79

`

120

140

51 81

a

121

141

52 82

b

122

142

53 83

c

123

143

54 84

T

Z

[ \ ]

^

_

100

d

124

144

55 85

101

e

125

145

56 86

102

f

126

146

57 87

103

g

127

147

58 88

104

h

130

150

59 89

105

i

131

151

5A 90

106

j

132

152

5B 91

107

k

133

153

5C

92

108

l

134

154

5D

93

109

m

135

155

5E 94

110

n

136

156

5F 95

111

o

137

157

70

96

112

p

160

61

71

97

113

q

161

62

72

98

114

r

162

63

73

99

115

s

163

64

74

116

t

164

65

75

117

u

165

66

76

118

v

166

67

77

119

w

167

68

78

120

x

170

69

79

121

y

171

6A

7A

122

z

172

6B

7B

123

{

173

6C

7C

124

¦

174

6D

7D

125

}

175

6E

7E

126

~

176

6F

7F

127 177

8 9 A B C D E F

80

90

A0

B0

C0

D0

E0

0 1 2 3 4 5 6 7 8 9 A B C D E F

128

144

160

176

192

É

Ç

200

81

129

ü

201

82

130

é

202

83

131

â

203

84

132

ä

204

85

133

à

205

86

134

å

206

87

135

ç

207

88

136

ê

210

89

137

ë

211

8A

138

è

212

8B

139

ï

213

8C

140

î

214

8D

141

ì

215

8E

142

Ä

216

8F

143

Å

217

á

220

240

91

145

æ

221

146

Æ

222

147

ô

223

148

ö

224

149

ò

225

150

û

226

151

ù

227

152

ÿ

230

153

Ö

231

154

Ü

232

155

ø

233

156

£

234

157

Ø

235

158

x

236

159

ƒ

237

A1

161

í

241

92

A2

162

ó

242

93

A3

163

ú

243

94

A4

164

ñ

244

95

A5

165

Ñ

245

96

A6 166 246

97

A7 167

2A7

98

A8 168

¿

250

99

A9 169

®

251

9A

AA 170

¬

252

9B

AB 171

½

253

9C

AC 172

¼

254

9D

AD 173

¡

255

9E

AE 174

«

256

9F

AF 175

»

257

└

260

B1

177

┴

261

B2

178

┬

262

B3

179

│

├

263

B4

180

┤

─

264

B5

181

┼

Á

265

B6

182

Â

ã

266

B7

183

À

Ã

267

B8

184

╚

©

270

B9

185

╣

╔

271

BA

186

║

╩

272

BB

187

╗

╦

273

BC

188

╝

╠

274

BD

189

¢

═

275

BE

190

¥

╬

276

BF

191

┐

¤

277

208

ð

300

C1 193 301

C2 194 302

C3 195 303

C4 196 304

C5 197 305

C6 198 306

C7 199 307

C8 200 310

C9 201 311

CA 202 312

CB 203 313

CC 204 314

CD 205 315

CE 206 316

CF 207 317

Ó

320

D1

209

ß

Ð

321

D2

210

Ê

Ô

322

D3

211

Ë

Ò

323

D4

212

È

õ

324

D5

213

Õ

325

D6

214

µ

Í

326

D7

215

þ

Î

327

D8

216

Þ

Ï

330

D9

217

┘

Ú

331

DA

218

┌

Û

332

DB

219

█

Ù

333

DC

220

▄

ý

334

DD

221

¦

Ý

335

DE

222

¯

Ì

336

DF

223

▀

´

337

224 340

225 341

226 342

227 343

228 344

229 345

230 346

231 347

232 350

233 351

234 352

235 353

236 354

237 355

238 356

239 357

F0

240

–

360

E1

F1

241

±

361

E2

F2

242

=

362

E3

F3

243

¾

363

E4

E5

E6

E7

E8

E9

EA

EB

EC

ED

EE

EF

F4

244

¶

364

F5

245

§

365

F6

246

÷

366

F7

247

¸

367

F8

248

°

370

F9

249

¨

371

FA

250

·

372

FB

251

¹

373

FC

252

²

374

FD

253

³

375

FE

254

■

376

FF

255 377

AX3000 - Programmer's Guide 51

Character Sets

PC-860 :

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0 1 2 3 4 5 6 7 8 9 A

B C D

E

F

☺

♥ ♦ ♣ ♠





;

0

16

32

48

64

0

0 1

1 1

2 2 2

3 3 3

4 4 4

5 5 5

6 6 6

7 7 7

8 8

10

9 9

11

A 10 12

B 11 13

C 12 14

D 13 15

E 14 16

F 15 17

   

¥

¦

!! ¶

§

▄

V

W

SP

20

40

11

21

17

33

!

21

41

12

22

18

34

"

22

42

13

23

19

35

#

23

43

14

24

20

36

$

24

44

15

25

21

37

%

25

45

16

26

22

38

&

26

46

17

27

23

39

'

27

47

18

28

24

40

(

30

50

19

29

25

41

)

31

51

1A

2A

26

42

∗

32

52

1B

2B

27

43

+

33

53

1C

2C

28

44

,

34

54

1D

2D

29

45

-

35

55

1E

2E

30

46

.

36

56

1F

2F

31

47

/

37

57

@

60

100

31 49

1

A

61

101

32 50

2

B

62

102

33 51

3

C

63

103

34 52

4

D

64

104

35 53

5

E

65

105

36 54

6

F

66

106

37 55

7

G

67

107

38 56

8

H

70

110

39 57

9

< = > ?

I

71

111

3A 58

:

J

72

112

3B 59

;

K

73

113

3C

60

L

74

114

3D

61

M

75

115

3E 62

N

76

116

3F 63

O

77

117

80

P

`

120

41 65

Q

42 66

R

43 67

S

44 68

T

45 69

U

46 70

V

47 71

W

48 72

X

49 73

Y

4A 74

Z

4B 75

[

4C

76

\

4D

77

]

4E 78

^

4F 79

_

140

51 81

a

121

141

52 82

b

122

142

53 83

c

123

143

54 84

100

d

124

144

55 85

101

e

125

145

56 86

102

f

126

146

57 87

103

g

127

147

58 88

104

h

130

150

59 89

105

i

131

151

5A 90

106

j

132

152

5B 91

107

k

133

153

5C

92

108

l

134

154

5D

93

109

m

135

155

5E 94

110

n

136

156

5F 95

111

o

137

157

70

96

112

p

160

61

71

97

113

q

161

62

72

98

114

r

162

63

73

99

115

s

163

64

74

116

t

164

65

75

117

u

165

66

76

118

v

166

67

77

119

w

167

68

78

120

x

170

69

79

121

y

171

6A

7A

122

z

172

6B

7B

123

{

173

6C

7C

124

¦

174

6D

7D

125

}

175

6E

7E

126

~

176

6F

7F

127 177

8 9 A B C D E F

80

90

A0

B0

C0

D0

E0

0 1 2 3 4 5 6 7 8 9 A

B C D

E

F

Ç ü é â

ã

à

Á

ç ê

Ê

è

Ô

ì

Ã Â

128

144

160

176

192

208

É

200

81 129 201

82 130 202

83 131 203

84 132 204

85 133 205

86 134 206

87 135 207

88 136 210

89 137 211

8A 138 212

8B 139

Í

213

8C 140 214

8D 141 215

8E 142

Pt

216

8F 143 217

á

220

240

91

145

À

221

146

È

222

147

ô

223

148

õ

224

149

ò

225

150

Ú

226

151

ù

227

152

Ì

230

153

Õ

231

154

Ü

232

155

¢

233

156

£

234

157

Ù

235

158 236

159

Ó

237

A1

161

í

241

92

A2

162

ó

242

93

A3

163

ú

243

94

A4

164

ñ

244

95

A5

165

Ñ

245

96

A6 166 246

97

A7 167 2A7

98

A8 168

¿

250

99

A9 169

Ò

251

9A

AA

170

¬

252

9B

AB

171

½

253

9C

AC

172

¼

254

9D

AD

173

¡

255

9E

AE

174

«

256

9F

AF

175

»

257

└

260

B1 177 261

B2 178 262

B3 179

│

263

B4 180

┤

264

B5 181

╡

265

B6 182

╢

266

B7 183

╖

267

B8 184

╕

270

B9 185

╣

271

BA

186

║

272

BB

187

╗

273

BC

188

╝

274

BD

189

╜

275

BE

190

╛

276

BF

191

┐

277

╨

300

C1

193

┴

╤

301

C2

194

┬

╥

302

C3

195

├

╙

303

C4

196

─

╘

304

C5

197

┼

╒

305

C6

198

╞

╓

306

C7

199

╟

╫

307

C8

200

╚

╪

310

C9

201

╔

┘

311

CA

202

╩

┌

312

CB

203

╦

█

313

CC

204

╠

▄

314

CD

205

═

▌

315

CE

206

╬

▐

316

CF

207

╧

▀

317

224

α

320

340

D1

209

225

ß

321

341

D2

210

226

Γ

322

342

D3

211

227

π

323

343

D4

212

228

Σ

324

344

D5

213

229

σ

325

345

D6

214

230

µ

326

346

D7

215

231

τ

327

347

D8

216

232

Φ

330

350

D9

217

233

Θ

331

351

DA

218

234

Ω

332

352

DB

219

235

δ

333

353

DC

220

236

∞

334

354

DD

221

237

φ

335

355

DE

222

238

ε

336

356

DF

223

239

∩

337

357

F0

240

≡

360

E1

F1

241

±

361

E2

F2

242

≥

362

E3

F3

243

≤

363

E4

E5

E6

E7

E8

E9

EA

EB

EC

ED

EE

EF

F4

244

⌠

364

F5

245

⌡

365

F6

246

÷

366

F7

247

≈

367

F8

248

°

370

F9

249

·

371

FA

250

·

372

FB

251

√

373

FC

252

ⁿ

374

FD

253

²

375

FE

254

■

376

FF

255 377

52 AX3000 - Programmer's Guide

Character Sets

ISO 8859-1:

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0 1 2 3 4 5 6 7 8 9 A B C D E F

☺

♥ ♦ ♣ ♠

;

0

16

32

48

64

0

0 1

1 1

2 2 2

3 3 3

4 4 4

5 5 5

6 6 6

7 7



7 8

8

10

9



9

11

A 10 12

B 11 13

C 12 14

D 13 15

E 14 16

F 15 17

!! ¶

§

▄

   

¥

V

W

SP

20

40

11

21

17

33

!

21

41

12

22

18

34

"

¦

22

42

13

23

19

35

#

23

43

14

24

20

36

$

24

44

15

25

21

37

%

25

45

16

26

22

38

&

26

46

17

27

23

39

'

27

47

18

28

24

40

(

30

50

19

29

25

41

)

31

51

1A

2A

26

42

∗

32

52

1B

2B

27

43

+

33

53

1C

2C

28

44

,

34

54

1D

2D

29

45

-

35

55

1E

2E

30

46

.

36

56

1F

2F

31

47

/

37

57

@

60

100

31 49

1

A

61

101

32 50

2

B

62

102

33 51

3

C

63

103

34 52

4

D

64

104

35 53

5

E

65

105

36 54

6

F

66

106

37 55

7

G

67

107

38 56

8

H

70

110

39 57

9

I

71

111

3A

58

:

J

72

112

3B

59

;

K

73

113

3C

60

<

L

74

114

3D

61

=

M

75

115

3E

62

>

N

76

116

3F 63

?

O

77

117

80

P

41 65

Q

42 66

R

43 67

S

44 68

45 69

U

46 70

V

47 71

W

48 72

X

49 73

Y

4A

74

4B

75

4C

76

4D

77

4E

78

4F 79

`

120

140

51 81

a

121

141

52 82

b

122

142

53 83

c

123

143

54 84

T

Z

[ \ ]

^

_

100

d

124

144

55 85

101

e

125

145

56 86

102

f

126

146

57 87

103

g

127

147

58 88

104

h

130

150

59 89

105

i

131

151

5A 90

106

j

132

152

5B 91

107

k

133

153

5C

92

108

l

134

154

5D

93

109

m

135

155

5E 94

110

n

136

156

5F 95

111

o

137

157

70

96

112

p

160

61

71

97

113

q

161

62

72

98

114

r

162

63

73

99

115

s

163

64

74

116

t

164

65

75

117

u

165

66

76

118

v

166

67

77

119

w

167

68

78

120

x

170

69

79

121

y

171

6A

7A

122

z

172

6B

7B

123

{

173

6C

7C

124

¦

174

6D

7D

125

}

175

6E

7E

126

~

176

6F

7F

127 177

8 9 A B C D E F

80

90

A0

B0

C0

D0

E0

0 1

x

2 3 4 5 6 7 ° 8

±

9 A

┘

B

┐

C

┌

D

└

E

┼

F

128

144

160

176

192

208

°

200

81

129 201

82

130 202

83

131 203

84

132 204

85

133

├

205

86

134

┤

206

87

135

┴

207

88

136

┬

210

89

137

│

211

8A

138

≤

212

8B

139

≥

213

8C

140

∏

214

8D

141

≠

215

8E

142

£

216

8F

143

·

217

220

240

91 145 221

146 222

147 223

148 224

149 225

150 226

151 227

152 230

153 231

154 232

155 233

156 234

157 235

158 236

159 237

A1

161

¡

241

92

A2

162

¢

242

93

A3

163

£

243

94

A4

164

¤

244

95

A5

165

¥

245

96

A6

166

¦

246

97

A7

167

§

2A7

98

A8

168

¨

250

99

A9

169

©

251

9A

AA 170 252

9B

AB 171

«

253

9C

AC 172

¬

254

9D

AD 173

─

255

9E

AE 174

®

256

9F

AF 175

─

257

±

µ

·

» ¼ ½

¾

¿

À

260

300

B1

C1

177

193

Á

261

301

B2

C2

178

² ³

¶

¸ ¹

194

Â

262

302

B3

C3

179

195

Ã

263

303

B4

C4

180

196

Ä

264

304

B5

C5

181

197

Å

265

305

B6

C6

182

198

Æ

266

306

B7

C7

183

199

Ç

267

307

B8

C8

184

200

È

270

310

B9

C9

185

201

É

271

311

BA

CA

186

202

Ê

272

312

BB

CB

187

203

Ë

273

313

BC

CC

188

204

Ì

274

314

BD

CD

189

205

Í

275

315

BE

CE

190

206

Î

276

316

BF

CF

191

207

Ï

277

317

à

Ð

320

D1

209

Ñ

á

321

D2

210

â

Ò

322

D3

211

Ó

ã

323

D4

212

ä

Ô

324

D5

213

å

Õ

325

D6

214

Ö

æ

326

D7

215

ç

x

327

D8

216

è

Ø

330

D9

217

é

Ù

331

DA

218

ê

Ú

332

DB

219

ë

Û

333

DC

220

ì

Ü

334

DD

221

í

Ý

335

DE

222

î

þ

336

DF

223

ß

ï

337

224 340

225 341

226 342

227 343

228 344

229 345

230 346

231 347

232 350

233 351

234 352

235 353

236 354

237 355

238 356

239 357

F0

240

ð

360

E1

F1

241

ñ

361

E2

F2

242

ò

362

E3

F3

243

ó

363

E4

F4

244

ô

364

E5

F5

245

õ

365

E6

F6

246

ö

366

E7

F7

247

÷

367

E8

F8

248

φ

370

E9

EA

EB

EC

ED

EE

EF

F9

249

ù

371

FA

250

ú

372

FB

251

û

373

FC

252

ü

374

FD

253

ý

375

FE

254

Þ

376

FF

255

ÿ

377

Note: for ANSI RS/6000 emulation, the ASCII characters from 80h to 9Fh are blank characters.

AX3000 - Programmer's Guide 53

Character Sets

54 AX3000 - Programmer's Guide

Character Sets

ISO 8859-SG:

0 1 2 3 4 5 6 7

0

10

20

30

40

50

0 1 2 3 4 5 6 7 8 9 A B C D E F

0

16

32

48

α

0

20

1

11

1

Γ π Σ σ τ Φ Θ Ω δ ∞ ε ∩

ÿ

Pt

ƒ

17

1

21

2

12

2

18

2

22

3

13

3

19

│

3

23

4

14

4

20

┤

4

24

5

15

5

21

╡

5

25

6

16

6

22

╢

6

26

7

17

7

23

╖

7

27

8

18

8

24

╕

10

30

9

19

9

25

╣

11

31

A

1A

10

26

║

12

32

B

1B

11

27

╗

13

33

C

1C

12

28

╝

14

34

D

1D

13

29

╜

15

35

E

1E

14

30

╛

16

36

F

1F

15

31

┐

17

37

SP

%

0

40 21

33

!

1

41 22

34

"

2

42 23

35

#

3

43 24

36

$

4

44 25

37

5

45 26

38

&

6

46 27

39

'

7

47 28

40

(

8

50 29

41

)

9

51

2A

42

:

∗

52

2B

43

+

;

53

2C

44

,

<

54

2D

45

-

=

55

2E

46

.

>

56 2F

47

/

?

57

64

@

C D

G H

M N O

P

100

120

41 65

A

Q

101

121

42 66

B

R

102

122

43 67

S

103

123

44 68

T

104

124

45 69

E

U

105

125

46 70

F

V

106

126

47 71

W

107

127

48 72

X

110

130

49 73

I

Y

111

131

4A

74

J

Z

112

132

4B

75

K L

[

113

133

4C

76

\

114

134

4D

77

]

115

135

4E

78

^

116

136

4F 79

_

117

137

60 31

49 61

32 50 62

33 51 63

34 52 64

35 53 65

36 54 66

37 55 67

38 56 70

39 57 71

3A

58 72

3B

59 73

3C

60 74

3D

61 75

3E

62 76

3F 63 77

60

80

96

`

p

140

51

61

81

97

a

q

141

52

62

82

98

b

r

142

53

63

83

99

c

s

143

54

64

84

100

d

t

144

55

65

85

101

e

u

145

g h

k

m

n o

66

102

f

v

146

67

103

w

147

68

104

x

150

69

105

i

y

151

6A

106

j

z

152

6B

107

{

153

6C

108

l

¦

154

6D

109

}

155

6E

110

~

156

6F

111 157

56 86

57 87

58 88

59 89

5A 90

5B 91

5C

92

5D

93

5E 94

5F 95

8 9 A B C D E F

80

90

A0

B0

C0

D0

0 1 2 3 4 5 6 7 8 9 A B C D E F

128

144

160

176

└

╨

200

220

81

129

┴

201

130

┬

202

131

├

203

132

─

204

133

┼

205

134

╞

206

135

╟

207

136

╚

210

137

╔

211

138

╩

212

139

╦

213

140

╠

214

141

═

215

142

╬

216

143

╧

217

91

145

╤

221

82

92

146

╥

222

83

93

147

╙

223

84

94

148

╘

224

85

95

149

╒

225

86

96

150

╓

226

87

97

151

╫

227

88

98

152

╪

230

89

99

153

┘

231

8A

9A

154

┌

232

8B

9B

155

█

233

8C

9C

156

▄

234

8D

9D

157

▌

235

8E

9E

158

▐

236

8F

9F

159

▀

237

°

240

A1 161

¡

±

241

A2 162

¢

²

242

A3 163

³

£

243

A4 164

¤

244

A5 165

¥

µ

245

A6 166

¦

¶

246

A7 167

·

§

2A7

A8 168

¨

¸

250

A9 169

©

®

¹

251

AA 170 252

AB 171

«

»

253

AC 172

¬

¼

254

AD 173

½

─

255

AE 174

¾

256

AF 175

¿

─

257

192

À Á Â Ã Ä Å

Æ Ç

È É Ê Ë

Ð

300

C1

193

Ñ

301

C2

194

Ò

302

C3

195

Ó

303

C4

196

Ô

304

C5

197

Õ

305

C6

198

Ö

306

C7

199

x

307

C8

200

Ø

310

C9

201

Ù

311

CA

202

Ú

312

CB

203

Û

313

CC

204

Ì

Ü

314

CD

205

Í

Ý

315

CE

206

þ

Î

316

CF

207

ß

Ï

317

260

B1 177 261

B2 178 262

B3 179 263

B4 180 264

B5 181 265

B6 182 266

B7 183 267

B8 184 270

B9 185 271

BA 186 272

BB 187 273

BC 188 274

BD 189 275

BE 190 276

BF 191 277

E0

208

224

à

á

â

ã

ä å æ ç è é ê ë ì í î ï

340

225 341

226 342

227 343

228 344

229 345

230 346

231 347

232 350

233 351

234 352

235 353

236 354

237 355

238 356

239 357

ð

E1

ñ

E2

ò

E3

ó

E4

ô

E5

õ

E6

ö

E7

÷

E8

φ

E9

ù

EA

ú

EB

û

EC

ü

ED

ý

EE

Þ

EF

ÿ

320

D1 209 321

D2 210 322

D3 211 323

D4 212 324

D5 213 325

D6 214 326

D7 215 327

D8 216 330

D9 217 331

DA 218 332

DB 219 333

DC 220 334

DD 221 335

DE 222 336

DF 223 337

AX3000 - Programmer's Guide 55

70

112 160

71

113 161

72

114 162

73

115 163

74 116 164

75 117 165

76 118 166

77 119 167

78 120 170

79 121 171

7A

122 172

7B

123 173

7C

124 174

7D

125 175

7E

126 176

7F

127 177

F0

240 360

F1

241 361

F2

242 362

F3 243 363

F4 244 364

F5 245 365

F6 246 366

F7 247 367

F8 248 370

F9 249 371

FA 250 372

FB 251 373

FC 252 374

FD 253 375

FE 254 376

FF 255 377

Character Sets

ISO 8859-15:

(only available with the Euro option)

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0 1 2 3 4 5 6 7 8 9 A

B C D

E

F

☺

♥ ♦ ♣ ♠





;

0

16

32

48

64

0

0 1

1 1

2 2 2

3 3 3

4 4 4

5 5 5

6 6 6

7 7 7

8 8

10

9 9

11

A 10 12

B 11 13

C 12 14

D 13 15

E 14 16

F 15 17

   

¥

¦

!! ¶

§

▄

V

W

SP

20

40

11

21

17

33

!

21

41

12

22

18

34

"

22

42

13

23

19

35

#

23

43

14

24

20

36

$

24

44

15

25

21

37

%

25

45

16

26

22

38

&

26

46

17

27

23

39

'

27

47

18

28

24

40

(

30

50

19

29

25

41

)

31

51

1A

2A

26

42

∗

32

52

1B

2B

27

43

+

33

53

1C

2C

28

44

,

34

54

1D

2D

29

45

-

35

55

1E

2E

30

46

.

36

56

1F

2F

31

47

/

37

57

@

60

100

31 49

1

A

61

101

32 50

2

B

62

102

33 51

3

C

63

103

34 52

4

D

64

104

35 53

5

E

65

105

36 54

6

F

66

106

37 55

7

G

67

107

38 56

8

H

70

110

39 57

9

< = > ?

I

71

111

3A 58

:

J

72

112

3B 59

;

K

73

113

3C

60

L

74

114

3D

61

M

75

115

3E 62

N

76

116

3F 63

O

77

117

80

P

`

120

41 65

Q

42 66

R

43 67

S

44 68

T

45 69

U

46 70

V

47 71

W

48 72

X

49 73

Y

4A 74

Z

4B 75

[

4C

76

\

4D

77

]

4E 78

^

4F 79

_

140

51 81

a

121

141

52 82

b

122

142

53 83

c

123

143

54 84

100

d

124

144

55 85

101

e

125

145

56 86

102

f

126

146

57 87

103

g

127

147

58 88

104

h

130

150

59 89

105

i

131

151

5A 90

106

j

132

152

5B 91

107

k

133

153

5C

92

108

l

134

154

5D

93

109

m

135

155

5E 94

110

n

136

156

5F 95

111

o

137

157

70

96

112

p

160

61

71

97

113

q

161

62

72

98

114

r

162

63

73

99

115

s

163

64

74

116

t

164

65

75

117

u

165

66

76

118

v

166

67

77

119

w

167

68

78

120

x

170

69

79

121

y

171

6A

7A

122

z

172

6B

7B

123

{

173

6C

7C

124

¦

174

6D

7D

125

}

175

6E

7E

126

~

176

6F

7F

127 177

8 9 A B C D E F

80

90

A0

B0

C0

D0

E0

0 1

x

2 3 4 5 6 7 ° 8

±

9 A

┘

B

┐

C

┌

D

└

E

┼

F

128

144

160

176

192

208

224

°

200

81

129 201

82

130 202

83

131 203

84

132 204

85

133

├

205

86

134

┤

206

87

135

┴

207

88

136

┬

210

89

137

│

211

8A

138

≤

212

8B

139

≥

213

8C

140

∏

214

8D

141

≠

215

8E

142

£

216

8F

143

·

217

220

240

91 145 221

146 222

147 223

148 224

149 225

150 226

151 227

152 230

153 231

154 232

155 233

156 234

157 235

158 236

159 237

A1

161

¡

241

92

A2

162

¢

242

93

A3

163

£

243

94

A4 164 244

95

A5 165

¥

245

96

A6 166 246

97

A7 167

§

2A7

98

A8 168 250

99

A9 169

©

251

9A

AA 170 252

9B

AB 171

«

253

9C

AC 172

¬

254

9D

AD 173 255

9E

AE 174

®

256

9F

AF 175 257

±

µ

¶

·

»

Œ œ

Ÿ

¿

À

260

300

B1

C1

177

193

Á

261

301

B2

C2

178

² ³

¹

194

Â

262

302

B3

C3

179

195

Ã

263

303

B4

C4

180

196

Ä

264

304

B5

C5

181

197

Å

265

305

B6

C6

182

198

Æ

266

306

B7

C7

183

199

Ç

267

307

B8

C8

184

200

È

270

310

B9

C9

185

201

É

271

311

BA

CA

186

202

Ê

272

312

BB

CB

187

203

Ë

273

313

BC

CC

188

204

Ì

274

314

BD

CD

189

205

Í

275

315

BE

CE

190

206

Î

276

316

BF

CF

191

207

Ï

277

317

Ð Ñ Ò Ó Ô Õ

Ö

Ø

Ù Ú Û Ü Ý

þ

ß

à

320

340

D1

209

225

á

321

341

D2

210

226

â

322

342

D3

211

227

ã

323

343

D4

212

228

ä

324

344

D5

213

229

å

325

345

D6

214

230

æ

326

346

D7

215

231

ç

x

327

347

D8

216

232

è

330

350

D9

217

233

é

331

351

DA

218

234

ê

332

352

DB

219

235

ë

333

353

DC

220

236

ì

334

354

DD

221

237

í

335

355

DE

222

238

î

336

356

DF

223

239

ï

337

357

F0

240

ð

360

E1

F1

241

ñ

361

E2

F2

242

ò

362

E3

F3

243

ó

363

E4

F4

244

ô

364

E5

F5

245

õ

365

E6

F6

246

ö

366

E7

F7

247

÷

367

E8

F8

248

φ

370

E9

EA

EB

EC

ED

EE

EF

F9

249

ù

371

FA

250

ú

372

FB

251

û

373

FC

252

ü

374

FD

253

ý

375

FE

254

Þ

376

FF

255

ÿ

377

Note: for ANSI RS/6000 emulation, the ASCII characters from 80h to 9Fh are blank characters.

56 AX3000 - Programmer's Guide

Character Sets

AX3000 - Programmer's Guide 57

Character Sets

National ISO 7-Bit:

Many characters of the National ISO 7-Bit set are dependent of the national keyboard selected through the AX3000 Set-Up. The following table describes the character set associated with the US keyboard:

0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 8 9 A B

C D

E F

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

BS

HT

LF

VT

FF

CR

SO

SI

0

10

20

30

40

50

60

0

16

32

48

64

0

DLE

0 1

1

DC1

1 2

2

DC2

2 3

3

DC3

3 4

4

DC4

4 5

5

NAK

5 6

6

SYN

6 7

7

ETB

7 8

8

CAN

10

9 9

11

A

10

SUB

12

B

11

ESC

13

C 12 14

D 13 15

E 14 16

F 15 17

EM

FS

GS

RS

US

SP

20

40

11

21

17

33

!

21

41

12

22

18

34

"

22

42

13

23

19

35

#

23

43

14

24

20

36

$

24

44

15

25

21

37

%

25

45

16

26

22

38

&

26

46

17

27

23

39

'

27

47

18

28

24

40

(

30

50

19

29

25

41

)

31

51

1A

2A

26

42

∗

32

52

1B

2B

27

43

+

33

53

1C

2C

28

44

,

34

54

1D

2D

29

45

-

35

55

1E

2E

30

46

.

36

56

1F

2F

31

47

/

37

57

@

60

100

31 49

1

A

61

101

32 50

2

B

62

102

33 51

3

C

63

103

34 52

4

D

64

104

35 53

5

E

65

105

36 54

6

F

66

106

37 55

7

G

67

107

38 56

8

H

70

110

39 57

9

< = > ?

I

71

111

3A 58

:

J

72

112

3B 59

;

K

73

113

3C

60

L

74

114

3D

61

M

75

115

3E 62

N

76

116

3F 63

O

77

117

80

P

`

120

41 65

Q

42 66

R

43 67

S

44 68

T

45 69

U

46 70

V

47 71

W

48 72

X

49 73

Y

4A 74

Z

4B 75

[

4C

76

\

4D

77

]

4E 78

^

4F 79

_

140

51 81

a

121

141

52 82

b

122

142

53 83

c

123

143

54 84

100

d

124

144

55 85

101

e

125

145

56 86

102

f

126

146

57 87

103

g

127

147

58 88

104

h

130

150

59 89

105

i

131

151

5A 90

106

j

132

152

5B 91

107

k

133

153

5C

92

108

l

134

154

5D

93

109

m

135

155

5E 94

110

n

136

156

5F 95

111

o

137

157

70

96

112

p

160

61

71

97

113

q

161

62

72

98

114

r

162

63

73

99

115

s

163

64

74

116

t

164

65

75

117

u

165

66

76

118

v

166

67

77

119

w

167

68

78

120

x

170

69

79

121

y

171

6A

7A

122

z

172

6B

7B

123

{

173

6C

7C

124

¦

174

6D

7D

125

}

175

6E

7E

126

~

176

6F

7F

127 177

The following table shows the characters that differ from the national set (US keyboard):

Hexadecimal code of the replaced characters 23 40 5B 5C 5D 5E 5F 60 7B 7C 7D 7E France £ à ° ç § ^ _ ` é ù è ¨ U.K £ @ [ \ ] ^ _ ` { | } ~ Germany # § Ä Ö Ü ^ _ ` ä ö ü ß Italy £ § ° ç é ^ _ ù à ò è ì Spain £ § ¡ Ñ ¿ ^ _ ` ° ñ ç ~ Switzerland ù à é ç ê î è ô ä ö ü û Portugal # @ Ã Ç Õ ^ _ ` ã ç õ ~

58 AX3000 - Programmer's Guide

Character Sets

SM9400 :

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0 1 2 3 4 5 6 7 8 9 A B C D E F

0

16

32

48

64

0

0 1

1 1

2 2 2

3 3 3

4 4 4

5 5 5

6 6 6

7 7 7

8 8

10

9 9

11

A 10 12

B 11 13

C 12 14

D 13 15

E 14 16

F 15 17

SP

20

40

11

21

17

33

!

21

41

12

22

18

34

"

22

42

13

23

19

35

#

23

43

14

24

20

36

$

24

44

15

25

21

37

%

25

45

16

26

22

38

&

26

46

17

27

23

39

'

27

47

18

28

24

40

(

30

50

19

29

25

41

)

31

51

1A

2A

26

42

∗

32

52

1B

2B

27

43

+

33

53

1C

2C

28

44

,

34

54

1D

2D

29

45

-

35

55

1E

2E

30

46

.

36

56

1F

2F

31

47

/

37

57

@

60

100

31 49

1

A

61

101

32 50

2

B

62

102

33 51

3

C

63

103

34 52

4

D

64

104

35 53

5

E

65

105

36 54

6

F

66

106

37 55

7

G

67

107

38 56

8

H

70

110

39 57

9

I

71

111

3A

58

:

J

72

112

3B

59

;

K

73

113

3C

60

<

L

74

114

3D

61

=

M

75

115

3E

62

>

N

76

116

3F 63

?

O

77

117

80

P

41 65

Q

42 66

R

43 67

S

44 68

45 69

U

46 70

V

47 71

W

48 72

X

49 73

Y

4A

74

4B

75

4C

76

4D

77

4E

78

4F 79

`

120

140

51 81

a

121

141

52 82

b

122

142

53 83

c

123

143

54 84

T

Z

[ \ ]

^

_

100

d

124

144

55 85

101

e

125

145

56 86

102

f

126

146

57 87

103

g

127

147

58 88

104

h

130

150

59 89

105

i

131

151

5A 90

106

j

132

152

5B 91

107

k

133

153

5C

92

108

l

134

154

5D

93

109

m

135

155

5E 94

110

n

136

156

5F 95

111

o

137

157

70

96

112

p

160

61

71

97

113

q

161

62

72

98

114

r

162

63

73

99

115

s

163

64

74

116

t

164

65

75

117

u

165

66

76

118

v

166

67

77

119

w

167

68

78

120

x

170

69

79

121

y

171

6A

7A

122

z

172

6B

7B

123

{

173

6C

7C

124

¦

174

6D

7D

125

}

175

6E

7E

126

~

176

6F

7F

127 177

8 9 A B C D E F

80

90

A0

B0

C0

D0

E0

F0

0 1 2 3 4 5 6 7 8 9 A B C D E F

128

144

160

176

192

Å

æ

200

220

81

129 201

82

130 202

83

131 203

84

132 204

85

133 205

86

134 206

87

135 207

88

136 210

89

137 211

8A

138 212

8B

139 213

8C

140 214

8D

141 215

8E

142 216

8F

143 217

240

91 145 221

146 222

147 223

148 224

149 225

150 226

151 227

152 230

153 231

154 232

155 233

156 234

157 235

158 236

159 237

A1

161

Ä

241

92

A2

162

Æ

242

93

A3

163

Ç

243

94

A4

164

É

244

95

A5

165

Ñ

245

96

A6

166

Ö

246

97

A7

167

Ø

2A7

98

A8

168

Œ

250

99

A9

169

L

251

9A

AA

170

Ü

252

9B

AB

171

á

253

9C

AC

172

à

254

9D

AD

173

â

255

9E

AE

174

å

256

9F

AF

175

ä

257

ø

260

B1

177

ç

œ

261

B2

178

é

ú

262

B3

179

è

ù

263

B4

180

ê

û

264

B5

181

ë

ü

265

B6

182

í

ß

266

B7

183

ì

µ

267

B8

184

î

°

270

B9

185

ï

§

271

BA

186

l

±

272

BB

187

ñ

¡

273

BC

188

ó

¿

274

BD

189

ò

£

275

BE

190

ô ö

¨

276

BF

191

Ã

277

208

300

320

C1

D1

193

209

301

321

C2

D2

194

210

302

322

C3

D3

195

211

303

323

C4

D4

196

212

304

324

C5

D5

197

213

305

325

C6

D6

198

214

306

326

C7

D7

199

215

307

327

C8

D8

200

216

310

330

C9

D9

201

217

311

331

CA

DA

202

218

312

332

CB

DB

203

219

313

333

CC

DC

204

220



314

334

CD

DD

205

221



315

335

CE

DE

206

222



316

336

CF

DF

207

223



317

337

┌ │ └ ─

├

F

224

240

0

340

360

E1

F1

F

225

241

1

341

361

E2

F2

F

226

242

2

342

362

E3

F3

F

227

243

3

343

363

E4

228

|

344

E5

|

229 345

E6

230 346

E7 231 347

E8 232 350

E9 233 351

EA 234 352

EB 235 353

EC 236 354

ED 237 355

EE 238 356

EF 239 357

F4

F

244

4

364

F5

F

245

5

365

F6

F

246

6

366

F7

F

247

7

367

F8

F

248

8

370

F9

F

249

9

371

FA

F

250

A

372

FB

F

251

B

373

FC

F

252

C

374

FD

F

253

D

375

FE

F

254

E

376

FF

F

255

F

377

AX3000 - Programmer's Guide 59

Character Sets

Special Graphics :

0 1 2 3 4 5 6 7 8 9 A

B C D

E

F

0

10

20

30

40

50

60

0

16

32

48

64

0

20

1 1 1

2 2 2

3 3 3

4 4 4

5 5 5

6 6 6

7 7 7

8 8

10

9 9

11

A 10 12

B 11 13

C 12 14

D 13 15

E 14 16

F 15 17

40

11

21

17

33

^

21

41

12

22

18

34

`

22

42

13

23

19

35

23

43

14

24

20

36

24

44

15

25

21

37

25

45

16

26

22

38

X

26

46

17

27

23

39

27

47

18

28

24

40

30

50

19

29

25

41

31

51

1A

2A

26

42

32

52

1B

2B

27

43

33

53

1C

2C

28

44

34

54

1D

2D

29

45

35

55

1E

2E

30

46

36

56

1F

2F

31

47

37

57

_

60

100

31 49

1 2 3 4 5 6 7 8 9

61

101

32 50 62

102

33 51 63

103

34 52 64

104

35 53 65

105

36 54

[

66

106

37 55

]

67

107

38 56 70

110

39 57 71

111

3A 58 72

112

3B 59 73

113

3C

60

C

74

114

3D

61

W

75

115

3E 62 76

116

3F 63

(

77

117

80

0

)

120

41 65

42 66

43 67

44 68

B

45 69

E

46 70

=

47 71

48 72

49 73

4A 74

4B 75

4C

76

4D

77

4E 78

4F 79

140

51 81

1

121

141

52 82

2

122

142

53 83

3

123

143

54 84

100

4

124

144

55 85

101

5

125

145

56 86

102

6

126

146

57 87

103

7

127

147

58 88

104

8

130

150

59 89

105

9

131

151

5A 90

106

┘

132

152

5B

┐

91

107

133

153

5C

92

108

┌

134

154

5D

93

109

└

135

155

5E 94

110

┼

136

156

5F 95

111

137

157

70

96

112 160

61

71

97

113

─

161

62

72

98

114

▄

162

63

73

99

115

▀

163

64

74

116

├

164

65

66

67

68

69

6A

6B

6C

6D

6E

6F

75

117

┤

165

76

118

┴

166

77

119

┬

167

78

120

│

170

79

121 171

7A

┐

122 172

7B

123

┘

173

7C

124

└

174

7D

125

┌

175

7E

126

█

176

7F

127 177

60 AX3000 - Programmer's Guide

Character Sets

3.2 - VT FAMILY

The VT220 emulation allows a 8-bit character set (256 characters) to be built from two 7-bit character sets (128 characters).

These 7-bit character sets are composed of 32 non-display control characters (called C0 and C1) and 94 display characters (called GL and GR).

A 8-bit character set is composed of:

- C0: control characters (ASCII codes from 00h to 1Fh),

- GL: graphic left (ASCII codes from 20h to 7Fh),

- C1: control characters (ASCII codes from 80h to 9Fh),

- GR: graphic right (ASCII codes from A0h to FFh).

The Platine terminal provides nine 7-bit character sets (described in the following pages):

- ASCII,

- 6 national replacement character sets (NRCs),

- DEC Multinational,

- DEC Special Graphic.

To use character sets, the following operations are performed:

- Map 4 character sets to the 4 available tables (G0, G1, G2 and G3).

- Map two tables (G0, G1, G2 or G3) to GL and GR.

When the AX3000 is switched on, the GL, GR, G0, G1, G2 and G3 tables are initialised according to the character set selected through the AX3000 Set-Up:

- DEC Multinational: GL and G0: ASCII set, GR, G1, G2 and G3: DEC Multinational set.

- National ISO 7-BIT: GL and G0: NRCs (according to the selected keyboard)

GR, G1, G2 and G3: unknown

AX3000 - Programmer's Guide 61

Character Sets

The following diagram shows the mechanisms for designating and mapping character sets:

GL GRC0 C1

71

432

5

6

G1G0 G2 G3

DCBA

ASCII ASCII France ASCII Germany ASCII Italy ASCII Spain ASCII Switzerland ASCII Portugal

DEC Multinational DEC Special Graphics

The following escape sequences are used to designate and map character sets (where x represents the character set code):

(A): Esc ( x (1): 0Fh (B): Esc ) x (2): 0Eh (C): Esc ∗ x (3): Esc ~ (D): Esc + x (4): Esc n

(5): Esc } (6): Esc o (7): Esc |

x values:

Ps = B (ASCII) Ps = R (French) Ps = < (DEC multinational) Ps = K (German) Ps = Y (Italian) Ps = 0 (DEC special graphics) Ps = Z (Spanish) Ps = = (Swiss) Ps = %6 (Portuguese)

62 AX3000 - Programmer's Guide

Character Sets

(

)

The following describes the 9 available character sets (these sets can be mapped either to GL or GR):

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

ASCII

C0 & GL

0 1 2 3 4 5 6 7 8 9 A B C D E F

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

BS

HT

LF

VT

FF

CR

SO

SI

0

16

32

48

64

0

DLE

0 1

1

DC1

1 2

2

DC2

2 3

3

DC3

3 4

4

DC4

4 5

5

NAK

5 6

6

SYN

6 7

7

ETB

7 8

8

CAN

10

9 9

11

A

10

SUB

12

B

11

ESC

13

C 12 14

D 13 15

E 14 16

F 15 17

EM

FS

GS

RS

US

SP

20

40

11

21

17

33

!

21

41

12

22

18

34

"

22

42

13

23

19

35

#

23

43

14

24

20

36

$

24

44

15

25

21

37

%

25

45

16

26

22

38

&

26

46

17

27

23

39

'

27

47

18

28

24

40

(

30

50

19

29

25

41

)

31

51

1A

2A

26

42

∗

32

52

1B

2B

27

43

+

33

53

1C

2C

28

44

,

34

54

1D

2D

29

45

-

35

55

1E

2E

30

46

.

36

56

1F

2F

31

47

/

37

57

@

60

100

31 49

1

A

61

101

32 50

2

B

62

102

33 51

3

C

63

103

34 52

4

D

64

104

35 53

5

E

65

105

36 54

6

F

66

106

37 55

7

G

67

107

38 56

8

H

70

110

39 57

9

I

71

111

3A

58

:

J

72

112

3B

59

;

K

73

113

3C

60

<

L

74

114

3D

61

=

M

75

115

3E

62

>

N

76

116

3F 63

?

O

77

117

80

P

41 65

Q

42 66

R

43 67

S

44 68

45 69

U

46 70

V

47 71

W

48 72

X

49 73

Y

4A

74

4B

75

4C

76

4D

77

4E

78

4F 79

`

120

140

51 81

a

121

141

52 82

b

122

142

53 83

c

123

143

54 84

T

Z

[ \ ]

^

_

100

d

124

144

55 85

101

e

125

145

56 86

102

f

126

146

57 87

103

g

127

147

58 88

104

h

130

150

59 89

105

i

131

151

5A 90

106

j

132

152

5B 91

107

k

133

153

5C

92

108

l

134

154

5D

93

109

m

135

155

5E 94

110

n

136

156

5F 95

111

o

137

157

70

96

112

p

160

61

71

97

113

q

161

62

72

98

114

r

162

63 99

64

65

66

67

68

69

6A

6B

6C

6D

6E

6F

73

115

s

163

74

116

t

164

75

117

u

165

76

118

v

166

77

119

w

167

78

120

x

170

79

121

y

171

7A

122

z

172

7B

123

{

173

7C

124

¦

174

7D

125

}

175

7E

126

~

176

7F

127 177

This table shows the characters in each NRC set that differ from the ASCII set:

Hexadecimal code of the replaced characters 23 40 5B 5C 5D 5E 5F 60 7B 7C 7D 7E France £ à ° ç § ^ _ ` é ù è ¨ U.K £ @ [ \ ] ^ _ ` { | } ~ Germany # § Ä Ö Ü ^ _ ` ä ö ü ß Italy £ § ° ç é ^ _ ù à ò è ì Spain £ § ¡ Ñ ¿ ^ _ ` ° ñ ç ~ Switzerland ù à é ç ê î è ô ä ö ü û Portugal # @ Ã Ç Õ ^ _ ` ã ç õ ~

AX3000 - Programmer's Guide 63

Character Sets

DEC Multinational

(C1 & GR)

8 9 A B C D E F

80

90

A0

B0

C0

D0

E0

0 1 2 3 4 5 6 7 8 9 A

B C D

E

F

IND

NEL

SSA

ESA

HTS

HTJ

VTS

PLD

PLU

RI

SS2

SS3

128

144

160

176

192

208

°

DCS

200

220

81

129

PU1

201

82

130

PU2

202

83

131

STS

203

84

132

CCH

204

85

133

MW

205

86

134

SPA

206

87

135

EPA

207

88 136 210

89 137 211

8A 138 212

8B 139

CSI

213

8C 140

ST

214

8D 141

OSC

215

8E 142

PM

216

8F 143

APC

217

240

91 145 221

146 222

147 223

148 224

149 225

150 226

151 227

152 230

153 231

154 232

155 233

156 234

157 235

158 236

159 237

A1

161

¡

241

92

A2

162

¢

242

93

A3

163

£

243

94

A4 164 244

95

A5 165

¥

245

96

A6 166 246

97

A7 167

§

2A7

98

A8 168

¤

250

99

A9 169

©

251

9A

AA 170 252

9B

AB 171

«

253

9C

AC 172 254

9D

AD 173 255

9E

AE 174 256

9F

AF 175 257

À

260

300

B1

C1

177

± ²

³

µ

¶

.

¹

»

¼ ½

¿

193

Á Â Ã Ä Å

Ç È É Ê Ë

Ñ

301

C2

194

Ò

302

C3

195

Ó

303

C4

196

Ô

304

C5

197

Õ

305

C6

198

Ö

306

C7

199

Œ

307

C8

200

Ø

310

C9

201

Ù

311

CA

202

Ú

312

CB

203

Û

313

CC

204

Ì

Ü

314

CD

205

ÿ

Í

315

CE

206

Î

316

CF

207

Ï

ß

317

261

B2 178 262

B3 179 263

B4 180 264

B5 181 265

B6 182

Æ

266

B7 183 267

B8 184 270

B9 185 271

BA 186 272

BB 187 273

BC 188 274

BD 189 275

BE 190 276

BF 191 277

224

à

320

340

D1

209

225

á

321

341

D2

210

226

â

322

342

D3

211

227

ã

323

343

D4

212

228

ä

324

344

D5

213

229

å

325

345

D6

214

230

æ

326

346

D7

215

231

ç

327

347

D8

216

232

è

330

350

D9

217

233

é

331

351

DA

218

234

ê

332

352

DB

219

235

ë

333

353

DC

220

236

ì

334

354

DD

221

237

í

335

355

DE

222

238

î

336

356

DF

223

239

ï

337

357

F0

240 360

E1

F1

241

ñ

361

E2

F2

242

ò

362

E3

F3

243

ó

363

E4

F4

244

ô

364

E5

F5

245

õ

365

E6

F6

246

ö

366

E7

F7

247

œ

367

E8

F8

248

ø

370

E9

F9

249

ù

371

EA

FA

250

ú

372

EB

FB

251

û

373

EC

FC

252

ü

374

ED

FD

253

ÿ

375

EE

FE

254 376

EF

FF

255 377

DEC Special Graphic

(C0 & GL)

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0 1 2 3 4 5 6 7 8 9 A

B C D

E

F

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

BS

HT

LF

VT

FF

CR

SO

SI

0

16

32

48

64

0

DLE

0 1

1

DC1

1 2

2

DC2

2 3

3

DC3

3 4

4

DC4

4 5

5

NAK

5 6

6

SYN

6 7

7

ETB

7 8

8

CAN

10

9 9

11

A

10

SUB

12

B

11

ESC

13

C 12 14

D 13 15

E 14 16

F 15 17

EM

FS

GS

RS

US

SP

20

40

11

21

17

33

!

21

41

12

22

18

34

"

22

42

13

23

19

35

#

23

43

14

24

20

36

$

24

44

15

25

21

37

%

25

45

16

26

22

38

&

26

46

17

27

23

39

'

27

47

18

28

24

40

(

30

50

19

29

25

41

)

31

51

1A

2A

26

42

∗

32

52

1B

2B

27

43

+

33

53

1C

2C

28

44

,

34

54

1D

2D

29

45

-

35

55

1E

2E

30

46

.

36

56

1F

2F

31

47

/

37

57

@

60

100

31 49

1

A

61

101

32 50

2

B

62

102

33 51

3

C

63

103

34 52

4

D

64

104

35 53

5

E

65

105

36 54

6

F

66

106

37 55

7

G

67

107

38 56

8

H

70

110

39 57

9

< = > ?

I

71

111

3A 58

:

J

72

112

3B 59

;

K

73

113

3C

60

L

74

114

3D

61

M

75

115

3E 62

N

76

116

3F 63

O

77

117

80

P

x

120

41 65

Q

42 66

R

43 67

S

44 68

T

45 69

U

46 70

V

47 71

W

48 72

X

49 73

Y

4A 74

Z

4B 75

[

4C

76

\

4D

77

]

4E 78

^

4F 79

140

51 81

121

141

52 82

122

142

53 83

123

143

54 84

100

124

144

55 85

101

125

145

56 86

102

°

126

146

57 87

103

±

127

147

58 88

104

130

150

59 89

105

131

151

5A 90

106

┘

132

152

5B 91

107

┐

133

153

5C

92

108

┌

134

154

5D

93

109

└

135

155

5E 94

110

┼

136

156

5F 95

111

137

157

70

96

112 160

61

71

97

113 161

62

72

98

114 162

63

73

99

115 163

64

74

116

├

164

65

75

117

┤

165

66

76

118

┴

166

67

77

119

┬

167

68

78

120

│

170

69

79

121

≤

171

6A

7A

122

≥

172

6B

7B

123

∏

173

6C

7C

124

≠

174

6D

7D

125

£

175

6E

7E

126

·

176

6F

7F

127 177

64 AX3000 - Programmer's Guide

Character Sets

3.3 - WYSE FAMILY

The WYSE emulation allows a 8-bit character set (256 characters) to be built from two 7-bit character sets (128 characters). A 8-bit character set is composed of:

- a primary set (ASCII codes from 00h to 7Fh),

- a secondary set (ASCII codes from 80h to FFh),

The AX3000 provides seven 7-bit character sets (described in the following pages):

- Native Mode, - PC Equivalent - Graphics 1

- Multinational - Graphics 2 - Graphics 3

- Standard ASCII

To use character sets, the following operations are performed:

- Map 4 character sets to the 4 available banks (0 to 3).

- Map two banks to the primary and the secondary sets.

When the AX3000 is switched on, the primary and the secondary sets are initialised according to the character set selected through the Terminal Set-Up:

- WYSE 60: primary set = native mode, secondary set = multinational.

- National ISO 7-BIT: primary set = native mode.

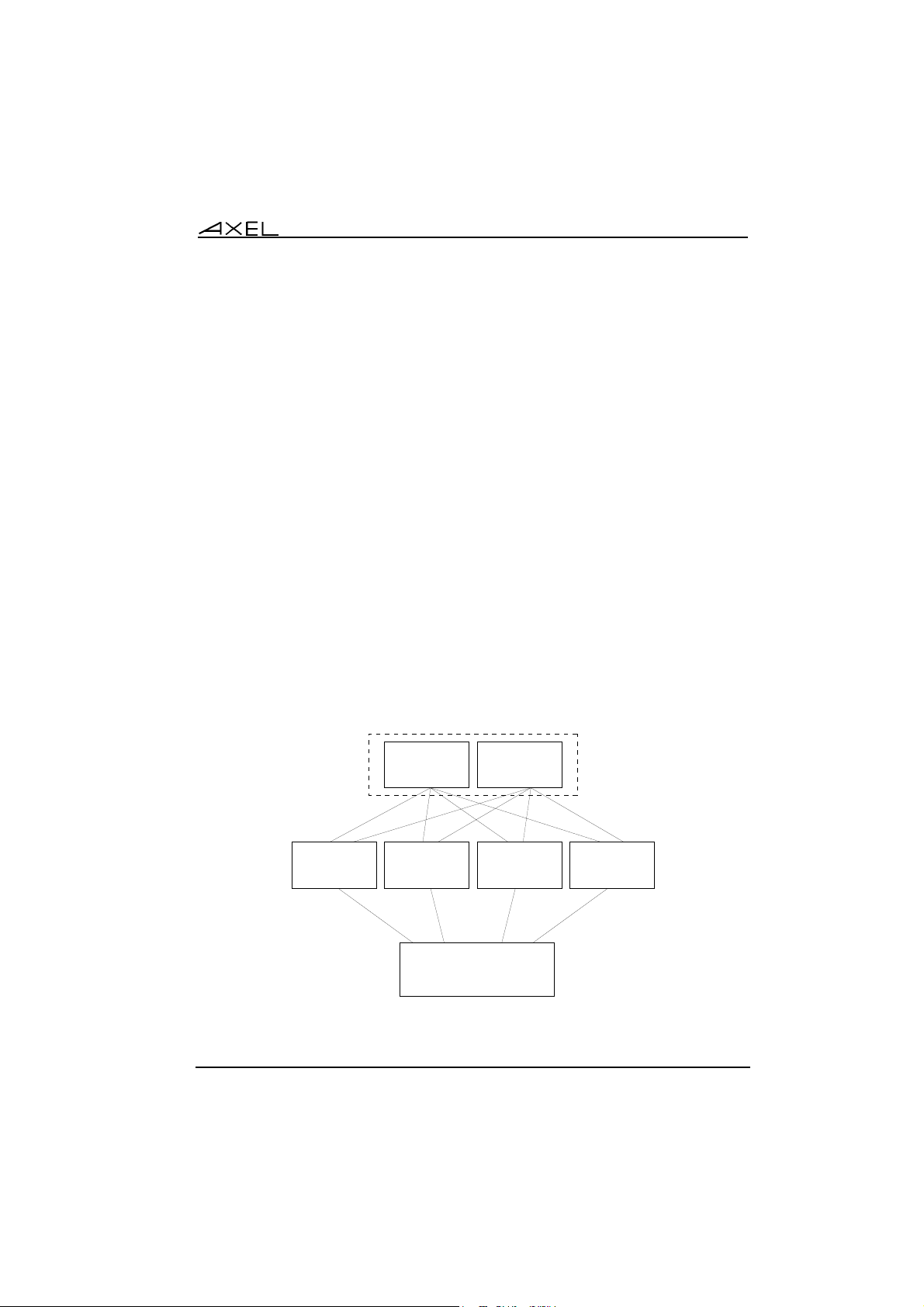

The following diagram shows the mechanisms for designating and mapping character sets:

Primary Set Secondary Set

Bank 0 Bank 1 Bank 2 Bank 3

Native Mode Multinational Standard ASCII Graphics 1

PC Equivalent Graphics 2 Graphics 3

AX3000 - Programmer's Guide 65

Character Sets

Native Mode

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0 1 2 3 4 5 6 7 8 9 A

B C D

E

F

SH

SX

EX

ET

EQ

AK

BL

BS

HT

LF

VT

FF

CR

SO

SI

0

16

32

48

64

┬

0

20

1

11

1

17

└

1

21

2

12

2

18

┌

2

22

3

13

3

19

┐

3

23

4

14

4

20

├

4

24

5

15

5

21

┘

5

25

6

16

6

22

│

6

26

7

17

7

23

7

27

8

18

8

24

┼

10

30

9

19

9

25

┤

11

31

A

1A

10

26

─

12

32

B

1B

11

27

13

33

C

1C

12

28

═

14

34

D

1D

13

29

┴

15

35

E

1E

14

30

║

16

36

F

1F

15

31

17

37

SP

%

0

40 21

33

!

41 22

34

"

42 23

35

#

43 24

36

$

44 25

37 45

26 38

&

46 27

39

'

47 28

40

(

50 29

41

)

51 2A

42

∗

52 2B

43

+

53

2C

44

,

54

2D

45

-

55 2E

46

.

56 2F

47

/

57

@

60

100

31 49

1

A

61

101

32 50

2

B

62

102

33 51

3

C

63

103

34 52

4

D

64

104

35 53

5

E

65

105

36 54

6

F

66

106

37 55

7

G

67

107

38 56

8

H

70

110

39 57

9

< = > ?

I

71

111

3A 58

:

J

72

112

3B 59

;

K

73

113

3C

60

L

74

114

3D

61

M

75

115

3E 62

N

76

116

3F 63

O

77

117

80

P

`

120

41 65

Q

42 66

R

43 67

S

44 68

T

45 69

U

46 70

V

47 71

W

48 72

X

49 73

Y

4A 74

Z

4B 75

[

4C

76

\

4D

77

]

4E 78

^

4F 79

_

140

51 81

a

121

141

52 82

b

122

142

53 83

c

123

143

54 84

100

d

124

144

55 85

101

e

125

145

56 86

102

f

126

146

57 87

103

g

127

147

58 88

104

h

130

150

59 89

105

i

131

151

5A 90

106

j

132

152

5B 91

107

k

133

153

5C

92

108

l

134

154

5D

93

109

m

135

155

5E 94

110

n

136

156

5F 95

111

o

137

157

70

96

112

p

160

61

71

97

113

q

161

62

72

98

114

r

162

63

73

99

115

s

163

64

74

116

t

164

65

75

117

u

165

66

76

118

v

166

67

77

119

w

167

68

78

120

x

170

69

79

121

y

171

6A

7A

122

z

172

6B

7B

123

{

173

6C

7C

124

¦

174

6D

7D

125

}

175

6E

7E

126

~

176

6F

7F

127 177

Multinational

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0

1

2

3

4

5

6

7

8

9

A

B C D

E

F

Ç ü é â ä à å ç ê ë è ï î ì Ä Å

0

16

32

48

64

É

0 1

1 1

2 2 2

3 3 3

4 4 4

5 5 5

6 6 6

7 7 7

8 8

10

9 9

11

A 10 12

B 11 13

C 12 14

D 13 15

E 14 16

F 15 17

á

20

40

11

21

17

æ Æ ô ö ò û ù ÿ Ö Ü ¢ £

¥

Pt

ƒ

33

í

21

41

12

22

18

34

ó

22

42

13

23

19

35

ú

23

43

14

24

20

36

ñ

24

44

15

25

21

37

Ñ

25

45

16

26

22

38

26

46

17

27

23

39

27

47

18

28

24

40

¿

30

50

19

29

25

41

⌐

31

51

1A

2A

26

42

¬

32

52

1B

2B

27

43

½

33

53

1C

2C

28

44

¼

34

54

1D

2D

29

45

¡

35

55

1E

2E

30

46

«

36

56

1F

2F

31

47

»

37

57

└

60

100

31 49

┴

61

101

32 50

┬

62

102

33 51

│

├

63

103

34 52

┤

─

64

104

35 53

╡

┼

65

105

36 54

╢

╞

66

106

37 55

╖

╟

67

107

38 56

╕

╚

70

110

39 57

╣

╔

71

111

3A 58

║

╩

72

112

3B 59

╗

╦

73

113

3C

60

╝

╠

74

114

3D

61

╜

═

75

115

3E 62

╛

╬

76

116

3F 63

┐

╧

77

117

80

α

╨

120

41 65

╤

42 66

╥

43 67

╙

44 68

╘

45 69

╒

46 70

╓

47 71

╫

48 72

╪

49 73

┘

4A 74

┌

4B 75

█

4C

76

▄

4D

77

▌

4E 78

▐

4F 79

▀

140

51 81

ß

121

141

52 82

Γ

122

142

53 83

π

123

143

54 84

100

Σ

124

144

55 85

101

σ

125

145

56 86

102

µ

126

146

57 87

103

τ

127

147

58 88

104

Φ

130

150

59 89

105

Θ

131

151

5A 90

106

Ω

132

152

5B 91

107

δ

133

153

5C

92

108

∞

134

154

5D

93

109

φ

135

155

5E 94

110

ε

136

156

5F 95

111

∩

137

157

70

96

112

≡

160

61

71

97

113

±

161

62

72

98

114

≥

162

63

73

99

115

≤

163

64

74

116

⌠

164

65

75

117

⌡

165

66

76

118

÷

166

67

77

119

≈

167

68

78

120

°

170

69

79

121

·

171

6A

7A

122

·

172

6B

7B

123

√

173

6C

7C

124

ⁿ

174

6D

7D

125

²

175

6E

7E

126

■

176

6F

7F

127 177

66 AX3000 - Programmer's Guide

Character Sets

PC Equiv.

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0 1 2 3 4 5 6 7 8 9 A B C D E F

0

16

32

48

64

0

0 1

1 1

2 2 2

3 3 3

4 4 4

5 5 5

6 6 6

7 7 7

8 8

10

9 9

11

A 10 12

B 11 13

C 12 14

D 13 15

E 14 16

F 15 17

SP

20

40

11

21

17

33

!

21

41

12

22

18

34

"

22

42

13

23

19

35

#

23

43

14

24

20

36

$

24

44

15

25

21

37

%

25

45

16

26

22

38

&

26

46

17

27

23

39

'

27

47

18

28

24

40

(

30

50

19

29

25

41

)

31

51

1A

2A

26

42

∗

32

52

1B

2B

27

43

+

33

53

1C

2C

28

44

,

34

54

1D

2D

29

45

-

35

55

1E

2E

30

46

.

36

56

1F

2F

31

47

/

37

57

@

60

100

31 49

1

A

61

101

32 50

2

B

62

102

33 51

3

C

63

103

34 52

4

D

64

104

35 53

5

E

65

105

36 54

6

F

66

106

37 55

7

G

67

107

38 56

8

H

70

110

39 57

9

I

71

111

3A

58

:

J

72

112

3B

59

;

K

73

113

3C

60

<

L

74

114

3D

61

=

M

75

115

3E

62

>

N

76

116

3F 63

?

O

77

117

80

P

41 65

Q

42 66

R

43 67

S

44 68

45 69

U

46 70

V

47 71

W

48 72

X

49 73

Y

4A

74

4B

75

4C

76

4D

77

4E

78

4F 79

`

120

140

51 81

a

121

141

52 82

b

122

142

53 83

c

123

143

54 84

T

Z

[ \ ]

^

_

100

d

124

144

55 85

101

e

125

145

56 86

102

f

126

146

57 87

103

g

127

147

58 88

104

h

130

150

59 89

105

i

131

151

5A 90

106

j

132

152

5B 91

107

k

133

153

5C

92

108

l

134

154

5D

93

109

m

135

155

5E 94

110

n

136

156

5F 95

111

o

137

157

70

96

112

p

160

61

71

97

113

q

161

62

72

98

114

r

162

63

73

99

115

s

163

64

74

116

t

164

65

75

117

u

165

66

76

118

v

166

67

77

119

w

167

68

78

120

x

170

69

79

121

y

171

6A

7A

122

z

172

6B

7B

123

{

173

6C

7C

124

¦

174

6D

7D

125

}

175

6E

7E

126

~

176

6F

7F

127 177

ASCII std.

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0 1 2 3 4 5 6 7 8 9 A B C D E F

SH

SX

EX

ET

EQ

AK

BL

BS

HT

LF

VT

FF

CR

SO

SI

0

16

32

48

64

0

20

1

11

1

17

1

21

2

12

2

18

2

22

3

13

3

19

3

23

4

14

4

20

4

24

5

15

5

21

5

6

7

8

8 10

9

9 11

A 10 12

B 11 13

C 12 14

D 13 15

E 14 16

F 15 17

%

25 16

22 26

17 23 27

18 24 30

19 25 31

1A 26 32

1B 27 33

1C 28 34

1D 29 35

1E 30 36

1F 31 37

SP

0

40 21

33

!

41 22

34

"

42 23

35

#

43 24

36

$

44 25

37 45

26 38

&

46 27

39

'

47 28

40

(

50 29

41

)

51

2A

42

∗

52

2B

43

+

53

2C

44

,

54

2D

45

-

55

2E

46

.

56 2F

47

/

57

@

60

100

31 49

1

A

61

101

32 50

2

B

62

102

33 51

3

C

63

103

34 52

4

D

64

104

35 53

5

E

65

105

36 54

6

F

66

106

37 55

7

G

67

107

38 56

8

H

70

110

39 57

9

I

71

111

3A

58

:

J

72

112

3B

59

;

K

73

113

3C

60

<

L

74

114

3D

61

=

M

75

115

3E

62

>

N

76

116

3F 63

?

O

77

117

80

P

41 65

Q

42 66

R

43 67

S

44 68

45 69

U

46 70

V

47 71

W

48 72

X

49 73

Y

4A

74

4B

75

4C

76

4D

77

4E

78

4F 79

`

120

140

51 81

a

121

141

52 82

b

122

142

53 83

c

123

143

54 84

T

Z

[ \ ]

^

_

100

d

124

144

55 85

101

e

125

145

56 86

102

f

126

146

57 87

103

g

127

147

58 88

104

h

130

150

59 89

105

i

131

151

5A 90

106

j

132

152

5B 91

107

k

133

153

5C

92

108

l

134

154

5D

93

109

m

135

155

5E 94

110

n

136

156

5F 95

111

o

137

157

70

96

112

p

160

61

71

97

113

q

161

62

72

98

114

r

162

63

73

99

115

s

163

64

74

116

t

164

65

75

117

u

165

66

76

118

v

166

67

77

119

w

167

68

78

120

x

170

69

79

121

y

171

6A

7A

122

z

172

6B

7B

123

{

173

6C

7C

124

¦

174

6D

7D

125

}

175

6E

7E

126

~

176

6F

7F

127 177

AX3000 - Programmer's Guide 67

Character Sets

Graphics 1

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0 1 2 3 4 5 6 7 8 9 A

B C D

E

F

0

16

32

48

64

0

20

1

11

1

17

1

21

2

12

2

18

2

22

3

13

3

19

3

23

4

14

4

20

4

24

5

15

5

21

5

25

6

16

6

22

6

26

7

17

7

23

7

27

8

18

8

24

10

30

9

19

9

25

11

31

A

1A

10

26

12

32

B

1B

11

27

13

33

C

1C

12

28

14

34

D

1D

13

29

15

35

E

1E

14

30

16

36

F

1F

15

31

17

37

0

40 21

33

1

41 22

34

2

42 23

35

3

43 24

36

4

44 25

37

5

45 26

38

6

46 27

39

7

47 28

40

8

50 29

41

9

51 2A

42 52

2B 43 53

2C

44 54

2D

45 55

2E 46 56

2F 47 57

60

100

31 49 61

101

32 50 62

102

33 51 63

103

34 52 64

104

35 53 65

105

36 54 66

106

37 55 67

107

38 56 70

110

39 57 71

111

3A 58 72

112

3B 59 73

113

3C

60 74

114

3D

61 75

115

3E 62 76

116

3F 63 77

117

80

0

120

41 65

42 66

43 67

44 68

45 69

46 70

47 71

48 72

49 73

4A 74

4B 75

4C

76

4D

77

4E 78

4F 79

140

51 81

1

121

141

52 82

2

122

142

53 83

3

123

143

54 84

100

4

124

144

55 85

101

5

125

145

56 86

102

6

126

146

57 87

103

7

127

147

58 88

104

8

130

150

59 89

105

9

131

151

5A 90

106

┘

132

152

5B 91

107

┐

133

153

5C

92

108

┌

134

154

5D

93

109

└

135

155

5E 94

110

┼

136

156

5F 95

111

▌

137

157

70

96

112

▐

160

61

71

97

113

─

161

62

72

98

114

▄

162

63

73

99

115

▀

163

64

74

116

├

164

65

75

117

┤

165

66

76

118

┴

166

67

77

119

┬

167

68

78

120

│

170

69

79

121 171

6A

7A

122 172

6B

7B

123 173

6C

7C

124 174

6D

7D

125 175

6E

7E

126

█

176

6F

7F

127 177

Graphics 2

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0

1

2

3

4

5

6

7

8

9

A

B C D

E

F

0

16

32

48

64

0 1

1 1

2 2 2

3 3 3

4 4 4

5 5 5

6 6 6

7 7 7

8 8

10

9 9

11

A 10 12

B 11 13

C 12 14

D 13 15

E 14 16

F 15 17

20

40

11

21

17

33

21

41

12

22

18

34

22

42

13

23

19

35

23

43

14

24

20

36

24

44

15

25

21

37

25

45

16

26

22

38

26

46

17

27

23

39

27

47

18

28

24

40

30

50

19

29

25

41

31

51

1A

2A

26

42

32

52

1B

2B

27

43

33

53

1C

2C

28

44

34

54

1D

2D

29

45

35

55

1E

2E

30

46

36

56

1F

2F

31

47

37

57

┌

60

100

31 49 61

101

32 50 62

102

33 51 63

103

34 52

┐

64

104

35 53 65

105

36 54 66

106

37 55 67

107

38 56

└

70

110

39 57 71

111

3A 58 72

112

3B 59 73

113

3C

60

┘

74

114

3D

61 75

115

3E 62 76

116

3F 63 77

117

80

┬

─

120

41 65

42 66

43 67

44 68

┤

45 69

46 70

47 71

48 72

├

49 73

4A 74

4B 75

4C

76

┴

4D

77

4E 78

4F 79

140

51 81

121

141

52 82

122

142

53 83

123

143

54 84

100

│

124

144

55 85

101

125

145

56 86

102

126

146

57 87

103

127

147

58 88

104

┼

130

150

59 89

105

131

151

5A 90

106

132

152

5B 91

107

133

153

5C

92

108

134

154

5D

93

109

135

155

5E 94

110

136

156

5F 95

111

137

157

70

96

112 160

61

71

97

113 161

62

72

98

114 162

63

73

99

115 163

64

74

116 164

65

75 117 165

66

76 118 166

67

77 119 167

68

78 120 170

69

79 121 171

6A

7A 122 172

6B

7B 123 173

6C

7C 124 174

6D

7D 125 175

6E

7E 126 176

6F

7F 127 177

68 AX3000 - Programmer's Guide

Character Sets

Graphics 3

0 1 2 3 4 5 6 7

0

10

20

30

40

50

60

0 1 2 3 4 5 6 7 8 9 A B C D E F

0

16

32

48

64

0

20

1 1 1

2 2 2

3 3 3

4 4 4

5 5 5

6 6 6

7 7 7

8 8

10

9 9

11

A 10 12

B 11 13

C 12 14

D 13 15

E 14 16

F 15 17

40

11

21

17

33

21

41

12

22

18

34

22

42

13

23

19

35

23

43

14

24

20

36

24

44

15

25

21

37

25

45

16

26

22

38

26

46

17

27

23

39

27

47

18

28

24

40

30

50

19

29

25

41

31

51

1A

2A

26

42

32

52

1B

2B

27

43

33

53

1C

2C

28

44

34

54

1D

2D

29

45

35

55

1E

2E

30

46

36

56

1F

2F

31

47

37

57

60

100

31 49 61

101

32 50 62

102

33 51 63

103

34 52 64

104

35 53

└

65

105

36 54

┌

66

106

37 55

┐

67

107

38 56

┘

70

110

39 57

┼

71

111

3A

58

│

72

112

3B

59

─

73

113

3C

60

┤

74

114

3D

61

├

75

115

3E

62

┬

76

116

3F 63

┴

77

117

80

120

41 65

42 66

43 67

44 68

45 69

46 70

47 71

▐

48 72

▄

49 73

▌

4A

74

▀

4B

75

4C

76

4D

77

4E

78

4F 79

█

140

51 81

121

141

52 82

122

142

53 83

123

143

54 84

100

124

144

55 85

101

125

145

56 86

102

126

146

57 87

103

127

147

58 88

104

130

150

59 89

105

131

151

5A 90

106

132

152

5B 91

107

133

153

5C

92

108

134

154

5D

93

109

135

155

5E 94

110

136

156

5F 95

111

137

157

70

96

112 160

61

71

97

113 161

62

72

98

114 162

63

73

99

115 163

64

74 116 164

65

75 117 165

66

76 118 166

67

77 119 167

68

78 120 170

69

79 121 171

6A

7A

122 172

6B

7B

123 173

6C

7C

124 174

6D

7D

125 175

6E

7E

126 176

6F

7F

127 177

AX3000 - Programmer's Guide 69

Keyboards

- 4 -

KEYBOARDS

70 AX3000 - Programmer's Guide

Keyboards

This chapters provides a description of available national keyboards, a list of the default values for programming keys corresponding to the selected emulation and information about dead keys.

4.1 - NATIONAL KEYBOARDS

When a terminal is used in ASCII Mode, a national keyboard must be selected.

The AX3000 Platine terminal provides the following national keyboards:

- USA

- United Kingdom

- France

- Germany

- Spain

- Switzerland (German)

- Switzerland (French)

- Belgium

- Italy

- Portugal

- Netherlands

These 11 national keyboard layouts are described in the following.

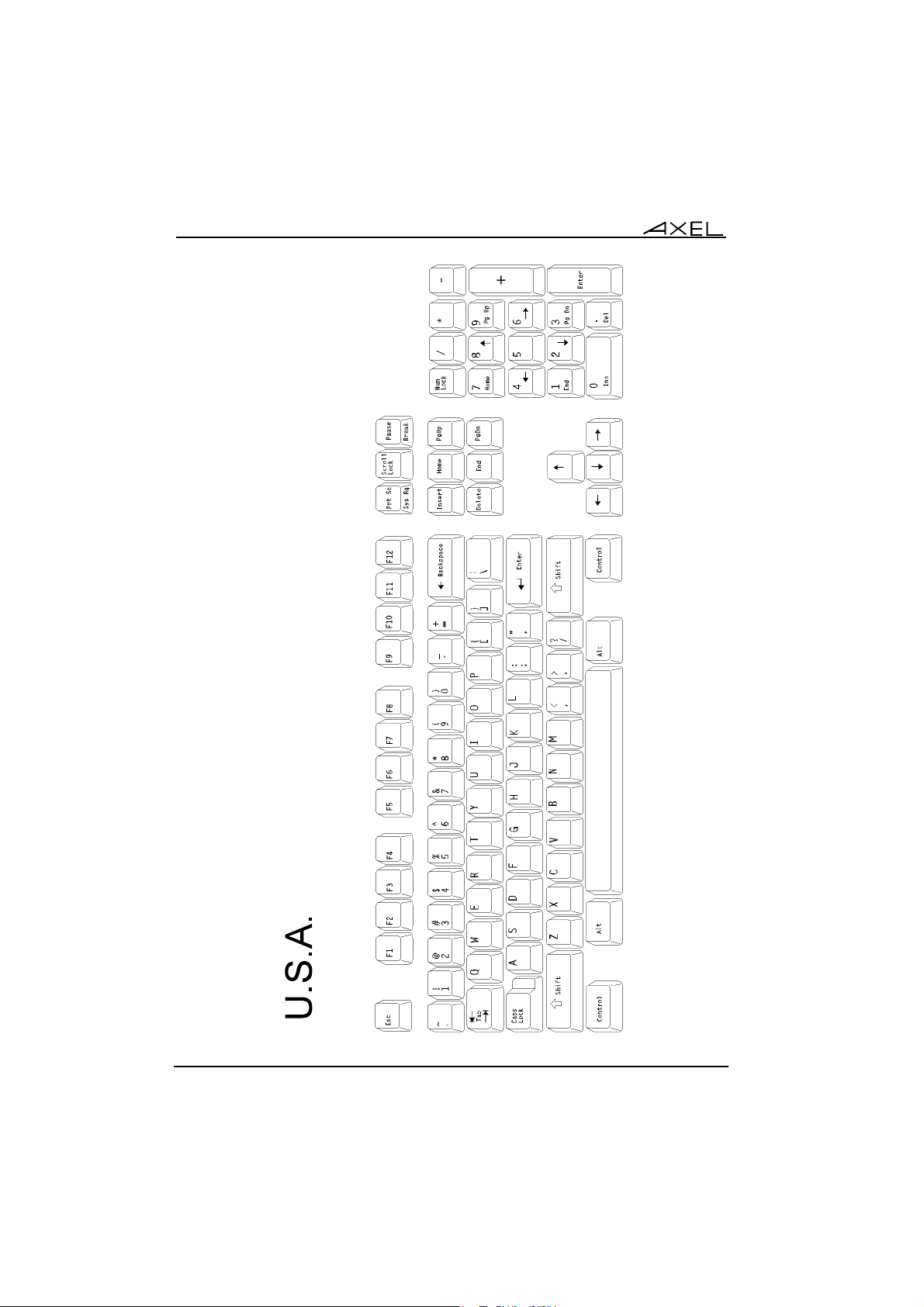

AX3000 - Programmer's Guide 71

Keyboards

72 AX3000 - Programmer's Guide

Keyboards

AX3000 - Programmer's Guide 73

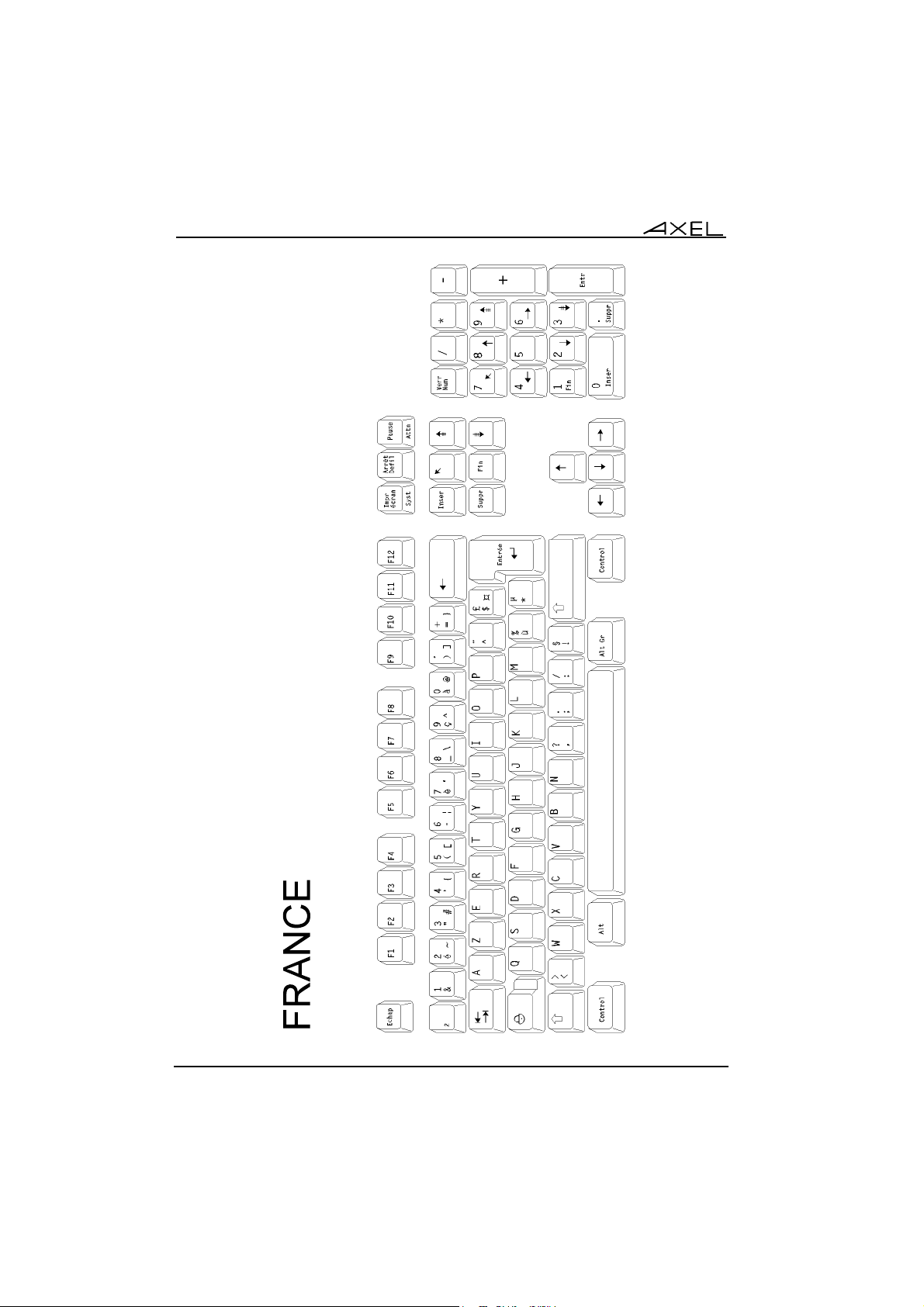

Keyboards

74 AX3000 - Programmer's Guide

Keyboards

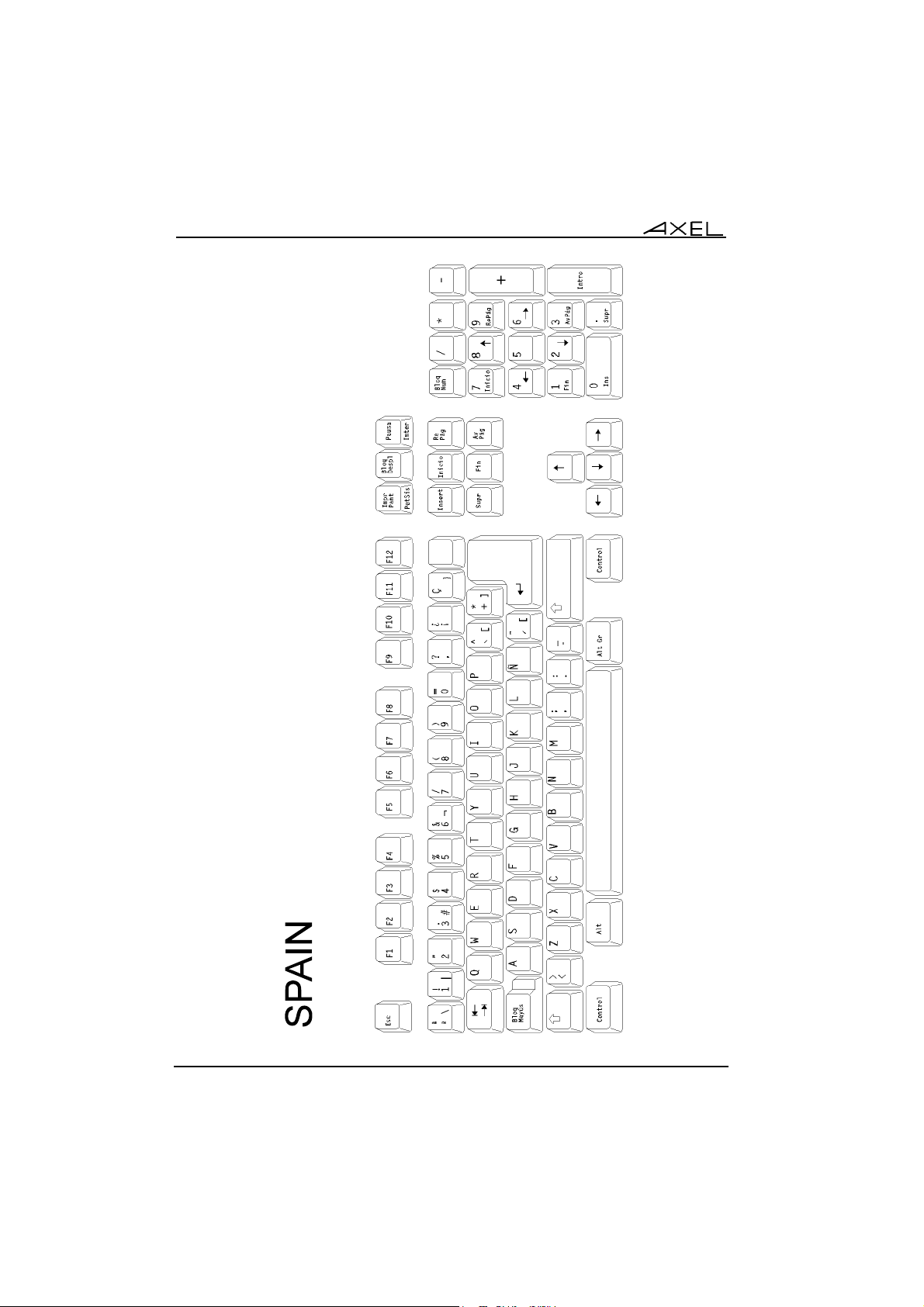

AX3000 - Programmer's Guide 75

Keyboards

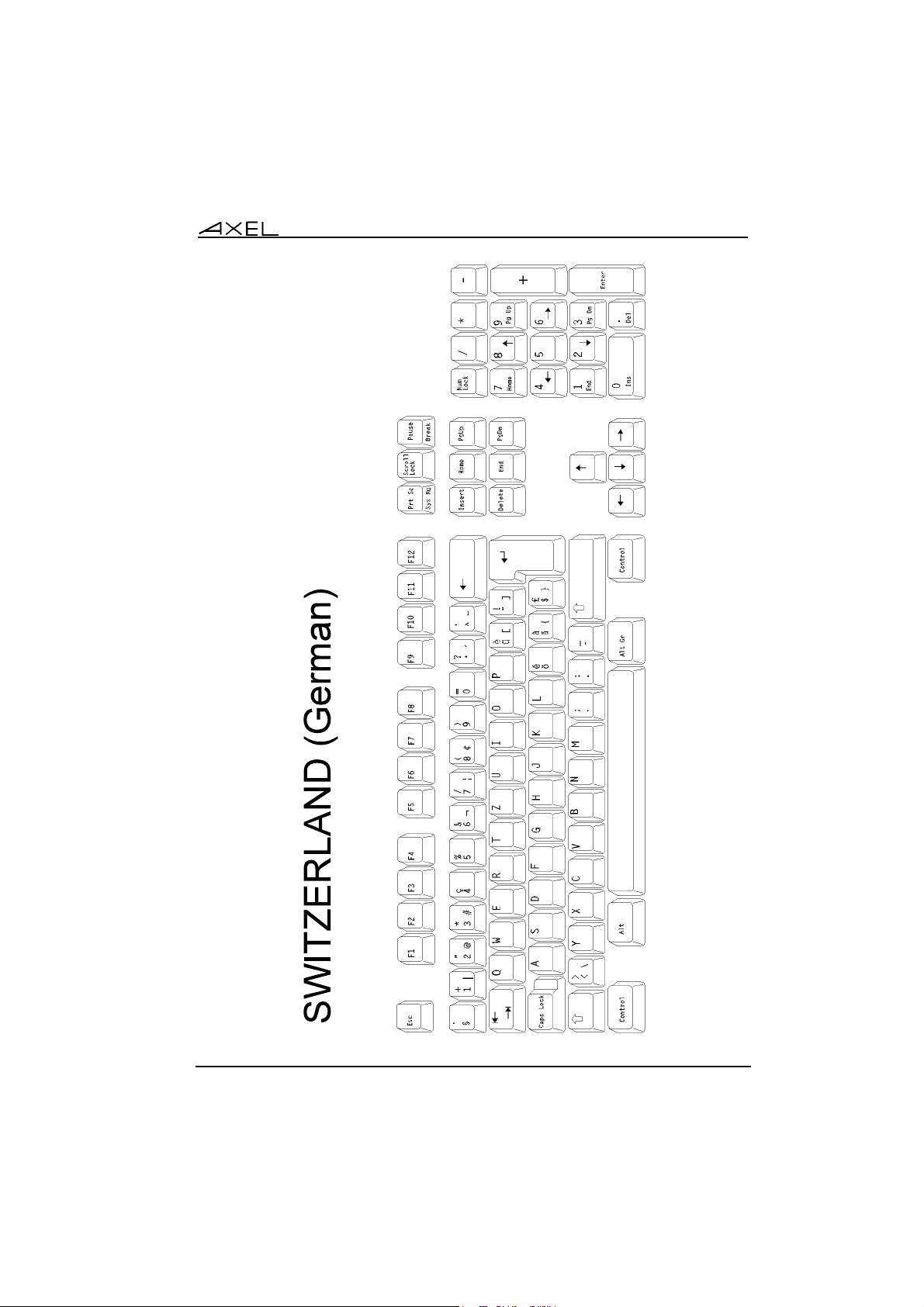

76 AX3000 - Programmer's Guide

Keyboards

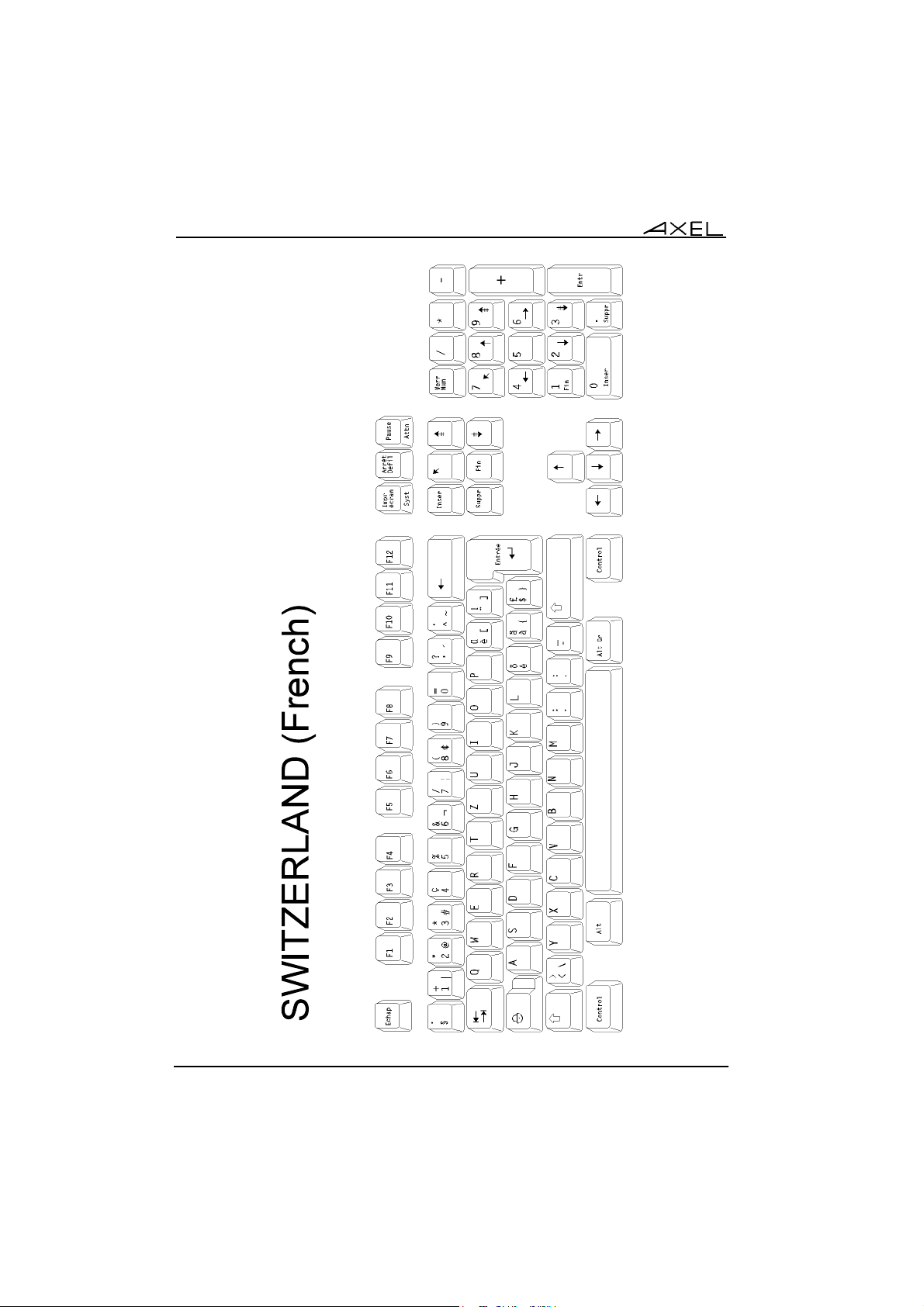

AX3000 - Programmer's Guide 77

Keyboards

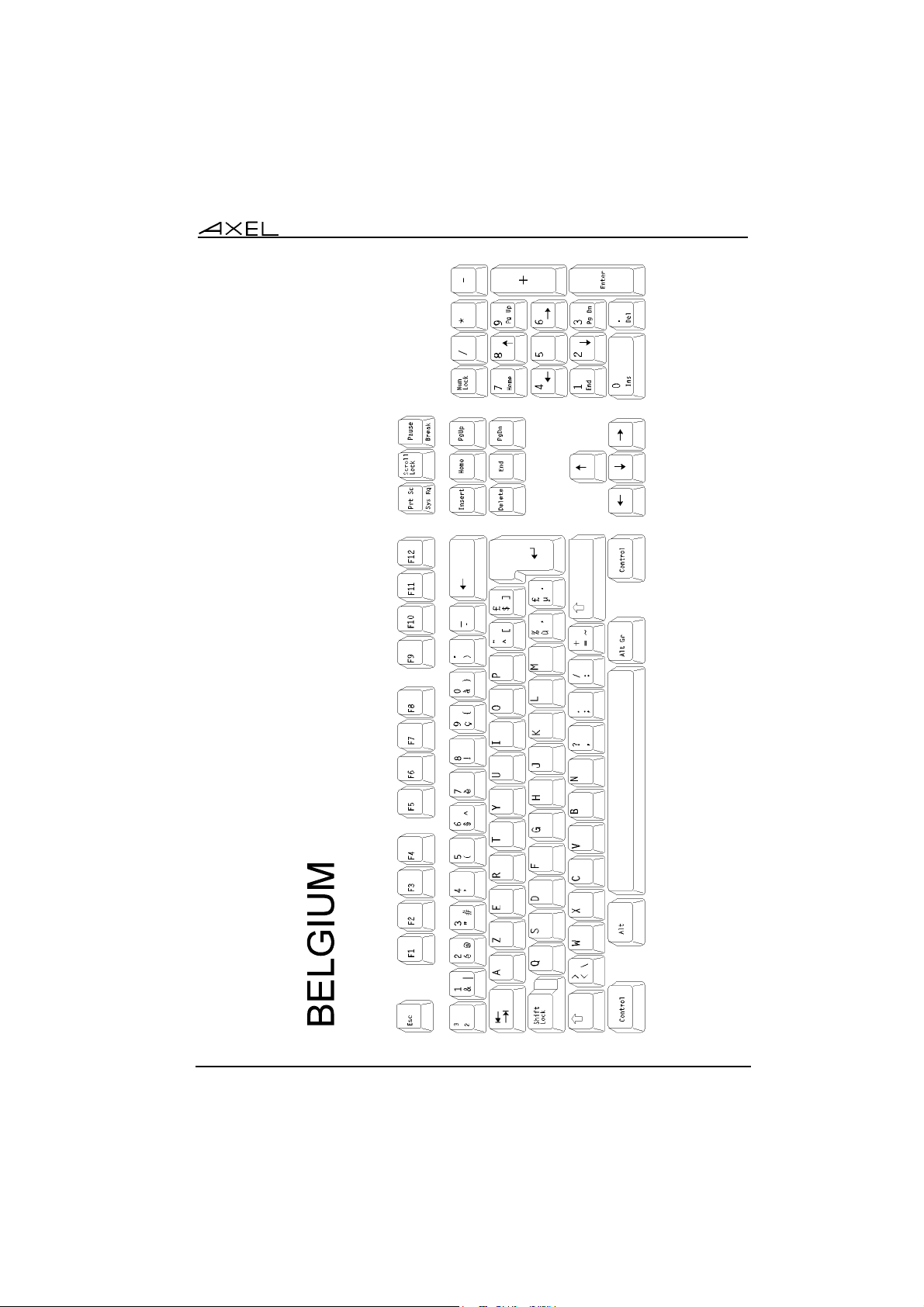

78 AX3000 - Programmer's Guide

Keyboards

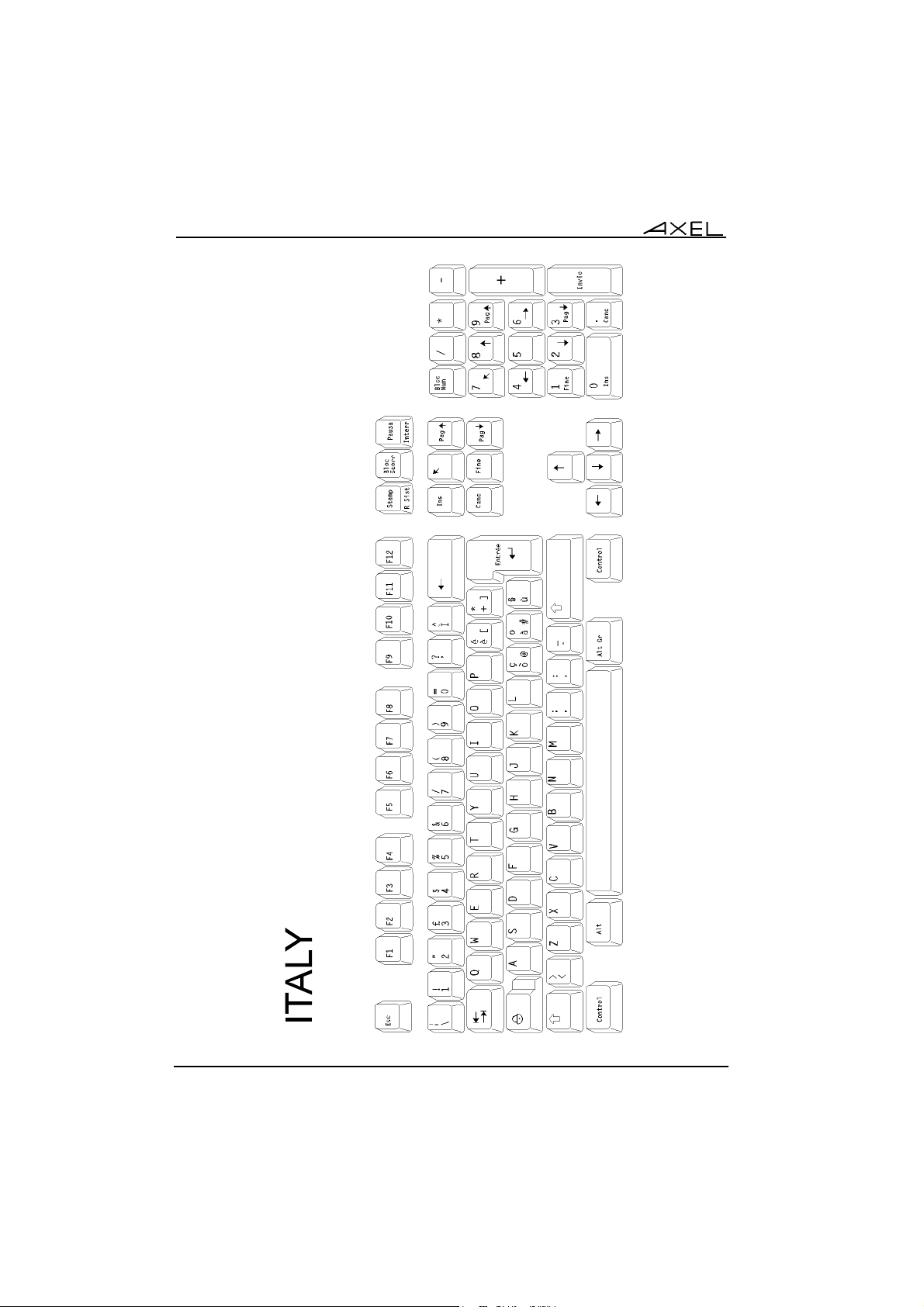

AX3000 - Programmer's Guide 79

Keyboards

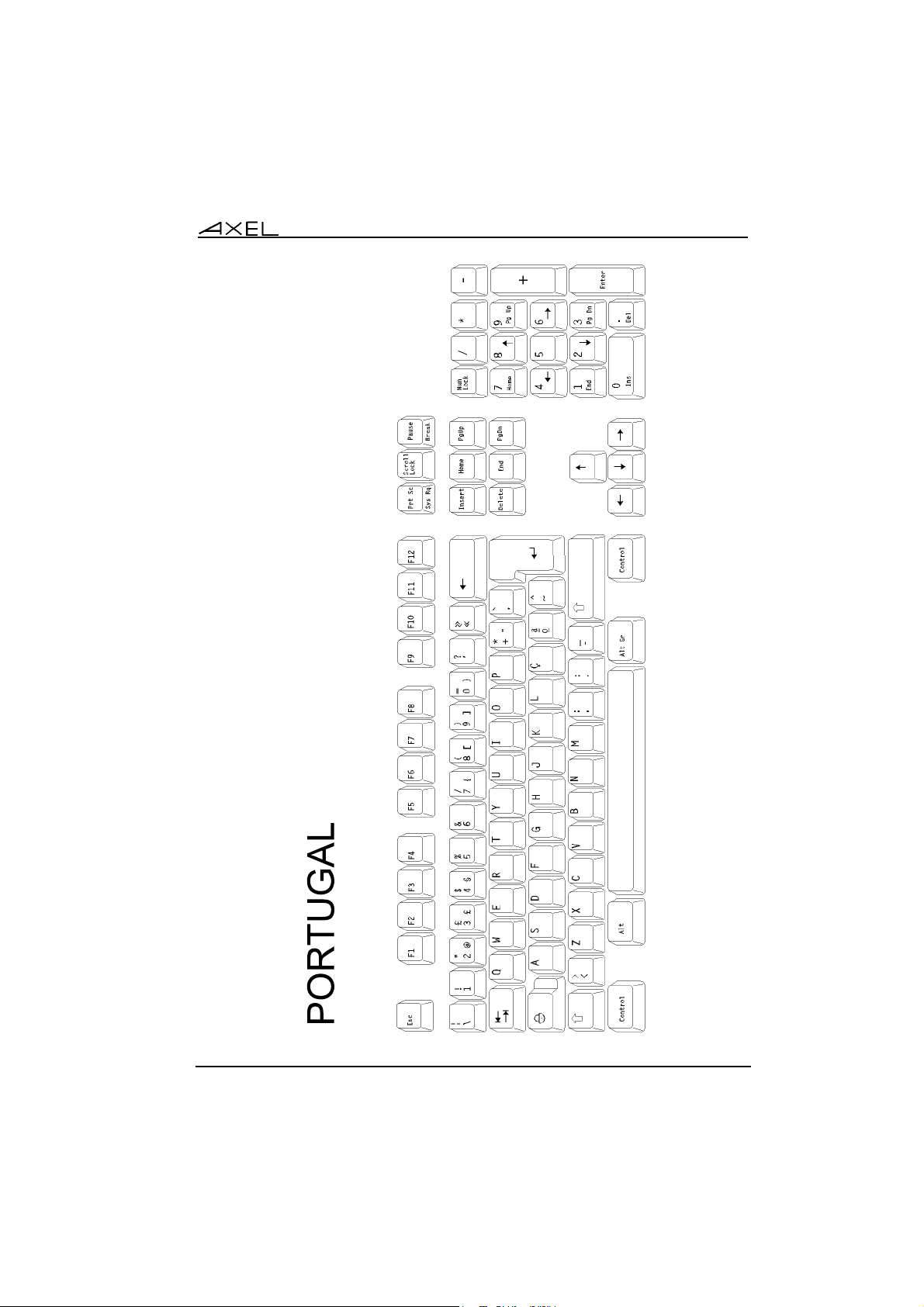

80 AX3000 - Programmer's Guide

Keyboards

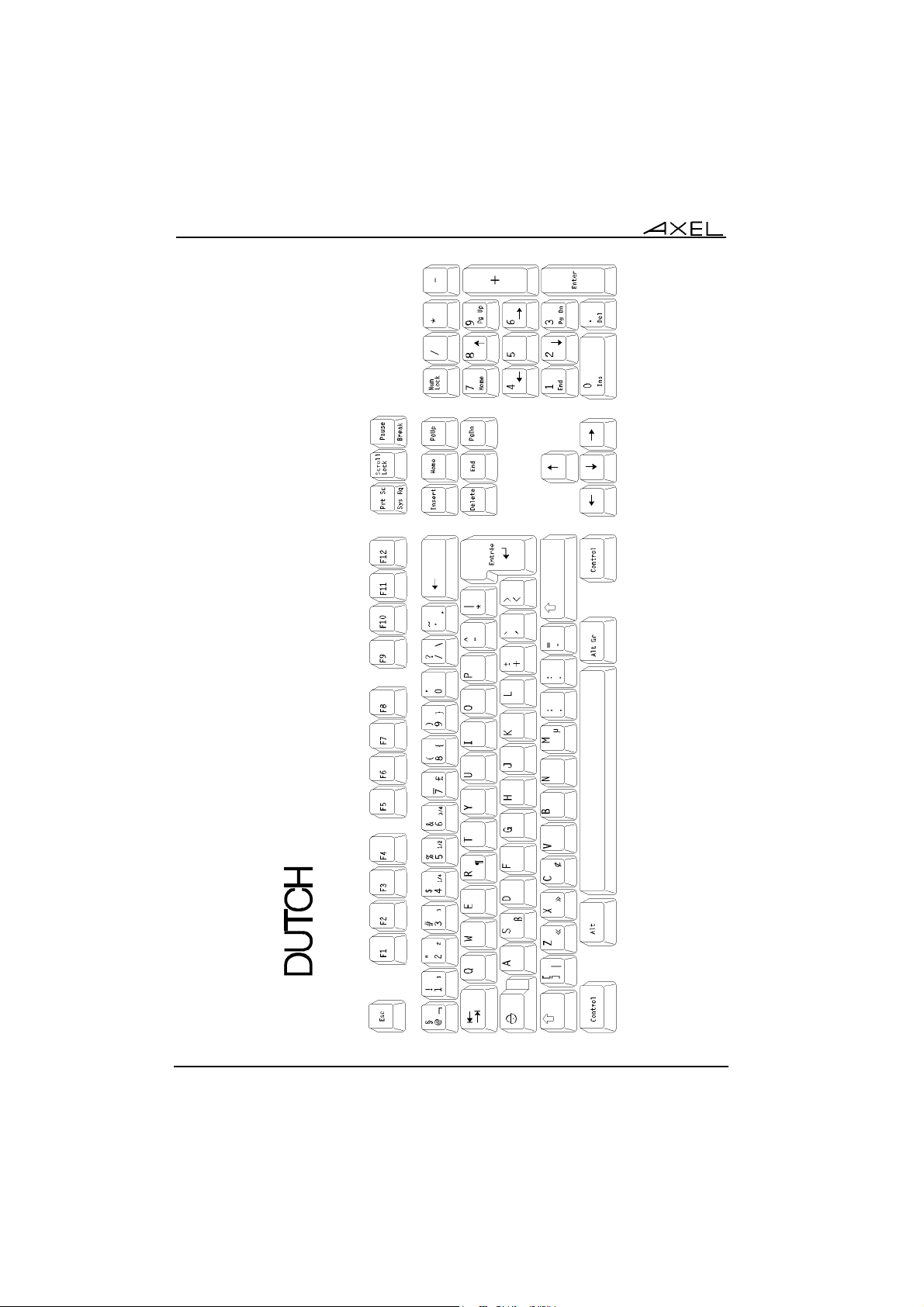

AX3000 - Programmer's Guide 81

Keyboards

82 AX3000 - Programmer's Guide

Keyboards

4.2 - PROGRAMMING KEYS

AX3000's built-in Predefined Configuration set-ups automatically set all standard terminal parameters to match the selected operating system.

Automatic configuration sets both the 'standard' terminal parameters (emulation, number of lines, screen modes, etc) and also the values of the available programming function keys.

Up to 62 programming keys (48 function keys plus the numeric keypad and escape) are updated in this way.

Function Key Memory Usage

Follow these two rules:

- do not exceed 32 characters, maximum, per function key string.

- Serial model: do not exceed 255 characters, in total, to encode all the function key strings.

- TCP/IP model: do not exceed 255 characters, per session, to encode all the function key strings. Sometimes, when you exit set-up, the Platine terminal will sound 5 'beeps'. This indicates insufficient memory for all the function key definitions.

Serial AX3000 Multi-Session

The ANSI, VT and WYSE families offer the multi-session capability (through the axmscreen software). Twelve dedicated keystrokes are needed for the multisession.

Notes:

- the multi-session keystrokes can be changed through the AX3000 Set-Up.

- when a keystroke is redefined through the AX3000 Set-Up and also used by the multi-session, the multi-session feature has priority.

AX3000 - Programmer's Guide 83

Keyboards

The following table gives the 12 multi-session default keystrokes and the associated values (these values can not be changed):

label Value ANSI VT, WYSE

session 1 Esc [<a Alt+F1 Ctrl+F1 session 2 Esc [<b Alt+F2 Ctrl+F2 session 3 Esc [<c Alt+F3 Ctrl+F3 session 4 Esc [<d Alt+F4 Ctrl+F4 session 5 Esc [<e Alt+F5 Ctrl+F5 session 6 Esc [<f Alt+F6 Ctrl+F6 session 7 Esc [<g Alt+F7 Ctrl+F7 session 8 Esc [<h Alt+F8 Ctrl+F8 who Esc [<i Alt+F9 Ctrl+F9 help Esc [<j Alt+F10 Ctrl+F10 quit Esc [<k Alt+F11 Ctrl+F11 exit Esc [<l Alt+F12 Ctrl+F12

TCP/IP AX3000 Multi-Session

No additional software is needed for the TCP/IP AX3000 multi-session. The default multi-session keystrokes are <Alt><Fx> (Fx represents whichever of the F1 to F12).

Notes:

- the multi-session keystrokes can be changed through the AX3000 Set-Up.

- when a keystroke is redefined through the AX3000 Set-Up and also used by the multi-session, the multi-session feature has priority.

Convention

in the following tables, the 'N°' column is the function key number (AX3000's set-up), the 'Keystroke' column is the associated keystroke and the 'Value' column is the corresponding default value.

84 AX3000 - Programmer's Guide

Keyboards

4.2.1 - ANSI Family

ANSI, ANSI DOS, UNIX SCO 3.2.2, UNIX SCO 3.2.4, SCO OPENSERVER and XENIX SCO

N° Keystroke Value

F1 F1 Esc [M F2 F2 Esc [N F3 F3 Esc [O F4 F4 Esc [P F5 F5 Esc [Q F6 F6 Esc [R F7 F7 Esc [S F8 F8 Esc [T F9 F9 Esc [U F10 F10 Esc [V F11 F11 Esc [W F12 F12 Esc [X F13 Shift+F1 Esc [Y F14 Shift+F2 Esc [Z F15 Shift+F3 Esc [a F16 Shift+F4 Esc [b F17 Shift+F5 Esc [c F18 Shift+F6 Esc [d F19 Shift+F7 Esc [e F20 Shift+F8 Esc [f F21 Shift+F9 Esc [g F22 Shift+F10 Esc [h F23 Shift+F11 Esc [i F24 Shift+F12 Esc [j F25 Ctrl+F1 Esc [k F26 Ctrl+F2 Esc [l F27 Ctrl+F3 Esc [m F28 Ctrl+F4 Esc [n F29 Ctrl+F5 Esc [o F30 Ctrl+F6 Esc [p

N° Keystroke Value

F31 Ctrl+F7 Esc [q F32 Ctrl+F8 Esc [r F33 Ctrl+F9 Esc [s F34 Ctrl+F10 Esc [t F35 Ctrl+F11 Esc [u F36 Ctrl+F12 Esc [v F37 Ctrl+Shift+F1 Esc [w F38 Ctrl+Shift+F2 Esc [x F39 Ctrl+Shift+F3 Esc [y F40 Ctrl+Shift+F4 Esc [z F41 Ctrl+Shift+F5 Esc [[ F42 Ctrl+Shift+F6 Esc [@ F43 Ctrl+Shift+F7 Esc [\ F44 Ctrl+Shift+F8 Esc [] F45 Ctrl+Shift+F9 Esc [^ F46 Ctrl+Shift+F10 Esc [_ F47 Ctrl+Shift+F11 Esc [` F48 Ctrl+Shift+F12 Esc [{ F49 <Home> Esc [H F50 <Up> Esc [A F51 <PgUp> Esc [I F52 <-> 2Dh F53 <Left> Esc [D F54 <5> Esc [E F55 <Right> Esc [C F56 <+> 2Bh F57 <End> Esc [F F58 <Down> Esc [B F59 <PgDn> Esc [G F60 <Ins> Esc [L F61 <Del> 7Fh F62 <Esc> 1Bh

AX3000 - Programmer's Guide 85

Keyboards

ANSI RS6000

N° Keystroke Value

F1 F1 Esc [001q F2 F2 Esc [002q F3 F3 Esc [003q F4 F4 Esc [004q F5 F5 Esc [005q F6 F6 Esc [006q F7 F7 Esc [007q F8 F8 Esc [008q F9 F9 Esc [009q F10 F10 Esc [010q F11 F11 Esc [011q F12 F12 Esc [012q F13 Shift+F1 Esc [013q F14 Shift+F2 Esc [014q F15 Shift+F3 Esc [015q F16 Shift+F4 Esc [016q F17 Shift+F5 Esc [017q F18 Shift+F6 Esc [018q F19 Shift+F7 Esc [019q F20 Shift+F8 Esc [020q F21 Shift+F9 Esc [021q F22 Shift+F10 Esc [022q F23 Shift+F11 Esc [023q F24 Shift+F12 Esc [024q F25 Ctrl+F1 Esc [025q F26 Ctrl+F2 Esc [026q F27 Ctrl+F3 Esc [027q F28 Ctrl+F4 Esc [028q F29 Ctrl+F5 Esc [029q F30 Ctrl+F6 Esc [030q

N° Keystroke Value

F31 Ctrl+F7 Esc [031q F32 Ctrl+F8 Esc [032q F33 Ctrl+F9 Esc [033q F34 Ctrl+F10 Esc [034q F35 Ctrl+F11 Esc [035q F36 Ctrl+F12 Esc [036q

N° Keystroke Value

F49 <Home> Esc [H F50 <Up> Esc [A F51 <PgUp> Esc [150q F52 <-> 2Dh F53 <Left> Esc [D F54 <5> Esc [E F55 <Right> Esc [C F56 <+> 2Bh F57 <End> Esc [146q F58 <Down> Esc [B F59 <PgDn> Esc [154q F60 <Ins> Esc [139q F61 <Del> 7Fh F62 <Esc> 1Bh

86 AX3000 - Programmer's Guide

Keyboards

ANSI INTERACTIVE / UNIX SVR4 / UNIXWARE 7

N° Keystroke Value

F1 F1 Esc OP F2 F2 Esc OQ F3 F3 Esc OR F4 F4 Esc OS F5 F5 Esc OT F6 F6 Esc OU F7 F7 Esc OV F8 F8 Esc OW F9 F9 Esc OX F10 F10 Esc OY F11 F11 Esc OZ F12 F12 Esc OA F13 Shift+F1 Esc Op F14 Shift+F2 Esc Oq F15 Shift+F3 Esc Or F16 Shift+F4 Esc Os F17 Shift+F5 Esc Ot F18 Shift+F6 Esc Ou F19 Shift+F7 Esc Ov F20 Shift+F8 Esc Ow F21 Shift+F9 Esc Ox F22 Shift+F10 Esc Oy F23 Shift+F11 Esc Oz F24 Shift+F12 Esc Oa F25 Ctrl+F1 Esc OP F26 Ctrl+F2 Esc OQ F27 Ctrl+F3 Esc OR F28 Ctrl+F4 Esc OS F29 Ctrl+F5 Esc OT F30 Ctrl+F6 Esc OU

Note: with Unixware 7, the <+> and

N° Keystroke Value

F31 Ctrl+F7 Esc OV F32 Ctrl+F8 Esc OW F33 Ctrl+F9 Esc OX F34 Ctrl+F10 Esc OY F35 Ctrl+F11 Esc OZ F36 Ctrl+F12 Esc OA F37 Ctrl+Shift+F1 1Fh F38 Ctrl+Shift+F2 --F39 Ctrl+Shift+F3 Esc Or F40 Ctrl+Shift+F4 Esc Os F41 Ctrl+Shift+F5 Esc Ot F42 Ctrl+Shift+F6 Esc Ou F43 Ctrl+Shift+F7 Esc Ov F44 Ctrl+Shift+F8 Esc Ow F45 Ctrl+Shift+F9 Esc Ox F46 Ctrl+Shift+F10 Esc Oy F47 Ctrl+Shift+F11 Esc Oz F48 Ctrl+Shift+F12 Esc Oa F49 <Home> Esc [H F50 <Up> Esc [A F51 <PgUp> Esc [V F52 <-> Esc [S F53 <Left> Esc [D F54 <5> Esc [G F55 <Right> Esc [C F56 <+> Esc [T F57 <End> Esc [Y F58 <Down> Esc [B F59 <PgDn> Esc [U F60 <Ins> Esc [@ F61 <Del> 7Fh F62 <Esc> 1Bh

<-> keys are associated with 2Bh (+) and 2Dh (-)

AX3000 - Programmer's Guide 87

Keyboards

ANSI MOS

N° Keystroke Value

F1 F1 Esc ' F2 F2 Esc a F3 F3 Esc b F4 F4 Esc c F5 F5 Esc d F6 F6 Esc e F7 F7 Esc f F8 F8 Esc g F9 F9 Esc h F10 F10 Esc i F11 F11 Esc j F12 F12 Esc k F13 Shift+F1 Esc p F14 Shift+F2 Esc q F15 Shift+F3 Esc r F16 Shift+F4 Esc s F17 Shift+F5 Esc t F18 Shift+F6 Esc u F19 Shift+F7 Esc v F20 Shift+F8 Esc w F21 Shift+F9 Esc x F22 Shift+F10 Esc y F23 Shift+F11 Esc z F24 Shift+F12 Esc { F25 Ctrl+F1 Esc [k F26 Ctrl+F2 Esc [l F27 Ctrl+F3 Esc [m F28 Ctrl+F4 Esc [n F29 Ctrl+F5 Esc [o F30 Ctrl+F6 Esc [p

N° Keystroke Value

F31 Ctrl+F7 Esc [q F32 Ctrl+F8 Esc [r F33 Ctrl+F9 Esc [s F34 Ctrl+F10 Esc [t F35 Ctrl+F11 Esc [u F36 Ctrl+F12 Esc [v F37 Ctrl+Shift+F1 Esc [w F38 Ctrl+Shift+F2 Esc [x F39 Ctrl+Shift+F3 Esc [y F40 Ctrl+Shift+F4 Esc [z F41 Ctrl+Shift+F5 Esc [@ F42 Ctrl+Shift+F6 Esc [[ F43 Ctrl+Shift+F7 Esc [\ F44 Ctrl+Shift+F8 Esc [] F45 Ctrl+Shift+F9 Esc [^ F46 Ctrl+Shift+F10 Esc [_ F47 Ctrl+Shift+F11 Esc [` F48 Ctrl+Shift+F12 Esc [{ F49 <Home> Esc [H F50 <Up> Esc [A F51 <PgUp> Esc [I F52 <-> 2Dh F53 <Left> Esc [D F54 <5> Esc [G F55 <Right> Esc [C F56 <+> 2Bh F57 <End> Esc [F F58 <Down> Esc [B F59 <PgDn> Esc [G F60 <Ins> Esc [L F61 <Del> 7Fh F62 <Esc> 1Bh

88 AX3000 - Programmer's Guide

Keyboards

LINUX

N° Touches Valeur

F1 F1 Esc [[ A F2 F2 Esc [[ B F3 F3 Esc [[C F4 F4 Esc [[D F5 F5 Esc [[E F6 F6 Esc [17~ F7 F7 Esc [18~ F8 F8 Esc [19~ F9 F9 Esc [20~ F10 F10 Esc [21~ F11 F11 Esc [23~ F12 F12 Esc [24~ F13 Shift+F1 Esc [25~ F14 Shift+F2 Esc [26~ F15 Shift+F3 Esc [28~ F16 Shift+F4 Esc [29~ F17 Shift+F5 Esc [31~ F18 Shift+F6 Esc [32~ F19 Shift+F7 Esc [33~ F20 Shift+F8 Esc [34~ F21 Shift+F9 --F22 Shift+F10 --F23 Shift+F11 --F24 Shift+F12 --F25 Ctrl+F1 --F26 Ctrl+F2 --F27 Ctrl+F3 --F28 Ctrl+F4 --F29 Ctrl+F5 --F30 Ctrl+F6 ---

N° Touches Valeur

F31 Ctrl+F7 --F32 Ctrl+F8 --F33 Ctrl+F9 --F34 Ctrl+F10 --F35 Ctrl+F11 --F36 Ctrl+F12 --F37 Ctrl+Shift+F1 --F38 Ctrl+Shift+F2 --F39 Ctrl+Shift+F3 --F40 Ctrl+Shift+F4 --F41 Ctrl+Shift+F5 --F42 Ctrl+Shift+F6 --F43 Ctrl+Shift+F7 --F44 Ctrl+Shift+F8 --F45 Ctrl+Shift+F9 --F46 Ctrl+Shift+F10 --F47 Ctrl+Shift+F11 --F48 Ctrl+Shift+F12 --F49 <Home> Esc [1~ F50 <Haut> Esc [A F51 <PgUp> Esc [5~ F52 <-> 2Dh F53 <Gauche> Esc [D F54 <5> Esc [G F55 <Droite> Esc [C F56 <+> 2Bh F57 <Fin> Esc [4~ F58 <Bas> Esc [B F59 <PgDn> Esc [6~ F60 <Insert> Esc [2~ F61 <Suppr> 7Fh F62 <Esc> 1Bh

AX3000 - Programmer's Guide 89

Keyboards

ANSI SLNET

N° Keystroke Value

F1 F1 01h 31h F2 F2 01h 32h F3 F3 01h 33h F4 F4 01h 34h F5 F5 01h 35h F6 F6 01h 36h F7 F7 01h 37h F8 F8 01h 38h F9 F9 01h 39h F10 F10 01h 30h F11 F11 01h 2Dh F12 F12 01h 3Dh F13 Shift+F1 01h 73h 01h 31h 01h 73h F14 Shift+F2 01h 73h 01h 32h 01h 73h F15 Shift+F3 01h 73h 01h 33h 01h 73h F16 Shift+F4 01h 73h 01h 34h 01h 73h F17 Shift+F5 01h 73h 01h 35h 01h 73h F18 Shift+F6 01h 73h 01h 36h 01h 73h F19 Shift+F7 01h 73h 01h 37h 01h 73h F20 Shift+F8 01h 73h 01h 38h 01h 73h F21 Shift+F9 01h 73h 01h 39h 01h 73h F22 Shift+F10 01h 73h 01h 30h 01h 73h F23 Shift+F11 01h 73h 01h 2Dh 01h 73h F24 Shift+F12 01h 73h 01h 3Dh 01h 73h

No default value is associated with other keystrokes:

- F25 to F35 (Ctrl+Fx)

- F36 to F48 (Ctrl+Shift+Fx)

90 AX3000 - Programmer's Guide

Keyboards

Numeric Pad:

N° Keystroke Value

F49 <Home> Esc [H F50 <Up> Esc [A F51 <PgUp> Esc [I F52 <-> 2Dh F53 <Left> Esc [D F54 <5> Esc [G F55 <Right> Esc [C F56 <+> 2Bh F57 <End> Esc [F F58 <Down> Esc [B F59 <PgDn> Esc [G F60 <Ins> Esc [L F61 <Del> 7Fh F62 <Esc> 1Bh

Edit Pad:

Keystroke Value

Insert 01h 69h Home 01h 68h Page Up 01h 75h Delete 01h 64h End 01h 65h Page Down 01h 6Eh

Other keystrokes:

Keystroke Value

Control 01h 63h Alt 01h 61h Shitft Tab 01h 74h

AX3000 - Programmer's Guide 91

Keyboards

ANSI DATA GENERAL

All the function key values are the same than the ANSI ones. The only difference is the <CR> value. These key sends 0Ah instead of 0Dh.

92 AX3000 - Programmer's Guide

Keyboards

4.2.2 - VT Family

VT family is composed by the VT220, HFT and VT AS400 emulation.

VT220

Function keys:

N° Keystroke Value

F1 F1 Esc OP F2 F2 Esc OQ F3 F3 Esc OR F4 F4 Esc OS F5 F5 Esc [16~ F6 F6 Esc [17~ F7 F7 Esc [18~ F8 F8 Esc [19~ F9 F9 Esc [20~ F10 F10 Esc [21~ F11 F11 Esc [23~ F12 F12 Esc [24~ F13 Alt+F1 Esc OP F14 Alt+F2 Esc OQ F15 Alt+F3 Esc OR F16 Alt+F4 Esc OS F17 Alt+F5 Esc [25~ F18 Alt+F6 Esc [26~ F19 Alt+F7 Esc [28~ F20 Alt+F8 Esc [29~ F21 Alt+F9 Esc [31~ F22 Alt+F10 Esc [32~ F23 Alt+F11 Esc [33~ F24 Alt+F12 Esc [34~

N° Keystroke Value

F25 Shift+F1 --F26 Shift+F2 --F27 Shift+F3 --F28 Shift+F4 --F29 Shift+F5 --F30 Shift+F6 --F31 Shift+F7 --F32 Shift+F8 --F33 Shift+F9 --F34 Shift+F10 --F35 Shift+F11 --F36 Shift+F12 --F37 Alt+Shift+F1 --F38 Alt+Shift+F2 --F39 Alt+Shift+F3 --F40 Alt+Shift+F4 --F41 Alt+Shift+F5 --F42 Alt+Shift+F6 --F43 Alt+Shift+F7 --F44 Alt+Shift+F8 --F45 Alt+Shift+F9 --F46 Alt+Shift+F10 --F47 Alt+Shift+F11 --F48 Alt+Shift+F12 ---

AX3000 - Programmer's Guide 93

Keyboards

The keypad modes (numeric or application) and the cursor keypad modes (cursor or application) are selected through escape sequences.

Numeric keypad:

Keypad Mode Application

Key Locked Unlocked Mode

<*> * * Esc Ol <-> - - Esc Om <.> . . Esc On <0> 0 Esc q Esc Op <1> 1 Esc [5~ Esc Oq <2> 2 Esc [B Esc Or <3> 3 Esc [U Esc Os <4> 4 Esc [D Esc Ot <5> 5 5 Esc Ou <6> 6 Esc [C Esc Ov <7> 7 Esc [2~ Esc Ow <8> 8 Esc [A Esc Ox <9> 9 Esc [V Esc Oy

<Return> CR or CR+LF CR or CR+LF Esc OM

<+> + + + </> / / /

Cursor keypad:

Key

<Up> Esc [A Esc OA

<Down> Esc [B Esc OB

<Right> Esc [C Esc OC

<Left> Esc [D Esc OD

Cursor

Mode

Application

Mode

Editing keypad:

Key Value

<Inser> Esc [1~

<Home> Esc [2~ <PgUp> Esc [3~

<Del> Esc [4~ <End> Esc [ 5~

<PgDn> Esc [ 6~

94 AX3000 - Programmer's Guide

Keyboards

HFT

Function keys:

N° Keystroke Value

F1 F1 Esc [001q F2 F2 Esc [002q F3 F3 Esc [003q F4 F4 Esc [004q F5 F5 Esc [005q F6 F6 Esc [006q F7 F7 Esc [007q F8 F8 Esc [008q F9 F9 Esc [009q F10 F10 Esc [010q F11 F11 Esc [011q F12 F12 Esc [012q F13 Shift+F1 Esc [013q F14 Shift+F2 Esc [014q F15 Shift+F3 Esc [015q F16 Shift+F4 Esc [016q F17 Shift+F5 Esc [017q F18 Shift+F6 Esc [018q F19 Shift+F7 Esc [019q F20 Shift+F8 Esc [020q F21 Shift+F9 Esc [021q F22 Shift+F10 Esc [022q F23 Shift+F11 Esc [023q F24 Shift+F12 Esc [024q F62 Esc 1Bh

AX3000 - Programmer's Guide 95

Keyboards

The following table lists the default value of the numeric keypad (or editing keypad and cursor keypad):

N° PS2 Keyboard Value 3270 Keyboard

F49 <Home> Esc [H home F50 <Up> Esc [A up F51 <Page Up> Esc [150q PA1 F53 <Left> Esc [D left F55 <Right> Esc [C right F57 <End> Esc [146q spaceof F58 <Down> Esc [B down F59 <PageDown> Esc [154q PA2 F60 <Insert> Esc [139q insert F61 <Del> Esc [P delete

The following keystrokes are available in HFT emulation. It is not possible to modify their values:

PS2 Keyboard Value 3270 Keyboard

<Ctrl right> Esc [114q Send <Scroll Lock> Esc [213q Repls <Pause> Esc [217q Clear screen <Print Screen> Esc [209q Print screen <Alt><Print Screen> Esc [212q System request <Shift><Scroll Lock> Esc [214q Saves <Shift><Tab> Esc [Z Backtab <Shift><Up> Esc [161q uup <Shift><Down> Esc [164q ddown <Shift><right> Esc [167q rright <Shift><left> Esc [158q lleft <Ctrl><Print Screen> Esc [211q Attention <Ctrl><left> Esc [159q PA3

96 AX3000 - Programmer's Guide

Axel Platine AX3000 Programmer's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
