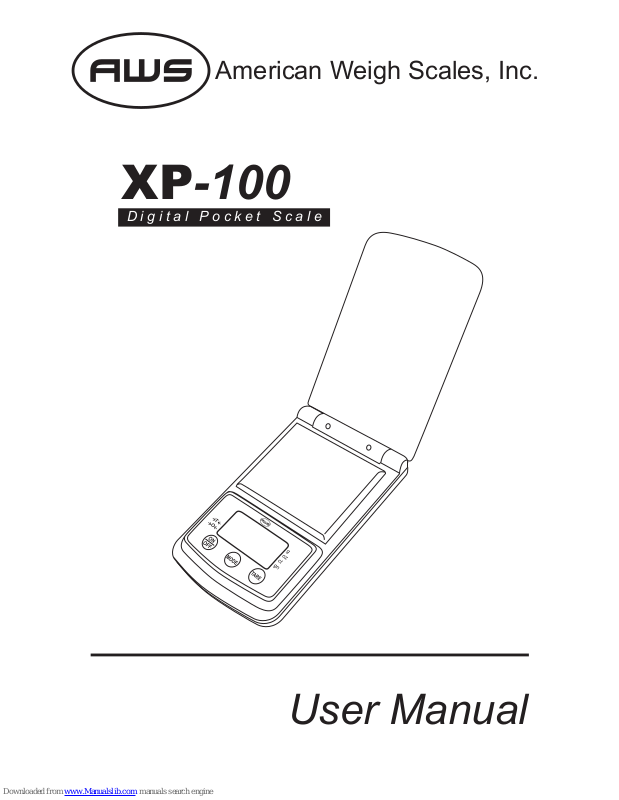

Page 1
American Weigh Scales, Inc.
User Manual
XP-100
D i g i t a l P o c k e t S c a l e
Page 2
American Weigh VP-100
Thank you for purchasing the American Weigh VP-100
digital scale. Please read all operating instructions
carefully before use. This electronic scale is a
precision instrument. With normal care and proper
treatment, it will provide years of reliable service.
Never load the scale with more than the maximum
capacity. Overloading will permanently damage it!
Avoid any exposure to extreme heat or cold. Your
scale works better when operated at normal room
temperature. Always allow the scale to acclimatize to
normal room temperature for at least one hour before
use.
Give your scale sufcient warm up time. Usually
30-60 seconds before calibration to give the internal
components a chance to stabilize.
Keep your scale in a clean environment. Dust, dirt,
moisture, vibration, air currents and a close distance to
other electronic equipment can all cause an adverse
effect on the reliability and accuracy of your scale.
Handle with care. Gently apply all items to be weighed
onto tray top. Although this scale is designed to be
quite durable, try to avoid rough treatment as this may
permanently damage the internal sensor.
Avoid shaking, dropping or otherwise shocking the
scale. This is a precision instrument and must be
handled with extreme care.
Only operate the scale on a stable, vibration free
surface.
Page 3
I. OPERATION
Place Scale on a horizontal at surface.
1. Press [ON/OFF] key.
2. Wait until "0.00” is displayed.
3. Put the object(s) on the weighing platform.
4. Using the [MODE] key, you can switch between the
weighing units.
II. TARE WEIGHING
1. Turn on scale as described above.
2. Place the "tare item" on the platform.
3. Press [TARE] and wait until "0.00" is displayed.
4. Add the "net-weight-item".
III. CALIBRATION
Calibration is NOT required before rst use. Only
calibrate if scale is not weighing properly.
**Make sure you use the correct calibration weight for
your scale or the calibration will not be accurate**
VP-100: 100g calibration weight
1. Turn OFF the scale.
2. Press and hold the [TARE] key, until a random
number is displayed (between 10000~20000).
3. Press the [TARE] key again. The display will show
"Zero", followed by "100" (grams).
4. Place a 100g calibration weight onto the center of
the platform. (not included)
5. Press [TARE} one last time. The display will show
Page 4
"PASS". Calibration is complete!
IV. TROUBLESHOOTING
The primary reasons for inaccuracy or malfunction
are low batteries, incorrect calibration, overload or
operating on an unstable surface. Please keep this in
mind and maintain and operate your scale properly.
This scale is a precise instrument and must be
handled with the utmost care and caution.
[Display] Elimination of errors
[OUE2] Recalibrate the scale as shown above.
[- - - - -] You are overloading the scale. Remove the
excessive load immediately!
Page 5
Model VP-100
Capacity
100g / 3.528oz / 500ct / 1543gn
Resolution
0.01g / 0.001oz / 0.05ct / 0.1gn
Display
5 - Digit Backlit LCD
Calibration Weight
(not Included)
100g
Platform Dimensions
(inches)
2.1 x 1.6
Scale Dimensions
(inches)
3.8 x 2.4 x 0.7
Power
2 x CR2032 Batteries (included)
Gross Weight
0.25 lb
Specications
