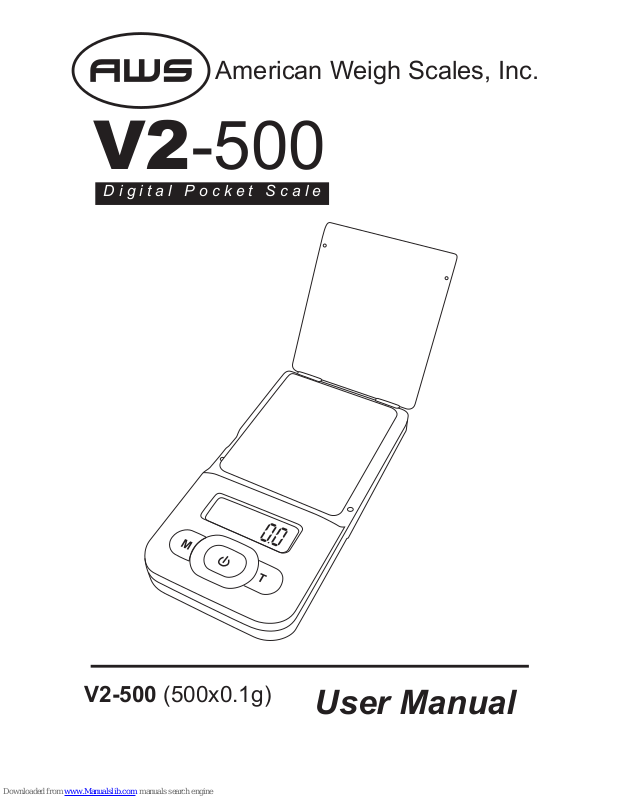

American Weigh Scales, Inc.
V2-500 (500x0.1g)
User Manual
V2-500
Digital Pocket Scale
V2-500 Manual
Thank you for purchasing the American Weigh V2500 digital pocket scale. Please read all operating
instructions carefully before use. Scales are precision
instruments and should always be handled with proper
care. To ensure years of reliable service, keep these
simple tips in mind:
• Do not exceed the scales maximum capacity.
Overloading your scale can permanently damage it!
• Avoid exposure to extreme heat or cold. Scales
perform best at normal room temperature. If
temperatures have changed dramatically, recalibration
may be necessary.
• Allow your scale to warm up for 30-60 seconds
before performing calibration (if available).
• Store your scale in a clean, dry location. Dust, dirt,
and moisture can accumulate on the weighing sensors
and electronics causing innacuracy or malfunction.
• Avoid using your scale in close proximity to strong
radio wave emitting devices such as computers, cash
registers, and cordless phones.
• Always weigh on a at and level surface, free from
vibrations and drafts. The corner of a room is usually
the most stable.
• Gently apply all items to be weighed. Do not drop
items onto the weighing platform.
• Avoid dropping your scale. The warranty does not
cover damage due to rough treatment or overload.
I. OPERATION
Place Scale on a horizontal at surface.
1. Press [
] key.
2. Wait until "0.0” or is displayed.
3. Place the object(s) on the weighing platform.
4. By tapping the [ M ] key, you can switch between
weighing units.
5. The removable lid can also be used as a weighing
tray.
II. TARE WEIGHING
1. Turn on scale as described above.
2. Place a tray or container on the scale platform.
3. Press [ T ] and wait until "0.0" or is displayed.
4. You can now add items to the container or tray to
obtain just the weight of the contents.
III. CALIBRATION
Calibration is NOT required before rst use. Only
calibrate if scale is not weighing properly.
**Make sure you use the correct calibration weight for
your scale or the calibration will not be accurate**
V2-500: 500g calibration weight
1. Turn on scale as described above.
2. Press and hold the [ M ] key, until the LCD displays
"CAL".
3. Press the [ M ] key once more. The dispay will ash
"CAL" followed by "500.0".
4. At this point, place a 500g calibration weight (not
included) onto the center of the weighing platform and
wait for the display to show "PASS".
5. Calibration is complete
V. TROUBLESHOOTING
The primary reasons for inaccuracy or malfunction
are low batteries, incorrect calibration, overload or
operating on an unstable surface. Please keep this in
mind and maintain and operate your scale properly.
This scale is a precise instrument and must be
handled with the utmost care and caution.
[Display] Elimination of errors
-----------------------------------------------
[OUT2] Recalibrate the scale as shown above.
[HHHH] You are overloading the scale. Remove the
excessive load immediately!
[unST] Use the scale in a more stable position
Model V2-500
Capacity
500.0g / 17.635oz / 16.075ozt / 321.5dwt
Resolution
0.1g / 0.01oz / 0.01ozt / 0.1dwt
Weighing Units
g, oz, ozt, dwt
Calibration Weight (not Included)
500g
Platform Dimensions (inches)
1.9 x 2.1
Scale Dimensions (inches)
4.2 x 2.1 x 0.6”
Power
2 x AAA Batteries (included)
Warranty
10 Year Limited Warranty
Specications
