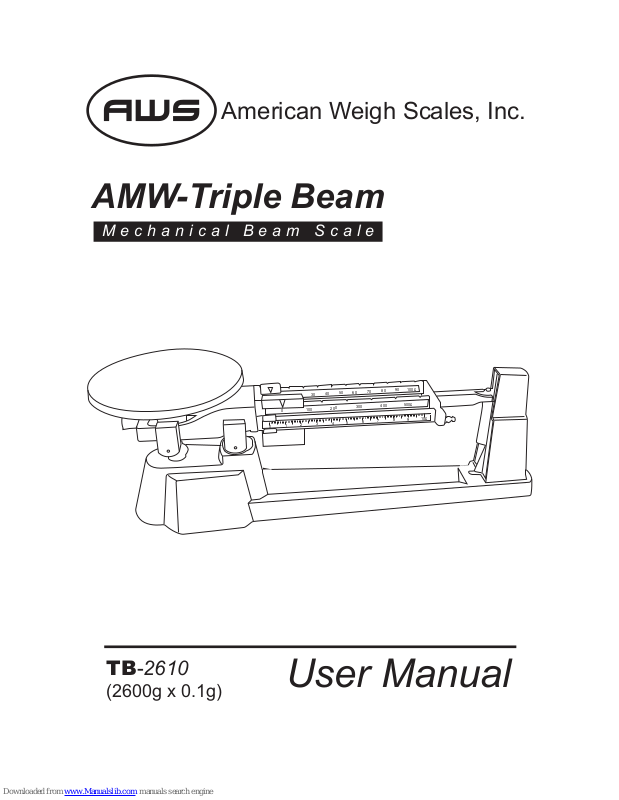

American Weigh Scales, Inc.
User Manual
AMW-Triple Beam
Mechanical Beam Scale
TB-2610
(2600g x 0.1g)
30 40 50 60 70 80 90 100g
0 100 200 300 400 500
g
0 1 2 3 4 5 6 7 8 9 10
g
AMW-Triple Beam Manual
Thank you for purchasing the American Weigh Triple
Beam Balance. Please read all operating instructions carefully
before use. This mechanical scale is a precision instrument.
With normal care and proper treatment, it will provide years of
reliable service.
Keep the balance clean at all times. Most dirt or
foreign matter can easily be removed with an air syringe, but
a piece of adhesive backed tape pressed against the magnet
faces will keep them free from dirt. Never apply lubricants to
the knives or bearings and don't allow dirt or foreign materials
to accumulate on any part of the beam.
Handle with care. Gently apply all items to be weighed
onto the tray top. Although this scale is designed to be quite
durable, try to avoid rough treatment as this may permanently
damage it. Avoid dropping or otherwise shocking the scale.
Only operate the scale on a stable, vibration free surface.
Part Descriptions
30 40 50 60 70 80 90 100g
0 100 200 300 400 500
g
0 1 2 3 4 5 6 7 8 9 10
g
Degaussed Metal
Platform
Zero Adjustment
Knob
Metal Bearing Covers
Auto Aligning Bearings
Precision Knives (pivot
point)
Zero Stops for
Sliding Weights
Deep Grooved
Easily Readable
Tiered Beams
Attachment Points
hold the weight steady
Advanced Magnetic
Dampening System
Unpacking:
Carefully remove the balance from the carton. You will nd
a slit rubber washer lodged underneath the platform base,
and another above the pointer. The washers protect the scale
during shipping and should be removed before use.
Set-up:
Place the balance on a smooth, at surface and slide each
poise (sliding weight) to it’s zero position. With all poises at
their zero position, the scale pointer should be near zero.
Zeroing:
If the pointer does not go to zero, you can adjust using the
knob underneath the scales platform. It is advisable to check
the zero adjustment periodically.
Weighing:
Place the item to be weighed on the center of the platform
and proceed as follows:
Starting with the largest capacity beam (500g), move 1.
the poise to the right to the rst notch which causes the
pointer to drop, then move it back one notch, causing the
pointer to rise.
Repeat this procedure with the 100 g poise.2.
Slide the 10 g poise to the position that brings the pointer 3.
to rest at zero.
The weight of the item on the platform is the sum of 4.
the values of all poise positions, read directly from the
graduated beams.
Attachment Weights:
Total capacity is 2610 grams (5 pounds
and 2 ounces) when attachment weights
are suspended from the pivots. Without
the weights, the capacity is 610 grams (1
pound and 2 ounces)
30 40 50 60 70 80 90 100g
0 100 200 300 400 500
g
0 1 2 3 4 5 6 7 8 9 10
g
Troubleshooting:
Before troubleshooting please take these words of
“Balance Beam Wisdom”. Balance Beams are a very old and
basic design of scale. They date back to the ancient Egyptian
Empire and Balance Beam scales were used to build the
pyramids. Thus, the design is quite simple - a cup (hidden
on modern beam scales) lled with metal loose weights
and some metal sliding weights. Therefore xing a Balance
Beam scale requires very basic steps, such as adding or
removing weight from the cup or using a wrench to make
the beam swing smoothly (if it is touching or rubbing as it
operates). First, before troubleshooting, be certain that you
have correctly unpacked the scale and removed all rubber
stoppers. Also be sure that the sliding weights are all at their
proper ZERO position.
“The Scale Won’t Zero”:1. Sometimes in transport, the
beam will some how become unbalanced. This means
adjusting the zero knob doesn’t make the scale zero
properly. If this happens to your scale, please know that
you can manually add or remove weight to the “Balance
Cup”. The Balance Cup is located underneath the round
metal tray. Simply spin the tray off (counterclockwise) to
access the Balance Cup and add or remove weight as
follows:
If your scale would not zero because it was reading too •
light (meaning you would have to press down on the tray
to make it zero), then add a small amount of weight to
the cup (just a coin or paperclip - you can add or remove
weight as you require)
If your scale would not zero because it was reading too •
heavy (meaning you would have to pull up on the tray to
make it zero), then remove a small amount of weight from
the cup (just remove a tiny amount, you can remove or
add weight as you require).
Model TB-2610
Capacity 610g (2610g with included attachment
weights)
Readability 0.1g
Beam Graduations Rear beam: 100g x 10g
Center beam: 500g x 100g
Front beam: 10g x 0.1g
Platform Dimensions 6” Diameter - Stainless Steel
Scale Dimensions 17 x 4 x 6.25”
Warranty 10 Year American Weigh Warranty
If you are trying to compensate for a small bowl or tray, •
you can remove weight from the cup until the scale zeros.
The Balance Beam is a very basic scale and if it zeros
and moves freely, then it always reads accurately.
“The Beam is Rubbing / Touching”:2. In order for this
scale to work properly it must operate smoothly without
touching or rubbing. Sometimes in transport the beam will
get shifted and touch the internal magnets by the front
of the beam (where the “0” indicator is). If this happens
please try to manually adjust the beam using a wrench on
the main bolt under the scale. Simply twist the beam to
make it operate smoothly. If you cannot make the beam
operate smoothly then the scale will need to be sent in for
service.
