Page 1
AWS Storage Gateway
User Guide
API Version 2013-06-30
Page 2
AWS Storage Gateway User Guide
AWS Storage Gateway: User Guide
Page 3
AWS Storage Gateway User Guide
Table of Contents
What Is AWS Storage Gateway? ... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . 1
Are You a First-Time AWS Storage Gateway User? .... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . .... 2
How AWS Storage Gateway Works ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .. 2
File Gateways . . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... 3
Volume Gateways .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ... 3
Tape Gateways .... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . .. 6
Pricing . . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... .. 8
Plan Your Gateway Deployment .. ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... 8
Getting Started .... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... .... 10
Sign Up for AWS Storage Gateway . ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... 10
AWS Regions .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... .... 10
Requirements . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ... 10
Hardware and Storage Requirements .. ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... .... 11
Network and Firewall Requirements ... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... 12
Supported Hypervisors and Host Requirements .. . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... 20
Supported NFS Clients for a File Gateway . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ... 21
Supported SMB Clients for a File Gateway . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . ... 21
Supported File System Operations for a File Gateway ... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . . 21
Supported iSCSI Initiators .. . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ... 22
Supported Third-Party Backup Applications for a Tape Gateway .. ..... . .... . ..... ..... . ..... ..... . ..... ..... 22
Accessing AWS Storage Gateway . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ... 23
Using the Hardware Appliance .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . .... 24
Supported AWS Regions . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... .... 24
Setting Up Your Hardware Appliance ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ... 25
Rack-Mount and Plug In Your Hardware Appliance . . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . .... 25
Configure Network Parameters ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... 27
Activate Your Hardware Appliance . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... . 29
Launching a Gateway . . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . . 32
Configuring an IP Address for the Gateway ... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . .. 33
Configuring Your Gateway ... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... .... 34
Removing a Gateway . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .. 34
Deleting Your Hardware Appliance . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... 34
Creating Your Gateway ... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . 36
Creating a File Gateway . ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ... 36
Creating a Gateway . . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . . 36
Creating a File Share . . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . .... 42
Using Your File Share .... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . . 51
Creating a Volume Gateway ... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . . 56
Creating a Gateway . . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . . 57
Creating a Volume . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . .... 63
Using Your Volume .. . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... . 65
Backing Up Your Volumes .. ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .. 71
Creating a Tape Gateway ... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . 75
Creating a Gateway . . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . . 75
Creating Tapes .... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... 82
Using Your Tape Gateway . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... 83
Activating a Gateway in a Virtual Private Cloud .. . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... . 133
Creating a Gateway Using a VPC Endpoint .. . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... 134
Managing Your Gateway ... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... .. 144
Managing Your File Gateway .. . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... 144
Adding a File Share . . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . .... 144
Deleting a File Share .. ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ... 146
Editing Storage Settings for Your File Share ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . 148
Editing Metadata Defaults for Your NFS File Share .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ... 149
API Version 2013-06-30
iii
Page 4
AWS Storage Gateway User Guide
Editing Access Settings for Your NFS File Share ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . . 150
Editing Access Settings for Your SMB File Share .... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . 150
Refreshing Objects in Your Amazon S3 Bucket .. ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... 153
Using S3 Object Lock with File Gateway ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... 154
Understanding File Share Status .... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... . 154
File Share Best Practices . ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... 155
Managing Your Volume Gateway ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... .. 156
Adding a Volume . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . .... 156
Expanding the Size of a Volume . . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ... 157
Cloning a Volume . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ... 157
Viewing Volume Usage ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . .. 159
Deleting a Volume . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... .. 160
Moving Your Volumes to a Different Gateway . . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . . 160
Reducing the Amount of Billed Storage on a Volume ... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . 162
Creating a One-Time Snapshot .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .. 162
Editing a Snapshot Schedule ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... 162
Deleting Snapshots .. ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... 163
Understanding Volume Status and Transitions . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... .. 171
Managing Your Tape Gateway ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . 178
Adding Tapes .... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... 178
Archiving Tapes .... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . .. 180
Moving a Tape from Glacier to Deep Archive .. ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .. 180
Retrieving Archived Tapes .. ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . . 181
Viewing Tape Usage .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . . 181
Deleting Tapes ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .. 182
Disabling Your Tape Gateway .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... 182
Understanding Tape Status ... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ... 183
Monitoring Your Gateway and Resources .. . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . . 185
Understanding Gateway Metrics ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ... 185
AWS Storage Gateway Metrics .. ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . 185
Dimensions for AWS Storage Gateway Metrics . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... .. 196
Monitoring the Upload Buffer . ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... 196
Monitoring Cache Storage . . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ... 198
Monitoring Your File Share ... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... . 199
Getting Notified About File Operations ... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ... 199
Understanding File Share Metrics .... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... 203
Monitoring Your Volume Gateway .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... 204
Using Amazon CloudWatch Metrics .. . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . .... 205
Measuring Performance Between Your Application and Gateway . . .... . ..... ..... . ..... ..... . ..... ..... . ... 206
Measuring Performance Between Your Gateway and AWS .. ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . . 207
Understanding Volume Metrics ... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . ... 210
Monitoring Your Tape Gateway .... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... 212
Using Amazon CloudWatch Metrics .. . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . .... 213
Measuring Performance Between Your Tape Gateway and AWS .... . ..... ..... . .... . ..... . .... . ..... ..... . . 213
Logging Storage Gateway API Calls with AWS CloudTrail . . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... 215
Storage Gateway Information in CloudTrail .. . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... .... 216
Understanding Storage Gateway Log File Entries .. ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... .. 216
Maintaining Your Gateway ... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... 219
Shutting Down Your Gateway VM . ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... 219
Starting and Stopping a Volume or Tape Gateway ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... .. 219
Managing Local Disks .. ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... 220
Deciding the Amount of Local Disk Storage ... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... .. 220
Sizing the Upload Buffer . . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ... 221
Sizing Cache Storage .. ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... .. 222
Configuring an Upload Buffer and Cache Storage . ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... .. 223
Using Ephemeral Storage With EC2 Gateways .. ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . 223
Managing Bandwidth . . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... 224
API Version 2013-06-30
iv
Page 5
AWS Storage Gateway User Guide
Changing Bandwidth Throttling Using the Storage Gateway Console ... . ..... ..... . ..... ..... . ..... ..... . 224
Using the AWS SDK for Java .. . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .. 225
Using the AWS SDK for .NET ... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... .. 226
Using the AWS Tools for Windows PowerShell ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .. 227
Managing Gateway Updates . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .. 228
Performing Maintenance Tasks on the Local Console ... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . ... 229
Performing Tasks on the VM Local Console (File Gateway) . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . . 229
Performing Tasks on the EC2 Local Console (File Gateway) .... . .... . ..... . .... . ..... ..... . ..... ..... . ..... .. 244
Performing Tasks on the VM Local Console (Volume and Tape Gateways) . . ..... ..... . .... . ..... . .... . .. 252
Performing Tasks on the EC2 Local Console (Volume and Tape Gateways) ..... . .... . ..... . .... . ..... ... 267
Accessing the Gateway Local Console ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... .... 273
Configuring Network Adapters for Your Gateway .... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... 275
Deleting Your Gateway and Removing Resources .. . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . .... 281
Deleting Your Gateway by Using the AWS Storage Gateway Console . . .... . ..... ..... . ..... ..... . ..... .... 282
Removing Resources from a Gateway Deployed On-Premises ..... . ..... ..... . ..... ..... . .... . ..... . .... . ... 282
Removing Resources from a Gateway Deployed on an Amazon EC2 Instance .. ..... . ..... ..... . .... . ... 284
Performance . . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ... 285
Performance Guidance for File Gateways . . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... 285
Performance Guidance for Tape Gateways ... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . . 286
Optimizing Gateway Performance ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . 287
Add Resources to Your Gateway ... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... .. 287
Use a Larger Block Size for Tape Drives . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . 288
Optimize the Performance of Virtual Tape Drives .... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . .... 288
Add Resources to Your Application Environment . . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ... 288
Security .. ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . .... 290
Creating a gateway in a VPC .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .. 290
Create a VPC Endpoint . . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . 290
Configuring CHAP Authentication . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... 291
Viewing and Editing CHAP Credentials . . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . 292
Encrypting Your Data Using AWS KMS .... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... 293
Authentication and Access Control .. ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .. 294
Authentication . . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... . 294
Access Control .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... .... 295
Overview of Managing Access ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ... 296
Using Identity-Based Policies (IAM Policies) . ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . 299
Using Tags to Control Access to File Gateway Resources . ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... .... 305
Using ACLs for SMB File Share Access .. ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . . 307
Storage Gateway API Permissions Reference .. . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... .. 309
Troubleshooting Your Gateway .... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ... 316
Troubleshooting On-Premises Gateway Issues .. . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .. 316
Enabling AWS Support To Help Troubleshoot Your Gateway .. ..... . ..... ..... . ..... ..... . .... . ..... . .... . ... 318
Troubleshooting Your Microsoft Hyper-V Setup ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . ... 320
Troubleshooting Amazon EC2 Gateway Issues . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... 323
Your Gateway Activation Hasn't Occurred After a Few Moments .... . .... . ..... . .... . ..... ..... . ..... ..... . . 323
You Can't Find Your EC2 Gateway Instance in the Instance List . ..... ..... . .... . ..... . .... . ..... ..... . ..... . 323
You Created an Amazon EBS Volume But Can't Attach it to Your EC2 Gateway Instance ... . ..... . .. 324
You Can't Attach an Initiator to a Volume Target of Your EC2 Gateway . .... . ..... ..... . ..... ..... . ..... . 324
You Get a Message That You Have No Disks Available When You Try to Add Storage Volumes .... 324
You Want to Remove a Disk Allocated as Upload Buffer Space to Reduce Upload Buffer Space ... 324
Throughput to or from Your EC2 Gateway Drops to Zero ... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . 324
You Want Your File Gateway to Use a C5 or M5 EC2 Instance Type Instead of C4 or M4 ... . ..... . ... 324
Get AWS Support to Help Troubleshoot Your Gateway ... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... .... 325
Troubleshooting Hardware Appliance Issues .. . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . 326
You Can't Determine the Service IP Address . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... 326
How Do You Perform a Factory Reset? .... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ... 327
Where Do You Obtain Dell iDRAC Support? . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . 327
You Can't Find the Hardware Appliance Serial Number .. ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... 327
API Version 2013-06-30
v
Page 6
AWS Storage Gateway User Guide
Where to Obtain Hardware Appliance Support ... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . .... 327
Troubleshooting File Share Issues . ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... 328
Your File Share Is Stuck in CREATING Status . ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . ... 328
You Can't Create a File Share . . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .. 328
SMB File Shares Do Not Allow Multiple Different Access Methods .. ..... ..... . ..... ..... . ..... ..... . .... . .. 329
Multiple File Shares Can't Write to the Mapped Amazon S3 Bucket ... . .... . ..... ..... . ..... ..... . ..... .... 329
You Can't Upload Files into Your S3 Bucket . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . 329
Can't Change the Default Encryption to Use SSE-KMS to Encrypt Objects Stored in My Amazon
S3 Bucket. . . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . . 329
Object Versioning Might Affect What You See in Your File System ..... . ..... ..... . ..... ..... . .... . ..... ... 330
ACL Permissions Aren't Working as Expected . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... .... 330
Your Gateway Performance Declined After You Performed a Recursive Operation .... . ..... ..... . .... 331
Troubleshooting Volume Issues . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ... 331
The Console Says That Your Volume Is Not Configured ... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . ... 331
The Console Says That Your Volume Is Irrecoverable ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... 331
Your Cached Gateway is Unreachable And You Want to Recover Your Data ... ..... . ..... ..... . .... . .... 332
The Console Says That Your Volume Has PASS THROUGH Status ..... ..... . ..... ..... . ..... ..... . .... . .... 332
You Want to Verify Volume Integrity and Fix Possible Errors .. . .... . ..... ..... . ..... ..... . ..... ..... . .... . ... 333
Your Volume's iSCSI Target Doesn’t Appear in Windows Disk Management Console ... . .... . ..... .... 333
You Want to Change Your Volume's iSCSI Target Name .... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... .. 333
Your Scheduled Volume Snapshot Did Not Occur . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ... 333
You Need to Remove or Replace a Disk That Has Failed .. . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ... 333
Throughput from Your Application to a Volume Has Dropped to Zero .. ..... . ..... ..... . ..... ..... . .... . . 333
A Cache Disk in Your Gateway Encounters a Failure . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... . 334
A Volume Snapshot Has PENDING Status Longer Than Expected .. . .... . ..... . .... . ..... ..... . ..... ..... . .. 334
Troubleshooting Virtual Tape Issues ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ... 334
Recovering a Virtual Tape From An Unrecoverable Gateway . . .... . ..... . .... . ..... ..... . ..... ..... . ..... .... 335
Troubleshooting Irrecoverable Tapes . . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ... 337
Recovering Your Data: Best Practices ... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... .... 338
Recovering from an Unexpected Virtual Machine Shutdown ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... 338
Recovering Your Data from a Malfunctioning Gateway or VM ..... ..... . .... . ..... . .... . ..... ..... . ..... .... 339
Retrieving Your Data from an Irrecoverable Volume .. ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . ... 339
Recovering Your Data from an Irrecoverable Tape . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ... 340
Recovering Your Data from a Malfunctioning Cache Disk . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... 340
Recovering Your Data from a Corrupted File System . . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... .... 340
Recovering Your Data From An Inaccessible Data Center .. . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . .. 341
Additional Resources .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... 343
Host Setup .. . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... .. 343
Configuring VMware for Storage Gateway . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... .. 343
Synchronizing Your Gateway VM Time ... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . .... 348
Volume or Tape Gateway on Amazon EC2 Host ... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .. 349
File Gateway on EC2 Host .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ... 351
Volume Gateway .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . .. 354
Removing Disks from Your Gateway ... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .. 354
EBS Volumes for EC2 Gateways . ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... 356
Tape Gateway .... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... .. 357
Working with VTL Devices ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . .. 357
Working with Tapes ... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .. 361
Getting Activation Key . . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ... 362
AWS CLI . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... 363
Linux (bash/zsh) .. ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . ... 363
Microsoft Windows PowerShell .... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ... 363
Connecting iSCSI Initiators . . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ... 364
Connecting to Your Volumes to a Windows Client .... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... .... 365
Connecting to VTL Devices .. ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... 368
Connecting Your Volumes or VTL Devices to a Linux Client . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . 372
Customizing iSCSI Settings . . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . 374
API Version 2013-06-30
vi
Page 7
AWS Storage Gateway User Guide
Configuring CHAP Authentication ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ... 377
Using AWS Direct Connect with Storage Gateway ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . 386
Port Requirements .. ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ... 386
Connecting to Your Gateway ... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... 391
Getting an IP Address from an Amazon EC2 Host ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ... 391
Understanding Resources and Resource IDs ... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . 392
Working with Resource IDs .. . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... .... 393
Tagging Your Resources ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . .... 393
Working with Tags ... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . .... 394
See Also .. . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ... 395
Open-Source Components ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... 395
Storage Gateway Limits . ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . .. 395
Limits for File Shares .. ..... . .... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . .. 395
Limits for Volumes . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... . 396
Limits for Tapes ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... 396
Recommended Local Disk Sizes For Your Gateway ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .. 397
Using Storage Classes .. ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . ... 397
Using Infrequent Access Storage Class With File Gateway .. ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . . 397
Using GLACIER Storage Class With File Gateway ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... 398
API Reference . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ... 399
Required Request Headers ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... 399
Signing Requests . . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . 400
Example Signature Calculation ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... .. 401
Error Responses . ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .. 402
Exceptions ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ... 403
Operation Error Codes . . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . 404
Error Responses . ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . 416
Operations . . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... .... 418
Document History .... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... .... 419
Earlier Updates .. ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .... . ..... . .... . ..... ..... . ..... ..... . ..... ..... . .. 421
API Version 2013-06-30
vii
Page 8
AWS Storage Gateway User Guide
What Is AWS Storage Gateway?
AWS Storage Gateway connects an on-premises software appliance with cloud-based storage to provide
seamless integration with data security features between your on-premises IT environment and the AWS
storage infrastructure. You can use the service to store data in the AWS Cloud for scalable and costeffective storage that helps maintain data security.
AWS Storage Gateway offers file-based, volume-based, and tape-based storage solutions:
File Gateway – A file gateway supports a file interface into Amazon Simple Storage Service (Amazon S3)
and combines a service and a virtual software appliance. By using this combination, you can store and
retrieve objects in Amazon S3 using industry-standard file protocols such as Network File System (NFS)
and Server Message Block (SMB). The software appliance, or gateway, is deployed into your on-premises
environment as a virtual machine (VM) running on VMware ESXi or Microsoft Hyper-V hypervisor. The
gateway provides access to objects in S3 as files or file share mount points. With a file gateway, you can
do the following:
• You can store and retrieve files directly using the NFS version 3 or 4.1 protocol.
• You can store and retrieve files directly using the SMB file system version, 2 and 3 protocol.
• You can access your data directly in Amazon S3 from any AWS Cloud application or service.
• You can manage your Amazon S3 data using lifecycle policies, cross-region replication, and versioning.
You can think of a file gateway as a file system mount on S3.
A file gateway simplifies file storage in Amazon S3, integrates to existing applications through industrystandard file system protocols, and provides a cost-effective alternative to on-premises storage. It also
provides low-latency access to data through transparent local caching. A file gateway manages data
transfer to and from AWS, buffers applications from network congestion, optimizes and streams data in
parallel, and manages bandwidth consumption. File gateways integrate with AWS services, for example
with the following:
• Common access management using AWS Identity and Access Management (IAM)
• Encryption using AWS Key Management Service (AWS KMS)
• Monitoring using Amazon CloudWatch (CloudWatch)
• Audit using AWS CloudTrail (CloudTrail)
• Operations using the AWS Management Console and AWS Command Line Interface (AWS CLI)
• Billing and cost management
Volume Gateway – A volume gateway provides cloud-backed storage volumes that you can mount as
Internet Small Computer System Interface (iSCSI) devices from your on-premises application servers. The
gateway supports the following volume configurations:
• Cached volumes – You store your data in Amazon Simple Storage Service (Amazon S3) and retain a
copy of frequently accessed data subsets locally. Cached volumes offer a substantial cost savings on
primary storage and minimize the need to scale your storage on-premises. You also retain low-latency
access to your frequently accessed data.

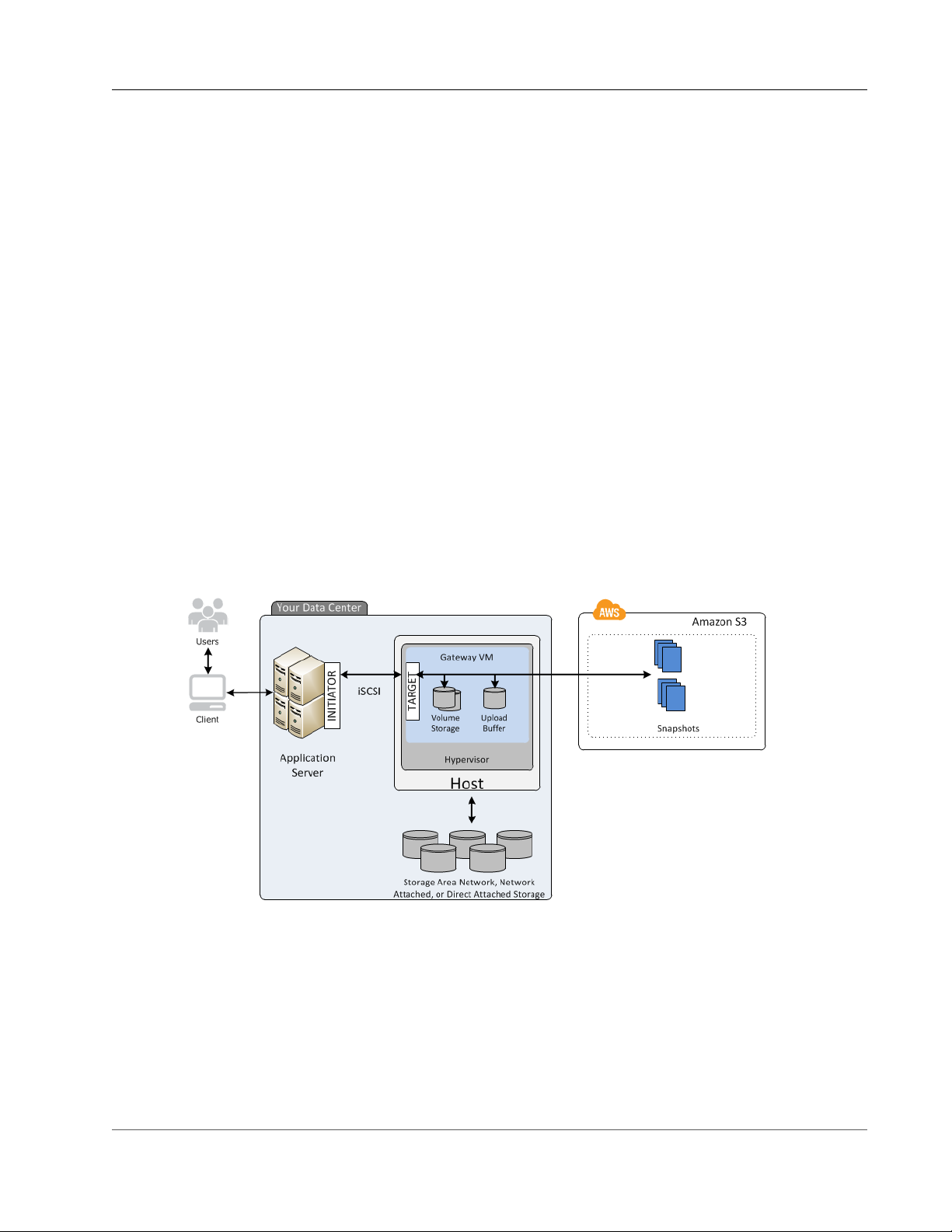

• Stored volumes – If you need low-latency access to your entire dataset, first configure your onpremises gateway to store all your data locally. Then asynchronously back up point-in-time snapshots
of this data to Amazon S3. This configuration provides durable and inexpensive offsite backups that
you can recover to your local data center or Amazon EC2. For example, if you need replacement
capacity for disaster recovery, you can recover the backups to Amazon EC2.
API Version 2013-06-30
1
Page 9
AWS Storage Gateway User Guide
Are You a First-Time AWS Storage Gateway User?

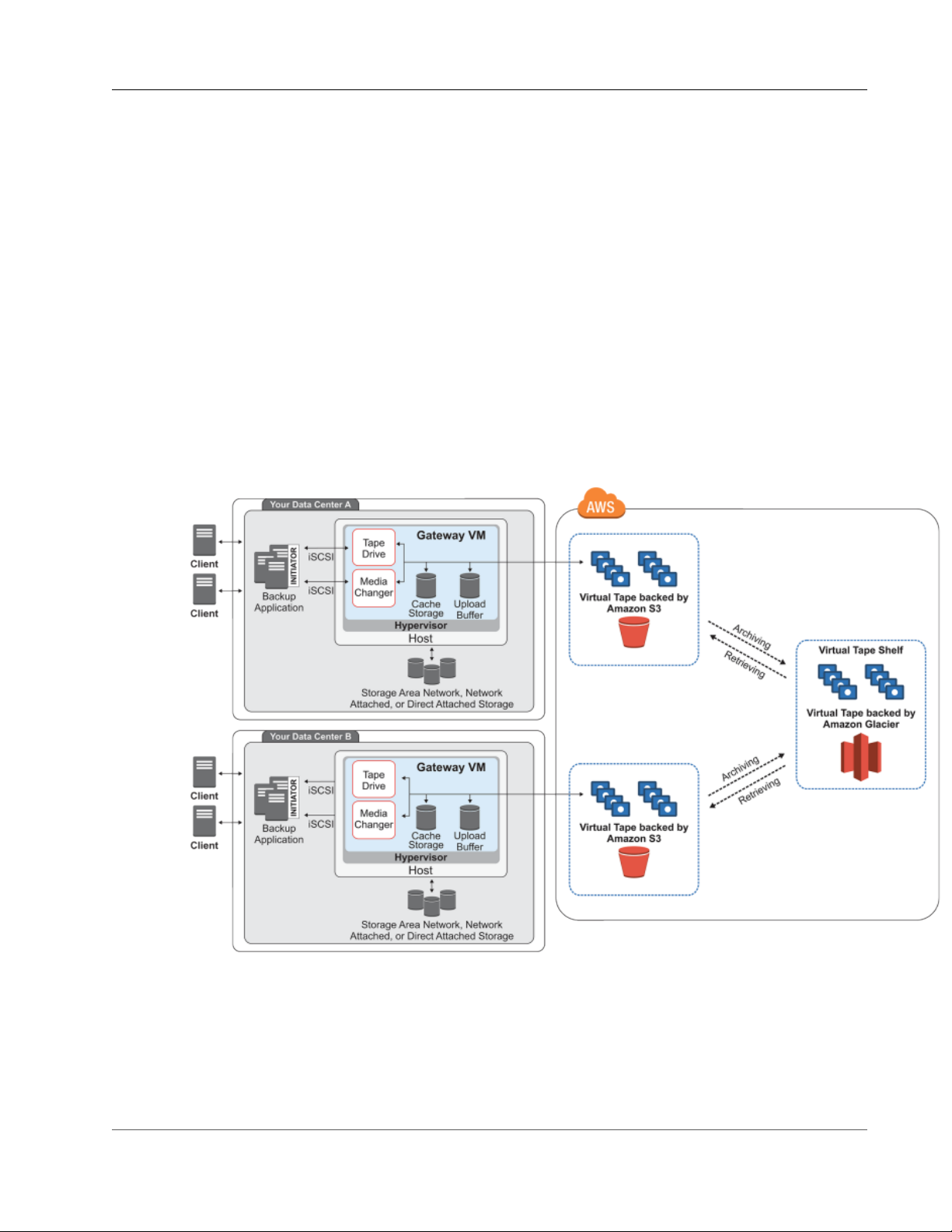

Tape Gateway – With a tape gateway, you can cost-effectively and durably archive backup data in
GLACIER or DEEP_ARCHIVE. A tape gateway provides a virtual tape infrastructure that scales seamlessly
with your business needs and eliminates the operational burden of provisioning, scaling, and maintaining
a physical tape infrastructure.
You can run AWS Storage Gateway either on-premises as a VM appliance, as a hardware appliance, or in
AWS as an Amazon Elastic Compute Cloud (Amazon EC2) instance. You deploy your gateway on an EC2
instance to provision iSCSI storage volumes in AWS. You can use gateways hosted on EC2 instances for
disaster recovery, data mirroring, and providing storage for applications hosted on Amazon EC2.
For an architectural overview, see How AWS Storage Gateway Works (Architecture) (p. 2). To see the
wide range of use cases that AWS Storage Gateway helps make possible, see the AWS Storage Gateway
detail page.
To get started with Storage Gateway, see the following.
Topics
• Are You a First-Time AWS Storage Gateway User? (p. 2)
• How AWS Storage Gateway Works (Architecture) (p. 2)
• AWS Storage Gateway Pricing (p. 8)
• Plan Your Storage Gateway Deployment (p. 8)
Are You a First-Time AWS Storage Gateway User?
In the following documentation, you can find a Getting Started section that covers setup information
common to all gateways and also gateway-specific setup sections. The Getting Started section shows
you how to deploy, activate, and configure storage for a gateway. The management section shows you
how to manage your gateway and resources:
• Creating a File Gateway (p. 36) provides instructions on how to create and use a file gateway. It
shows you how to create a file share, map your drive to an Amazon S3 bucket, and upload files and
folders to Amazon S3.
• Creating a Volume Gateway (p. 56) describes how to create and use a volume gateway. It shows you
how to create storage volumes and back up data to the volumes.
• Creating a Tape Gateway (p. 75) provides instructions on how to create and use a tape gateway. It
shows you how to back up data to virtual tapes and archive the tapes.
• Managing Your Gateway (p. 144) describes how to perform management tasks for all gateway types
and resources.
In this guide, you can primarily find how to work with gateway operations by using the AWS
Management Console. If you want to perform these operations programmatically, see the AWS Storage
Gateway API Reference.
How AWS Storage Gateway Works (Architecture)
Following, you can find an architectural overview of the available AWS Storage Gateway solutions.
Topics
API Version 2013-06-30
2
Page 10
AWS Storage Gateway User Guide
File Gateways
• File Gateways (p. 3)
• Volume Gateways (p. 3)
• Tape Gateways (p. 6)
File Gateways
To use a file gateway, you start by downloading a VM image for the file gateway. You then activate the
file gateway from the AWS Management Console or through the Storage Gateway API. You can also
create a file gateway using an Amazon EC2 image.
After the file gateway is activated, you create and configure your file share and associate that share with
your Amazon S3 bucket. Doing this makes the share accessible by clients using either the NFS or SMB
protocol. Files written to a file share become objects in Amazon S3, with the path as the key. There is a
one-to-one mapping between files and objects, and the gateway asynchronously updates the objects in
Amazon S3 as you change the files. Existing objects in the bucket appear as files in the file system, and
the key becomes the path. Objects are encrypted with Amazon S3–server-side encryption keys (SSE-S3).
All data transfer is done through HTTPS.
The service optimizes data transfer between the gateway and AWS using multipart parallel uploads or
byte-range downloads, to better use the available bandwidth. Local cache is maintained to provide low
latency access to the recently accessed data and reduce data egress charges. CloudWatch metrics provide
insight into resource use on the VM and data transfer to and from AWS. CloudTrail tracks all API calls.
With file gateway storage, you can do such tasks as ingesting cloud workloads to S3, performing backup
and archive, tiering and migrating storage data to the AWS Cloud. The following diagram provides an
overview of file storage deployment for Storage Gateway.
Volume Gateways
For volume gateways, you can use either cached volumes or stored volumes.
Topics
• Cached Volumes Architecture (p. 3)
• Stored Volumes Architecture (p. 5)
Cached Volumes Architecture
By using cached volumes, you can use Amazon S3 as your primary data storage, while retaining
frequently accessed data locally in your storage gateway. Cached volumes minimize the need to scale
your on-premises storage infrastructure, while still providing your applications with low-latency access
to their frequently accessed data. You can create storage volumes up to 32 TiB in size and attach to them
as iSCSI devices from your on-premises application servers. Your gateway stores data that you write to
these volumes in Amazon S3 and retains recently read data in your on-premises storage gateway's cache
and upload buffer storage.
Cached volumes can range from 1 GiB to 32 TiB in size and must be rounded to the nearest GiB. Each
gateway configured for cached volumes can support up to 32 volumes for a total maximum storage
volume of 1,024 TiB (1 PiB).
API Version 2013-06-30
3
Page 11
AWS Storage Gateway User Guide
Volume Gateways
In the cached volumes solution, AWS Storage Gateway stores all your on-premises application data in
a storage volume in Amazon S3. The following diagram provides an overview of the cached volumes
deployment.
After you install the Storage Gateway software appliance—the VM—on a host in your data center and
activate it, you use the AWS Management Console to provision storage volumes backed by Amazon S3.
You can also provision storage volumes programmatically using the AWS Storage Gateway API or the
AWS SDK libraries. You then mount these storage volumes to your on-premises application servers as
iSCSI devices.
You also allocate disks on-premises for the VM. These on-premises disks serve the following purposes:
• Disks for use by the gateway as cache storage – As your applications write data to the storage
volumes in AWS, the gateway first stores the data on the on-premises disks used for cache storage.
Then the gateway uploads the data to Amazon S3. The cache storage acts as the on-premises durable
store for data that is waiting to upload to Amazon S3 from the upload buffer.
The cache storage also lets the gateway store your application's recently accessed data on-premises for
low-latency access. If your application requests data, the gateway first checks the cache storage for the
data before checking Amazon S3.
You can use the following guidelines to determine the amount of disk space to allocate for cache
storage. Generally, you should allocate at least 20 percent of your existing file store size as cache
storage. Cache storage should also be larger than the upload buffer. This guideline helps make sure
that cache storage is large enough to persistently hold all data in the upload buffer that has not yet
been uploaded to Amazon S3.
• Disks for use by the gateway as the upload buffer – To prepare for upload to Amazon S3, your
gateway also stores incoming data in a staging area, referred to as an upload buffer. Your gateway
uploads this buffer data over an encrypted Secure Sockets Layer (SSL) connection to AWS, where it is
stored encrypted in Amazon S3.
You can take incremental backups, called snapshots, of your storage volumes in Amazon S3. These
point-in-time snapshots are also stored in Amazon S3 as Amazon EBS snapshots. When you take a new
snapshot, only the data that has changed since your last snapshot is stored. You can initiate snapshots
on a scheduled or one-time basis. When you delete a snapshot, only the data not needed for any other
snapshots is removed. For information about Amazon EBS snapshots, see Amazon EBS Snapshots.
You can restore an Amazon EBS snapshot to a gateway storage volume if you need to recover a backup
of your data. Alternatively, for snapshots up to 16 TiB in size, you can use the snapshot as a starting
API Version 2013-06-30
4
Page 12
AWS Storage Gateway User Guide
Volume Gateways
point for a new Amazon EBS volume. You can then attach this new Amazon EBS volume to an Amazon
EC2 instance.
All gateway data and snapshot data for cached volumes is stored in Amazon S3 and encrypted at rest
using server-side encryption (SSE). However, you can't access this data with the Amazon S3 API or other
tools such as the Amazon S3 Management Console.
Stored Volumes Architecture
By using stored volumes, you can store your primary data locally, while asynchronously backing up that
data to AWS. Stored volumes provide your on-premises applications with low-latency access to their
entire datasets. At the same time, they provide durable, offsite backups. You can create storage volumes
and mount them as iSCSI devices from your on-premises application servers. Data written to your stored
volumes is stored on your on-premises storage hardware. This data is asynchronously backed up to
Amazon S3 as Amazon Elastic Block Store (Amazon EBS) snapshots.
Stored volumes can range from 1 GiB to 16 TiB in size and must be rounded to the nearest GiB. Each
gateway configured for stored volumes can support up to 32 volumes and a total volume storage of 512
TiB (0.5 PiB).
With stored volumes, you maintain your volume storage on-premises in your data center. That is, you
store all your application data on your on-premises storage hardware. Then, using features that help
maintain data security, the gateway uploads data to the AWS Cloud for cost-effective backup and rapid
disaster recovery. This solution is ideal if you want to keep data locally on-premises, because you need to
have low-latency access to all your data, and also to maintain backups in AWS.
The following diagram provides an overview of the stored volumes deployment.
After you install the AWS Storage Gateway software appliance—the VM—on a host in your data center
and activated it, you can create gateway storage volumes. You then map them to on-premises directattached storage (DAS) or storage area network (SAN) disks. You can start with either new disks or disks
already holding data. You can then mount these storage volumes to your on-premises application servers
as iSCSI devices. As your on-premises applications write data to and read data from a gateway's storage
volume, this data is stored and retrieved from the volume's assigned disk.
To prepare data for upload to Amazon S3, your gateway also stores incoming data in a staging area,
referred to as an upload buffer. You can use on-premises DAS or SAN disks for working storage. Your
gateway uploads data from the upload buffer over an encrypted Secure Sockets Layer (SSL) connection
API Version 2013-06-30
5
Page 13
AWS Storage Gateway User Guide
Tape Gateways
to the AWS Storage Gateway service running in the AWS Cloud. The service then stores the data
encrypted in Amazon S3.
You can take incremental backups, called snapshots, of your storage volumes. The gateway stores these
snapshots in Amazon S3 as Amazon EBS snapshots. When you take a new snapshot, only the data that
has changed since your last snapshot is stored. You can initiate snapshots on a scheduled or one-time
basis. When you delete a snapshot, only the data not needed for any other snapshot is removed.
You can restore an Amazon EBS snapshot to an on-premises gateway storage volume if you need to
recover a backup of your data. You can also use the snapshot as a starting point for a new Amazon EBS
volume, which you can then attach to an Amazon EC2 instance.
Tape Gateways
Tape Gateway offers a durable, cost-effective solution to archive your data in the AWS Cloud. With its
virtual tape library (VTL) interface, you use your existing tape-based backup infrastructure to store data
on virtual tape cartridges that you create on your tape gateway. Each tape gateway is preconfigured with
a media changer and tape drives. These are available to your existing client backup applications as iSCSI
devices. You add tape cartridges as you need to archive your data.
The following diagram provides an overview of tape gateway deployment.
The diagram identifies the following tape gateway components:
• Virtual tape – A virtual tape is like a physical tape cartridge. However, virtual tape data is stored in
the AWS Cloud. Like physical tapes, virtual tapes can be blank or can have data written on them. You
can create virtual tapes either by using the Storage Gateway console or programmatically by using the
Storage Gateway API. Each gateway can contain up to 1500 tapes or up to 1 PiB of total tape data at a
time. The size of each virtual tape, which you can configure when you create the tape, is between 100
GiB and 2.5 TiB.
API Version 2013-06-30
6
Page 14
AWS Storage Gateway User Guide
Tape Gateways
• Virtual tape library (VTL) – A VTL is like a physical tape library available on-premises with robotic
arms and tape drives. Your VTL includes the collection of stored virtual tapes. Each tape gateway
comes with one VTL.
The virtual tapes that you create appear in your gateway's VTL. Tapes in the VTL are backed up by
Amazon S3. As your backup software writes data to the gateway, the gateway stores data locally and
then asynchronously uploads it to virtual tapes in your VTL—that is, Amazon S3.
• Tape drive – A VTL tape drive is analogous to a physical tape drive that can perform I/O and seek
operations on a tape. Each VTL comes with a set of 10 tape drives, which are available to your
backup application as iSCSI devices.
• Media changer – A VTL media changer is analogous to a robot that moves tapes around in a physical
tape library's storage slots and tape drives. Each VTL comes with one media changer, which is
available to your backup application as an iSCSI device.
• Archive – Archive is analogous to an offsite tape holding facility. You can archive tapes from your
gateway's VTL to the archive. If needed, you can retrieve tapes from the archive back to your gateway's
VTL.
• Archiving tapes – When your backup software ejects a tape, your gateway moves the tape to the
archive for long-term storage. The archive is located in the AWS Region in which you activated the
gateway. Tapes in the archive are stored in the virtual tape shelf (VTS). The VTS is backed by S3
Glacier or S3 Glacier Deep Archive, low-cost storage service for data archiving, backup, and long-
term data retention.
• Retrieving tapes – You can't read archived tapes directly. To read an archived tape, you must first
retrieve it to your tape gateway either by using the Storage Gateway console or by using the Storage
Gateway API. When you retrieve a tape that is archived in GLACIER, it becomes available in your VTL
in about three to five hours after you start retrieval. When you retrieve a tape that is archived in
DEEP_ARCHIVE, it becomes available in your VTL in about 12 hours after you start retrieval.
After you deploy and activate a tape gateway, you mount the virtual tape drives and media changer on
your on-premises application servers as iSCSI devices. You create virtual tapes as needed. Then you use
your existing backup software application to write data to the virtual tapes. The media changer loads
and unloads the virtual tapes into the virtual tape drives for read and write operations.
Allocating Local Disks for the Gateway VM
Your gateway VM needs local disks, which you allocate for the following purposes:
• Cache storage – The cache storage acts as the durable store for data that is waiting to upload to
Amazon S3 from the upload buffer.
If your application reads data from a virtual tape, the gateway saves the data to the cache storage. The
gateway stores recently accessed data in the cache storage for low-latency access. If your application
requests tape data, the gateway first checks the cache storage for the data before downloading the
data from AWS.
• Upload buffer – The upload buffer provides a staging area for the gateway before it uploads the data
to a virtual tape. The upload buffer is also critical for creating recovery points that you can use to
recover tapes from unexpected failures. For more information, see You Need to Recover a Virtual Tape
from a Malfunctioning Tape Gateway (p. 335).
As your backup application writes data to your gateway, the gateway copies data to both the cache
storage and the upload buffer. It then acknowledges completion of the write operation to your backup
application.
For guidelines on the amount of disk space to allocate for the cache storage and upload buffer, see
Deciding the Amount of Local Disk Storage (p. 220).
API Version 2013-06-30
7
Page 15
AWS Storage Gateway User Guide
Pricing
AWS Storage Gateway Pricing
For current information about pricing, see Pricing on the AWS Storage Gateway details page.
Plan Your Storage Gateway Deployment
By using the AWS Storage Gateway software appliance, you can connect your existing on-premises
application infrastructure with scalable, cost-effective AWS cloud storage that provides data security
features.
To deploy Storage Gateway, you first need to decide on the following two things:
1. Your storage solution – Choose from one of the following storage solutions:
• File Gateway – You can use a file gateway to ingest files to Amazon S3 for use by object-based
workloads and for cost-effective storage for traditional backup applications. You can also use it to
tier on-premises file storage to S3. You can cost-effectively and durably store and retrieve your onpremises objects in Amazon S3 using industry-standard file protocols.
• Volume Gateway – Using volume gateways, you can create storage volumes in the AWS Cloud.
Your on-premises applications can access these as Internet Small Computer System Interface (iSCSI)
targets. There are two options—cached and stored volumes.
With cached volumes, you store volume data in AWS, with a small portion of recently accessed data
in the cache on-premises. This approach enables low-latency access to your frequently accessed
dataset. It also provides seamless access to your entire dataset stored in AWS. By using cached
volumes, you can scale your storage resource without having to provision additional hardware.
With stored volumes, you store the entire set of volume data on-premises and store periodic pointin-time backups (snapshots) in AWS. In this model, your on-premises storage is primary, delivering
low-latency access to your entire dataset. AWS storage is the backup that you can restore in the
event of a disaster in your data center.
For an architectural overview of volume gateways, see Cached Volumes Architecture (p. 3) and
Stored Volumes Architecture (p. 5).
• Tape Gateway – If you are looking for a cost-effective, durable, long-term, offsite alternative for
data archiving, deploy a tape gateway. With its virtual tape library (VTL) interface, you can use
your existing tape-based backup software infrastructure to store data on virtual tape cartridges
that you create. For more information, see Supported Third-Party Backup Applications for a
Tape Gateway (p. 22). When you archive tapes, you don't worry about managing tapes on
your premises and arranging shipments of tapes offsite. For an architectural overview, see Tape
Gateways (p. 6).
2. Hosting option – You can run Storage Gateway either on-premises as a VM appliance, or as hardware
appliance or in AWS as an Amazon EC2 instance. For more information, see Requirements (p. 10).
If your data center goes offline and you don't have an available host, you can deploy a gateway on an
EC2 instance. Storage Gateway provides an Amazon Machine Image (AMI) that contains the gateway
VM image.
Additionally, as you configure a host to deploy a gateway software appliance, you need to allocate
sufficient storage for the gateway VM.
Before you continue to the next step, make sure that you have done the following:
1. For a gateway deployed on-premises, you chose the type of host, VMware ESXi Hypervisor or
Microsoft Hyper-V. and set it up. For more information, see Requirements (p. 10). If you deploy
API Version 2013-06-30
8
Page 16
AWS Storage Gateway User Guide
Plan Your Gateway Deployment
the gateway behind a firewall, make sure that ports are accessible to the gateway VM. For more
information, see Requirements (p. 10).
2. For a tape gateway, you have installed client backup software. For more information, see Supported
Third-Party Backup Applications for a Tape Gateway (p. 22).
API Version 2013-06-30
9
Page 17
AWS Storage Gateway User Guide
Sign Up for AWS Storage Gateway
Getting Started
In this section, you can find instructions about how to get started with AWS Storage Gateway. To get
started, you first sign up for AWS. If you are a first-time user, we recommend that you read the regions
and requirements section.
Topics
• Sign Up for AWS Storage Gateway (p. 10)
• AWS Regions (p. 10)
• Requirements (p. 10)
• Accessing AWS Storage Gateway (p. 23)
Sign Up for AWS Storage Gateway
To use AWS Storage Gateway, you need an AWS account that gives you access to all AWS resources,
forums, support, and usage reports. You aren't charged for any of the services unless you use them. If
you already have an AWS account, you can skip this step.
To sign up for AWS account
1. Open https://portal.amazonaws.cn/billing/signup.
2. Follow the online instructions.
Part of the sign-up procedure involves receiving a phone call and entering a verification code on the
phone keypad.
For information about pricing, see AWS Storage Gateway Pricing on the AWS Storage Gateway detail
page.
AWS Regions
AWS Storage Gateway stores volume, snapshot, tape, and file data in the AWS Region in which your
gateway is activated. File data is stored in the AWS Region where your Amazon S3 bucket is located. You
select an AWS Region at the upper right of the AWS Storage Gateway Management Console before you
start deploying your gateway.
• Storage Gateway—For supported AWS Regions and a list of AWS service endpoints you can use with
Storage Gateway, see Regions and Endpoints in the AWS General Reference.
Note
Tape gateway is not available in the South America (São Paulo) Region.
• AWS Storage Gateway Hardware Appliance—For supported AWS Regions you can use with the
hardware appliance, see AWS Storage Gateway Hardware Appliance Regions in the AWS General
Reference.
Requirements
Unless otherwise noted, the following requirements are common to all gateway configurations.
API Version 2013-06-30
10
Page 18
AWS Storage Gateway User Guide
Hardware and Storage Requirements
Topics
• Hardware and Storage Requirements (p. 11)
• Network and Firewall Requirements (p. 12)
• Supported Hypervisors and Host Requirements (p. 20)
• Supported NFS Clients for a File Gateway (p. 21)
• Supported SMB Clients for a File Gateway (p. 21)
• Supported File System Operations for a File Gateway (p. 21)
• Supported iSCSI Initiators (p. 22)
• Supported Third-Party Backup Applications for a Tape Gateway (p. 22)
Hardware and Storage Requirements
In this section, you can find information about the minimum hardware and settings for your gateway
and the minimum amount of disk space to allocate for the required storage. For information about best
practices for file gateway performance, see Performance Guidance for File Gateways (p. 285).
Hardware Requirements for On-Premises VMs
When deploying your gateway on-premises, you must make sure that the underlying hardware on which
you deploy the gateway VM can dedicate the following minimum resources:
• Four virtual processors assigned to the VM.
• 16 GiB of reserved RAM assigned to the VM.
• 80 GiB of disk space for installation of VM image and system data.
For more information, see Optimizing Gateway Performance (p. 287). For information about how your
hardware affects the performance of the gateway VM, see AWS Storage Gateway Limits (p. 395).
Requirements for Amazon EC2 Instance Types
When deploying your gateway on Amazon EC2, the instance size must be at least xlarge for your
gateway to function. However, for the compute-optimized instance family the size must be at least
2xlarge. Use one of the following instance types recommended for your gateway type.
Recommended for file gateway types
• General-purpose instance family— m4 or m5 instance type.
• Compute-optimized instance family— c4 or c5 instance types. Select the 2xlarge instance size or
higher to meet the required RAM requirements.
• Memory-optimized instance family—r3 instance types.
• Storage-optimized instance family— i3 instance types.
Note
When you launch your gateway in EC2, and the instance type you’ve selected supports
ephemeral storage, the disks will be listed automatically. To learn more about Amazon EC2
instance storage, see here. Note that application writes are stored in the cache synchronously,
and then asynchronously uploaded to durable storage in Amazon S3. If the ephemeral
storage is lost because an instance stops before the upload is complete, then the data that
still resides in cache and has not yet written to S3 can be lost. Before you stop the instance
that hosts the gateway make sure the CachePercentDirty CloudWatch metric is 0. For more
information about monitoring metrics for your storage gateway, see storage gateway metrics
and dimensions.
API Version 2013-06-30
11
Page 19
AWS Storage Gateway User Guide
Network and Firewall Requirements
If you have more than 5 million objects in your Amazon S3 bucket and you are using a General
Purposes SSD volume, a minimum root EBS volume of 350 GiB is needed for acceptable
performance of your gateway during start up. For information about how to increase your
volume size, see Modifying an EBS Volume from the Console.
Recommended for cached volumes and tape gateway types
• General-purpose instance family—m4 or m5 instance types. We don't recommend using the
m4.16xlarge instance type.
• Compute-optimized instance family—c4 or c5 instance types. Select the 2xlarge instance size or
higher to meet the required RAM requirements.
• Storage-optimized instance family—d2, i2, or i3 instance types
Note
When you create any gateway type using the c4 or m4 instance type, it can't be changed to the
c5 or m5 instance type. For information about how to upgrade your instance to the c5 or m5
instance type, see You Want Your File Gateway to Use a C5 or M5 EC2 Instance Type Instead of
C4 or M4 (p. 324).
Storage Requirements
In addition to 80 GiB disk space for the VM, you also need additional disks for your gateway.
The following table recommends sizes for local disk storage for your deployed gateway.
Gateway Type Cache
(Minimum)
File gateway 150 GiB 16 TiB — — —
Cached volume
gateway
Stored volume
gateway
Tape gateway 150 GiB 16 TiB 150 GiB 2 TiB —
150 GiB 16 TiB 150 GiB 2 TiB —
— — 150 GiB 2 TiB 1 or more for
Cache
(Maximum)
Upload Buffer
(Minimum)
Upload Buffer
(Maximum)
Other
Required Local
Disks
stored volume
or volumes
Note
You can configure one or more local drives for your cache and upload buffer, up to the
maximum capacity.
When adding cache or upload buffer to an existing gateway, it's important to create new disks
in your host (hypervisor or Amazon EC2 instance). Don't change the size of existing disks if the
disks have been previously allocated as either a cache or upload buffer.
For information about gateway limits, see AWS Storage Gateway Limits (p. 395).

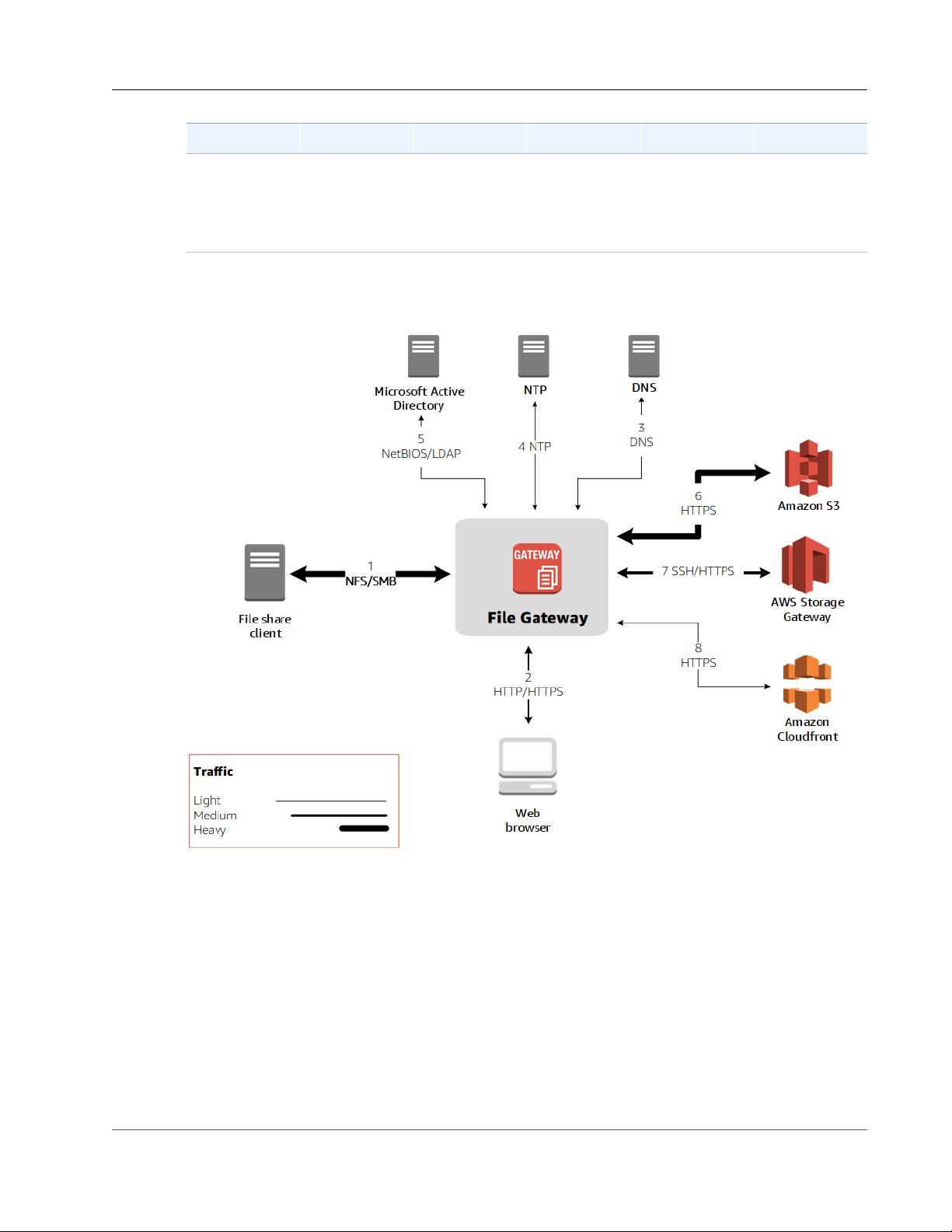

Network and Firewall Requirements
Your gateway requires access to the internet, local networks, Domain Name Service (DNS) servers,
firewalls, routers, and so on. Following, you can find information about required ports and how to allow
access through firewalls and routers.
API Version 2013-06-30
12
Page 20
AWS Storage Gateway User Guide
Network and Firewall Requirements
Note
In some cases, you might deploy AWS Storage Gateway on Amazon EC2 or use other types of
deployment (including on-premises) with network security policies that restrict AWS IP address
ranges. In these cases, your gateway might experience service connectivity issues when the
AWS IP range values changes. The AWS IP address range values that you need to use are in the
Amazon service subset for the AWS Region that you activate your gateway in. For the current IP
range values, see AWS IP Address Ranges in the AWS General Reference.
Topics
• Port Requirements (p. 13)
• Networking and Firewall Requirements for the AWS Storage Gateway Hardware Appliance (p. 17)
• Allowing AWS Storage Gateway Access Through Firewalls and Routers (p. 19)
• Configuring Security Groups for Your Amazon EC2 Gateway Instance (p. 20)
Port Requirements
AWS Storage Gateway requires certain ports to be allowed for its operation. The following illustrations
show the required ports that you must allow for each type of gateway. Some ports are required by all
gateway types, and others are required by specific gateway types. For more information about port
requirements, see Port Requirements (p. 386).
Common ports for all gateway types
The following ports are common to all gateway types and are required by all gateway types.
Protocol Port Direction Source Destination How Used
TCP 443 (HTTPS) Outbound Storage
Gateway
TCP 80 (HTTP) Inbound AWS
Management
Console
AWS For
communication
from AWS
Storage
Gateway to the
AWS service
endpoint. For
information
about service
endpoints,
see Allowing
AWS Storage
Gateway
Access
Through
Firewalls and
Routers (p. 19).
Storage
Gateway
By local
systems
to obtain
the storage
gateway
activation key.
Port 80 is only
used during
activation of
the Storage
API Version 2013-06-30
13
Page 21
AWS Storage Gateway User Guide
Network and Firewall Requirements
Protocol Port Direction Source Destination How Used
Gateway
appliance.
AWS Storage
Gateway does
not require
port 80 to
be publicly
accessible.
The required
level of access
to port 80
depends on
your network
configuration.
If you activate
your gateway
from the
AWS Storage
Gateway
Management
Console, the
host from
which you
connect to the
console must
have access to
your gateway’s
port 80.
UDP/UDP 53 (DNS) Outbound Storage
Gateway
TCP 22 (Support
channel)
Outbound Storage
Gateway
Domain Name
Service (DNS)
server
For
communication
between
AWS Storage
Gateway and
the DNS server.
AWS Support Allows AWS
Support to
access your
gateway to
help you with
troubleshooting
gateway issues.
You don't need
this port open
for the normal
operation of
your gateway,
but it is
required for
troubleshooting.
API Version 2013-06-30
14
Page 22
AWS Storage Gateway User Guide
Network and Firewall Requirements
Protocol Port Direction Source Destination How Used
UDP 123 (NTP) Outbound NTP client NTP server Used by local
systems to
synchronize
VM time to the
host time.
Ports for file gateways
The following illustration shows the ports to open for a file gateway.
Note
For specific port requirements (including NFS and SMB port requirements), see Port
Requirements (p. 386).
You only need to use Microsoft Active Directory when you want to allow domain users to access an
Server Message Block (SMB) file share. You can join your file gateway to any valid Microsoft Windows
domain (resolvable by DNS).
You can also use the AWS Directory Service to create an AWS-managed Microsoft Active Directory in the
AWS Cloud. For most AWS-managed Active Directory deployments, you need to configure the Dynamic
Host Configuration Protocol (DHCP) service for your VPC. For more information about how to create a
DHCP options set, see here.
In addition to the common ports, file gateways require the following ports.
API Version 2013-06-30
15
Page 23
AWS Storage Gateway User Guide
Network and Firewall Requirements
Protocol Port Direction Source Destination How Used
TCP/UDP 2049 (NFS) Inbound NFS Clients Storage
Gateway
TCP/UDP 111 (NFSv3) Inbound NFSv3 client Storage
Gateway
TCP/UDP 20048 (NFSv3) Inbound NFSv3 client Storage
Gateway
For local
systems to
connect to NFS
shares that
your gateway
exposes.
For local
systems to
connect to
the port
mapper that
your gateway
exposes.
Note
This
port is
needed
only
for
NFSv3.
For local
systems to
connect to
mounts that
your gateway
exposes.
Note
This
port is
needed
only
for
NFSv3.
Ports for volume and tape gateways

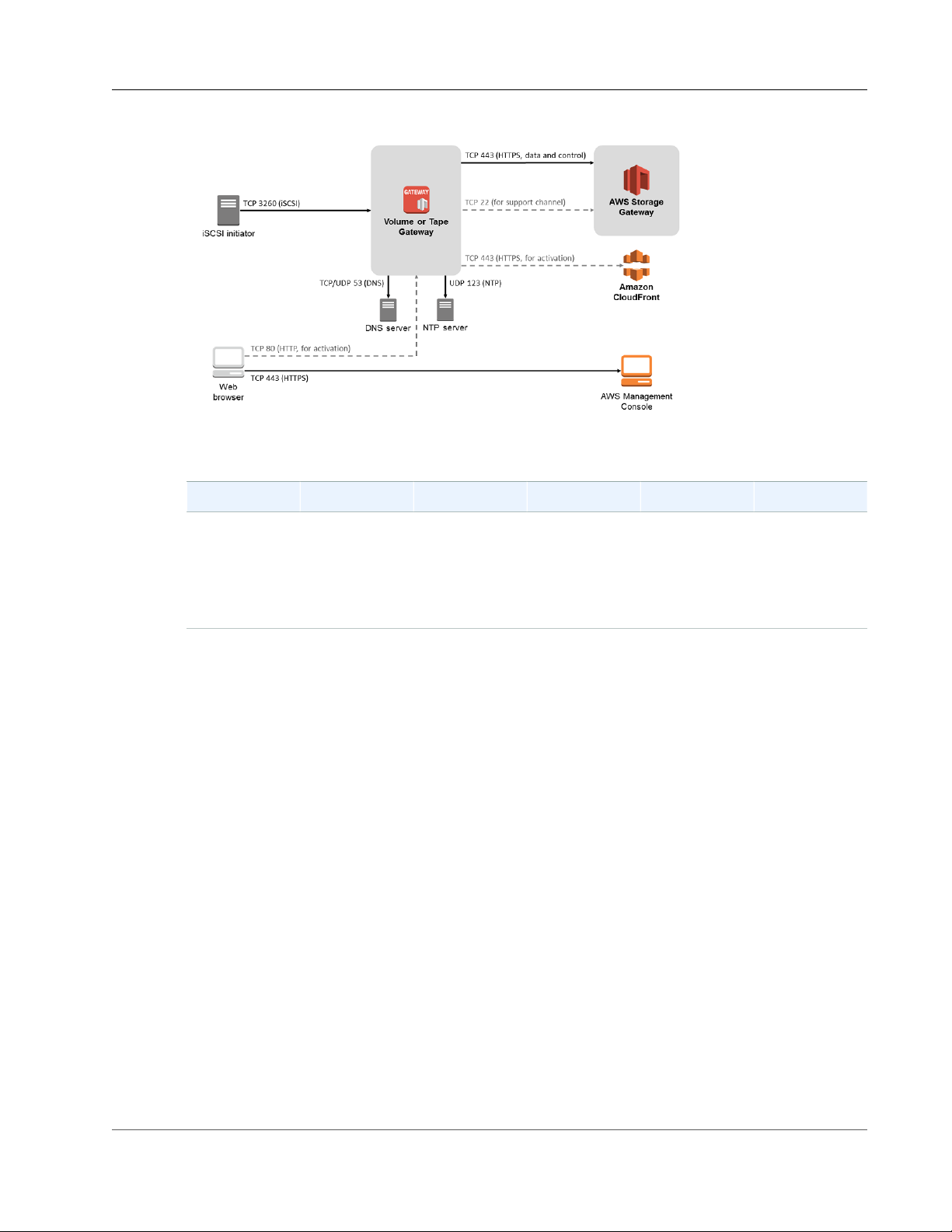

The following illustration shows the ports to open for volume and tape gateways.
API Version 2013-06-30
16
Page 24
AWS Storage Gateway User Guide
Network and Firewall Requirements
In addition to the common ports, volume and tape gateways require the following port.
Protocol Port Direction Source Destination How Used
TCP 3260 (iSCSI) Inbound iSCSI Initiators Storage
Gateway
For detailed information about port requirements, see Port Requirements (p. 386) in the Additional
AWS Storage Gateway Resources section.
By local
systems to
connect to
iSCSI targets
exposed by the
gateway.
Networking and Firewall Requirements for the AWS Storage Gateway Hardware Appliance
Each AWS Storage Gateway Hardware Appliance requires the following network services:
• Internet access – an always-on network connection to the internet through any network interface on
the server.
• DNS services – DNS services for communication between the hardware appliance and DNS server.
• Time synchronization – an automatically configured Amazon NTP time service must be reachable.
• IP address – A DHCP or static IPv4 address assigned. You cannot assign an IPv6 address.

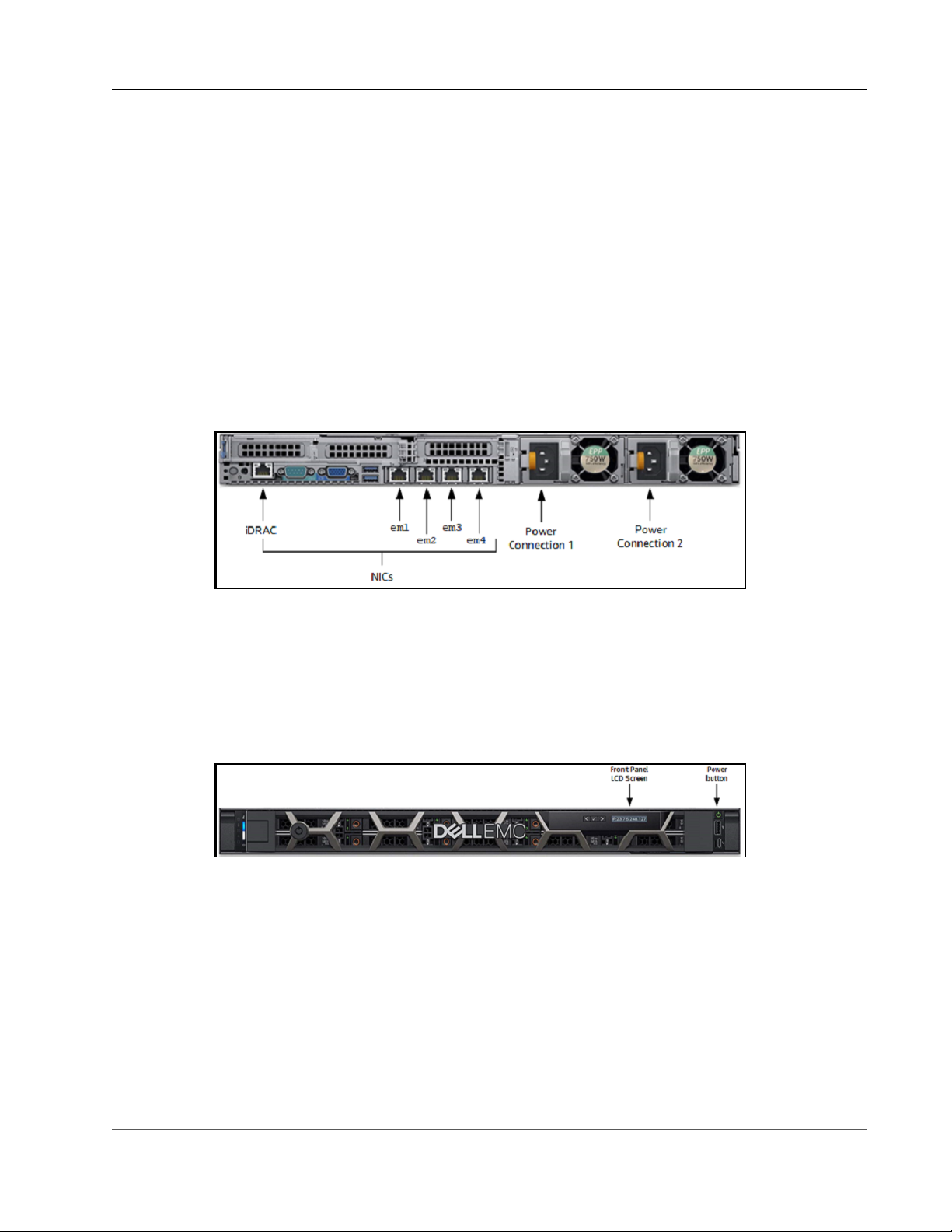

There are five physical network ports at the rear of the Dell PowerEdge R640 server. From left to right
(facing the back of the server) these ports are as follows:
1. iDRAC
2. em1
3. em2
4. em3
5. em4
API Version 2013-06-30
17
Page 25
AWS Storage Gateway User Guide
Network and Firewall Requirements
You can use the iDRAC port for remote server management.

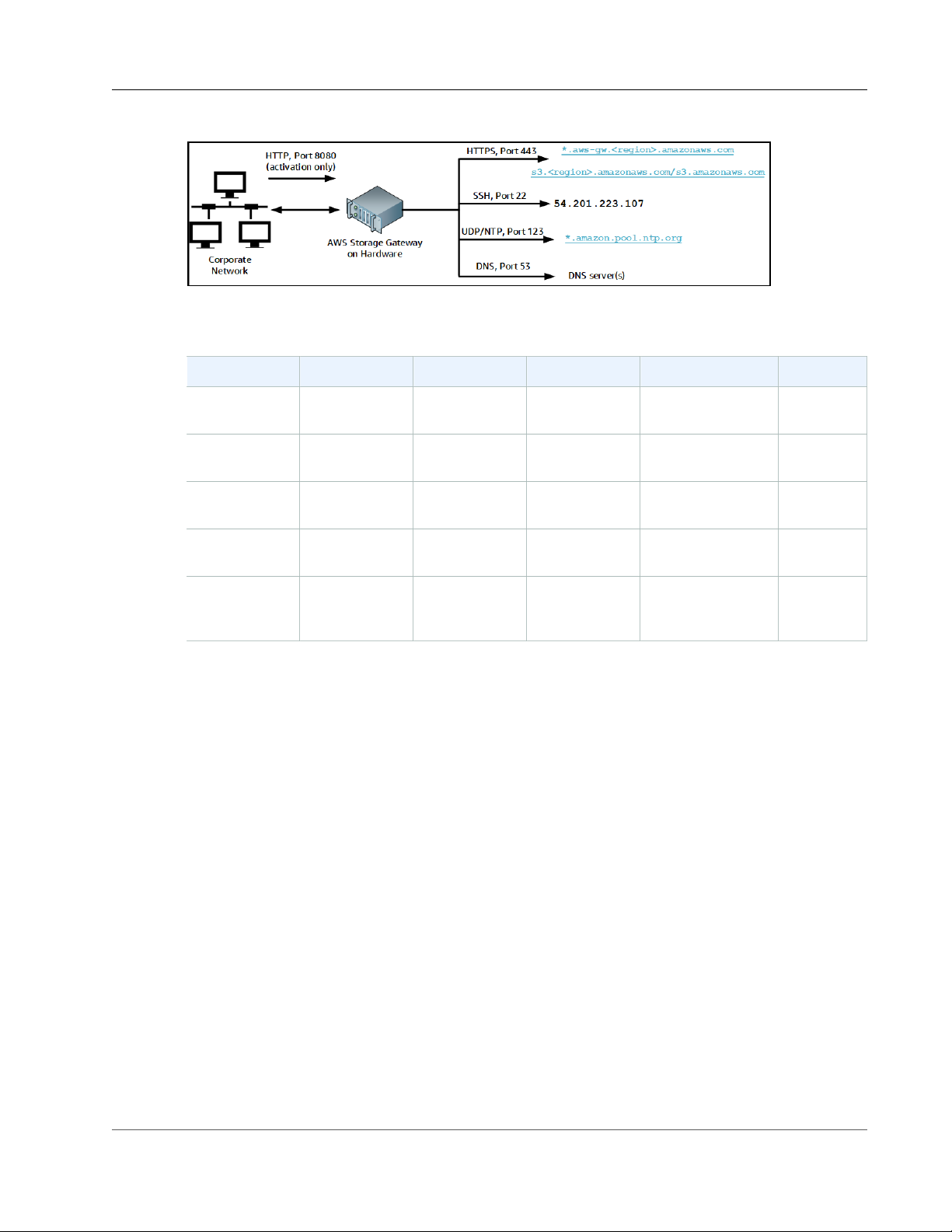

A hardware appliance requires the following ports to operate.
Protocol Port Direction Source Destination How Used
SSH 22 Outbound Hardware
appliance
DNS 53 Outbound Hardware
appliance
UDP/NTP 123 Outbound Hardware
appliance
HTTPS 443 Outbound Hardware
appliance
HTTP 8080 Inbound AWS Hardware
To perform as designed, a hardware appliance requires network and firewall settings as follows:
• Configure all connected network interfaces in the hardware console.
• Make sure that each network interface is on a unique subnet.
• Provide all connected network interfaces with outbound access to the endpoints listed in the diagram
preceding.
• Configure at least one network interface to support the hardware appliance. For more information, see
Configure Network Parameters (p. 27).
54.201.223.107 Support
channel
DNS servers Name
resolution
*.amazon.pool.ntp.orgTime
synchronization
*.amazonaws.com Data
transfer
Activation
appliance
(only
briefly)
Note
To see an illustration showing the back of the server with its ports, see Rack-Mount Your
Hardware Appliance and Connect It to Power (p. 25)

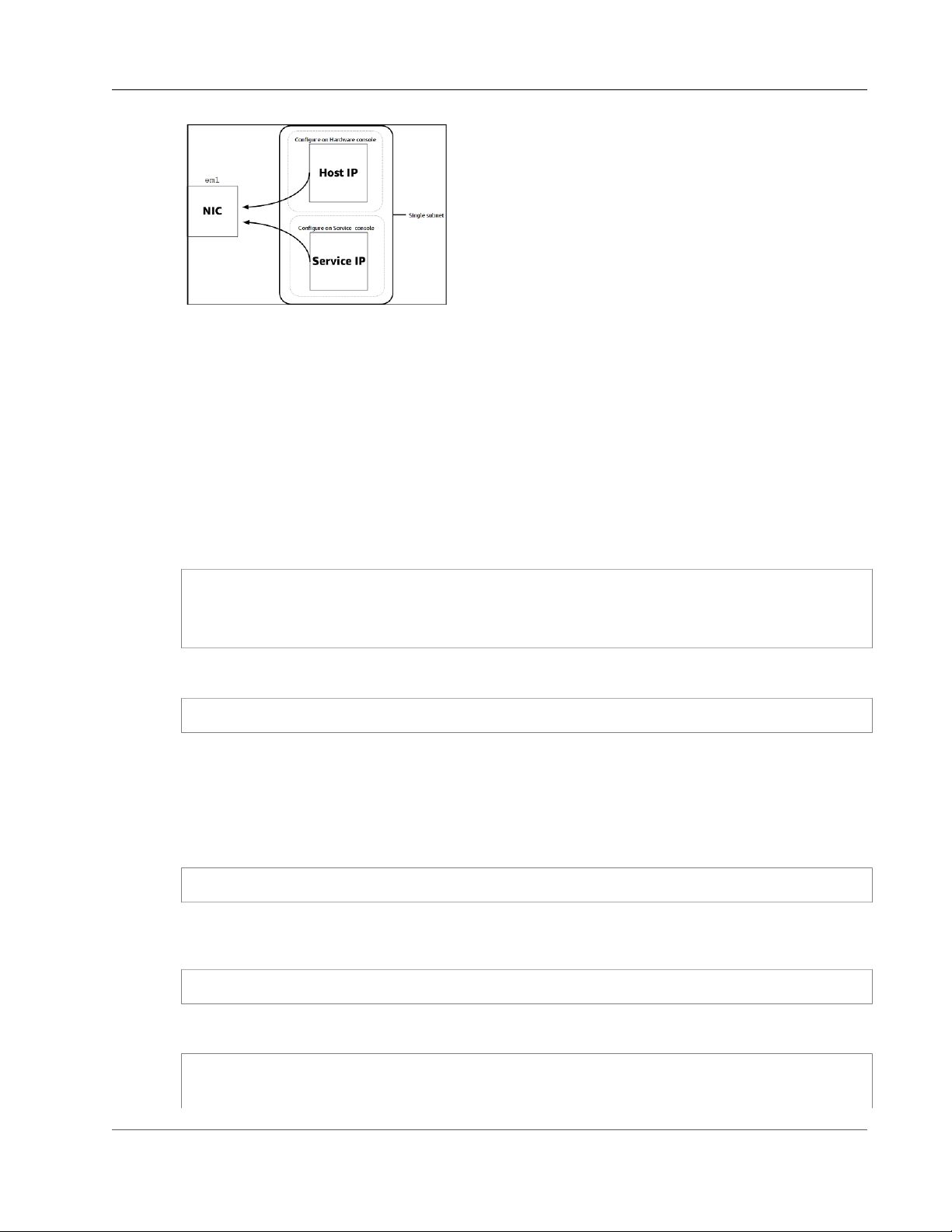

All IP addresses on the same network interface (NIC), whether for a gateway or a host, must be on the
same subnet. The following illustration shows the addressing scheme.
API Version 2013-06-30
18
Page 26
AWS Storage Gateway User Guide
Network and Firewall Requirements
For more information on activating and configuring a hardware appliance, see Using the AWS Storage
Gateway Hardware Appliance (p. 24).
Allowing AWS Storage Gateway Access Through Firewalls and Routers
Your gateway requires access to the following endpoints to communicate with AWS. If you use a firewall
or router to filter or limit network traffic, you must configure your firewall and router to allow these
service endpoints for outbound communication to AWS.
The following service endpoints are required by all gateways for control path (anon-cp, client-cp, proxyapp) and data path (dp-1) operations.
anon-cp.storagegateway.region.amazonaws.com.cn:443
client-cp.storagegateway.region.amazonaws.com.cn:443
proxy-app.storagegateway.region.amazonaws.com.cn:443
dp-1.storagegateway.region.amazonaws.com.cn:443
The following service endpoint is required to make API calls.
storagegateway.region.amazonaws.com.cn:443
The Amazon S3 service endpoint, shown following, is used by file gateways only. A file gateway requires
this endpoint to access the S3 bucket that a file share maps to.
If your gateway can't determine the AWS Region where your S3 bucket is located, this endpoint defaults
to us-east-1.s3.amazonaws.com. We recommend that you whitelist the us-east-1 region in addition to
AWS Regions where your gateway is activated, and where your S3 bucket is located.
region.s3.amazonaws.com.cn
The Amazon CloudFront endpoint following is required for Storage Gateway to get the list of available
AWS Regions.
https://d4kdq0yaxexbo.cloudfront.net/
A Storage Gateway VM is configured to use the following NTP servers.
0.amazon.pool.ntp.org
1.amazon.pool.ntp.org
2.amazon.pool.ntp.org
API Version 2013-06-30
19
Page 27
AWS Storage Gateway User Guide
Supported Hypervisors and Host Requirements
3.amazon.pool.ntp.org
Depending on your gateway's AWS Region, replace region in the endpoint with the corresponding
region string. For example, if you create a gateway in the US West (Oregon) region, the endpoint looks
like this: storagegateway.us-west-2.amazonaws.com:443.
• Storage Gateway—For supported AWS Regions and a list of AWS service endpoints you can use with
Storage Gateway, see Regions and Endpoints in the AWS General Reference.
• AWS Storage Gateway Hardware Appliance—For supported AWS Regions you can use with the
hardware appliance see AWS Storage Gateway Hardware Appliance Regions in the AWS General
Reference.
Configuring Security Groups for Your Amazon EC2 Gateway
Instance
A security group controls traffic to your Amazon EC2 gateway instance. When you create an instance
from the Amazon Machine Image (AMI) for AWS Storage Gateway from AWS Marketplace, you have two
choices for launching the instance. To launch the instance by using the 1-Click Launch feature of AWS
Marketplace, follow the steps in Deploying a Volume or Tape Gateway on an Amazon EC2 Host (p. 349)
. We recommend that you use this 1-Click Launch feature.
You can also launch an instance by using the Manual Launch feature in AWS Marketplace. In this case,
an autogenerated security group that is named AWS Storage Gateway-1-0-AutogenByAWSMP-
is created. This security group has the correct rule for port 80 to activate your gateway. For more
information about security groups, see Security Group Concepts in the Amazon EC2 User Guide for Linux
Instances.
Regardless of the security group that you use, we recommend the following:
• The security group should not allow incoming connections from the outside internet. It should allow
only instances within the gateway security group to communicate with the gateway. If you need to
allow instances to connect to the gateway from outside its security group, we recommend that you
allow connections only on ports 3260 (for iSCSI connections) and 80 (for activation).
• If you want to activate your gateway from an EC2 host outside the gateway security group, allow
incoming connections on port 80 from the IP address of that host. If you cannot determine the
activating host's IP address, you can open port 80, activate your gateway, and then close access on
port 80 after completing activation.
• Allow port 22 access only if you are using AWS Support for troubleshooting purposes. For more
information, see You Want AWS Support to Help Troubleshoot Your EC2 Gateway (p. 325).
In some cases, you might use an Amazon EC2 instance as an initiator (that is, to connect to iSCSI targets
on a gateway that you deployed on Amazon EC2). In such a case, we recommend a two-step approach:
1. You should launch the initiator instance in the same security group as your gateway.
2. You should configure access so the initiator can communicate with your gateway.
For information about the ports to open for your gateway, see Port Requirements (p. 386).
Supported Hypervisors and Host Requirements
You can run AWS Storage Gateway on-premises as either a virtual machine (VM) appliance, or a physical
hardware appliance, or in AWS as an Amazon Elastic Compute Cloud (Amazon EC2) instance.
AWS Storage Gateway supports the following hypervisor versions and hosts:
API Version 2013-06-30
20
Page 28
AWS Storage Gateway User Guide
Supported NFS Clients for a File Gateway
• VMware ESXi Hypervisor (version 4.1, 5.0, 5.1, 5.5, 6.0 or 6.5)—A free version of VMware is available on
the VMware website. For this setup, you also need a VMware vSphere client to connect to the host.
• Microsoft Hyper-V Hypervisor (version 2008 R2, 2012, or 2012 R2)—A free, standalone version of
Hyper-V is available at the Microsoft Download Center. For this setup, you need a Microsoft Hyper-V
Manager on a Microsoft Windows client computer to connect to the host.
• EC2 instance—AWS Storage Gateway provides an Amazon Machine Image (AMI) that contains the
gateway VM image. Only file, cached volume, and tape gateway types can be deployed on Amazon
EC2. For information about how to deploy a gateway on Amazon EC2, see Deploying a Volume or Tape
Gateway on an Amazon EC2 Host (p. 349).
• Storage Gateway Hardware Appliance—AWS Storage Gateway provides a physical hardware appliance
as a on-premises deployment option for locations with limited virtual machine infrastructure.
Note
AWS Storage Gateway doesn’t support recovering a gateway from a VM that was created from
a snapshot or clone of another gateway VM or from your Amazon EC2 AMI. If your gateway
VM malfunctions, activate a new gateway and recover your data to that gateway. For more
information, see Recovering from an Unexpected Virtual Machine Shutdown (p. 338).
AWS Storage Gateway doesn’t support dynamic memory and virtual memory ballooning.
Supported NFS Clients for a File Gateway
File gateways support the following Network File System (NFS) clients:
• Amazon Linux
• Mac OS X
• RHEL 7
• SUSE Linux Enterprise Server 11 and SUSE Linux Enterprise Server 12
• Ubuntu 14.04
• Microsoft Windows 10 Enterprise, Windows Server 2012, and Windows Server 2016. Native clients
only support NFS version 3.
• Windows 7 Enterprise and Windows Server 2008.
Native clients only support NFS v3. The maximum supported NFS I/O size is 32 KB, so you might
experience degraded performance on these versions of Windows.
Note
You can now use SMB file shares when access is required through Windows (SMB) clients
instead of using Windows NFS clients.
Supported SMB Clients for a File Gateway
File gateways support the following Service Message Block (SMB) clients:
• Microsoft Windows Server 2003 and later
• Windows desktop versions: 10, 8, and 7.
• Windows Terminal Server running on Windows Server 2003 and later
Supported File System Operations for a File Gateway
Your NFS or SMB client can write, read, delete, and truncate files. When clients send writes to AWS
Storage Gateway, it writes to local Cache synchronously. Then it writes to Amazon S3 asynchronously
API Version 2013-06-30
21
Page 29
AWS Storage Gateway User Guide
Supported iSCSI Initiators
through optimized transfers. Reads are first served through the local cache. If data is not available, it's
fetched through Amazon S3 as a read-through cache.
Writes and reads are optimized in that only the parts that are changed or requested are transferred
through your gateway. Deletes remove objects from S3. Directories are managed as folder objects in S3,
using the same syntax as in the Amazon S3 Management Console.
HTTP operations such as GET, PUT, UPDATE, and DELETE can modify files in a file share. These
operations conform to the atomic create, read, update, and delete (CRUD) functions.
Supported iSCSI Initiators
When you deploy a cached volume or stored volume gateway, you can create iSCSI storage volumes on
your gateway. When you deploy a tape gateway, the gateway is preconfigured with one media changer
and 10 tape drives. These tape drives and the media changer are available to your existing client backup
applications as iSCSI devices.
To connect to these iSCSI devices, AWS Storage Gateway supports the following iSCSI initiators:
• Windows Server 2012 and Windows Server 2012 R2
• Windows Server 2008 and Windows Server 2008 R2
• Windows 7
• Red Hat Enterprise Linux 5
• Red Hat Enterprise Linux 6
• Red Hat Enterprise Linux 7
• VMware ESX Initiator, which provides an alternative to using initiators in the guest operating systems
of your VMs
Important
Storage Gateway doesn't support Microsoft Multipath I/O (MPIO) from Windows clients.
Storage Gateway supports connecting multiple hosts to the same volume if the hosts coordinate
access by using Windows Server Failover Clustering (WSFC). However, you can't connect multiple
hosts to that same volume (for example, sharing a nonclustered NTFS/ext4 file system) without
using WSFC.
Supported Third-Party Backup Applications for a Tape Gateway
You use a backup application to read, write, and manage tapes with a tape gateway. The following thirdparty backup applications are supported to work with tape gateways.
The type of medium changer you choose depends on the backup application you plan to use. The
following table lists third-party backup applications that have been tested and found to be compatible
with tape gateways. This table includes the medium changer type recommended for each backup
application.
Backup Application Medium Changer Type
Arcserve Backup AWS-Gateway-VTL
Bacula Enterprise V10.x AWS-Gateway-VTL or STK-L700
Commvault V11 STK-L700
API Version 2013-06-30
22
Page 30
AWS Storage Gateway User Guide
Accessing AWS Storage Gateway
Backup Application Medium Changer Type
Dell EMC NetWorker V8.x or V9.x AWS-Gateway-VTL
IBM Spectrum Protect v7.x IBM-03584L32-0402
Micro Focus (HPE) Data Protector 9.x AWS-Gateway-VTL
Microsoft System Center 2012 R2 or 2016 Data
Protection Manager
NovaStor DataCenter/Network 6.4 or 7.1 STK-L700
Quest NetVault Backup 10.0 or 11.x or 12.x STK-L700
Veeam Backup & Replication V7 or V8 STK-L700
Veeam Backup & Replication V9 Update 2 or later AWS-Gateway-VTL
Veritas Backup Exec 2014 or 15 or 16 or 20.x AWS-Gateway-VTL
Veritas Backup Exec 2012
STK-L700
STK-L700
Note
Veritas has ended support for Backup
Exec 2012. For more information, see
End of Support for Prior Backup Exec
Versions.
Veritas NetBackup Version 7.x or 8.x AWS-Gateway-VTL
Important
We highly recommend that you choose the medium changer that's listed for your backup
application. Other medium changers might not function properly. You can choose a different
medium changer after the gateway is activated. For more information, see Selecting a Medium
Changer After Gateway Activation (p. 358).
Accessing AWS Storage Gateway
You can use the AWS Storage Gateway Management Console to perform various gateway configuration
and management tasks. The Getting Started section and various other sections of this guide use the
console to illustrate gateway functionality.
Additionally, you can use the AWS Storage Gateway API to programmatically configure and manage your
gateways. For more information about the API, see API Reference for AWS Storage Gateway (p. 399).
You can also use the AWS SDKs to develop applications that interact with AWS Storage Gateway. The
AWS SDKs for Java, .NET, and PHP wrap the underlying AWS Storage Gateway API to simplify your
programming tasks. For information about downloading the SDK libraries, see Sample Code Libraries.
API Version 2013-06-30
23
Page 31
AWS Storage Gateway User Guide
Supported AWS Regions
Using the AWS Storage Gateway Hardware Appliance
The AWS Storage Gateway Hardware Appliance is a physical hardware appliance with AWS Storage
Gateway software preinstalled on a third-party server. You can manage your AWS Storage Gateway
Hardware Appliance from the Hardware page on the AWS Management Console.
When you create new gateway in the AWS Storage Gateway console, you have the option to run the
gateway appliance on virtual platforms. AWS Storage Gateway supports VMware ESXi, Microsoft HyperV, and Amazon EC2 as hosts. Now you can also use the AWS Storage Gateway Hardware Appliance as
a host in Europe in addition the United States. If you don't already own a hardware appliance and you
choose to use one, go to the Amazon US or Amazon UK, or Amazon Germany website and purchase
one. You can also purchase one from the AWS Storage Gateway console. From the Hardware page, you
choose Buy Hardware Appliance and you will be directed to the appropriate Amazon website where you
can purchase the appliance.
The hardware appliance is a high-performance 1U server that you can deploy in your data center, or onpremises inside your corporate firewall. When you purchase and activate your hardware appliance, the
activation process associates your hardware appliance with your AWS account. After activation, your
hardware appliance appears in the console as a gateway on the Hardware page. You can configure your
hardware appliance as a file gateway, tape gateway, or volume gateway type. The procedure that you use
to deploy and activate these gateway types on a hardware appliance is same as you would on a virtual
platforms.
In the sections that follow, you can find instructions about how to purchase, deploy, activate, and use an
AWS Storage Gateway Hardware Appliance.
Topics
• Supported AWS Regions (p. 24)
• Setting Up Your Hardware Appliance (p. 25)
• Rack-Mount Your Hardware Appliance and Connect It to Power (p. 25)
• Configure Network Parameters (p. 27)
• Activate Your Hardware Appliance (p. 29)
• Launching a Gateway (p. 32)
• Configuring an IP Address for the Gateway (p. 33)
• Configuring Your Gateway (p. 34)
• Removing a Gateway From the Hardware Appliance (p. 34)
• Deleting Your Hardware Appliance (p. 34)
Supported AWS Regions
AWS Storage Gateway Hardware Appliance is only available in the US and Europe. You can connect your
appliance to one of the AWS Region endpoints in the US or Europe. For information about supported
AWS Regions, see AWS Storage Gateway Hardware Appliance Regions in the AWS General Reference.
API Version 2013-06-30
24
Page 32
AWS Storage Gateway User Guide
Setting Up Your Hardware Appliance
Setting Up Your Hardware Appliance
After you receive your AWS Storage Gateway Hardware Appliance, you use the hardware appliance
console to configure networking to provide an always-on connection to AWS and activate your appliance.
Activation associates your appliance with the AWS account that is used during the activation process.
After the appliance is activated, you can launch a file, volume, or tape gateway types in the AWS Storage
Gateway console.
To install and configure your hardware appliance
1. Rack-mount the appliance, and plug in power and network connections. For more information, see
Rack-Mount Your Hardware Appliance and Connect It to Power (p. 25).
2. Set the Internet Protocol version 4 (IPv4) addresses for both the hardware appliance (the host) and
Storage Gateway (the service). For more information, see Configure Network Parameters (p. 27).
3. Activate the hardware appliance on the console Hardware page in the AWS Region of your choice.
For more information, see Activate Your Hardware Appliance (p. 29).
4. Install the Storage Gateway on your hardware appliance. For more information, see Configuring Your
Gateway (p. 34).
You set up gateways on your hardware appliance the same way that you set up gateways on a
VMware ESXi or Microsoft Hyper-V hypervisor or an Amazon EC2 instance.
Increasing the usable cache storage
You can increase the usable storage on the hardware appliance from 5 TB to 12 TB. This provides a
larger cache for low latency access to data in AWS. To increase the usable storage to 12 TB, you can buy
five 1.92 TB SSDs (solid state drives), which is available on the Amazon Website, and add them to the
hardware appliance before you activate it. If you have already activated the hardware appliance and
want to increase the usable storage on the appliance to 12 TB, do the following:
1. First, reset the hardware appliance to its factory settings. Contact AWS support for instructions on
how to do this.
2. Add five 1.92 TB SSDs to the appliance.
For instructions on how to do this, see the Drives in the Dell EMCPowerEdgeR640 Installation and Service
Manual.
Using a fiber optic network card instead of copper network card
The hardware appliance comes with a 10 gigabit copper network card but you can replace it with a 10
gigabit fiber optic network card that AWS Storage Gateway Hardware Appliance supports. The specific
fiber optic network card that the hardware appliance supports is the Dell Intel X710 Quad Port 10GB
Da/SFP+ Network Daughter Card. You can buy it from the hardware appliance product page on the
Amazon website. For instructions on how to install the card, see, Network daughter card in the Dell
EMCPowerEdgeR640 Installation and Service Manual.
Rack-Mount Your Hardware Appliance and Connect It to Power
After you unbox your AWS Storage Gateway Hardware Appliance, follow the instructions contained in
the box to rack-mount the server. Your appliance has a 1U form factor and fits into a 19-inch rack to
the International Electrotechnical Commission (IEC) industry standard, as described on the 19-inch rack
Wikipedia page.
API Version 2013-06-30
25
Page 33
AWS Storage Gateway User Guide
Rack-Mount and Plug In Your Hardware Appliance
To install your hardware appliance, you need the following components:
• Power cables: one required, two recommended.
• Category 6 (Cat6) Ethernet cable. A Category 5 (Cat5) Ethernet cable limits your throughput.
• Keyboard and monitor, or a keyboard, video, and mouse (KVM) switch solution.
To connect the hardware appliance to power
Note
Before you perform the following procedure, make sure that you meet all of the requirements
for the AWS Storage Gateway Hardware Appliance as described in Networking and Firewall
Requirements for the AWS Storage Gateway Hardware Appliance (p. 17).
1. Plug in a power connection to each of the two power supplies. It's possible to plug in to only one
power connection, but we recommend power connections to both power supplies.
In the following image, you can see the hardware appliance with the different connections.
2. Plug an Ethernet cable into the em1 port to provide an always-on internet connection. The em1 port
is the first of the four physical network ports on the rear, from left to right.
Note
The hardware appliance doesn't support VLAN trunking. Set up the switch port to which
you are connecting the hardware appliance as a non-trunked VLAN port.
3. Plug in the keyboard and monitor.
4. Power on the server by pressing the Power button on the front panel, as shown in the following
image.
After the server boots up, the hardware console appears on the monitor. The hardware console presents
a user interface specific to AWS that you can use to configure initial network parameters. You configure
these parameters to connect the appliance to AWS and open up a support channel for troubleshooting
by AWS Support.
To work with the hardware console, enter text from the keyboard and use the Up, Down, Right, and
Left Arrow keys to move about the screen in the indicated direction. Use the Tab key to move
sequentially forward through items on-screen. On some setups, you can use the Shift+Tab keystroke to
move sequentially backward. Use the Enter key to save selections, or to choose a button on the screen.
To set a password for the first time
1. For Set Password, enter a password, and then press Down arrow.
API Version 2013-06-30
26
Page 34
AWS Storage Gateway User Guide
Configure Network Parameters
2. For Confirm, re-enter your password, and then choose Save Password.

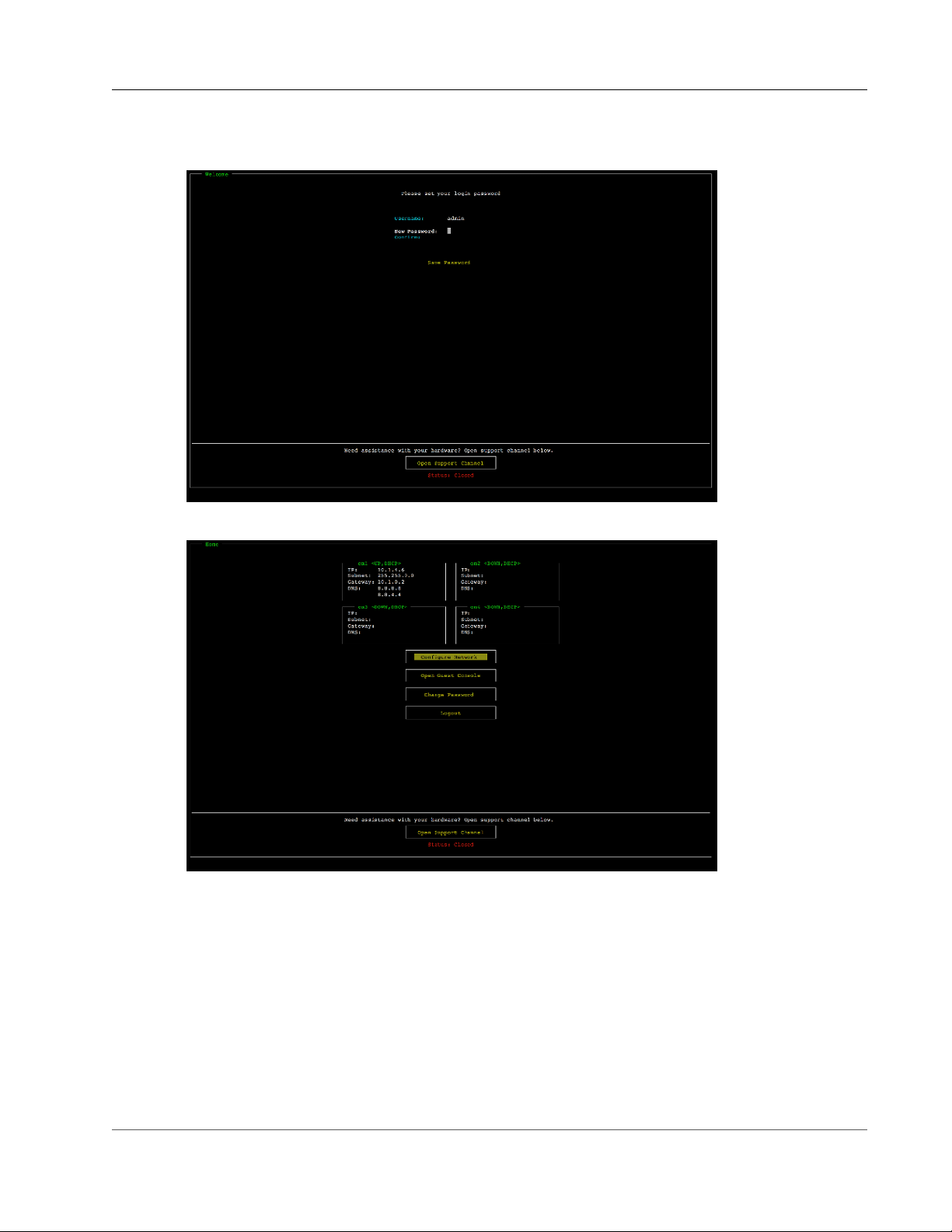

At this point, you are in the hardware console, shown following.
Next Step
Configure Network Parameters (p. 27)
Configure Network Parameters
After the server boots up, you can enter your first password in the hardware console as described in
Rack-Mount Your Hardware Appliance and Connect It to Power (p. 25).
Next, on the hardware console take the following steps to configure network parameters so your
hardware appliance can connect to AWS.
API Version 2013-06-30
27
Page 35
AWS Storage Gateway User Guide
Configure Network Parameters
To set a network address

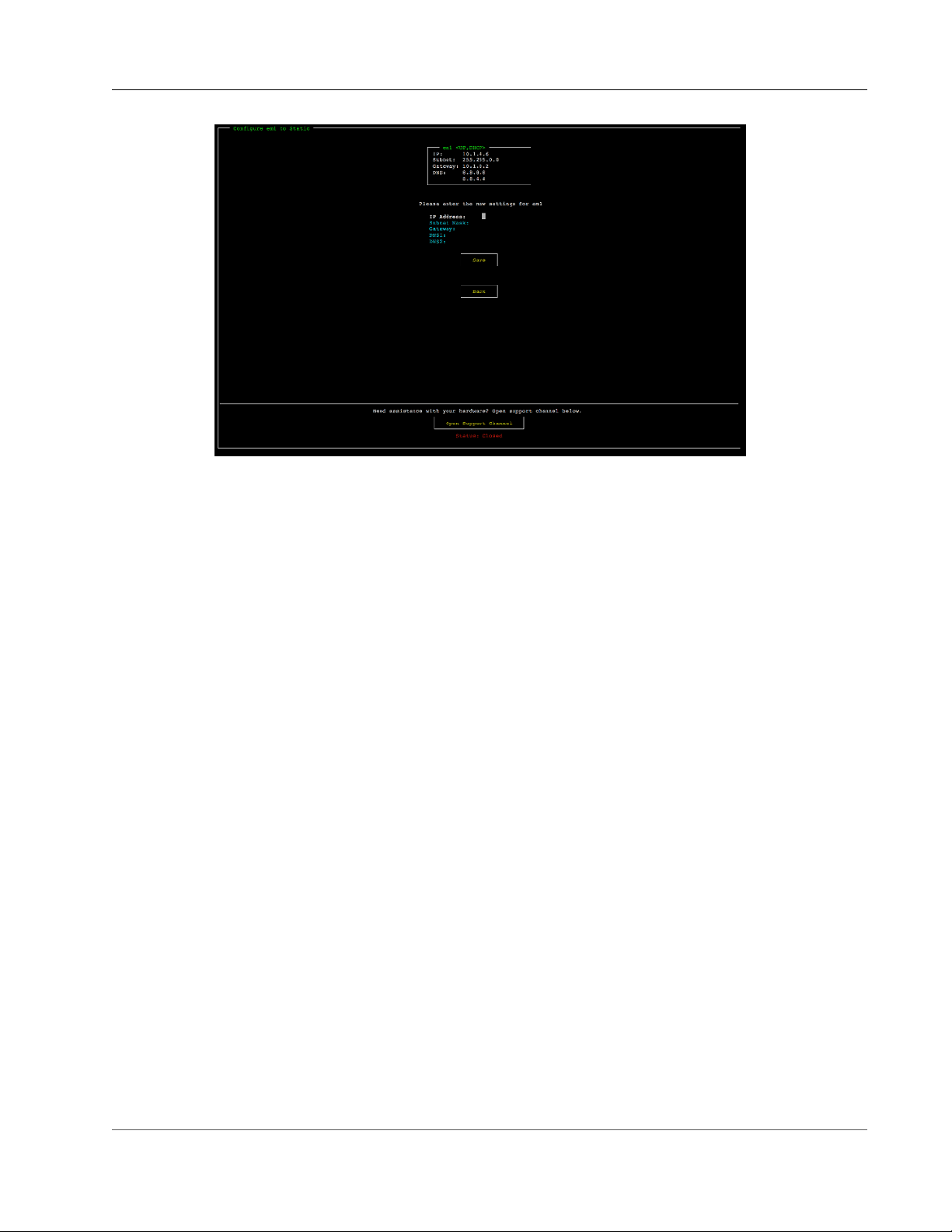

1. Choose Configure Network and press the Enter key. The Configure Network screen shown
following appears.
2. For IP Address, enter a valid IPv4 address from one of the following sources:
• Use the IPv4 address assigned by your Dynamic Host Configuration Protocol (DHCP) server to your
physical network port.
If you do so, note this IPv4 address for later use in the activation step.
• Assign a static IPv4 address. To do so, choose Static in the em1 section and press Enter to view
the Configure Static IP screen shown following.
The em1 section is at upper left section in the group of port settings.
After you have entered a valid IPv4 address, press the Down arrow or Tab.
Note
If you configure any other interface, it must provide the same always-on connection to the
AWS endpoints listed in the requirements.
API Version 2013-06-30
28
Page 36
AWS Storage Gateway User Guide
Activate Your Hardware Appliance
3. For Subnet, enter a valid subnet mask, and then press Down arrow.
4. For Gateway, enter your network gateway’s IPv4 address, and then press Down arrow.
5. For DNS1, enter the IPv4 address for your Domain Name Service (DNS) server, and then press Down
arrow.
6. (Optional) For DNS2, enter a second IPv4 address, and then press Down arrow. A second DNS server
assignment would provide additional redundancy should the first DNS server become unavailable.
7. Choose Save and then press Enter to save your static IPv4 address setting for the appliance.
To log out of the hardware console
1. Choose Back to return to the Main screen.
2. Choose Logout to return to the Login screen.
Next Step
Activate Your Hardware Appliance (p. 29)
Activate Your Hardware Appliance
After configuring your IP address, you enter this IP address in the console on the Hardware page, as
described following. The activation process validates that your hardware appliance has the appropriate
security credentials and registers the appliance to your AWS account.
AWS Storage Gateway Hardware Appliance is only available in the US and Europe. You can choose to
activate your hardware appliance in any of the supported AWS Regions. For the supported AWS Regions,
see AWS Storage Gateway Hardware Appliance Regions in the AWS General Reference.
To activate your appliance for the first time or in an AWS Region where you have no
gateways deployed
1. Sign in to the AWS Management Console and open the AWS Storage Gateway console at https://
console.amazonaws.cn/storagegateway/home with the account credentials to use to activate your
hardware.
API Version 2013-06-30
29
Page 37
AWS Storage Gateway User Guide
Activate Your Hardware Appliance
If this is your first gateway in an AWS Region, you see the splash screen shown following. After you
create a gateway in this AWS Region, this screen no longer displays.
Note
For activation only, the following must be true:
• Your browser must be on the same network as your hardware appliance.
• Your firewall must allow HTTP access on port 8080 to the appliance for inbound traffic.

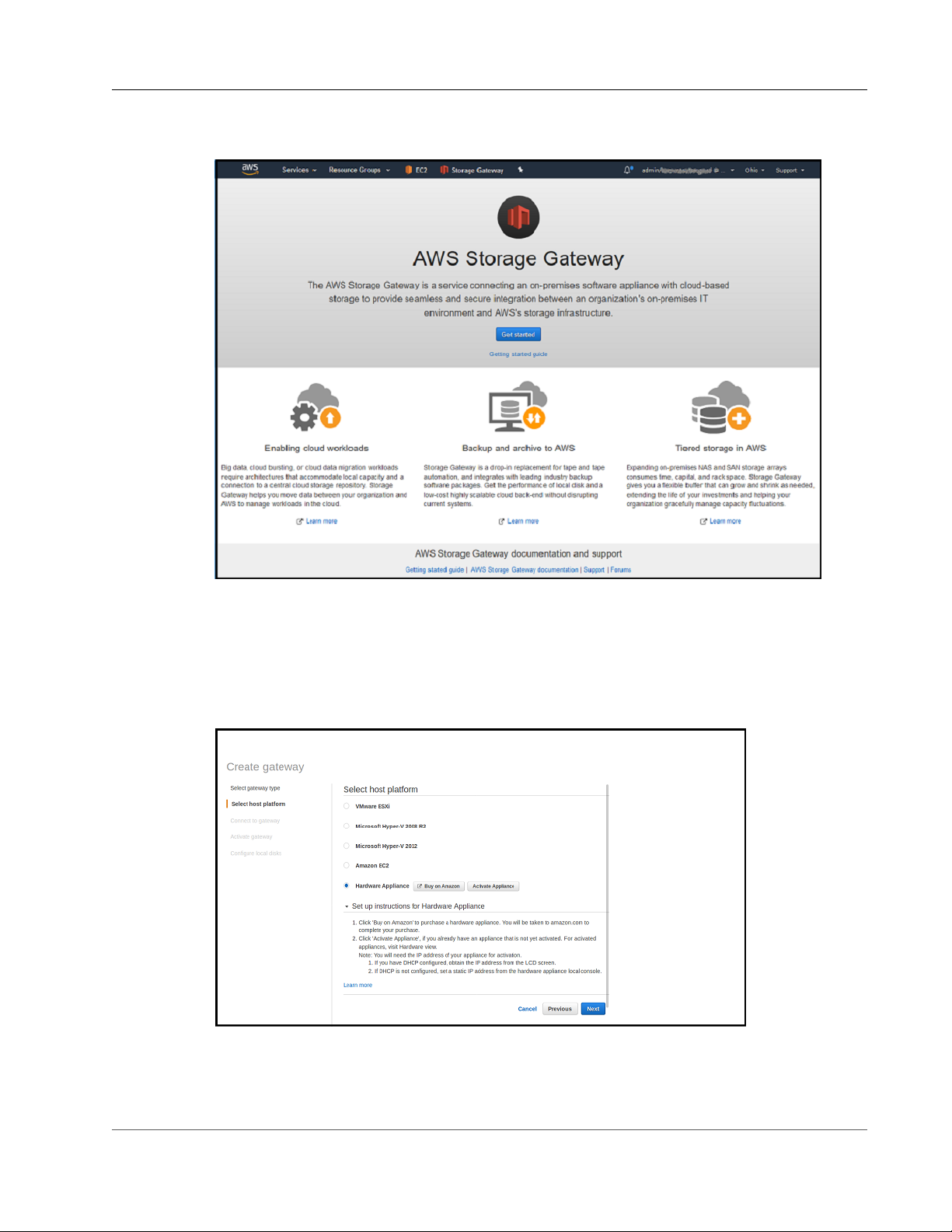

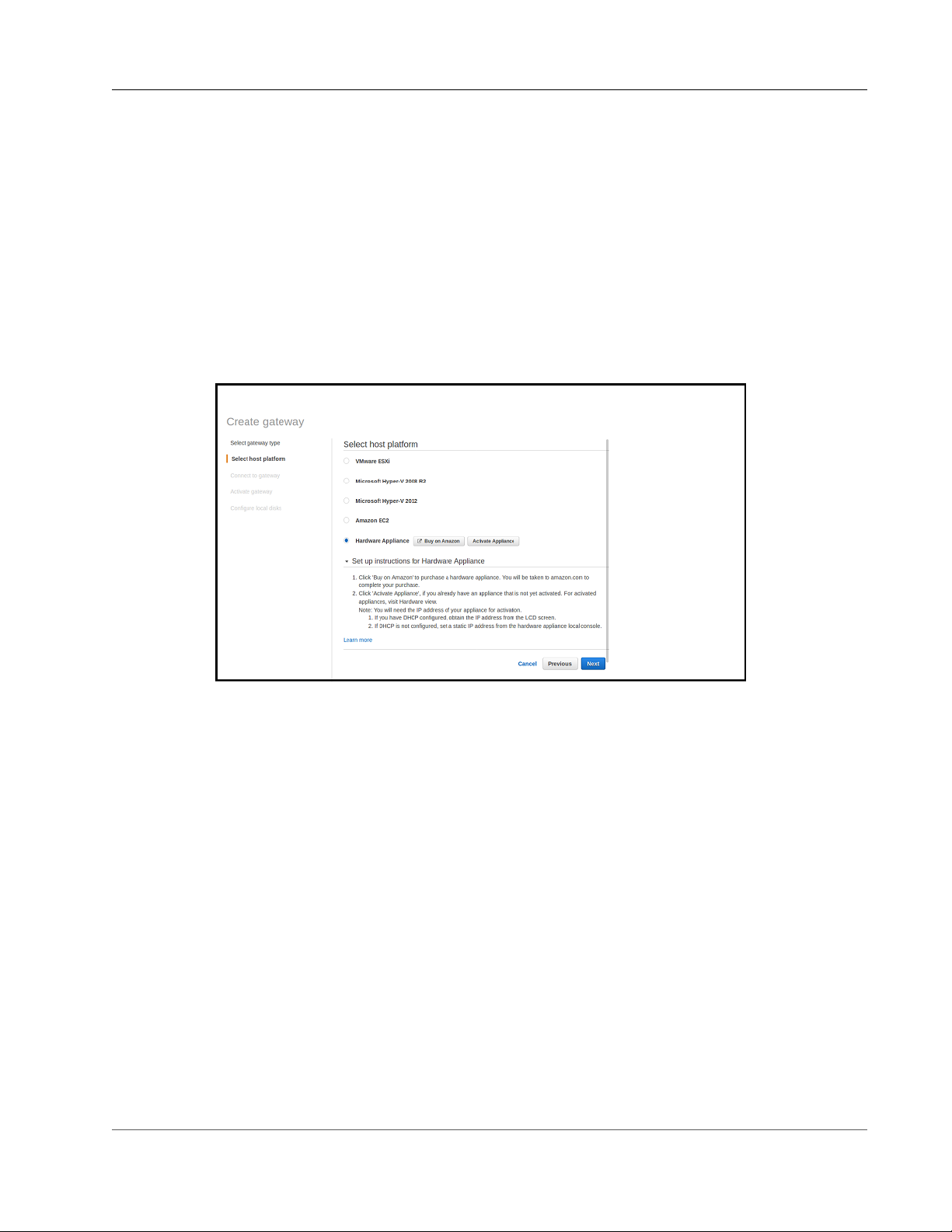

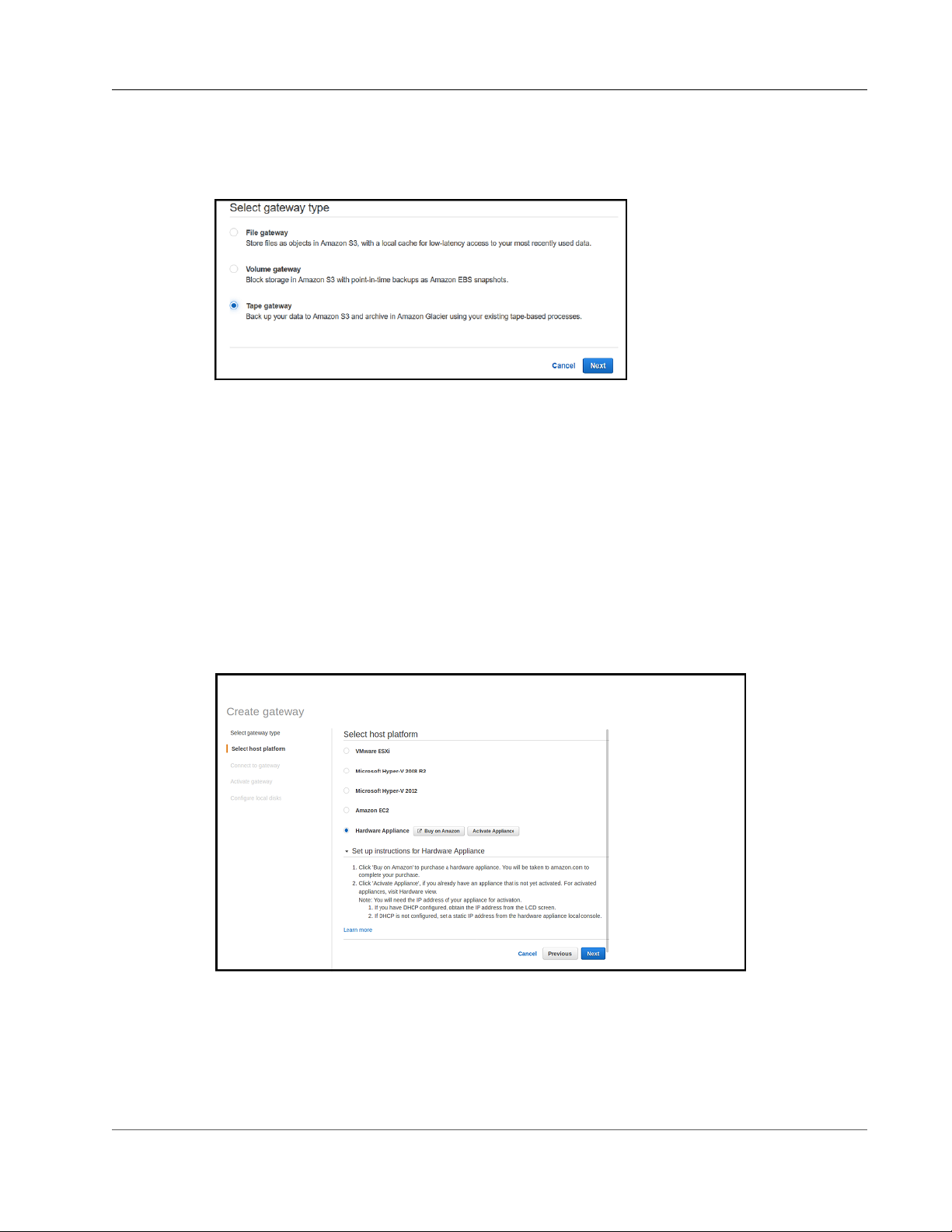

2. Choose Get started to view the Create gateway wizard, and then choose Hardware Appliance on
the Select host platform page, as shown following.
3. Choose Next to view the Connect to hardware screen shown following.
API Version 2013-06-30
30
Page 38
AWS Storage Gateway User Guide
Activate Your Hardware Appliance

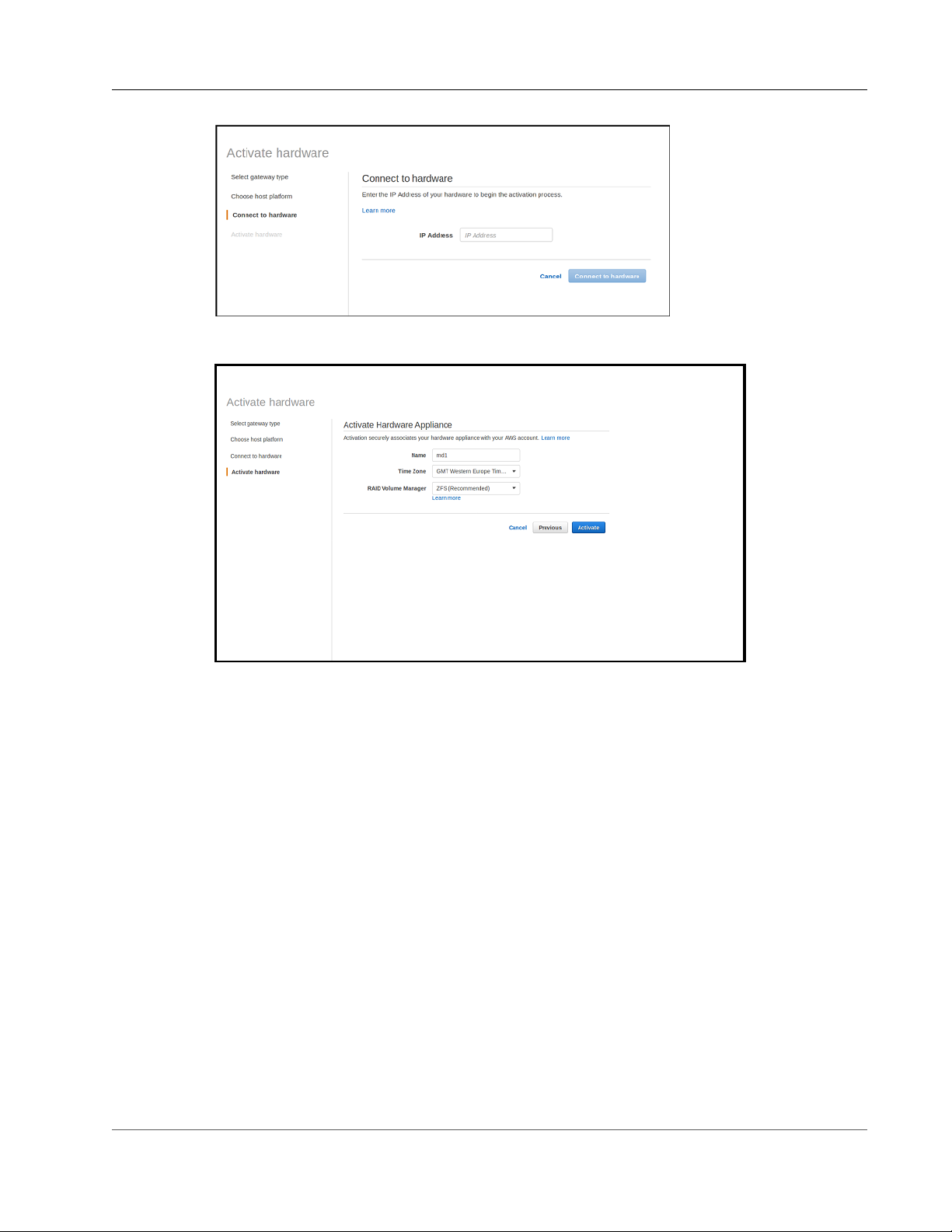

4. For IP Address, enter the IPv4 address of your appliance, and then choose Connect to Hardware to
go to the Activate Hardware screen shown following.
5. For Hardware name, enter a name for your appliance. Names can be up to 255 characters long and
can't include a slash character.
6. (Optional) For Hardware time zone, enter your local settings.
The time zone controls when hardware updates take place, with 2 a.m. local time used as the time
for updates.
Note
We recommend setting the time zone for your appliance as this determines a standard
update time that is out of the usual working day window.
7. (Optional) Keep the RAID Volume Manager set to ZFS.
ZFS RAID is a software-based, open-source file system and logical volume manager. We recommend
using ZFS for most hardware appliance use cases because it offers superior performance and
integration compared with MD RAID. The hardware appliance is specifically tuned for ZFS RAID. For
more information on ZFS RAID, see the ZFS Wikipedia page.
If you don't want to accept CDDL license terms, as documented in CDDL 1.0 on the Opensource.org
site, we also offer MD RAID. For more information on MD RAID, see the mdadm Wikipedia page.
To change the volume manager on your hardware appliance, contact AWS Support. AWS Support
can provide an International Organization for Standardization (ISO) standard image, instructions
on performing a factory reset of a hardware appliance, and instructions on installing the new ISO
image.
8. Choose Next to finish activation.
API Version 2013-06-30
31
Page 39
AWS Storage Gateway User Guide
Launching a Gateway

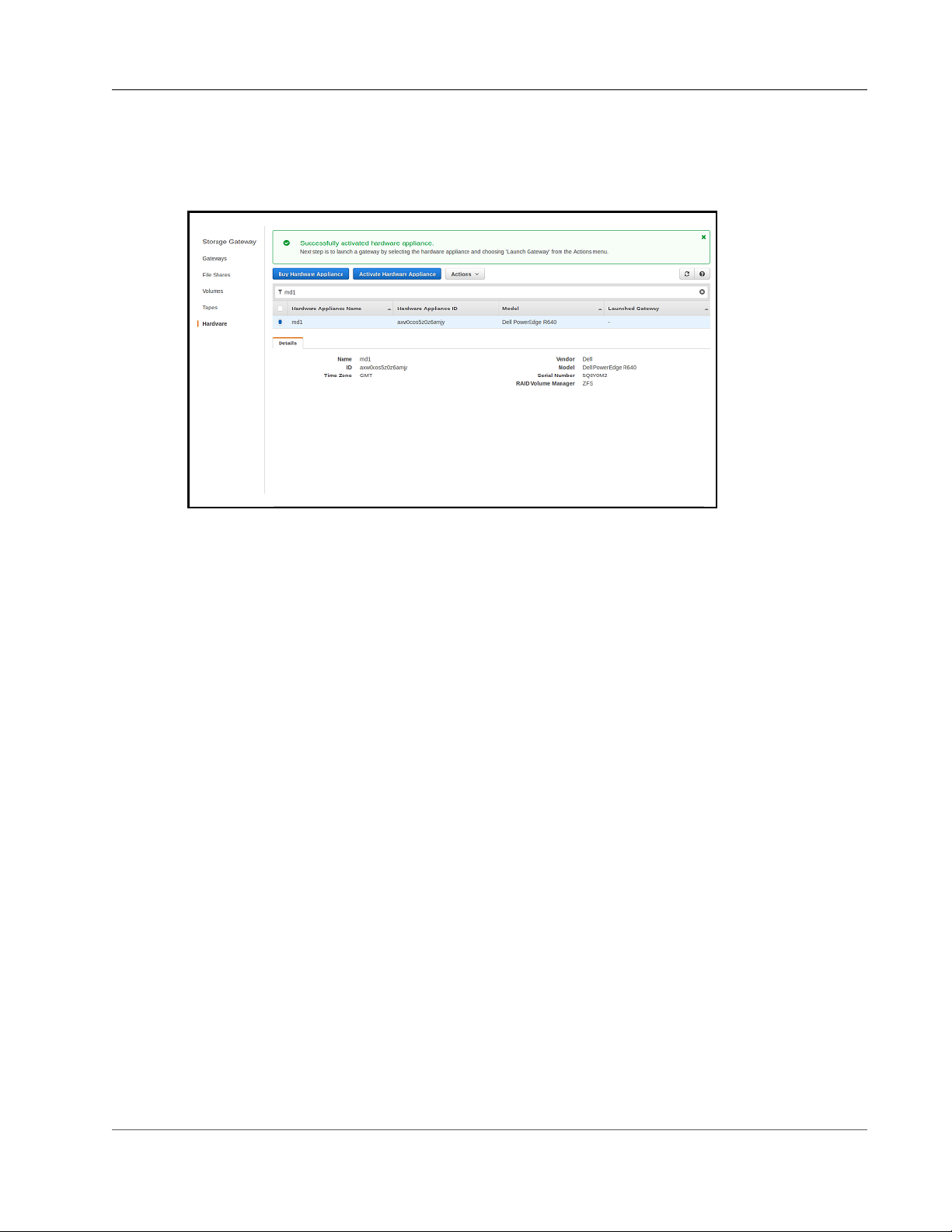

A console banner appears on the Hardware page indicating that the hardware appliance has been
successfully activated, as shown following.
At this point, the appliance is associated with your account. The next step is to launch a file, tape, or
cached volume gateway on your appliance.
Next Step
Launching a Gateway (p. 32)
Launching a Gateway
You can launch any of the three storage gateways on the appliance—file gateway, volume gateway
(cached), or tape gateway.
To launch a gateway on your hardware appliance
1. Sign in to the AWS Management Console and open the AWS Storage Gateway console at https://
console.amazonaws.cn/storagegateway/home.
2. Choose Hardware.
3. For Actions, choose Launch Gateway.
4. For Gateway Type, choose File Gateway, Tape Gateway, or Volume Gateway (Cached).
5. For Gateway name, enter a name for your gateway. Names can be 255 characters long and can't
include a slash character.
6. Choose Launch gateway.
The Storage Gateway software for your chosen gateway type installs on the appliance. It can take up to
5–10 minutes for a gateway to show up as online in the console.
To assign a static IP address to your installed gateway, you next configure the gateway's network
interfaces so your applications can use it.
Next Step
Configuring an IP Address for the Gateway (p. 33)
API Version 2013-06-30
32
Page 40
AWS Storage Gateway User Guide
Configuring an IP Address for the Gateway
Configuring an IP Address for the Gateway
To assign a static IP address to a gateway installed on your hardware appliance, configure the IP address
from the local console of that gateway. Your applications (such as your NFS or SMB client, your iSCSI
initiator, and so on) connect to this IP address. You can access the gateway local console from the
hardware appliance console.
To configure an IP address on your appliance to work with applications
1. On the hardware console, choose Open Service Console to open a login screen for the gateway local
console.
2. Enter the localhost login password, and then press Enter.
For File Gateway the default account is admin and the default password is password. For Tape
Gateway and Volume Gateway the default account is sguser the default password is sgpassword.
3. Change the default password. Choose Actions then Set Local Password and enter your new
credentials in the Set Local Password dialog box.
4. (Optional) Configure your proxy settings. See the section called “Setting the Local Console Password
from the Storage Gateway Console” (p. 253) for instructions.

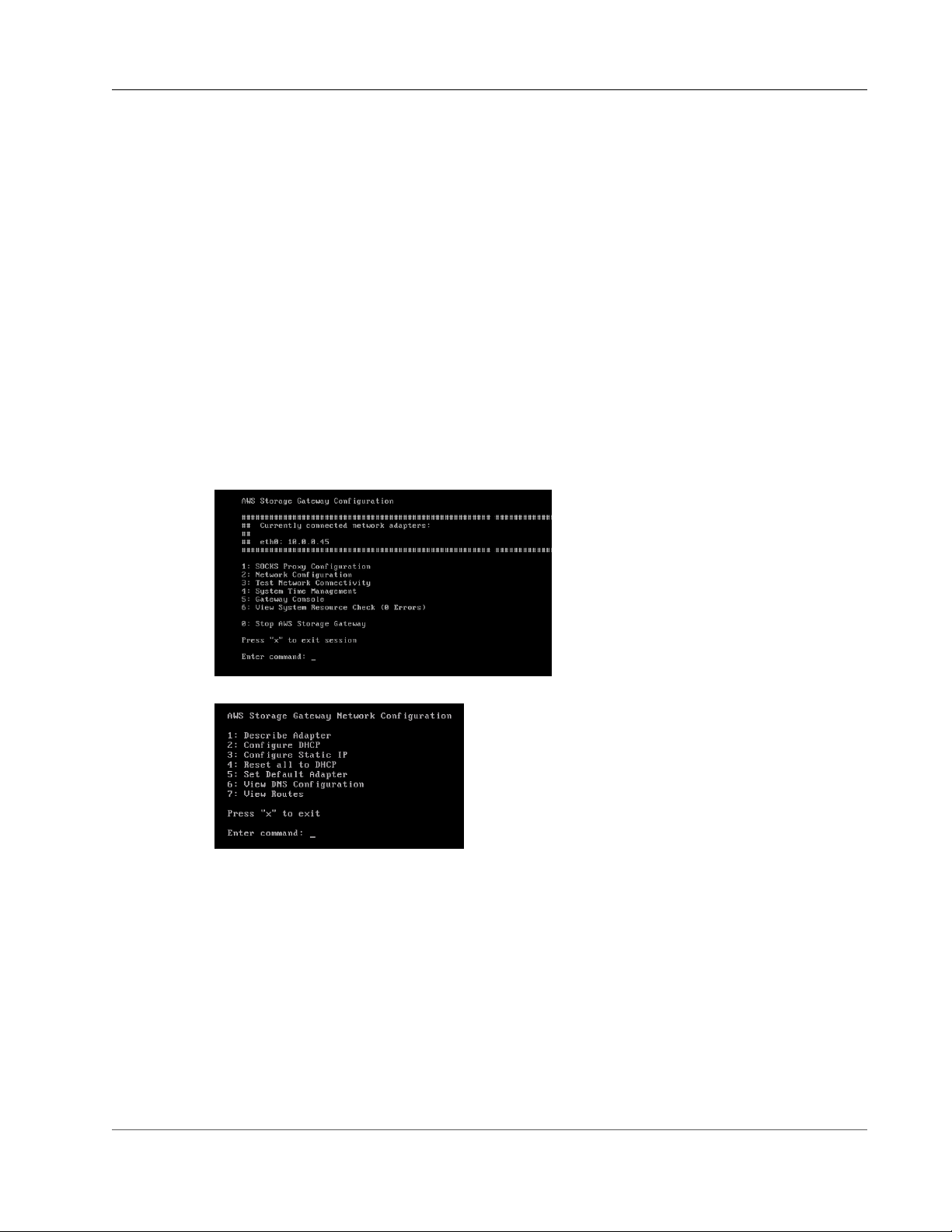

5. Navigate to the Network Settings page of the gateway local console as shown following.
6. Type 2 to go to the Network Configuration page shown following.
7. Configure a static or DHCP IP address for the network port on your hardware appliance to present a
file, volume, and tape gateway for applications. This IP address must be on the same subnet as the
IP address used during hardware appliance activation.
To exit the gateway local console
• Press the Crtl+] (close bracket) keystroke. The hardware console appears.
Note
The keystroke preceding is the only way to exit the gateway local console.
Next Step
Configuring Your Gateway (p. 34)
API Version 2013-06-30
33
Page 41
AWS Storage Gateway User Guide
Configuring Your Gateway
Configuring Your Gateway
After your hardware appliance has been activated and configured, your appliance appears in the console.
Now you can create the type of gateway that you want. Continue the installation for your gateway type
at the one of the configure local disks sections:
• For file gateway, see: Configuring Local Disks (p. 41).
• For tape gateway, see: Configuring Local Disks (p. 81).
• For volume gateway, see: Configuring Local Disks (p. 62).
Removing a Gateway From the Hardware Appliance
To remove gateway software from your hardware appliance, use the following procedure. After you do
so, the gateway software is uninstalled from your hardware appliance.
To remove a gateway from a hardware appliance
1. Choose the check box for the gateway.
2. For Actions, choose Remove Gateway.
3. In the Remove gateway from hardware appliance dialog box, choose Confirm.
Note
When you delete a gateway, you can't undo the action. For certain gateway types, you can
lose data on deletion, particularly cached data. For more information on deleting a gateway,
see Deleting Your Gateway by Using the AWS Storage Gateway Console and Removing
Associated Resources (p. 281).
Deleting a gateway doesn't delete the hardware appliance from the console. The hardware appliance
remains for future gateway deployments.
Deleting Your Hardware Appliance
After you activate your Hardware Appliance in your AWS account, you might have a need to move and
activate it in a different AWS account. In this case, you first delete the appliance from the AWS account
and activate it in another AWS account. You might also want to delete the appliance completely from
your AWS account because you no longer need it. Follow these instructions to delete your hardware
appliance.
To delete your hardware appliance
1. If you have installed a gateway on the hardware appliance, you must first remove the gateway
before you can delete the appliance. For instructions on how to remove a gateway from your
Hardware Appliance, see Removing a Gateway From the Hardware Appliance (p. 34).
2. On the Hardware page, choose the hardware appliance you want to delete.
3. Choose Actions, and then choose Delete Appliance.
4. In the Confirm deletion of resource(s) dialog box, choose the confirmation check box and choose
Delete. A message indicating successful deletion is displayed.
API Version 2013-06-30
34
Page 42
AWS Storage Gateway User Guide
Deleting Your Hardware Appliance
When you delete the hardware appliance, all the resources associated with the gateway that is
installed on the appliance are delete also, but the data on the hardware appliance itself is not
deleted.
API Version 2013-06-30
35
Page 43
AWS Storage Gateway User Guide
Creating a File Gateway
Creating Your Gateway
To create your gateway, open the AWS Storage Gateway Management Console and choose the AWS
Region that you want to create your gateway in. If you haven't created a gateway in this AWS Region, the
Storage Gateway service homepage is displayed.
Choose Get started to open the Create gateway page. On this page, you choose a gateway type. If you
have a gateway in the current AWS Region, the console shows your gateway in the console.
Topics
• Creating a File Gateway (p. 36)
• Creating a Volume Gateway (p. 56)
• Creating a Tape Gateway (p. 75)
• Activating a Gateway in a Virtual Private Cloud (p. 133)
Creating a File Gateway
In this section, you can find instructions about how to create and use a file gateway.
Topics
• Creating a Gateway (p. 36)
• Creating a File Share (p. 42)
• Using Your File Share (p. 51)
Creating a Gateway
In this section, you can find instructions about how to download, deploy, and activate your file gateway.
Topics
• Choosing a Gateway Type (p. 37)
• Choosing a Host Platform and Downloading the VM (p. 37)

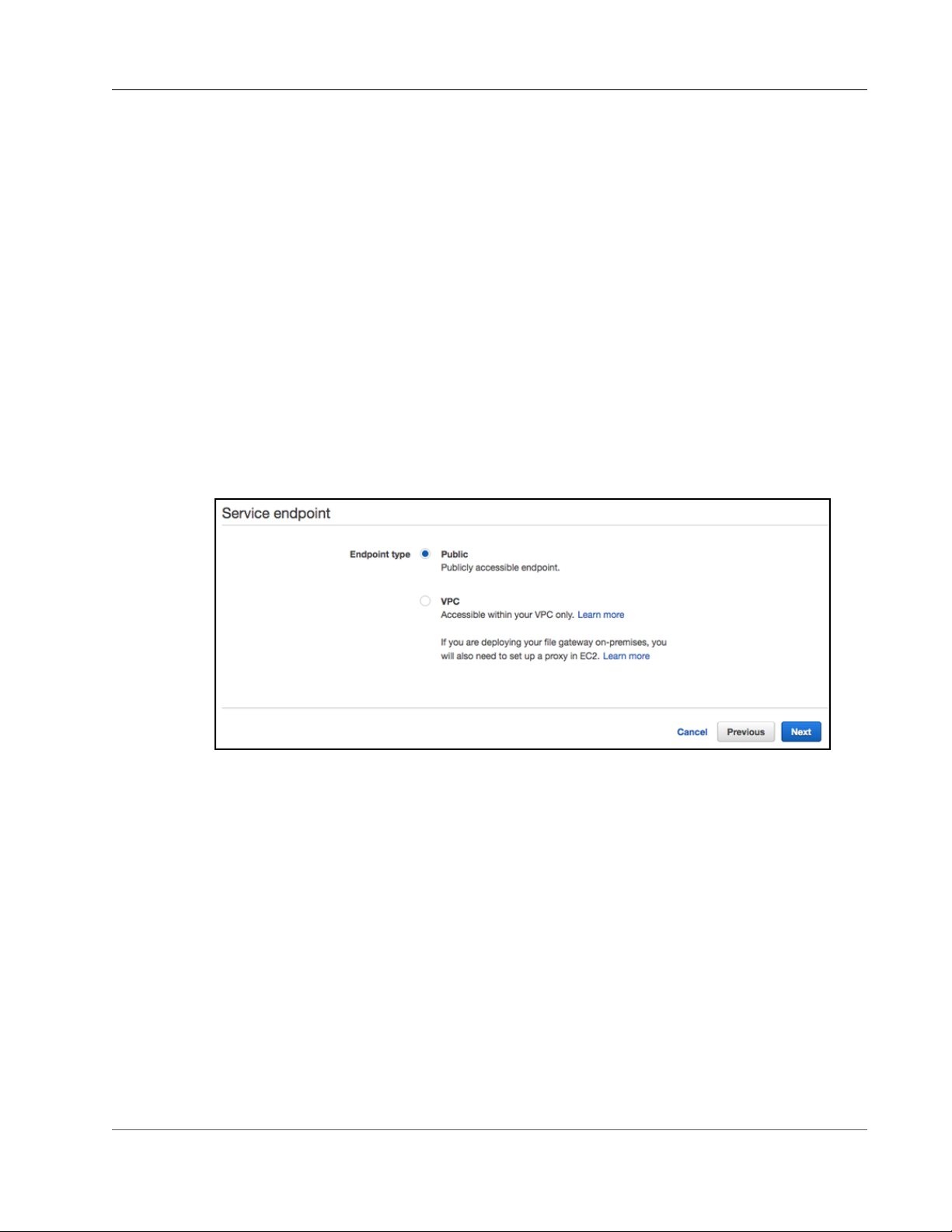

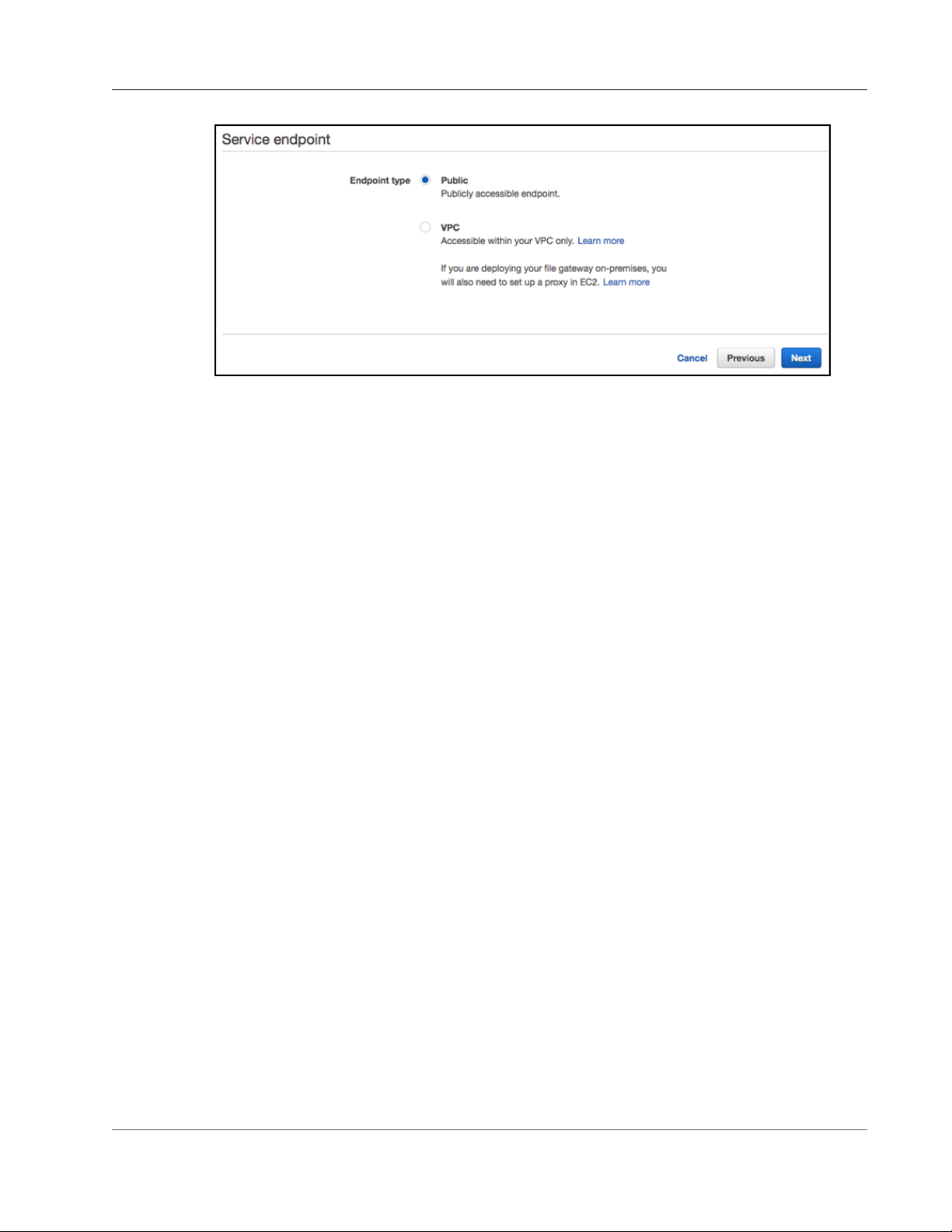

• Choosing a Service Endpoint (p. 39)

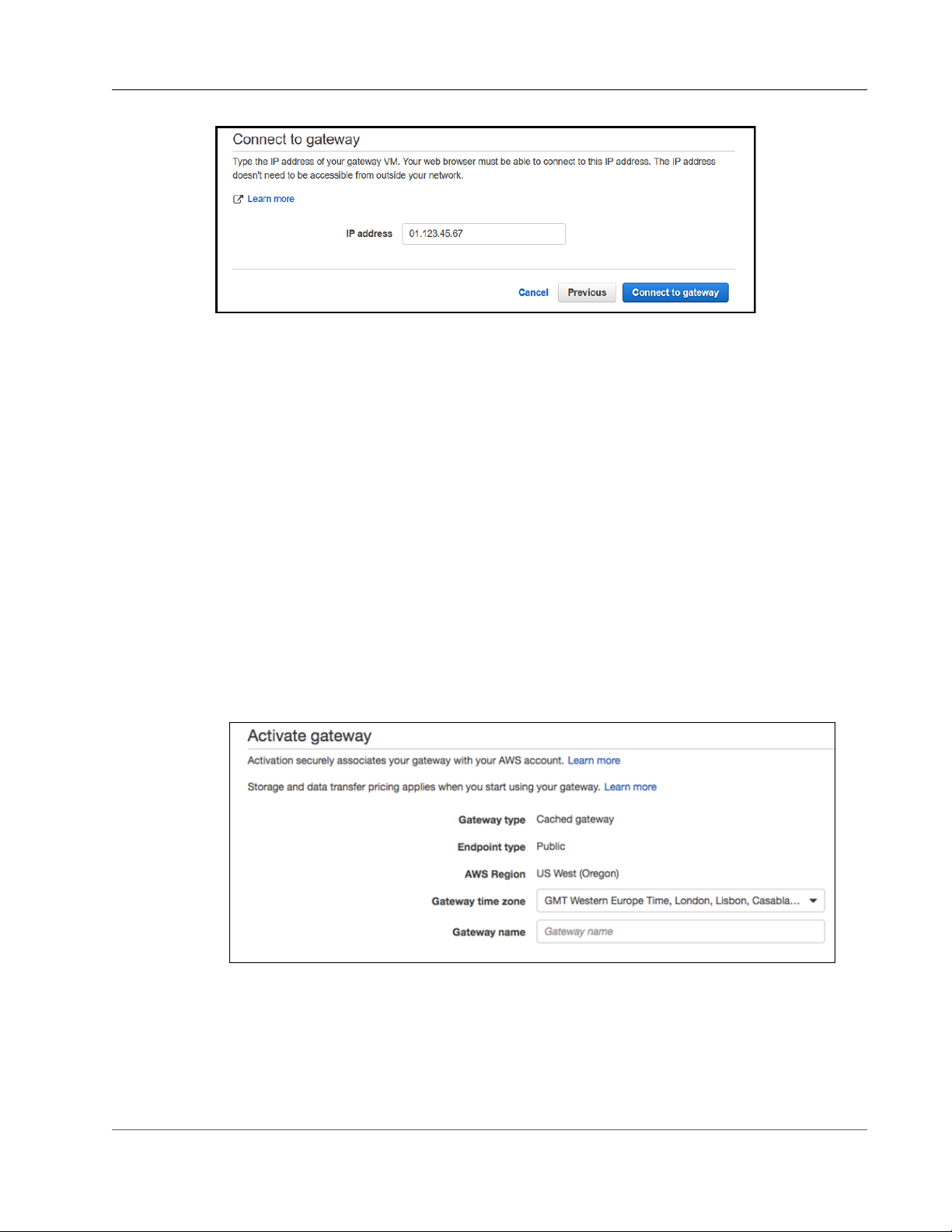

• Connecting to Your Gateway (p. 39)

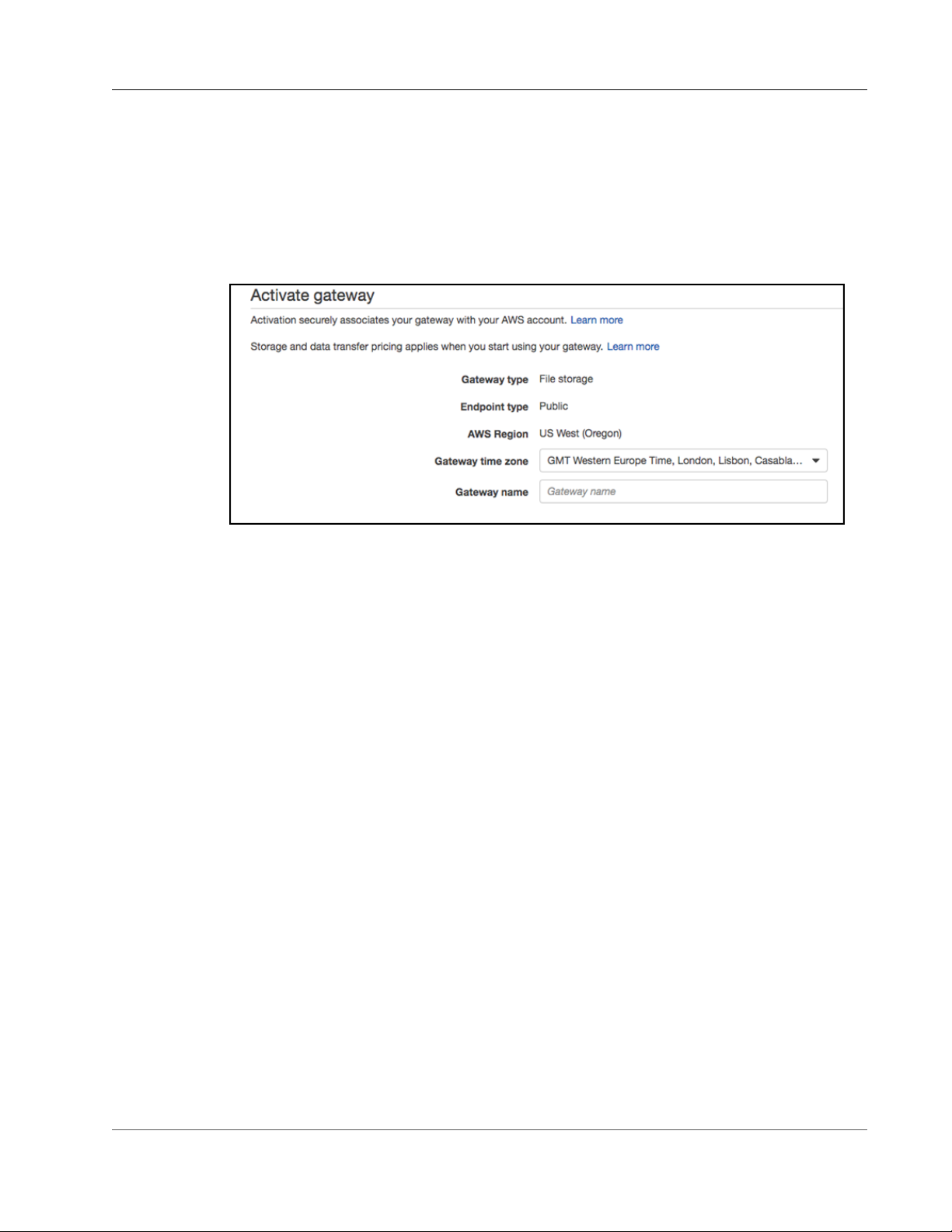

• Activating Your Gateway (p. 40)
• Configuring Local Disks (p. 41)
API Version 2013-06-30
36
Page 44
AWS Storage Gateway User Guide
Creating a Gateway

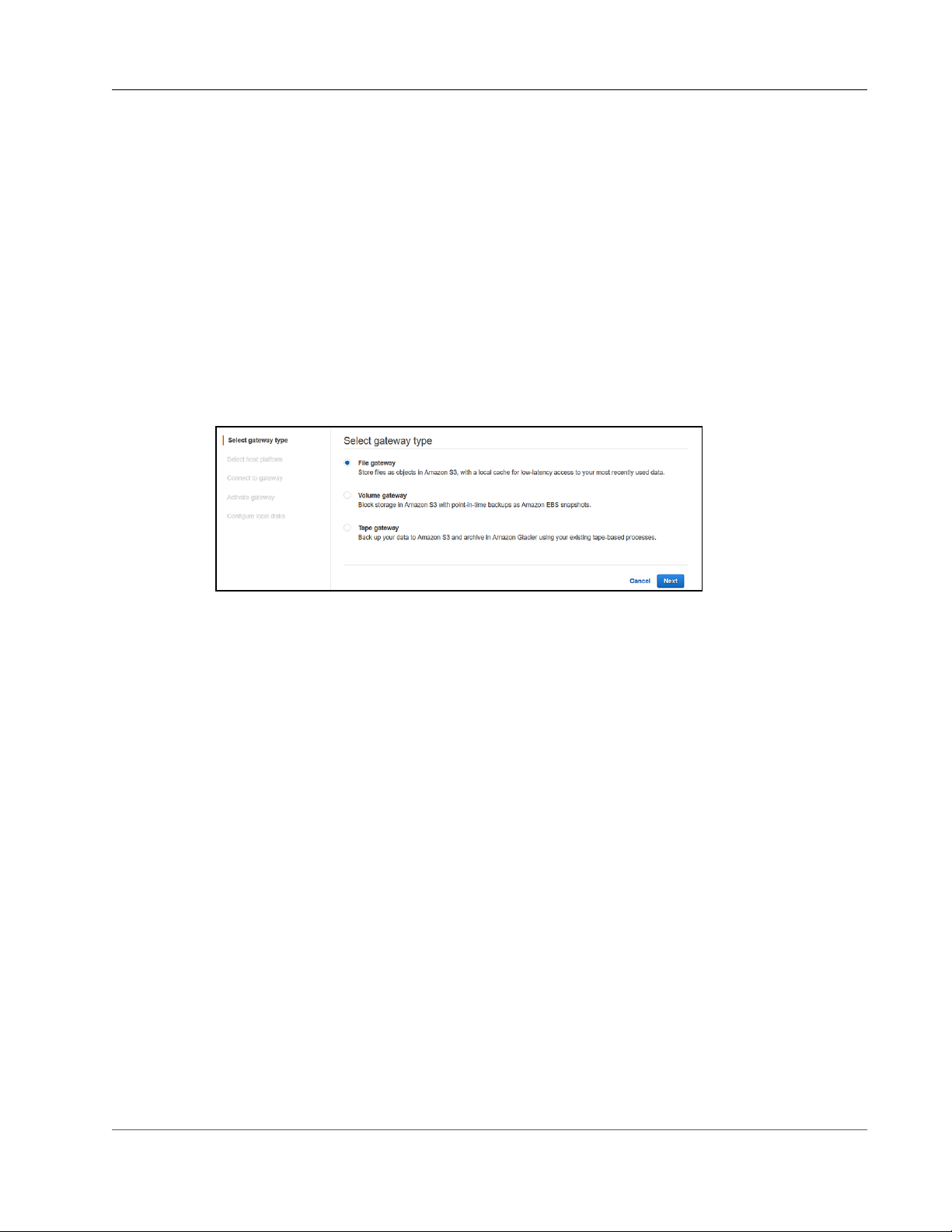

Choosing a Gateway Type
With a file gateway, you store and retrieve objects in Amazon S3 with a local cache for low latency access
to your most recently used data.
To choose a gateway type
1. Open the AWS Management Console at http://console.www.amazonaws.cn/storagegateway/home,
and choose the AWS Region that you want to create your gateway in.
If you have previously created a gateway in this AWS Region, the console shows your gateway.
Otherwise, the service homepage appears.

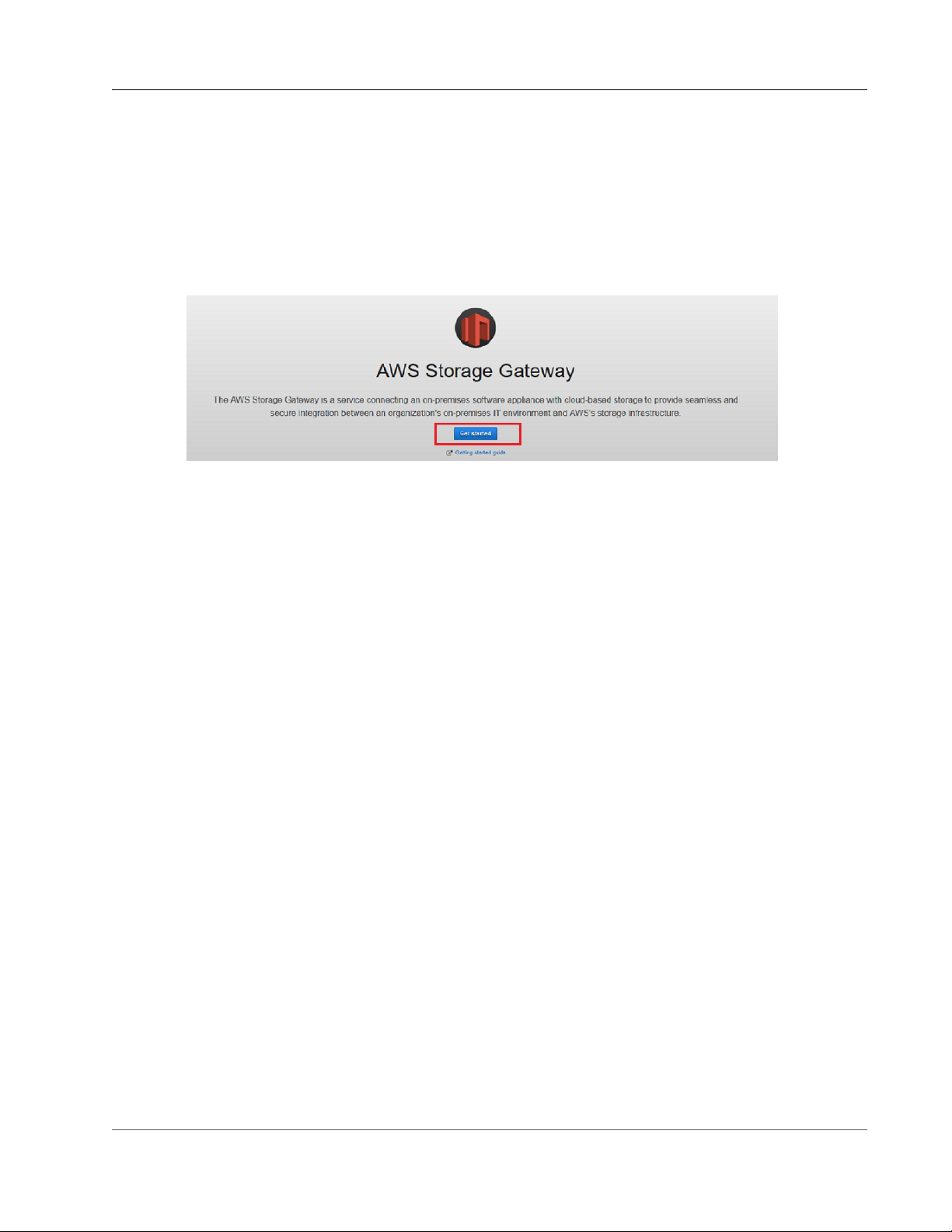

2. If you haven't created a gateway in the AWS Region that you chose, choose Get started. If you
already have a gateway in the AWS Region that you chose, choose Gateways from the navigation
pane, and then choose Create gateway.
3. On the Select gateway type page, choose File gateway, and then choose Next.
Choosing a Host Platform and Downloading the VM
If you create your gateway on-premises, you deploy the hardware appliance, or download and deploy
a gateway VM, and then activate the gateway. If you create your gateway on an Amazon EC2 instance,
you launch an Amazon Machine Image (AMI) that contains the gateway VM image and then activate
the gateway. For information about supported host platforms, see Supported Hypervisors and Host
Requirements (p. 20).
Note
You can run only file, cached volume, and tape gateways on an Amazon EC2 instance.
To select a host platform and download the VM
1. On the Select host platform page, choose the virtualization platform that you want to run your
gateway on.
API Version 2013-06-30
37
Page 45
AWS Storage Gateway User Guide
Creating a Gateway
2. Choose Download image next to your virtualization platform to download a .zip file that contains
the .ova file for your virtualization platform.
Note
The .zip file is over 500 MB in size and might take some time to download, depending on
your network connection.
For EC2, you create an instance from the provided AMI.
3. Deploy the downloaded image to your hypervisor. You need to add at least one local disk for your
cache and one local disk for your upload buffer during the deployment. A file gateway requires only
one local disk for a cache. For information about local disk requirements, see Hardware and Storage
Requirements (p. 11).
If you choose VMware, do the following:
• Store your disk in Thick provisioned format. When you use thick provisioning, the disk storage
is allocated immediately, resulting in better performance. In contrast, thin provisioning allocates
storage on demand. On-demand allocation can affect the normal functioning of AWS Storage
Gateway. For Storage Gateway to function properly, the VM disks must be stored in thickprovisioned format.
• Configure your gateway VM to use paravirtualized disk controllers. For more information, see
Configuring the AWS Storage Gateway VM to Use Paravirtualized Disk Controllers (p. 346).
If you choose Microsoft Hyper-V, do the following:
• Configure the disk type as Fixed size. When you use fixed-size provisioning, the disk storage is
allocated immediately, resulting in better performance. If you don't use fixed-size provisioning,
the storage is allocated on demand. On-demand allocation can affect the functioning of AWS
Storage Gateway. For Storage Gateway to function properly, the VM disks must be stored in fixedsize provisioned format.
• When allocating disks, choose virtual hard disk (.vhd) file. Storage Gateway supports the .vhdx
file type. By using this file type, you can create larger virtual disks than with other file types. If you
create a .vhdx type virtual disk, make sure that the size of the virtual disks that you create doesn't
exceed the recommended disk size for your gateway.
For both VMware and Microsoft Hyper-V, synchronizing the VM time with the host time is required
for successful gateway activation. Make sure that your host clock is set to the correct time and
synchronize it with a Network Time Protocol (NTP) server.
API Version 2013-06-30
38
Page 46
AWS Storage Gateway User Guide
Creating a Gateway
If you choose EC2, do the following:
Launch an Amazon Machine Image (AMI) that contains the gateway VM image, and then activate the
gateway. For information about deploying your gateway to an Amazon EC2 host, see: Deploying a
Volume or Tape Gateway on an Amazon EC2 Host (p. 349)
If you choose the hardware appliance, see Activate Your Hardware Appliance (p. 29).
For information about deploying your gateway to an Amazon EC2 host, see Deploy Your Gateway to an
Amazon EC2 Host (p. 351).
Choosing a Service Endpoint
You can activate your gateway using a public endpoint and have your gateway communicate with AWS
storage services over the public Internet or activate it using a private VPC endpoint. If you use a VPC
endpoint, all communication from your gateway to AWS services occurs through the VPC endpoint in
your VPC in AWS.

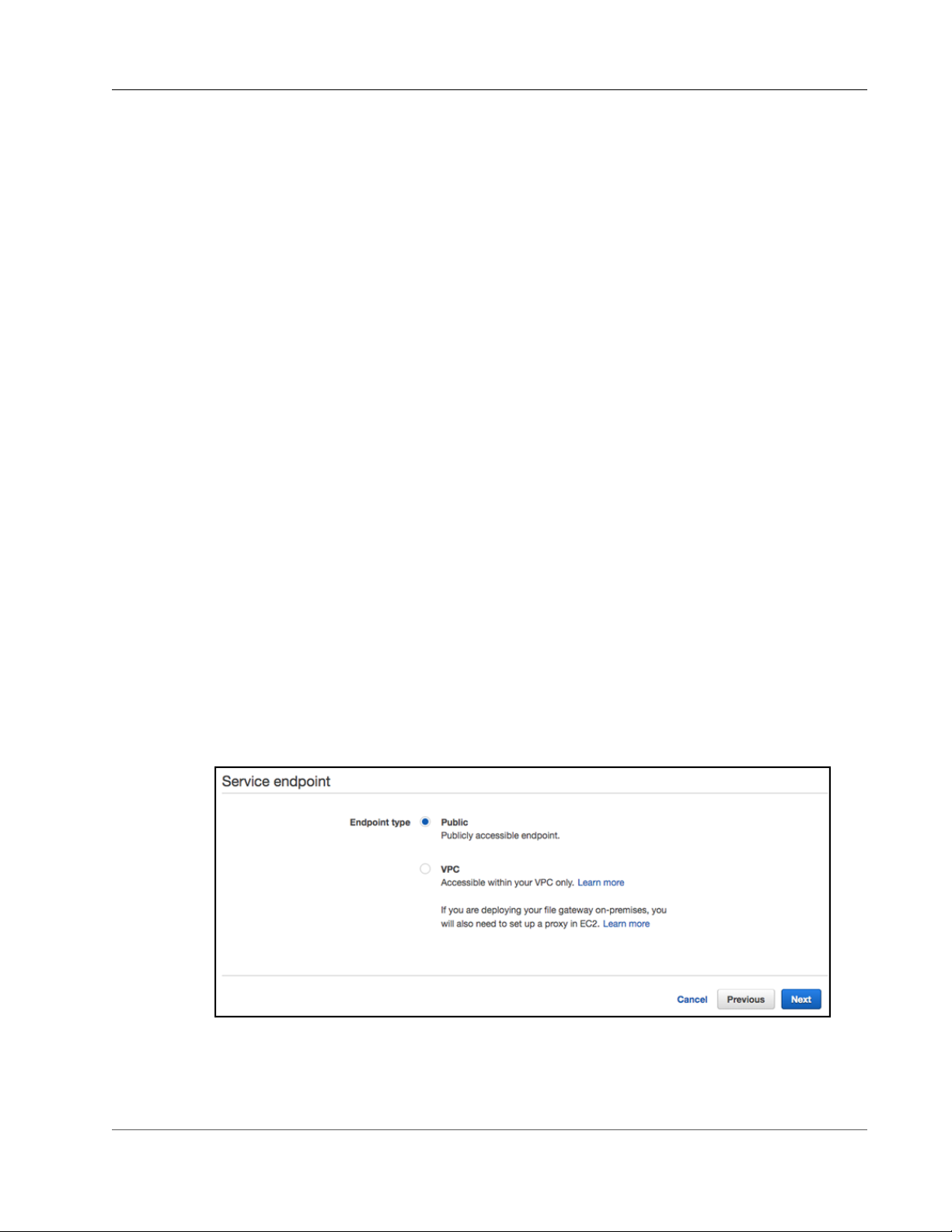

To choose a service endpoint
1. For Endpoint type you have the following options:
To make your gateway access AWS services over the public Internet, choose Public.
To make your gateway access AWS services through the VPC endpoint in your VPC, choose VPC.
This walkthorough assumes that you are activating your gateway with a public endpoint. For
Information about how to activate a gateway using a VPC, endpoint see Activating a Gateway in a
Virtual Private Cloud (p. 133).
2. Choose Next to connect you gateway and activate your gateway.
Connecting to Your Gateway
To connect to your gateway, the first step is to get the IP address of your gateway VM. You use this IP
address to activate your gateway. For gateways deployed and activated on an on-premises host, you can
get the IP address from your gateway VM local console or your hypervisor client. For gateways deployed
and activated on an Amazon EC2 instance, you can get the IP address from the Amazon EC2 console.
The activation process associates your gateway with your AWS account. Your gateway VM must be
running for activation to succeed.
API Version 2013-06-30
39
Page 47
AWS Storage Gateway User Guide
Creating a Gateway
Make sure that you select the correct gateway type. The .ova files and AMIs for the gateway types are
different and are not interchangeable.
To get the IP address for your gateway VM from the local console
1. Log on to your gateway VM local console. For detailed instructions, see the following:
• VMware ESXi—Accessing the Gateway Local Console with VMware ESXi (p. 273).
• Microsoft Hyper-V—Access the Gateway Local Console with Microsoft Hyper-V (p. 274).
2. Get the IP address from the top of the menu page, and make note of it for later use.

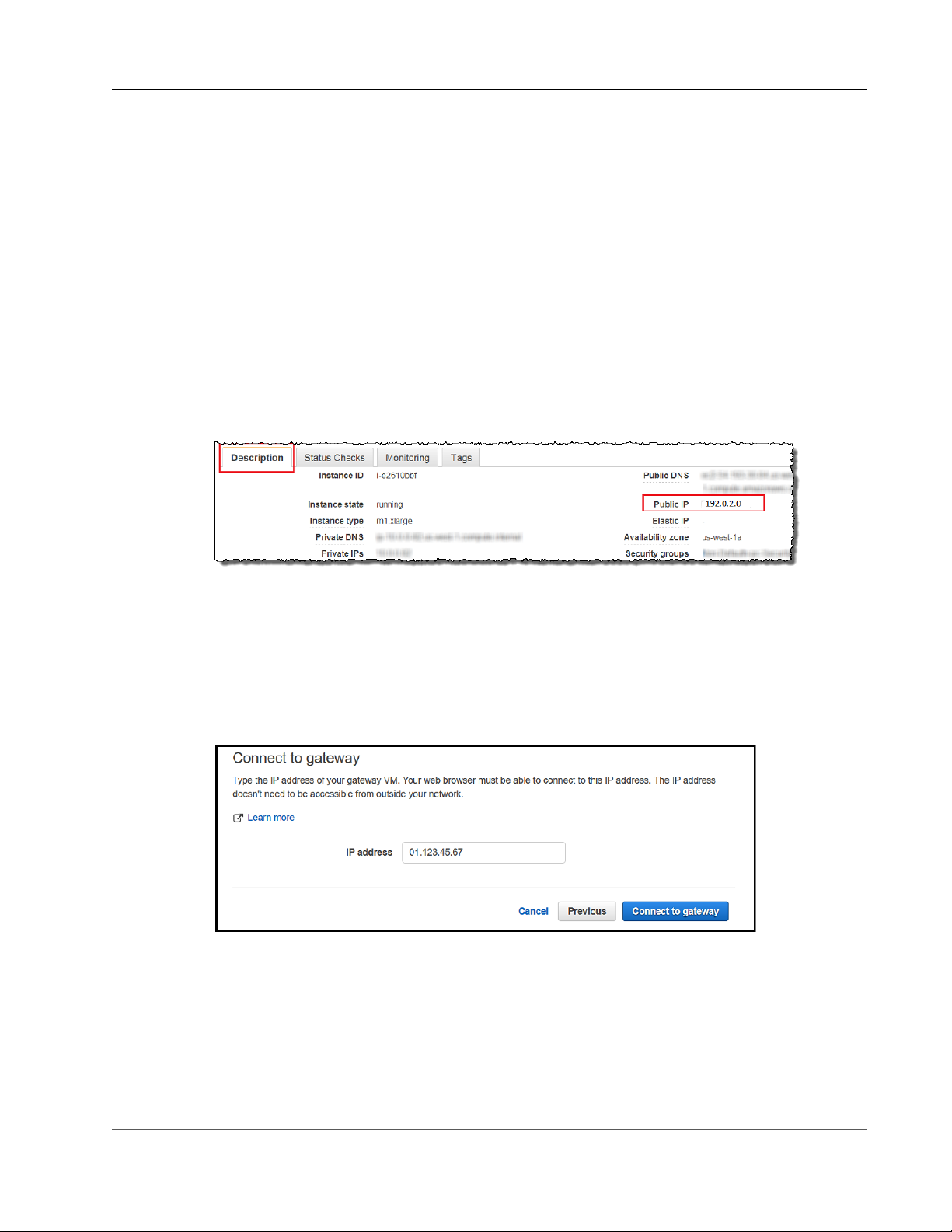

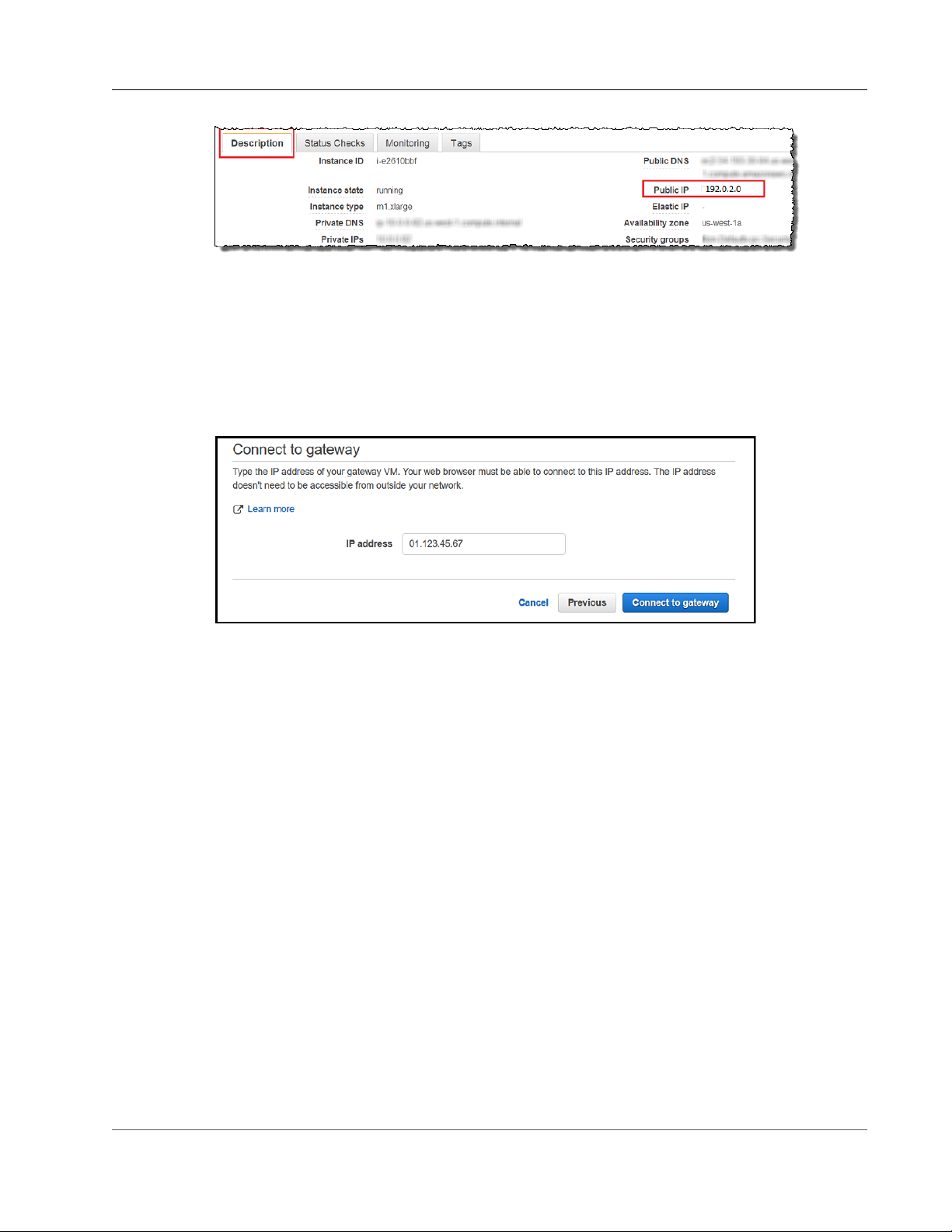

To get the IP address from an EC2 instance
1. Open the Amazon EC2 console at https://console.amazonaws.cn/ec2/.
2. In the navigation pane, choose Instances, and then choose the EC2 instance.

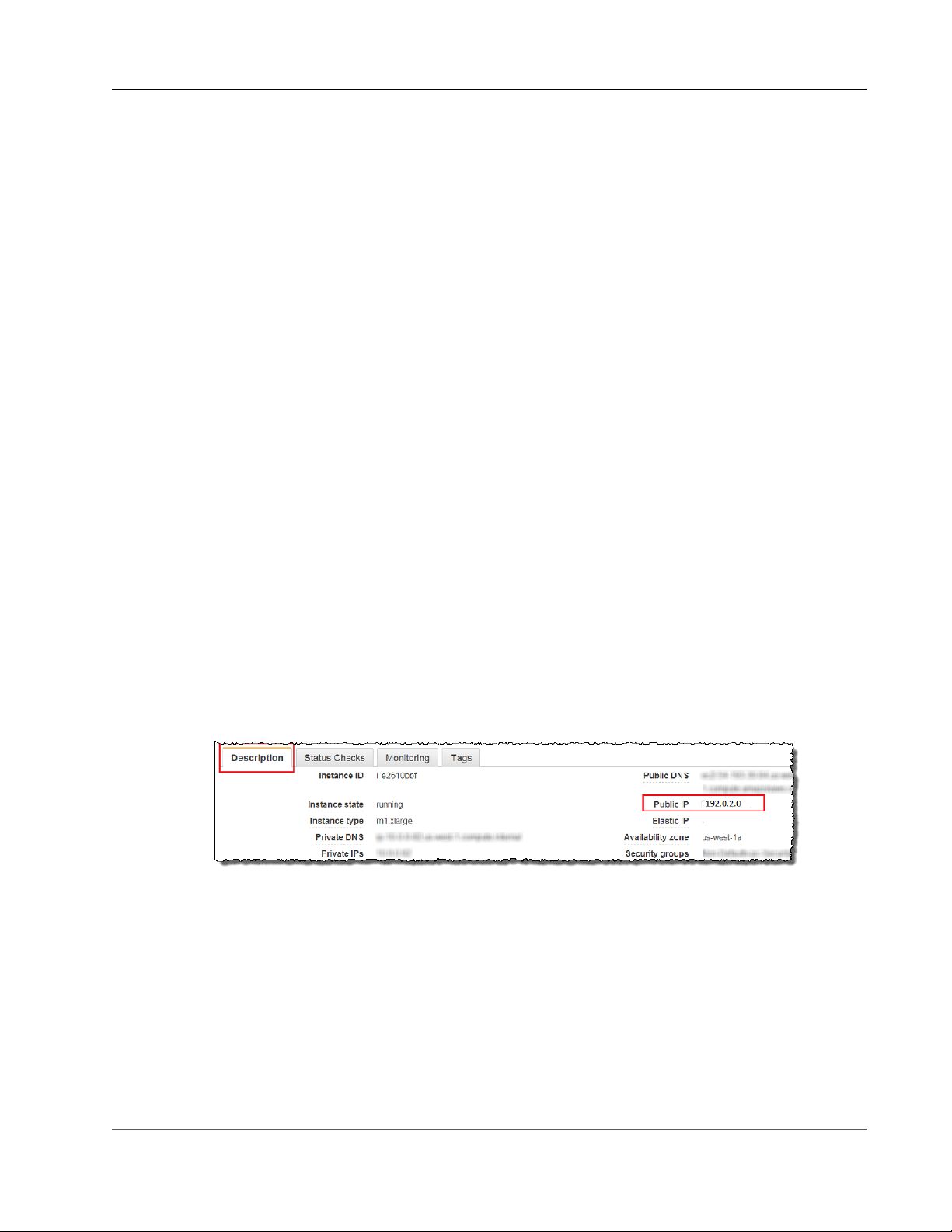

3. Choose the Description tab at the bottom, and then note the IP address. You use this IP address to
activate the gateway.
For activation, you can use the public or private IP address assigned to a gateway. You must be able
to reach the IP address that you use from the browser from which you perform the activation. In this
walkthrough, we use the public IP address to activate the gateway.
To associate your gateway with your AWS account
1. If the Connect to gateway page isn't already open, open the console and navigate to that page.
2. Type the IP address of your gateway for IP address, and then choose Connect gateway.
For detailed information about how to get a gateway IP address, see Connecting to Your
Gateway (p. 391).
Activating Your Gateway
To activate your gateway
The gateway type, endpoint type, and AWS Region you selected are shown on the activation page.
API Version 2013-06-30
40
Page 48
AWS Storage Gateway User Guide
Creating a Gateway
1. To complete the activation process, provide information on the activation page to configure your
gateway setting:
• Gateway Time Zone specifies the time zone to use for your gateway.
• Gateway Name identifies your gateway. You use this name to manage your gateway in the
console; you can change it after the gateway is activated. This name must be unique to your
account.

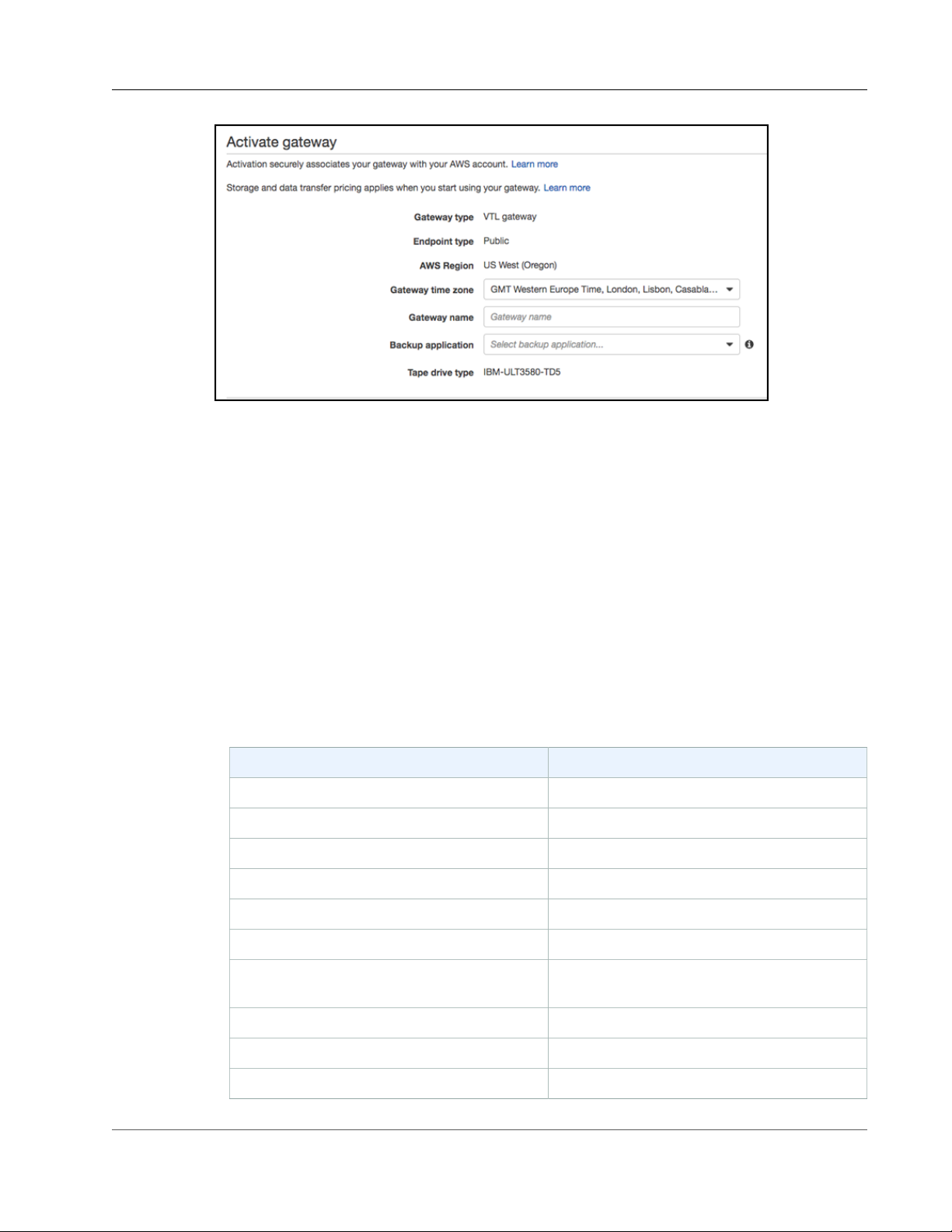

The following screenshot shows the activation page for a file gateway.
2. AWS Region specifies the AWS Region where your gateway will be activated and where your data
will be stored. If Endpoint type is VPC, the AWS Region should be same as the Region where your
VPC Endpoint is located.
3. Choose Activate gateway.
4. If activation is not successful, see Troubleshooting Your Gateway (p. 316) for possible solutions.

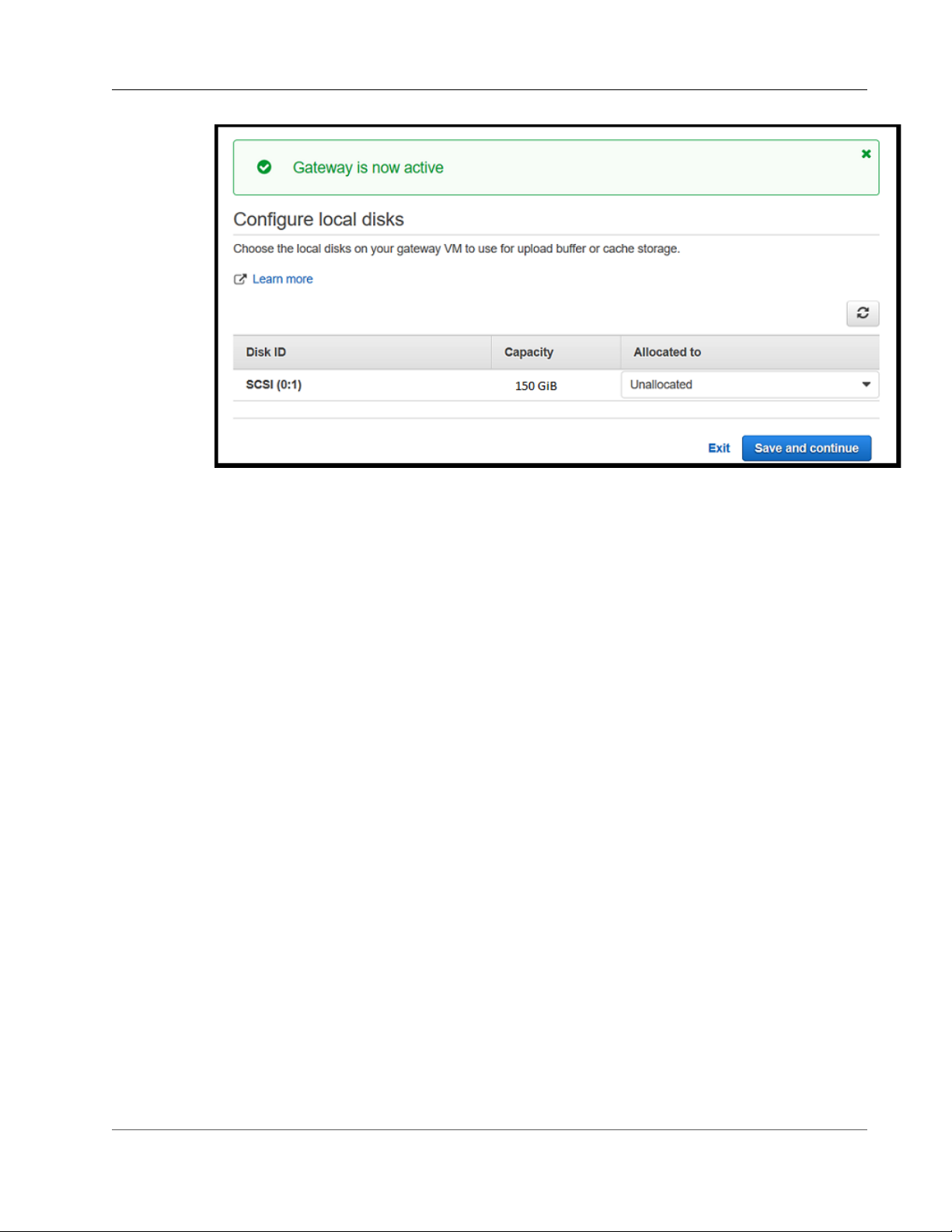

Configuring Local Disks
When you deployed the VM, you allocated local disks for your gateway. Now you configure your gateway
to use these disks.

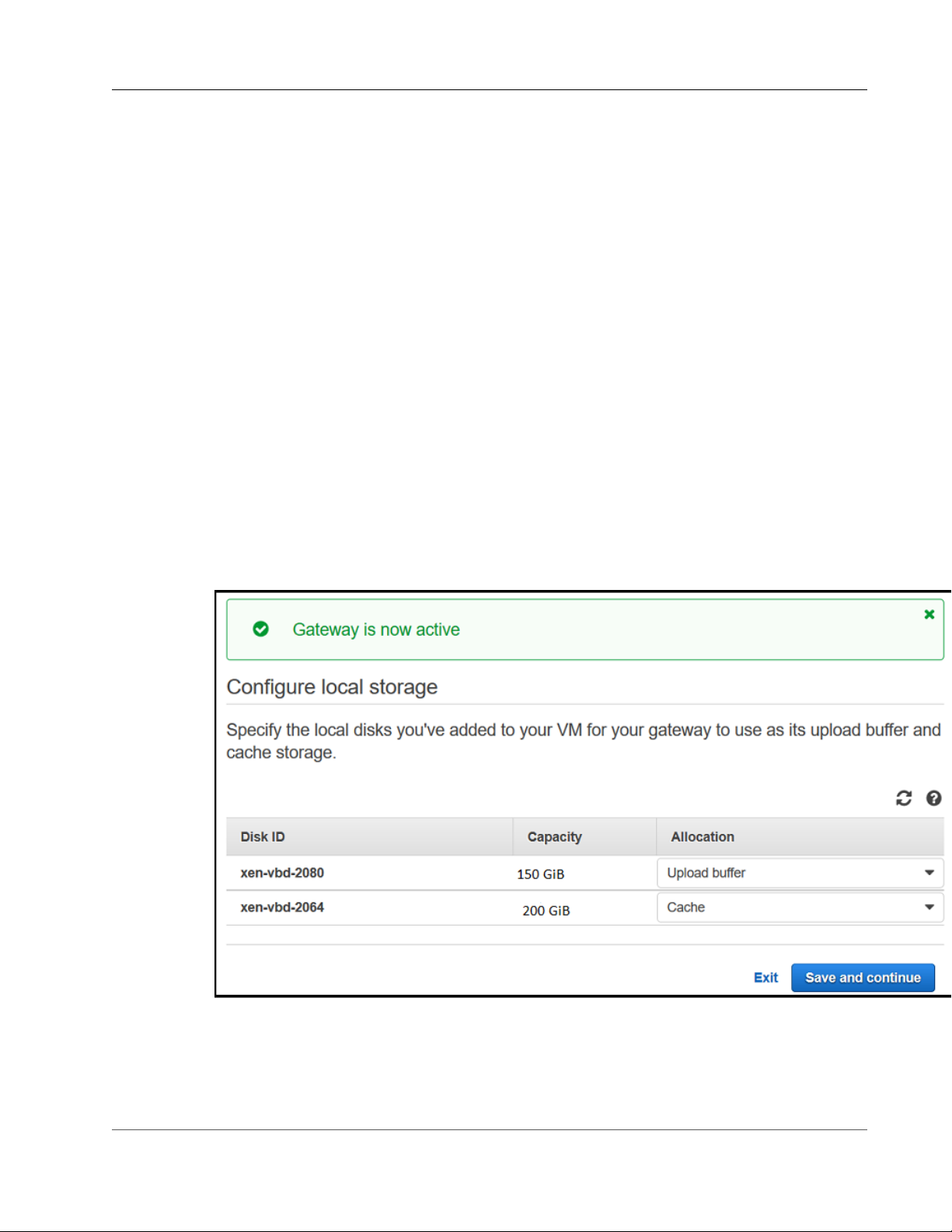

To configure local disks
1. On the Configure local disks page, identify the disks you added and decide which ones you want
to allocate for cached storage. For information about disk size limits, see Recommended Local Disk
Sizes For Your Gateway (p. 397).
API Version 2013-06-30
41
Page 49
AWS Storage Gateway User Guide
Creating a File Share
2. Choose Cache for the disk you want to configure as cache storage.
If you don't see your disks, choose Refresh.
3. Choose Save and continue to save your configuration settings.
Next Step
Creating a File Share (p. 42)
Creating a File Share
In this section, you can find instructions about how to create a file share. You can create a file share that
can be accessed using either the Network File System (NFS) or Server Message Block (SMB) protocol.
When you create an NFS share, by default anyone who has access to the NFS server can access the NFS
file share. You can limit access to clients by IP address.
For SMB, you can have one of three different modes of authentication:
• A file share with Microsoft Active Directory (AD) access. Any authenticated Microsoft AD user gets
access to this file share type.
• An SMB file share with limited access. Only certain domain users and groups that you specify are
allowed access (white listed). Users and groups can also be denied access (black listed).
• An SMB file share with guest access. Any users who can provide the guest password get access to this
file share.
Note
File shares exported through the gateway for NFS file shares support POSIX permissions. For
SMB file shares, you can use Access Control Lists (ACLs) to manage permissions on files and
folders in your file share. For more information, see Using Microsoft Windows ACLs to Control
Access to an SMB File Share (p. 307).
A file gateway can host one or more file shares of different types. You can have multiple NFS and SMB
file shares on a file gateway.
API Version 2013-06-30
42
Page 50
AWS Storage Gateway User Guide
Creating a File Share
Important
To create a file share, a file gateway requires you to activate AWS Security Token Service (AWS
STS). Make sure that AWS STS is activated in the AWS Region that you are creating your file
gateway in. If AWS STS is not activated in that AWS Region, activate it. For information about
how to activate AWS STS, see Activating and Deactivating AWS STS in an AWS Region in the IAM
User Guide.
Note
You can use AWS Key Management Service (AWS KMS) to encrypt objects that your file
gateway stores in Amazon S3. Currently, you can do this by using the Storage Gateway API. For
instructions, see the Storage Gateway API Reference.
By default, a file gateway uses server-side encryption managed with Amazon S3 (SSE-S3) when
it writes data to an Amazon S3 bucket. If you make SSE-KMS (server-side encryption with AWS
KMS–managed keys) the default encryption for your S3 bucket, objects that a file gateway
stores there are encrypted using SSE-S3.
To encrypt using SSE-KMS with your own AWS KMS key, you must enable SSE-KMS encryption.
When you do so, provide the Amazon Resource Name (ARN) of the KMS key when you
create your file share. You can also update KMS settings for your file share by using the
UpdateNFSFileShare or UpdateSMBFileShare API operation. This update applies to objects
stored in the Amazon S3 buckets after the update.
Topics
• Creating an NFS File Share (p. 43)
• Creating an SMB File Share (p. 45)

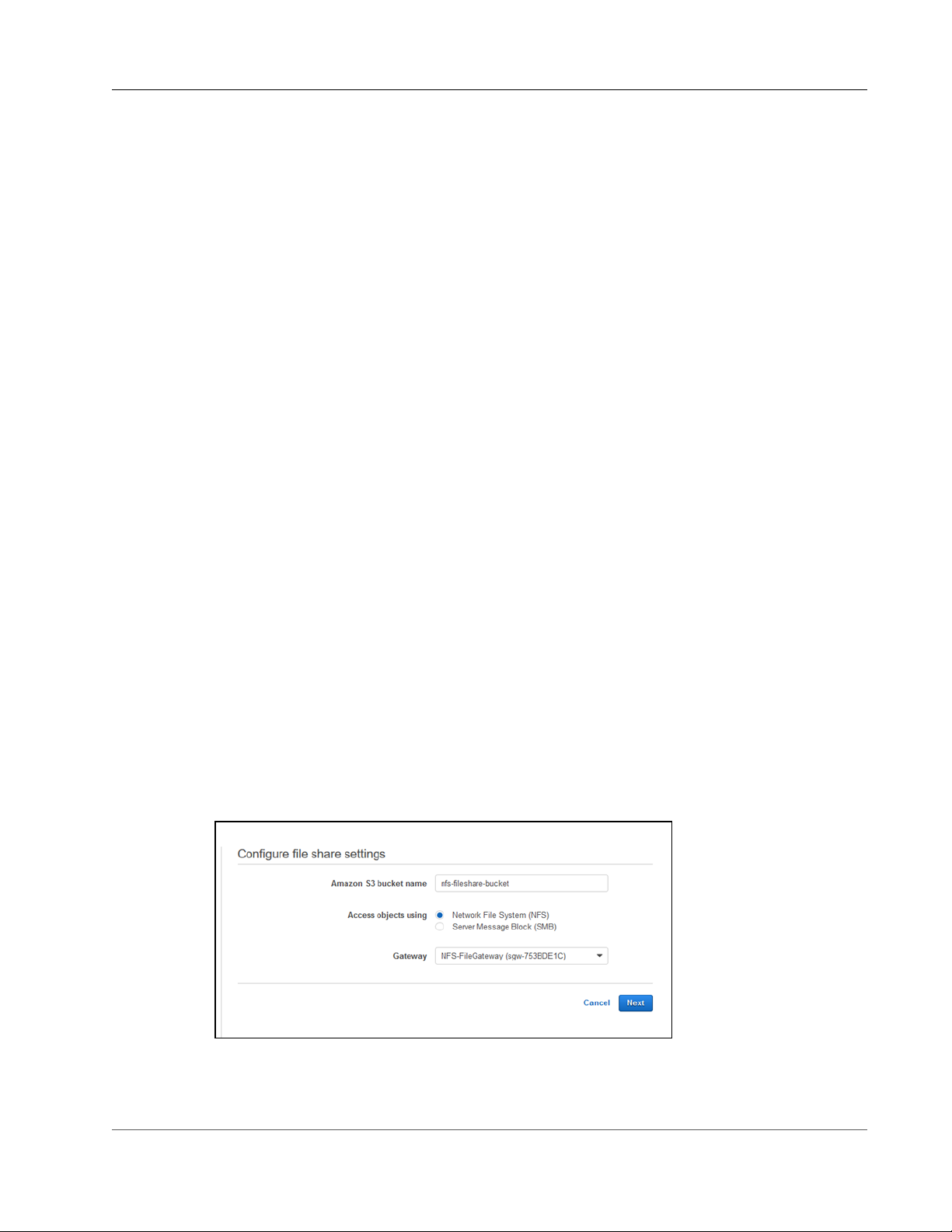

Creating an NFS File Share
Use the following procedure to create an NFS file share.
To create an NFS file share
1. Open the AWS Storage Gateway console at https://console.amazonaws.cn/storagegateway/home.
2. Choose Create file share.
3. For Amazon S3 bucket name, provide the name for the Amazon S3 bucket for your gateway to store
your files in and retrieve your files to. This name must be compliant with Domain Name Service
(DNS). This bucket must also exist already in S3; it isn't created for you by your file gateway. For
information on DNS-compliant names for buckets, see Rules for Bucket Naming in the Amazon
Simple Storage Service Developer Guide.
4. For Access objects using, choose Network File System(NFS).
5. For Gateway, choose your file gateway from the list and choose Next.
API Version 2013-06-30
43
Page 51
AWS Storage Gateway User Guide
Creating a File Share

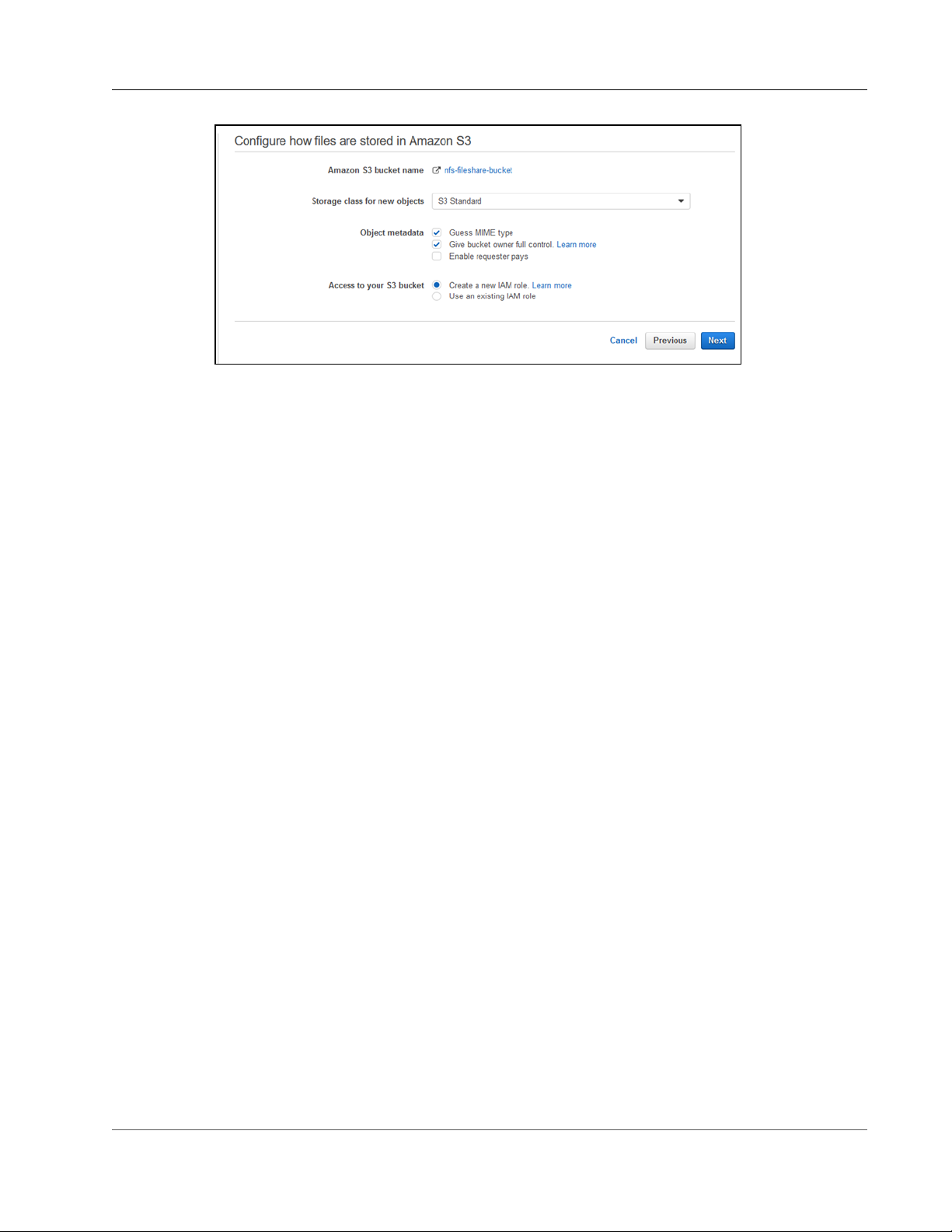

6. For Storage class for new objects, choose a storage class to use for new objects created in your
Amazon S3 bucket:
• Choose S3 Standard to store your frequently accessed object data redundantly in multiple
Availability Zones that are geographically separated.
• Choose S3 Standard-IA to store your infrequently accessed object data redundantly in multiple
Availability Zones that are geographically separated.
• Choose S3 One Zone-IA to store your infrequently accessed object data in a single Availability
Zone.
For more information, see Storage Classes in the Amazon Simple Storage Service Developer Guide.
7. For Object metadata, choose the metadata that you want to use:
• Choose Guess MIME type to enable guessing of the MIME type for uploaded objects based on file
extensions.
• Choose Give bucket owner full control to give full control to the owner of the S3 bucket that
maps to the file NFS file share. For more information on using your file share to access objects in a
bucket owned by another account, see Using a File Share for Cross-Account Access (p. 146).
• Choose Enable requester pays if you are using this file share on a bucket that requires the
requester or reader instead of bucket owner to pay for access charges. For more information, see
Requester Pays Buckets.
8. For Access to your bucket, choose the AWS Identity and Access Management (IAM) role that you
want your gateway to use to access your Amazon S3 bucket. This role allows the gateway to access
your S3 bucket. A file gateway can create a new IAM role and access policy on your behalf. Or, if you
have an IAM role that you want to use, you can specify it in the IAM role box and set up the access
policy manually. For more information, see Granting Access to an Amazon S3 Bucket (p. 144). For
information about IAM roles, see IAM Roles in the IAM User Guide.
9. Choose Next to review configuration settings for your file share. You can change the allowed NFS
clients for Allowed clients as needed.
To change Squash level and Export as under Mount options and to change File metadata defaults
options, choose Edit by the option to change.
Note
For file shares mounted on a Microsoft Windows client, if you choose Read-only for Export
as, you might see a message about an unexpected error keeping you from creating the
folder. You can ignore this message.
API Version 2013-06-30
44
Page 52
AWS Storage Gateway User Guide
Creating a File Share

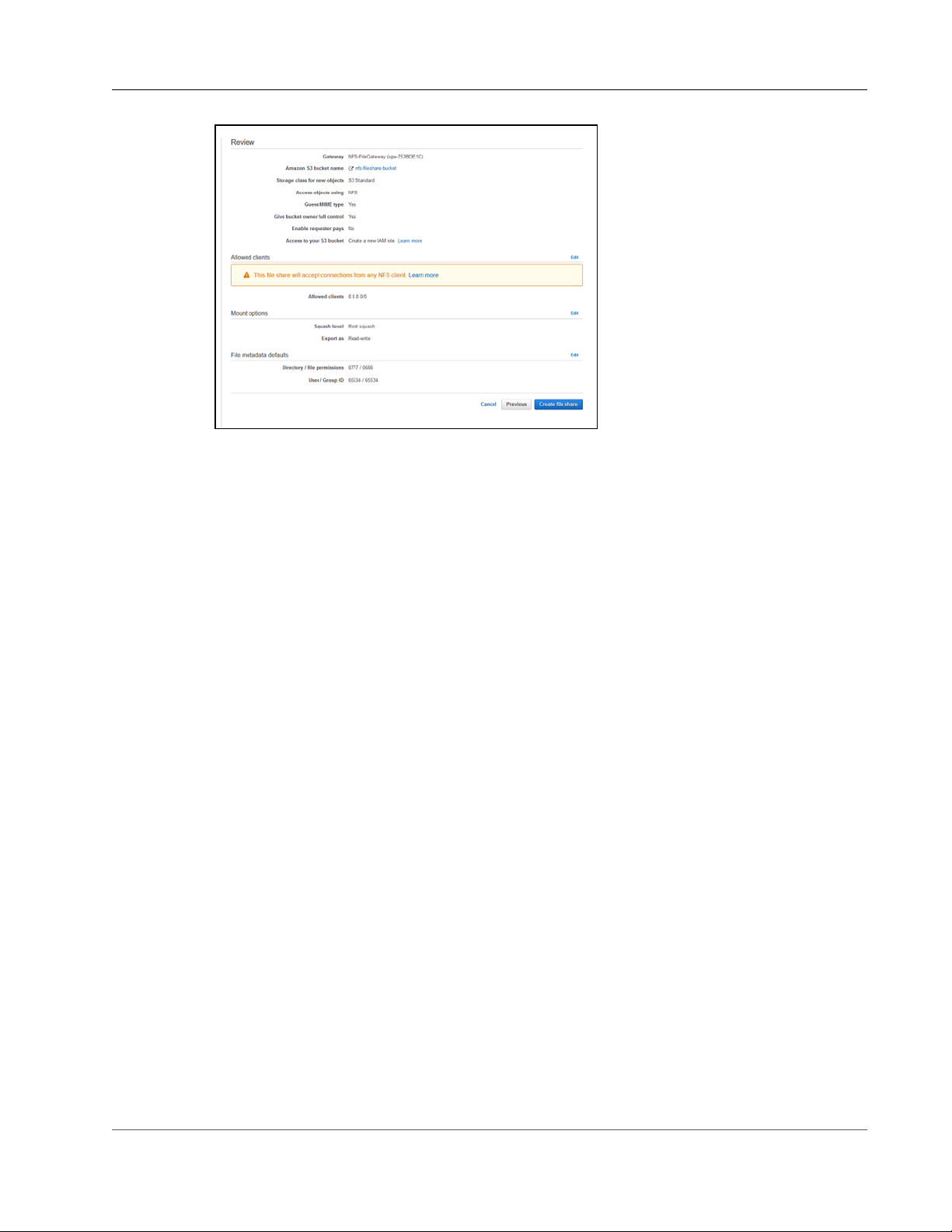

The next step is to review configuration settings for your file share. Your file gateway applies default
settings to your file share.
To change the configuration settings for your NFS file share:
1. Choose Edit for the settings that you want to change.
2. Configure Allowed clients to allow or restrict each client's access to your file share. For more
information, see Editing Access Settings for Your NFS File Share (p. 150).
3. (Optional) Modify the mount options for your file share as needed.
4. (Optional) Modify the file metadata defaults as needed. For more information, see Editing Metadata
Defaults for Your NFS File Share (p. 149).
5. Review your file share configuration settings, and then choose Create file share.
After your NFS file share is created, you can see your file share settings in the file share's Details tab.
Next Step
Mounting Your NFS File Share on Your Client (p. 51)
Creating an SMB File Share
Before you create an SMB file share, make sure that you configure security settings and SMB settings
for your file gateway. You also configure either Microsoft Active Directory (AD) or guest access for
authentication. A file share provides one type of SMB access only.
Note
An SMB file share doesn't operate correctly without the needed ports open in your security
group. For more information, see Port Requirements (p. 386).
To create an SMB file share
1. Open the AWS Storage Gateway console at https://console.amazonaws.cn/storagegateway/home.
2. Choose Gateways, and on the Gateway page, choose the box next to the file gateway that you want
to join to a domain.
3. For Actions, choose Edit SMB settings.
API Version 2013-06-30
45
Page 53
AWS Storage Gateway User Guide
Creating a File Share
At this point, configure settings for your file gateway:
• Configure security settings.
• Configure Active Directory settings.
• Configure guest access.
Find details on how to configure these settings following.

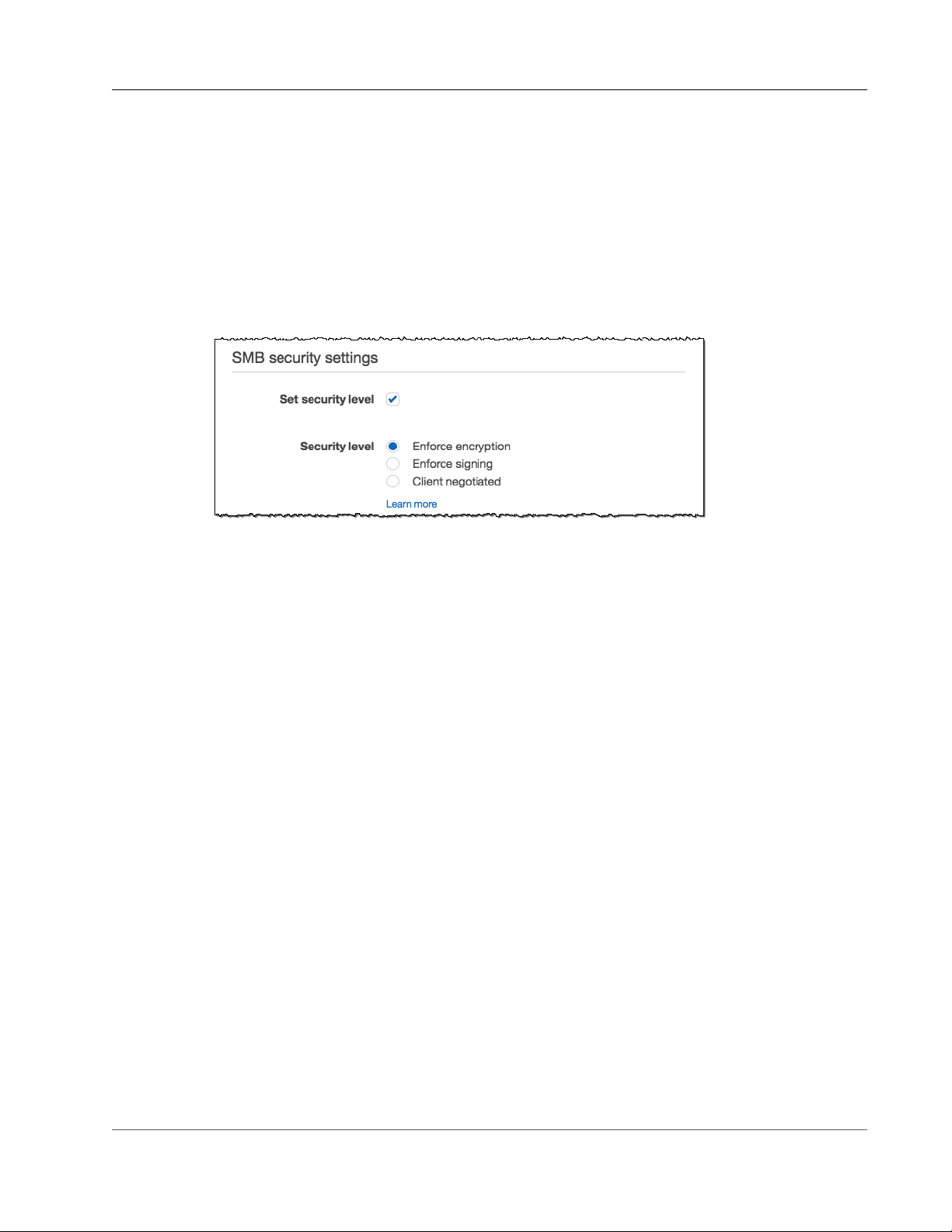

To configure security settings
1. In the SMB security settings section, choose Set security level.
2. For Security level, choose one of the following:
• Enforce encryption – if you choose this option, file gateway only allows connections from SMBv3
clients that have encryption enabled. This option is highly recommended for environments that
handle sensitive data.
• Enforce signing – if you choose this option, file gateway only allows connections from SMBv2 or
SMBv3 clients that have signing enabled.
• Client negotiated – if you choose this option, requests are established based on what is
negotiated by the client. This option is recommended when you want to maximize compatibility
across different clients in your environment.
Note
For gateways activated before June 20, 2019, the default security level is Client negotiated.
For gateways activated on June 20, 2019 and later, the default security level is Enforce
encryption.
To configure your SMB file share for Microsoft Active Directory access
1. Open the AWS Storage Gateway console at https://console.amazonaws.cn/storagegateway/home.
2. Choose Gateways, and on the Gateway page, choose the box next to the file gateway that you want
to join to a domain.
3. For Actions, choose Edit SMB settings.
API Version 2013-06-30
46
Page 54
AWS Storage Gateway User Guide
Creating a File Share

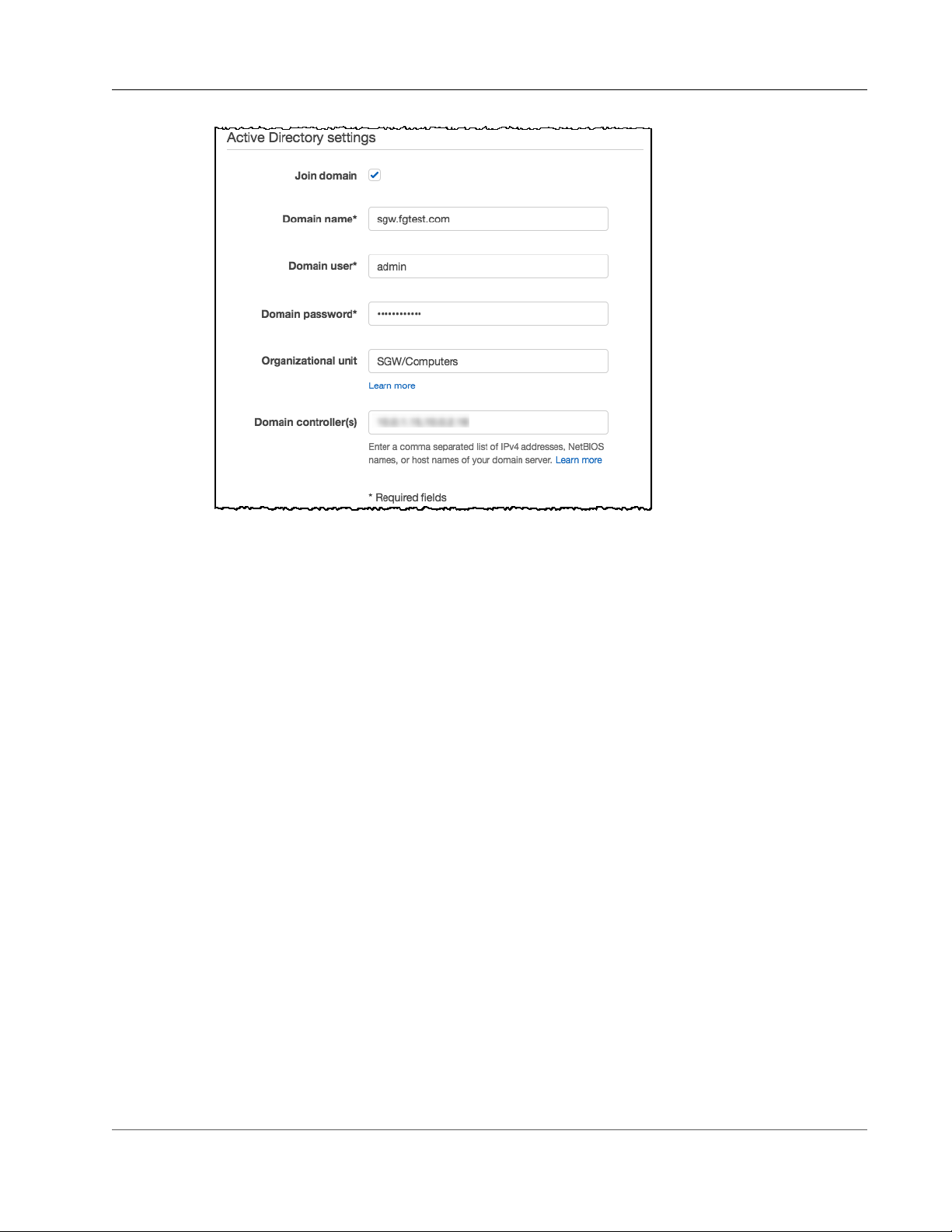

4. For Microsoft Active Directory authentication, choose Join domain. You can join a domain by using
its IP address or its organizational unit. An organizational unit is an Active Directory subdivision that
can hold users, groups, computers, and other organizational units.
Note
If your gateway can't join an Active Directory directory, try joining with the directory's IP
address by using the JoinDomain API operation.
5. For Domain name, enter your fully qualified domain name.
Note
You can use the AWS Directory Service to create a hosted Microsoft Active Directory domain
service in the AWS Cloud.
6. For Domain user, enter your account name. Your account must be able to join a server to a domain.
7. For Domain password, enter your account password.
8. For Organizational unit, enter your organizational unit.
9. For Domain controllers, enter a comma-separated list of Internet Protocol version 4 (IPv4)
addresses, NetBios names, or hostnames of your domain server.
To configure your SMB file share for guest access
1. Open the AWS Storage Gateway console at https://console.amazonaws.cn/storagegateway/home.
2. Choose Gateways, and on the Gateway page, choose the box next to the file gateway that you want
to use for your guest file share.
3. For Actions, choose Edit SMB settings.
API Version 2013-06-30
47
Page 55
AWS Storage Gateway User Guide
Creating a File Share

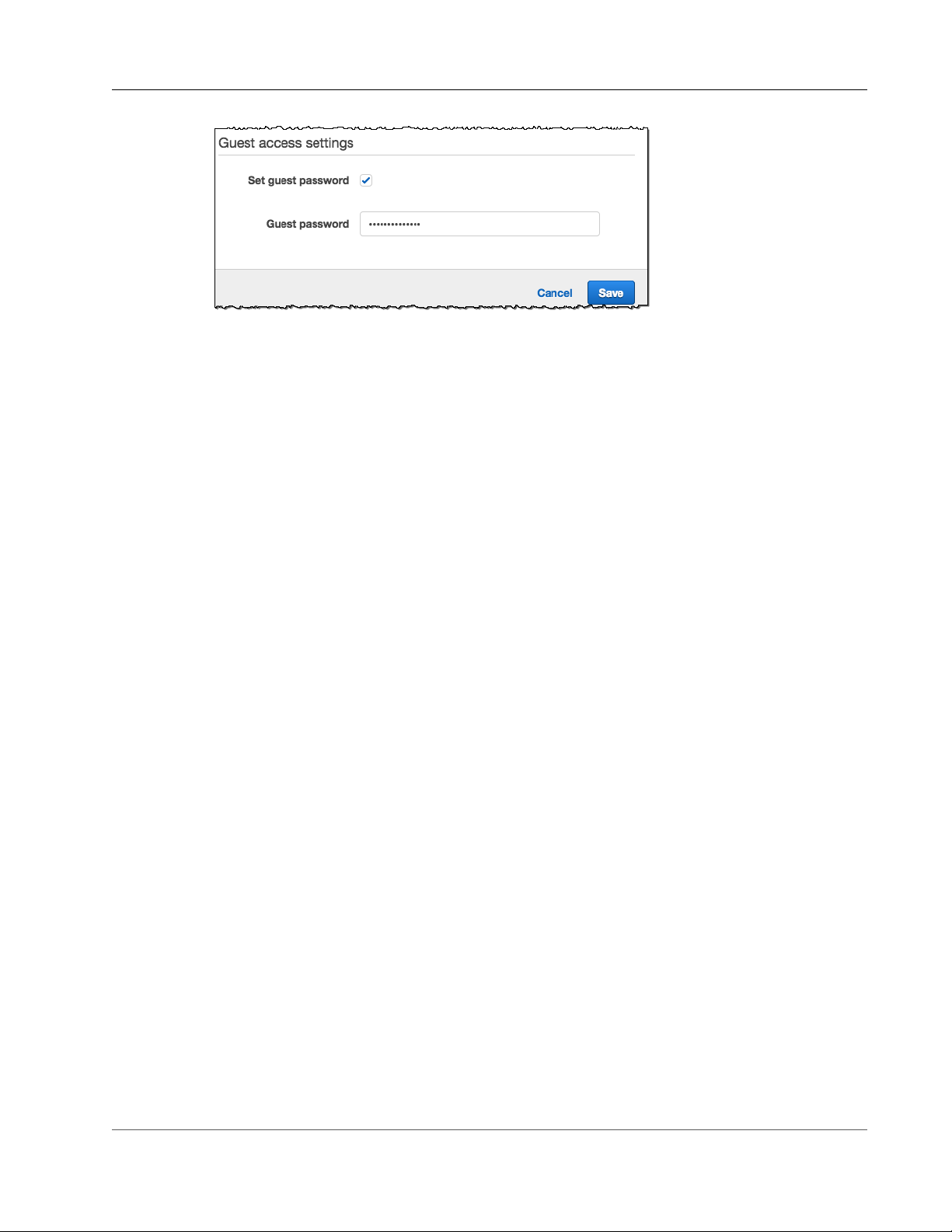

4. Choose Set guest password to enable guest access for your SMB file share.
Note
If you provide only guest access, your file gateway doesn't have to be part of an AD domain.
You can also use a file gateway that is a member of your Microsoft AD domain to create file
shares with guest access.
5. For Guest password, enter a password that meets your organization's security requirements.
6. Choose Save to complete the authentication.
A message at the top of the Gateways section of your console should appear, saying that your
gateway Successfully joined domain.
If the banner displays the message Invalid domain name/DNS name cannot be resolved,
the correct endpoint wasn't found. You might also see the error Invalid users/Invalid
password, an authentication failure that means that your logon was not recognized by the domain
service.
The error message The gateway cannot connect to the specified domain can indicate
that the quota of users has been exhausted, in other words there are no more users in the quota.
The default limit allows each user to join up to 10 systems to a domain. This error can also appear if
the user that tried to connect didn't have administrator privileges.
The error message The specified request timed out might indicate that there is a problem
with your firewall rules not allowing access to the domain.
In the next procedure, you create an SMB file share with either Microsoft Active Directory or guest
access. Make sure that you define the SMB file share settings for your file gateway before performing the
following steps.
To create an SMB file share
1. Open the AWS Storage Gateway console at https://console.amazonaws.cn/storagegateway/home.
2. On the navigation pane, choose Shares, choose the file gateway that you want to use, and then
choose Create file share.
API Version 2013-06-30
48
Page 56
AWS Storage Gateway User Guide
Creating a File Share

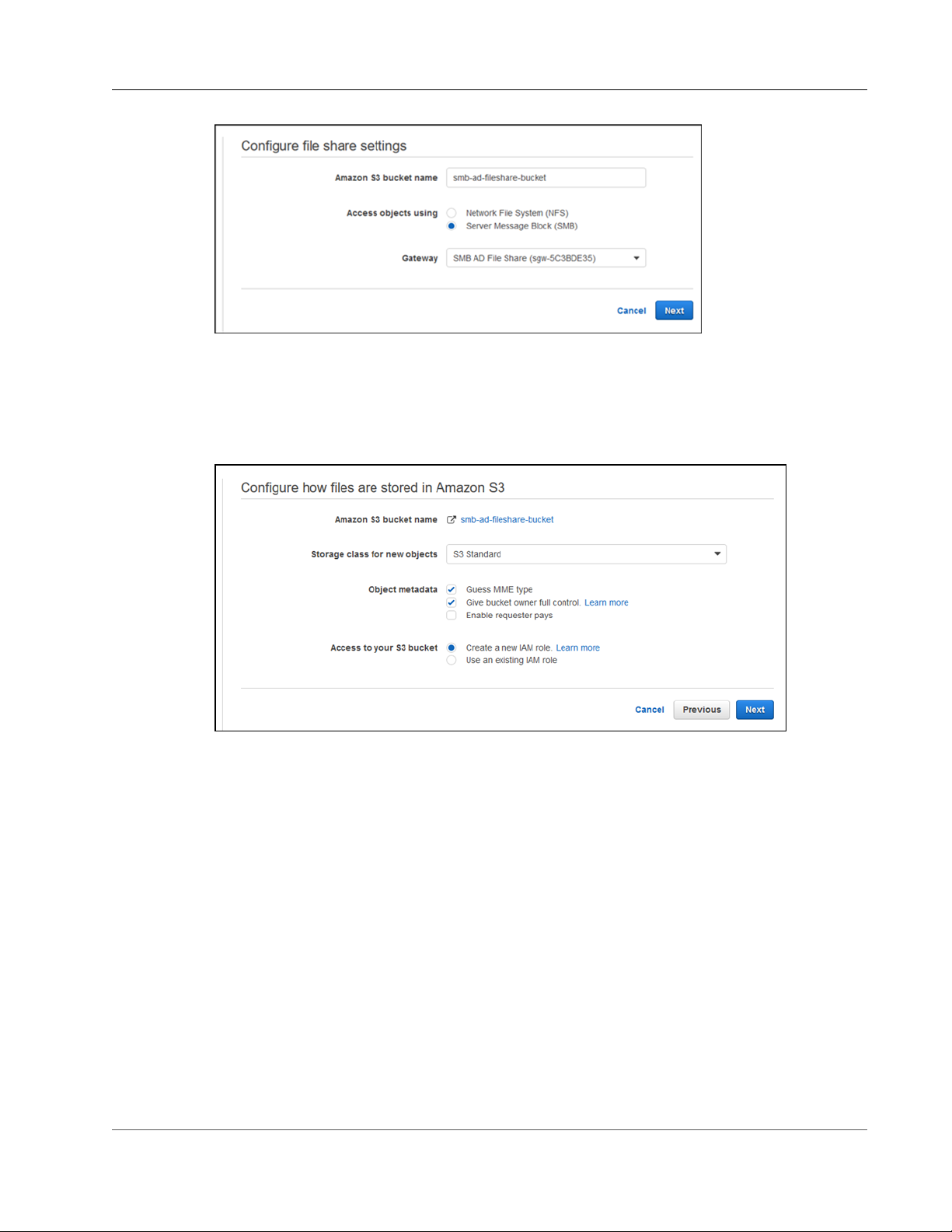

3. On the Configure file share settings page, for Amazon S3 bucket name, provide a name for an
existing Amazon S3 bucket. You use this bucket for your gateway to store files in and retrieve
4. For Access Objects using, choose Server Message Block (SMB).
5. For Gateway, make sure that your gateway is chosen, and then choose Next.
The Configure how files are stored in Amazon S3 page appears, as shown following.
6. For Storage class for new objects, choose a storage class to use for new objects created in your
Amazon S3 bucket:
• Choose S3 Standard to store your frequently accessed object data redundantly in multiple
Availability Zones that are geographically separated.
• Choose S3 Standard-IA to store your infrequently accessed object data redundantly in multiple
Availability Zones that are geographically separated.
• Choose S3 One Zone-IA to store your infrequently accessed object data in a single Availability
Zone.
For more information, see Storage Classes in the Amazon Simple Storage Service Developer Guide.
7. For Object metadata, choose the metadata you want to use:
• Choose Guess MIME type to enable guessing of the MIME type for uploaded objects based on file
extensions.
• Choose Give bucket owner full control to give full control to the owner of the S3 bucket that
maps to the file SMB file share. For more information on using your file share to access objects in a
bucket owned by another account, see Using a File Share for Cross-Account Access (p. 146).
API Version 2013-06-30
49
Page 57
AWS Storage Gateway User Guide
Creating a File Share
• Choose Enable requester pays if you are using this file share on a bucket that requires the
requester or reader instead of bucket owner to pay for access charges. For more information, see
Requester Pays Buckets.
8. For Access to your bucket, choose the AWS Identity and Access Management (IAM) role that you
want your gateway to use to access your Amazon S3 bucket. This role allows the gateway to access
your S3 bucket. A file gateway can create a new IAM role and access policy on your behalf. Or, if
you have an IAM role you want to use, you can specify it in the IAM role box and set up the access
policy manually. For more information, see Granting Access to an Amazon S3 Bucket (p. 144). For
information about IAM roles, see IAM Roles in the IAM User Guide.

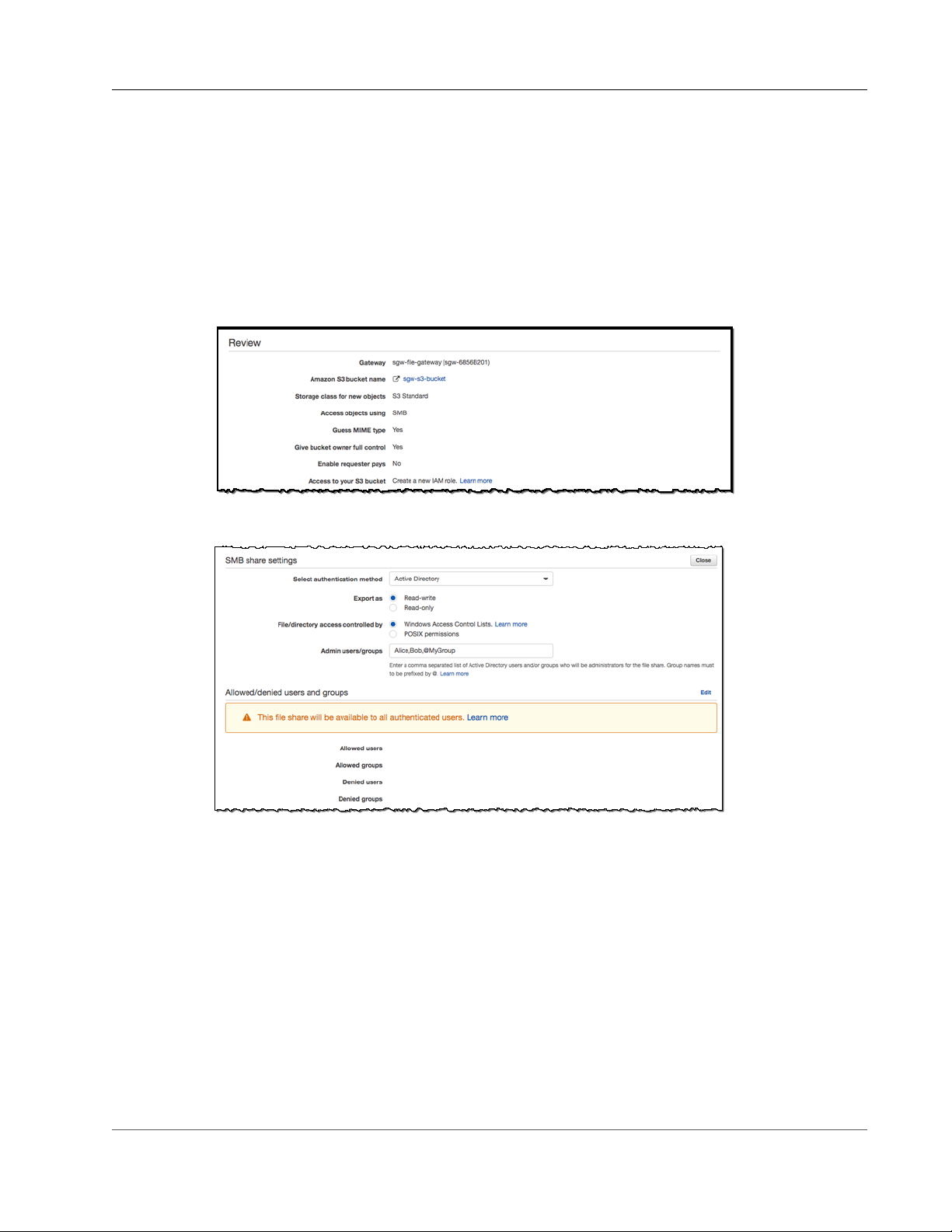

9. Choose Next to review configuration settings for your SMB file share, as shown in the figure
following.
10. For Microsoft AD authentication, make sure that Active Directory appears for Select authentication
method. Microsoft AD access is the default authentication method.
Note
For Microsoft AD access, your file gateway must be joined to a domain.
For guest access, you must have set a guest access password.
Both access types are available at the same time.
11. For Export as, choose Read-write (the default) or Read-only. Choose Close to enforce your
authentication settings.
12. For File/directory access controlled by, choose one of the following:
• Choose Windows Access Control List to set fine-grained permissions on files and folders in your
SMB file share. For more information, see Using Microsoft Windows ACLs to Control Access to an
SMB File Share (p. 307).
• Choose POSIX permissions to use POSIX permissions to control access to files and directories that
are stored through an NFS or SMB file share.
13. (Optional) For Admin users/groups, enter a comma-separated list of AD users and groups. You do
this if you want the admin user to have privileges to update ACLs on all files and folders in the file
API Version 2013-06-30
50
Page 58
AWS Storage Gateway User Guide
Using Your File Share
share. These users and groups then have administrator rights to the file share. A group must be
prefixed with the @ character, for example @group1.
14. Review your file share configuration settings, and then choose Create file share.
After your SMB file share is created, you can see your file share settings in its Details tab.
The preceding procedure creates a Microsoft Active Directory file share. Anyone with domain credentials
can access this file share. To limit access to certain users and groups, see Using Active Directory to
Authenticate Users (p. 151).
Next Step
Mounting Your SMB File Share on Your Client (p. 52)
Using Your File Share
Following, you can find instructions about how to mount your file share on your client, use your share,
test your file gateway, and clean up resources as needed. For more information about supported
Network File System (NFS) clients, see Supported NFS Clients for a File Gateway (p. 21). For more
information about supported Service Message Block (SMB) clients, see Supported SMB Clients for a File
Gateway (p. 21).
You can find example commands to mount your file share on the AWS Management Console. In
following sections, you can find details on how to mount your file share on your client, use your share,
test your file gateway, and clean up resources as needed.
Topics
• Mounting Your NFS File Share on Your Client (p. 51)
• Mounting Your SMB File Share on Your Client (p. 52)
• Working with File Shares on a Bucket with Pre-exisiting Objects (p. 55)
• Testing Your File Gateway (p. 55)
• Where Do I Go from Here? (p. 56)
Mounting Your NFS File Share on Your Client

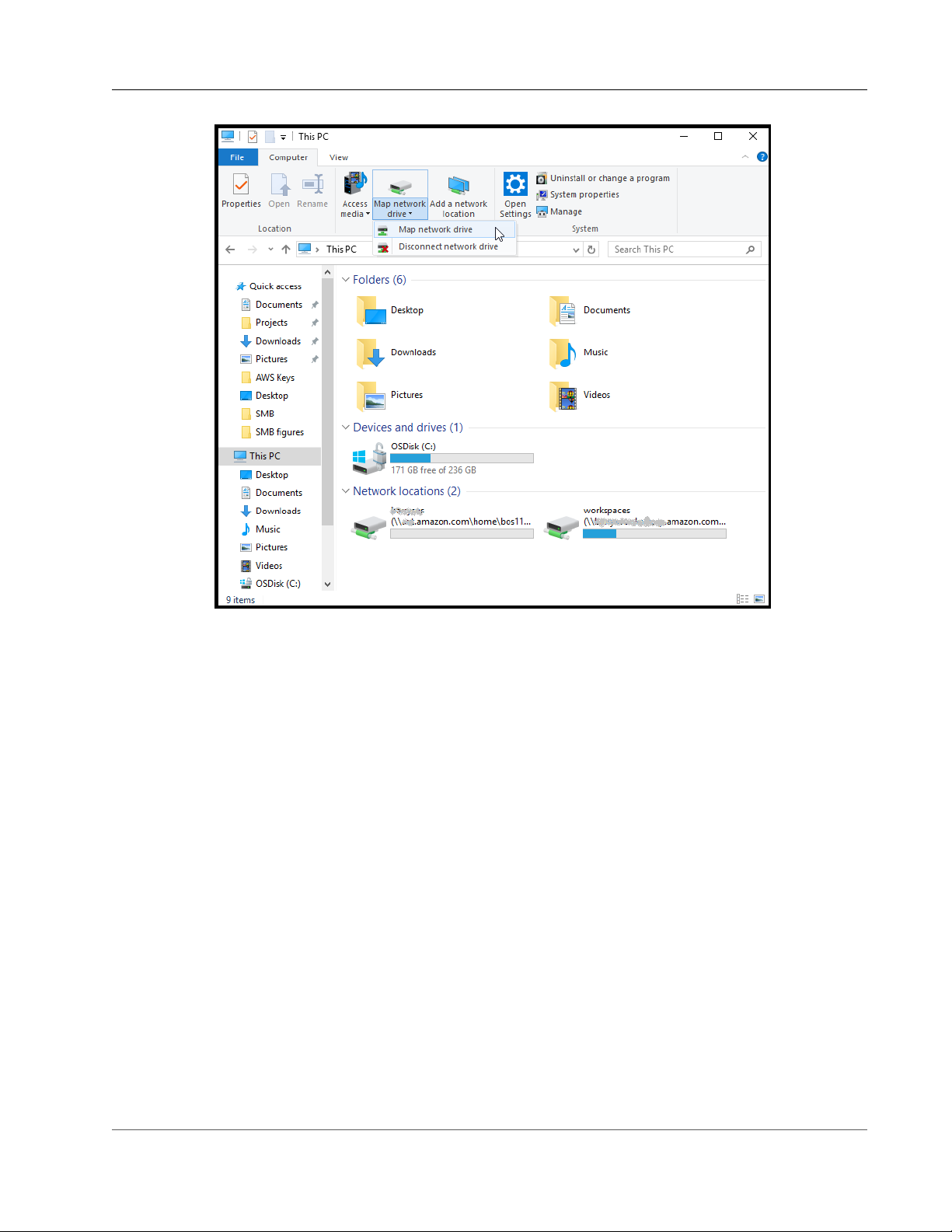

Now you mount your NFS file share on a drive on your client and map it to your Amazon S3 bucket.
To mount a file share and map it to an Amazon S3 bucket
1. If you are using a Microsoft Windows client, we recommend that you create an SMB file share and
access it using an SMB client that is already installed on Windows client. If you use NFS, turn on
Services for NFS in Windows.
2. Mount your NFS file share:
• For Linux clients, type the following command at the command prompt.
sudo mount -t nfs -o nolock,hard [Your gateway VM IP address]:/[S3 bucket
name] [mount path on your client]
• For MacOS clients, type the following command at the command prompt.
sudo mount_nfs -o vers=3,nolock,rwsize=65536,hard -v [Your gateway VM IP
address]:/[S3 bucket name] [mount path on your client]
• For Windows clients, type the following command at the command prompt.
API Version 2013-06-30
51
Page 59
AWS Storage Gateway User Guide
Using Your File Share
mount –o nolock -o mtype=hard [Your gateway VM IP address]:/[S3 bucket
name] [Drive letter on your windows client]
For example, suppose that on a Windows client your VM's IP address is 123.123.1.2 and your
Amazon S3 bucket name is test-bucket. Suppose also that you want to map to drive T. In this
case, your command looks like the following.
mount -o nolock -o mtype=hard 123.123.1.2:/test-bucket T:
Note
When mounting file shares, be aware of the following:
• You might have a case where a folder and an object exist in an Amazon S3 bucket and
have the same name. In this case, if the object name doesn't contain a trailing slash, only
the folder is visible in a file gateway. For example, if a bucket contains an object named
test or test/ and a folder named test/test1, only test/ and test/test1 are
visible in a file gateway.
• You might need to remount your file share after a reboot of your client.
• By default Windows uses a soft mount for mounting your NFS share. Soft mounts time
out more easily when there are connection issues. We recommend using a hard mount
because a hard mount is safer and better preserves your data. The soft mount command
omits the -o mtype=hard switch. The Windows hard mount command uses the -o
mtype=hard switch.
• If you are using Windows clients, check your mount options after mounting by running
the mount command with no options. The response should that confirm the file share
was mounted using the latest options you provided. It also should confirm that you are
not using cached old entries, which take at least 60 seconds to clear.
Next Step
Testing Your File Gateway (p. 55)
Mounting Your SMB File Share on Your Client
Now you mount your SMB file share and map to a drive accessible to your client. The console's file
gateway section shows the supported mount commands that you can use for SMB clients. Following, you
can find some additional options to try.
You can use several different methods for mounting SMB file shares, including the following:
• The net use command – Doesn't persist across system reboots, unless you use the /persistent:
(yes:no) switch. The specific command that you use depends on whether you plan to use your file
share for Microsoft Active Directory (AD) access or guest access.
• The CmdKey command line utility – Creates a persistent connection to a mounted SMB file share that
remains after a reboot.
• A network drive mapped in File Explorer – Configures the mounted file share to reconnect at sign-in
and to require that you enter your network credentials.
• PowerShell script – Can be persistent, and can be either visible or invisible to the operating system
while mounted.
Note
If you are a Microsoft AD user, check with your administrator to ensure that you have access to
the SMB file share before mounting the file share to your local system.
API Version 2013-06-30
52
Page 60
AWS Storage Gateway User Guide
Using Your File Share
If you are a guest user, make sure that you have the guest user account password before
attempting to mount the file share.
To mount your SMB file share for Microsoft AD users using the net use command
1. Make sure that you have access to the SMB file share before mounting the file share to your local
system.
2. For Microsoft AD clients, type the following command at the command prompt:
net use [WindowsDriveLetter]: \\[Gateway IP Address]\[File share name]
To mount your SMB file share for guest users using the net use command
1. Make sure that you have the guest user account password before mounting the file share.
2. For Windows guest clients, type the following command at the command prompt.
net use [WindowsDriveLetter]: \\$[Gateway IP Address]\$[path] /user:
$[Gateway ID]\smbguest
To mount an SMB file share on Windows using CmdKey:
1. Press the Windows key and type cmd to view the command prompt menu item.
2. Open the context (right-click) menu for Command Prompt and choose Run as administrator.
3. Type the following command:
C:\>cmdkey /add:[Gateway VM IP address] /user:[DomainName]\[UserName] /
pass:[Password]
Note
When mounting file shares, be aware of the following:
• You might have a case where a folder and an object exist in an Amazon S3 bucket and have
the same name. In this case, if the object name doesn't contain a trailing slash, only the folder
is visible in a file gateway. For example, if a bucket contains an object named test or test/
and a folder named test/test1, only test/ and test/test1 are visible in a file gateway.
• You might need to remount your file share after a reboot of your client.
To mount an SMB file share using Windows File Explorer
1. Press the Windows key and type File Explorer in the Search Windows box, or press Win+E.
2. In the navigation pane, choose This PC, then choose Map Network Drive for Map Network Drive in
the Computer tab, as shown in the following screenshot.
API Version 2013-06-30
53
Page 61
AWS Storage Gateway User Guide
Using Your File Share
3. In the Map Network Drive dialog box, choose a drive letter for Drive.
4. For Folder, type \\[File Gateway IP]\[SMB File Share Name], or choose Browse to select
your SMB file share from the dialog box.
5. (Optional) Select Reconnect at sign-up if you want your mount point to persist after reboots.
6. (Optional) Select Connect using different credentials if you want a user to enter the Microsoft AD
logon or guest account user password.
7. Choose Finish to complete your mount point.
You can edit file share settings, edit allowed and denied users and groups, and change the guest access
password from the Storage Gateway Management Console. You can also refresh the data in the file
share's cache and delete a file share from the console.
To modify your SMB file share's properties
1. Open the AWS Storage Gateway console at https://console.amazonaws.cn/storagegateway/home.
2. On the navigation pane, choose File Shares.
3. On the File Share page, select the check box by the SMB file share that you want to modify.
4. For Actions, choose the action that you want:
• Choose Edit file share settings to modify share access.
• Choose Edit allowed/denied users to add or delete users and groups, and then type the allowed
and denied users and groups into the Allowed Users, Denied Users, Allowed Groups, and Denied
Groups boxes. Use the Add Entry buttons to create new access rights, and the (X) button to
remove access.
5. When you're finished, choose Save.
API Version 2013-06-30
54
Page 62
AWS Storage Gateway User Guide
Using Your File Share
When you enter allowed users and groups, you are creating a whitelist. Without a whitelist, all
authenticated Microsoft AD users can access the SMB file share. Any users and groups that are
marked as denied are added to a blacklist and can't access the SMB file share. In instances where a
user or group is on both the blacklist and whitelist, the blacklist takes precedence.
You can enable Access Control Lists(ACLs) on your SMB file share. For information about how to
enable ACLs, see Using Microsoft Windows ACLs to Control Access to an SMB File Share (p. 307).
Next Step
Testing Your File Gateway (p. 55)
Working with File Shares on a Bucket with Pre-exisiting Objects
You can export a file share on an Amazon S3 bucket with objects created outside of the file gateway
using either NFS or SMB. Objects in the bucket that were created outside of the gateway display as
files in either the NFS or SMB file system when your file system clients access them. Standard Portable
Operating System Interface (POSIX) access and permissions are used in the file share. When you write
files back to an Amazon S3 bucket, the files assume the properties and access rights that you give them.
You can upload objects to an S3 bucket at any time. For the file share to display these newly added
objects as files, you need to the section called “Refreshing Objects in Your Amazon S3 Bucket” (p. 153)
first.
Note
We don't recommend having multiple writers for one Amazon S3 bucket. If you do, be sure to
read the section "Can I have multiple writers to my Amazon S3 bucket?" in the Storage Gateway
FAQ.
To assign metadata defaults to objects accessed using NFS, see Editing Metadata Defaults in the section
called “Managing Your File Gateway” (p. 144).
For SMB, you can export a share using Microsoft AD or guest access for an Amazon S3 bucket with preexisting objects. Objects exported through an SMB file share inherits POSIX ownership and permissions
from the parent directory right above it. For objects under the root folder, root Access Control Lists
(ACL) are inherited. For Root ACL, the owner is smbguest and the permissions for files are 666, and the
directories are 777. This applies to all forms of authenticated access (Microsoft AD and guest)
Testing Your File Gateway
You can copy files and folders to your mapped drive. The files automatically upload to your Amazon S3
bucket.
To upload files from your windows client to Amazon S3
1. On your Windows client, navigate to the drive that you mounted your file share on. The name of
your drive is preceded by the name of your S3 bucket.
2. Copy files or a folder to the drive.
3. On the Amazon S3 Management Console, navigate to your mapped bucket. You should see the files
and folders that you copied in the Amazon S3 bucket that you specified.
You can see the file share that you created in the File shares tab in the AWS Storage Gateway
Management Console.
Your NFS or SMB client can write, read, delete, rename, and truncate files.
API Version 2013-06-30
55
Page 63
AWS Storage Gateway User Guide
Creating a Volume Gateway
Note
File gateways don't support creating hard or symbolic links on a file share.
Keep in mind these points about how file gateways work with S3:
• Reads are served from a read-through cache. In other words, if data isn't available, it's fetched from S3
and added to the cache.
• Writes are sent to S3 through optimized multipart uploads by using a write-back cache.
• Read and writes are optimized so that only the parts that are requested or changed are transferred
over the network.
• Deletes remove objects from S3.
• Directories are managed as folder objects in S3, using the same syntax as in the Amazon S3 console.
You can rename empty directories.
• Recursive file system operation performance (for example ls –l) depends on the number of objects
in your bucket.
Next Step
Where Do I Go from Here? (p. 56)
Where Do I Go from Here?
In the preceding sections, you created and started using a file gateway, including mounting a file share
and testing your setup.
Other sections of this guide include information about how to do the following:
• To manage your file gateway, see Managing Your File Gateway (p. 144).
• To optimize your file gateway, see Optimizing Gateway Performance (p. 287).
• To troubleshoot gateway problems, see Troubleshooting Your Gateway (p. 316).
• To learn about Storage Gateway metrics and how you can monitor how your gateway performs, see
Monitoring Your Gateway and Resources (p. 185).
Cleaning Up Resources You Don't Need
If you created your gateway as an example exercise or a test, consider cleaning up to avoid incurring
unexpected or unnecessary charges.
To clean up resources you don't need
1. Delete any snapshots. For instructions, see Deleting a Snapshot (p. 163).
2. Unless you plan to continue using the gateway, delete it. For more information, see Deleting Your
Gateway by Using the AWS Storage Gateway Console and Removing Associated Resources (p. 281).
3. Delete the AWS Storage Gateway VM from your on-premises host. If you created your gateway on an
Amazon EC2 instance, terminate the instance.
Creating a Volume Gateway
In this section, you can find instructions about how to create and use a volume gateway.
Topics
• Creating a Gateway (p. 57)
• Creating a Volume (p. 63)
API Version 2013-06-30
56
Page 64
AWS Storage Gateway User Guide
Creating a Gateway
• Using Your Volume (p. 65)
• Backing Up Your Volumes (p. 71)
Creating a Gateway
In this section, you can find instructions about how to download, deploy, and activate a volume gateway.
Topics
• Choosing a Gateway Type (p. 57)
• Choosing a Host Platform and Downloading the VM (p. 58)
• Choosing a Service Endpoint (p. 59)
• Connecting to Your Gateway (p. 60)
• Activating Your Gateway (p. 61)
• Configuring Local Disks (p. 62)
Choosing a Gateway Type
With a volume gateway, you can create storage volumes in the AWS Cloud that your on-premises
applications can access as Internet Small Computer System Interface (iSCSI) targets. There are two
options:
• Cached volumes (p. 3)—Store your data in AWS and retain a copy of frequently accessed data subsets
locally.
• Stored volumes (p. 5)—Store all your data locally and asynchronously back up point-in-time
snapshots to AWS.
To choose a gateway type
1. Open the AWS Management Console at http://console.www.amazonaws.cn/storagegateway/home,
and choose the AWS Region that you want to create your gateway in.
If you have previously created a gateway in this AWS Region, the console shows your gateway.
Otherwise, the service homepage appears.
2. If you haven't created a gateway in the AWS Region you selected, choose Get started. If you already
have a gateway in the AWS Region you chose, choose Gateways from the navigation pane, and then
choose Create gateway.

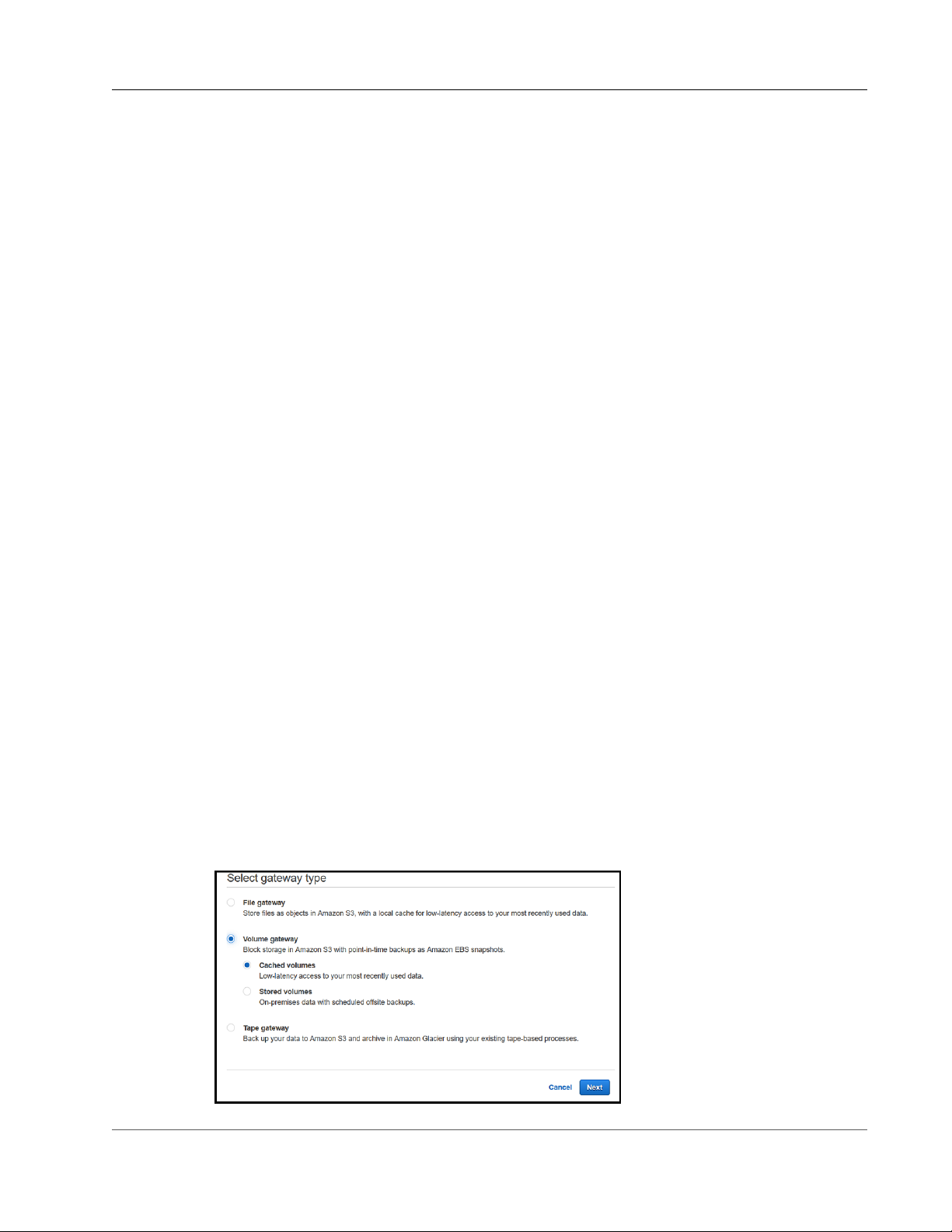

3. On the Select gateway type page, choose Volume gateway, choose the type of volume, and then
choose Next.
API Version 2013-06-30
57
Page 65
AWS Storage Gateway User Guide
Creating a Gateway
Choosing a Host Platform and Downloading the VM
If you create your gateway on-premises, you deploy the hardware appliance, or download and deploy
a gateway VM, and then activate the gateway. If you create your gateway on an Amazon EC2 instance,
you launch an Amazon Machine Image (AMI) that contains the gateway VM image and then activate
the gateway. For information about supported host platforms, see Supported Hypervisors and Host
Requirements (p. 20).
Note
You can run only file, cached volume, and tape gateways on an Amazon EC2 instance.
To select a host platform and download the VM
1. On the Select host platform page, choose the virtualization platform that you want to run your
gateway on.
2. Choose Download image next to your virtualization platform to download a .zip file that contains
the .ova file for your virtualization platform.
Note
The .zip file is over 500 MB in size and might take some time to download, depending on
your network connection.
For EC2, you create an instance from the provided AMI.
3. Deploy the downloaded image to your hypervisor. You need to add at least one local disk for your
cache and one local disk for your upload buffer during the deployment. A file gateway requires only
one local disk for a cache. For information about local disk requirements, see Hardware and Storage
Requirements (p. 11).
If you choose VMware, do the following:
• Store your disk in Thick provisioned format. When you use thick provisioning, the disk storage
is allocated immediately, resulting in better performance. In contrast, thin provisioning allocates
storage on demand. On-demand allocation can affect the normal functioning of AWS Storage
Gateway. For Storage Gateway to function properly, the VM disks must be stored in thickprovisioned format.
• Configure your gateway VM to use paravirtualized disk controllers. For more information, see
Configuring the AWS Storage Gateway VM to Use Paravirtualized Disk Controllers (p. 346).
If you choose Microsoft Hyper-V, do the following:
API Version 2013-06-30
58
Page 66
AWS Storage Gateway User Guide
Creating a Gateway
• Configure the disk type as Fixed size. When you use fixed-size provisioning, the disk storage is
allocated immediately, resulting in better performance. If you don't use fixed-size provisioning,
the storage is allocated on demand. On-demand allocation can affect the functioning of AWS
Storage Gateway. For Storage Gateway to function properly, the VM disks must be stored in fixedsize provisioned format.
• When allocating disks, choose virtual hard disk (.vhd) file. Storage Gateway supports the .vhdx
file type. By using this file type, you can create larger virtual disks than with other file types. If you
create a .vhdx type virtual disk, make sure that the size of the virtual disks that you create doesn't
exceed the recommended disk size for your gateway.
For both VMware and Microsoft Hyper-V, synchronizing the VM time with the host time is required
for successful gateway activation. Make sure that your host clock is set to the correct time and
synchronize it with a Network Time Protocol (NTP) server.
If you choose EC2, do the following:
Launch an Amazon Machine Image (AMI) that contains the gateway VM image, and then activate the
gateway. For information about deploying your gateway to an Amazon EC2 host, see: Deploying a
Volume or Tape Gateway on an Amazon EC2 Host (p. 349)
If you choose the hardware appliance, see Activate Your Hardware Appliance (p. 29).
For information about deploying your gateway to an Amazon EC2 host, see Deploy Your Gateway to an
Amazon EC2 Host (p. 349).
Choosing a Service Endpoint
You can activate your gateway using a public endpoint and have your gateway communicate with AWS
storage services over the public Internet or activate it using a private VPC endpoint. If you use a VPC
endpoint, all communication from your gateway to AWS services occurs through the VPC endpoint in
your VPC in AWS.
To choose a service endpoint
1. For Endpoint type you have the following options:
To make your gateway access AWS services over the public Internet, choose Public.
To make your gateway access AWS services through the VPC endpoint in your VPC, choose VPC.
API Version 2013-06-30
59
Page 67
AWS Storage Gateway User Guide
Creating a Gateway
This walkthorough assumes that you are activating your gateway with a public endpoint. For
Information about how to activate a gateway using a VPC, endpoint see Activating a Gateway in a
Virtual Private Cloud (p. 133).
2. Choose Next to connect you gateway and activate your gateway.
Connecting to Your Gateway
To connect to your gateway, the first step is to get the IP address of your gateway VM. You use this IP
address to activate your gateway. For gateways deployed and activated on an on-premises host, you can
get the IP address from your gateway VM local console or your hypervisor client. For gateways deployed
and activated on an Amazon EC2 instance, you can get the IP address from the Amazon EC2 console.
The activation process associates your gateway with your AWS account. Your gateway VM must be
running for activation to succeed.
Make sure that you select the correct gateway type. The .ova files and AMIs for the gateway types are
different and are not interchangeable.
To get the IP address for your gateway VM from the local console
1. Log on to your gateway VM local console. For detailed instructions, see the following:
• VMware ESXi—Accessing the Gateway Local Console with VMware ESXi (p. 273).
• Microsoft Hyper-V—Access the Gateway Local Console with Microsoft Hyper-V (p. 274).
2. Get the IP address from the top of the menu page, and make note of it for later use.
To get the IP address from an EC2 instance
1. Open the Amazon EC2 console at https://console.amazonaws.cn/ec2/.
2. In the navigation pane, choose Instances, and then choose the EC2 instance.
3. Choose the Description tab at the bottom, and then note the IP address. You use this IP address to
activate the gateway.
For activation, you can use the public or private IP address assigned to a gateway. You must be able
to reach the IP address that you use from the browser from which you perform the activation. In this
walkthrough, we use the public IP address to activate the gateway.
To associate your gateway with your AWS account
1. If the Connect to gateway page isn't already open, open the console and navigate to that page.
2. Type the IP address of your gateway for IP address, and then choose Connect gateway.
API Version 2013-06-30
60
Page 68
AWS Storage Gateway User Guide
Creating a Gateway
For detailed information about how to get a gateway IP address, see Connecting to Your
Gateway (p. 391).
Activating Your Gateway
When your gateway VM is deployed and running, you configure your gateway settings and activate your
gateway.
To activate your gateway
The gateway type, endpoint type, and AWS Region you selected are shown on the activation page.
1. To complete the activation process, provide the information on the activation page to configure your
gateway setting:
• Gateway Time Zone specifies the time zone to use for your gateway.
• Gateway Name identifies your gateway. You use this name to manage your gateway in the
console; you can change it after the gateway is activated. This name must be unique to your
account.
The following screenshot shows the activation page for a volume gateway.
2. AWS Region specifies the AWS Region where your gateway will be activated and where your data
will be stored. If Endpoint type is VPC, the AWS Region should be same as the Region where your
VPC Endpoint is located.
3. Choose Activate Gateway.
When the gateway is successfully activated, the AWS Storage Gateway console displays the Configure
local disks page.
API Version 2013-06-30
61
Page 69
AWS Storage Gateway User Guide
Creating a Gateway
If activation fails, check that the IP address you entered is correct. If the IP address is correct, confirm
that your network is configured to let your browser access the gateway VM. For other possible solutions,
see Troubleshooting Your Gateway (p. 316).
Configuring Local Disks
When you deployed the VM, you allocated local disks for your gateway. Now you configure your gateway
to use these disks.
Note
If you allocate local disks on a VMware host, make sure to configure the disks to use
paravirtualized disk controllers.
When adding a cache or upload buffer to an existing gateway, make sure to create new disks
in your host (hypervisor or Amazon EC2 instance). Don't change the size of existing disks if the
disks have been previously allocated as either a cache or upload buffer.
• For a cached volume (p. 3), you configure at least one disk for an upload buffer and the other for cache
storage.
• For a stored volume (p. 5), you configure at least one disk for an upload buffer and allocate the rest of
the storage for your application data.
To configure local disks
1. On the Configure local disks page, identify the disks you allocated and decide which ones you
want to use for an upload buffer and cached storage. For information about disk size limits, see
Recommended Local Disk Sizes For Your Gateway (p. 397).
2. From the list next to your upload buffer disk, choose Upload Buffer.
3. For cached volumes and tapes, choose Cache for the disk you want to configure as cache storage.
If you don't see your disks, choose Refresh.
4. Choose Save and continue to save your configuration settings.
API Version 2013-06-30
62
Page 70
AWS Storage Gateway User Guide
Creating a Volume
Next Step
Creating a Volume (p. 63)
Creating a Volume
Previously, you allocated local disks that you added to the VM cache storage and upload buffer. Now
you create a storage volume to which your applications read and write data. The gateway maintains
the volume's recently accessed data locally in cache storage, and asynchronously transferred data to
Amazon S3. For stored volumes, you allocated local disks that you added to the VM upload buffer and
your application's data.
Note
You can use AWS Key Management Service (AWS KMS) to encrypt data written to a cached
volume that is stored in Amazon S3. Currently, you can do this by using the AWS Storage
Gateway API Reference. For more information, see CreateCachediSCSIVolume or create-cached-
iscsi-volume.
To create a volume
1. Open the AWS Storage Gateway console at https://console.amazonaws.cn/storagegateway/home.
2. On the AWS Storage Gateway console, choose Create volume.
3. In the Create volume dialog box, choose a gateway for Gateway.
4. For the cached volumes, type the capacity in Capacity.
For stored volumes, choose a Disk ID value from the list.
5. For Volume content, your choices depend on the type of gateway you are creating the volume for.
For cached volumes, you have the following options:
• Create a new empty volume.
• Create a volume based on an Amazon EBS snapshot. If you choose this option, provide a value
for EBS snapshot ID.
• Clone from last volume recovery point. If you choose this option, choose a volume ID for Source
volume. If there are no volumes in the region, this option doesn't appear.
For stored volumes, you have the following options:
• Create a new empty volume.
• Create a volume based on a snapshot. If you choose this option, provide a value for EBS
snapshot ID.
• Preserve existing data on the disk
6. Type a name for iSCSI target name.
The target name can contain lowercase letters, numbers, periods (.), and hyphens (-). This target
name appears as the iSCSI target node name in the Targets tab of the iSCSI Microsoft initiator UI
after discovery. For example, the name target1 appears as iqn.1007-05.com.amazon:target1.
Make sure that the target name is globally unique within your storage area network (SAN).
7. Verify that the Network interface setting has IP address selected, or choose an IP address for
Network interface. For Network interface, one IP address appears for each adapter that is
configured for the gateway VM. If the gateway VM is configured for only one network adapter, no
Network interface list appears because there is only one IP address.
Your iSCSI target will be available on the network adapter you choose.
API Version 2013-06-30
63
Page 71
AWS Storage Gateway User Guide
Creating a Volume
If you have defined your gateway to use multiple network adapters, choose the IP address that your
storage applications should use to access your volume. For information about configuring multiple
network adapters, see Configuring Your Gateway for Multiple NICs (p. 266).
Note
After you choose a network adapter, you can't change this setting.
8. Choose Create volume.
If you have previously created volumes in this region, you can see them listed on the Storage
Gateway console.
The Configure CHAP Authentication dialog box appears. You can configure Challenge-Handshake
Authentication Protocol (CHAP) for your volume at this point, or you can choose Cancel and
configure CHAP later. For more information on CHAP setup, see Configure CHAP Authentication for
Your Volumes (p. 64), following.
If you don't want to set up CHAP, get started using your volume. For more information, see Using Your
Volume (p. 65).

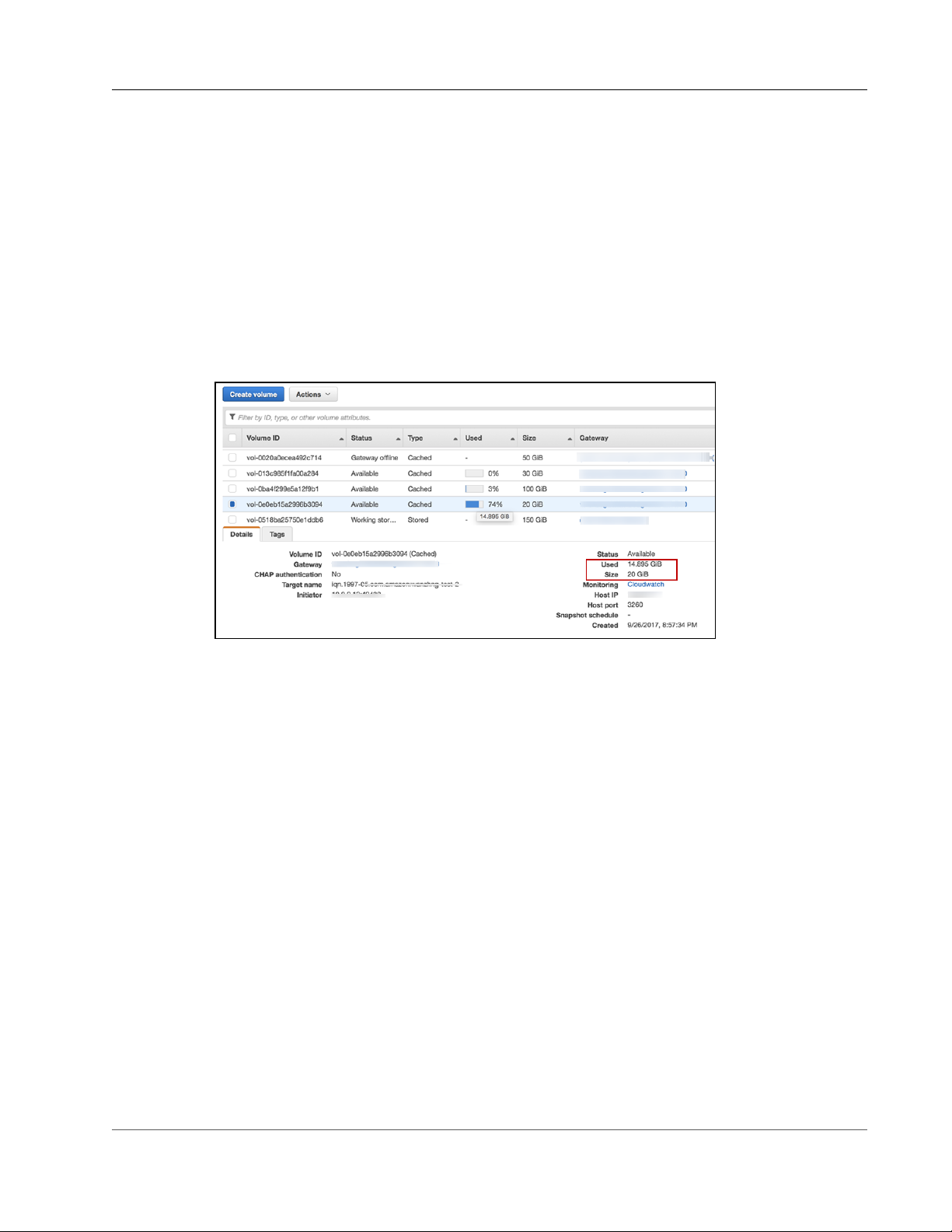

Configure CHAP Authentication for Your Volumes
CHAP provides protection against playback attacks by requiring authentication to access your storage
volume targets. In the Configure CHAP Authentication dialog box, you provide information to configure
CHAP for your volumes.
To configure CHAP
1. Choose the volume for which you want to configure CHAP.
2. For Actions, choose Configure CHAP authentication.
3. For Initiator Name, type the name of your initiator.
4. For Initiator secret, type the secret phrase you used to authenticate your iSCSI initiator.
5. For Target secret, type the secret phrase used to authenticate your target for mutual CHAP.
6. Choose Save to save your entries.
For more information about setting up CHAP authentication, see Configuring CHAP Authentication
for Your iSCSI Targets (p. 377).
Next Step
API Version 2013-06-30
64
Page 72
AWS Storage Gateway User Guide
Using Your Volume
Using Your Volume (p. 65)
Using Your Volume
Following, you can find instructions about how to use your volume. To use your volume, you first connect
it to your client as an iSCSI target, then initialize and format it.
Topics
• Connecting Your Volumes to Your Client (p. 65)
• Initializing and Formatting Your Volume (p. 66)
• Testing Your Gateway (p. 68)
• Where Do I Go from Here? (p. 69)
Connecting Your Volumes to Your Client
You use the iSCSI initiator in your client to connect to your volumes. At the end of the following
procedure, the volumes become available as local devices on your client.
Important
With AWS Storage Gateway, you can connect multiple hosts to the same volume if the hosts
coordinate access by using Windows Server Failover Clustering (WSFC). You can't connect
multiple hosts to the same volume without using WSFC, for example by sharing a nonclustered
NTFS/ext4 file system.
Topics
• Connecting to a Microsoft Windows Client (p. 65)
• Connecting to a Red Hat Enterprise Linux Client (p. 65)
Connecting to a Microsoft Windows Client
The following procedure shows a summary of the steps that you follow to connect to a Windows client.
For more information, see Connecting iSCSI Initiators (p. 364).
To connect to a Windows client
1. Start iscsicpl.exe.
2. In the iSCSI Initiator Properties dialog box, choose the Discovery tab, and then choose Discovery
Portal.
3. In the Discover Target Portal dialog box, type the IP address of your iSCSI target for IP address or
DNS name.
4. Connect the new target portal to the storage volume target on the gateway.
5. Choose the target, and then choose Connect.
6. In the Targets tab, make sure that the target status has the value Connected, indicating the target is
connected, and then choose OK.
Connecting to a Red Hat Enterprise Linux Client
The following procedure shows a summary of the steps that you follow to connect to a Red Hat
Enterprise Linux (RHEL) client. For more information, see Connecting iSCSI Initiators (p. 364).
To connect a Linux client to iSCSI targets
1. Install the iscsi-initiator-utils RPM package.
API Version 2013-06-30
65
Page 73
AWS Storage Gateway User Guide
Using Your Volume
You can use the following command to install the package.
sudo yum install iscsi-initiator-utils
2. Make sure that the iSCSI daemon is running.
For RHEL 5 or 6, use the following command.
sudo /etc/init.d/iscsi status
For RHEL 7, use the following command.
sudo service iscsid status
3. Discover the volume or VTL device targets defined for a gateway. Use the following discovery
command.
sudo /sbin/iscsiadm --mode discovery --type sendtargets --portal [GATEWAY_IP]:3260
The output of the discovery command should look like the following example output.
For volume gateways: [GATEWAY_IP]:3260, 1 iqn.1997-05.com.amazon:myvolume
For tape gateways: iqn.1997-05.com.amazon:[GATEWAY_IP]-tapedrive-01
4. Connect to a target.
Make sure to specify the correct [GATEWAY_IP] and IQN in the connect command.
Use the following command.
sudo /sbin/iscsiadm --mode node --targetname iqn.1997-05.com.amazon:[ISCSI_TARGET_NAME]
--portal [GATEWAY_IP]:3260,1 --login
5. Verify that the volume is attached to the client machine (the initiator). To do so, use the following
command.
ls -l /dev/disk/by-path
The output of the command should look like the following example output.
lrwxrwxrwx. 1 root root 9 Apr 16 19:31 ip-[GATEWAY_IP]:3260-iscsiiqn.1997-05.com.amazon:myvolume-lun-0 -> ../../sda
We highly recommend that after you set up your initiator you customize your iSCSI settings as
discussed in Customizing Your Linux iSCSI Settings (p. 376).
Initializing and Formatting Your Volume
After you use the iSCSI initiator in your client to connect to your volumes, you initialize and format your
volume.
Topics
• Initializing and Formatting Your Volume on Microsoft Windows (p. 67)
• Initializing and Formatting Your Volume on Red Hat Enterprise Linux (p. 67)
API Version 2013-06-30
66
Page 74
AWS Storage Gateway User Guide
Using Your Volume
Initializing and Formatting Your Volume on Microsoft Windows
Use the following procedure to initialize and format your volume on Windows.
To initialize and format your storage volume
1. Start diskmgmt.msc to open the Disk Management console.
2. In the Initialize Disk dialog box, initialize the volume as a MBR (Master Boot Record) partition.
When selecting the partition style, you should take into account the type of volume you are
connecting to—cached or stored—as shown in the following table.
Partition Style Use in the Following Conditions
MBR (Master Boot
Record)
GPT (GUID Partition
Table)
3. Create a simple volume:
a. Bring the volume online to initialize it. All the available volumes are displayed in the disk
management console.
b. Open the context (right-click) menu for the disk, and then choose New Simple Volume.
• If your gateway is a stored volume and the storage volume is limited to
1 TiB in size.
• If your gateway is a cached volume and the storage volume is less than 2
TiB in size.
If your gateway's storage volume is 2 TiB or greater in size.
Important
Be careful not to format the wrong disk. Check to make sure that the disk you are
formatting matches the size of the local disk you allocated to the gateway VM and that
it has a status of Unallocated.
c. Specify the maximum disk size.
d. Assign a drive letter or path to your volume, and format the volume by choosing Perform a
quick format.
Important
We strongly recommend using Perform a quick format for cached volumes. Doing so
results in less initialization I/O, smaller initial snapshot size, and the fastest time to a
usable volume. It also avoids using cached volume space for the full format process.
Note
The time that it takes to format the volume depends on the size of the volume. The
process might take several minutes to complete.
Initializing and Formatting Your Volume on Red Hat Enterprise Linux
Use the following procedure to initialize and format your volume on Red Hat Enterprise Linux (RHEL).
To initialize and format your storage volume
1. Change directory to the /dev folder.
2. Run the sudo cfdisk command.
3. Identify your new volume by using the following command. To find new volumes, you can list the
partition layout of your volumes.
$ lsblk
API Version 2013-06-30
67
Page 75
AWS Storage Gateway User Guide
Using Your Volume
An "unrecognized volumes label" error for the new unpartitioned volume appears.
4. Initialize your new volume. When selecting the partition style, you should take into account the size
and type of volume you are connecting to—cached or stored—as shown in the following table.
Partition Style Use in the Following Conditions
MBR (Master Boot
Record)
GPT (GUID Partition
Table)
For an MBR partition, use the following command: sudo parted /dev/your volume mklabel
msdos
For a GPT partition, use the following command: sudo parted /dev/your volume mklabel
gpt
5. Create a partition by using the following command.
sudo parted -a opt /dev/your volume mkpart primary file system 0% 100%
6. Assign a drive letter to the partition and create a file system by using the following command.
sudo mkfs drive letter datapartition /dev/your volume
7. Mount the file system by using the following command.
sudo mount -o defaults /dev/your volume /mnt/your directory
• If your gateway is a stored volume and the storage volume is limited to
1 TiB in size.
• If your gateway is a cached volume and the storage volume is less than 2
TiB in size.
If your gateway's storage volume is 2 TiB or greater in size.
Testing Your Gateway
You test your volume gateway setup by performing the following tasks:
1. Write data to the volume.
2. Take a snapshot.
3. Restore the snapshot to another volume.
You verify the setup for a gateway by taking a snapshot backup of your volume and storing the snapshot
in AWS. You then restore the snapshot to a new volume. Your gateway copies the data from the specified
snapshot in AWS to the new volume.
Note
Restoring data from Amazon Elastic Block Store (Amazon EBS) volumes that are encrypted is
not supported.
To create a snapshot of a storage volume on Microsoft Windows
1. On your Windows computer, copy some data to your mapped storage volume.
The amount of data copied doesn't matter for this demonstration. A small file is enough to
demonstrate the restore process.
2. In the navigation pane of the AWS Storage Gateway console, choose Volumes.
3. Choose the storage volume that you created for the gateway.
API Version 2013-06-30
68
Page 76
AWS Storage Gateway User Guide
Using Your Volume
This gateway should have only one storage volume. Choose the volume displays its properties.
4. For Actions, choose Create Snapshot to create a snapshot of the volume.
Depending on the amount of data on the disk and the upload bandwidth, it might take a few
seconds to complete the snapshot. Note the volume ID for the volume from which you create a
snapshot. You use the ID to find the snapshot.

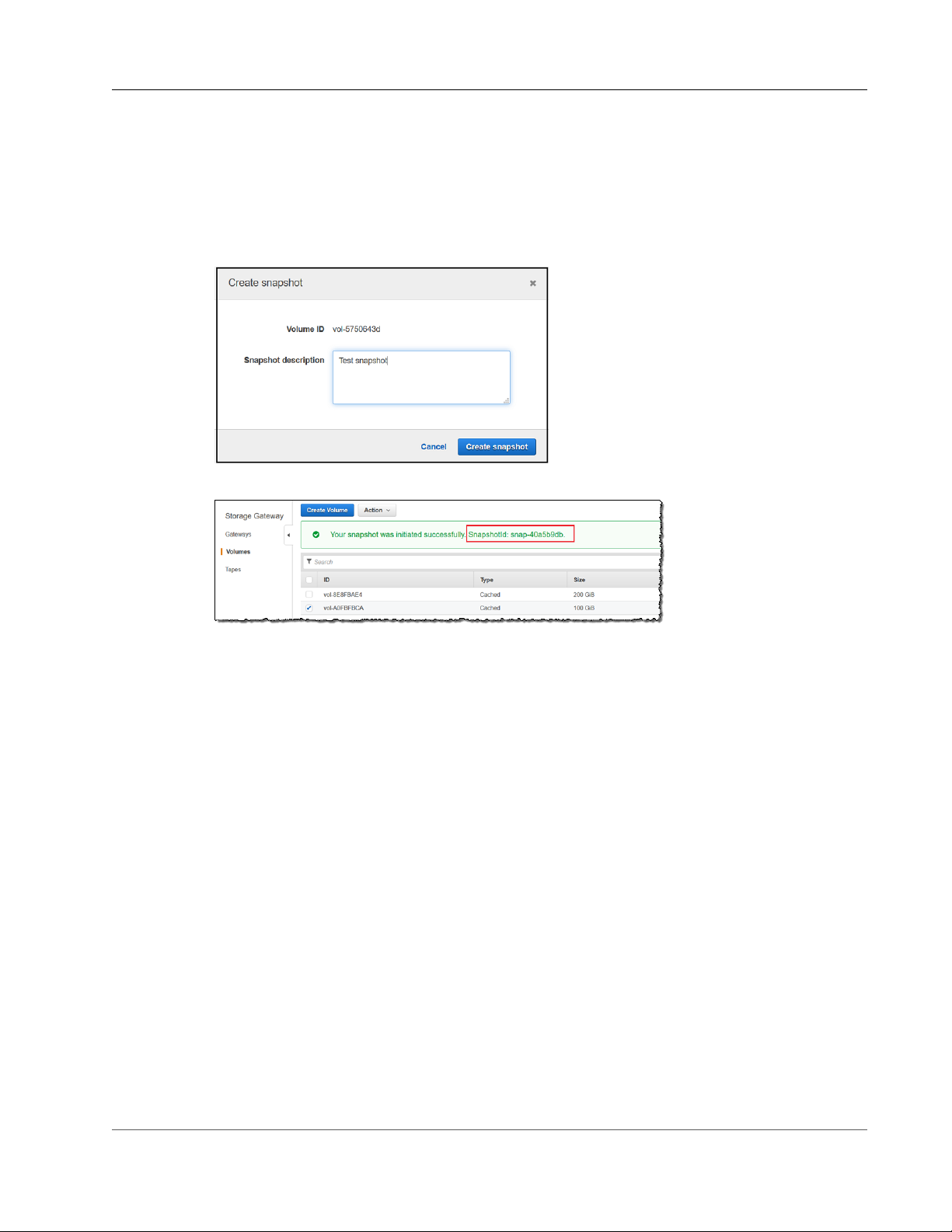

5. In the Create Snapshot dialog box, provide a description for your snapshot, and then choose Create
Snapshot.
Your snapshot is stored as an Amazon EBS snapshot. Take note of your snapshot ID.
The number of snapshots created for your volume is displayed in the snapshot column.
6. For Snapshot, choose the link for the volume you created the snapshot for to see your EBS snapshot
on the Amazon EC2 console.
Where Do I Go from Here?
In the preceding sections, you created and provisioned a gateway and then connected your host to
the gateway's storage volume. You added data to the gateway's iSCSI volume, took a snapshot of the
volume, and restored it to a new volume, connected to the new volume, and verified that the data shows
up on it.
After you finish the exercise, consider the following:
• If you plan on continuing to use your gateway, read about sizing the upload buffer more appropriately
for real-world workloads. For more information, see Sizing Your Volume Gateway's Storage for Real-
World Workloads (p. 70).
• If you don't plan on continuing to use your gateway, consider deleting the gateway to avoid incurring
any charges. For more information, see Cleaning Up Resources You Don't Need (p. 71).
Other sections of this guide include information about how to do the following:
• To learn more about storage volumes and how to manage them, see Managing Your
Gateway (p. 144).
• To troubleshoot gateway problems, see Troubleshooting Your Gateway (p. 316).
API Version 2013-06-30
69
Page 77
AWS Storage Gateway User Guide
Using Your Volume
• To optimize your gateway, see Optimizing Gateway Performance (p. 287).
• To learn about Storage Gateway metrics and how you can monitor how your gateway performs, see
Monitoring Your Gateway and Resources (p. 185)).
• To learn more about configuring your gateway's iSCSI targets to store data, see Connecting to Your
Volumes to a Windows Client (p. 365).
To learn about sizing your volume gateway's storage for real-world workloads and cleaning up resources
you don't need, see the following sections.
Sizing Your Volume Gateway's Storage for Real-World Workloads
By this point, you have a simple, working gateway. However, the assumptions used to create this gateway
are not appropriate for real-world workloads. If you want to use this gateway for real-world workloads,
you need to do two things:
1. Size your upload buffer appropriately.
2. Set up monitoring for your upload buffer, if you haven't done so already.
Following, you can find how to do both of these tasks. If you activated a gateway for cached volumes,
you also need to size your cache storage for real-world workloads.
To size your upload buffer and cache storage for a gateway-cached setup
• Use the formula shown in Determining the Size of Upload Buffer to Allocate (p. 221) for sizing the
upload buffer. We strongly recommend that you allocate at least 150 GiB for the upload buffer. If
the upload buffer formula yields a value less than 150 GiB, use 150 GiB as your allocated upload
buffer.
The upload buffer formula takes into account the difference between throughput from your
application to your gateway and throughput from your gateway to AWS, multiplied by how long you
expect to write data. For example, assume that your applications write text data to your gateway at
a rate of 40 MB per second for 12 hours a day and your network throughput is 12 MB per second.
Assuming a compression factor of 2:1 for the text data, the formula specifies that you need to
allocate approximately 675 GiB of upload buffer space.
To size your upload buffer for a stored setup
• Use the formula discussed in Determining the Size of Upload Buffer to Allocate (p. 221). We
strongly recommend that you allocate at least 150 GiB for your upload buffer. If the upload buffer
formula yields a value less than 150 GiB, use 150 GiB as your allocated upload buffer.
The upload buffer formula takes into account the difference between throughput from your
application to your gateway and throughput from your gateway to AWS, multiplied by how long you
expect to write data. For example, assume that your applications write text data to your gateway at
a rate of 40 MB per second for 12 hours a day and your network throughput is 12 MB per second.
Assuming a compression factor of 2:1 for the text data, the formula specifies that you need to
allocate approximately 675 GiB of upload buffer space.
To monitor your upload buffer
1. Open the AWS Storage Gateway console at https://console.amazonaws.cn/storagegateway/home.
2. Choose the Gateway tab, choose the Details tab, and then find the Upload Buffer Used field to view
your gateway's current upload buffer.
3. Set one or more alarms to notify you about upload buffer use.
API Version 2013-06-30
70
Page 78
AWS Storage Gateway User Guide
Backing Up Your Volumes
We highly recommend that you create one or more upload buffer alarms in the Amazon CloudWatch
console. For example, you can set an alarm for a level of use you want to be warned about and
an alarm for a level of use that, if exceeded, is cause for action. The action might be adding more
upload buffer space. For more information, see To set an upper threshold alarm for a gateway's
upload buffer (p. 197).
Cleaning Up Resources You Don't Need
If you created your gateway as an example exercise or a test, consider cleaning up to avoid incurring
unexpected or unnecessary charges.
To clean up resources you don't need
1. Delete any snapshots. For instructions, see Deleting a Snapshot (p. 163).
2. Unless you plan to continue using the gateway, delete it. For more information, see Deleting Your
Gateway by Using the AWS Storage Gateway Console and Removing Associated Resources (p. 281).
3. Delete the AWS Storage Gateway VM from your on-premises host. If you created your gateway on an
Amazon EC2 instance, terminate the instance.
Backing Up Your Volumes
By using AWS Storage Gateway, you can help protect your on-premises business applications that use
Storage Gateway volumes for cloud-backed storage. You can back up your on-premises AWS Storage
Gateway volumes using the native snapshot scheduler in Storage Gateway or AWS Backup. In both cases,
Storage Gateway volume backups are stored as Amazon EBS snapshots in AWS.
Topics
• Using Storage Gateway to Back Up Your Volumes (p. 71)
• Using AWS Backup to Back Up Your Volumes (p. 71)
Using Storage Gateway to Back Up Your Volumes
You can use the Storage Gateway Management Console to back up your volumes by taking Amazon EBS
snapshots and storing the snapshots in AWS. You can either take an ad hoc (one-time) snapshot or set up
a snapshot schedule that is managed by Storage Gateway. You can later restore the snapshot to a new
volume by using the Storage Gateway console. For information about how to back up and manage your
backup from the Storage Gateway, see the following topics:
• Testing Your Gateway (p. 68)
• Creating a One-Time Snapshot (p. 162)
• Cloning a Volume (p. 157)
Using AWS Backup to Back Up Your Volumes
AWS Backup is a centralized backup service that makes it easy and cost-effective for you to back up your
application data across AWS services in both the AWS Cloud and on-premises. Doing this helps you meet
your business and regulatory backup compliance requirements. AWS Backup makes protecting your AWS
storage volumes, databases, and file systems simple by providing a central place where you can do the
following:
• Configure and audit the AWS resources that you want to back up.
API Version 2013-06-30
71
Page 79
AWS Storage Gateway User Guide
Backing Up Your Volumes
• Automate backup scheduling.
• Set retention policies.
• Monitor all recent backup and restore activity.
Because Storage Gateway integrates with AWS Backup, it enables customers to use AWS Backup to back
up on-premises business applications that use Storage Gateway volumes for cloud-backed storage.
AWS Backup supports backup and restore of both cached and stored volumes. For information about
AWS Backup, see the AWS Backup documentation. For information about AWS Backup, see What is AWS
Backup? in the AWS Backup User Guide.
You can manage Storage Gateway volumes' backup and recovery operations with AWS Backup and avoid
the need to create custom scripts or manually manage point-in-time backups. With AWS Backup, you
can also monitor your on-premises volume backups alongside your in-cloud AWS resources from a single
AWS Backup dashboard. You can use AWS Backup to either create a one-time on-demand backup or
define a backup plan that is managed in AWS Backup.
Storage Gateway volume backups taken from AWS Backup are stored in Amazon S3 as Amazon EBS
snapshots. You can see the Storage Gateway volume backups from the AWS Backup console or the
Amazon EBS console.
You can easily restore Storage Gateway volumes that are managed through AWS Backup to any onpremises gateway or in-cloud gateway. You can also restore such a volume to an Amazon EBS volume
that you can use with Amazon EC2 instances.
Benefits of Using AWS Backup to Back Up Storage Gateway Volumes
The benefits of using AWS Backup to back up Storage Gateway volumes are that you can meet
compliance requirements, avoid operational burden, and centralize backup management. AWS Backup
enables you to do the following:
• Set customizable scheduled backup policies that meet your backup requirements.
• Set backup retention and expiration rules so you no longer need to develop custom scripts or manually
manage the point-in-time backups of your volumes.
• Manage and monitor backups across multiple gateways, and other AWS resources from a central view.
To use AWS Backup to create backups of your volumes
Note
AWS Backup requires that you choose an AWS Identity and Access Management (IAM) role that
AWS Backup consumes. You need to create this role because AWS Backup doesn't create it for
you. You also need to create a trust relationship between AWS Backup and this IAM role. For
information about how to do this, see the AWS Backup User Guide. For information about how to
do this, see Creating a Backup Plan in the AWS Backup User Guide.
1. Open the Storage Gateway console and choose Volumes from the navigation pane at left.
2. For Actions, choose Create on-demand backup with AWS Backup or Create AWS backup plan.
API Version 2013-06-30
72
Page 80
AWS Storage Gateway User Guide
Backing Up Your Volumes

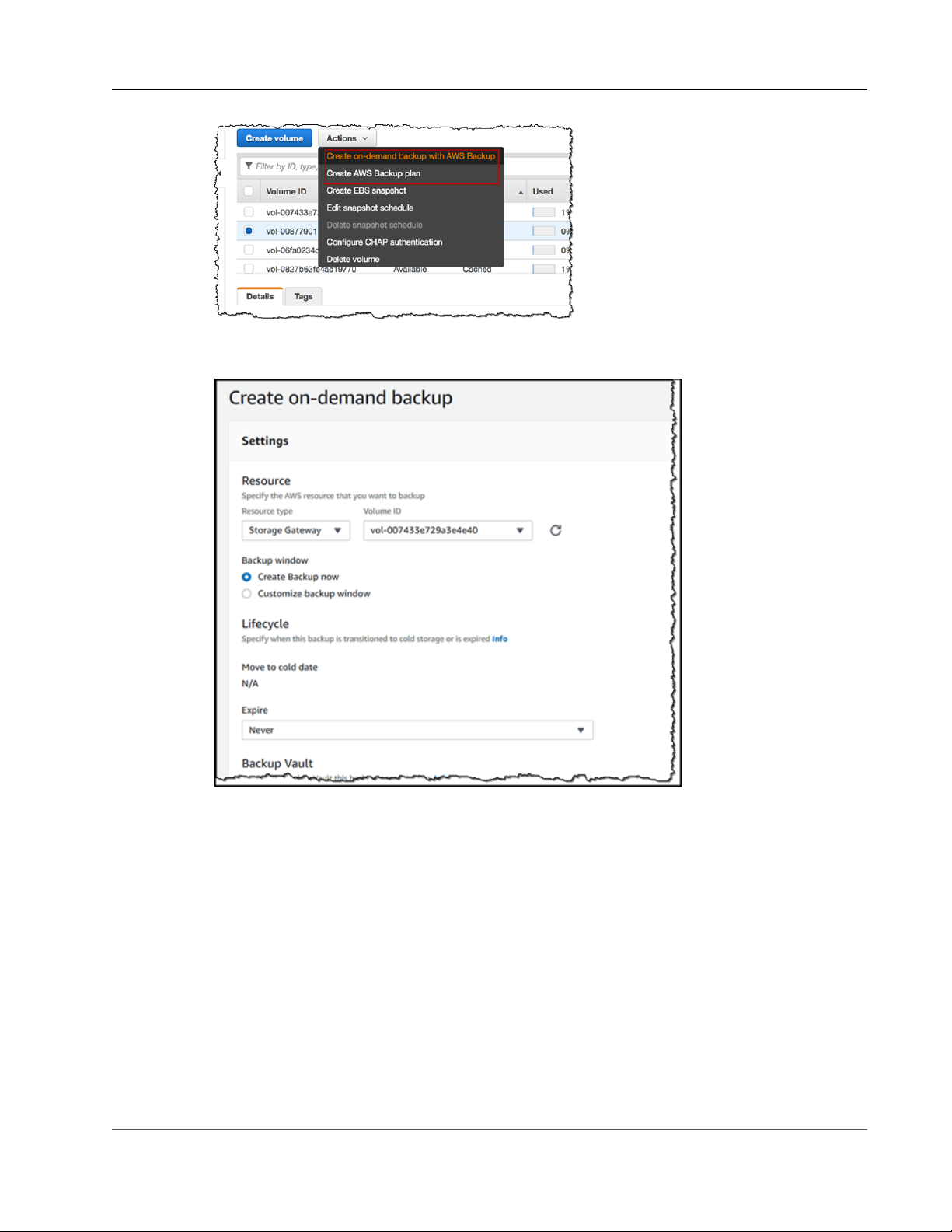

If you want to create an on-demand backup of the Storage Gateway volume, choose Create on-
demand backup with AWS Backup. You are directed the AWS Backup console.
If you want to create a new AWS Backup plan, choose Create AWS backup plan. You are directed to
the AWS Backup console.
API Version 2013-06-30
73
Page 81
AWS Storage Gateway User Guide
Backing Up Your Volumes

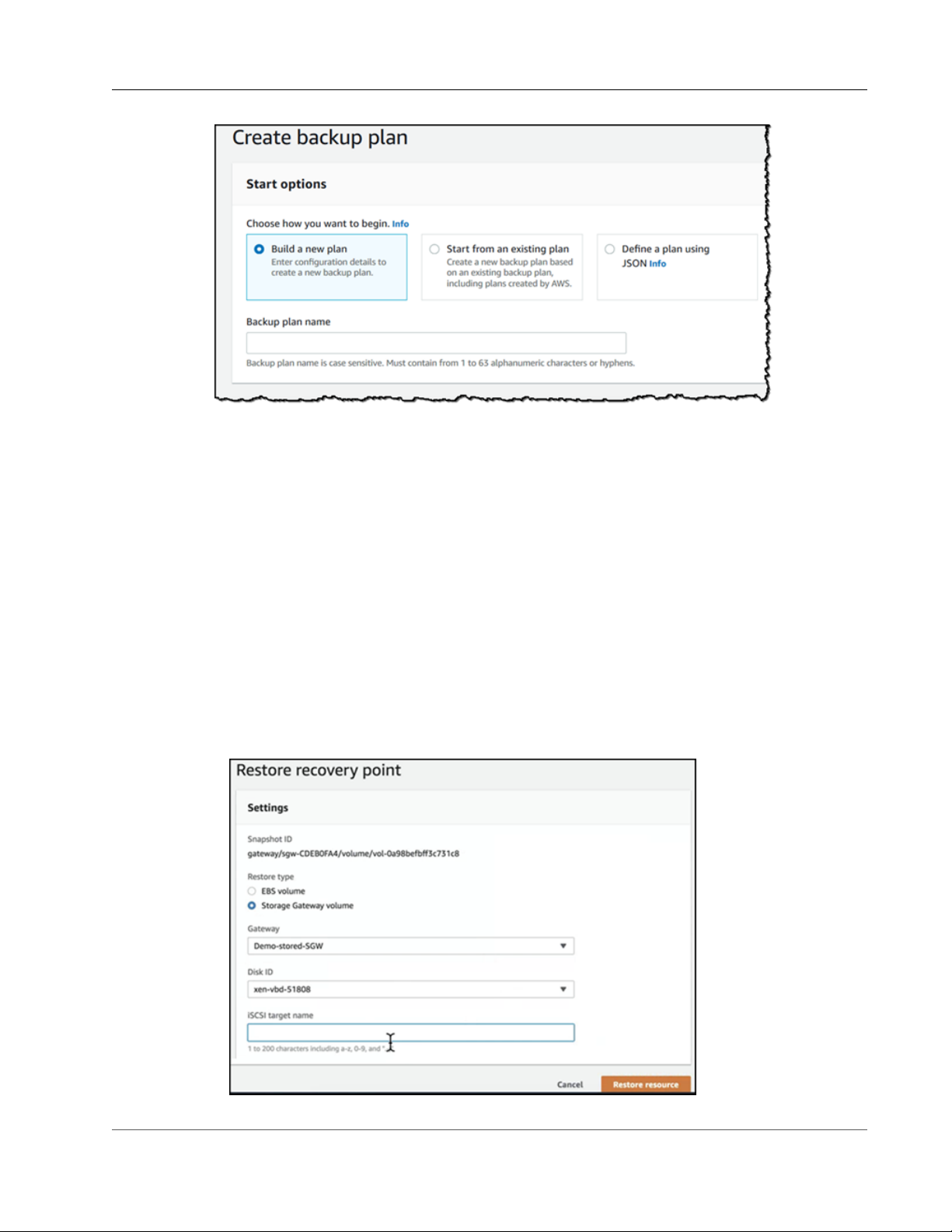

On the AWS Backup console, you can create a backup plan, assign a Storage Gateway volume to the
backup plan, and create a backup. You can also do ongoing backup management tasks.
Finding and Restoring Your Volumes from AWS Backup
You can find and restore your backup Storage Gateway volumes from the AWS Backup console. For more
information, see the AWS Backup User Guide. For more information, see Recovery Points in the AWS
Backup User Guide.
To find and restore your volumes
1. Open the AWS Backup console and find the Storage Gateway volume backup that you want to
restore. You can restore the Storage Gateway volume backup to an Amazon EBS volume or to a
Storage Gateway volume. Choose the appropriate option for your restore requirements.
2. For Restore type, choose to restore a stored or cached Storage Gateway volume and provide the
required information:
• For a stored volume, provide the information for Gateway name, Disk ID, and iSCSI target name.
API Version 2013-06-30
74
Page 82
AWS Storage Gateway User Guide
Creating a Tape Gateway

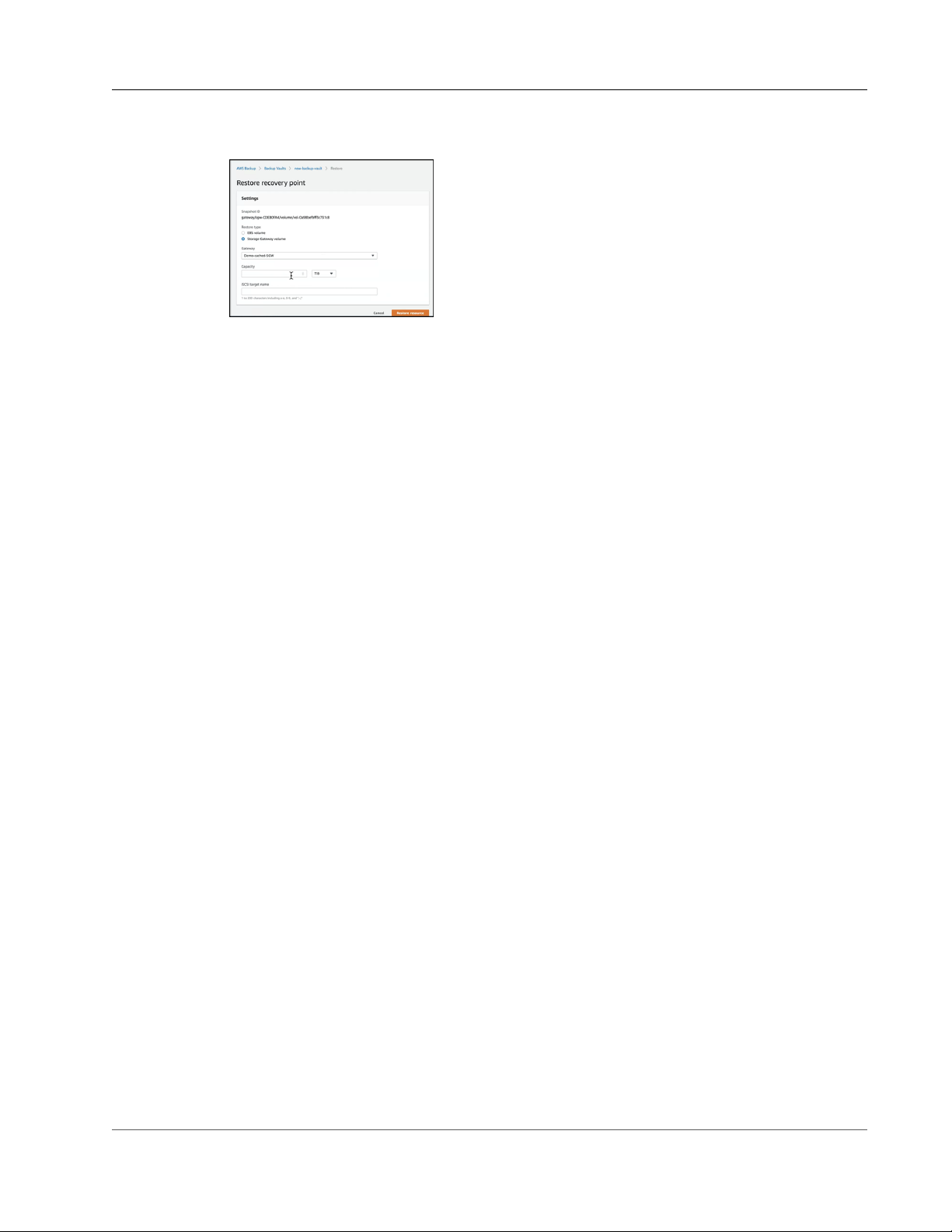

• For a cached volume, provide the information for Gateway name, Capacity, and iSCSI target
name.
3. Choose Restore resource to restore your volume.
Note
You can't use the Amazon EBS console to delete a snapshot that is created by AWS Backup.
Creating a Tape Gateway
In this section, you can find instructions about how to create and use a tape gateway.
Topics
• Creating a Gateway (p. 75)
• Creating Tapes (p. 82)
• Using Your Tape Gateway (p. 83)
Creating a Gateway
In this section, you can find instructions about how to download, deploy, and activate a tape gateway.
Topics
• Choosing a Gateway Type (p. 75)
• Choosing a Host Platform and Downloading the VM (p. 76)
• Choosing a Service Endpoint (p. 39)
• Connecting to Your Gateway (p. 78)
• Activating Your Gateway (p. 79)
• Configuring Local Disks (p. 81)
Choosing a Gateway Type
For a tape gateway (p. 6), you store and archive your data on virtual tapes in AWS. A tape gateway
eliminates some of the challenges associated with owning and operating an on-premises physical tape
infrastructure.
To create a tape gateway
1. Open the AWS Management Console at http://console.www.amazonaws.cn/storagegateway/home,
and choose the AWS Region that you want to create your gateway in.
If you have previously created a gateway in this AWS Region, the console shows your gateway.
Otherwise, the console home page appears.
API Version 2013-06-30
75
Page 83
AWS Storage Gateway User Guide
Creating a Gateway
2. If you haven't created a gateway in the AWS Region you selected, choose Get started. If you already
have a gateway in the AWS Region you selected, choose Gateways from the navigation pane, and
then choose Create gateway.
3. On the Select gateway type page, choose Tape gateway, and then choose Next.
Choosing a Host Platform and Downloading the VM
If you create your gateway on-premises, you deploy the hardware appliance, or download and deploy
a gateway VM, and then activate the gateway. If you create your gateway on an Amazon EC2 instance,
you launch an Amazon Machine Image (AMI) that contains the gateway VM image and then activate
the gateway. For information about supported host platforms, see Supported Hypervisors and Host
Requirements (p. 20).
Note
You can run only file, cached volume, and tape gateways on an Amazon EC2 instance.
To select a host platform and download the VM
1. On the Select host platform page, choose the virtualization platform that you want to run your
gateway on.
2. Choose Download image next to your virtualization platform to download a .zip file that contains
the .ova file for your virtualization platform.
Note
The .zip file is over 500 MB in size and might take some time to download, depending on
your network connection.
For EC2, you create an instance from the provided AMI.
API Version 2013-06-30
76
Page 84
AWS Storage Gateway User Guide
Creating a Gateway
3. Deploy the downloaded image to your hypervisor. You need to add at least one local disk for your
cache and one local disk for your upload buffer during the deployment. A file gateway requires only
one local disk for a cache. For information about local disk requirements, see Hardware and Storage
Requirements (p. 11).
If you choose VMware, do the following:
• Store your disk in Thick provisioned format. When you use thick provisioning, the disk storage
is allocated immediately, resulting in better performance. In contrast, thin provisioning allocates
storage on demand. On-demand allocation can affect the normal functioning of AWS Storage
Gateway. For Storage Gateway to function properly, the VM disks must be stored in thickprovisioned format.
• Configure your gateway VM to use paravirtualized disk controllers. For more information, see
Configuring the AWS Storage Gateway VM to Use Paravirtualized Disk Controllers (p. 346).
If you choose Microsoft Hyper-V, do the following:
• Configure the disk type as Fixed size. When you use fixed-size provisioning, the disk storage is
allocated immediately, resulting in better performance. If you don't use fixed-size provisioning,
the storage is allocated on demand. On-demand allocation can affect the functioning of AWS
Storage Gateway. For Storage Gateway to function properly, the VM disks must be stored in fixedsize provisioned format.
• When allocating disks, choose virtual hard disk (.vhd) file. Storage Gateway supports the .vhdx
file type. By using this file type, you can create larger virtual disks than with other file types. If you
create a .vhdx type virtual disk, make sure that the size of the virtual disks that you create doesn't
exceed the recommended disk size for your gateway.
For both VMware and Microsoft Hyper-V, synchronizing the VM time with the host time is required
for successful gateway activation. Make sure that your host clock is set to the correct time and
synchronize it with a Network Time Protocol (NTP) server.
If you choose EC2, do the following:
Launch an Amazon Machine Image (AMI) that contains the gateway VM image, and then activate the
gateway. For information about deploying your gateway to an Amazon EC2 host, see: Deploying a
Volume or Tape Gateway on an Amazon EC2 Host (p. 349)
If you choose the hardware appliance, see Activate Your Hardware Appliance (p. 29).
For information about deploying your gateway to an Amazon EC2 host, see Deploy your gateway to an
Amazon EC2 host (p. 349).
Choosing a Service Endpoint
You can activate your gateway using a public endpoint and have your gateway communicate with AWS
storage services over the public Internet or activate it using a private VPC endpoint. If you use a VPC
endpoint, all communication from your gateway to AWS services occurs through the VPC endpoint in
your VPC in AWS.
To choose a service endpoint
1. For Endpoint type you have the following options:
API Version 2013-06-30
77
Page 85
AWS Storage Gateway User Guide
Creating a Gateway
To make your gateway access AWS services over the public Internet, choose Public.
To make your gateway access AWS services through the VPC endpoint in your VPC, choose VPC.
This walkthorough assumes that you are activating your gateway with a public endpoint. For
Information about how to activate a gateway using a VPC, endpoint see Activating a Gateway in a
Virtual Private Cloud (p. 133).
2. Choose Next to connect you gateway and activate your gateway.
Connecting to Your Gateway
To connect to your gateway, the first step is to get the IP address of your gateway VM. You use this IP
address to activate your gateway. For gateways deployed and activated on an on-premises host, you can
get the IP address from your gateway VM local console or your hypervisor client. For gateways deployed
and activated on an Amazon EC2 instance, you can get the IP address from the Amazon EC2 console.
The activation process associates your gateway with your AWS account. Your gateway VM must be
running for activation to succeed.
Make sure that you select the correct gateway type. The .ova files and AMIs for the gateway types are
different and are not interchangeable.
To get the IP address for your gateway VM from the local console
1. Log on to your gateway VM local console. For detailed instructions, see the following:
• VMware ESXi—Accessing the Gateway Local Console with VMware ESXi (p. 273).
• Microsoft Hyper-V—Access the Gateway Local Console with Microsoft Hyper-V (p. 274).
2. Get the IP address from the top of the menu page, and make note of it for later use.
To get the IP address from an EC2 instance
1. Open the Amazon EC2 console at https://console.amazonaws.cn/ec2/.
2. In the navigation pane, choose Instances, and then choose the EC2 instance.
3. Choose the Description tab at the bottom, and then note the IP address. You use this IP address to
activate the gateway.
API Version 2013-06-30
78
Page 86
AWS Storage Gateway User Guide
Creating a Gateway
For activation, you can use the public or private IP address assigned to a gateway. You must be able
to reach the IP address that you use from the browser from which you perform the activation. In this
walkthrough, we use the public IP address to activate the gateway.
To associate your gateway with your AWS account
1. If the Connect to gateway page isn't already open, open the console and navigate to that page.
2. Type the IP address of your gateway for IP address, and then choose Connect gateway.
For detailed information about how to get a gateway IP address, see Connecting to Your
Gateway (p. 391).
Activating Your Gateway
When your gateway VM is deployed and running, you can configure your gateway settings and activate
your gateway. If activation fails, check that the IP address you entered is correct. If the IP address
is correct, confirm that your network is configured to let your browser access the gateway VM. For
more information on troubleshooting, see Troubleshooting On-Premises Gateway Issues (p. 316) or
Troubleshooting Amazon EC2 Gateway Issues (p. 323).
To configure your gateway settings
The gateway type, endpoint type, and AWS Region you selected are shown on the activation page.
1. Type the information listed on the activation page to configure your gateway settings and complete
the activation process.
The following screenshot shows the activation page for tape gateways.
API Version 2013-06-30
79
Page 87
AWS Storage Gateway User Guide
Creating a Gateway
• AWS Region specifies the AWS Region where your gateway will be activated and where your data
will be stored. If Endpoint type is VPC, the AWS Region should be same as the Region where your
VPC Endpoint is located.
• Gateway time zone specifies the time zone to use for your gateway.
• Gateway name identifies your gateway. You use this name to manage your gateway in the
console; you can change it after the gateway is activated. This name must be unique to your
account.
• Backup application specifies the backup application you want to use. Storage Gateway
automatically chooses a compatible medium changer for your backup application. If your backup
application is not listed, choose Other and choose a medium changer type. Medium changer type
specifies the type of medium changer to use for your backup application.
The type of medium changer you choose depends on the backup application you plan to use.
The following table lists third-party backup applications that have been tested and found to be
compatible with tape gateways. This table includes the medium changer type recommended for
each backup application.
Backup Application Medium Changer Type
Arcserve Backup AWS-Gateway-VTL
Bacula Enterprise V10.x AWS-Gateway-VTL or STK-L700
Commvault V11 STK-L700
Dell EMC NetWorker V8.x or V9.x AWS-Gateway-VTL
IBM Spectrum Protect v7.x IBM-03584L32-0402
Micro Focus (HPE) Data Protector 9.x AWS-Gateway-VTL
Microsoft System Center 2012 R2 or 2016
STK-L700
Data Protection Manager
NovaStor DataCenter/Network 6.4 or 7.1 STK-L700
Quest NetVault Backup 10.0 or 11.x or 12.x STK-L700
Veeam Backup & Replication V7 or V8 STK-L700
API Version 2013-06-30
80
Page 88
AWS Storage Gateway User Guide
Creating a Gateway
Backup Application Medium Changer Type
Veeam Backup & Replication V9 Update 2 or
later
Veritas Backup Exec 2014 or 15 or 16 or 20.x AWS-Gateway-VTL
Veritas Backup Exec 2012
AWS-Gateway-VTL
STK-L700
Note
Veritas has ended support for Backup
Exec 2012. For more information, see
End of Support for Prior Backup Exec
Versions.
Veritas NetBackup Version 7.x or 8.x AWS-Gateway-VTL
Important
We highly recommend that you choose the medium changer that's listed for your backup
application. Other medium changers might not function properly. You can choose a
different medium changer after the gateway is activated. For more information, see
Selecting a Medium Changer After Gateway Activation (p. 358).
• Tape drive type specifies the type of tape drive used by this gateway.
2. Choose Activate gateway.
When the gateway is successfully activated, the AWS Storage Gateway console displays the
Configure local storage page.
If activation is not successful, see Troubleshooting Your Gateway (p. 316) for possible solutions.
Configuring Local Disks
When you deployed the VM, you allocated local disks for your gateway. Now you configure your gateway
to use these disks.
Note
If you allocate local disks on a VMware host, make sure to configure the disks to use
paravirtualized disk controllers.
When adding a cache or upload buffer to an existing gateway, make sure to create new disks
in your host (hypervisor or Amazon EC2 instance). Don't change the size of existing disks if the
disks have been previously allocated as either a cache or upload buffer.
To configure local disks
1. On the Configure local disks page, identify the disks you allocated and decide which ones you
want to use for an upload buffer and cached storage. For information about disk size limits, see
Recommended Local Disk Sizes For Your Gateway (p. 397).
API Version 2013-06-30
81
Page 89
AWS Storage Gateway User Guide
Creating Tapes
2. In the Allocation column next to your upload buffer disk, choose Upload Buffer.
3. Choose Cache for the disk you want to configure as cache storage.
If you don't see your disks, choose Refresh.
4. Choose Save and continue to save your configuration settings.
Next Step
Creating Tapes (p. 82)
Creating Tapes
Note
You are charged only for the amount of data you write to the tape, not the tape capacity.
You can use AWS Key Management Service (AWS KMS) to encrypt data written to a virtual tape
that is stored in Amazon S3. Currently, you can do this by using the AWS Storage Gateway API
Reference. For more information, see CreateTapes or create-tapes.
To create virtual tapes
1. In the navigation pane, choose the Gateways tab.
2. Choose Create tapes to open the Create tapes dialog box.
3. For Gateway, choose a gateway. The tape is created for this gateway.
4. For Number of tapes, choose the number of tapes you want to create. For more information about
tape limits, see AWS Storage Gateway Limits (p. 395).
5. For Capacity, type the size of the virtual tape you want to create. Tapes must be larger than 100GiB.
For information about capacity limits, see AWS Storage Gateway Limits (p. 395).
6. For Barcode prefix, type the prefix you want to prepend to the barcode of your virtual tapes.
API Version 2013-06-30
82
Page 90
AWS Storage Gateway User Guide
Using Your Tape Gateway
Note
Virtual tapes are uniquely identified by a barcode. You can add a prefix to the barcode. The
prefix is optional, but you can use it to help identify your virtual tapes. The prefix must be
uppercase letters (A–Z) and must be one to four characters long.
7. For Pool, choose Glacier Pool or Deep Archive Pool. This pool represents the storage class in which
your tape will be stored when it is ejected by your backup software.
Choose Glacier Pool if you want to archive the tape in GLACIER. When your backup software ejects
the tape, it is automatically archived in GLACIER. You use Glacier for more active archives where
you can retrieve the tapes in 3-5 hours. For detailed information, see Storage Classes for Archiving
Objects
Choose Deep Archive Pool if you want to archive the tape in DEEP_ARCHIVE. When your
backup software ejects the tape, the tape is automatically archived in DEEP_ARCHIVE. You use
DEEP_ARCHIVE for long-term data retention and digital preservation where data is accessed once
or twice a year. You can retrieve tapes archived in DEEP_ARCHIVE within 12 hours. For detailed
information, see Storage Classes for Archiving Objects.
If you archive a tape in GLACIER, you can move it to DEEP_ARCHIVE later. For more information, see
Moving Your Tape from Glacier to Deep Archive Storage Class (p. 180).
Note
Tapes created before March 27, 2019, are archived directly in Amazon S3 Glacier when your
backup software ejects it.
8. Choose Create tapes.

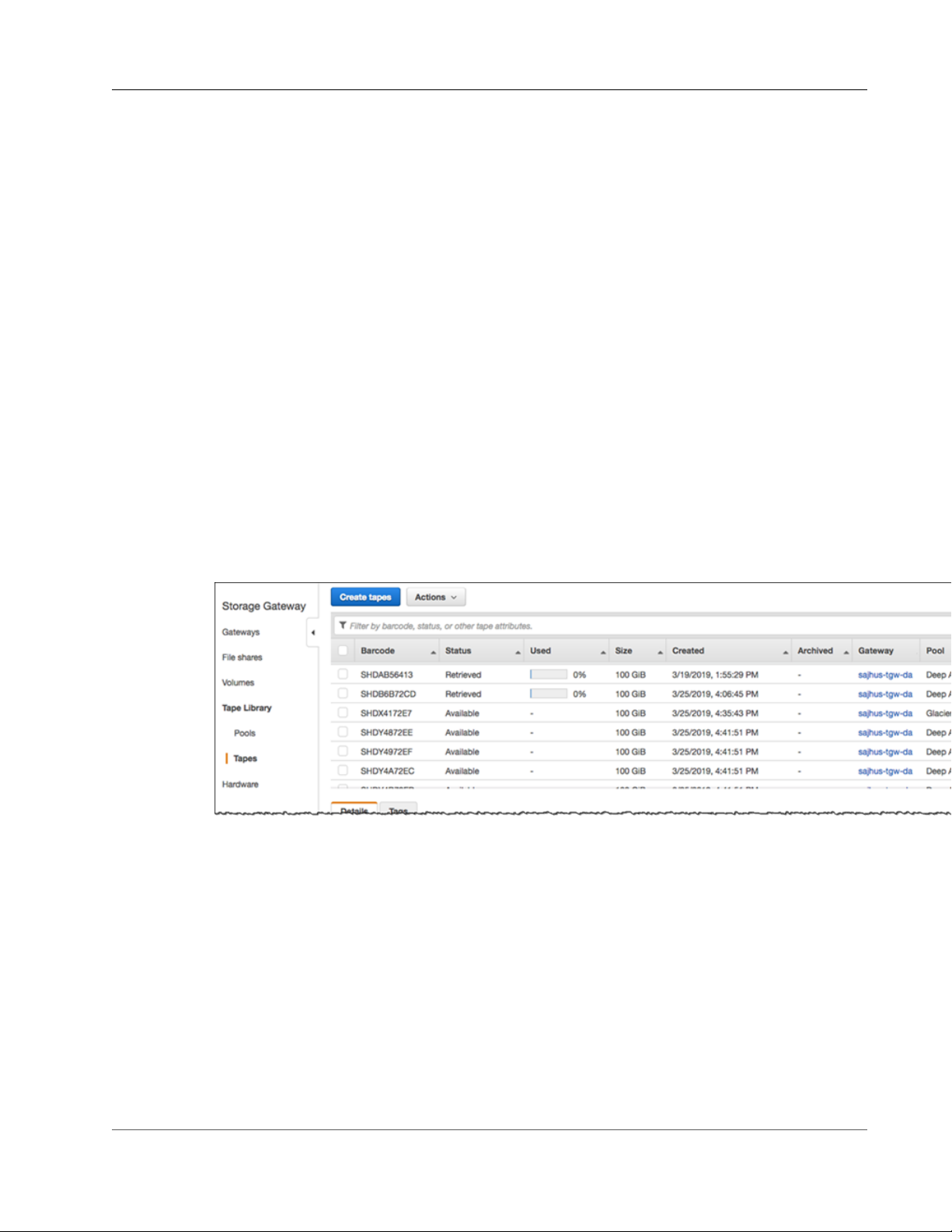

9. In the navigation pane, choose the Tape Library tab and choose Tapes to see your tapes.
The status of the virtual tapes is initially set to CREATING when the virtual tapes are being created. After
the tapes are created, their status changes to AVAILABLE. For more information, see Managing Your
Tape Gateway (p. 178).
Next Step
Using Your Tape Gateway (p. 83)
Using Your Tape Gateway
Following, you can find instructions about how to use your tape gateway.
Topics
• Connecting Your VTL Devices (p. 84)
API Version 2013-06-30
83
Page 91
AWS Storage Gateway User Guide
Using Your Tape Gateway
• Using Your Backup Software to Test Your Gateway Setup (p. 86)
• Where Do I Go from Here? (p. 133)
Connecting Your VTL Devices
Following, you can find instructions about how to connect your virtual tape library (VTL) devices to your
Microsoft Windows or Red Hat Enterprise Linux (RHEL) client.
Topics
• Connecting to a Microsoft Windows Client (p. 84)
• Connecting to a Linux Client (p. 85)
Connecting to a Microsoft Windows Client
The following procedure shows a summary of the steps that you follow to connect to a Windows client.
To connect your VTL devices to a Windows client
1. Start iscsicpl.exe.
Note
You must have administrator rights on the client computer to run the iSCSI initiator.
2. Start the Microsoft iSCSI initiator service.
3. In the iSCSI Initiator Properties dialog box, choose the Discovery tab, and then choose the Discover
Portal button.
4. Provide the IP address of your tape gateway for IP address or DNS name.
5. Choose the Targets tab, and then choose Refresh. All 10 tape drives and the medium changer
appear in the Discovered targets box. The status for the targets is Inactive.
6. Choose the first device and connect it. You connect the devices one at a time.
7. Connect all of the targets.
On a Windows client, the driver provider for the tape drive must be Microsoft. Use the following
procedure to verify the driver provider, and update the driver and provider if necessary:
To verify and update the driver and provider
1. On your Windows client, start Device Manager.
2. Expand Tape drives, open the context (right-click) menu for a tape drive, and choose Properties.
3. In the Driver tab of the Device Properties dialog box, verify Driver Provider is Microsoft.
4. If Driver Provider is not Microsoft, set the value as follows:
a. Choose Update Driver.
b. In the Update Driver Software dialog box, choose Browse my computer for driver software.
c. In the Update Driver Software dialog box, choose Let me pick from a list of device drivers on
my computer.
d. Choose LTO Tape drive and choose Next.
5. Choose Close to close the Update Driver Software window, and verify that the Driver Provider
value is now set to Microsoft.
6. Repeat the steps to update driver and provider for all the tape drives.
API Version 2013-06-30
84
Page 92
AWS Storage Gateway User Guide
Using Your Tape Gateway
Connecting to a Linux Client
The following procedure shows a summary of the steps that you follow to connect to an RHEL client.
To connect a Linux client to VTL devices
1. Install the iscsi-initiator-utils RPM package.
You can use the following command to install the package.
sudo yum install iscsi-initiator-utils
2. Make sure that the iSCSI daemon is running.
For RHEL 5 or 6, use the following command.
sudo /etc/init.d/iscsi status
For RHEL 7, use the following command.
sudo service iscsid status
3. Discover the volume or VTL device targets defined for a gateway. Use the following discovery
command.
sudo /sbin/iscsiadm --mode discovery --type sendtargets --portal [GATEWAY_IP]:3260
The output of the discovery command looks like the following example output.
For volume gateways: [GATEWAY_IP]:3260, 1 iqn.1997-05.com.amazon:myvolume
For tape gateways: iqn.1997-05.com.amazon:[GATEWAY_IP]-tapedrive-01
4. Connect to a target.
Make sure to specify the correct [GATEWAY_IP] and IQN in the connect command.
Use the following command.
sudo /sbin/iscsiadm --mode node --targetname iqn.1997-05.com.amazon:[ISCSI_TARGET_NAME]
--portal [GATEWAY_IP]:3260,1 --login
5. Verify that the volume is attached to the client machine (the initiator). To do so, use the following
command.
ls -l /dev/disk/by-path
The output of the command should look like the following example output.
lrwxrwxrwx. 1 root root 9 Apr 16 19:31 ip-[GATEWAY_IP]:3260-iscsiiqn.1997-05.com.amazon:myvolume-lun-0 -> ../../sda
We highly recommend that after you set up your initiator you customize your iSCSI settings as
discussed in Customizing Your Linux iSCSI Settings (p. 376).
Next Step
API Version 2013-06-30
85
Page 93
AWS Storage Gateway User Guide
Using Your Tape Gateway
Using Your Backup Software to Test Your Gateway Setup (p. 86)
Using Your Backup Software to Test Your Gateway Setup
You test your tape gateway setup by performing the following tasks using your backup application:
1. Configure the backup application to detect your storage devices.
Note
To improve I/O performance, we recommend setting the block size of the tape drives in
your backup application to 1 MB For more information, see Use a Larger Block Size for Tape
Drives (p. 288).
2. Back up data to a tape.
3. Archive the tape.
4. Retrieve the tape from the archive.
5. Restore data from the tape.
To test your setup, use a compatible backup application, as described following.
Note
Unless otherwise stated, all backup applications were qualified on Microsoft Windows.
Topics
• Testing Your Setup by Using Arcserve Backup r17.0 (p. 86)
• Testing Your Setup by Using Bacula Enterprise (p. 89)
• Testing Your Setup by Using Commvault (p. 91)
• Testing Your Setup by Using Dell EMC NetWorker (p. 95)
• Testing Your Setup by Using IBM Spectrum Protect (p. 97)
• Testing Your Setup by Using Micro Focus (HPE) Data Protector (p. 99)
• Testing Your Setup by Using Microsoft System Center Data Protection Manager (p. 104)
• Testing Your Setup by Using NovaStor DataCenter/Network (p. 107)
• Testing Your Setup by Using Quest NetVault Backup (p. 112)
• Testing Your Setup by Using Veeam Backup & Replication (p. 115)
• Testing Your Setup by Using Veritas Backup Exec (p. 118)
• Testing Your Setup by Using Veritas NetBackup (p. 122)
For more information about compatible backup applications, see Supported Third-Party Backup
Applications for a Tape Gateway (p. 22).
Testing Your Setup by Using Arcserve Backup r17.0
You can back up your data to virtual tapes, archive the tapes, and manage your virtual tape library (VTL)
devices by using Arcserve Backup r17.0. In this topic, you can find basic documentation to configure
Arcserve Backup with a tape gateway and perform a backup and restore operation. For detailed
information about to use Arcserve Backup r17.0, see Arcserve Backup r17 documentation in the Arcserve
Administration Guide.

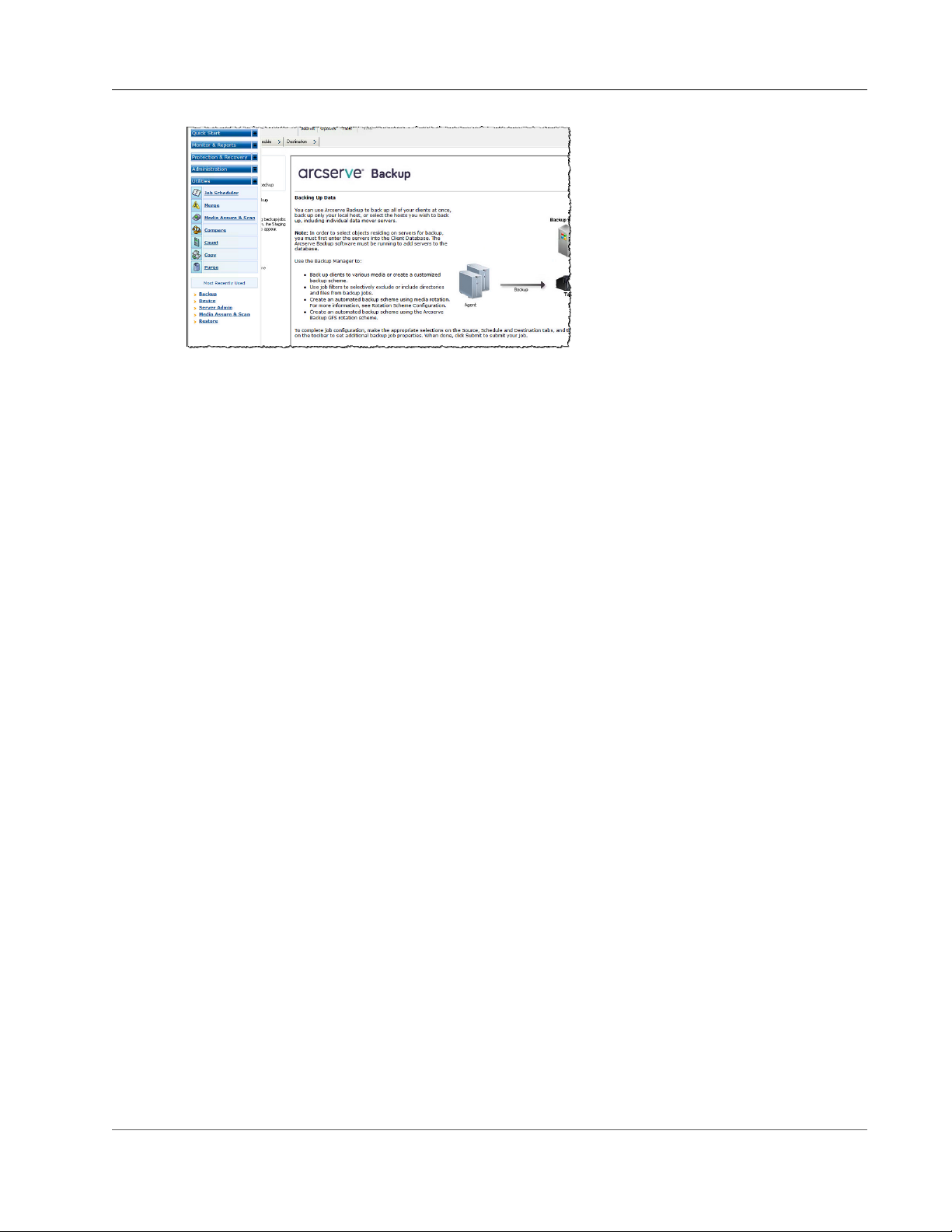

The following screenshot shows the Arcserve menus.
API Version 2013-06-30
86
Page 94
AWS Storage Gateway User Guide
Using Your Tape Gateway
Topics
• Configuring Arcserve to Work with VTL Devices (p. 87)
• Loading Tapes into a Media Pool (p. 87)
• Backing Up Data to a Tape (p. 88)
• Archiving a Tape (p. 88)
• Restoring Data from a Tape (p. 88)
Configuring Arcserve to Work with VTL Devices
After you have connected your virtual tape library (VTL) devices to your client, you scan for your devices.
To scan for VTL devices
1. In the Arcserve Backup Manager, choose the Utilities menu.
2. Choose Media Assure and Scan.
Loading Tapes into a Media Pool
When the Arcserve software connects to your gateway and your tapes become available, Arcserve
automatically loads your tapes. If your gateway is not found in the Arcserve software, try restarting the
tape engine in Arcserve.
To restart the tape engine
1. Choose Quick Start, choose Administration, and then choose Device.
2. On the navigation menu, open the context (right-click) menu for your gateway and choose an
import/export slot.
3. Choose Quick Import and assign your tape to an empty slot.
4. Open the context (right-click) menu for your gateway and choose Inventory/Offline Slots.
5. Choose Quick Inventory to retrieve media information from the database.
If you add a new tape, you need to scan your gateway for the new tape to have it appear in Arcserve. If
the new tapes don't appear, you must import the tapes.
To import tapes
1. Choose the Quick Start menu, choose Back up, and then choose Destination tap.
2. Choose your gateway, open the context (right-click) menu for one tape, and then choose Import/
Export Slot.
API Version 2013-06-30
87
Page 95
AWS Storage Gateway User Guide
Using Your Tape Gateway
3. Open the context (right-click) menu for each new tape and choose Inventory.
4. Open the context (right-click) menu for each new tape and choose Format.
Each tape's barcode now appears in your Storage Gateway console, and each tape is ready to use.
Backing Up Data to a Tape
When your tapes have been loaded into Arcserve, you can back up data. The backup process is the same
as backing up physical tapes.
To back up data to a tape
1. From the Quick Start menu, open the restore a backup session.
2. Choose the Source tab, and then choose the file system or database system that you want to back
up.
3. Choose the Schedule tab and choose the repeat method you want to use.
4. Choose the Destination tab and then choose the tape you want to use. If the data you are backing
up is larger than the tape can hold, Arcserve prompts you to mount a new tape.
5. Choose Submit to back up your data.
Archiving a Tape
When you archive a tape, your tape gateway moves the tape from the tape library to the offline storage.
Before you eject and archive a tape, you might want to check the content on it.
To archive a tape
1. From the Quick Start menu, open the restore a backup session.
2. Choose the Source tab, and then choose the file system or database system you want to back up.
3. Choose the Schedule tab and choose the repeat method you want to use.
4. Choose your gateway, open the context (right-click) menu for one tape, and then choose Import/
Export Slot.
5. Assign a mail slot to load the tape. The status in the Storage Gateway console changes to Archive.
The archive process might take some time.
The archiving process can take some time to complete. The initial status of the tape appears as
IN TRANSIT TO VTS. When archiving starts, the status changes to ARCHIVING. When archiving is
completed, the tape is no longer listed in the VTL but is archived in S3 Glacier or S3 Glacier Deep Archive.
Restoring Data from a Tape
Restoring your archived data is a two-step process.
To restore data from an archived tape
1. Retrieve the archived tape to a tape gateway. For instructions, see Retrieving Archived
Tapes (p. 181).
2. Use Arcserve to restore the data. This process is the same as restoring data from physical tapes. For
instructions, see the Arcserve Backup r17 documentation.
To restore data from a tape, use the following procedure.
To restore data from a tape
1. From the Quick Start menu, open the restore a restore session.
API Version 2013-06-30
88
Page 96
AWS Storage Gateway User Guide
Using Your Tape Gateway
2. Choose the Source tab, and then choose the file system or database system you want to restore.
3. Choose the Destination tab and accept the default settings.
4. Choose the Schedule tab, choose the repeat method that you want to use, and then choose Submit.
Next Step
Cleaning Up Resources You Don't Need (p. 133)
Testing Your Setup by Using Bacula Enterprise
You can back up your data to virtual tapes, archive the tapes, and manage your virtual tape library (VTL)
devices by using Bacula Enterprise version 10. In this topic, you can find basic documentation on how to
configure the Bacula version 10 backup application for a tape gateway and perform backup and restore
operations. For detailed information about how to use Bacula version 10, see Bacula Systems Manuals
and Documentation or contact Bacula Systems.
Note
Bacula is only supported on Linux.
Setting Up Bacula Enterprise
After you have connected your virtual tape library (VTL) devices to your Linux client, you configure the
Bacula software to recognize your devices. For information about how to connect VTL devices to your
client, see Connecting Your VTL Devices (p. 84).
To set up Bacula
1. Get a licensed copy of the Bacula Enterprise backup software from Bacula Systems.
2. Install the Bacula Enterprise software on your on-premises or in-cloud computer.
For information about how to get the installation software, see Enterprise Backup for Amazon S3
and AWS Storage Gateway. For additional installation guidance, see the Bacula whitepaper Using
Cloud Services and Object Storage with Bacula Enterprise Edition.
Configuring Bacula to Work with VTL Devices
Next, configure Bacula to work with your VTL devices. Following, you can find basic configuration steps.
To configure Bacula
1. Install the Bacula Director and the Bacula Storage daemon. For instructions, see chapter 7 of the
Using Cloud Services and Object Storage with Bacula Enterprise Edition Bacula white paper.
2. Connect to the system that is running Bacula Director and configure the iSCSI initiator. To do so, use
the script provided in step 7.4 in the Using Cloud Services and Object Storage with Bacula Enterprise
Edition Bacula whitepaper.
3. Configure the storage devices. Use the script provided in the Bacula whitepaper discussed preceding.
4. Configure the local Bacula Director, add storage targets, and define media pools for your tapes. Use
the script provided in the Bacula whitepaper discussed preceding.
Backing Up Data to Tape
1. Create tapes in the Storage Gateway console. For information on how to create tapes, see Creating
Tapes (p. 82).
2. Transfer tapes from the I/E slot to the storage slot by using the following command.
/opt/bacula/scripts/mtx-changer
API Version 2013-06-30
89
Page 97
AWS Storage Gateway User Guide
Using Your Tape Gateway
For example, the following command transfers tapes from I/E slot 1601 to storage slot 1.
/opt/bacula/scripts/mtx-changer transfer 1601 1
3. Launch the Bacula console by using the following command.
/opt/bacula/bin/bconsole
Note
When you create and transfer a tape to Bacula, use the Bacula console (bconsole) command
update slots storage=VTL so that Bacula knows about the new tapes that you created.
4. Label the tape with the barcode as the volume name or label by using the following bconsole
command.
label storage=VTL pool=pool.VTL barcodes === label the tapes with the
barcode as the volume name / label
5. Mount the tape by using the following command.
mount storage=VTL slot=1 drive=0
6. Create a backup job that uses the media pools you created, and then write data to the virtual tape
by using the same procedures that you do with physical tapes.
7. Unmount the tape from the Bacula console by using the following command.
umount storage=VTL slot=1 drive=0
Archiving a Tape
When all backup jobs for a particular tape are done and you can archive the tape, use the mtx-changer
script to move the tape from the storage slot to the I/E slot. This action is similar to the eject action in
other backup applications.
To archive a tape
1. Transfer the tape from the storage slot to the I/E slot by using the /opt/bacula/scripts/mtxchanger command.
For example, the following command transfers a tape from the storage slot 1 to I/E slot 1601.
/opt/bacula/scripts/mtx-changer transfer 1 1601
2. Verify that the tape is archived in the offline storage (GLACIER or DEEP_ARCHIVE) and that the tape
has the status Archived.
Restoring Data from an Archived and Retrieved Tape
Restoring your archived data is a two-step process.
To restore data from an archived tape
1. Retrieve the archived tape from archive to a tape gateway. For instructions, see Retrieving Archived
Tapes (p. 181).
2. Restore your data by using the Bacula software:
a. Import the tapes into the storage slot by using the /opt/bacula/scripts/mtx-changer
command to transfer tapes from the I/E slot.
For example, the following command transfers tapes from I/E slot 1601 to storage slot 1.
API Version 2013-06-30
90
Page 98
AWS Storage Gateway User Guide
Using Your Tape Gateway
/opt/bacula/scripts/mtx-changer transfer 1601 1
b. Use the Bacula console to update the slots, and then mount the tape.
c. Run the restore command to restore your data. For instructions, see the Bacula documentation.
Testing Your Setup by Using Commvault
You can back up your data to virtual tapes, archive the tapes, and manage your virtual tape library
(VTL) devices by using Commvault version 11. In this topic, you can find basic documentation on how
to configure the Commvault backup application for a tape gateway, perform a backup archive, and
retrieve your data from archived tapes. For detailed information about how to use Commvault, see the
Commvault documentation on the Commvault website.
Topics
• Configuring Commvault to Work with VTL Devices (p. 91)
• Creating a Storage Policy and a Subclient (p. 92)
• Backing Up Data to a Tape in Commvault (p. 93)
• Archiving a Tape in Commvault (p. 93)
• Restoring Data from a Tape (p. 94)
Configuring Commvault to Work with VTL Devices
After you connect the VTL devices to the Windows client, you configure Commvault to recognize them.
For information about how to connect VTL devices to the Windows client, see Connecting Your VTL
Devices to a Windows client (p. 368).
The Commvault backup application doesn't automatically recognize VTL devices. You must manually add
devices to expose them to the Commvault backup application and then discover the devices.
To configure Commvault

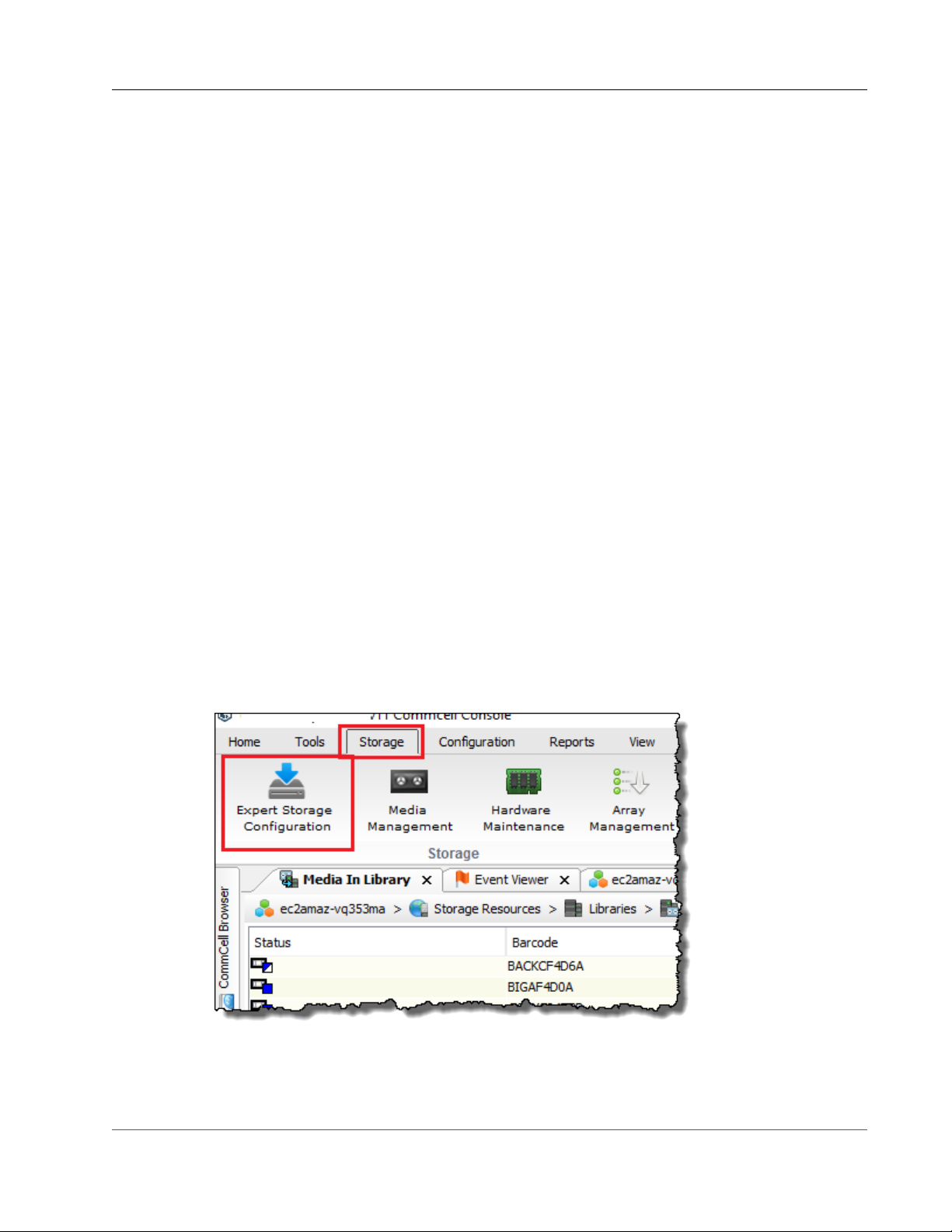

1. In the CommCell console main menu, choose Storage, and then choose Expert Storage
Configuration to open the Select MediaAgents dialog box.
2. Choose the available media agent you want to use, choose Add, and then choose OK.
3. In the Expert Storage Configuration dialog box, choose Start, and then choose Detect/Configure
Devices.
API Version 2013-06-30
91
Page 99
AWS Storage Gateway User Guide
Using Your Tape Gateway
4. Leave the Device Type options selected, choose Exhaustive Detection, and then choose OK.
5. In the Confirm Exhaustive Detection confirmation box, choose Yes.
6. In the Device Selection dialog box, choose your library and all its drives, and then choose OK. Wait
for your devices to be detected, and then choose Close to close the log report.
7. Right-click your library, choose Configure, and then choose Yes. Close the configuration dialog box.
8. In the Does this library have a barcode reader? dialog box, choose Yes, and then for device type,
choose IBM ULTRIUM V5.

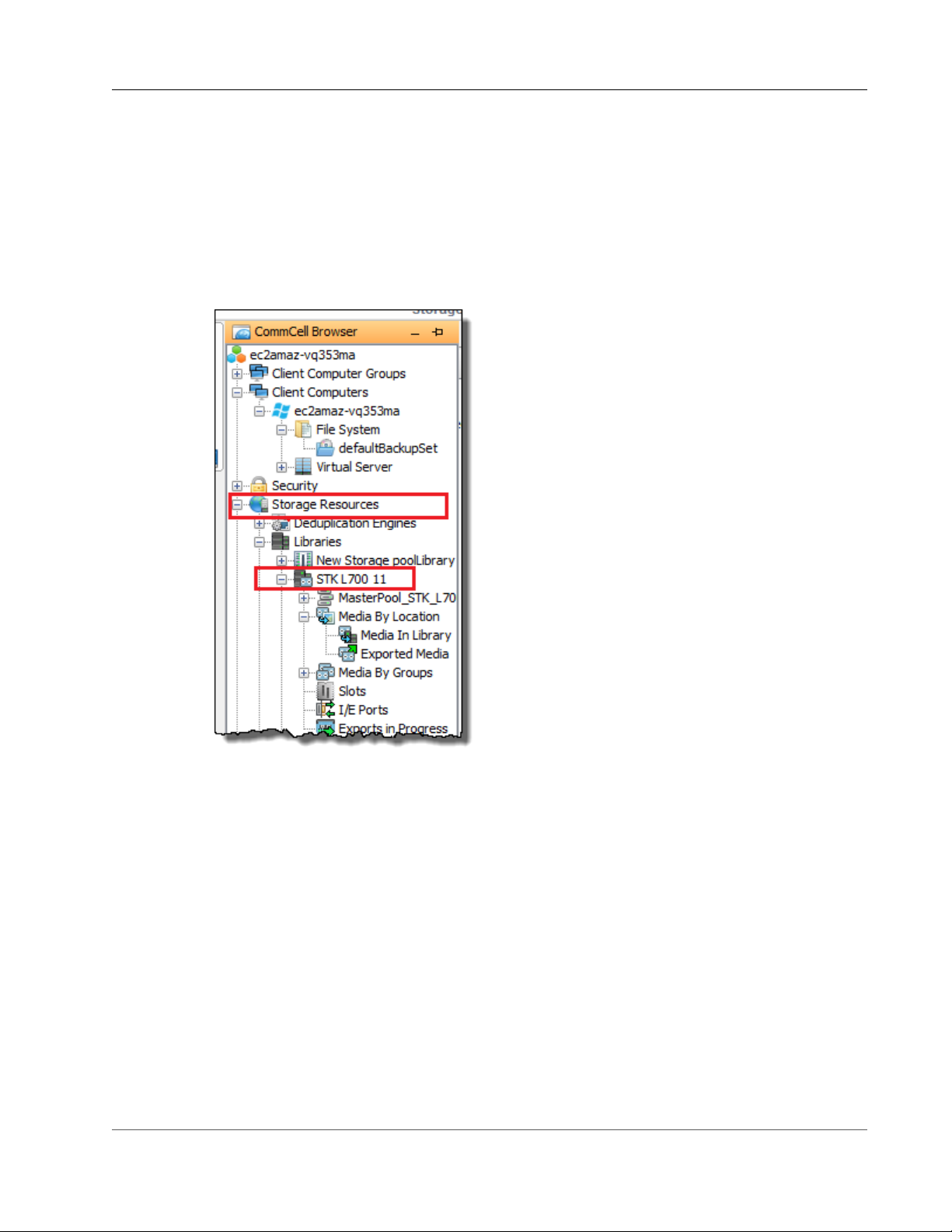

9. In the CommCell browser, choose Storage Resources, and then choose Libraries to see your tape
library.
10. To see your tapes in your library, open the context (right-click) menu for your library, and then
choose Discover Media, Media location, Media Library.
11. To mount your tapes, open the context (right-click) menu for your media, and then choose Load.
Creating a Storage Policy and a Subclient
Every backup and restore job is associated with a storage policy and a subclient policy.
A storage policy maps the original location of the data to your media.
To create a storage policy
1. In the CommCell browser, choose Policies.
2. Open the context (right-click) menu for Storage Policies, and then choose New Storage Policy.
3. In the Create Storage Policy wizard, choose Data Protection and Archiving, and then choose Next.
4. Type a name for Storage Policy Name, and then choose Incremental Storage Policy. To associate
this storage policy with incremental loads, choose one of the options. Otherwise, leave the options
unchecked, and then choose Next.
API Version 2013-06-30
92
Page 100
AWS Storage Gateway User Guide
Using Your Tape Gateway
5. In the Do you want to Use Global Deduplication Policy? dialog box, choose your Deduplication
preference, and then choose Next.
6. From Library for Primary Copy, choose your VTL library, and then choose Next.
7. Verify that your media agent settings are correct, and then choose Next.
8. Verify that your scratch pool settings are correct, and then choose Next.
9. Configure your retention policies in iData Agent Backup data, and then choose Next.
10. Review the encryption settings, and then choose Next.
11. To see your storage policy, choose Storage Policies.
You create a subclient policy and associate it with your storage policy. A subclient policy enables you
to configure similar file system clients from a central template, so that you don't have to set up many
similar file systems manually.
To create a subclient policy
1. In the CommCell browser, choose Client Computers, and then choose your client computer. Choose
File System, and then choose defaultBackupSet.
2. Right-click defaultBackupSet, choose All Tasks, and then choose New Subclient.
3. In the Subclient properties box, type a name in SubClient Name, and then choose OK.
4. Choose Browse, navigate to the files that you want to back up, choose Add, and then close the
dialog box.
5. In the Subclient property box, choose the Storage Device tab, choose a storage policy from Storage
policy, and then choose OK.
6. In the Backup Schedule window that appears, associate the new subclient with a backup schedule.
7. Choose Do Not Schedule for one time or on-demand backups, and then choose OK.
You should now see your subclient in the defaultBackupSet tab.
Backing Up Data to a Tape in Commvault
You create a backup job and write data to a virtual tape by using the same procedures you use with
physical tapes. For detailed information about how to back up data, see the Commvault documentation.
Archiving a Tape in Commvault
You start the archiving process by ejecting the tape. When you archive a tape, tape gateway moves the
tape from the tape library to offline storage. Before you eject and archive a tape, you might want to first
check the content on the tape.
To archive a tape
1. In the CommCell browser, choose Storage Resources, Libraries, and then choose Your library.
Choose Media By Location, and then choose Media In Library.
2. Open the context (right-click) menu for the tape you want to archive, choose All Tasks, choose
Export, and then choose OK.
The archiving process can take some time to complete. The initial status of the tape appears as
IN TRANSIT TO VTS. When archiving starts, the status changes to ARCHIVING. When archiving is
completed, the tape is no longer listed in the VTL.
In the Commvault software, verify that the tape is no longer in the storage slot.
API Version 2013-06-30
