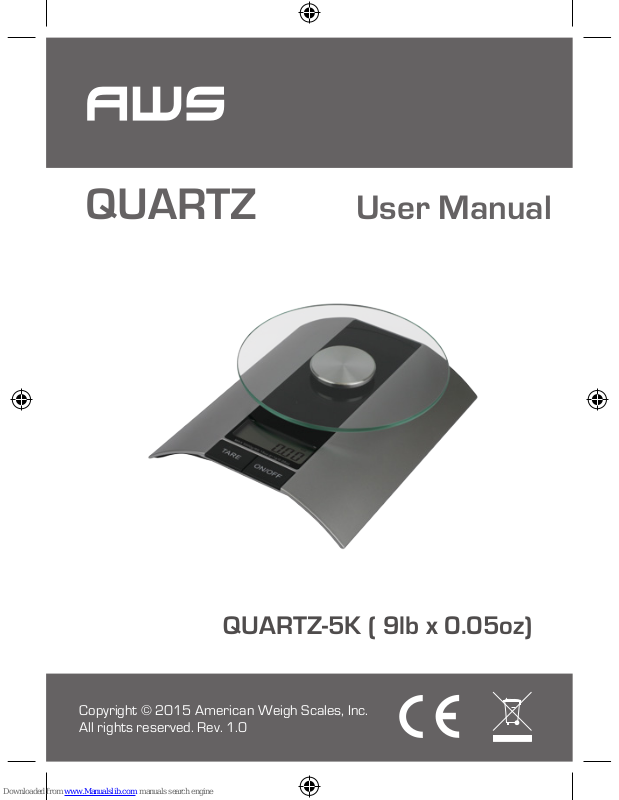

AWS QUARTZ-5K User Manual

QUARTZ-5K ( 9lb x 0.05oz)

User Manual

QUARTZ

Copyright © 2015 American Weigh Scales, Inc.
All rights reserved. Rev. 1.0

QUARTZ

Thank you for purchasing the American Weigh
QUARTZ digital kitchen scale. Please read all operating
instructions carefully before use. Scales are precision
measuring devices and should always be handled with
proper care. To ensure years of reliable service, keep these
simple tips in mind:

• Use on a solid, level surface.

• Do not exceed the scale’s maximum capacity.
Overloading your scale can permanently damage it.

• Avoid exposure to extreme heat or cold. Scales
perform best at normal room temperature.

• Store your scale in a clean, dry location. Dust, dirt,
and moisture can accumulate on the weighing
sensors and electronics causing inaccuracy or
malfunction.

• Gently apply all items to be weighed. Do not drop
items onto the weighing platform.

• Check the batteries rst if you are having any trouble
with your scale. This simple step can remedy most
scale issues.

• Do not disassemble your scale. This product contains
no user serviceable parts.

• Do not immerse this product in water

• Clean with a soft damp cloth. Do not user chemicals
or harsh abrasives.

• Remove the battery if storing the scale for long
periods of time.

• Waste batteries should not be disposed of with
household waste. Check with your local authority for
battery and recycling advice.

I. Part List

1. Scale

2. AAA Batteries (x2)

II. Key Description

1. TARE - Press to rezero the scale.

2. ON/OFF - Press to turn the scale ON or OFF

3. g/oz Key - Press to change the weighing unit

III. Battery Installation

1. Before using the scale for the rst time, check
the battery compartment and remove any plastic
insulation strips or packaging that may be in place to
prevent battery drainage during shipping/storage.

2. If you are replacing the batteries, make sure the
positive and negative contacts are properly aligned.

TARE

MAX 5000g/9lb 15oz d=1g/0.05oz

ON/OFF

oz

TARE Key

g/oz Key
(underneath scale)

ON/OFF Key

QUARTZ

IV. Operation

1. Place the scale on a at, level surface and tap the
ON/OFF key to turn the scale on.

2. Once the start-up process completes and the scale
goes to zero you are ready to weigh.

3. Place the quantity to be weighed onto the weighing
platform.

4. Wait a couple seconds for the display to stabilize
before taking a weight reading.

5. To turn the scale off, press and hold the ON/OFF
key.

V. Changing the Unit of Measure

1. Press the g/oz key on the bottom side of the scale
to change the displayed weighing unit.

2. If the scale is turned off then back on, it will default
to the last unit used.

• QUARTZ-5K Units: lb:oz (pound:ounce) g
(gram)

VI. Using the Tare Feature

You can use this scale’s tare feature to subtract the weight
of an empty container or vessel for net weight determination.
NOTE: The weight of the container will subtract from the
available capacity.

1. With the scale ON, place the empty container or
vessel on the weighing platform.

2. Press the TARE key once. The display will then
reset to zero. If the container is removed, it’s weight
will be displayed as a negative number.

3. You may now ll the container with the quantity to be
weighed. The display will show the net weight of the
contents.

4. To return to normal weight display (gross weight),
remove any items from the weighing platform and
press the TARE key again to re-zero the scale.

VII. Troubleshooting

• Problem: Scale will not turn on

• Solution: Check the batteries

• Problem: Displayed weight uctuates randomly

• Solution: Make sure your workspace is stable and
free of any air currents or vibration

VIII. Error Codes

1. LO - The battery is running low. Please replace the

battery.

2. - - - - - - Maximum capacity exceeded. Remove the
extra weight to avoid damaging the load cell.

3. UNST - Scale is unstable. Use the scale in a more
stable position.

QUARTZ

IX. Specications

QUARTZ-5K

Max. Capacity 9lb / 5000g

Readability 0.05oz / 1g

Power 2 x AAA Batteries

Dimensions 8.0 x 6.5 x 1.7 in.
Display Dimensions 0.8 x 1.6 in.
Platform Dimensions Ø 4.3 in.

Warranty 10 Year Limited Warranty

X. Capacity/Readability Charts

QUARTZ-5K

9lb x 0.05oz

5000g x 1g

American Weigh Scales, Inc.

Norcross, GA 30092

Made in China to our exact specications and quality control.
