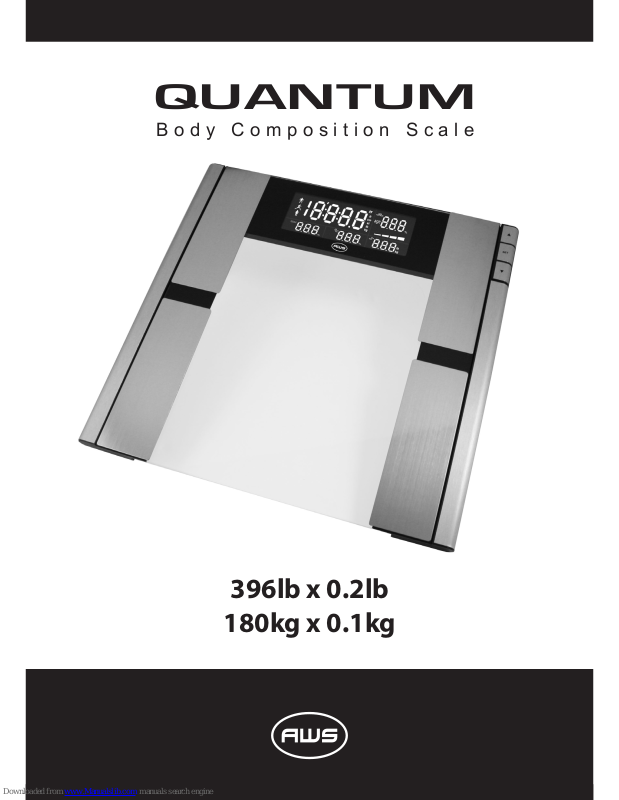

QUANTUM
Body Composition Scale
396lb x 0.2lb
180kg x 0.1kg
Quantum Manual
Thank you for purchasing the American Weigh Quantum
Body Composition Scale. Please read all operating
instructions carefully before use. Scales are precision
instruments and should always be handled with proper
care.
Special Note on Body Composition Analysis
Body fat scales and analyzers use bioelectrical impedance
analysis (BIA) technology to calculate body fat %.
This technology works by measuring the resistance
(impedance) of small electrical currents through your body.
When the user’s height and body impedance are known,
the scale can accurately determine total body water (TBW)
and fat-free mass (FFM). Fat-free mass is then subtracted
from your total body weight to obtain your body fat mass.
This scale should be used while barefooted. Measurement
errors can arise if weighing while wearing socks or
pantyhose. To avoid slipping, do not step on the scale with
wet feet. Do not use the scale on carpet.
Although BIA method uses a safe, low level of electrical
current, users with pacemakers or other electric
medical devices or implants should not operate this
scale.
I. Display Overview
II. Key Functions
- Increase Current Setting Value
SET - Enter Setup / Confirm
- Decrease Current Setting Value
III. Battery Installation
This scale should come with batteries in the box.
To install the batteries, turn the scale over and
remove the battery cover. Insert four (4) AAA
batteries according to the diagram inside the
battery compartment. Replace the battery cover.
Height / Weight
Body Type
Body Water % Bone Mass
Body Muscle %
Body Fat %
IV. Turning the Scale On and Off
This scale has an Auto-On and Auto-Off feature. The scale
will automatically turn on when the user steps on the
platform and automatically turn off after the user steps
off the platform. This scale is ready to weigh, and does not
require tapping first before stepping on the scale.
V. Changing Weighing Units
To change the current weighing unit, use the “kg/st/lb”
button on the bottom side of the scale. Notice the display
will change between kg, st:lb, and lb with each button
press.
VI. Entering Personal Data
Before you can use this scale’s body composition features
(such as body fat), you must enter your personal data. The
scale can remember personal data for up to 8 different
users.
Press the “SET” button to enter setup mode.•
P# will flash on the display (where # is the User ID, 1-8).•
Use •
and to change the number and press “SET” to
confirm.
The display will then prompt you to select your body •
physique. Use
and to choose the icon that
corresponds with your personal body physique (female,
male, athelete mode) and press SET to confirm.
The display will prompt you to select your height. Use •
and to change the height and press “SET” to
confirm.
The display will prompt you to select your age. Use •
and to change the number and press “SET” to
confirm.
The scale will return to weighing mode after confirming •
your personal data.
VII. Weighing and Analyzing
Without entering personal data:
Step onto the scale to activate the Auto-On feature.•
If the user is not automatically recognized, only the •
body weight information is displayed for 6 seconds. The
scale will then turn off automatically.
With personal data entered:
Step onto the scale to activate the Auto-On feature.•
The scale should automatically recognize the user and •
display their User ID. Press SET to confirm the User ID.
After the User ID is confirmed the body composition •
data such as body fat, water, muscle, and bone is
displayed for 20 seconds. The scale will then turn off
automatically.
VIII. Body Composition Charts
Body Fat %
Age
Female Male
Underweight
Healthy
Over-
weight
Obese
Underweight
Healthy
Over-
weight
Obese
10-12 <12 12-22 22-30 >30 <8 8-18 18-24 >24
13-18 <15 15-25 25-33 >33 <8 8-18 18-24 >24
19-30 <20 22-31 31-38 >38 <8 8-18 18-24 >24
31-40 <24 24-33 33-40 >40 <11 11-20 20-26 >26
41-50 <24 24-33 33-40 >40 <13 13-22 22-28 >28
51-60 <26 26-35 35-42 >42 <15 15-24 24-30 >30
60+ <28 28-37 37-47 >47 <17 17-25 26-34 >34
Body Water %
Age
Female Male
Healthy Healthy
10-12 >60 >64
13-18 >58.5 >63.5
19-30 >56 >62.5
31-40 >53 >61
41-50 >52 >60
51-60 >51 >59
60+ >50 >58
Body Muscle %
Age
Female Male
Healthy Healthy
10-99 >34 >40
Bone Mass
Female Male
Weight <100lb 100-130lb >130lb <130lb 130-165 >165lb
Bone 4lb 4.8lb 5.5lb 5.5lb 6.4lb 7lb
IX Troubleshooting
Problem: The display shows “- - - -”:
Solution: The scale is overloaded. Remove the excess
weight.
Problem: The display shows “Lo”.
Solution: Battery power is low. Replace the batteries.
Problem: The display shows “Err2”.
Solution: There was an error in calculating body
composition data. Please try again.
Model Quantum
Capacity
180kg / 396lb / 28st:5lb
Resolution
0.1kg / 0.2lb / 0.2lb (1.0lb for ≥280lb)
Weighing Units
kg, lb, st:lb
Memory
8 User Memory with Auto Recognition
Scale Dimensions (inches)
11.8 x 12.2 x 0.7”
Power
4 x AAA Batteries (included)
Warranty
10 Year Warranty
American Weigh Scales, Inc.
3285 Saturn Court
Norcross, GA 30092
Tel: 866-643-3444 (toll free)
Fax: 770-543-0258
