MotionCam
System Installation Manual
AWS-WXN-60001.001 Release 3, Version 2.0
May 2004
AWS Part #8565
Page 2
MotionCam Installation Manual
Copyright
Copyright 2003, by AWS Convergence Technologies, Inc.
All Rights Reserved.
Manual Copyright, 2003, by AWS Convergence Technologies, Inc.
All Rights Reserved.
Information in this document is subject to change without notice and
does not represent a commitment on the part of AWS Convergence
Technologies, Inc. The software described in this document is furnished
under a license agreement or non-disclosure agreement. The software
may be used or copied only in accordance with the terms of this
agreement. It is against the law to copy WeatherBug MotionCam
software on magnetic tape, disk or any other medium for any purpose
other than the purchaser's personal use.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 2 -
Page 3
MotionCam Installation Manual
FCC COMPLIANCE
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
The shielded interface cable (Video Coax Cable) supplied with this
equipment must be used in order to comply with the limits for a digital
device pursuant to Subpart B of Part 15 of FCC Rules.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 3 -
Page 4
MotionCam Installation Manual
Disclaimer
The procedures, methods, and hardware described in this manual are
intended to provide general guidelines and instructions for installing the
WeatherBug MotionCam system. Each installation site is unique and
each may require special considerations that are beyond the scope of
this manual. Any questions not covered within this manual should be
directed to WeatherBug Tracking Station Technical Support at (800)
624-4205 or email support@aws.com
All procedures, methods, and hardware used to install a WeatherBug
MotionCam system must conform to all applicable building codes
(national, state, and local). Installation subcontractors are responsible
for complying with all applicable codes. Buyer and/or installer provided
hardware must be equivalent or better (according to industry standards)
than that specified in the WeatherBug Installation Manual.
The buyer/installer is responsible for any damage caused by installation
of the WeatherBug MotionCam.
.
A Special Note to Buyer / Installer:
Do NOT install additional software on the MotionCam
Computer. This will void the warranty
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
THINK SAFETY FIRST!
!
- 4 -
Page 5
MotionCam Installation Manual
Table of Contents
COPYRIGHT .................................................................................... 2
FCC COMPLIANCE .......................................................................... 3
DISCLAIMER.................................................................................... 4
TABLE OF CONTENTS .................................................................... 5
THANK YOU! .................................................................................. 7
FEATURES OF THE WEATHERBUG MOTIONCAM ......................... 8
PLAN AHEAD .................................................................................. 9
SAFETY! ......................................................................................... 10
ELECTRICAL SPECIFICATIONS (OUTDOOR) ............................................ 11
General..................................................................................... 12
SITE EVALUATION ............................................................................ 13
What to Look For....................................................................... 14
Choose a Good View ................................................................. 14
INVENTORY .................................................................................. 15
CAMERA SYSTEM PARTS.................................................................... 15
Figure 1 - Camera Housing System ..................................... 16
OUTDOOR COMPONENTS ................................................................. 17
INDOOR COMPONENTS ..................................................................... 17
TOOLS NEEDED............................................................................... 18
Figure 2 - The MotionCam System ...................................... 19
INSTALLATION ............................................................................. 20
ROUTING THE CABLE........................................................................ 21
Figure 3 – Gooseneck Install ............................................... 24
Figure 4 - Main Power Cable Connections ........................... 25
Figure 5 – Hang Camera to allow Access to Cables ............. 26
Figure 6 - Cable Connections at Camera ............................. 27
Figure 7 – Threaded Mounting Cap Detail........................... 28
Figure 8 - The Three Indoor Cables..................................... 29
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 5 -
Page 6
MotionCam Installation Manual
AMERA PACKING MATERIAL ............................................................. 30
C
Figure 9 - Removing the Camera Packing Material .............. 31
Figure 10 - Lanyard Spring.................................................. 32
INDOOR CONNECTIONS .................................................................... 33
Figure 11 – Main Power Cable Connections......................... 34
Figure 12 – Power Supplies ................................................. 34
Figure 13 – Complete Main Power Cable System ................. 36
Figure 14 – Video Surge Suppressor .................................... 37
Figure 15 – Ethernet Surge Suppressor ................................ 38
Figure 16 – Computer Connections ..................................... 39
TROUBLESHOOTING.................................................................... 40
MAINTENANCE............................................................................. 41
ADDITIONAL INFORMATION....................................................... 42
PRECAUTIONS ................................................................................. 42
SPECIFICATIONS .......................................................................... 43
MOTIONCAM .................................................................................. 43
LENS ............................................................................................. 44
MECHANISM ................................................................................... 44
OTHER MOTIONCAM INFORMATION ................................................... 44
HOUSING INFORMATION ................................................................... 45
APPENDIX A – MOUNTING TEMPLATE ....................................... 46
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 6 -
Page 7
MotionCam Installation Manual
Thank You!

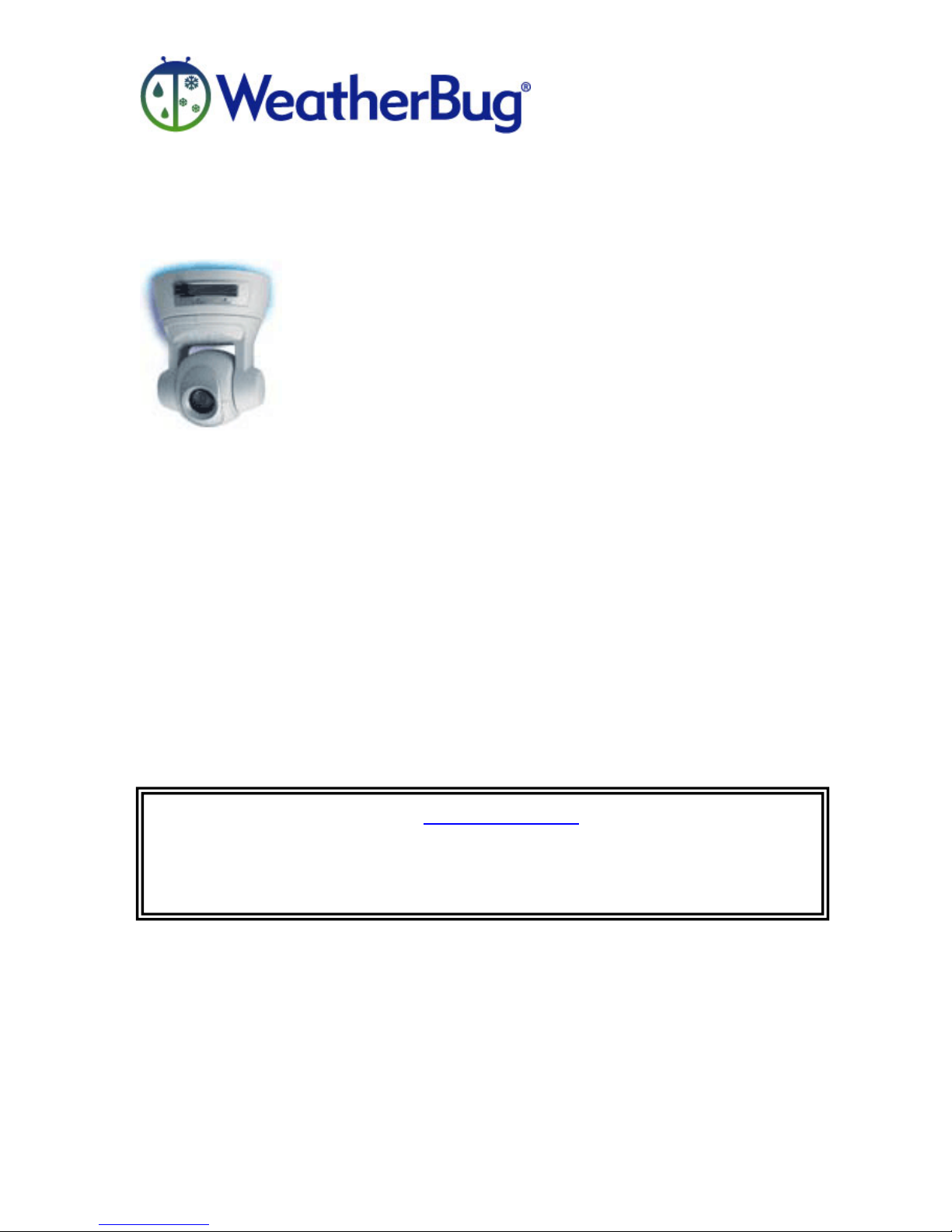

Thank you and congratulations on acquiring the AWS
Convergence Technologies, Inc. (AWS) WeatherBug
MotionCam system. The WeatherBug MotionCam is the
most advanced camera ever used for capturing photographs
of local weather conditions. The MotionCam is designed to
operate continuously to provide real time as well as
historical, time-lapse photographs taken at predefined
intervals.
The MotionCam can be operated from a local computer web browser to pan,
tilt, and zoom in and out to view subjects. These features allow users to view
changing weather patterns and events in a variety of site directions and
locations.
By installing and operating the entire WeatherBug system, you become a part
of the WeatherBug program, an integrated network of weather stations
comprising the largest weather monitoring system in the world.
We are confident that you will appreciate the benefits of adding MotionCam to
your weather system.
Please DO NOT remove the packing material from inside the
MotionCam Dome until the unit is fully mounted to the building! The
packing material helps protect the sensitive camera components
during the installation process.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 7 -
Page 8
MotionCam Installation Manual
Features of the WeatherBug MotionCam
High-quality monitoring via the network
You can monitor a high-quality, live image from the camera using most web
browsers connected to a LAN network. The maximum frame rate is 30 Frames
Per Second (FPS). You can also control the monitored image through the Web
browser to select what you want to view and how closely you want to zoom.
Remote-controlled, high-speed pan/tilt mechanism and high
magnification, auto-focus zoom lens
The camera is provided with:
• Pan Mechanism: high-speed (340° rotation within 2 seconds), wide-angle
(-170° to +170°)
• Tilt Mechanism: high-speed (115° rotation within 1.5 seconds), wide-
angle (-90° to +25°)
• Zoom Lens: high-magnification with an optical zoom of 25
magnifications and a digital zoom of 12 magnifications, giving 300
magnifications in total.
Preset positions and Tour programs
You can save up to 16 preset positions (pan, tilt, and zoom positions) for the
camera and up to 5 "Tour" programs composed from the preset positions. The
camera will repeatedly step through the "tour" and display the preset positions
that you program. The camera will pan, tilt, and zoom as needed through the
"tour."
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 8 -
Page 9
MotionCam Installation Manual
Plan Ahead
It is very important that this manual be read entirely before installing the
MotionCam. A full grasp of all steps to be completed before starting makes
installation easy and limits potential problems.
Please pay particular attention to the section on "Site Evaluation." A complete
site evaluation determines proper placement of the camera and will prevent the
need to have to re-mount the camera and re-route cables.
The most important aspect of preparation is safety. Installation of the
MotionCam requires working with electrical cable, drilling through walls or
other dense support structures, standing on ladders, and, possibly, walking on
roofs.
All additional parts needed (such as ladders, drills, bits, etc.) should be
assembled and inspected before beginning installation. WeatherBug cannot
accept responsibility for damage caused by these tools so all safety precautions
should be adhered to. This would include such things as the use of leather
gloves and goggles when appropriate.
The most important safety measures are:
• Roof and ladder safety is crucial!
• Read this document thoroughly
• Become familiar with each part and where it goes
• Determine ahead of time exactly what must be done to complete
installation
• Follow all local building codes
• Take all reasonable safety precautions - double checking a power cable
connection could save a life
• If there are any questions, doubts, or discrepancies, call WeatherBug
Tracking Station Technical Support at (800) 624-4205 or email
support@aws.com
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
.
- 9 -
Page 10
MotionCam Installation Manual
Safety!
(Please see Troubleshooting
While installation of the MotionCam is not particularly difficult, it does usually
require installation near the rooftop, which presents some amount of risk.
• Installation must conform to national, state, and local building code
requirements with the most stringent guidelines being adhered to.
• The MotionCam should only be installed by someone comfortable
with being on a high ladder or rooftop and who is authorized by the
site to perform the installation.
, Maintenance, and Precautions in this document)
• To limit risk to self and property, this manual should be thoroughly
read and understood before beginning installation.
• Only qualified personnel should install the MotionCam.
• Stay as far away from other electrical wiring as possible. Never allow
the camera housing, the cabling, a drill bit, or any other item to
contact electrical wires or conduit. Injury or death could result.
• If needed, WeatherBug may be able to recommend professional
installers and an estimate of the cost. If this is desired, please call
WeatherBug Tracking Station Technical Support at (800) 624-4205
or email support@aws.com
.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 10 -
Page 11
MotionCam Installation Manual
Safety! (continued)
Electrical Specifications (Outdoor)
(Please see the section on Specifications
The lightning flash with an arrowhead symbol alerts
the user to the presence of non-insulated "dangerous
voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock. Any components bearing this symbol should be
avoided and not dismantled.
for additional information)
Housing: Power 24 VAC (Volts Alternating Current), Class 2 only
• 26 watts at 24 VAC (accessories)
o Heater: 25 watts (W)
o Blower: 0.84 W
Camera: Power 12 VDC (Volts Direct Current), Class 2 only
• Current Consumption: 1.8 Amps max. (at 12 V DC)
• Power Consumption: 21.6 W max.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 11 -
Page 12
MotionCam Installation Manual
Safety! (continued)
General
1. Read Instructions - All the safety and operating instructions
should be read before the unit is installed and operated.
2. Retain Instructions - The safety and operating instructions
should be retained for future reference and available to any
staff member who may operate the weather station, now or in
the future.
3. Heed Warnings - All warnings on the unit and in the operating
instructions should be adhered to.
4. Follow Instructions - All operating and user instructions should
be followed. If there are any questions, call WeatherBug
Tracking Station Technical Support at (800) 624-4205 or
support@aws.com.
5. Electrical Connections - Only qualified Electricians should
make electrical connections.
6. Mounting - This unit must be securely mounted to a supporting
structure capable of sustaining the weight of the unit (about 13
pounds) by using appropriate tools and hardware. Accordingly:
a. The installation should be made by a qualified installer.
b. The installation must comply with local codes.
c. Care should be exercised to select suitable hardware to
install the unit, taking into account both the composition
of the mounting surface and the weight of the unit. Be
sure to periodically examine the unit and the supporting
structure to ensure that the integrity of the installation is
intact. Failure to comply with this could result in the unit
separating from the support structure and falling. This
would not only damage the camera but could injure
anyone standing nearby.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 12 -
Page 13
MotionCam Installation Manual
Site Evaluation
All sites will have certain building restrictions. If possible, the camera housing
should be mounted on an outer-most building wall so that the camera can
make a full side-to-side sweep of the horizon with as little nearby obstruction
as possible. Do not mount the unit on an upper floor that is inset from the
main outer wall of the building (such as a penthouse) because the roof on the
lower floor will occupy a significant percentage of the camera viewing area.
Although the camera is capable of a 340° rotation, a 270° rotation provides the
best viewing range when mounted on the side of a building..
The unit should be mounted so that it is easily accessible. This will aid in any
maintenance or adjustments that may have to be made.
Keep in mind that the unit comes with 200 feet of cable that must reach from
the camera to the computer operating the MotionCam server software.
Extensions for all cabling except the power cable may be obtained from
WeatherBug by calling, toll-free, (800) 624-4205 or by emailing
support@aws.com
maximum length provided because power to the camera diminishes past that
point. Therefore, the Main Power Supply must be within 200 feet of the
camera location even though the MotionCam computer can be up to 700 feet
away (if separate cable extensions are purchased to extend past the standard
200 feet).
. The power cable cannot be extended past the 200-foot
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 13 -
Page 14
MotionCam Installation Manual
Site Evaluation (Continued)
What to Look For
In general, look for open views from the building where the camera will be
installed. If possible, locate it where the view will be unobstructed by parts of
the building it is mounted on or by adjacent buildings or trees. Keep in mind
that the camera will pan approximately a 270° angle and will tilt from 25°
upward to 90° downward.
Select and verify a route to run the cables from the server computer to the
exterior of the building at the mounting site. Any cable routed on the building
structure exterior must be secured and routed in conduit although it is advised
that all cable runs be made indoors then through the wall only to the camera
mount. The unit is shipped with 200 feet of cable.
The camera should be mounted high enough so that there is a clear view of the
horizon in most directions. It is best to center the camera facing toward the
prevailing winds - generally Westerly in the United States.
Remember that the camera will be operating throughout the year. A good view
in the late fall or winter may be obstructed by tree growth in the spring and
summer.
Choose a Good View
It is very important to choose an unobstructed view. Keep in mind that the
camera is designed to monitor weather based on time-lapse photography. The
sky, sun, and clouds are important elements in the captured images. A "perfect"
picture, in this case, includes about 50% sky and about 50% earth.
Be careful not to include nearby roof surfaces or trees in the field of view.
Some amount of trees, houses, and other buildings can actually enhance screen
captures as long as they do not dominate the field of view.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 14 -
Page 15
MotionCam Installation Manual
Inventory
Camera System Parts
ITEM
MotionCam 8510
MotionCam Housing 8515
200 feet Power Cable ("Main Power Cable") 8520
200 feet Network Cable 8525
200 feet Video Cable 8530
24 Volt AC Power Supply 8540
Video (Coax) Surge Suppressor 8542
Video Surge Suppressor Adapter 8045
Network Surge Suppressor 8550
Power Strip (2) 210
Cable Ties (None)
Uninterruptible Power Supply (UPS) 401
PCMCIA Memory Card 8555
MotionCam Computer 8560
Computer Power Cable 5410
PART NUMBER
Monitor 8055
Monitor Power Cable 5410
Mouse 5430
Keyboard 5420
Video Capture Card 8052
Cat 5 Network Cable (Ethernet) 5452
MotionCam Installation Manual 8565
Silicone Caulk 1166
Please carefully unpack, set out, and identify each part. Inspect each part
for damage. If any damage is noticed, please call WeatherBug Tracking
Station Technical Support immediately at (800) 624-4205 or email
support@aws.com
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
.
- 15 -
Page 16
MotionCam Installation Manual
Camera System Parts (Continued)

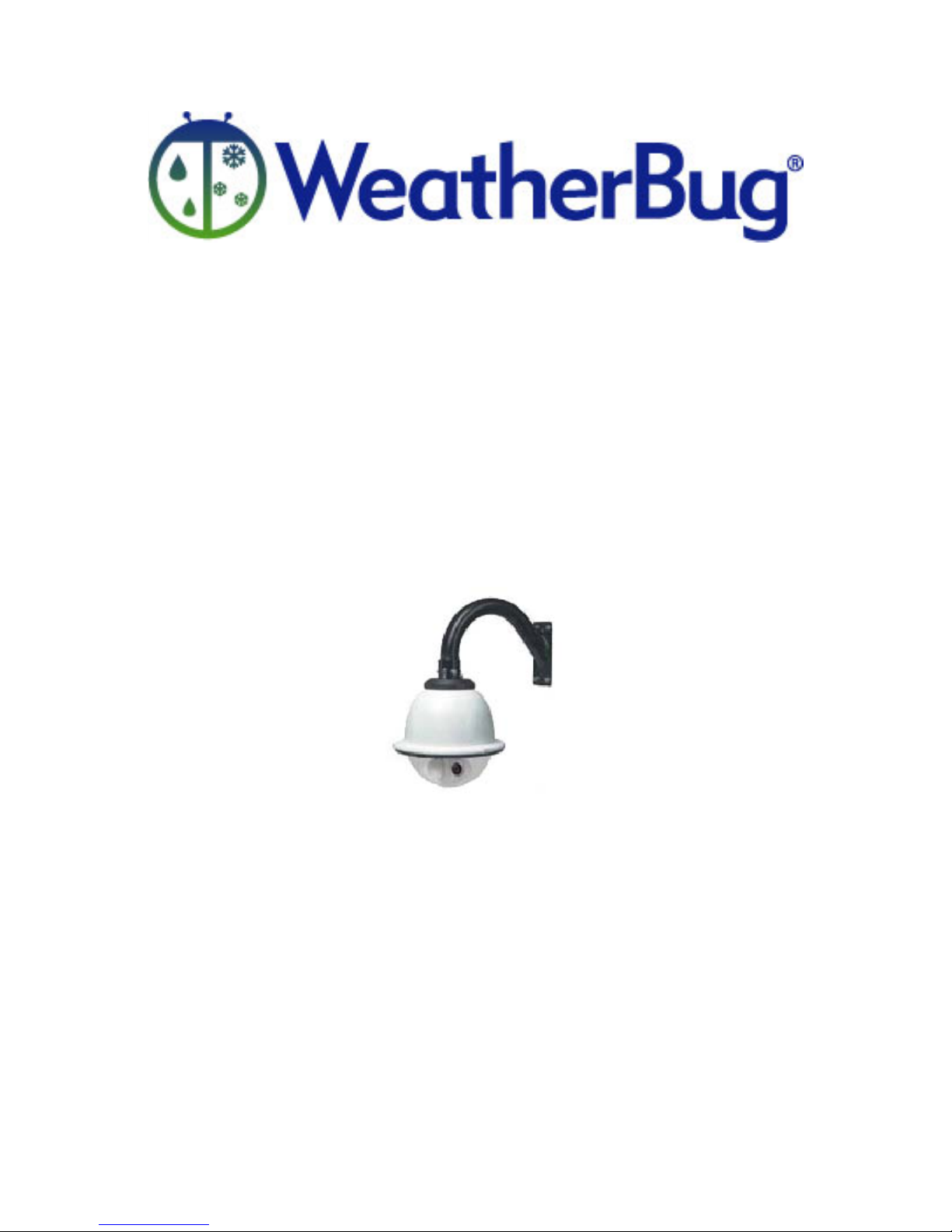

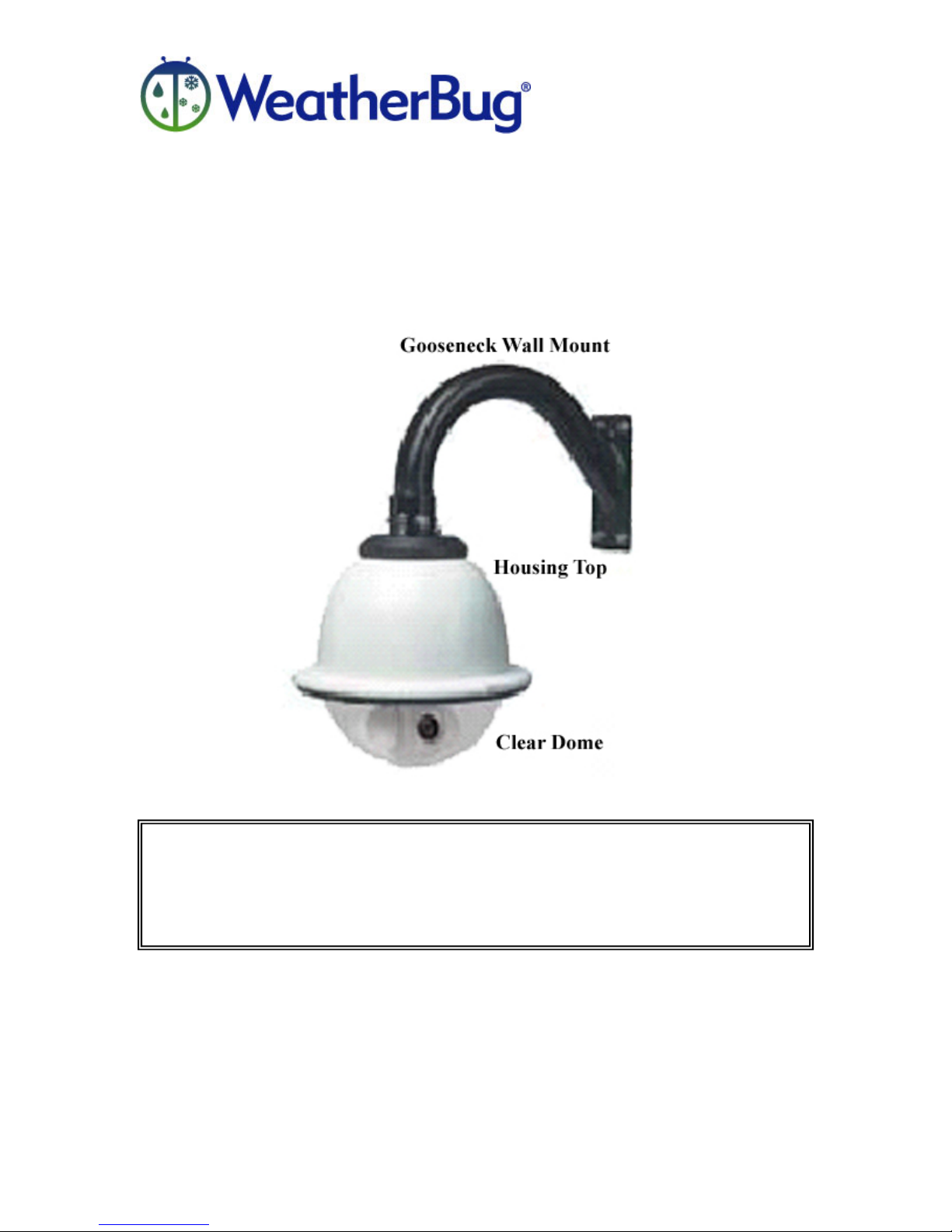

Figure 1 - Camera Housing System
The WeatherBug MotionCam mounting system is very simple in
design. The support structure is drilled and cable pull is performed.
The Gooseneck Wall Mount is mounted, cables are connected, and
the Camera Housing is added to the Wall Mount.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 16 -
Page 17
y
MotionCam Installation Manual
Inventor
Outdoor Components
• Camera Housing (with camera, cables, and wall mount)
• Cable ties
(Continued)
• Silicone caulk
Some areas require flame retardant sealer/putty to fill penetration points.
Check the local building codes. It is best to use this material unless local
building codes state otherwise.
or duct putty (to seal cable entry points into building).
Indoor Components
• Cabling harnesses (3)
Ethernet Network Cable Power Cable Video Cable
• MotionCam Personal Computer (PC) with keyboard and mouse
• Computer Monitor
• Uninterrupted Power Supply (UPS)
• 2 Network Surge Suppressors
• 2 Power Strips
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 17 -
Page 18
MotionCam Installation Manual
Tools Needed
(Not supplied by WeatherBug)
• Wire Cutters and pliers
• #2 Phillips screwdriver
• Heavy-duty drill
for material being drilled into (masonry, wood, metal, etc.) and must be
long enough to penetrate the support walling from exterior to interior
(possibly as much as 10" or more).
• Socket Drivers
fit the screws intended for use in mounting MotionCam.
• Fish Tape
• Pencil
• Electrical Tape
connectors and cables together.
• Bolt/Screws
according to several factors. Both the composition of the mounting
surface and the weight of the unit (about 13 lbs) must be taken into
account. You will need four bolts up to 3/8" diameter. 5/16" is
suggested. Although it depends on the mounting surface, in most cases a
length of 1.5" or more should be used.
• An adjustable ladder
NOTE: ALL parts used, to include those shipped by WeatherBug,
MUST be in accordance with local building codes!
Please DO NOT remove the packing material from inside the
MotionCam Dome until the unit is fully mounted to the building! The
packing material helps protect the sensitive camera components
during the installation process.
to pull cable through wall
for marking drilling locations with the Mounting Template
with bits sized up to 1-1/4" - bits must be appropriate
, designed to be used with a drill, of the size(s) needed to
to tape the ends of cables for protection and to hold
needed to attach the mounting plate to the wall will vary
and a small flat head for the power connector
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 18 -
Page 19
y
Inventor
MotionCam Installation Manual
(Continued)
Figure 2 - The MotionCam System
This diagram shows the connections that must be made to install the
MotionCam system indoors. Wire ties are provided to bundle the
Figure 16 shows detail
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 19 -
Page 20
MotionCam Installation Manual
Installation
Before beginning installation, set out all parts. Inspect them and form a clear
idea of each task to be done. Installation will be in the following order:
1. Cable Routing (inside and outside)
2. Outdoor Installation
3. Indoor Connections
If there are any discrepancies or damage, contact WeatherBug Tracking
Station Technical Support immediately at (800) 624-4205 or email
support@aws.com
Please DO NOT remove the packing material from inside the
MotionCam Dome until the unit is fully mounted to the building! The
packing material helps protect the sensitive camera components
during the installation process.
.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 20 -
Page 21
MotionCam Installation Manual
Routing the Cable
It is best to work with a team of at least two people, as cable will have to be
handled from both the inside and the outside of the building.
1. Keep in mind that the standard MotionCam package contains 200
feet of cable. This cable must reach from the server computer to the
camera. Note the following:
• The power cable has a maximum possible length of 200 feet. This
means that it must be plugged into a power source with a power
strip/surge protector at or before 200 feet. However, it does not
have to reach the MotionCam computer itself.
• Other cables may be extended up to 700 feet in 100-foot
increments. For information on cable extensions, please call
Technical Support at (800) 624-4205 or email
support@aws.com
2. If you desire to drill the smallest hole possible, remove the green
power connector from the indoor end of the Main Power Cable by
loosening the four screws (about one full turn) and removing the
wires (refer to Figures 4
wall much easier. Make sure that the connector and screws are not
lost! Tape them to something if needed.
.
and 5). This will make the run through the
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 21 -
Page 22
MotionCam Installation Manual
Routing the Cable (Continued)
MotionCam cables are not UV rated. Therefore, they must be routed
in conduit when running outdoors to protect the cables.
The MotionCam cables should be run inside as much as possible.
Outdoor cable runs must be covered by conduit. Cable can be run in
ceiling spaces.
3. With the indoor end of the cables (with the possible exception of the
power cable - see step 1
extra feet, tape the ends of the cables together and then to something
sturdy in the area to hold it in place. Run the cable to the general area
that the camera will be mounted outside, keeping in mind that the
cable cannot run directly across the floor and will have to be attached
to areas such as the base of walls when the job is completed.

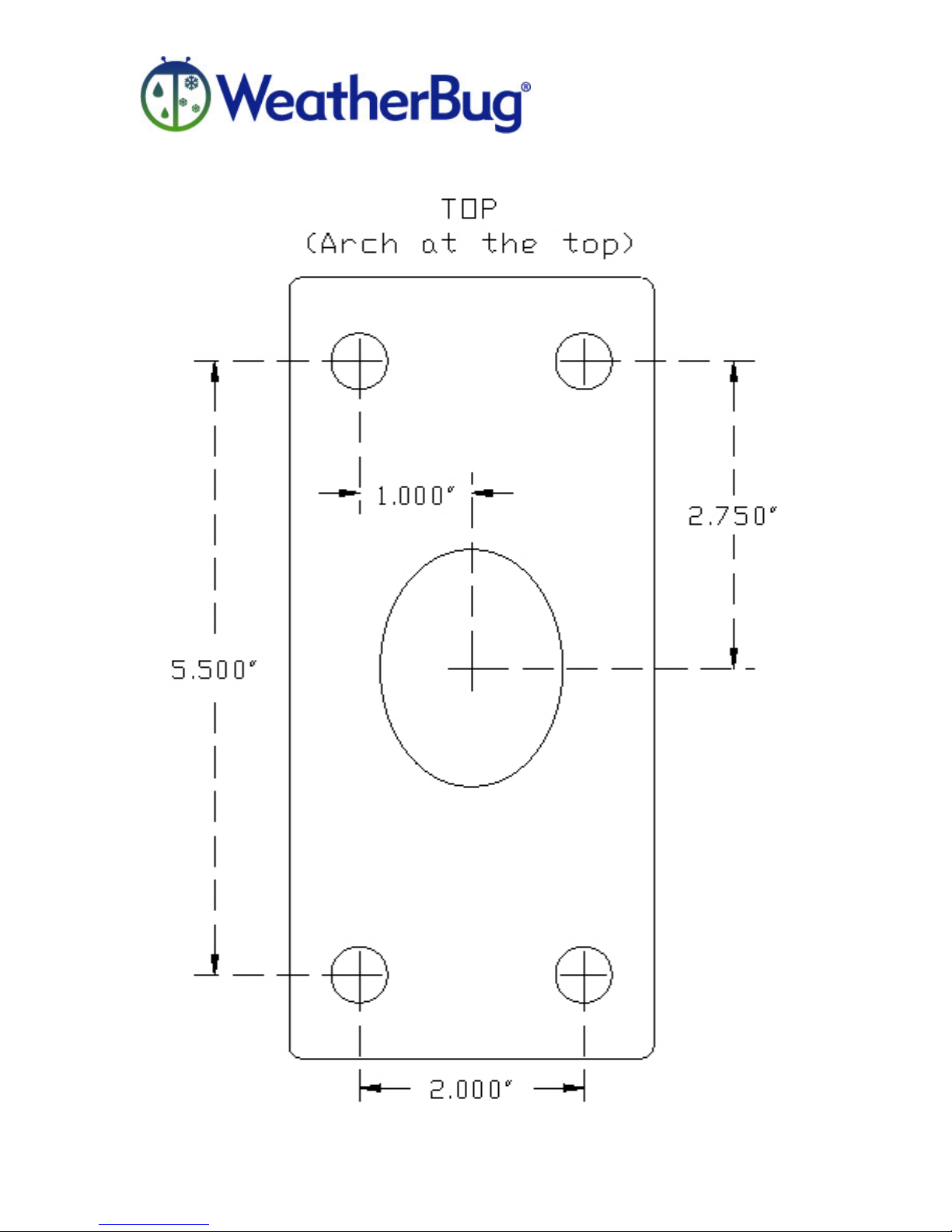

4. At the outside location where the camera is to be mounted, hold the
included template (included as Appendix A
close to the top edge of the roof as possible. Although a precise level
is not necessary, use of a leveling device is advisable.
5. Using a pencil, clearly mark all four bolt-holes and the center hole for
the cables
6. Using the appropriate bit for the material being drilled, drill the
center hole for the cables. Ensure that the drill penetrates all the way
through the interior wall and that the hole is large enough to
accommodate all three cables. Use a Fish Tape to push through the
hole and leave it in place.
) near the computer and allowing about eight
of this document) as
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 22 -
Page 23
MotionCam Installation Manual
Routing the Cable (Continued)
7. Return inside and tape the outdoor ends of the cables securely
together to prevent damage. Tape a pull string securely to the end
and attach it to the Fish Tape.
8. Keep a person inside the building to help carefully guide the cables
through the hole as you return outside and gently begin pulling the
cables through the hole.
9. With a few inches of the cable now showing through the outside wall,
drill the pilot holes for the four bolts.
10. Remove the Threaded Mounting Cap from the top of the camera
housing. Apply a bead of the enclosed silicone to the threads and
twist the Threaded Mounting Cap onto the Gooseneck Wall Mount.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 23 -
Page 24
p
MotionCam Installation Manual
Routing the Cable (Continued)
11. Pull an additional 2 feet of cable through the outside wall. Feed the
cable through the Gooseneck Wall Mount opening as shown in
Figure 3.

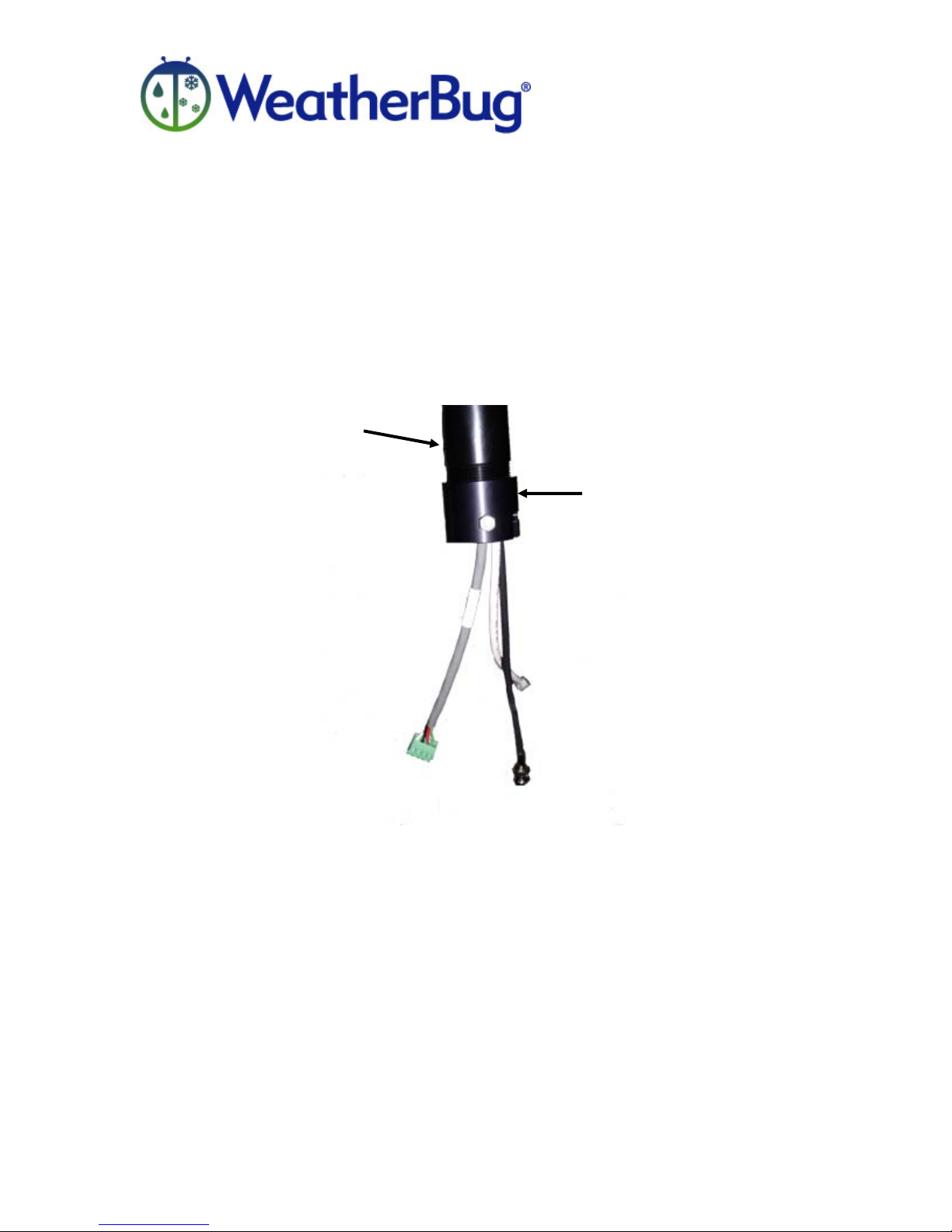

Figure 3 – Gooseneck Install
Gooseneck Wall
Mount
Threaded Mounting
Ca
12. If tape was used to secure the outdoor ends of the cable, remove the
tape now.
13. Using a socket driver, screw in the four bolts to secure the
Gooseneck Wall Mount. Apply a bead of the enclosed silicone to
seal around the plate.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 24 -
Page 25
MotionCam Installation Manual
Routing the Cable (Continued)
CAUTION! To prevent damage to the camera
ensure that Power Cable is NOT connected to
building power supply BEFORE
you handle and
remove green connector from end of cable.
14. If you removed the green Main Power Cable connector in Step 2 of
this section, replace it now - looking at the top (screws) with the
connector end facing away, the wiring order is Black, empty, empty,
and White from left to right (refer to Figure 4). One-by-one, lightly
push the stripped (un-insulated) ends into their proper holes in the
connector and then lightly tighten the screws.

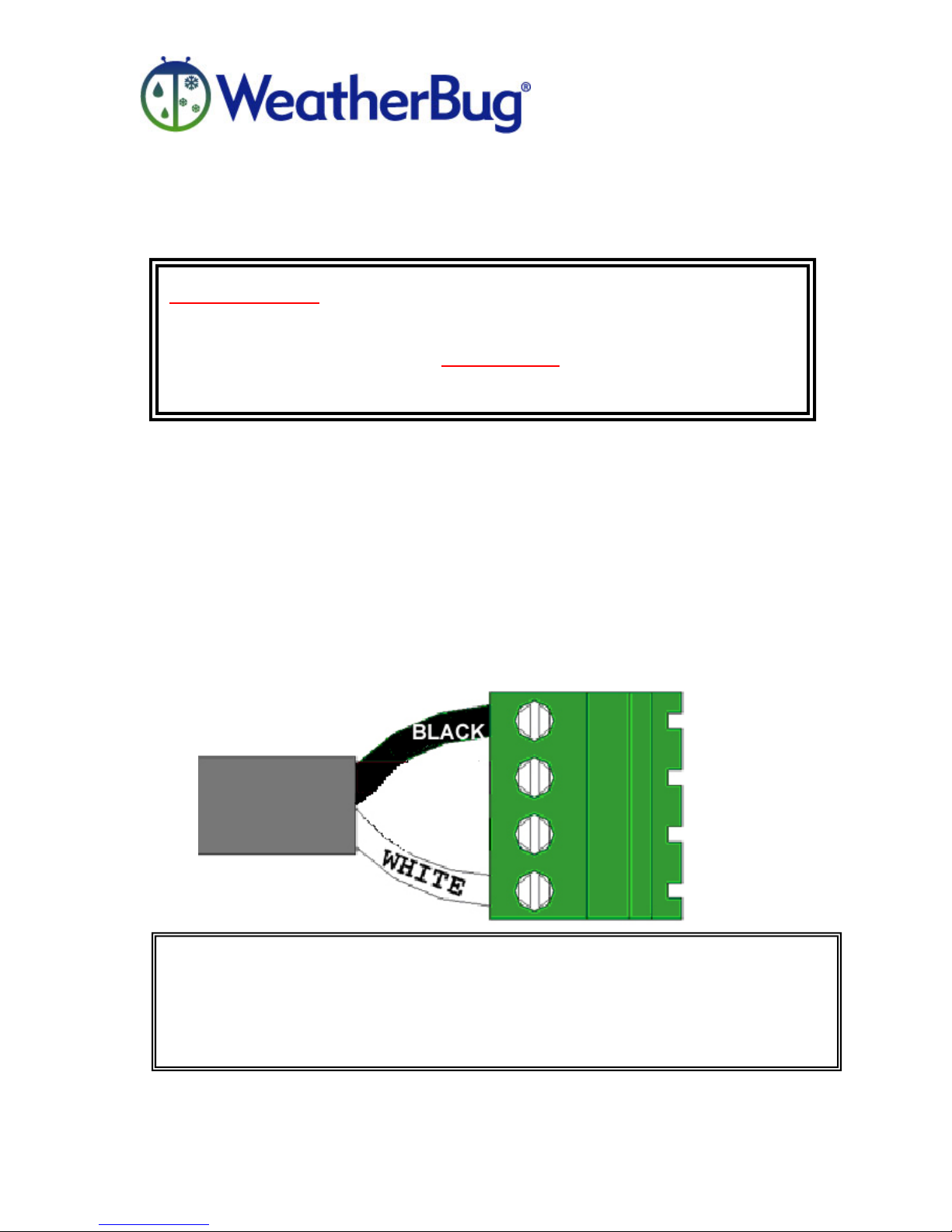

Figure 4 - Main Power Cable Connections
Keep in mind that the camera end of the connector WILL have a
different wiring order. This is correct! The connector will only fit
one way. It is NOT necessary to remove the connector on the
camera end.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 25 -
Page 26
MotionCam Installation Manual
Routing the Cable (Continued)
15. Using the silver loop on the top of the Camera Housing, hang the
camera from the Threaded Mounting Cap (refer to Figure 5). Ensure
that camera weight is secure before releasing the camera.
Figure 5 – Hang Camera to allow Access to Cables
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 26 -
Page 27
MotionCam Installation Manual
Routing the Cable (Continued)
16. Attach the three cables (refer to Figures 6
• Attach the Ethernet (network) cable (run from inside) to the camera
Ethernet cable by plugging one end into the other.
• Attach the power connector (run from inside) to the camera by
plugging one end into the other.
• Attach the video cable (run from inside) to the camera by aligning the
small peg on the indoor end with the slot on the camera end, then
pushing down, and twisting.
Main Power Cable
and 7):
Ethernet Cable
Video Coax Cable

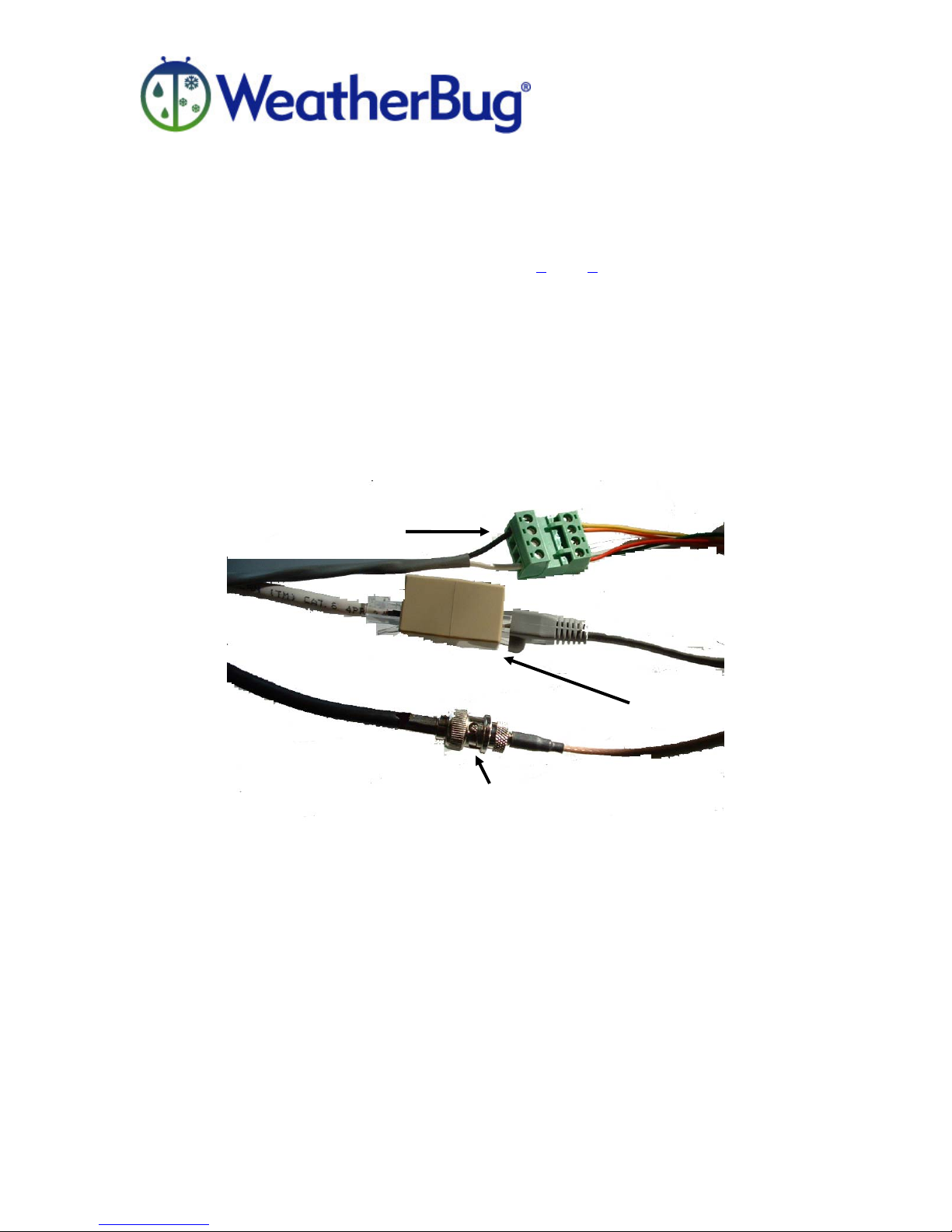

Figure 6 - Cable Connections at Camera
17. Loosen the collar bolts on the Threaded Mounting Cap.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 27 -
Page 28
MotionCam Installation Manual
Ensure that the flat square portion of the camera is aligned inside
housing to face the wall of the building. Proper alignment will
ensure visibility from all camera angles.

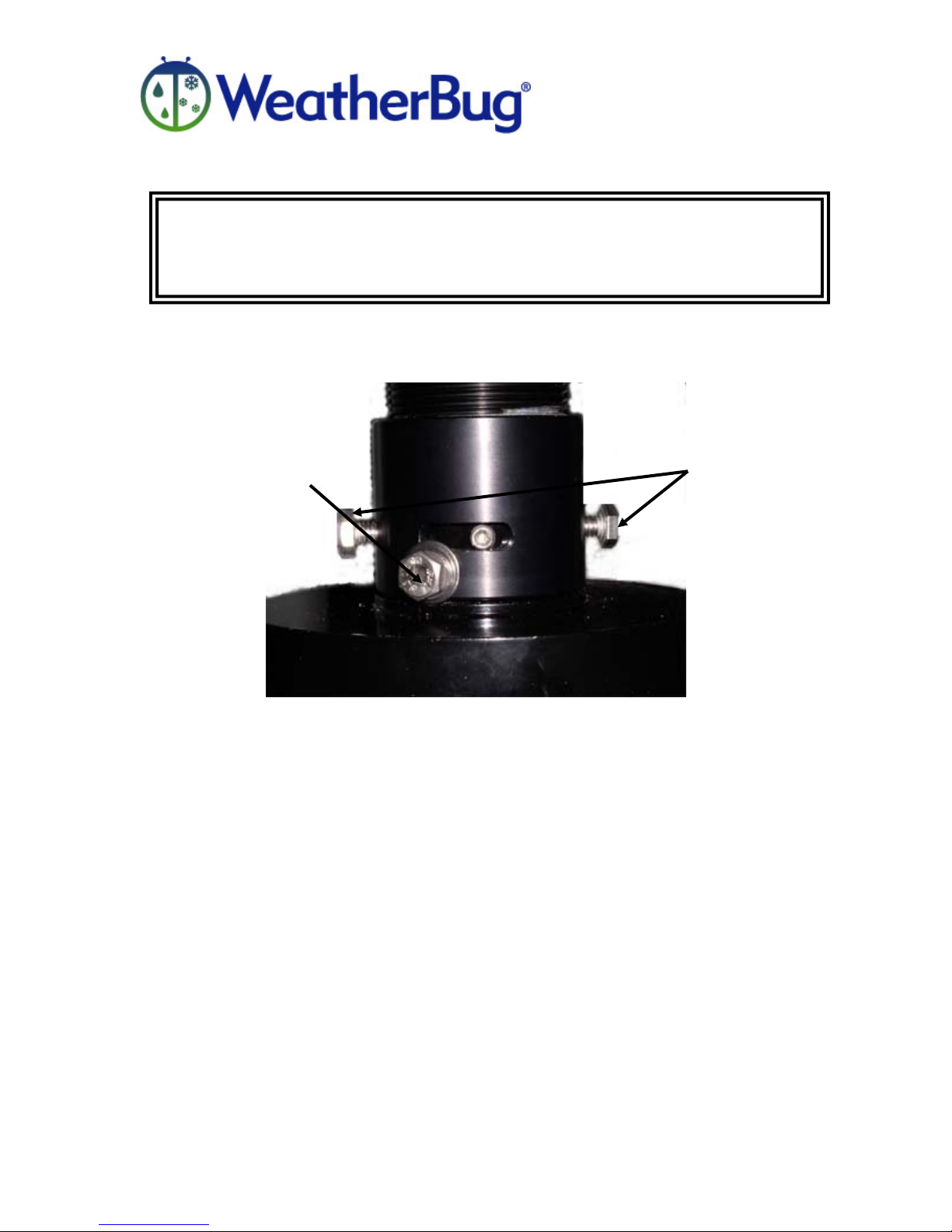

Figure 7 – Threaded Mounting Cap Detail
Locking Bolt
Collar Bolts
18. Return to the inside of the building and pull the cable back through to
remove the excess. Leave approximately 3 inches of extra cable in the
Gooseneck Mount in case maintenance is necessary.
19. Place the camera housing top into the groove on the Threaded
Mounting cap, rotate the camera housing and lock it into place.
20. Tighten the collar bolts on the Threaded Mounting Cap.
21. Insert the third and final locking bolt into the Threaded Mounting Cap.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 28 -
Page 29
MotionCam Installation Manual
Routing the Cable (Continued)

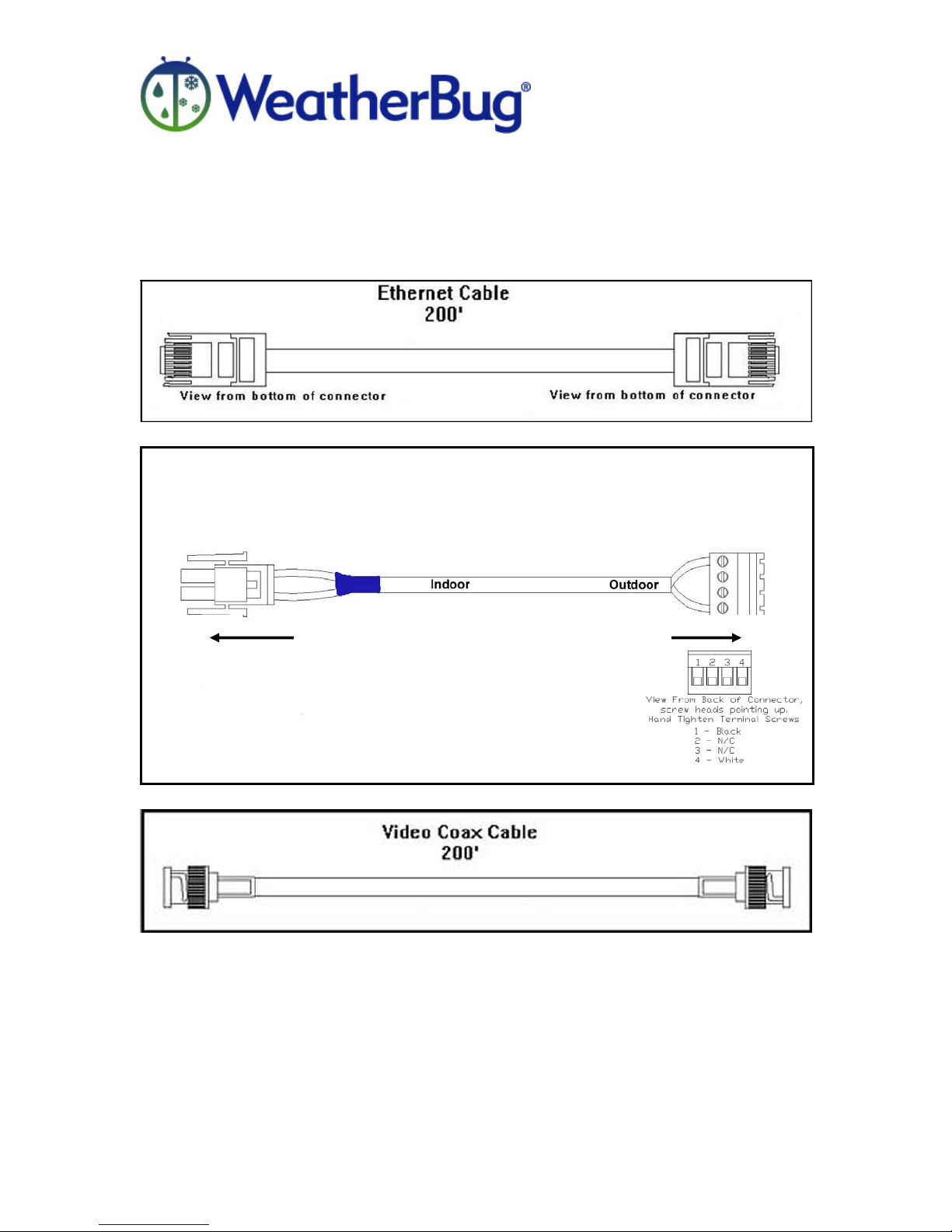

Figure 8 - The Three Indoor Cables
Indoor Power Cable
200’
Blue Connector
(24 VAC)
Green
Connector
To Power Supply
To Camera
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 29 -
Page 30
MotionCam Installation Manual
Routing the Cable (Continued)
22. The packing material may now be removed from the housing. Please
see the next section (Camera Packing Materials
Camera Packing Material
Please DO NOT remove the packing material from inside the
MotionCam Dome until the unit is fully mounted to the building! The
packing material helps protect the sensitive camera components
during the installation process.
WeatherBug assembles the Camera Mounting Housing, camera cabling, and
mounts the camera in the housing before shipping. To ensure that there is no
damage to the camera during shipping, packing material is placed inside the
housing. This material must be removed after mounting the unit.

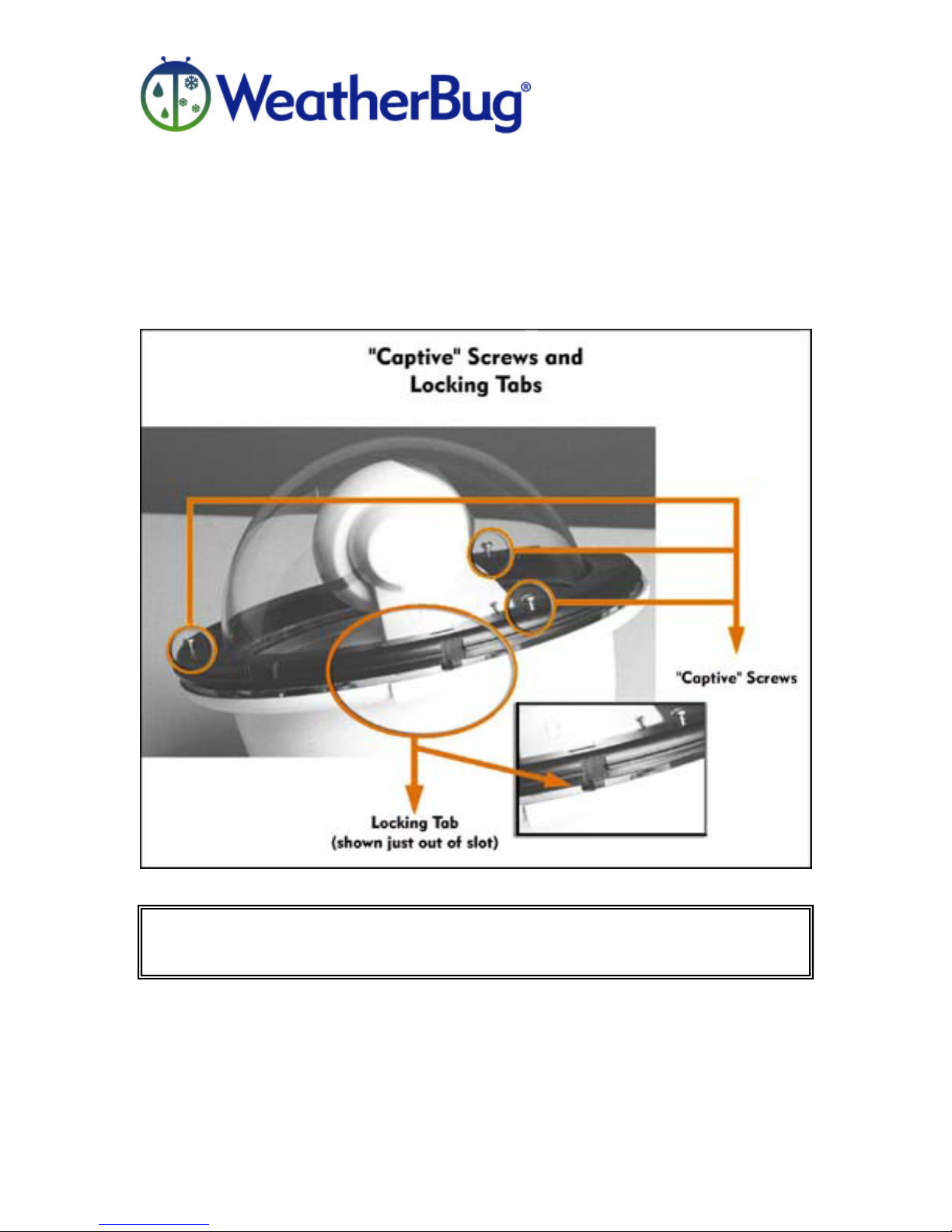

Standing beneath the clear plastic dome and looking up, there are three screws
("captive" screws) around the rim of the dome. The "captive" screws will not
fall. In addition, a long “Lanyard Spring” attaches the dome to the housing so
that the dome will not fall away after the dome is opened and released.
1. Completely loosen each of the three captive screws. On each side of the
Dome, there is also a locking tab.
2. Turn the dome clockwise to unlock and guide the dome down from the
housing (refer to Figure 8
3. Carefully remove the packing material that surrounds the camera.
4. Replace the dome onto the housing, line up the tabs and turn counter-
clockwise.
5. Tighten the "captive" screws but DO NOT over-tighten these screws.
).
) for instructions.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 30 -
Page 31
MotionCam Installation Manual
Camera Packing Material (Continued)
Figure 9 - Removing the Camera Packing Material
Loosen “Captive” screws, then turn dome clockwise and pull
downward gently to remove the dome and packing material.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 31 -
Page 32
MotionCam Installation Manual
Camera Packing Material (Continued)

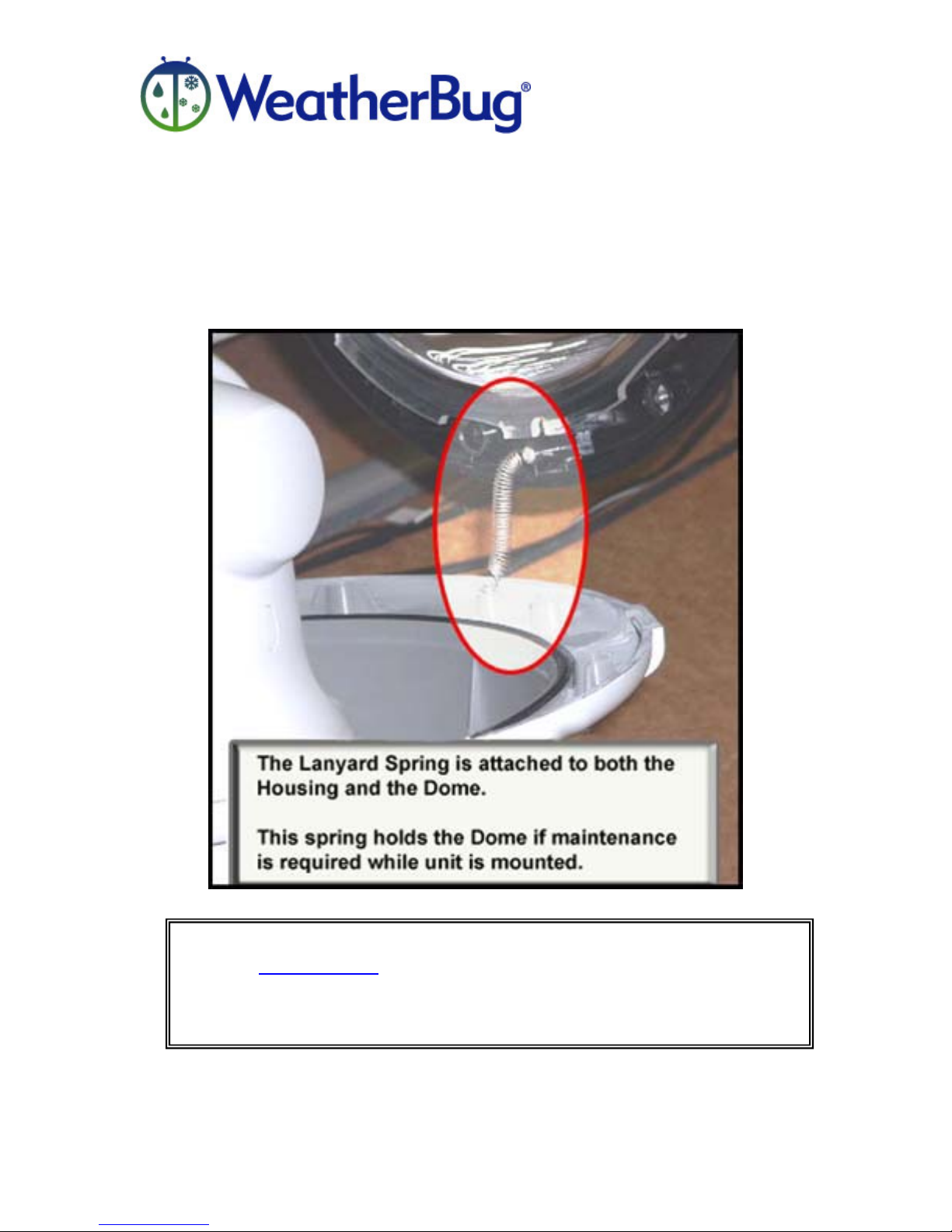

Figure 10 - Lanyard Spring
Very little maintenance is required with the MotionCam System
(see the Maintenance
required, parts such as the “captive” screws and the Lanyard
Spring allow easier overhead working conditions.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
section on page 42). When maintenance is
- 32 -
Page 33
MotionCam Installation Manual
Indoor Connections
Do NOT power the camera with the Packaging Material still inside
housing.
1. Unpack the Uninterruptible Power Supply (UPS). Note the
instructions on the yellow label covering the on/off switch. The unit
is shipped with the battery wire disconnected in compliance with
Department of Transportation (DOT) Regulations. BEFORE
plugging in, place the unit on its side and connect the black wire to
the battery as shown on the yellow label.
Do NOT connect the UPS to an electrical outlet until all connections
have been made on the computer and the system is ready to
operate!
2. Plug the surge suppresser/power strip into the UPS.
3. Unpack the WeatherBug MotionCam computer and monitor. Plug
the computer power cord into the UPS and the monitor power cord
into the power strip.
4. Connect the monitor, mouse, and the keyboard to the computer (the
mouse and keyboard connectors are color-coded and there is only
one place that the monitor cable will attach. It is a 15-pin male cable
end - see Figure 16

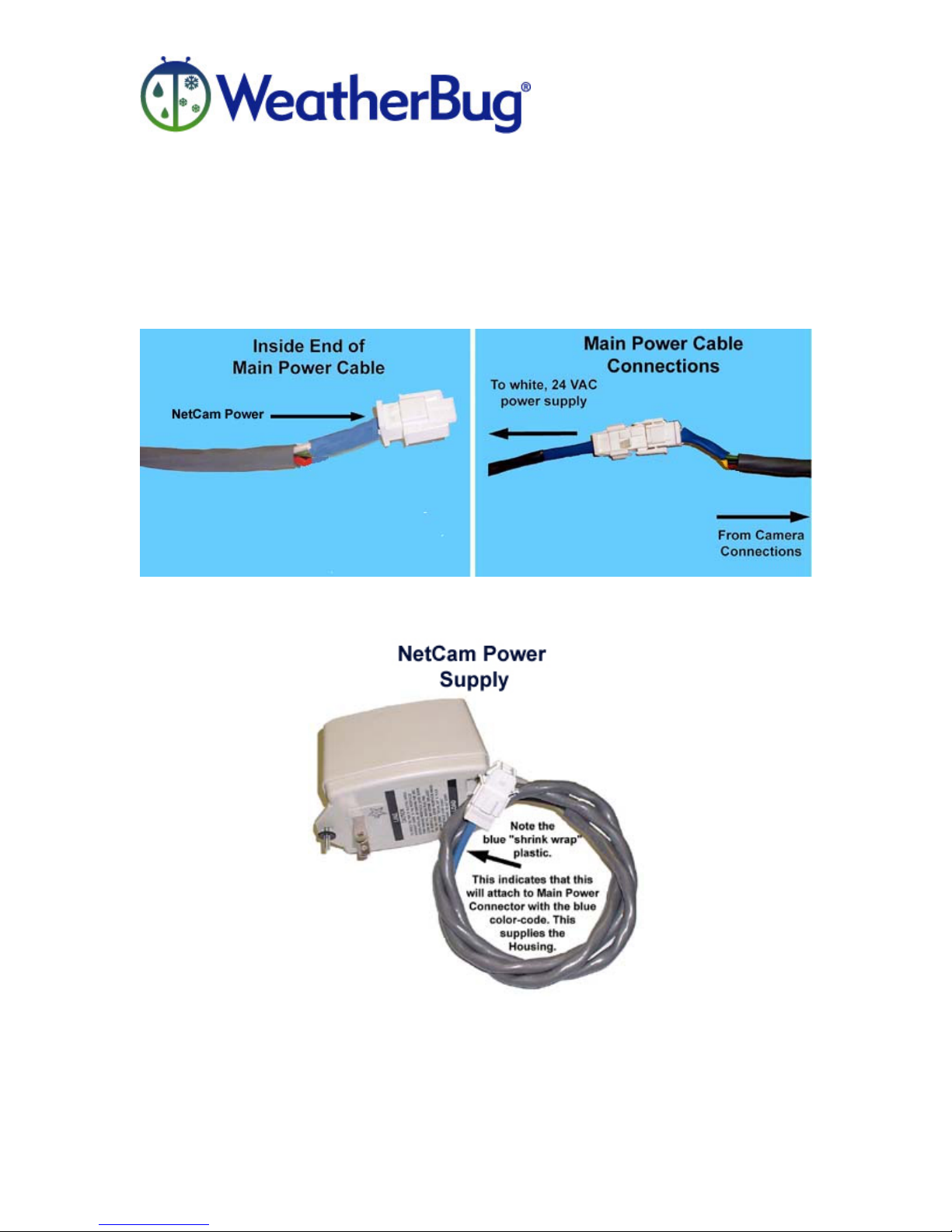

5. At the indoor end of the Main Power Cable, you will see one white
connector. The wire just before the connectors is color-coded with
"shrink-wrap" plastic (see Figure 11
Keep in mind that the power supply does NOT have to reach the
MotionCam computer. The power supply may be plugged into a
power strip from any outlet in the building.
).
).
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 33 -
Page 34
MotionCam Installation Manual
Indoor Connections (Continued)
Figure 11 – Main Power Cable Connections
Figure 12 – Power Supplies
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 34 -
Page 35
MotionCam Installation Manual
Indoor Connections (Continued)
• The 24 VAC power supply is equipped with a mate connector
that will be blue-coded with "shrink-wrap" plastic. The
connectors are arched in shape and can only be attached in one
way. The 24 VAC plug is large and white in color.
• Connect the cables, being sure to match the color-coding, and
then plug each into a power strip (see Figures 11
NOT apply power at this time!
, 12, and 13). Do
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 35 -
Page 36
MotionCam Installation Manual
Indoor Connections (Continued)
Figure 13 – Complete Main Power Cable System
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 36 -
Page 37
MotionCam Installation Manual
Indoor Connections (Continued)
6. Connect the Video Coax Connector to the Video Coax Surge
Suppresser (round plastic connector). Connect the other end of the
surge suppresser to the Video Surge Suppressor Adapter and then to
the computer at the Video Capture Card. Attach the ground wire to
any screw that holds the computer cover on.

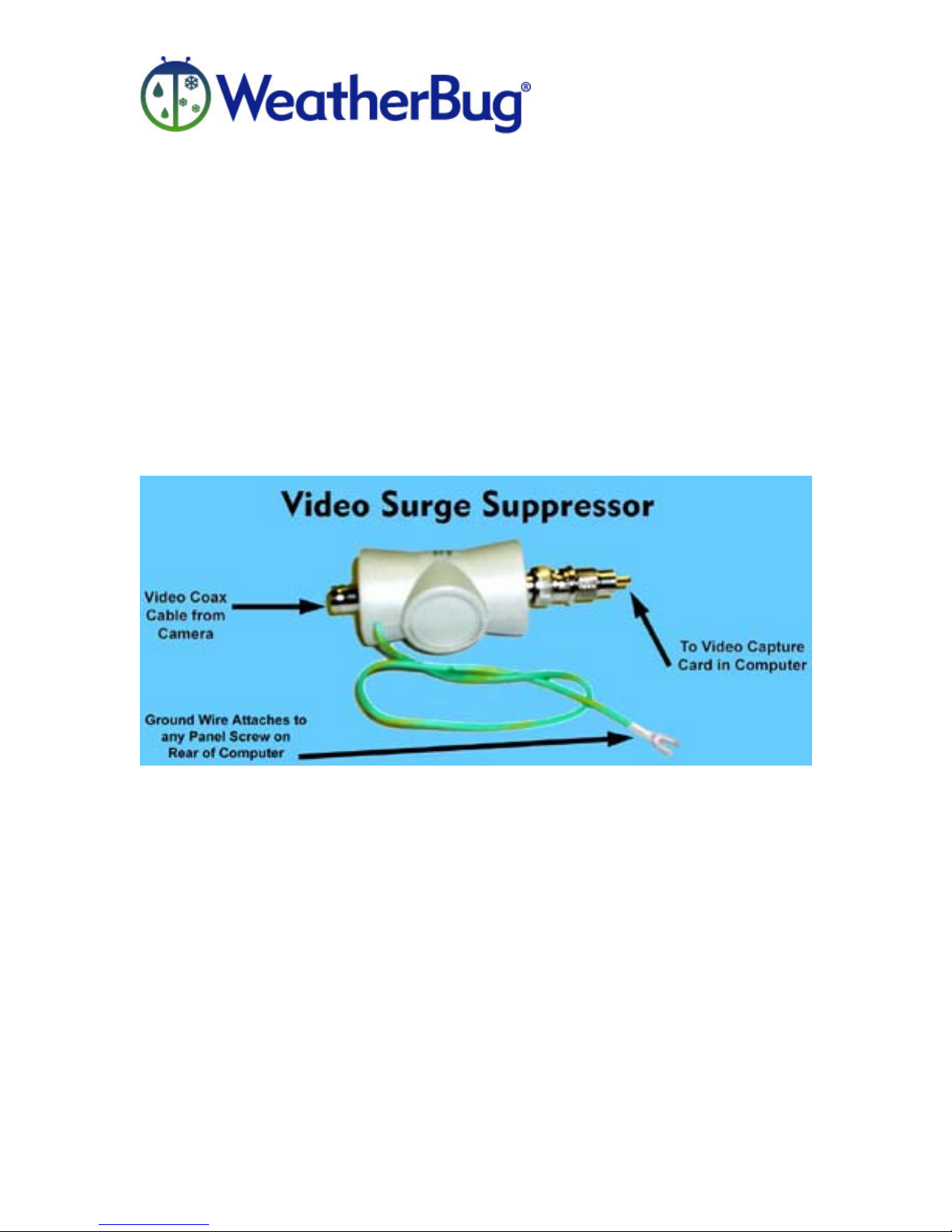

Figure 14 – Video Surge Suppressor
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 37 -
Page 38
MotionCam Installation Manual
Indoor Connections (Continued)
7. Plug the Ethernet cable from the camera into the "Equip." end of the
Network Surge Protector and then plug the short network cable into the
"Line" end of the surge protector. The short network cable then plugs
into the computer. Attach the green ground wire to any screw that holds
the computer cover on.

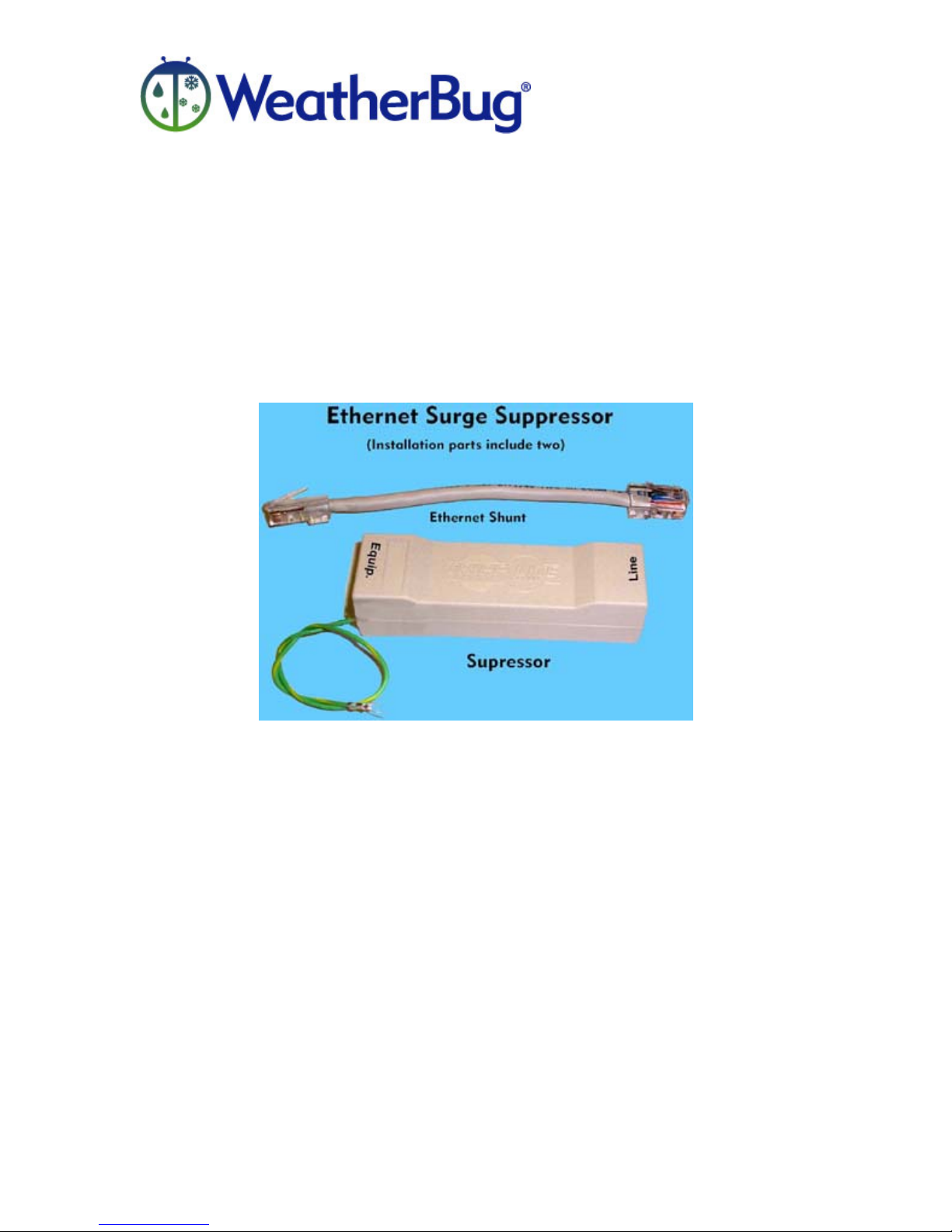

Figure 15 – Ethernet Surge Suppressor
8. Plug the UPS into an operating power source.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 38 -
Page 39
MotionCam Installation Manual
Indoor Connections (Continued)

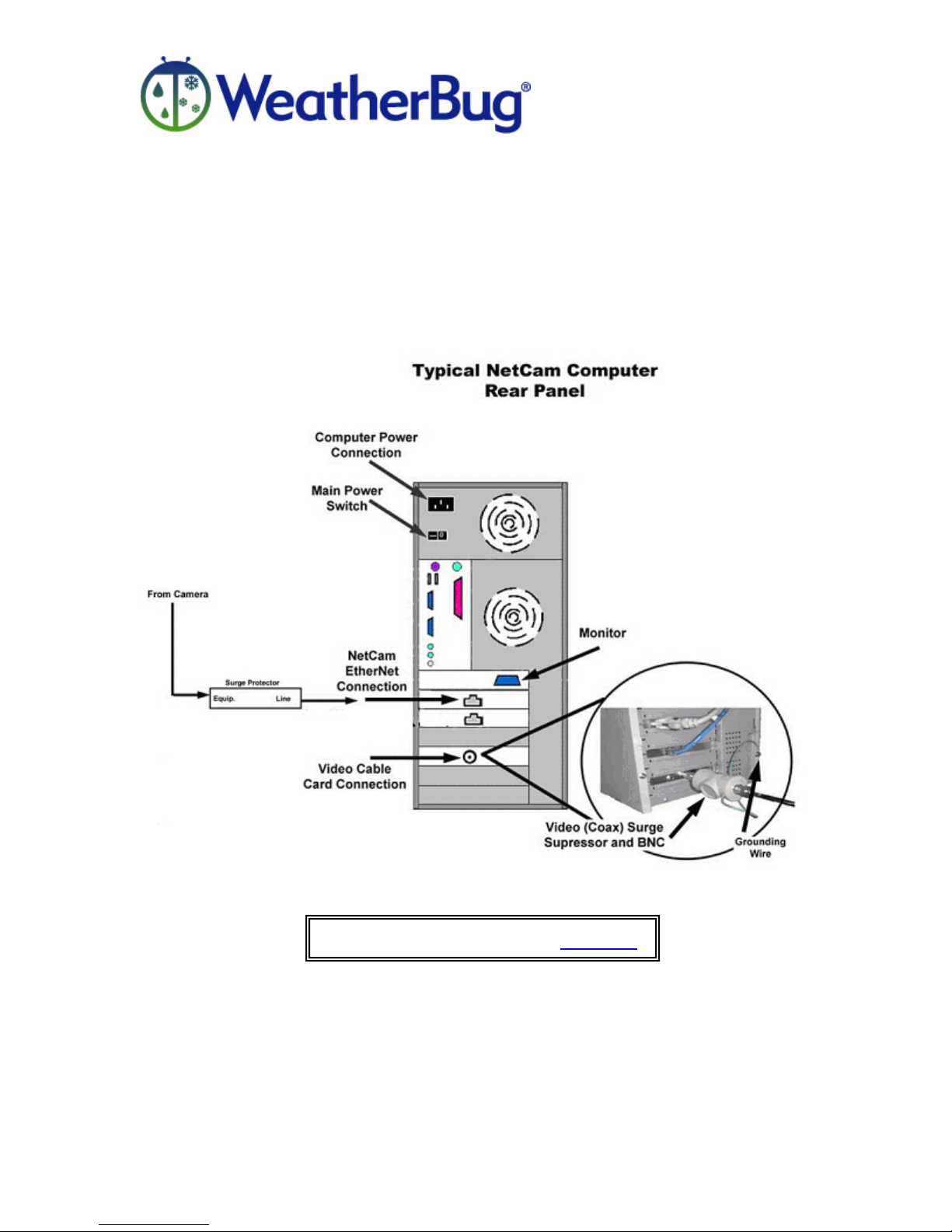

Figure 16 – Computer Connections
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
Compare this diagram to Figure 3
- 39 -
Page 40
MotionCam Installation Manual
Troubleshooting
While problems are rare on a properly installed and maintained system, some
unusual images may appear.
• Vertical Smear
This is a pale vertical "smear" that may appear to extend from very bright
objects from the top to the bottom of the monitor. Simply adjusting the
camera aim slightly should correct this.
• Aliasing
When shooting fine stripes, straight lines, or similar patterns, the lines may
become slightly jagged.
• Speckles
Dust and debris on the dome are the most common causes of any spots you
may see in an image. In addition, when a poorly illuminated object at a high
temperature is in the field of view, small white dots may appear over the entire
screen image.
In cases of malfunction, the most common cause is lack of power to
MotionCam components. Be sure to check power supplies and
connections to ensure that each MotionCam component has the
proper power supply and that the components are turned on.
If a power problem is suspected:
• Shut down the MotionCam computer
• Unplug and re-plug the camera power
• Reboot the computer
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 40 -
Page 41
MotionCam Installation Manual
Maintenance
There is very little maintenance needed for the MotionCam. As long as the
dome remains well sealed, there should rarely be a need to clean anything inside
the dome. The housing contains a heater and fan but no maintenance is
required on these parts.
The dome itself may be very loosely wiped with a dry, soft cloth to remove
loose dust and debris and then wiped with the cloth using a very small amount
of water.
If additional cleaning becomes necessary:
• Use some sort of blower ("canned" air) to remove dust from the camera
lens as needed
• Use a soft, dry cloth to clean the external surfaces of the camera.
Stubborn stains can be removed using a soft cloth dampened with a
small quantity of diluted detergent solution, then wipe dry.
When cleaning the housing:
DO NOT use volatile solvents such as alcohol, benzene, thinners, or
ammonia as they may damage the surface finishes.
DO NOT use abrasive cleaners, cloths, or sponges.
Please keep in mind that most household cleaners (such as Windex,
etc.) contain ammonia.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 41 -
Page 42
MotionCam Installation Manual
Additional Information
Precautions
This product has been designed with safety in mind. However, if not properly
installed and used, any electrical product can cause fires. To avoid such
incidents, please be sure to follow these guidelines:
• Be sure to follow all general safety precautions and the "Operating
Precautions" that follow this section.
• In case of a system breakdown, discontinue use, unplug the unit and all
other cables, and contact WeatherBug Tracking Station Technical
Support at (800) 624-4205 or email support@aws.com
.
• In case of abnormal operation:
o Unit is emitting smoke or an unusual smell
o Water or other foreign objects enter the dome
o The unit is dropped or damaged
a. Disconnect the camera power cable and other connecting
cables
b. Contact WeatherBug Tracking Station Technical
Support at (800) 624-4205 or email support@aws.com
.
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 42 -
Page 43
MotionCam Installation Manual
Specifications
MotionCam
Item Specification
Image device 1/6 type CCD, interline transfer, 680,000 picture elements
Signal-to-noiseratio
Minimum
illumination
Exposure mode Auto, Shutter-priority, Iris-priority, Manual (Backlight
Iris Auto/Manual (F1.6 to Close)
Gain Auto/Manual (-3 dB to 28 dB)
Electronic
shutter
White balance
mode
Focus mode Auto/Manual (Near, Far, One Push Auto Focus)
Zoom mode Full (x1 to x300), Optical only (x1 to x25)
Saturation
adjustment
Sharpness
adjustment
Contrast
adjustment
Other functions Day/Night function, Stabilizer, Exposure compensation
48dB
3 1x (AE mode, slow shutter off)
compensation is switchable except in manual mode)
Auto/Manual (1 to 1/10,000 sec.)
Auto, Indoor, Outdoor, One Push White Balance, ATW,
Manual
-3 to +3
1 to 16
-3 to +3
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 43 -
Page 44
MotionCam Installation Manual
)
Specifications (Continued
Lens
Item Specification
Zoom ratio X25 (infinite)
Horizontal angle view 2.0° to 45°
Focal length F=2.4mm to 60mm
F number F1.6 (Wide end), F2.7 (Tele end)
Minimum shooting distance Tele end: 800mm
Mechanism
Wide end: 30mm
Item Specification
Pan -170° to +170°, 340° rotation within 2 seconds
Tilt -90° to +25°, 115° rotation within 1.5 seconds
Other MotionCam Information
Item Specification
Power supply 12 VDC
Current consumption 1.8 A max. (at 12 VDC)
Power consumption 21.6 W max.
Operating temperature 0 °C to +40 °C [32 °F to 104 °F]
Storage temperature -20°C to 60°C (-4°F to 140°F)
Dimensions 140x175x144mm (5-5/8x7x5x3/4 inches)
Mass Approx. 1.2 kg (2 lb, 10 oz)
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 44 -
Page 45
)
MotionCam Installation Manual
Specifications (Continued
Housing Information
Item Specification
Power 24 VAC, Class 2 only
Power 12 VDC, Class 2 only
Current consumption
Power consumption:
• Heater
• Blower
Dimensions 12.8” x 11.4” x 16.1”
Mass 10 lbs.
Operating
Temperature
Heater:
• Activation
• Deactivation
Construction:
• Top
• Dome
• Wall Mount
Bracket
• Seals
Seal Certifications
26 W at 24 VAC (accessories) (this does NOT include
camera)
25 W
0.84 W
-50 F to +120 F
+40 F (+/-8)
+60 F (+/-8)
0.125” engineered plastic, UV protected
Cell-cast acrylic
WM12 cast aluminum wall bracket standard
0.136” x 10.25” O-ring
• Lab certified at IP66 and is designed to meet
NEMA 4X for water ingress, with a temperature
rating –50 ° standard
• Designed to meet NEMA 1 for falling dirt ingress
and IP66
AWS-WXN-60001.001 Release 3, Version 2.0 May 2004
- 45 -
Page 46
APPENDIX A – Mounting Template
46
Loading...
