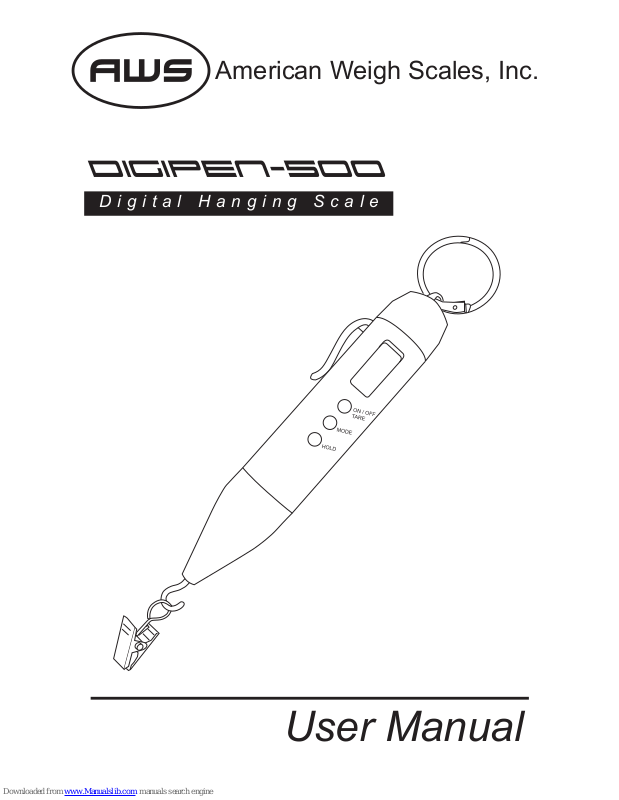

AWS DigiPEN-500 User Manual

American Weigh Scales, Inc.

User Manual

D i g i t a l H a n g i n g S c a l e

DigiPEN-500

DigiPen-500 Manual

Thank you for purchasing the American Weigh
DigiPen-500 digital hanging scale. Please read all
operating instructions carefully before use. This
electronic scale is a precision instrument. With normal
care and proper treatment, it will provide years of
reliable service.
Never load the scale with more than the maximum
capacity. Overloading will permanently damage it!
Avoid any exposure to extreme heat or cold. Your
scale works better when operated at normal room
temperature. Always allow the scale to acclimate to
normal room temperature for at least one hour before

use. Give your scale sufcient warm up time. Usually

30-60 seconds before calibration to give the internal
components a chance to stabilize.
Keep your scale in a clean environment. Dust, dirt,
moisture, vibration, air currents and a close distance to
other electronic equipment can all cause an adverse
effect on the reliability and accuracy of your scale.
Handle with care. Gently apply all items to be weighed
onto the hook. Although this scale is designed to be
quite durable, try to avoid rough treatment as this may
permanently damage the internal sensor.
Avoid shaking, dropping or otherwise shocking the
scale. This is a precision instrument and must be
handled with extreme care.

Only operate the scale on a stable, vibration free
surface.

I. OPERATION

It is recommended to hang the scale from a stable
support for best results.

1. Press [ON/OFF/TARE] key.

2. Wait until "0.0” is displayed.

3. Hang the item on the hook or attach it to the clip.

4. Using the [MODE] key, you can switch between

weighing units.

5. To turn the scale off, press and hold the [ON/OFF/
TARE] key.

II. TARE WEIGHING

1. Turn on scale as described above.

2. Place the "tare item" on the hook (such as another
hook accessory or empty bag).

3. Press [ON/OFF/TARE] key briey and wait until

"0.0" is displayed.

4. Add the "net-weight-item".

III. CALIBRATION

Calibration is NOT required before rst use. Only

calibrate if scale is not weighing properly. This scale
calibrates with 500g.

1.With the scale off, press the [ON/OFF/TARE] key
once to turn the scale on, then quickly press the
[ON/OFF/TARE] key four more times and hold it. A
random number will display, you can now release
the [ON/OFF/TARE] key.

2. Press the [ON/OFF/TARE] key one more time. The
scale will display "Zero" followed by "500g".

3. Gently hang the included 500g calibration hook
weight on the scales hook. Now press the [ON/OFF/
TARE] key one last time.

4. The scale will show "PASS". Calibration is complete.

IV. TROUBLESHOOTING

The primary reasons for inaccuracy or malfunction
are low batteries, incorrect calibration, overload or
operating under unstable conditions. Please keep this
in mind and maintain and operate your scale properly.
This scale is a precise instrument and must be
handled with the utmost care and caution.

[Display] Solution:

Nothing, ,

Change the batteries.
[EEEEE] You are overloading the scale. Remove the
excessive load immediately!
[Oue2] The delicate weighing load cell has
been damaged by misusing the scale
(i.e. it was shocked, dropped or
overloaded). You can try recalibrating the
scale. If the load cell has not been
damaged too much it will work
again after recalibration.

Model DigiPen-500

Capacity 500g

17.64oz

16.08ozt

321.5dwt

Resolution

0.1g / 0.005oz / 0.005ozt / 0.1dwt

Calibration Weight

(Included)

500g

Scale Dimensions

(inches)

1.0 x 1.2 x 6.2 “

Power

2 x AG8 Button Cell Batteries (included)

Specications
