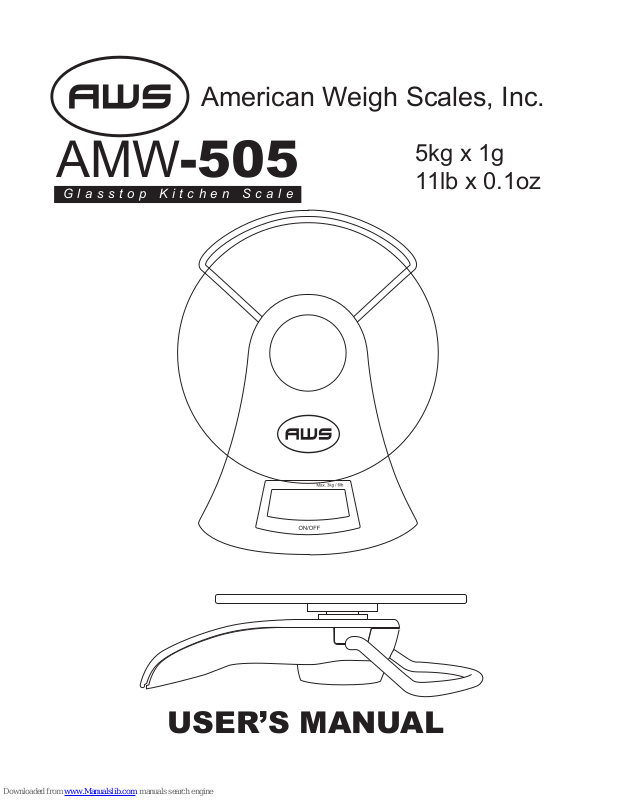

USER’S MANUAL
American Weigh Scales, Inc.
AMW-505
G l a s s t o p K i t c h e n S c a l e
5kg x 1g
11lb x 0.1oz
American Weigh
AMW-505 User’s Manual
5kg x 1g
Thank you for purchasing the AMW-505 Digital Scale. With normal
care and proper treatment, it will provide you with years of reliable
service. Please read all operating instructions carefully before using
the scale.
• Avoid any exposure to extreme heat or cold. Your scale will work
better when operating in normal room temperature. Allways allow the
scale to acclimate to normal room temperature for at least an hour
before use.
• Give the scale sufcient warm up time before use. Usually 30 to 60
seconds to give the internal components time to stablize.
• Keep your scale in a clean environment. Dust, dirt, moisture, vibra-
tion, air currents, or a close proximity to other electronic equipment can
cause an adverse effect on the reliability and accuracy of your scale.
• Handle with care. Gently apply all items to be weighed onto the
weighing surface. Although this scale is designed to be quite durable,
avoid rough treatment as this may permanently damage the internal
sensor.
• Do not shake, drop, or otherwise shock the scale. This is a precision
instrument and must be handled with extreme care.
• Only operate the scale on a stable, vibration free surface.
• Always store in a dry place to avoid moisture accumulation on
internal components.
• Clean the glass surface using a damp cloth. Do not use corrosive
chemicals or submerge in water.
I. Setting Weighing Mode
To switch weighing modes, when the scale is powering up, tap
down on the front of the scale before it goes to zero, and when
all the LCD segments are showing. You will notice that the
weighing modes will change each time you tap on the scale
II. Operation
1. Place the scale on a level surface and press down on the
front panel near the “ON/OFF” lettering to turn the scale on.
2. Wait 2 seconds for the display to show zero, then gently apply all item(s) to be weighed onto the weighing platform.
3. The scale will automatically turn off after 2 minutes of no
use, however you may press and hold down on the front of the
scale for 2 seconds to turn it off manually.
III. Tare Weighing.
1. Turn on scale as described above.
2. Place the container or tare item onto the platform.
3. Tap down once on the front of the scale and wait until [ 0 ] is
displayed.
4. Add the “net-weight-item”.
Note: When all weight is removed from the scale, the tared
value of a container will be displayed as a negative value.
Press the tare button again to return scale to zero.
IV. Batteries
This scale comes with two long-life Lithium CR2032 batteries.
Replace batteries if scale is working improperly. To install:
TARE
ZERO
kg
TARE
ZERO
lb oz
TARE
ZERO
oz
TARE
ZERO
g
1. Remove battery cover.
2. Insert batteries positive side (+) up and press into place.
3. Replace battery cover.
Note: Batteries must not be disposed of as household waste.
Contact your local authority for info on battery disposal.
V. Troubleshooting
The primary reason for innaccuracy or malfunction are low
batteries, overload or operating on an unstable surface. Please
keep this in mind and maintain and operate your scale properly. This scale is a precision instrument and must be handled
with care.
Error Code Descriptions:
Error: Nothing on screen,
Solution: Replace Batteries
Error: [EEEE]
Solution: Load is in excess of 5000g, remove the extra load.
VI. Specications
Capacity: 5kg; 11lb
Graduation: 1g; 0.1oz
Units: kilograms (kg) / grams (g) or pounds (lb) /
ounces (oz)
Calibration: Auto Calibration
Tare Range: Tare full capacity
Auto Off: 120 seconds
Display: 5 digits
