Air outlet duct adapter
Top connection box
Grounding
chassis
screw
Mounting bar
Air inlet duct adapter
Contact Awoco Tech Support at
626-522-9688, [email protected]
In Attic
• Step 6. Plan the ducting path and mount the Blower
unit to the stud / lumber securely in the attic.
• Step 7. Use the duct tapes, connect the ducts to the
top and bottom of the vent adapters on the Blower
unit.
• Step 8. According to the wire colors, connect the
speed wires again (refer to Step 4). Extend the
wires if needed while making sure the colors
matched.
• Step 9. Ground the Blower unit with a Ground wire
to a chassis screw on the Blower unit.
Blower Unit + Control Unit

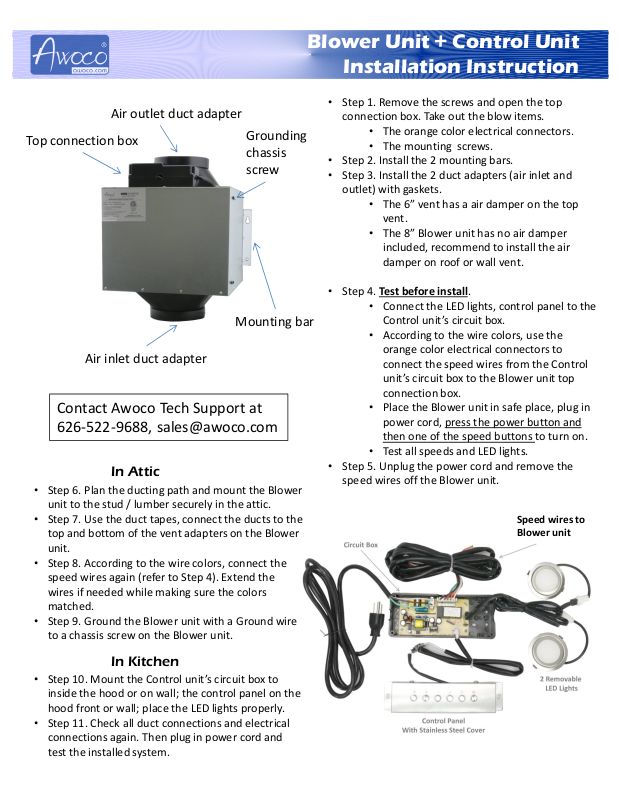

Installation Instruction
• Step 1. Remove the screws and open the top
connection box. Take out the blow items.
• The orange color electrical connectors.
• The mounting screws.
• Step 2. Install the 2 mounting bars.
• Step 3. Install the 2 duct adapters (air inlet and
outlet) with gaskets.
• The 6” vent has a air damper on the top
vent.
• The 8” Blower unit has no air damper
included, recommend to install the air
damper on roof or wall vent.
• Step 4. Test before install.
• Connect the LED lights, control panel to the
Control unit’s circuit box.
• According to the wire colors, use the
orange color electrical connectors to
connect the speed wires from the Control
unit’s circuit box to the Blower unit top
connection box.
• Place the Blower unit in safe place, plug in
power cord, press the power button and
then one of the speed buttons to turn on.
• Test all speeds and LED lights.
• Step 5. Unplug the power cord and remove the
speed wires off the Blower unit.
Speed wires to
Blower unit
In Kitchen
• Step 10. Mount the Control unit’s circuit box to
inside the hood or on wall; the control panel on the
hood front or wall; place the LED lights properly.
• Step 11. Check all duct connections and electrical
connections again. Then plug in power cord and
test the installed system.
