Awntech Mesa User Manual

Installation Instructions for the Window Retractable Awning

MODEL - MESA
TYPE - MANUAL WINDOW RETRACTABLE AWNING
USE - RESIDENTIAL AND COMMERCIAL

CAUTION: THE ARM IS SPRING LOADED. IMPROPER HANDLING CAN RESULT IN SERERE

INJURY TO THE PERSON AND MAY CAUSE DAMAGE TO THE PROPERTY.

W

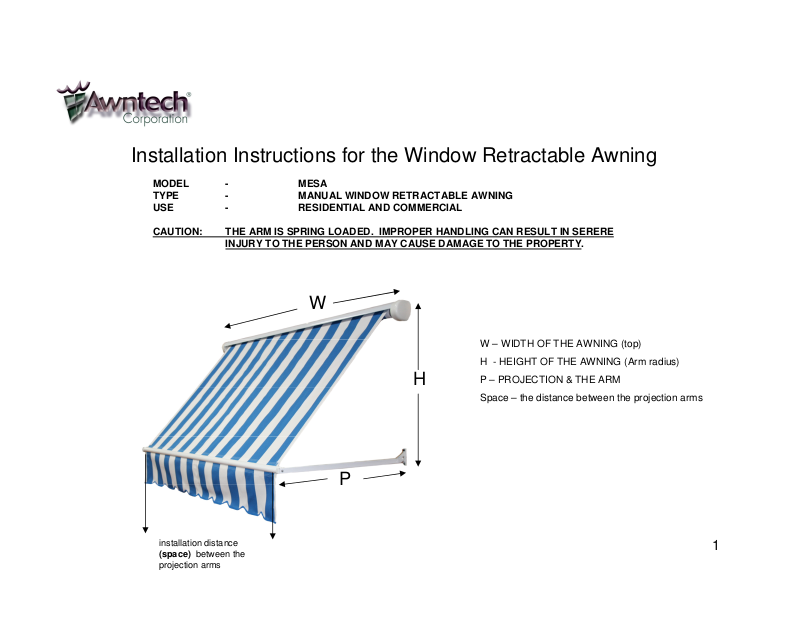

W – WIDTH OF THE AWNING (top)

H - HEIGHT OF THE AWNING (Arm radius)

installation distance
(space) between the
projection arms

P

H

P – PROJECTION & THE ARM

Space – the distance between the projection arms

1

Hardware required:

Type of hardware provided for the following types of structures: Brick and Mortar or any 2” thick structure

****Hardware is not provided for any other types of structures****
Recommended hardware for other wall types: Butterfly or Toggler anchors

Tools required:

High speed drill, 10mm socket/wrench, 9mm masonry drill bit, Phillip screw driver, level, tape measure
and a hammer, pencil

Installation: Installation of the top of the awning: images 2 and 3

2

Installation of the projection arms: image 3 & 4

Measure the height of the awning. The height represents the length of the projection arms. The bracket of the
projection arm has a slit and the slit must face the ground. The installation space between the arms must be equal
to the (Space, 1stimage). Once the arms are installed then lift one arm at a time and attach it to the projection rod
of the awning and secure it tightly. Then repeat the same for the second arm. CAUTION: THE ARM IS SPRING

LOADED. IMPROPER HANDLING CAN RESULT IN SERERE INJURY TO THE PERSON AND MAY CAUSE
DAMAGE TO THE PROPERTY.

IF YOU HAVE ANY QUESTIONS PLEASE CONTACT US AT 817-354-9600 OR EMAIL [e-mail]
