OPERATIN
G AND INST ALLATION INSTRUCTIONS
BUILT-IN VITROCERAMIC HOB
H661
3

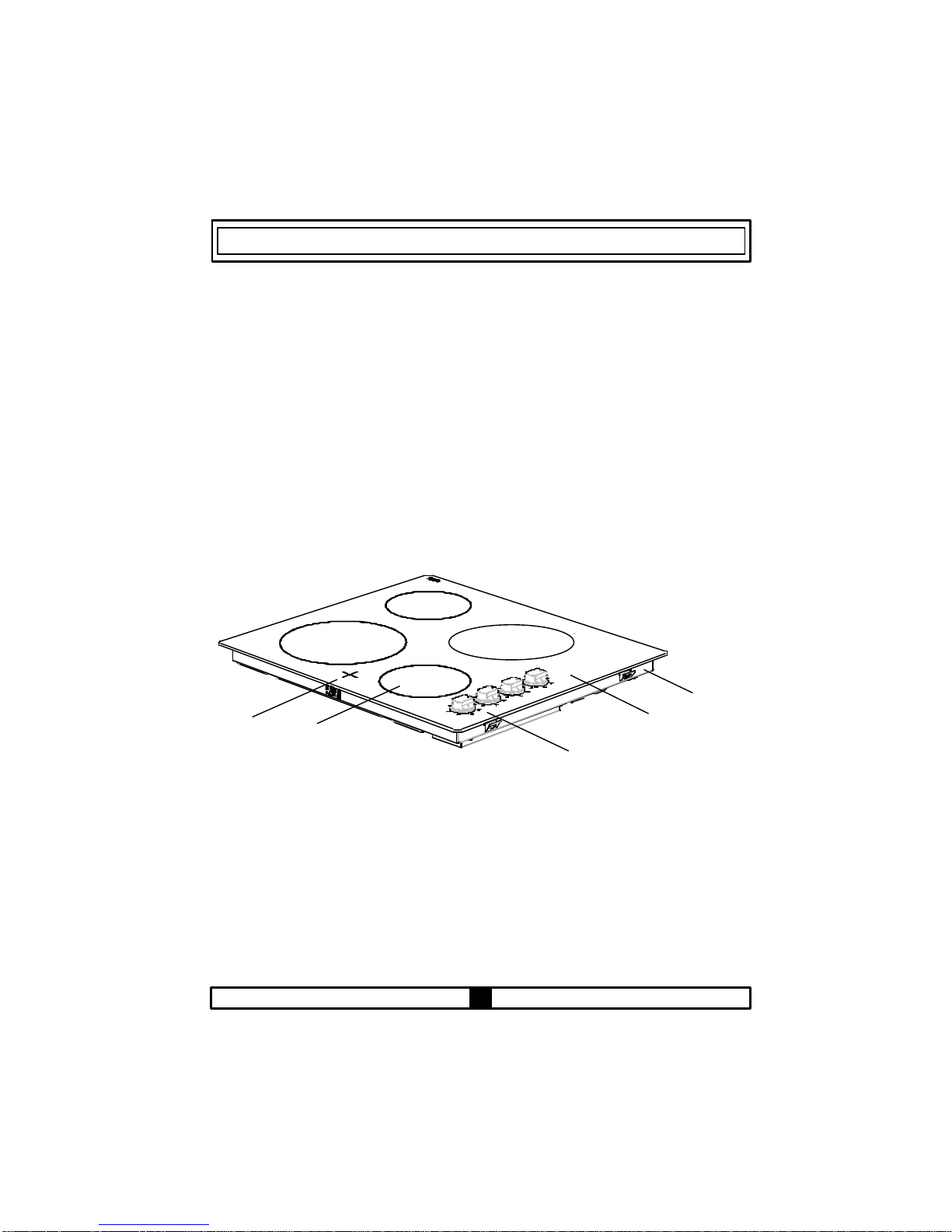

DESCRIPTION OF THE HOB
VITROCERAMIC
SURFACE
KNOB CONTROL
PANEL
SINGLE ZONE
HEATER
Dear Customer,
It is important that you should read this manual for best performance a nd
to extend the life of your appliance. We recommend you to keep this manual
for future re ference.
Your new h ob is guaranteed and will give lasting service. This guarantee
is on ly appl icable if the app liance has been i nstalled and operated in
accordance with the operating and installatio n instructions detailed in this
manual.
Note: Appearance of your hob maybe different than the model shown above
due to its co nfiguration.
HOB
FRAME
RESIDUAL
HEAT INDICATOR
PART 2 SAFETY WARNINGS
4
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE USING YOUR
APPLIANCE, AND KEEP IT IN A CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY.
THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL IN COMMON. YOUR APPLIANCE
MAY NOT HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL. PAY
ATTENTION TO THE EXPRESSIONS THAT HAVE FIGURES, WHILE YOU ARE READING THE
OPERATING MANUAL.
General Safety Warnings
- This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
- WARNING: The appliance and its accessible
parts become hot during use. Care should be
taken to avoid touching heating elements.
Children less than 8 years of age shall be kept
away unless continuously supervised.
- WARNING: Unattended cooking on a hob with
fat or oil can be dangerous and may result in
fire. NEVER try to extinguish a fire with water,
but switch off the appliance and then cover
flame e.g. with a lid or a fire blanket.
- WARNING: Danger of fire: do not store items
on the cooking surfaces.
5
- WARNING: If the surface is cracked, switch off
the appliance to avoid the possibility of electric
shock.
- For hobs incorporating a lid, any spillage
should be removed from the lid before opening.
And also the hob surface should be allowed to
cool before closing the lid.
- The appliance is not intended to be operated
by means of an external timer or separate
remote-control system.
- Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass and
other surface since they can scratch the surface,
which may result in shattering of the glass or
damage to the surface.
- Do not use steam cleaners for cleaning the
appliance.
- Your appliance is produced in accordance with all applicable local and international standards and
regulations.
- Maintenance and repair work must be made only by authorized service technicians. Installation and
repair work that is carried out by unauthorized technicians may endanger you. It is dangerous to alter or
modify the specifications of the appliance in any way.
- Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure or
electricity voltage and frequency) and the requirements of the appliance are compatible. The
requirements for this appliance are stated on the label.
- CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic
household use only and should not be used for any other purpose or in any other application, such as
for non-domestic use or in a commercial environment or room heating.
- All possible security measures have been taken to ensure your safety. Since the glass may break, you
should be careful while cleaning to avoid scratching. Avoid hitting or knocking on the glass with
accessories.
- Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it
must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent
a hazard.
6
Installation Warnings
- Do not operate the appliance before it is fully installed.
- The appliance must be installed by an authorized technician and put into use. The producer is not
responsible for any damage that might be caused by defective placement and installation by
unauthorized people.
- When you unpack the appliance, make sure that it is not damaged during transportation. In case of
any defect; do not use the appliance and contact a qualified service agent immediately. As the
materials used for packaging (nylon, staplers, styrofoam...etc) may cause harmful effects to children,
they should be collected and removed immediately.
- Protect your appliance against atmospheric effects. Do not expose it to effects such as sun, rain,
snow etc.
- The surrounding materials of the appliance (cabinet) must be able to withstand a temperature of min
100°C.
During usage
- Do not put flammable or combustible materials, in or near the appliance when it is operating.
- Do not leave the cooker while cooking with solid or liquid oils. They may catch fire on condition of
extreme heating. Never pour water on to flames that are caused by oil. Cover the saucepan or frypan
with its cover in order to choke the flame that has occured in this case and turn the cooker off.
- Always position pans over the centre of the cooking zone, and turn the handles to a safe position so
they cannot be knocked or grabbed.
- If you will not use the appliance for a long time, plug it off. Keep the main control switch off. Also
when you do not use the appliance, keep the gas valve off.
- Make sure the appliance control knobs are always in the "0" (stop) position when it is not used.
During cleaning and maintenance
- Always turn the appliance off before operations such as cleaning or maintenance. You can do it after
plugging the appliance off or turning the main switches off.
- Do not remove the control knobs to clean the control panel.
TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE RECOMMEND YOU
ALWAYS USE ORIGINAL SPARE PARTS AND TO CALL ONLY OUR AUTHORIZED SERVICE
AGENTS IN CASE OF NEED.
7
INST ALLATION
The electrical connection of this hob should be carried out by an
auth orised service perso nal or a qual ified electrician, according to the
in structions in this guide and in compliance with the current regulations.
· Prior to installation, ensure that the local distribution conditions and the
adjustme nt of the appliance are compatible.
· The laws, ord inances, directives and standards in force in the country of
use are to be followed (safety regulations, proper recycling in accordance
with the regulations, etc.)
Locating your built-in hob
After removing the packaging material from the appliance and its accessories,
ensure that the hob is not damaged. If you suspect any damage, do not use
the appl iance and contact an autho rised service personnel or a qua lified
electrician immediat ely.
· This built-in hob is to be inserted into a cut out of a worktop. It will be
electrical ly connected with the switch box below, especial ly provided for
this purpo se.
8

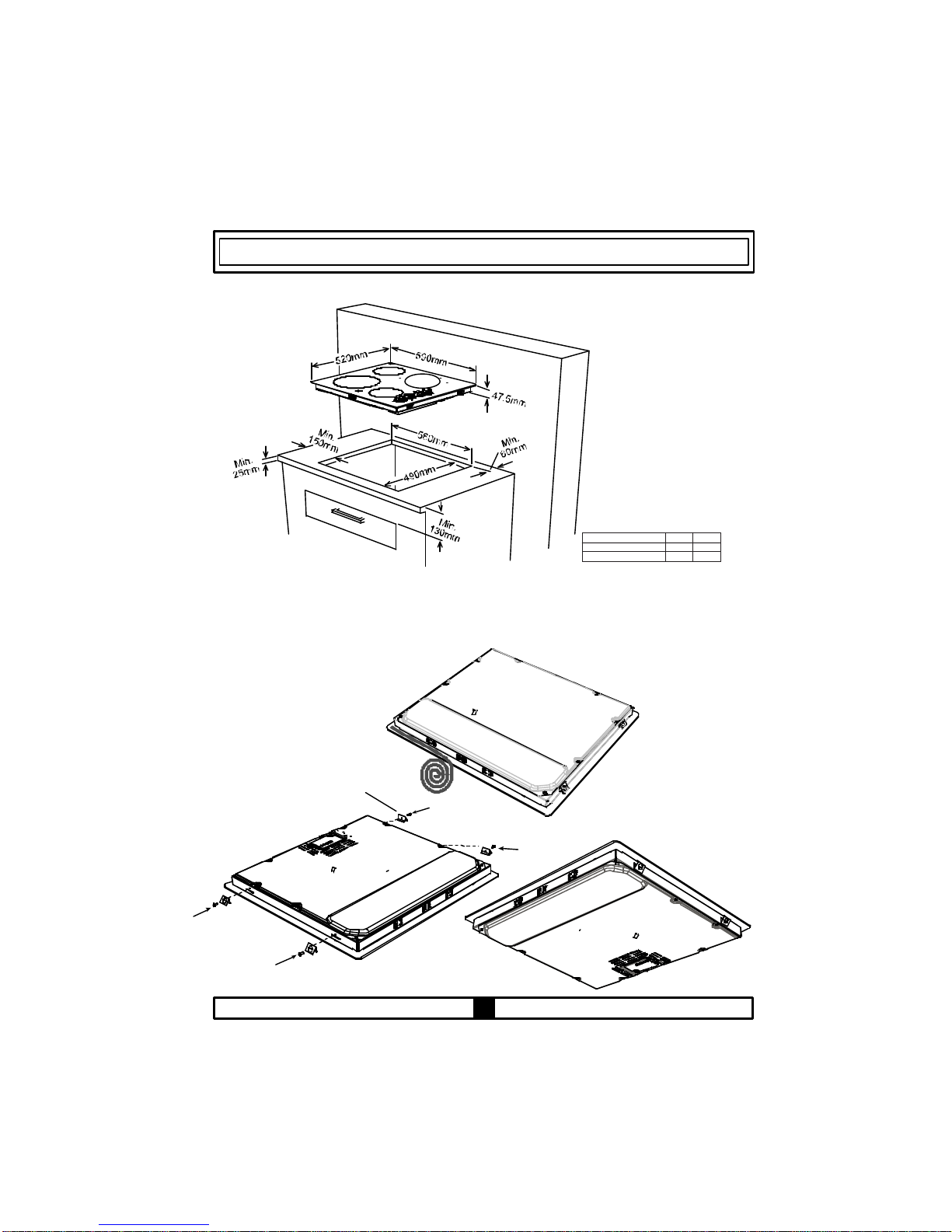

· Create an openin g with the dimensions shown in the picture below.
· Apply the one-side d self-adhesive sealing tape supplied all the way round
the lower edge of the cooking surface along the outer edge of the glass
ceramic p anel. Do not stretch it.
worktop mounting bracket
· Screw the 4 worktop mounti ng brackets on the side walls of product.
Neighboorhood walls A [mm] B [mm]
Combustible 60 150
Non-combustible 25 40
9
ELECTRICAL CONNECTION OF YOUR HOB
· Before proceeding with the electrical connection, verify that the curren t
carrying capacity of the system and the socket is adequate for the maximum
power rating of the hob.
· Electrical in stallation of the resi dence and the electri cal current plug in
u se mu st b e e a rthe d and co nfo rm wi th sa fety r e gu l at i on s.
· If there is no dedicated hob circuit and fused switch, they must be installed
by a qualified e lectrician before the hob is connected.
. Fused switch must b e easily accessible once the hob has been installed.
· Do no t use adapto rs, multipl e sockets and/ or extensio n leads.
· This appliance conforms with t he requirement s ofthe fol lo wing EEC
Directives:
1. Vitroceram ic hob EEC/73/23 and 93/68, EEC/89/336 relating to
radio interference,
2. EEC/89/109 relating to contact with foods.
· A circui t breaker with a contact opening of at lea st 3mm, rated 32A and
delayed functioning type must b e insta lled inside the supply circuit.
· For the knob controlled vitrocerami c hob, the cable m ust be H05VV-F
5X1,5 mm² for 3 phase or 3X2,5mm² for sin gle phase / 60227 IEC 53 .
You will find the connection diagram shown on the bottom of your appliance.
1
2
3
* This appliance must be earthed.
* For this connetion a power lead ofwiretype
H05VV-F should be used.
2
2
2
2
2
2
10
· During installation, please insure that isolated cables are used. An incorrect
connection might damage your appli ance. The guarantee will not cover
such damag es.
· All repairs must be carried out by an authorised service personal or a
qualified electrician.
· Unplug your appliance before each maintenance. For reconnection, follow
the connection diagrams strictly.
Knob controlled cooker is designed for
operating at 6 heat l evels:
1 Keeping warm position
2-3 Heati ng position at low heat
4-5-6 Cooking – ro asting and boiling
position
Residual Heat Functions
After all cooking processes there is some
heat stored in the vitroceramic gla ss
called residual heat. The con trol can
calculate roughly how hot the glass is
in the worst case. If the calcu lated
tempera ture is higher than + 60 ° C,
then this will b e indicated in the related
residual heat indicator lamp. The residual
heat display is shown as long as the
calculated heater temperature is > + 60
° C.
11
USAGE
The ap pliance is operated by using knob control and the heat stored i s
confirm ed by residual heat indicator lamp on t he vitroceramic surf ace.
After reapplying th e supply voltage to the hob control after an interruption of
the supply voltage occurred, causes that the residual heat displ ay flashes,
if the corresponding heater had a residua l heat of greater + 60 ° C before
the power interruption occurred. The display will flash until the max. residual
heat time has expired or the hea ter will be selected and activated.
12
CLEANING AND CARE
Cookware wi th rough bottoms should not be used since these can scratch
the glass ceramic surface. The bottom of the good cookwares should be as
thick and flat as possible. Before use, make sure that cookware bottoms are
clean and dry.
Always place the cookware on the cooking zone before it is switched on. If
possible, always place th e lids on the cookware. Bottom of cookwares must
not be smaller or larger than the cooking zones, they should be at the proper
size as indi cated below, not to waste energy.
Before cle aning the hob, first remove the plug from the electrical supply
socket. Then ensure that there is no residual heat stored in the appliance.
Vitrocera mic glass is very resistant to high temperature and overheating. If
there is residual hea t sto red in the appliance, the related residual heat
indicator la mp is on. In order to avoid burns, let the appliance cool down.
Remove all spl it food and fat with a window scrape. Then wipe the hob with
a suitab le washing up liq uid and a clean damp cloth. Rub the appliance
using a clean dry cl oth.
If alumi nium foil or plasti c items are accidentally melt o n the hob surface,
they should be immediately removed from the hot cooking area with a scraper.
This will avoid any possible damage to the surface. This also applies to sugar
or food conta ining sugar may be spilled on the hob.
In the event of other food melt on the hob surface, remove the dirt when the
appliance has coo led down. Use cleaner for glass ceramic or stainless steel
when cleaning the surface.
Do not use dishcloth or abrasive sponge to clean the vitrocera mic surface.
These materials m ay damage the surface.
Do not use chemical detergents, sprays or spot removers on the vitroceramic
surface . These materials may cause fire or vit roceramic color fade. Clean
with water and washing up liquid.
CORRECT FALSE FALSE FALSE
AWARD APPLIANCES
Adres: 388 -3 90 Blenheim Road PO Box 4007, Christchur ch New Zeland
Tel: 64 (0) 3 34 805 56 Fax:64 (0) 3 34 806 87
Loading...
