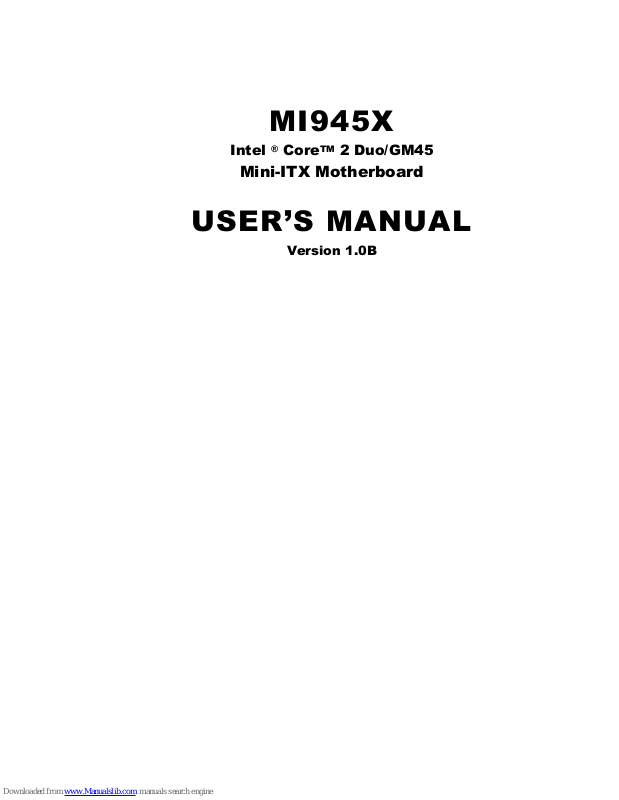

MI945X
Intel ® CoreTM 2 Duo/GM45
Mini-ITX Motherboard
USER’S MANUAL
Version 1.0B
ii
MI945X User’s Manual
Acknowledgments
Award is a registered trademark of Award Software International,
Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Intel® Core 2 Duo and Intel® Celeron processors are
registered trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.
MI945X User’s Manual iii
Table of Contents
Introduction ....................................................... 1
Product Description............................................................. 1
Checklist .............................................................................. 2
MI945X Specifications ....................................................... 3
Board Dimensions ............................................................... 4
Installations ....................................................... 7
Installing the CPU ............................................................... 8
Installing the Memory ......................................................... 9
Setting the Jumpers ........................................................... 10
Connectors on MI945X ..................................................... 14
BIOS Setup ....................................................... 23
Drivers Installation ...................................... 45
Intel Chipset Software Installation Utility ........................ 46
VGA Drivers Installation .................................................. 48
High Definition Codec Audio Driver Installation ............. 50
LAN Drivers Installation................................................... 51
Appendix ............................................................ 53
A. I/O Port Address Map .................................................. 53
B. Interrupt Request Lines (IRQ) ...................................... 54
C. Watchdog Timer Configuration ................................... 55
iv
MI945X User’s Manual
IMPORTANT NOTE: When the system boots without the CRT being
connected, there will be no image on screen when you insert the
CRT/VGA cable. To show the image on screen, the hotkey must be
pressed (CTRL-ALT-F1).

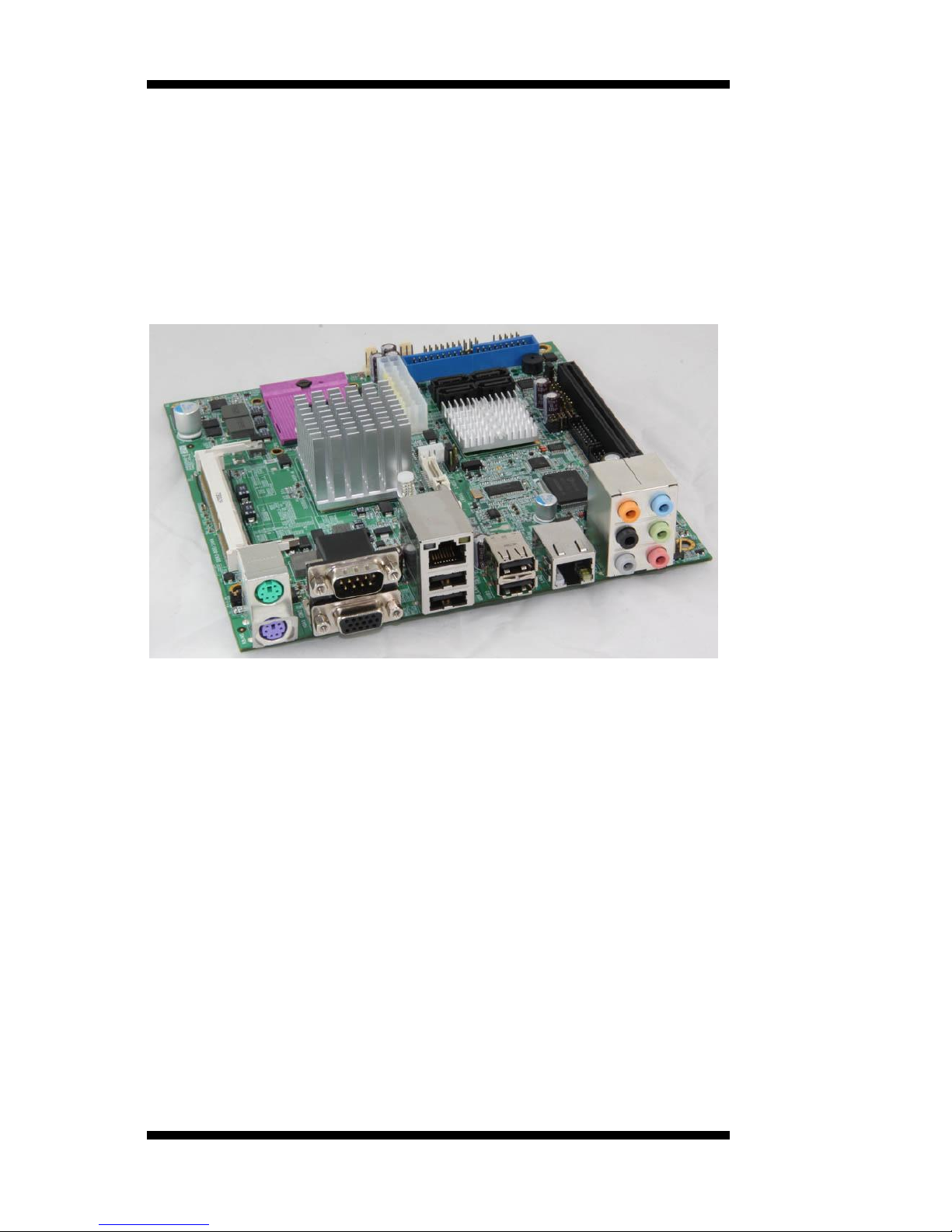

MI945X Mini ITX Motherboard
INTRODUCTION
MI945X User’s Manual 1
Introduction
Product Description
The MI945X Mini ITX board incorporates the Mobile Intel® GM45 Express
Chipset for Embedded Computing, consisting of the Intel® GM45 Graphic
Memory Controller Hub (GMCH) and Intel® I/O Controller Hub (ICH9-M), an
optimized integrated graphics solution with a 1066MHz and 800MHz front-side
bus. Dimensions of the board are 170mm x 170mm.
The integrated powerful 3D graphics engine, based on Intel® Graphics Media
Accelerator X3500 (Intel® GMA X3500) architecture, operates at core speeds of
up to 533 MHz. It features a low-power design, is validated with the Intel® Core
2 Duo processors on 45nm process. With dual channel DDR3 800/1066MHz
two SODIMM sockets on board, the board supports up to 4GB of system
memory.
Intel® Graphics supports a unique intelligent memory management scheme
called Dynamic Video Memory Technology (DVMT). DVMT handles diverse
applications by providing the maximum (384MB) availability of system memory
for general computer usage, while supplying additional graphics memory when a
3D-intensive application requests it. The Intel GMA X3500 graphics
architecture also takes advantage of the high-performance Intel processor. Intel
GMA X3500 graphics supports Dual Independent Display technology.
The main features of the board are:
Supports Intel® Mobile Core 2 Duo/Core 2 Quad Processor (Penryn)
Supports up to 2.93GHz, 1066MHz/800MHz FSB
Two DDR3 SoDIMM, Max. 4GB memory
Onboard Gigabit PHY and Intel PCI-Express Gigabit LAN
Intel® GM45 Express VGA for CRT / LVDS
4x SATA, 8x USB 2.0, 4x COM, Watchdog timer
1x Mini PCI-E (Mini Card), 1x PCI-E (x16) slots
INTRODUCTION
2
MI945X User’s Manual
Checklist
Your MI945X package should include the items listed below.
The MI945X Mini-ITX motherboard
This User’s Manual
1 CD containing chipset drivers and flash memory utility
Cable kit (IDE, Serial port, Serial ATA)
INTRODUCTION
MI945X User’s Manual 3
MI945X Specifications
CPU Type
Intel® Mobile CoreTM2 Duo/CoreTM2 Quad Processor (Penryn)
Intel® Celeron 5x5 Series
CPU Speed
Up to 2.93GHz
FSB
667/800/1066MHz FSB
L2 Cache
3MB or 6MB (P8000-series or P9000-series, T9000-series)
Green /APM
APM1.2
CPU Socket
Socket 478 “Type P” (Socket P) or micro-FCBGA on board
Chipset
Intel® GM45 (Cantiga) chipset
- GMCH: AC82GM45 1329-pin FCBGA
- ICH9M: AF82801IM 676-pin mBGA
BIOS
Award BIOS, support ACPI Function
Memory
DDR3 800/1066
(DDR3 1333/1600 not supported on GM45)
- SoDIMM x2 Dual-Channel (w/o ECC), Max. 4GB
VGA & LVDS
Intel® GM45 built-in Intel gen.5.0 Graphics Media Accelerator
(533MHz 1.05V), supports DirectX10 for CRT & LVDS (single/dual
channel 18-bits/ 24-bit)
SDVO (DUAL CH)
None
Backlight control
(LVDS)
- GMCH built-in control by PWM
LAN
1. Intel® ICH9M 10/100/gigabit MAC + PHY:
Intel 82567LM 10/100/1000
2. Intel 82574L PCI-e gigabit LAN controller x1
USB
ICH9M built-in USB 2.0 host controller, supports 8 ports
Serial ATA
ICH9M built-in SATA controller, supports 4 ports
Parallel IDE
JMicron JM368 (PCI-e to PATA) x1 for 1 PATA channel for IDE & CF
Audio
Intel® ICH9M built-in High Definition Audio controller ALC888
with 7.1 channels
LPC I/O
Winbond® W83627DHG: - IrDA x1, COM1 (RS232), COM2
(RS232/422/485), Hardware monitor
- Fintek 81216G for COM 3 & COM4
Digital IO
4 in & 4 out
Keyboard/Mouse
Connector
Supports PS/2 Keyboard/Mouse
Expansion Slots
PCIe(x16) x1 and PCIe Minicard (30 x 56mm) x 1
Edge Connector
- PS/2 KB/Mouse connector
- Gigabit LAN RJ45 + dual USB stack connector
- Gigabit LAN RJ45 + dual USB stack connector
- DB9 + DB15 stack connector x1 for COM 1 & VGA
- RCA Jack 3x2 for HD Audio (Low Profile)
On Board
Header/Connector
- 40-pin box-header x1 for IDE1
- PCIe Minicard x1 @ solder side
- DF13 connector x2 for LVDS
- 10-pin headerx1 for Digital I/O
- 10-pin header x1 for COM2
- 20-pin header x1 for COM3/COM4
- 10-pin header x 2 for USB 5/6/7/8
- 10-pin header x1 for audio Line-Out & Mic
- SATA connector x4 for 4 SATA ports
- 26-pin box-header x1 for parallel port
Watchdog Timer
Yes (256 segments, 0, 1, 2…255 sec/min)
Board Size
170mm x 170mm
INTRODUCTION
4
MI945X User’s Manual
[

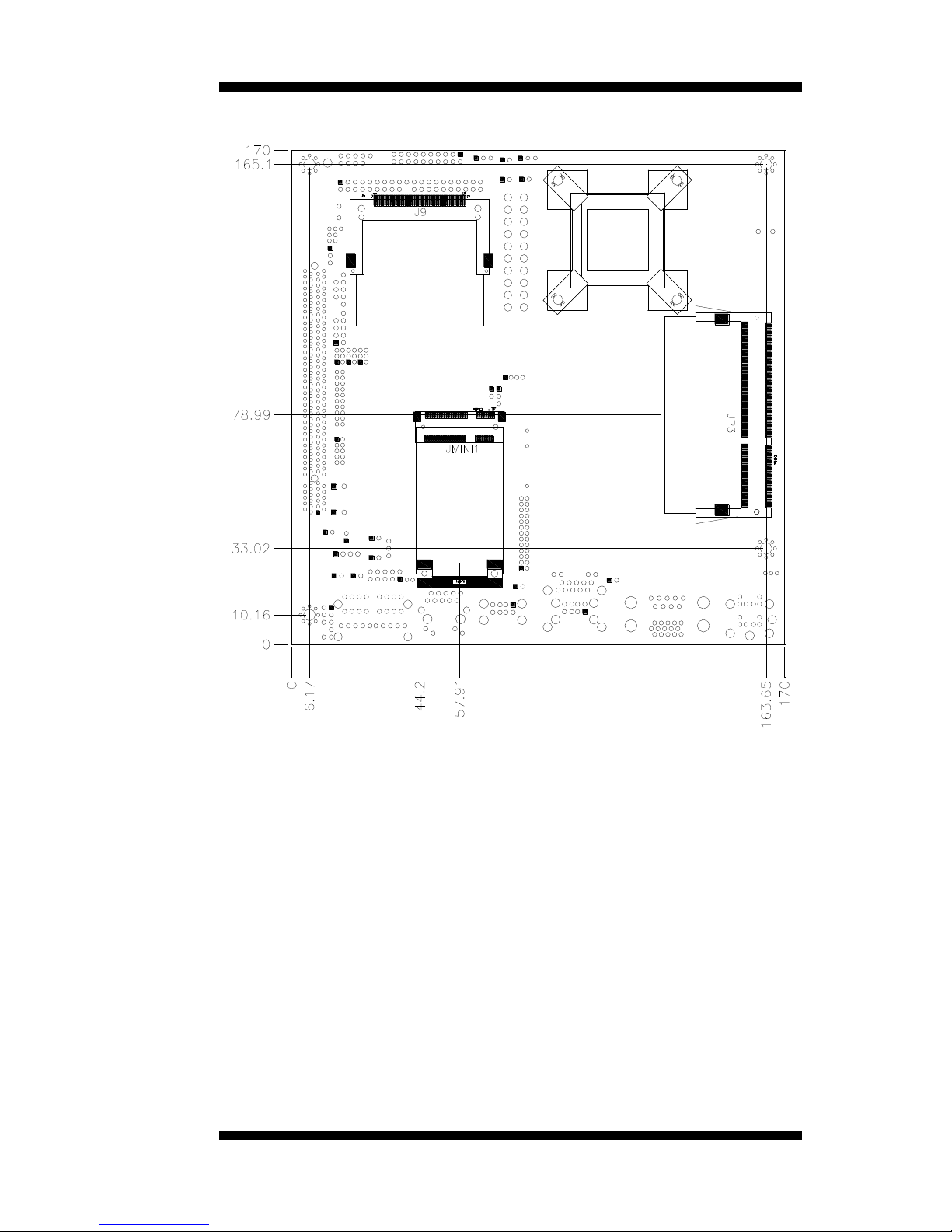

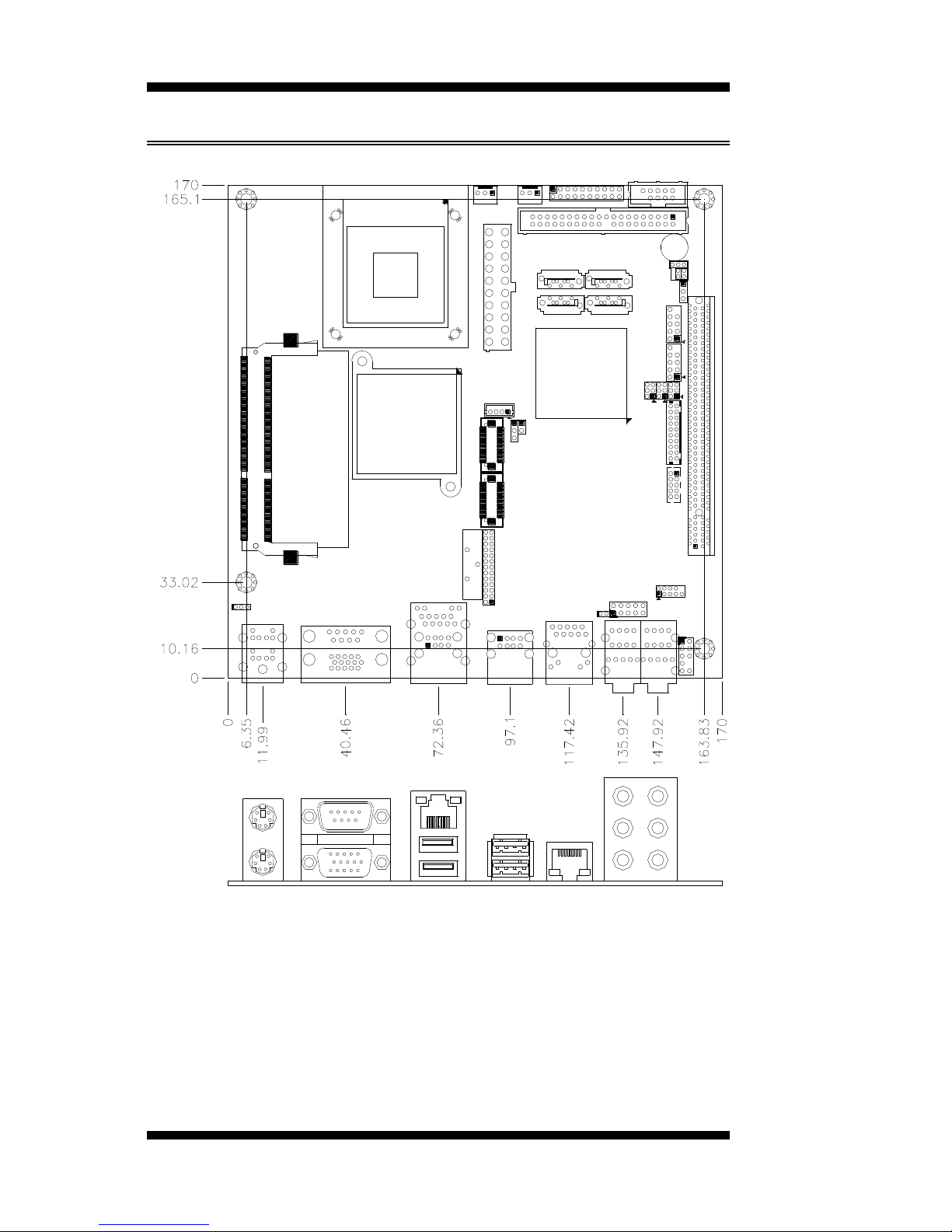

Board Dimensions
INTRODUCTION
MI945X User’s Manual 5
INTRODUCTION
6
MI945X User’s Manual
This page is intentionally left blank.
INSTALLATIONS
MI945X User’s Manual 7
Installations
This section provides information on how to use the jumpers and
connectors on the MI945X in order to set up a workable system. The
topics covered are:
Installing the CPU .................................................................................. 8
Installing the Memory ............................................................................ 9
Setting the Jumpers .............................................................................. 10
Connectors on MI945X ....................................................................... 14
INSTALLATIONS
8
MI945X User’s Manual
Installing the CPU

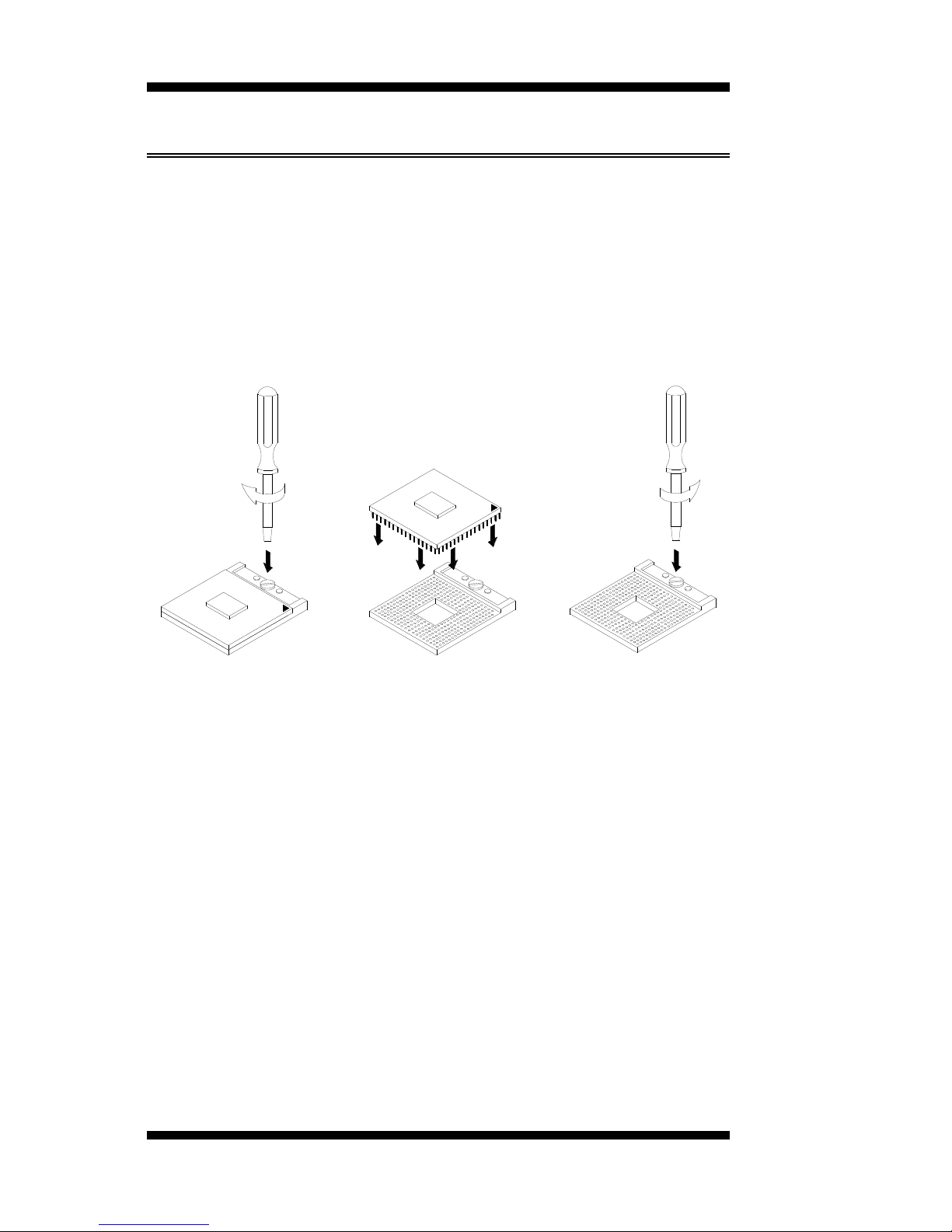

The MI945X board supports a Socket M socket for Intel® CoreTM 2 Duo,
Intel® Celeron mobile processors. The processor socket comes with a
screw to secure the processor. As shown in the left picture below, loosen
the screw first before inserting the processor. Place the processor into the
socket by making sure the notch on the corner of the CPU corresponds
with the notch on the inside of the socket. Once the processor has slide
into the socket, fasten the screw. Refer to the figures below.
NOTE:
Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.
INSTALLATIONS
MI945X User’s Manual 9
Installing the Memory
The MI945X board supports two DDR3 memory socket for a maximum
total memory of 4GB in DDR3 memory type.

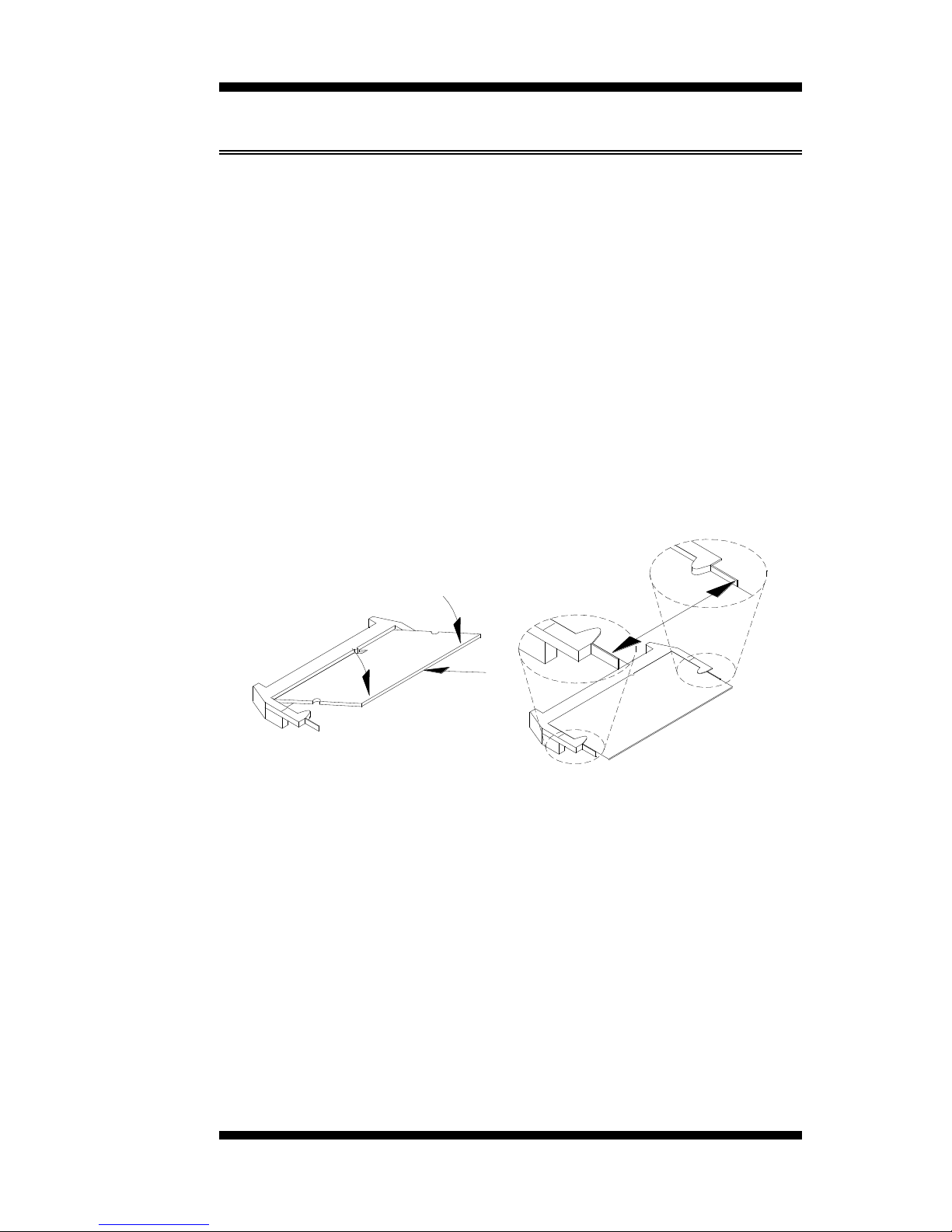

Installing and Removing Memory Modules
To install the DDR3 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR3 module so that the key of the DDR3 module aligned
with that on the memory slot.
2. Gently push the DDR3 module in an upright position until the clips of
the slot close to hold the DDR3 module in place when the DDR3
module touches the bottom of the slot.
3. To remove the DDR3 module, press the clips with both hands.
INSTALLATIONS
10
MI945X User’s Manual
Setting the Jumpers
Jumpers are used on MI945X to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on MI945X and their respective functions.
Jumper Locations on MI945X ............................................................. 11
JP1: Keyboard/Mouse Power Selection ............................................... 12
JP2: LCD Panel Power Selection ......................................................... 12
JP5, JP6, JP7: RS232/422/485 (COM2) Selection .............................. 12
JP9: CompactFlash Slave/Master Selection ......................................... 13
JBAT1: Clear CMOS Setting ............................................................... 13
INSTALLATIONS
MI945X User’s Manual 11

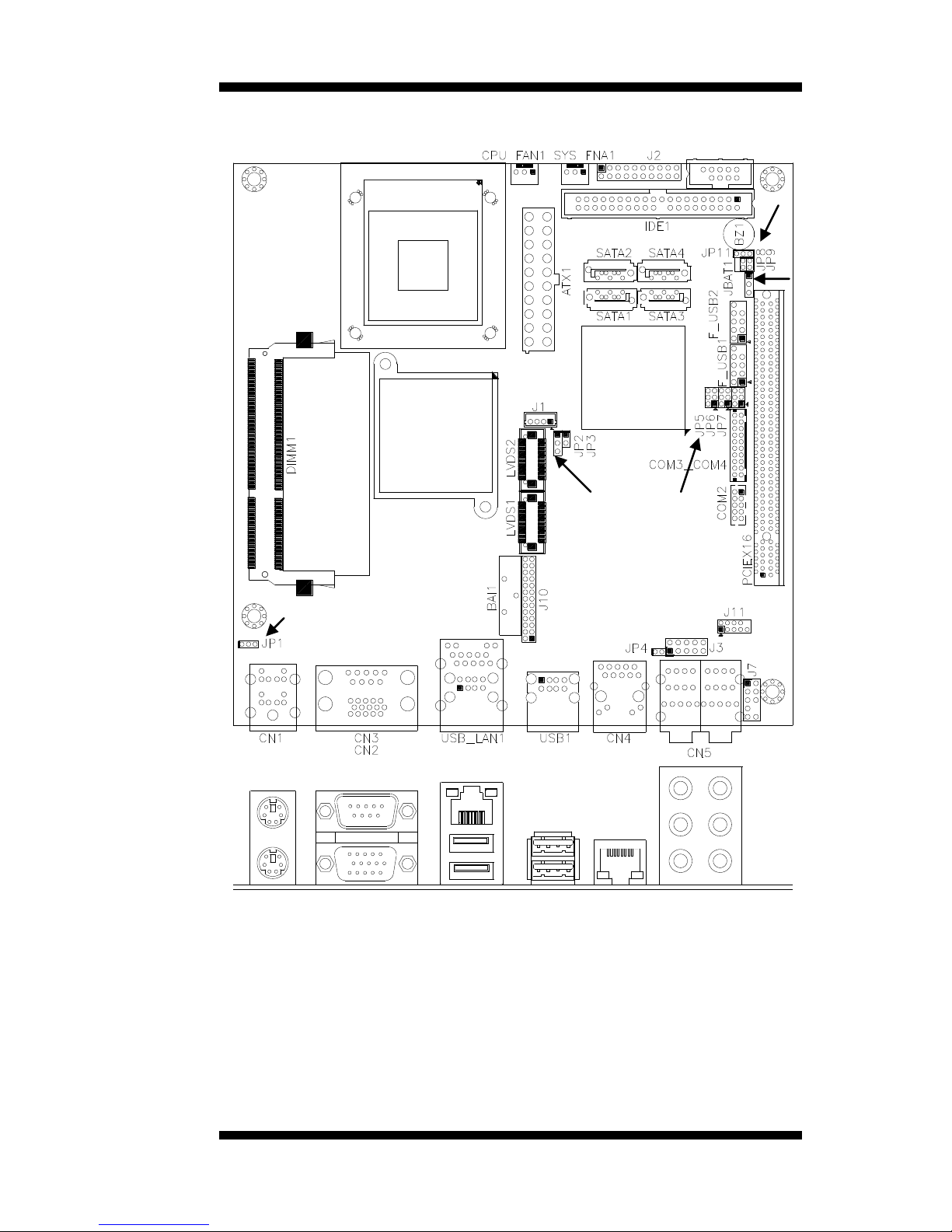

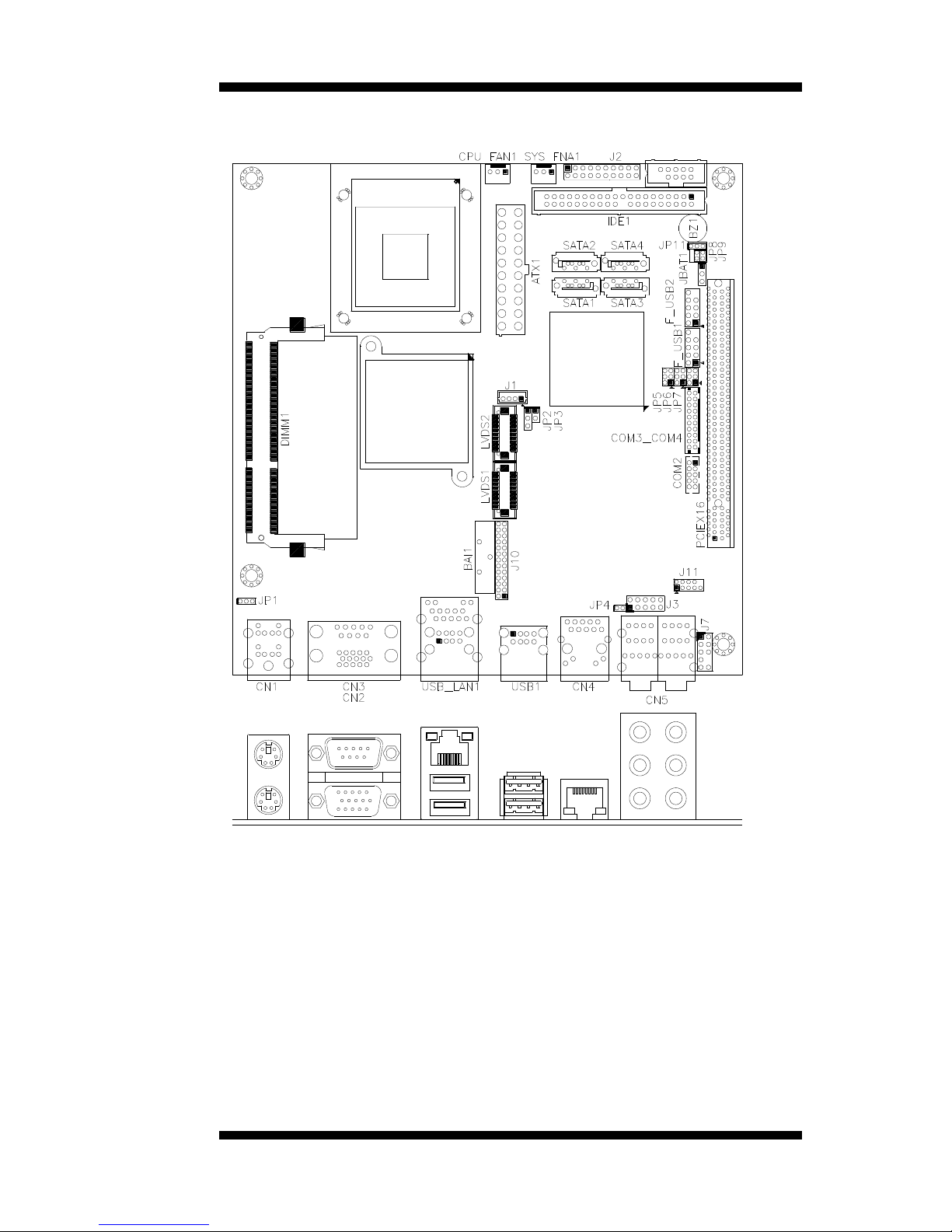

Jumper Locations on MI945X
Jumpers on MI945X ......................................................................... Page
JP1: Keyboard/Mouse Power Selection ............................................... 12
JP2: LCD Panel Power Selection ......................................................... 12
JP5, JP6, JP7: RS232/422/485 (COM2) Selection .............................. 12
JP9: CompactFlash Slave/Master Selection ......................................... 13
JBAT1: Clear CMOS Setting .............................................................. 13
INSTALLATIONS
12
MI945X User’s Manual
JP1: Keyboard/Mouse Power Selection
JP1
LCD Panel Power
5V
5VSB(Standby)
JP2: LCD Panel Power Selection
JP2
LCD Panel Power
3.3V
5V

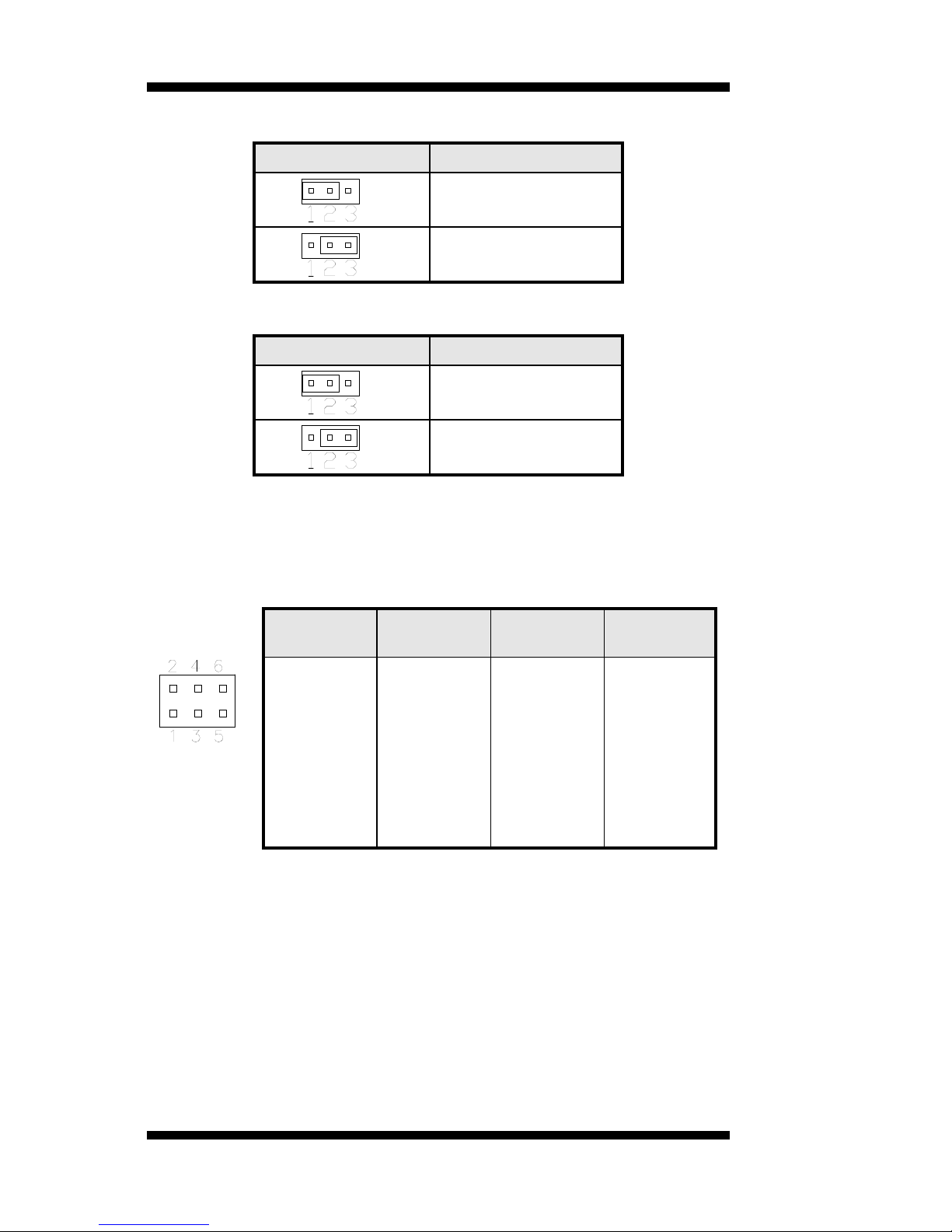

JP5, JP6, JP7: RS232/422/485 (COM2) Selection
COM1 is fixed for RS-232 use only.
COM2 is selectable for RS232, RS-422 and RS-485.
The following table describes the jumper settings for COM2 selection.
COM2
Function
RS-232
RS-422
RS-485
Jumper
Setting
(Pin closed)
JP5:
1-2
JP6:
3-5 & 4-6
JP7:
3-5 & 4-6
JP5:
3-4
JP6:
1-3 & 2-4
JP7:
1-3 & 2-4
JP5:
5-6
JP6:
1-3 & 2-4
JP7:
1-3 & 2-4
INSTALLATIONS
MI945X User’s Manual 13

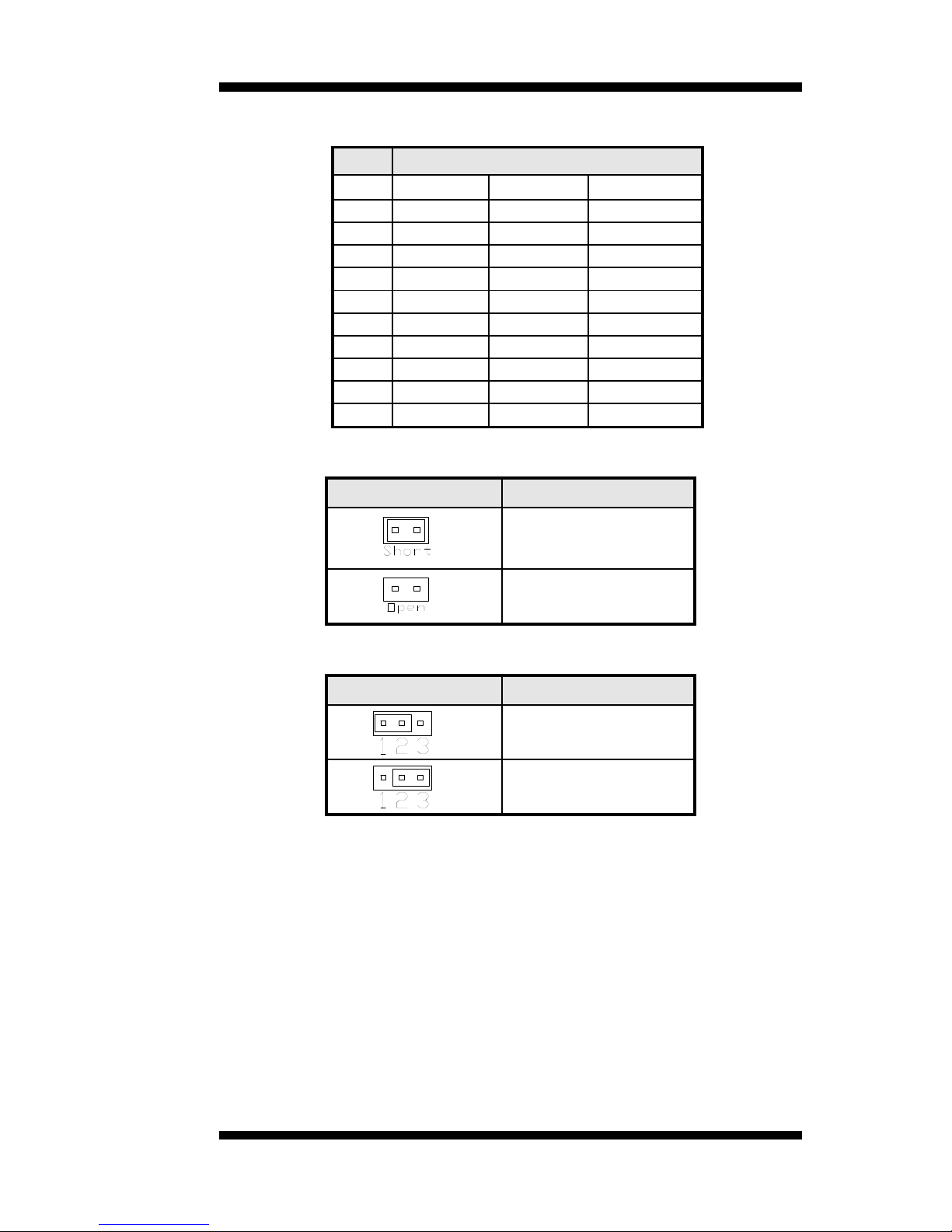

COM2 is jumper selectable for RS-232, RS-422 and RS-485.
Pin #
Signal Name
RS-232
R2-422
RS-485
1
DCD
TX-
DATA-
2
RX
TX+
DATA+
3
TX
RX+
NC
4
DTR
RX-
NC
5
Ground
Ground
Ground
6
DSR
RTS-
NC
7
RTS
RTS+
NC
8
CTS
CTS+
NC
9
RI
CTS-
NC
10
NC
NC
NC
JP9: CompactFlash Slave/Master Selection
JP9
CF Setting
Master
Slave
JBAT1: Clear CMOS Setting
JBAT1
Setting
Normal
Clear CMOS
INSTALLATIONS
14
MI945X User’s Manual
Connectors on MI945X
Connector Locations on MI945X......................................................... 15
CN1: PS/2 Keyboard and PS/2 Mouse Connectors.............................. 16
CN2, CN3: COM1 and VGA Connector ............................................. 16
USB_LAN1: 10/100/1000 RJ-45 (MI945X) and USB1/2 Ports .......... 17
USB1: USB3/4 Ports ........................................................................... 17
CN4: GbE RJ-45 (MI945XF) .............................................................. 17
CN5: Audio Connector ........................................................................ 17
ATX1: ATX Power Supply Connector ................................................ 17
SYS_FAN1: System Fan Power Connector ......................................... 17
CPU_FAN1: CPU Fan Power Connector ............................................ 18
IDE1: IDE Connector .......................................................................... 18
COM2: COM2 Serial Port ................................. 錯誤! 尚未定義書籤。
COM3_COM4: COM3, COM4 Serial Port ......................................... 19
LVDS1, LVDS2: LVDS Connectors (1st channel, 2nd channel) ......... 19
J1: LCD Backlight Connector .............................................................. 19
J2 (F_PANEL): System Function Connector ................................ ....... 20
J3: Digital I/O ...................................................................................... 21
J4: SPI Flash Connector (factory use only) .......................................... 21
J7: Front Audio Connector ................................................................... 21
J9: Compact Flash Connector .............................................................. 21
J10: Parallel Port Connector ................................................................ 22
J11: Reserved for factory use ............................................................... 22
F_USB1: USB5/USB6 Connector ....................................................... 22
F_USB2: USB7/USB8 Connector ....................................................... 22
JMINI: Mini PCIE Connector .............................................................. 22
SATA1, SATA2, SATA3, SATA4: SATA Connectors ....................... 22
PCIEX16: PCI-E(x16) Slot .................................................................. 22
INSTALLATIONS
MI945X User’s Manual 15
Connector Locations on MI945X
Connector Locations on MI945X

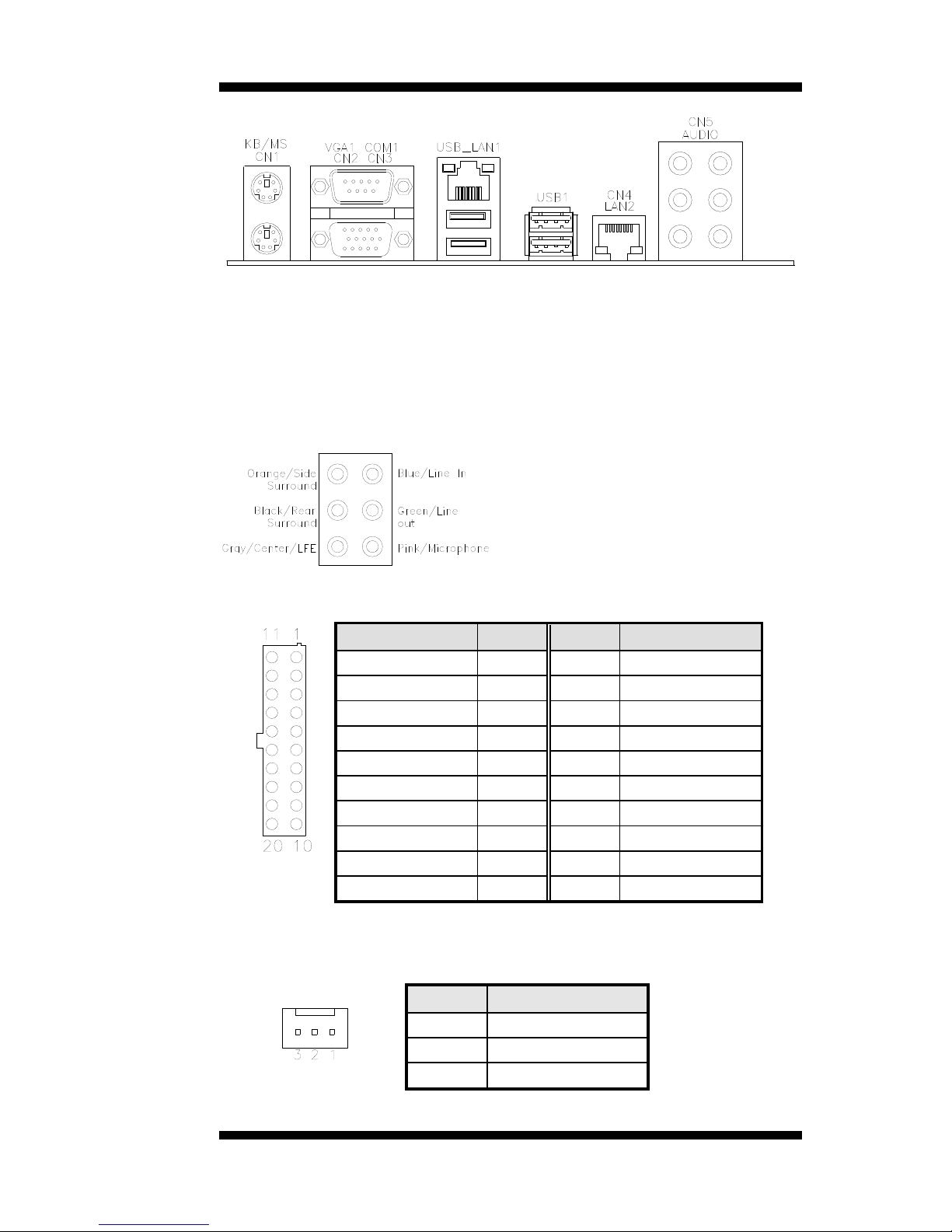

CN1: PS/2 Keyboard and PS/2 Mouse
CN2, CN3: COM1 and VGA Connector
USB_LAN1: RJ-45 and USB1/2 Ports
USB1: USB3/4 Ports
CN4: GbE RJ-45 (MI945XF)
CN5: Audio Connector
ATX1: ATX Power Supply
SYS_FAN1: System Fan Power
CPU_FAN1: CPU Fan Power
IDE1: IDE Connector
COM2: COM2 Serial Port
COM3_COM4: COM3, COM4
LVDS1, LVDS2: LVDS Connectors
J1: LCD Backlight Connector
J2 (F_PANEL): System Function
J3: Digital I/O
J4: SPI Flash Connector
J7: Front Audio Connector
J9: Compact Flash Connector
J10: Parallel Port Connector
J11: Reserved for factory use
F_USB1: USB5/USB6 Connector
F_USB2: USB7/USB8 Connector
JMINI: Mini PCIE Connector
SATA1, SATA2, SATA3, SATA4: SATA
PCIEX16: PCI-E(x16) Slot
INSTALLATIONS
16
MI945X User’s Manual

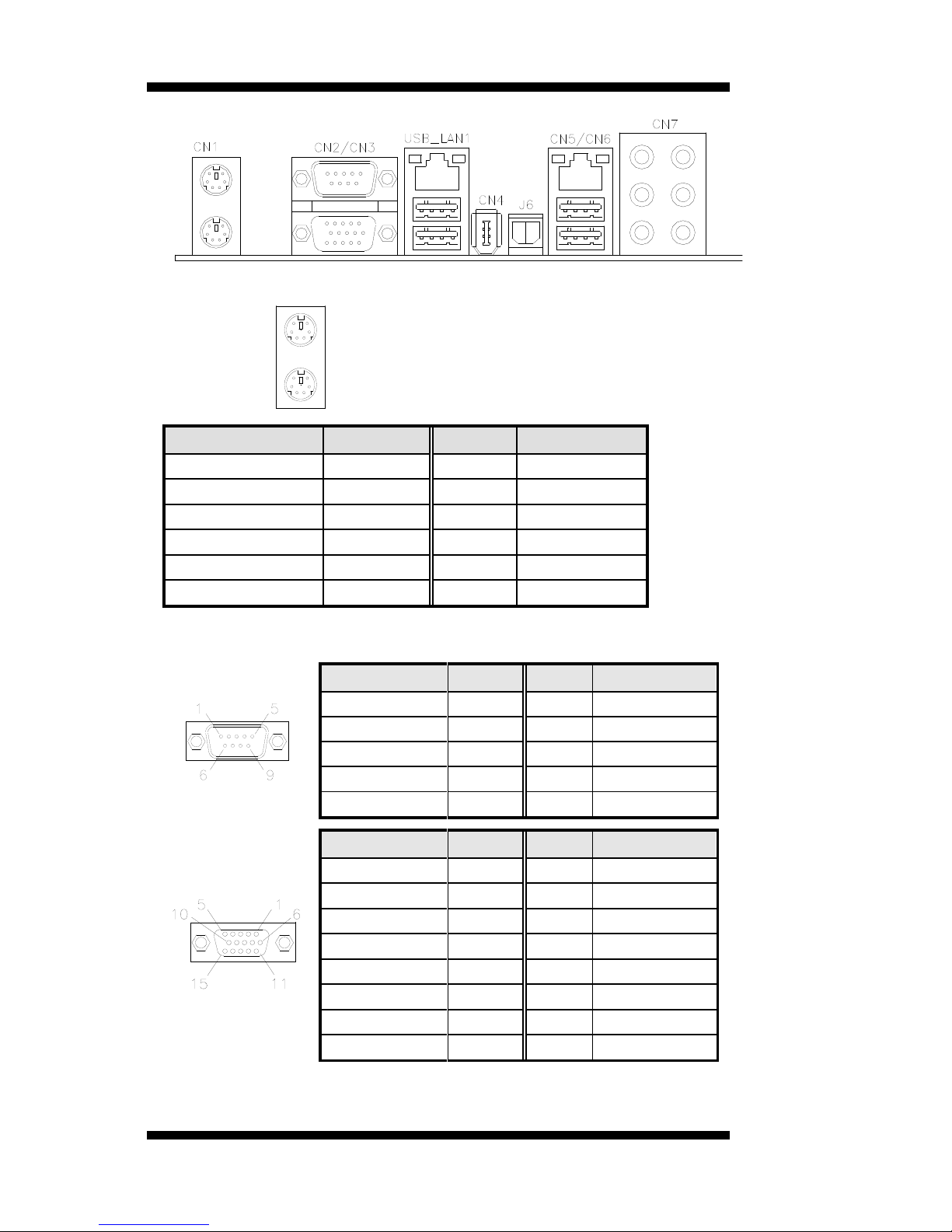

CN1: PS/2 Keyboard and PS/2 Mouse Connectors
PS/2 Mouse
PS/2 Keyboard
Signal Name
Keyboard
Mouse
Signal Name
Keyboard data
1
1
Mouse data
N.C.
2 2 N.C.
GND
3 3 GND
5V
4 4 5V
Keyboard clock
5
5
Mouse clock
N.C.
6 6 N.C.
CN2, CN3: COM1 and VGA Connector
[
Signal Name
Pin #
Pin #
Signal Name
DCD
1 6 DSR
RXD
2 7 RTS
TXD
3 8 CTS
DTR
4 9 RI
GND
5
10
Not Used
[[[[
Signal Name
Pin #
Pin #
Signal Name
Red
1 2 Green
Blue
3 4 N.C.
GND
5 6 GND
GND
7 8 GND
N.C.
9
10
GND
N.C.
11
12
N.C.
HSYNC
13
14
VSYNC
NC
15
INSTALLATIONS
MI945X User’s Manual 17
USB_LAN1: 10/100/1000 RJ-45 (MI945X) and USB1/2 Ports
USB1: USB3/4 Ports
CN4: GbE RJ-45 (MI945XF)
CN5: Audio Connector
ATX1: ATX Power Supply Connector
Signal Name
Pin #
Pin #
Signal Name
3.3V
11 1 3.3V
-12V
12 2 3.3V
Ground
13 3 Ground
PS-ON
14 4 +5V
Ground
15 5 Ground
Ground
16 6 +5V
Ground
17 7 Ground
-5V
18 8 Power good
+5V
19 9 5VSB
+5V
20
10
+12V

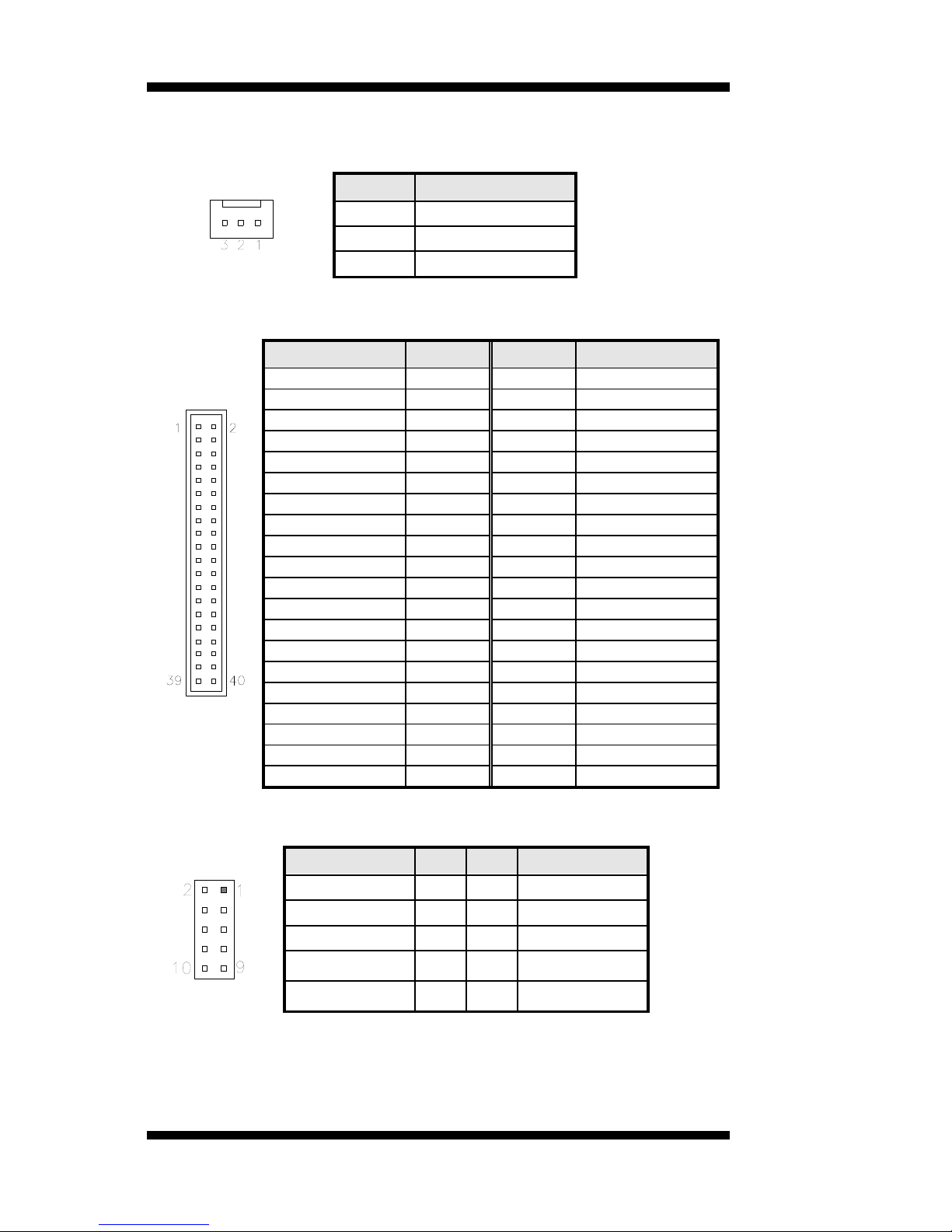

SYS_FAN1: System Fan Power Connector
FAN1 is a 3-pin header for system fans. The fan must be a 12V (500mA).
Pin #
Signal Name
1
Ground
2
+12V
3
Rotation detection
INSTALLATIONS
18
MI945X User’s Manual
CPU_FAN1: CPU Fan Power Connector
This is a 3-pin header for the CPU fan. The fan must be a 12V fan.
Pin #
Signal Name
1
Ground
2
+12V
3
Rotation detection
IDE1: IDE Connector
Signal Name
Pin #
Pin #
Signal Name
Reset IDE
1 2 Ground
Host data 7
3 4 Host data 8
Host data 6
5 6 Host data 9
Host data 5
7
8
Host data 10
Host data 4
9
10
Host data 11
Host data 3
11
12
Host data 12
Host data 2
13
14
Host data 13
Host data 1
15
16
Host data 14
Host data 0
17
18
Host data 15
Ground
19
20
Protect pin
DRQ0
21
22
Ground
Host IOW
23
24
Ground
Host IOR
25
26
Ground
IOCHRDY
27
28
Host ALE
DACK0
29
30
Ground
IRQ14
31
32
No connect
Address 1
33
34
No connect
Address 0
35
36
Address 2
Chip select 0
37
38
Chip select 1
Activity
39
40
Ground
COM2: COM2 Serial Port
Signal Name
Pin
Pin
Signal Name
DCD2
1 2 RXD2
TXD2
3 4 DTR2
GND
5 6 DSR2
RTS2
7 8 CTS2
RI2
9
10
Not Used
INSTALLATIONS
MI945X User’s Manual 19

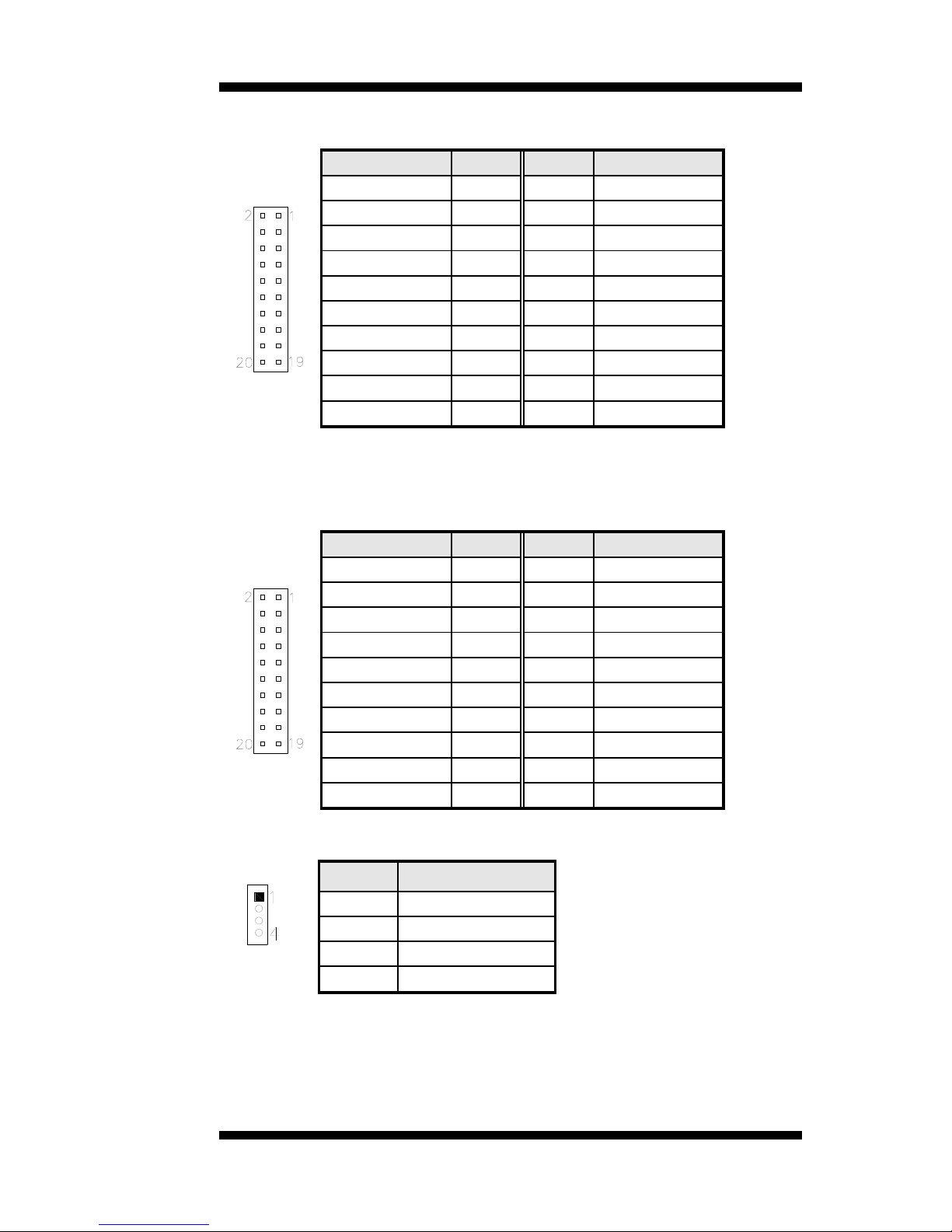

COM3_COM4: COM3, COM4 Serial Port
Signal Name
Pin #
Pin #
Signal Name
DSR
2 1 DCD
RTS
4 3 RXD
CTS
6 5 TXD
RI
8 7 DTR
NA
10 9 Ground
DSR
12
11
DCD
RTS
14
13
RXD
CTS
16
15
TXD
RI
18
17
DTR
NA
20
19
Ground
LVDS1, LVDS2: LVDS Connectors (1st channel, 2nd channel)
The LVDS connectors on board consist of the first channel (LVDS1) and
second channel (LVDS2).
Signal Name
Pin #
Pin #
Signal Name
TX0-
2 1 TX0+
Ground
4 3 Ground
TX1-
6 5 TX1+
5V/3.3V
8 7 Ground
TX3-
10 9 TX3+
TX2-
12
11
TX2+
Ground
14
13
Ground
TXC-
16
15
TXC+
5V/3.3V
18
17
ENABKL
+12V
20
19
+12V
J1: LCD Backlight Connector
Pin #
Signal Name
1
+12V
2
Backlight Enable
3
Brightness Control
4
Ground
INSTALLATIONS
20
MI945X User’s Manual

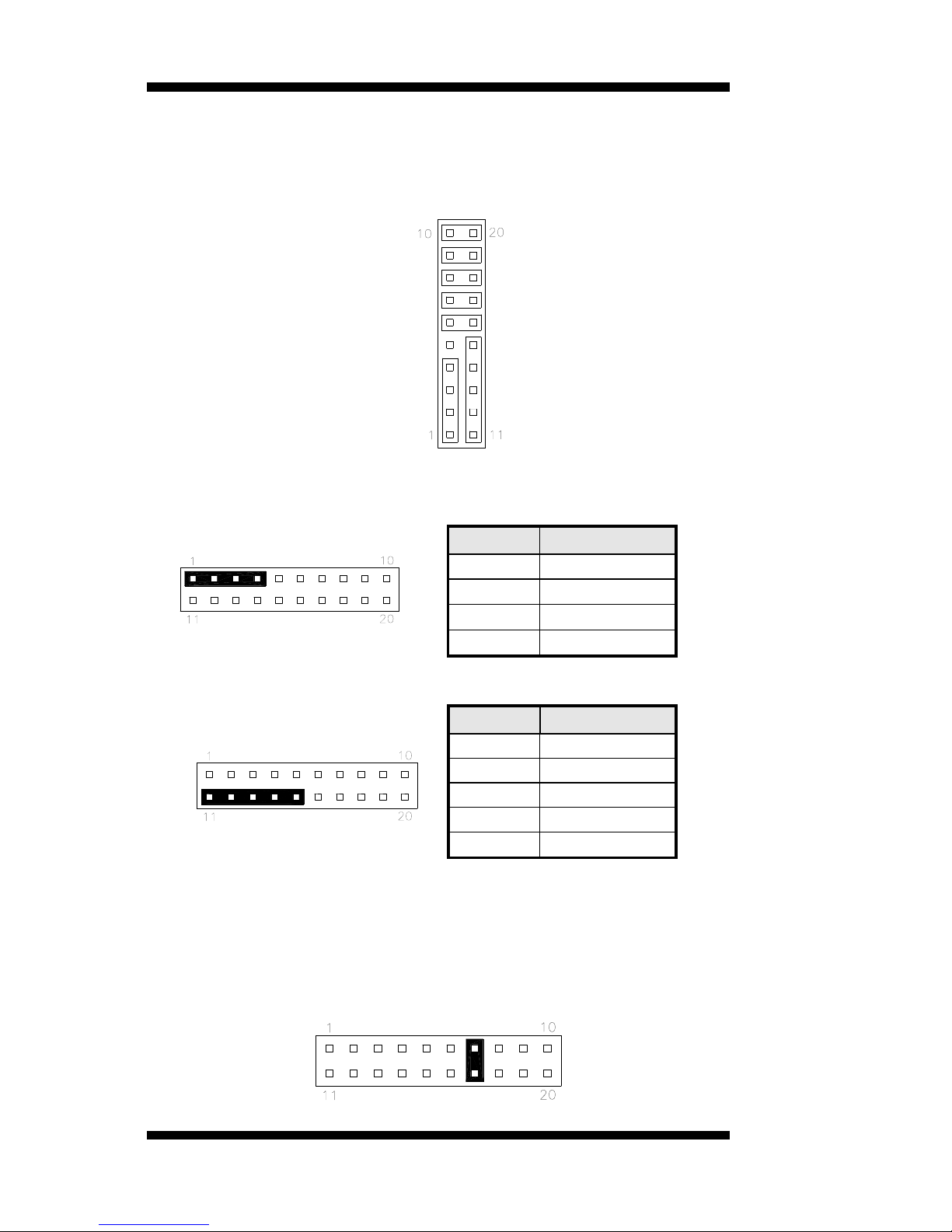

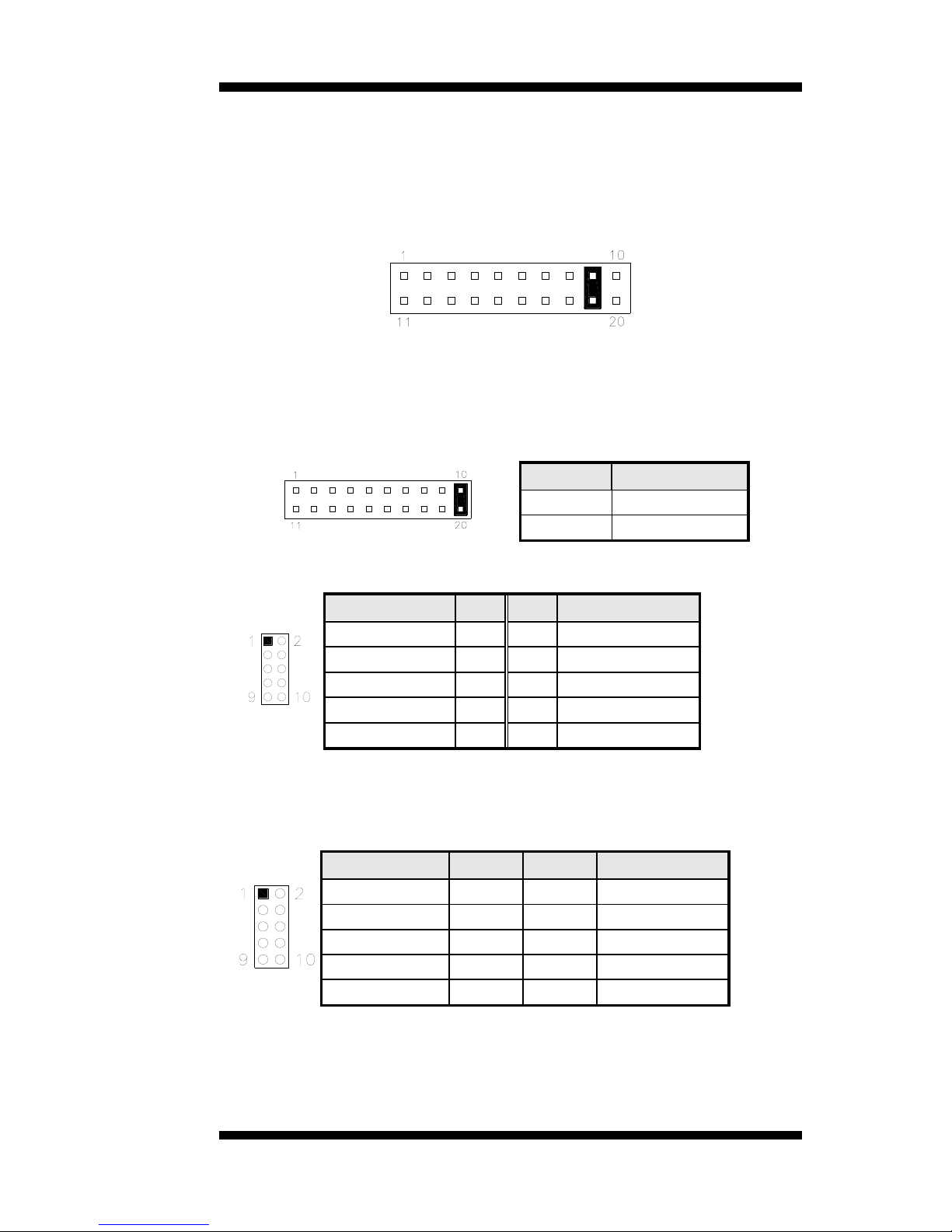

J2 (F_PANEL): System Function Connector
J2 provides connectors for system indicators that provide light indication
of the computer activities and switches to change the computer status. J2
is a 20-pin header that provides interfaces for the following functions.
Hard Disk Drive LED
Reset Switch
Not Defined
ATX Power On Switch
Not Defined
Power LED
Speaker
Speaker: Pins 1 - 4
This connector provides an interface to a speaker for audio
tone generation. An 8-ohm speaker is recommended.
Pin #
Signal Name
1
Speaker out
2
No connect
3
Ground
4
+5V
Power LED: Pins 11 - 15
Pin #
Signal Name
11
Power LED
12
No connect
13
Ground
14
No connect
15
Ground
ATX Power ON Switch: Pins 7 and 17
This 2-pin connector is an “ATX Power Supply On/Off
Switch” on the system that connects to the power switch on
the case. When pressed, the power switch will force the
system to power on. When pressed again, it will force the
system to power off.
INSTALLATIONS
MI945X User’s Manual 21
Reset Switch: Pins 9 and 19
The reset switch allows the user to reset the system without
turning the main power switch off and then on again.
Orientation is not required when making a connection to this
header.
Hard Disk Drive LED Connector: Pins 10 and 20
This connector connects to the hard drive activity LED on
control panel. This LED will flash when the HDD is being
accessed.
Pin #
Signal Name
10
HDD Active
20
5V

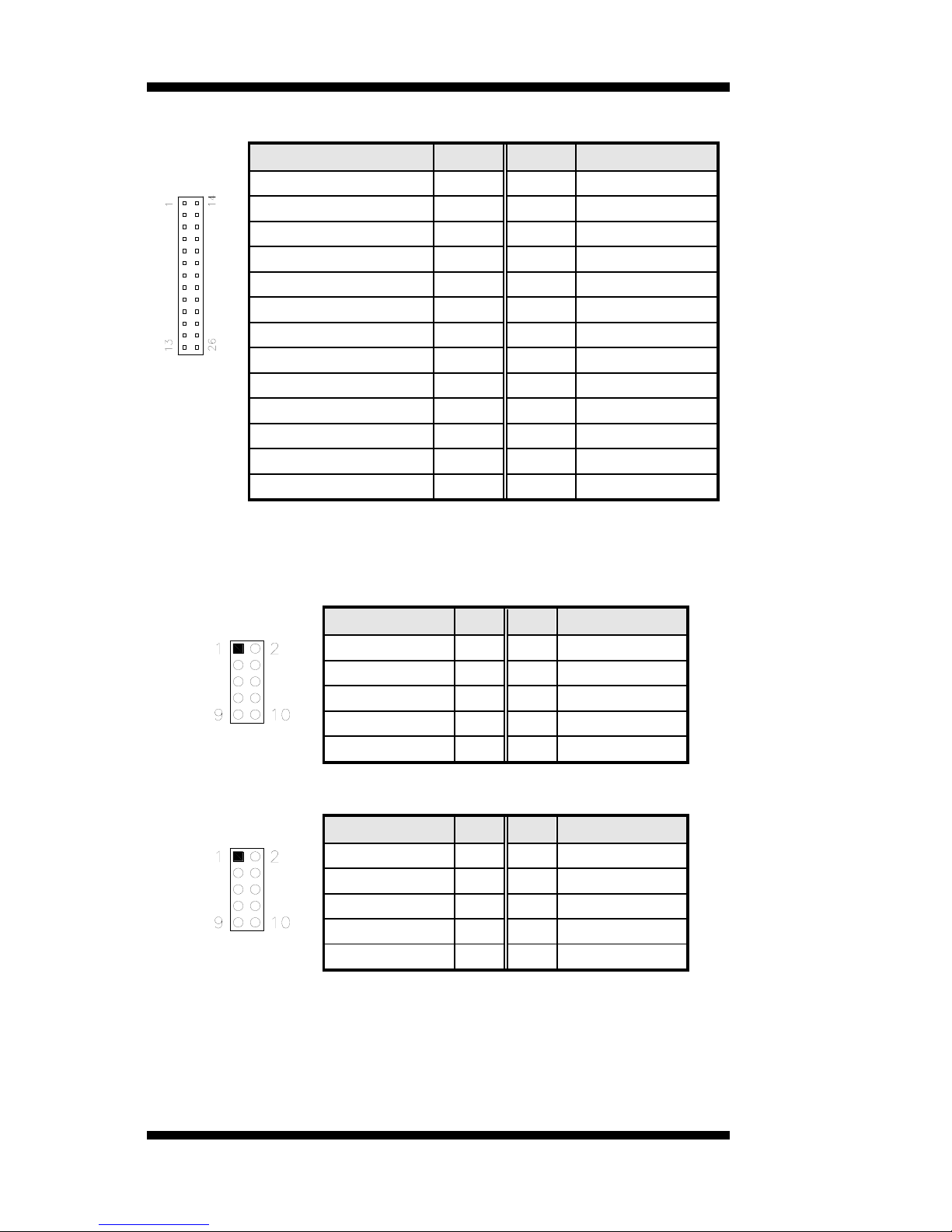

J3: Digital I/O
Signal Name
Pin
Pin
Signal Name
GND
1 2 VCC
OUT3
3 4 OUT1
OUT2
5 6 OUT0
IN3
7 8 IN1
IN2
9
10
IN0
J4: SPI Flash Connector (factory use only)
J7: Front Audio Connector
Signal Name
Pin #
Pin #
Signal Name
MIC2_L
1 2 Ground
MIC2_R
3 4 Presence#
Line2_L
5 6 MIC2_ID
Sense
7 8 NC
Line2_R
9
10
Line2_ID
J9: Compact Flash Connector
INSTALLATIONS
22
MI945X User’s Manual
J10: Parallel Port Connector
Signal Name
Pin #
Pin #
Signal Name
Line printer strobe
1
14
AutoFeed
PD0, parallel data 0
2
15
Error
PD1, parallel data 1
3
16
Initialize
PD2, parallel data 2
4
17
Select
PD3, parallel data 3
5
18
Ground
PD4, parallel data 4
6
19
Ground
PD5, parallel data 5
7
20
Ground
PD6, parallel data 6
8
21
Ground
PD7, parallel data 7
9
22
Ground
ACK, acknowledge
10
23
Ground
Busy
11
24
Ground
Paper empty
12
25
Ground
Select
13
N/A
N/A
J11: Reserved for factory use
F_USB1: USB5/USB6 Connector
Signal Name
Pin
Pin
Signal Name
Vcc
1 2 Vcc
D0-
3 4 D1-
D0+
5 6 D1+
Ground
7 8 Ground
NC
9
10
Ground
F_USB2: USB7/USB8 Connector
Signal Name
Pin
Pin
Signal Name
Vcc
1 2 Vcc
D0-
3 4 D1-
D0+
5 6 D1+
Ground
7 8 Ground
NC
9
10
Ground
JMINI: Mini PCIE Connector
SATA1, SATA2, SATA3, SATA4: SATA Connectors
PCIEX16: PCI-E(x16) Slot
BIOS SETUP
MI945X User’s Manual 23
BIOS Setup
This chapter describes the different settings available in the Award BIOS
that comes with the board. The topics covered in this chapter are as
follows:
BIOS Introduction ........................................................................................ 24
BIOS Setup .................................................................................................... 24
Standard CMOS Setup ................................................................................. 26
Advanced BIOS Features ............................................................................ 29
Advanced Chipset Features ......................................................................... 32
Power Management Setup ........................................................................... 38
PNP/PCI Configurations .............................................................................. 41
PC Health Status ........................................................................................... 42
Frequency/Voltage Control ......................................................................... 43
Load Fail-Safe Defaults ............................................................................... 44
Load Optimized Defaults ............................................................................. 44
Set Supervisor Password ............................................................................. 44
Save & Exit Setup ......................................................................................... 44
Exit Without Saving ..................................................................................... 44
BIOS SETUP
24
MI945X User’s Manual
BIOS Introduction
The Award BIOS (Basic Input/Output System) installed in your
computer system’s ROM supports Intel processors. The BIOS provides
critical low-level support for a standard device such as disk drives, serial
ports and parallel ports. It also adds virus and password protection as
well as special support for detailed fine-tuning of the chipset controlling
the entire system.
BIOS Setup
The Award BIOS provides a Setup utility program for specifying the
system configurations and settings. The BIOS ROM of the system stores
the Setup utility. When you turn on the computer, the Award BIOS is
immediately activated. Pressing the <Del> key immediately allows you
to enter the Setup utility. If you are a little bit late pressing the <Del> key,
POST (Power On Self Test) will continue with its test routines, thus
preventing you from invoking the Setup. If you still wish to enter Setup,
restart the system by pressing the ”Reset” button or simultaneously
pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by
turning the system Off and back On again. The following message will
appear on the screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highlight items, <Enter> to select,
the <PgUp> and <PgDn> keys to change entries, <F1> for help and
<Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on
the screen. The Main Menu allows you to select from various setup
functions and exit choices.
BIOS SETUP
MI945X User’s Manual 25
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Frequency/Voltage Control
Advanced BIOS Features
Load Fail-Safe Defaults
Advanced Chipset Features
Load Optimized Defaults
Integrated Peripherals
Set Supervisor Password
Power Management Setup
Set User Password
PnP/PCI Configurations
Save & Exit Setup
PC Health Status
Exit Without Saving
ESC: Quit
: Select Item
F10: Save & Exit Setup Time, Date, Hard Disk Type…
The section below the setup items of the Main Menu displays the control
keys for this menu. At the bottom of the Main Menu just below the
control keys section, there is another section, which displays information
on the currently highlighted item in the list.
Note:
If the system cannot boot after making and saving system
changes with Setup, the Award BIOS supports an override to
the CMOS settings that resets your system to its default.
Warning:
It is strongly recommended that you avoid making any
changes to the chipset defaults. These defaults have been
carefully chosen by both Award and your system
manufacturer to provide the absolute maximum performance
and reliability. Changing the defaults could cause the system
to become unstable and crash in some cases.
BIOS SETUP
26
MI945X User’s Manual
Standard CMOS Setup
“Standard CMOS Setup” choice allows you to record some basic
hardware configurations in your computer system and set the system
clock and error handling. If the motherboard is already installed in a
working system, you will not need to select this option. You will need to
run the Standard CMOS option, however, if you change your system
hardware configurations, the onboard battery fails, or the configuration
stored in the CMOS memory was lost or damaged.
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Date (mm:dd:yy)
Wed, Apr 28, 2007
Item Help
Time (hh:mm:ss)
00 : 00 : 00
Menu Level >
IDE Channel 0 Master
None
Change the day, month,
Year and century
IDE Channel 1 Master
None
IDE Channel 2 Master
None
IDE Channel 2 Slave
None
IDE Channel 3 Master
None
IDE Channel 3 Slave
None
IDE Channel 4 Master
None
IDE Channel 4 Slave
None
Video
EGA/VGA
Halt On
All, but keyboard
Base Memory
640K
Extended Memory
129024K
Total Memory
130048K
At the bottom of the menu are the control keys for use on this menu. If
you need any help in each item field, you can press the <F1> key. It will
display the relevant information to help you. The memory display at the
lower right-hand side of the menu is read-only. It will adjust
automatically according to the memory changed. The following
describes each item of this menu.
Date
The date format is:
Day: Sun to Sat
Month: 1 to 12
Date: 1 to 31
Year: 1999 to 2099
BIOS SETUP
MI945X User’s Manual 27
To set the date, highlight the “Date” field and use the PageUp/ PageDown
or +/- keys to set the current time.
Time
The time format is: Hour : 00 to 23
Minute : 00 to 59
Second : 00 to 59
To set the time, highlight the “Time” field and use the <PgUp>/ <PgDn>
or +/- keys to set the current time.
IDE Channel Master/Slave
The onboard PCI IDE connector provides Primary and Secondary
channels for connecting up to two IDE hard disks or other IDE devices.
Press <Enter> to configure the hard disk. The selections include Auto,
Manual, and None. Select ‘Manual’ to define the drive information
manually. You will be asked to enter the following items.
CYLS : Number of cylinders
HEAD : Number of read/write heads
PRECOMP : Write precompensation
LANDING ZONE : Landing zone
SECTOR : Number of sectors
The Access Mode selections are as follows:
CHS (HD < 528MB)
LBA (HD > 528MB and supports
Logical Block Addressing)
Large (for MS-DOS only)
Auto
BIOS SETUP
28
MI945X User’s Manual
Video
This field selects the type of video display card installed in your system.
You can choose the following video display cards:
EGA/VGA For EGA, VGA, SEGA, SVGA
or PGA monitor adapters. (default)
CGA 40 Power up in 40 column mode.
CGA 80 Power up in 80 column mode.
MONO For Hercules or MDA adapters.
Halt On
This field determines whether or not the system will halt if an error is
detected during power up.
No errors
The system boot will not be halted for any error
that may be detected.
All errors
Whenever the BIOS detects a non-fatal error,
the system will stop and you will be prompted.
All, But Keyboard
The system boot will not be halted for a
keyboard error; it will stop for all other errors
All, But Diskette
The system boot will not be halted for a disk
error; it will stop for all other errors.
All, But Disk/Key
The system boot will not be halted for a keyboard or disk error; it will stop for all others.
BIOS SETUP
MI945X User’s Manual 29
Advanced BIOS Features
This section allows you to configure and improve your system and allows
you to set up some system features according to your preference.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced BIOS Features
CPU Feature
Press Enter
ITEM HELP
Hard Disk Boot Priority
Press Enter
Virus Warning
Disabled
Menu Level >
CPU L3 Cache
Enabled
Quick Power On Self Test
Enabled
First Boot Device
Removable
Second Boot Device
Hard Disk
Third Boot Device
CDROM
Boot Other Device
Enabled
Boot Up NumLock Status
On
Gate A20 Option
Fast
Typematic Rate Setting
Disabled
Typematic Rate (Chars/Sec)
6
Typematic Delay (Msec)
250
Security Option
Setup
APIC Mode
Enabled
MPS Version Control for OS
1.4
OS Select For DRAM>64MB
Non-OS2
Small Logo (EPA) Show
Disabled
Summary Screen Show
Disabled
CPU Feature
Press Enter to configure the settings relevant to CPU Feature.
Hard Disk Boot Priority
With the field, there is the option to choose, aside from the hard disks connected,
“Bootable add-in Cards” which refers to other external devices.
Virus Warning
If this option is enabled, an alarm message will be displayed when trying to write
on the boot sector or on the partition table on the disk, which is typical of the
virus.
Quick Power On Self Test
When enabled, this field speeds up the Power On Self Test (POST) after
the system is turned on. If it is set to Enabled, BIOS will skip some items.
First/Second/Third Boot Device
These fields determine the drive that the system searches first for an
operating system. The options available include Removable, Hard Disk,
CDROM, Legacy LAN and Disable.
BIOS SETUP
30
MI945X User’s Manual
Boot Other Device
These fields allow the system to search for an OS from other devices
other than the ones selected in the First/Second/Third Boot Device.
Boot Up NumLock Status
This allows you to activate the NumLock function after you power up the
system.
Gate A20 Option
This field allows you to select how Gate A20 is worked. Gate A20 is a
device used to address memory above 1 MB.
Typematic Rate Setting
When disabled, continually holding down a key on your keyboard will
generate only one instance. When enabled, you can set the two typematic
controls listed next. By default, this field is set to Disabled.
Typematic Rate (Chars/Sec)
When the typematic rate is enabled, the system registers repeated
keystrokes speeds. Settings are from 6 to 30 characters per second.
Typematic Delay (Msec)
When the typematic rate is enabled, this item allows you to set the time
interval for displaying the first and second characters. By default, this
item is set to 250msec.
Security Option
This field allows you to limit access to the System and Setup. The default
value is Setup. When you select System, the system prompts for the User
Password every time you boot up. When you select Setup, the system
always boots up and prompts for the Supervisor Password only when the
Setup utility is called up.
APIC Mode
APIC stands for Advanced Programmable Interrupt Controller. The
default setting is Enabled.
MPS Version Control for OS
This option is specifies the MPS (Multiprocessor Specification) version
for your operating system. MPS version 1.4 added extended
configuration tables to improve support for multiple PCI bus
configurations and improve future expandability. The default setting is
1.4.
BIOS SETUP
MI945X User’s Manual 31
OS Select for DRAM > 64MB
This option allows the system to access greater than 64MB of DRAM
memory when used with OS/2 that depends on certain BIOS calls to
access memory. The default setting is Non-OS/2.
Small Logo (EPA) Show
The EPA logo appears at the right side of the monitor screen when the
system is boot up. The default setting is Disabled.
Summary Screen Show
The screen shows a summary of device listing. The default setting is
Disabled.
BIOS SETUP
32
MI945X User’s Manual
Advanced Chipset Features
This Setup menu controls the configuration of the chipset.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced Chipset Features
System BIOS Cacheable
Enabled
ITEM HELP
Memory Hole at 15M-16M
Disabled
Support FSB and DDR3 667Mhz
Disabled
PCI Express Root Port Func
Press Enter
VT-d
Disable
** VGA Setting **
PEG/Onchip VGA Control
Auto
PEG Force X1
Disabled
On-Chip Frame Buffer Size
64MB
DVMT Mode
Enable
Total GFX Memory
128MB
PAVP Mode
PAVP-Lite
** VGA Boot Device Setting **
Boot Display
CRT + LVDS
SDVO Device Setting
None
SDVO LVDS Protocol
1 Ch SPGW,24bit
SDVO Panel Number
1024x768
Active LVDS Device
No LVDS
Integrated LVDS Protocol
18bit
Panel Scaling
AUTO
Panel Type
1024x768 SC/DC
System BIOS Cacheable
The setting of Enabled allows caching of the system BIOS ROM at
F000h-FFFFFh, resulting in better system performance. However, if any
program writes to this memory area, a system error may result.
Memory Hole At 15M-16M
In order to improve performance, certain space in memory can be
reserved for ISA cards. This memory must be mapped into the memory
space below 16 MB. The choices are Enabled and Disabled.
Support FSB and DDR3 667Mhz
The options are Enabled and Disabled.
VT-d
The options are Enabled and Disabled.
BIOS SETUP
MI945X User’s Manual 33
VGA Setting
The fields and the default setting for the VGA Setting are as follows:
PEG/Onchip VGA Control Auto
PEG Force X1 Disabled
On-Chip Frame Buffer Size 64MB
DVMT Mode Enable
Total GFX Memory 128MB
PAVP Mode PAVP-Lite
PEG/Onchip VGA Control
The options are Onchip VGA, PEG Port and Auto.
PEG Force X1
The options are Enabled and Disabled.
On-Chip Frame Buffer Size
The options are 32MB, 64MB and 128MB.
DVMT Mode
The options are Enabled and Disabled.
Total GFX Memory
The options are 128MB, 256MB and Max.
PAVP Mode
The options are Disabled, PAVP-Lite and PAVP-High.
VGA Boot Device Setting
The fields and the default setting for this section are as follows:
Boot Display CRT + LVDS
SDVO Device Setting None
SDVO LVDS Protocol 1 Ch SPGW,24bit
SDVO Panel Number 1024x768
Active LVDS Device No LVDS
Integrated LVDS Protocol 18bit
Panel Scaling AUTO
Panel Type 1024x768 SC/DC
Boot Display
The options are CRT, LVDS, CRT + LVDS, DVI and CRT + DVI.
SDVO Device Setting
The options are None, LVDS, DVI and CRT.
BIOS SETUP
34
MI945X User’s Manual
SDVO LVDS Protocol
The options are:
1ch SPGW, 24bit
2ch SPGW, 24bit
1ch OpenLDI, 24bit
2ch OpenLDI, 24bit
1ch 18bit
2ch 18bit
SDVO Panel Number
The options are:
800x600
852x480
1024x768
1366x768
1400x1050
1600x1200
1920x1080
Active LVDS Device
The options are No LVDS, Integrated LVDS and SDVO LVDS.
Integrated LVDS Protocol
The options are 18bit and 24bit.
Panel Scaling
The default setting is AUTO. The options are AUTO, FORCE OFF and
Maintain Aspect Ratio.
Panel Number
The options are:
640x480
SC/DC
800x600
SC/DC
1024x768
SC/DC
1280x600
SC/DC
1280x768
SC/DC
1280x800
SC/DC
1280x1024
SC/DC
1400x1050
SC/DC
1680x1200
SC/DC
1920x1200
SC/DC
2048x1536
SC/DC
BIOS SETUP
MI945X User’s Manual 35
Integrated Peripherals
This section sets configurations for your hard disk and other integrated
peripherals. The first screen shows three main items for user to select.
Once an item selected, a submenu appears. Details follow.
Phoenix - AwardBIOS CMOS Setup Utility
Integrated Peripherals
OnChip IDE Device
Press Enter
ITEM HELP
SuperIO Device
Press Enter
Menu Level >
2nd SuperIO Device
Press Enter
USB Device Setting
Press Enter
Phoenix - AwardBIOS CMOS Setup Utility
OnChip IDE Device
IDE HDD Block Mode
Enabled
ITEM HELP
IDE DMA transfer access
Enable
IDE Primary Master PIO
Auto
Menu Level >
IDE Primary Slave PIO
Auto
IDE Primary Master UDMA
Auto
IDE Primary Slave UDMA
Auto
On-Chip Secondary PCI IDE
Enabled
IDE Secondary Master PIO
Auto
IDE Secondary Slave PIO
Auto
IDE Secondary Master UDMA
Auto
IDE Secondary Slave UDMA
Auto
SATA Mode
IDE
LEGACY Mode Support
Disabled
Phoenix - AwardBIOS CMOS Setup Utility
SuperIO Device
POWER ON Function
BUTTON ONLY
ITEM HELP
Onboard Serial Port 1
3F8/IRQ4
Menu Level >
Onboard Serial Port 2
2F8/IRQ3
Onboard Parallel Port
378/IRQ7
Parallel Port Mode
SPP
PWRON After PWR-Fail
Off
Phoenix - AwardBIOS CMOS Setup Utility
2nd SuperIO Device
Onboard Serial Port 3
230h
Serial Port 3 Use IRQ
IRQ5
Onboard Serial Port 4
238h
Serial Port 4 Use IRQ
IRQ11
BIOS SETUP
36
MI945X User’s Manual
IDE HDD Block Mode
This field allows your hard disk controller to use the fast block mode to
transfer data to and from your hard disk drive.
IDE DMA transfer access
This field, by default, is enabled
On-chip Primary/Secondary PCI IDE
The integrated peripheral controller contains an IDE interface with
support for two IDE channels. Select Enabled to activate each channel
separately.
IDE Primary/Secondary Master/Slave PIO
These fields allow your system hard disk controller to work faster. Rather
than have the BIOS issue a series of commands that transfer to or from
the disk drive, PIO (Programmed Input/Output) allows the BIOS to
communicate with the controller and CPU directly.
The system supports five modes, numbered from 0 (default) to 4, which
primarily differ in timing. When Auto is selected, the BIOS will select the
best available mode.
IDE Primary/Secondary Master/Slave UDMA
These fields allow your system to improve disk I/O throughput to
33Mb/sec with the Ultra DMA/33 feature. The options are Auto and
Disabled.
SATA Mode
The options include IDE and AHCI.
Legacy Mode Support
The options are Disabled and Enabled.
Power ON Function
This field is related to how the system is powered on – such as with the
use of conventional power button, keyboard or hot keys. The options are
Password, Hot KEY, Mouse Left, Mouse Right, Any KEY, BUTTON
ONLY and Keyboard 98.
KB Power ON Password
This field allows users to set the password when keyboard power on is the
mode of the Power ON function.
BIOS SETUP
MI945X User’s Manual 37
Hot Key Power ON
This field sets certain keys, also known as hot keys, on the keyboard that
can be used as a ‘switch’ to power on the system.
Onboard Serial Ports
These fields allow you to select the onboard serial ports and their
addresses. The default values for these ports are:
Serial Port 1 3F8/IRQ4
Serial Port 2 2F8/IRQ3
Serial Port 3 230h/IRQ5
Serial Port 4 238h/IRQ11
PWRON After PWR-Fail
This field sets the system power status whether on or off when power
returns to the system from a power failure situation.
Phoenix - AwardBIOS CMOS Setup Utility
USB Device Setting
USB 1.0 Controller
Enabled
ITEM HELP
USB 2.0 Controller
Enabled
USB Keyboard Function
Enabled
USB Mouse Function
Disable
Menu Level >
USB Storage Function
Enabled
*** USB Mass Storage Device Boot
Setting ***
USB 1.0 Controller
The options for this field are Enabled and Disabled. By default, this field
is set to Enabled.
USB 2.0 Controller
The options for this field are Enabled and Disabled. By default, this field
is set to Enabled. In order to use USB 2.0, necessary OS drivers must be
installed first. Please update your system to Windows XP SP2.
USB Keyboard/Mouse/Storage Function
The options for these fields are Enabled and Disabled.
BIOS SETUP
38
MI945X User’s Manual
Power Management Setup
Phoenix - AwardBIOS CMOS Setup Utility
Power Management Setup
PCI Express PM Function
Press Enter
ITEM HELP
ACPI Function
Enabled
Menu Level >
ACPI Suspend
S3(STR)
RUN VGABIOS if S3 Resume
Auto
Power Management
User Define
Video Off Method
V/H SYNC+Blank
Video Off In Suspend
Yes
Suspend Type
Stop Grant
Modem Use IRQ
3
Suspend Mode
Disabled
HDD Power Down
Disabled
Soft-Off by PWR-BTTN
Instant-Off
CPU THRM Throttling
50%
Wake-Up by PCI Card
Disabled
Power On by Ring
Disabled
USB KB Wake Up from S3
Disabled
Resume by Alarm
Disabled
Date (of Month) Alarm
0
Time (hh:mm:ss) Alarm
0 : 0 : 0
** Reload Global Timer Events **
Primary IDE 0
Disabled
Primary IDE 1
Disabled
Secondary IDE 0
Disabled
Secondary IDE 1
Disabled
FDD, COM, LPT Port
Disabled
PCI PIRQ[A-D] #
Disabled
PCI Express PM Function
The options within this field that can be enabled or disabled include PEG
Port ASPM, Root Port ASPM and DMI Port ASPM.
ACPI Function
Enable this function to support ACPI (Advance Configuration and Power
Interface).
ACPI Suspend
The default setting of the ACPI Suspend mode is S3(STR).
RUN VGABIOS if S3 Resume
The default setting of this field is Auto.
BIOS SETUP
MI945X User’s Manual 39
Power Management
This field allows you to select the type of power saving management
modes. There are four selections for Power Management.
Min. Power Saving
Minimum power management
Max. Power Saving
Maximum power management.
User Define
Each of the ranges is from 1 min. to 1hr.
Except for HDD Power Down which
ranges from 1 min. to 15 min.
Video Off Method
This field defines the Video Off features. There are three options.
V/H SYNC + Blank Default setting, blank the screen and turn off
vertical and horizontal scanning.
DPMS Allows BIOS to control the video display.
Blank Screen Writes blanks to the video buffer.
Video Off In Suspend
When enabled, the video is off in suspend mode.
Suspend Type
The default setting for the Suspend Type field is Stop Grant.
Modem Use IRQ
This field sets the IRQ used by the Modem. By default, the setting is 3.
Suspend Mode
When enabled, and after the set time of system inactivity, all devices
except the CPU will be shut off.
HDD Power Down
When enabled, and after the set time of system inactivity, the hard disk
drive will be powered down while all other devices remain active.
CPU THRM-Throttling
This field is related to the speed of the processor that drops when the
CPU temperature reaches the threshold as set in the CPU Warning
Temperature of the PC Health Status section. The options in this field
include 75%, 50% and 25%.
BIOS SETUP
40
MI945X User’s Manual
Soft-Off by PWR-BTN
This field defines the power-off mode when using an ATX power supply.
The Instant Off mode allows powering off immediately upon pressing the
power button. In the Delay 4 Sec mode, the system powers off when the
power button is pressed for more than four seconds or enters the suspend
mode when pressed for less than 4 seconds.
Wake up by PCI Card
By default, this field is disabled.
Power On by Ring
This field enables or disables the power on of the system through the
modem connected to the serial port or LAN.
USB KB Wake Up by S3
This field has a default setting of Disabled.
Resume by Alarm
This field enables or disables the resumption of the system operation.
When enabled, the user is allowed to set the Date and Time.
Reload Global Timer Events
The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events that can
prevent the system from entering a power saving mode or can awaken the
system from such a mode. When an I/O device wants to gain the attention
of the operating system, it signals this by causing an IRQ to occur. When
the operating system is ready to respond to the request, it interrupts itself
and performs the service.
BIOS SETUP
MI945X User’s Manual 41
PNP/PCI Configurations
This option configures the PCI bus system. All PCI bus systems on the
system use INT#, thus all installed PCI cards must be set to this value.
Phoenix - AwardBIOS CMOS Setup Utility
PnP/PCI Configurations
Init Display First
PCI Slot
ITEM HELP
Reset Configuration Data
Disabled
Menu Level
Select Yes if you are
using a Plug and Play
capable operating
system Select No if
you need the BIOS to
configure non-boot
devices
Resources Controlled By
Auto (ESCD)
IRQ Resources
Press Enter
PCI/VGA Palette Snoop
Disabled
**PCI Express relative items**
Maximum Payload Size
128
Init Display First
The default setting is PCI Card.
Reset Configuration Data
This field allows you to determine whether to reset the configuration data
or not. The default value is Disabled.
Resources Controlled by
This PnP BIOS can configure all of the boot and compatible devices with
the use of a PnP operating system such as Windows 95.
PCI/VGA Palette Snoop
Some non-standard VGA display cards may not show colors properly.
This field allows you to set whether or not MPEG ISA/VESA VGA cards
can work with PCI/VGA. When this field is enabled, a PCI/VGA can
work with an MPEG ISA/VESA VGA card. When this field is disabled, a
PCI/VGA cannot work with an MPEG ISA/VESA card.
Maximum Payload Size
The default setting of the PCI Express Maximum Payload Size is 128.
BIOS SETUP
42
MI945X User’s Manual
PC Health Status
This section shows the parameters in determining the PC Health Status.
These parameters include temperatures, fan speeds and voltages.
Phoenix - AwardBIOS CMOS Setup Utility
PC Health Status
Shutdown Temperature
Disabled
ITEM HELP
CPU Warning Temperature
Disabled
Current System Temp.
45°C/113°F
Menu Level >
Current CPU Temp.
45°C/113°F
Current Chassis Temp.
50°C/122°F
System Fan Speed
5400 RPM
CPU Fan Speed
6250 RPM
Vcore(V)
1.12 V
12 V
12.08 V
1.5V
1.56 V
5V
4.96 V
3.3V
3.37V
VBAT (V)
3.21 V
3VSB(V)
3.13 V
CPU Smart Fan Temp.
Disabled
SystemSmart Fan Temp.
Disabled
Shutdown Temperature
This field allows the user to set the temperature by which the system
automatically shuts down once the threshold temperature is reached. This
function can help prevent damage to the system that is caused by
overheating.
CPU Warning Temperature
This field allows the user to set the temperature so that when the
temperature is reached, the system sounds a warning. This function can
help prevent damage to the system that is caused by overheating.
Temperatures/Voltages
These fields are the parameters of the hardware monitoring function
feature of the motherboard. The values are read-only values as monitored
by the system and show the PC health status.
Smart Fan Temperature
This field enables or disables the smart fan feature. At a certain
temperature, the fan starts turning. Once the temperature drops to a
certain level, it stops turning again.
BIOS SETUP
MI945X User’s Manual 43
Frequency/Voltage Control
This section shows the user how to configure the processor frequency.
Phoenix - AwardBIOS CMOS Setup Utility
Frequency/Voltage Control
Auto Detect PCI Clk
Disabled
ITEM HELP
Spread Spectrum Modulated
Disabled
Menu Level >
CPU Host/SRC/PCI Clock
Default
Auto Detect PCI Clk
This field enables or disables the auto detection of the PCI clock.
Spread Spectrum Modulated
This field sets the value of the spread spectrum. The default setting is
Disabled. This field is for CE testing use only.
CPU Host/SRC/PCI Clock
The options are 100/100/33MHz, 133/100/33MHz, 166/100/33MHz,
200/100/33MHz, 266/100/33MHz, and 333/100/33MHz.
BIOS SETUP
44
MI945X User’s Manual
Load Fail-Safe Defaults
This option allows you to load the troubleshooting default values
permanently stored in the BIOS ROM. These default settings are
non-optimal and disable all high-performance features.
Load Optimized Defaults
This option allows you to load the default values to your system
configuration. These default settings are optimal and enable all high
performance features.
Set Supervisor Password
These two options set the system password. Supervisor Password sets a
password that will be used to protect the system and Setup utility. User
Password sets a password that will be used exclusively on the system. To
specify a password, highlight the type you want and press <Enter>. The
Enter Password: message prompts on the screen. Type the password, up
to eight characters in length, and press <Enter>. The system confirms
your password by asking you to type it again. After setting a password,
the screen automatically returns to the main screen.
To disable a password, just press the <Enter> key when you are prompted
to enter the password. A message will confirm the password to be
disabled. Once the password is disabled, the system will boot and you can
enter Setup freely.
Save & Exit Setup
This option allows you to determine whether or not to accept the
modifications. If you type “Y”, you will quit the setup utility and save all
changes into the CMOS memory. If you type “N”, you will return to
Setup utility.
Exit Without Saving
Select this option to exit the Setup utility without saving the changes you
have made in this session. Typing “Y” will quit the Setup utility without
saving the modifications. Typing “N” will return you to Setup utility.
DRIVERS INSTALLATION
MI945X User’s Manual 45
Drivers Installation
This section describes the installation procedures for software and
drivers under Windows XP. The software and drivers are included with
the motherboard. If you find the items missing, please contact the vendor
where you made the purchase. The contents of this section include the
following:
Intel Chipset Software Installation Utility ........................................... 46
VGA Drivers Installation ..................................................................... 48
High Definition Codec Audio Driver Installation ................................ 50
LAN Drivers Installation ..................................................................... 51
IMPORTANT NOTE:
After installing your Windows operating system (Windows XP), you
must install first the Intel Chipset Software Installation Utility before
proceeding with the drivers installation.
DRIVERS INSTALLATION
46
MI945X User’s Manual

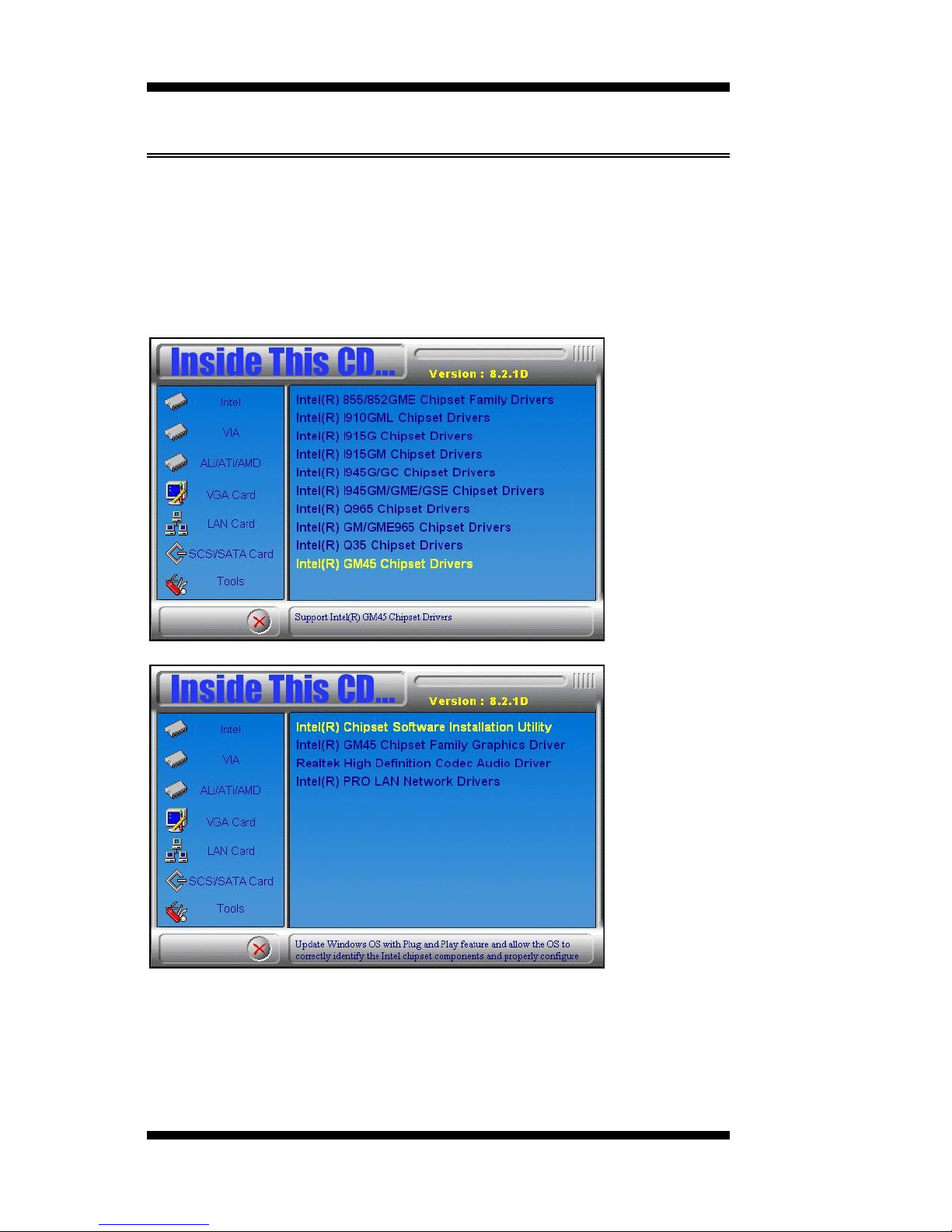

Intel Chipset Software Installation Utility
The Intel Chipset Drivers should be installed first before the software
drivers to enable Plug & Play INF support for Intel chipset components.
Follow the instructions below to complete the installation.
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
GM45 Chipset Drivers.
2. Click Intel(R) Chipset Software Installation Utility.
3. When the Welcome screen to the Intel® Chipset Device Software
appears, click Next to continue.
DRIVERS INSTALLATION
MI945X User’s Manual 47
4. Click Yes to accept the software license agreement and proceed with
the installation process.
5. On the Readme File Information screen, click Next to continue the
installation.
6. The Setup process is now complete. Click Finish to restart the
computer and for changes to take effect.
DRIVERS INSTALLATION
48
MI945X User’s Manual

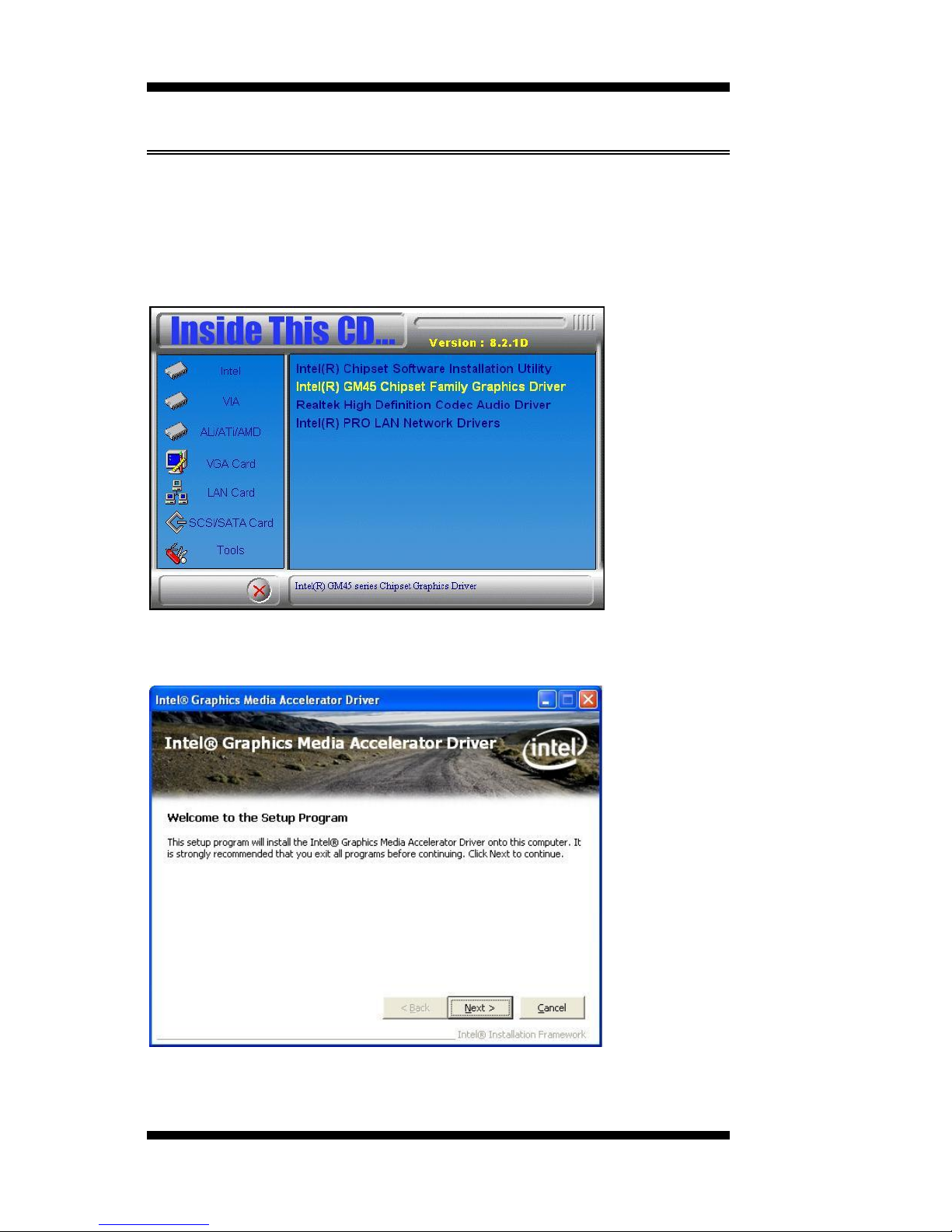

VGA Drivers Installation
To install the VGA drivers, follow the steps below to proceed with the
installation.
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
GM45 Chipset Drivers.
2. Click Intel(R) GM45 Chipset Family Graphics Driver.
3. When the Welcome screen to the Setup Program appears, click Next to
continue.
DRIVERS INSTALLATION
MI945X User’s Manual 49

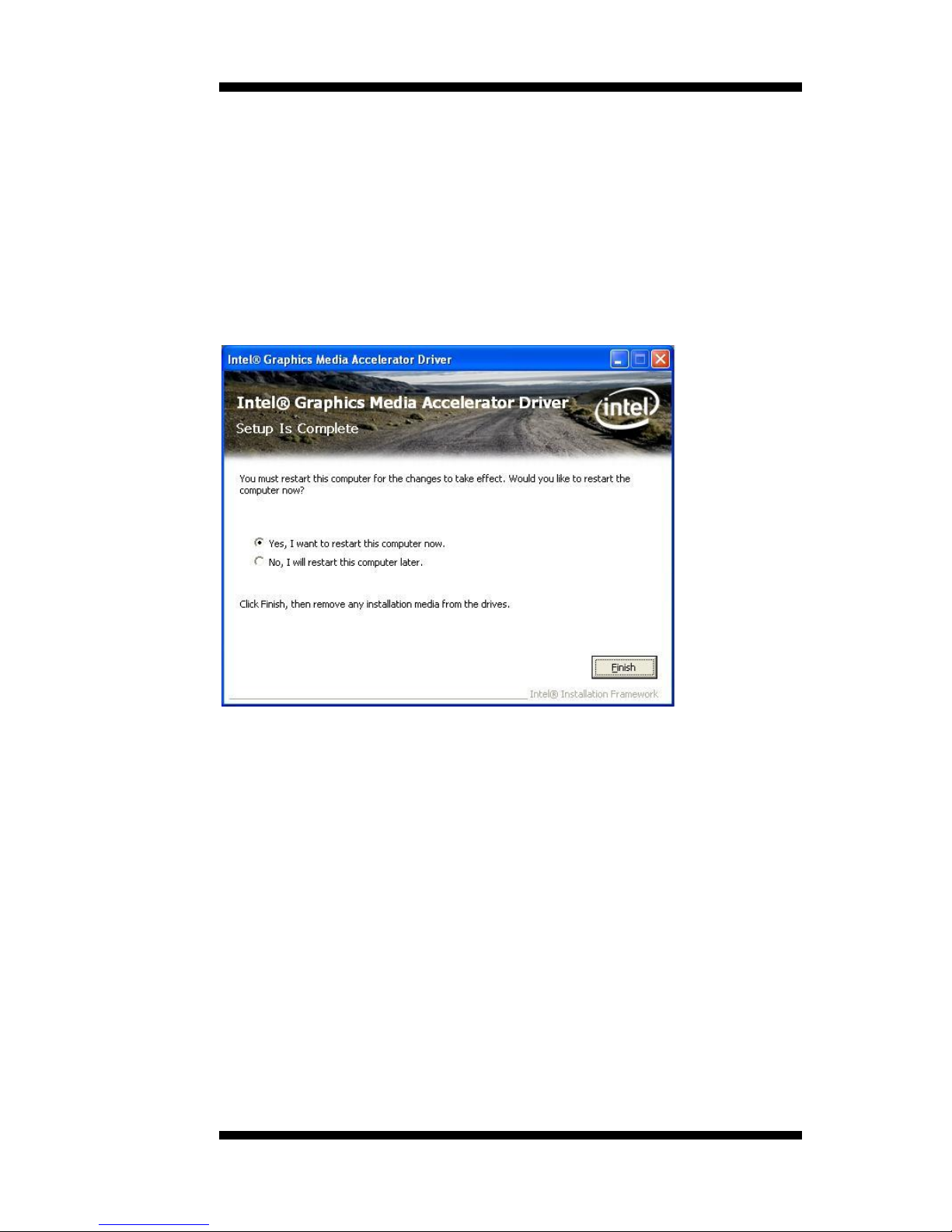

4. Click Yes to to agree with the license agreement and continue the
installation.
5. On the Readme File Information screen, click Next to continue the
installation of the Intel® Graphics Media Accelerator Driver.
6. On Setup Progress screen, click Next to continue.
7. Setup complete. Click Finish to restart the computer and for changes
to take effect.
DRIVERS INSTALLATION
50
MI945X User’s Manual

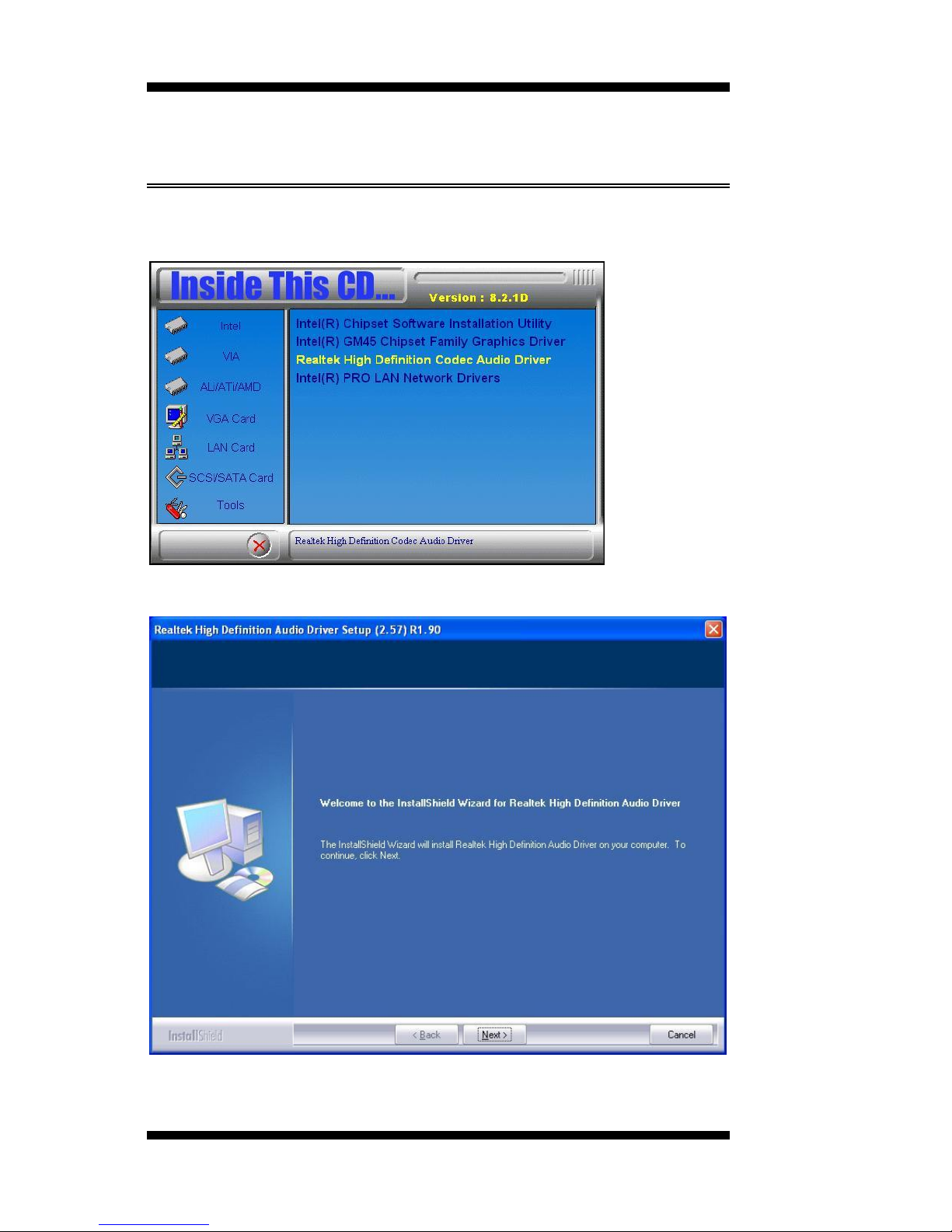

High Definition Codec Audio Driver
Installation
1. Insert the drivers CD. Click Intel and then Intel(R) GM45 Chipset
Drivers. Click Realtek High Definition Codec Audio Driver.
2. On the Welcome to the InstallShield Wizard screen, click Next.
3. InstallShield Wizard is complete. Click Finish to restart the computer.
DRIVERS INSTALLATION
MI945X User’s Manual 51

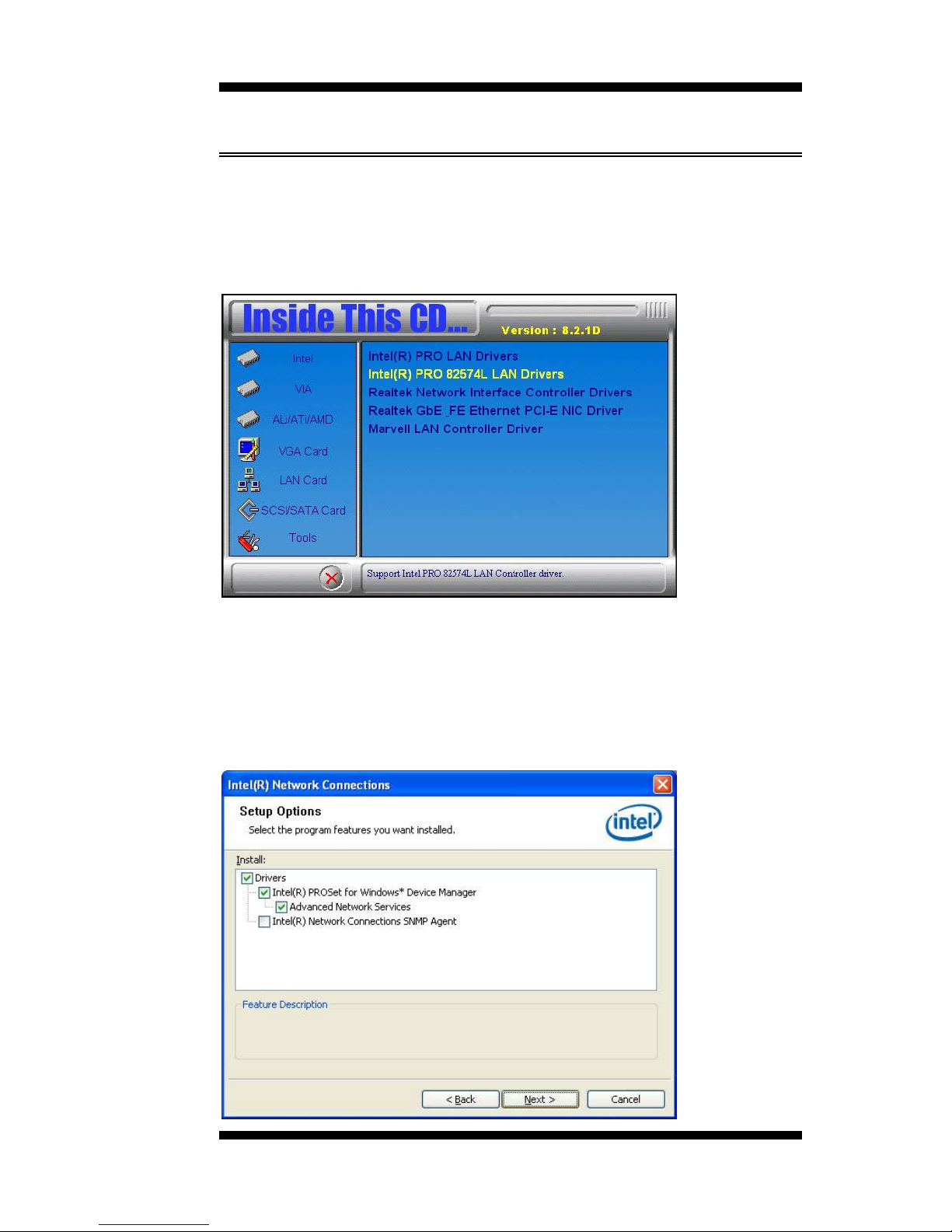

LAN Drivers Installation
Follow the steps below to install the Intel LAN drivers. This one
installation will cover both 82574L and 82567LM LAN controllers.
1. Insert the CD that comes with the motherboard. Click LAN Card and
then Intel(R) PRO 82574L LAN Drivers.
2. When the Welcome screen to the InstallShield Wizard for Intel®
Network Connections appears, click Next. On the next screen, click Yes
to to agree with the license agreement.
3. Click the checkbox for Drivers in the Setup Options screen to select it
and click Next to continue.
DRIVERS INSTALLATION
52
MI945X User’s Manual

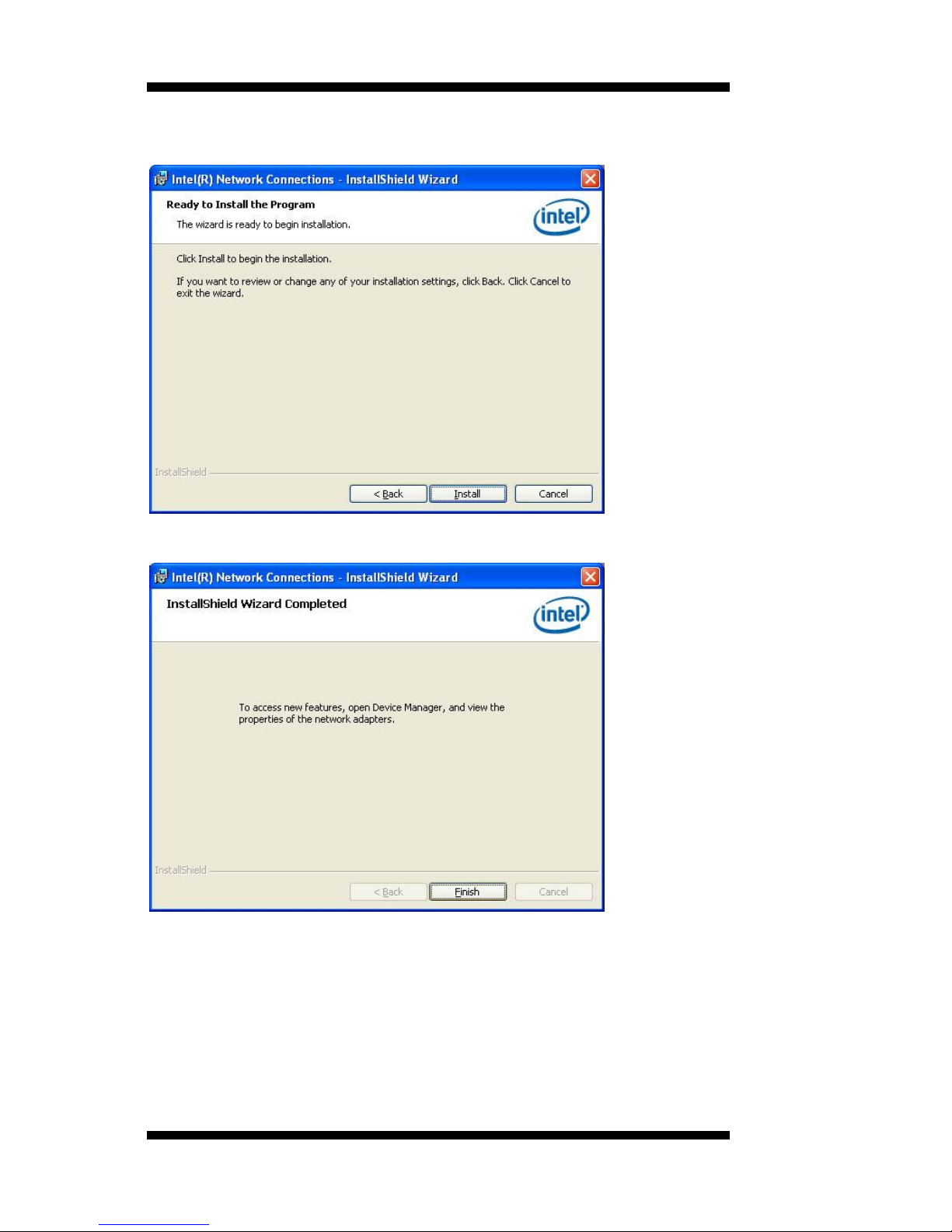

4. The wizard is ready to begin installation. Click Install to begin the
installation.
5. When InstallShield Wizard is complete, click Finish.
Remarks: This Intel® PRO 82574L LAN drivers support both Intel
82574L and 82567LM LAN controllers.
APPENDIX
MI945X User’s Manual 53
Appendix
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port
addresses which also becomes the identity of the device. The following
table lists the I/O port addresses used.
Address
Device Description
000h - 01Fh
DMA Controller #1
020h - 03Fh
Interrupt Controller #1
040h - 05Fh
Timer
060h - 06Fh
Keyboard Controller
070h - 07Fh
Real Time Clock, NMI
080h - 09Fh
DMA Page Register
0A0h - 0BFh
Interrupt Controller #2
0C0h - 0DFh
DMA Controller #2
0F0h
Clear Math Coprocessor Busy Signal
0F1h
Reset Math Coprocessor
1F0h - 1F7h
IDE Interface
278 - 27F
Parallel Port #2(LPT2)
2F8h - 2FFh
Serial Port #2(COM2)
2B0 - 2DF
Graphics adapter Controller
378h - 3FFh
Parallel Port #1(LPT1)
360 - 36F
Network Ports
3B0 - 3BF
Monochrome & Printer adapter
3C0 - 3CF
EGA adapter
3D0 - 3DF
CGA adapter
3F0h - 3F7h
Floppy Disk Controller
3F8h - 3FFh
Serial Port #1(COM1)
APPENDIX
54
MI945X User’s Manual
B. Interrupt Request Lines (IRQ)
Peripheral devices use interrupt request lines to notify CPU for the
service required. The following table shows the IRQ used by the devices
on board.
Level
Function
IRQ0
System Timer Output
IRQ1
Keyboard
IRQ2
Interrupt Cascade
IRQ3
Serial Port #2
IRQ4
Serial Port #1
IRQ5
Reserved
IRQ6
Floppy Disk Controller
IRQ7
Parallel Port #1
IRQ8
Real Time Clock
IRQ9
Reserved
IRQ10
Reserved
IRQ11
Reserved
IRQ12
PS/2 Mouse
IRQ13
80287
IRQ14
Primary IDE
IRQ15
Secondary IDE
APPENDIX
MI945X User’s Manual 55
C. Watchdog Timer Configuration
The WDT is used to generate a variety of output signals after a user
programmable count. The WDT is suitable for use in the prevention of
system lock-up, such as when software becomes trapped in a deadlock.
Under these sorts of circumstances, the timer will count to zero and the
selected outputs will be driven. Under normal circumstance, the user will
restart the WDT at regular intervals before the timer counts to zero.
SAMPLE CODE:
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "W627DHG.H"
//--------------------------------------------------------------------------int main (void);
void WDTInitial(void);
void WDTEnable(unsigned char);
void WDTDisable(void);
//--------------------------------------------------------------------------int main (void)
{
char SIO;
SIO = Init_W627DHG();
if (SIO == 0)
{
printf("Can not detect Winbond 83627DHG, program
abort.\n");
return(1);
}
WDTInitial();
WDTEnable(10);
WDTDisable();
return 0;
}
//--------------------------------------------------------------------------void WDTInitial(void)
{
unsigned char bBuf;
bBuf = Get_W627DHG_Reg(0x2D);
bBuf &= (~0x01);
Set_W627DHG_Reg(0x2D, bBuf); //Enable WDTO
}
//--------------------------------------------------------------------------void WDTEnable(unsigned char NewInterval)
{
unsigned char bBuf;
APPENDIX
56
MI945X User’s Manual
Set_W627DHG_LD(0x08); //switch to logic device 8
Set_W627DHG_Reg(0x30, 0x01); //enable timer
bBuf = Get_W627DHG_Reg(0xF5);
bBuf &= (~0x08);
Set_W627DHG_Reg(0xF5, bBuf); //count mode is second
Set_W627DHG_Reg(0xF6, NewInterval);
//set timer
}
//--------------------------------------------------------------------------void WDTDisable(void)
{
Set_W627DHG_LD(0x08); //switch to logic device 8
Set_W627DHG_Reg(0xF6, 0x00); //clear
watchdog timer
Set_W627DHG_Reg(0x30, 0x00); //watchdog
disabled
}
//---------------------------------------------------------------------------
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#ifndef __W627DHG_H
#define __W627DHG_H 1
//--------------------------------------------------------------------------#define W627DHG_INDEX_PORT (W627DHG_BASE)
#define W627DHG_DATA_PORT (W627DHG_BASE+1)
//--------------------------------------------------------------------------#define W627DHG_REG_LD 0x07
//--------------------------------------------------------------------------#define W627DHG_UNLOCK 0x87
#define W627DHG_LOCK 0xAA
//--------------------------------------------------------------------------unsigned int Init_W627DHG(void);
void Set_W627DHG_LD( unsigned char);
void Set_W627DHG_Reg( unsigned char, unsigned char);
unsigned char Get_W627DHG_Reg( unsigned char);
//--------------------------------------------------------------------------#endif //__W627DHG_H
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include "W627DHG.H"
#include <dos.h>
//--------------------------------------------------------------------------unsigned int W627DHG_BASE;
void Unlock_W627DHG (void);
void Lock_W627DHG (void);
//--------------------------------------------------------------------------unsigned int Init_W627DHG(void)
{
unsigned int result;
unsigned char ucDid;
W627DHG_BASE = 0x4E;
result = W627DHG_BASE;
APPENDIX
MI945X User’s Manual 57
ucDid = Get_W627DHG_Reg(0x20);
if (ucDid == 0xA0) //W83627DHG??
{ goto Init_Finish; }
else if (ucDid == 0xB0) //W83627DHG-P??
{ goto Init_Finish; }
W627DHG_BASE = 0x2E;
result = W627DHG_BASE;
ucDid = Get_W627DHG_Reg(0x20);
if (ucDid == 0xA0) //W83627DHG??
{ goto Init_Finish; }
else if (ucDid == 0xB0) //W83627DHG-P??
{ goto Init_Finish; }
W627DHG_BASE = 0x00;
result = W627DHG_BASE;
Init_Finish:
return (result);
}
//--------------------------------------------------------------------------void Unlock_W627DHG (void)
{
outportb(W627DHG_INDEX_PORT, W627DHG_UNLOCK);
outportb(W627DHG_INDEX_PORT, W627DHG_UNLOCK);
}
//--------------------------------------------------------------------------void Lock_W627DHG (void)
{
outportb(W627DHG_INDEX_PORT, W627DHG_LOCK);
}
//--------------------------------------------------------------------------void Set_W627DHG_LD( unsigned char LD)
{
Unlock_W627DHG();
outportb(W627DHG_INDEX_PORT, W627DHG_REG_LD);
outportb(W627DHG_DATA_PORT, LD);
Lock_W627DHG();
}
//--------------------------------------------------------------------------void Set_W627DHG_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_W627DHG();
outportb(W627DHG_INDEX_PORT, REG);
outportb(W627DHG_DATA_PORT, DATA);
Lock_W627DHG();
}
//--------------------------------------------------------------------------unsigned char Get_W627DHG_Reg(unsigned char REG)
{
unsigned char Result;
Unlock_W627DHG();
outportb(W627DHG_INDEX_PORT, REG);
Result = inportb(W627DHG_DATA_PORT);
Lock_W627DHG();
return Result;
}
//---------------------------------------------------------------------------
APPENDIX
58
MI945X User’s Manual
This page is intentionally left blank.
Loading...
