Award Software IB780 User Manual

IB780

Full-Size Socket 370

VIA Apollo PLE133 CPU Card

USER’S MANUAL

Version 1.0

ii IB780 User’s Manual

Acknowledgments

Award is a registered trademark of Award Software International,
Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Celeron are registered trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.

IB780 User’s Manual iii

Table of Contents

Introduction.....................................................................1

Product Description........................................................1

Checklist........................................................................2

Specifications .................................................................3

Board Dimensions ..........................................................4

Installations.....................................................................5

Installing the CPU ..........................................................6

MicroPCI Daughter Card Installation...............................7

Installing the Memory (DIMM).......................................8

Setting the Jumpers.........................................................9

Connectors on IB780 ....................................................13

BIOS Setup.....................................................................25

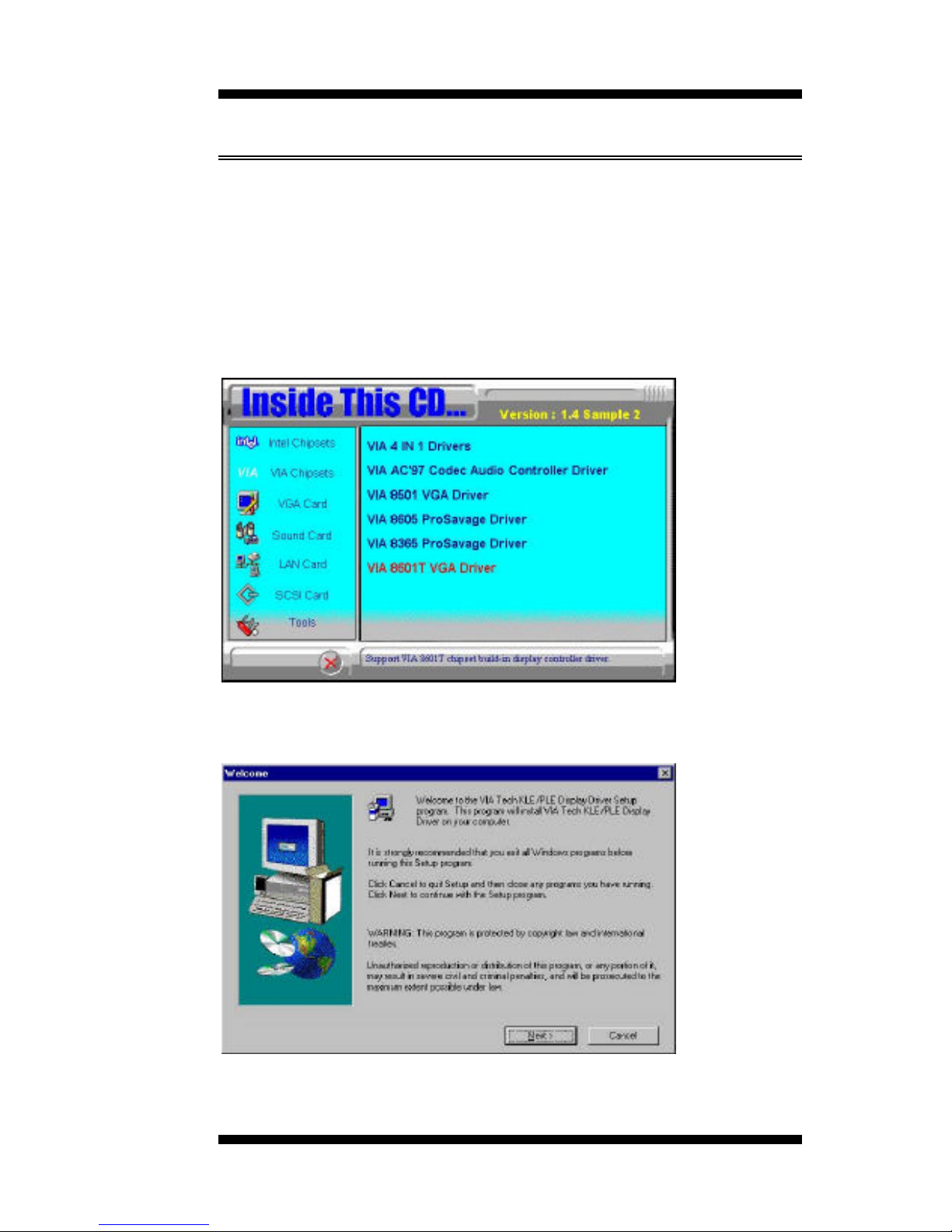

Drivers Installation.......................................................45

Appendix ........................................................................59

A. I/O Port Address Map..............................................59

B. Interrupt Request Lines (IRQ)...................................59

iv IB780 User’s Manual

This page was intentionally left blank.

INTRODUCTION

IB780 User’s Manual 1

Introduction

Product Description

IB780 is a high-performance flexible CPU card based on the VIA Apollo
PLE 133T chipset. The VIA Apollo PLE 133T chipset is based on an
innovative and scaleable architecture with proven reliability. It is a two­chip set consisting of the VT8601T North Bridge Controller and
VT82C686B South Bridge Controller.

IB780 supports 66/100/133MHz system bus, up 1.2GHz CPU speed, the
VT8601T integrated graphics accelerator. Additional key features
include support for four USB ports, AC-97 link for audio, hardware
monitoring, and power management.

System memory is provided by three 168-pin DIMM sockets that
accommodate SDRAM with a maximum capacity of 1.5GB. The Award
BIOS facilitates easy system configuration and peripheral setup.
Expansion functionality is provided with MicroPCI socket that supports
MicroPCI daughter cards for Ethernet (LAN), SCSI, and IEEE 1394
functions.

Other advanced features include DiskOnChip flash disk support, 16­level watchdog timer, and IrDA interface.

DiskOnChip flash disks are storage devices that has no moving parts and
emulates FDD/HDD with Flash/RAM/ROM offering reliable
data/program storage and long life span. They are reliable and suitable
for industrial or other harsh environments characterized by motion,
shock, vibration, adverse temperature, dust and humidity. Other features
include faster data access, longer MTBF, lower power consumption, cost
effective for small capacity and small form factor.

INTRODUCTION

2 IB780 User’s Manual

Checklist

Your IB780 package should include the items listed below.

•

The IB780 Industrial CPU Card

•

This User’s Manual

•

1 IDE Ribbon Cable

•

1 Floppy Ribbon Connector

•

2 Serial Port Ribbon Cable and 1 Parallel Port Attached to a

Mounting Bracket

•

1 Y-Cable supporting a PS/2 Keyboard and a PS/2 Mouse

•

1 CD containing the following:

•

Chipset Drivers

•

Flash Memory Utility

INTRODUCTION

IB780 User’s Manual 3

Specifications

Processor
Supported

Socket 370 supports Intel Pentium III / Celeron
533MHz~1.2GHz, 66/100/133MHz Front Side Bus

Chipset VIA Apollo PLE133 Chipset

North bridge: VT8601T (552-pin BGA package)
South bridge: VT82C686B (352-pin BGA package)

BIOS Award BIOS

Supports ACPI, DMI, PnP

System Memory 3x DIMM sockets support up to 1.5GB capacity

PC100/PC133 supported

I/O Chipset VT82C686B chipset

Keyboard controller built-in

I/O Features 1x FDD (up to 2.88MB, 3 Mode, LS120)

1x Parallel Port (EPP, ECP Port)
2x Serial Ports (1x RS232 and 1x RS232/422/485)
1x IrDA TX/RX Headers

Bus Master IDE 2x IDE interfaces for up to 4 devices; supports PIO Mode

3/4 or UDMA/33/66/100 HDD, and ATAPI CD-ROM

VGA VT8601T integrated graphics controller

Shared main memory; max. 8MB

Audio VT82C686B chipset built-in sound controller

With AC97 Codec
VT1611A (Line-out, Line-in, Mic)

LAN Realtek RTL8139C Ethernet controller

10Base-T / 100Base-TX protocol
Optional Dual Ethernet solution via MicroPCI socket

USB 4 ports (pin header)
Watchdog Timer 16 levels (0, 2, 4, 6, … 30 sec.)
Hardware
Monitoring

Built-in VT82C686B chipset
Monitors CPU/system temperature and voltages

DiskOnChip Support M-Systems 2MB~288MB DiskOnChip flash disk
MicroPCI Socket One MicroPCI socket supports MicroPCI daughter cards

with VGA, Ethernet, SCSI and IEEE 1394 functions

Other Features ISA high drive

PICMG compliance
Wake on LAN

Form Factor Full Size CPU card
Dimensions 338mm x 122mm (13.3” x 4.8”)

INTRODUCTION

4 IB780 User’s Manual

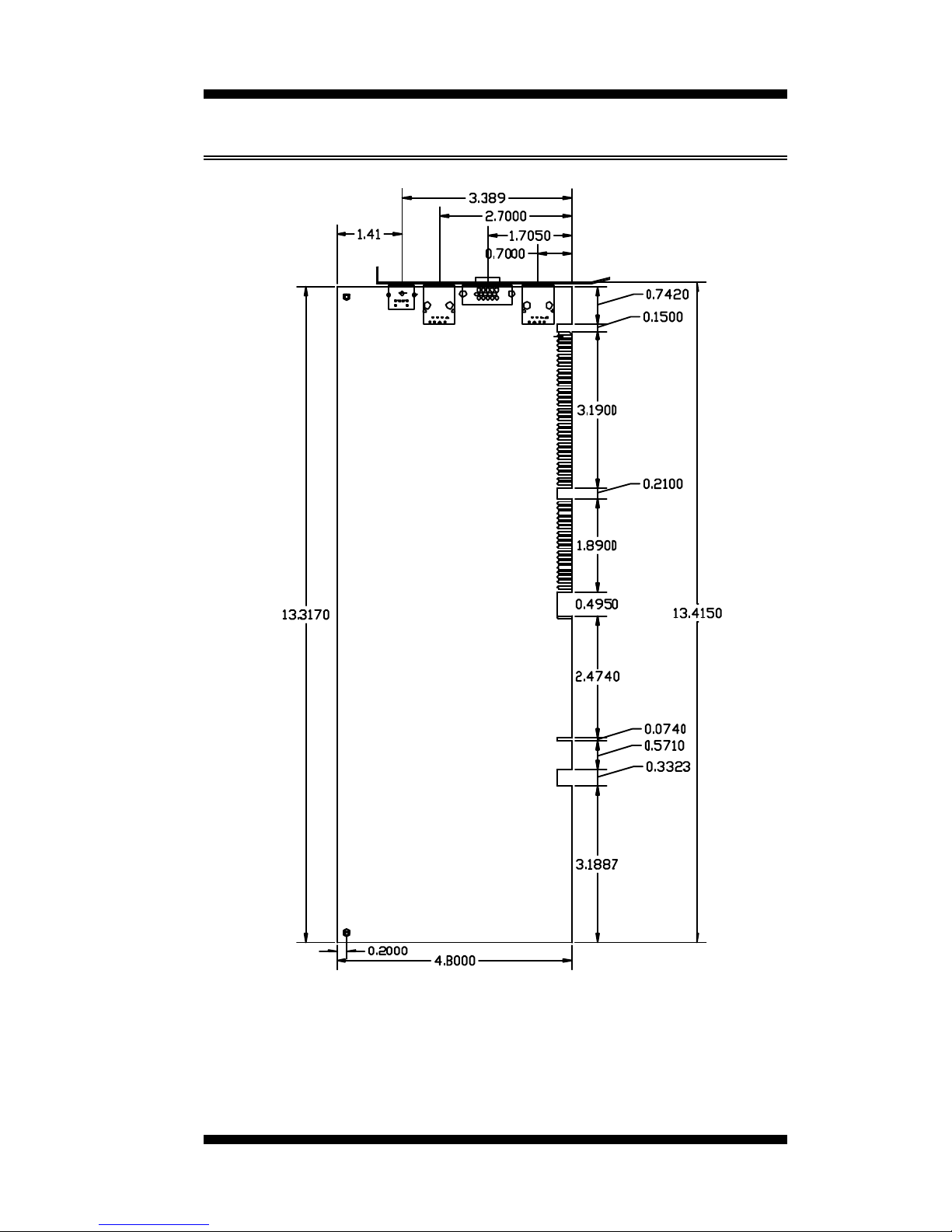

Board Dimensions

INSTALLATION

IB780 User’s Manual 5

Installations

This section provides information on how to use the jumpers and
connectors on the IB780 in order to set up a workable system. The topics
covered are:

Installing the CPU ..........................................................6

MicroPCI Daughter Card Installation...............................7

Installing the Memory (DIMM).......................................8

Setting the Jumpers.........................................................9

Connectors on IB780 ....................................................13

INSTALLATIONS

6 IB780 User’s Manual

Installing the CPU

The IB780 CPU Card supports a Socket 370 processor socket for Intel
Pentium III and Celeron processors.

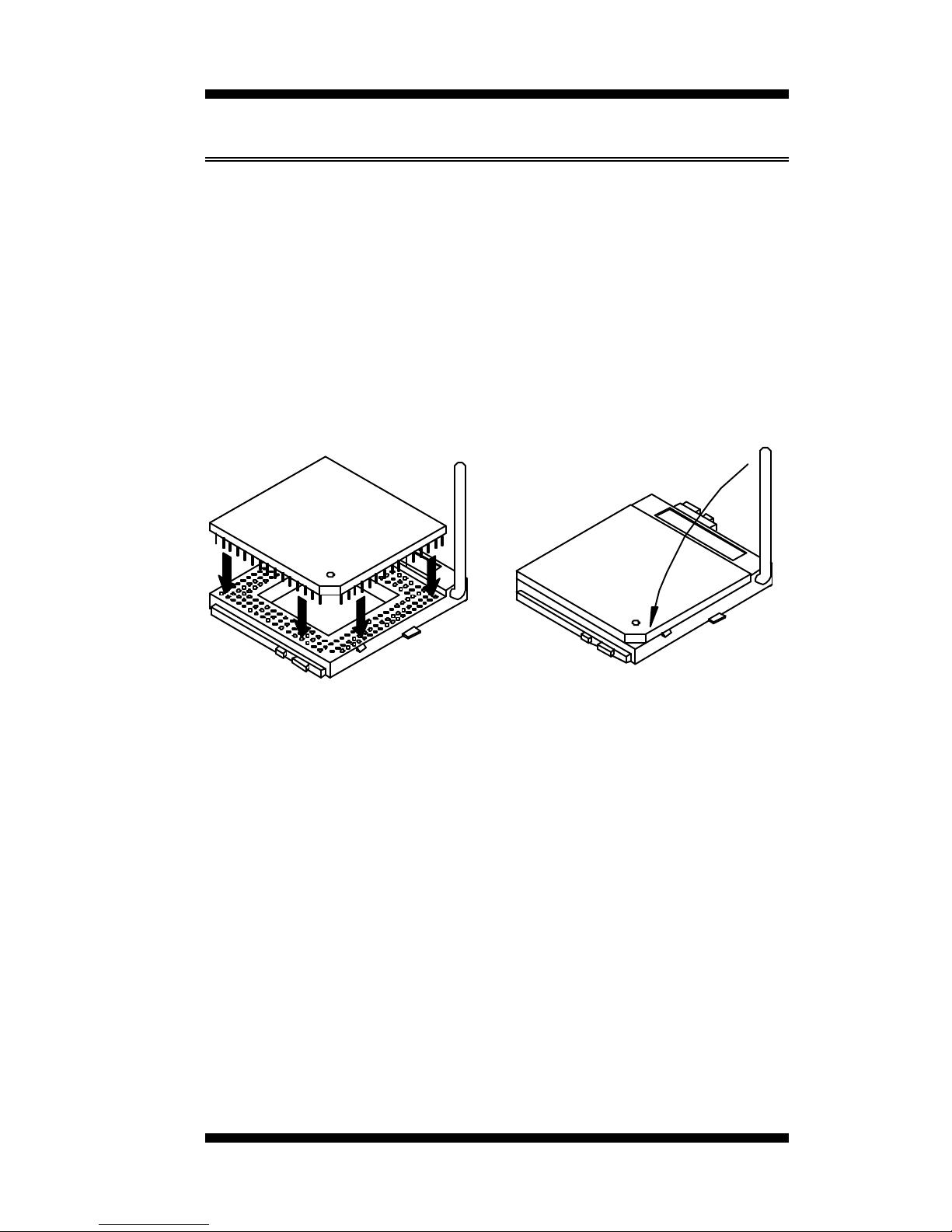

The Socket 370 processor socket comes with a lever to secure the
processor. Raise this lever to about a 90° angle to allow the insertion of
the processor. Place the processor into the socket by making sure the
notch on the corner of the CPU corresponds with the notch on the inside
of the socket. Once the processor has slide into the socket, return the
lever to the lock position. Refer to the figures below.

After you have installed the processor into the socket, check if the
jumpers for the CPU type and speed are correct.

NOTE:

Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.

INSTALLATION

IB780 User’s Manual 7

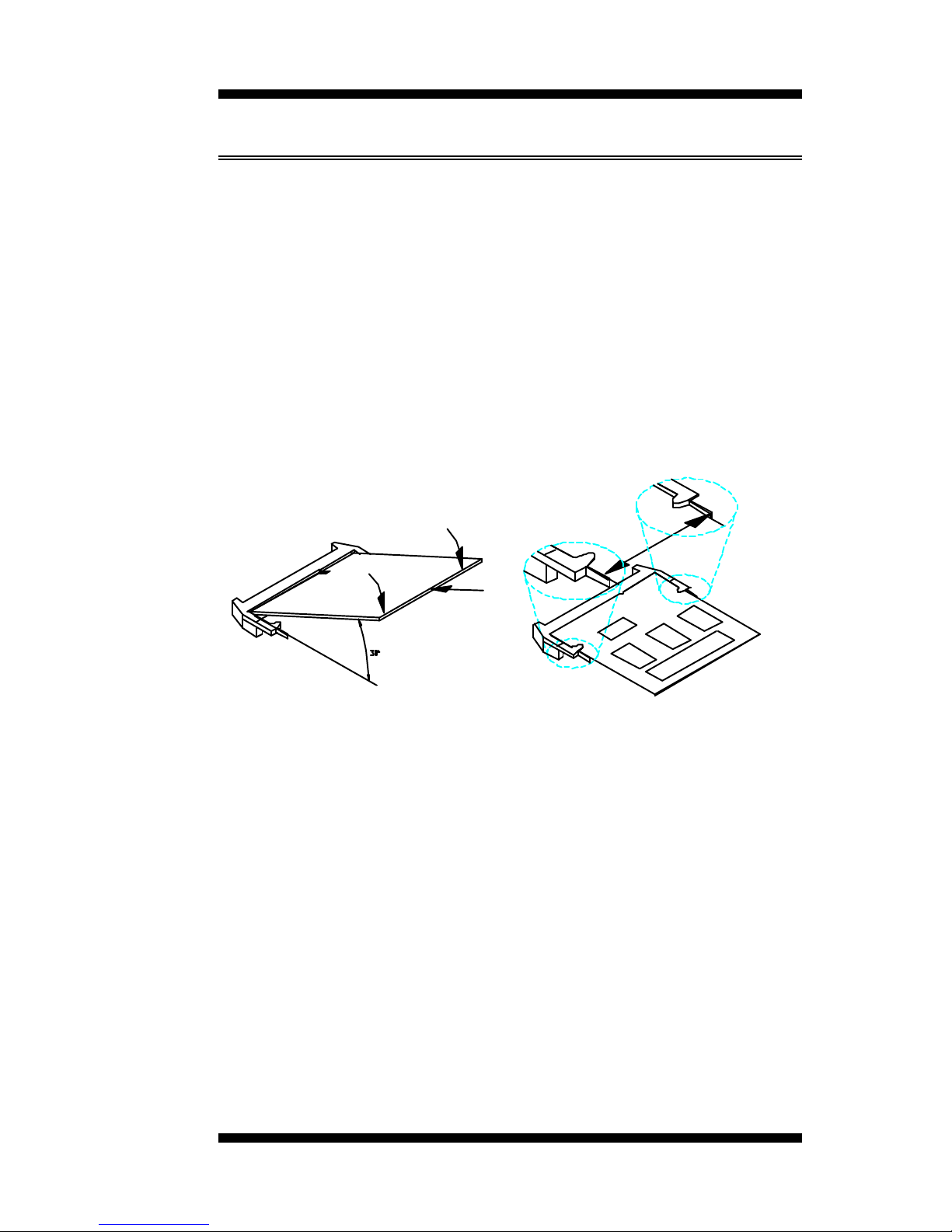

MicroPCI Daughter Card Installation

The IB780 CPU card is integrated with a MicroPCI socket that use
SO-DIMM 144-pin connectors. These sockets can accommodate the
optional MicroPCI daughter cards.

To insert the MicroPCI daughter cards, position it at 30° to the PCB and
gently push it into the MicroPCI connector (See Figure 1 below). The
card will not fit when inserted at an angle of 45° or 15 °. Once inserted,
slowly press the card towards the PCB until it locks on both sides to the
clips of the connector. Screw the card to the PCB to secure the
installation. To remove the MicroPCI card, pull the ‘clips’ sideways as
shown in Figure 2 below.

Figure 2.

Figure 1.

INSTALLATIONS

8 IB780 User’s Manual

Installing the Memory (DIMM)

The IB780 CPU Card supports three 168-pin DIMM socket for a
maximum total memory of 1.56GB in SDRAM type. The memory
module capacities supported are 64MB, 128MB, 256MB, and 512MB.

Installing and Removing DIMMs

To install the DIMM, locate the memory slot on the CPU card and
perform the following steps:

1. Hold the DIMM so that the two keys of the DIMM align with those on

the memory slot.

2. Gently push the DIMM in an upright position until the clips of the slot

close to hold the DIMM in place when the DIMM touches the bottom
of the slot.

3. To remove the DIMM, press the clips with both hands.

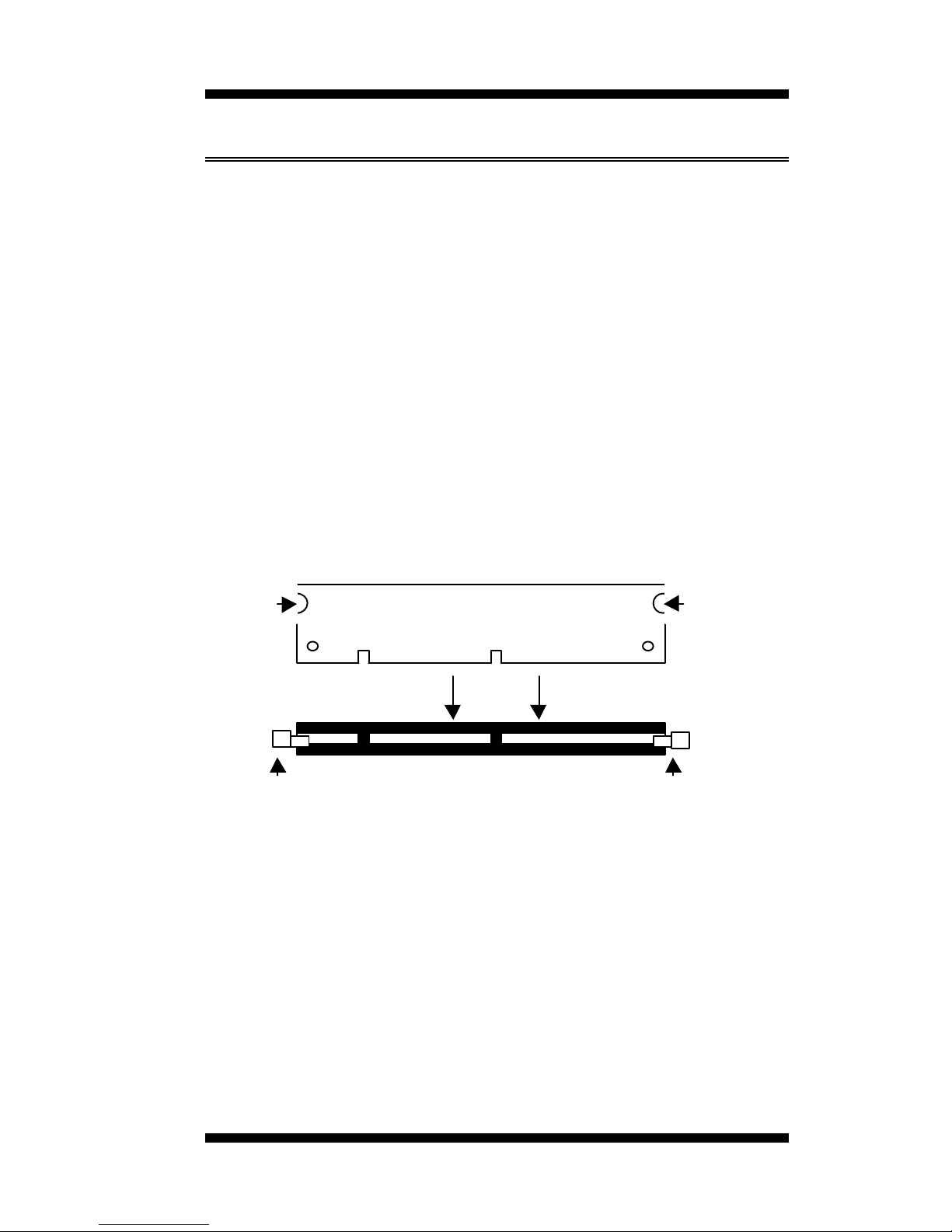

Top View of DIMM Socket

DIMM

Lock

Lock

Lock

Lock

INSTALLATION

IB780 User’s Manual 9

Setting the Jumpers

Jumpers are used on IB780 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on IB780 and their respective functions.

Jumper Locations on IB780...............................................................10

Configuring the CPU Frequency......................................................11

JP1, JP2, JP3: RS232/422/485 (COM2) Selection........................11

JP4: Realtek RTL8139C LAN Enable/Disable ..............................11

JP6: Clear CMOS Contents ...............................................................12

JP7: DiskOnChip Address Select.....................................................12

JP19, JP20, JP21, JP22, JP23: CRT VGA Signal Select..............12

INSTALLATIONS

10 IB780 User’s Manual

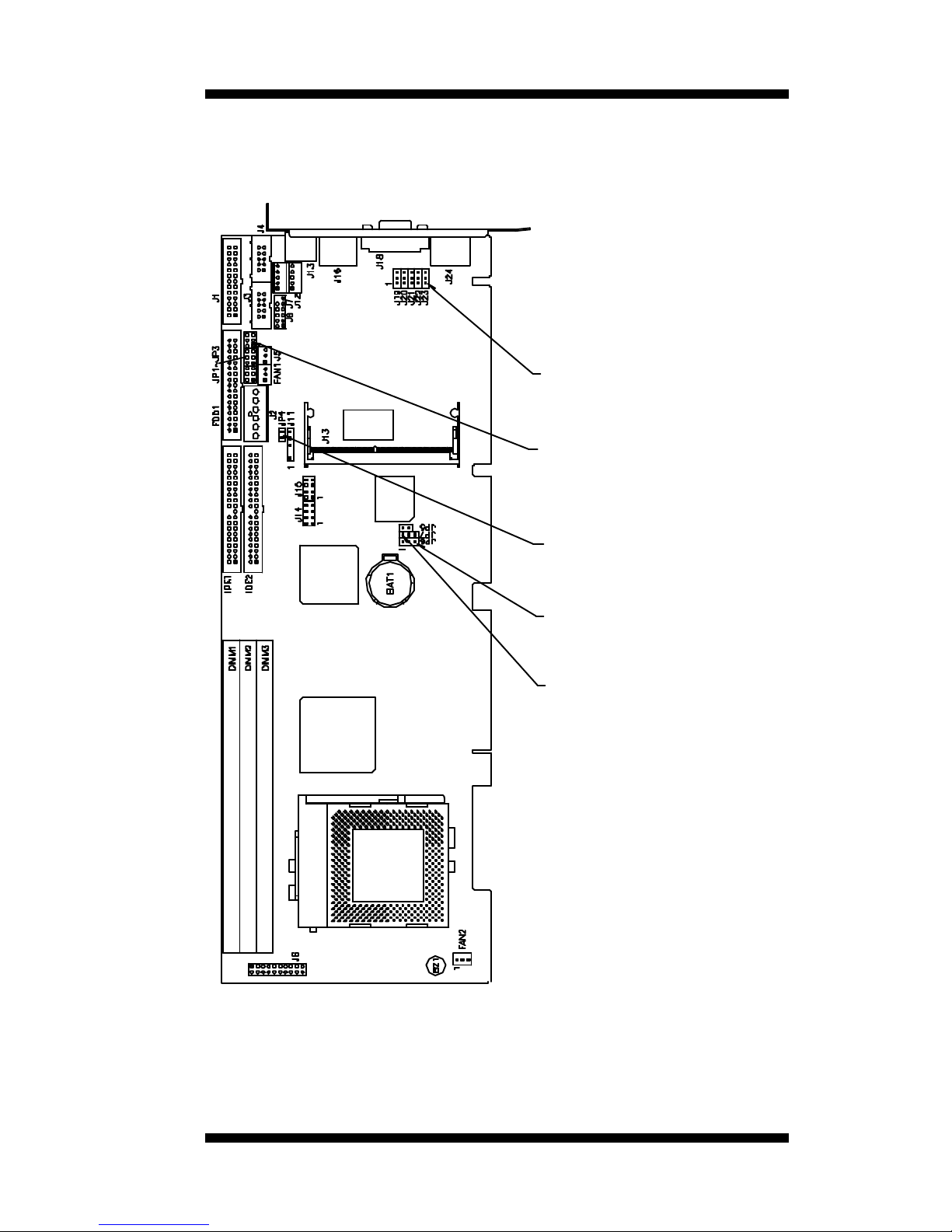

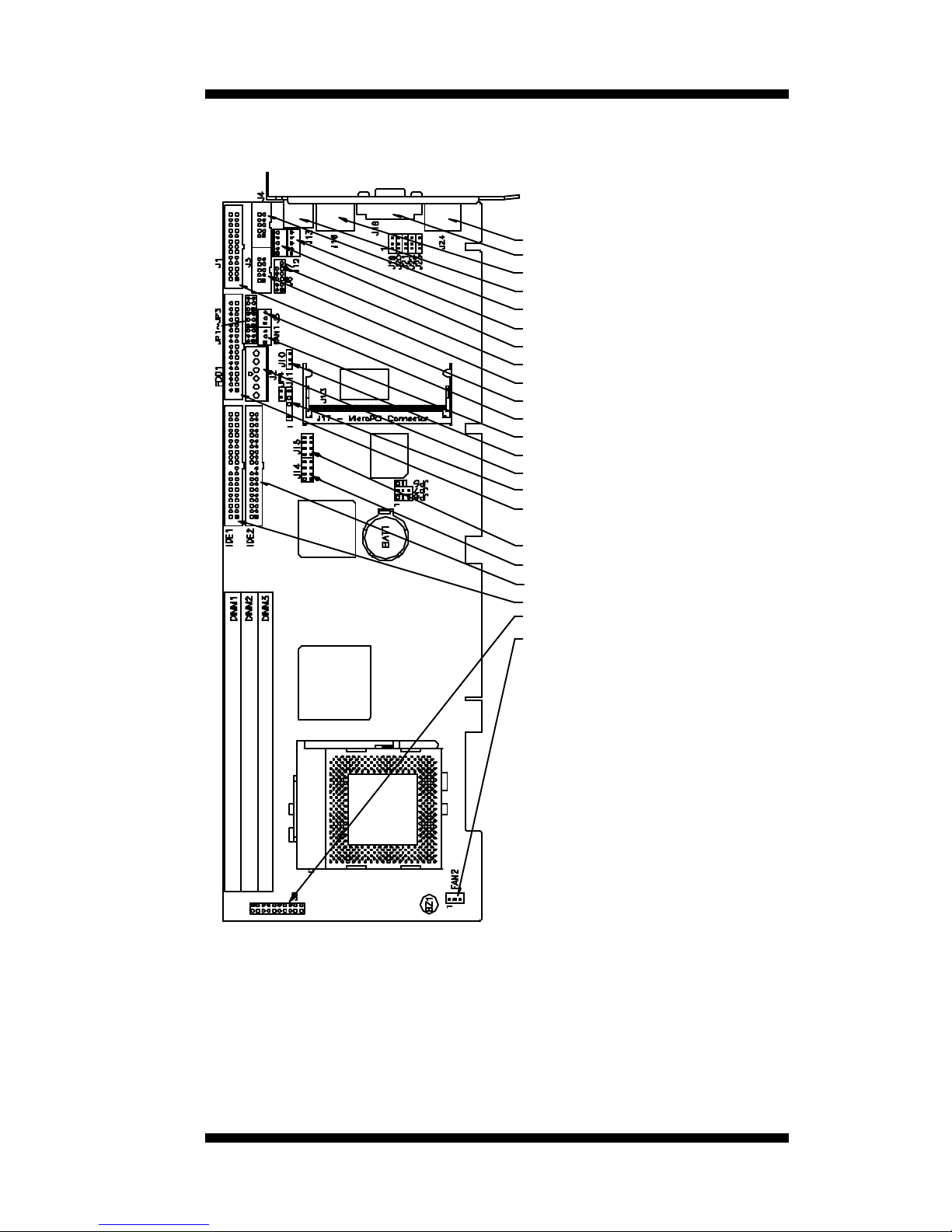

Jumper Locations on IB780

JP19, JP20, JP21, JP22, JP23:

CRT VGA Signal Select

JP1, JP2, JP3:
RS232/422/485

(COM2) Selection

JP4:
Realtek RTL8139C
LAN Enable/Disable

JP6:

Clear CMOS Contents

JP7:
DiskOnChip Address Select

INSTALLATION

IB780 User’s Manual 11

Configuring the CPU Frequency

The IB780 CPU card does not provide DIP switches to configure the
processor speed (CPU frequency). However, processors in the market
today are available with the CPU frequency fixed at a certain speed and
cannot be changed.

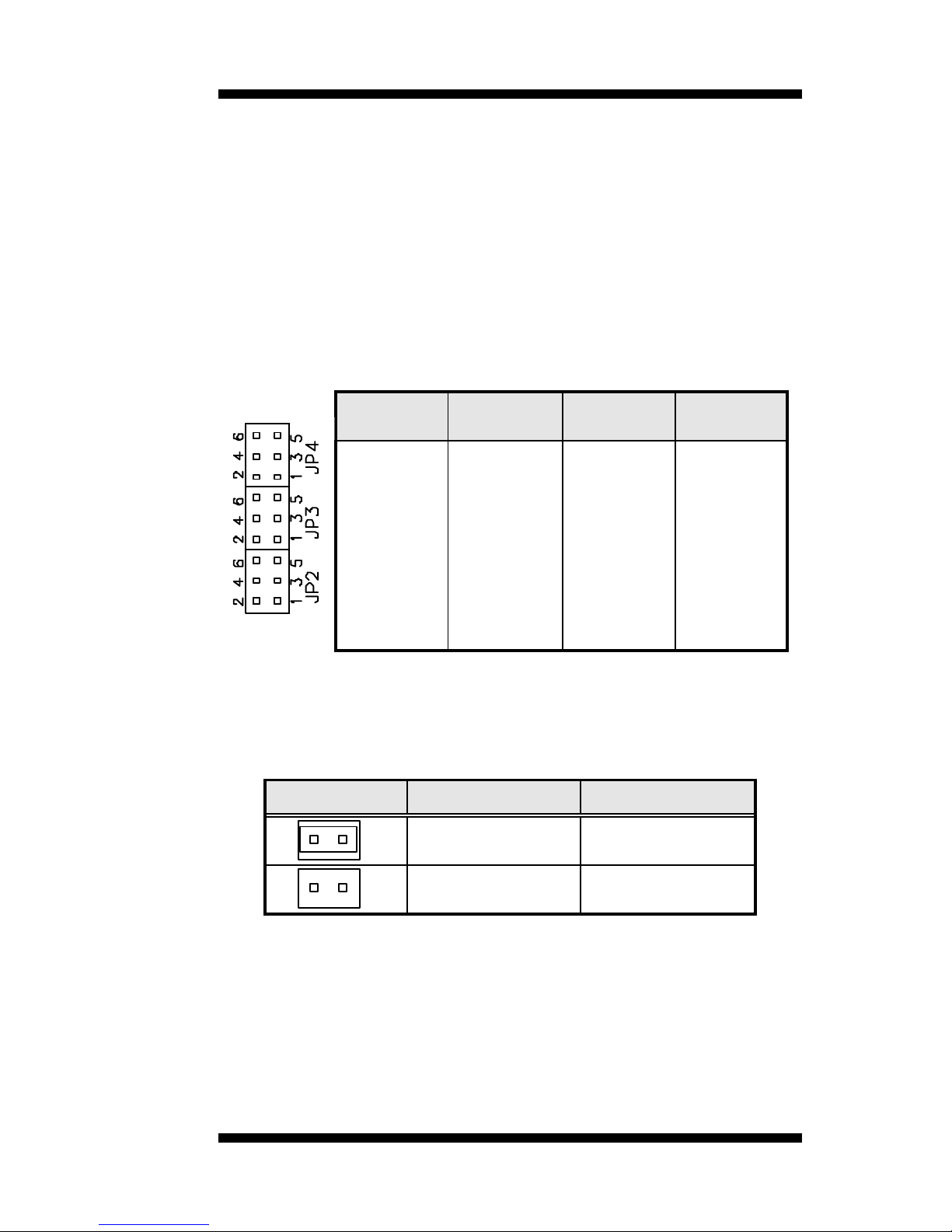

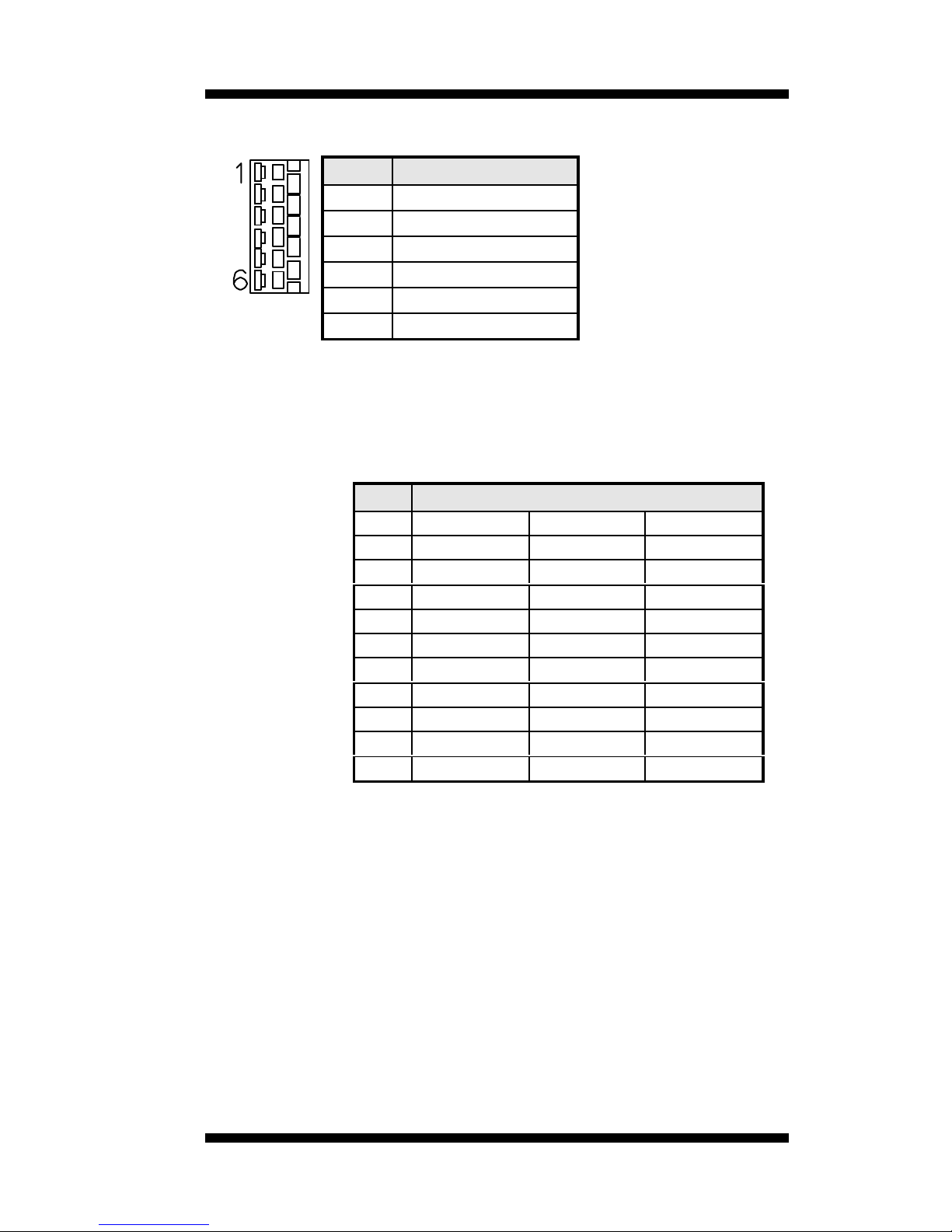

JP1, JP2, JP3: RS232/422/485 (COM2) Selection

COM1 is fixed for RS-232 use only.
COM2 is selectable for RS232, RS-422 and RS-485.
The following table describes the jumper settings for COM2 selection.

COM2

Function

RS-232 RS-422 RS-485

Jumper
Setting

(pin closed)

JP1:

1-2

JP2:

3-5 & 4-6

JP3:

3-5 & 4-6

JP1:

3-4

JP2:

1-3 & 2-4

JP3:

1-3 & 2-4

JP1:

5-6

JP2:

1-3 & 2-4

JP3:

1-3 & 2-4

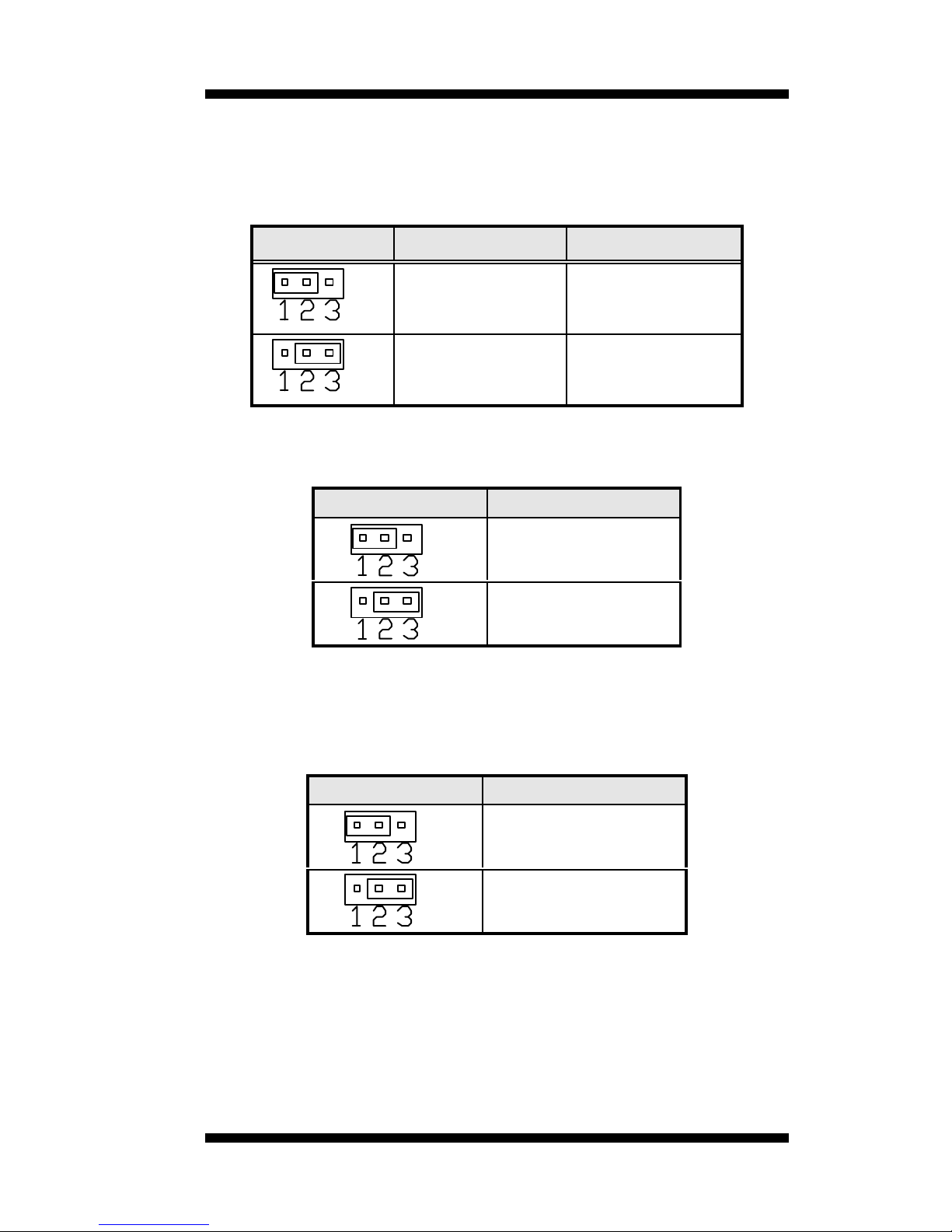

JP4: Realtek RTL8139C LAN Enable/Disable

Use JP4, a 3-pin header, to enable or disable the on board Realtek
RTL8139C Ethernet controller.

JP4 Setting Function

Short/Closed

Enabled

Open

Disabled

INSTALLATIONS

12 IB780 User’s Manual

JP6: Clear CMOS Contents

Use JP6, a 3-pin header, to clear the CMOS contents. Note that the
ATX-power connector should be disconnected from the CPU card before
clearing CMOS.

JP6 Setting Function

Pin 1-2

Short/Closed

Normal

Pin 2-3

Short/Closed

Clear CMOS

JP7: DiskOnChip Address Select

JP7 Address

D0000-D7FFF

D8000-DFFFF (default)

JP19, JP20, JP21, JP22, JP23: CRT VGA Signal Select

Use JP19, JP20, JP21, JP22, and JP23 to select the CRT VGA signal,
either from the on board VGA or from an optional MicroPCI VGA.

JP19/20/21/22/23 Function

On Board VGA

MicroPCI VGA

INSTALLATION

IB780 User’s Manual 13

Connectors on IB780

The connectors on IB780 allows you to connect external devices such as
keyboard, floppy disk drives, hard disk drives, printers, etc. The
following table lists the connectors on IB780 and their respective
functions.

Connector Locations on IB780..........................................................14

J1: Parallel Port Connector................................................................15

FDD1: Floppy Drive Connector .......................................................15

J2: P8 AT Power Connector..............................................................16

J3, J4: COM1, COM2 Serial Port.....................................................16

IDE1, IDE2: EIDE Connectors .........................................................17

FAN1: System Fan Power Connector..............................................18

FAN2: CPU Fan Power Connector..................................................19

J5: External ATX Power Connector.................................................19

J6: System Function Connector........................................................19

J7: External Keyboard Connector.....................................................21

J8: External Audio Connector...........................................................22

J10: Wake On LAN Connector.........................................................22

J11: IrDA Connector...........................................................................22

J12: External PS/2 Mouse Connector..............................................23

J13: PS/2 Keyboard and Mouse Connector....................................23

J14, J15: USB Connectors.................................................................23

J16: Primary RJ45 Connector for onboard LAN............................24

J17: MicroPCI Connector..................................................................24

J18: VGA CRT Connector.................................................................24

J24: Secondary RJ-45 Connector for MicroPCI LAN...................24

INSTALLATIONS

14 IB780 User’s Manual

Connector Locations on IB780

J24: Secondary RJ-45 Connector
J18: VGA CRT Connector
J16: Primary RJ45 Connector
J13: PS/2 Keyboard and Mouse Con.
J4: COM2 Serial Port
J12: External PS/2 Mouse Connector
J7: External Keyboard Connector
J8: External Audio Connector
J3: COM1 Serial Port
J1: Parallel Port Connector
J5: External ATX Power Connector
FAN1: System Fan Power Connector
J10: Wake On LAN Connector
J2: P8 AT Power Connector
J11: IrDA Connector
FDD1: Floppy Drive Connector

J15: USB Connector
J14: USB Connector
IDE2: EIDE Connector
IDE1: EIDE Connector
J6: System Function Connector
FAN2: CPU Fan Power Connector

INSTALLATION

IB780 User’s Manual 15

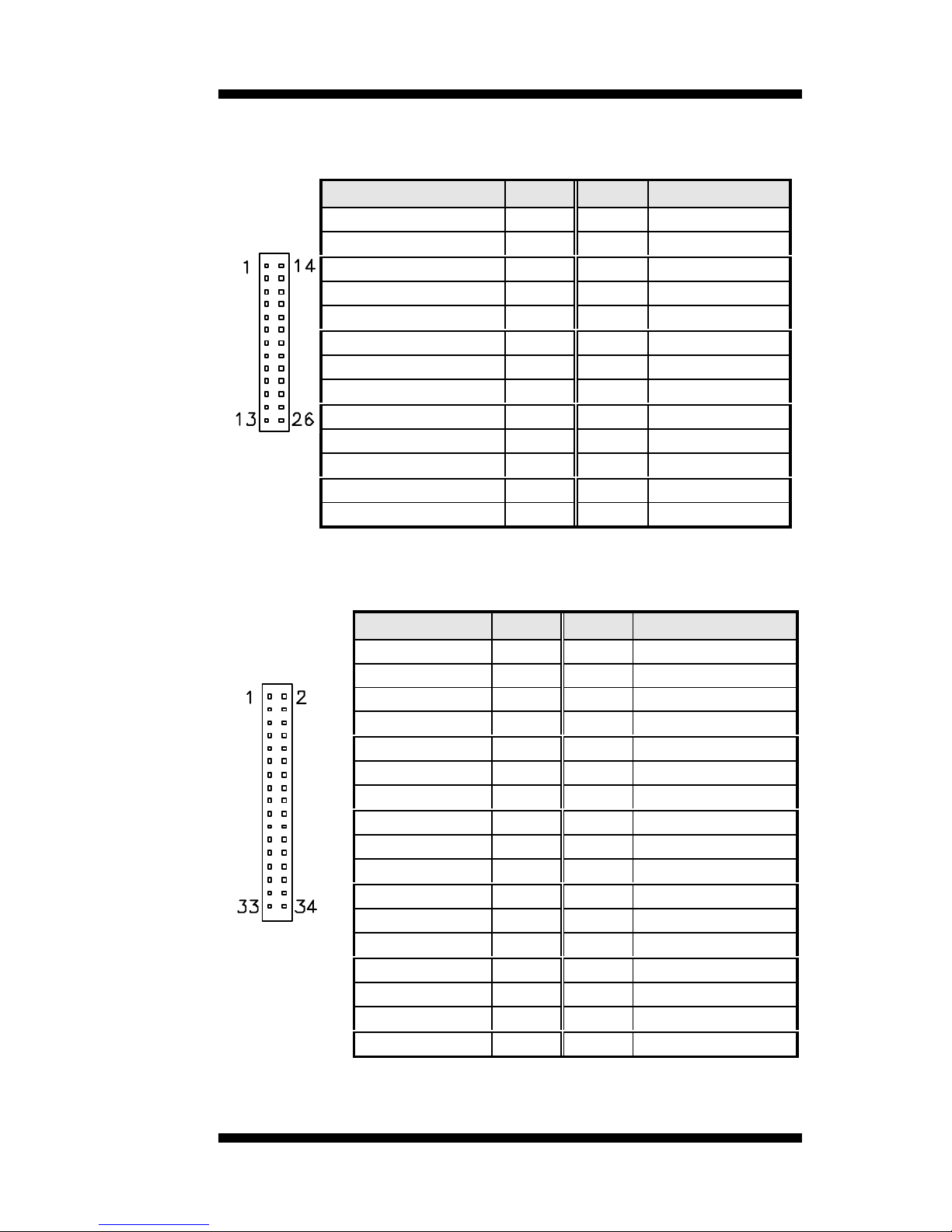

J1: Parallel Port Connector

The following table describes the pin out assignments of this connector.

Signal Name Pin # Pin # Signal Name

Line printer strobe 1 14 AutoFeed
PD0, parallel data 0 2 15 Error
PD1, parallel data 1 3 16 Initialize
PD2, parallel data 2 4 17 Select
PD3, parallel data 3 5 18 Ground
PD4, parallel data 4 6 19 Ground
PD5, parallel data 5 7 20 Ground
PD6, parallel data 6 8 21 Ground
PD7, parallel data 7 9 22 Ground
ACK, acknowledge 10 23 Ground

Busy 11 24 Ground

Paper empty 12 25 Ground

J1

Select 13 N/A N/A

FDD1: Floppy Drive Connector

FDD1 is a 34-pin header and will support up to 2.88MB floppy drives.

Signal Name Pin # Pin #

Signal Name

Ground 1 2 RM/LC
Ground 3 4 No connect
Ground 5 6 No connect
Ground 7 8 Index
Ground 9 10 Motor enable 0
Ground 11 12 Drive select 1
Ground 13 14 Drive select 0
Ground 15 16 Motor enable 1
Ground 17 18 Direction
Ground 19 20 Step
Ground 21 22 Write data
Ground 23 24 Write gate
Ground 25 26 Track 00
Ground 27 28 Write protect
Ground 29 30 Read data
Ground 31 32 Side 1 select

FDD1

Ground 33 34 Diskette change

INSTALLATIONS

16 IB780 User’s Manual

J2: P8 AT Power Connector

Pin #

Signal Name

1 N.C.
2 +5V
3 +2V
4 -12V
5 Ground
6 Ground

J3, J4: COM1, COM2 Serial Port

J3 and J4 both 10-pin headers, are the onboard serial port connectors of
the IB780. The following table shows the pin assignments of these
connectors.

Pin #

Signal Name

RS-232 RS-422 RS-485

1 DCD TX- DATA­2 RX TX+ DATA+
3 TX RX+ NC
4 DTR RX- NC
5 GND GND GND
6 DSR RTS- NC
7 RTS RTS+ NC
8 CTS CTS+ NC
9 RI CTS- NC

J3

fixed as

RS-232

J4

Configurable

as RS-232/ RS-

422/485 with

jumpers

JP1/JP2/JP3

10 NC NC NC

INSTALLATION

IB780 User’s Manual 17

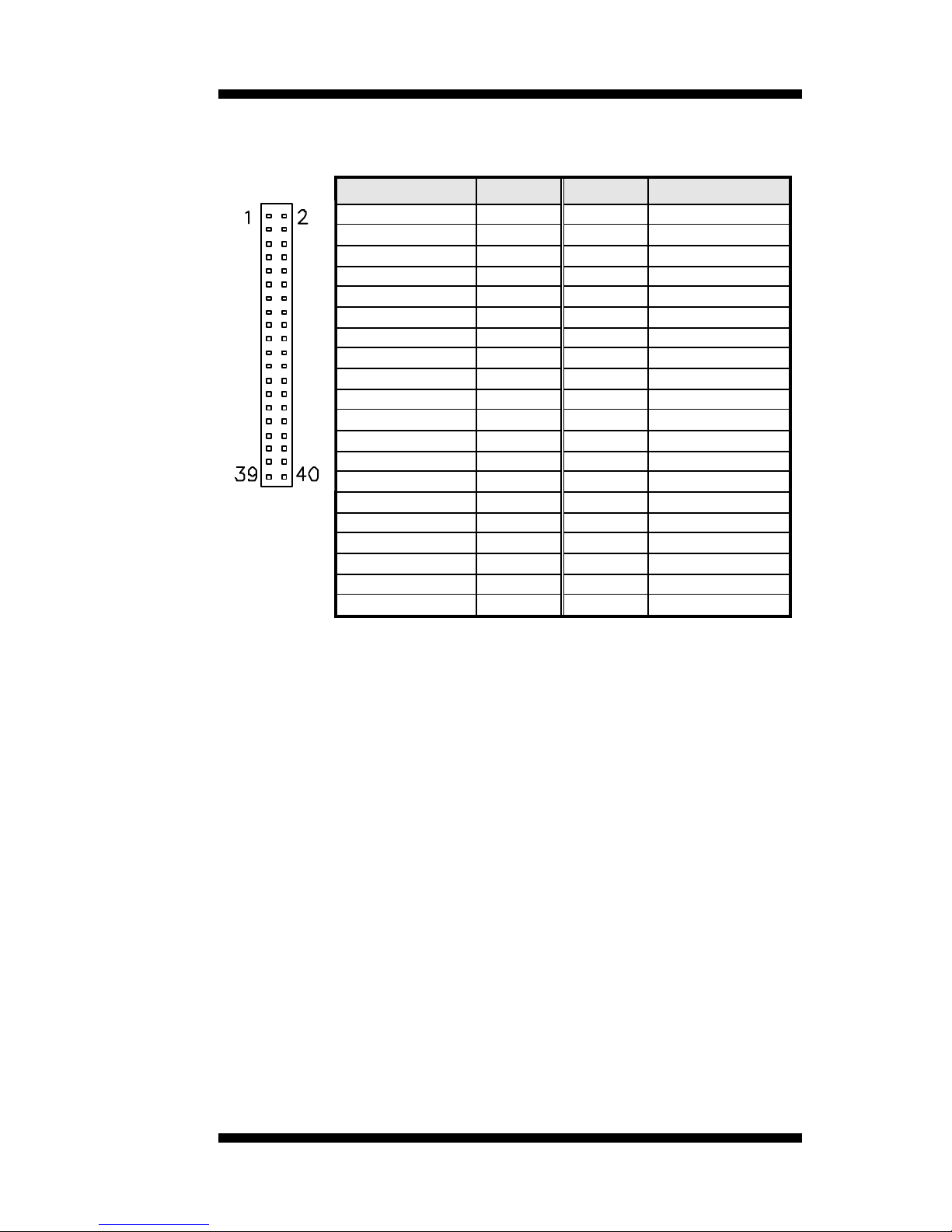

IDE1, IDE2: EIDE Connectors

IDE1: Primary IDE Connector

Signal Name Pin # Pin #

Signal Name

Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 4 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15

Ground 19 20 Protect pin

DRQ0 21 22 Ground

Host IOW 23 24 Ground

Host IOR 25 26 Ground

IOCHRDY 27 28 Host ALE

DACK0 29 30 Ground

IRQ14 31 32 No connect
Address 1 33 34 No connect
Address 0 35 36 Address 2

Chip select 0 37 38 Chip select 1

IDE1

Activity 39 40 Ground

INSTALLATIONS

18 IB780 User’s Manual

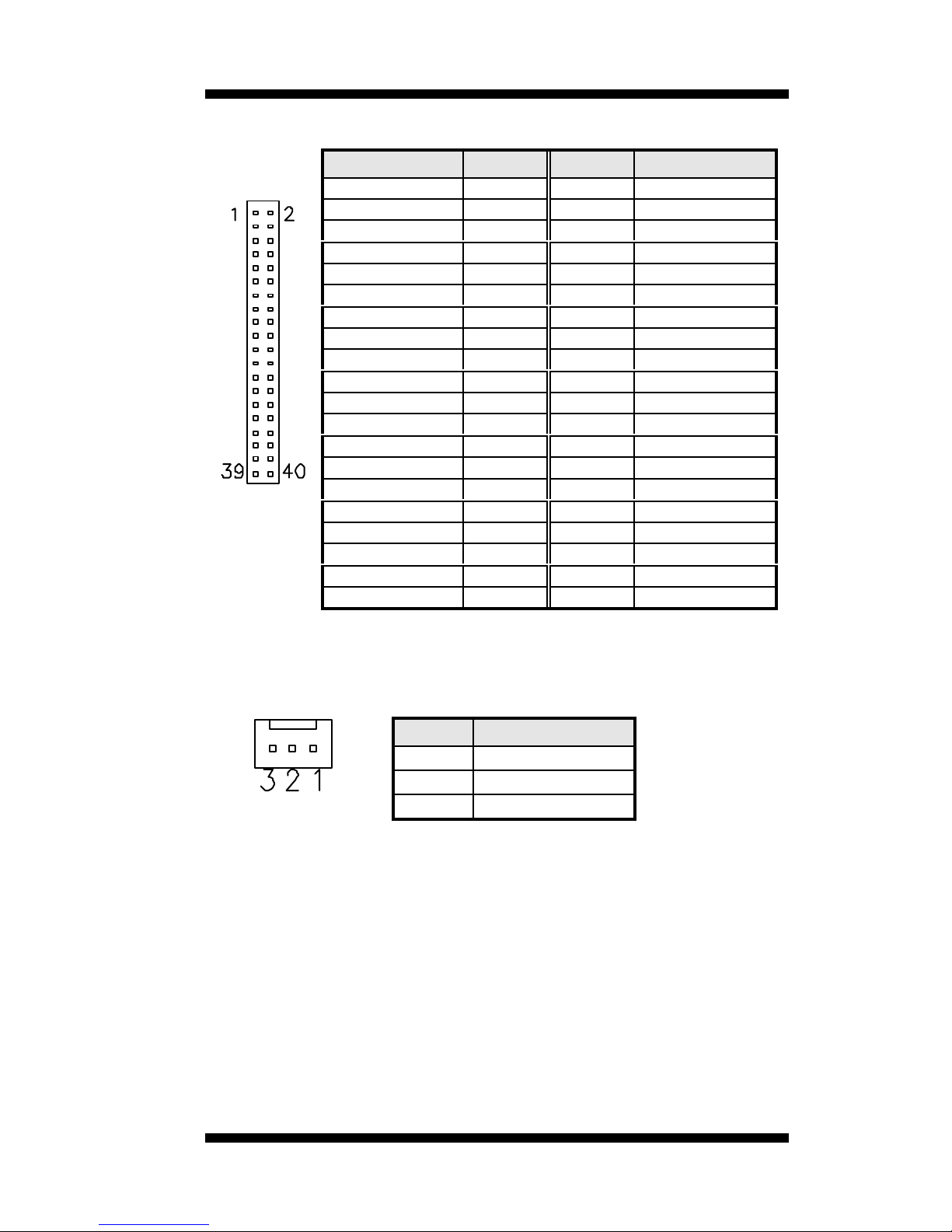

IDE2: Secondary IDE Connector

Signal Name Pin # Pin #

Signal Name

Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 4 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15

Ground 19 20 Protect pin

DRQ1 21 22 Ground

Host IOW 23 24 Ground

Host IOR 25 26 Ground

IOCHRDY 27 28 Host ALE

DACK1 29 30 Ground

IRQ15 31 32 No connect
Address 1 33 34 No connect
Address 0 35 36 Address 2

Chip select 0 37 38 Chip select 1

IDE2

Activity 39 40 Ground

FAN1: System Fan Power Connector

FAN1 is a 3-pin header for the system fan. The fan must be a 12V fan.

Pin #

Signal Name

1 Ground
2 +12V
3 Rotation detection

INSTALLATION

IB780 User’s Manual 19

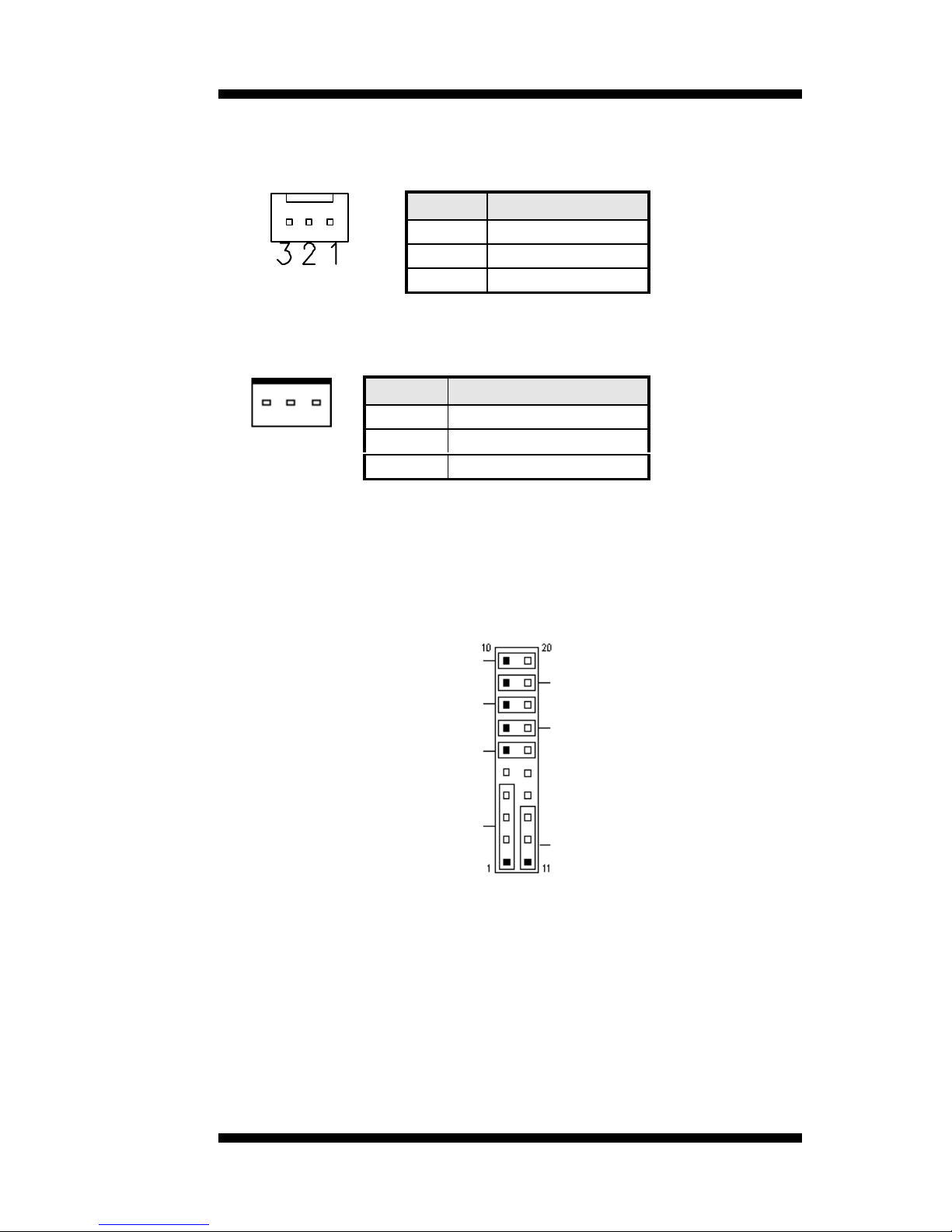

FAN2: CPU Fan Power Connector

FAN2 is a 3-pin header for the CPU fan. The fan must be a 12V fan.

Pin #

Signal Name

1 Ground
2 +12V
3 Rotation detection

J5: External ATX Power Connector

Pin # Signal Name

1 Ground
2 PS-ON (soft on/off)

3 2 1

3 5VSB (Standby +5V)

J6: System Function Connector

J6 provides connectors for system indicators that provide light indication
of the computer activities and switches to change the computer status. J6
is a 20-pin header that provides interfaces for the following functions.

Hard Disk Drive LED

Reset Switch

Turbo LED Connector

ATX Power On Switch

SMI / Hardware Switch

Speaker

Power LED

INSTALLATIONS

20 IB780 User’s Manual

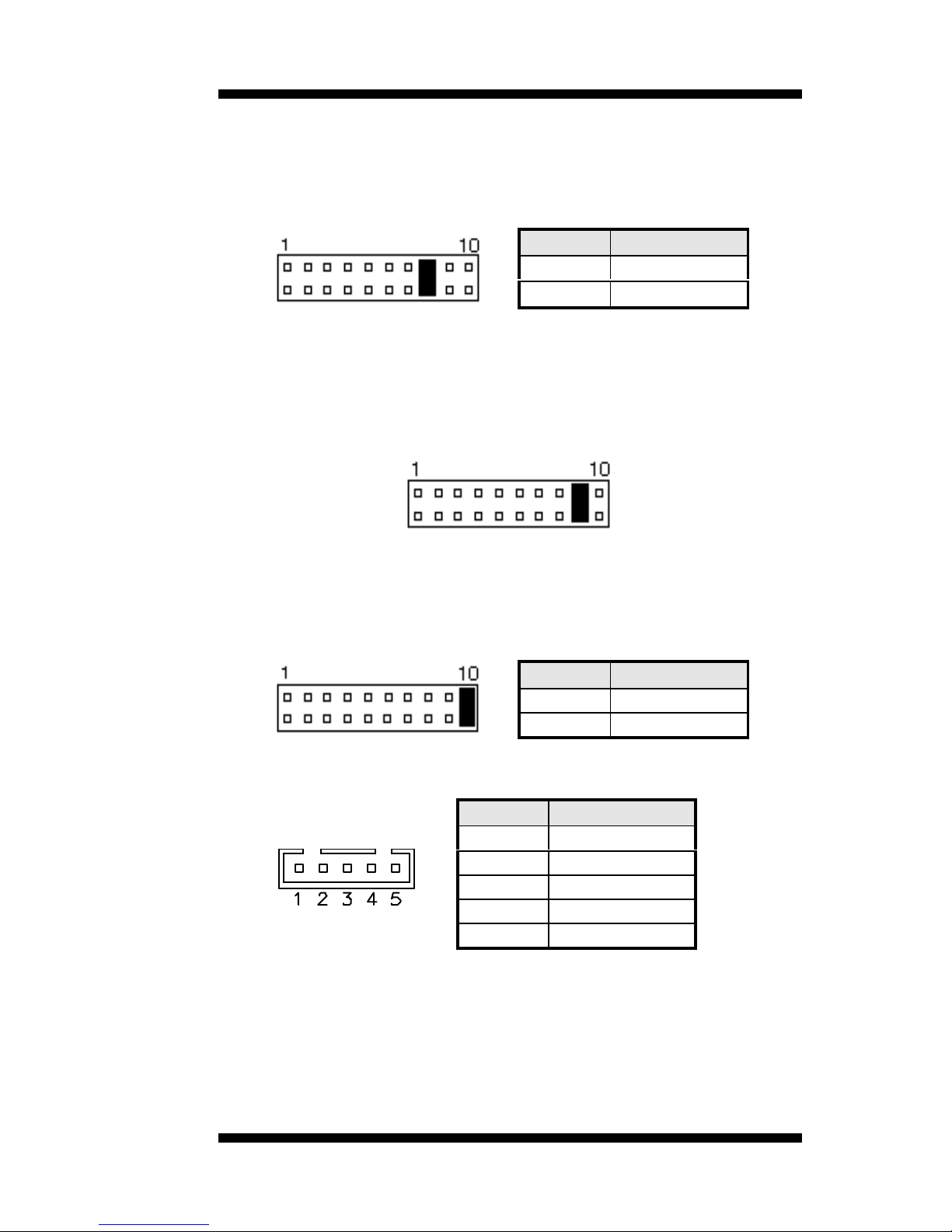

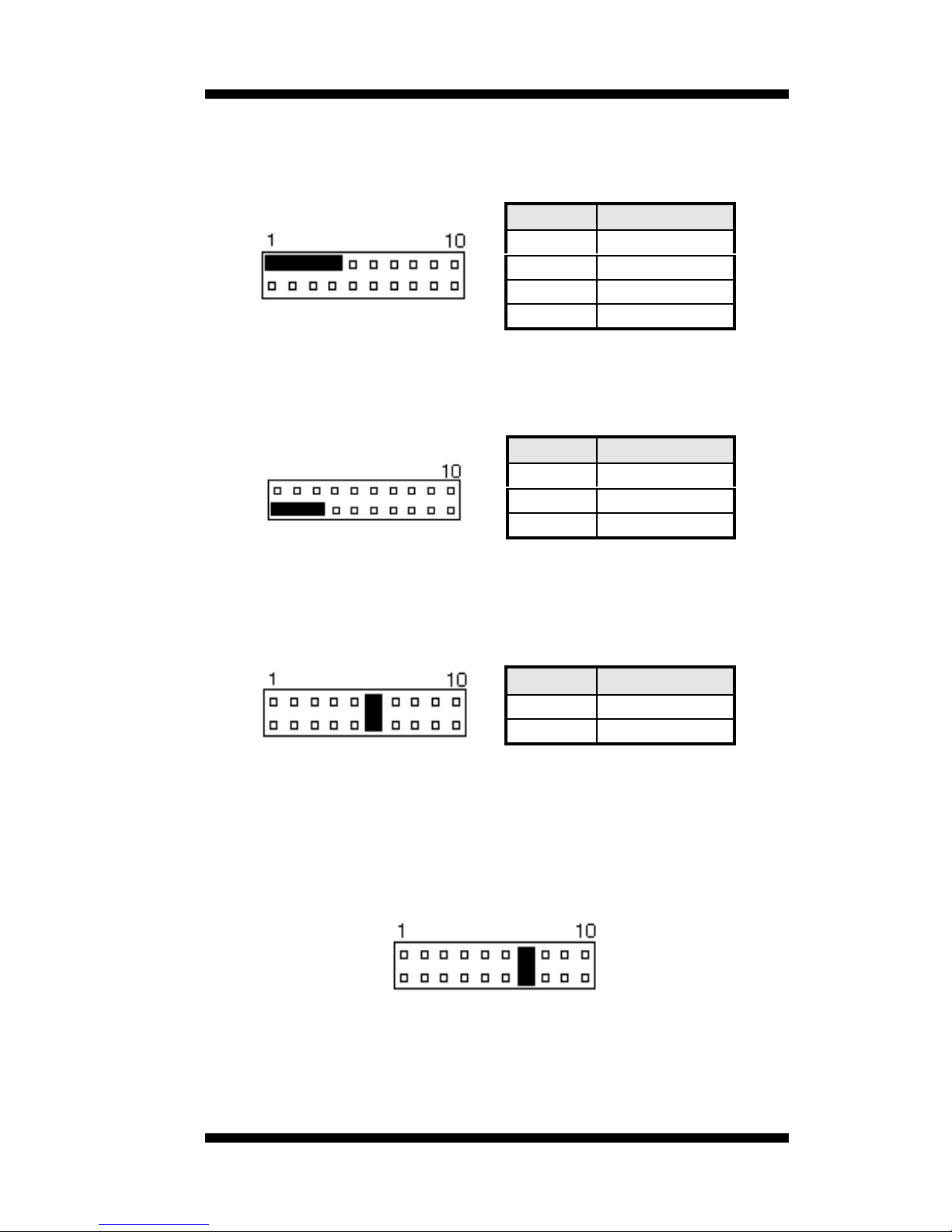

Speaker: Pins 1 - 4

This connector provides an interface to a speaker for audio
tone generation. An 8-ohm speaker is recommended.

Pin # Signal Name

1 Speaker out
2 No connect
3 Ground
4 +5V

Power LED: Pins 11 - 13

The power LED indicates the status of the main power
switch.

Pin # Signal Name

11 Power LED
12 No connect
13 Ground

SMI/Hardware Switch: Pins 6 and 16

This connector supports the "Green Switch" on the control
panel, which, when pressed, will force the system into the
power-saving mode immediately.

Pin # Signal Name

6 Sleep

16 Ground

ATX Power ON Switch: Pins 7 and 17

This 2-pin connector is an “ATX Power Supply On/Off
Switch” on the system that connects to the power switch on
the case. When pressed, the power switch will force the
system to power on. When pressed again, it will force the
system to power off.

INSTALLATION

IB780 User’s Manual 21

Turbo LED Connector: Pins 8 and 18

There is no turbo/deturbo function on the CPU card. The
Turbo LED on the control panel will always be On when
attached to this connector.

Pin # Signal Name

8 5V

18 Ground

Reset Switch: Pins 9 and 19

The reset switch allows the user to reset the system without
turning the main power switch off and then on again.
Orientation is not required when making a connection to
this header.

Hard Disk Drive LED Connector: Pins 10 and 20

This connector connects to the hard drive activity LED on
control panel. This LED will flash when the HDD is being
accessed.

Pin #

Signal Name

10 Ground
20 5V

J7: External Keyboard Connector

Pin # Signal Name

1 KB Clock
2 KB data
3 NC
4 Ground
5 Vcc

INSTALLATIONS

22 IB780 User’s Manual

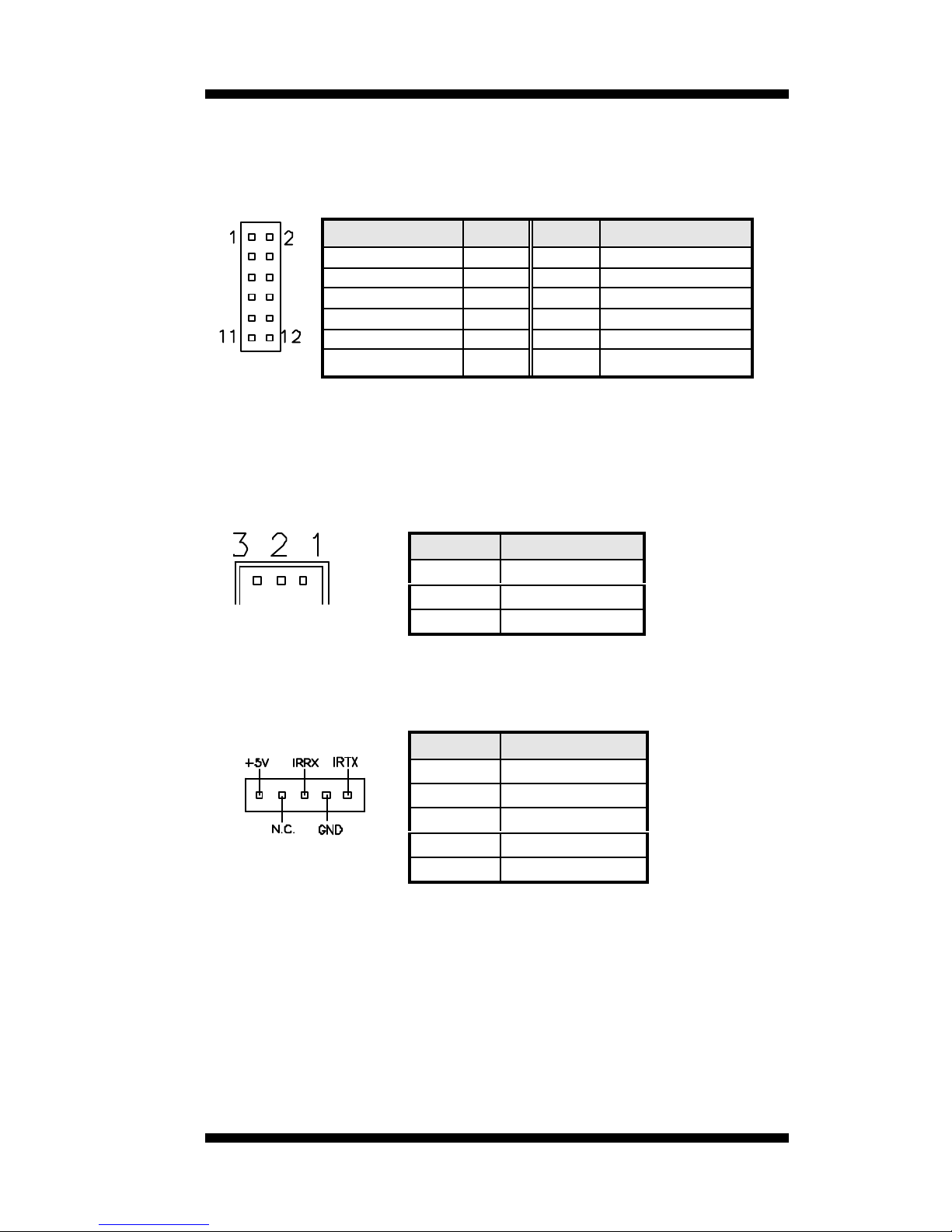

J8: External Audio Connector

J8 is a 12-pin header that is used to connect to the IB741 daughter card
that integrates jacks for Line In, Line Out and Speaker.

Signal Name Pin # Pin # Signal Name

LINEOUT_L

1 2 LINEOUT_R

LINEIN_L 3 4 LINEIN_R

GROUND 5 6 GROUND

CDIN_L 7 8 CDIN_R

VREFOUT 9 10 CDGND

MIC 11 12

PROTECT PIN

J10: Wake On LAN Connector

J10 is a 3-pin header for the Wake On LAN function on the CPU card.
The following table shows the pin out assignments of this connector.
Wake On LAN will function properly only with an ATX power supply
with 5VSB that has 200mA.

Pin # Signal Name

1 +5VSB
2 Ground
3 -PME

J11: IrDA Connector

J11 is used for an optional IrDA connector for wireless communication.

Pin #

Signal Name

1 +5V
2 No connect
3 Ir RX
4 Ground
5 Ir TX

INSTALLATION

IB780 User’s Manual 23

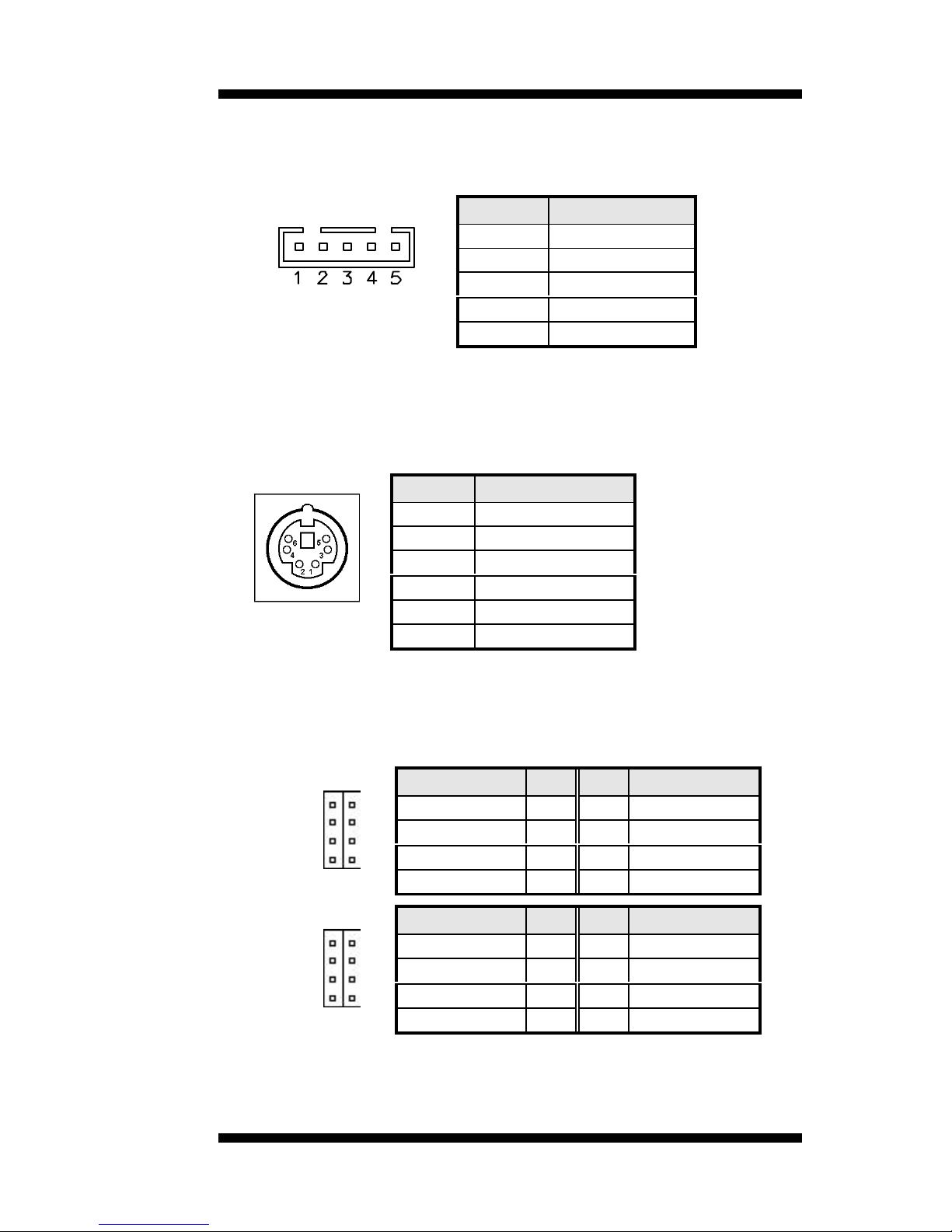

J12: External PS/2 Mouse Connector

Take note of the pin orientation of this connector to avoid possible
damage to the mouse due to wrong insertion. See figure below.

Pin #

Signal Name

1 Mouse data
2 NC
3 Ground
4 Vcc
5 Mouse Clock

J13: PS/2 Keyboard and Mouse Connector

J13 uses a Y-cable with dual D-connectors for a PS/2 keyboard and a
PS/2 mouse.

Pin #

Signal Name

1 Mouse data
2 Keyboard data
3 Ground
4 Vcc
5 Mouse Clock

J13

6 Keyboard Clock

J14, J15: USB Connectors

The following table shows the pin outs of the USB pin headers
connectors. Overall, the two pin headers support four USB ports.

Signal Name Pin Pin Signal Name

Vcc 1 8 Ground

USB1- 2 7 USB2+

USB1+ 3 6 USB2-

1
2
3
4

J14

USB

8
7
6
5

Ground 4 5 Vcc

Signal Name Pin Pin Signal Name

Vcc 1 8 Ground

USB3- 2 7 USB4+

USB3+ 3 6 USB4-

1
2
3
4

J15

USB

8
7
6
5

Ground 4 5 Vcc

INSTALLATIONS

24 IB780 User’s Manual

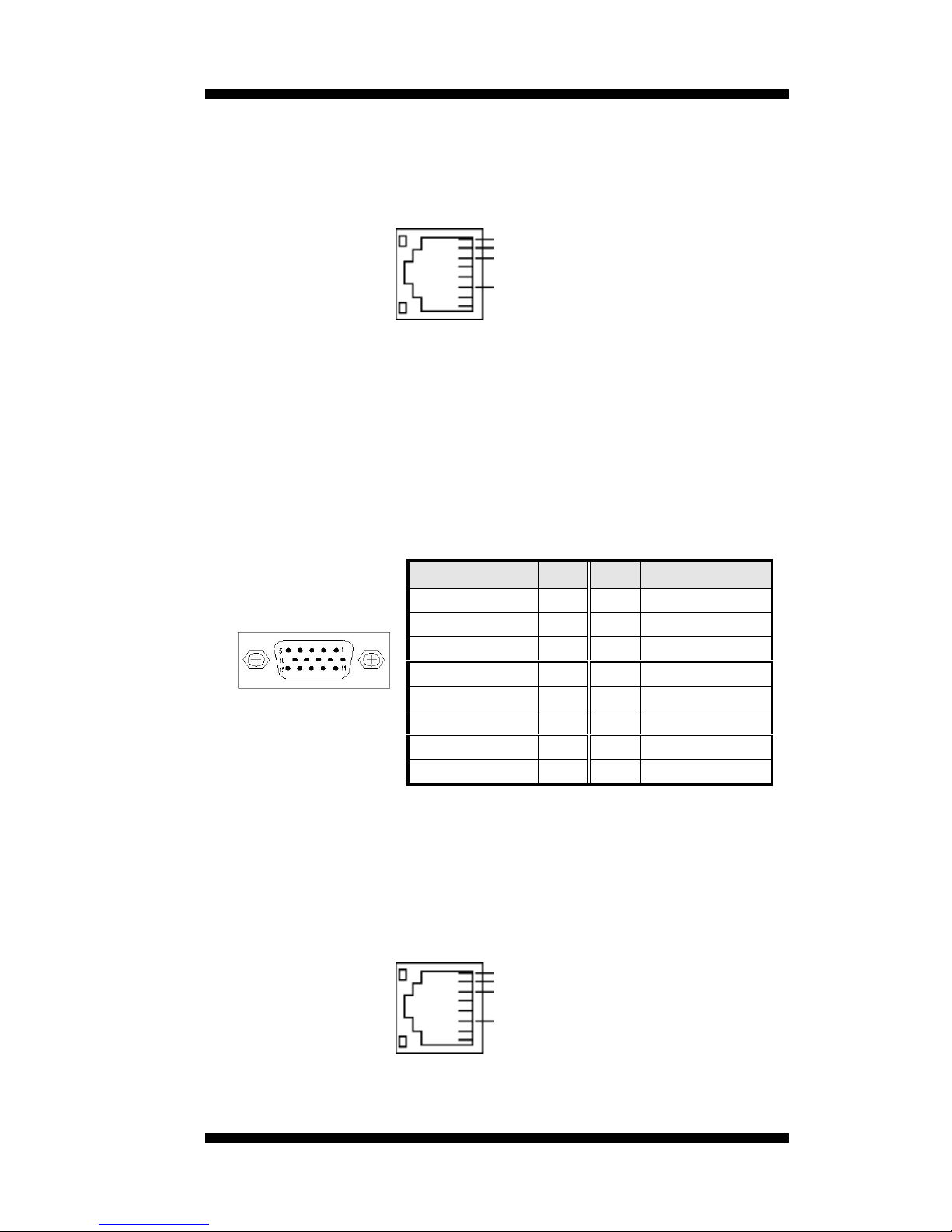

J16: Primary RJ45 Connector for onboard LAN

J16 is the primary RJ-45 connectors respectively. The figure below
shows the pin out assignments of the connector and its corresponding
input jack.

Active LED

Link LED

RJ-45

TD+(pin#1)
TD-(pin#2)
RD+(pin#3)

RD-(pin#6)

J17: MicroPCI Connector

The MicroPCI connector provides interface to optional MicroPCI cards
with various functions such as VGA, LAN, VGA/LAN, dual LAN, SCSI
and IEEE 1394.

J18: VGA CRT Connector

The pin assignments of the J18 VGA CRT connector are as follows:

Signal Name Pin Pin

Signal Name

Red 1 2 Green

Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND

N.C. 9 10 GND

N.C. 11 12 N.C.

HSYNC 13 14 VSYNC

18

NC 15

J24: Secondary RJ-45 Connector for MicroPCI LAN

J24 is secondary RJ-45 connectors respectively. The J24 secondary RJ­45 connector is used in conjunction with a secondary Ethernet provided
through a MicroPCI Ethernet card. The figure below shows the pin out
assignments of the connector and its corresponding input jack.

Link LED

Active LED

RJ-45

TD+(pin#1)
TD-(pin#2)
RD+(pin#3)

RD-(pin#6)

BIOS SETUP

IB780 User’s Manual 25

BIOS Setup

This chapter describes the different settings available in the Award BIOS
that comes with the CPU card. The topics covered in this chapter are as
follows:

BIOS Introduction...............................................................................26

BIOS Setup...........................................................................................26

Standard CMOS Setup........................................................................28

Advanced BIOS Features...................................................................31

Advanced Chipset Features...............................................................34

Integrated Peripherals .........................................................................37

Power Management Setup.................................................................39

PNP/PCI Configurations ....................................................................41

PC Health Status..................................................................................43

Load Fail-Safe Defaults......................................................................44

Load Setup Defaults............................................................................44

Set Supervisor/User Password ..........................................................44

Save & Exit Setup...............................................................................44

Exit Without Saving............................................................................44

BIOS SETUP

26 IB780 User’s Manual

BIOS Introduction

The Award BIOS (Basic Input/Output System) installed in your
computer system’s ROM supports Intel Pentium II/III processors. The
BIOS provides critical low-level support for a standard device such as
disk drives, serial ports and parallel ports. It also adds virus and
password protection as well as special support for detailed fine-tuning of
the chipset controlling the entire system.

BIOS Setup

The Award BIOS provides a Setup utility program for specifying the
system configurations and settings. The BIOS ROM of the system stores
the Setup utility. When you turn on the computer, the Award BIOS is
immediately activated. Pressing the <Del> key immediately allows you
to enter the Setup utility. If you are a little bit late pressing the <Del>
key, POST (Power On Self Test) will continue with its test routines, thus
preventing you from invoking the Setup. If you still wish to enter Setup,
restart the system by pressing the ”Reset” button or simultaneously
pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by
turning the system Off and back On again. The following message will
appear on the screen:

Press <DEL> to Enter Setup

In general, you press the arrow keys to highlight items, <Enter> to select,
the <PgUp> and <PgDn> keys to change entries, <F1> for help and
<Esc> to quit.

When you enter the Setup utility, the Main Menu screen will appear on
the screen. The Main Menu allows you to select from various setup
functions and exit choices.

BIOS SETUP

IB780 User’s Manual 27

CMOS Setup Utility – Copyright © 1984-2000 Award Software

Standard CMOS Features Frequency/Voltage Control
Advanced BIOS Features Load Fail-Safe Defaults
Advanced Chipset Features Load Optimized Defaults
Integrated Peripherals Set Supervisor Password
Power Management Setup Set User Password
PnP/PCI Configurations Save & Exit Setup
PC Health Status Exit Without Saving
ESC : Quit á â à ß : Select Item
F10 : Save & Exit Setup

Time, Date, Hard Disk Type…

The section below the setup items of the Main Menu displays the control
keys for this menu. At the bottom of the Main Menu just below the
control keys section, there is another section which displays information
on the currently highlighted item in the list.

Note:

If the system cannot boot after making and saving system
changes with Setup, the Award BIOS supports an override to
the CMOS settings that resets your system to its default.

Warning:

It is strongly recommended that you avoid making any
changes to the chipset defaults. These defaults have been
carefully chosen by both Award and your system
manufacturer to provide the absolute maximum performance
and reliability. Changing the defaults could cause the system
to become unstable and crash in some cases.

BIOS SETUP

28 IB780 User’s Manual

Standard CMOS Setup

“Standard CMOS Setup” choice allows you to record some basic
hardware configurations in your computer system and set the system
clock and error handling. If the CPU card is already installed in a
working system, you will not need to select this option. You will need to
run the Standard CMOS option, however, if you change your system
hardware configurations, the onboard battery fails, or the configuration
stored in the CMOS memory was lost or damaged.

CMOS Setup Utility – Copyright © 1984-2000 Award Software

Standard CMOS Features

Date (mm:dd:yy) Tue, Mar 26 2000 Item Help
Time (hh:mm:ss) 00 : 00 : 00 Menu Level

IDE Primary Master Press Enter 13020 MB Change the day, month,
IDE Primary Slave Press Enter None Year and century
IDE Secondary Master Press Enter None
IDE Secondary Slave Press Enter None

Drive A 1.44M, 3.5 in.
Drive B None

Video EGA/VGA
Halt On All Errors

Base Memory 640K
Extended Memory 129024K
Total Memory 130048K

At the bottom of the menu are the control keys for use on this menu. If
you need any help in each item field, you can press the <F1> key. It will
display the relevant information to help you. The memory display at the
lower right-hand side of the menu is read-only. It will adjust
automatically according to the memory changed. The following
describes each item of this menu.

Date

The date format is:

Day : Sun to Sat
Month : 1 to 12
Date : 1 to 31
Year : 1994 to 2079

To set the date, highlight the “Date” field and use the PageUp/
PageDown or +/- keys to set the current time.

BIOS SETUP

IB780 User’s Manual 29

Time

The time format is: Hour : 00 to 23

Minute : 00 to 59
Second : 00 to 59

To set the time, highlight the “Time” field and use the <PgUp>/ <PgDn>
or +/- keys to set the current time.

IDE Primary HDDs / IDE Secondary HDDs

The onboard PCI IDE connectors provide Primary and Secondary
channels for connecting up to four IDE hard disks or other IDE devices.
Each channel can support up to two hard disks; the first is the “Master”
and the second is the “Slave”.

Press <Enter> to configure the hard disk. The selections include Auto,
Manual, and None. Select ‘Manual’ to define the drive information
manually. You will be asked to enter the following items.

CYLS : Number of cylinders
HEAD : Number of read/write heads
PRECOMP : Write precompensation
LANDZ : Landing zone
SECTOR : Number of sectors

The Access Mode selections are as follows:

Auto
Normal (HD < 528MB)
Large (for MS-DOS only)
LBA (HD > 528MB and supports

Logical Block Addressing)

Drive A / Drive B

These fields identify the types of floppy disk drive A or drive B that has
been installed in the computer. The available specifications are:

360KB

5.25 in.

1.2MB

5.25 in.

720KB

3.5 in.

1.44MB

3.5 in.

2.88MB

3.5 in.

BIOS SETUP

30 IB780 User’s Manual

Video

This field selects the type of video display card installed in your system.
You can choose the following video display cards:

EGA/VGA For EGA, VGA, SEGA, SVGA

or PGA monitor adapters. (default)
CGA 40 Power up in 40 column mode.
CGA 80 Power up in 80 column mode.
MONO For Hercules or MDA adapters.

Halt On

This field determines whether or not the system will halt if an error is
detected during power up.
No errors The system boot will not be halted for any error

that may be detected.

All errors Whenever the BIOS detects a non-fatal error,

the system will stop and you will be prompted.

All, But Keyboard

The system boot will not be halted for a

keyboard error; it will stop for all other errors

All, But Diskette The system boot will not be halted for a disk

error; it will stop for all other errors.

All, But Disk/Key The system boot will not be halted for a key-

board or disk error; it will stop for all others.

BIOS SETUP

IB780 User’s Manual 31

Advanced BIOS Features

This section allows you to configure and improve your system and
allows you to set up some system features according to your preference.

CMOS Setup Utility – Copyright © 1984-2000 Award Software

Advanced BIOS Features

Virus Warning Disabled ITEM HELP
CPU Internal Cache Enabled Menu Level

External Cache Enabled
CPU L2 Cache ECC Checking Enabled
Processor Number Feature Enabled
Quick Power On Self Test Enabled
First Boot Device Floppy
Second Boot Device HDD-0
Third Boot Device LS120P
Boot Other Device Enabled
Swap Floppy Drive Disabled
Boot Up Floppy Seek Disabled
Boot Up Numlock Status On
Gate A20 Option Fast
Typematic Rate Setting Disabled
Typematic Rate (chars/Sec) 6

Allows you choose
the VIRUS warning
feature for IDE Hard
Disk boot sector
protection. If this
function is enabled
and someone
attempt to write data
into this area, BIOS
will show a warning
message on screen
and alarm beep

Typematic Delay (Msec) 250
Security Option Setup
OS Select For DRAM>64MB Non-OS2
Report No FDD For WIN 95 No
Video BIOS Shadow Enabled
C8000-CBFFF Shadow Disabled
CC000-CFFFF Shadow Disabled
D0000-D3FFF Shadow Disabled
D4000-D7FFF Shadow Disabled
D8000-DBFFF Shadow Disabled
DC000-DFFF Shadow Disabled
Small Logo (EPA) Show Enabled

Virus Warning

This item protects the boot sector and partition table of your hard disk
against accidental modifications. If an attempt is made, the BIOS will
halt the system and display a warning message. If this occurs, you can
either allow the operation to continue or run an anti-virus program to
locate and remove the problem.

CPU Internal Cache / External Cache

Cache memory is additional memory that is much faster than
conventional DRAM (system memory). CPUs from 486-type on up
contain internal cache memory, and most, but not all, modern PCs have
additional (external) cache memory. When the CPU requests data, the
system transfers the requested data from the main DRAM into cache
memory, for even faster access by the CPU. These items allow you to
enable (speed up memory access) or disable the cache function. By
default, these items are Enabled.

BIOS SETUP

32 IB780 User’s Manual

CPU L2 Cache ECC Checking

This field enables or disables the ECC (Error Correction Checking)
checking of the CPU level-2 cache. The default setting is Enabled.

Processor Number Feature

When enabled, this feature allows external systems to detect the
processor number/type of the CPU.

Quick Power On Self Test

When enabled, this field speeds up the Power On Self Test (POST) after
the system is turned on. If it is set to Enabled, BIOS will skip some
items.

First/Second/Third Boot Device

These fields determine the drive that the system searches first for an
operating system. The options available include Floppy, LS/ZIP, HDD­0, SCSI, CDROM, HDD-1, HDD-2, HDD-3, LAN and Disable.

Boot Other Device

These fields allow the system to search for an operating system from
other devices other than the ones selected in the First/Second/Third Boot
Device.

Swap Floppy Drive

This item allows you to determine whether or not to enable Swap Floppy
Drive. When enabled, the BIOS swaps floppy drive assignments so that
Drive A becomes Drive B, and Drive B becomes Drive A. By default,

this field is set to Disabled.

Boot Up Floppy Seek

When enabled, the BIOS will seek whether or not the floppy drive
installed has 40 or 80 tracks. 360K type has 40 tracks while 760K, 1.2M
and 1.44M all have 80 tracks.

Boot Up NumLock Status

This allows you to activate the NumLock function after you power up
the system.

Gate A20 Option

This field allows you to select how Gate A20 is worked. Gate A20 is a
device used to address memory above 1 MB.

BIOS SETUP

IB780 User’s Manual 33

Typematic Rate Setting

When disabled, continually holding down a key on your keyboard will
generate only one instance. When enabled, you can set the two typematic
controls listed next. By default, this field is set to Disabled.

Typematic Rate (Chars/Sec)

When the typematic rate is enabled, the system registers repeated
keystrokes speeds. Settings are from 6 to 30 characters per second.

Typematic Delay (Msec)

When the typematic rate is enabled, this item allows you to set the time
interval for displaying the first and second characters. By default, this
item is set to 250msec.

Security Option

This field allows you to limit access to the System and Setup. The default
value is Setup. When you select System, the system prompts for the User

Password every time you boot up. When you select Setup, the system
always boots up and prompts for the Supervisor Password only when the
Setup utility is called up.

OS Select for DRAM > 64MB

This option allows the system to access greater than 64MB of DRAM
memory when used with OS/2 that depends on certain BIOS calls to
access memory. The default setting is Non-OS/2.

Video BIOS Shadow

This item allows you to change the Video BIOS location from ROM to
RAM. Video Shadow will increase the video speed.

C8000 - CBFFF Shadow/DC000 - DFFFF Shadow

Shadowing a ROM reduces the memory available between 640KB to
1024KB. These fields determine whether or not optional ROM will be
copied to RAM.

Small Logo (EPA) Show

This field enables the showing of the EPA logo located at the upper right
of the screen during boot up.

BIOS SETUP

34 IB780 User’s Manual

Advanced Chipset Features

This Setup menu controls the configuration of the chipset.

CMOS Setup Utility – Copyright © 1984-2000 Award Software

Advanced Chipset Features

DRAM Clock Host CLK ITEM HELP
DRAM Timing By SPD Disabled Menu Level

SDRAM Cycle Length 3
Bank Interleave Disabled
Memory Hole Disabled
P2C/C2P Concurrency Enabled
Fast R-W Turn Around Enabled
System BIOS Cacheable Disabled
Video BIOS Cacheable Disabled
Frame Buffer Size 8M
AGP Aperture Size 64M
OnChip USB Enabled
USB Keyboard Support Disabled
OnChip Sound Enabled
CPU to PCI Write Buffer Enabled
PCI Dynamic Bursting Enabled
PCI Master 0 WS Write Enabled
PCI#2 Access #1 Retry Disabled
AGP Master 1 WS Write Disabled
AGP Master 1 WS Read Disabled

DRAM Clock

This setting sets the DRAM clock frequency. The default sets it based on
the Host CPU clock (front side bus).

DRAM Timing by SPD

This field sets the DRAM Timing based on SPD. The default setting is
Disabled.

SDRAM Cycle Length

This feature is similar to SDRAM CAS Latency Time. It controls the
time delay (in clock cycles - CLKs) that passes before the SDRAM starts
to carry out a read command after receiving it. This also determines the
number of CLKs for the completion of the first part of a burst transfer.
Thus, the lower the cycle length, the faster the transaction. However,
some SDRAM cannot handle the lower cycle length and may become
unstable. So, set the SDRAM Cycle Length to 2 for optimal performance
if possible but increase it to 3 if your system becomes unstable.

Bank Interleave

This decides how multiple memory modules communicate. Enable or
Disable this. It will only make a difference if you have more than one
memory module.

BIOS SETUP

IB780 User’s Manual 35

Memory Hole

It is recommended to leave as disabled, although enabling 15M-16M can
help with sound issues.

P2C / C2P Concurrency

Set to Disabled for best performance. You may set this to Enabled if you
want any sort of system stability.

Fast R-W Turn Around

Leave it as Enabled for ‘faster’ performance.

System BIOS Cacheable

The setting of Enabled allows caching of the system BIOS ROM at
F000h-FFFFFh, resulting in better system performance. However, if
any program writes to this memory area, a system error may result.

Video BIOS Cacheable

The Setting Enabled allows caching of the video BIOS ROM at
C0000h-F7FFFh, resulting in better video performance. However, if
any program writes to this memory area, a system error may result.

Frame Buffer Size

The default setting of the frame buffer size is 8M.

CPU Latency Timer

The default setting for the CPU Latency Timer is Enabled.

AGP Aperture Size

The field sets aperture size of the graphics. The aperture is a portion of
the PCI memory address range dedicated for graphics memory address
space. Host cycles that hit the aperture range are forwarded to the AGP
without any translation. The default setting is 64M.

OnChip USB

The default setting of this filed is Enabled to enable the USB function on
board.

OnChip Keyboard Support

Enable this if you are using a USB keyboard.

BIOS SETUP

36 IB780 User’s Manual

OnChip Sound

This field enables or disables the on board audio function.

CPU to PCI Write Buffer

This controls the CPU write buffer to the PCI bus. If this buffer is
disabled, the CPU writes directly to the PCI bus. The default setting is
Enabled.

PCI Dynamic Bursting

This option controls the PCI write buffer. If this is enabled, then every
write transaction on the PCI bus goes straight to the write buffer. Burst
transactions are then sent on their way as soon as there are enough to
send in a single burst.

PCI Master 0 WS Write

This function determines whether there's a delay before any writes to the
PCI bus. If this is enabled, then writes to the PCI bus are executed
immediately (with zero wait states), as soon as the PCI bus is ready to
receive data. But if it is disabled, then every write transaction to the PCI
bus is delayed by one wait state. It's recommended to enable this for
faster PCI performance.

PCI#2 Access #1 Retry

This BIOS feature is linked to the CPU to PCI Write Buffer. Normally,
the CPU to PCI Write Buffer is enabled. All writes to the PCI bus are, as
such, immediately written into the buffer, instead of the PCI bus. This
frees up the CPU from waiting till the PCI bus is free. The data are then
written to the PCI bus when the next PCI bus cycle starts.

There's a possibility that the buffer write to the PCI bus may fail. When
that happens, this BIOS option determines if the buffer write should be
reattempted or sent back for arbitration. If this BIOS option is enabled,
then the buffer will attempt to write to the PCI bus until successful. If
disabled, the buffer will flush its contents and register the transaction as
failed. The CPU will have to write again to the write buffer.

AGP Master 1 WS Write/Read

When enabled a single wait state is used when writing/reading to the
AGP bus. When disabled a 2 wait state is used. For optimal performance
set this to enabled. For improved stability set it to disabled.

BIOS SETUP

IB780 User’s Manual 37

Integrated Peripherals

This section sets configurations for your hard disk and other integrated
peripherals.

CMOS Setup Utility – Copyright © 1984-2000 Award Software

Integrated Peripherals

On-Chip IDE Channel 0

Enabled ITEM HELP

On-Chip IDE Channel 1

Enabled Menu Level

IDE Prefetch Mode

Disabled

IDE Primary Master PIO

Auto

IDE Primary Slave PIO

Auto

IDE Secondary Master PIO

Auto

IDE Secondary Slave PIO

Auto

IDE Primary Master UDMA

Auto

IDE Primary Slave UDMA

Auto

IDE Secondary Master UDMA

Auto

IDE Secondary Slave UDMA

Auto

Init Display First PCI Slot
IDE HDD Block Mode Disabled

Onboard FDD Controller Enabled
Onboard Serial Port 1 3F8/IRQ4
Onboard Serial Port 2 2F8/IRQ3
UART 2 Mode Standard
UR2 Duplex Mode Half
Onboard Parallel Port 378/IRQ7
Parallel Port Mode SPP
Onboard Legacy Audio 3
SB I/O Base Address 330
SB IRQ Select 10
SB DMA Select
MPU-401
MPU-401 I/O Address

OnChip IDE Channel 0 / 1

The integrated peripheral controller contains an IDE interface with
support for two IDE channels. Select Enabled to activate each channel
separately.

IDE Prefetch Mode

These field enables/disables the prefetch buffers in the PCI IDE
controller. The prefetch buffers are used as a temporary storage place as
data is transferred from one location to another.

IDE Primary/Secondary Master/Slave PIO

These fields allow your system hard disk controller to work faster.
Rather than have the BIOS issue a series of commands that transfer to or
from the disk drive, PIO (Programmed Input/Output) allows the BIOS to
communicate with the controller and CPU directly.

The system supports five modes, numbered from 0 (default) to 4, which
primarily differ in timing. When Auto is selected, the BIOS will select
the best available mode.

BIOS SETUP

38 IB780 User’s Manual

IDE Primary/Secondary Master/Slave UDMA

These fields allow your system to improve disk I/O throughput to
33Mb/sec with the Ultra DMA/33 feature. The options are Auto and
Disabled.

Init Display First

This field allows the system to initialize first the VGA card on chip or
the display on the PCI Slot. By default, the PCI Slot VGA is initialized
first.

IDE HDD Block Mode

This field allows your hard disk controller to use the fast block mode to
transfer data to and from your hard disk drive.

Onboard FDD Controller

Select Enabled if your system has a floppy disk controller installed on
the CPU card and you wish to use it. If you install an add-in FDC or the
system has no floppy drive, select Disabled in this field. This option
allows you to select the onboard FDD port.

Onboard Serial/Parallel Port

These fields allow you to select the onboard serial and parallel ports and
their addresses. The default values for these ports are:

Serial Port 1 3F8/IRQ4
Serial Port 2 2F8/IRQ3
Parallel Port 378/IRQ7

UART 2 Mode

This item allows you to determine which Infra Red (IR) function of
onboard I/O chip. The options are Standard, IrDA, and ASKIR.

Parallel Port Mode

This field allows you to determine parallel port mode function.

SPP Standard Printer Port
EPP Enhanced Parallel Port
ECP Extended Capabilities Port

Onboard Legacy Audio

Enable or disable the on board legacy audio with this option.

Sound Blaster

Enable or disable the sound blaster feature with this option.

BIOS SETUP

IB780 User’s Manual 39

Power Management Setup

The Power Management Setup allows you to save energy of your system
effectively.

CMOS Setup Utility – Copyright © 1984-2000 Award Software

Power Management Setup

ACPI Function

Enabled ITEM HELP

Power Management

Press Enter Menu Level

Video Off Option

DPMS

Video Off Method

Yes

Modem Use IRQ

Stop Grant

Soft-Off by PWRBTN

3

Wake Up Events

Disabled

ACPI Function

Use this option to enable or disable the ACPI function

Power Management

This field allows you to select the type of power saving management
modes. There are four selections for Power Management.

Min. Power Saving Minimum power management
Max. Power Saving Maximum power management.
User Define Each of the ranges is from 1 min. to 1hr.

Except for HDD Power Down which
ranges from 1 min. to 15 min.

(Default)
Under this option, you can also configure other features such HDD
Power Down, Doze Mode and Suspend Mode.

PM Control by APM

If Advanced Power Management (APM) is installed on your system,
selecting Yes gives better power savings.

Video Off Option

This option decides when to shutdown video for power saving. You can
select it as always on or turn off video when system enters suspend
mode.

BIOS SETUP

40 IB780 User’s Manual

Video Off Method

This field defines the Video Off features. There are three options.

V/H SYNC + Blank Default setting, blank the screen and turn

off vertical and horizontal scanning.

DPMS Allows the BIOS to control the video

display card if it supports the DPMS
feature.

Blank Screen This option only writes blanks to the video

buffer.

Modem Use IRQ

This field sets the IRQ used by the Modem. By default, the setting is 3.

Soft-Off by PWRBTN

This field defines the power-off mode when using an ATX power
supply. The Instant Off mode allows powering off immediately upon
pressing the power button. In the Delay 4 Sec mode, the system powers
off when the power button is pressed for more than four seconds or
enters the suspend mode when pressed for less than 4 seconds. The
default value is Instant Off.

Wake Up Events

The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events which
can prevent the system from entering a power saving mode or can
awaken the system from such a mode. When an I/O device wants to gain
the attention of the operating system, it signals this by causing an IRQ to
occur. When the operating system is ready to respond to the request, it
interrupts itself and performs the service.

BIOS SETUP

IB780 User’s Manual 41

PNP/PCI Configurations

This option configures the PCI bus system. All PCI bus systems on the
system use INT#, thus all installed PCI cards must be set to this value.

CMOS Setup Utility – Copyright © 1984-2000 Award Software

PnP/PCI Configurations

Reset Configuration Data

Disabled ITEM HELP

Resources Controlled By

Auto (ESCD)

IRQ Resources

Press Enter

PCI/VGA Palette Snoop

Disabled

Menu Level

Default is Disabled.
Select Enabled to reset
Extended System
Configuration Data
(ESCD) when you exit
Setup if you have
installed a new add-on
and the system
reconfiguration has
caused such a serious
conflict that the OS
cannot boot

PNP OS Installed

Select Yes if the system operating environment is Plug-and-Play aware
(e.g., Windows 95). The options: Yes and No.

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset
Extended System Configuration Data (ESCD) when you exit Setup if
you have installed a new add-on and the system reconfiguration has
caused such a serious conflict that the operating system cannot boot. The
options: Enabled and Disabled.

Resources Controlled by

The Award Plug and Play BIOS can automatically configure all the boot
and Plug and Play-compatible devices. If you select Auto, all the
interrupt request (IRQ) and DMA assignment fields disappear, as the
BIOS automatically assign them. The options: Auto and Manual.

PCI/VGA Palette Snoop

Some non-standard VGA display cards may not show colors properly.
This field allows you to set whether or not MPEG ISA/VESA VGA
cards can work with PCI/VGA. When this field is enabled, a PCI/VGA
can work with an MPEG ISA/VESA VGA card. When this field is
disabled, a PCI/VGA cannot work with an MPEG ISA/VESA card.

BIOS SETUP

42 IB780 User’s Manual

Assign IRQ for VGA

When this option is enabled system will assign an IRQ for VGA. The
default is Enabled. This can also be Disabled so that VGA will not
occupy an IRQ, thus releasing it free for other usage (typically LAN card
etc).

Assign IRQ for USB

When this option is enabled system will assign an IRQ for USB. The
default is Enabled. This can also be Disabled so that USB will not

occupy an IRQ, thus releasing it free for other usage (typically LAN card
etc).

BIOS SETUP

IB780 User’s Manual 43

PC Health Status

This section shows the parameters in determining the PC Health Status.
These parameters include temperatures, fan speeds and voltages.

CMOS Setup Utility – Copyright © 1984-2000 Award Software

PC Health Status

Current CPU Temp.

41°C / 87°F ITEM HELP

Current System Temp.

29°C / 84°F

CPU Fan Speed

4166 RPM

System Fan Speed

0 RPM

Vcore

0 RPM

2.5V

1.70V

3.3V

2.52V

5V

3.42V

12V

5.02V

11.94V

Shutdown Temperature

This field allows the user to set the temperature by which the system
automatically shuts down once the threshold temperature is reached.
This function can help prevent damage to the system that is caused by
overheating.

Temperatures/Fan Speeds/Voltages

These fields are the parameters of the hardware monitoring function
feature of the CPU card. The values are read-only values as monitored
by the system and show the PC health status.

BIOS SETUP

44 IB780 User’s Manual

Load Fail-Safe Defaults

This option allows you to load the troubleshooting default values
permanently stored in the BIOS ROM. These default settings are non­optimal and disable all high-performance features.

Load Setup Defaults

This option allows you to load the default values to your system
configuration. These default settings are optimal and enable all high
performance features.

Set Supervisor/User Password

These two options set the system password. Supervisor Password sets a
password that will be used to protect the system and Setup utility. User
Password sets a password that will be used exclusively on the system. To
specify a password, highlight the type you want and press <Enter>. The
Enter Password: message prompts on the screen. Type the password, up
to eight characters in length, and press <Enter>. The system confirms
your password by asking you to type it again. After setting a password,
the screen automatically returns to the main screen.

To disable a password, just press the <Enter> key when you are
prompted to enter the password. A message will confirm the password to
be disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.

Save & Exit Setup

This option allows you to determine whether or not to accept the
modifications. If you type “Y”, you will quit the setup utility and save all
changes into the CMOS memory. If you type “N”, you will return to
Setup utility.

Exit Without Saving

Select this option to exit the Setup utility without saving the changes you
have made in this session. Typing “Y ” will quit the Setup utility without
saving the modifications. Typing “N ” will return you to Setup utility.

DRIVERS INSTALLATION

IB780 User’s Manual 45

Drivers Installation

This section describes the installation procedures for software and
drivers under the Windows 98, Windows NT 4.0 and Windows 2000.
The software and drivers are included with the CPU card. If you find the
items missing, please contact the vendor where you made the purchase.
The contents of this section include the following:

VIA 4 in 1 Drivers Installation.......................................46

VGA Drivers Installation...............................................51

LAN Drivers Installation...............................................53

Sound Drivers Installation.............................................56

DRIVERS INSTALLATION

46 IB780 User’s Manual

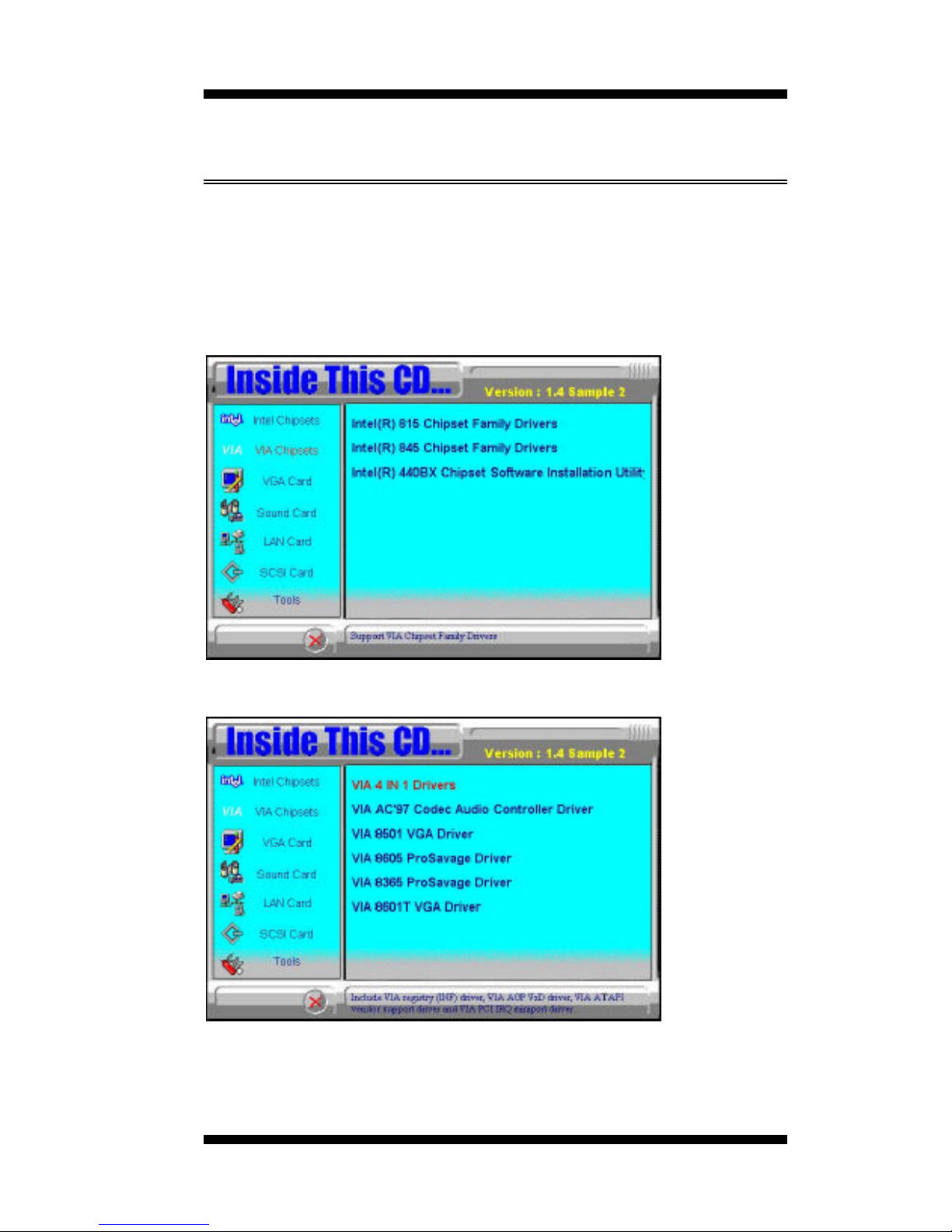

VIA 4 in 1 Drivers Installation

Before installing the drivers for VGA, LAN and Audio, install the VIA 4
in 1 drivers first. Follow the instructions below to complete the
installation.

1. Insert the CD that comes with the CPU card and the screen below
would appear. Click VIA Chipsets on the left side.

2. Click VIA 4 IN 1 Drivrs.

DRIVERS INSTALLATION

IB780 User’s Manual 47

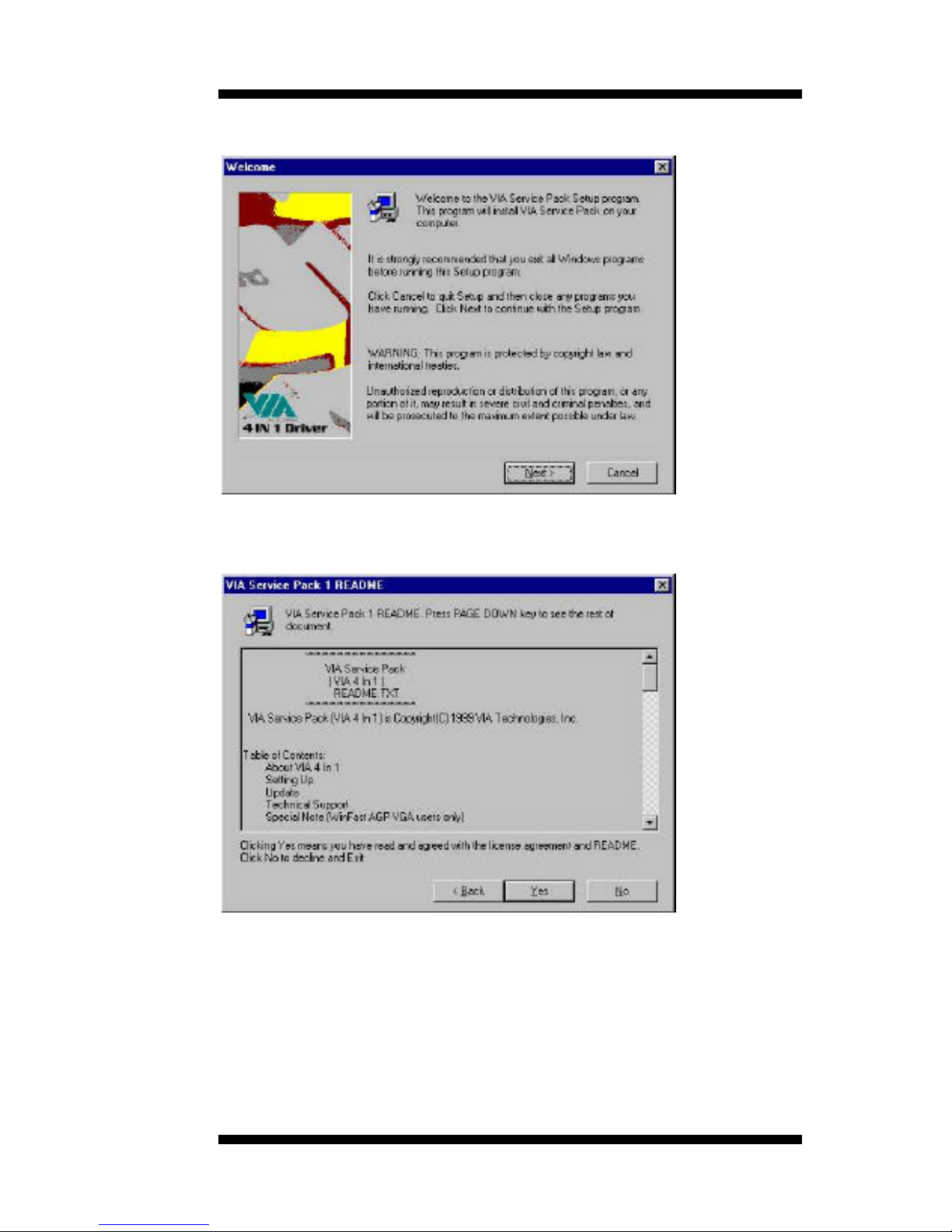

3. When the Welcome screen appears, click Next.

4. Click Next to agree with the license agreement statement and to
continue.

DRIVERS INSTALLATION

48 IB780 User’s Manual

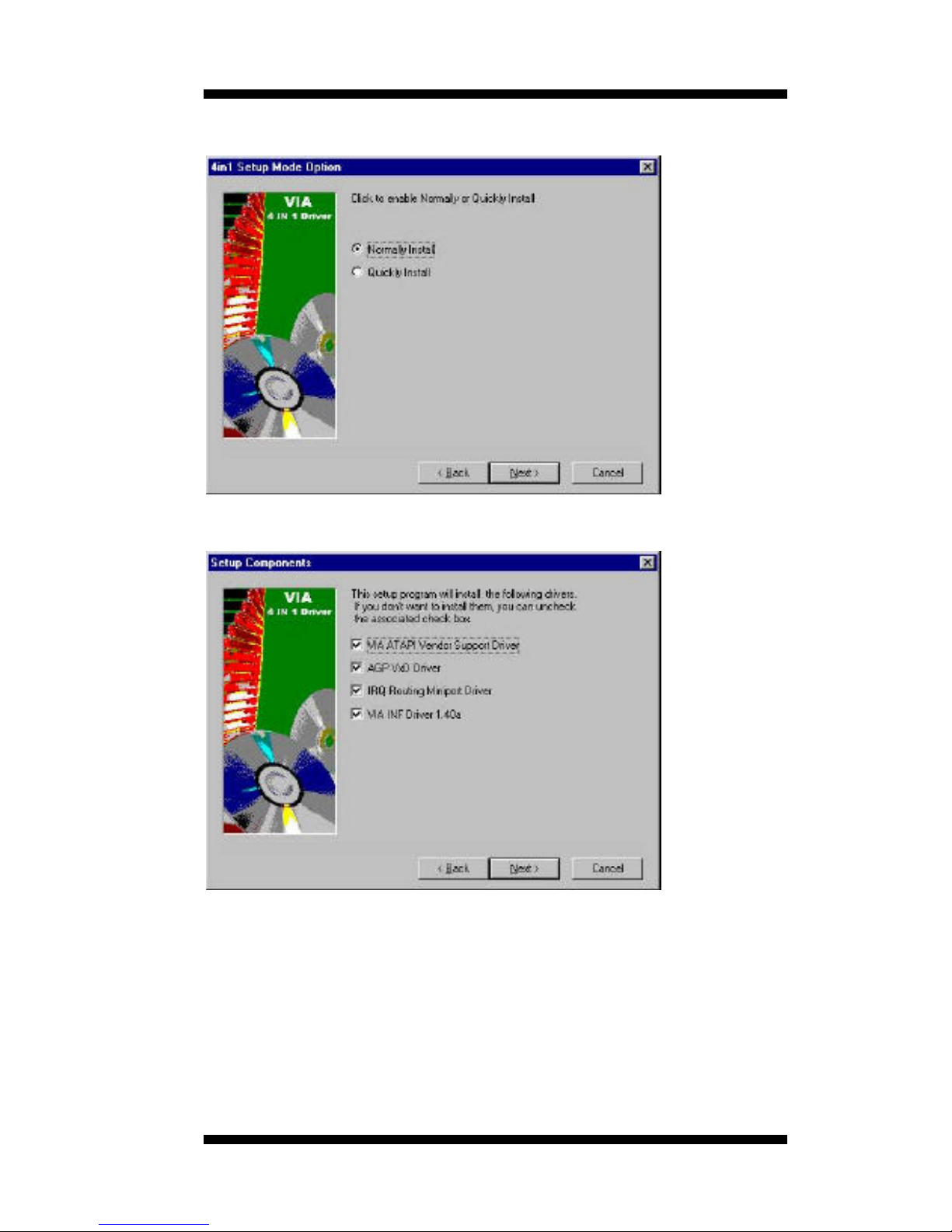

5. Select the Setup Mode and click Next to continue.

6. Click Next to install the drivers listed.

DRIVERS INSTALLATION

IB780 User’s Manual 49

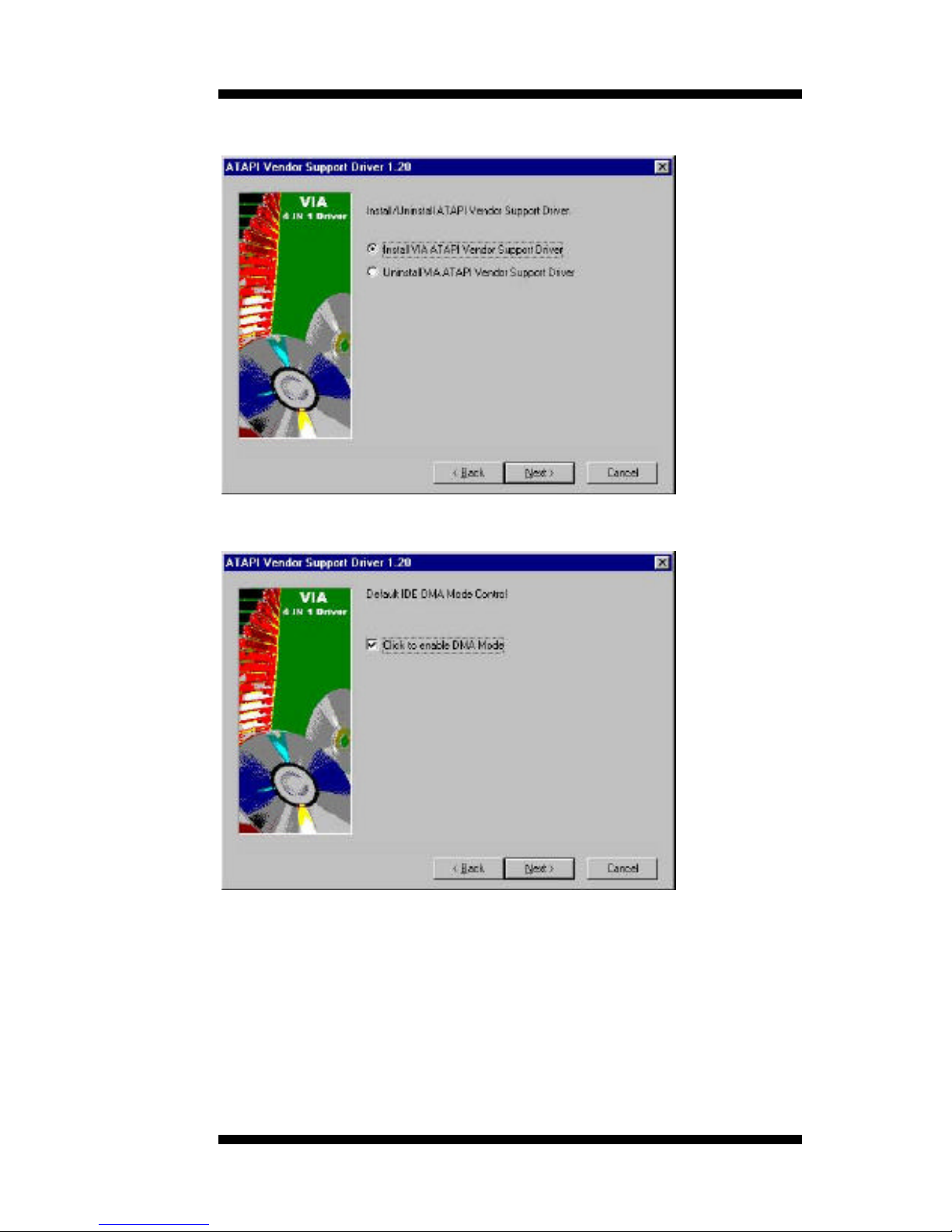

7. Click Next to install the VIA ATAPI Vendor Support Driver.

8. Click Next to enable DMA Mode.

DRIVERS INSTALLATION

50 IB780 User’s Manual

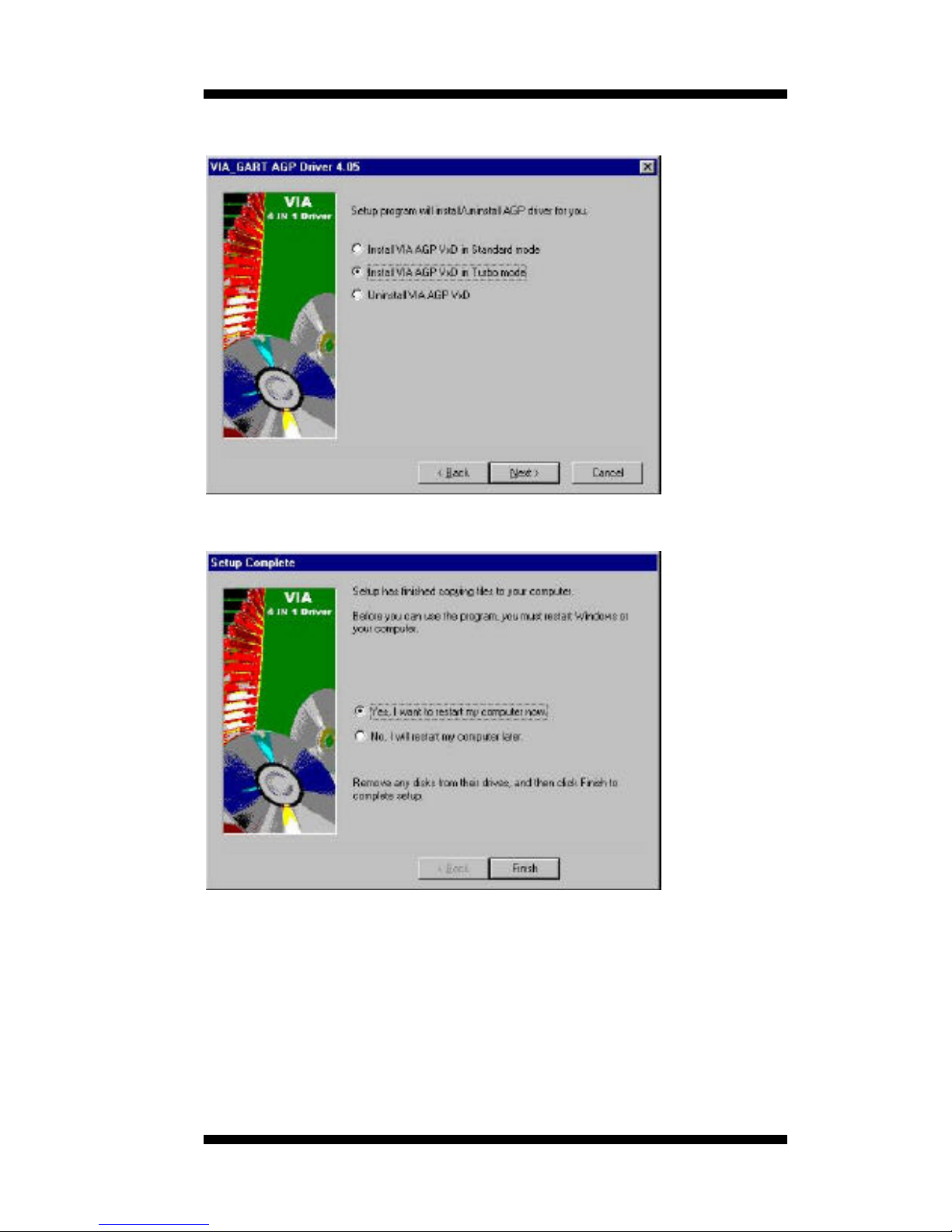

9. Click Next to install the VIA AGP VxD in Turbo mode.

10. Click Finish to restart the computer and for changes to take effect.

DRIVERS INSTALLATION

IB780 User’s Manual 51

VGA Drivers Installation

After installing the VIA 4 in 1 drivers, you may now install the VIA
8601 VGA Driver. Follow the steps below to proceed with the
installation.

NOTE: Before installing the VGA drivers on Windows NT 4.0, you
need to install Service Pack 3 or above.

1. Insert the CD that comes with the CPU card. Click on VIA Chipsets
on the left and then click VIA 8601T VGA Driver.

2. Click Next to agree with the license agreement statement and to
continue.

DRIVERS INSTALLATION

52 IB780 User’s Manual

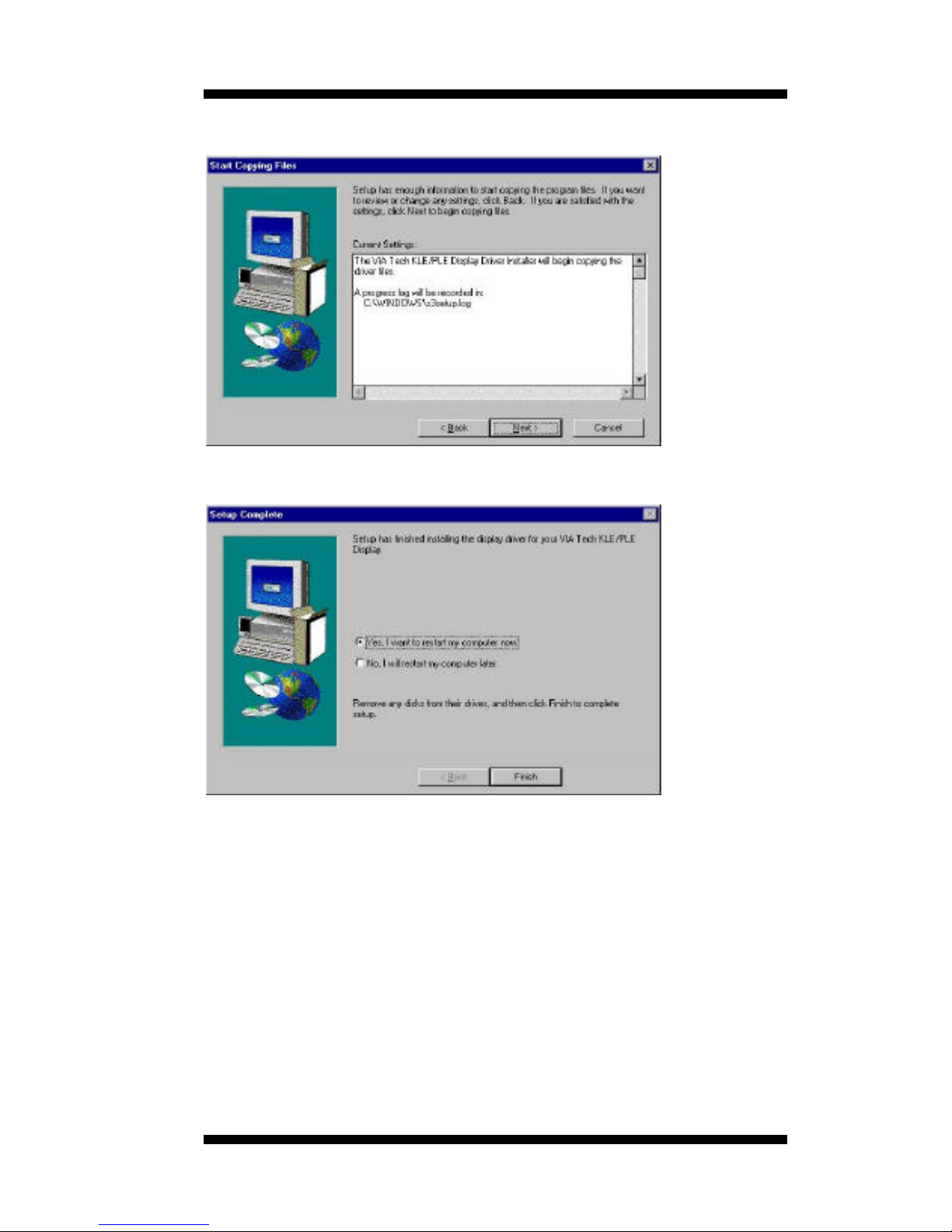

3. Click Next to start copying the driver files.

4. Click Finish to restart the computer and for changes to take effect.

DRIVERS INSTALLATION

IB780 User’s Manual 53

LAN Drivers Installation

Follow the steps below to proceed with the LAN drivers installation.

1. In your Windows operating system, click Start à Settings à Control
Panel à System Properties.

DRIVERS INSTALLATION

54 IB780 User’s Manual

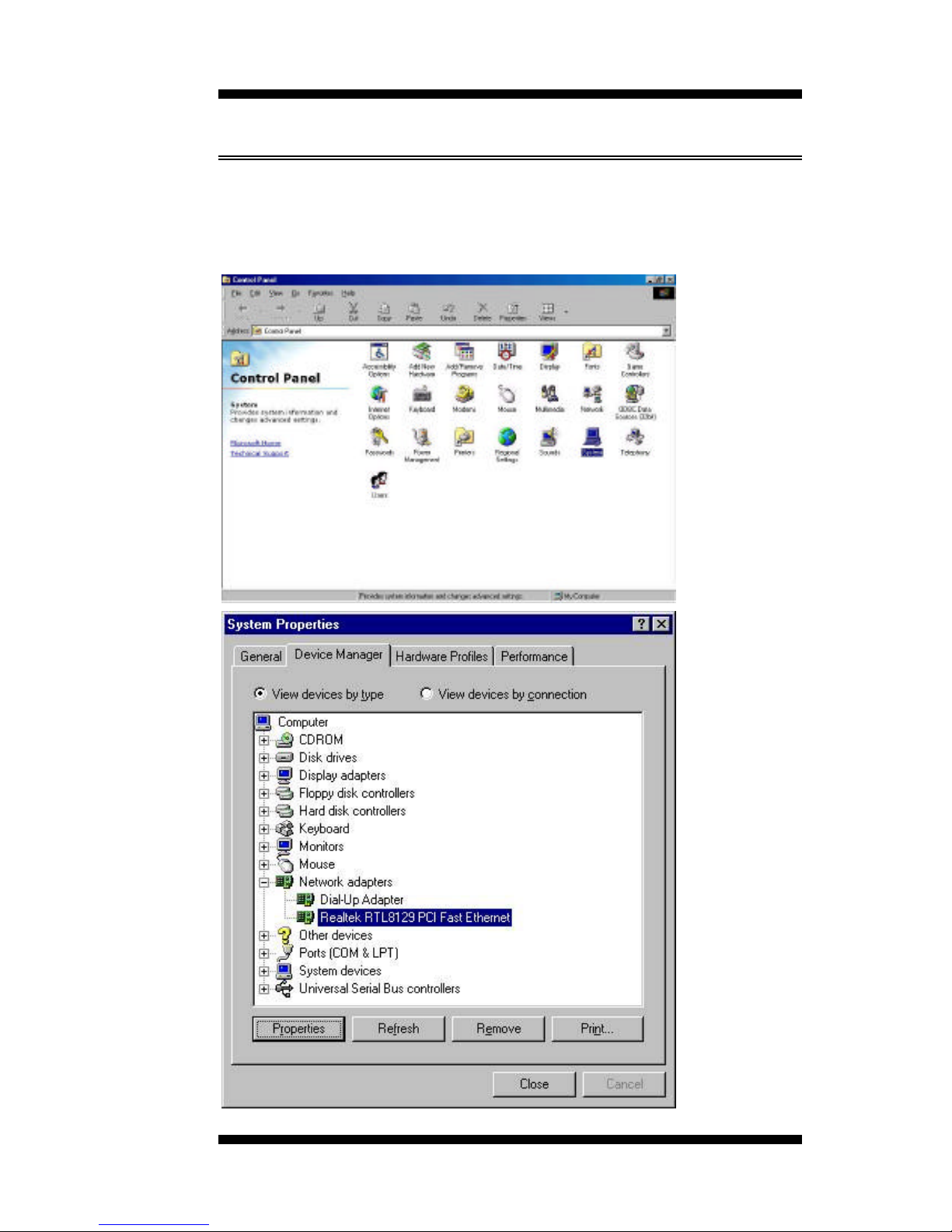

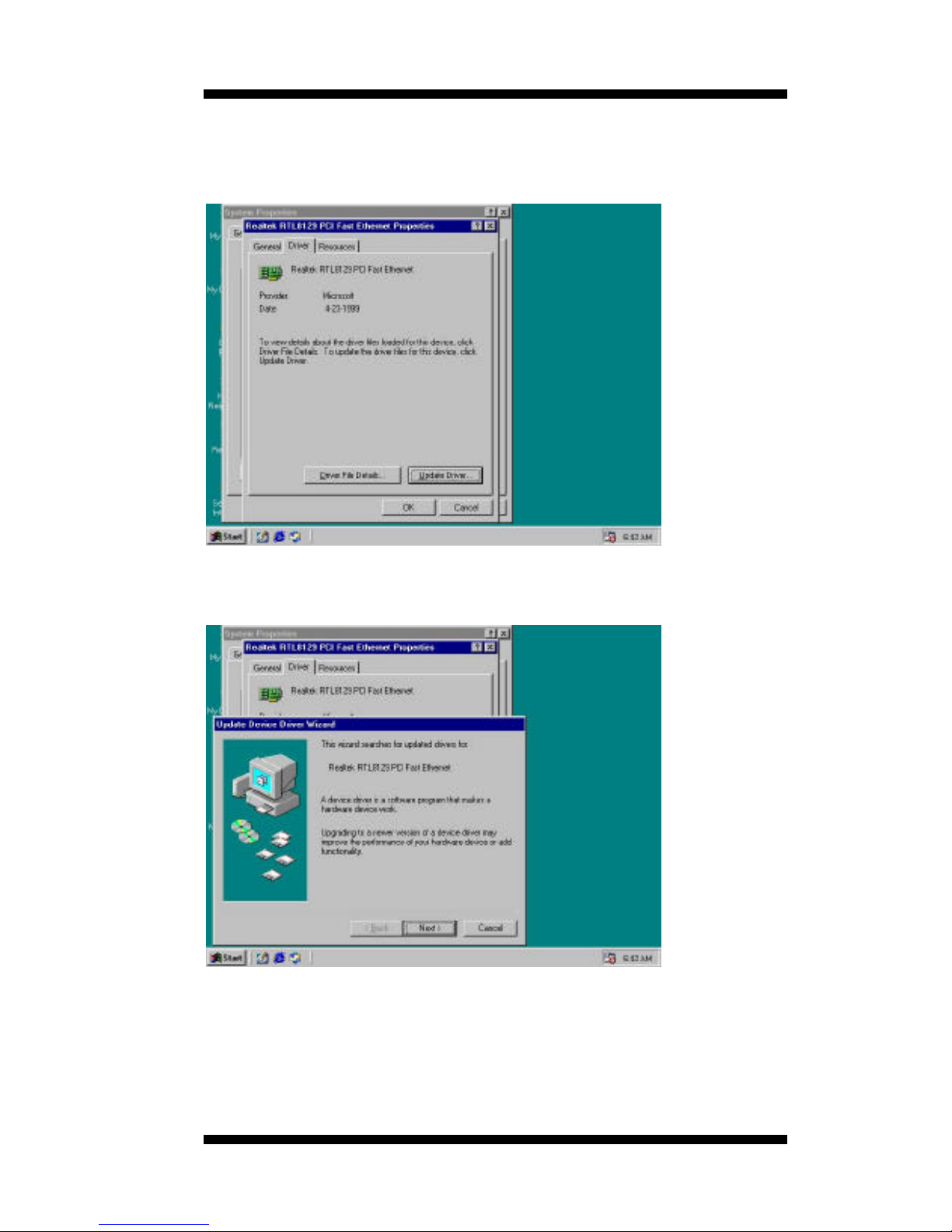

2. Under System Properties, click on the Device Manager tab. Double
click on Realtek 8129 PCI Fast Ethernet. Click the Driver tab as shown.
Now click the Update Driver button.

3. When the Update Device Drivers Wizard appears, click Next to
continue.

DRIVERS INSTALLATION

IB780 User’s Manual 55

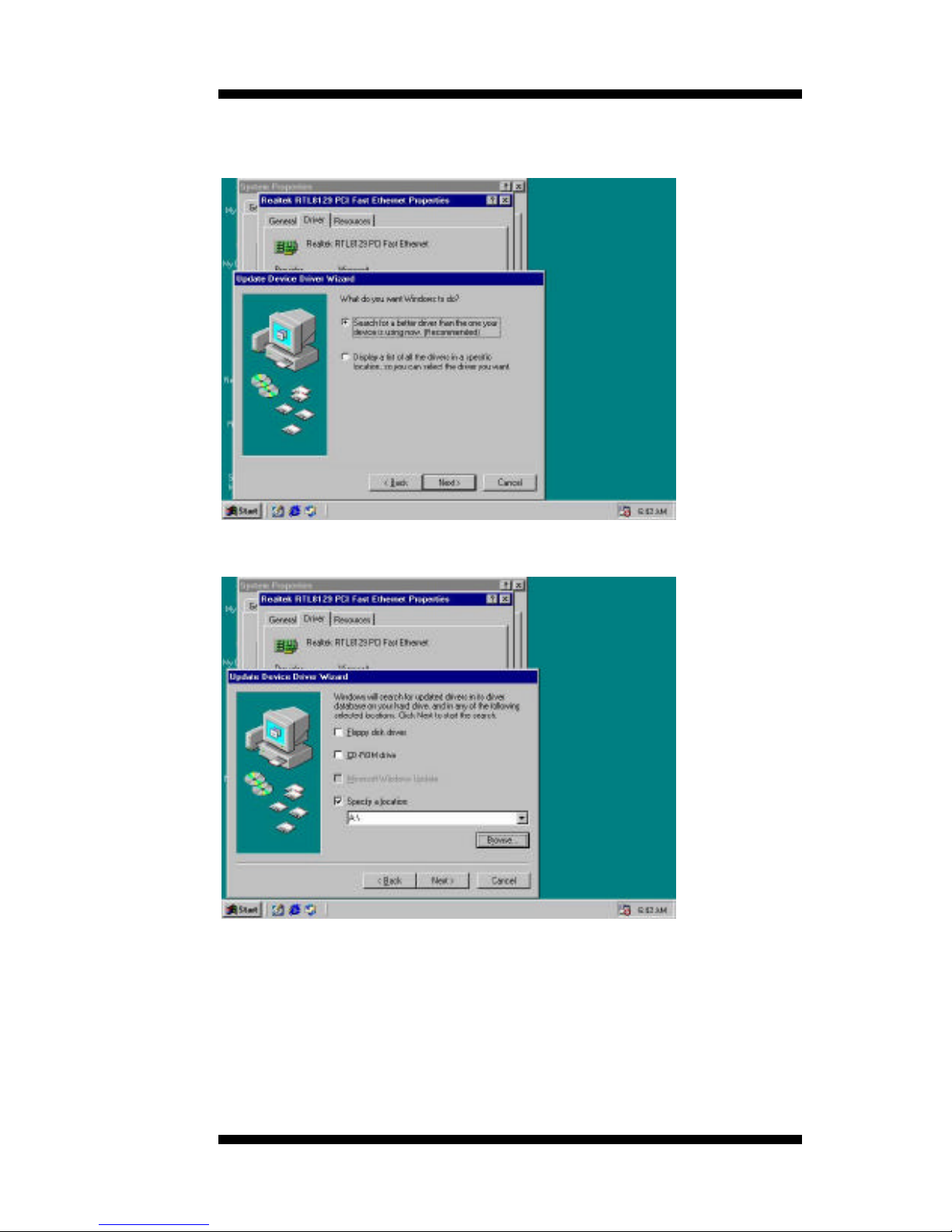

4. Click Next to “Search for a better driver than the one your device is
using now. (Recommended”.

2. Click “Specify a location” and click Next to continue.

DRIVERS INSTALLATION

56 IB780 User’s Manual

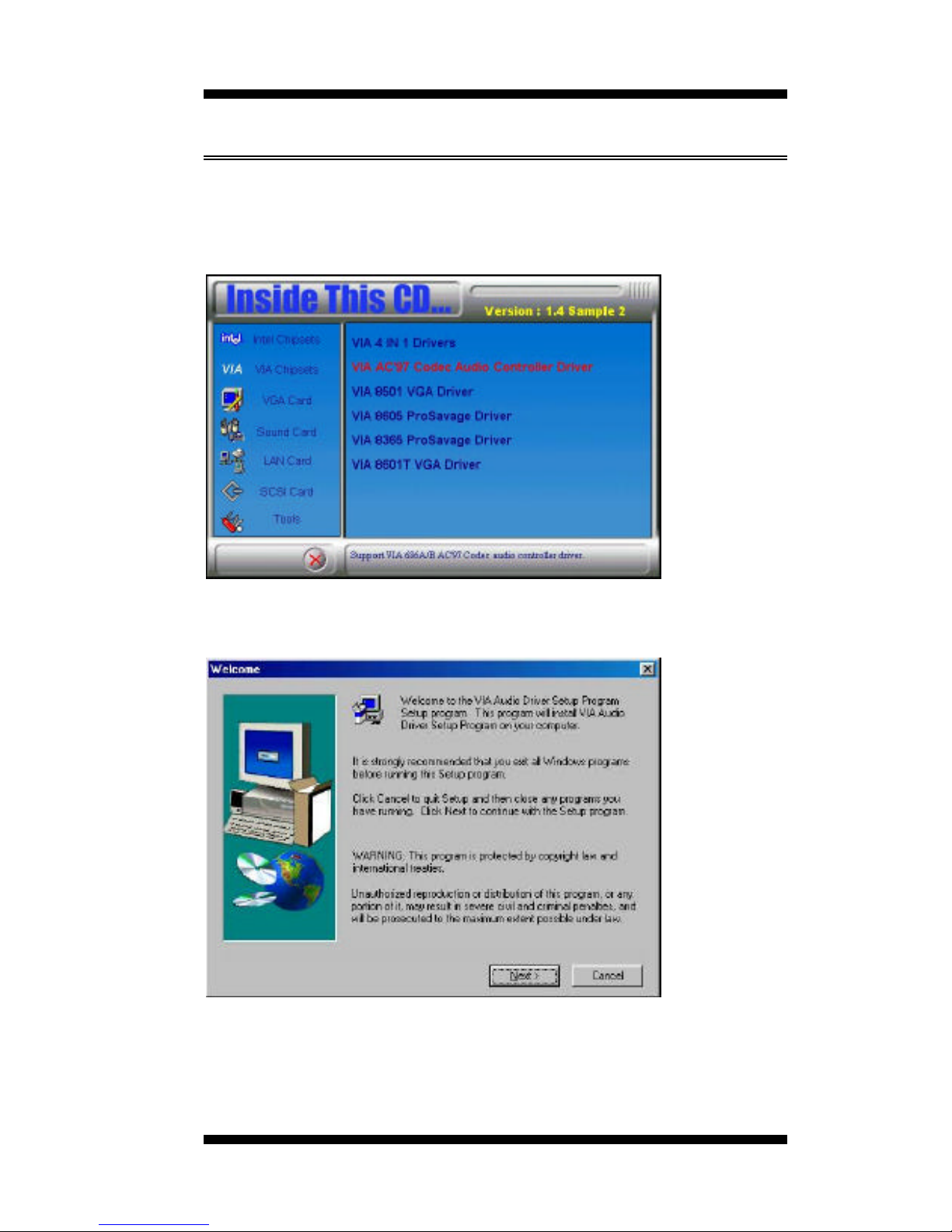

Audio Drivers Installation

Follow the steps below to proceed with the LAN drivers installation.

1. Insert the CD that comes with the CPU card. Click on VIA Chipsets
on the left and then click VIA AC’97 Codec Audio Controller Driver.

2. Under the Welcome screen, click Next to agree with the license
agreement statement and to continue.

DRIVERS INSTALLATION

IB780 User’s Manual 57

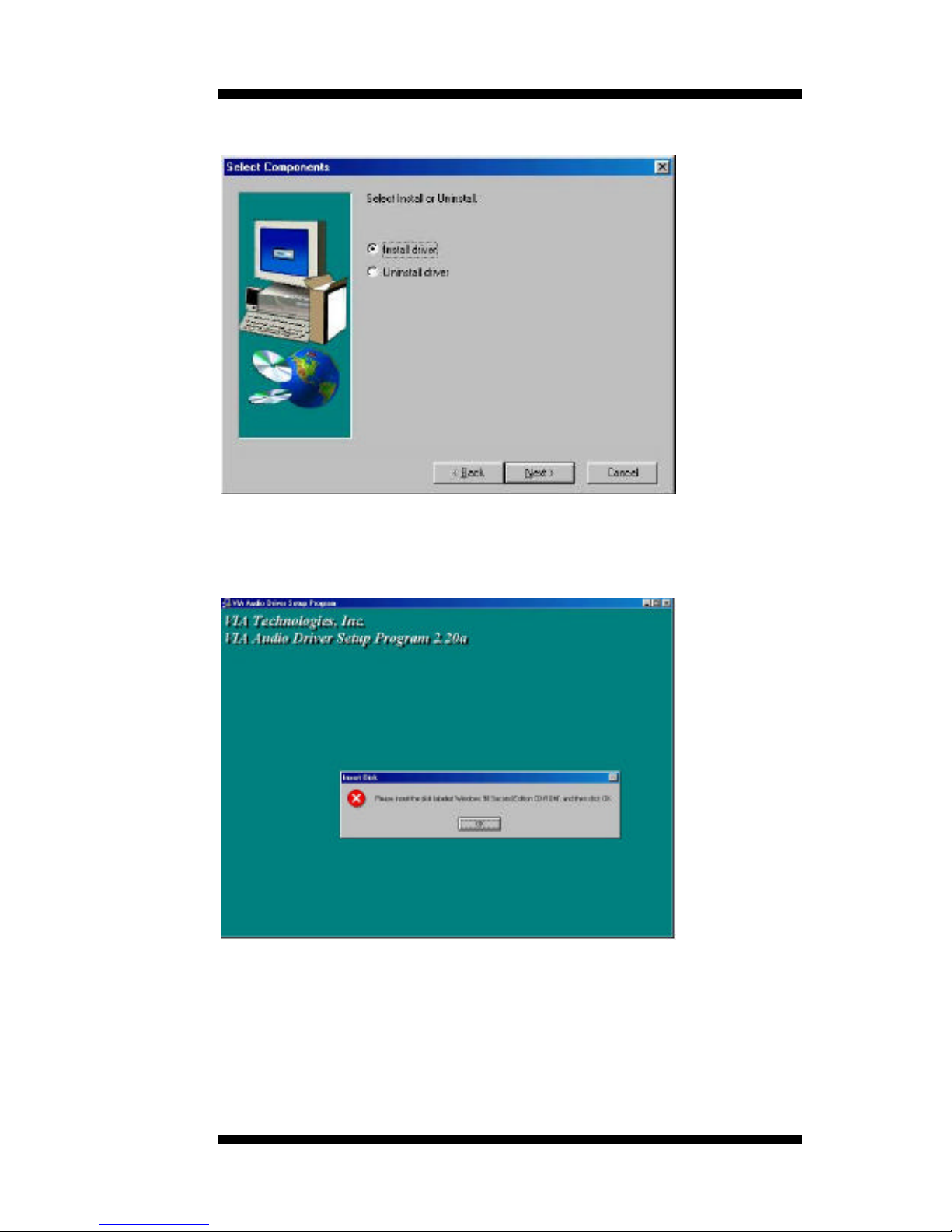

3. Click Install driver and click Next to start the installation process.

4. Under the VIA Audio Driver Setup Program Window, you will be
prompted to insert the Windows 98 CD-ROM if you are using this
operating system. Do so accordingly and click OK to proceed.

DRIVERS INSTALLATION

58 IB780 User’s Manual

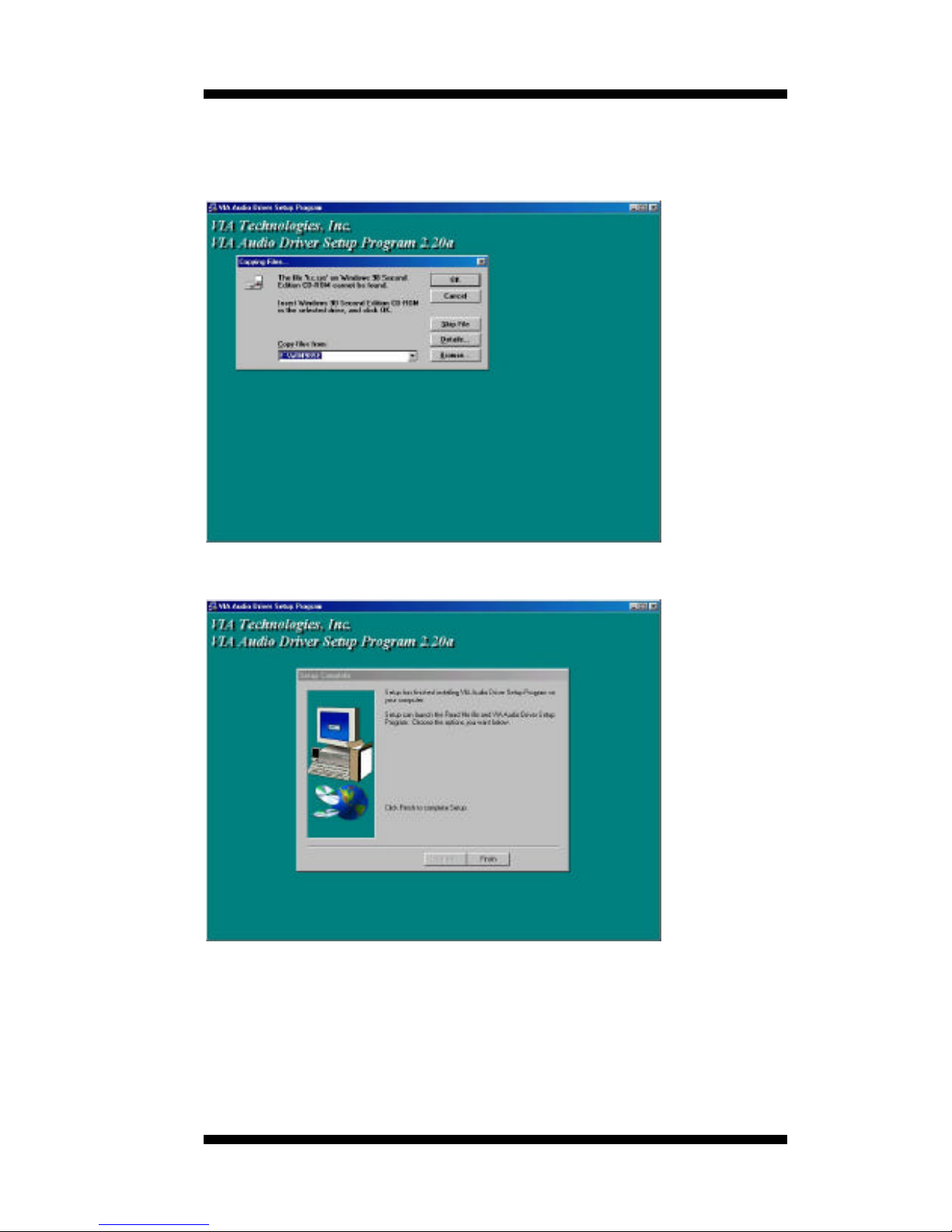

5. You have to insert the Windows 98 CD as prompted or enter the
location of operating system files by using the Browse button. Click OK
when done.

6. When file copying is done, click the Finish button to complete Setup.

APPENDIX

IB780 User’s Manual 59

Appendix

A. I/O Port Address Map
B. Interrupt Request Lines (IRQ)

A. I/O Port Address Map

Each peripheral device in the system is assigned a set of I/O port
addresses, which also becomes the identity of the device. The following
table lists the I/O port addresses used.

Address Device Description

000h - 01Fh DMA Controller #1
020h - 03Fh Interrupt Controller #1
040h - 05Fh Timer
060h - 06Fh Keyboard Controller
070h - 07Fh Real Time Clock, NMI
080h - 09Fh DMA Page Register
0A0h - 0BFh Interrupt Controller #2
0C0h - 0DFh DMA Controller #2
0F0h Clear Math Coprocessor Busy Signal
0F1h Reset Math Coprocessor
1F0h - 1F7h IDE Interface
278 - 27F Parallel Port #2(LPT2)
2F8h - 2FFh Serial Port #2(COM2)
2B0 - 2DF Graphics adapter Controller
378h - 3FFh Parallel Port #1(LPT1)
360 - 36F Network Ports
3B0 - 3BF Monochrome & Printer adapter
3C0 - 3CF EGA adapter
3D0 - 3DF CGA adapter
3F0h - 3F7h Floppy Disk Controller
3F8h - 3FFh Serial Port #1(COM1)

APPENDIX

60 IB780 User’s Manual

B. Interrupt Request Lines (IRQ)

Peripheral devices use interrupt request lines to notify CPU for the
service required. The following table shows the IRQ used by the devices
on board.

Level Function

IRQ0 System Timer Output
IRQ1 Keyboard
IRQ2 Interrupt Cascade
IRQ3 Serial Port #2
IRQ4 Serial Port #1
IRQ5 Reserved
IRQ6 Floppy Disk Controller
IRQ7 Parallel Port #1
IRQ8 Real Time Clock
IRQ9 Reserved
IRQ10 Reserved
IRQ11 Reserved
IRQ12 PS/2 Mouse
IRQ13 80287
IRQ14 Primary IDE
IRQ15 Secondary IDE
