AWA LC-32G76 Schematic

Spare Parts Notice

Subject: AWA LC-32G76 32” LCD TV

There are two versions of this model: - (a) LC-32G76 - (MM/311/RP) & (b) LC-32G76 - (MM/177/RP ) The versions can be identified by the serial number structure and range as shown below.

Serial Number Structure

(a) LC-32G76 - (MM/311/RP) (b) LC-32G76 - (MM/177/RP)

Product Serial Number Range

(a) LC-32G76 - (MM/311/RP) :- LC32G76200907100 0001 ~~~~ LC32G76 200907100 2000 (b) LC-32G76 - (MM/177/RP) :- LC32G762009022500001 ~~~~ LC32G762009022501638

Part List for LC-32G76 - (MM/311/RP) Version

Part Number Description Remarks

C3276G010 LCD Panel Type: - AUO T315HW02 _V0 [MM/311/R Version]

C3276G006 Main Board Type: - C/N: PC09128 [MM/311/R Version]

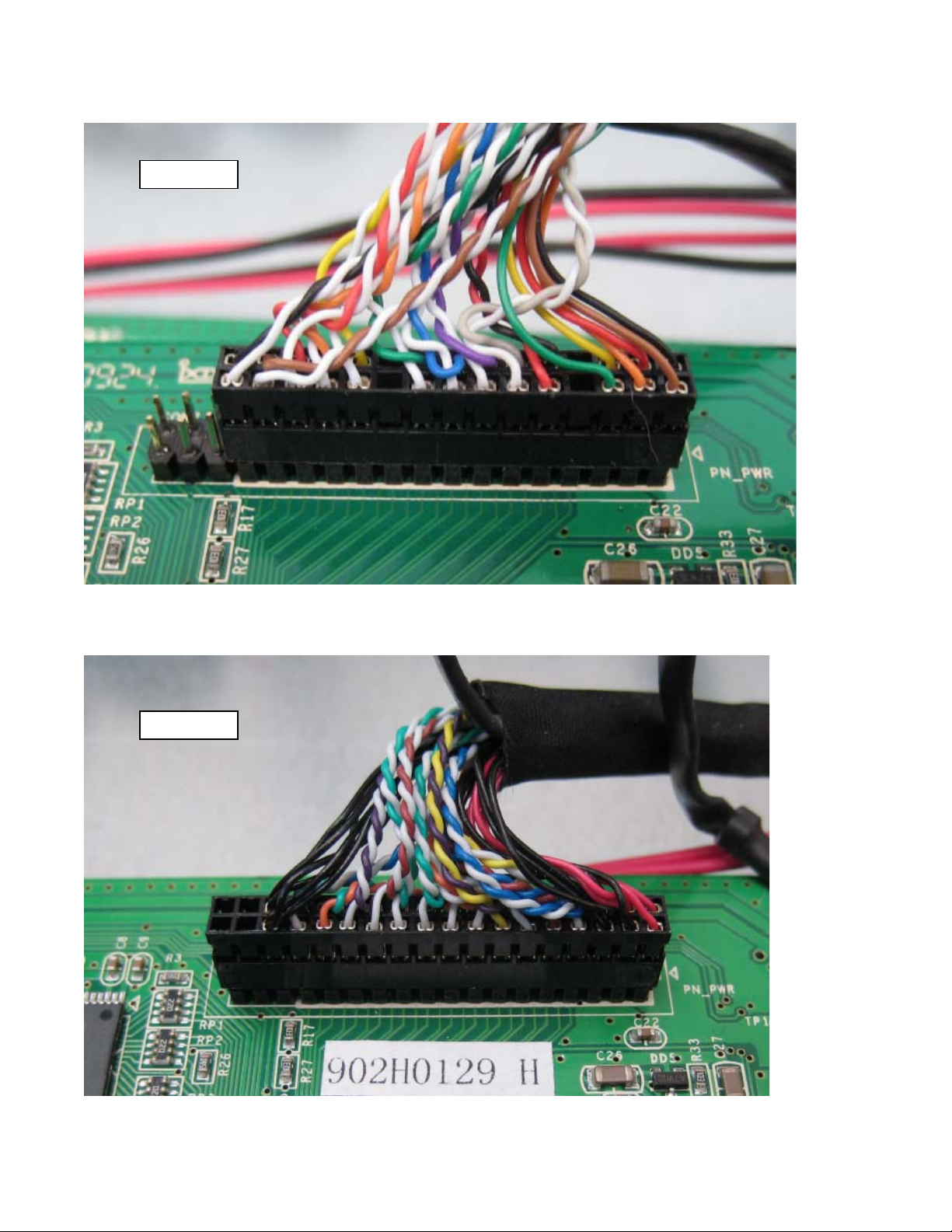

C3276G008 LDVS Cable [MM/311/R Version]

C3276G009 Power LED / IR Board [MM/311/R Version]

Part List for LC-32G76 - (MM/177/RP) Version

Part Number Description Remarks

C3276G010A

C3276G006A Main Board Type: - C/N: PC09029 [MM/177/RP Version]

LCD Panel Type: - AX080F030FB _Hitachi T315HW02

[MM/177/RP Version]

Suites Main Board C/N: PC09128 Authorisation Required Before Replacing

Suites Panel Type: - AUO T315HW02 _V0

Suites Main Board C/N: PC09128

Suites Main Board C/N: PC09029 Authorisation Required Before Replacing

Suites Panel Type: AX080F030FB _Hitachi T315HW02

C3276G008A LDVS Cable [MM/177/RP Version]

C3276G009A Power LED / IR Board [MM/177/RP Version]

Suites Panel Type: AX080F030FB _Hitachi T315HW02

Suites Main Board C/N: PC09029

Part List for LC-32G76 - (MM/311/RP) & (MM/177/RP) Versions

Part Number Description Remarks

C3276G001 Power Cable _ [MM/311/R & MM/177/RP Versions]

C3276G002 Remote Control _ [MM/311/R & MM/177/RP Versions]

C3276G003 Speaker _ [MM/311/R & MM/177/RP Versions]

C3276G004 Power Switch _ [MM/311/R & MM/177/RP Versions]

C3276G005 Power Supply Board _ [MM/311/R & MM/177/RP Versions]

C3276G007 Key Board _ [MM/311/R & MM/177/RP Versions]

Part Item Identification

LCD Panel

LC-32G76 - (MM/311/RP): Panel Type: - AUO T315HW02 _V0

Same for both versions

LCD Panel (cont)

LC-32G76 - (MM/177/RP：Panel Type: - AX080F030FB [Hitachi T315HW02 Panel]
