Page 1
DVD Player
DP23905-DP239-COVER.CDR
Page 2
Contents
Features......................................................................................................................2
For your Attention.........................................................................................................3
Accessories.................................................................................................................4
Panel and display.........................................................................................................5
Connection...............................................................................................................6-7
Remote Control............................................................................................................8
System Setup.........................................................................................................9-14
Play......................................................................................................................15-19
Troubleshooting.........................................................................................................20
Specification.................................................................................................Back Cover
-1-
1389D-P1.CDR
Page 3
Features
Thank you for purchasing our product. Please go through this manual carefully before
connection and operation. Please keep this manual for the future reference.
DVD player is a new generation home player which can produce high quality video and
audio. Its performance is much better than that of any previous home video playing
equipment. As the best signal source of home theatre system, It will give you the
uppermost enjoyment!
PCM, MPEG etc. digital audio decoder.
Hi-fi, 96kHz/24bit audio digital processor.
Software intelligent upgrade.
High-resolution component video output, support the future video equipment.
Coaxial digital audio output.
Super compatible with DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/SVCD/VCD/DVCD
/CD/CD-R/MP3/ KODAK PICTURE CD.
High integrated servo system, decoding on single-chip technology, high reliabity and
stability, and super error correction.
-2-
DP239-P2.CDR
Page 4
For Your Attention
IMPORTANT NOTES
Please read through the manual carefully before connection and operation.
Do not open the cover or touch any internal components for non-professionasl.
Turn off the power when the unit is not being used. (Unplug the power cord if the unit is
not used for a long time).
Don't expose this unit to direct sunlight. Keep away the heating sources or equipments.
Don't expose this unit to the rain or moisture.
Place the unit on a horizontal level. Keep the unit ventilated. Don't block the heat hole.
Overheat may cause malfunction.
C lean the cabinet with soft cloth. Detergent or alcohol is forbidden.
This book is only a guide for user’s operation, not a criterion for configuration.
The apparatus shall not be exposed to dripping or splashing and that no object filled with
liquids, such as vases, shall be placed on the apparatus.
The lightning flash is intended to alert the user to the presence of dangerous
voltage within the product's enclosure, and touching the inner parts may result in a
risk of electric shock to persons.
The exclamatory mark is intended to alert the user to the presence of important
operating instructions.
WarningWarning
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CLASS 1
LASER PRODUCT
To reduce the risk of electric shock or fire, do not open the cover. Refer servicing to
the qualified service personnel.
This mark indicates this unit belongs to class 1 laser product. The laser beam may
produce radiation harm to the directly touching human body.
-3-
1389D-A-P3.CDR
Page 5
Accessories
Accessories
User manual
User manual
Remote controller
9
3
6
2
5
1
4
STANDBY
PBC
V-MODE
REPEAT
STOP
10+
SETUP
0
8
7
A-B
TITLE
OSD
STEP
MUTE
L/R/ST
ANGLE
ENTER
N/P
AUDIO
VOL
ZOOM
SLOW
MENU
SUBTITLE
Audio/Video cable
Remote controller operation
Insert the batteries into the cell box.The remote control points at remote sensor within 8
metres and within 30 degree at left or right side.
Take the battery out of the controller if it is not used for a long time.
This unit can play the following types of discs
Disc types
DVD
AC-3
SVCD
MP3
Video-CD
VCD
CD-DA
Kodak
Picture CD
Symbol Contents
Audio + Video
Dolby Digital Audio
COMPACT
DIGITAL VIDEO
SVCD
Audio + Video
Audio
COMPACT
DIGITAL VIDEO
VIDEO CD
Audio + Video
Audio
Electronic Photo
-4-
DP239-P4.CDR
Page 6
Front panel
Panel
1 POWER
2 OPEN/CLOSE
3 PLAY/PAUSE
4 STOP
5 PREV
6 NEXT
Note: some keys are optional
Rear panel:
VIDEO
V/PrU/Pb
Y
S-VIDEO
COAXIAL
MIX L MIX R
1 COMPONENT VIDEO OUTPUT
2 L/R CHANNEL
3 COAXIAL DIGITAL AUDIO OUTPUT
NOTE: The above figures are illustration for all types of machines. Some terminals will not be configured in
some types of machines.
-5-
4 S-VIDEO OUTPUT
5 VIDEO OUTPUT
DP239-P5.CDR
Page 7
Connection
Video system connection
The following available video output for this unit .
Composite Video
Use the AV cable (yellow terminal) to connect
composite video output of this unit to the TV/monitor
video input
S-Video
Use the S-video cable to connect the s-video output
of this unit to the TV/monitor S-video input
Component Video (YUV)
Use 3 -core AV cable to connect the component
output terminals of this unit to the corresponding
TV/monitor input
S-VIDEO
Component input
VIDEO
VIDEO
S-VIDEO
Y
Y
U/Pb
V/Pr
V/PrU/Pb
Video and
S-Video
Component video
output
Notes:
Which connection depends on the TV/monitor input terminal.
Don't use the all connections at one time, otherwise the picture will be affected.
Only the physical connection conforms to the video setting can produce the normal picture
(reference to the Video Setup in System Setup).
-6-
DP239-P6.CDR
Page 8

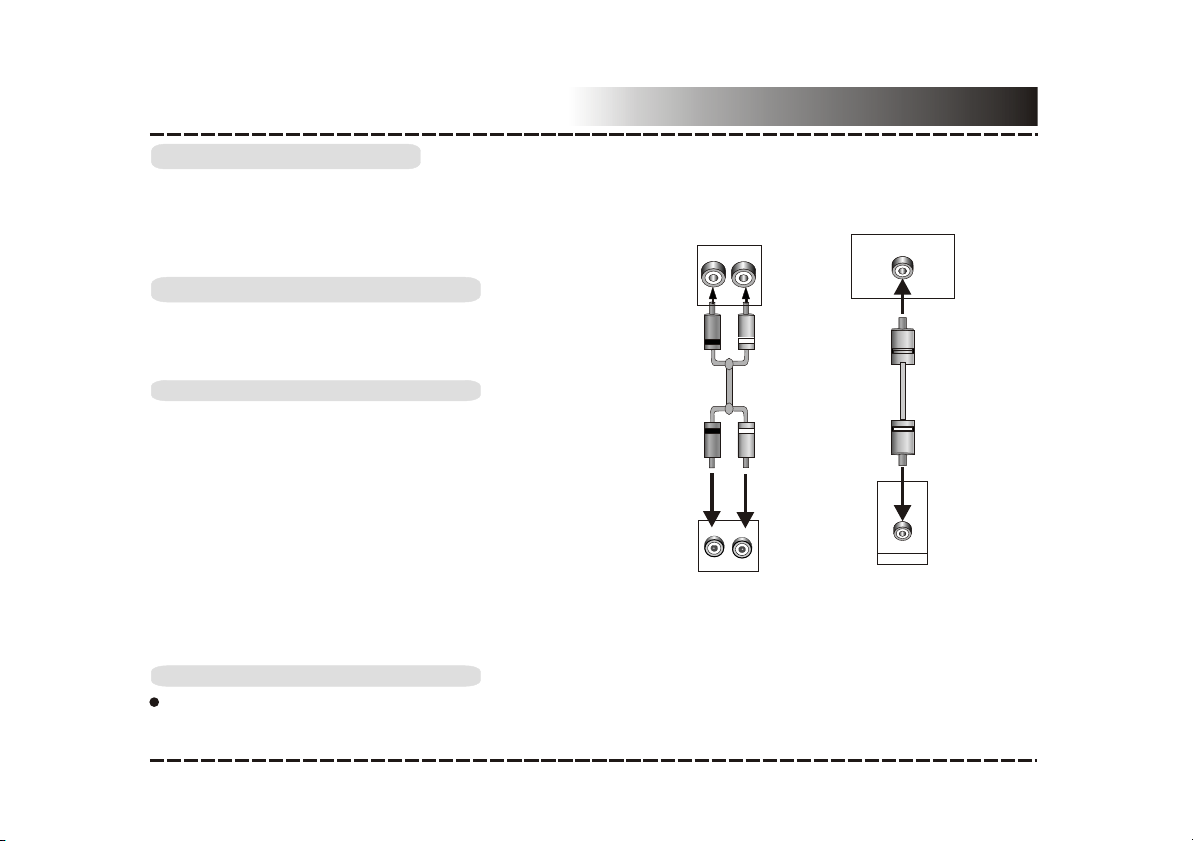

Audio connection system
Two types of audio output systems: analog
audio and digital audio. Analog audio includes 2-
channel stereo and Dolby AC-3 5.1 channel
output. Digital audio includes coaxial output.
Stereo Audio
Use a pair of AV cable (red for right /white for
left) to connect the stereo audio output of this
unit to the TV or a stereo input of power amplifier.
Coaxial Digital Audio
Use the special coaxial cable to connect the
coaxial output of this unit to the coaxial input of
power amplifier.
2CH Audio Intput
L
R
L
R
Connection
Digital Audio Input
COAXIAL
COAXIAL
DIGITAL AUDIO
2CH Audio Output
Coaxial Output
Notes:
The physical connection should accord to the audio output setup of this unit. Please refer to
Audio Setup in System Setup.
-7-
DP239-P7.CDR
Page 9

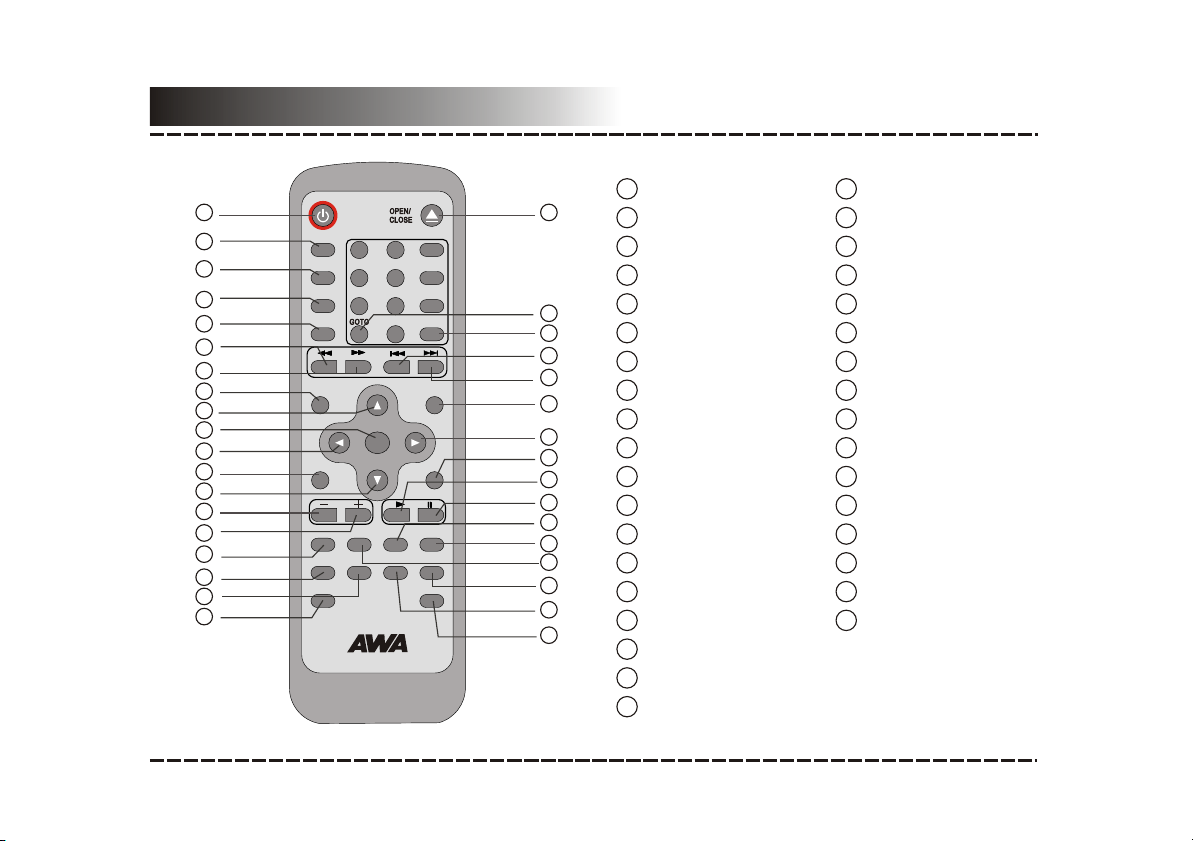

Remote Control
STANDBY
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
V-MODE
PBC
REPEAT
A-B
TITLE
MENU
SUBTITLE
SLOW
ZOOM
STANDBY
VOL
AUDIO
ANGLE
L/R/ST
3
2
5
6
8
9
0
10+
SETUP
STOP
STEP
MUTE
OSD
1
4
7
ENTER
N/P
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
V-MODE
2
PBC
3
REPEAT
4
5
A-B REPEAT
6
FAST BACKWARD
7
FAST FORWARD
8
TITLE
9
UP
10
ENTER
11
LEFT
12
MENU
13
DOWN
14
VOLUME-
15
VOLUME+
16
SUBTITLE
17
SLOW
18
TV FORMAT
19
ZOOM
20
OPEN/CLOSE
21
GOTO
22
10+KEY
23
PREVIOUS
24
NEXT
25
SETUP
26
RIGHT
27
STOP
28
PLAY
29
PAUSE
30
ANGLE
31
STEP
32
AUDIO
33
MUTE
34
L/R/ST
35
OSD
-8-
DP239-P8.CDR
Page 10
System Setup
1.DVD menu setting
P ress the SETUP button on the remote controller, the SETUP MENU (main) will be displayed.
1.After accessing the SETUP Menu, press the direction buttons for up and down movement to
select an item desired, then press the ENTER button to confirm your entry and move to the sub-menu.
Use the left and right direction buttons to move the pointer, and the up and down direction buttons to
select the option desired. Also, press the ENTER button to confirm your selection. Now, setup of this
current function is completed.
2.To end the setup, press the SETUP button again. In the SETUP MENU, you may choose any of
the following options as you like.
1.1GENERAL SETUP Page
This option is used to set up TV screen format, video functions and DVD functions, with options of
“TV DISPLAY”, “ANGLE MARK”, “OSD LANG”,”SPDIF OUTPUT”, “CAPTIONS”, “SCREEN SAVER”,
“HDCD”.
1.1.1 TV DISPLAY
Follow the operating instructions stated in “DVD MENU SETUP” in combination with the desired
option in the following.
Normal/PS: Choosing this setting if your DVD player is connected to a normal ratio TV. You can fill
the movie to the entire screen of your TV. This might mean that parts of the picture (the left and right
edges) won’t be seen.
Normal/LB: Choose this setting if your DVD player is connected to a normal ratio TV. Connector
you’ll see the movies in their original aspect ratio (height-to-width ratio). You’ll see the entire frame of
the movie, but it will take up a smaller portion of the screen vertically. The movie might appear with
black bars at the top and bottom of the screen.
-9-
DP239-P9.CDR
Page 11
System Setup
Wide: Choose this setting if your DVD player is connected to a wide screen TV. If you choose this
setting and you don’t have a wide screen TV, the images on the screen may appear distorted due to
vertical compression.
Notes:
The image display ratio is related to the recorded disc format. Some disc can not display images
in the aspect ratio you choose.
1.1.2 Angle mark
When a DVD providing multiple angles is used, the user may select a particular shooting angle.
It will show the ANGLE mark when playing DVD disc with multi-angle view if selecting on.
1.1.3 OSD LANGUAGE
The user may use this item to set the language of the setup menu and screen display language.
1.1.4 SPDIF Setup Page
SPDIF OUTPUT
SPDIF OFF: no digital signal out( coaxial output off ), only analog audio output .
SPDIF/RAW:Choose this setting if you DVD player is connected to a power amplifier with a coaxial
cable; When playing a disc recorded with Dolby Digital and MPEG audio formats, the corresponding
digital signals will be output from the Coaxial output jack.
SPDIF/PCM:
Choose this setting if you DVD player is connected to a 2-channel digital steereo amplifier;when
playing a disc recorded with Dolby Digital and MPEG audio formats,audio signals will be modulated
into a 2-channel PCM signal and it will be output from the coaxial output jack.
-10-
DP239-P10.CDR
Page 12
System Setup
1.1.5 CAPTIONS
This function doesn’t work if the DVD haven’t the closed caption. If the captions is OFF, press
SUBTITLE key on the remote controller to make caption on. The default setup is CAPTION ON,
1.1.6 SCREEN SAVER
If the SCREEN SAVER is set ON and the unit is switched on without a disc playing for several
minutes, a moving picture appears on the screen, and the unit will go to standby mode after 20
minutes. You can press STANDBY key on the remote controller to wake it up.
1.1.7 HDCD SETUP
When playing music CD to select the filter scale OFF 1X 2X,you can select the digital filtal at
44.1KHZ , 88.2KHZ and off.
1.2 AUDIO SETUP
Includes Downmix. (Option)
1.2.1 SPEAKER SETUP
This submenu option include DOWNMIX MODE
1.2.1.1 DOWNMIX
Use the up and down arrow button to move the scroll and adjust the saturation,
LT/RT: output the front Left and right channel audio signal, the center channel is outputed to L and
R, LS and RS are outputed to R and L,
STEREO: output the front left and right signal, the center channel is outputed to L and R, LS is
outputed to L, RS is outputed to R.
-11-
DP239-P11.CDR
Page 13
System Setup
1.3 DOLBY DIGITAL SETUP
Dollby digital setup includes Dual Mono and Dynamic range compress.
1.3.1 Dual Mono
If you have Dolby digital input in your amplifier/decoder, you may select stereo. Left, Right and
mixed sound accordingly.
1.3.2 Dynamic
If watching large dynamic scope movie program at night, to select this mode you can reduce the
volume to a very low level, at the same time, to keep the fine details sounds. In this case, this doesn't
disturb the family and keep the quality sounds.
-12-
DP239-P12.CDR
Page 14
System Setup
1.4 VIDEO SETUP
Video setup includes: COMPONENT, SHARPNESS, BRIGHTNESS, CONTRAST.
1.4.1 COMPONENT VIDEO
OFF: set video output to the composite
YUV: set video output in analog component video format when connecting to Y/U/V terminals
P-YUV: set progressive YUV signals. Connection same as YUV
Notes::
If the video setting differs with the physical connection, the TV set may be without picture.
In case of no picture, you can RESET the machine, then keep pressing key [V_MODE] until the
picture is OK again.
1.4.2 COLOR SETTING
COLOR SETTING includes: SHARPNESS, BRIGHTNESS, CONTRAST.
Adjust each item in the Color Setting to get the suitable colour output of the TV screen.
1.5 PREFERENCE SETUP
During stop mode or open status press the SETUP button to access the PREFERENCE SETUP
menu, which includes items of TV TYPE, AUDIO, SUBTITLE, DISC MENU, PARENTAL, PASSWORD
and DEFAULT.
Preset values are essential to a DVD player. The user may change these items as desired.
-13-
DP239-P13.CDR
Page 15
System Setup
1.5.1 TV TYPE
This product supports output of various system, including AUTO, NTSC, PAL.
If your TV set has only NTSC or PAL system, the screen will blink and become colorless when a
wrong system is selected.
For more information of output format, refer to the instruction of your TV set.
AUTO: the TC system is auto switched according to the disc system.
NTSC: this system is used in USA,TAIWAN,JAPAN etc.
PAL :this system is used in CHINA,EUROPE,HONGKONG etc.
1.5.2 AUDIO, SUBTITLE, DISC MENU LANGUAGE SETUP
These are the initial settings by your preference. If a setting is supported by disc content, it will
work. Otherwise the disc default value works. And these settings can be changed respectively by
press key [AUDIO] ,[SUBTITLE] when playing.
1.5.3 PARENTAL CONTROL:
The control level is for parental to control playing content and protect your children from violence
and erotism. The disc, the level of which is higher than the setting level can not be played .
1.5.4 DEFAULT SETUP
Reset to the initial factory setups
1.5.5 PASSWORD SETUP:
Change the password. The initial factory password is 136900. You can set your own password. If
you forget your own password, you can use 136900 as general password.
System Setup
-14-
1389D-P14.CDR
Page 16
Play
Basic operation
Once all the connection of the system have been done, this machine will be ready for
service prior to play, make sure to complete the following preparatory operations.
1.Switch on TV and select AV mode, if it’s S-video connect select S-video mode.
2.Switch on amplifier if it connected, select AC-3 or DVD mode.
3.Plug-in DVD player press power key, DISC LOADING shown on screen, if there is no disc,
No DISC shown on screen.
Standby
GOTO
STOP
When playing, press STANDBY button, the machine will be power-off and go to standby
state; Press STANDBY again, the machine will be power-on and start playing.
Warning: The power is not fully cut off at standby state. If the machine will not be used for a
long time, turn off the power by pressing the POWER button on the front panel .
Press GOTO button to select title time, chapter time, track time to play. You can use digit
keys input the goto time.
When playing DVD, SVCD, VCD, CD disc, press STOP once, the unit will memorize the
previous ending point. Press PLAY button to go on the play. Press STOP for the second time
to stop the play and end memory.
When playing DVD, SVCD, VCD, CD disc, if the disc isn’t in the normal playing status,press
PLAY button to play normally the disc.
W hen playing DVD disc, press PREV to the previous chapter.
When playing SVCD, VCD, CD disc, press PREV to the previous track.
Symbol
Text
OPEN/CLOSE
STOP
Symbol
Text
PLAY
FAST BACKWARD
PREVIOUSSTANDBY
Symbol
Text
PAUSE
FAST FORWARD
NEXT
-15-
1389D-P15.CDR
Page 17
Play
VOL
TITLE
AUDIO
PBC
SUBTITLE
Mute
STEP
Press VOLUME + to adjust volume up
Press VOLUME - to adjust volume down
Press this button for quick rewind search.
When playing DVD, Press TITLE button to return the title menu.
When playing DVD with more than one audio stream, press [AUDIO ] to select you desired.
Switch on or off PBC function.
When playing the DVD disc with multi-subtitle, press SUBTITLE continually, the subtitle
changes in a circle, you can select one supported by the disc.
Press MUTE button, no sound will give out and the mute symbol will display on the TV
screen.Press MUTE again, MUTE OFF will display and the sound will resume.
When playing DVD, SVCD, VCD disc, press STEP once, the picture will be played to next
frame. Press PLAY button to resume the normal play.
-16-
DP239-P16.CDR
Page 18
Play
Play
ZOOM
A-B
Open/close
11
22
5 5
4 4
88 99
MENU
When playing DVD, SVCD, VCD disc, press ZOOM to zoom in or zoom out the picture.
In zoom in mode, press up/down/left/right to move the picture for viewing.
When playing DVD, SVCD, VCD, CD disc, press A-B button to repeat a certain contents.
Press A-B key on the start point (A) and the ending point (B) to select the repeat part.
Press A-B the third time, cancel A-B repeat and return to normal play.
Press OPEN/CLOSE button when power on, the disc tray is pushed out. Put the disc on
the tray with the title faced up. Press OPEN/CLOSE again to close the disc tray and the
unit starts playing automatically. (Without auto-play function for mp3 and JPEG discs)
33
When playing VCD1.1, CD disc, after loading the disc, use the digit key to select the
77
66
desired track or chapter directly. Press [10+ key] and then another digit key to select the
0/10 0/10
10+ 10+
track which number is 10 or more than 10.
You can press digit keys at [MENU] selection.
When playing the disc, press PAUSE once to pause, press PAUSE again to return to
normal play.
When playing DVD disc, press NEXT to the next chapter.
When playing SVCD, VCD, CD disc, press NEXT to the next track.
Press this button for quick forward search.
When playing DVD disc, press MENU once to return to sub-menu. Press MENU again to
return to the main menu. When playing VCD disc, press MENU button turn on PBC, the
VCD is played by menu, press MENU button again turn off PBC, then VCD is played in
sequence.
-17-
1389D-P17.CDR
Page 19
Play
Play
V-MODE
ANGLE
L/R/ST
N/P
SLOW
OSD
REPEAT
Press [V-MODE] button to switch the video output mode(YUV, ect.)
When playing the DVD disc with multi-angle, it's convenient to change the view angle.
When playing super SVCD, VCD, CD disc with multi-channel, press [ L/R/ST ] button to
select left channel/right channel/stereo/mix audio output.(Option)
Press N/P button to switch the video format in turn, They are PAL, NTSC,AUTO formats.
When playing SVCD, VCD, DVD discs, press SLOW to select slow speed playing.
Press the OSD button, the relative information of the disc will display on the TV screen.
Press REPEAT button to repeat a title, chapter, track or the whole disc.
When playing DVD disc, press REPEAT button continually, the TV screen shows chapter
repeat, title repeat, all repeat, repeat cancel in turn
When playing SVCD, VCD, CD disc, the turn is track repeat, all repeat, repeat cancel.
When playing MP3 disc, the turn is single repeat, directory repeat, repeat cancel.
-18-
DP239-P18.CDR
Page 20
Play
Play
PLAY PICTURE CD DISC
Press STOP key, 12 small pictures will show on the TV screen.
Press up/down/left/right to select the desired picture.
Use up/down/left/right key to select RANDOM, then press ENTER to start random play.
Use up/down/left/right key to INSTRUCTION, the press ENTER to instruction menu.
Instruction menu as follows:
[STOP]: entering picture preview mode; [PREV]: previous picture; [NEXT]: next picture; [PLAY]: to play
picture; [ UP]: mirror image in vertical; [DOWN]: mirror image in horizon; [LEFT]: rotate 90 degrees
anticlockwise; [RIGHT]: rotate 90 degrees clockwise; [ZOOM]: change zoom mode; [FAST FORWARD]:
zoom in the picture; [FAST REWIND] : zoom out the picture; [UP/DOWN/LEFT/RIGHT]: move zoom
center. select CONTINUE to exit.
PLAY MP3 DISC
When playing a MP3 disc, There is a menu screen on TV, press the [ ]or[ ] button to shift the cursor to
select the track or folder, and press the [ENTER] button to play the selected track or folder ( it need to
enter the sub-folder to select the track and press the [ENTER] button to play for some MP3 discs).
Also use the digit button to select the track (for example:press [4] [5] two digit buttons and then press the
[ENTER] button to play 45th track, it need to enter the folder and select the current folders track to play MP3 ).
There are two play mode for MP3 disc: folder and file play, the default mode is the folder play; press
[TITLE] button to select the mode, In the files play mode,The screen display the total track number and
the current playing track, and use the digit button to select the track, or use the [ ] [ ] button to shift to
the track and press the [ENTER] button to play the track.
,
-19-
DP239-P19.CDR
Page 21
Troubleshooting
Symptom
No power
No picture
No sound
Distorted picture
Luminance unsteady
or picture with noise
Unable to play
Key malfunction
Remote control
Doesn't work
Cause(s)
The power cord isn't connected
TV video setup isn't correct
The setup mismatch the real connection
Video cable isn't connected well
Audio cable isn't connected well
Power off for the connected equipment
Audio setup isn't correct
Dirty disc
In fast forward or fast rewind mode
Anti-copy circuit influence
Without disc
Disc is bad
Disc is put upside down
Dirty disc
There are menu on TV screen
Parental control is working
Power wave or other static interference.
Remote control isn't pointed at the sensor.
Remote control is too far from DVD unit
Batteries are exhausted.
Remedy
Connect the power cord properly
Select the suitable setup
Press [V-MODE] until the picture appear again
Connect the cable properly
Connect the cable properly
Turn on power
Select the suitable audio setup
Clean the disc
Sometimes, the tiny distortion appears. It's normal
Connect the DVD unit to TV directly
Put in the disc
Clean or replace the disc
Put the disc properly
Clean the disc
Use SETUP to turn off menu
Set up parental off or change the setup
Turn on/off the power and try again.
Point the remote control at the sensor
Operate the remote control within 7m
Replace the batteries
-20-
1389D-P20.CDR
Page 22
Specification
Power supply
Power consumption
TV system
Laser wave length
Audio frequency range
S/N ratio
Audio dynamic range
Operating conditions
Video output
S-video output
Audio output (analog audio)
AC ~100-240V/50-60Hz
Less than 20W
PAL/NTSC
650nm, 780nm
DVD: 4Hz~22kHz 48kHz PCM
4Hz~ 44kHz 9 6kHz PCM
CD: 4Hz~20kHz
90dB
90dB
¡æTemperature: 0~40 , operation flat, horizontal
Temperature: 0~40 , operation flat, horizontal
1.0V P-P 75
Y 1.0V(P-P),75
C 0.286V(P-P),75
2.0V(rms)
1389D-A-BACK.CDR
Loading...
