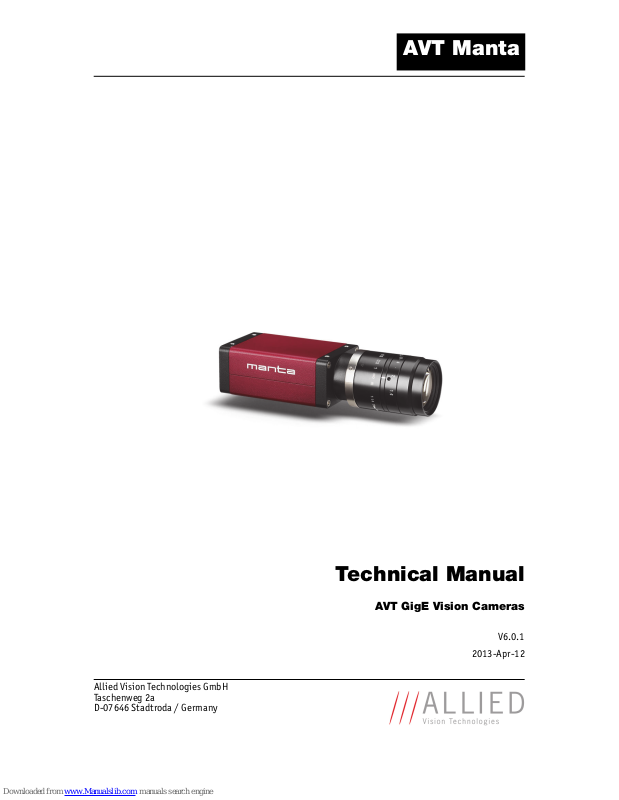

AVT Manta G-031B/C, G-046B/C, G-032B/C, G-033B/C, G-095C Technical Manual

Technical Manual

AVT GigE Vision Cameras

V6.0.1

2013-Apr-12

Allied Vision Technologies GmbH
Taschenweg 2a
D-07646 Stadtroda / Germany

AVT Manta

MANTA Technical Manual V6.0.1

2

Legal notice

For customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a residential environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communica­tions. However there is no guarantee that interferences will not occur in a particular installation.
If the equipment does cause harmful interference to radio or television reception, the user is
encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and the receiver.

• Use a different line outlet for the receiver.

• Consult a radio or TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could
void your authority to operate this equipment. The shielded interface cable recommended in this
manual must be used with this equipment in order to comply with the limits for a computing
device pursuant to Subpart B of Part 15 of FCC Rules.

For customers in Canada

This apparatus complies with the Class B limits for radio noise emissions set out in the Radio
Interference Regulations.

Pour utilisateurs au Canada

Cet appareil est conforme aux normes classe B pour bruits radioélectriques, spécifiées dans le
Règlement sur le brouillage radioélectrique.

Life support applications

These products are not designed for use in life support appliances, devices, or systems where mal­function of these products can reasonably be expected to result in personal injury. Allied Vision
Technologies customers using or selling these products for use in such applications do so at their
own risk and agree to fully indemnify Allied for any damages resulting from such improper use or
sale.

Trademarks

Unless stated otherwise, all trademarks appearing in this document of Allied Vision Technologies
are brands protected by law.

Warranty

The information provided by Allied Vision Technologies is supplied without any guarantees or
warranty whatsoever, be it specific or implicit. Also excluded are all implicit warranties concern­ing the negotiability, the suitability for specific applications or the non-breaking of laws and pat­ents. Even if we assume that the information supplied to us is accurate, errors and inaccuracy may
still occur.

Copyright

All texts, pictures and graphics are protected by copyright and other laws protecting intellectual
property. It is not permitted to copy or modify them for trade use or transfer, nor may they be used
on websites.

Allied Vision Technologies GmbH 04/2013

All rights reserved.
Managing Director: Mr. Frank Grube
Tax ID: DE 184383113

Headquarters:

Taschenweg 2a
D-07646 Stadtroda, Germany
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]

MANTA Technical Manual V6.0.1

3

Contents

Contacting Allied Vision Technologies ................................................... 6

Introduction ............................................................................................................ 7

Document history............................................................................................................ 7

Conventions used in this manual ...................................................................................... 15

Styles ..................................................................................................................... 15

Symbols.................................................................................................................. 15

More information .......................................................................................................... 16

Before operation........................................................................................................... 16

MANTA GigE cameras......................................................................................17

Conformity ..............................................................................................................18

CE.......................................................................................................................... 18

FCC – Class B Device................................................................................................... 18

Specifications .......................................................................................................19

Manta G-031B/C ........................................................................................................... 20

Manta G-032B/C ........................................................................................................... 22

Manta G-033B/C ........................................................................................................... 24

Manta G-046B/C ........................................................................................................... 26

Manta G-095C............................................................................................................... 28

Manta G-125B/C ........................................................................................................... 30

Manta G-145B/C (-30fps*) .............................................................................................. 32

Manta G-145B NIR ......................................................................................................... 34

Manta G-146B/C ........................................................................................................... 36

Manta G-201B/C (-30fps*) .............................................................................................. 38

Manta G-223B/C (NIR) ................................................................................................... 40

Manta G-282B/C ........................................................................................................... 42

Manta G-283B/C ........................................................................................................... 44

Manta G-504B/C ........................................................................................................... 46

Manta G-609B/C ........................................................................................................... 48

Manta G-917B/C ........................................................................................................... 50

Spectral sensitivity ........................................................................................................ 52

Filter and lenses .................................................................................................69

IR cut filter: spectral transmission .................................................................................... 69

Camera lenses .............................................................................................................. 70

Camera dimensions (type A) ........................................................................75

Tripod adapter.......................................................................................................... 75

MANTA standard housing (type A)..................................................................................... 76

Manta standard angled-head housings (type A) .............................................................. 77

MANTA Technical Manual V6.0.1

4

Cross section: C-Mount (type A cameras) ....................................................................... 81

Cross section: CS-Mount (type A) ................................................................................. 82

Adjustment of the CS-Mount ....................................................................................... 82

Manta standard board level variants (type A).................................................................. 83

Camera dimensions (type B)........................................................................91

Tripod adapter.......................................................................................................... 91

Manta standard housing (type B)...................................................................................... 92

Cross section: C-Mount (type B) ................................................................................... 93

Adjustment of the C-Mount ......................................................................................... 93

Cross section: C-Mount (type B) ................................................................................... 94

Adjustment of the C-Mount ......................................................................................... 94

Camera interfaces .............................................................................................95

Gigabit Ethernet port ..................................................................................................... 96

Camera I/O connector pin assignment (incl. PoE) ................................................................ 97

Video iris output description............................................................................................ 98

Control signals ............................................................................................................. 99

Inputs .................................................................................................................... 99

Input/output pin control............................................................................................ 99

Outputs .................................................................................................................. 99

Trigger timing diagram ............................................................................................ 101

Notes on triggering ................................................................................................. 101

Description of the data path...................................................................... 104

Block diagrams of the cameras....................................................................................... 104

Manta type A: monochrome cameras........................................................................... 104

Manta type A: color cameras...................................................................................... 104

Manta type B: monochrome cameras........................................................................... 105

Manta type B: color cameras ..................................................................................... 105

Available Manta camera controls .................................................................................... 106

Frame memory............................................................................................................ 113

Color interpolation (Bayer demosaicing).......................................................................... 114

Resolution and ROI frame rates ..............................................................116

Manta G-031B/C: ROI frame rates ................................................................................... 116

Manta G-032B/C: ROI frame rates ................................................................................... 117

Manta G-033B/C: ROI frame rates ................................................................................... 118

Manta G-046B/C: ROI frame rates ................................................................................... 119

Manta G-095C: ROI frame rates....................................................................................... 120

Manta G-125B/C: ROI frame rates ................................................................................... 121

Manta G-145B/C: ROI frame rates ................................................................................... 122

Manta G-145B/C-30fps: ROI frame rates........................................................................... 123

Manta G-145B NIR: ROI frame rates................................................................................. 124

Manta G-146B/C: ROI frame rates ................................................................................... 126

Manta G-201B/C: ROI frame rates ................................................................................... 127

Manta G-201B/C-30fps: ROI frame rates........................................................................... 128

MANTA Technical Manual V6.0.1

5

Manta G-223B/C: ROI frame rates ................................................................................... 129

Manta G-282B/C: ROI frame rates ................................................................................... 130

Manta G-283B/C: ROI frame rates ................................................................................... 131

Manta G-504B/C: ROI frame rates ................................................................................... 132

Manta G-609B/C: ROI frame rates ................................................................................... 133

Manta G-917B/C: ROI frame rates ................................................................................... 134

Appendix................................................................................................................ 135

Sensor position accuracy of AVT Manta cameras................................................................. 135

Index.........................................................................................................................136

Contacting Allied Vision Technologies

MANTA Technical Manual V6.0.1

6

Contacting Allied Vision Technologies

Info



• Technical information:

http://www.alliedvisiontec.com

• Support:

[e-mail]

Allied Vision Technologies GmbH (Headquarters)

Taschenweg 2a
07646 Stadtroda, Germany
Tel.: [phone]
Fax.: [phone]
e-mail: [e-mail]

Allied Vision Technologies Canada Inc.

101-3750 North Fraser Way
Burnaby, BC, V5J 5E9, Canada
Tel: [phone]
Fax: [phone]
e-mail: [e-mail]

Allied Vision Technologies Inc.

38 Washington Street
Newburyport, MA 01950, USA
Toll Free number +1 877-USA-1394
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]

Allied Vision Technologies Asia Pte. Ltd.

82 Playfair Road
#07-02 D’Lithium
Singapore 368001
Tel: [phone]
Fax: [phone]
e-mail: [e-mail]

Introduction

MANTA Technical Manual V6.0.1

7

Introduction

This MANTA Technical Manual describes in depth the technical specifications,
dimensions, all pixel formats, bandwidth and frame rate related subjects.

For information on hardware installation, safety warnings, pin assignments on
I/O connectors and GigE port connectors, read the Manta Hardware Installa-
tion Guide.

For information on camera features (camera controls) read the AVT Manta Cam-
era Controls document.

Document history

Note



Please read through this manual carefully.

We assume that you have read already the Manta Hardware

Installation Guide and that you have installed the hardware

and software on your PC or laptop (Gigabit Ethernet network
card, cables).

http://www.alliedvisiontec.com/emea/support/downloads/
product-literature/hardware-installation-guide.html

Version Date Remarks

V2.0.3 15.04.10 New Manual - RELEASE status

V3.0.0 09.06.10 Added Manta G-046, G-145, G-201, G-146:

•Chapter Manta G-046B/C on page 26f.

•Chapter Manta G-145B/C (-30fps*) on page 32f.

•Chapter Manta G-146B/C on page 36f.

•Chapter Manta G-201B/C (-30fps*) on page 38f.

•Chapter Spectral sensitivity on page 52ff.

• Table 30: Image memory size (typical; see note above) on
page 113

•Chapter Manta G-046B/C: ROI frame rates on page 119

•Chapter Manta G-145B/C: ROI frame rates on page 122

•Chapter Manta G-146B/C: ROI frame rates on page 126

•Chapter Manta G-201B/C: ROI frame rates on page 127

to be continued on next page

Table 1: Document history

Introduction

MANTA Technical Manual V6.0.1

8

continued from last page

V3.0.0

[continued]

09.06.10

[continued]

[continued]

• With the new firmware 1.40 due to a bug all Manta models
have only 12 bit in the data path (even if the ADC delivers
14 bit): See Figure 58: Block diagram monochrome camera

(type A, Manta G-031 / 032 / 033 / 046 / 095 / 125 / 145 /
146 / 201 / 504) on page 104 and Figure 59: Block diagram
color camera (type A, Manta G-031 / 032 / 033 / 046 / 095
/ 125 / 145 / 146 / 201 / 504) on page 104.

• Due to a repaired bug in FPGA and microcontroller, the
StreamHoldCapacity changed: Manta G-032 from 49 frames
to 99 frames, Manta G-125 from 12 frames to 25 frames: see
Chapter Manta G-032B/C on page 22 and Chapter Manta G-

125B/C on page 30

• RGBA24 and BGRA24 are not supported, see Chapter

Specifications on page 19ff.

• Manta board level cameras have now a cooling plate: see
–Chapter Manta board level (PoE): dimensions on page

84
–Chapter Manta board level (PoE): C-Mount on page 86
–Chapter Manta board level (PoE): CS-Mount on page 88
–Chapter Manta board level (PoE): M12-Mount on page

90

• Added Chapter Firmware update on page 87

V4.0.0 25.10.10 • Added the information, that description of status LEDs can

be found in Manta Hardware Installation Guide, see Note
on page 95

• Changed file format from FM7 to FM9

Added Manta G-033B/C (sensor: Sony ICX 414) and
Manta G-504B/C (sensor: Sony ICX 655):

•Chapter Manta G-033B/C on page 26

•Chapter Manta G-504B/C on page 46

•Chapter Spectral sensitivity on page 52ff.

•Chapter Camera lenses on page 70

• Table 30: Image memory size (typical; see note above) on
page 113

•Chapter Resolution and ROI frame rates on page 116

• Manta angled head models: Chapter Manta W90 on page
77ff.

to be continued on next page

Version Date Remarks

Table 1: Document history

Introduction

MANTA Technical Manual V6.0.1

9

continued from last page

V4.0.1 05.01.11 • Changed tripod drawing: added dimensions of three big

holes (M6 and UNC 1/4-20) in Figure 33: Tripod dimensions
on page 75.

• In specifications tables color pixel formats: inserted Mono8.
Added Note, that Raw8, Raw16 displayed in some viewers
means the same as Bayer8, Bayer16: see Chapter

Specifications on page 19ff.

• Changed GigE Vision V1.0 to V1.2 in all specification tables
in Chapter Specifications on page 19ff.

V4.1.0 24.06.11 Added PoE:

• Added power requirements, power consumption and
regulations for Manta PoE models: see Chapter

Specifications on page 19ff.

• Added note about PoE capable cameras in Chapter

Specifications on page 19 and Chapter Gigabit Ethernet
port on page 96

• PoE cameras <220 g (without lens): see Chapter

Specifications on page 19ff.

Corrected frame rate formulas for Manta G-033/G504:

• See Chapter Manta G-033B/C: ROI frame rates on page 118
and Chapter Manta G-504B/C: ROI frame rates on page 132

C-/CS-Mount no more adjustable, for modifications contact
Customer Care and send camera to AVT:

• See C/CS-Mount descriptions in specification tables in
Chapter Specifications on page 19ff.

• See Chapter Adjustment of the C-Mount on page 93

• See Chapter Adjustment of the CS-Mount on page 82

Manta board level:

• Manta board level: deleted (PWR output on demand) at
Pin2: in Figure 42: Manta board level (PoE) dimensions on
page 84

Added new address:

• Added Singapore address in Chapter Contacting Allied Vision

Technologies on page 6

Removed Chapter Firmware update (see Knowledge Base at
AVT Website: search for Application Note GigE Firmware
Update)

to be continued on next page

Version Date Remarks

Table 1: Document history

Introduction

MANTA Technical Manual V6.0.1

10

continued from last page

[continued]

V4.1.0

[continued]

24.06.11

Manta firmware upgrade:

• Revised data path block diagram in Chapter Block diagrams

of the cameras on page 104

• Added 30fps variant for Manta G-145-30fps and Manta G­201-30fps:

– see Chapter Manta G-145B/C (-30fps*) on page 32 and

Formula 9: Manta G-145-30fps: theoretical max. frame
rate of CCD on page 123 and Chapter Frame memory on

page 113

–Chapter Manta G-201B/C (-30fps*) on page 38 and

Chapter Frame memory on page 113

• Added Mono12Packed for monochrome cameras and Bay­er12Packed for color cameras: see Chapter Specifications
on page 19ff.

• Added the following camera controls in Chapter Available

Manta camera controls on page 106ff.:

– Chunk Data
– EventControls
– StreamFramerateConstrain
– FrameStartTriggerOverlap
–PayloadSize
– NonImagePayloadSize
– SyncInGlitchFilter
– AutoIris
– Gamma
–LUT

Manta G-145-30fps and Manta G-201-30fps (non PoE)

• ... have same I/O pin assignment (input circuits and
voltage range), power LED and upside down PoE plug as PoE
models: see Exception on page 70

• Manta G-145-30fps / 201-30fps non-PoE behave like

PoE cameras. on page 71

to be continued on next page

Version Date Remarks

Table 1: Document history

Introduction

MANTA Technical Manual V6.0.1

11

continued from last page

V5.0.0 15.05.12 Error found in Document history V3.0.0 by Validation Team:

• RGBA24 and BGRA24 should be named RGBA32 and BGRA32
on page 8

• Added RGBA32 and BGRA32 color formats (except Manta G­201-30fps) in Chapter Specifications on page 19ff.

• Added frame rate diagrams in Chapter Resolution and ROI

frame rates on page 116ff.

New: Manta G-145 NIR:

• NirMode in Chapter Available Manta camera controls on
page 106ff.: inserted NirMode (only type A NIR) on page
109

• New: For the three NirModes: Chapter Manta G-145B NIR:

ROI frame rates on page 124

–Chapter Manta G-145B NIR on page 34
– Figure 14: Spectral sensitivity of Manta G-145B NIR (Nir-

Mode=On_Fast or On_HighQuality) compared to Manta
G-145B on page 60

– Figure 15: Increase of relative response for Manta G-

145B NIR with NIR mode set to On_HighQuality on page

60

–Chapter Image memory size (typical; see note above) on

page 113
–Chapter Manta G-145B NIR: ROI frame rates on page 124
–Chapter Manta cameras: frame rate comparison on page

129

to be continued on next page

Version Date Remarks

Table 1: Document history

Introduction

MANTA Technical Manual V6.0.1

12

continued from last page

V5.0.0

[continued]

15.05.12

[continued]

New sensors ICX618 and ICX692:

• Manta G-031 (ICX618):

–Chapter Manta G-031B/C on page 20
– Figure 1: Spectral sensitivity of Manta G-031B on page

53
– Figure 2: Spectral sensitivity of Manta G-031C (without

IR cut filter) on page 53

–New: Table 19: Focal length vs. field of view (Manta G-

031) on page 70

–Chapter Image memory size (typical; see note above) on

page 113
–Chapter Manta G-031B/C: ROI frame rates on page 116
–Chapter Manta cameras: frame rate comparison on page

129

• Manta G-095C (ICX692):

–Chapter Manta G-095C on page 28
– Added focal length 4.0 mm in Table 20: Focal length vs.

field of view (Manta G-032/095/125) on page 71

– Figure 9: Spectral sensitivity of Manta G-095C (without

IR cut filter) on page 57

–Chapter Image memory size (typical; see note above) on

page 113
–Chapter Manta G-095C: ROI frame rates on page 120
–Chapter Manta cameras: frame rate comparison on page

129

•Added Manta G-031 and Manta G-095 in Chapter Manta

cameras: frame rate comparison on page 129

to be continued on next page

Version Date Remarks

Table 1: Document history

Introduction

MANTA Technical Manual V6.0.1

13

continued from last page

V5.0.0

[continued]

15.05.12

[continued]

Same main board for all Manta models:

From serial number 503323258 on all Manta models incl. PoE
and board level versions contain the same main board.

•Chapter Gigabit Ethernet port on page 96

•Chapter Camera I/O connector pin assignment (incl. PoE)
on page 97

Revised non-PoE drawings and new board level PoE drawings:

•Chapter Manta board level (non-PoE): dimensions on page
83

•Chapter Manta board level (PoE): dimensions on page 84

•Chapter Manta board level (non-PoE): C-Mount on page 85

•Chapter Manta board level (PoE): C-Mount on page 86

•Chapter Manta board level (non-PoE): CS-Mount on page 87

•Chapter Manta board level (PoE): CS-Mount on page 88

•Chapter Manta board level (non-PoE): M12-Mount on page
89

•Chapter Manta board level (PoE): M12-Mount on page 90

Revised PoE descriptions regarding 802.3af and 802.3at:

•See note in Gigabit Ethernet port on page 96 (Manta PoE
models can source power from 802.3af (100 MBit/s and
1000 MBit/s) and from 802.3at compliant PSE devices
(Power Sourcing Equipment): such as switches injectors or
NICs.)

New CAD drawings with Pin3 = Video Type Auto Iris Out

•Chapter Manta board level (non-PoE): dimensions on page
83

•Chapter Manta board level (PoE): dimensions on page 84

Frame memory

• Manta G-032B/C: changed from 49 to 99 frames.

• Manta G-033B/C: changed from 88 to 99 frames.

• Manta G-046B/C: changed from 35 to 70 frames.

• Manta G-125B/C: changed from 12 to 25 frames.

• Manta G-145B/C: changed from 10 to 22 frames.

• Manta G-145B/C-30fps: changed from 10 to 22 frames.

• Manta G-146B/C: changed from 10 to 22 frames.

• Manta G-201B/C: changed from 8 to 16 frames.

• Manta G-201B/C-30fps: changed from 8 to 16 frames.

to be continued on next page

Version Date Remarks

Table 1: Document history

Introduction

MANTA Technical Manual V6.0.1

14

continued from last page

V5.0.0

[continued]

15.05.12

[continued]

Added frame rates for ROI height = 720

•Chapter Manta G-095C: ROI frame rates on page 120

•Chapter Manta G-125B/C: ROI frame rates on page 121

IR cut filter:

• Changed IR cut filter to (type Jenofilt 217):
see Figure 32: Approximate spectral transmission of IR cut

filter (may vary slightly by filter lot) (type Hoya C5000) on

page 69

V5.0.1 23.05.12 For Manta G-095C:

Corrected frame rate value (at ROI height 720): 40.77 fps, see
Chapter Manta G-095C: ROI frame rates on page 120.

V6.0.1 2013-Mar-20 Major changes:

Added new Manta models: Manta G-223 / 282 / 283 / 609 / 917.
These models are called Manta type B, since there are some
differences to the other models that are called Manta type A
(specifications, housing, data path, features).

New tripod adapter, new CAD drawings with LEDs on top of the
connector, see Camera dimensions (type A) on page 75 and

Camera dimensions (type B) on page 91.

In Chapter Specifications on page 19, the pixel formats are listed
both for PvAPI and VIMBA (GenICam V1.0).

Added Chapter Video iris output description on page 98.

I/O pin assignment: 10 mA on outputs 1 and 2 (not 20 mA), see

Figure 53: Camera I/O connector pin assignment on page 97

Minor changes:

Manta G-031: External trigger delay, see Chapter Specification

Manta G-031B/C on page 20.

Corrected the mass (200 g) of Manta type A cameras (G-031 / 032
/ 033 / 046 / 095 / 125 / 145 / 146 / 201 / 504).

PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Deleted the Chapter Manual Over view
Deleted Frame Rate Comparison of all Manta cameras

New date format: year-month-day

Version Date Remarks

Table 1: Document history

Introduction

MANTA Technical Manual V6.0.1

15

Conventions used in this manual

To give this manual an easily understood layout and to emphasize important
information, the following typographical styles and symbols are used:

Styles

Symbols

Style Function Example

Bold Programs, inputs or highlighting

important things

bold

Courier Code listings etc. Input

Upper case Register REGISTER

Italics Modes, fields Mode

Parentheses and/or blue Links (Link)

Table 2: Styles

Note



This symbol highlights important information.

Caution



This symbol highlights important instructions. You have to fol­low these instructions to avoid malfunctions.

www



This symbol highlights URLs for further information. The URL
itself is shown in blue.

Example:

http://www.alliedvisiontec.com

Introduction

MANTA Technical Manual V6.0.1

16

More information

For more information on hardware and software read the following:

• Manta Hardware Installation Guide describes the hardware installation

procedures for all AVT GigE cameras (Manta). Additionally you get safety
instructions and information about camera interfaces (GigE port, PoE, I/O
connectors, input and output).

• AVT Manta Camera Controls describes the camera controls of the AVT GigE

SDK (PvAPI) and feature related items.

Before operation

Target group This Technical Manual is the guide to detailed technical information of the

camera and is written for experts.

Getting started For a quick guide how to get started read the Manta Hardware Installation

Guide first.

www



For downloading the Manta Hardware Installation Guide and
AVT Manta Camera Controls go to:

http://www.alliedvisiontec.com/emea/support/downloads/
product-literature.html

www



All software packages (including documentation and release
notes) provided by AVT can be downloaded at:

http://www.alliedvisiontec.com/emea/products/
software.html

Note



Please read through this manual carefully before operating
the camera.

For information on AVT accessories and AVT software read
Manta Hardware Installation Guide.

Caution



Before operating any AVT camera, read the safety instructions
and ESD warnings in the Manta Hardware Installation Guide.

MANTA GigE cameras

MANTA Technical Manual V6.0.1

17

MANTA GigE cameras

Manta Manta cameras have a Gigabit Ethernet interface.

GigE GigE is the abbreviation for Gigabit Ethernet.

All AVT Manta cameras are GigE Vision compliant cameras with Gigabit Ethernet
interface. AVT Manta cameras work with standard Gigabit Ethernet hardware
and cables and have cable lengths up to 100 m, using conventional network
cabling.

GigE Vision The GigE Vision standard is an interface standard for digital machine vision

cameras widely supported in the industrial imaging industry. G. In contrast,

GigE (Gigabit Ethernet) is just the network GigE Vision is built on.

GenICam GenICam is the command structure for the GigE Vision camera control. GenICam

is administered by the European Machine Vision Association (EMVA).
GenICam establishes a common camera control interface so that third-party
software can communicate with cameras from various manufacturers without
customization. It is incorporated as part of the GigE Vision standard.

www



For further information on GigE Vision and GenICam read:

http://www.alliedvisiontec.com/emea/support/application­notes.html

www



For further information on the highlights of Manta cameras and
the whole range of AVT GigE cameras, read the data sheets and
brochures on the website of Allied Vision Technologies:

http://www.alliedvisiontec.com/emea/products/
cameras.html

Conformity

MANTA Technical Manual V6.0.1

18

Conformity

Allied Vision Technologies declares under its sole responsibility that all stan­dard cameras of the AVT Manta family to which this declaration relates are in
conformity with the following standard(s) or other normative document(s):

• CE, following the provisions of 2004/108/EG directive

(Manta board level cameras do not have CE)

• FCC Part 15 Class B

(Manta board level cameras: prepared for FCC Class B)

• RoHS (2011/65/EU)

CE

We declare, under our sole responsibility, that the previously described AVT
Manta cameras conform to the directives of the CE.

FCC – Class B Device

Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential environment. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. This
equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. Operation of this equipment in a resi­dential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense. You are cautioned that
any changes or modifications not expressly approved in this manual could void
your authority to operate this equipment.

Specifications

MANTA Technical Manual V6.0.1

19

Specifications

Caution



Before operating any AVT camera, read the safety instructions
and ESD warnings in the Installation Guide.

The Installation Guide contains important safety warnings, pin
assignments on I/O connectors and GigE port connectors, and­cleaning instructions.

http://www.alliedvisiontec.com/emea/support/downloads/
product-literature/hardware-installation-guide.html

Note



PoE capable cameras

How can I distinguish between PoE capable cameras and
cameras that are not PoE capable?

PoE capable cameras have the letters PoE written on the
camera’s label on the bottom side of the camera.

Specifications

MANTA Technical Manual V6.0.1

20

Manta G-031B/C

Feature Specification

Sensor Type 1/4 (diag. 4.5 mm) progressive scan SONY IT CCD ICX618AL/AQ with

EXview HAD CCD II microlens

Effective chip size 4.46 mm x 3.80 mm

Cell size 5.6 μm x 5.6 μm

Resolution (max.) 656 x 492 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 39: Manta C-Mount dimensions (16 mm filter, type A) on page

81)

CS-Mount: 12.526 mm (in air); Ø 25.4 mm (32 tpi)
maximum protrusion: 5.1 mm
(see Figure 40: Manta CS-Mount dimensions (type A) on page 82)

ADC 14 bit

Pixel format GenICam:

Only monochrome: Mono8, Mono12Packed, Mono12
Only color: BayerGB8, BayerGB12Packed, BayerGB12, Mono8,

RGB8Packed, YUV411Packed, YUV422Packet, YUV444Packed,
BGR8Packed, RGBA8Packed, BGRA8Packed

Displayed with PvAPI as:

Only monochrome: Mono8, Mono12Packed, Mono16
Only color: Bayer8, Bayer12Packed, Bayer16, Mono8, RGB24, YUV411,

YUV422, YUV444, BGR24, RGBA32, BGRA32

Frame rates Up to 125 fps

Gain control Manual: 0-32 dB (1 dB/step); auto gain (select. ROI)

Exposure time 58 μs … 60 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 40 seconds in 1 μs increments

Fixed rate control 0.01 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Table 3: Specification Manta G-031B/C

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Specifications

MANTA Technical Manual V6.0.1

21

Internal image memory 32 MByte, up to 99 frames

Smart functions Auto gain control, auto exposure control, 32 MByte image memory,

binning (monochrome binning, also for color cameras; but no color
binning), no decimation (no sub-sampling), config files (user sets), LUT
only color: auto white balance, color correction, edge filter (sharpness),
hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical 3.7 watt (@ 12 V DC); PoE: typical 3.9 watt

(maximal frame rates at full resolution)

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 200 g (without lens);

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 3: Specification Manta G-031B/C

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

22

Manta G-032B/C

Feature Specification

Sensor Type 1/3 (diag. 6 mm) progressive scan SONY IT CCD ICX424AL/AQ with

HAD microlens

Effective chip size 4.9 mm x 3.7 mm

Cell size 7.4 μm x 7.4 μm

Resolution (max.) 656 x 492 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 39: Manta C-Mount dimensions (16 mm filter, type A) on page

81)

CS-Mount: 12.526 mm (in air); Ø 25.4 mm (32 tpi)
maximum protrusion: 5.1 mm
(see Figure 40: Manta CS-Mount dimensions (type A) on page 82)

ADC 12 bit

Pixel format GenICam:

Only monochrome: Mono8, Mono12Packed, Mono12
Only color: BayerGB8, BayerGB12Packed, BayerGB12, Mono8,

RGB8Packed, YUV411Packed, YUV422Packet, YUV444Packed,
BGR8Packed, RGBA8Packed, BGRA8Packed

Displayed with PvAPI as:

Only monochrome: Mono8, Mono12Packed, Mono16
Only color: Bayer8, Bayer12Packed, Bayer16, Mono8, RGB24, YUV411,

YUV422, YUV444, BGR24, RGBA32, BGRA32

Frame rates Up to 80 fps

Gain control Manual: 0-36 dB (1 dB/step); auto gain (select. ROI)

Exposure time 26 μs … 60 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 60 seconds in 1 μs increments

Fixed rate control 0.01 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Table 4: Specification Manta G-032B/C

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Specifications

MANTA Technical Manual V6.0.1

23

Internal image memory 32 MByte, up to 99 frames

Smart functions Auto gain control, auto exposure control, 32 MByte image memory,

binning (monochrome binning, also for color cameras; but no color
binning), no decimation (no sub-sampling), config files (user sets), LUT
only color: auto white balance, color correction, edge filter (sharpness),
hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical 3.6 watt (@ 12 V DC); PoE: typical 3.6 watt

(maximal frame rates at full resolution)

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 200 g (without lens)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 4: Specification Manta G-032B/C

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

24

Manta G-033B/C

Feature Specification

Sensor Type 1/2 (diag. 8 mm) progressive scan SONY IT CCD ICX414AL/AQ with

HAD microlens

Effective chip size 6.5 mm x 4.9 mm

Cell size 9.9 μm x 9.9 μm

Resolution (max.) 656 x 492 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 39: Manta C-Mount dimensions (16 mm filter, type A) on page

81)

CS-Mount: 12.526 mm (in air); Ø 25.4 mm (32 tpi)
maximum protrusion: 5.1 mm
(see Figure 40: Manta CS-Mount dimensions (type A) on page 82)

ADC 14 bit

Pixel format GenICam:

Only monochrome: Mono8, Mono12Packed, Mono12
Only color: BayerGB8, BayerGB12Packed, BayerGB12, Mono8,

RGB8Packed, YUV411Packed, YUV422Packet, YUV444Packed,
BGR8Packed, RGBA8Packed, BGRA8Packed

Displayed with PvAPI as:

Only monochrome: Mono8, Mono12Packed, Mono16
Only color: Bayer8, Bayer12Packed, Bayer16, Mono8, RGB24, YUV411,

YUV422, YUV444, BGR24, RGBA32, BGRA32

Frame rates Up to 88 fps

Gain control Manual: 0-35 dB (1 dB/step); auto gain (select. ROI)

Exposure time 26 μs … 60 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 60 seconds in 1 μs increments

Fixed rate control 1 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Table 5: Specification Manta G-033B/C

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Specifications

MANTA Technical Manual V6.0.1

25

Internal image memory 32 MByte, up to 99 frames

Smart functions Auto gain control, auto exposure control, 32 MByte image memory,

binning (monochrome binning, also for color cameras; but no color
binning), decimation (sub-sampling), config files (user sets), LUT
only color: auto white balance, color correction, edge filter (sharpness),
hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical 3.6 watt (@ 12 V DC); PoE: typical 3.6 watt

(maximal frame rates at full resolution)

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 200 g (without lens)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 5: Specification Manta G-033B/C

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

26

Manta G-046B/C

Feature Specification

Sensor Type 1/2 (diag. 8 mm) progressive scan SONY IT CCD ICX415AL/AQ with

HAD microlens

Effective chip size 6.5 mm x 4.8 mm

Cell size 8.3 μm x 8.3 μm

Resolution (max.) 780 x 580 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 39: Manta C-Mount dimensions (16 mm filter, type A) on page

81)

CS-Mount: 12.526 mm (in air); Ø 25.4 mm (32 tpi)
maximum protrusion: 5.1 mm
(see Figure 40: Manta CS-Mount dimensions (type A) on page 82)

ADC 14 bit

Pixel format GenICam:

Only monochrome: Mono8, Mono12Packed, Mono12
Only color: BayerGB8, BayerGB12Packed, BayerGB12, Mono8,

RGB8Packed, YUV411Packed, YUV422Packet, YUV444Packed,
BGR8Packed, RGBA8Packed, BGRA8Packed

Displayed with PvAPI as:

Only monochrome: Mono8, Mono12Packed, Mono16
Only color: Bayer8, Bayer12Packed, Bayer16, Mono8, RGB24, YUV411,

YUV422, YUV444, BGR24, RGBA32, BGRA32

Frame rates Up to 67 fps

Gain control Manual: 0-31 dB (1 dB/step); auto gain (select. ROI)

Exposure time 26 μs … 60 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 60 seconds in 1 μs increments

Fixed rate control 1 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Table 6: Specification Manta G-046B/C

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Specifications

MANTA Technical Manual V6.0.1

27

Internal image memory 32 MByte, up to 70 frames

Smart functions Auto gain control, auto exposure control, 32 MByte image memory, bin-

ning (monochrome binning, also for color cameras; but no color bin­ning), decimation (sub-sampling), config files (user sets), LUT
only color: auto white balance, color correction, edge filter (sharpness),
hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical 3.6 watt (@ 12 V DC); PoE: typical 3.6 watt

(maximal frame rates at full resolution)

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 200 g (without lens)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 6: Specification Manta G-046B/C

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

28

Manta G-095C

Note



Manta G-095 is only available as color camera: Manta G-095C.

Feature Specification

Sensor Type 1/3 (diag. 6 mm) progressive scan SONY IT CCD ICX692AQ with

EXview HAD CCD II microlens

Effective chip size 6.04 mm x 4.0 mm

Cell size 4.08 μm x 4.08 μm

Resolution (max.) 1292 x 734 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 39: Manta C-Mount dimensions (16 mm filter, type A) on page

81)

CS-Mount: 12.526 mm (in air); Ø 25.4 mm (32 tpi)
maximum protrusion: 5.1 mm
(see Figure 40: Manta CS-Mount dimensions (type A) on page 82)

ADC 14 bit

Pixel format GenICam:

Only color: BayerGB8, BayerGB12Packed, BayerGB12, Mono8,
RGB8Packed, YUV411Packed, YUV422Packet, YUV444Packed,
BGR8Packed, RGBA8Packed, BGRA8Packed

Displayed with PvAPI as:
Only color: Bayer8, Bayer12Packed, Bayer16, Mono8, RGB24, YUV411,
YUV422, YUV444, BGR24, RGBA32, BGRA32

Frame rates Up to 40 fps

Gain control Manual: 0-32 dB (1 dB/step); auto gain (select. ROI)

Exposure time 45 μs … 60 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 60 seconds in 1 μs increments

Fixed rate control 1 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Table 7: Specification Manta G-095C

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Specifications

MANTA Technical Manual V6.0.1

29

Internal image memory 32 MByte, up to 34 frames

Smart functions Auto gain control, auto exposure control, 32 MByte image memory,

binning (monochrome binning, also for color cameras; but no color
binning), no decimation (no sub-sampling), config files (user sets), LUT
only color: auto white balance, color correction, edge filter (sharpness),
hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical <3.6 watt (@ 12 V DC); PoE: typical 3.7 watt

(maximal frame rates at full resolution)

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 200 g (without lens)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 7: Specification Manta G-095C

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

30

Manta G-125B/C

Feature Specification

Sensor Type 1/3 (diag. 6 mm) progressive scan SONY IT CCD ICX445ALA/AQA with

EXview HAD microlens

Effective chip size 4.8 mm x 3.6 mm

Cell size 3.75 μm x 3.75 μm

Resolution (max.) 1292 x 964 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 39: Manta C-Mount dimensions (16 mm filter, type A) on page

81)

CS-Mount: 12.526 mm (in air); Ø 25.4 mm (32 tpi)
maximum protrusion: 5.1 mm
(see Figure 40: Manta CS-Mount dimensions (type A) on page 82)

ADC 14 bit

Pixel format GenICam:

Only monochrome: Mono8, Mono12Packed, Mono12
Only color: BayerGB8, BayerGB12Packed, BayerGB12, Mono8,

RGB8Packed, YUV411Packed, YUV422Packet, YUV444Packed,
BGR8Packed, RGBA8Packed, BGRA8Packed

Displayed with PvAPI as:

Only monochrome: Mono8, Mono12Packed, Mono16
Only color: Bayer8, Bayer12Packed, Bayer16, Mono8, RGB24, YUV411,

YUV422, YUV444, BGR24, RGBA32, BGRA32

Frame rates Up to 30 fps

Gain control Manual: 0-31 dB (1 dB/step); auto gain (select. ROI)

Exposure time 21 μs … 60 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 60 seconds in 1 μs increments

Fixed rate control 1 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Table 8: Specification Manta G-125B/C

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Specifications

MANTA Technical Manual V6.0.1

31

Internal image memory 32 MByte, up to 25 frames

Smart functions Auto gain control, auto exposure control, 32 MByte image memory, bin-

ning (monochrome binning, also for color cameras; but no color bin­ning), decimation (sub-sampling), config files (user sets), LUT
only color: auto white balance, color correction, edge filter (sharpness),
hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs

RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical 3.6 watt (@ 12 V DC); PoE: typical  3.6 watt

(maximal frame rates at full resolution)

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 200 g (without lens)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 8: Specification Manta G-125B/C

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

32

Manta G-145B/C (-30fps*)

*: 30fps model only

Feature Specification

Sensor Type 2/3 (diag. 11 mm) progressive scan SONY IT CCD ICX285AL/AQ with

EXview HAD microlens

Effective chip size 9.0 mm x 6.7 mm

Cell size 6.45 μm x 6.45 μm

Resolution (max.) 1388 x 1038 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 39: Manta C-Mount dimensions (16 mm filter, type A) on page

81)

CS-Mount: 12.526 mm (in air); Ø 25.4 mm (32 tpi)
maximum protrusion: 5.1 mm
(see Figure 40: Manta CS-Mount dimensions (type A) on page 82)

ADC 14 bit

Pixel format GenICam:

Only monochrome: Mono8, Mono12Packed, Mono12
Only color: BayerGB8, BayerGB12Packed, BayerGB12, Mono8,

RGB8Packed, YUV411Packed, YUV422Packet, YUV444Packed,
BGR8Packed, RGBA8Packed, BGRA8Packed

Displayed with PvAPI as:

Only monochrome: Mono8, Mono12Packed, Mono16
Only color: Bayer8, Bayer12Packed, Bayer16, Mono8, RGB24, YUV411,

YUV422, YUV444, BGR24, RGBA32, BGRA32

Frame rates Up to 16 fps (* 31 fps)

Gain control Manual: 0-33 dB (1 dB/step); auto gain (select. ROI)

Exposure time 38 (*37) μs … 60 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 60 seconds in 1 μs increments

Fixed rate control 1 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Table 9: Specification Manta G-145B/C (*:-30fps)

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Specifications

MANTA Technical Manual V6.0.1

33

Internal image memory 32 MByte, up to 22 frames

Smart functions Auto gain control, auto exposure control, 32 MByte image memory, bin-

ning (monochrome binning, also for color cameras; but no color bin­ning), decimation (sub-sampling), config files (user sets), LUT
only color: auto white balance, color correction, edge filter (sharpness),
hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical 3.7 (4.5*) watt (@ 12 V DC); PoE: typical  3.8 (4.5*) watt

(maximal frame rates at full resolution)

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 200 g (without lens)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 9: Specification Manta G-145B/C (*:-30fps)

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

34

Manta G-145B NIR

Feature Specification

Sensor Type 2/3 (diag. 11 mm) progressive scan SONY IT CCD ICX285AL with

EXview HAD microlens

Effective chip size 9.0 mm x 6.7 mm

Cell size 6.45 μm x 6.45 μm

Resolution (max.) 1388 x 1038 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 39: Manta C-Mount dimensions (16 mm filter, type A) on page

81)

CS-Mount: 12.526 mm (in air); Ø 25.4 mm (32 tpi)
maximum protrusion: 5.1 mm
(see Figure 40: Manta CS-Mount dimensions (type A) on page 82)

ADC 14 bit

Pixel format GenICam:

Mono8, Mono12Packed, Mono12

Displayed with PvAPI as:
Mono8, Mono12Packed, Mono16

Frame rates Up to 15.04 fps (NIR mode: Off/On_Fast)

Up to 13.98 fps (NIR mode: On_HighQuality)

Gain control Manual: 0-33 dB (1 dB/step); auto gain (select. ROI)

Exposure time 20 μs … 60 s; auto shutter (select. ROI)

28 μs ... 60 s for NirMode=Off/On_Fast and ExposureMode=External

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 60 seconds in 1 μs increments

Fixed rate control 1 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Internal image memory 32 MByte, up to 22 frames

Table 10: Specification Manta G-145B NIR

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8.

Specifications

MANTA Technical Manual V6.0.1

35

Smart functions Auto gain control, auto exposure control, 32 MByte image memory,

binning (monochrome binning), decimation (sub-sampling), config
files (user sets), LUT

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical  4.2 watt (@ 12 V DC); PoE: typical  4.4 watt

(maximal frame rates at full resolution)

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 200 g (without lens)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories

Optional accessories Protection glass

Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 10: Specification Manta G-145B NIR

Specifications

MANTA Technical Manual V6.0.1

36

Manta G-146B/C

Feature Specification

Sensor Type 1/2 (diag. 8 mm) progressive scan SONY IT CCD ICX267AL/AK with

HAD microlens

Effective chip size 6.5 mm x 4.8 mm

Cell size 4.65 μm x 4.65 μm

Resolution (max.) 1388 x 1038 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 39: Manta C-Mount dimensions (16 mm filter, type A) on page

81)

CS-Mount: 12.526 mm (in air); Ø 25.4 mm (32 tpi)
maximum protrusion: 5.1 mm
(see Figure 40: Manta CS-Mount dimensions (type A) on page 82)

ADC 14 bit

Pixel format GenICam:

Only monochrome: Mono8, Mono12Packed, Mono12
Only color: BayerGB8, BayerGB12Packed, BayerGB12, Mono8,

RGB8Packed, YUV411Packed, YUV422Packet, YUV444Packed,
BGR8Packed, RGBA8Packed, BGRA8Packed

Displayed with PvAPI as:

Only monochrome: Mono8, Mono12Packed, Mono16
Only color: Bayer8, Bayer12Packed, Bayer16, Mono8, RGB24, YUV411,

YUV422, YUV444, BGR24, RGBA32, BGRA32

Frame rates Up to 17 fps

Gain control Manual: 0-33 dB (1 dB/step); auto gain (select. ROI)

Exposure time 31 μs … 60 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 60 seconds in 1 μs increments

Fixed rate control 1 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Table 11: Specification Manta G-146B/C

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Specifications

MANTA Technical Manual V6.0.1

37

Internal image memory 32 MByte, up to 22 frames

Smart functions Auto gain control, auto exposure control, 32 MByte image memory, bin-

ning (monochrome binning, also for color cameras; but no color bin­ning), decimation (sub-sampling), config files (user sets), LUT
only color: auto white balance, color correction, edge filter (sharpness),
hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical 3.6 watt (@ 12 V DC); PoE: typical  3.8 watt

(maximal frame rates at full resolution)

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 200 g (without lens)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 11: Specification Manta G-146B/C

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

38

Manta G-201B/C (-30fps*)

*: 30fps model only

Feature Specification

Sensor Type 1/1.8 (diag. 8.9 mm) progressive scan SONY IT CCD ICX274AL/AQ

with Super HAD microlens

Effective chip size 7.1 mm x 5.4 mm

Cell size 4.40 μm x 4.40 μm

Resolution (max.) 1624 x 1234 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 39: Manta C-Mount dimensions (16 mm filter, type A) on page

81)

CS-Mount: 12.526 mm (in air); Ø 25.4 mm (32 tpi)
maximum protrusion: 5.1 mm
(see Figure 40: Manta CS-Mount dimensions (type A) on page 82)

ADC 14 bit

Pixel format GenICam:

Only monochrome: Mono8, Mono12Packed, Mono12
Only color: BayerGB8, BayerGB12Packed, BayerGB12, Mono8,

RGB8Packed, YUV411Packed, YUV422Packet, YUV444Packed,
BGR8Packed, RGBA8Packed (not -30fps), BGRA8Packed (not -30fps)

Displayed with PvAPI as:

Only monochrome: Mono8, Mono12Packed, Mono16
Only color: Bayer8, Bayer12Packed, Bayer16, Mono8, RGB24, YUV411,

YUV422, YUV444, BGR24, RGBA32 (not-30fps), BGRA32 (not -30fps)

Frame rates Up to 14 fps (*30 fps)

Gain control Manual: 0-31 dB (1 dB/step); auto gain (select. ROI)

Exposure time 51 (*10) μs … 60 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 60 seconds in 1 μs increments

Fixed rate control 1 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Table 12: Specification Manta G-201B/C (*:-30fps)

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Specifications

MANTA Technical Manual V6.0.1

39

Internal image memory 32 MByte, up to 16 frames

Smart functions Auto gain control, auto exposure control, 32 MByte image memory, bin-

ning (monochrome binning, also for color cameras; but no color bin­ning), decimation (sub-sampling), config files (user sets), LUT
only color: auto white balance, color correction, edge filter (sharpness),
hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical 3.6 (4.6*) watt (@ 12 V DC); PoE: typical  3.8 (4.5*) watt

(maximal frame rates at full resolution)

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 200 g (without lens)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 12: Specification Manta G-201B/C (*:-30fps)

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

40

Manta G-223B/C (NIR)

Feature Specification

Sensor Type 2/3 (diag. 8 mm) CMOS sensor: CMOSIS CMV2000 (monochrome/

color) with microlenses and global shutter

The monochrome version is also available as NIR enhanced variant

(Manta G-223B NIR). Except for the sensor response, the technical
data of the NIR enhanced variant are identical with Manta G-223B.

Effective chip size 11.26 mm x 5.98 mm

Cell size 5.5 μm x 5.5 μm

Resolution (max.) 2048 x 1088 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 51: Manta C-Mount dimensions (16 mm filter) on page 93)

ADC 12 bit

Pixel format GenICam:

Only monochrome: Mono8, Mono12Packed, Mono12
Only color: BayerRG8, BayerRG12Packed, BayerRG12, Mono8,

RGB8Packed, YUV411Packed, YUV422Packed, YUV444Packed,
BGR8Packed

Displayed with PvAPI as:

Only monochrome: Mono8, Mono12Packed, Mono16
Only color: Bayer8, Bayer12Packed, Mono8, RGB24, YUV411, YUV422,

YUV444, BGR24

Frame rates Up to 50 fps

Gain control Manual: 0-22 dB (1dB/step); auto gain (select. ROI)

Exposure time 1 μs … 60 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 60 seconds in 1 μs increments

Fixed rate control 1 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Table 13: Specification Manta G-223B/C (NIR)

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Specifications

MANTA Technical Manual V6.0.1

41

Internal image memory 128 MByte, up to 59 frames

Smart functions Auto gain control, auto exposure control, 128 MByte image memory,

decimation (sub-sampling), config files (user sets), LUT
only color: auto white balance, color correction, hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical 2,5 watt (@ 12 V DC); PoE: typical 3.2 watt

(maximal frame rates at full resolution)

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 150 g (without lens, PoE and non-PoE camera)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 13: Specification Manta G-223B/C (NIR)

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

42

Manta G-282B/C

Feature Specification

Sensor Type 1/1.8 (diag. 8.9 mm) progressive scan SONY IT CCD ICX687ALA/AQA

with EXview HAD II microlenses

Effective chip size 7.14 mm x 5.38 mm

Cell size 3.69 μm x 3.69 μm

Resolution (max.) 1936 x 1458 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 51: Manta C-Mount dimensions (16 mm filter) on page 93)

ADC 14 bit

Pixel format GenICam:

Only monochrome: Mono8, Mono12Packed, Mono12
Only color: BayerRG8, BayerRG12Packed, BayerRG12, Mono8,

RGB8Packed, YUV411Packed, YUV422Packed, YUV444Packed,
BGR8Packed

Displayed with PvAPI as:

Only monochrome: Mono8, Mono12Packed, Mono16
Only color: Bayer8, Bayer12Packed, Mono8, RGB24, YUV411, YUV422,

YUV444, BGR24

Frame rates Up to 30 fps

Gain control Manual: 0-32 dB (1 dB/step); auto gain (select. ROI)

Exposure time 41 μs … 60 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 60 seconds in 1 μs increments

Fixed rate control 1 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Internal image memory 128 MByte, up to 47 frames

Table 14: Specification Manta G-282B/C

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

43

Smart functions Auto gain control, auto exposure control, binning (monochrome bin-

ning, also for color cameras; but no color binning), decimation (sub­sampling), config files (user sets); LUT
only color: auto white balance, color correction, hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical 3.5 watt (@ 12 V DC); PoE: typical  4.1 watt

(maximal frame rates at full resolution)

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 150 g (without lens, PoE and non-PoE camera)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 14: Specification Manta G-282B/C

Specifications

MANTA Technical Manual V6.0.1

44

Manta G-283B/C

Feature Specification

Sensor Type 2/3 (diag. 11.0 mm) progressive scan SONY IT CCD ICX674ALG/AQG

with EXview HAD II microlenses

Effective chip size 8.79 mm x 6.62 mm

Cell size 4.54 μm x 4.54 μm

Resolution (max.) 1936 x 1458 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm

ADC 14 bit

Pixel format GenICam:

Only monochrome: Mono8, Mono12Packed, Mono12
Only color: BayerRG8, BayerRG12Packed, BayerRG12, Mono8,

RGB8Packed, YUV411Packed, YUV422Packed, YUV444Packed,
BGR8Packed

Displayed with PvAPI as:

Only monochrome: Mono8, Mono12Packed, Mono16
Only color: Bayer8, Bayer12Packed, Mono8, RGB24, YUV411, YUV422,

YUV444, BGR24

Frame rates Up to 30 fps

Gain control Manual: 0-31 dB (1 dB/step); auto gain (select. ROI)

Exposure time 41 μs … 60 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 60 seconds in 1 μs increments

Fixed rate control 1 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Internal image memory 128 MByte, up to 47 frames

Table 15: Specification Manta G-283B/C

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

45

Smart functions Auto gain control, auto exposure control, binning (monochrome bin-

ning, also for color cameras; but no color binning), decimation (sub­sampling), config files (user sets), LUT
only color: auto white balance, color correction, hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical 3.7 watt (@ 12 V DC); PoE: typical  4.3 watt

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 150 g (without lens, PoE and non-PoE camera)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 15: Specification Manta G-283B/C

Specifications

MANTA Technical Manual V6.0.1

46

Manta G-504B/C

Feature Specification

Sensor Type 2/3 (diag. 11 mm) progressive scan SONY IT CCD ICX655AL/AQ with

Super HAD microlens

Effective chip size 8.5 mm x 7.1 mm

Cell size 3.45 μm x 3.45 μm

Resolution (max.) 2452 x 2056 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 39: Manta C-Mount dimensions (16 mm filter, type A) on page

81)

CS-Mount: 12.526 mm (in air); Ø 25.4 mm (32 tpi)
maximum protrusion: 5.1 mm
(see Figure 40: Manta CS-Mount dimensions (type A) on page 82)

ADC 14 bit

Pixel format GenICam:

Only monochrome: Mono8, Mono12Packed, Mono12
Only color: BayerGB8, BayerGB12Packed, BayerGB12, Mono8,

RGB8Packed, YUV411Packed, YUV422Packet, YUV444Packed,
BGR8Packed, RGBA8Packed, BGRA8Packed

Displayed with PvAPI as:

Only monochrome: Mono8, Mono12Packed, Mono16
Only color: Bayer8, Bayer12Packed, Bayer16, Mono8, RGB24, YUV411,

YUV422, YUV444, BGR24, RGBA32, BGRA32

Frame rates Up to 9 fps

Gain control Manual: 0-32 dB (1 dB/step); auto gain (select. ROI)

Exposure time 38 μs … 60 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 60 seconds in 1 μs increments

Fixed rate control 1 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Table 16: Specification Manta G-504B/C

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Specifications

MANTA Technical Manual V6.0.1

47

Internal image memory 32 MByte, up to 6 frames

Smart functions Auto gain control, auto exposure control, 32 MByte image memory,

binning (monochrome binning, also for color cameras; but no color
binning), decimation (sub-sampling), config files (user sets), LUT
only color: auto white balance, color correction, edge filter (sharpness),
hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical 3.9 watt (@ 12 V DC); PoE: typical 3.9 watt

(maximal frame rates at full resolution)

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 200 g (without lens)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 16: Specification Manta G-504B/C

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

48

Manta G-609B/C

Feature Specification

Sensor Type 1 (diag. 15.989 mm) progressive scan SONY IT CCD ICX694ALG/AQG

with EXview HAD II microlenses

Effective chip size 12.49 mm x 10.02 mm

Cell size 4.54 μm x 4.54 μm

Resolution (max.) 2752 x 2206 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 51: Manta C-Mount dimensions (16 mm filter) on page 93)

ADC 14 bit

Pixel format GenICam:

Only monochrome: Mono8, Mono12Packed, Mono12
Only color: BayerRG8, BayerRG12Packed, BayerRG12, Mono8,

RGB8Packed, YUV411Packed, YUV422Packed, YUV444Packed,
BGR8Packed

Displayed with PvAPI as:

Only monochrome: Mono8, Mono12Packed, Mono16
Only color: Bayer8, Bayer12Packed, Mono8, RGB24, YUV411, YUV422,

YUV444, BGR24

Frame rates Up to 15 fps

Gain control Manual: 0-33 dB (1 dB/step); auto gain (select. ROI)

Exposure time 41 μs … 38 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 19 seconds in 1 μs increments

Fixed rate control 0.026 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Internal image memory 128 MByte, up to 21 frames

Table 17: Specification Manta G-609B/C

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

49

Smart functions Auto gain control, auto exposure control, binning (monochrome bin-

ning, also for color cameras; but no color binning), decimation (sub­sampling), config files (user sets), LUT
only color: auto white balance, color correction, hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical 3.9 watt (@ 12 V DC); PoE: typical 4.6 watt

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 150 g (without lens, PoE and non-PoE camera)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 17: Specification Manta G-609B/C

Specifications

MANTA Technical Manual V6.0.1

50

Manta G-917B/C

Feature Specification

Sensor Type 1 (diag. 15.972 mm) progressive scan SONY IT CCD ICX814 ALG/AQG

with EXview HAD II microlenses

Effective chip size 12.5 mm x 10.0 mm

Cell size 3.69 μm x 3.69 μm

Resolution (max.) 3384 x 2710 pixels

Lens mount C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi)

maximum protrusion: 9.7 mm
(see Figure 51: Manta C-Mount dimensions (16 mm filter) on page 93)

ADC 14 bit

Pixel format GenICam:

Only monochrome: Mono8, Mono12Packed, Mono12
Only color: BayerRG8, BayerRG12Packed, BayerRG12, Mono8,

RGB8Packed, YUV411Packed, YUV422Packed, YUV444Packed,
BGR8Packed

Displayed with PvAPI as:

Only monochrome: Mono8, Mono12Packed, Mono16
Only color: Bayer8, Bayer12Packed, Mono8, RGB24, YUV411, YUV422,

YUV444, BGR24

Frame rates Up to 10 fps

Gain control Manual: 0-31 dB (1 dB/step); auto gain (select. ROI)

Exposure time 42 μs … 38 s; auto shutter (select. ROI)

External trigger event Rising edge, falling edge, any edge, level high, level low

External trigger delay 0 to 19 seconds in 1 μs increments

Fixed rate control 0,026 fps ... max. frame rate (steps of 0.1 fps)

Imaging modes Free-running, external trigger, fixed rate, software trigger

Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO

Internal image memory 128 MByte, up to 14 frames

Table 18: Specification Manta G-917B/C

Note



Maximum protrusion means the distance from lens flange to
the glass filter in the camera.

Note



The number of frames (StreamHoldCapacity) depends on resolu­tion and pixel format. Listed number of frames is typical for full
resolution and Mono8/Bayer8.

Specifications

MANTA Technical Manual V6.0.1

51

Smart functions Auto gain control, auto exposure control, binning (monochrome bin-

ning, also for color cameras; but no color binning), decimation (sub­sampling), config files (user sets), LUT
only color: auto white balance, color correction, hue, saturation

I/O Two configurable optocoupled inputs, two configurable optocoupled

outputs
RS232 port (serial port)

Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2)

Camera control interface GenICam V1.0 compliant

Power requirements DC 8 V - 30 V only via 12-pin HIROSE: external power supply needed

or
PoE models: compliant with Power over Ethernet IEEE 802.3at/af

Power consumption Typical 4 watt (@ 12 V DC); PoE: typical 4.6 watt

Dimensions 86.4 mm x 44 mm x 29 mm (L x W x H); incl. connectors, without tripod

and lens

Mass 150 g (without lens, PoE and non-PoE camera)

Operating temperature + 5 °C ... + 45 °C ambient temperature (without condensation)

Storage temperature - 10 °C ... + 70 °C ambient temperature (without condensation)

Regulations CE, FCC Class B, RoHS (2011/65/EU)

Standard accessories monochrome: protection glass

color: IR cut filter

Optional accessories monochrome: IR cut filter, IR pass filter

color: protection glass
Tripod adapter

On request Gigabit Ethernet network card, Gigabit Ethernet network cables

Software packages Free of charge, see http://www.alliedvisiontec.com/html

Feature Specification

Table 18: Specification Manta G-917B/C

Specifications

MANTA Technical Manual V6.0.1

52

Spectral sensitivity

Note



All measurements were done without protection glass /
without filter.

The uncertainty in measurement of the QE values is 10%.

This is due to:

• Manufacturing tolerance of the sensor

• Uncertainties in the measuring apparatus itself
(Ulbricht-Kugel/Ulbricht sphere, optometer, etc.)

The measurements for Manta G-145B NIR in Figure 14/15 were
done with a different method to illustrate the effect of the NIR
mode.

Specifications

MANTA Technical Manual V6.0.1

53

Figure 1: Spectral sensitivity of Manta G-031B

Figure 2: Spectral sensitivity of Manta G-031C (without IR cut filter)

30%

40%

50%

60%

m Efficiency

Sensor Response

Monochrome

0%

10%

20%

400 500 600 700 800 900 1000 1100

Quant

u

Wavelength [nm]

30%

40%

50%

60%

70%

m Efficiency

Sensor Response

Red Green Blue

0%

10%

20%

400 450 500 550 600 650 700 750

Quant

u

Wavelength [nm]

Specifications

MANTA Technical Manual V6.0.1

54

Figure 3: Spectral sensitivity of Manta G-032B

Figure 4: Spectral sensitivity of Manta G-032C (without IR cut filter)

Sensor Response

0%

10%

20%

30%

40%

50%

60%

400 500 600 700 800 900 1000 1100

Wavelength [nm]

Quantum Efficiency

Monochrome

Sensor Response

0%

5%

10%

15%

20%

25%

30%

35%

400 450 500 550 600 650 700 750

Wavelength [nm]

Quantum Efficiency

Red Green Blue

Specifications

MANTA Technical Manual V6.0.1

55

Figure 5: Spectral sensitivity of Manta G-033B

Figure 6: Spectral sensitivity of Manta G-033C (without IR cut filter)

Sensor Response

0%

5%

10%

15%

20%

25%

30%

35%

40%

45%

400 500 600 700 800 900 1000 1100

Wavelength [nm]

Quantum Efficiency

Monochrome

Sensor Response

0%

5%

10%

15%

20%

25%

30%

35%

400 450 500 550 600 650 700 750

Wavelength [nm]

Quantum Efficiency

Red Green Blue

Specifications

MANTA Technical Manual V6.0.1

56

Figure 7: Spectral sensitivity of Manta G-046B

Figure 8: Spectral sensitivity of Manta G-046C (without IR cut filter)

Sensor Response

0%

5%

10%

15%

20%

25%

30%

35%

40%

45%

400 500 600 700 800 900 1000 1100

Wavelength [nm]

Quantum Efficiency

Monochrome

Sensor Response

0%

5%

10%

15%

20%

25%

30%

35%

400 450 500 550 600 650 700 750

Wavelength [nm]

Quantum Efficiency

Red Green Blue

Specifications

MANTA Technical Manual V6.0.1

57

Note



Manta G-095 only as color camera available.

Figure 9: Spectral sensitivity of Manta G-095C (without IR cut filter)

30%

40%

50%

60%

m Efficiency

Sensor Response

Red Green Blue

0%

10%

20%

400 450 500 550 600 650 700 750

Quant

u

Wavelength [nm]

Specifications

MANTA Technical Manual V6.0.1

58

Figure 10: Spectral sensitivity of Manta G-125B

Figure 11: Spectral sensitivity of Manta G-125C (without IR cut filter)

Sensor Response

0%

10%

20%

30%

40%

50%

60%

400 500 600 700 800 900 1000 1100

Wavelength [nm]

Quantum Efficiency

Monochrome

Sensor Response

0%

5%

10%

15%

20%

25%

30%

35%

40%

45%

50%

400 450 500 550 600 650 700 750

Wavelength [nm]

Quantum Efficiency

Red Green Blue

Specifications

MANTA Technical Manual V6.0.1

59

Figure 12: Spectral sensitivity of Manta G-145B

Figure 13: Spectral sensitivity of Manta G-145C (without IR cut filter)

Sensor Response

0%

10%

20%

30%

40%

50%

60%

400 500 600 700 800 900 1000 1100

Wavelength [nm]

Quantum Efficiency

Monochrome

Sensor Response

0%

5%

10%

15%

20%

25%

30%

35%

40%

45%

50%

400 450 500 550 600 650 700 750

Wavelength [nm]

Quantum Efficiency

Red Green Blue

Specifications

MANTA Technical Manual V6.0.1

60

Figure 14: Spectral sensitivity of Manta G-145B NIR (NirMode=On_Fast or On_HighQuality)

compared to Manta G-145B

Figure 15: Increase of relative response for Manta G-145B NIR with NIR mode set to On_HighQuality

0,5

0,6

0,7

0,8

0,9

1,0

ive response

Manta G-145B NIR:

Sensor response comparison

Manta G-145B

Manta G-145B NIR

0,0

0,1

0,2

0,3

0,4

350 400 450 500 550 600 650 700 750 800 850 900 950

Rela

t

Wavelength [nm]

2,0

2,5

3,0

3,5

4,0

ease factor

NIR mode:

Increase of relative response

regression curve

0,0

0,5

1,0

1,5

350 400 450 500 550 600 650 700 750 800 850 900 950

Inc

r

Wavelength [nm]

Specifications

MANTA Technical Manual V6.0.1

61

Figure 16: Spectral sensitivity of Manta G-146B

Figure 17: Spectral sensitivity of Manta G-146C (without IR cut filter)

Sensor Response

0%

5%

10%

15%

20%

25%

30%

35%

40%

45%

50%

400 500 600 700 800 900 1000 1100

Wavelength [nm]

Quantum Efficiency

Monochrome

Sensor Response

0%

5%

10%

15%

20%

25%

30%

400 450 500 550 600 650 700 750

Wavelength [nm]

Quantum Efficiency

Red Green Blue

Specifications

MANTA Technical Manual V6.0.1

62

Figure 18: Spectral sensitivity of Manta G-201B

Figure 19: Spectral sensitivity of Manta G-201C (without IR cut filter)

Sensor Response

0%

10%

20%

30%

40%

50%

60%

400 500 600 700 800 900 1000 1100

Wavelength [nm]

Quantum Efficiency

Monochrome

Sensor Response

0%

5%

10%

15%

20%

25%

30%

35%

400 450 500 550 600 650 700 750

Wavelength [nm]

Quantum Efficiency

Red Green Blue

Specifications

MANTA Technical Manual V6.0.1

63

Figure 20: Spectral sensitivity of Manta G-223B (NIR)

Figure 21: Spectral sensitivity of Manta G-223C (without IR cut filter)

0

10

20

30

40

50

60

400 500 600 700 800 900 1000 1100

Quantum Efficiency [%]

Wavelength [nm]

monochrome monochromeNIR

0

5

10

15

20

25

30

35

40

45

50

300 400 500 600 700 800 900 1000 1100

Quantum Efficiency [%]

Wavelength [nm]

Red Green Blue

Specifications

MANTA Technical Manual V6.0.1

64

Figure 22: Spectral sensitivity of Manta G-282B

Figure 23: Spectral sensitivity of Manta G-282C (without IR cut filter)

0

0,1

0,2

0,3

0,4

0,5

0,6

0,7

4005006007008009001000

Absolute Quantum Efficiency

Wavelength [nm]

0

0,05

0,1

0,15

0,2

0,25

0,3

0,35

0,4

0,45

0,5

400450500550600650700

Absolute Quantum Efficiency

Wavelength [nm]

Red Green Blue

Specifications

MANTA Technical Manual V6.0.1

65

Figure 24: Spectral sensitivity of Manta G-283B

Figure 25: Spectral sensitivity of Manta G-283C (without IR cut filter)

0%

10%

20%

30%

40%

50%

60%

70%

400 500 600 700 800 900 1000

Quantum Efficiency

Wavelength [nm]

0%

10%

20%

30%

40%

50%

60%

400 450 500 550 600 650 700

Quantum Efficiency

Wavelength [nm]

Red Green Blue

Specifications

MANTA Technical Manual V6.0.1

66

Figure 26: Spectral sensitivity of Manta G-504B

Figure 27: Spectral sensitivity of Manta G-504C (without IR cut filter)

Sensor Response

0%

10%

20%

30%

40%

50%

60%

400 500 600 700 800 900 1000 1100

Wavelength [nm]

Quantum Efficiency

Monochrome

Sensor Response

0%

5%

10%

15%

20%

25%

30%

35%

40%

45%

400 450 500 550 600 650 700 750

Wavelength [nm]

Quantum Efficiency

Red Green Blue

Specifications

MANTA Technical Manual V6.0.1

67

Figure 28: Spectral sensitivity of Manta G-609B

Figure 29: Spectral sensitivity of Manta G-609C (without IR cut filter)

0%

10%

20%

30%

40%

50%

60%

70%

400 500 600 700 800 900 1000

Quantum Efficiency

Wavelength [nm]

0%

10%

20%

30%

40%

50%

60%

70%

80%

400 450 500 550 600 650 700

Quantum Efficiency

Wavelength [nm]

Red Green Blue

Specifications

MANTA Technical Manual V6.0.1

68

Figure 30: Spectral sensitivity of Manta G-917B

Figure 31: Spectral sensitivity of Manta G-917C (without IR cut filter)

0

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,9

1

400 500 600 700 800 900 1000

Absolute Quantum Efficiency

Wavelength [nm]

0

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,9

1

400 450 500 550 600 650 700

Absolute Quantum Efficiency

Wavelength [nm]

Red Green Blue

Filter and lenses

MANTA Technical Manual V6.0.1

69

Filter and lenses

• Monochrome cameras are equipped with protection glass.

• Color cameras are equipped with IR cut filter.

IR cut filter: spectral transmission

The following illustration shows the spectral transmission of the IR cut filter:

Figure 32: Approximate spectral transmission of IR cut filter (may vary slightly by filter lot)

(type Hoya C5000)

Filter and lenses

MANTA Technical Manual V6.0.1

70

Camera lenses

AVT offers different lenses from a variety of manufacturers.

The following table lists selected image formats in width x height depending
on camera type, distance and the focal length of the lens.

www



For more information go to:

http://www.alliedvisiontec.com/emea/products/
accessories/lenses.html

Here you find suitable lenses for AVT camera families and
models.

Note



Lenses with focal lengths < 8 mm may show shading in the
edges of the image due to microlenses on the sensor's pixel.

Ask your dealer if you require non C-Mount lenses.

Focal length
for type 1/4 sensors
Manta G-031

Distance = 500 mm Distance = 1000 mm

2.8 mm 655 mm x 490 mm 1314 mm x 983 mm

4 mm 458 mm x 342 mm 919 mm x 687 mm

6 mm 304 mm x 227 mm 611 mm x 457 mm

8 mm 227 mm x 170 mm 458 mm x 342 mm

12 mm 150 mm x 112 mm 304 mm x 227 mm

16 mm 112 mm x 83 mm 227 mm x 170 mm

25 mm 70 mm x 52 mm 114 mm x 108 mm

Table 19: Focal length vs. field of view (Manta G-031)

Filter and lenses

MANTA Technical Manual V6.0.1

71

Focal length
for type 1/3 sensors
Manta G-032/095/125

Distance = 500 mm Distance = 1000 mm

4.0 mm 595 mm x 446 mm 1195 mm x 896 mm

4.8 mm 495 mm x 371 mm 995 mm x 746 mm

8 mm 295 mm x 221 mm 595 mm x 446 mm

12 mm 195 mm x 146 mm 395 mm x 296 mm

16 mm 145 mm x 109 mm 295 mm x 221 mm

25 mm 91 mm x 68 mm 187 mm x 140 mm

35 mm 64 mm x 48 mm 132 mm x 99 mm

Table 20: Focal length vs. field of view (Manta G-032/095/125)

Focal length
for type 1/2 sensors
Manta G-033/046/146

Distance = 500 mm Distance = 1000 mm

4.8 mm 660 mm x 495 mm 1327 mm x 995 mm

8 mm 394 mm x 295 mm 794 mm x 595 mm

12 mm 260 mm x 195 mm 527 mm x 395 mm

16 mm 194 mm x 145 mm 394 mm x 295 mm

25 mm 122 mm x 91 mm 250 mm x 187 mm

35 mm 85 mm x 64 mm 176 mm x 132 mm

50 mm 58 mm x 43 mm 122 mm x 91 mm

Table 21: Focal length vs. field of view (Manta G-033/046/146)

Filter and lenses

MANTA Technical Manual V6.0.1

72

Focal length
for type 1/1.8 sensors
Manta G-201

Distance = 500 mm Distance = 1000 mm

4.8 mm 740 mm x 549 mm 1488 mm x 1103 mm

8 mm 441 mm x 327 mm 890 mm x 660 mm

12 mm 292 mm x 216 mm 591 mm x 438 mm

16 mm 217 mm x 161 mm 441 mm x 327 mm

25 mm 136 mm x 101 mm 280 mm x 207 mm

35 mm 95 mm x 71 mm 198 mm x 147 mm

50 mm 65 mm x 48 mm 136 mm x 101 mm

Table 22: Focal length vs. field of view (Manta G-201)

Focal length
for type 1/1.8 sensors
Manta G-282

Distance = 500 mm Distance = 1000 mm

4.8 mm 737 mm x 555 mm 1480 mm x 1115 mm

6 mm 588 mm x 443 mm 1183 mm x 891 mm

6.5 mm 542 mm x 408 mm 1091 mm x 822 mm

8 mm 439 mm x 331 mm 885 mm x 667 mm

10 mm 350 mm x 264 mm 707 mm x 533 mm

12 mm 290 mm x 219 mm 588 mm x 443 mm

16 mm 216 mm x 163 mm 439 mm x 331 mm

25 mm 136 mm x 102 mm 278 mm x 210 mm

35 mm 95 mm x 71 mm 197 mm x 148 mm

50 mm 64 mm x 48 mm 136 mm x 102 mm

75 mm 40 mm x 30 mm 88 mm x 66 mm

90 mm 33 mm x 25 mm 72 mm x 54 mm

Table 23: Focal length vs. field of view (Manta G-282)

Filter and lenses

MANTA Technical Manual V6.0.1

73

Focal length
for type 2/3 sensors
Manta G-145/504

Distance = 500 mm Distance = 1000 mm

4.8 mm 908 mm x 681 mm 1825 mm x 1368 mm

8 mm 541 mm x 406 mm 1091 mm x 818 mm

12 mm 358 mm x 268 mm 725 mm x 543 mm

16 mm 266 mm x 200 mm 541 mm x 406 mm

25 mm 167 mm x 125 mm 343 mm x 257 mm

35 mm 117 mm x 88 mm 243 mm x 182 mm

50 mm 79 mm x 59 mm 167 mm x 125 mm

Table 24: Focal length vs. field of view (Manta G-145/504)

Focal length
for type 2/3 sensors
Manta G-223/283

Distance = 500 mm Distance = 1000 mm

4.8 mm 907 mm x 683 mm 1822 mm x 1373 mm

6 mm 724 mm x 545 mm 1456 mm x 1097 mm

6.5 mm 667 mm x 503 mm 1344 mm x 1012 mm

8 mm 541 mm x 407 mm 1090 mm x 821 mm

10 mm 431 mm x 324 mm 870 mm x 655 mm

12 mm 357 mm x 269 mm 724 mm x 545 mm

16 mm 266 mm x 200 mm 541 mm x 407 mm

25 mm 167 mm x 126 mm 343 mm x 258 mm

35 mm 117 mm x 88 mm 242 mm x 183 mm

50 mm 79 mm x 60 mm 167 mm x 126 mm

75 mm 50 mm x 38 mm 108 mm x 82 mm

90 mm 40 mm x 30 mm 89 mm x 67 mm

Table 25: Focal length vs. field of view (Manta G-223/283)

Filter and lenses

MANTA Technical Manual V6.0.1

74

Focal length
for type 1 sensors
for Manta G-609/917

Distance = 500 mm Distance = 1000 mm

8 mm 768 mm x 616 mm 1549 mm x 1242 mm

10 mm 612 mm x 491 mm 1237 mm x 992 mm

12 mm 508 mm x 407 mm 1028 mm x 825 mm

16 mm 378 mm x 303 mm 768 mm x 616 mm

25 mm 237 mm x 190 mm 487 mm x 391 mm

35 mm 166 mm x 133 mm 344 mm x 276 mm

50 mm 112 mm x 90 mm 237 mm x 190 mm

75 mm 71 mm x 57 mm 154 mm x 124 mm

90 mm 57 mm x 46 mm 126 mm x 101 mm

Table 26: Focal length vs. field of view (Manta G-609/917)

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

75

Camera dimensions (type A)

Tripod adapter

This five hole tripod adapter (AVT order number 5153) ...

• ... can be used for Manta cameras (type A and type B).

• ... is only designed for standard housings.

Note



Manta type A cameras have different housings than Manta
type B cameras.

Manta type A cameras: G-031 / 032 / 033 / 046 / 095 / 125 /

145 / 146 / 201 / 504

Manta type B cameras: G-223 / 282 / 283 / 609 / 917, see

Chapter Camera dimensions (type B) on page 91

Note



For information on sensor position accuracy:

(sensor shift x/y, optical back focal length z and sensor rota­tion ) see Chapter Sensor position accuracy of AVT Manta cam-

eras on page 135.

Body size: 70 mm x 32 mm x 10 mm (L x W x H)

Figure 33: Tripod dimensions

0

15.5

28

40.5

UNC 1/4-20, 6 mm thread depth

70

26

62.4

16

32

3.4 (4x)

M6, 5 mm thread depth (2x)

10

5

Tripod-Adapter
70 x 32 x 10 (L x W x H)

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

76

MANTA standard housing (type A)

Figure 34: Camera dimensions standard housing type A

G-031 / 032 / 033 / 046 / 095 / 125 / 145 / 146 / 201 / 504

2

9

44

2

7

.

5

Ø

9.1

80.1

86.4

13.450

2

6

1

3

2

6

C-Mount

9

62.4

9

71

1

5

.

1

22

20

1

5

.

8

1

0

1

0

10.5

12

M3 - 3Z (7x)

M3 - 3Z (4x)

M2 - 4.5Z (4x)

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

77

Manta standard angled-head housings (type A)

Manta W90

This version has the sensor tilted by 90 degrees clockwise, so that it views
upwards.

Figure 35: Manta W90 (type A)

Manta W90 (1x GigE)

105.9 x 44 x 38 (L x W x H)

10.5

1

5

.

1

1

5

.

8

22

20

/

2 - 4.5Z (4x)

69.1

9

.

1

-

0

.

0

0

.

3
+

P

27.5

2

6

32.8 50

62.5

1

3

M3 - 3Z (7x)

99.6

105.9

44

2

9

3

8

1

3

.

4

-

0

.

0

0

.

3
+

M3 - 3Z (4x)

1

0

1

0

Stand vom 21.01.2013

Maßstab 1:1

C-Mount

Manta W90

105.9 x 44 x 38

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

78

Manta W90 S90

This version has the sensor tilted by 90 degrees clockwise, so that it views
upwards.

The sensor is also rotated by 90 degrees clockwise.

Figure 36: Manta W90 S90 (type A)

Manta W90S90 (1x GigE)

120.9 x 44 x 41.5 (L x W x H)

10.5

1

5

.

1

1

5

.

8

22

20

/

2 - 4.5Z (4x)

69.1

1

3

.

4

-

0

.

0

0

.

3
+

120.9

4

1

.

5

9

.

1

-

0

.

0

0

.

3
+

114.6

47.8 50

62.5

2

9

P

27.5

M3 - 3Z (4x)

M3 - 3Z (7x)

1

3

2

6

C-Mount

Stand vom 21.01.2013

Maßstab 1:1

1

0

1

0

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

79

Manta W270

This version has the sensor tilted by 270 degrees clockwise, so that it views
downwards.

Figure 37: Manta W270 (type A)

Manta W270 (1x GigE)

105.9 x 44 x 38 (L x W x H)

10.5

1

5

.

1

1

5

.

8

22

20

/

2 - 4.5Z (4x)

69.1

9

.

1

-

0

.

0

0

.

3
+

P

27.5

32.8 50

62.5

1

3

99.6

105.9

44

2

9

3

8

1

3

.

4

-

0

.

0

0

.

3
+

M3 - 3Z (7x)

2

6

M3 - 3Z (4x)

Stand vom 21.01.2013

Maßstab 1:1

1

0

1

0

C-Mount

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

80

Manta W270 S90

This version has the sensor tilted by 270 degrees clockwise, so that it views
downwards.

The sensor is also rotated by 90 degrees clockwise.

Figure 38: Manta W270 S90 (type A)

Manta W270S90 (1x GigE)

120.9 x 44 x 41.5 (L x W x H)

10.5

1

5

.

1

1

5

.

8

22

20

/

2 - 4.5Z (4x)

69.1

1

3

.

4

-

0

.

0

0

.

3
+

P

27.5

120.9

4

1

.

5

9

.

1

-

0

.

0

0

.

3
+

47.8 50

62.5

1

3

2

6

2

9

44

114.6

M3 - 3Z (4x)

M3 - 3Z (7x)

Stand vom 21.01.2013

Maßstab 1:1

1

0

1

0

C-Mount

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

81

Cross section: C-Mount (type A cameras)

• All monochrome Manta cameras are equipped with a protection glass.

• All color Manta cameras are equipped with the same IR cut filter.

Figure 39: Manta C-Mount dimensions (16 mm filter, type A)



maximum
protrusion:

9.7

C-Mount

adjustment spacer

Ø

1

6

filter /
protection glass

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

82

Cross section: CS-Mount (type A)

Choose protection glass or filter according to the
AVT Modular Camera Concept.

http://www.alliedvisiontec.com/emea/support/downloads/product-literature.html

Adjustment of the CS-Mount

The dimensional adjustment cannot be done by the customer. All modifications
have to be done by the AVT factory.

If you need any modifications, please contact Customer Care: For phone
numbers and e-mail:
See Chapter Contacting Allied Vision Technologies on page 6.

Figure 40: Manta CS-Mount dimensions (type A)



adjustment spacer

filter /
protection glass

5.1

maximum
protrusion

1

6
Ø

CS-Mount

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

83

Manta standard board level variants (type A)

Manta board level (non-PoE): dimensions

Note



Only type A Manta cameras are available as board level ver­sion.

Figure 41: Manta board level (non-PoE) dimensions

FFC45 cable length:

-----------------------------

FFC45 L = 56 mm K7500307
FFC45 L = 110 mm K7500318
FFC45 L = 152 mm 1817
FFC45 L = 200 mm 1824

7 = GND (for Inputs)
8 = RxD 9 = TxD
10 = Power Input
(for Output ports)

11 = Input 2
12 = Output 2
13 = Chass

is GND

13-pole I/O connector:

Molex PicoBlade
Vertical Header 53047-1310
Receptacle Housing 51021-1300
Crimp Terminal 13 x 50079-8000

6

.

4

11.9

sensor board

FFC45 cable

2.25

2

.

2

5

2.25

2

.

2

5

2

4

.

3

7

.

8

1

6

.

3

1

2

13-pole connector (53047-1310)

13-pole screw terminal

2

3

6

24

6

12

1 = GND
(for RS232, Ext PWR)
2 = Ext PWR input
3 = Video Type Auto Iris Out
4 = Input 1
5 = not used
6 = Output 1

spacer M2x5 (4x)

cooling plate

17

4

4

P

2

7

.

5

2

9

9.1

55.6

50.2

51.2

4

.

1

main board

GigE connector

Pixel 1,1

Sensor - Pin1

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

84

Manta board level (PoE): dimensions

Figure 42: Manta board level (PoE) dimensions

FFC45 cable length:

-----------------------------

FFC45 L = 56 mm K7500307
FFC45 L = 110 mm K7500318
FFC45 L = 152 mm 1817
FFC45 L = 200 mm 1824

7 = GND (for Inputs)
8 = RxD 9 = TxD
10 = Power Input
(for Output ports)
11 = Input 2
12 = Output 2
13 = Chassis GND

13-pole I/O connector:

Molex PicoBlade
Vertical Header 53047-1310
Receptacle Housing 51021-1300

Crimp Terminal 13 x 50079-8000

1 = GND
(for RS232, Ext PWR)
2 = Ext PWR input
3 = Video Type Auto Iris Out
4 = Input 1
5 = not used
6 = Output 1

24

3

6

6

12

2

2

.

2

5

2.25

4

4

50.3

17

53.5

55.6

2.25

2

.

2

5

2

1

.

7

1

7

.

4

1

3

.

2

2

9

.

7

6

.

5

4

11.9

2

9

2

7

.

5

Ø

9.1

cooling plate

GigE connector

13-pole connector (53047-1310)

13-pole screw terminal

FFC45 cable

sensor board

spacer M2x5 (4x)

main board

PoE Adapter Board

Pixel 1,1

Sensor - Pin1

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

85

Manta board level (non-PoE): C-Mount

The dimensional adjustment cannot be done by the customer. All adjustments
have to be done by the AVT factory.

Figure 43: Manta board level (non-PoE): C-Mount

Note



If you need any adjustments, please contact Customer Care:
For phone numbers and e-mail:
See Chapter Contacting Allied Vision Technologies on page 6.

Manta board level version: C-Mou

front flange

M2x12 ISO4762 (2x)

spacer M2x5 (4x)

M2x4 ISO4762-A2 (2x)

spacer 6.3 mm (2x)

M2x4 ISO7046-A2 (4x)

filter ring with filter
or protection glass

M2x8 ISO4762 (4x)

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

86

Manta board level (PoE): C-Mount

The dimensional adjustment cannot be done by the customer. All adjustments
have to be done by the AVT factory.

Figure 44: Manta board level (PoE): C-Mount

Note



If you need any adjustments, please contact Customer Care:
For phone numbers and e-mail:
See Chapter Contacting Allied Vision Technologies on page 6.

M2x16 ISO4762 (2x)

M2x10 ISO4762 (2x)

spacer 6.3 mm (2x)

spacer M2x5 (4x)

M2x3 ISO7046 (4x)

M2x8 ISO4762 (4x)

front flange

filter ring with filter
or protection glass

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

87

Manta board level (non-PoE): CS-Mount

The dimensional adjustment cannot be done by the customer. All adjustments
have to be done by the AVT factory.

Figure 45: Manta board level (non-PoE): CS-Mount

Note



If you need any adjustments, please contact Customer Care:
For phone numbers and e-mail:
See Chapter Contacting Allied Vision Technologies on page 6.

filter ring with filter
or protection glass

front flange

M2x8 ISO4762 (4x)

M2x12 ISO4762 (2x)

spacer M2x5 (4x)

M2x4 ISO4762-A2 (2x)

spacer 6.3 mm (2x)

M2x4 ISO7046-A2 (4x)

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

88

Manta board level (PoE): CS-Mount

The dimensional adjustment cannot be done by the customer. All adjustments
have to be done by the AVT factory.

Figure 46: Manta board level (PoE): CS-Mount

Note



If you need any adjustments, please contact Customer Care:
For phone numbers and e-mail:
See Chapter Contacting Allied Vision Technologies on page 6.

M2x16 ISO4762 (2x)

M2x10 ISO4762 (2x)

spacer 6.3 mm (2x)

spacer M2x5 (4x)

M2x3 ISO7046 (4x)

M2x8 ISO4762 (4x)

front flange

filter ring with filter

or protection glass

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

89

Manta board level (non-PoE): M12-Mount

The dimensional adjustment cannot be done by the customer (depending on
application). All adjustments have to be done by the AVT factory.

Figure 47: Manta board level (non-PoE): M12-Mount

Note



If you need any adjustments, please contact Customer Care:
For phone numbers and e-mail:
See Chapter Contacting Allied Vision Technologies on page 6.

Manta board level version: M12-Mount

front flange *

M2x12 ISO4762 (2x)

spacer M2x5 (4x)

M2x4 ISO4762-A2 (2x)

spacer 6.3 mm (2x)

* depending on application

M2x4 ISO7046-A2 (4x)

filter ring with filter

or protection glass *

M12 mount *

locking ring *

M2x8 ISO4762 (4x)

Camera dimensions (type A)

MANTA Technical Manual V6.0.1

90

Manta board level (PoE): M12-Mount

The dimensional adjustment cannot be done by the customer (depending on
application). All adjustments have to be done by the AVT factory.

Figure 48: Manta board level (PoE): M12-Mount

Note



If you need any adjustments, please contact Customer Care:
For phone numbers and e-mail:
See Chapter Contacting Allied Vision Technologies on page 6.

M2x16 ISO4762 (2x)

M2x10 ISO4762 (2x)

spacer 6.3 mm (2x)

spacer M2x5 (4x)

M2x3 ISO7046 (4x)

M2x8 ISO4762 (4x)

front flange *

filter ring with filter

or protection glass *

* depending on application

M12 mount *

locking ring *

Camera dimensions (type B)

MANTA Technical Manual V6.0.1

91

Camera dimensions (type B)

Tripod adapter

This five hole tripod adapter (AVT order number 5153) ...

• ... can be used for Manta cameras (type A and type B).

• ... is only designed for standard housings.

Note



Manta type A cameras have different housings than Manta
type B cameras.

Manta type A cameras: G-031 / 032 / 033 / 046 / 095 / 125 /

145 / 146 / 201 / 504, see Chapter Camera dimensions (type A)

on page 75

Manta type B cameras: G-223 / 282 / 283 / 609 / 917

Note



For information on sensor position accuracy:

(sensor shift x/y, optical back focal length z and sensor rota­tion ) see Chapter Sensor position accuracy of AVT Manta cam-

eras on page 135.

Body size: 70 mm x 32 mm x 10 mm (L x W x H)

Figure 49: Tripod dimensions

0

15.5

28

40.5

UNC 1/4-20, 6 mm thread depth

70

26

62.4

16

32

3.4 (4x)

M6, 5 mm thread depth (2x)

10

5

Tripod-Adapter
70 x 32 x 10 (L x W x H)

Camera dimensions (type B)

MANTA Technical Manual V6.0.1

92

Manta standard housing (type B)

Figure 50: Camera dimensions type B

G-223 / 282 / 283 / 609 / 917

20

9.5

14.5

19.3

17.6

9.1 71

27.5

29

44

C-Mount

9

62.4

9

M3x3 (4x)

26

26

13.4

86.4

80.1

M3x3 (4x)

Camera dimensions (type B)

MANTA Technical Manual V6.0.1

93

Cross section: C-Mount (type B)

Adjustment of the C-Mount

The dimensional adjustment cannot be done by the customer. All modifications
have to be done by the AVT factory.

If you need any modifications, please contact Customer Care: For phone
numbers and e-mail:
See Chapter Contacting Allied Vision Technologies on page 6.

Figure 51: Manta C-Mount dimensions (16 mm filter)







ILOWHUSURWHFWLRQJODVV

DGMXVWPHQWVSDFHU

PD[LPXP
SURWUXVLRQ





&0RXQW

Camera dimensions (type B)

MANTA Technical Manual V6.0.1

94

Cross section: C-Mount (type B)

Adjustment of the C-Mount

The dimensional adjustment cannot be done by the customer. All modifications
have to be done by the AVT factory.

If you need any modifications, please contact Customer Care: For phone
numbers and e-mail:
See Chapter Contacting Allied Vision Technologies on page 6.

Figure 52: Manta C-Mount dimensions (22 mm filter)







ILOWHUSURWHFWLRQJODVV

&0RXQW

DGMXVWPHQWVSDFHU

PD[LPXP

SURWUXVLRQ





Camera interfaces

MANTA Technical Manual V6.0.1

95

Camera interfaces

This chapter gives you information on Gigabit Ethernet port, inputs and outputs
and trigger features.

Note



For a detailed description of the camera interfaces
(GigE, I/O connector, status LEDs), and operating instruc­tions read the Installation Guide, Chapter Camera inter-

faces.

Read all Notes and Cautions in the Installation Guide before
using any interfaces.

http://www.alliedvisiontec.com/emea/support/downloads/
product-literature/hardware-installation-guide.html

www



For accessories like cables see:

http://www.alliedvisiontec.com/emea/products/
accessories/gige-accessories.html

Camera interfaces

MANTA Technical Manual V6.0.1

96

Gigabit Ethernet port

The Gigabit Ethernet port conforms to the IEEE 802.3 1000BASE-T standard for
Gigabit Ethernet over copper. We recommend using Category 5e or Category 6
compatible cabling and connectors for best performance.

Note



• Cable lengths up to 100 m are supported.

• The 8-pin RJ-45 jack has the pin assignment according to
the Ethernet standard (IEEE 802.3 1000BASE-T).

• For cameras that are PoE capable, the GigE connector can
be used to provide power to the camera.

•Manta PoE models can source power
– from 802.3af (1000 MBit/s) and
– from 802.3at compliant PSE devices (Power Sourcing

Equipment): such as switches injectors or NICs.

• If both interfaces are used for power (I/O and GigE con­nector via PoE), the camera will only use the power from
the I/O connector.

Same main board for all Manta models

From serial number 503323258 on all Manta models incl. PoE
and board level versions contain the same main board.

PoE and non PoE

• How can I distinguish between PoE capable cameras and
cameras that are not PoE capable?

– PoE capable cameras have the letters PoE written on

the camera‘s label on the back side and the bottom
side of the camera.

Accessories

• Cables are available from AVT:

http://www.alliedvisiontec.com/emea/products/
accessories/gige-accessories.html

• Ask your local dealer for more details.

Camera interfaces

MANTA Technical Manual V6.0.1

97

Camera I/O connector pin assignment (incl. PoE)

Note



From serial number 503323258 on all Manta models incl. PoE
and board level versions contain the same main board:

• All I/O circuits have the same properties.

•For Manta models with older serial number:

use the Manta Technical Manual V4.1.0 (Manta_Tech­Man_V4.1.0_en.pdf).

Figure 53: Camera I/O connector pin assignment

Note



For a detailed description of the I/O connector and its
operating instructions see the Installation Guide, Chapter

MANTA input description.
Read all Notes and Cautions in the Installation Guide before

using the I/O connector.

1

102

9

8

7612113

4

5

Pin Signal Direction Level Description

1 Camera GND --- GND for RS232 and

ext. power

Ground for camera power
supply and RS232

2 Camera Power --- +8 ... +30 V DC Camera power supply

3Video Type

Auto Iris Out

--- --- Video type auto iris
( FW 1.44)

4In 1 In Standard and PoE cameras:

U

in

(high) = 3.0 V...24.0 V
up to 36 V with external
resistor of 3.3 k in series
U

in

(low) = 0 V...1.0 V

Input 1

5 --- --- --- ---

6 Out 1 Out Open emitter,

max. 10 mA

Output 1

7 Isolated IO

GND

In/Out Common GND for In/Out Isolated input and output

signal ground

8 RxD RS232 In RS232 Terminal Receive Data

9 TxD RS232 Out RS232 Terminal Transmit Data

10 Isolated Out

Power

In Common VCC for outputs

max. 30 V DC

Power input
for opto-isolated outputs

11 In 2 In Standard and PoE cameras:

U

in

(high) = 3.0 V...24.0 V
Uin(low) = 0 V...1.0 V

Input 2

12 Out 2 Out Open emitter,

max. 10 mA

Output 2

Camera interfaces

MANTA Technical Manual V6.0.1

98

Video iris output description

Manta cameras provide built-in video type auto-iris controls.

Caution



Damage to the lens

The following schematic uses CAMERA POWER to power the
video iris lens and assumes CAMERA POWER = 12 V. Most video
iris lenses operate at a 8–16 V input voltage. Therefore, this
circuit is not appropriate if using a 24 V camera power supply.
Doing so may irreparably damage your lens. Please consult
your video iris lens specifications for the appropriate drive
voltage.

Figure 54: Manta video iris schematic

12 V POWER

CAMERA GND

CAMERA POWER

CAMERA GND

1
2
3
4

VIDEO SIGNAL

LENS POWER

LENS GROUND

JEITA CONNECTOR

1

2

3

4

5

6

7

8

9

10

12

HIROSE HR10A-10P-12S

1
2
3
4
5
6
7
8

9
10
11
12

CABLE SIDE

11

Camera interfaces

MANTA Technical Manual V6.0.1

99

Control signals

The inputs and outputs of the camera can be configured by software. The differ­ent modes are described below.

Inputs

Input/output pin control

All input and output signals running over the camera I/O connector are con­trolled by the I/O strobe commands. See AVT Manta Camera Controls.

Outputs

Output features are configured by software. Any signal can be placed on any
output. The main features of output signals are described below:

Note



For a general description of the inputs and warnings see the
Installation Guide, Chapter MANTA input description.

Figure 55: Input block diagram

Note



For a general description of the outputs and warnings see the
Installation Guide, Chapter MANTA output description.

Polarity

selectable

via software

Input state

Input signal

Opto-

Coupler

LP filter

Camera interfaces

MANTA Technical Manual V6.0.1

100

Signal Description

GPO Configured to be a general purpose output, control of which is

assigned to SyncOutGpoLevels

AcquisitionTriggerReady Active once the camera has been recognized by the host PC and is

ready to start acquisition.

FrameTriggerReady Active when the camera is in a state that will accept the next

frame trigger.

FrameTrigger Active when an image has been initiated to start. This is a logic

trigger internal to the camera, which is initiated by an external
trigger or software trigger event.

Exposing Exposing – active for the duration of sensor exposure.

FrameReadout Active at during frame readout, i.e. the transferring of image

data from the CCD to camera memory.

Imaging Imaging is high when the camera image sensor is either exposing

and/or reading out data.

Acquiring Active during an acquisition stream.

SyncIn1 Active when there is an external trigger at SyncIn1

SyncIn2 Active when there is an external trigger at SyncIn2

Strobe1 The output signal is controlled according to Strobe1 settings.

Table 27: Output signals

Figure 56: Output block diagram

GPO

Output signal

Opto-

Coupler

Polarity

selectable

via software

Read from

software

Output

mode

selectable

via software

AcquisitionTriggerReady

FrameTriggerReady

FrameTrigger

Exposing

FrameReadout

Acquiring

SyncIn1

SyncIn2

Strobe1
