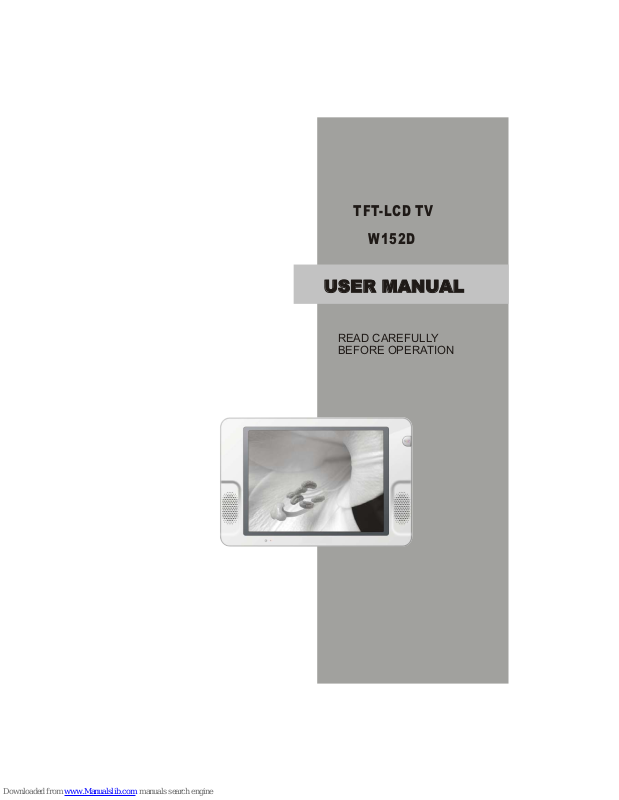

Avtex W152D, W152T User Manual

TFT-LCD TV

READ CAREFULLY BEFORE OPERATION

USER MANUAL

W152D

Before connecting the AC power cord to the DC adapter outlet ,make sure the voltage designation of the LCD TV corresponds to the local electrical supply .

If you are unsure of your power supply , ask your local power company .

Never insert anything metallic into the cabinet openings of the liquid crystal display (LCD)TV/monitor;otherwise it may create the danger of electric shock.

To avoid electric shock, Never touch the inside of the LCD TV/monitor and adapter. Only a qualified technician should open the case of the LCD TV/ monitor/adapter.

Never use your LCD TV/monitor/adapter if the power cord has been damaged . Do not allow anything to rest on the power cord, and keep the cord away from place where people can trip over it .

Be sure to hold the plug, not the cord, when disconnecting the adapter from an electric socket.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

TO PREVENT ELECTRICAL SHOCK.

DO NOT REMOVE THIS COVER. NO

USER- SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

This symbol indicates

dangerous voltage inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

Please read this manual carefully before using this product.

IMPORTANT SAFETY INSTRUCTIONS

Openings in the LCD TV/monitor/adapter cabinet are provided for ventilation. To prevent overheating, these openings should not be blocked or covered. Also, avoid using the LCD TV/monitor on a bed ,sofa ,rug, or other soft surface. Doing so may block the ventilation openings in the bottom of the cabinet. If you put the LCD TV/monitor in a bookcase or some other enclosed space, be sure to provide adequate ventilation.

Do not expose the LCD TV/monitor to extreme temperature conditions or to extreme humidity conditions.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not place the LCD TV/monitor on an unstable cart, stand, tripod, bracket, table, or floor where it can fall. It is damaged if dropped, hit or scratched. Do not clean the front with keton-type materials (e.g.Acetone ),ethyl alcohol, toluene, ethy lacid, methyl, or chloride-these may damage the panel.

Locate your DC adapter near an easily accessible AC outlet.

If your LCD TV/monitor does not operate normally in particular, if there are any unusual sounds or smells coming from it unplug it immediately and contact an authorized dealer or service center.

High temperature can cause problems. Don`t use your LCD TV/monitor in direct sunlight, and keep it away from heaters, stoves, fireplaces, and other sources of heat.

Unplug the DC adapter when it is going to be left unused for an extended period of time .

To reduce the risk of fire or electric shock, and annoying interference, use the recommended accessories only.

If the LCD TV/monitor is broken, do not try to repair it yourself. Contact qualified service personnel.

Unplug your DC adapter from the AC outlet before any service.

Be sure the service technician uses authorized replacement parts or their equivalents. Unauthorized parts may cause fire, electrical shook, or other hazards.

Following any service or repair, be sure the service technician performs safety checks to certify that your TFT-LCD TV/monitor is in safe operating order.

The apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.

IMPORTANT SAFETY INSTRUCTIONS

DVD OPERATION

Brief introduction

Comparison between DVD and other discs

Function introduction

Features

Compatible disc types

Playback

Volume control

CONTENT

AV, S-VIDEO , SCART AND YPbPr SETUP

Video setting menu

VGA SETUP


Sound

Monitor setting

Function

18 20

19 21

TELETEXT FUNCTION

Teletext display

Mix mode

Page selection Lock Zoom in teletext

Index Display mode

Colorized buttons

15 15

EXTERNAL EQUIPMENT

Connecting figure

LET'S START

Change source operation

REMOTE CONTROLLER

Remote buttons

Battery installation

TV MENU SETUP


Sound

TV setting System setting

Nicam/bilingual receiving

PANEL BUTTON FUNCTIONS

Front panel

Left panel

Right panel

Rear panel

INSTALLATION

Normal installation

CONTENT

DISPLAY MODE

Display mode

SPECIFICATIONS

Specifications

TROUBLE SHOOTING

DVD troubleshooting

Display troubleshooting

Sound and TV troubleshooting

DVD FUNCTION SETUP

General setup

Initial setup

Video setup

Audio setup

Speaker setup

TIME SETTINGS

Time setting

CARD READER AND USB OPERATION

Usage of USB equipment and 3-IN-1card reader

DVB OPERATION

General setting

Adanced setting

Auto search

Manual search

Channel setting

EPG

DVD OPERATION

Repeat playback

Select language/audio

Repeat playback of selected segment

MPEG4 and JPEG file playback

Zooming the displayed frame

Play from the desired position

Fast playback

VCD, SVCD menu playback

Direct play

Select track to play directly by number button

Memory

1, Hook the tache (labeled A)of the kickstand on to the s lot (labeled C)

2, Tighten the screws ( M5 28) through the ostium (labeled B ).

3, Figure shows the fi nished installation.

Kickstand

Ostium

M5 28 Screw 1pcs

Rear

viewing of LCD TV

INSTALLATION

NORMAL INSTALLATION

PANEL BUTTON FUNCTIONS

HD3DSound

FRONT PANEL

LEFT PANEL

Indicator(the indicator is red when in standby mode, and green when in working normally)

MENU(Enter or exit TV menu) CHANNEL(Increase or decrease channel number)

VOLUME(Increase or decrease volume) SOURCE(Select input source ) STANDBY(To switch in standby mode and power-on

mode. )

IR sensor window

PANEL BUTTON FUNCTIONS

RIGHT PANEL

USB jack MEDIA CARD socket

STOP button

HEADPHONE jack

REAR PANEL

EJECT button

PLAY/PAUSE button

YPbPr or YCbCr input terminal

2 3

Composite video/audio and S-VIDEO audio input

PC audio and YPbPr audi o input

4 5

Coaxial digital audio output

S-VIDEO input

SCART connecting terminal

R input terminal

VGA input terminal

12V DC input terminal

EXTERNAL EQUIPMENT

NOTE

CONNECTING DIAGRAM

You shoul d insert all interconnecting cables BEFORE plugging in th e power cord.

Power amplifier (wi th coaxia l dig ital audi o in)

DVD or VCR pl aye r

REMOTE CONTROLLER

REMOTE BUTTONS

EJECT

Disc in/out, valid in DVD mode.

Number button

To sel ect program number.

OK button

To confi rm the selecti ons.

INDEX/PAGE+

To d ispl ay main content page when playing the teletext /Change to the program in next page.

SUBPAGE/PAGE-

To d ispl ay the subpage of the teletext/Change to the program i n previ ous page.

REVEAL/EPG

Display the hidden teletext i nformation / (valid in DVB mode )

To d ispl ay the program guide

ZOOM/CYAN

To zoom i n and zoom out to the pi cture, valid in DVD mode/CYAN button.

SETUP

TV or DVD functi on setup.

DISC MENU

To go to the menu of DVD menu, valid i n DVD mode.

LANGUAGE

To swi tch the output language or channel, valid in DVD mode.

CARD/DISC

Switches between the card reader, DVD or USB mode, valid while i n DVD mode.

1 2

16 17

20 21

To d ispl ay the calendar and settings for timer of power on/off .

TIMER

CHANNEL+/-

To i ncrease or decrease program number valid in TV and DVB mode.

Pause playing/steps playback i n pause mode, valid while in DVD mode.

[ ] button

To fast- forwards DVD pl ayback, valid in DVD mode.

[ ] button

To sel ect the next chapter or track.

DVB MENU

To enter or .return to the previ ous DVB menu

and screen

Left/Right cursor(menu adjustment )

To move l eftward/ ri ghtward or adjust the selected item in the menu, or adjust sound volume, valid in DVD mode.

HOLD/TV/

To stop tel etext on current page/Switch between TV and radio modes, valid in DVB mode.

REPEAT/YELLOW

To repeat p layback ,valid in DVD mode/YELLOW button.

RETURN

To exchange channel between the previous program and the current program, valid in TV or DVB mode.

REMOTE CONTROLLER

SOURCE

To sel ect input source: TV, DVB, DVD,AV, S-VIDEO,SCART, YP

BPR and VGA.

UP/DOWN cursor

To sel ect upward/downward in the menu or change the channel, valid in TV and DVB mode.

To d ispl ay TV and teletext i n the same time/ Selects the subtitle language or swi tches to JPEG display mode, valid i n DVD and DVB mode.

MIX/SUBT

SIZE/INFO

To magni fy teletext page/

valid in DVD and DVB mode.

To d ispl ay the

information about channel and program,

Volume +/-

To i ncrease or decrease sound volume.

To p lay from a certain t ime poi nt, valid in DVD mode/RED button.

GOTO/RED

24 25

TEXT/TEXT

To enabl e or d isabl e the function of teletext.

A-B /GREEN

To segment repeat , valid in DVD mode/Green button.

DISPLAY

To d ispl ay source informati on.

FAVORITE/Q-PLAY

Display your favorite channel list, valid in DVB mode /Play DVD di rectly in DVD mode.

STANDBY

To swi tch between standby mode and power-on mode.

34 35

[ ] button

To fast back ward pl ayback, valid in DVD mode.

TWO-DIGIT NUMBER BUTTON

To swi tch between one or two-digit program number.

[ ] button

To sel ect the previous chapter or track, valid in DVD mode.

MUTE

Sound mute switch.

NICAM/CAP.

Switch in NICAM, A2 and mono channel(It is effective in TV signal i nput with NICAM or A2 function) / Capture the currently pl ayed image and set it as the power-on l ogo in DVD mode.

CANCEL/AUDIO

To cancel teletext/

valid i

n DVB

mode

To change the audi o

language and sound track,

[ ] button

To stop p layi ng, valid in DVD mode.

REMOTE CONTROLLER

Remove the battery cover. Insert two SUM-4(AAA) batteries matching the - /+ polari ti es of

the battery to the - /+ marks inside the battery compartment, as follows:

BATTERY LIFE

Generally speaking, the battery may be used for one year, but the battery life is also related to the usage ti mes and remote controller operation.

If the remote controller i s still invalid when very near to the remote sensor wi ndow, please replace the battery.

Please use SUM-4(AAA) battery.

NOTES

Never use rechargeable battery.

Never charge, short-circuit, di sassemble and heat the battery, or throw i t i nto fi re.

Pay attention not to fall or knock the remote controller, which w ill cause damage or function failure to it .

Do not use new and o ld battery together.

If electrolyte splashes i nto body, pl ease cl ean it with water.

CAUTION

Please put battery i n the p lace children cannot touch. I f swallow by accident, please contact with the l ocal doctor immediatel y.

BATTERY INSTALLATION

When not using the remote controller for a long ti me, pl ease take out battery to avoid liquid leakage. Before replaci ng new battery, p lease c lean the electrolyte in the remote controller.

LET'S START

You can change input source by using Source Menu. Press [SOURCE] button or [SOURCE]

key to show the menu as follows:

The current source i tem is hi ghlighted. Through press [ ] button on the remote control

or [ CH+/CH- ] key on the left side of LCD TV

to select your desire, Press [ ] button,

[VOL+/VOL-] key or [ OK] button to confirm your choice .

CHANGE SOURCE OPERATION

DVB

DVD

S-VI DEO

SCART

YPBPR

VGA

INDICATOR

STANDBY

After this unit is well fixed on the desk or on the wall, and the cords are well connected

for input or output, what you should do next i s:

First, connect the adapter to the LCD TV, then the uni t w ill go into standby mode, and you

can see the i ndicator goes i nto red.

Second, press [STANDBY] key on the left s ide of the LCD TV or [STANDBY] button on the

remote control to make the unit switch into working mode, and you will see the i nd

icator

turn green. Now you can enj oy all exciting features of the whole new product.

STANDBY

Item

BRIGHTNESS

To adj ust brightness.

CONTRAST

To adj ust contrast.

SATURATION

To adj ust color saturati on.

This product can store up to 100-channel programs (099). You can select your

favorite channel through [CH+/-] or number buttons, and you can scan and store

all of the channels through manual or automati c mode.

In TV mode, press [SETUP] button into the main menu and the main menu w ill show as follows:

Through pressing [ ] button on the remote control ,

you can select main menu sections( main menu

sections consist of

. Press

[ ] or [ OK] button to enter this menu secti on.

" PICTURE " , " SOUND " ,

" TV SETTING " , " SYSTEM

SETTING ")

Press [ ] button on the remote control to select

the item, and then press [ ] button to adjust

parameter value. Press [ SE TUP] button to return

to main menu secti ons.

Select " " and menu will show as follows:

Press [ ] button to select i tems

and [ ]

button to adjust.

TV MENU SETUP

Description

SELE CT RETURN

SETUP

TINT


BRIGHT NESS

SATURATION

CONTRAST

TINT

To adj ust pi cture ti nt, only valid in N 3. 58/N 4.43/PAL60 and d ispl ay mode with V-scanni ng frequency equal 59.94 (p lease refer to P52).


SELE CT RETURN

SETUP

TINT


SATURATION

CONTRAST

BRIGHT NESS

ENTER

ADJUST

PICTURE USER


Can be change between : "USER ", "STANDARD " , " DYNAMIC "

and "SOFT ".

Item

BALANCE

TREBLE

To adj ust balance of left and right channels.

To adjust bass.

To adjust trebl e.

Press [ ] select " " and press [ ] or [O K] button to enter the following section:

TV MENU SETUP

BASS

Description

SOUND

Can be change between USER, NEWS , FILM

MUSIC .

"""STANDARD",""""

and ""

SOUND

Press [ ] button to select i tem and press [ ] button to adjust . The following is sound item description.

BASS

BALANCE

TREBLE

SOUND

SELE CT RETURN

SETUP

ENTER

SOUNDUSER

BBE VIVA

OFF

BBE VIVA

To adjust BBE mode(w ith bass and treble invalid)

TV MENU SETUP

Press [ ] button to select i tem and press [ ] button to adjust or acti vate.

Item

CHANNEL

To change the channel number.

CHANNEL EDIT

FINE TUNE

To adj ust the channel frequency accurately to make the sound and picture effect better.

MANUAL SEARCH

To scan programs by manual.

Description

AUTO SEARCH

To scan programs and store all of them automatically.

press [ ] select " " item and press [ ] or [OK] button to enter the following secti on:

TV SETTING

CHANNEL

CHANNEL E DIT

FINE TUNE

168.90MHZ

MANUAL SE ARCH

AUTO SE ARCH

SELE CT

RETURN

SETUP

TV SETTI NG

NOTE

During the searching, you can press [SETUP] button to stop.

ENTER

To enter a submenu to set channel skip and channel swap. Please refer the next page.

CHA NNEL E DIT

SKIP

SWAP

CHA NNEL

Item

CHANNEL

Description

SKIP

SWAP

To sel ect current channel here.

To sel ect "Ye s " or "N o " , you can select "Ye s " to make current channel unaccessible while using [CH+/-] button to browse channels.

Select or enter the channel number directly

to swap w ith current

channel.

Highlight this option and press the [OK] button to confirm the swap function.

TV MENU SETUP

Press [ ] to select " " i tem and press [ ] or [OK] button to enter the following secti on:

SYSTEM SETTING

You can setup some system confi guration here.

Description

COLOR SYSTEM

SOUND SYSTEM

LANGUAGE

TRANSPARENCY

RESET

Can be changed between: "Auto" , " PA L " and "S ECAM".

Can be changed between:"BG" , " DK", "I" and "L" .

Select OSD language.

To change transparency of OSD.

To reset a ll value to default.

NOTES

Which COLOR SYSTE M mode and SOUND SYSTEM mode to use is related to your

local TV broadcasting system.

""""

SECAM system is only used by some European countri es and districts, such as France.

If the local system is SECAM L, the color system must be selected as "SECAM" and sound

system must be selected as "L".

Press [ ] button to select i tem and press [ ] button to adjust or acti vate.

Item

COLOR SYSTE M

SOUND SYSTEM

LANGUAGE

TRANSPARENCY

RESE T

SYSTEM SETTING

SELE CT RETURN

SETUP

AUTO

ENGLISH

OFF

ENTER

Nicam/bilingual function is only effective in TV mode while program coming with Nicam/ bilingual.

If you can recei ve Nicam/bilingual signal , you can operate as follows to enjoy that.

You can select Nicam stereo, mono channel

or bilingual through NICAM button on the remote

control. If stereo signal i s too weak, this unit will switch into mono channel automatically.

When selecting mono channel, "MON O" will show on screen; when selecting bilingual

, "DUAL1" will show on screen; when selecting bilingual II, "DUAL 2" will show on screen and when selecting stereo, " STE RE O " will show on screen.

TV MENU SETUP

NICAM/BILINGUAL RECEIVING

N OTE

TELETEXT FUNCTION

Press [REVEAL] button to d ispl ay the hidden teletext information. Press this button agai n to cancel teletext i nformation d ispl aying.

DISPLAY MODE

COLORIZED BUTTONS (RED, YE LLOW, GREEN, CYAN)

Select the corresponding tel etext page through colorized buttons.

When teletext page shows, you may double zoom in to di splay thi s teletext page;

Press [SIZE] button to zoom in the upper half part of teletext page;

Press [SIZE] button again to enter the under half part of

teletext page;

Press this button for the thi rd time to return to ori gi nal display mode.

ZOOM IN TELETEXT

User could press [ SUBPAGE] button to select to the subpage of tel etext.

SUBPAGE

If no signal i nput in TV, AV , S- VI DE O, SCART, YPBPR, the screen will show like the following figure.

When in AV/ S- VI DE O/SCART input mode, there are 6 col or system modes for selection: "Auto", "PA L "," N 3.58", "N 4.43", "PAL60" and "SECAM". Select the ri ght

system for your

video program. If you do not know which mode your v ideo p layback devices and v ideo media is using, you should select the auto mode or you should check and confirm this with your suppli

er.

NOTE

If the input channel is SCART, this unit will automatically recognise RGB or CVBS

signal of SCART; when normal RGB signal appears, thi s uni t w ill automatically switch into RGB d ispl ay mode. For this unit is

combined by multiple functions, when

inserting into SCART socket, it will not automati cally swi tch into SCART mode. You

have to select SCART channel through [SOURCE] menu, that is a little di fferent wi th that of others TV set

AV, S-VIDEO, SCART AND YPBPR SETUP

NO SIGNAL

4:50

VIDEO SETTING MENU

This unit will go into standby mode automatically with no signal i nput for more than 5 m inutes.

The menu setup of AV/S-V ID EO/SCART modes is much the same as that of TV mode, except the " "secti on is invalid and a

little difference in color and sound modes. In order to make this manual pi thy and concise, it is not repeated here. You can find it in preceding pages. And the menu setup of YP

BPR is the same as that of VGA menu ,except " "section.

Please refer to posteri or pages. The " " section YP

BPR used is the same as that of

TV mode. Please refer to P9for it .

With the VGA mode supported up to 1024*768@75Hz, and speak ers built i n, you can use this unit as a mult imedi a PC monitor. When thi s uni t work s in VGA mode, the following setup can be done.

Press [SETUP] button to enter mai n section. Press [ ] button to sel ect sections and then press [ ] button or [OK] button to enter. If all is done, p lease press [SETUP] button twice to exit and your setup data w ill be saved automatically

Press [ ] button to select " ", and press [ ] or [OK] button to enter.

To adj ust brightness of picture .

Item

Description

BRIGHTNESS

COLOR TEMPERATURE

CONTRAST

AUTO CONFIG

STATUS

Press [ ] button to adjust val ue of item.

To adj ust contrast of picture .

Enter sub menu to adjust col or temperature of picture. Press [ /OK ] button to enter.

Auto config horizontal/vertical position, phase and frequency. Press [ /OK] button to activate.

You can see some i nformation about

the i nput vi deo here.

VGA SETUP

P I CTURE

SELE CT RETURN

SETUP

BRIGHT NESS

COLOR TE MPERATURE

CONTRAST

AUTO CONFIG


1024 768 V:75HZ

ENTER

COLOR TE MPERATURE

COLOR

RED

GREEN

BLUE

USER

VGA SETUP

Here shows the color temperature sub menu.

Item

Description

COLOR

GREEN

BLUE

Select color temperature mode :"User" , " C6500", "C8700", "C9300".

Adjust red value of col or temperature

Adjust green value of col or temperature

Adjust blue value of col or temperature

SOUND

Press [ ] button to select " " and press [ ] or [O K] button to enter.

The operation of sound section here is the same as that in TV mode. Please refer to P10.

Press [ ] button to select i tem and press [ ] button to change and adjust val ue of item.

BASS

BALANCE

TREBLE

SOUND

SELE CT RETURN

SETUP

ENTER

SOUND

USER

BBE VIVA OFF

To adj ust frequency

VGA SETUP

M ONI TOR SETTI NG

Press [ ] button to select " " and press [ ] or [O K] button to enter.

Item

Description

HASE

FREQUENCY

H-POSITIO N

V-POSITI O N

To adj ust phase.

To adj ust screen horizontal posit ion

To adj ust screen vertical posit ion

Press [ ] button to select i tem and press [ ] button to adjust value of item.

NOTE

VGA

NOSIGN AL

1:50

If you use thi s uni t as a PC-monitor, and when your PC goes into standby mode, the screen w ill show as dexter . This unit will go

into sleep mode wi th no si gnal i nputted i n 2 minutes. In this mode,

the indicator will remains green, and the screen is turned off. You can wake it up by waking up your PC or pressi ng [SETUP] or [SOURCE] button in the remote control.

MONITOR SETTI NG

PHASE

FREQUENCY

H-POSITIO N

SELE CT RETURN

SETUP

V-POSITI ON

ENTER

VGA SETUP

FUNCTI ON

Press [ ] button to select " ", and press [ ] or [OK] button to enter.

Press [ ] button to adjust val ue of item.

Item

Description

OSD H-POS

OSD V-POS

LANGUAGE

TRANSPARENCY

RESE T

Select OSD language [English]

To adj ust the vertical posit ion of OSD

To adj ust the horizontal posit ion of OSD

To adj ust transparency of OSD. it can be change from O FF to LEVEL6, 7 level s i n total.

Reset all va

lue that related to picture and sound to default .

OSD H-POS

OSD V-POS

LANGUAGE

TRANSPARENCY

RESE T

FUNCTION

SELE CT RETURN

SETUP

ENGLISH

OFF

ENTER

DVD provides brand-new AV effect for consumers with its extraordinarily large capacity and

outstanding audio-video effects.Its capacity is as high as 4.7-17 GB (approximately 7-26 times the

CD capacity) and horizontal resolution of p

icture is above 500-line.

Function Introduction

Multiple languages and subtitles DVD disc can support as many as 8 dubbing languages and 32 subtitle languages.

User can select to play the desired plots (the beginning, development or ending) of the same disc.

Multiple

story plots

Multiple aspect ratios support various TV screens.

DVD

Digital/MPEG2

Recording Method

Capacity

Playback Time

Disc Diameter

Horizontal Resolution

Aspect Ratio

Subtitle

Sound Quality

Audio

Single-

sided 1 layer

4.7G

133min

12CM/8CM

500 lines or more

Multiple

Linear PCM

48kHz96kHz/16 20 24bit

32 types

CDROM

Digital

650MB

12CM/8CM

Double-

sided 1 layer

8.5G

242min

Single-

sided 2 layers

9.4G

266min

Double-

sided 2 layers

17G

484min

VCD

Digital/MPEG1

650MB

44.1kHz

250 lines or more

12CM/8CM

74min

SVCD

Digital/MPEG2

650MB

350 lines or more

12CM/8CM

45min

Digital

650MB

44.1kHz/16bit

Linear PCM

12CM/8CM

74min

Analog

44.1kHz/16bit

Linear PCM FM modulation

One

Max. 16 types

430 lines or more

30CM/20CM

1side 60min. 2sides 120min.

Multiple aspect ratios

DVD OPERATION

Comparison Between DVD and Other Discs

Brief Introduction

DVD OPERATION

Brand-new AV Effects

High Quality Digital Audio

Convenient Functions

Compatible with MPEG 4 format discs to produce wonderful pictures.

DVD OPERATION

Features

This player employs the new generation MTK decode chip with more convenient system and more stable operation. Super error correction slot-in loader with twin laser with good shockproof performance.

108MHz/12bit video DAC with more vivid and brilliant pictures.

Progressive-scan video outputs to eliminate the flickers hardly overcome by interlacing scan

and therefore your eyesight will be well-protected. At the same time, the pictures definition is

sharply enhanced and the pictures will be finer, smoother and stabler.

Coaxial output terminal.digital

Disc Pictures

TV Screen

4:3

16:9

Pan-Scan

Letterbox

16:9

4:3

C igital audio output should be connected to power amplifier with DOLBY DIGITAL/DTS decoder.

oaxial d

PCM Digital audio outputs to satisfy the fans' acoustic requirements.

Direct entry into desired scenes (title/chapter/time/track search).

CompatibleDisc Types

CD-DA: Digital audio

12cm

VIDEO CD: Compressed digital audio + compressed digital video (dynamic picture)

DIGITAL VIDEO

12cm

SVCD: Compressed digital audio + compressed digital video (dynamic picture)

12cm

DVD: Compressed digital audio + compressed digital video (dynamic picture)

12cm

MPEG4: Compressed digital audio + compressed digital video (dynamic picture)

MPEG4

NOTE: * Some discs labelled with MPEG4 on the market actually are *.rm/*.ra/*.ram/*.rmm and others

which are not compatible. Please take care when buying discs.

Super compatible with VCD, SVCD, CD, HDCD, KODAK PICTURE CD etc.

DVD OPERATION

Multi-level zoom in/out playback function to provide you with brand-new enjoying way.

Multiple aspect ratios to fit TV sets of various screen ratios.

Parentallock function to prevent children from watching unsuitable discs.

Multiple dubbing languages and subtitle languages bring you the best entertainment status all the time.

NOTES

These icons on the top banner indicate the disc types that the function described in the section applies to.

Applies to VCD disc

VCD

Issues related to

CDVCDSVCDDVD

Applies to CD disc

Applies to DVD disc

DVD

MPEG4

Applies to SVCD disc

SVCD

Applies to MPEG4 disc

MPEG4

Types

Sizes

Recorded Contents

This model do not support the 8cm disc. Do not insert that type of disc into this device to prevent di sc jam.

2. Place the disc (with label side facing users) to the door and the unit will draw in the disc automatically.

1. Power on and switch signal source to DVD mode and the unit begins to work.

3. Press [PLAY

] button to begin playing disc.

4. Press [STOP] button to stop playing.

6. When finishing playing, switch signal source to other working state and press []

button to make the unit enter standby state. Please pull

out the power plug from power

socket when not using the unit for a long time.

PLAYBACK

The unit begins to read disc information.

CDVCDSVCDDVD

MPEG4

5. Press []button to take out disc.

EJECT

STANDBY

PLAY

STOP

DVD OPERATION

When the unit pl aying a disc, press[ ] button the firs ti me and the unit enters pause state, while press [ ] button again and the unit resumes pl ayback.

When the unit is pl aying a disc, press [ ] button the first t ime and the unit enters pre-stop state, while press [ ] button again and the unit enters stop state.

At the pre-stop state, if you press [ ] button, the unit will continue to p lay from the stopped point.

At the stop state, if you press [ ] button, the unit will play from the beginning point of the disc.

Press [ ] button when playing MPE G4 di scs and the unit enters stop state d irectl y.

[EJECT] button is effective onl y when selecti ng DVD si gnal source. In other signal source ,such as TV, AV , etc, thi s button is invalid .

2. Press [VOL+/VOL-] buttons on the remote control of this unit.

Press [VOL+] button to increase volume; press [VOL-] button to decrease volume; the maximum volume is 100.

CDVCDSVCDDVD

1. Press [VOL+/VOL-] buttons to adjust volume.

MPEG4

VOLUME CONTROL

VOL

VCDSVCD

When playing SVCD, VCD2.0 discs with menu playback function, you may enjoy simple menu playback alternation function. You may set menu playback state in the setup menu and select menu playback or sequence playback.

For instance, VCD 2.0 disc menu playback.

VCD, SVCD MENU PLAYBACK

DVD OPERATION

2. After entering main menu 1, TV screen displays submenu.

3. Press [ ], [ ] buttons to turn pages.

4. Press number buttons to select submenu content. For instance, press number button 5

and the unit begins to play the fifth track.

5. When playing, pressing [DISC MENU] button to return to the root menu.

1. TV screen displays main menu.

Press number buttons to select. For instance, press number button 1 to select main menu 1.

DISC MENU

PLAY

DVD OPERATION

Direct play is a creative function that very hel pful for users to enjoy DVDs. With direct play function, you can p lay DVD directly, skipping the legal warning, advertisements, chapter selection and other thi ng

that come before the movies start. You can enjoy pure movies without bothering. When the disc is loaded and the legal warning, advertisements, chapter selection message shows, just press [ ] button to activate direct play function and start a

pure movies pl ayback.

DIRECT PLAY

When you are enjoyi ng VCD wi th PBC function, direct pl ay can di sable the PBC and VCD will be played i n sequence.

NOTE

MEMORY

DVD

NOTE

1. This player can save the currently played time point automatically when you leave the current DVD disc playback (switch from DVD to card read state, switch from DVD signal source to other signal source, enter standby state in DVD mode).

2. When switching to DVD playback state again, this player can automatically search the time point saved last time to continue playing. If you want to play from the beg

inning, please press [STOP]

button twice and then press [PLAY] button.

This player may save one DVD disc for one time.

The DVD disc played the last time will be saved, and the former saved contents will be cleared by new saved contents.

lf power is cut off unexpectedly, the DVD disc played currently will not be saved.

As for VCD or CD disc with multiple channels, you may select audio output from left or right

channel or select stereo audio output. For VCD disc, left channel records dubbing and right

channel records singing, and you may select left channel for dubbing.

VCD, CD disc:

Mono Right

Mono Left

Stereo

Language type varies with disc recording.

When playing some DVD di scs, pressing [LANGUAGE] button to switch language may result in playing the track from its beginni ng.

For VCD story di sc with double l anguages, you may press [LANGUAGE] button to select the desired language.

NOTE

DVD disc:

1. Press [LANGUAGE] button.

CDVCDSVCDDVD

As for DVD and SVCD discs with multiple languages, you may select the desired language when playing.

Audio 1/2

French

Audio 2/2

Chinese

SVCD disc:

Audio 2

Audio 3

Audio 1

Audio 4

SELECT LANGUAGE/AUDIO

DVD OPERATION

SELECT TRACK TO PLAY DIRECTLY BY NUMBER BUTTONS

CDVCDSVCDDVD

1. Insert disc, after disc reading and normal playback, press number buttons to select track to play directly.

1 + 6

-/--

If track number is less than 10, press number buttons 1 to 9 to directly select. For instance,

select the seventh track:

For instance, select the 16th track

If track number is more than or equal to 10, press [-/- -] button and then number buttons 0 to 9.

If track number is more than or equal to 20, press [-/- -] button twice and then number buttons

0 to 9. The rest can be performed by analog.

NUMBER

LANGUAGE

The A-B repeat function may be invalid to some discs.In menu playback mode, the segment can only be selected in the track.

3. Press [A-B] button for the third time.

The unit restores to normal playback.

NOTE

When playing disc, you may press [A-B] button to play your desired segment content repeatedly.

1. In normal playback, press [A-B] button at the beginning point (point A) of the segment that you desire to play repeatedly.

TV screen displays:

2. In normal playback, press [A-B] button at the ending point (point B) of the segment that you desire to play repeatedly.

TV screen displays:

The unit automatically returns to point A and begins to play the selected segment (A-B).

CDVCDSVCDDVD

MPEG4

REPEAT PLAYBACK OF SELECTED SEGMENT

To SVCD, VCD2.0 discs, the repeat function cannot be operated in menu playback mode.

1. Press [REPEAT] button. Each press of REPEAT button may realize different repeat functions.

The repeat playback function enables a certain title/chapter/track/disc repeated.

DVD DISC:

SVCD, VCD, CD discs:

To SVCD, VCD2.0 discs, the repeat function is effective in sequence playback mode; to VCD1.1, CD discs, the repeat function may be directly operated.

Track Repeat Off

ALL

Repeat Off

TitleChapter

ALL

CDVCDSVCDDVD

MPEG4

REPEAT PLAYBACK

DVD OPERATION

A-B

REPEAT

1. Search title and chapter. For instance, search the 2nd chapter in title 6.

Inputting a certain time, title number or chapter number directly may search in the disc fast and

then play forward from this position.

Play DVD disc

DVD SVCD VCD CD

MPEG4

1. Press [ ] button and the unit begins fast forward playback.

Press [ ] button each time and the disc playback speed switches in the following sequence circularly:

2. Press [ ] button and the unit begins fast backward playback.

Press []button each time and the disc playback speed switches in the following sequence circularly:

PLAY FROM THE DESIRED POSITION

When playing discs, you may selectfastforward or fast backward playback to search a certain point.

CDVCDSVCDDVD

MPEG4

FAST PLAYBACK

16X32X

DVD OPERATION

Then press number button 6 to select Title 6, shown in the figure:

Title06 /30 Chapter /02

2. Search title time

Press [GOTO] button until TV screen displays the following figure. Then press number buttons to

input hour, minute and second.

Title 06/30 Time ::

Finally press number button 2 to select Chapter 2, shown in the figure:

Title 06 /30 Chapter 02/02

Press [GOTO] button and TV screen displays:

Press []button to move cursor and lighten the title number, shown in the figure:

Title 03/30 Chapter /02

Title /30 Chapter 01/02

3. Search chapter time

Press [GOTO] button until TV screen displays the following figure. Then press number buttons to

input hour, minute and second.

Chapter 01/04 Time : :

1. Search disc time

2. Search track time

Play SVCD, VCD and CD discs

Press [GOTO] button until TV screen displays the following figure. Then press number buttons to

input minute and second.

Disc Go To --:--

Press [GOTO] button until TV screen displays the following figure. Then press number buttons to

input minute and second.

Track Go To --:--

3. Select the track

1. Select track

2. Search track time

Play MPEG4 disc

Press [GOTO] button until TV screen displays the following figure. Then press number buttons to

input the track.

Select

Press [GOTO] button until TV screen displays the following figure. Then press number buttons to

input hour, minute and second.

-:--:--

DVD OPERATION

Select Track --/15

Press [GOTO] button until TV screen displays the following figure. Press number buttons to input

track.

GOTO

ZOOMINGTHE DISPLAYED FRAME

VCDSVCDDVD

MPEG4

1. When playing a disc, press the [ZOOM] button can open the zoom in/out function, and the TV screen displays( take X2 mode as an example):

Zoom in/out the player frame.

The frame is magnified to 2 times of the normal size.

4. When the fame is magnified, press the [] buttons to move the frame.

2. Press the [ZOOM] button continually, all the magnified/ minified modes display on the screen in turn. The magnified/ minified modes includes:X2,X3,X4,X1/2,X1/3,X1/4.

3. When the mode is on X1/4, press [ZOOM] button to close the zoom in/

out function, and the

frame restores normal size.

ZOOM

JPEG(Joint Photographic Experts Group) is the most widely used picture compression and

storage format today. Utilizing high efficiency compression algorithm, JPEG compresses the original

picture 15 to 20 times with excellent picture quality. JPEG is featuring small size data, convenient

application and supported by most picture processing software, so it is very fit to store photos.

The strong decoding capability of this unit can decode and play the files with the above formats.

In the course of playing, an operation menu will appear and its construction is shown as follows.

DIR window

Display the current path.

Display the current state

information.

State window

Scroll bar window

Indicate the current file's position.

Display the current path's

file.

File window

Preview window

JPEG image preview.

Information window

Display the current operation

prompts.

The state information in state window is as follows:

00:57

002/073

03:31 128

Elapsed playback time

Total playback time

The audio bit rate (generally the bit rate is 128kbps, sometimes it is VBR.)

Current playback mode indicator

Track indicator

Dynamic frequency spectrum indicator

00:00 00:00 004/369

\PIC\

Du000

Du001

Du002

MPEG4 AND JPEG FILE PLAYING

MPEG4 is the audio standard published by MPEG(Moving Pictures Experts Group) in November,

1998. As the discrepant parts between frames of picture are only processed and the same parts are

deleted, the data number are greatly decreased. The most distinct feature of MPEG4 is the high

compression and clear imaging. Furthermore, MPEG4 provides elastic specifications to adjust the

stream according to the used requirements. The larger stream can be used when collecting private

films; and the small stream can be used in network transferring, which make MPEG4 use widely.

DVD OPERATION

2. Play JPEG file

After you put an JPEG format file into the unit, it will search disc information and display the

operation menu as in the following figure. After selecting JPEG file, the preview window will appear

this file's preview image to facilitate you to select. After you select the JPEG file you desired and

press [OK] button to confirm, the picture will display in full screen.

00:00 00:00 004/369

\PIC\

Du000

Du001

Du002

RESOLUTION 640 480

In Figure B, press [ ] button to select the MPEG4 format file you desired and press [OK]

button to confirm. The unit begins to play MPEG4 format movie.

After you put an MPEG4 format file into the unit, it will search disc information and display the

operation menu as figure A (The displayed content varies with disc.).

1. Play MPEG4 file

00:00 00:00

Du000

Du002

Du001

Du003

001/004

00:00 00:00 001/369

\Du000\

MP000

MP001

MP002

A/V

Press [ ] button to select the directory you desired and press [OK] button to confirm.

For instance, you select the directory Du000 in Figure A, press [OK] button and TV screen

displays as in Figure B. The window returns to the previous directory when you select [ ....]

or press [ ] button.

DVD OPERATION

1. Press [ ],[ ] button may turn to the next or last page.

Other basic operation methods

Other functions of JPEG file

1. When playing JPEG file, pressing [SUBT] button may switch different JPEG display modes

which have 16 kinds for selection.

2. When playing JPEG file, press [ZOOM] button to enter zoom in/out, and press it again to

stop this function.

3. When in zoom in/out, pressing [ ] button may magnify the picture and it can magnify the frame

twice at most as the original one. Pressing [ ] button may minify the picture and it can minify the frame half at most as the original one.

5. When in preview playback, pressing [DISC MENU] button may exit preview playback function.

6. When playing JPEG file, pressing [ ] button may realize picture rotation button.

NUMBER

ZOOM

DOWN

SUBT

DISC MENU

NOTE

When buttons are invalid, TV screen displays:

Please press effective button again.

DVD OPERATION

4. When playing JPEG file, pressing [ ] button may realize preview playback function.

At the same time, all JPEG files are displayed on TV screen. One frame can display up to 12 pictures at most. The rest ones are shown on the next frame. Pressing [ ] button may enter the next frame and [ ] button may enter the previous frame. You may press number buttons or [ ] button to select the picture you desired and press [OK ] button to confirm.

DVD FUNCTION SETUP

How to adjust brightness, contrast, hue and saturation:

5. Saturation: this item is used to set the saturation of video outputs.

A.In picture setup page, press [ ] button to select the item to be adjusted and press [OK] button to enter

the corresponding item adjustment.

B. Press []button to adjust the setup item.

C. After adjustment finishes, press [OK] button to return to picture setup page.

4. Hue: this item is used to set the hue of video outputs.

6. Gamma correction: this item is used to set the Gamma value of video output.

Optional settings:High, Medium, Low, Off; Default: Off

2. Brightness: this item is used to set the brightness of video outputs.

3. Contrast: this item is used to set the contrast of video outputs.

INITIAL SETUP

1. TV system: this item is used to set the unit's video output system.

Optional settings: Auto, PAL, NTSC; Default: PA L

2. PBC: this item is used to set PBC state.

Optional settings: On, Off; Default: On

When playing SVCD, VCD2.0 discs, if PBC is set On, this unit enters PBC playback mode;if PBC is set Off, the unit plays the disc according to track sequence.

3. Audio: this item is used to set the preference audio language when playing.

1. Sharpness: this item is used to set the sharpness of video outputs.

Optional settings:High, Medium, Low; Default: Low

VIDEOSETUP

4. Subtitle: this item is used to set the preference subtitle language when playing.

5. Di sc menu language: this item is used to set the preference disc menu language when playing.

Default of disc menu language: Thai

Default of subtitle: Thai

Preference Page

Parental

Off

Subtitle Disc Menu

TV Type

PAL

Audio

Thai

PBC

Password Default

Go ToPreference Page

Thai Thai

Video Setup Page

Hue 00 Saturation 00

Sharpness

Low

Contrast

Brightness

Go To Video Setup Page

Gamma

Off

DVD FUNCTION SETUP

When changing the parental control ratings, a password is needed. Please refer to the following password item for details.

7. Password: this item is used to set a four digital password to enable you to change the parental control ratings.

Default: 7890

8. Default: this item is used to restore all settings to the default value except "Parental control" and Password" in the setup menu."

Old password

Confirm PWD

New password

6. Parental: this item is used to set the parental control ratings to prevent children from watching the restricted contents.(In case the disc supports this function)

Optional settings:KID SAFE,G,PG,PG 13, PGR, R, NC17, ADULT, Off; Default: Off

NOTE

Audio, subtitle and disc menu language are only effective to DVD disc.

If the disc is not recorded with the language you appointed, the unit will apply the language

that the disc appointed to play.

Select other languages: press [ ] button to move cursor to "OTHER"item, press [OK] button and then number buttons to input the language code you desired. After input finishes, press [OK] button again.

NOTE

USAGE OF USB EQUIPMENT AND 3 -IN-1 CARD READER

The 3-in-1 card reader of this player can read SD Card (Secure Digital Card), MMC Card (Multi Media Card) MS Card (Memory Stick Card) .

1. Play USB Equipment:

Please insert USB equipment into the USB jack of this unit firstly, press [CARD/DISC] button and a selection menu appears on screen. You may press [CARD/DISC] or [ ] button to select. If the cursor stops in "USB" item, you may press

[OK] or [PLAY] button to confirm. After correctly reading USB equipment data, the screen will display an operation menu. Please refer to the part of "MPEG4 and JPEG FILE PLAYBACK" in page 32 for details.

2. Play 3-in-1 CARD READER

Please insert the FLASH card supported by this player into the port of card reader, press [CARD/DISC] button and a selection menu appears on screen. You may press [CARD/DISC] or [ ] button to select. If the cursor stops in "CARD READER" item, you may press [OK] or [PLAY] button to confirm. After correctly reading card reader equipment data, the screen will display an operation menu. Please refer to the part of "MPEG4 and JPEG

FILE PLAYBACK" in page 32 for details

If you want to use DVD function, please select "DVD" through the above-mentioned operation steps to exit USB and card reader functions.

After pressing [CARD/DISC] button to display the selection menu, if you do not want

to switch equipment, please move cursor to the original one, and then press [OK] or [PLAY] button, or wait until the menu disappears automatically.

USB jack

MED IA CARD sock et

CARD/DISC

DOWN

CARD READER AND USB OPERATION

Important: Before you use the USB and card reader function, you should change the input source of this unit to DVD.

USB refers to Universal Serial Bus. Most of USB devices on the market are USB1.1 or USB2.0. There are some types USB 1.1 devices: Monitors Communication devices Audio Human Input Device(HID) Mass storage. Most flash memory ,USB HDD

ect. belongs to Mass Storage Class . Mass Storage Class includes

2 transport manners:

1. USB 1.1 Mass Storage Class Control/Bulk/Interrupt (CBI) Transport

2. USB 1.1 Mass Storage Class Bulk-Only Transport This unit supports USB 1.1

Mass Storage Class Bulk-Only Transport, we are not sure that other USB devices can be supported! So please find out about the features of USB equipments before using it. When using USB 1.1 Mass Storage Class Bulk-Only Transport devices, please notice the file operation system supports Windows FAT ,not support FAT32 and NTFS ect. file system.

SET TIM E

YEAR MONTH DATE HOUR MINUTE

05 04 03 12

TIME SETTINGS

At any display mode you press [TIMER] button, calendar will show on the screen,

Use []button to choose which value to change and use []button to change it. When new value is set, press [TIMER] or [OK] button to exit and the value

will be saved immediately.

TIME SETTING

CALENDAR

2005-04-03 12:13:35

SUN MON TUEWEDTH U FR I SAT

678

13 14 15

20 21 22

27 28 29

SET TIM E

SET TIM ER O N SET TIM ER O FF

Item

Description

SET T IME

SET T IMER ON

SET T IMER OFF

Press [ /OK] button to go to the set time sub menu.

With TIME R O N function, you can wak en on this unit at a certain t ime from standby mode.

You can go into SET TIMER ON sub menu by pressi ng [ /OK] button when cursor pointing

at SET T IM ER

ON .There are 3 items in this sub section.

Press [ /OK] button to go to the set timer on sub menu.

Press [ /OK] button to go to the set timer off sub menu.

You can set two timers for power on. That means you can power on your LCD TV two times a day automatically. You can set the hour and minute for auto power on here. HOUR 1 and MINUTE 1 set for the TIME

R 1 for auto power on, ACTIVATE 1 can be set for activate setting for TIMER 1. You can choose ON/OFF and ONCE on ACTIVATE 1. When ON is selected, timer 1 will always enable auto powering

on .

When you select OFF ,timer function will be disable .If you select "ONCE", timer 1 will enable auto powering on and, after it powers on automatically for the first time, the setting w

ill go to "OFF" automatically.

SET TIM ER ON

HOUR 1

MINUTE 1

ACTIVATE 1

OFF

HOUR 2

MINUTE 2

ACTIVATE 2

OFF

SET TIM ER OFF

HOUR

MINUTE

ACTIVATE

OFF

With TIMER OFF function, this unit can power off by itself at a certain time from working mode.

You can go into SET TIMER OFF sub menu by pressing [ / /OK] buttons when cursor

pointing at

SET TIMER OFF .There are 3 items in it .

You can set the hour and minute for auto powering on here

And you can set the TIMER OFF function activate option

here. You can choose ON/OFF and ONCE here.

When O

N is selected, timer will always enable auto powering off . When users select OFF ,

timer will disable powering off .

""""

"" " "

TIME SETTINGS

NOTE

When you have set the "TIMER OFF" activated, a message will show when it is 1 mi nute

left for powering off like :

" STANDBY : 59S" . If you press [ TI ME R] button during this

status, you can cancel the power off this time. When the number is decreased to 0, this unit will go to standby mode automatically .

If you select "ONCE", timer will enable auto powering off and, after it powers off automatically for

the first time, the setting will go to "OFF" automatically.

When you set the ACTIVA T E ON or ONCE, and the calendar' s time comes to the ti mer's value, power on and power off event will occur; For example: I f you set the POWER ON TIMER to 9:00,

ACTIVA T E O N, then when time in calendar goes to 9:00, thi s uni t w ill power

on from standby mode automati cally.

HOUR 2 and MINUTE 2 set for the TIMER 2 for auto power on ,ACTIVATE 2 can be set for activate setting for TIMER 2.

You can choose ON/OFF and ONCE on ACTIVATE 2. When ON is sel

ected, timer 2 will always enable auto powering on . When you select OFF ,timer function will be disable .If you select "ONCE", timer 2 will enable auto powering on and, after it powers on automat

ically for the first time, the setting will go to "OFF" automatically.

DVB OPERATION

Press the [DVB MENU] button, the Main Menu will be displayed, in which you can set your preferences, Search for channels, edit the channels list or your favourite list , viewing Programme Guide Information, etc.

It is easy to see that the Main Menu is composed of six parts: General Setting, Advanced Setting, Auto Search, Manual Search, Channel Setting, EPG.

Note: Select different item using the[ ]button ,and press [OK] button to enter it.

GENERAL SETTING

You can set censorship, Language, and all other items suitable for your environment.

Note: Press [OK] button to enter the following menu.

Press the [DVB MENU] button to return to the previous menu or to exit the menu screen.

InfoBar Duration

When you switch channels, the infobar will be automatically displayed ,but it will hide after a few seconds. You can set the duration during which the infobar is to be displayed .

1s the infobar will automatically hide after 1 second 3s the infobar will automatically hide after 3 second 5s the infobar will automatically hide after 5 second 7s the infobar will automatically hide after 7 second 9s the infobar will automatically hide after 9 second

Note: If you press the [INFO] button to display the infobar, it will not automatically hide.You

should press the [INFO] button again to hide it.

Time zone

To choose you time zone, it is set depending on your country. The current time is set automatically whenever GMT Offset changes.

Note: It may have been setup inInstallation Wizard step1 When you powered on the receiver for the first time after purchasing.

Audio Output

You can set the Audio output, select one option form Stereo / Left /Right/Mono.

Power on and switch signal source to DVB mode and the unit begins to work.

Antenna Power

OFF

Antenna Power

Choose ON ,if you have an active ANTENNA but without an external DC supply. In this case, the

ANTENNA will be powered by the receiver.

DVB OPERATION

Note: When a prompting message is displayed to request your password, enter the password using the Number(0-9) button, then press [OK] button to enter.

ADVANCED SETTING

You can set parental control for each programme . You can also change your password.

Censorship setting

Censorship Classification allows you to block programmes according to the age level you have set.

View All All programmes can be watched because there is no age limitation.

7 Programmes are blocked for children under the age of 7.

10 Programmes are blocked for children under the age of 10. 14 Programmes are blocked for children under the age of 14 16 Programmes are blocked for children under the age of 16. 18 Programmes are blocked for children under the age of 18.

Note: You have to enter Password to watch the programme which is blocked by the age level.

New Password

Enter New Password using the NUMBER(0-9)button.

Enter Again

Enter the New Password again to confirm the Verify Password.

Change Password

Press the[ ] or [OK ] button to changed password.

Error

Enter again

* * * * * *

New password

* * * * * *

Choose OFF to shut off the Antenna power ,if you have a passive or a self powered active ANTENNA .

Warning: You should never shortcut the antenna jack, it may cause injury or damage some unit.

The receiver is only able to supply DC 5V/50mA(MAX), never connect heavy load to the receiver, it may cause damage.

Clear Channels

If you just want to delete the Channel List, select the Clear Channels item.

1. Select theClear Channels item using the[ ] or press [OK] button.

2. A prompting message will be displayed to request your confirm, select YES and press the [OK] button to confirm.

3. Select NO or press the [DVB MENU] button to return if you want to abort.

DVB OPERATION

System Info

You can select to view all system information.

AUTO SEARCH

If your receiver is connected to the aerial and television, you can automatically search channels without entering any other information.

Select the Auto Search item using the[ ] or press [OK] button to start searching. The searching result will be displayed in the Search Result window.

Wait while the receiver searches for the channels, this may take a few minutes.

Note: If you press the [DVB MENU] button during searching, the operation is stopped and the channels found until then will be saved.

If search operation is successfully completed, and the channel does not exist, try to reset the search operation again if necessary.

Warning: Once you press [OK] button to start auto search operation, all the saved channels will be cleared.

Note: The Default Password is "000000". If you have forgotten your Password, please contact

your local product distributor.

DVB OPERATION

MANUAL SEARCH

You can search channels manually by searching parameters.

Note: Select different item using the[ ]button, Press the[ ]button to do your setting.

Press the [DVB MENU] button to save the changes and return to the previous menu.

Channel

Select your desired frequency channel to search using the [ ] button. W hen entering frequency channel value, the appropriate frequency value is entered.

Frequency

Enter the your desired frequency to search directly by using the number(0~9) button.

Search Mode

Switch the Search Mode between All Channels and Free Channels.

All Channels W hen search operation is successfully completed ,all the channels found

will be saved.

Free Channels When search operation is successfully completed ,only the free channels will be saved.

Update Mode

Switch the Search Mode between Replace and Append.

Replace Before start searching new channels, all the saved channels will be cleared first. Append The saved channels will not be deleted .

NIT Search

If specified frequency channel information and other channel information are provided together the channel which belongs to other frequency channel, is also searched.

Select either Enable or Disable the NIT Search.

DVB OPERATION

After finishing all the setting above ,select the Search item to start searching.

The searching result will be displayed in the Search Result window.

Note: If you press the [DVB MENU]button during searching, the operation is stopped and the channels found until then will be saved.

If search operation is successfully completed, and the channel does not exist, try to reset the search operation again if necessary.

CHANNEL SETTING

This chapter describes how to edit channels.

Note: Press [ ] or [OK] button to enter the following menu. Press the [DVB MENU] button to return to the previous menu.

Channel Edit

You can edit all channels in the Channel list.

Note: Select the different edit modes(delete and move) using the the [ ] button.

DVB OPERATION

Channel Sort

You can sort all TV or Radio channel lists by channel ,name or free/scrambled.

Note: Select the different sort ways using the [ ]button, then press [OK] button to confirm.

Ascending Sort Channel lists are sorted by channel name from A to Z.

Descending Sort Channel lists are sorted by channel name from Z to A.

Free First Free channels will be placed on the top of the list.

Scrambled First Scrambled channels will be placed on the top of the list.

Favourite Edit

You can edit Favourite channel .

EPG

The Programme Guide displays programme information about each channel, based on the date and time.

Press [OK] button select you favourite channel ,and press [OK ] button to set the you selected channel as favourite channel .

You can press [ ] button to switch the channel, and press [ ] button to view the current day or the next day programs and information, if there is the current day and the next day program and information.

Please check for causes of problems in accordance with the following chart before contacting

any maintenance personnel.

Cannot power on

Please make sure the well connecting of power cord

No sound

Please make sure the well connecting of audio cord

Check volume

Volume too low

Check volume

If volume is still too low when adjusting volume to maximum, please check whether the input device is well set

Input antenna damaged or not well connected

Remote control failure

Check whether remote control battery used up

Whether battery installation is correct Whether obstacles exists between remote control and the

unit's receiving window Check whether receiving window has strong light

Symptom

Causes and Correction

Symptom

Causes and Correction

Black screen, power indicator light off

Check whether power cord is well connected, and whether this unit is power on

Check whether the signal cord of input device is well connected Check whether input device is power on

Check whether the input device signal is in this unit's specification

Check computer output mode: control panel-display-setup If the setup does not accord with this unit's specification,

please change the display setup

Hor scanning frequency: 30kHz 75kHz

Max display mode:

15":1024X768 75 Hz@

Image display flicker, unstable

Ver scanning frequency: 50 Hz 75Hz

TROUBLESHOOTING

DISPLAY TROUBLESHOOTING

SOUND AND TV TROUBLESHOOTING

Snowy picture

Make sure there is nothing plugged in the headphone jack

If the above methods still cannot solve the problems or the troubles are special, please

contact the local maintenance personnel.

Symptom

Causes

Correction

No sound

1. Disc warped or dirty

2. The unit in mute state

1. Clean the disc

2. Press MUTE button to cancel it.

No image

1. TV not set for proper system

1. Reset AV/TV state of TV

No color

1.2.TV system not right

TV color not well adjusted

1. Try to change the color system

2. Reset the TV color

No disc reading

1. Disc warped or dirty

2. Disc not correctly placed

3. Condensation on laser head

1. Clean the disc

2. Reload a disc with label side facing up

3. Witch on power, unload disc and leave it

for about 1 hour

Temporary

function failure

1. Mal-fabricated disc used

2. Wrong buttons pressed

3. Static leakage into the unit from outside

1. Wait for 5 to 10 seconds to restore to

normality automatically

2. Operate again

3. Power off for 1 to 2 minutes

to power

on again

Image rolling

1. System setup not suitable

for disc

1. Adjust system mode

Not play

1. Condensation on laser head

2. Disc not properly loaded

3. Disc not compatible with the unit

1. Switch on power and wait for 1 to 2 hours

2. Make sure label side of the disc facing up

Confirm whether this unit compatible with

the placed disc

Sound distortion

1. To o large volume of connected

device

2. Sound field mode not suitable for disc

1. Adjust the device volume

2. Adjust appropriate sound field

No subtitle

1. No subtitle made in disc

2. The unit subtitle is turned off

1. Disc problem

2. Press SUBT button to select it

TROUBLESHOOTING

DVD TROUBLESHOOTING

LCD screen

Size Display proportion

Type Pixel distance View angle

15.0 (diagonal)

304.1 mm(H)X228.0 mm(V)

TFT color

0.297 mm(H)X0.297mm( V) 80(L)/80(R)/80(T)/55(B)

Frequency

Hor scanning frequency Ver scanning frequency

Display color

30 kHz 75 kHz 50 Hz 75 Hz

16.7M color

Display mode

Recommended mode

Max mode

1024X768@75 Hz

Input signal

Synchronous signal

Video signal

H/V separation, TTL positive/negative H/V composite, TTL positive/negative Green synchronous, 0.3Vp p,negative

0.7 Vp p@75ohm

TV/Video

Image system Audio system Video form

PAL/SECAM/NTSC(In video mode) DK/I/BG/L CVBS

Power

Adapter input

~ 100V-240V ( 50 /60 Hz)

Unit/net weight LXWXH

438.7mmX163.1mmX295.7mm/7.0kg

Environmental factor

Working temperature Working humidity

Storing temperature Storing humidity

10% 80%~

5% 95%~

Audio parameter

Audio input

Frequency response

3.5 jack(L,R), 0.5 0.3 Vrms

TV signal: 100 Hz 12 kHz(-3dB)~ AV: 100 Hz 15 kHz (-3dB)~

5 35 ~

-20 45~

Disc type

DVD VIDEO MPEG4

SVCD

VCD1.0, 1.1, 2.0 version;

CD-DA

Output

Analog audio output, coaxial digital audio

Output, composite video output

DVD

S-VHS, RGB, YPbPr, VGA

Hint: the items with " " symbol are related to LCD screen. Specifications and design are subject o change without notice.

Some discs labelled with MPEG 4 on the market actually are * .rm/* .ram/* .rmm and others which are not compatible. Please take care when buying discs.

This unit cannot play some SVCD discs with VCD format.

Because of disc quality and format difference, we cannot make sure smoothly read all discs; some functions cannot be fulfilled for the disc speciality, but not machine trouble.

SPECIFICATIONS

Supply

As for weight and size, please take actual obj ect as standard.

Panel Life

Hours

50,000

Adapter output

12V/4.5A

___

DVB

Input connector R Loop through output connector

Frequency range (VHF/UHF)

IEC-Type, IEC 169-2, Female

Channel range(VHF/UHF)

IEC-Type, IEC 169-2, Male (loop throughout)

174MHz 858MHz

7 & 8 Mhz

Format

(Hz )

Ver scanning frequency

SUPPORTED PC INPUT MODE

31.5

70.0

DOS

640 350

25.17

720 400

31.5 70.0

28.32

DOS

640 480

31.5 60.0

25.18

DOS

640 480

37.9 72.0

31.50

VESA

640 480

37.5 75.0

31.50

VESA

800 600

35.1 56.2

36.00

VESA

800 600

37.9 60.0

40.00

VESA

800 600

48.1 72.0

50.00

VESA

800 600

46.9 75.0

49.50

VESA

Hor scanning frequency

(KHz)

Pixel frequency

To prolong this unit's service life, you are suggested to use power management function of computer.

Because of the difference of display card output signal (especially non-standard signal output), the display image may appear little disturbance which can be adj usted through " AUTO CONFIG " in the "PICTURE" menu by users.

This product does not support the display mode not listed above. In order to achieve the best display effect, please select the above-listed 12 display modes input signal.

DISPLAY MODE

Resolution

(MHz)

1024 768

48.4 60.0

65.00

VESA

1024 768

VESA

56.5

70.11

75.00

1024 768 60.0

75.0

78.75

NOTES

DISPLAY MODE

Ver scanning frequencyHor scanning frequency

SUPPORTED VIDEO INPUT MODE

Format

Vert scan type

720X480 31.47 59.94 480P

720X480

15.734

59.94 480i

720X576

31.25

50 576P

720X576 15.625 50 576i

Specifications and design are subj ect to change without notice.

NOTE

Please check the following accessori es.

User manual

Coaxial digital audio cord

Audio cord

AV cord

Remote control and battery

Power adaptor

Operational Manual

ACCESSORIES

Wall Mount Holder Kit AK 558(optional)

Kickstand Kit

Wall Mount Holder Kit AK 556(optional)

5195201 V0. 0

Avtex W152D, W152T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
