Avtech KPD616, KPD616F, KPD608, KPD608F, KPD604 Quick Manual

234Z

616, 616F, 608, 608F, 604, 604F quick_V1.5

KPD Series

MPEG-4 DVR QUICK

Please read this instruction thoroughly before operation and retain it for future reference.

The image shown above may differ from the actual product appearance.

All lead-free products offered by the company comply with the requirements of the European law on
the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes
and products are strictly “lead-free” and without the hazardous substances cited in the directive.

The crossed-out wheeled bin mark symbolizes that within the European Union the product must be
collected separately at the product end-of-life. This applies to your product and any peripherals
marked with this symbol. Do not dispose of these products as unsorted municipal waste.

ROHS AND WEEE

-1-

1. OVERVIEW

1.1 Product Description

This MPEG-4 multiplex network DVR series combines remote surveillance, burglar prevention, and evidentiary

recording features and is designed to become a simple entry-level system with all necessary functions.

1.2 Package Contents

□ Digital video recorder (DVR) □ Thermal conductive silicone rubber

□ Adapter and power cord □ HDD bracket screws * 8 (spare parts)

□ Free licensed software AP disc □ DSUB PIN connector

□ Manual & quick start & IR remote control manual □ AAA size battery * 2

□

Vertical panel sticker for remote controller (certain models only)

Note: Before using the IR remote controller, please install the batteries first.

2. FRONT AND REAR PANELS

‧ 16CH

‧ 8CH

‧ 4CH

LIVE

1
2
3

4
5
6

7
8
9

0
A
B

LIST LATEST

PLAY

SLOWSTOP

2.1 Front Panel

1) LED Indication

The following LEDs will be on when:

: Power is connected
: HDD is reading or recording / HDD Full: HDD is full

: Any event alarm is triggered

: Timer recording is activated

Note: To turn off your DVR, please disconnect the power supply.

-2-

2) (USB port)

To quickly backup or upgrade firmware/OSD, you can insert a compatible USB flash drive into this USB port. Before

using the USB flash drive, please use your PC to format the USB flash drive as “FAT32” first.

Note: For the list of compatible USB flash drives, please refer to “Appendix 2” in the user manual.

3) IR receiving zone

If the control panel is removed from the DVR and used as a remote controller, aim the remote controller at this area

to control the DVR operation.

4)

(Lock mode) / (Unlock mode)

To lock the remote controller back to the DVR, switch the lock button to the left “

” (lock mode).

To remove the control panel from the DVR and use as a remote controller, switch the lock button to the right “

”

(unlock mode).

Note: Because of the different panel layout, please place the vertical panel sticker on the controller for

operation convenience.

5) (Menu)

Press this button to enter / exit the quick start menu.

In the sub-layer of the advanced setting menu,

press this button to confirm the settings and go back to the upper layer.

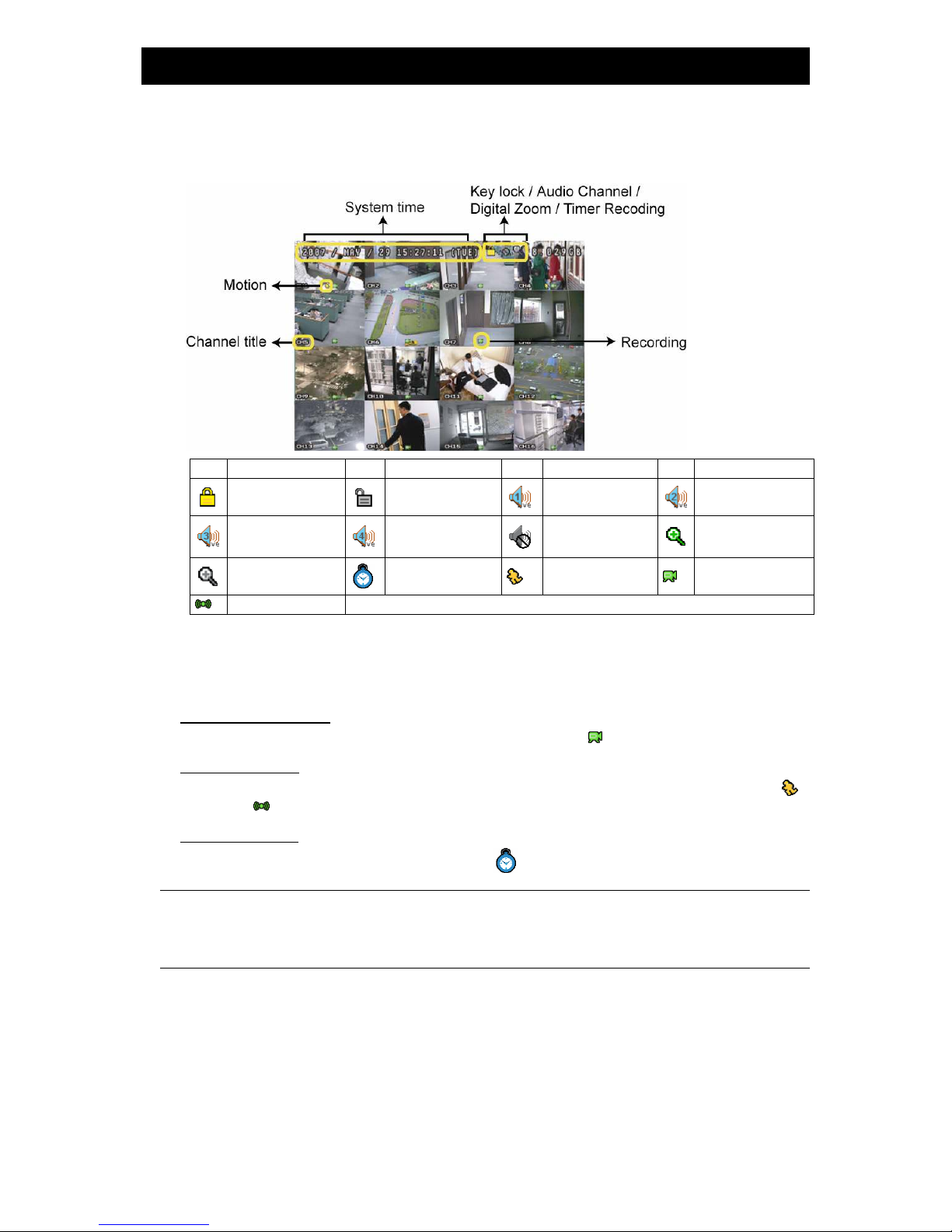

6) LIVE

Press this button to stop the playback and return to the live mode.

7) Channel Display Selection

‧ 16CH DVR

/ / / (Quad selection mode)

Under the live or playback mode, press one of these four buttons to select the quad display mode.

: Display Quad 1 mode (4-cut view of CH1, CH2, CH5 and CH6).

: Display Quad 2 mode (4-cut view of CH3, CH4, CH7 and CH8).

: Display Quad 3 mode (4-cut view of CH9, CH10, CH13 and CH14).
: Display Quad 4 mode (4-cut view of CH11, CH12, CH15 and CH16).

/ / / (Channel selection under quad selection mode)

In the quad display mode, press one of these four buttons to select the channel display.

: Display the upper left channel of the selected quad mode.
: Display the upper right channel of the selected quad mode.
: Display the lower left channel of the selected quad mode.
: Display the lower right channel of the selected quad mode.

‧ 8CH DVR

/ / / / / / / (Channel selection)

Press one of these buttons to select the channel display CH1 ~ CH8.

‧ 4CH DVR

/ / / (Channel selection)

Press one of these buttons to select the channel display CH1 ~ CH4.

-3-

8) / / or (16-cut channel display / 9-cut channel display / 4-cut channel display)

Press one of these buttons to switch the channel display.

: Display 16-cut display (for 16CH DVR).

: Display 9-cut display (for 16CH, 8CH DVR).

: Display 4-cut display (for 8CH DVR).

: Display 4-cut display (for 4CH DVR).

9) / (Quad Sequence / Full Sequence)

Press one of these buttons to activate the sequence mode.

: Press this button to activate the Quad Sequence mode and press the button again to exit.

: Press this button to activate the Full Sequence mode and press the button again to exit.

10)

1

2
3

/

4

5
6

/

7

8
9

/

0

A

B

(Number buttons for password entering)

Use these four buttons to enter the DVR password.

11) /

Use these two buttons to select the live or playback sound of the audio channels.

Icon “ ” means: Live audio of the 1st audio channel / Icon “ ” means: Playback audio of the 1st audio channel

Icon “

” means: Live audio of the 2nd audio channel / Icon “ ” means: Playback audio of the 2nd audio channel

Icon “

” means: Live audio of the 3rd audio channel / Icon “ ” means: Playback audio of the 3rd audio channel

Icon “

” means: Live audio of the 4th audio channel / Icon “ ” means: Playback audio of the 4th audio channel

Icon “

” means: The audio channel is not selected.

Note: If you want to make a video backup with audio, please connect audio cameras to the channels

which support the audio function
For 16CH & 8CH DVR, the audio channels are CH1, CH2, CH3 and CH4.
For 4CH DVR with a fan built-in, the audio channel is CH1.

12) (Key lock)

Press this button to lock keys on the DVR front panel.

13)

(Digital zoom)

Press this button to enlarge the image of the selected channel.

14) ▲ / ▼ / ◄ / ►

Press one of these direction buttons to move the cursor up/down/left/right.

Under the DVR menu mode, these direction buttons can use for the following operation:

▲ ▼: Make the selection / Change the settings

◄ ►: Go to the upper layer or sub-layer / Make the selection

15)

(Enter)

Confirm the password entering.

In the advanced menu, press this button to confirm the settings and go back to the upper layer.

-4-

16) LIST (Event List Search)

To quick search the recorded files by event list, press this button to show all types of the event lists.

ALARM: List the information of the alarm-trigger-recorded files.

MANUAL: List the information of the manual-recorded files. The DVR will save one recorded file once any recording setting is changed

MOTION: List the information of the motion-trigger-recorded files.

SYSTEM: List the information of the system-recorded files. The DVR system will save one recorded file every one hour.

TIMER: List the information of the timer-recorded files.

17) LATEST

Press this button to playback the latest recorded video.

18) STOP

Press this button to stop playback and return to the live mode.

19) SLOW

Under the playback mode, press this button to slowly playback the recorded file (by 1/4 speed or 1/8 speed).

20) ◄◄ /

/►►

Under the playback mode, press these buttons to fast rewind / pause / fast forward the playback file.

2.2 Remote Controller

To remove the control panel from the DVR and use as a remote controller, switch the lock button to the right “ ”

(unlock mode). Because of the different panel layout, please place the

vertical panel sticker on the controller for

operation convenience.

Note: Before using the IR remote controller, please install the batteries first.

16CH DVR 8CH DVR 4CH DVR

1
2
3

4
5
6

7
8
9

0
A
B

LIVE

LIST

LATEST

PLAY

SLOW STOP

1
2
3

4
5
6

7
8
9

0
A
B

LIVE

LIST

LATEST

PLAY

SLOW STOP

LIVE

321

654

987

BA0

LIST

LATEST

PLAY

SLOW STOP
