AVM543
HD 1080P Solid Light 3-Axis Motorized
Lens
Push Video EaZy
Networking
WDR MicroSD
Card
Recording
2MP IR Dome IP Camera
PoE Line in / out External
IK10
(lens cover)
I/O
Mobile
Surveillance
FEATURES
Equipped with a motorized vari-focal
lens of f2.8 ~ 12 mm, focal length and
focus adjustment could be made remotely
3-axis mechanism for flexible ceiling and
wall-mount installation
Free P2P Cloud EaZy Networking
-- Cloud EaZy Networking available to
connect this device to Internet automatically in
three steps with our free mobile app,
EagleEyes.
-- The Buddy feature to share the device
access permission to other people.
-- Device login / out notifications reported.
MicroSD card support (up to 64GB) for
video storage
External alarm I/O device connection
POE (Power-over-Ethernet) support to
eliminate the use of power cables and
reduce installation costs
ONVIF (
simplify system integration
Solid Light series featuring better
overexposure prevention (Advanced Smart
Light Control), automatic adjustment of
image brightness, and longer lifetime of
LEDs
WDR to increase image recognizability in
overexposure and dark areas
IK10 rated, vandal-resistant case to
withstand attempts to open or damage the
camera
Line in / out jacks available for audio
transmission
Waterproof design on the Ethernet cable
connector
Remote Surveillance
-- Fully compatible with iOS and
Android devices, and Internet Explorer
on Windows operating system
-- Free PC program, CMS Lite, for 32CH
devices monitoring on Windows operating
system
-- Push Video available on your iOS and
Android devices
) standard supported to
SPECIFICATIONS
▓ Network
LAN Port YES
LAN Speed 10/100 Based-T Ethernet
Supported Protocols
ONVIF Compatible YES (Profile S)
Number of Online Users 10
Security
Remote Access
▓ Video
Network Compression H.264 (Main Profile) / MJPEG
Video Resolution 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240
Frame Rate 30/25fps
Multiple Video Streaming 4 (H.264 /MJPEG)
▓ General
Image Sensor 1/ 2.8” SONY CMOS image sensor
Min Illumination 0.1 Lux / F1.4 ~ F2.8, 0 Lux (IR LED ON)
Shutter Speed 1/10,000 ~ 1/7.5 (Slow shutter)
S/N Ratio More than 48dB (AGC off)
Lens f2.8 ~ 12mm / F1.4 ~ F2.8
Viewing Angle
IR LED 3 Units
IR Effective Distance**
IR Shift YES
Smart Light Control YES
White Balance ATW
AGC Auto
IRIS Mode AES
WDR YES
POE YES (IEEE 802.3af)
External Alarm I/O YES (1 input / 1 output)
RAM 20MB
MicroSD Card Slot YES (support up to 64GB microSD card)
Weather-proof IP66
Vandal-proof IK10
Operating Temperature -25℃ ~ 50℃
Operating Humidity 90% or less relative humidity
Power Source (±10%) 12V / 1.5A
Current Consumption (±10%) 310mA (IR LED OFF); 565mA (IR LED ON)
Power Consumption (±10%) 12.95W Max (PoE) ; 12.95W Max (PoN) ; 12W Max (DC Adapter)
Net Weight (kg) 1.5
DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP,
RTCP,IPv4/IPv6, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP
(1) Multiple user access levels with password
(2) IP address filtering
(3) Digest authentication
(1) Internet Explorer on Windows operating system
(2) CMS Lite, 32CH CMS software for Windows operating system
(3) EagleEyes on iOS & Android mobile devices
Wide: 103 (Horizontal) / 54° (Vertical) / 122° (Diagonal)
Tele: 31° (Horizontal) / 17° (Vertical) / 36° (Diagonal)
Default: up to 30 meters
IR Enhanced Mode: up to 50 meters
SPECIFICATIONS (CONTINUED)
▓ Audio
Line in YES (Mono)
Line out YES (Mono)
▓ Others
TV-out YES
Mobile Surveillance iOS & Android mobile devices
EaZy Networking YES
Motion Detection YES
Event Notification Push Video / FTP / Email / SMS
3-Axis YES
Privacy Mask YES
RTC (real-time clock) YES
Digital Pan / Tilt / Zoom YES
‧Intel core i3 or higher, or equivalent AMD
‧2GB RAM
Minimum Web Browsing Requirements
‧AGP graphics card, Direct Draw, 32MB RAM
‧Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later
‧Internet Explorer 7.x or later (Windows Edge not supported)
** Using IR enhanced mode and slow shutter speed, the distance can be extended even longer.
*The specifications are subject to change without notice.
3-AXIS ILLUSTRATION
DIMENSIONS
12.38cm
Dimensional tolerance: ± 5mm

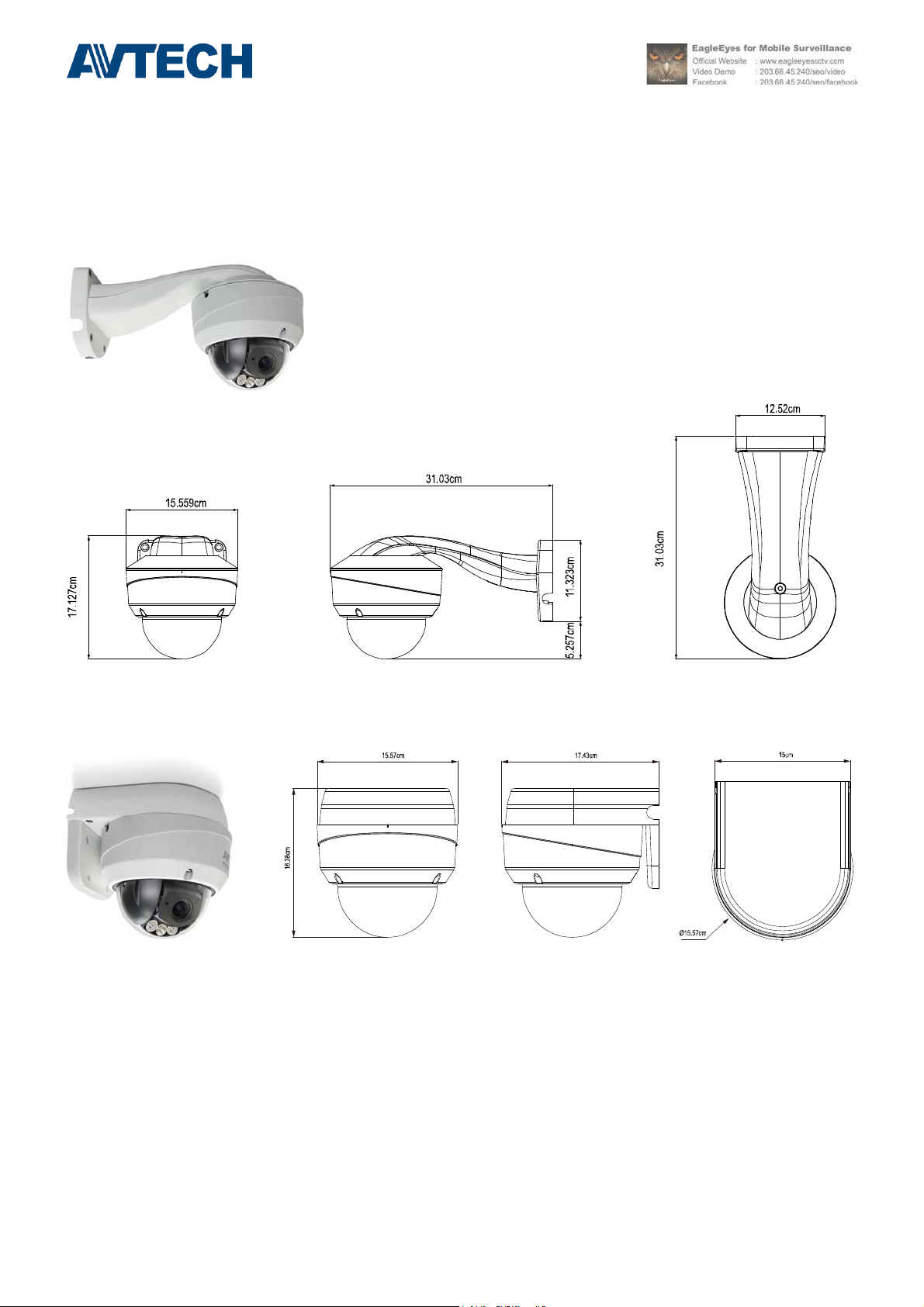

OPTIONAL BRACKETS
AVM542-BKT(A)
PAVM542-BKT(B)
Dimensional tolerance: ± 5mm
Dimensional tolerance: ± 5mm
OPTIONAL BRACKETS (CONTINUED)
AVM542-BBKT
Used as a bracket to mount the camera on the ceiling and collect the cables.
40mm
38mm
?0
26mm
35.5mm
?5mm
?50mm
Dimensional tolerance: ± 5mm
AVM542CEIL-BKT (Coming Soon)
Used as a bracket to mount the camera into the ceiling.
84
54
?266
?38[HOLES]
?93
158.3
266
200
Dimensional tolerance: ± 5mm
