Dome Camera User Manual
The product image shown above may differ from the actual product.
Please use this camera with a DVR which supports HD video recording.
Please read the instructions thoroughly before using the product.
CCAAUUTTIIOONN
RRIISSKK OOFF EELLEECCTTRRIICC SSHHOOCCKK
CCAAUUTTIIOONN:
To reduce the risk of electric shock, do not expose this apparatus to rain or moisture.
Only operate this apparatus from the type of power source indicated on the label.
The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of
such damages.
:
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence
of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
This exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
ROHS Announcement
All lead-free products offered by the company comply with the requirements of the European law on the Restriction
of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly
“lead-free” and without the hazardous substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected
separately at the product end-of-life. This applies to your product and any peripherals marked with this symbol. Do
not dispose of these products as unsorted municipal waste.
CE Mark
This apparatus is manufactured to comply with the radio interference.
The company does not warrant that this manual will be uninterrupted or error-free. We reserve the right to revise or
remove any content in this manual at any time.
dg102_102a_V1.1
www.safemag.ru
www.safemag.ru
FEATURES
1. 1/2.7” CMOS Sensor
2. 1080P video output
3. Low light sensitivity of 0.1 Lux / F1.8
PACKAGE CONTENT
IR camera * 1 User manual * 1

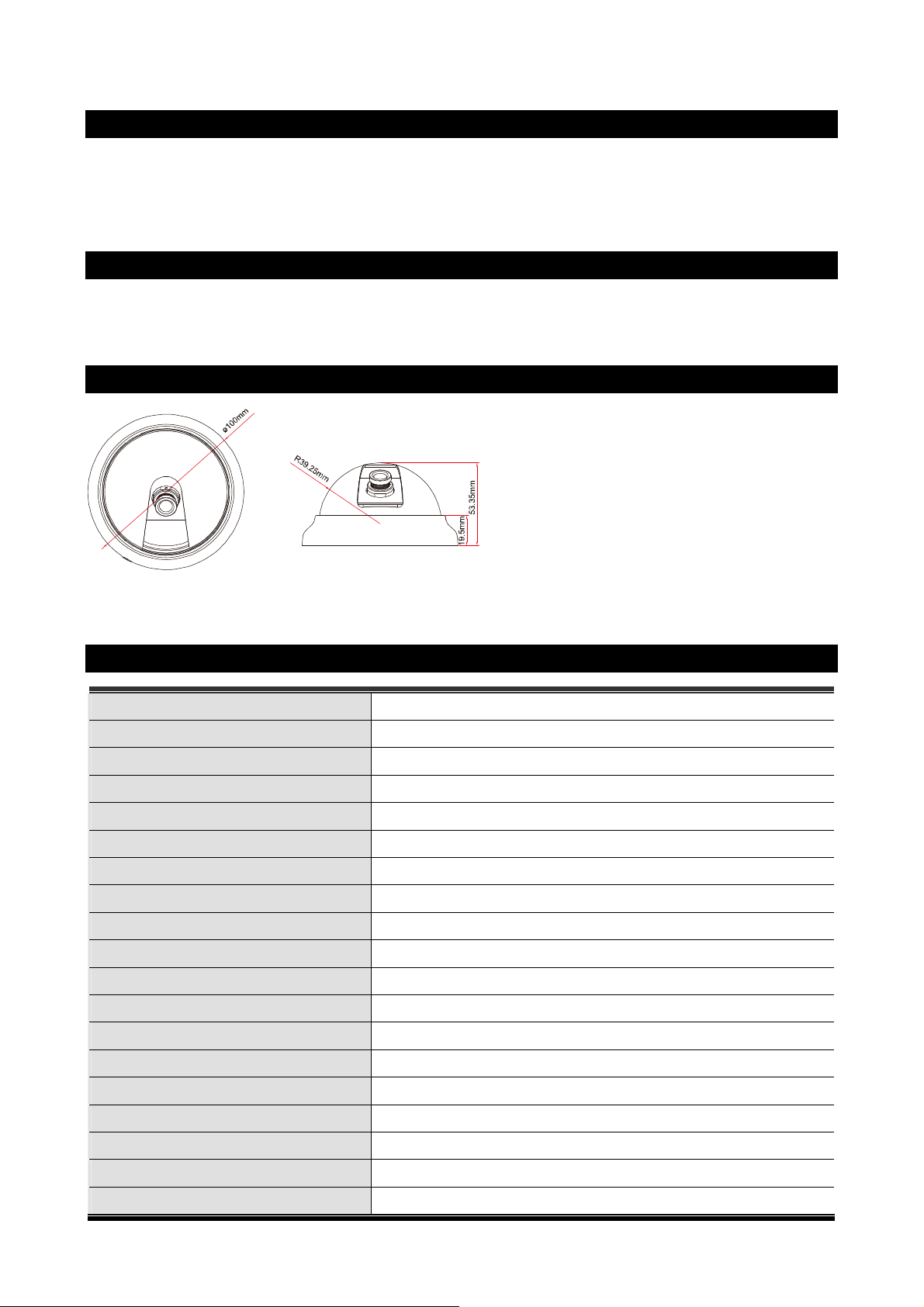

DIMENSIONS*
*Dimensional Tolerance: ± 5mm
SPECIFICATIONS*
Pick-up Element 1/ 2.7” CMOS image sensor
Number of Pixels 1930(H) x 1088(V)
Video Frame Rate 1080P@30fps / 1080P@25fps
Min. Illumination 0.1 Lux / F1.8
S/N Ratio More than 48dB (AGC OFF)
Shutter Speed 1/30 (1/25) sec ~ 1/720000 (1/600000) sec
Lens f3.6mm / F1.8
Lens Angle 96° (Horizontal) / 50° (Vertical) / 116° (Diagonal)
IRIS Mode AES
White Balance AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K
AGC Auto
Sharpness YES
Flickerless 50HZ / 60HZ / OFF
BLC YES
Operating Temperature 0℃ ~ 40℃
Video Output 1.0 Vp-p composite, 75Ω
Power Source (±10%) DC12V / 0.5A
Current Consumption (±10%) 100mA
Dimensions (mm)** 100(Ø) × 60(H)
* The specifications are subject to change without notice.
INSTALLATION * The product image may be different from the actual product.
www.safemag.ru
www.safemag.ru
1. Turn “Dome Cover”
2. Mark the positions of one “power and video line hole” and four “screw holes” on the ceiling.
Figure 2 & Figure 3).
(as shown in Figure 1)
counterclockwise to the end and take it off.
(as shown in
Drill a hole on the proper position of the ceiling for the power and video line to p ass through.
And then screw “base” to the ceiling.
Note: Screws for installation are not supplied within the sales package. Please prepare by yourself and use proper screws.
Suggestions:
a) For safety, please let the power and video line concealed behind the ceiling.
b) If the installation spot doesn’t allow the install ation personnel to screw po wer and video line hole on the
ceiling, they could cut the concave edge of “base” to let the power and video line pass through. Be
sure to cover the line to prevent violent attack.
3. Adjust the view angle of the lens(as shown in Figure 3). Then put “dome cover” back to the “base” and
turn clockwise.
Dome Cover
Figure 1
Power &
Video Line
Hole
4 Screw Holes
Figure 2 Figure 3
Figure 4
CONNECTION
1. DC12V Input Terminal
Connect the power terminal of the camera to a DC 12V regulated power supply.
NOTE: Please use the correct power adaptor, DC12V (regulated), to o perate this unit. The power
tolerance of this unit is DC12V ± 10%. Over maximum DC 12V power input will damage this
unit.
2. Video Output Connector (VIDEO OUT)
Connect the camera video output to the video input of a DVR with 75Ω coaxial cable.
NOTE: To ensure the camera has sufficient protection against moisture, an extra waterproof
measure, such as by usi ng a n in sula ting tape, must be used to cover the power and video
connectors after connection.
CAMERA PARAMETERS
This camera series has its own configuration menu, and either of the two methods below is available to
access the menu based on the camera model you have.
NOTE: The methods below are available only when the camera is used with our brand’s HD CCTV
DVR.
Method 1
On the DVR live view, click the channel which connects this camera to display in the full screen mode,
and select
Method 2
.
On the DVR live view, right click to show the DVR main menu, and select “ADVANCED CONFIG”
“DCCS”. Then, select the channel which connects this camera, and click “SETUP” to enter the menu of
camera parameters.
ADVANCED CONFIG
www.safemag.ru
www.safemag.ru
CAM ER A CH1 CH2 CH3 CH4
DETECTION MENU SETUP
ALERT
NETWORK
DISPLAY
RECORD
DEVICES
DCCS DEVICE XXXXX
NOTIFY CONNECTION OK
EXIT
When the camera menu is entered, you’ll see the keys on the bottom right corner to
move between and change those configurations.
Move between selections or change settings.
Enter the currently-selected item.
X Quit the camera parameters mode.
MENU DESCRIPTION
DAY / NIGHT MODE EXT / COLOR / B&W / AUTO Set the day & night mode among EXT, COLOR, B &
AWB MODE AUTO / USER / (PUSH) / 8000K
AE MODE ESC / HOLD Set the exposure mode between ESC and HOLD,.
BRIGHT 0 ~ 255 Set the level of brightness to adjust the brightness of
SHUTTER AUTO / 1/25 / 1/30 / 1/50 / 1/60 /
FLICKER OFF / 50HZ / 60HZ Enable this function to enhance the flicker situation.
BLC 0 ~ 16 Set the level of Back Light Compensation to adjust the
AGC 1 ~ 5 Set the level of Auto Gain Control to automatically
LSC ON / OFF Enable or disable Lens Shading Correction to correct
SPECIAL PRIVACY
ZONE
MOTION MOTION / SENSITI. / ALARM /
HLC HLC / MASK VALUE /
EFFECT COLOR GAIN 0 ~ 255 Set the level of gain.
COLOR HUE 0 ~ 71 Set the level of hue.
SHARPNESS 0 ~ 255 Set the level of sharpness to enhance the clarity of
CONTRAST 0 ~ 255 Set the level of contrast.
BRIGHT OFF. -128 ~ 127 Set the level to compensate the brightness of the
MIRROR OFF / ON Enable to rotate the images horizontally based on
FLIP OFF / ON Enable to rotate the image 180° when necessary.
SYSTEM CAMERA ID 0 ~ 255 Set the camera ID.
ID DISP. OFF / ON Enable or disable the display of the camera ID.
NAME DISP. OFF / ON Enable or disable the display of the camera name.
LANGUAGE ENG / 中文 Select the language of the menu: English / Simplified
FACTORY INIT OFF / ON Enable to restore the camera parameters to factory
/ 6000K / 4200K / 3200K / HOLD
1/100 / 1/ 120 / 1/250 / 1/500 /
1/1000 / 1/3000 / 1/10000
AREA SEL. / MASK PAT. / SX /
EX / SY / EY
HOLD TIME
THRESHOLD
W, and AUTO.
Set the white balance mode among AUTO, USER,
(PUSH), 8000K, 6000K, 4200K, 3200K, and HOLD.
the image.
Set the shutter speed for exposure.
image to compensate for an area that is overpowered
by brightness because of excessive light.
adjust the image when the light level changes.
the phenomenon of vignetting when the focal length is
short.
Set to cover certain areas on the camera image.
Set certain areas for motion detection.
Set to suppress strong backlight for clearer images.
image detail by adjusting the aperture and sharpening
the edges.
image.
your installation situation when necessary.
Chinese.
default values.
