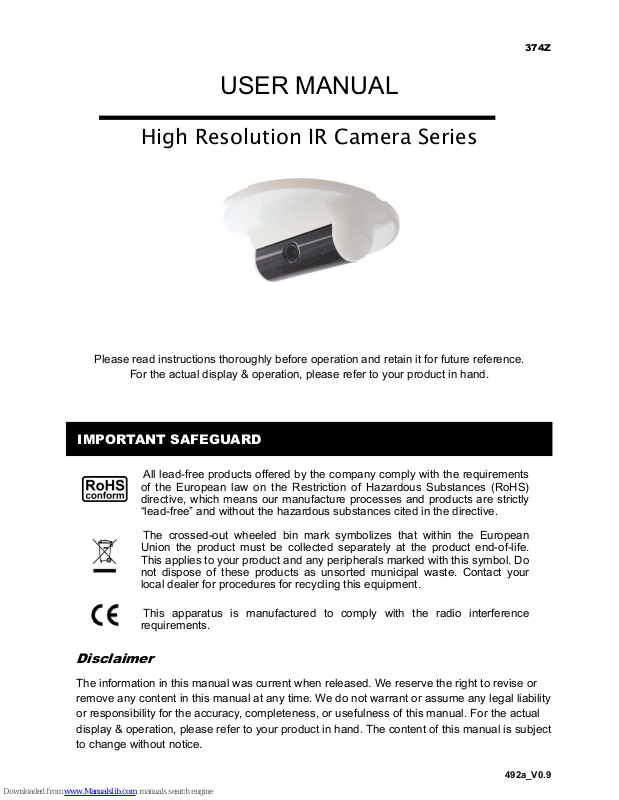

USER MANUAL

High Resolution IR Camera Series

Please read instructions thoroughly before operation and retain it for future reference.

For the actual display & operation, please refer to your product in hand.

IMPORTANT SAFEGUARD

All lead-free products offered by the company comply with the requirements
of the European law on the Restriction of Hazardous Substances (RoHS)
directive, which means our manufacture processes and products are strictly
“lead-free” and without the hazardous substances cited in the directive.

The crossed-out wheeled bin mark symbolizes that within the European
Union the product must be collected separately at the product end-of-life.
This applies to your product and any peripherals marked with this symbol. Do
not dispose of these products as unsorted municipal waste. Contact your
local dealer for procedures for recycling this equipment.

This apparatus is manufactured to comply with the radio interference
requirements.

Disclaimer

The information in this manual was current when released. We reserve the right to revise or
remove any content in this manual at any time. We do not warrant or assume any legal liability
or responsibility for the accuracy, completeness, or usefulness of this manual. For the actual
display & operation, please refer to your product in hand. The content of this manual is subject
to change without notice.

1

FEATURES

 1/3" color CCD sensor with SONY Effio DSP

 High resolution

 Low light sensitivity of 0.1 Lux / F1.9, 0 Lux (IR ON)

 Day and night features for 24-hour surveillance

 Smart Light Control to dynamically adjust image performance for clear and accurate images

 Special and stylish design, suitable for discreet monitoring

PACKAGE CONTENT

 IR Camera  Screws & Wall Plugs
 User Manual

SPECIFICATIONS

MMOODDEELL

HHiigghh RReessoolluuttiioonn IIRR CCaammeerraa

Pick-up Element 1/3" HR color CCD image sensor

Number of Pixels 768(H)x494(V) <NTSC> / 752(H)x582(V) <PAL>

Resolution Super high resolution

Min. Illumination 0.1 Lux / F1.9; 0 Lux (IR ON)

Electronic Shutter 1/60 (1/50) to 1/100,000 sec.

S/N Ratio More than 48dB (AGC off)

IR LED 12 units

IR Effective Distance Up to 10 meters

Smart Light Control YES

Lens f4.57mm / F1.9

Lens Angle 60°

Video Output 1.0Vp-p composite, 75Ω

Power Source (±10%) DC12V / 500mA

Current Consumption (±10%) 60mA (IR OFF), 160mA (IR ON)

Dimensions (mm)** 130(ψ) x 37(H)

* Specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
