FEATURES
1. 1/3" color CCD sensor with SONY Effio DSP
2. High resolution
3. F1.4 Large aperture
4. f3.8 ~ f9.5mm vari-focal lens
5. Supports 0.05 Lux at F1.4
6. Vandal-proof housing design (IPxx7)
PACKAGE CONTENT
Please make sure you have the following items in your sales package:
Vari-Focal Dome Camera
with Power and Video Cable * 1
User Manual * 1
FEATURES
1. 1/3" color CCD sensor with SONY Effio DSP
2. High resolution
3. F1.4 Large aperture
4. f3.8 ~ f9.5mm vari-focal lens
5. Supports 0.05 Lux at F1.4
6. Vandal-proof housing design (IPxx7)
PACKAGE CONTENT
Please make sure you have the following items in your sales package:
Vari-Focal Dome Camera
with Power and Video Cable * 1
User Manual * 1
SPECIFICATIONS*
MMOODDEELL
VVaarrii--ffooccaall DDoommee CCaammeerraa
Pick up Element
1/3" Color CCD image sensor with SONY Effio DSP
Number of Pixel
768(H)x494(V) <NTSC> / 752(H)x582(V) <PAL>
Resolution Super High Resolution
Min. Illumination 0.05 Lux / F1.4
S/N Ratio More than 48dB (AGC off)
Electronic Shutter 1/60 (1/50) to 1/100,000 sec
Vari-focal Lens
f3.8mm ~ f9.5mm
Lens Angle
85.4° ～ 36°
IRIS Mode AES
White Balance ATW
IP Rating IPxx7
Video Output 1.0 Vp-p composite, 75Ω
Power Source (±10%) DC12V
Current Consumption
70mA
Dimensions (mm)** 124.3(Ø) x 92(H)
Net Weight (g) 460
* The specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
SPECIFICATIONS*
MMOODDEELL
VVaarrii--ffooccaall DDoommee CCaammeerraa
Pick up Element
1/3" Color CCD image sensor with SONY Effio DSP
Number of Pixel
768(H)x494(V) <NTSC> / 752(H)x582(V) <PAL>
Resolution Super High Resolution
Min. Illumination 0.05 Lux / F1.4
S/N Ratio More than 48dB (AGC off)
Electronic Shutter 1/60 (1/50) to 1/100,000 sec
Vari-focal Lens
f3.8mm ~ f9.5mm
Lens Angle
85.4° ～ 36°
IRIS Mode AES
White Balance ATW
IP Rating IPxx7
Video Output 1.0 Vp-p composite, 75Ω
Power Source (±10%) DC12V
Current Consumption
70mA
Dimensions (mm)** 124.3(Ø) x 92(H)
Net Weight (g) 460
* The specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
LENS ANGLE ADJUSTMENT
The lens can be panned left or right for angle adjustment, maximum 60° respectively from the
default position .

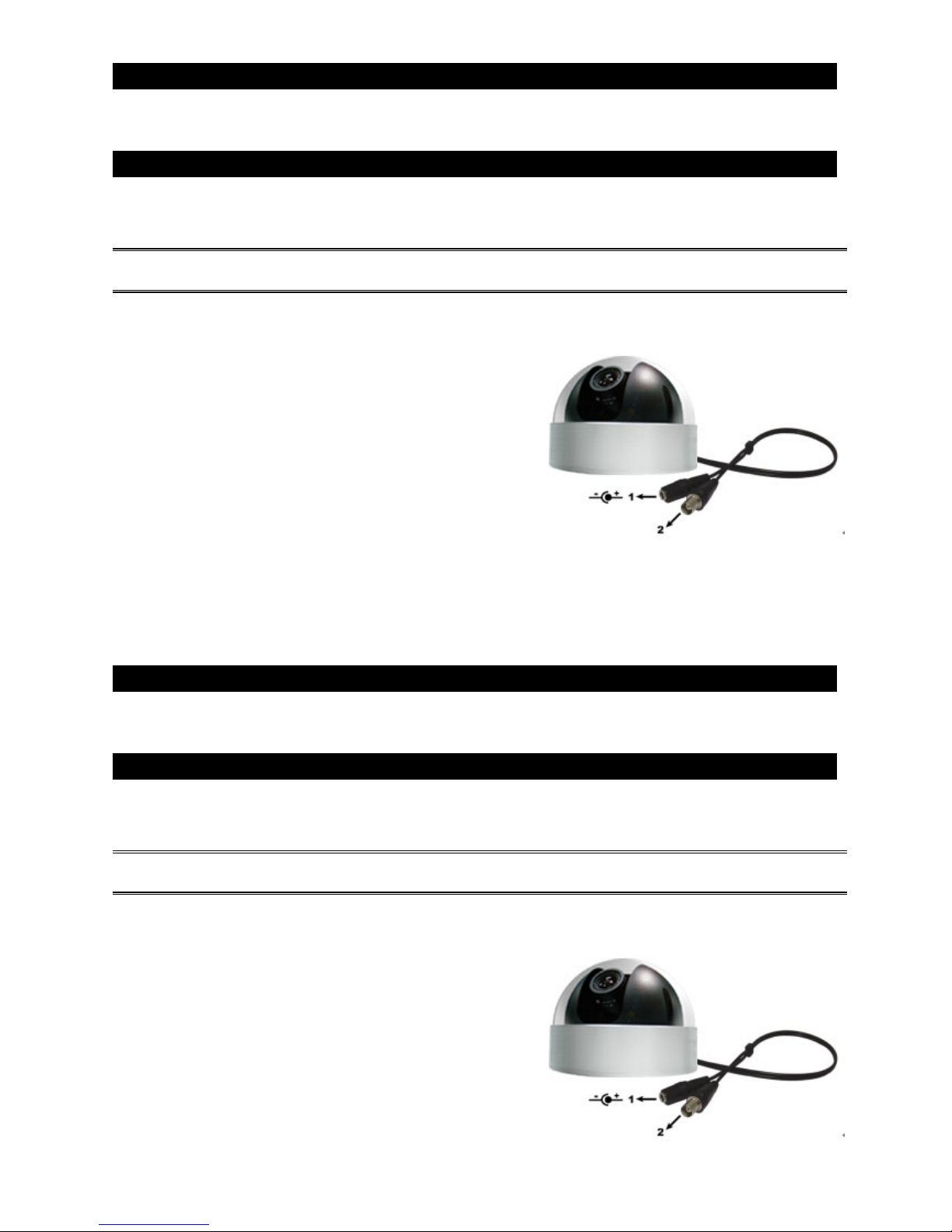

CONNECTION
1. DC12V Terminal
Connect the power connector of the camera to a DC 12V regulated power supply.
NOTE: Please use a regulated DC12V power adaptor to operate this unit. The power tolerance of this unit is DC12V
± 10% (DC 10.8V ~ DC 13.2V). A power input of more than the DC 13.2V will damage this unit.
2. Connect the camera video output to the input of the DVR with a 75Ω coaxial cable.
LENS ANGLE ADJUSTMENT
The lens can be panned left or right for angle adjustment, maximum 60° respectively from the
default position .
CONNECTION
1. DC12V Terminal
Connect the power connector of the camera to a DC 12V regulated power supply.
NOTE: Please use a regulated DC12V power adaptor to operate this unit. The power tolerance of this unit is DC12V
± 10% (DC 10.8V ~ DC 13.2V). A power input of more than the DC 13.2V will damage this unit.
2. Connect the camera video output to the input of the DVR with a 75Ω coaxial cable.
INSTALLATION
Step1 Remove the Dome Cover
Remove the Dome Cover by turning it
counterclockwise to the end and then take it off.
Step2 Remove the Black Shield Case
First, unscrew the Black Shield Case. Then remove
it by pressing the two sides and then pulling it
outward.
INSTALLATION
Step1 Remove the Dome Cover
Remove the Dome Cover by turning it
counterclockwise to the end and then take it off.
Step2 Remove the Black Shield Case
First, unscrew the Black Shield Case. Then remove
it by pressing the two sides and then pulling it
outward.

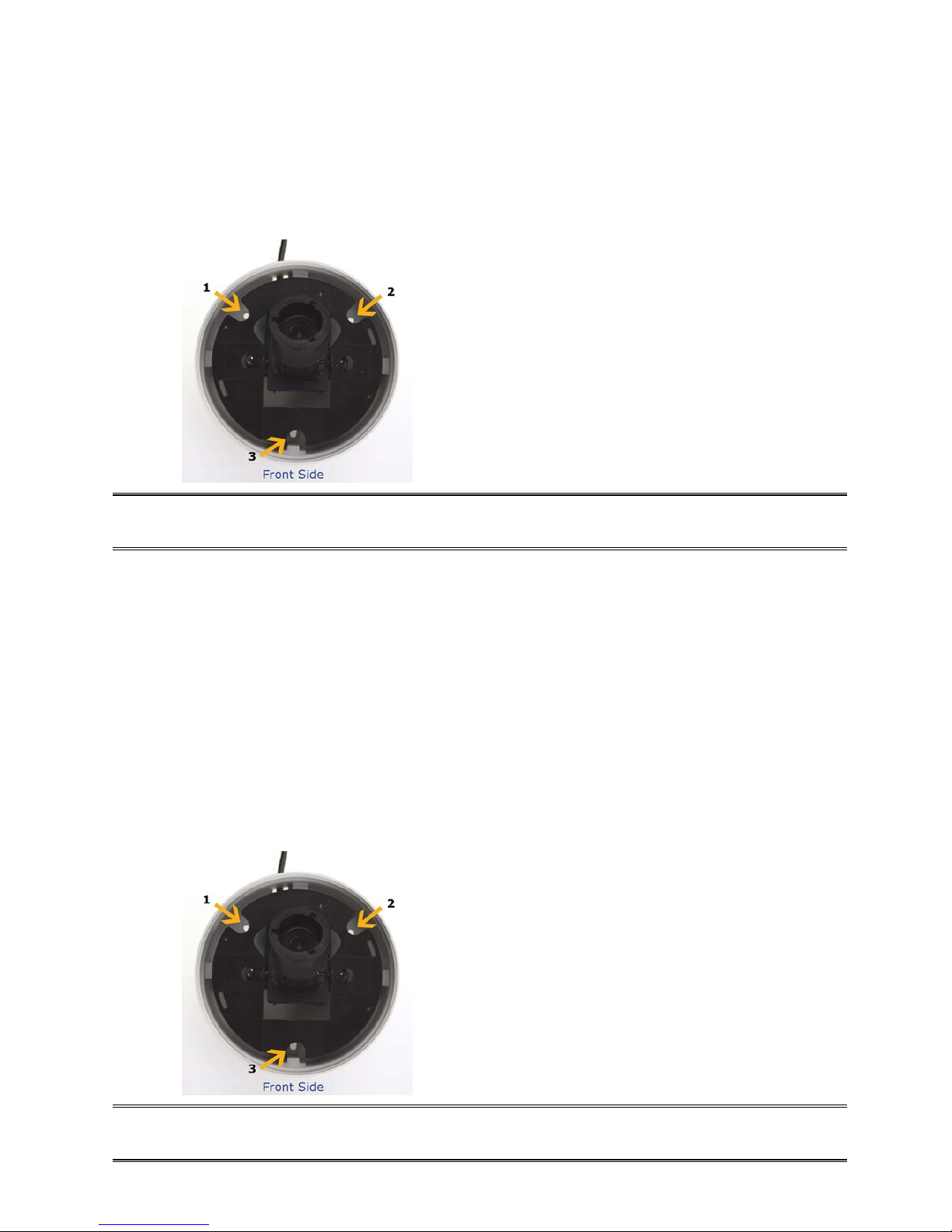

Step3 Align the screw holes
Rotate the lens plate to the front side of the
camera, and align the gaps on the plate with the
three screw holes respectively as indicated
below. Then, aim the lens to the place you want
to watch.
Step4 Attach the camera to the ceiling
Attach the camera to the ceiling with three screws.
Then, connect the power and video cable to the
power supply and the input of the DVR for later
adjustments. (For the details of the connection,
please refer to the “CONNECTION” section).
Note:
1. Screws are not supplied with the sales package. For installation, please purchase the suitable screws.
2. For safety, always let the power and video line concealed behind the installation position.
Step3 Align the screw holes
Rotate the lens plate to the front side of the
camera, and align the gaps on the plate with the
three screw holes respectively as indicated
below. Then, aim the lens to the place you want
to watch.
Step4 Attach the camera to the ceiling
Attach the camera to the ceiling with three screws.
Then, connect the power and video cable to the
power supply and the input of the DVR for later
adjustments. (For the details of the connection,
please refer to the “CONNECTION” section).
Note:
1. Screws are not supplied with the sales package. For installation, please purchase the suitable screws.
2. For safety, always let the power and video line concealed behind the installation position.
Step5 Adjust the angle of the camera
To adjust the angle of the camera, swivel the black rotatable plate
from the center to the left or to the right, maximum 60° (Pan).
Adjust the tilt angle by moving the lens, maximum 90° (Tilt).
Use a flat-headed screwdriver to loosen the pivots on the lens.
First adjust the 1
st
pivot to zoom-in / out (Zoom). Second, adjust
the 2
nd
pivot to fine-tune the clearness of the images.
Secure these two pivots after the adjustment is completed.
Finally fasten the screw on the side of lens to fix the tilt angle
after the optimized positioning is achieved.
Note: When adjusting the title angle, please do not tilt the camera lens more than 90°.
Step5 Adjust the angle of the camera
To adjust the angle of the camera, swivel the black rotatable plate
from the center to the left or to the right, maximum 60° (Pan).
Adjust the tilt angle by moving the lens, maximum 90° (Tilt).
Use a flat-headed screwdriver to loosen the pivots on the lens.
First adjust the 1
st
pivot to zoom-in / out (Zoom). Second, adjust
the 2
nd
pivot to fine-tune the clearness of the images.
Secure these two pivots after the adjustment is completed.
Finally fasten the screw on the side of lens to fix the tilt angle
after the optimized positioning is achieved.
Note: When adjusting the title angle, please do not tilt the camera lens more than 90°.
Step6 Replace the Black Shield Case
Replace the Black Shield Case to the camera
base. Ensure that the Black Shield Case does not
cover the lens.
Step7 Replace the Dome Cover
Replace the dome cover to the camera base and
turn it clockwise to the end to secure it.
Step6 Replace the Black Shield Case
Replace the Black Shield Case to the camera
base. Ensure that the Black Shield Case does not
cover the lens.
Step7 Replace the Dome Cover
Replace the dome cover to the camera base and
turn it clockwise to the end to secure it.
