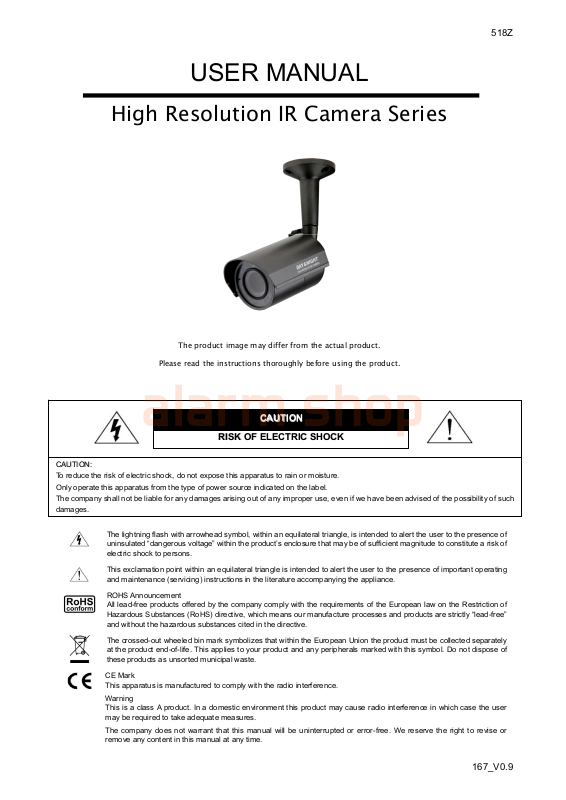

Avtech AVC167 User Manual

USER MANUAL

alarm shop

High Resolution IR Camera Series

518Z

The product image may differ from the actual product.

Please read the instructions thoroughly before using the product.

RRIISSKK OOFF EELLEECCTTRRIICC SSHHOOCCKK

CCAAUUTTIIOONN

CCAAUUTTIIOONN:

To reduce the risk of electric shock, do not expose this apparatus to rain or moisture.

Only operate this apparatus from the type of power source indicated on the label.

The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of such

damages.

:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.

This exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the appliance.

ROHS Announcement
All lead-free products offered by the company comply with the requirements of the European law on the Restriction of
Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly “lead-free”
and without the hazardous substances cited in the directive.

The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately
at the product end-of-life. This applies to your product and any peripherals marked with this symbol. Do not dispose of
these products as unsorted municipal waste.

CE Mark
This apparatus is manufactured to comply with the radio interference.

Warning
This is a class A product. In a domestic environment this product may cause radio interference in which case the user
may be required to take adequate measures.

The company does not warrant that this manual will be uninterrupted or error-free. We reserve the right to revise or
remove any content in this manual at any time.

167_V0.9

FEATURES

alarm shop

(1) 1/3" H.R. Image sensor

(2) f3.8 ~ f9.5mm vari-focal lens

(3) 700 TVL superior image quality

(4) IR effective range up to 15 meters for night surveillance

(5) Weather-proof housing design

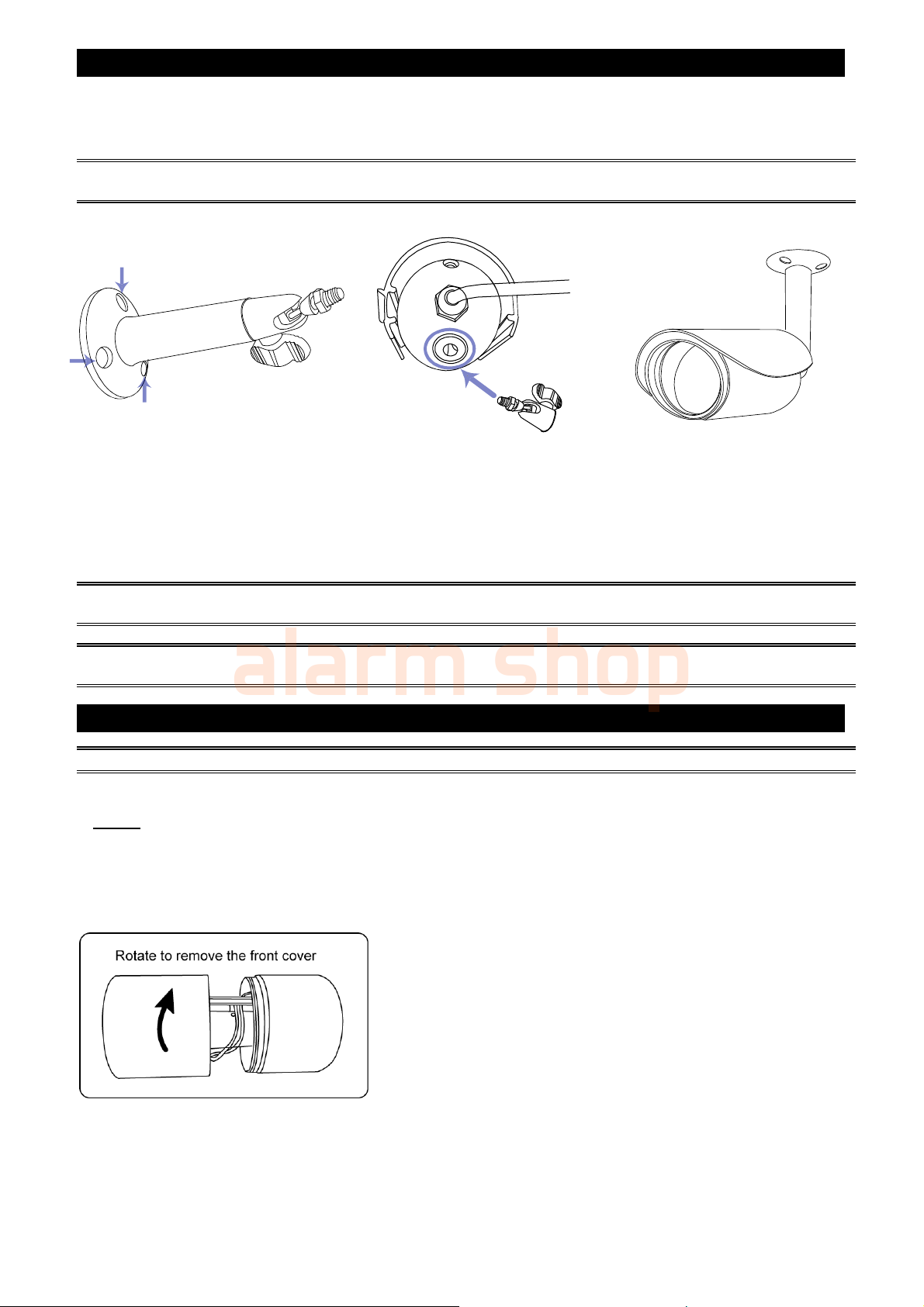

PACKAGE CONTENT

 IR camera

 Bracket

 Desiccants

 User Manual

SPECIFICATIONS*

MODEL IR Vari-focal Camera

Pick-up Element

Number of Pixels

Resolution

Min. Illumination

IR LED

IR Effective Range

S/N Ratio

Electronic Shutter

Lens

Lens Angle

White Balance

AGC

IRIS Mode

IP Rating

976(H) x 494(V) <NTSC> / 976(H) x 582(V) <PAL>

Wide: 71.4° (Horizontal) / 52° (Vertical) / 92.8° (Diagonal)

Tele: 31.8° (Horizontal) / 23.9° (Vertical) / 39.8° (Diagonal)

1/3" H.R. Color CCD image sensor

700 TVL

0.1 Lux; 0 Lux (IR ON)

17 units

Up to 15 meters

More than 48dB (AGC OFF)

1/60 (1/50) to 1/100,000 sec.

f3.8mm ~ f9.5mm

ATW

Auto

AES

IP66

Video Output

Operating Temperature

Power Source (±10%)

Current Consumption (±10%)

Dimensions (mm)**

Net Weight (g)

* The specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm

1.0 Vp-p composite, 75Ω

-10˚C~40˚C

DC12V

70mA(IR OFF), 220mA (IR ON)

97(Ø) × 60(H)

300
