Avtech AVK584ZN, 22X, 35X, AVK584, AVK585 User Manual
351Z
K584_585_Manual_V0.9
Outdoor PTZ Camera
DVR / Camera Communication System Series
Please read instructions thoroughly before operation and retain it for future reference.
The image shown above may differ from the actual product appearance.
IMPORTANT SAFEGUARD
All lead-free products offered by the company comply with the requirements of the European law on
the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes
and products are strictly “lead-free” and without the hazardous substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union the product must be
collected separately at the product end-of-life. This applies to your product and any peripherals
marked with this symbol. Do not dispose of these products as unsorted municipal waste. Contact your
local dealer for procedures for recycling this equipment.
This apparatus is manufactured to comply with the radio interference requirements.
RISK OF ELECTRIC SHOCK
To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. Only operate this apparatus
from the type of power source indicated on the label. The company shall not be liable for any damages arising out of
any improper use, even if we have been advised of the possibility of such damages.
About this document
We reserve the right to revise or remove any content in this manual at any time. We do not warrant or assume any
legal liability or responsibility for the accuracy, completeness, or usefulness of this manual. For the actual display
and operation, please refer to your camera in hand. The content of this manual is subject to change without notice.
Precautions
‧ Avoid the long-term activation for “Auto Tracking”, “Auto Pan”, and “Sequence” as it might accelerate the
aging of the drive mechanism and optical lens. Three-month warranty applies only to certain parts related to
these three functions.
‧ Do not shoot images that are extremely bright for a long time (For example, light sources, the sun, etc.).
‧ Don’t use or store the camera in the following conditions: (1) Extremely hot or cold places (operating
temperature-10°C ~ 50°C (14°F ~ 122 °F). (2) Close to generators of powerful electromagnetic radiation such
as radio or TV transmitters. (3) Where it is subject to fluorescent light reflections. (4) Where it is subject to
unstable lighting (flickering, etc.) conditions. (5) Where it is subject to strong vibration. (6) Where it is near
water or in contact with water.
‧
Installation should be made by qualified service personnel.
TABLE OF CONTENTS
1. INTRODUCTION ...................................................................................................................... 1
1.1 Features...........................................................................................................................................................1
1.2 Package Contents ...........................................................................................................................................1
2. INSTALLATION AND SETUP .................................................................................................. 2
2.1 Installation........................................................................................................................................................2
2.2 Connection.......................................................................................................................................................4
2.2.1 Connecting to Keyboard Controller (Optional) .......................................................................................4
2.2.2 Connecting to DVR................................................................................................................................5
3. AUTO TRACKING .................................................................................................................... 8
3.1 Overview..........................................................................................................................................................8
3.2 Setup ...............................................................................................................................................................8
3.3 Activation .........................................................................................................................................................8
4. QUICK MENU GUIDE .............................................................................................................. 9
4.1 Menu Configuration .........................................................................................................................................9
4.2 Quick Programming Guide.............................................................................................................................10
5. MAIN MENU – CAMERA ....................................................................................................... 11
5.1 White Balance................................................................................................................................................12
5.1.1 Auto .....................................................................................................................................................12
5.1.2 Indoor 1 / Indoor 2 / Sun / Cloudy........................................................................................................12
5.2 Shutter Speed................................................................................................................................................12
5.2.1 Shutter Speed Options.........................................................................................................................12
5.3 Gain (Gain Control)........................................................................................................................................12
5.3.1 On (Low, Medium, High)......................................................................................................................12
5.4 IRIS................................................................................................................................................................13
5.4.1 Auto IRIS Level (50 ~ 250)...................................................................................................................13
5.5 BLC (Backlight Compensation)......................................................................................................................13
5.5.1 On / Off ................................................................................................................................................13
5.6 Sharpness......................................................................................................................................................13
5.6.1 Auto .....................................................................................................................................................13
5.6.2 Sharpness Level..................................................................................................................................13
6. MAIN MENU – TOOLS........................................................................................................... 14
6.1 Title Name......................................................................................................................................................15
6.1.1 Modify / New........................................................................................................................................15
6.2 Title Position ..................................................................................................................................................15
6.2.1 Up / Down / Off ....................................................................................................................................15
6.3 Pan / Tilt Angle...............................................................................................................................................15
6.3.1 On / Off ................................................................................................................................................15
6.4 Pan / Tilt Graph..............................................................................................................................................15
6.4.1 On / Off ................................................................................................................................................15
6.5 Zoom Ratio ....................................................................................................................................................16
6.5.1 On / Off ................................................................................................................................................16
6.6 Focus Window ...............................................................................................................................................16
6.6.1 On / Off ................................................................................................................................................16
6.7 ID Code No. ...................................................................................................................................................16
6.7.1 Camera ID Code Number Setup.......................................................................... 錯誤! 尚未定義書籤。
6.8 ID Code Display.............................................................................................................................................16
6.8.1 On / Off ................................................................................................................................................16
6.9 Tilt Limit..........................................................................................................................................................16
6.9.1 On / Off ................................................................................................................................................17
7. MAIN MENU – MODE ............................................................................................................ 18
7.1 Reset Default .................................................................................................................................................19
7.2 Pan / Tilt Speed..............................................................................................................................................19
7.3 Preset Setup ..................................................................................................................................................19
7.3.1 Set the Preset Points ...........................................................................................................................19
7.3.2 Factory Default Preset Points ..............................................................................................................19
7.3.3 Add New Preset Points........................................................................................................................20
7.3.4 Set Duration Time of the Preset Points ................................................................................................20
7.3.5 Deleting the Preset Points ...................................................................................................................20
7.3.6 Preview the Preset Points....................................................................................................................20
7.3.7 Exit the Preset Point Setting Menu ......................................................................................................20
7.4 Tracking Setup...............................................................................................................................................21
7.4.1 Set the Pre-defined Surveillance Area (=LIMIT=) ................................................................................21
7.4.2 Set the Pre-defined Tracking Timeout (=TIME=) .................................................................................21
7.4.3 Select the Auto Tracking Mode (Mode)................................................................................................21
7.5 Home Position ...............................................................................................................................................22
7.5.1 Set the Home Position .........................................................................................................................22
7.6 Auto Focus .....................................................................................................................................................22
7.6.1 Select the Auto Focus Mode................................................................................................................22
7.7 Calibration......................................................................................................................................................22
7.7.1 Select the Calibrating Result ...............................................................................................................23
7.8 Auto Scan ......................................................................................................................................................23
7.8.1 Set the Pan Angel Limit ..................................................................................................
.....................23
7.9 Auto Mode......................................................................................................................................................23
7.9.1 Set the Auto Mode...............................................................................................................................23
8. MAIN MENU – EXIT ............................................................................................................... 24
8.1 Exit & Save the Changes ...............................................................................................................................24
8.2 Exit Without Saving the Changes ..................................................................................................................24
APPENDIX 1 SPECIFICATIONS................................................................................................ 25
APPENDIX 2 DEFAULT VALUE ................................................................................................ 26
APPENDIX 3 CAMERA CONTROL VIA OUR DVR................................................................... 27
APPENDIX 4 CAMERA CONTROL VIA OTHER KEYBOARD CONTROLLER ....................... 29
APPENDIX 5 FIRMWARE UPGRADE....................................................................................... 30
INTRODUCTION
-1-
1. INTRODUCTION
1.1 Features
Supports DVR / Camera Communication System (DCCS) Technology
‧ There’s no need to additionally connect RS485 control wires for camera control because the control signals
can be transferred by coaxial cables directly when your DVR supports DCCS technology.
‧ Camera installation is highly simplified to lower labor cost and working hours.
Advanced Auto Tracking Accuracy
‧ To follow the moving object
Rigid & High-Speed Pan / Tilt Mechanism with Two-Million Rotation Test Passed
‧ for longer operating lifetime
Pelco-D & Pelco-P Support
‧ For fully compatibility
Flexible Color / Shutter Parameters Adjustment
‧ To adapt various light conditions
Hot Point
Graphical On-Screen Display
Excellent outdoor ID design with cable management
Easy Operation via Keyboard Controller
Up to 256 preset points & eight preset groups, and Auto Scan
1.2 Package Contents
◎ In the camera package:
◎ In the bracket package:
□ camera module * 1
□ Housing * 1
□ User manual * 1 □ Dome Cover * 1
□ Power / Video cable * 1
□ Bracket * 1
□ Accessory Pack * 1
□ Accessory pack * 1
INSTALLATION AND SETUP
-2-
2. INSTALLATION AND SETUP
For the installation and connection of this speed dome camera, please check with qualified service personnel or
installer.
2.1 Installation
INSTALLATION AND SETUP
-3-
INSTALLATION AND SETUP
-4-
2.2 Connection
2.2.1 Connecting to Keyboard Controller (Optional)
The optional peripheral (keyboard controller) allows you to accurately control the pan / tilt / zoom movement for a
speed dome camera with the convenient 3D joystick and functional keypad design.
Note: It’s highly recommended to purchase this device to work with your speed dome camera for
accurate control.
The following connection illustration is an example. For detailed connection and operation guide, please refer to
your keyboard controller manual.
Rear panel of the keyboard controller:
DC 12VAUDIO LANEXTERNAL I/O DVR P.T.Z
RJ11 cable
RS485-A and RS485-B wires
of the speed dome camera
RS485-A: Red wire RS485-A: Brown wire
RS485-B: Green wire RS485-B: Orange wire
The RJ11 cable is not supplied in the sales package.
STEP 1: Get a RJ11 cable with the proper length to your connection.
Different RJ11 connector may have different wire layout, so the connection might be different. If you
cannot control the speed dome camera after connection, please reverse the RJ11 cable connection with
the speed dome camera.
STEP 2: Remove one end of the insulating coating of the RJ11 cable.
Remove one end of the insulating coating of the RJ11 cable to find the RS485-A and the RS485-B wires,
and remove the insulating coating to reveal the naked wires for further connection.
STEP 3: Twist the RS485-A and RS485-B wires together.
Twist the RS485-A (red) and RS485-B (green) wires of the RJ11 cable to the RS485-A (brown) and
RS485-B (orange) wires of the speed dome camera (as shown in the picture above). To protect the
naked wires, use the insulation tape to cover on the twisted wires.
STEP 4: Connect the RJ11 connector to the “P.T.Z” port on the rear panel of the keyboard controller.
INSTALLATION AND SETUP
-5-

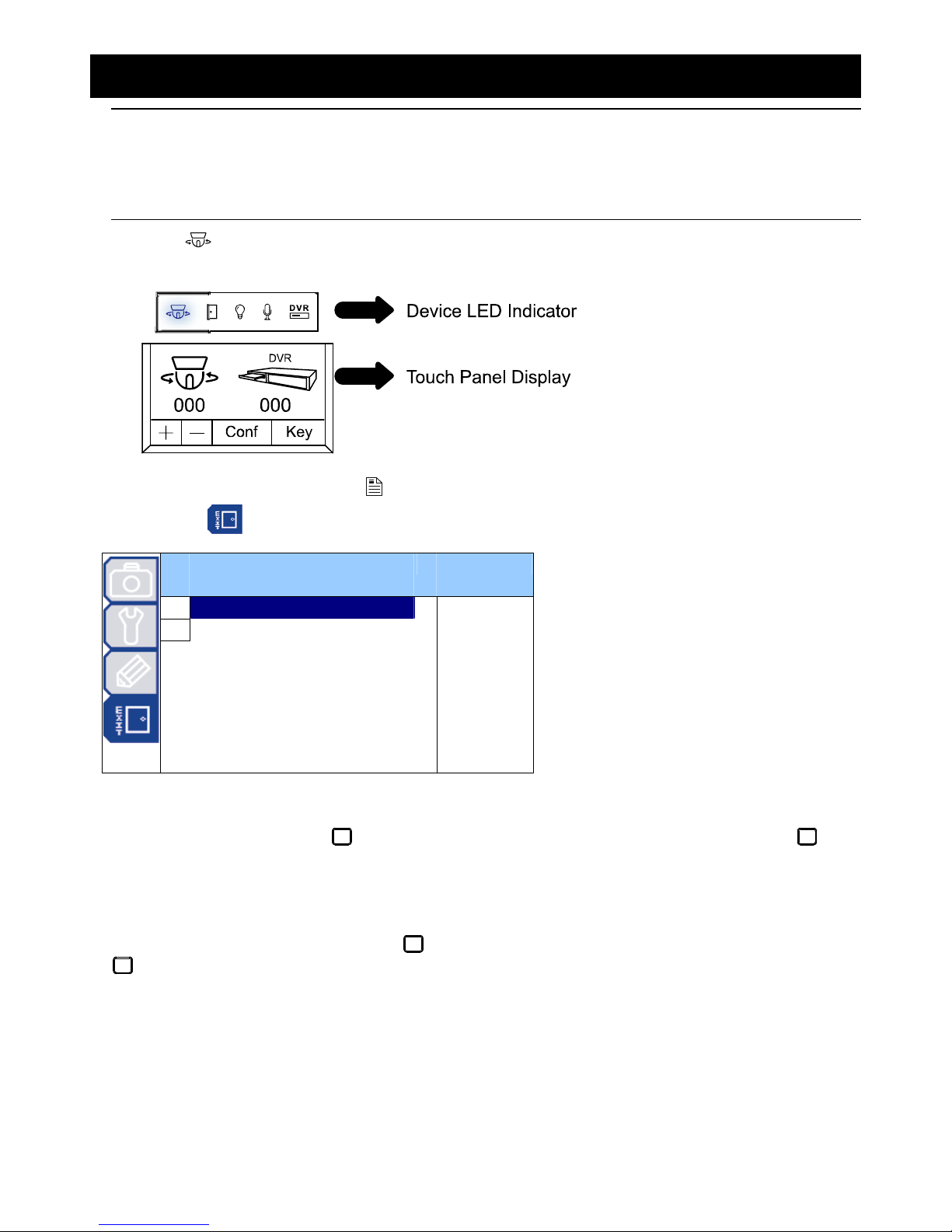

STEP 5: On the touch panel of the keyboard controller, click “Conf” to enter the configuration page, and
click (P.T.Z) to make related settings as follows.
●
RATE : Check and set the baud rate as 9600.
MODE : Choose the proper camera protocol depending on the camera type.
STEP 6: Then, click “ESC” as many as needed to return to the main menu, and set the ID of the camera to
001.
STEP 7: Connect the camera video cable to the DVR for video output and recording, and connect the
camera to power.
2.2.2 Connecting to DVR
You can also connect the camera directly to DVR for pan / tilt / zoom control, but the available camera control is
limited. For details, please refer to “APPENDIX 3 CAMERA CONTROL VIA OUR DVR” at page 27.
DCCS DVR
This camera supports DVR Camera Communication System, DCCS, and users do not need to additionally
connect RS485-A & RS485-B wires to transmit control signals.
1. Video Output Connector (VIDEO OUT)
Connect the camera video output with a 75Ω coaxial cable to DVR video input which supports DCCS
technology.
Note: For details about DVRs supporting DCCS, please check with your distributor or reseller.
2. DC12V Input Terminal
Connect the power terminal of the camera to a DC 12V regulated power supply.
NOTE: Please use the correct power adaptor, DC12V (regulated), to operate this unit. The power
tolerance of this unit is DC12V ± 10%. Over maximum DC 12V power input will damage this unit.
3. DCCS Transmission Checking
When the camera, monitor and other peripherals are connected to DVR and powered on, power on the DVR
and wait for the initialization is completed.
Then, right-click to show the main menu, and go to “ADVANCE CONFIG” l “DCCS” to examine the DCCS
signal transmission.
ADVANCE CONFIG
C A N E R A CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11 W X
DETECTION
DIAGNOSTIC START
ALERT
MENU SETUP
NETWORK
SNTP
DISPLAY
RECORD
REMOTE
DEVICE AVK584
DCCS
CONNECTION OK
IVS
EXIT
a) Make sure the model number of your DCCS camera is shown in “DEVICE”. If not, please check your camera
connection.
b) Select the channel which connects to your DCCS camera, and click “START” in “DIAGNOSTIC” to examine the
signal transmission between the DCCS camera and the DVR.
INSTALLATION AND SETUP
-6-
c) In “CONNECTION”, it shows the examining result for DCCS signal transmission between the DVR and camera. The
message is as follows:
MESSAGE SHOWN MEANING
CHECKING The DVR is checking the DCCS signal transmission between the DVR and camera.
OK The signal transmission is fine and the DCCS function works properly.
FAIL The signal transmission is too weak or not available for the DCCS function to work
properly.
Normal DVR
Note: For connecting this camera to the DVR that doesn’t support DCCS, a DCCS box should be
separately purchased for camera parameter setting. For details, please check with your distributor
or installer.
The following description is taking our brand’s DVR as an example. For detailed PIN / port connection and DVR
setting to control the speed dome camera, please refer to your own DVR user manual.
RJ11 cable RS-485 Port
RS485-A: Red wire RS485-A: PIN 2
RS485-B: Green wire RS485-B: PIN 3
The RJ11 cable is not supplied in the sales package. Example of RS485 port on the DVR rear panel.
STEP 1: Get a RJ11 cable with the proper length to your connection.
Different RJ11 connector may have different wire layout, so the connection might be different. If you
cannot control the DVR after connection, please reverse the RJ11 cable connection with the DVR.
STEP 2: Remove one end of the insulating coating of the RJ11 cable.
Remove one end of the insulating coating of the RJ11 cable to find the RS485-A and the RS485-B wires,
and remove the insulating coating to reveal the naked wires for further connection.
STEP 3: Twist the RS485-A and RS485-B wires of the RJ11 cable and the speed dome camera together.
Twist the RS485-A (red) and RS485-B (green) wires of the RJ11 cable to the RS485-A (brown) and
RS485-B (orange) wires of the speed dome camera (as shown in the picture above).
To protect the naked wires, use the insulation tape to cover on the twisted wires.
STEP 4: Connect the other end of the RJ11 cable to DVR.
When there’s an RS485 port on the DVR real panel
Connect the other end of the RJ11 cable without removing the insulating coating directly to the RS485
port on the DVR real panel.
When there’s an external I/O port on the DVR real panel
Solder the RS485-A (red) and RS485-B (green) wires of the RJ11 cable to the corresponding pins on the
solder side of the D-Sub connector (as shown in the picture above). To protect the naked wires, use the
insulation tape to cover on the twisted wires.
INSTALLATION AND SETUP
-7-
Note: For details about PIN configurations, please refer to the DVR user manual.
STEP 5: Set the speed dome camera at the DVR side.
Go to the “REMOTE” menu to set the speed dome camera.
a) Select the device to “PTZ”.
b) Set the ID of the camera to 001.
c) Select the protocol to “NORMAL”.
d) Set the baud rate to “9600”.
Loading...
