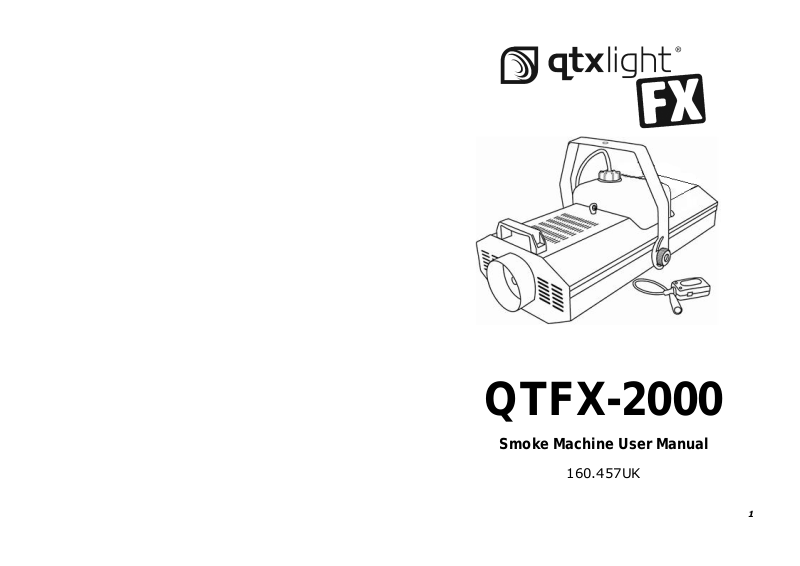

AVSL QTFX2000 User Manual

QTFX-2000

Smoke Machine User Manual

160.457UK

1

User Manual – QTFX-2000 160.457UK

QTFX-2000 Smoke Machine – For indoor use only

Caution! Please read this manual carefully before

1. General Introduction :

This high-powered smoke machine can produce up to 40,000 Cu Ft

(1132m³) of smoke per minute. It can be operated by either a built-in timer,

the wireless remote or 1 channel DMX, making it ideal for large nightclubs,

stages and amusement parks. The unit can run efficiently for extended

periods of time due to the special microcomputer temperature control,

whilst the MIRROR piping patent technology vastly reduces the rate of

jamming. The unit holds a standard euro 5l bottle of smoke fluid so there is

no need to refill a tank, allowing for easy cleaning and no mess.

Features :

 High pressure pump for large output in short space of time
 40,000 Cu Ft (1,132m³) per minute
 Easy load 5L bottle slot with screw cap for less mess
 Anti - jamming pipe technology
 Intelligent microcomputer keeps the temperature high
 Illuminated tank to show when the machine is ready
 1 Channel DMX
 Built in time or wireless remote operation

operating! Damage caused by misuse

is not covered by the warranty!

WWW.QTXLIGHT.CO.UK

Copyright Protected by QTX Light

2

15

User Manual – QTFX-2000 160.457UK

2. Package Contents :

Please check the contents to ensure that the product has been received in

good condition.

QTFX-2000 Smoke Machine x 1pcs User’s Guide x 1pcs

Power Cord x 1pcs Wireless remote control x 1pcs

If you find any accessory is missing or the machine has arrived with any

problems, please contact your local dealer at once. Do not try to fix this

item yourself or you will lose the warranty. Please keep the original package

and invoice for any possible replacement or returned demand.

3. Recommended Fluid:

For the QTFX-2000 smoke machine we strongly recommend the following

fluids which have been specifically formulated to perform best in any

smoke machines with a power rating between 1000 – 3000W.

QTX Ref

Code

160.644UK 1 Litre

160.583UK

160.589UK Premium smoke fluid 5 Litre Premium mist

Description Size Results

High quality smoke fluid

5 Litre

High quality ultra

fine mist

x

14

3
