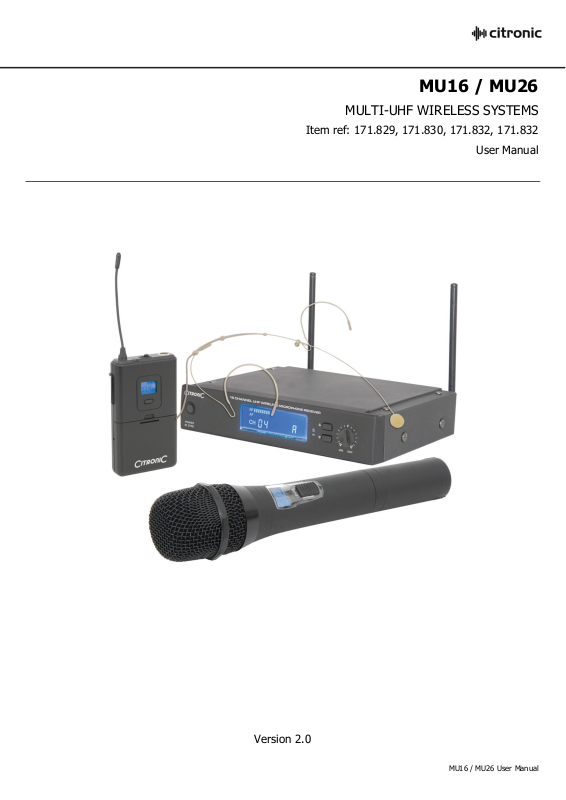

AVSL MU16 User Manual

MU16 / MU26

MULTI-UHF WIRELESS SYSTEMS

Item ref: 171.829, 171.830, 171.832, 171.832

User Manual

Version 2.0

MU16 / MU26 User Manual

Introduction

Model

Stock code

Microphone 1

Microphone 2

MU16H

171.829

Handheld transmitter

-

MU26H

171.832

Handheld transmitter

Handheld transmitter

MU16N

171.830

Discreet neckband mic. + bodypack

-

MU26N

171.833

Discreet neckband mic. + bodypack

Neckband mic. + bodypack

Thank you for choosing the Citronic 16 channel UHF-series wireless system. This professional wireless set
provides a high quality microphone with a tuneable PLL UHF radio system for ultimate wireless quality and
versatility. Please read this manual before using this equipment in order to avoid damage through incorrect
operation and to get the best performance from your purchase.

Contents

Please take care when unpacking. Inspect for any damage and ensure you have the following components…

 UHF wireless receiver
 Mains power adapter
 6.3mm mono jack lead
 2 x 1.5V AA battery (4 pieces for MU26H and MU26N)
 Rack-mounting adapters
 Microphone / transmitter(s) – see table below

Warning

To prevent the risk of fire or electric shock, do not expose any of the components to rain or moisture.
If liquids are spilled on any component, stop using immediately, allow unit to dry out and have checked by
qualified personnel before further use.
Avoid impact or heavy vibration to any components, dropping the microphone can cause capsule failure.
No user serviceable parts inside transmitter or receiver - refer servicing to qualified service personnel.

Safety

 Ensure that the correct adapter is used and that the mains voltage is as stated on the adapter.
 Avoid ingress of water or particles into the transmitter(s) or receiver
 Use alkaline or NiMH batteries in the transmitter(s) and remove if unused for long periods.
 Observe the correct polarity when replacing batteries

Placement

 Keep all components out of direct sunlight and away from heat sources.
 Do not place heavy objects on top of the receiver or transmitter(s)
 If rack-mounting receivers in pairs, use the supplied rack ears and coupling brackets.
 Keep the transmitter(s) and receiver away from damp or dusty environments.

Cleaning

 Use a soft cloth with a neutral detergent to clean the body of the microphone/transmitter and receiver.
 Lightly damp sterile wipes may be used on the microphone grille for hygiene purposes
 To avoid damage, do not use solvents to clean the components

MU16 / MU26 User Manual

Handheld Transmitter Beltpack Transmitter

1. Windshield

2. Backlit LCD display

3. Slide switch – OFF/MUTE/ON

4. Battery compartment cover

1. Antennae (detachable BNC)

2. Power adapter input

3. Balanced XLR output

4. Unbalanced 6.3mm jack output

1. Power / IR Sync. button

2. Channel A volume control

3. Channel A frequency up/down

4. Backlit LCD display

5. IR sender

6. Channel B frequency up/down

7. Channel B volume control

1. UHF antenna

2. LED indicator

3. Sensitivity switch LINE-MIC

4. MIC input, threaded 3.5mm jack

5. Backlit LCD display

6. ON/check button

7. GAIN ADJUST rotary

8. Battery compartment

Receiver Rear Panel

Receiver Front Panel

MU16 / MU26 User Manual
