GENERAL INSTALLATION

AND

PROGRAMMING MANUAL

CAPTURE

CERTIFIED

QUALITY SYSTEM

UNI EN ISO 9001:2008

IST0865V1.0

- 1 -

Certied products

IMQ - Security Systems

EN 50136-2-1 EN 50131-1 EN 50131-3 EN 50131-6 CEB T014

Indice

GENERAL INFORMATION ........................................................................................................................................................................... pag. 3

CAPTURE 32 - Technical features ................................................................................................................................................................ pag. 4

CAPTURE 16 - Technical features ................................................................................................................................................................ pag. 5

CAPTURE 8 - Technical features .................................................................................................................................................................. pag. 6

Type of connections ...................................................................................................................................................................................... pag. 12

Control panel board CAPTURE 32, CAPTURE 16, CAPTURE 8 ................................................................................................................. pag. 14

Terminal board, Jumper and Connectors CAPTURE 32, CAPTURE 16, CAPTURE 8 ................................................................................ pag. 14

Supply unit section ........................................................................................................................................................................................ pag. 15

Connections module XGSM and module EWEB WIFI .................................................................................................................................. pag. 15

Keyboard A500 - A500 Plus ......................................................................................................................................................................... pag. 16

Satellites ........................................................................................................................................................................................................ pag. 18

Hints on armings management ..................................................................................................................................................................... pag. 19

PSTN Telephone - Technical features ........................................................................................................................................................... pag. 20

DIGIVOC (optional) - Technical features ....................................................................................................................................................... pag. 20

PSTN + GSM ............................................................................................................................................................................................... pag. 20

XGSM - Technical features............................................................................................................................................................................ pag. 21

SIM Card Inclusion/Antenna Connector Input ............................................................................................................................................... pag. 21

XGSM485 - XGSM485 PRO - Technical features ......................................................................................................................................... pag. 22

Checking Credit and Expiry of the SIM Card for XGSM - XGSM485 and XGSM485PRO ........................................................................... pag. 24

Recording of vocal messages ....................................................................................................................................................................... pag. 24

Recording with XWIN software procedure XWIN (CAPTURE e DIGIVOC): ............................................................................................ pag. 24

Vocal messages ............................................................................................................................................................................................ pag. 25

Telephone Table - 1st .................................................................................................................................................................................... pag. 26

Telephone Table - 2st .................................................................................................................................................................................... pag. 27

Telephone Table - recorded messages ......................................................................................................................................................... pag. 27

RTC ACTIVATION BY A CALL FROM THE CONTROL PANEL .................................................................................................................... pag. 28

USER RTC ACTIVATION .............................................................................................................................................................................. pag. 28

DTMF Commands ................................................................................................................................................................................... pag. 28

RTC USER with recognition of incoming number ......................................................................................................................................... pag. 28

INSTALLER RTC ACTIVATION ..................................................................................................................................................................... pag. 28

Outgoing SMS Management ......................................................................................................................................................................... pag. 29

Incoming SMS Management ......................................................................................................................................................................... pag. 29

Programming ................................................................................................................................................................................................. pag. 30

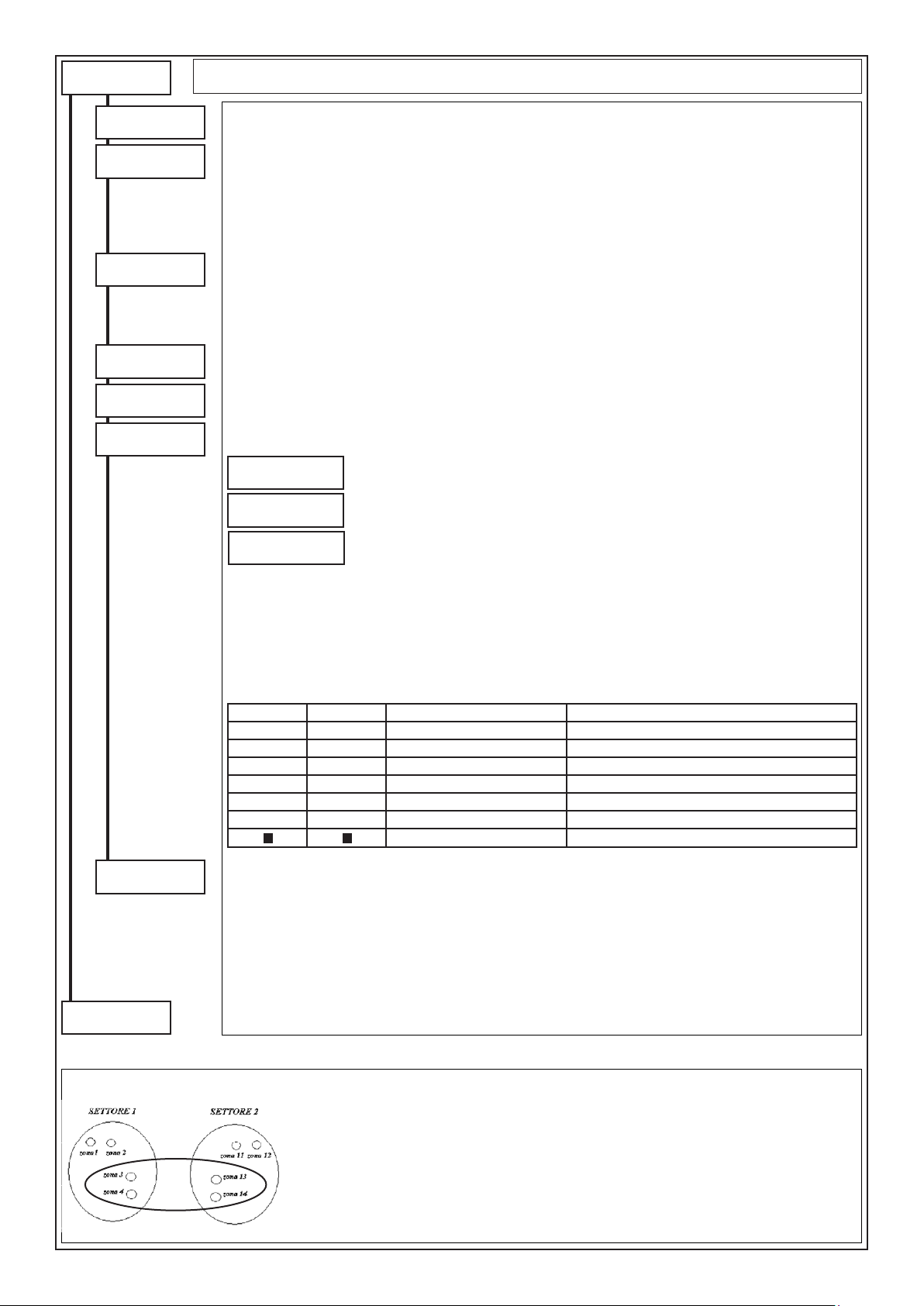

Hints on sectors management ................................................................................................................................................................. pag. 30

Manufacturers Declaration of Conformity R&TTE 99/05/CE ......................................................................................................................... pag. 70

- 2 -

GENERAL INFORMATION

The control panels Capture are compatible with the following devices

ARTICLES DESCRIPTION

CAPTURE 32 Microprocessor central control unit

CAPTURE 16 Microprocessor central control unit

CAPTURE 8 Microprocessor central control unit

A500 Operating keyboard

A500 Plus Operating keyboard

TOY L, TOY T Proximity key with “NFC” technology

TOY C Proximity badge with “NFC” technology

XGSM GSM telephone communicator

XGSM485 - XGS485PRO GSM telephone communicator

DIGIVOC Voice synthesis boards

XEXP8 Zone expansion module

XSATWS Zone expansion module via radio

C8 Zone and output expansion module

XSAT36 Zone and output expansion module

XSATHP Expansion module for digital sensors

XSATPW 3 Power feeder in boards with zone and output expansion

XSATPW 3 Q Power feeder in metallic box with zone and output expansion

XSATPW 5 Power feeder in boards with zone and output expansion

XSATPW 5 Q Power feeder in metallic box with zone and output expansion

POWER 3 Extra power feeder in board

POWER 3 Q Extra power feeder in metallic box

POWER 5 Extra power feeder in board

POWER 5 Q Extra power feeder in metallic box

XMR2 2-relay board

MR4 4-relay board

MR8 8-relay board

EWEB LAN - WEB SERVER interface

EWEB WIFI LAN - WEB SERVER WIFI interface

P P

P P P

Grado 3

Grado 2

Grado 3

Grado 2

Grado 3

Grado 2

Grado 3

La conformità alla normativa EN50131 decade se:

• i dispositivi non vengono installati nei contenitori CONT-CAPTURE, CONT SX e CONT SAT W o facendo riferimento a quanto espressamente indicato nella tabella.

The products must be used according to the intended use and in compliance with the rules applicable to the various plant engineering types. However, before commissioning the installed products, the system must be tested in order to verify its functioning and compliance with the safety rules according to that indicated by Law n. 46 dated 05/03/90 and by Standard CEI 79-3.

The equipment must not be exposed to dripping or water sprays and no object full of liquid must be placed on it.

INSTALLATION AND MAINTENANCE MUST BE EXECUTED BY QUALIFIED PERSONNEL

AVS ELECTRONICS S.p.a. reserves the right to make amendments at any moment and without notice.

- 3 -

CAPTURE 32 - Technical features

Microprocessor control panel that manages all functions typical of a safety and protection system, in that it is able to discriminate the signals coming

from burglar proof , re protection, anti-robbery, medical assistance, etc detectors.

The system is made of a control panel and of at least one keypad of (mod.A 500-A500Plus) type and it can be completed with extension satellite electronic boards of (mod.C8, XSAT36, XSATPW 3, XSATPW 5, XSAT WS, XSATHP, XSATHP Virtuale) type, with network adapter (mod. EWEB, EWEB WIFI), with GSM dialler (mod.XGSM e/o XGSM485) and the vocal synthesizer (DIGIVOC); the PSTN dialler is already included in the control panel electronic board.

Keypads • maximum n. 8 with display (mod.A500 - A500Plus), on 600 total meters of cable with 4 wires per serial

Serial sirens • max n° 8 (mod. CITY LED HP, CITY X HP, CITY CARBON HP, TS85 P LED HP, TS85 V LED HP, TS85 X LED HP) Satellites • max n° 8 (mod. C8, XSAT36 , XSATPW 3, XSATPW 5, XSAT WS, XSATHP o Virtual XSATHP) Chiavi seriali • n° 32 lettori seriali (mod. RS) Software zones • n° 32, programmable with automatic detection of the state of alarm and of tamper proof, individually mana-

Input zones ••n° 8 expandable at 171

Sectors • n° 8 (separate sectors) Zones conguration • Immediate, Conditional, Immediate with permanent exclusion, Immediate with temporary exclusion, Timed, Ti-

Zone options • Impulses, alarm memory and reset, N.C. connection, N.A. connection, End of line 1R, End of line 2R (tamper

Events memory • n° 512 events can be memorised with date and time and outcome of the calls Alarm outputs ••n° 1 alarm relay programmable with 2-ways and output. Connect only circuits working with SELV voltage to

Armings ••n° 4 automatic arming modality

Codes •

Timer •

Telephone •

Check on power supplies • signal on display of the control panel functioning anomalies or supervised additional supply units

Programming •

Voltage • stabilised power supply nominal voltage: 13.8 V = Sizes ••keypad A500 - A500 Plus (LxHxP): 135 x 114 x 35 mm

Environmental conditions • Temperature -10 °C / + 55 °C - Humidity 95% Environmental class • Class II Weight without battery • 5 Kg Max. current absorbed • 135 mA / 230 V ~ Max. current absorbed on

13.8V = Placeable battery • 7 Ah IMQ Performances •

Zones in keypad: n° 2

geable.

n° 1 input dedicated to tamper proof, cannot be excluded.

med with temporary exclusion 1, Timed with permanent exclusion 1, Arming ON, HOME, ZONE, PERIMETER, 24 hour line, Timed 24 hour line 1, Tamper line, Not used

signal), chime function, door, zones under test, buzzer in alarm, activates O.C. outputs, AND zones and AND directional, radio supervision management, 16 digits alphanumerical stripe, Alarms Coding, Vibration sensor, Shutters switch.

these outputs. n° 7 (max 32) transistorised outputs (50 mA-OpenCollector) on terminal boards for connection with relay electronic boards (mod. MR4 / MR8) upon request. Congurable in various modalities..

From display keypad or from outdoor activations in it ON, HOME, AREA and PERIMETER modality n° 128 user codes available from 4 to 6 digits

•

n° 8 programmable user proles

•

n° 128 automatic Emergency codes (with more than 1.000.000 combinations) 16 daily operations for all sectors

•

armings/disarmings of sectors and OC activation

•

“copy copy from Monday to Friday” and “copy from Monday to Sunday” functionca

•

10 programmable holiday periods

•

automatic summer time-standard time and standard time-summer time change

•

duration Inclusion Warning/Extraordinary management

•

inhibition of the codes with Timer armed n°16 telephone numbers on PSTN/GSM line

•

n°40 customisable vocal messages as well as extended vocabula

•

GSM telephone dialler GSM (mod. XGSM e/o mod. XGSM 485) optional

(mod. XSATPW 3, XSATPW 5, POWER3, POWER5)

from display keypad with simplied guided menu

•

from PC in direct connection with software Xwin and USB cable

•

from PC connected via telephone with software Xwin and universal modem

•

from PC connected via network with software Xwin

housing (LxHxP): 330 x 420 x 107 mm

• only 130 mA control panel electronic board with PSTN telephone dialler activated

EN 50131- 1 Grado 3 • EN50136-2-1

•

EN 50131- 3 Grado 3

•

EN 50131- 6 Grado 3
