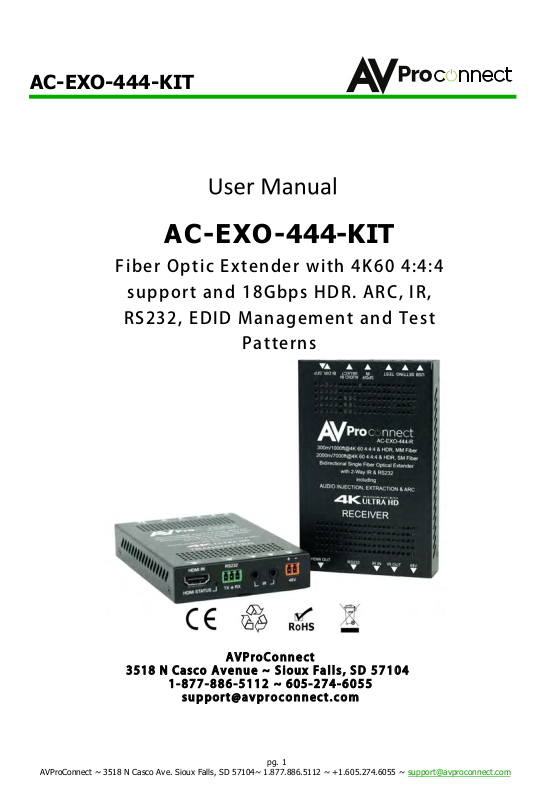

AC-EXO-444-KIT
AC-EXO-444-KIT
Fiber Optic Extender with 4K60 4:4:4
support and 18Gbps HDR. ARC, IR,
RS232, EDID Management and Test
Patterns
3518 N Casco Avenue ~ Sioux Falls, SD 57104
1-877-886-5112 ~ 605-274-6055
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
AVProConnect
pg. 1
Page 2
AC-EXO-444-KIT
This is AVProConnect's flagship Fiber Optic Extender, allowing the user to extend an HDMI
signal 2 kilometers via single-mode fiber, and up to 300 meters using multi-mode fiber. You
can go even further by installing your own SFP port. It solves problems for both commercial
and residential markets for distributing high value 4K 18Gbps content from rack to display.
These extenders go the distance, no need to find power and cascade extenders for ultra long
runs. Additionally AC-EXO-444 offers solutions for 18Gbps distribution in residential, digital
entertainment centers, retail stores, AV events that require reliable and long distance
distribution, suitable for Data Center, Control Rooms, Conference Rooms, Schools and
Corporate Training environment.
Key benefits of using AC-EXO-444:
Extend 4K 60 4:4:4 and HDR Signals: Distance is no longer an obstical.
Down Scaling: The AC-EXO-444 has a scaling circuit built into the transmitter. The scaler
can scale 4K (and HDR) --> 1080P. A common application for this is when you have a 4K
distribution and you have one or two displays that are older.
Total EDID Management: The AC-EXO-444 has robust EDID control. EDID management
allows you to manage the input device and request specific video resolutions and/or audio
codecs.
On Board Troubleshooting: This unit allows you to generate a 1080P or 4K test pattern to
identify external problems (source, repeater, displays, etc...).
Total ARC Management: With Total ARC (Audio Return Channel) Management you can
route audio from local displays back to the rack or head end for further distribution in a
distributed audio system. Use Toslink or HDMI to manage ARC.
Future Proof: Using Fiber Optic infrastructure is the only way to future proof an installation,
now you can run fiber in confidence and use the AC-EXO-444 to deliver beyond 18Gbps to
your customers!
IR & RS232 Management: IR & RS-232 are bidirectional and can control the sources from
the sinks or vice versa. In addition you can use the I-PASS port to plug you Control System
emitter ports directly into the IR (I-PASS) port on the transmitter (via mono 3.5mm cable).
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 2
Page 3
AC-EXO-444-KIT
■ Product Overview
■ Model Numbers:
• AC-EXO-444-T ~ Fiber Optic Transmitter w/ Audio Extraction, IR,
RS-232, EDID, ARC, Test Patterns and Scaler
• AC-EXO-444-R
Patterns
**Note - 1000FT (300M) Multi-mode, LC SFP included for free.
■ Features
• HDMI 2.0(a/b)
• Beyond 18Gbps Bandwidth Support (Using ICT)
• Up to 4K60 4:4:4 Support
• Full HDR Support (HDR 10 & 12 Bit)
• HDR, HDR10+ and HLG Support
• Dolby Vision Support
• 4K --> 1080P Down-scaling for mixed systems
• EDID Management and EDID emulate
• 4K & HD Test Patterns built into Tx and Rx for troubleshooting
• Toslink Multichannel Audio Extraction
• ARC Support (Toslink or HDMI)
• HDCP 2.2 (and all earlier versions supported)
• CEC Pass Through
• 3D Support
• 300m (1000ft) on full 4K (Multi-mode OM3)
• 2km (1.25 Miles) on full 4K (Single-mode Fiber)
• HDCP 2.2 & Earlier
• Bi Directional IR Passthrough
• Bi Directional RS232 Transport
• I-Pass Feature for control system "pass-through"
• 3-20v protection circuit built in for safe IR transport
• LED Status, Link, Power indication lights
• Use single fiber optic cable (Multi-mode or Single-mode
• Removable/changeable SFP for even longer distances
• Supports uncompressed PCM 2- Ch., LPCM 5.1 & 7.1, Dolby
Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, Atmos (On
HDMI)
• ESD protection circuitry (Inputs & Outputs) to 7KV
• Can Cascade
• Single LC Connector Type
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
~ Fiber Optic Receiver w/ IR, RS-232, ARC, Test
pg. 3
Page 4
6. Clean this device with
a dry cloth only.
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this device
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.
AC-EXO-444-KIT
Notice
AVProConnect reserves all rights to make changes in the hardware,
packaging and any accompanying documentation without prior written notice.
Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this device to
rain, moisture, dripping or
splashing and ensure that
objects filled with liquids are
not placed on or near the devices.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 4
Page 5
AC-EXO-444-KIT
■ What's Included
Whats in the box?
• AC-EXO-444-TX (Transmitter)
• AC-EXO-444-RX (Receiver)
• 2x 48V Power Supply
• 1 x IR Tx Unit
• 1 x IR Rx Unit
• Mounting Ears
• Operating Instructions
Fiber Basics:
Fiber Cable Types
• Single-mode - Typically used for "long hauls" - Typically used for long distance buried
cable (ie. used by telecommunication companies for country-wide distribution) Single-mode should be used in applications over 1000FT (300M).
• Multi-mode - Most common in pro/custom electronics. For shorter runs, up to 1000FT
(300M). Multi-mode is used in residential/commercial applications for on premise
infrastructure.
Ways to purchase fiber cable:
• Simplex - Means a single strain of fiber optic cable. Comes in a single jacket. Any
grade/type can be simplex.
• Duplex - Means two strains of fiber optic cable. Comes in a dual, fused, jacket.
• 6-Strain - Six strains of fiber, comes in a single jacket, each individual fiber will be
color coded.
• 12-Strain - Twelve strains of fiber, comes in a single jacket, each individual fiber will
be color coded.
AVProConnect ~ 3518 N Casco Ave. Sioux
Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~
pg. 5
Page 6
AC-EXO-444-KIT
OM Grades
OM grades are for multi-mode fiber (OM translates to Optical Multi-mode) only. The grade
is determined by the clarity of the glass. The differences are:
• OM1 - (Legacy Fiber) - 200MHz - Typically ORANGE jacket - is compatible with AC-
EXO-444 up to 100M.
• OM2 - 500MHz - Typically ORANGE jacket - is compatible with AC-EXO-444 up to
150M.
• OM3 - (Most Common, Recommended) 2000MHz - Typically AQUA jacket - is
compatible with AC-EXO-444 up to 300M.
• OM4 - 4700MHz - Typically VIOLET, but can be AQUA jacket - Is compatible with AC-
EXO-444 up to
OS Grades
OS grades are for single-mode fiber (OS translates to Optical Single-mode) only. The grade
is determined by the clarity of the glass. For Pro AV applications the grade is of little
meaning - there are two grades (OS1, OS2) OS1 is considered "legacy". If you buy Singlemode today it will be OS2. The jacket color of single-mode fiber is YELLOW. The ACEXO-444.
Connectors:
• LC (Lucent Connector) - Universal style, most common (used in networking). Can be
terminated in the field, some connectors support more than one strain. AC-EXO-444
uses this connector type.
• SC (Square Connector) - Universal, can be terminated in the field. Single strain of
fiber only.
• MPO (Multi-fiber Push-On) - Mechanically terminated, for large fiber clusters. Not
field friendly.
• Other Types- many other "custom" styles exist, however since there is no consistency,
it is not effective in the field and becomes a single use cable.
What is a SFP (Small Form-Factor Pluggable Transceiver)?
An SFP is a great benefit of using fiber. It is a module that allows the user to modify the
connector type or quantity, maximum distance, and even the type of fiber used. by using
devices with SFP's, you are increasing the life because you can modify the capabilities as
needed in the field. SFP Modules are easily and inexpensively attainable.
AVProConnect STRONGLY recommends Cleerline SSF. It has proven to be the strongest,
safest, and easiest to terminate in the field.
AVProConnect ~ 3518 N Casco Ave. Sioux
Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~
pg. 5
Page 7
AC-EXO-444-KIT

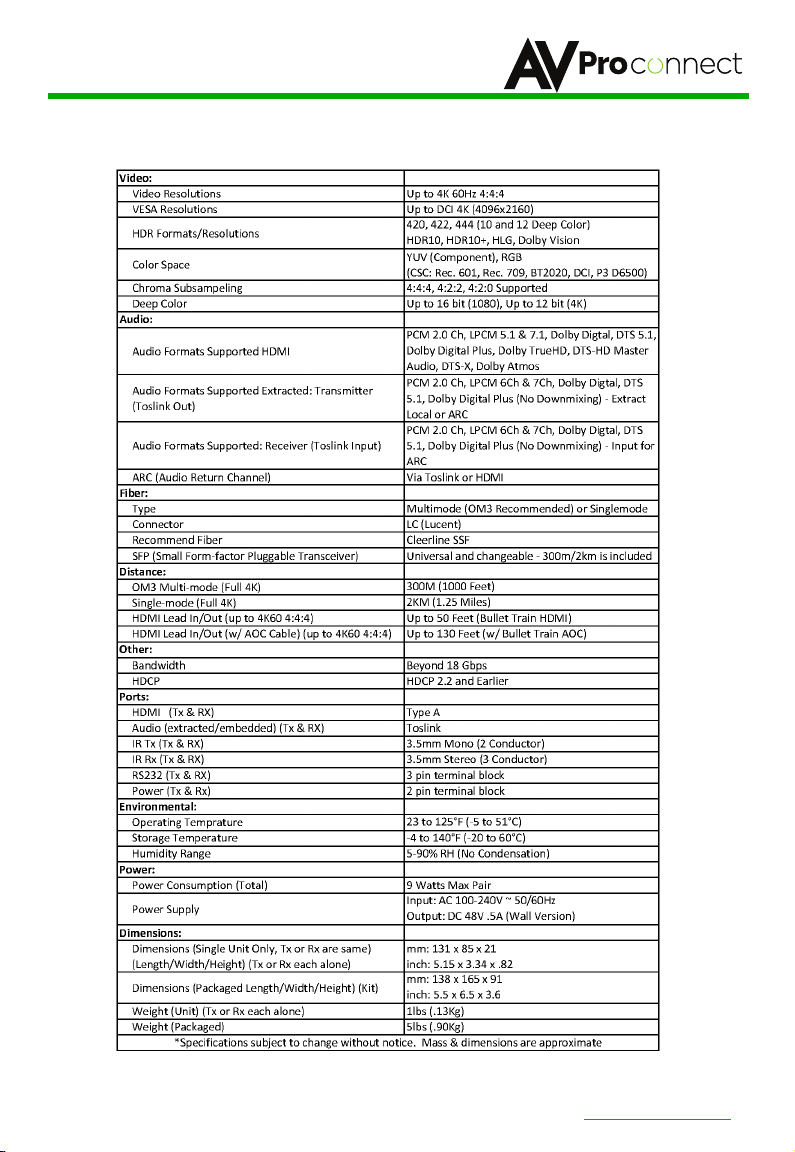

■ Specifications
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 6
Page 8
AC-EXO-444-KIT
■ The Transmitter
Back
HDMI In
RS232
(COM & Pass-through)
IR In IR Out
48V
IR Mode Select
Front
Toslink
(Out)
Indicator Troubleshooting Lights on the Transmitter:
POWER - On the front (Setting Light): (Red) the setting light doubles as the POWER indicator. `This is an
indicator that the power is connected. There are only two states for light:
• Light Is On = Power supply is connected and functioning.
• Light Is Off = Power supply is not connected or there is no power present. (In order to have power: check
the power supply, USP, Outlet, etc...)
HDMI STATUS - On the back (By HDMI Port): (Blue) This indicator shows that the HDMI Source is
connected. The states are:
• Light Is On (Solid) = Sync w/ HDMI source is correct and solid.
• Light Is Flashing = The light flashes during the sync process. If it is flashing continuously, a picture may
not be present
• Light Is Off =
Single LC SFP Fiber Input
If the RED HDMI SIGNAL STATUS LIGHT is flashing or off, check the following:
1. The source. Plug it directly into the display to be sure it's functioning properly.
2. Try a longer HDMI cable. Some HDMI cables do not sync well at shorter lengths.
3. Set the EDID to state #1 (See below).
4. If these suggestions do not work, enable the "Test Pattern" (See Below). If you see the pattern, the
problem is between the source and the transmitter, please try a different source.
5. Contact AVProConnect if these suggestions do not work.
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 7
Page 9
AC-EXO-444-KIT
Functions & Setup of the Transmitter:
IR Mode Slide Switch: (On Front) This is used to select a preferred IR Mode - There are two modes:
• IR-EYE - The IR Input will be configured to operate with an IR Receiver Eye.
• I-PASS - The IR Input will be configured to safely operate with a direct connection from a
control system using a mono or stereo 3.5mm cable. It's protected @ 3v-20v. Default mode
is IR-EYE.
Using the Setting Button:
on what is needed. The status light on the front will flash based on the selection. The selections are in
series, meaning, for example, if you are on selection 5 (listed below)
again to move you to 6, 7, 8, 1, 2, etc... Using an ink pen is best to press the button.
The SETTING BUTTON is located front of the transmitter next to the micro USB port. The indicator light is
directly next to the button.
The SETTING BUTTON area looks like this:
EDID Management:
Quick press to select EDID
1. EDID BYPASS --- LED Flashes
2. 1
080P_2CH
3. 1080P_8CH --- LED Flashes 3 Times
4. 4K60HzY420_3D_2CH ---
5. 4K60HzY420_3D_8CH
6. 4K60Hz_3D_2CH_HDR--- LED Flashes
7. 4
K60Hz_3D_8CH_HDR
8. USER EDID
While in the USER EDID state (8), press and hold the setting button (for 4 seconds) in order to copy the EDID
from the connected display or downstream device to the user EDID and it will apply automatically.
Why do this?
This is commonly used when there is a need for a specific, known EDID that the installer may prefer. It can
also be used if you want to bypass an EDID of an AVR or another connected device. (IE, plug the extender kit
directly into a display and COPY the EDID. Plug it back into an AVR that may not have a current/good EDID).
Scaler Setting:
While in ANY state besides the USER EDID state, press and hold the setting button (for 4 seconds) to toggle
the scaler mode. The options are:
---
---
(On Front) The setting button can be pressed in different combinations based
, you can come back later and press it
LED
BUTTON
1 Time (Default, from downstream device)
LED Flashes
LED Flashes
---
---
LED Flashes
8 Times
2 Times
4 Times
5 Times
6 Times
7 Times
LED Flashes
LED Flashes
1. Normal Mode(ICT Mode) --- LED Flashes 1 Time
2. Down Scaler Mode (4K->2K) --- LED Flashes 2 Times
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 9
Page 10
AC-EXO-444-KIT
Functions & Setup of the Transmitter Cont.:
Test Pattern Generator:
Press and hold the setting button (for 4 seconds) while powering up the transmitter. You should see the
color bar pattern to the right on screen. When in this mode, you can quick press to toggle the resolution.
Quick press the setting button---Select the test pattern timing.
• 1080P --- LED Flashes 1 Time (3 sets of color bars)
• 4K --- LED Flashes 2 Times (5 sets of color bars)
This can be useful for checking your cabling and for
troubleshooting. You can also ensure you have sufficient distance
based on the resolution as well.
Using the "Extract From" Button:
This function allows you to select where the Toslink audio output gets its signal. There are two options:
• Extract from HDMI - The RED light will be on. Audio will be extracted from the local HDMI input
plugged into the transmitter. The supported formats are 2CH PCM, 6CH/7CH LPCM, DTS 5.1,
Dolby Digital, Dolby Digital Plus. No down-mix, pass through only. Please see the AC-ADM-COTO
for down-mixing.
• Extract From ARC (Audio Return Channel) - The RED light will be off. In this mode the audio will
come the audio input on the receiver unit, the receiver can be set to HDMI ARC or Toslink (see the
receiver section of the manual for more). The supported formats are 2CH PCM, 6CH/7CH LPCM,
DTS 5.1, Dolby Digital, Dolby Digital Plus. No down-mix, pass through only. Please see the ACADM-COTO for down-mixing.
• NOTE: When "ARC" is selected on both Tx and Rx the HDMI ARC is open for appropriate devices.
ie, you can plug into an AVR with ARC and a TV with ARC and get support via the HDMI Cable.
The button looks like this:
ARC Diagram:
(On Front)
BUTTON
Toslink Output
LED
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 10
Page 11
AC-EXO-444-KIT
■ The Receiver
Back
HDMI
In
(COM & Pass-through)
RS232
IR In IR Out
48V
ARC Select
Front
Toslink
(IN)
Indicator Troubleshooting Lights on the Receiver:
POWER - On the front (Setting Light): (Red) the setting light doubles as the POWER indicator. `This is an
indicator that the power is connected. There are only two states for light:
• Light Is On = Power supply is connected and functioning.
• Light Is Off = Power supply is not connected or there is no power present. (In order to have power: check
the power supply, USP, Outlet, etc...)
HDMI STATUS - On the back (By HDMI Port): (Red) This indicator shows that the HDMI Sink is connected.
The states are:
• Light Is On (Solid) = Sync w/ HDMI sink is correct and solid.
• Light Is Flashing = The light flashes during the sync process. If it is flashing continuously, you may still
have a picture, but it is indicating that the Rx is correcting a BE (Bit Error) to make the picture show on
the display.
• Light Is Off = HDMI is not communicating - Please check the cables.
Single LC SFP Fiber Input
If the RED HDMI SIGNAL STATUS LIGHT is flashing or off AND you have no picture, check the following:
1. The source. Plug it directly into the display to be sure it's functioning properly.
2. Try a longer HDMI cable. Some HDMI cables do not sync well at shorter lengths.
3. Try Cascade Mode (See below).
4. If these suggestions do not work, enable the "Test Pattern" (See Below). If you see the pattern, the
problem is between the Receiver and display/sink please try a different sink input or HDMI cable.
5. Contact AVProConnect if these suggestions do not work.
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 11
Page 12
AC-EXO-444-KIT
Functions & Setup of the Receiver:
Audio Select Slide Switch: (On Front) This is used to select where ARC will come from - There are
two modes:
• ARC (Default) - The audio sent back to the transmitter will be from the HDMI Audio Return
Channel. The supported formats are 2CH PCM, 6CH/7CH LPCM, DTS 5.1, Dolby Digital,
Dolby Digital Plus. No down-mix, pass through only. Please see the AC-ADM-COTO for
down-mixing.
o In this mode the SPDIF Input is inactive.
o To use ARC via HDMI, make sure ARC in enabled on on AVR and Display properly.
o The SPDIF Out on the transmitter will be active for up to DD+
o Dolby Atmos can pass over HDMI ARC
• SPDIF (Recommended) - The audio sent back to the transmitter will be from the SPDIF
input. The supported formats are 2CH PCM, 6CH/7CH LPCM, DTS 5.1, Dolby Digital, Dolby
Digital Plus. No down-mix, pass through only. Please see the AC-ADM-COTO for downmixing.
o NOTE - On the Tx, you can retrieve the signal from HDMI or SPDIF Toslink
Using the Setting Button:
toggle between 1080P and 4K Test Patterns.
The SETTING BUTTON
directly next to the button.
(On Front) The setting button can be pressed when the "Pattern" is enabled to
is located front of the transmitter next to the micro USB port. The indicator light is
Pattern Button/Light
Setting Button/Light
Test Pattern Generator:
Press "Pattern" button on the receiver to enter pattern mode. The light will turn RED when enabled. The
color bar pattern, as seen to the right will appear. When in this mode, you can short press "Setting" to
toggle the resolution.
Quick press "Setting Button"---Select the test pattern timing
• 1080P --- LED Flashes 1 Time (3 Sets of color bars)
• 4K --- LED Flashes 2 Time (5 sets of color bars)
This is useful for checking cabling and for troubleshooting. It will check the
link between the Rx and the display/sink.
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 13
Page 13
AC-EXO-444-KIT
■ RS-232 Configuration
RS-232 can be used to pass control signals bi-directionally to & from any
RS-232 compatible device. This is commonly used to route control signals
in the following way:
1. Control System --> Display/Projector (ie, Power On/Off)
2. Display/Projector --> Control System (ie, Display Status, Volume
Status etc...)
3. When ultra long-range serial communication is needed (think
concerts, live events). Use the extender.
The unit comes with 3 pin
connectors to allow for any wire an
integrator would like. The pin out
configuration Left=TX,
Center=Ground, Right=RX and
looks like this:
This is how the cable should look.
If using the AC-CABLE-3.5-DB9F
(Female) or AC-CABLE-3.5-DB9M
(Male), the colors will be the same.
With any other cable, please follow
Tx, G, Rx as shown above. A
RS-232 cable preparation diagram
is on the next page.
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 14
Page 14
AC-EXO-444-KIT
■ RS-232 Cable Prep
■ RS-232 Sample Application
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 15
Page 15
AC-EXO-444-KIT
■ IR Configuration
IR can be used in three ways:
1. From Rack (Control System Direct): Plug a MONO 3.5mm cable into
an emitter port of any control system directly into the "IR IN" port on the
AC-EXO-444 Transmitter to pass IR signals directly to the remote end.
NOTE - Be sure the IR MODE Slide Switch is set to "I-PASS" on the
Transmitter
2. From Rack (Using IR-EYE): Plug an IR-Receiver Eye into the "IR IN" of
the AC-EXO-444 Transmitter in order to pass infrared signals generated
from a device or IR Remote. NOTE - Be sure the IR MODE Slide Switch is
set to "IR-EYE" on the Transmitter.
3. From Remote End: Use an IR-Receiver Eye on the AC-EXO-444 Receiver
(IR In Port) in order to send IR signals BACK to the rack and out of the
TRANSMITTER IR Out Port with an emitter.
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 16
Page 16
AC-EXO-444-KIT
■ IR Connections to AC-EXO-444-T (Transmitter)
IR IN Direct Connect (I-PASS)
IR IN w/ Receiver Eye ("IR-EYE" MODE)
IR OUT Emitter (Non-Flashing)
■ IR Connections to AC-EXO-444-R (Receiver)
IR IN (IR-EYE Only)
IR OUT Emitter (Non-Flashing)
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 17
Page 17
AC-EXO-444-KIT
■ ARC Functional Diagrams:
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 18
Page 18
Maintenance
To ensure reliable operation of this product as well as protecting the
safety of any person using or handling this device while powered, please
observe the following instructions.
• Use the power supplies provided. If an alternate supply is required,
check voltage, polarity and that it has sufficient power to supply the
t is connected to.
device i
• Do not operate these products outside the specified temperature
and humidity range given in the above specifications.
• Ensure there is adequate ventilation to allow this product to operate
efficiently.
• Repair of the equipment should only be carried out by qualified
professionals as these products contain sensitive components that
may be damaged by any mistreatment.
• Only use this product in a dry environment. Do not allow any liquids
or harmful chemicals to come into contact with these products.
• Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner
or benzene to clean this unit.
Damage Requiring Service
The unit should be serviced by qualified service personnel if:
• The DC power supply cord or AC adaptor has been damaged
• Objects or liquids have gotten into the unit
• The unit has been exposed to rain
• The unit does not operate normally or exhibits a marked change in
performance
• The unit has been dropped or the housing damaged
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 20
Page 19
Support
Should you experience any problems while using this product, first, refer to the
Troubleshooting section of this manual before contacting Technical Support.
When calling, the following information should be provided:
• Product name and model number
• Product serial number
• Details of the issue and any conditions under which the issue is
occurring
Warranty
If your product does not work properly because of a defect in materials or
workmanship, AVProConnect (referred to as “the warrantor”) will, for the
length of the period indicated as below, (Parts/Labor (10) Years), which starts
with the date of original purchase (“Limited Warranty period”), at its option
either (a) repair your product with new or refurbished parts, or (b) replace it
with a new or a refurbished product. The decision to repair or replace will be
made by the warrantor. During the “Labor” Limited Warranty period there will
be no charge for labor. During the “Parts” warranty period, there will be no
charge for parts. You must mail-in your product during the warranty period.
This Limited Warranty is extended only to the original purchaser and only
covers product purchased as new. A purchase receipt or other proof of original
purchase date is required for Limited Warranty service.
This warranty extends to products purchased directly from AVPro or an
authorized dealer. AVPro is not liable to honor this warranty if the product has
been used in any application other than that for which it was intended, has
been subjected to misuse, accidental damage, modification or improper
installation procedures, unauthorized repairs or is outside of the warranty
period. Please direct any questions or issues you may have to your local dealer
before contacting AVPro.
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 21
Page 20
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 22
Page 21
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
_____________________________________________
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
pg. 23
Page 22
Thank you for choosing AVProConnect!
Please contact us with any questions. We are happy
to be of service!
3518 N Casco Avenue ~ Sioux Falls, SD 57104
1-877-886-5112 ~ 605-274-6055
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
AVProConnect
pg. 24
Loading...
