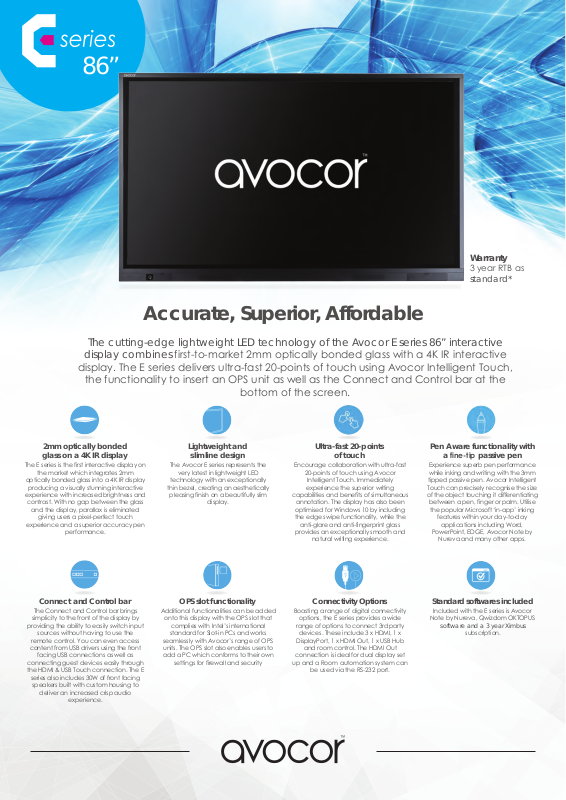

Page 1
86”
Warranty
3 year RTB as
standard*
Accurate, Superior, Affordable
The cutting-edge lightweight LED technology of the Avocor E series 86” interactive
display combines first-to-market 2mm optically bonded glass with a 4K IR interactive
display. The E series delivers ultra-fast 20-points of touch using Avocor Intelligent Touch,
the functionality to insert an OPS unit as well as the Connect and Control bar at the
bottom of the screen.
2mm optically bonded
glass on a 4K IR display
The E series is the first interactive display on
the market which integrates 2mm
optically bonded glass into a 4K IR display
producing a visually stunning interactive
experience with increased brightness and
contrast. With no gap between the glass
and the display, parallax is eliminated
giving users a pixel-perfect touch
experience and a superior accuracy pen
performance.
Connect and Control bar
The Connect and Control bar brings
simplicity to the front of the display by
providing the ability to easily switch input
sources without having to use the
remote control. You can even access
content from USB drivers using the front
facing USB connections as well as
connecting guest devices easily through
the HDMI & USB Touch connection. The E
series also includes 30W of front facing
speakers built with custom housing to
deliver an increased crisp audio
experience.
Lightweight and
slimline design
The Avocor E series represents the
very latest in lightweight LED
technology with an exceptionally
thin bezel, creating an aesthetically
pleasing finish on a beautifully slim
display.
OPS slot functionality
Additional functionalities can be added
onto this display with the OPS slot that
complies with Intel’s international
standard for Slot-in PCs and works
seamlessly with Avocor’s range of OPS
units. The OPS slot also enables users to
add a PC which conforms to their own
settings for firewall and security
Ultra-fast 20-points
of touch
Encourage collaboration with ultra-fast
20-points of touch using Avocor
Intelligent Touch. Immediately
experience the superior writing
capabilities and benefits of simultaneous
annotation. The display has also been
optimised for Windows 10 by including
the edge swipe functionality, while the
anti-glare and anti-fingerprint glass
provides an exceptionally smooth and
natural writing ex
perience.
Connectivity Options
Boasting a range of digital connectivity
options, the E series provides a wide
range of options to connect 3rd party
devices. These include 3 x HDMI, 1 x
DisplayPort, 1 x HDMI Out, 1 x USB Hub
and room control. The HDMI Out
connection is ideal for dual display set
up and a Room automation system can
be used via the RS-232 port.
Pen Aware functionality with
a fine-tip passive pen
Experience superb pen performance
while inking and writing with the 3mm
tipped passive pen. Avocor Intelligent
Touch can precisely recognise the size
of the object touching it differentiating
between a pen, finger or palm. Utilise
the popular Microsoft ‘in-app’ inking
eatures within your day-to-day
f
applications including Word,
PowerPoint, EDGE, Avocor Note by
Nureva and many other apps.
Standard softwares included
Included with the E series is A
Note by Nureva, Qwizdom OKTOPUS
software and a 3 year Ximbus
subscription.
vocor
Page 2
DISPLAY
Diagonal Size (Inch) 86
Backlight Direct-lit LED
Aspect Ratio 16:9
Resolution
4K, 3840 x 2160 @ 60Hz
Response Time 8 ms
Brightness 370 (cd/m2)
Contrast Ratio 4000:1
Viewing Angle 178° / 178°
Supported Colours
30-bit Deep Colour
Display Orientation Landscape
TOUCH SYSTEM
Interface
5 x USB-A
Touch Up to 20 Point Avocor Intelligent Touch
Glass
2mm Optically Bonded Anti-Glare, Anti-Fingerprint Glass
Supported Operating System Windows 7 / 8 / 10; Mac OSX**; Linux**
AUDIO
Built-in Speakers
2 x 15W - Forward Facing
CONNECTIVITY
Front Connections
Side
Rear
1 x HDMI 1.4, 1 x USB-A Touch, 2x USB HUB 2.0
2 x HDMI 2.0, 1 x DisplayPort 1.2a, 3 x USB-A Touch, 1 x USB Hub 2.0, 1 x HDMI Out
1 x HDMI 1.4, 1 x USB-A Touch, 1 x LAN In Ethernet (RJ-45), 1 x LAN Out Ethernet (RJ-45), 5V 2A AC Power Jack
Audio 1x 3.5mm Audio Out, 1x Optical (SPDIF)
Control
1x RS-232
PHYSICAL SPECIFICATIONS
Dimensions
Shipping Dimensions
Weight
Wall Mount (VESA)
2018 x 1211 x 104 mm | 79.4 x 47.6 x 4.09 inches
2180 x 1340 x 340 mm| 85.83 x 52.76 x 13.39 inches
Net: 65 kg | 143.3 lbs / Gross: 87 kg | 191.8 lbs
800 x 400 mm| 31.50 inches x 15.75 inches
OPS Slot Yes
Handles 4
OSD & REMOTE CONTROL FUNCTIONS
Source Auto Detect Function Yes
Freeze frame Yes
Blank Out Ye s
Light Settings
4 x Bright, Standard, Soft & User
POWER
Power Supply AC100-240V (Worldwide), 50/60Hz
Maximum Power Consumption <450 W
Standby
≦0.5 W
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Humidity
0°C ~ 40°C
-20°C ~ 60°C
20% ~ 80%
WHAT COMES IN THE BOX
1 x Remote control & batteries, 1 x 3mm passive touch pen, 1 x 6mm passive touch pen, 1 x UK & 1x EU AV power cord, 2 x USB cable (3000mm | 118.1
inches), 2 x HDMI cable (3000mm | 118.1 inches), 2 x USB-A-B adapter, 1 x Quick Start Guide
WARRANTY
UK and Northern Ireland warranty: 3 year RTB warranty as standard with a 5 year on-site upgrade option available.
EMEA and Republic of Ireland warranty: 5 year Return To Base warranty as standard.
www.avocor.com|+44 (0) 1276 804 654|[email protected]
Details are subject to change without notice. All other logos and trademarks acknowledged. E&OE. **Please note up to 20-point touch in PC mode with Windows 7/8/10, Mac
OSX and Linux only supports single touch.
Avocor_datasheet_E_8610_17.08.18
