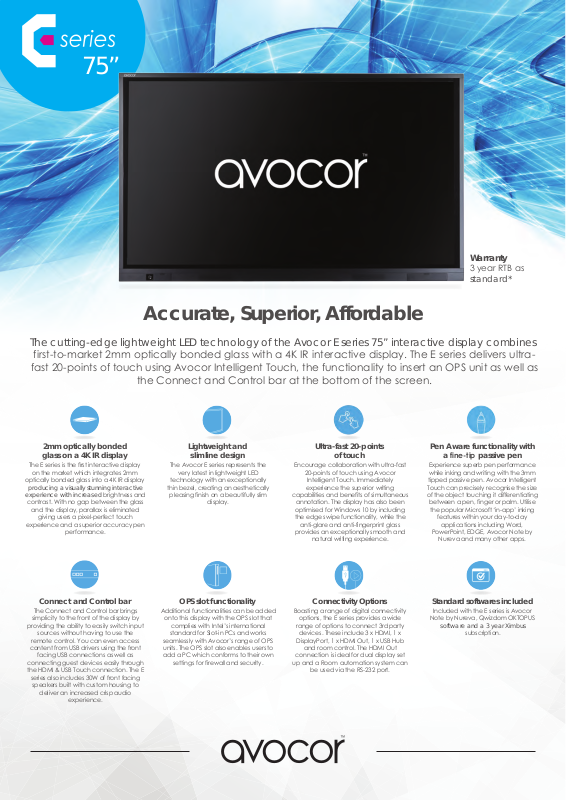

Avocor AVE-7510 Product Data Sheet

75”

Warranty

3 year RTB as

standard*

Accurate, Superior, Affordable

The cutting-edge lightweight LED technology of the Avocor E series 75” interactive display combines

first-to-market 2mm optically bonded glass with a 4K IR interactive display. The E series delivers ultra-

fast 20-points of touch using Avocor Intelligent Touch, the functionality to insert an OPS unit as well as

the Connect and Control bar at the bottom of the screen.

2mm optically bonded

glass on a 4K IR display

The E series is the rst interactive display

on the market which integrates 2mm

optically bonded glass into a 4K IR display

producing a visually stunning interactive

experience with increased

contrast. With no gap between the glass

and the display, parallax is eliminated

giving users a pixel-perfect touch

experience and a superior accuracy pen

performance.

brightness and

Connect and Control bar

The Connect and Control bar brings

simplicity to the front of the display by

providing the ability to easily switch input

sources without having to use the

remote control. You can even access

content from USB drivers using the front

facing USB connections as well as
connecting guest devices easily through
the HDMI & USB Touch connection. The E

series also includes 30W of front facing

speakers built with custom housing to

deliver an increased crisp audio

experience.

Lightweight and

slimline design

The Avocor E series represents the

very latest in lightweight LED

technology with an exceptionally

thin bezel, creating an aesthetically

pleasing finish on a beautifully slim

display.

OPS slot functionality

Additional functionalities can be added

onto this display with the OPS slot that

complies with Intel’s international

standard for Slot-in PCs and works
seamlessly with Avocor’s range of OPS
units. The OPS slot also enables users to
add a PC which conforms to their own

settings for firewall and security.

Ultra-fast 20-points

of touch

Encourage collaboration with ultra-fast

20-points of touch using Avocor

Intelligent Touch. Immediately

experience the superior writing

capabilities and benefits of simultaneous

annotation. The display has also been
optimised for Windows 10 by including

the edge swipe functionality, while the

anti-glare and anti-f

provides an exceptionally smooth and

natural writing experience.

ingerprint glass

Connectivity Options

Boasting a range of digital connectivity

options, the E series provides a wide

range of options to connect 3rd party

devices. These include 3 x HDMI, 1 x

DisplayPort, 1 x HDMI Out, 1 x USB Hub

and room control. The HDMI Out

connection is ideal for dual display set

up and a Room automation system can

be used via the RS-232 port.

Pen Aware functionality with

a fine-tip passive pen

Experience superb pen performance

while inking and writing with the 3mm
tipped passive pen. Avocor Intelligent
Touch can precisely recognise the size

of the object touching it differentiating

between a pen, finger or palm. Utilise

the popular Microsoft ‘in-app’ inking

eatures within your day-to-day

f

applications including Word,

PowerPoint, EDGE, Avocor Note by

Nureva and many other apps.

Standard softwares included

Included with the E series is A

Note by Nureva, Qwizdom OKTOPUS

software and a 3 year Ximbus

subscription.

vocor

DISPLAY

Diagonal Size (Inch) 75
Backlight Direct-lit LED

Aspect Ratio 16:9

Resolution

4K, 3840 x 2160 @ 60Hz

Response Time 8 ms

Brightness 370 (cd/m2)

Contrast Ratio 4000:1
Viewing Angle 178° / 178°

Supported Colours

30-bit Deep Colour

Display Orientation Landscape

TOUCH SYSTEM

Interface

5 x USB-A

Touch Up to 20 Point Avocor Intelligent Touch

Glass 2mm Optically Bonded Anti-Glare, Anti-Finger Print Glass

Supported Operating System Windows 7 / 8 / 10; Mac OSX**; Linux**

AUDIO

Built-in Speakers

2 x 15W - Forward Facing

CONNECTIVITY

Front Connections

Side

Rear

Audio

Control

1 x HDMI 1.4, 1 x USB-A Touch, 2 x USB HUB 2.0

2 x HDMI 2.0, 1 x DisplayPort 1.2a, 3 x USB-A Touch, 1 x USB Hub 2.0, 1 x HDMI Out

1 x HDMI 1.4, 1 x USB-A Touch, 1 x LAN In Ethernet (RJ-45), 1 x LAN Out Ethernet (RJ-45), 5V 2A AC Power Jack

1 x 3.5mm Audio Out, 1 x Optical (SPDIF)

1 x RS-232

PHYSICAL SPECIFICATIONS

Dimensions

Shipping Dimensions

Weight

Wall Mount (VESA)

1770 x 1071.1 x 103.8 mm | 69.72 x 42.17 x 4.09 inches

1923 x 1214.8 x 279 mm|75.71 x 47.83 x 11.02 inches

Net: 58.9 kg |130.07 lbs / Gross: 82.9 kg |182.98 lbs

800 x 400 mm | 31.50 inches x 15.75 inches

OPS Slot Yes

Handles 4

OSD & REMOTE CONTROL FUNCTIONS

Source Auto Detect Function Yes

Freeze frame Yes

Blank Out Ye s

Light Settings

4 x Bright, Standard, Soft & User

POWER

Power Supply AC100-240V (Worldwide), 50/60Hz

Maximum Power Consumption <300 W

Standby

≦0.5 W

ENVIRONMENTAL

Operating Temperature

Storage Temperature

Humidity

0°C ~ 40°C

-20°C ~ 60°C

20% ~ 80%

WHAT COMES IN THE BOX

1 x Remote control & batteries, 1 x 3mm passive touch pen, 1 x 6mm passive touch pen, 1 x UK & 1x EU power cord, 2 x USB cable (3000mm |

118.11 inches), 2 x HDMI cable (3000mm | 118.11 inches), 2 x USB-A-B adapter, 1 x Quick Start Guide

WARRANTY

UK and Northern Ireland warranty: 3 year RTB warranty as standard with a 5 year on-site upgrade option available.
EMEA and Republic of Ireland warranty: 5 year RTB warranty as standard.

www.avocor.com|[phone]|[e-mail]

Details are subject to change without notice. All other logos and trademarks acknowledged. E&OE. **Please note up to 20-point touch in PC mode with Windows 7/8/10, Mac
OSX and Linux only supports single touch.

Avocor_datasheet_E7510_17.08.18
