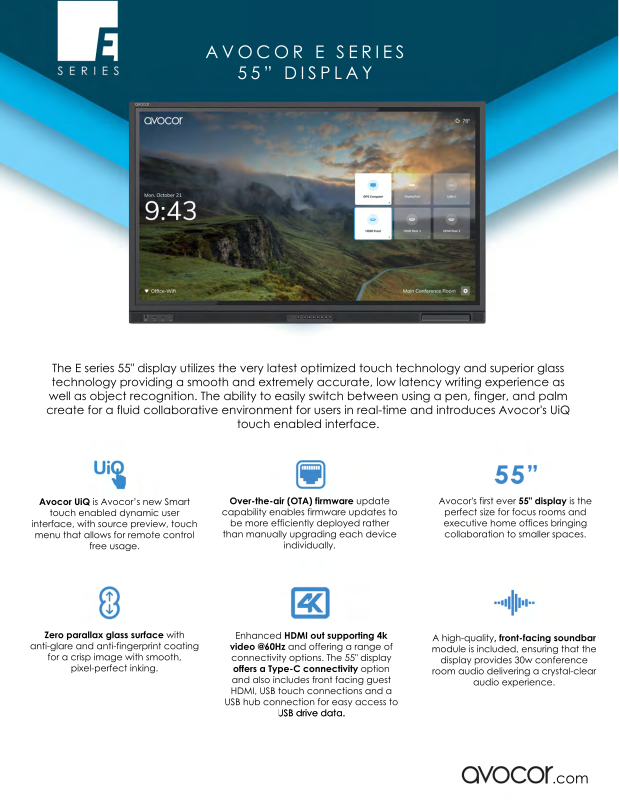

Avocor AVE-5530 Product Data Sheet
AVOCOR E SERIES
55” DISPLAY
The E series 55" display utilizes the very latest optimized touch technology and superior glass
technology providing a smooth and extremely accurate, low latency writing experience as
well as object recognition. The ability to easily switch between using a pen, finger, and palm
create for a fluid collaborative environment for users in real-time and introduces Avocor's UiQ
touch enabled interface.
Avocor UiQ is Avocor’s new Smart
touch enabled dynamic user
interface, with source preview, touch
menu that allows for remote control
free usage.
Zero parallax glass surface with
anti-glare and anti-fingerprint coating
for a crisp image with smooth,
pixel-perfect inking.
Over-the-air (OTA) firmware update
capability enables firmware updates to
be more efficiently deployed rather
than manually upgrading each device
individually.
Enhanced HDMI out supporting 4k
video @60Hz and offering a range of
connectivity options. The 55" display
offers a Type-C connectivity option
and also includes front facing guest
HDMI, USB touch connections and a
USB hub connection for easy access to
USB drive data.
USB drive data.
Avocor's first ever 55" display is the
perfect size for focus rooms and
executive home offices bringing
collaboration to smaller spaces.
A high-quality, front-facing soundbar
module is included, ensuring that the
display provides 30w conference
room audio delivering a crystal-clear
audio experience.
.com
E SERIES 55" SPECIFICATION
DISPLAY
Diagonal size
Model number
Backlight
Aspect Ratio
Resolution
Response time
Brightness (average)
Contrast ratio(average)
Viewing angle
Supported colors
Display orientation
CONNECTIVITY
Guest inputs
Side inputs
Audio
Control
OPS slot
DISPLAY & REMOTE CONTROL FUNCTIONS
Auto-source detection
Source preview
Blank
Freeze
TOUCH SYSTEM
Touch
Glass
Supporting operating system
AUDIO
O
55"
AVE-5530
Direct LED
16:9
4K@60Hz, 3840 x 2160
8ms
370 (cd/m2)
4000:1
178° / 178
30-bit deep color
Landscape
1 x HDMI 2.0, 1 x USB-B Touch 3.0, 1 x USB-A 3.0 Hub, 1 x Type-C
2 x HDMI 2.0, 1 x DisplayPort 1.2, 1 x USB-B 3.0 touch, 1 x VGA with audio input, 1 x USB-A 3.0, 1 x USB service port,
HDMI Out (4K@60Hz), 1 x LAN Ethernet (RJ-45) out
1 x 3.5mm audio out, 1 x optical (SPDIF)
1 x RS-232, 1 x LAN ethernet (RJ-45) in
Yes, 3840 x 2160 @60Hz
Yes
Yes
Yes
Yes
Up to 20 point Avocor Intelligent Touch, supports 1 x fine tip stylus
2mm optically bonded, anti-glare, anti-fingerprint
Windows 8/10, Mac OS*, Linux*
Built-in speakers
PHYSICAL SPECIFICATIONS
Product dimensions
Shipping dimensions
Weight
Wall mount VESA
Handles
POWER
Power supply
Maximum power consumption
Standby
ENVIRONMENTAL
Operating temperature
Storage temperature
Humidity
WHAT'S IN THE BOX
WARRANTY
2 x 15W forward facing
1286 x 802 x 78.4 mm | 50.63 x 31.57 x 3.09 in
1415 x 932 x 270 mm | 55.71 x 36.69 x 10.63 in
Net: 32.5 kg|71.65 lbs / Gross: 44.5 kg|98.11 lbs
400 x 400 mm |
2
AC100-240V (Worldwide)50/60Hz
<220W
≦0 .5 W
0 °C ~ 40 °C
-20 °C ~ 60 °C
20% ~ 80%
1 x Remote control & batteries, 2 x 3mm fine-tip passive touch pen, AC power cords (1 x UK, 1 x EU, 1 x US,
1 x AUS), 1 x USB-B 3.0 cable (3m|118.1 inches), 1 x HDMI cable (3m|118.1 inches), 1 x Quick Start Guide,
1 x Type-C cable (1.5m|59 inches), 1 x VESA adapter plate
Terms and conditions vary via region, please visit www.avocor.com/faq/avocor-global-warranty
15.75 x 15.75 in
Details are subject to change without notice. All other logos and trademarks acknowledged. E&OE.
Version date: 11/08/2020
