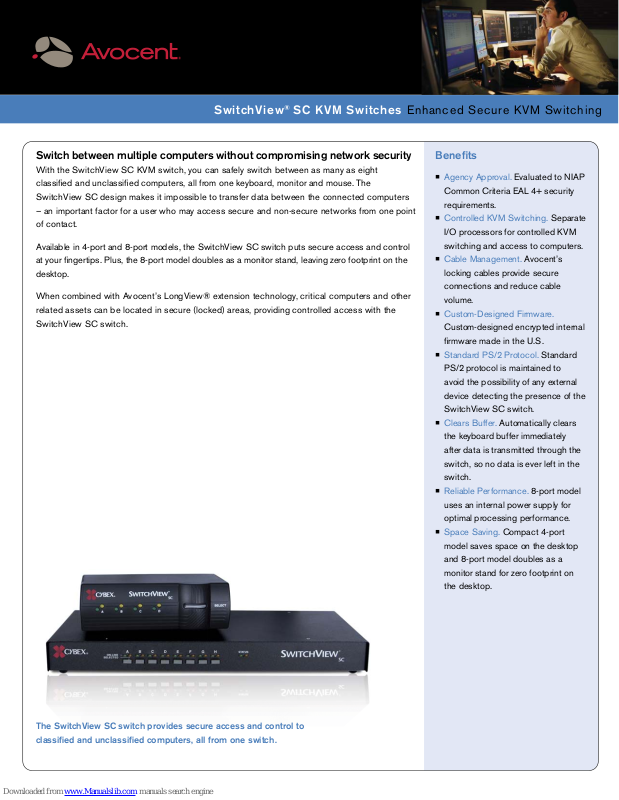

Switch View® SC KVM Switches Enhanced Secure KVM Switching
Switch between multiple computers without compromising network security
With the SwitchView SC KVM switch, you can safely switch between as many as eight
classifi ed and unclassifi ed computers, all from one keyboard, monitor and mouse. The
SwitchView SC design makes it impossible to transfer data between the connected computers
– an important factor for a user who may access secure and non-secure networks from one point
of contact.
Available in 4-port and 8-port models, the SwitchView SC switch puts secure access and control
at your fi ngertips. Plus, the 8-port model doubles as a monitor stand, leaving zero footprint on the
desktop.
When combined with Avocent’s LongView® extension technology, critical computers and other
related assets can be located in secure (locked) areas, providing controlled access with the
SwitchView SC switch.
Benefi ts
Agency Approval. Evaluated to NIAP
Common Criteria EAL 4+ security
requirements.
Controlled KVM Switching. Separate
I/O processors for controlled KVM
switching and access to computers.
Cable Management . Avocent’s
locking cables provide secure
connections and reduce cable
volume.
Custom-Designed Firmware .
Custom-designed encrypted internal
fi rmware made in the U.S.
Standard PS/2 Protocol . Standard
PS/2 protocol is maintained to
avoid the possibility of any external
device detecting the presence of the
SwitchView SC switch.
Clears Buffer . Automatically clears
the keyboard buffer immediately
after data is transmitted through the
switch, so no data is ever left in the
switch.
Reliable Performance . 8-port model
uses an internal power supply for
optimal processing performance.
Space Saving . Compact 4-port
model saves space on the desktop
and 8-port model doubles as a
monitor stand for zero footprint on
the desktop.
The SwitchView SC switch provides secure access and control to
classifi ed and unclassifi ed computers, all from one switch.
Page 2
Part Number Description
Ordering Details
10040-SC Single user, 4-port SwitchView SC switch
10080SC-XXX Single user, 8-port SwitchView SC switch
Cables & Accessories
CPS2-6A 6 feet color-coded VGA, PS/2 keyboard and mouse for the 11040-SC
CIFCA-4 4 feet single sheath VGA, PS/2 keyboard and mouse
CIFCA-8 8 feet single sheath VGA, PS/2 keyboard and mouse
CIFCA-15 15 feet single sheath VGA, PS/2 keyboard and mouse
CIFCA-30 30 feet single sheath VGA, PS/2 keyboard and mouse
RMK-39 19 inch rack mount kit
Specifi cations
10040-SC (4-port)
Mechanical
Size: 1.9 in. (4.83 cm)H, 8.1 in. (20.6 cm)W,
11 in. (27.94 cm)D
Weight: 0.9 lbs (0.4 Kg)
Style: Desktop
Environmental
Operating Temperature: 41 to 104 F (5 to 40 C)
Storage Temperature: -4 to 122 F (-20 to 50 C)
Power
Power : 6 VDC @ 700 mA (optional)
Hardware
Computer : IBM® PC/AT, PS/2 and 100%
compatible
Video Modes : VGA and SVGA, maximum
resolution 1600x1200 @ 75 Hz
Peripherals : PS/2 keyboard, PS/2 mouse,
Microsoft® IntelliMouse® (PS/2 only)
For country-specifi c availability, please contact an Avocent sales representative.
SwitchView SC security features let you switch safely between secured and
non-secured networks
Unsecure and
Secure Networks
*Each pair of channels
must be the same level
of classification
TCP/IP
or
TCP/IP
or
TCP/IP
or
TCP/IP
or
SwitchView SC
Switch
Security User
Standards
Approved Agency: UL 1950, CSA C22.2 No. 950,
EN60950 FCC part 15B, EN55022, EN50082
EAL 4+; Peripheral Sharing Switch (PSS) for
Human Interface Devices
NSA Requirements: NIAP Common Criteria
Tested to EAL 4
Warranty
Two Year
GSA Number
GS-35F0264K
10080SC-AM (8-port)
Mechanical
Size: 1.7 in. (4.5 cm)H, 17.2 in. (43.7 cm)W,
8.5 in. (21.6 cm)D
Weight: 6.3 lbs (2.9 Kg)
Style: Desktop or rack mount
Environmental
Operating Temperature: -41 to 104 F (5 to 40 C)
Storage Temperature: -4 to 122 F (20 to 50 C)
Power
Inpu t: 8 W
Operating Voltage : 100-230 VAC
Frequency : 50-60 Hz
Hardware
Computer : IBM PC/AT, PS/2 and 100%
compatible
Video Modes : VGA, SVGA, (XGA, XGA-II with
adaptor), maximum resolution 1280x1024 @ 60 Hz
Peripherals : PS/2 keyboard, PS/2 mouse,
Microsoft IntelliMouse (PS/2 only)
READY
www.avocent.com/contacts
Standards
Approved Agency:
UL, cUL, FCC, IC and CE
NSA Requirements: NIAP Common Criteria
Tested to EAL 4
GSA Number
GS-35F0264K
Avocent, the Avocent logo, SwitchView and LongView are registered
trademarks of Avocent Corporation or its affi liates in the U.S. and other
countries. All other marks are the property of their respective owners.
Copyright © 2009. Avocent Corporation.
0209-SVSC -DS-EN
