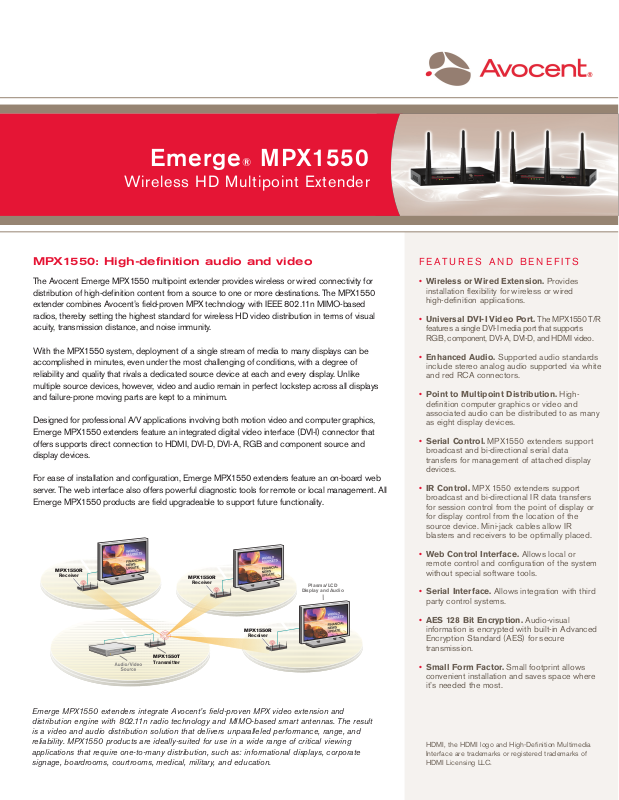

Emerge® MPX1550

Wireless HD Multipoint Extender

MPX1550: High-definition audio and video

The Avocent Emerge MPX1550 multipoint extender provides wireless or wired connectivity for
distribution of high-definition content from a source to one or more destinations. The MPX1550
extender combines Avocent’s field-proven MPX technology with IEEE 802.11n MIMO-based
radios, thereby setting the highest standard for wireless HD video distribution in terms of visual
acuity, transmission distance, and noise immunity.

With the MPX1550 system, deployment of a single stream of media to many displays can be
accomplished in minutes, even under the most challenging of conditions, with a degree of
reliability and quality that rivals a dedicated source device at each and every display. Unlike
multiple source devices, however, video and audio remain in perfect lockstep across all displays
and failure-prone moving parts are kept to a minimum.

Designed for professional A/V applications involving both motion video and computer graphics,
Emerge MPX1550 extenders feature an integrated digital video interface (DVI-I) connector that
offers supports direct connection to HDMI, DVI-D, DVI-A, RGB and component source and
display devices.

For ease of installation and configuration, Emerge MPX1550 extenders feature an on-board web
server. The web interface also offers powerful diagnostic tools for remote or local management. All
Emerge MPX1550 products are field upgradeable to support future functionality.

FEATURES AND BENEFITS

Emerge MPX1550 extenders integrate Avocent’s field-proven MPX video extension and
distribution engine with 802.11n radio technology and MIMO-based smart antennas. The result
is a video and audio distribution solution that delivers unparalleled performance, range, and
reliability. MPX1550 products are ideally-suited for use in a wide range of critical viewing
applications that require one-to-many distribution, such as: informational displays, corporate
signage, boardrooms, courtrooms, medical, military, and education.

HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of
HDMI Licensing LLC.

P

L

A

Y

.

;

E

M

E

R

G

E

®

M

P

X

1

5

50

T

I

R

(t

x

)

IR

(rx

)

MPX1550R

Receiver

MPX1550R

Receiver

MPX1550R

Receiver

MPX1550T

Transmitter

E

M

E

R

G

E

®

M

P

X

1

550

R

I

R

(t

x

)

IR

(r

x

)

E

M

E

R

G

E

®

M

P

X

1

550

R

IR

(

t

x)

I

R

(r

x

)

E

M

E

R

G

E

®

M

P

X

1

55

0R

I

R

(

tx

)

IR

(

rx

)

Plasma/LCD

Display and Audio

• Wireless or Wired Extension. Provides

installation flexibility for wireless or wired
high-definition applications.

• Universal DVI-I Video Port. The MPX1550 T/R

features a single DVI-I media port that supports
RGB, component, DVI-A, DVI-D, and HDMI video.

• Enhanced Audio. Supported audio standards

include stereo analog audio supported via white
and red RCA connectors.

• Point to Multipoint Distribution. High-

definition computer graphics or video and
associated audio can be distributed to as many
as eight display devices.

• Serial Control. MPX1550 extenders support

broadcast and bi-directional serial data
transfers for management of attached display
devices.

• IR Control. MPX 1550 extenders support

broadcast and bi-directional IR data transfers
for session control from the point of display or
for display control from the location of the
source device. Mini-jack cables allow IR
blasters and receivers to be optimally placed.

• Web Control Interface. Allows local or

remote control and configuration of the system
without special software tools.

• Serial Interface. Allows integration with third

party control systems.

• AES 128 Bit Encryption. Audio-visual

information is encrypted with built-in Advanced
Encryption Standard (AES) for secure
transmission.

• Small Form Factor. Small footprint allows

convenient installation and saves space where
it’s needed the most.

One Dambrackas Way, Sunrise, FL 33351
TEL [phone], Ext. 7110
FAX [phone] - [e-mail]

www.connectivity.avocent.com

®

EMERGE® MPX1550 MULTIPOINT EXTENDERS

Mechanical / Power / Environmental

Size: 4.55” (116 mm) D, 6.92” (176 mm) W, 1.00” (25.4 mm) H
Weight: 1.4 lbs (0.64 Kg)
Power (AC input/frequency): 100 - 240 VAC / 50 - 60Hz
Inrush Current: 14.2 Amps (AC/DC adapter)
Operating Temperature: 32°F (0°C) to 118.4°F(48°C)
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
Humidity: 20% to 80% (Non-condensing)
Altitude: Altitude 10,000 ft across the operating temperature range, 35,000 ft

across storage temperature range

Shock: 140G - 3 axis

Connections (Front)

2.5mm Mini-Jack: IR input

3.5mm Mini-Jack: IR blaster output, 38KHz +/- 2KHz; the IR blaster port supports

enough drive current to handle 4 IR LEDs

RP-SMA Connector (2): Antenna connectors
USB: USB 1.1 (not used at this time)

Connections (Rear)

DC Power: DC barrel connector: 12VDC @ 1.5Amps
Serial (RJ-45): RJ45 serial port for control of attached display devices. Requires

optional DB9-UNI female serial cable. Baud rates up to 38.4K

L1 LAN (RJ-45): IEEE 802.3 10/100 Ethernet, used for web access

Note: MPX receivers offer combined web/video functionality on a single port

L2 LAN (RJ-45): IEEE 802.3 10/100 Ethernet, used for streaming video

Note: MPX receivers offer combined web/video functionality on a single port

DVI-I: AV media port that supports a wide range of digital and analog video modes
RCA Jacks (2): Left and right jacks for unbalanced analog audio
S/PDIF: Digital audio output. Operation of this port may require a firmware upgrade

Video Details

Video Gain: Unity ±1DB
Digital Video Standards: HDCP compliant, HDMI 1.3 compliant, DVI-D DDC2B

Maximum Wired Video Bit Rate: 80 Mbps
Maximum Wireless Video Bit Rate (Topology Mode):

1-to-1 mode (110 Mbps); 1-to-Many mode (50 Mbps)

Video Resolutions (RGB):

Video Resolutions (component video):

Video Resolutions (HDMI and DVI-D):

Audio Details

Line Audio Outputs: Line audio inputs less than or equal to 10K Ohm with

0-36dB of headroom

Technical Specifications

Ordering Details

Avocent, the Avocent logo and Emerge are registered
trademarks of Avocent Corporation or its affiliates
in the U.S. and other countries. All other marks are
the property of their respective owners.
© 2008 Avocent Corporation.

1108-MPX1550-DS

Frequency Response: Analog audio frequency response: 20Hz-20Khz with a 3dB per

octave roll-off beginning at 14 kHz

Radio Bands

UNII 1: (4 channels) 5.15-5.25 GHz: These are available as 2 bonded channels
UNII 3: (4 channels) 5.725 to 5.825 GHz: These are available as 2 bonded channels
ISM (11 channels) 2.412 to 2.462 GHz (requires firmware upgrade)

Extension Distances

Wired Distance: Wired distance limitations conform to Ethernet standards for a single

subnet (no routing)

Wireless Distance: Up to 300 ft (90 m) line of sight and 150 ft (45 m) through interior

(gypsum) walls

Regulatory Compliance (CMN: 2003 Series)

Standards:

FCC Class B, UL, cUL, RoHS, CE, ICES-003, WEEE

Warranty

MPX1550 T/R: Two years

Computer (RGB) at 30fps

● 640 x 480 @ 60Hz

● 800 x 600 @ 60Hz

● 1280 x 720 @ 60Hz

● 1280 x 768 @ 60Hz

● 1360 x 768 @ 60Hz

SD video (RGB) at 30 fps

● 480p @ 60Hz

● 576p @ 50Hz

HD video (RGB) at 30 fps

● 720p @ 50/60Hz

SD video (component) at 30 fps

● 480i @ 60Hz

● 480p @ 60Hz

● 576i @ 50Hz

● 576p @ 50Hz

HD video (component) at 30 fps

● 720p @ 50/60Hz

● 1080i @ 50/60Hz

Computer resolution at 30 fps

● 640 x 480 @ 60Hz

● 800 x 600 @ 60Hz

● 1280 x 720 @ 60Hz

● 1280 x 768 @ 60Hz

● 1360 x 768 @ 60Hz

SD video at 30 fps

● 480i @ 60Hz

● 480p @ 60Hz

● 576i @ 50Hz

● 576p @ 50Hz

HD video at 30 fps

● 720p @ 50/60Hz

● 1080i @ 50/60Hz

MPX1550 Transmitter MPX1550 Receiver

MPX1550 Transmitter and Receiver

Part Number Description

MPX1550T

Transmitter (Supports up to 8 receivers)

MPX1550R

Receiver

Optional Accessories

Antenna Extension Kits

Part Number Description

5G-1M/3

Antenna Extension Kit, 1 Meter Cable

5G-2M/3

Antenna Extension Kit, 2 Meter Cable

5G-3M/3

Antenna Extension Kit, 3 Meter Cable

Mounting Options

Part Number Description

RMK-56

Table/Desk Mount Bracket

PBK-01

Optional Power Supply Bracket for MPX1550R

DMK-04

Wall Mount Kit for MPX1550R

DMK-07

Desk Mount Kit for MPX1550T

Adapters

Part Number Description

DVI-HDMI/CEC

Adapter for HDMI with CEC for MPX1550R

DVI-HD15F

DVI-D Male to HD15 Female Adapter with MPX1550 ID Bits

DVI-BNC3

Adapter for Component Video for MPX1550R

Cables

Part Number Description

DB9-UNI

Serial RJ-45 to DB-9 Female Kit Cable, 1 FT

HDMI-1M

Male to Male 1 Meter Cable for MPXT/R

IR Blasters

Part Number Description

IRB-100

Dual IR Blaster With 3.5mm Mini-Jack Cable

IRB-Y

3.5mm Mini-Jack Splitter for Two IRB-100 Blasters

IR Receivers

Part Number Description

IR-RX

IR Receiver - 2.5mm With Connector
