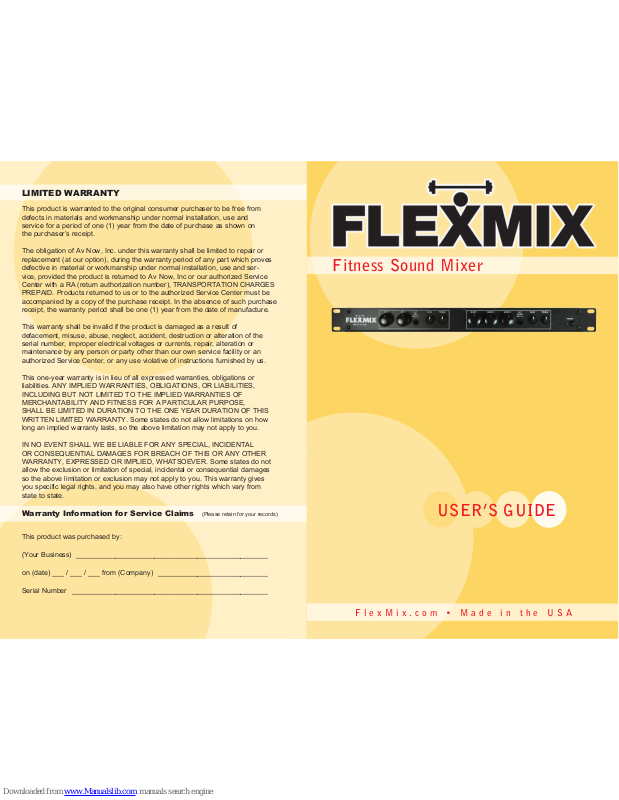

USER’S GUIDE
LIMITED WARRANTY
This product is warranted to the original consumer purchaser to be free from
defects in materials and workmanship under normal installation, use and
service for a period of one (1) year from the date of purchase as shown on
the purchaser’s receipt.
The obligation of Av Now, Inc. under this warranty shall be limited to repair or
replacement (at our option), during the warranty period of any part which proves
defective in material or workmanship under normal installation, use and service, provided the product is returned to Av Now, Inc or our authorized Service
Center with a RA (return authorization number), TRANSPORTATION CHARGES
PREPAID. Products returned to us or to the authorized Service Center must be
accompanied by a copy of the purchase receipt. In the absence of such purchase
receipt, the warranty period shall be one (1) year from the date of manufacture.
This warranty shall be invalid if the product is damaged as a result of
defacement, misuse, abuse, neglect, accident, destruction or alteration of the
serial number, improper electrical voltages or currents, repair, alteration or
maintenance by any person or party other than our own service facility or an
authorized Service Center, or any use violative of instructions furnished by us.
This one-year warranty is in lieu of all expressed warranties, obligations or
liabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED IN DURATION TO THE ONE YEAR DURATION OF THIS
WRITTEN LIMITED WARRANTY. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply to you.
IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESSED OR IMPLIED, WHATSOEVER. Some states do not
allow the exclusion or limitation of special, incidental or consequential damages
so the above limitation or exclusion may not apply to you. This warranty gives
you specific legal rights, and you may also have other rights which vary from
state to state.
Warranty Information for Service Claims (Please retain for your records)
This product was purchased by:
(Your Business) _________________________________________________
on (date) ___ / ___ / ___ from (Company) ____________________________
Serial Number __________________________________________________
Fitness Sound Mixer
FlexMix.com • Made in the USA
Connect your Wireless Microphone’s Receiver
Attach a cable from your wireless microphone receiver’s Line Output to the FlexMix’s Mic
Input #1. There are both ¼” and XLR (three prong) Mic Inputs available. Use whichever jack
matches your cable, as either one will work.
If you have more than one Wireless Microphone Receiver, attach the second one to the
FlexMix’s Mic Input #2.
As an additional bonus, there is a jack labeled “ALT MIC INPUT 2” on the front panel of
the FlexMix. This allows an instructor who wishes to provide their own wireless microphone
receiver an accessible input. Once a ¼” audio cable is attached to this input, the MIC 2 knob
will control its volume. Attaching a cable here also overrides any microphone plugged into Mic
Input #2 on the rear panel.
Connect your Music Sources
There are three music inputs on the back of the FlexMix, all using RCA-type (red and white)
connectors.
Attach the Output of your first music source (such as a CD player) to the FlexMix’s Music
Input #1.
If you have more than one music source, repeat the process of connecting the source’s
outputs to the FlexMix’s Music Inputs #2 and #3 on the rear panel.
Connect an iPod / MP3 player
On the front of the FlexMix, there is a jack labeled “ALT MUSIC INPUT 3”. Using the supplied
iPod / MP3 player cable, this input can be used to attach an iPod / MP3 player (or any other
music source with a mini stereo headphone output) to the FlexMix.
Once a cable is plugged into the ALT MUSIC INPUT 3 jack on the front of the FlexMix, the
Music 3 knob controls the volume of the attached device. Attaching a cable to this input also
overrides any music source connected to Music Input #3 on the rear panel.
Connect your FlexMix to the Power Amplifier
Attach the FlexMix’s Main Outputs to the Line Inputs on your Power Amplifier.
The FlexMix has two sets of Main Output connections, both Balanced (1/4”), and Unbalanced
(RCA-type). These are both active at all times, and your choice of Output should be
determined by your cables and the type of Input Connections on your Power Amplifier.
The Auxiliary Outputs on the FlexMix allow you to attach another Power Amplifier, a wireless
listening system or a recording device without affecting the Main Outputs.
Attach the Power Supply
Attach the provided AC power adapter from the FlexMix’s PWR socket on the rear panel to
your power source.
The Master Volume Knob
The FlexMix is outfitted with a “hidden” Master Volume control on the rear panel. This sets the
overall maximum volume for all of the Music and Microphone Inputs.
Set the Microphone and Music Volume
Start with the volume control on your wireless microphone receiver at about half (12 noon).
Beginning with the FlexMix’s Mic Volume all the way down (counter-clockwise), slowly
bring up the volume as you speak into the microphone. Stop if you hear ringing or
squealing (feedback).
A quick note on feedback: The squealing or howling sound associated with microphones
is caused by the mic picking up its own sound out of the speakers, which then feeds the
speakers and creates a feedback loop. This can commonly be avoided by moving the
microphone away from the speaker, or turning down the microphone’s volume.
Once you have a good, audible level for the microphone without any feedback or ringing,
bring up the music source of your choice. Again, begin with a music source that is playing.
With the Music volume knob all the way down, bring it up until it is loud enough, but without
drowning out the microphone.
Bass and Treble
The FlexMix is equipped with two sets of Bass and Treble controls. The Microphone Section’s
Bass and Treble knobs affect any microphone connected to Mic Input #1, #2, as well as ALT
MIC INPUT 2. The Microphone Section’s tone controls can be used to limit feedback while
getting higher volume from your wireless microphone system.
The Music Section’s Bass and Treble knobs affect any music source connected to Music
Input #1, #2, #3, as well as ALT MUSIC INPUT 3. Adjust the Music Section’s tone settings to
your personal taste.
FlexMix Model One Instructions
Front Panel
Rear Panel
www.FlexMix.com
One Year Limited Warranty
1
5
4
2
6
3
7
8
