MicroZed™ I/O Expansion Carrier Card
Getting Started Guide
Version 1.0
Page 2
Document Control
Document Version: 1.0
Document Date: 12/17/2013
Document Author(s): Bryan Fletcher
Prior Version History
Version
Description
Date
1.0
Initial release
12/17/2013
Page 3
Contents
1 Getting Started with the MicroZed I/O Carrier Card................................................ 4
2 What’s Inside the Box? ............................................................................................ 5
2.1 MicroZed IOCC Kit contents ........................................................................................ 5
3 What’s on the Web?................................................................................................. 6
3.1 Official Documentation ................................................................................................. 6
3.2 Tutorials and Reference Designs ................................................................................. 6
3.3 Training and Videos...................................................................................................... 6
4 MicroZed IOCC Key Features ................................................................................. 7
5 MicroZed IOCC Basic Setup and Operation ........................................................... 9

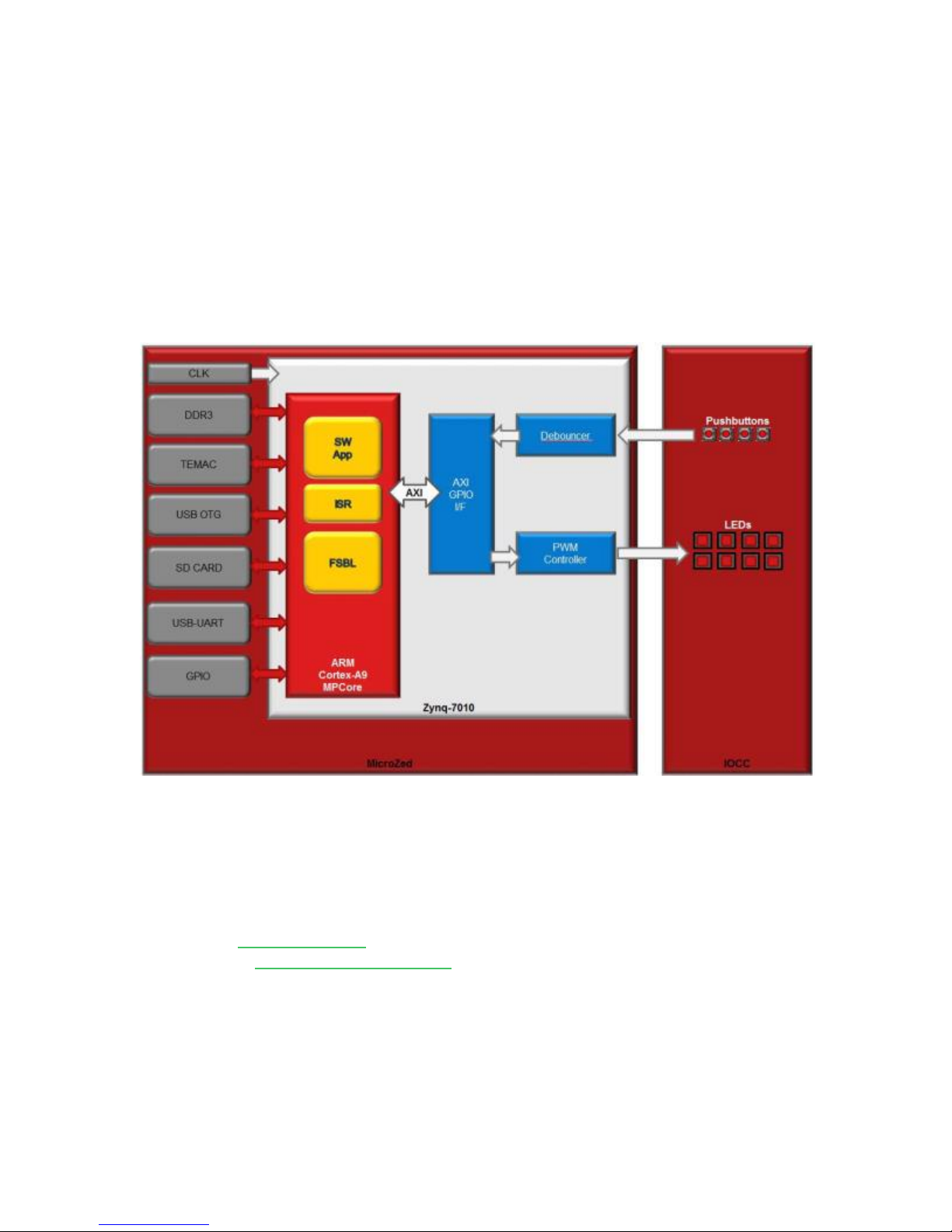

5.1 Example Design ......................................................................................................... 10

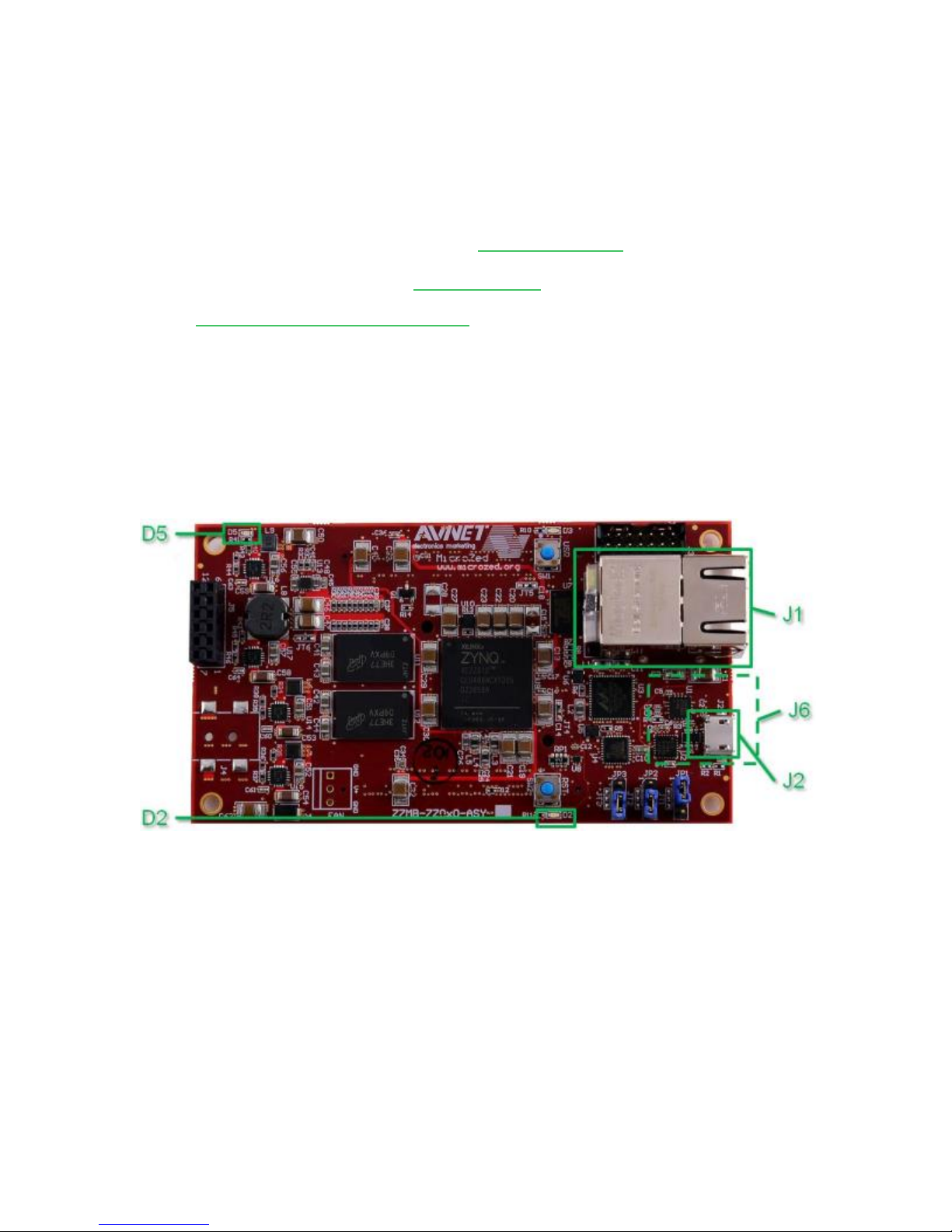

5.2 Hardware Setup .......................................................................................................... 12

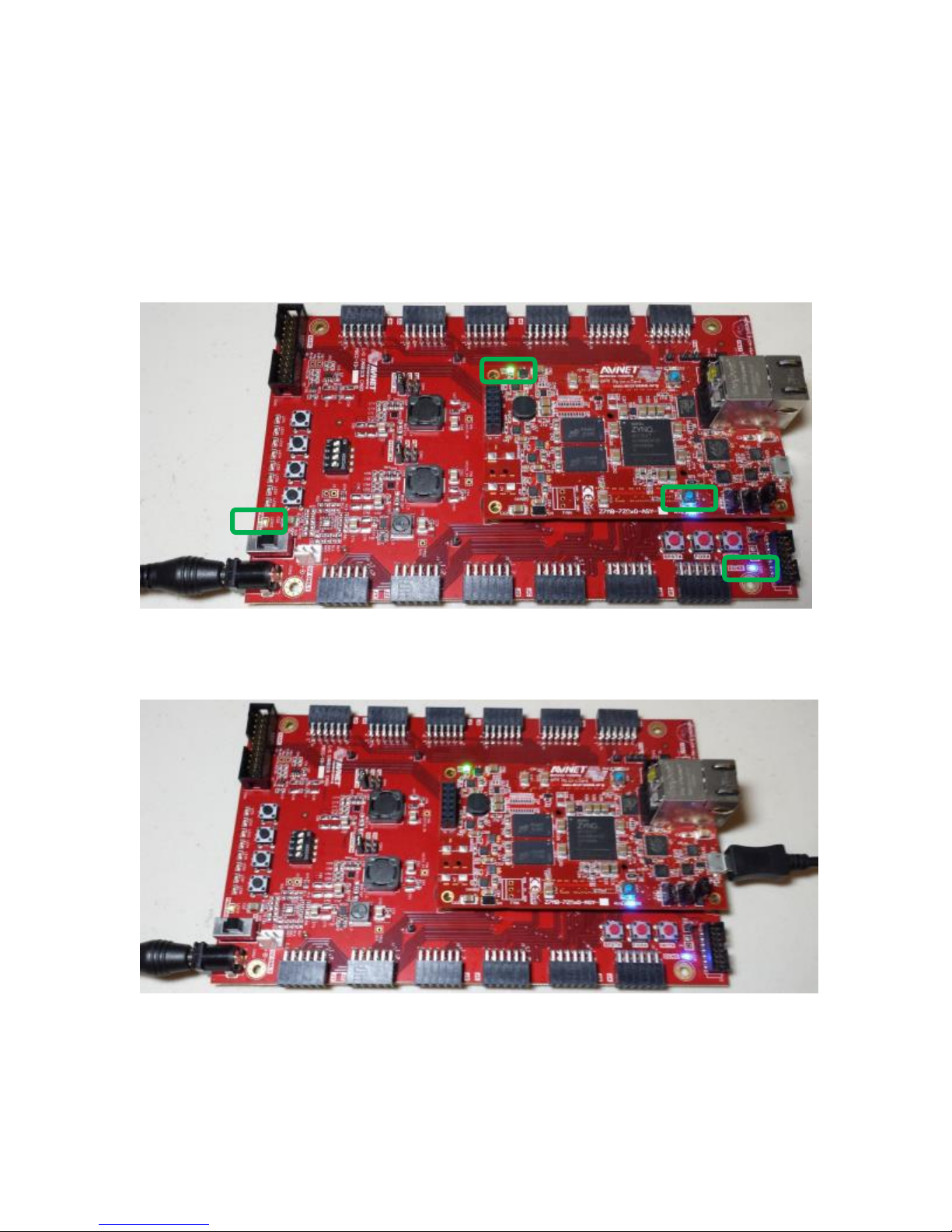

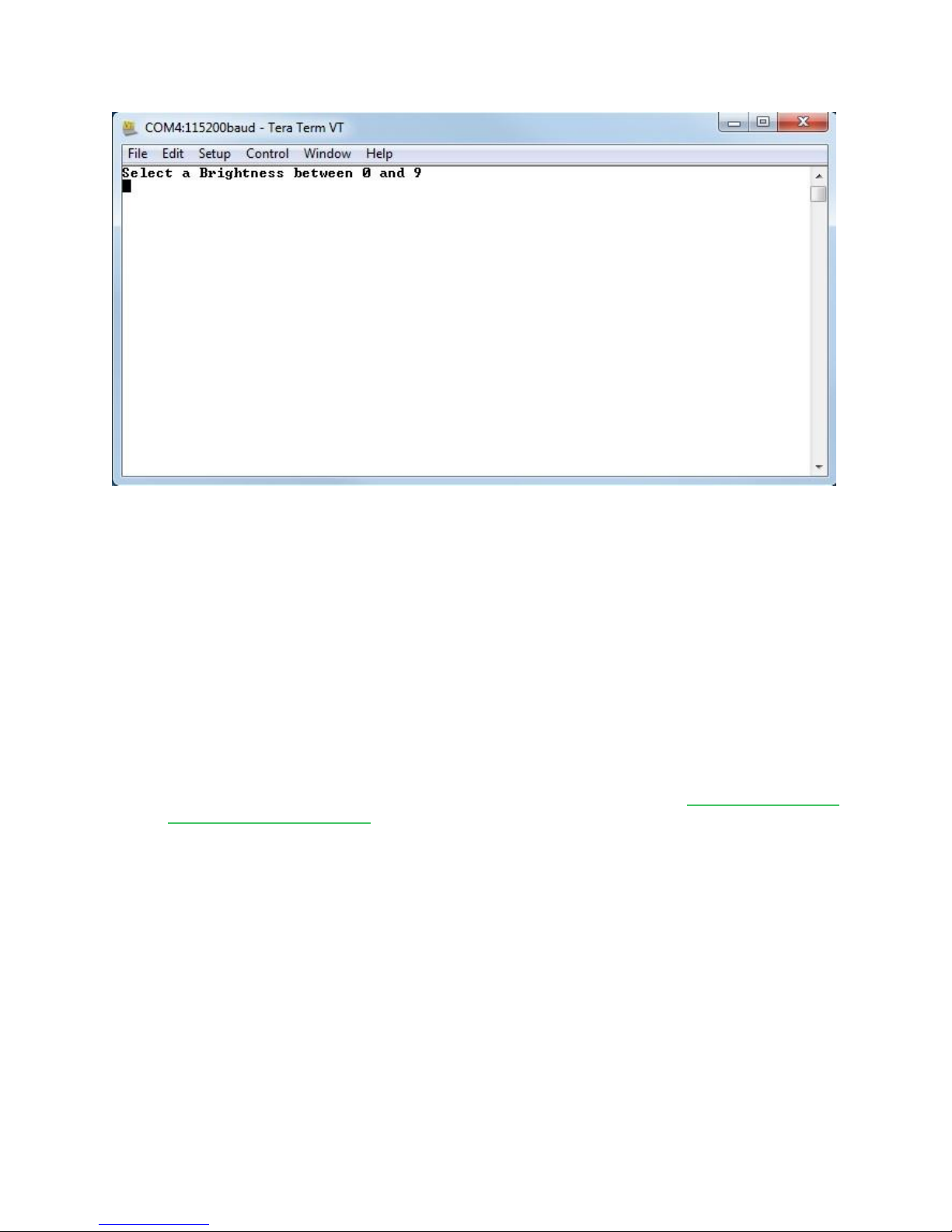

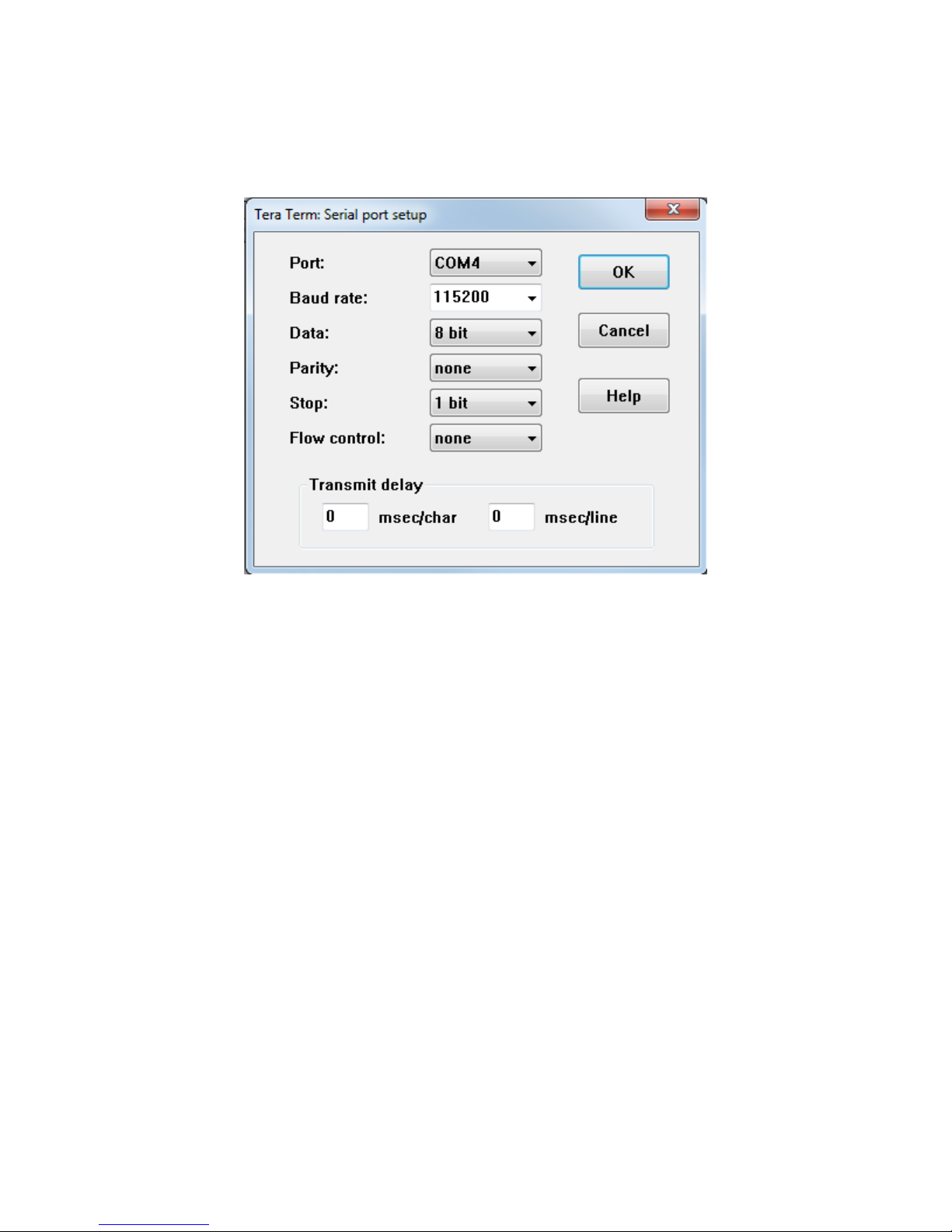

5.3 Running the Example ................................................................................................. 14

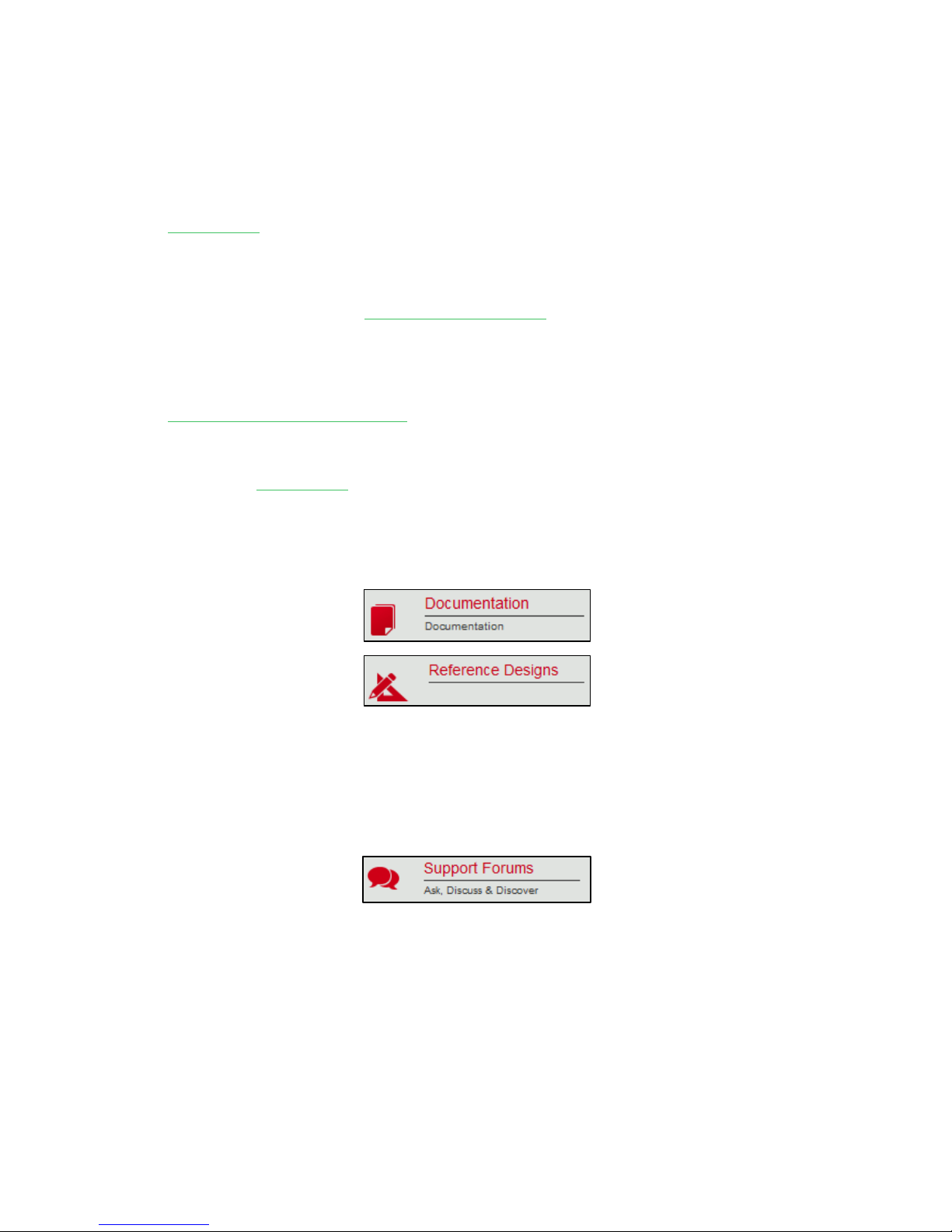

6 Getting Help and Support ...................................................................................... 17
6.1 Avnet Support ............................................................................................................. 17
6.2 Xilinx Support.............................................................................................................. 18

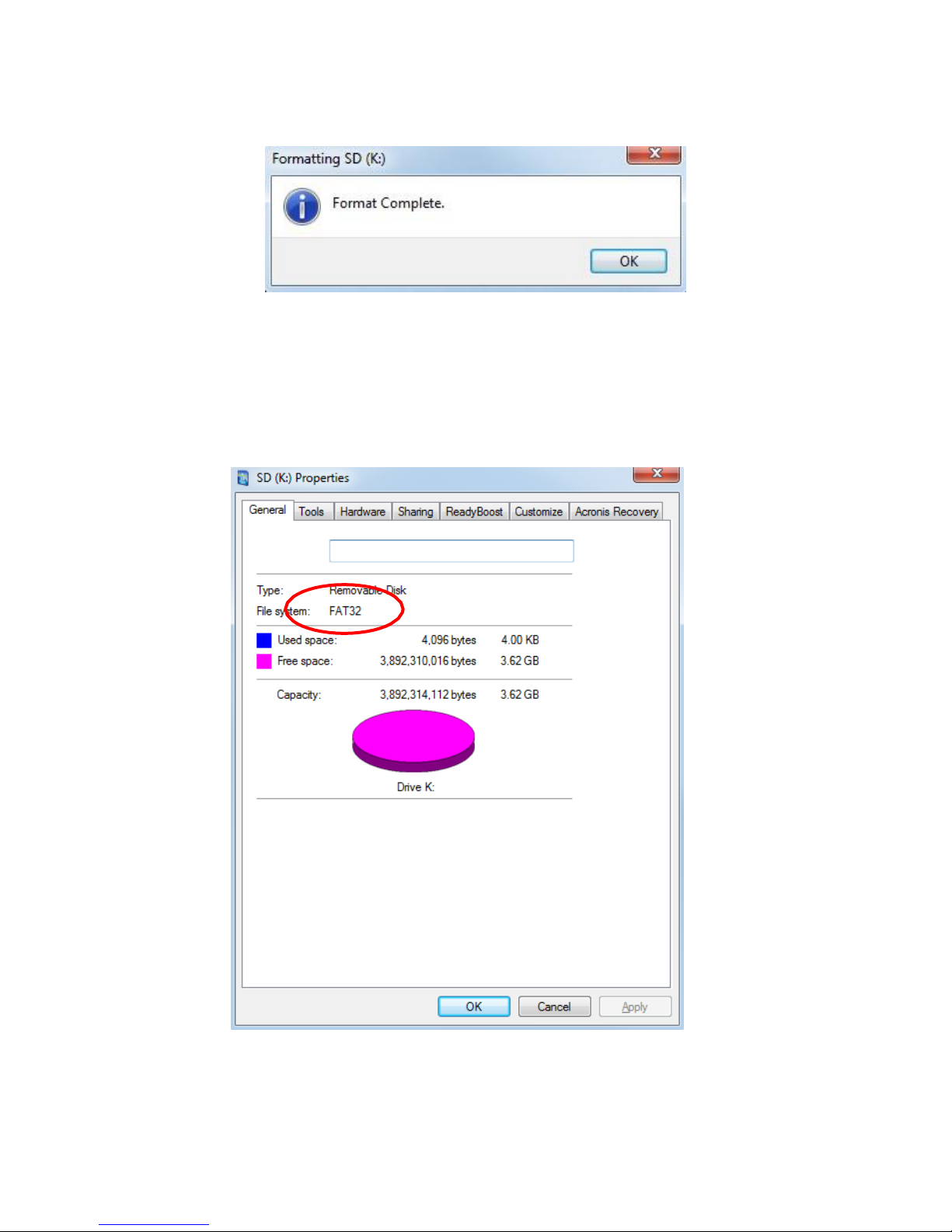

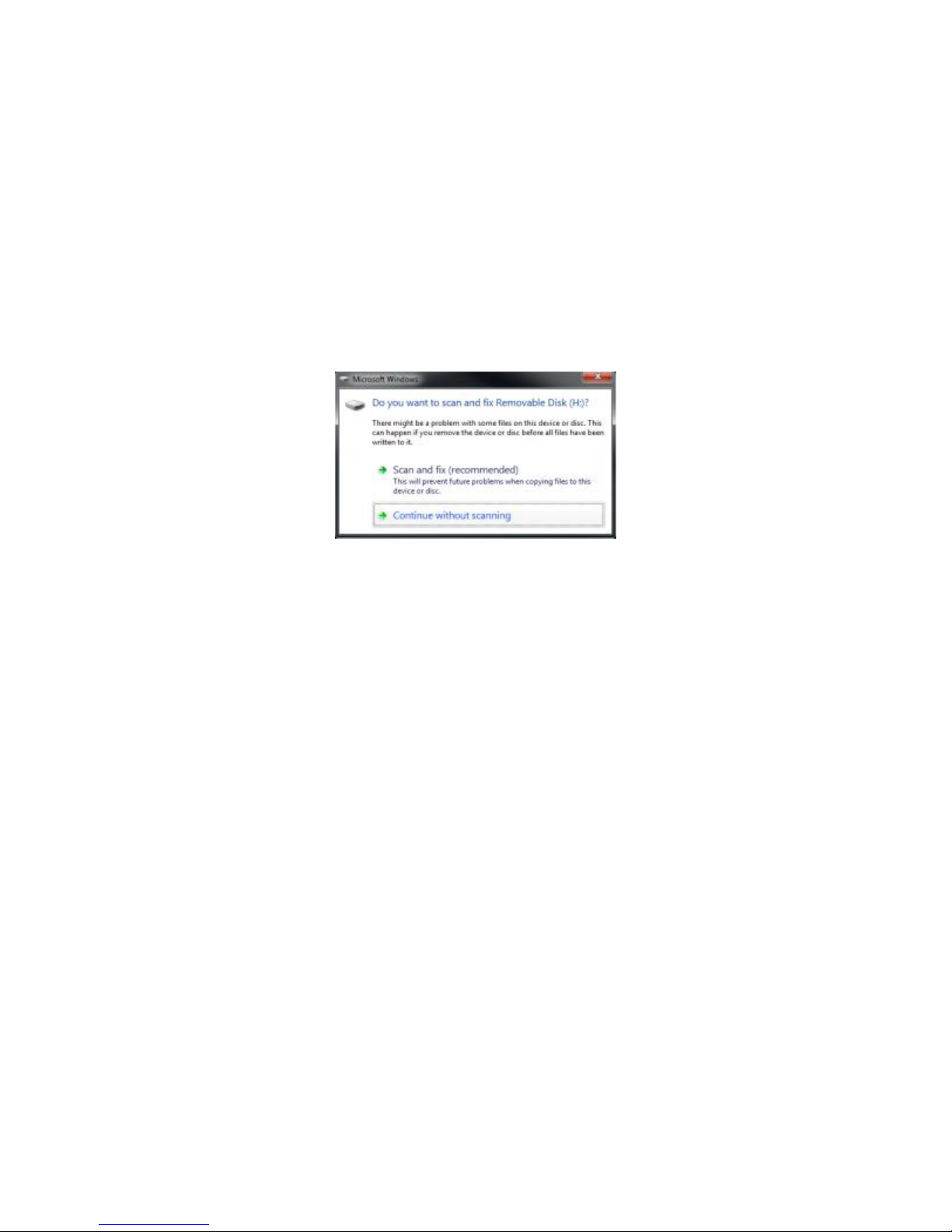

7 Appendix A: Format the microSD Card ................................................................. 19
8 Appendix B: Installing and Licensing Xilinx Software ........................................... 22
8.1 Install Vivado Design Edition ...................................................................................... 22
Page 4
1 Getting Started with the MicroZed I/O Carrier Card
The Avnet MicroZed I/O Carrier Card (IOCC) enables hardware and software developers to expand the
capabilities of the MicroZed System-on-Module (SOM). Coupled together, the MicroZed SOM and IOCC
allow designers to create or evaluate Zynq™-7000 All Programmable SoC designs for both the Processor
Subsystem (PS) and the Programmable Logic (PL) fabric.
In addition to all the capabilities that the MicroZed SOM has in standalone, the IOCC powers and exposes
the PL I/Os, while also provided system power through the mezzanine MicroHeaders. The MicroZed PL
I/Os are connected on the IOCC to Digilent Pmod™ Compatible headers, LEDs, push-buttons, switches, a
clock, and a Xilinx Agile Mixed Signal (AMS) header.
This Getting Started Guide will outline the steps to setup the MicroZed SOM and IOCC hardware. It
documents the procedure to run a simple bare-metal design running on the ARM® dual-core Cortex™-A9
MPCore™ Processing System (PS) that interacts with the LEDs and push-buttons on the IOCC.
Page 5
2 What’s Inside the Box?
2.1 MicroZed IOCC Kit contents
– MicroZed I/O Carrier Card
– 5V @ 2A AC/DC adapter
– 4 international adapter plugs
– Documentation
– Quick Start Instruction card
– WARNING card relative to errata and MicroZed version
Page 6
3 What’s on the Web?
MicroZed is a community-oriented kit, with all materials being made available through the MicroZed.org
community website.
3.1 Official Documentation
– Schematics
– Bill of materials
– Layout
– Hardware manual
– Board definition files
3.2 Tutorials and Reference Designs
– Introductory material for beginners
– Creating a Zynq hardware platform
– Developing software in SDK
– Design examples
– Community projects
3.3 Training and Videos
– Overview of MicroZed
– Introduction to Zynq
– Implementing Linux on the Zynq-7000 SoC
– Software Defined Radio on Zynq
– Using XADC on Zynq for Thermal Analysis
– Embedded System Design Flow
– ZynqGeek Blog
Page 7

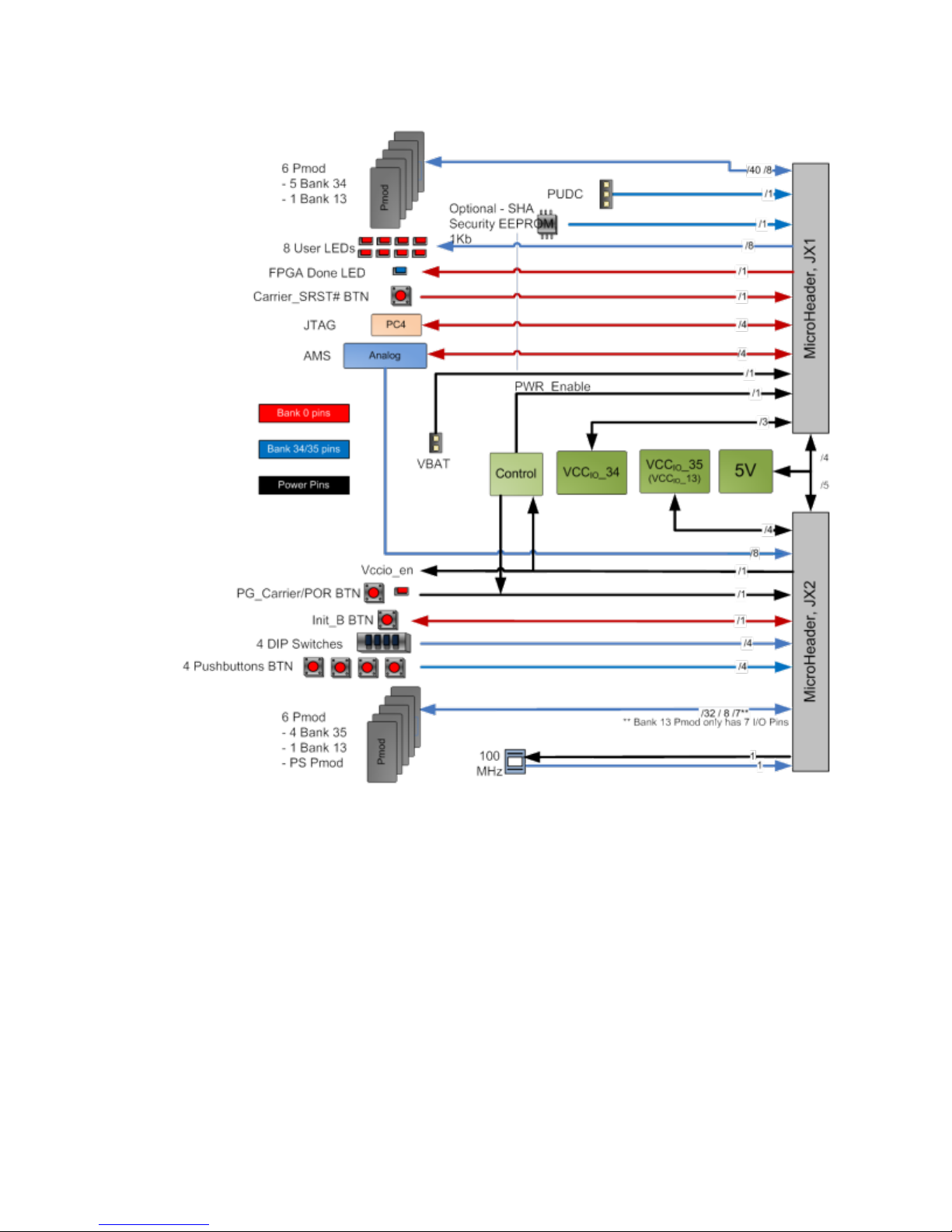

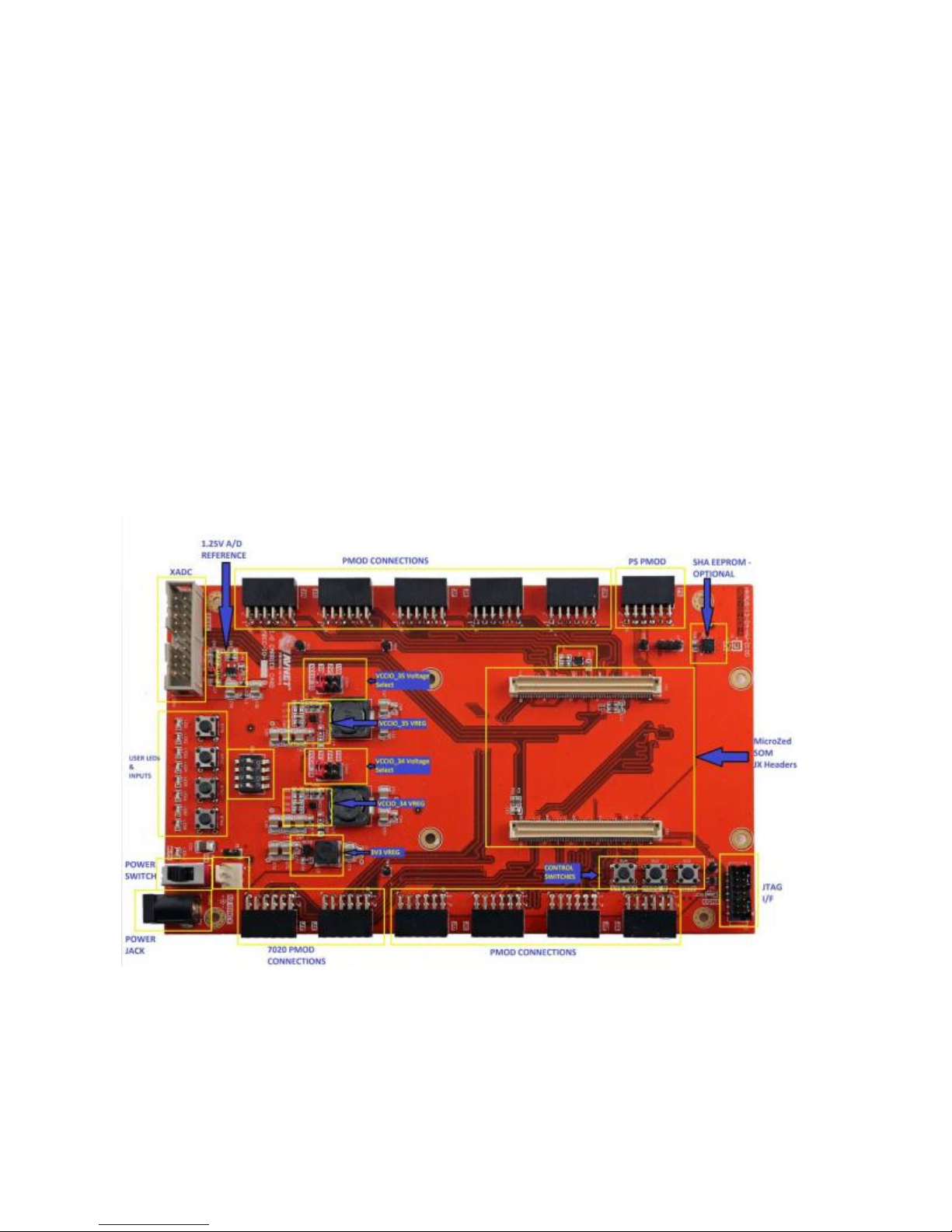

4 MicroZed IOCC Key Features
– Expansion connectors
– 12 Digilent Pmod™ Compatible headers
– Five connected to PL Bank 34
– Four connected to PL Bank 35
– One connected to PS MIO
– Two connected to PL Bank 13 (7Z020 only)
– Xilinx Agile Mixed Signaling (AMS) header
– Clocking
– 100 MHz clock source for PL
– Configuration and Debug
– Xilinx Platform Cable JTAG connector
– General Purpose I/O
– 8 user LEDs
– 4 push buttons
– 4 DIP switches
– Memory
– Optional footprint: 1KB 1-wire SHA Security EEPROM (not populated)
