Avnet AVTEG001 Data sheet

1

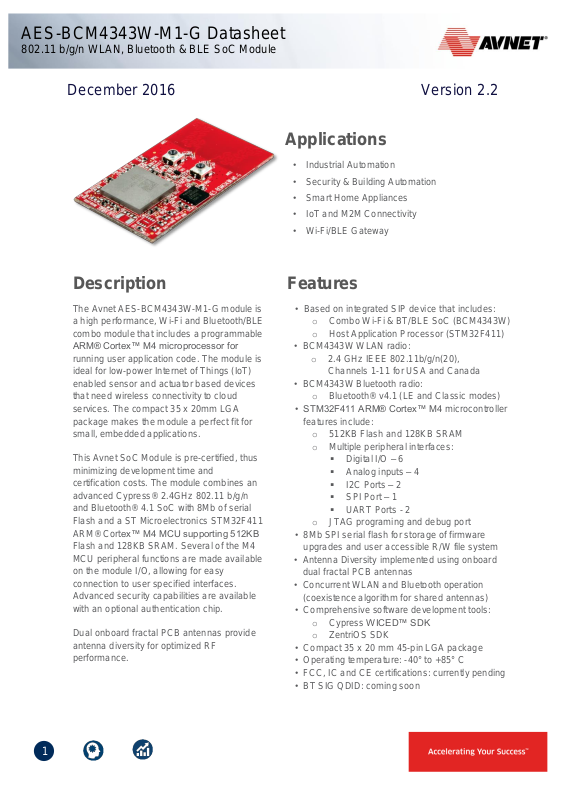

AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Features
The Avnet AES-BCM4343W-M1-G module is a high performance, Wi-Fi and Bluetooth/BLE combo module that includes a programmable
ARM® Cortex™ M4 microprocessor for
running user application code. The module is ideal for low-power Internet of Things (IoT) enabled sensor and actuator based devices that need wireless connectivity to cloud services. The compact 35 x 20mm LGA package makes the module a perfect fit for small, embedded applications.
This Avnet SoC Module is pre-certified, thus minimizing development time and certification costs. The module combines an advanced Cypress® 2.4GHz 802.11 b/g/n and Bluetooth® 4.1 SoC with 8Mb of serial Flash and a ST Microelectronics STM32F411 ARM® Cortex™ M4 MCU supporting 512KB Flash and 128KB SRAM. Several of the M4 MCU peripheral functions are made available on the module I/O, allowing for easy connection to user specified interfaces. Advanced security capabilities are available with an optional authentication chip.
Dual onboard fractal PCB antennas provide antenna diversity for optimized RF performance.
Based on integrated SIP device that includes:
o Combo Wi-Fi & BT/BLE SoC (BCM4343W) o Host Application Processor (STM32F411)
BCM4343W WLAN radio:
o 2.4 GHz IEEE 802.11b/g/n(20),
Channels 1-11 for USA and Canada
BCM4343W Bluetooth radio: o Bluetooth® v4.1 (LE and Classic modes)
STM32F411 ARM® Cortex™ M4 microcontroller features include:
o 512KB Flash and 128KB SRAM o Multiple peripheral interfaces:
Digital I/O – 6 Analog inputs – 4 I2C Ports – 2 SPI Port – 1 UART Ports - 2
o JTAG programing and debug port
8Mb SPI serial flash for storage of firmware upgrades and user accessible R/W file system
Antenna Diversity implemented using onboard dual fractal PCB antennas
Concurrent WLAN and Bluetooth operation (coexistence algorithm for shared antennas)
Comprehensive software development tools:
o Cypress WICED™ SDK o ZentriOS SDK
Compact 35 x 20 mm 45-pin LGA package
Operating temperature: -40° to +85° C
FCC, IC and CE certifications: currently pending
BT SIG QDID: coming soon
Applications
Industrial Automation
Security & Building Automation
Smart Home Appliances
IoT and M2M Connectivity
Wi-Fi/BLE Gateway
December 2016 Version 2.2
1
2
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Document Version:
Version 2.2
Document Date:
23 December 2016
Document Author(s):
JB, PF
Document Classification:
Released
Document Distribution:
Public
Prior Version History:
Version:
Date:
Comment:
0.1
5/2/16
Initial release
0.2
5/2/16
Updated Module Features
0.3
5/2/16
Added SPI flash and Antenna details
1.0
6/27/16
Tape & Reel Packaging and Antenna Options sections updated
2.0
11/16/16
Specs for low-power modes added References to Broadcom removed Reference to BT/BLE 4.2 removed Option of using external antennas removed
2.1
12/19/16
Miscellaneous updates. Wi-Fi and BT versions and channel detail noted
2.2
12/23/16
256-QAM (TurboQAM) mode removed Data rate max reduced to 65 Mbps Regional contact info updated
Comments:
Document Control
2
3
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
1 Table of Contents
2 Table of Figures .................................................................................................... 5
3 Functional Overview.............................................................................................. 6
3.1 Microcontroller .......................................................................................................... 6
3.2 SPI Flash Memory .................................................................................................... 6
3.3 WLAN ...................................................................................................................... 7
3.4 Bluetooth .................................................................................................................. 7
3.5 Antennas .................................................................................................................. 7
4 Block Diagram ....................................................................................................... 8
5 Module Pin Descriptions ....................................................................................... 9
5.1 Pin Descriptions ....................................................................................................... 9
5.2 Pin Definitions ........................................................................................................ 10
6 Electrical Specifications ...................................................................................... 11
6.1 Absolute Maximum Ratings .................................................................................... 11
6.2 Recommended Operating Conditions ..................................................................... 11
6.3 Power Supply Requirements .................................................................................. 11
6.4 WLAN Power Consumption .................................................................................... 12
6.5 Bluetooth Power Consumption ............................................................................... 12
6.6 Bluetooth Low Energy Power Consumption ........................................................... 12
6.7 Low Power Modes Power Consumption ................................................................. 12
7 RF Specifications ................................................................................................ 13
7.1 WLAN RF Characteristics....................................................................................... 13
7.1.1 Transmitter Specification ....................................................................................................14
7.1.2 Receiver Specification ........................................................................................................15
7.2 Bluetooth RF Characteristics .................................................................................. 17
7.2.1 Transmitter Specification ....................................................................................................17
7.2.2 Receiver Specification ........................................................................................................17
7.3 BLE RF Characteristics .......................................................................................... 18
8 Mechanical Specifications ................................................................................... 19
8.1 Mechanical Size ..................................................................................................... 19
8.2 Module PCB Footprint ............................................................................................ 20
8.3 Module Pad Size .................................................................................................... 20
8.4 Recommended Solder Paste Mask ................................ ........................................ 21
8.5 Recommended Solder Mask .................................................................................. 21
8.6 Tape and Reel Packaging ...................................................................................... 22
9 Soldering and Cleaning Recommendations ........................................................ 23
9.1 Optimum Soldering Reflow Profile .......................................................................... 23
3
4
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
9.2 Cleaning ................................................................................................................. 23
10 Antennas ............................................................................................................. 24
11 Certifications ....................................................................................................... 25
11.1 RoHS ..................................................................................................................... 25
11.2 Regulatory Compliance .......................................................................................... 25
11.3 Bluetooth Interoperability Compliance .................................................................... 25
11.4 Regulatory Agency Statements .............................................................................. 25
11.5 OEM Instructions .................................................................................................... 26
11.6 OEM Labeling Requirements ................................................................................. 26
11.7 Limitations ................................................................................................ .............. 26
12 Shipping, Handling and Storage ......................................................................... 27
12.1 Shipping ................................................................................................................. 27
12.2 Handling ................................................................................................................. 27
12.3 Moisture Sensitivity (MSL) ...................................................................................... 27
12.4 Storage .................................................................................................................. 27
13 Ordering Information ........................................................................................... 28
13.1 Module Accessories ................................ ............................................................... 28
14 Contact Information ............................................................................................. 29
4
5
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
2 Table of Figures
Figure 1 – AES-BCM4343W-M1-G Module Block Diagram .................................................................... 8
Figure 2 – AES-BCM4343W-M1-G Module Top View .......................................................................... 19
Figure 3 – AES-BCM4343W-M1-G Module Side View ......................................................................... 19
Figure 4 – AES-BCM4343W-M1-G Module PCB Footprint ................................................................... 20
Figure 5 – AES-BCM4343W-M1-G Module Pad Size ........................................................................... 20
Figure 6 – Recommended Solder Paste Mask Size ............................................................................. 21
Figure 7 – Recommended Solder Mask Size ........................................................................................ 21
Figure 8 – Tape Dimensions ................................................................................................................. 22
Figure 9 – Recommended Soldering Profile for Lead-Free Solder ....................................................... 23
Figure 10 – Dual Fractal PCB Antennas ............................................................................................... 24
Figure 11 – Test Probe Connectors (Murata SWD series) ................................................................... 24
5
6
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
MCU
WICED SDK
SPI1 Signal Name
Pin Name
Pin Name
SPI_FLASH_CS
PA4
WICED_GPIO_5
SPI_FLASH_CLK
PA5
WICED_GPIO_6
SPI_FLASH_MISO
PA6
WICED_GPIO_7
SPI_FLASH_MOSI
PA7
WICED_GPIO_8
3 Functional Overview
This 2.4GHz wireless module provides a complete combo Wi-Fi/BT/BLE and MCU solution for cost­effective embedded-wireless IoT applications. Based on latest-generation Cypress BCM4343W Wireless SoC silicon, this high performance combo module provides a unique solution with Wi-Fi and Bluetooth radios, ARM Cortex-M4 host processor and expansion SPI Flash memory, plus versatile dual onboard and dual external antenna capabilities, all in a compact 35 mm x 20 mm, easy to mount (0.1” pitch LGA) form-factor module, qualified for operation across the full industrial temperature range
3.1 Microcontroller
The AES-BCM4343W-M1-G module includes an on-board microcontroller (MCU) that interfaces with the Cypress BCM4343W radio for communication and acts as the system controller for user applications. Based on the ST Microelectronics STM32F411, the MCU supports the following features:
STM32F411 ARM 32-bit Cortex™-M4 (with FPU), @ 100 MHz  On-chip memory: 512 kbytes Flash, 128 Kbytes SRAM  Multiple serial communication interfaces: SPI, USART, PCM  Sensor applications support: ADC, I2C, I2S, GPIO, Timers  Cypress WICED SDK and ZentriOS SDK based cloud connected application examples are
provided (AWS IoT, IBM Bluemix, ThingSpeak and others…)
Debug support: JTAG interface
Application code for the module can be developed using Cypress’s WICED Software Development Kit (SDK) or Zentri’s ZentriOS SDK.
Additional details on the STM32F411 MCU features, specifications, and programming modes can be obtained from the STM32F411 datasheet.
3.2 SPI Flash Memory
An 8 Mbit SPI Flash memory (Macronix MX25L800EZUI12G) is included on the module for the storage of BCM4343W firmware, static webpages, built-in documentation, images, etc. The STM32F411 MCU’s SPI1 peripheral interface, clocked at 50MHz, is used to communicate with this memory.
The SPI1 interface parameters are defined in the BCM94343W_AVN platform files of the Cypress WICED SDK development environment. When building an application in WICED SDK, adding the download_apps parameter to the make target command string, ensures that the BCM4343W firmware is written to- and loaded from this SPI flash
6
7
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
3.3 WLAN
Cypress BCM4343W combo single-chip MAC, Baseband and RF device
(includes ARM Cortex-M3 processor)
Frequency Band: Single-band, 2.4 GHz only  WLAN Network Standards supported: 802.11b, 802.11g, 802.11n (single stream)  Modulation Modes: CCK and OFDM with BPSK, QPSK, 16QAM, 64QAM  Supported Data Rates:
- IEEE 802.11b 1 – 11 Mbps
- IEEE 802.11g 6 – 54 Mbps
- IEEE 802.11n 7.2 – 65 Mbps (2.4 GHz only)
Hardware Encryption
- WEP, WPA / WPA2 Personal
Advanced 1x1 802.11n Features:
- Full/Half Guard Interval
- Frame Aggregation
- Space Time Block Coding (STBC)
- Low Density Parity Check (LDPC) Encoding
SDIO host interface for WLAN subsystem (between BCM4343W and STM32F411 MCU) Optional WLAN Debug Interfaces:
- WLAN JTAG and WLAN Debug UART interfaces are pinned-out to support special cases (most application development will not require this)
3.4 Bluetooth
Bluetooth 4.1 (supporting Bluetooth Low Energy) with backward compatibility  Bluetooth Smart Ready (support for Dual-mode Bluetooth Classic and BLE operation)
Advanced Algorithm for support of Bluetooth/BLE and Wi-Fi coexistence
(for concurrent WLAN and Bluetooth operation)
Dedicated high-speed UART for Bluetooth host interface
3.5 Antennas
Onboard dual fractal PCB antennas (Cypress patented PCB trace antennas)  Miniature switched RF connectors. These are for test purposes only!  Transmit and Receive antenna diversity
7
8
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
4 Block Diagram
Figure 1 shows a functional block diagram of the AES-BCM4343W-M1-G module.
Figure 1 – AES-BCM4343W-M1-G Module Block Diagram
8
9
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
MCU WICED SDK
Pin
No.
Signal Name Type
Pin
Name
Pin
Name Description*
1 GND SIG - - Ground 2 MICRO_I2C2_SCL I/O PB10 WICED_GPIO_20 I2C #2 SCL 3 MICRO_I2C2_SDA I/O PB11 WICED_GPIO_21 I2C #2 SDA 4 MICRO_SPI2_SCK I/O PB13 WICED_GPIO_23 SPI #2 SCK 5 MICRO_SPI2_SSN I/O PB12 WICED_GPIO_22 SPI #2 SSN 6 MICRO_SPI2_MISO I/O PB14 WICED_GPIO_24 SPI #2 MISO 7 MICRO_SPI2_MOSI I/O PB15 WICED_GPIO_25 SPI #2 MOSI 8 USART6_TX_I2S2_MCK I/O PC6 WICED_GPIO_13 USART #6 TX
9 USART6_RX_I2S2_CK I/O PC7 WICED_GPIO_14 USART #6 RX 10 MICRO_UART_TX I/O PA9 WICED_GPIO_9 USART #1 TX 11 MICRO_UART_RX I/O PA10 WICED_GPIO_10 USART #1 RX 12 MICRO_UART_CTS I/O PA11 WICED_GPIO_15 USART #1 CTS 13 MICRO_UART_RTS I/O PA12 WICED_GPIO_16 USART #1 RTS 14 WIFI_GPIO_1 I/O PD13 -
WLAN Tx/Rx Activty (Driven by GPIO_1 of BCM4343W device)
15 GND SIG - - Ground 16 VDD_3V3_SIP SIG - - 3.3V 17 GND SIG - - Ground 18 WL_JTAG_TDI N/C - - No Connect (requires hardware modification for connection) 19 WL_JTAG_TDO N/C - - No Connect (requires hardware modification for connection) 20 MICRO_JTAG_TMS I/O PA13 - JTAG TMS 21 MICRO_JTAG_TCK I/O PA14 - JTAG TCK 22 MICRO_JTAG_TDI I/O PA15 - JTAG TDI 23 MICRO_JTAG_TDO I/O PB3 - JTAG TDO 24 MICRO_JTAG_TRSTN I/O PB4 - JTAG RESETN 25 GND SIG - - Ground 26 VBAT_SIP SIG - - Power supply for backup when VDD_3V3_SIP is not present 27 GND SIG - - Ground 28 MICRO_I2C1_SCL I/O PB6 WICED_GPIO_11 I2C #1 SCL 29 MICRO_I2C1_SDA I/O PB7 WICED_GPIO_12 I2C #1 SDA 30 MICRO_GPIO_3 I/O PC1 WICED_GPIO_27 GPIO 3 31 MICRO_GPIO_2 I/O PC0 WICED_GPIO_26 GPIO 2 32 MICRO_GPIO_4 I/O PC2 WICED_GPIO_28 GPIO 4 33 MICRO_GPIO_5 I/O PC3 WICED_GPIO_17 GPIO 5 34 MICRO_GPIO_6 I/O PB9 WICED_GPIO_19 GPIO 6 35 MICRO_GPIO_1 I/O PB8 WICED_GPIO_18 GPIO 1 36 MICRO_RST_N I/O NRST RESET_N 37 MICRO_ADC_IN1 I/O PA1 WICED_GPIO_2 ADC INPUT #1 38 MICRO_WKUP I/O PA0 WICED_GPIO_1 MCU WAKEUP 39 GND SIG - - Ground 40 MICRO_ADC_IN2 I/O PA2 WICED_GPIO_3 ADC INPUT #2 41 MICRO_ADC_IN3 I/O PA3 WICED_GPIO_4 ADC INPUT #3 42 MICRO_GPIO_0 I/O PB0 WICED_GPIO_29 GPIO 0 43 MICRO_ADC_IN15 I/O PC5 WICED_GPIO_30 ADC INPUT #15 44 GND SIG - - Ground 45 GND SIG - - Ground
Module
- Denotes 5V tolerant I/O
- Standard 3.3V I/O
- Bidirection reset pin with embedded weak pullup
* Note the pin descriptions shown are arbitrary for most MCU connected signals
5 Module Pin Descriptions
5.1 Pin Descriptions
9
10
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
5.2 Pin Definitions
Of the 44 pads located along 3 edges of the module, 8 connect to GND and 2 are power connections Most of the remaining module pads are internally connected to the STM32F411 MCU. For this reason, the signal definition of these pins is somewhat arbitrary given that the pin modes can be configured via software.
The signal names provided in the Pin Description table shown in section 4.1 align with the names provided in the Cypress WICED SDK platform.h file. Users have the ability to modify these configurations and definitions as explained in the STM32F411 datasheet.
10
11
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Parameter
Min
Max
Unit
VDD_3V3_SIP
0 4 Volts
VBAT_SIP
0 4 Volts
Voltage on Digital I/Os
-0.3 4 Volts
Voltage on Analog Inputs
-0.3 4 Volts
Supply Ripple
-2 2 %
Storage Temperature
-40
+85
ºC
Operating Temperature
-40
+85
ºC
Parameter
Min
Typ
Max
Unit
VDD_3V3_SIP
3.0
3.3
3.6
Volts
VBAT_SIP
2.0
3.3
3.6
Volts
Voltage on Digital I/Os
0
3.3
VDD_3V3_SIP
Volts
Voltage on Analog Inputs
0
3.3
VDD_3V3_SIP
Volts
Humidity Range*
0 95
%
Operating Temperature
-40
25
+85
ºC
* Non-condensing, relative humidity
Parameter
Min
Typ
Max
Unit
VDD_3V3_SIP
3.0
3.3
3.6
Volts
VDD_3V3_SIP*
- - -
mA
VBAT_SIP
2.0
3.3
3.6
Volts
VBAT_SIP*
- - -
mA
6 Electrical Specifications
For electrical characteristics of the module digital I/O’s connected to the internal STM32F411 MCU,
refer to the STM32F411 datasheet (Document ID 026289 Rev 4 or later).
6.1 Absolute Maximum Ratings
6.2 Recommended Operating Conditions
6.3 Power Supply Requirements
* See Power Consumption figures on next page
11
12
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Parameter
Test Condition (+25 ºC, 3.3V)
Min
Typ
Max
Unit
11b Tx Mode
11 Mbps
-
400 mA
11g Tx Mode
54 Mbps
-
260 mA
11n Tx Mode
MCS7 - 200 mA
11b Rx Mode
11 Mbps
-
46 mA
11g Rx Mode
54 Mbps
-
46 mA
11n Rx Mode
MCS7 - 46 mA
Parameter
Test Condition (+25 ºC, 3.3V)
Min
Typ
Max
Unit
Tx Mode
3DH5 - 35 mA
Rx Mode
3DH5 - 16 mA
Parameter
Test Condition (+25 ºC, 3.3V)
Min
Typ
Max
Unit
Tx Mode
Transmitter and baseband @ 100%
-
35 mA
Rx Mode
Receiver and baseband @ 100%
-
16 mA
Parameter
Device
Test Condition
(+25 ºC, 3.3V)
Min
Typ
Max
Unit
Sleep Mode
STM32F411 BCM4343W
-
-
-
122
1.48
uA
mA
Power Down Mode
STM32F411 BCM4343W
-
- - 6.6
6.0
mA
uA
Idle, Unassociated
STM32F411 BCM4343W
-
- - 8.6
366
mA
uA
6.4 WLAN Power Consumption
Condition: 25deg.C, includes both Wi-Fi and Microcontroller
6.5 Bluetooth Power Consumption
Condition: 25deg.C, includes Both Wi-Fi/BT and Microcontroller
6.6 Bluetooth Low Energy Power Consumption
Condition: 25deg.C, includes Both Wi-Fi/BT and Microcontroller
6.7 Low Power Modes Power Consumption
12
13
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Features
Description
WLAN Standards
IEEE 802 Part 11b/g/n (802.11b/g/n single stream n)
Antenna Port
Supports single antenna for Wi-Fi
Frequency Band
2.400 - 2.484 GHz
Features
Description
Frequency band
2.4000 - 2.497 GHz (2.4 GHz ISM Band)
Number of selectable sub-channels
14 Channels
Modulation
OFDM, DSSS (Direct Sequence Spread Spectrum), DBPSK, DQPSK, CCK, 16QAM, 64QAM
Supported rates
1, 2, 5.5, 11, 6, 9, 12, 24, 36, 48, 54 Mbps & HT20 MCS 0~7
Maximum receive input level
-10dBm (with PER < 8% @ 11 Mbps)
-20dBm (with PER < 10% @ 54 Mbps)
-20dBm (with PER < 10% @ MCS7)
Output power
17dBm @ 802.11b 13dBM @ 802.11g 12dBM @ 802.11n
Carrier frequency accuracy
+/- 20 ppm (crystal: 26 MHz +/- 10 ppm @ 25 ºC)
7 RF Specifications
7.1 WLAN RF Characteristics
The AES-BCM4343W-M1-G module complies with the following WLAN features and standards.
The RF performance of the AES-BCM4343W-M1-G module is given as follows (@ 3.3V):
13
14
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Parameter
Test Condition
Min
Typ
Max
Unit
Transmit Output Power Level
1/2/5.5/11 Mbps
-
17 - dBm
Transmit Center Freq. Tolerance
-
-20 0 20
ppm
Transmit Spectrum Mask
Fc-22MHz<F<FC-11MHz &
Fc+11MHz<F<Fc+22MHz
(1/2/5.5/11 Mbps;
Channel 1~13)
- - -30*
dBr
F<FC-22MHz & F>Fc+22MHz
(1/2/5.5/11 Mbps;
Channel 1~13)
- - -50*
dBr
Transmit Power-On
10% ~ 90%
-
0.3
2*
us
Transmit Power-Down
90% ~ 10%
-
1.5
2*
us
Transmit Modulation Accuracy
1/2/5.5/11 Mbps
-
-17
-10
dB
Note 1 - "*" Indicates IEEE802.11 specification
Parameter
Test Condition
Min
Typ
Max
Unit
Transmit Output Power Level
6/9/12/18/24/36/48/54 Mbps
-
13 - dBm
Transmit Center Freq. Tolerance
-
-20 0 20
ppm
Transmit Modulation Accuracy
6 Mbps
- - -5*
dB
9 Mbps
- - -8*
dB
12 Mbps
-
-
-10*
dB
18 Mbps
-
-
-13*
dB
24 Mbps
-
-
-16*
dB
36 Mbps
-
-
-19*
dB
48 Mbps
-
-
-22*
dB
54 Mbps
-
-
-25*
dB
Transmit Spectrum Mask
@ 11 MHz
-
-
-20*
dBr
@ 20 MHz
-
-
-28*
dBr
@ 30 MHz
-
-
-40*
dBr
Note 1 - "*" Indicates IEEE802.11 specification
7.1.1 Transmitter Specification
7.1.1.1 802.11b Transmitter Specification
7.1.1.2 802.11g Transmitter Specification
14
15
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Parameter
Test Condition
Min
Typ
Max
Unit
Transmit Output Power Level
HT20 MCS 0~7
-
12 - dBm
Transmit Center Freq. Tolerance
-
-20 0 20
ppm
Transmit Modulation Accuracy
HT20, MCS0~7
- - -27*
dB
Transmit Spectrum Mask
@ 11 MHz
-
-
-20*
dBr
@ 20 MHz
-
-
-28*
dBr
@ 30 MHz
-
-
-40*
dBr
Note 1 - "*" Indicates IEEE802.11 specification
Parameter
Test
Condition
Min
Typ
Max
Unit
Receiver Minimum Input Level Sensitivity (PER < 8%)
1 Mbps
-80*
-93 - dBm
2 Mbps
-80*
-91 - dBm
5.5 Mbps
-76*
-89 - dBm
11 Mbps
-76*
-86 - dBm
Receiver Maximum Input Level Sensitivity (PER < 8%)
1/2/5.5/11
Mbps
-10* - -
dBm Note 1 - "*" Indicates IEEE802.11 specification
7.1.1.3 802.11n Transmitter Specification
7.1.2 Receiver Specification
7.1.2.1 802.11b Receiver Specification
15
16
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Parameter
Test Condition
Min
Typ
Max
Unit
Receiver Min. Input Level Sensitivity (PER < 10%)
6 Mbps
-82*
-88
-
dBm
9 Mbps
-81*
-87
-
dBm
12 Mbps
-79*
-85
-
dBm
18 Mbps
-77*
-83
-
dBm
24 Mbps
-74*
-80.5
-
dBm
36 Mbps
-70*
-78.5
-
dBm
48 Mbps
-66*
-74
-
dBm
54 Mbps
-65*
-72
-
dBm
Receiver Max. Input Level Sensitivity (PER < 10%)
6/9/12/18/24/36/48/54 Mbps
-20* - -
dBm Note 1 - "*" Indicates IEEE802.11 specification
Parameter
Test Condition
Min
Typ
Max
Unit
Receiver Min. Input Level Sensitivity (PER < 10%)
HT20, MSC0
-82*
-87.5
-
dBm
HT20, MSC1
-79*
-84
-
dBm
HT20, MSC2
-77*
-82
-
dBm
HT20, MSC3
-74*
-80.5
-
dBm
HT20, MSC4
-70*
-77
-
dBm
HT20, MSC5
-66*
-72
-
dBm
HT20, MSC6
-65*
-71
-
dBm
HT20, MSC7
-64*
-70
-
dBm
MSC0 ~ MSC7
-20* - -
dBm
Receiver Max. Input Level Sensitivity (PER < 10%)
MSC0 ~ MSC7
-20* - -
dBm
7.1.2.2 802.11g Receiver Specification
7.1.2.3 802.11n Receiver Specification
16
17
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Parameter
Mode and
Condition
Min
Typ
Max
Unit
Transmitter Section
Frequency Range
-
2402.0
-
2480
MHz
Output Power
GFSK
-
10 - dBm
QPSK
- 6 -
dBm
BPSK
- 6 -
dBm
Power Control Step
2
4 8 dB
Lo Performance
Initial Carrier Freq. Tolerance
-
-
+/-25
+/-75
KHz
Lock Time
-
-
72 - uS
Frequency Drift
DH1 Packet
-
-
+/-8
+/-25
KHz
DH3 Packet
-
-
+/-8
+/-40
KHz
DH5 Packet
-
-
+/-8
+/-40
KHz
Drift Rate
-
- 5 20
KHz/50 us
Frequency Deviation
00001111 Sequence in Payload (a)
-
140
155
175
KHz
10101010 Sequence in Payload (b)
-
115
140 - KHz
Channel Spacing
-
- 1 -
MHz
(a) This pattern represents an average deviation in payload
(b) Pattern represents the maximum deviation in payload for 99.9% of all frequency deviations
Parameter
Mode and Condition
Min
Typ
Max
Unit
Receiver Section
Frequency Range
-
2402
-
2480
MHz
Output Power
GFSK, 0.1% BER, 1 Mbps
-
-91 - dBm
/4-DQPSK, 0.01% BER, 2 Mbps
-
-93 - dBm 8-DPSK, 0.01% BER, 3 Mbps
-
-87
-
dBm
Input IP3
-16
- - dBm
Maximum Input
-
- - -20
dBm
7.2 Bluetooth RF Characteristics
7.2.1 Transmitter Specification
7.2.2 Receiver Specification
17
18
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Parameter
Mode and Condition
Min
Typ
Max
Unit
Frequency Range
-
2402
-
2480
MHz
Rx Sense (a)
GFSK, 0.1% BER, 1 Mbps
-
-94 - dBm
TX Power
-
- 8 -
dBm
Mod Char: Delta f1 Average
-
225
225
275
KHz
Mod Char: Delta f2 max (b)
-
99.9
- - %
Mod Char: Ratio
-
0.8
0.95 - %
Note (a) - The Bluetooth tester is set so that Dirty TX is on
Note (b) - At least 99.9% of all delta F2 max. frequency values recorded over 10 packets must be greater than 185 KHz
7.3 BLE RF Characteristics
18
19
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
8 Mechanical Specifications
8.1 Mechanical Size
Module dimensions are 35 mm x 20 mm x 2.59 mm (max) as shown in the figures below.
Figure 2 – AES-BCM4343W-M1-G Module Top View
Figure 3 – AES-BCM4343W-M1-G Module Side View
19
20
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
8.2 Module PCB Footprint
Figure 4 – AES-BCM4343W-M1-G Module PCB Footprint
8.3 Module Pad Size
Figure 5 – AES-BCM4343W-M1-G Module Pad Size
20
21
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
8.4 Recommended Solder Paste Mask
Figure 6 – Recommended Solder Paste Mask Size
8.5 Recommended Solder Mask
Figure 7 – Recommended Solder Mask Size
21
22
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
8.6 Tape and Reel Packaging
The AES-BCM4343W-M1-G module is available in tape and reel packaging at quantities of 600 units. The reel dimensions are 13 inches x 56 mm. The 56 mm tape conforms to the Electronic Components Association Standard EIA-481-D.
22
Figure 8 – Tape Dimensions
23
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
9 Soldering and Cleaning Recommendations
9.1 Optimum Soldering Reflow Profile
Figure 9 – Recommended Soldering Profile for Lead-Free Solder
Solder joint quality between the module’s LGA surface mount pads and their bonding with the host board should meet the appropriate IPC Specification. (See IPC-A-610-D Acceptability of Electronic Assemblies, section 8.2.1 “Bottom Only Terminations”)
It is recommended that only a single reflow soldering process be permitted for the host board Any attempts at reworking the module will invalidate warrantee coverage and regulatory certifications
9.2 Cleaning
Cleaning of the populated module is not recommended! Residuals under the module cannot be easily removed by any cleaning process (Water / Solvents / Ultrasonic)
23
24
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
10 Antennas
Two onboard Fractal PCB antennas provide antenna diversity and good RF performance. (The Cypress patented PCB antenna trace pattern achieves a gain of 3dBi)
Figure 10 – Dual Fractal PCB Antennas
Two surface mount miniature RF (3mm x 3mm) switched coax connectors are included onboard. These connectors are for TEST PURPOSES ONLY and shall not be used for external antennas!
Figure 11 – Test Probe Connectors (Murata SWD series)
Note! Use of external antennas is not approved in the regulatory certifications for this module!
24
25
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Regulatory Body
Status
FCC
2AF62-AVTEG001 (Pending)
IC
21571-AVTEG001 (Pending)
RoHS
Compliant
CE
EN 60950-1, EN 300 328, EN 301 489 (Pending)
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna. ▪ Increase the separation between the equipment and receiver. ▪ Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
11 Certifications
11.1 RoHS
The AES-BCM4343W-M1-G module is lead-free and RoHS compliant.
11.2 Regulatory Compliance
Note: FCC, IC and CE certifications are currently pending (Once the certification process has been concluded, this datasheet will be updated to remove this note)
Should regulatory certification be required in a specific country or region not already covered, please contact your local Avnet sales office or create a support request at http://cloudconnectkits.org/forum
11.3 Bluetooth Interoperability Compliance
BQB application in progress
11.4 Regulatory Agency Statements
The User Manual for the End Product should include the following statements:
25
26
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Contains FCC ID: 2AF62-AVTEG001 Contains IC: 21571-AVTEG001
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Industry Canada Statements
This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux onditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appa-reil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d'en com-promettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Can-ada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou infé-rieur) approuvé pour l'émetteur par Industrie Can­ada. Dans le but de réduire les risques de brouil-lage radioélectrique à l'intention des autres utilisa­teurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
User manuals shall display the following Industry Canada notices in a conspicuous location:
11.5 OEM Instructions
This module has been certified for installation into products only by OEM integrators under the following conditions:
The antennas used with this module must be installed to provide a separation distance of at least 20cm from all persons, and must not be co-located or transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi transmitter product procedures.
11.6 OEM Labeling Requirements
A clearly visible label is required, affixed to the outside of the user’s (OEM) enclosure. This label should display the following:
11.7 Limitations
This product is not intended for use in safety-critical applications (such as life support) where a failure of the Avnet product could be expected to cause severe personal injury or death.
26
27
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
12 Shipping, Handling and Storage
12.1 Shipping
Bulk orders of the Avnet BCM4343W SoC module are delivered in reels of 600. (See Section 7.6 for detail)
12.2 Handling
The AES-BCM4343W-M1-G module contains sensitive electronic circuitry that require proper ESD protection when handling. Failure to follow these ESD procedures may result in permanent damage to the module.
The module should not be subjected to excessive mechanical shock.
12.3 Moisture Sensitivity (MSL)
Modules that have been exposed to moisture and environmental conditions exceeding the prescribed packaging and storage conditions detailed in J-STD-020 (eg. not continuously in a sealed bag with a desiccant pack) MUST be baked before mounting! (Failure to meet the packaging and storage conditions described, will result in irreparable damage to modules during solder reflow soldering).
For devices that are packaged in a Moisture Barrier Bag with a desiccant pack and HIC (Humidity Indicator Card), the HIC card should be referenced and J-STD-033 consulted to determine if baking is required prior to reflow soldering.
In cases where baking is required, refer to J-STD-033 for details of the bake procedure. “Broken reel” module quantities (under 600 units) typically require baking before reflow soldering
12.4 Storage
Per J-STD-033, the shelf life of devices in a Moisture Barrier Bag is 12 months at <40ºC and <90% room humidity (RH).
Do not store in salty air or an environment where there is a high concentration of corrosive gas, such as Cl2, H2S, NH3, SO2, or NOX.
Do not store in direct sunlight.
27
28
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Part Number
Description
AES-BCM4343W-M1-G
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Manuf.
Part Number
Description
Avnet
AES-EVB-BCM4343W-G
BCM4343W IoT Starter Kit
13 Ordering Information
13.1 Module Accessories
28
29
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
Region
Organization
Email
North America
Avnet EMA
eval.kits@avnet.com
Europe Avnet EBV
ebvchips@ebv.com
Avnet Silica
info@avnet.eu
Asia
Avnet Asia
XilinxAPAC@avnet.com
14 Contact Information
For further details, contact your local Avnet representative or e-mail us at:
29
AES-BCM4343W-M1-G Datasheet
802.11 b/g/n WLAN, Bluetooth & BLE SoC Module
FCC/IC Statements
(OEM) Integrator has to assure compliance of the entire end-product incl. the integrated RF Module. For 15 B (§15.107 and if applicable §15.109) compliance, the host manufacturer is required to show compliance with 15 while the module is installed and operating.
Furthermore the module should be transmitting and the evaluation should confirm that the module's intentional emissions (15C) are compliant (fundamental / out-of-band). Finally the integrator has to apply the appropriate equipment authorization (e.g. Verification) for the new host device per definition in §15.101.
Integrator is reminded to assure that these installation instructions will not be made available to the end-user of the final host device.
The final host device, into which this RF Module isintegrated" hasto be labelled with an auxilliary lable stating the FCC IDofthe RF Module,such as "Contains FCC ID: "
2AF62-AVTEG001
"This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)this devicemay not cause harmful interference, and (2)this devicemust accept any interference received, including interference thatmay cause undesired operation."
"Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the user’s authority to operate the equipment."
the Integrator will be responsible to satisfy SAR/ RF Exposure requirements, when the module integrated into the host device.
The final host device, into which this RF Module isintegrated" hasto be labelled with an auxilliary lable stating the IC ofthe RF Module,such as "Contains transmitter module IC:21571-AVTEG001"
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Host 15B and 15C compliance statement
A host product itself is required to comply with all other applicable FCC equipment authorization regulations, requirements, and equipment functions that are not associated with the transmitter module portion. For example, compliance must be demonstrated: to regulations for other transmitter components within a host product; to requirements for unintentional radiators (Part 15 Subpart B), such as digital devices, computer peripherals, radio receivers, etc.; and to additional authorization requirements for the non-transmitter functions on the transmitter module (i.e., Verification or Declaration of Conformity) as appropriate (e.g., Bluetooth and Wi-Fi transmitter modules may also contain digital logic functions).
The OEM integrator or the host manufacturer is responsible for the overall compliance of the host products
RF exposure statement
Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field
strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons.
Module statement
The single-modular transmitter is a self-contained, physically delineated, component for which compliance can be demonstrated independent of the host operating conditions, and which complies with all eight requirements of § 15.212(a)(1) as summarized below.
1) The radio elements have the radio frequency circuitry shielded.
2) The module has buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal.
3) The module contains power supply regulation on the module.
4) The module contains a permanently attached antenna.
5) The module demonstrates compliance in a stand-alone configuration.
6) The module is labeled with its permanently affixed FCC ID label
7) The module complies with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee.
8) The module complies with RF exposure requirements.
Loading...
