Daisy Chain HDMI Extender System
Local Unit (HE-A1L)
Repeater Unit (HE-A2RS)
8-Port Distribution Amplifier (HE-A8L)
USER MANUAL V1.0
Package Contents for HE-A1L
Local Unit x 1
1 user manual
1 power adapter DC 12V/1.25A
1 IR Blaster Cable
Package Contents for HE-A2RS
Repeater Unit x 1
1 user manual
1 power adapter DC 12V/1.25A
1 IR Receiver Cable
Package Contents for HE-A8L
8-Port Distribution Amplifier x 1
1 user manual
1 power adapter DC 12V/5A
1 IR Blaster Cable
Any thing missed, please contact with your vendor.
Features
Local Unit (HE-A1L)
HDMI Input Support Up To 1920x1200@60Hz (DVI Format) and 1080P@60Hz (HDMI Format).
100 Meters Extension with the 1080P Resolution by ONE SINGLE CAT5/6 Cable
Visually Lossless Compression Algorithm
Support the Video Format VESA / CVT / HDTV Timing Specification
Support the Audio PCM 2ch~7.1ch, Dolby Digital / EX / Plus, Dolby True HD, DTS ES / HD Master (Point to Point)
or PCM 2ch (Daisy Chain)
Support the One Way RS-232 Serial Control Up 115,200 bps (from Local to Repeater)
Support the One Way IR Remote Control (from Repeater to Local)
Repeater Unit (HE-A2RS)
HDMI Input Support Up To 1920x1200@60Hz (DVI Format) and 1080P@60Hz (HDMI Format).
100 Meters Extension with the 1080P Resolution by ONE SINGLE CAT5/6 Cable
Visually Lossless Compression Algorithm
Two RJ-45 Outputs for Two Different Directions Extension
Each Direction Can Be Daisy Chainable Up To 32 Levels (100 Meters /Level) with the 1080P Resolution All the
Way
Up to 100 Displays for the Whole System Connection
Support the EDID Copy Functionality for Making Sure All Displays are Working Well
Support the Video Format VESA / CVT / HDTV Timing Specification
Support the Audio PCM 2ch~7.1ch, Dolby Digital / EX / Plus, Dolby True HD, DTS ES / HD Master (Point to Point)
or PCM 2ch (Daisy Chain)
Support the One Way RS-232 Serial Control Up 115,200 bps (from Local to Repeater)
Support the One Way IR Remote Control (from Repeater to Local)
1
8-Port Distribution Amplifier (HE-A8L)
HDMI Input Support Up To 1920x1200@60Hz (DVI Format) and 1080P@60Hz (HDMI Format).
100 Meters Extension with the 1080P Resolution by ONE SINGLE CAT5/6 Cable
Visually Lossless Compression Algorithm
Eight RJ-45 outputs Ideal for the Broadcasting Extension
Support the Video Format VESA / CVT / HDTV Timing Specification
Support the Audio PCM 2ch~7.1ch, Dolby Digital / EX / Plus, Dolby True HD, DTS ES / HD Master (Point to Point)
or PCM 2ch (Daisy Chain)
One HDMI Local Output Ideal for Monitoring or Identically Displaying
Support the One Way RS-232 Serial Control Up 115,200 bps (from Local to Repeater)
Support the One Way IR Remote Control (from Repeater to Local)
Specifications
Function HE-A1L HE-A2RS HE-A8L
Input HDMI A-Type Female x 1 NONE HDMI A-Type Female x 1
Output NONE HDMI A-Type Female x 1
LINK Input NONE RJ-45 x 1 NONE
LINK Output RJ-45 x 1 RJ-45 x 2 RJ-45 x 8
IR IN NONE 3.5mm Phone Jack x 1 NONE
IR OUT 3.5mm Phone Jack x 1 NONE 3.5mm Phone Jack x 1
RS-232 DB-9 Female x 1 DB-9 Male x 1
Max. Resolution 1920x1200@60Hz (DVI Format) / 1080P@60Hz(HDMI Format)
CAT5/6 Cable Distance
Signal Standard HDMI Specifications
Power Adapter (Min.)
Housing Metal
Weight 395 g 438 g 1001 g
Dimensions (LxWxH)
DC 12V /1.25A DC 12V / 5A
138 x 114 x 25 mm 138 x 128 x 25 mm 240 x 179 x 25 mm
100 Meters (Max)

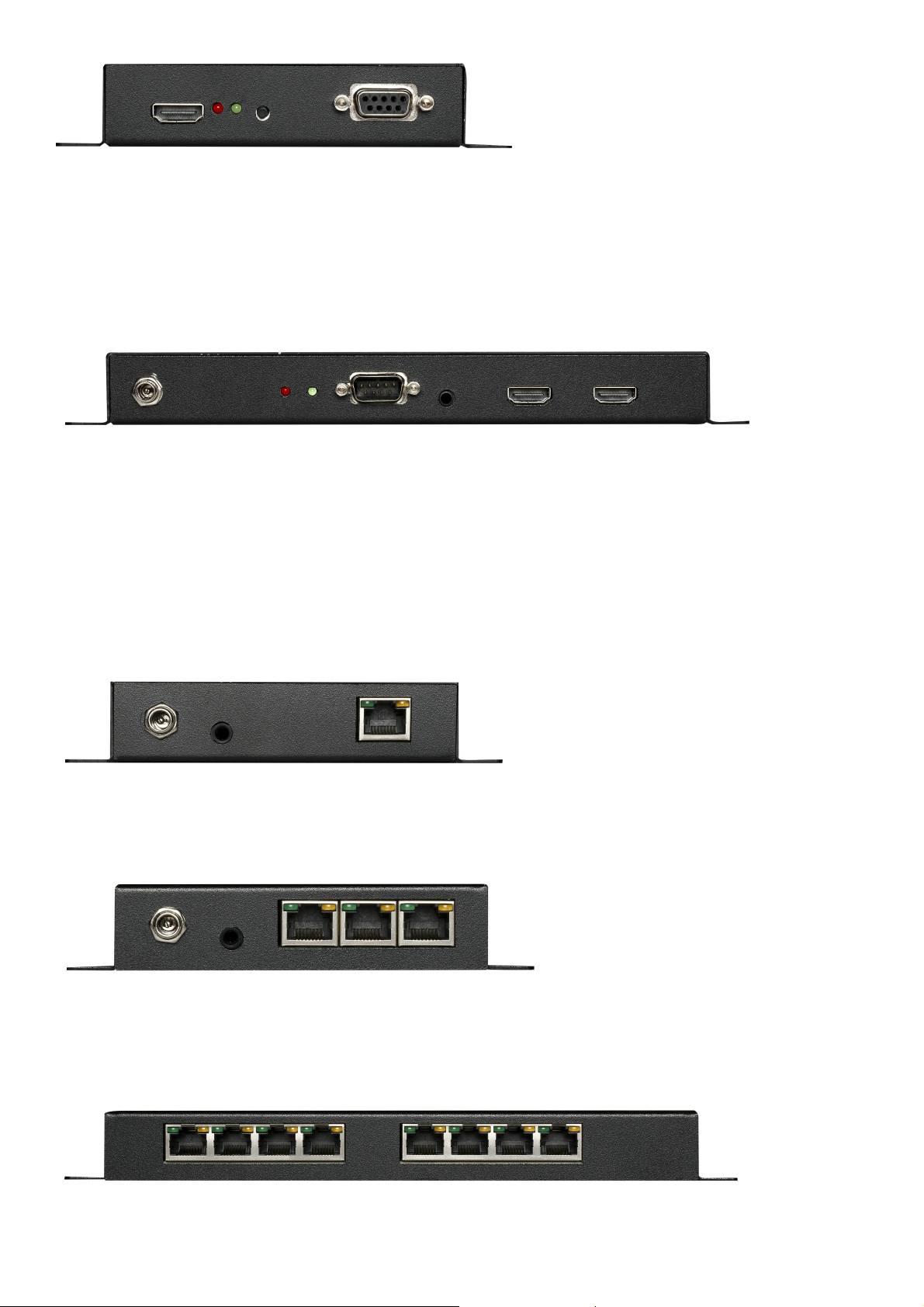

LOCAL FRONT VIEW
HE-A1L
1. HDMI INPUT
2. POWER LED
3. LINK LED
4. RS-232
2
HE-A2RS
1. HDMI OUTPUT
2. POWER LED
3. LINK LED
4. EDID COPY PUSHBUTTON
5. RS-232
HE-A8L
1. DC JACK
2. POWER LED
3. LINK LED
4. RS-232
5. IR-OUT PHONE JACK
6. HDMI OUTPUT
7. HDMI INPUT
LOCAL REAR VIEW
HE-A1L
1. DC JACK
2. IR-OUT PHONE JACK
3. LINK OUT(RJ45 JACK)
HE-A2RS
1. DC JACK
2. IR-IN PHONE JACK
3. REPEAT LINK OUT *2 (RJ45 JACK)
4. LINK IN X1 (RJ45 JACK)
1. LINK1~LINK8
HE-A8L
3
Installation
1. Turn OFF the Video Source Device and Monitor
2. Connect the HDMI cable between the Video Source Device and the "HDMI IN" port of HE-A1L (or HE-A8L)
3. Connect the HDMI cable between the Monitor and the "HDMI OUT" port of HE-A2RS
4. Connect the power adaptor to the DC jack of HE-A1L to powered up the unit
5. Connect the power adaptor to the DC jack of HE-A2RS, to powered up the unit
6. Connect the power adaptor to the DC jack of HE-A8L to powered up the unit
7. Connect the CAT5/6 cable between the “LINK” port of HE-A1L (or HE-A8L) and the “LINK” port of HE-A2RS.
8. Turn ON the Video Source Device and Monitor
Note
It’s recommended to set all Monitors with the same resolution. If not, please find the lowest resolution Monitor first,
and then “press and hold 2 seconds” the EDID COPY PUSHBUTTON of HE-A2RS which connected to that monitor
for broadcasting the lowest resolution to ALL of other monitors.
It’s recommended to have the STANDARD 1.8M HDMI cable for the connection to get the better video quality.
When connecting the HE-A8L to the computer of RS-232 port, please use RS-232 cable(null modem female to
female).

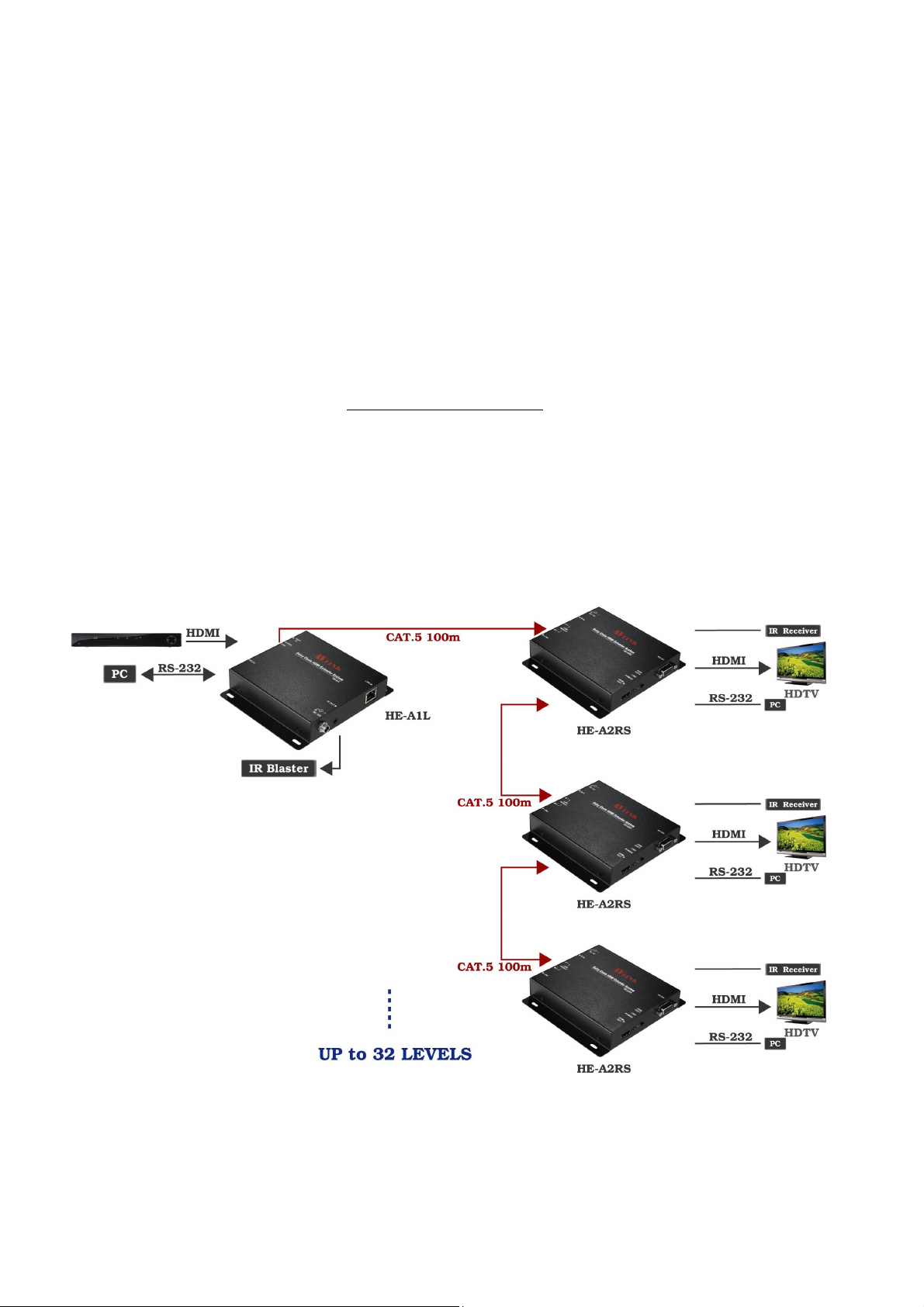

Cascade Connection Diagram
HE-A1L / HE-A2RS
4
HE-A8L / A2RS
© C&C TECHNIC TAIWAN CO., LTD. All rights reserved.
Trademarks:
All the companies, brand names, and product names referred to this manual are the trademarks or registered
trademarks belonging to their respective companies.
5
