Avlink BAS-916 User Manual
VIDEO/AUDIO
Distribution
Amplifier
(BAS-913)
(BAS-916)
USER MANUAL V1.0
BAS-913/BAS-916
Package Contents-
1 AVLINK BAS-913 or BAS-916 Video/Audio
Distribution Amplifier
1 user manual
1 power adapter DC 12V 600mA
2 rack rails, 6 screws
4 captive screw connectors for BAS-913
7 captive screw connectors for BAS-916
If anything is missing, please contact your vendor.
Introduction
Through the Video/Audio Distribution Amplifier BAS-913,
BAS-916, by virtue of the video and audio from the DVD
player or VCR, can drive 3,6 HDTV monitors and speakers
function concurrently.
Features
Bandwidth 500MHz.
Support NTSC and PAL formats.
Audio Frequency Response 20Hz~20KHz.
1U 1/2 rack design.
Specifications
Function BAS-913 BAS-916
Video In Connector
(BNC Female)
Video Out Connector
(BNC Female)
Audio In Connector
(Balanced St ereo)
Audio Out Connector
(Balanced St ereo)
Video Bandwidth 500MHz
Frequency Response 20Hz~20KHz
Power Adapt er (Min.) DC 12V 600mA
Housing Metal
Weight 695 g 745 g
Dimensions (LxWxH) 220x123x41 mm
1
3 6
1
3 6
-1-
FRONT VIEW
1. Power LED
REAR VIEW
1. Power jack
2. Video Input
3. Video Output
4. Audio Input
5. Audio Output
*There are 3/6 out ports for BAS-913 / BAS-916.
Installation
1. Turn off the DVD player or VCR and HDTV monitors
and speakers.
2. Connect the BNC male extension cable between the
DVD player the “Video Input” ports of AS-913 /
BAS-916.
3. Connect the captive screw connectors male extension
cable between the DVD player the “Audio Input” ports of
BAS-913 / BAS-916.
4. Connect the BNC male extension cables between the
HDTV monitors or projectors and the “Video Output”
ports of BAS-913 / BAS-916.
5. Connect the captive screw connectors male extension
cable between the speakers and the “Audio Output”
ports of BAS-913 / BAS-916.
6. Connect the power adapter and turn on the BAS-913 /
BAS-916.
7. Turn on the DVD player or VCR and HDTV monitors
and speakers.
-2-

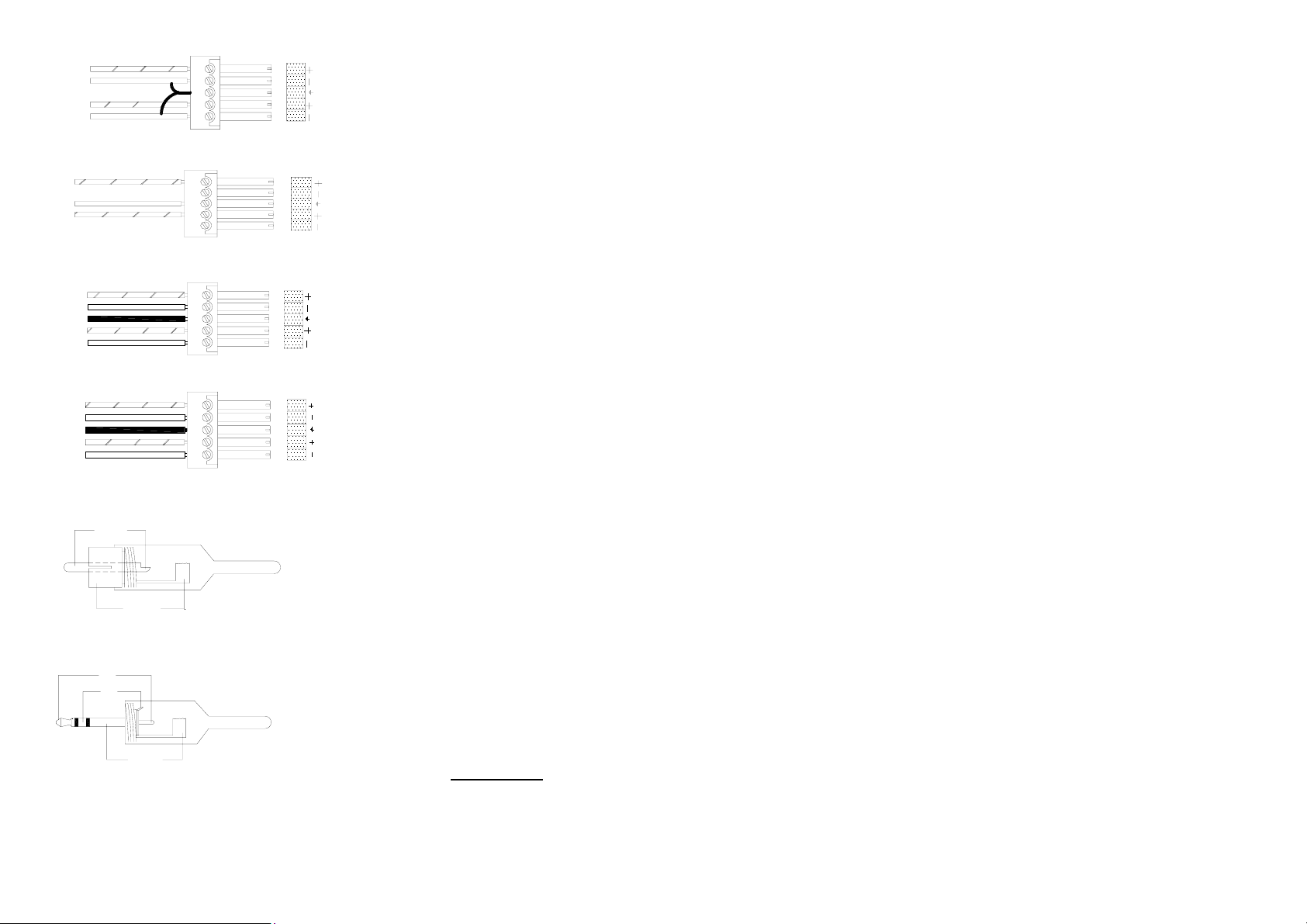

Installing Audio Connectors
TOP
GND
TOP
GND
Unbalanced Input
TOP
GND
TOP
See warn
See warn
Unbalanced Output
TOP
LOOP
GND
TOP
LOOP
Balanced Intput
TOP
LOOP
GND
TOP
LOOP
Balanced Output
TOP
GND
RCA CONNECTOR
L
R
GND
(Unbalanced)
3.5 mm Stereo connector
L
R
L
R
-3-
L
R
L
R
AUDIO
AUDIO
AUDIO
AUDIO
(A)
(B)
(C)
(D)
(E)
(F)
1. The above connector, Unbalanced input/output is A, B.
Balanced input/output is C, D.
2. (WARNING)…Wiring errors or plugging the audio
connectors incorrectly will cause a loss for the audio
output circuits.
3. When making connections form the audio distribution
amplifier use existing audio cables and refer to figure E,
F.
4. Mono audio connector consist of the top and gnd.
Stereo audio connector consist of the top, loop and gnd.
The top, loop and gnd wires are also show above in the
audio connector diagrams.
© C&C TECHNIC TAIWAN CO., LTD. All rights reserved.
