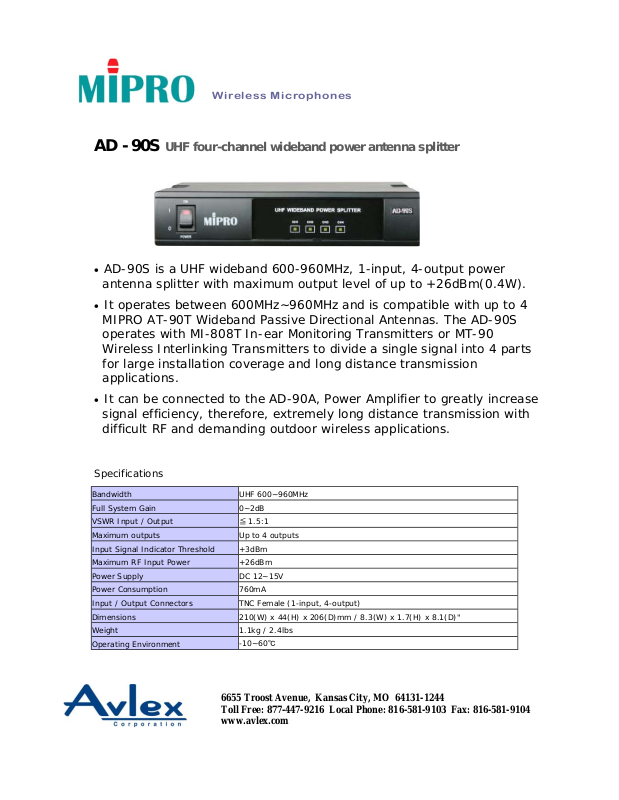

Avlex AD-90S User Manual

Wireless Microphones

AD - 90S UHF four-channel wideband power antenna splitter

• AD-90S is a UHF wideband 600-960MHz, 1-input, 4-output power

antenna splitter with maximum output level of up to +26dBm(0.4 W).

• It operates between 600MHz~960MHz and is compatible with up to 4

MIPRO AT-90T Wideband Passive Directional Antennas. The AD-90S
operates with MI-808T In-ear Monitoring Transmitters or MT-90
Wireless Inte rlinking Transmitters to divide a single signal into 4 parts
for large installation coverage and long distance transmission
applications.

• It can be connected to the AD-90A, Power Amplifier to greatly increase

signal efficiency, therefore, extremely long distance transmission with
difficult RF and demanding outdoor wireless applications.

Specifications

Bandwidth UHF 600~960MHz
Full System Gain 0~2dB
VSWR Input / Output
Maximum outputs Up to 4 outputs
Input Signal Indicator Threshold +3dBm
Maximum RF Input Power +26dBm
Power Supply DC 12~15V
Power Consumption 760mA
Input / Output Connectors TNC Female (1-input, 4-output)
Dimensions 210(W) x 44(H) x 206(D)mm / 8.3(W) x 1.7(H) x 8.1(D)"
Weight 1.1kg / 2.4lbs
Operating Environment

≦ 1.5:1

-10~60℃
