Avlex ACT-30T User Manual

MIPRO Electronics Co., Ltd.

2 CE3 4 7 B

Headquarters: 814 Pei-Kang Road, Chiayi, 60096, Taiwan.
Web: www.mipro.com.tw
E-mail: [e-mail]

ACT-30T Bodypack Transmitter

User Guide

Design and specifications are subject to change without prior notice

AS111230

! IMPORTANT SAFETY INSTRUCTIONS !

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance
with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.

9. Do not defeat the safety purpose of the polarised or ground
plug: A polarised plug has two blades with one wider than
the other. The wide blade is provided for your safety. When
the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched
particularly at plug, convenience receptacles, and the point
where they exit from the apparatus.

11. Only use attachments/accessories specified by the
manufacturer.

12. Use only with a cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when
unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

15. To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture.

16. Apparatus should not be exposed to dripping or splashing
and no objects filled with liquids, should be placed on the
apparatus.

17. Use only with the battery which specified by manufacturer.

18. The power supply cord set is to be the main disconnected
device.

WARNING

1. FOR OUTDOOR USE:
To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.

2. UNDER WET LOCATION:
Apparatus should not be exposed to dripping or splashing and no
objects filled with liquids, such as vases should be placed on the
apparatus.

3. SERVICE INSTRUCTIONS:
CAUTION - These servicing instructions are for use by qualified service
personnel only. To reduce the risk of electric shock, do not perform any
servicing other than that contained in the operating instructions unless
you are qualified to do so.

This symbol indicates that dangerous voltage constituting a
risk of electric shock is present within this unit.

This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this
unit.

& IC - ID

THIS DEVICE COMPLIES WITH PART 74 OF THE FCC RULES AND
RSS-123 ISSUE 2 OF CANADA. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference
that may cause undesired operation of the device. This equipment
complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.

Disposal

2005 -08-1 32005 -08-1 3

Dispose of any unusable devices or batteries responsibly and
in accordance with any applicable regulations.

Disposing of used batteries with domestic waste is to be
avoided!

Batteries / NiCad cells often contain heavy metals such as
cadmium(Cd), mercury(Hg) and lead(Pb) that makes them
unsuitable for disposal with domestic waste. You may return
spent batteries/ accumulators free of charge to recycling
centres or anywhere else batteries/accumulators are sold.

By doing so, you contribute to the conservation of our
environment!

Bodypack Transmitter Bodypack Transmitter

1 Key Features

3 Bodypack Controls and Indicators

5 O

6 LCD

7 T

perating Instructions

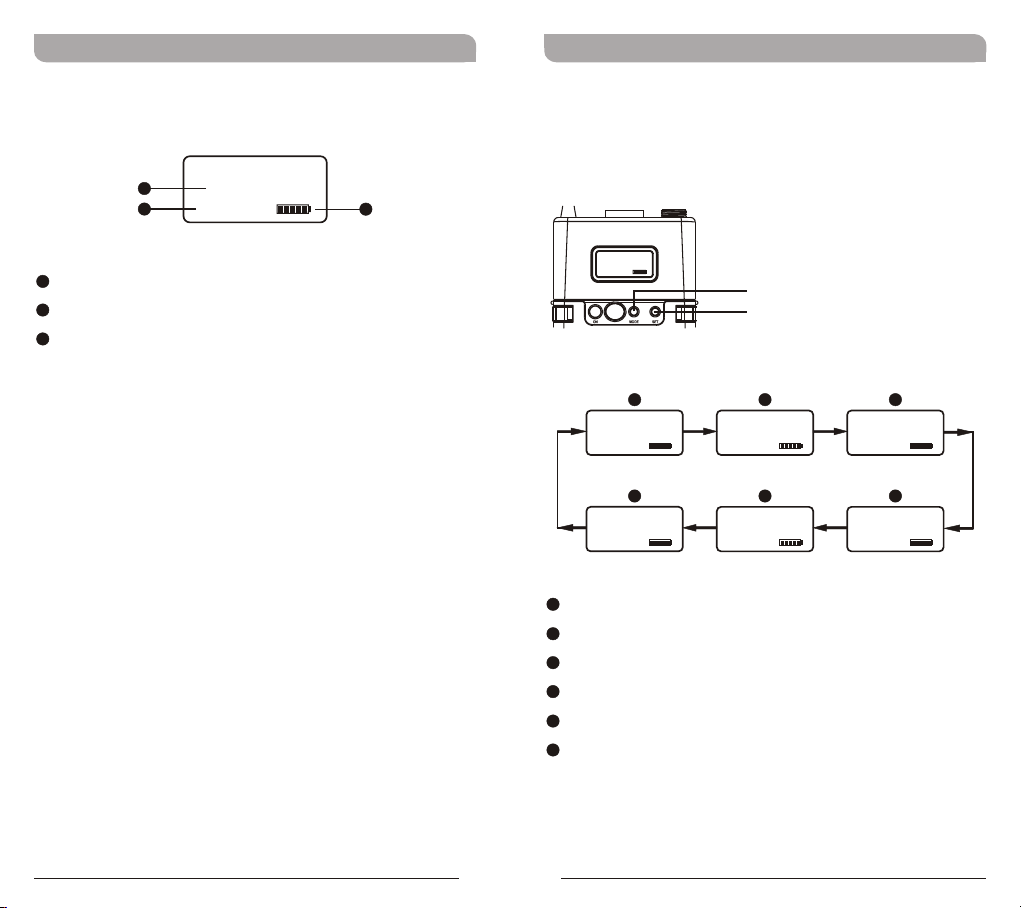

Display Screen

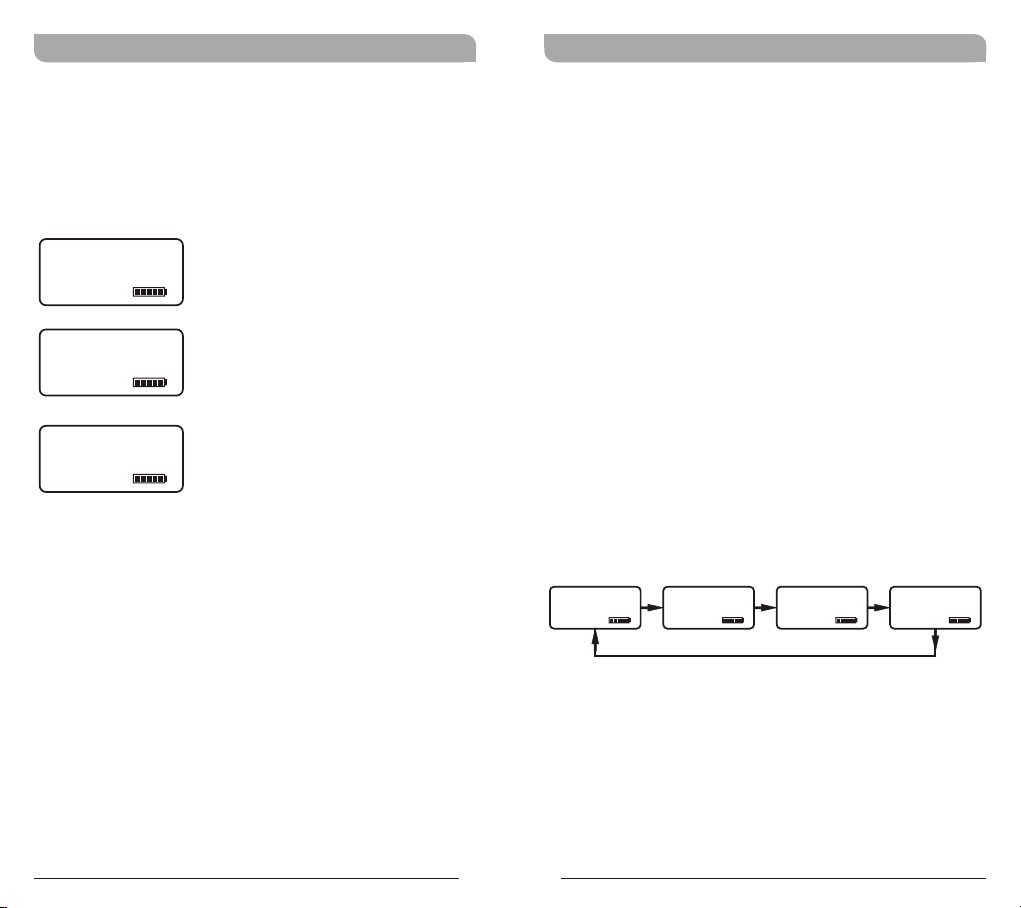

ransmitter Parameters

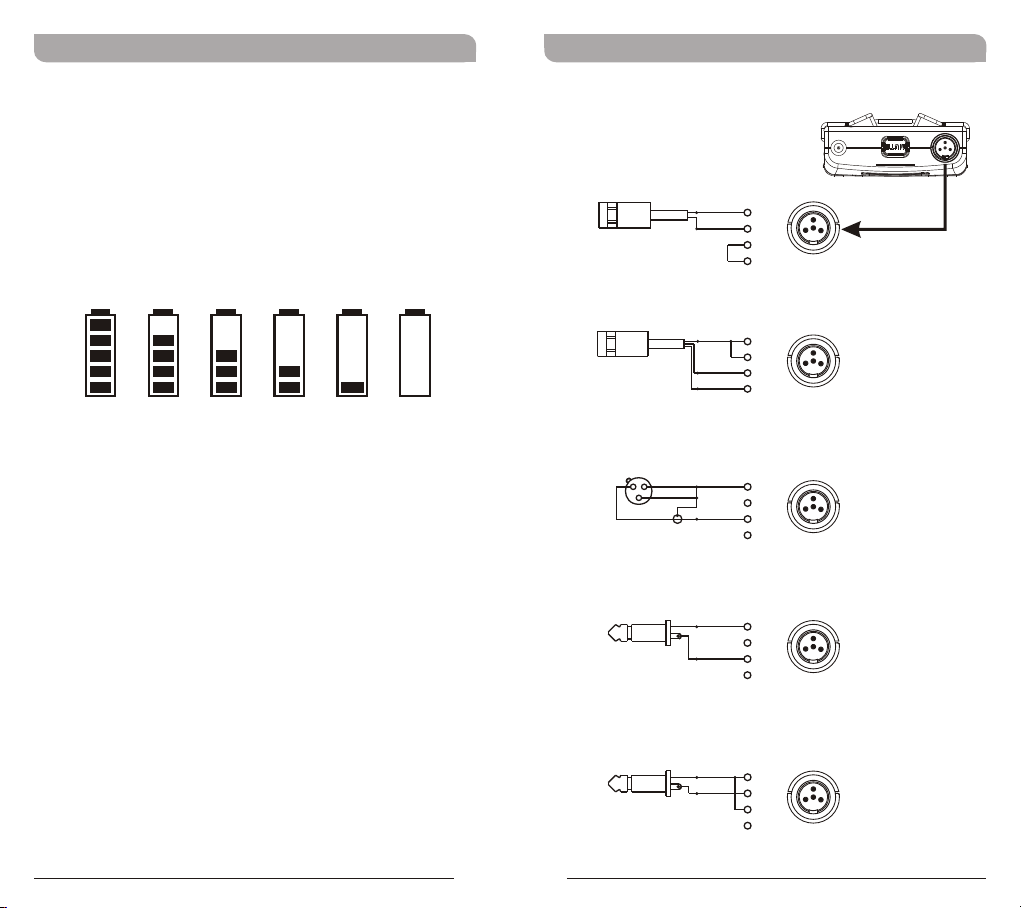

14 Battery Status

15 AF

16 B

Input Connections

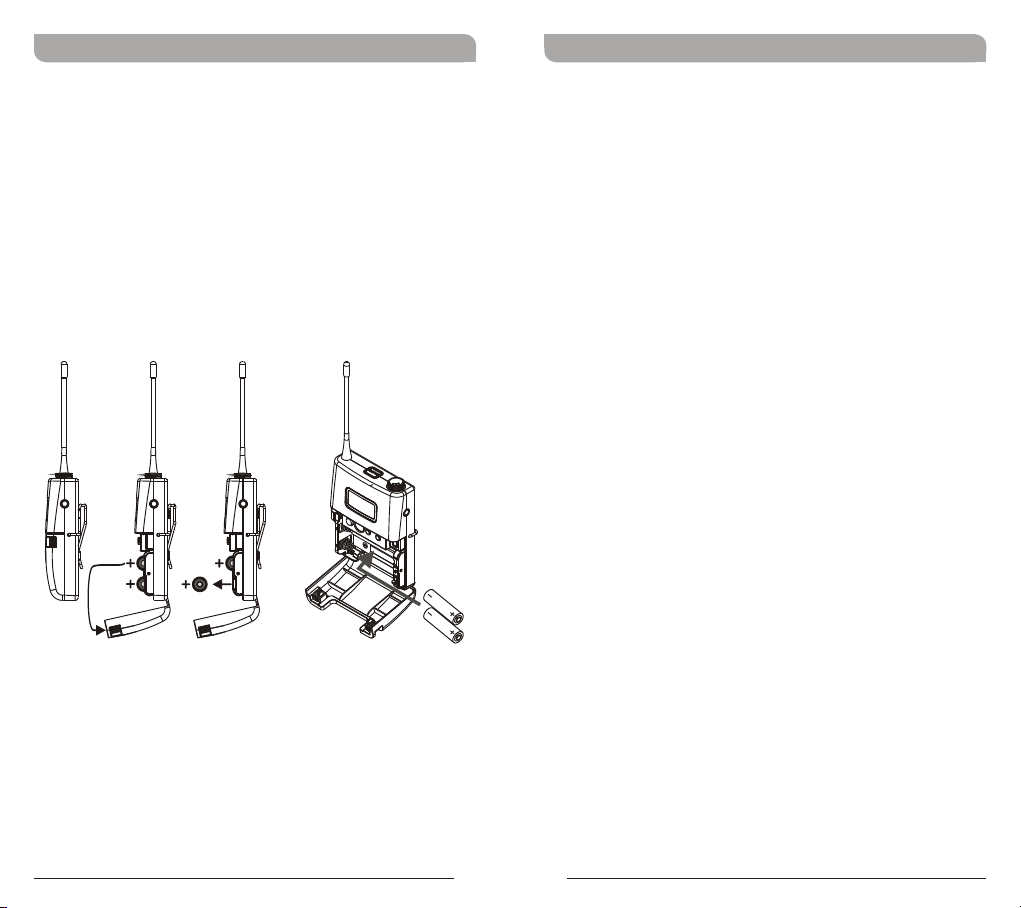

attery Removal and Installation

Key FeaturesContents

Sturdy, lightweight, miniature-sized housing.

!

Backlit LCD displays on transmitters for easy

!

adjustment on dark stages.

ACT™ syncs the transmitter and receiver

!

frequency automatically.

Pilotone squelch for interference-free operation.

!

Built-in transmitter gain adjustment.

!

! Impedance selectable switch for microphone or

guitar.

! 4-pin mini XLR connector is compatible with all

MIPRO lavalier, headworn microphones and
instrument cable.

! Silent on/off switch.

! 4-segment battery status meter.

! LCD displays group, channel & error message

code.

! 20-hour battery life per 2 'AA' alkaline batteries.

! ACT-30T is a 24MHz bandwidth bodypack

transmitter. Plastic housing and is compatible with
ACT-311, ACT-312, ACT-311T and ACT-312T
receivers.

0

1

Bodypack Transmitter Bodypack Transmitter

Furnished Accessories:

! USER GUIDE ×1

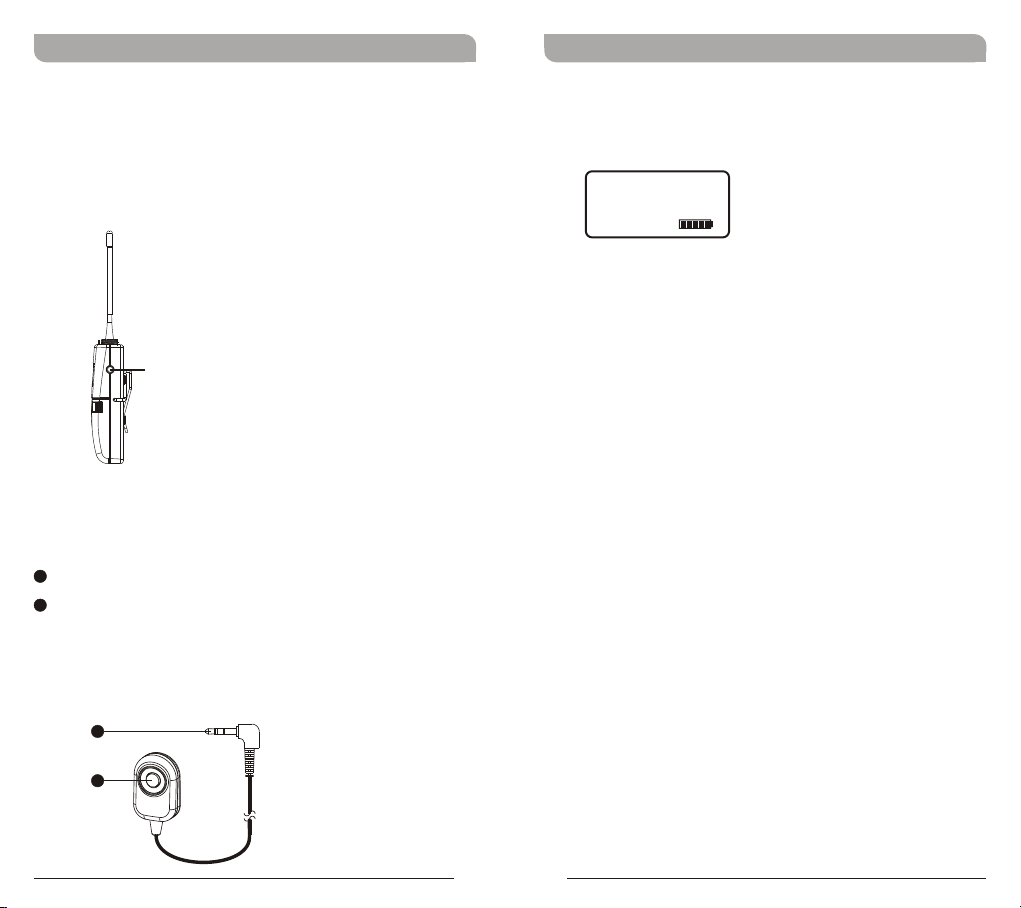

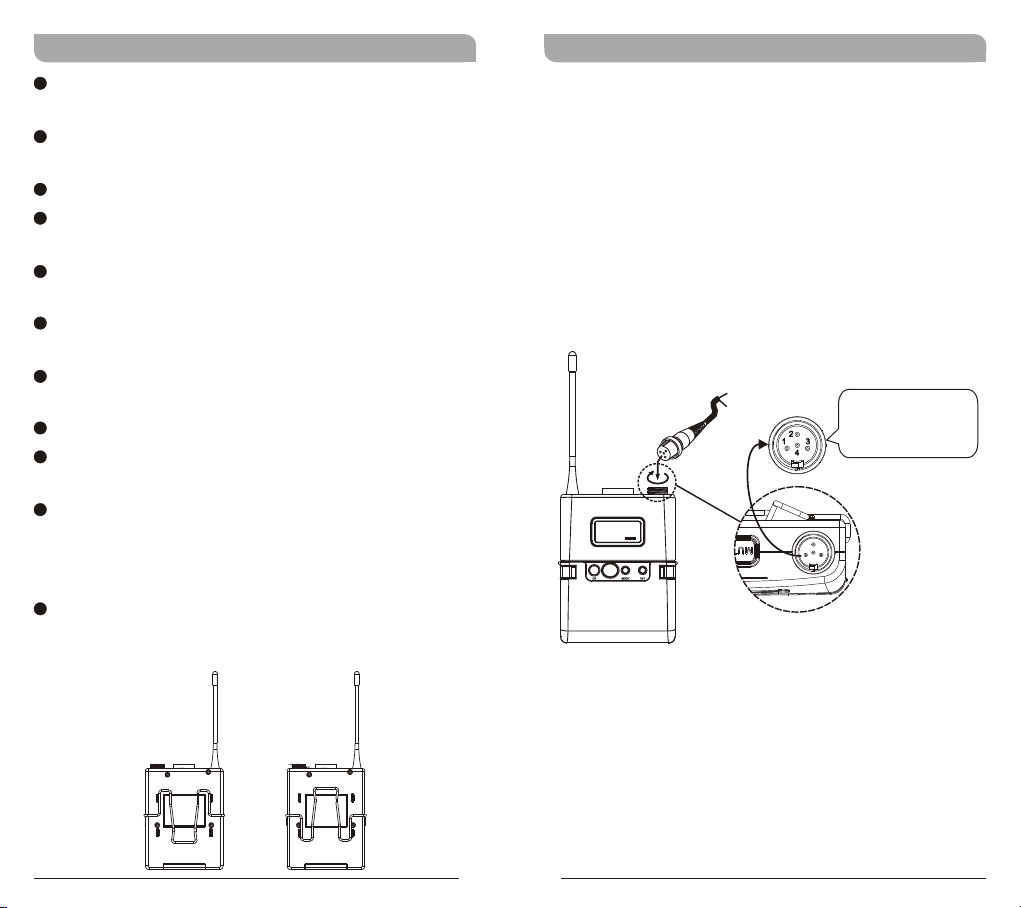

Bodypack Controls and Indicators

11

22

33

44

CH GRP

55

66

77

88

99

1010

1111

CH GRP

07 03

07 03

1212

1313

11

Audio Input Connector: TA4F mini 4-pin
connector accepts any MIPRO lavalier, instrument
and headset microphones and cables. (See 5
ways of connection on AF Input Connections)

22

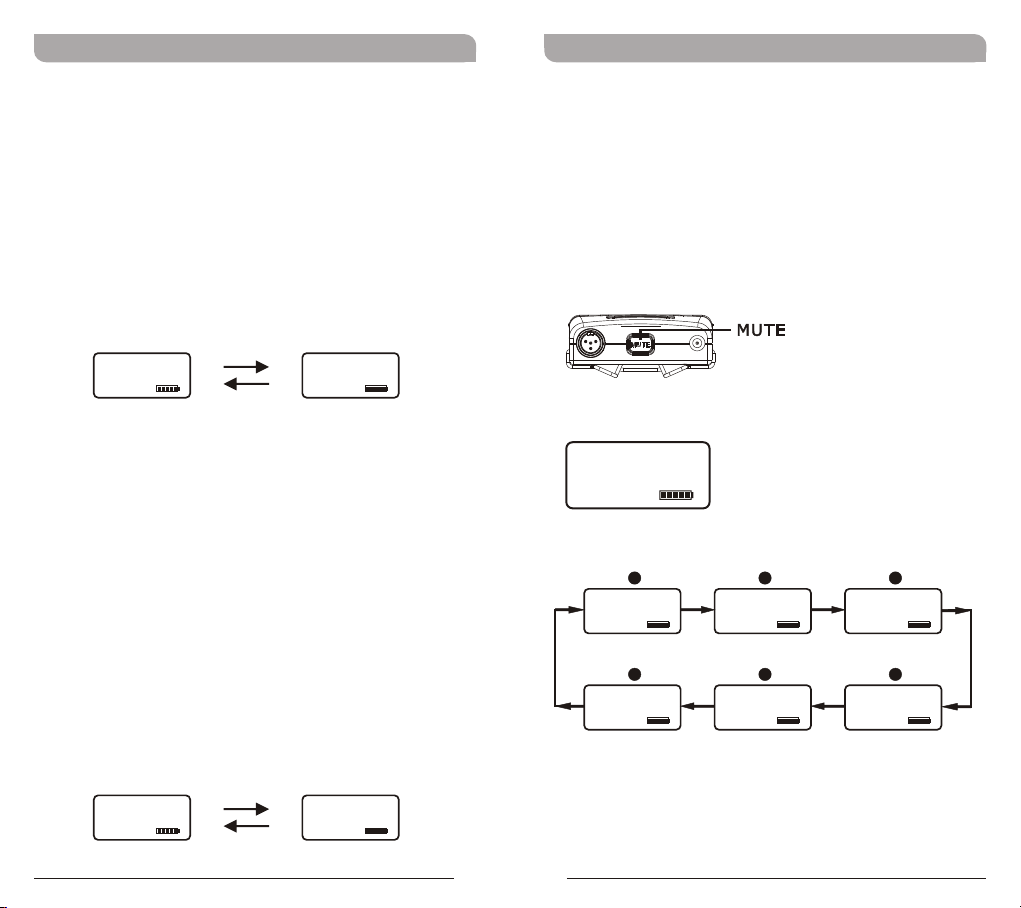

MUTE Button: To mute and un-mute the audio
signal temporary.
