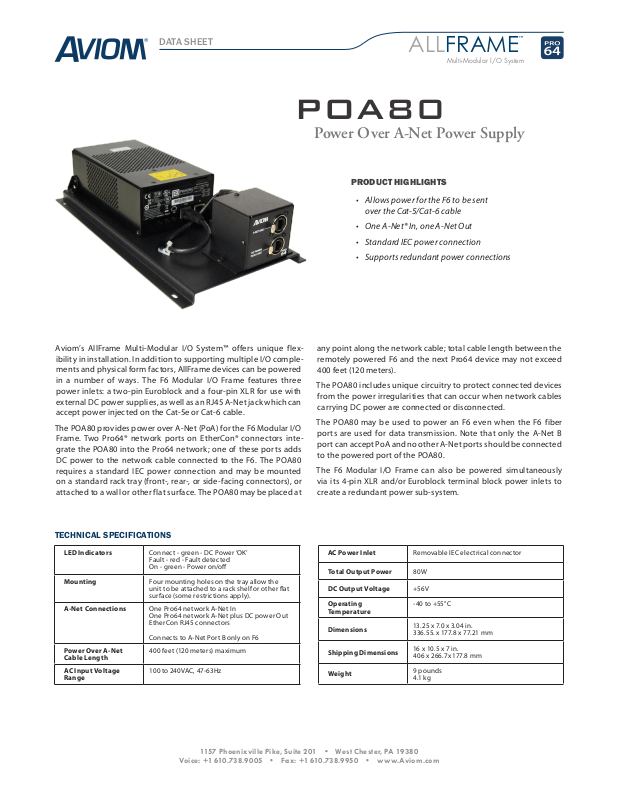

DATA SHEET

™

ALLFRAME

Multi-Modular I/O System

POA80

Power Over A-Net Power Supply

PRODUCT HIGHLIGHTS

Allows power for the F6 to be sent •
over the Cat-5/Cat-6 cable

One A-Net® In, one A-Net Out•

Standard IEC power connection•

Supports redundant power connections •

Aviom’s AllFrame Multi-Modular I/O System™ offers unique flex­ibility in installation. In addition to supporting multiple I/O comple­ments and physical form factors, AllFrame devices can be powered
in a number of ways. The F6 Modular I/O Frame features three
power inlets: a two-pin Euroblock and a four-pin XLR for use with
external DC power supplies, as well as an RJ45 A-Net jack which can
accept power injected on the Cat-5e or Cat-6 cable.

The POA80 provides power over A-Net (PoA) for the F6 Modular I/O

Frame. Two Pro64® network ports on EtherCon® connectors inte­grate the POA80 into the Pro64 network; one of these ports adds
DC power to the network cable connected to the F6. The POA80
requires a standard IEC power connection and may be mounted
on a standard rack tray (front-, rear-, or side-facing connectors), or
attached to a wall or other flat surface. The POA80 may be placed at

Technical SpecificaTionS

LED Indicators Connect - green - DC Power ‘OK’

Moun ting Four mounting holes on the tray allow the

A-Net Connections One Pro64 network A-Net In

Power Over A-Net
Cabl e Length

AC Input Volt age
Range

Fault - red - Fault detected
On - green - Power on/o

unit to be attached to a rack shelf or other at
surf ace (some restric tions apply).

One Pro64 network A-Net plus DC power Out
EtherCon R J45 connectors

Connects to A-Net Por t B only on F6

400 feet (120 meters) maximum

100 to 240VAC, 47-63Hz

any point along the network cable; total cable length between the
remotely powered F6 and the next Pro64 device may not exceed
400 feet (120 meters).

The POA80 includes unique circuitry to protect connected devices

from the power irregularities that can occur when network cables
carrying DC power are connected or disconnected.

The POA80 may be used to power an F6 even when the F6 fiber

ports are used for data transmission. Note that only the A-Net B
port can accept PoA and no other A-Net ports should be connected
to the powered port of the POA80.

The F6 Modular I/O Frame can also be powered simultaneously
via its 4-pin XLR and/or Euroblock terminal block power inlets to

create a redundant power sub-system.

AC Power Inle t Removable IEC electric al connector

Total Output Power 80W

DC Output Voltage +56V

Operating
Temperature

Dimensions

Shipping Dimensions

Weight

-40 to +55°C

13.25 x 7.0 x 3.04 in.

336.55. x 177.8 x 77.21 mm

16 x 10.5 x 7 in.
406 x 266.7x 177.8 mm

9 pounds

4.1 kg

1157 Phoenixville Pike, Suite 201 • West Chester, PA 19380

Voice: +1 610.738.9005 • Fax: [phone] • www.Aviom.com

3.038 in.,

77.21 mm

5.843 in.,

148.41 mm

7.00 in.,

177.8 mm

.579 in.,

14.70 mm

.550 in.,

13.97 mm

.876 in.,

22.25 mm

11.500 in.,

292.1 mm

.187 x 3.50 in.,

4.74 x 8.89 mm
Slot

.949 in.,

24.10 mm

6.550 in.,

166.37 mm

3.038 in.,

77.21 mm

5.843 in.,

148.41 mm

7.00 in.,

.579 in.,

14.70 mm

.550 in.,

13.97 mm

.876 in.,

22.25 mm

11.500 in.,

292.1 mm

.187 x 3.50 in.,

4.74 x 8.89 mm

Slot

.949 in.,

24.10 mm

6.550 in.,

166.37 mm

13.25 in.,

336.55 mm

7.000 in.,

177.80 mm

3.038 in.,

77.21 mm

3.038 in.,

77.21 mm

13.25 in.,

336.55 mm

13.25 in.,

336.55 mm

7.000 in.,

177.80 mm

3.038 in.,

77.21 mm

POA80

Power Over A-Net
Power Supply

MounTing noTice

The POA80 can be mounted on both horizontal and vertical surfaces. However, do not mount the POA80 horizontally on
a vertical surface such as a wall or interior of a rack, and do not mount the POA80 upside down.

archiTecTural SpecificaTion

The Aviom POA 80 shall provi de DC power and A- Net d igital a udio dat a over a
Cat-5e/Cat-6 cable to an AllFrame I/O device.

Front-panel features shall include LED indicators for Power On, Connect, and
Error. It shall employ two EtherCon® RJ45 con nec tors fo r the A-N et digi tal
signal connections.

Aviom, A‑Net , the A‑Net ic on, Pro16, Pro6 4, Virtual Da ta Cable s, m‑contr ol, and AllFr ame are tra demarks o f Aviom, Inc. Al l other trad emarks a re the prop erty o f their
respe ctive owne rs. ©2012 Aviom, Inc. A ll rights r eser ved. Inform ation subje ct to chan ge without n otice. rev. 1.0 022212



All Aviom prod ucts are designed and man ufactured in the USA.



The unit shall be AC powered (100 to 240VAC, 47- 63Hz) an d have an IEC p ower
inlet with detachable cable. It shall be UL listed.

Its dime nsions shall be 7.0 inch es wide , 13. 25 inch es long , and 3.04 in ches high.
Its ne t weight sha ll be 9 p ounds, a nd it s fro nt panel shall be finished in bl ack.
The un it shall be Aviom Incorpor ated mod el POA80.


