Aviom D400-Dante User Manual

D400-Dante

1 – 16

Stereo / Mono

17 – 32

1234

5678

Primary

Out

Secondary

Sync

Power

D400

e

A-Net Offset Base Slot

11733

1234

Stereo / Mono

1 – 16

49

Defeat Stereo Switches

17 – 32

5678

In

Out

Sync

Power

D400

e

D400

A-Net Distributor

9310 1033 0001F rev 1.0

© 2015 Aviom, Inc.

User Guide

READ THIS FIRST

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or third prong are provided for your safety. If the provided plug
does not fit your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been
damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.

15. The apparatus shall be connected to a Mains power outlet with a protective grounding/earthing
connection.

16. Where the Mains plug or an appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.

The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in this
manual.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to
alert the user to the presence of uninsulated “dangerous” voltage within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
humans.

ii

WARNING!

TO REDUCE THE DANGER OF ELECTRICAL SHOCK DO NOT REMOVE COVERS.

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

To reduce the risk of fire or electrical shock, do not expose this product to rain or other types of moisture.

To avoid the hazard of electrical shock, do not handle the power cord with wet hands.

Replace fuse with same type and rating.

Operating Temperature: 0˚C to 40˚C (32˚F to 104˚F)

Risque de choc électrique – ne pas ouvrir. Pour réduire le risque de feu ou de choc électrique, ne pas exposer cet équipement
à la pluie ou la moisissure. Pour réduire le risque de choc électrique, ne pas retirer le couvercle. Pièces non remplaçables par
l’utilisateur. Confier la réparation à une personne qualifiée. Attention – utiliser seulement un fusible de rechange de même type.

Cet appareil est conforme à la section 15 de la norme FCC. Son fonctionnement est soumis aux conditions suivantes : (1) cet
équipement ne doit pas causer des interférences nocives, et (2) cet équipement doit accepter toute interférence captée incluant les
interférences pouvant causer des opérations indésirables.

Cet appareil numérique de Classe B est conforme à la norme NMB-003 du Canada.

IMPORTANT:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to the product not expressly approved by Aviom, Inc. could void the user’s FCC
authority to operate the equipment.

CAUTION:

• Using any audio system at high volume levels can cause
permanent damage to your hearing.

• Set your system volume as low as possible.

• Avoid prolonged exposure to excessive sound pressure levels.

iii

Certifications

EMC: EN55103-1:20 09

EN 55103-2: 2009
EN 55022:2006 / CISPR 22:1997
CAN/CSA-CEI/IEC CISPR 22:02

FCC 47 CFR, Part 15

Safety: UL 62368-1 Ed 2.0
Testing done to UL 62368-1 first edition

Can/CSA C22.2 62368-1

ETL/cETL Listed and RoHS Compliant

Pb

Pb-Free

Note: For connections to Personal Mixers shielded Cat-5e (or better) cable must be used to stay

P

below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
Unshielded Cat-5e cable may be used on all other connections.

Notice of Rights

All rights reserved. No part of this document may be reproduced or transmitted in any form or by any
means—electronic, mechanical, photocopy, recording, or otherwise—without written permission of
Aviom, Inc.

Trademarks

Aviom, A-Net, the A-Net icon, Pro16, Pro16e, Pro64, Virtual Data Cables, m-control, One-Touch Ambience,
Dual Profile Channel, Network Mix Back, and AllFrame are trademarks of Aviom, Inc.

Audinate®, the Audinate logo and Dante are trademarks of Audinate Pty Ltd.
Audinate products are protected by one or more of US Patents 7747725, 8005939, 7978696, 8171152, and
other patents pending or issued. See www.audinate.com/patents.

Apple, the Apple logo, and iPhone are registered trademarks of Apple Inc.

All other trademarks are the property of their respective owners.

©2015 Aviom, Inc. All rights reserved. Information is subject to change without notice.

iv

Aviom, Inc. Limited Warranty

Aviom, Inc. warrants this product against defects in materials and workmanship for a period of one year
from the date of the original retail purchase.

This warranty does not apply if the equipment has been damaged due to misuse, abuse, accident, or
problems with electrical power. The warranty also does not apply if the product has been opened or
modified in any way; if the product serial number has been damaged, modified, or removed; or if the
original Quality Assurance label has been damaged, modified, or removed.

If a defect is discovered, first write or call Aviom, Inc. to obtain a Return Authorization number. No service
will be performed on any product returned without prior authorization. Aviom, Inc. will, at its option, repair
or replace the product at no charge to you. The product must be returned during the warranty period,
with transportation charges prepaid to Aviom, Inc., 1157 Phoenixville Pike, Suite 201, West Chester, PA

19380. You must use the product’s original packing materials for shipment. Shipments should be insured
for the value of the product. Include your name, address, phone number, description of the problem, and
copy of the original bill of sale with the shipment. The Return Authorization number should be written on
the outside of the box.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS, WHICH
VARY FROM STATE TO STATE (OR JURISDICTION TO JURISDICTION). AVIOM’S RESPONSIBILITY FOR
MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPAIR AND REPLACEMENT AS SET FORTH
IN THIS LIMITED WARRANTY STATEMENT. ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE. NO
WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER SUCH PERIOD.

AVIOM, INC. DOES NOT ACCEPT LIABILITY BEYOND THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY
DOCUMENT. AVIOM, INC.’S LIABILITY IS LIMITED TO THE REPAIR OR REPLACEMENT, AT OUR OPTION, OF
ANY DEFECTIVE PRODUCT, AND SHALL IN NO EVENT INCLUDE INCIDENTAL OR CONSEQUENTIAL DAMAGES
OF ANY KIND.

SOME STATES DO NOT ALLOW EXCLUSIONS OR LIMITATION OF IMPLIED WARRANTIES OR LIABILITY FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

v

Warranty Information

Please record the following information for future reference:

Your Authorized Aviom Dealer:

Name:

Address:

Phone:

Serial Numbers of Your Aviom Products:

Date of Purchase:

Your Authorized Aviom Dealer is your primary source for service and support. The information recorded
above will be helpful in communicating with your Authorized Aviom Dealer should you need to contact
Aviom Customer Service. If you have any questions concerning the use of this unit, please contact your
Authorized Aviom Dealer first. For additional technical support, or to find the name of the nearest
Authorized Aviom Repair Station, check the Aviom web site at www.aviom.com.

To fulfill warranty requirements, your Aviom product should be serviced only at an authorized Aviom
service center. The Aviom serial number label must appear on the outside of the unit, or the Aviom
warranty is void.

This manual and its contents are copyrighted by Aviom, Inc. All rights are reserved by Aviom, Inc. This
document may not, in whole or in part, be copied, photocopied, reproduced, translated, or reduced to any
electronic medium or machine-readable form without prior written consent from Aviom, Inc.

The software and/or firmware contained within Aviom products is copyrighted and all rights are reserved
by Aviom, Inc.

Although every effort has been made to ensure the accuracy of the text and illustrations in this manual, no
guarantee is made or implied as to the accuracy of the information contained within.

vi

Table of Contents

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . ii

Certications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv

Aviom, Inc. Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . v

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . vi

D400 and D400-Dante . . . . . . . . . . . . . . . . . . . . . . . 1

Conventions Used in this Document . . . . . . . . . . . . . . . 2

Using Personal Mixers . . . . . . . . . . . . . . . . . . . . . . . 2

Cat-5 Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

A-Net Distributors . . . . . . . . . . . . . . . . . . . . . . . . . 2

Button Presses . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 3

About A-Net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Pro16 Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Pro64 Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

About Category 5 . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Cat-5 Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Cable Lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

AC Line Conditioning . . . . . . . . . . . . . . . . . . . . . . . . 7

Cleaning and Maintenance Information . . . . . . . . . . . . . 7

D400 A-Net Distributor . . . . . . . . . . . . . . . . . . . . . . . 8

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

A-Net In, D400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Dante Connections, D400-Dante . . . . . . . . . . . . . . . . . . . . 11

Dante Primary Port . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Dante Secondary Port . . . . . . . . . . . . . . . . . . . . . . . . . . 12

viiD400 anD D 400 -Dante a-ne t Distributors user G uiDe

A-Net Ports 1 to 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

A-Net Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Stereo Link DIP Switches . . . . . . . . . . . . . . . . . . . . . . . . . 14

DIP Switch Block 1 . . . . . . . . . . . . . . . . . . . . . . 15

DIP Switch Block 2 . . . . . . . . . . . . . . . . . . . . . . 15

A-Net Oset Base Slot . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Channel Mapping . . . . . . . . . . . . . . . . . . . . . . . . . 17

Stereo Channels . . . . . . . . . . . . . . . . . . . . . . . . 19

Sync LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Power LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Dante Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Routing Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Clock Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

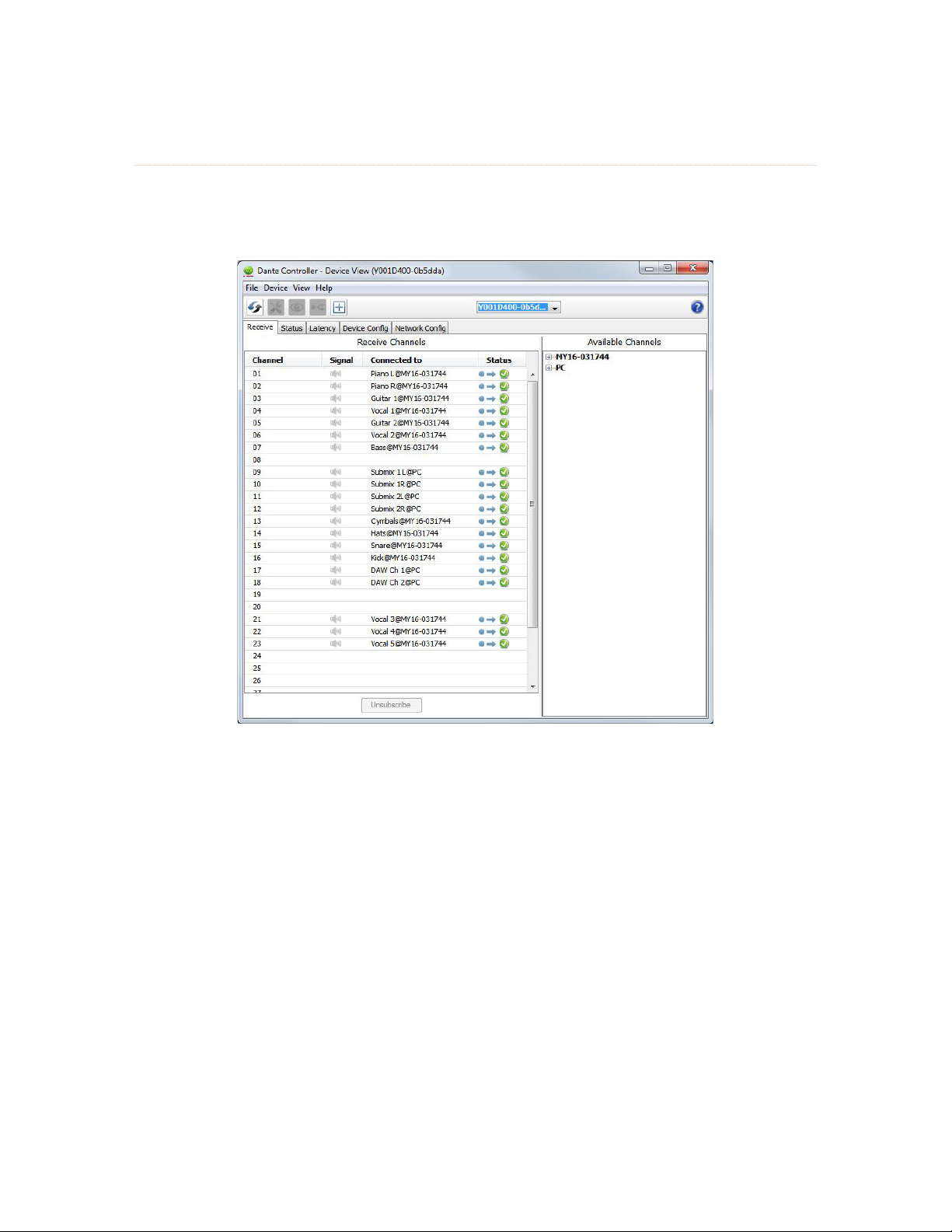

Device View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Status Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Device Config Tab . . . . . . . . . . . . . . . . . . . . . . . . . 27

Network Config Tab . . . . . . . . . . . . . . . . . . . . . . . . 28

Personal Mixing Systems . . . . . . . . . . . . . . . . . . . . . . 29

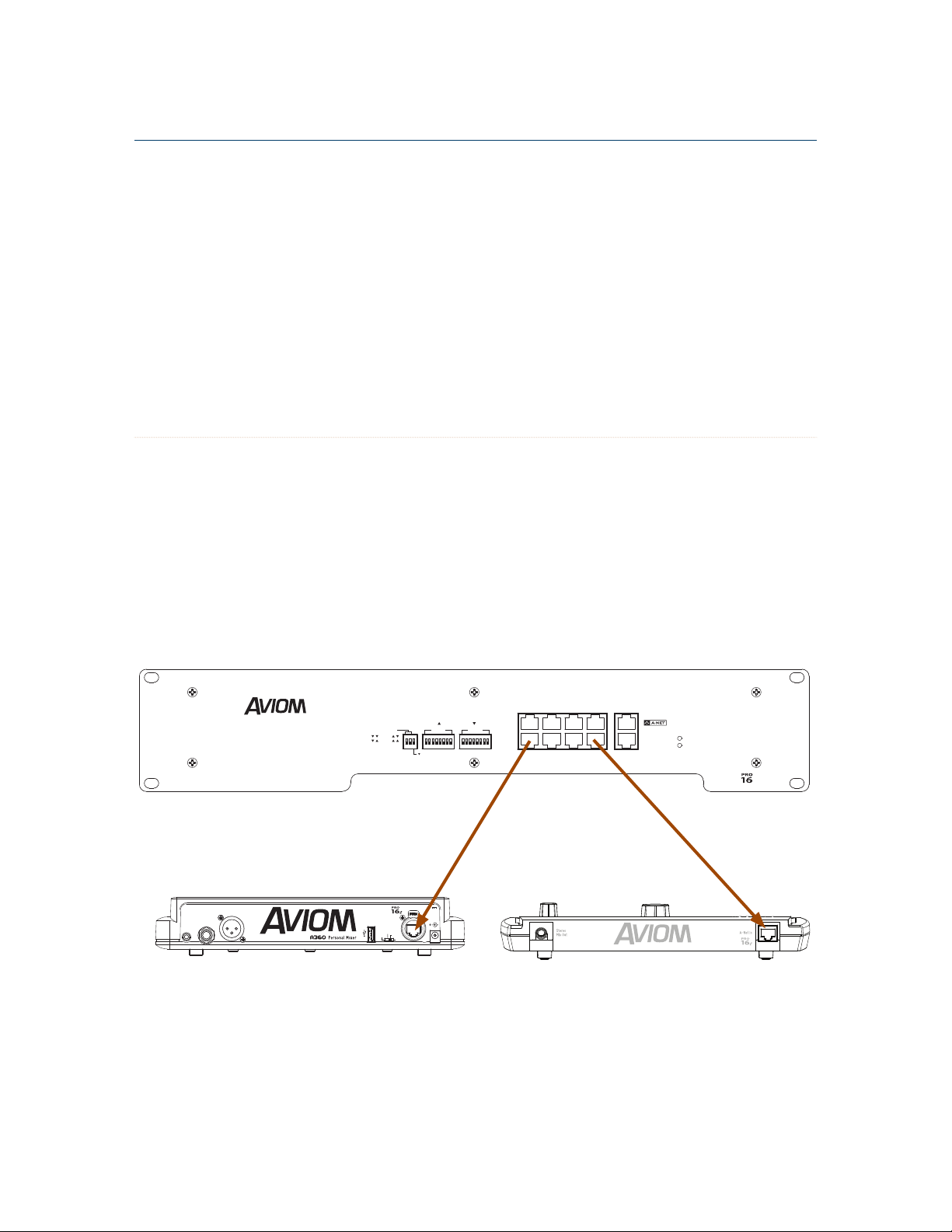

Connecting Personal Mixers . . . . . . . . . . . . . . . . . . . . . . . 29

16-Channel Personal Mixing Systems . . . . . . . . . . . . . . 30

About A-Net Offset Base Slot . . . . . . . . . . . . . . . . . . . 31

Stereo Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

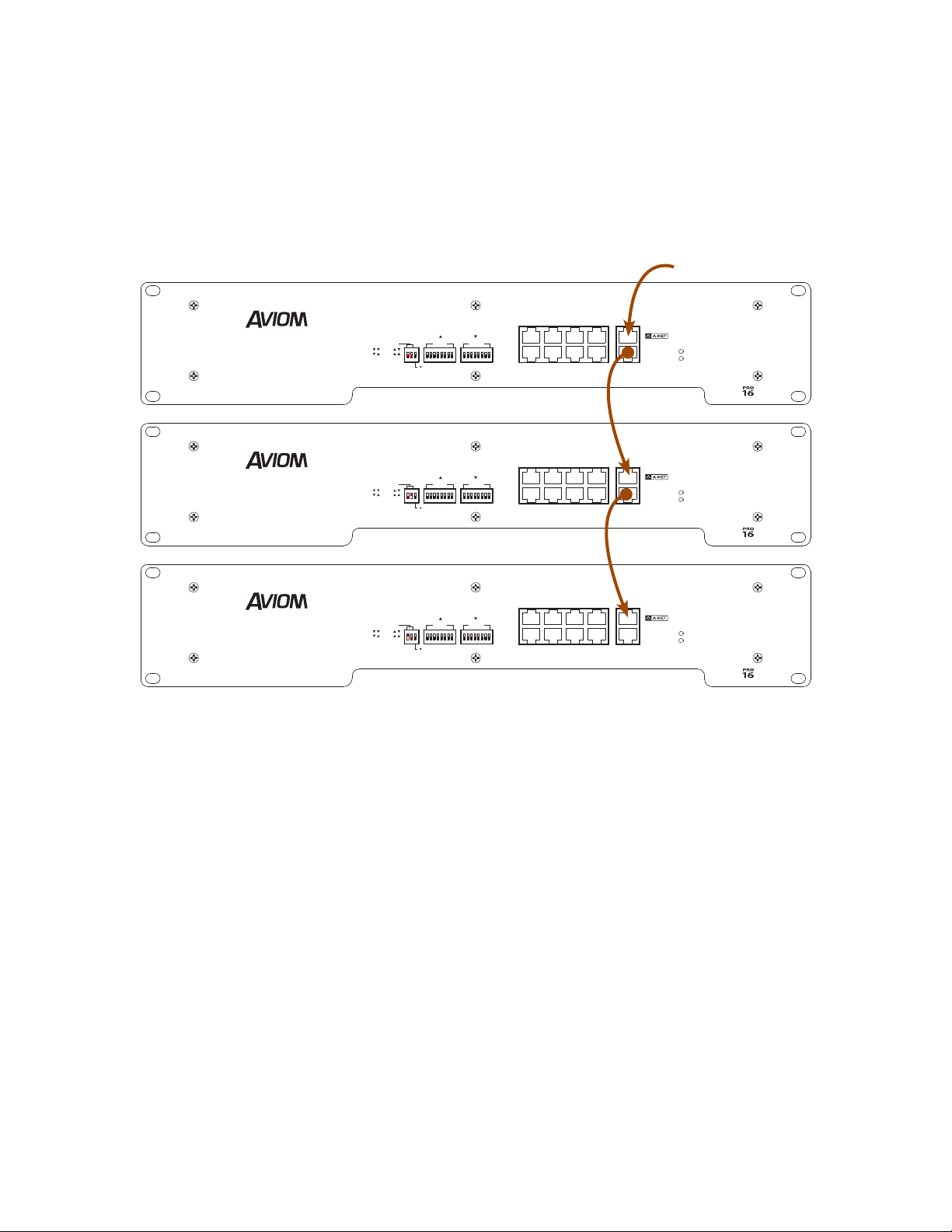

Using Multiple A-Net Distributors . . . . . . . . . . . . . . . . . . . . 35

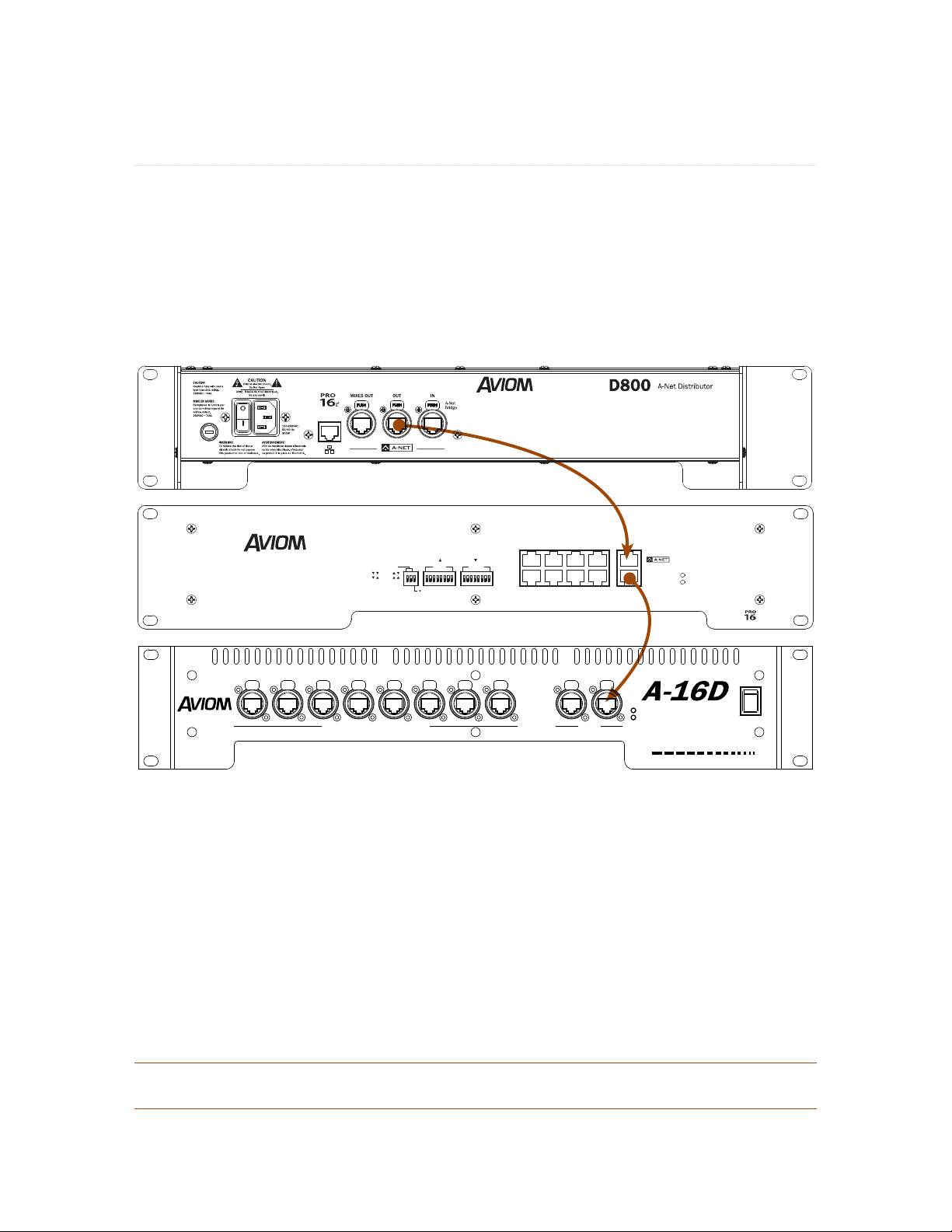

Using the D400 With the D800 and A-16D Pro . . . . . . . . . . . . . . 36

D400 and D400-Dante A-Net Distributor Specications . . . 37

Common Specifications . . . . . . . . . . . . . . . . . . . . . . 37

D400 A-Net Distributor Specifications . . . . . . . . . . . . . . . 38

D400-Dante A-Net Distributor Specifications . . . . . . . . . . . . 38

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Cat-5 Cable Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . 40

T568A . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

T568B . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Warranty Registration . . . . . . . . . . . . . . . . . . . . . . . . . . 44

viiiD400 an D D400-Dant e a-net Distribu tors user GuiDe

D400 and D400-Dante

Thank you for purchasing the Aviom D400 and/or D400-Dante A-Net Distributor. This User
Guide is designed to familiarize you with your new product’s features and to have your
personal mixing system up and running as quickly as possible.

Two versions of the D400 are available: the standard D400 includes a Pro16e® A-Net® input,
compatible with all Pro16® Series and Pro16e-capable devices; the D400-Dante offers Dante
Primary and Secondary inputs for connectivity to a Dante™ digital audio network.

WARNING!

To reduce the risk of fire or
electric shock do not expose

this product to rain or moisture.

D400

AVERTISSEMENT!

Afin de réduire le risque d’incendie

ou de choc électrique, n’exposez

ce produit à la pluie ou l’humidité.

Stereo / Mono

1 – 16

A-Net Offset Base Slot

11733

49

Defeat Stereo Switches

17 – 32

The front panel of the D400

Stereo / Mono

1 – 16

17 – 32

The front panel of the D400-Dante

A-Net Distributor

1234

5678

1234

5678

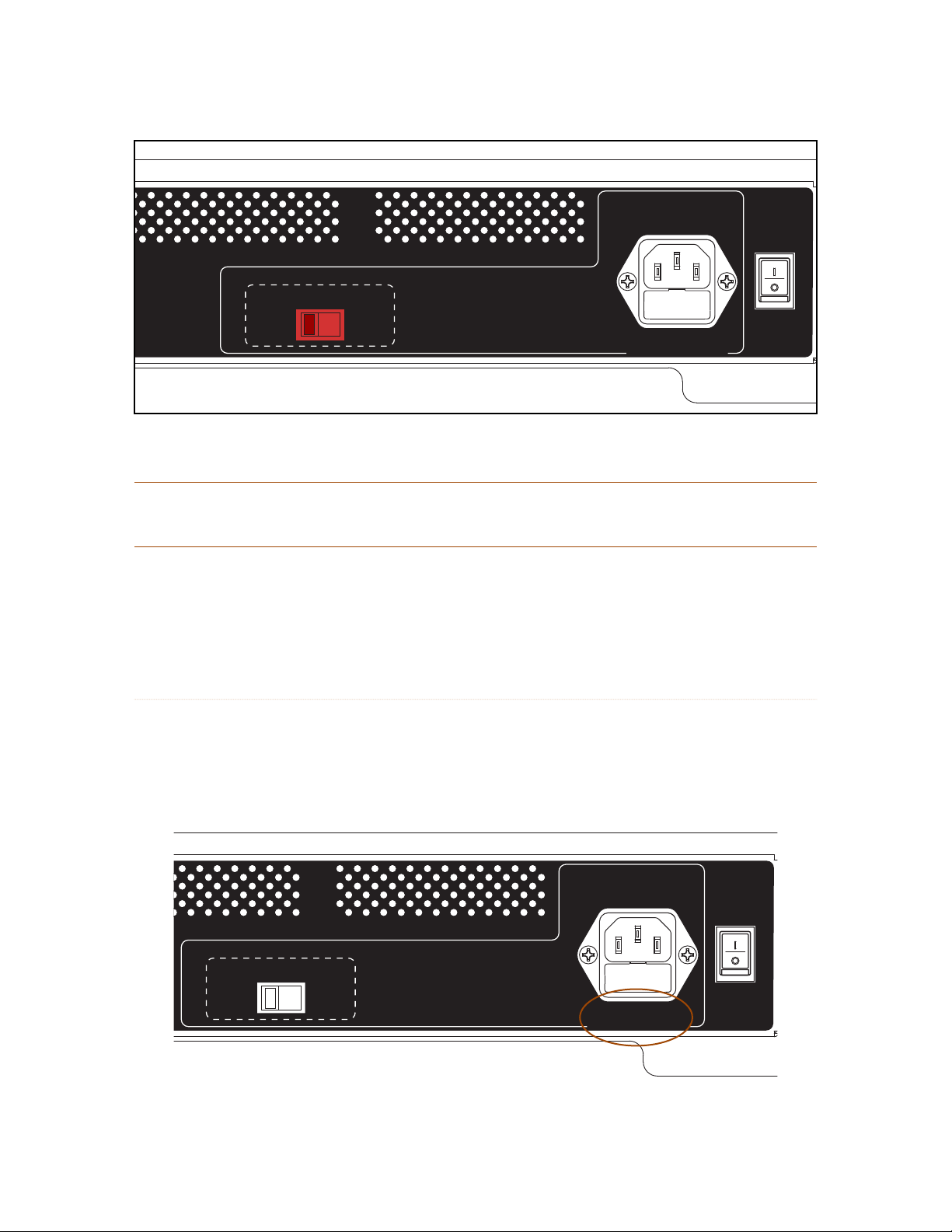

INPUT VOLTAGE SELECTION

115V 230V

CAUTION!

Ensure the power supply
voltage selector switch is
correctly set for your region
before use or damage to
the unit will occur.

In

Out

Primary

Out

Secondary

ATTENTION!

Avant l’utilisation, assurez-vous que le
sélecteur de tension d'alimentation est
correctement placé afin d’être compatible
à votre région, sinon votre unité sera
endommagée.

Sync

Power

Sync

Power

ATTENTION:

Lors du remplacement du
fusible, veuillez sélectionner
le type et le calibre adapté
à votre tension.

115V: T2.5AL/250V fuse
230V: T1.25AL/250V fuse

D400

D400

CAUTION:

Replace fuse with
correct type and
rating for your
selected voltage.

e

e

The rear panel of the D400 and D400-Dante are identical.

1D400 anD D4 00- Dante a-net D istribu tors user GuiDe

Conventions Used in this Document

Using Personal Mixers

When referring to the use of the Personal Mixers in a personal mixing system in general, the term Personal
Mixer is used to describe a case where an A360 Personal Mixer, A320 Personal Mixer, or legacy A-16II or

A-16R Personal Mixers can be used.

Cat-5 Cables

In most cases Cat-5e, Cat- 6, and Cat- 6e cables can be interchanged. When speaking about interconnections
between components in a system, the term Cat-5 is used generically to indicate the use of any of the
applicable cable types.

A-Net Distributors

The D800, D800-Dante, D400, D400-Dante, as well as the legacy A-16D, and A-16D Pro A-Net Distributors
are referred to generically as A-Net Distributors. All are used to copy an A-Net digital signal and split it
into multiple copies so that devices may be connected in parallel. In a case where either the D400 or D400­Dante version of the product may be used, the text will reference the D400. In a case where either the
D800 or D800-Dante version of the product may be used, the text will reference the D800.

Button Presses

When instructed to press a specific button, move a switch, or when referring to a specific port, jack, etc.,
on a product, a special font style is used. For example, “Connect a Cat-5 cable to the A-Net IN port.”

Slots

Audio channels from analog input devices or digital console cards connected to the network are referred
to as slots. There are a total of 64 slots in an A-Net network.

2D400 anD D4 00- Dante a-net D istribu tors user GuiDe

Package Contents

The D400 (or D400-Dante) A-Net Distributor box includes:

• One A-Net Distributor

• IEC power cable

• Documentation

Options for your personal mixing system include:

• Cat-5e/Cat-6 interconnect cables

• D800, D800-Dante, D400, or D400-Dante A-Net Distributors

• A360 Personal Mixers

• A320 Personal Mixers

• A-16II Personal Mixers

• Dante Controller software, available free from the Audinate website

A Warranty Registration can be found within this User Guide. Be sure to fill out the form and return it to
Aviom, Inc. via mail or fax as soon as possible.

About A-Net

A-Net® is a proprietary high-speed data transmission protocol developed by Aviom, capable of sending
and receiving high-quality digital audio using readily available Cat-5 cables.

A-Net is based on the physical layer of Ethernet, a Local Area Network (or LAN) technology. This provides
A-Net with a mature and robust base on which to build. However, it is important to note that A-Net devices
are not compatible with Ethernet devices.

Some of the benefits of using A-Net to transmit digital audio are:

• Virtually no latency; analog in to analog out is always less than one millisecond

• No ground loops

• Easy cabling using readily available components

• An unlimited number of A-Net devices can be used in a system

• Ease in spanning long distances between system components

There are two versions of Pro16 A-Net: the original Pro16 A-Net signal carries sixteen channels of digital
data while the enhanced Pro16e® version of A-Net is capable of carrying up to 64 channels of digital audio
data. Like standard Pro16 A-Net, Pro16e is a point-to-point digital audio protocol.

Pro16e A-Net data is intended for use with the A360 and A320 Personal Mixers which can take advantage
of the higher network channel count that Pro16e provides.

3D400 anD D4 00- Dante a-net D istribu tors user GuiDe

Compatibility

The D400 and D400-Dante A-Net Distributors are compatible with Pro16, Pro16e, and Pro64 A-Net devices
as detailed below.

Pro16 Products

The A-Net Ou t from the following Pro16 devices may be connected to the D400’s A-Net IN port:

• AN-16/i v.2 Input Module

• AN-16/i-M Mic Input Module

• AV-M8 Mic Input Module

• Aviom16/o-Y1 A-Net Card for Yamaha® devices

• AN-16/o v.4 Output Module

• AV-P2 Output Module

• D800 or D800-Dante A-Net Distributors

• Third-Party Pro16 A-Net digital console cards

Legacy Products:

• AN-16/i Input Module

• A-16II Personal Mixer

• A-16R Rack-mount Personal Mixer

• A-16D and A-16D Pro A-Net Distributors

Pro64 Products

Adding the ASI A-Net Systems Interface to a Pro64® digital snake or audio network allows Pro64 channels
to be translated into Pro16 data. The ASI separates the 64-channel Pro64 stream into four 16-channel Pro16
outputs, each of which can be assigned any combination of the available active Slots within the Pro64
network. Any of the four Pro16 A-Net outputs from the ASI may be connected to the A-Ne t IN on the D400.

The ASI’s Pro16 A-Net outputs can also be connected to the A-Net IN on the AN-16/i v.2 Input Module when
creating a personal mixing system that uses the enhanced Pro16e version of A-Net for increased channel
count.

4D400 anD D4 00- Dante a-net D istribu tors user GuiDe

About Category 5

The term Category 5 (also referred to as Cat-5) is broadly used to describe a type of high performance
network cabling used for data transmission purposes to connect computer networks and other devices.
A standard patch cable consists of four twisted pairs of copper wire terminated by RJ45 male connectors.
The cable assembly is used to provide connectivity between any two Cat-5 female RJ45 jacks.

A variation of the cable, called Category 5e (or Cat-5e), has largely replaced Cat-5 in the field; it uses additional
twists in the cable’s wire pairs to reduce interference in high-speed network applications. Additional
wire pair variations are found in Cat-6 and Cat-6e cables, typically used with gigabit networking devices.

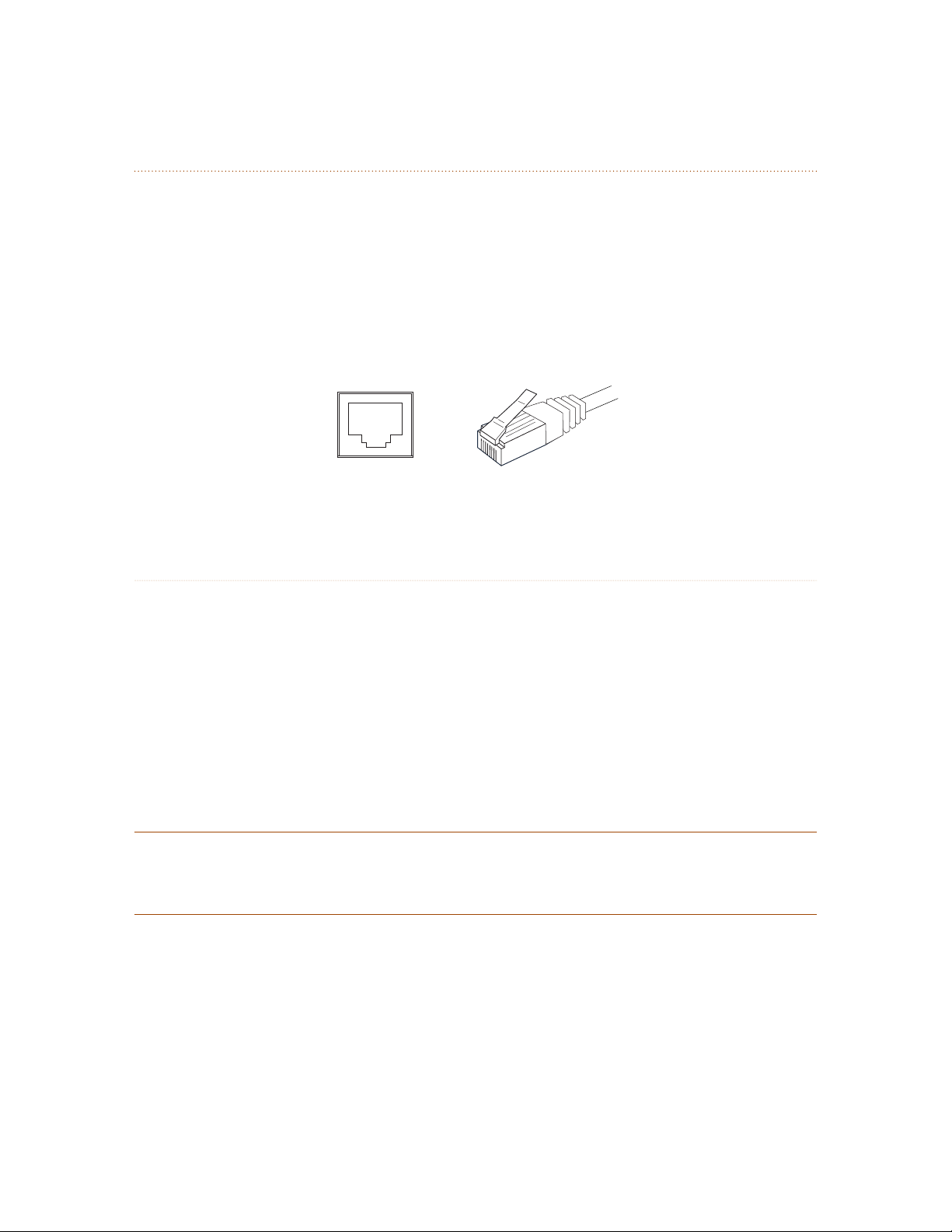

RJ45 Jack

Cat-5e Cable

Cat-5 Cables

Although the D400 (or D400-Dante) A-Net Distributor’s eight front panel A-Net Out ports will operate
properly with unshielded Cat-5e cable, when connecting these outputs to Personal Mixers shielded Cat-5e
(or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B
emissions limits. Unshielded Cat-5 cable may be used on all other connections.

For fixed or permanent installations, you have the option of running Cat-5 cables inside walls and
terminating them with readily available wall panel connectors that include the RJ45 jack. (Solid wire is
recommended for permanent installations.) A Cat-5 cable wiring pinout table is included at the end of this
document. See page 40.

In addition to standard Category 5e cables, Cat-6 and Cat-6e cables may also be used.

Note: When purchasing Category 5 cables, be sure to buy only standard Cat-5 cables, not those sold

P

as crossover cables. A crossover cable is used for file transfer between two computers and is
not compatible with your Aviom equipment.

5D400 anD D4 00- Dante a-net D istribu tors user GuiDe

Cable Lengths

Pro16 A-Net Out Pro16 A-Net In

Total Pro16 A-Net cable length: 500 feet (150 meters)

Passive
Coupler

Passive
Coupler

Pro16e A-Net Out

Pro16 or

Pro16e A-Net In

Total Pro16e A-Net cable length: 400 feet (122 meters)

Passive
Coupler

Passive
Coupler

Pro16 A-Net Out Pro16 A-Net In

Total Pro16 A-Net cable length: 500 feet (150 meters)

Passive
Coupler

Passive
Coupler

Pro16 A-Net Out Pro16 A-Net In

Total Pro16 A-Net cable length: 500 feet (150 meters)

Pro16e A-Net Out

Pro16 or

Pro16e A-Net In

Total Pro16e A-Net cable length: 400 feet (122 meters)

Passive
Coupler

Passive
Coupler

Pro16 A-Net Out Pro16 A-Net In

Total Pro16 A-Net cable length: 500 feet (150 meters)

Passive
Coupler

Passive
Coupler

For Pro16 applications—connecting one Pro16 device to another—the Cat-5 cables used with your
Aviom products may be up to 500 feet (approximately 150 meters) in length between devices. For
example, connecting an AN-16/i-M Mic Input Module to an AN-16/o V.4 Output Module is a Pro16-to-Pro16
connection.

Total Pro16 A-Net cable length: 500 feet (150 meters)

Pro16 A-Net Out Pro16 A-Net In

When using Pro16 e —such as the A-Net Out from an AN-16/i v.2 to any other Pro16 or Pro16e device—
Cat-5 cables may be up to 400 feet (approximately 122 meters) in length between compatible devices due
to the larger amount of data being transmitted to accommodate Pro16e’s higher channel count.

Total Pro16e A-Net cable length: 400 feet (122 meters)

Pro16e A-Net Out

The maximum cable length specification applies to the total cable length between an A-Net Out port on
one device and the A-Net IN port on the next A-Net capable device in your system.

Your cable length performance will be affected by a number of factors including the quality of the cables
used, and the number of passive devices such as cable couplers or passive wall panel interconnections in
use.

Stranded or solid Cat-5 cable may be used; stranded cable is easier to deploy on a stage while solid
core cable provides slightly better maximum distance performance. Solid core wire is typically used in
permanent installations in walls and across ceilings.

When using the optional SB4 System Bridge with Pro16 and Pro16e devices, the cable length specification
applies to the total cable length between the two active A-Net devices being connected with the passive
System Bridge, plus all cables. This is also true when using a passive inline coupler to extend cable lengths.

Pro16e A-Net Out

Total Pro16e A-Net cable length: 400 feet (122 meters)

Passive
Coupler

Passive
Coupler

Pro16 or

Pro16e A-Net In

Pro16 or

Pro16e A-Net In

Pre-made cables in a variety of lengths and colors are available at most computer outlets. Cables may be
extended by using a simple passive device called an inline coupler to add length to existing cables (as long

6D400 anD D4 00- Dante a-net D istribu tors user GuiDe

as you do not exceed the specified maximum cable length). If you need a longer cable on occasion, this is
a simple solution. Note that the maximum cable length performance can be compromised by using inline
couplers or other passive connection devices.

AC Line Conditioning

Aviom products are digital devices and as such are sensitive to sudden spikes and drops in the AC line
voltage. Changes in the line voltage from lightning, power outages, etc., can sometimes damage electronic
equipment.

To minimize the chance of damage to your equipment from sudden changes in the AC line voltage, you
may want to plug your equipment into a power source that has surge and spike protection. Power outlet
strips are available with built-in surge protection circuits that may help protect your equipment.

Other options for protection of your equipment include the use of an AC line conditioner or a battery
backup system (sometimes referred to as an uninterruptible power supply, or UPS).

Cleaning and Maintenance Information

The exterior of your Aviom products should be cleaned with a dry, soft, lint-free cloth. For tougher dirt,
you can use a cloth slightly dampened with water or with a mild detergent.

When cleaning your Aviom products, never spray cleaners directly onto the product surfaces. Instead,
spray a small amount of the cleaning solution onto a clean cloth first. Then use the dampened cloth to
clean the product.

Note: Never use solvents or abrasive cleaners on the finished surfaces of your Aviom products.

P

7D400 anD D4 00- Dante a-net D istribu tors user GuiDe

D400 A-Net Distributor

Aviom’s series of D400 A-Net® Distributors provides support for parallel connections of up to
eight Pro16® devices, including the A360, A320, and legacy A-16II and A-16R Personal Mixers.

Overview

Two versions of the D400 are available. The standard D400 includes a Pro16e® A-Net input, compatible
with all Pro16 Series and Pro16e-capable devices. The D400-Dante A-Net Distributor offers connectivity for
a Dante™ digital audio network, allowing up to 32 channels to be assigned from a Dante audio network to
A360 and A320 Personal Mixers. Each unit has eight A-Net ports that supply both digital audio data and
DC power to connected Personal Mixers.

Primary

Out

Secondary

Sync

Power

D400

e

1 – 16

Stereo / Mono

1234

17 – 32

5678

D400-Dante front panel

In

Out

Sync

Power

D400

e

A-Net Offset Base Slot

11733

Stereo / Mono

1 – 16

49

Defeat Stereo Switches

17 – 32

1234

5678

D400 front panel

An unlimited number of D400, D400-Dante, D800, and D800-Dante A-Net Distributors can be used in an
A-Net network. For more information on system setup, see page 29.

8D400 anD D4 00- Dante a-net D istribu tors user GuiDe

D400 Front Panel

The A-Net version of the D400 A-Net Distributor has the following features.



In

Out



A-Net Offset Base Slot

11733

49



Stereo / Mono

1 – 16

Defeat Stereo Switches

17 – 32

FuNctION



1234

5678





Sync

Power



D400

e

1 Pr o16e A-Net In

2 A-Net Out, unpowered

3 A-Net outputs 1-8, with DC power for Personal Mixers

4 Stereo link DIP switches, slots 1-16 and 17-32

5 A-Net Offset Base Slot and Defeat Stereo Links DIP switches

6 Sync LED

7 Power LED

9D400 anD D4 00- Dante a-net D istribu tors user GuiDe

D400-Dante Front Panel

The Dante version of the D400 A-Net Distributor has the following features.



1234

Stereo / Mono

1 – 16

17 – 32



5678



FuNctION

1 Dante Primary port, with LEDs



Primary

Out

Secondary





Sync

Power



D400

e

2 Dante Secondary port, with LEDs

3 A-Net Out, unpowered

4 A-Net outputs 1-8, with DC power for Personal Mixers

5 Stereo link DIP switches, 1-16 and 17-32

6 Sync LED

7 Power LED

10D400 anD D40 0-Dante a- net Dist ributors user GuiDe

A-Net In, D400

The A-Net IN port is available only on the D400 A-Net Distributor. It can accept the A-Net digital data
coming from the A-Net Out port of any Pro16 or Pro16e device. Pro16 data has a maximum of 16 channels;
Pro16e data has a maximum of 64 total channels.

The A-Net digital data connected to the D400 can come from:

• a single Pro16 analog input module such as the AN-16/i-M Mic Input Module

• a single Pro16e analog input module such as the AN-16/i v.2 Input Module

• a maximum of four AN-16/i v.2 Input Modules cascaded together

• one Pro16 analog input module and up to three AN-16/i v.2 Input Modules

• a single Pro16 A-Net console card

• one Pro16 console card and up to three AN-16/i v.2 Input Modules

• the A-Net Out from another A-Net Distributor

• a single Pro16 output from a Pro64 ASI A-Net System Interface

• a single Pro16 output from a Pro64 ASI A-Net System Interface and up to three AN-16/i v.2

Input Modules

Dante Connections, D400-Dante

The Dante interface on the D400-Dante A-Net Distributor has two gigabit network ports labeled PrImAry
and SecONdAry. The Dante SecONdAry port can be configured to be a pass-through port or a redundant copy
of the PrImAry port. The D400-Dante supports sample rates of 44.1kHz and 48kHz coming from the Dante
network. No sample rate converters are available on the D400-Dante.

Primary

D400

Sync

Power

Out

Secondary

Stereo / Mono

1 – 16

1234

17 – 32

5678

e

The D400-Dante has two Dante jacks, Primary and Secondary.

11D400 anD D400- Dante a-ne t Distributors user Gui De

Dante Primary Port

Use the PrImAry port on the D400-Dante as the default connection to a Dante network. The Dante RJ45
jacks include two LEDS. The yellow LED indicates an active 1GB network connection; the green LED
indicates network activity.

The D400-Dante can have a maximum of 32 Dante sources assigned to it. Routing channels requires
the Dante Controller application, available from Audinate. The D400-Dante will retain its Dante channel
assignments across power cycles.

For additional Dante system setup information see page 23.

Dante Secondary Port

On the D400-Dante, the Secondary port can be configured to be a redundant or daisy chain connection
to the Dante network. This function is set up from within the Dante Controller application on a per-device
basis. The default setting is Switched (daisy chain); the Redundant setting requires a Dante network set up
with multiple managed 1GB switches. Configuring port settings requires the Dante Controller software
available from the Audinate website.

A-Net Ports 1 to 8

The eight A-Net ports (labeled 1-8) on the front panel of the D400 and D400-Dante A-Net Distributors
provide a copy of the digital data connected to the unit’s A-Net or Dante input to the devices connected
to each port. Each A-Net (1-8) port also supplies DC power that can be used to power a Personal Mixer
product over the Cat-5 cable, eliminating the need for a local power supply.

Note: The DC power supply in the D400 and/or D400-Dante can power only one Personal Mixer per

P

Cat-5 cable per A-Net port.

Personal Mixing systems using more than 16 inputs always pass all network slots to all A-Net ports on
the D400 and D400-Dante regardless of the type of Personal Mixer connected to the port. Legacy A-16II
Personal Mixers will use network slots 1-16 only and will ignore slots 17 and above.

When using the standard D400 with up to four input devices (maximum 64 network slots), the A320
Personal Mixer uses the first 32 channels of the network and will ignore network channels 33-64. Each
A360 Personal Mixer in a system can use any active network slot from 1-64; its mix channel buttons can
be mapped as needed using the free A360 Channel Manager software available from the Aviom website
(www.Aviom.com).

When a D400-Dante is used, the A320 Personal Mixer uses the first 32 channels of the network in sequential
order, while the A360 can use any active network slot from 1-32 in any order by creating custom channel
configurations using the A360 Channel Manager software.

12D400 anD D 400 -Dante a-ne t Distributors user G uiDe

In

Out

Sync

Power

D400

e

Stereo Mix Out

Stereo / Mono

1 – 16

A-Net Offset Base Slot

11733

49

Defeat Stereo Switches

Mono Mix Out

A-Net In

Data

PROGRAM

CUSTOM

DEFAULT

Pro16

17 – 32

24VDC

Regulated

500 mA

1234

5678

Each A-Net port can power one Personal Mixer.

Pro16 devices such as the legacy A-16II and A-16R Personal Mixers can make use of only network slots 1-16
and will ignore network slots 17-64. The A-Net Offset Base Slot DIP switches on the D400 can be used to
select a different set of 16 network slots to be routed to the A-Net Out ports. Note that these switches
affect all eight A-Net ports simultaneously. See page 16 for more information about using the A-Net
Offset Base Slot function.

A-Net Out

The A-Net Out port on the D400 and D400-Dante provides an exact copy of the distributor’s digital input.
It can be used to expand a system by connecting it to the A-Net IN port on another A-Net Distributor. Note
that this is an unpowered output that carries the same data as the eight DC-powered A-Net (1-8) outputs.
It can also be used to add a ninth Personal Mixer to a system, as long as the Personal Mixer is capable of
using an external DC power supply.

The A-Net Out port on the standard D400 always provides an exact copy of the network slots connected
to its A-Net IN port and is not affected by the DIP switch settings for the A-Net Offset Base Slot and/or
Defeat Stereo Switches features.

The following example shows an expanded system with a D400-Dante connected to a D800 and A-16D
Pro A-Net Distributor.

13D400 an D D400-Dant e a-net Distributo rs user GuiDe

Stereo / Mono

1 – 16

17 – 32

1 2 3 4 5 6 7 8

A-Net and DC Power Output

1234

5678

Thru

In

A-Net

Primary

Out

Secondary

Power

A-Net

Sync

Power

P

RO

D400

An expanded network using a D400, D800, and A-16D Pro allows up to 24 Personal Mixers to be connec ted.

e

An unlimited number of A-Net Distributors may be used to create a personal mixing system. Simply
connect A-Net Out to A-Net In.

Stereo Link DIP Switches

Stereo pairs are a powerful feature that allow two channels to be accessed from a single mix channel
button on the A360 and A320 Personal Mixers. The two blocks of 8 DIP switches on the front panel of the
D400 and D400-Dante can be used to link pairs of adjacent network channels/slots.

On the D400-Dante, the stereo links must be set up at the A-Net Distributor; stereo links are created
after the incoming Dante data is converted to A-Net. Push a DIP switch to the up position to link a pair of
channels. Stereo links always use an odd/even pair (1-2, 15-16, 31-32, etc.) of network slots. Changes may be
made at any time; all Personal Mixers update immediately to reflect the changes.

Typically, most users will set up stereo links at the system’s input device(s). On the standard version of the
D400 the user has the option of creating stereo pairs at either the input device or on the D400 front panel.
A bypass DIP switch—deFe At StereO SwItcheS—is included that will bypass all stereo link settings on the
D400’s front panel. Its default position is down (front panel switches bypassed) assuming that the personal
mixing system’s input devices are providing the stereo links.

14D400 a nD D400-Dant e a-net Distribu tors user GuiDe

DIP Switch Block 1

DIP Switch Block 2

DIP Switch Down Up

1 Mono Stereo Link Slots 1-2

2 Mono Stereo Link Slots 3-4

3 Mono Stereo Link Slots 5-6

4 Mono Stereo Link Slots 7-8

5 Mono Stereo Link Slots 9-10

6 Mono Stereo Link Slots 11-12

7 Mono Stereo Link Slots 13-14

8 Mono Stereo Link Slots 15-16

DIP Switch Down Up

1 Mono Stereo Link Slots 17-18

2 Mono Stereo Link Slots 19-20

3 Mono Stereo Link Slots 21-22

4 Mono Stereo Link Slots 23-24

5 Mono Stereo Link Slots 25-26

6 Mono Stereo Link Slots 27-28

7 Mono Stereo Link Slots 29-30

8 Mono Stereo Link Slots 31-32

Any combination of the Stereo Link DIP switches may be used; all Personal Mixers will update automatically
to reflect the changes.

15D400 an D D400-Dant e a-net Distributo rs user GuiDe

Out

1234

5678

Stereo / Mono

In

A-Net Offset Base Slot

1

17

33
49

1 – 16

Defeat Stereo Switches

17 – 32

This example shows stereo links set up on the D400 for network slots 5-6, 9-10, 11-12, and 15-16 in block #1.
Network slots 17-18, 19-20, and 29-30 are stereo in block #2 (switch handles are shown in red).

Any combination of the Stereo Link DIP switches may be used; in the up position, stereo links are
transmitted over A-Net to all Personal Mixers in the network. Be sure to set the deFe At StereO SwItcheS DIP
Switch to the up position to make use of the local Stereo Link settings made with the hardware switches
on the front panel of the D400.

A-Net Offset Base Slot

On the D400, the A-Net OFFSet BASe SlOt feature allows you to choose the starting channel to be output
from the A-Net Out ports to all connected Personal Mixers. It can be used with the A360 and A320, as
well as legacy A-16II Personal Mixers. This feature is useful in high channel count systems (with up to 64
inputs) and/or multiple A-Net Distributors where you want to have different network slots assigned to
different players in a performing ensemble. Incoming A-Net slots are rearranged before being sent to the
connected Personal Mixers; the Stereo Link switches are implemented after the base slot selection.

The A-Net Offset Base Slot feature only applies to the eight powered A-Net (1-8) outputs on the D400;
the unpowered A-Net Out is not affected and always passes an exact copy of all incoming A-Net data.
Four settings are possible:

DIP Switch Setting Channel Offset

Down-Down Default; Channel 1 = Mixer Button 1

Down-Up Channel 17 = Mixer Button 1

Up-Down Channel 33 = Mixer Button 1

Up-Up Channel 49 = Mixer Button 1

16D400 anD D400 -Dante a- net Dist ributors user GuiDe

Channel Mapping

The following table shows how the various A-Net Offset Base Slot DIP switch settings map channels to the
Personal Mixers. In this simple example all channels are mono.

Mixer

Button

1 1 17 33 49

2 2 18 34 50

3 3 19 35 51

4 4 20 36 52

5 5 21 37 53

6 6 22 38 54

7 7 23 39 55

8 8 24 40 56

9 9 25 41 57

10 10 26 42 58

11 11 27 43 59

12 12 28 44 60

13 13 29 45 61

14 14 30 46 62

15 15 31 47 63

16 16 32 48 64

Network Slot - Mono

Up to four unique zones of 16-channel monitor mixes can be created using this feature.

17D400 anD D 400 -Dante a-ne t Distributors user GuiDe

This example shows a system using three D400s where each unit provides a different set of 16 A-Net slots
to the Personal Mixers, creating a three-zone personal mixing system from an incoming 48-channel A-Net
stream.

In

Out

Sync

Power

D400

A-Net Offset Base Slot

11733

Stereo / Mono

1 – 16

49

Defeat Stereo Switches

17 – 32

1234

5678

e

In

Out

Sync

Power

D400

A-Net Offset Base Slot

11733

Stereo / Mono

1 – 16

49

Defeat Stereo Switches

17 – 32

1234

5678

e

In

Out

Sync

Power

D400

A-Net Offset Base Slot

11733

Stereo / Mono

1 – 16

49

Defeat Stereo Switches

17 – 32

1234

5678

e

Each D400 uses a dierent 16-channel bank of the incoming A-Net data.

The first D400 outputs network slots 1-16 to the Personal Mixers, the second D400 outputs slots 17-32, and
the third D400 is set to output slots 33-48.

18D400 anD D400 -Dante a- net Dist ributors user GuiDe

Stereo Channels

This table shows how stereo channels are handled when the A-Net Offset Base Slot feature is used in a
system with 32 or more input sources. Any combination of stereo and mono channels may be used when
designing a personal mixing system, so it’s important to understand how the stereo links affect the audio
routing.

The example shows every mix channel button with a stereo channel assignment.

Mixer

Button

Network Slot - Stereo

1 1-2 17-18 33-34 49-50

2 3-4 19 -20 35-36 51-52

3 5-6 21-22 37-38 53-54

4 7-8 23-24 39-40 55-56

5 9-10 25-26 41- 42 57-58

6 11-12 27-28 43-44 59- 60

7 13-14 29-30 45-46 61-62

8 15-16 31-32 47-48 63- 64

9 17-18 33-34 49-50 1-2

10 19-20 35-36 51-52 3-4

11 21-22 37-38 53-54 5-6

12 23-24 39- 40 55-56 7-8

13 25-26 41- 42 57-58 9-10

14 27-28 43-44 59-60 11 -12

15 29-30 45-46 61-62 13-14

16 31-32 47-48 63-64 15 -16

In the example above, when both A-Net Offset Base Slot switches are down, changing the assignment for
mix channel button #6 from stereo to mono would route only slot 11 to the mix channel; slot 12 would be
unused.

19D400 a nD D400-Dant e a-net Distribu tors user GuiDe

Sync LED

The front panel SyNc LED lights green on the A-Net version of the D400 A-Net Distributor when a valid
A-Net stream is connected to the unit’s A-Net IN port.

On the D400-Dante version of the product, the front panel SyNc LED will light green when the unit is
connected to a Dante network and is receiving a valid clock signal over the network.

Power LED

The red POwer LED indicates that the D400 or D400-Dante is powered on.

Primary

D400

Sync

Power

Out

Secondary

e

Sync (green) and Power (red) LEDs on the D400 and D400-Dante front panel

20D4 00 anD D4 00-Dante a-net D istributo rs user GuiDe

D400 Rear Panel

The rear panel features are found on both the standard and Dante versions of the D400.

CAUTION:

ATTENTION:

Replace fuse with

Lors du remplacement du

correct type and

fusible, veuillez sélectionner

rating for your

le type et le calibre adapté

selected voltage.

à votre tension.

A-Net Distributor

INPUT VOLTAGE SELECTION

115V 230V

CAUTION!

Ensure the power supply
voltage selector switch is
correctly set for your region
before use or damage to
the unit will occur.

ATTENTION!

Avant l’utilisation, assurez-vous que le
sélecteur de tension d'alimentation est
correctement placé afin d’être compatible
à votre région, sinon votre unité sera
endommagée.

115V: T2.5AL/250V fuse
230V: T1.25AL/250V fuse



WARNING!

To reduce the risk of fire or
electric shock do not expose

this product to rain or moisture.

D400

AVERTISSEMENT!

Afin de réduire le risque d’incendie

ou de choc électrique, n’exposez

ce produit à la pluie ou l’humidité.

FuNctION

1 Power On/Off switch

2 Fuse holder

3 AC Power connection, IEC

4 Input Voltage Selection switch

Power Supply

The rear panel of the D400/D400-Dante A-Net Distributor contains a standard IEC power input for the unit.
The power supply in the D400 can be set for 115V or 230V operation at rates from 50 to 60 Hz by using the
red INPut VOltAge SelectION switch in the center of the rear panel. (See the illustration below.)

21D40 0 anD D400-Dante a- net Dist ributors user GuiDe

ATTENTION:

Lors du remplacement du
fusible, veuillez sélectionner
le type et le calibre adapté
à votre tension.

CAUTION:

Replace fuse with
correct type and
rating for your
selected voltage.

INPUT VOLTAGE SELECTION

115V 230V

CAUTION!

Ensure the power supply
voltage selector switch is
correctly set for your region
before use or damage to
the unit will occur.

ATTENTION!

Avant l’utilisation, assurez-vous que le
sélecteur de tension d'alimentation est
correctement placé afin d’être compatible
à votre région, sinon votre unité sera
endommagée.

115V: T2.5AL/250V fuse
230V: T1.25AL/250V fuse

Set the D400 for the proper voltage prior to use.

CautioN: The D400 must be set for the proper input voltage for your region before use or damage to

the unit will occur.

Replaceable IEC cables for AC power systems throughout the world are available from many electronics
dealers. Avoid using cable adapters whenever possible. Replacement cables must provide an earth ground
connection.

Fuse

The D400’s power supply fuse is contained in the IEC power connector assembly. To change a fuse, first
unplug the unit from the AC wall receptacle. Remove the fuse access panel to reveal the fuse. Always
replace the fuse with one of the same rating for the input voltage being used. For 115V operation use a
fuse rated t2.5Al/250V; for 230V operation use a fuse rated t1.25Al/250V.

CAUTION:

Replace fuse with
correct type and
rating for your
selected voltage.

INPUT VOLTAGE SELECTION

115V 230V

CAUTION!

Ensure the power supply
voltage selector switch is
correctly set for your region
before use or damage to
the unit will occur.

ATTENTION!

Avant l’utilisation, assurez-vous que le
sélecteur de tension d'alimentation est
correctement placé afin d’être compatible
à votre région, sinon votre unité sera
endommagée.

ATTENTION:

Lors du remplacement du
fusible, veuillez sélectionner
le type et le calibre adapté
à votre tension.

115V: T2.5AL/250V fuse
230V: T1.25AL/250V fuse

Always replace the fuse with one rated for the input voltage in use.

22D400 anD D4 00- Dante a-net D istribu tors user GuiDe

Dante Setup

The D400-Dante requires some additional signal routing configuration using Audinate’s
Dante Controller software.

Routing Channels

Any active audio resource in a Dante network may be routed to the D400-Dante A-Net Distributor. Routing
channels requires the Dante Controller software, available from the Audinate website (www.audinate.
com). It can be run on either Mac or PC computers. Complete documentation for the software is available
from Audinate.

The Dante Controller routing grid is used to assign channels to any device in the network.

23D400 anD D4 00- Dante a-net D istribu tors user GuiDe

The main window of the Dante Controller software is essentially an X/Y grid that allows a channel from
one Dante device to be routed to another. Devices that transmit are shown horizontally across the top of
the grid; receiving devices are in the vertical column along the side. Open or close any device’s Transmit or
Receive panel by clicking the plus or minus sign (+/-) next to its name.

Use the mouse to activate or deactivate a channel by clicking in a cell. A green check mark symbol
indicates a valid connection. Once channels are configured for your application, the Dante Controller
software application can be closed, and the computer can be removed from the network if desired.
Channel transmit/receive settings are stored within each Dante device until they are changed using the
Dante Controller software. The Dante Controller software allows you to save a network-wide configuration
preset which allows routings to be backed up, changed and recalled as needed.

Note: Each Dante device in a network is unique, and the channel routings created using Dante

P

Controller are saved within the Dante devices themselves. These routings will need to be
recreated if any Dante device is replaced with an identical device because the original unit
was removed for maintenance or repair.

Devices with built-in Dante channel routing capabilities, such as Yamaha CL and QL Series digital consoles,
can assign channels to Dante devices from within the console’s user interface and may not require the
Dante Controller application.

Clock Status

The Network View of Dante Controller contains a Clock Status tab that displays network clock source and
sync settings.

A Dante network always has one device designated as the Master Clock source.

You have the option of assigning one device in your Dante network to be the Preferred Master; this device
will be the source of the network clock as long as the device is powered on and connected to the other
devices in the network. Click the PreFerre d mASter check box to assign this function to a device.

24D40 0 anD D40 0-Dant e a-net Distribu tors user GuiDe

Device View

Opening the Device View for any Dante device in the network will display a tabbed view of additional
settings for the device. There is an overview of the device’s firmware, its transmit and receive settings, as
well as settings for the sample rate and redundancy.

The Receive tab shows Dante channels assigned to the D400.

25D400 anD D4 00- Dante a-net D istribu tors user GuiDe

Status Tab

Choose the Status tab of the Device View to display the current firmware and other manufacturer-related
information.

The Status view for the D400-Dante displays its current rmware as well as network connection status.

There are no user-configurable settings in the Status tab for the D400-Dante.

26D4 00 anD D400-Dan te a-net Distrib utors user GuiDe

Device Config Tab

The settings for Sample Rate and Device Latency are found within the Device Config tab. Note that each
device in a Dante network has a separate setting for Sample Rate. While it is possible to have devices with
different sample rates in the same network, you cannot patch Dante channels between devices with
mismatched sample rates.

Choose a sample rate from the drop-down menu for each network device.

To change the sample rate for the D400-Dante, select a new rate from the drop-down menu. Use the radio
buttons in the Device Latency section to choose a latency value that best matches the network you have
set up. The D400-Dante is compatible with sample rates of 44.1 and 48kHz. The D400-Dante does not
contain sample rate converters.

27D400 anD D40 0-Dant e a-net Distribu tors user GuiDe

Network Config Tab

The settings for the D400-Dante’s Primary and Secondary ports are found within the Network Config tab
of the Device View. Two settings are available in the drop-down menu. When set to SwItched, both ports
are identical; Dante devices can be daisy chained. When set to reduNdANt, the Secondary port will serve
as a redundant copy of the data appearing at the Primary port. Note that using the Redundant setting
requires that the network be configured using a pair of gigabit switches.

Choose either Switched or Redundant from the drop-down menu.

Refer to the Audinate Dante Controller user guide for additional information about using this software as
well as setting up a redundant Dante network.

28D4 00 anD D4 00-Dante a-net D istributo rs user GuiDe

Personal Mixing Systems

A personal mixing system can be configured with a variety of input sources including analog,
digital console cards, Dante network devices and Dante-enabled digital mixing consoles. Up
to eight Personal Mixers (A360, A320, A-16II or A-16R) can be connected per D400 or D400­Dante. This section shows some typical personal mixing system configurations.

Connecting Personal Mixers

To connect a Personal Mixer to the D400 or D400-Dante:

• Connect a Cat-5e cable from one of the eight powered A-Net ports on the A-Net

Distributor to the A-Net IN port on the Personal Mixer.

• DC power is supplied automatically to the Personal Mixer—no external DC power supply

is required.

• Any combination of A360, A320, A-16II and A-16R Personal Mixers may be used.

In

Out

Sync

Power

D400

e

Stereo Mix Out

Stereo / Mono

1 – 16

A-Net Offset Base Slot

11733

49

Defeat Stereo Switches

Mono Mix Out

A-Net In

Data

PROGRAM

CUSTOM

DEFAULT

Pro16

17 – 32

24VDC

Regulated

500 mA

1234

5678

Connect an A-net (1-8) port on the D400 or D400-Dante to the A-net In on an A360, A320, A-16II, or A-16R Personal Mixer.

29D4 00 anD D4 00-Dante a-net D istributo rs user GuiDe

Note: For connections from the D400 and D400-Dante to Personal Mixers, shielded Cat-5e (or

P

better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part
15 Class B emissions limits.

Unshielded Cat-5e (or better) cable may be used on all other connections.

The A-Net outputs on the D400 and D400-Dante can be connected to any A-Net compatible device,
including other A-Net distributors, allowing flexible routing and system configurations as well as virtually
unlimited system expansion.

16-Channel Personal Mixing Systems

Analog Input

This system uses one D400 and a single analog input device or digital console card; 16 total network slots
are available to the Personal Mixers. To configure, connect the A-Net Out on the input device to A-Net IN
on the D400.

In

Out

Sync

Power

D400

e

A-Net Offset Base Slot

11733

Stereo / Mono

1 – 16

49

Defeat Stereo Switches

17 – 32

1234

5678

A-net out on the analog input device is connected to A-net In on the D400.

The A-Net OFFSet BASe SlOt DIP switches on the D400 should be set to the default 1-16 setting (down,
down). Assign stereo links as needed. When using a single AN-16/i v.2 Input Module, be sure to set its rear
panel SlOt rANge switch to 1-16.

The Slot Range must be set to 1-16 for 16-channel systems.

30D400 anD D4 00- Dante a-net D istribu tors user GuiDe

Digital Console Card

Out

Sync

Power

1234

5678

In

D400

e

This system uses a single console card and one D400 A-Net Distributor. A compatible Pro16 digital console
card from any of Aviom’s technology partners may be substituted for the Y1 Yamaha card shown in the
diagram. Connect A-Net Out on the console card to A-Net IN on the D400 with a standard Cat-5 cable.

In

Out

Sync

Power

D400

e

A-Net Offset Base Slot

11733

Stereo / Mono

1 – 16

49

Defeat Stereo Switches

17 – 32

1234

5678

A-net out from the console card is connected to A-net In on the D400.

The A-Net OFFSet BASe SlOt DIP switches on the D400 should be set to the default slots 1-16 setting. Assign
stereo links as needed. Stereo links may be created on the console card or on the D400.

About A-Net Offset Base Slot

The A-Net Offset Base Slot DIP switches on the D400 are used to select which bank of 16 channels should
be mapped onto the Personal Mixer’s channel buttons. For 16-channel systems, these DIP switches should
be set to Slot range 1, both switches down. Setting the DIP switches to any other range will route non­existent network channels to the Personal Mixers.

Stereo / Mono

A-Net Offset Base Slot

1

33

17

49

1 – 16

Defeat Stereo Switches

17 – 32

Set the Base Slot to “1” for 16-channel systems.

Stereo Links

The D400 and D400-Dante have a set of front-panel Stereo Link DIP switches that are capable of linking
adjacent odd/even channel pairs in the A-Net stream. You have the option of using the stereo link switches
on the network’s input device (analog input module or digital console card) or on the D400. If the stereo
links are set at the network’s input device, set the deFeAt StereO SwItcheS DIP switch in the down position;
links from the D400’s front panel are ignored.

31D400 anD D400 -Dante a-net Distr ibutors user GuiDe

32 Channels - Analog & Digital Inputs

This hybrid system uses one digital console card plus one analog AN-16/i v.2 Input Module to provide up
to 32 inputs to the network when connected to the A-Net version of the D400. The console card provides
slots 1-16 of the network; the AN-16/i v.2 Input Module provides slots 17-32.

To configure this system:

• Connect A-Net Out on the console card to A-Net IN on the AN-16/i v.2 with a Cat-5 cable.

• Set the SlOt rANge switch on the AN-16/i v.2 to 17-32.

• Connect a Cat-5 cable from A-Net Out on the AN-16/i v.2 to A-Net IN on the D400.

• Set Stereo Links as needed on the console cards and/or AN-16/i v.2.

• Connect Personal Mixers to the D400’s front panel A-Net ports.

• If desired, create custom channel maps for A360 Personal Mixers with the free A360

Channel Manager software.

In

Out

Sync

Power

D400

A-Net Offset Base Slot

11733

Stereo / Mono

1 – 16

49

Defeat Stereo Switches

17 – 32

1234

5678

The A-Net Out from the console card connects to the analog input module’s A-Net IN port. The Pro16e A-Net
Out on the AN-16/i v.2 connects to A-Net IN on the D400.

Note: If A-16II Personal Mixers will be used with A320 and A360 Personal Mixers in this type of

P

network, it is important to note that the A-16II will ignore network slots 17 and above. Make
sure you assign audio sources that are critical for users of the A-16II to slots 1-16 of the
network.

e

32D400 anD D40 0-Dant e a-net Distribu tors user GuiDe

32-64 Channels - Analog Inputs

Up to four analog input devices may be connected to a D400 by cascading the A-Net ports on the input
devices. The first input device in the system (Input Module 1 in the diagrams) can be substituted with
an original AN-16/i Input Module, AN-16/i-M Mic Input Module, or a digital console card. By default these
devices supply network slots 1-16.

To configure this system:

• Set the SlOt rANge switch on AN-16/i v.2 Input Module #1 to 1-16 (not required if using a

legacy analog input device or a console card).

• Connect A-Net Out on device #1 to the A-Net IN on AN-16/i v.2 Input Module #2 with a

Cat-5 cable.

• Set the SlOt rANge switch on AN-16/i v.2 Input Module #2 to 17-32.

• Connect A-Net Out on device #2 to A-Net IN on AN-16/i v.2 Input Module #3.

• Set the SlOt rANge switch on AN-16/i v.2 Input Module #3 to 33-48.

• Connect A-Net Out on device #3 to A-Net IN on AN-16/i v.2 Input Module #4.

• Set the SlOt rANge switch on AN-16/i v.2 Input Module #4 to 49-64.

• Connect A-Net Out on device #4 to the A-Net IN on a the D400.

1

2

3

4

1234

5678

A-Net Offset Base Slot

11733

Stereo / Mono

1 – 16

49

Defeat Stereo Switches

17 – 32

Four analog input modules create a 64-channel network.

A360 Personal Mixers can be configured to use any of the active network slots by using A360 Channel
Manager software; the A320 can use only slots 1-32 and will ignore slots 33-64.

In

Out

Sync

Power

D400

e

33D400 anD D40 0-Dan te a-net Distribu tors user GuiDe

Dante Systems

A Dante-enabled mixing console or audio network can be connected to the D400-Dante to provide up to
32 channels from the Dante network to Personal Mixers.

To configure this system:

• Connect a Cat-5 cable from the Dante network to the Dante PrImAry port on the D400-

Dante’s front panel.

• In the Dante Controller software, set the D400-Dante to operate at the same sample rate

as the other devices in the Dante network (44.1 or 48kHz).

• Confirm that the D400-Dante is set for the proper Dante topology—SwItched or

reduNdANt —as defined by your Dante network’s setup.

• Route up to 32 Dante network channels from transmitting devices to the D400-Dante

using the Dante Controller software.

• Set stereo links as needed using the DIP switches on the front panel of the D400-Dante.

• Connect Personal Mixers to the front-panel A-Net ports of the D400-Dante.

Primary

Out

Secondary

Sync

Power

D400

e

1 – 16

Stereo / Mono

1234

17 – 32

5678

Connect a Cat-5 cable from a Dante device to the Dante PrImAry port on the D400-Dante.

Additional Dante devices can be added as needed by connecting them via the SecONdAry port on the
D400-Dante.

34D 400 anD D400- Dante a-ne t Distributors user Gu iDe

Expanding a Personal Mixing System

Any number of Pro16 A-Net devices can be used in a personal mixing system, including multiple A-Net
Distributors. To expand a system, additional A-Net Distributors can be connected to any available A-Net
Out port on a Pro16 device. In a Dante system, only one Dante-enabled A-Net Distributor is required;
systems can then be expanded by adding non-Dante versions of the A-Net Distributor.

Using Multiple A-Net Distributors

A-Net Distributors can be cascaded. To add another D400 to a system, simply connect a standard Cat-5
cable from the A-Net Out of the first D400 to the A-Net IN on the second D400. See the following diagram
(the first D400 in the diagram can be a D400-Dante if the input sources are coming from a Dante network).

In

Out

In

Out

Sync

Power

Sync

Power

D400

e

D400

e

A-Net Offset Base Slot

11733

A-Net Offset Base Slot

11733

Stereo / Mono

1 – 16

1 – 16

Stereo / Mono

17 – 32

17 – 32

49

Defeat Stereo Switches

49

Defeat Stereo Switches

1234

5678

1234

5678

Connect A-net out on the rst D400 to A-net In on a second D400 to expand a system.

Two D400s connected in a daisy chain provide sixteen powered A-Net outputs. Any number of D400 A-Net
Distributors can be connected to provide additional expansion by connecting the A-Net Out jack of one
D400 to the next distributor’s A-Net IN jack. Cat-5 cables can be up to 400 feet (120 meters) long between
devices.

35D400 anD D40 0-Dan te a-net Distribu tors user GuiDe

Using the D400 With the D800 and A-16D Pro

A D800 (or D800-Dante) may be used along with an A-16D Pro A-Net Distributor in the same system.
Connecting a D400 and/or an A-16D Pro after a D800 allows up to 64 network slots to be transmitted to
every port on each A-Net Distributor; use this as the default patching method if you are using A320 and
A360 Personal Mixers. Up to 64 inputs may be made active in the network by using analog input devices,
console cards connected to an SB4 System Bridge and D800, or a Dante network.

To connect a D800 A-Net Distributor to a D400 and an A-16D Pro A-Net Distributor, patch a Cat-5 cable
from the A-Net Out port on the D800 or D800-Dante’s rear panel to the A-Net IN on the front panel of the
D400. Patch another cable from A-Net Out on the D400 to A-Net IN on the A-16D Pro A-Net Distributor.

Stereo / Mono

1 – 16

A-Net Offset Base Slot

11733

49

Defeat Stereo Switches

1 2 3 4 5 6 7 8

A-Net and DC Power Output

17 – 32

1234

5678

Thru

A-Net

In

Out

In

Power
A-Net

Sync

Power

P

D400

e

RO

Connect A-net out to A-net In to expand a network.

All network slots (up to 64) are available at each of the A-Net Distributor’s outputs. Connect Personal
Mixers as needed. The legacy A-16II and A-16R Personal Mixers will use network slots 1-16 only and will
ignore slots 17-64. A320 Personal Mixers will use slots 1-32 of the network, ignoring slots 33-64. The A-Net
Offset Base Slot DIP switches can be used to select specific content ranges to be used by A320 and/or
A-16II Personal Mixers.

A360 Personal Mixers can make use of any active slot. Any A360 Personal Mixers connected to a D400
or A-16D Pro cannot use the Network Mix Back or iOS features; these are unique to the D800 A-Net
Distributors.

Expand the system further with another A-16D Pro by connecting A-Ne t thru on the first A-16D Pro to
A-Net IN on the second.

Note: The half-rackspace A-16D A-Net Distributor may be substituted for the A-16D Pro.

P

36D400 anD D4 00- Dante a-net D istributo rs user GuiDe

D400 and D400-Dante A-Net Distributor Specifications

Common Specifications

A-Net Out to Personal
Mixers

A-Net Out

LEDs

Stereo Link

A-Net Cables

Output Voltage for
Personal Mixers

Power Supply

Input Voltage

Eight RJ45 connectors, powered

Pro16e A-Net;
RJ45 connector, unpowered

Power On (red); Network Sync (green)

Two 8-position DIP switch blocks (1-16, 17-32)

Personal Mixer Connections: Shielded Cat-5e (or better) cable
must be used to stay below the CISPR 22 Class B, ICES-003, and
FCC 47 CFR Part 15 Class B emissions limits.

Unshielded Cat-5e cable may be used on all other connections.

24VDC, 0.5 amp
Transmitted over the Cat-5e cable

Internal, IEC connector

100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz
@220 W max

AC Fuse Types

Dimensions

Weight

115V range: T2.5AL/250V
230V range: T1.25AL/250V

19” (482.6 mm) wide x 7.386” (187.6 mm) deep; 2U,

3.5” (88.9 mm) high

12.0 lbs (5.44 kg)

37D40 0 anD D40 0-Dant e a-net Distribu tors user GuiDe

D400 A-Net Distributor Specifications

A-Net Input

A-Net Offset Base Slot

Defeat Stereo Switches

Pro16 or Pro16e A-Net;
RJ45 connector

2-position DIP switches select the starting channel that Personal
Mixers will receive from the network (1, 17, 33, or 49)

Chooses between local (front panel) stereo links (up) or network
stereo links (down)

D400-Dante A-Net Distributor Specifications

Dante Interface

Dante Primary I/O

Dante Secondary I/O

Dante LEDs

32 channels (44.1/48kHz Sample Rate)

RJ45 connector

RJ45 connector

Network Activity (green);
1GB Network Connection Active (yellow)

38D400 anD D4 00- Dante a-net D istributo rs user GuiDe

Dimensions

7.386

17.036

3.469

19.000

7.386

2.638

.520

39D4 00 anD D400-Dan te a-net Distribu tors user GuiDe

Cat-5 Cable Pinout

The tables below detail the two wiring pinout variations for Cat-5 cables. When making custom cables,
either pinout can be used, but both ends of a cable must use the same wiring pattern.

T568A

RJ45 Pin Wire Color

1 White/Green

2 Green

3 White/Orange

4 Blue

5 White/Blue

6 Orange

7 White/Brown

8 Brown

T568B

RJ45 Pin Wire Color

1 White/Orange

2 Orange

3 White/Green

4 Blue

5 White/Blue

6 Green

7 White/Brown

8 Brown

40D 400 anD D 400 -Dante a-ne t Distributors user GuiDe

Index

Symbols

16-Channel Personal Mixing System 30
32-Channel Personal Mixing System 32
64-Channel Personal Mixing System 33
115V operation 22
230V operation 22

A

A-16D A-Net Distributor 2, 36
A-16D Pro A-Net Distributor 2, 4, 13, 36
A-16II Personal Mixer 4, 12, 13, 29, 36,
A-16R Personal Mixer 2, 4, 36
A320 Personal Mixer 2, 8, 12, 29, 32, 33, 34, 36
A360 Channel Manager 12, 29, 32, 33
A360 Personal Mixer 2, 3, 8, 12 , 32, 33, 36,
AC Line Conditioning 7
AN-16/i Input Module 4, 33
AN-16/i-M Mic Input Module 4, 6, 11, 33
AN-16/i v.2 Input Module 4, 6, 11, 30, 32
AN-16/o v.4 Output Module 4, 6
Analog Input 30, 33
A-Net 3
A-Net Distributor 2, 4, 29
A-Net In 4, 9, 11, 20, 30, 31, 32
A-Net In port 6, 11, 36,
A-Net Input 38
A-Net Oset Base Slot 9, 13, 16, 19, 30, 31, 38
A-Net Out 9, 10, 11, 30, 31, 32, 37
A-Net Out port 6, 11, 13, 36
A-Net Ports 12
A-Net Thru 36
Apple iv
ASI A-Net Systems Interface 4, 11
Audinate 12, 23, 28
Aviom16/o-Y1 A-Net Card 4
AV-M8 Mic Input Module 4

B

Base Slot 9, 13, 16, 30, 31, 38
bypass stereo links 14

C

Cable Length 6, 35

Pr o16 e 6
Cables 5
Cat-5 5

shielded 37
Cat-5 Cable Pinout 5, 40
Cat-5e 29, 30

5

shielded 5

UTP 5
Cat-5e cable

solid v. stranded 6
Cat-6 2, 5
Cat-6e 5
Certications iv
change the sample rate 27
Channel assignment 19
Channel Map 31

A360 12, 32
Channel Oset 16
channel pair 31
Channel routing 23
Cleaning and Maintenance 7
clock 20
Clock Status 24
Compatibility 4, 6, 30
conguration preset 24
Connecting Personal Mixers 29
console card 4, 11, 31, 32, 33, 36,
crossover cables 5

D

D400-Dante Front Panel 10
D400 Front Panel 9
D800 A-Net Distributor 2, 3, 13, 36
D800-Dante A-Net Distributor 4
daisy chain 12
daisy chain Dante 28
Dante 8
Dante Controller 3, 12, 23, 24, 28, 34
Dante LEDs 38
Dante Primary 10, 11, 34, 38

41D400 an D D400-Dant e a-net Distribu tors user GuiDe

Dante routing 24
Dante Secondary 10, 12, 34, 38
Dante Setup 23
DC power 8, 9, 10, 12, 29
Default 16
default setting 30
Defeat Stereo Links 9, 13
Defeat Stereo Switches 14, 16, 38
Device Cong Tab 27
Device Latency 27
Device View 25, 28
digital console 24
digital console card 11
Dimensions 37, 39
DIP switch 9, 10, 13, 14, 16, 30, 31
DIP Switch Block 1 15
DIP Switch Setting 16
Direct Output 11

E

earth ground 22
emissions limits 30
Ethernet 3
Expanding a System 13, 35

L

Latency 27
LED 9, 10, 37
LED Indicators 20
legacy products 2
Local Area Network 3

M

map channels 17
maximum cable length 7
Mixing System 29
Mono 15

N

Network Cong Tab 28
Network Mix Back 36
Network Slot 12 , 19, 30
Network View 24

O

F

rmware 25, 26
Front Panel 9, 10
front panel Sync LED 20
Fuse 22, 37
Fuse holder 21

G

gigabit network 11
gigabit switch 12, 28
green LED 12

I
